Aviom A16D A-NET Distribution Hub Data Sheet

DATA SHEET
&
A-Net Distributors
PRODUCT HIGHLIGHTS
One A-Net input, eight A-Net • outputs
Distributes power and audio on • the same cables
A-16D Pro
One passive A-Net Thru•
Heavy-duty EtherCon connectors•
Eight isolated internal power • supplies
Standard IEC power connector•
A-16D
8 optional DC power inputs for • Personal Mixers
Half• -rack footprint, mounts on rack shelf
Aviom’s A-Net® Distributors, the A-1 6D and A-16D Pro, provide support for parallel connections of multiple Pro16™ devices. Each accepts one A-Net input and provides eight identical A-Net outputs using standard Cat-5e cables.
The 2U A-16 D Pro is powered by an internal switching power supply, with a detachable power cord and IEC power inlet on the rear panel.
Isolated (oating ground) DC power
is supplied to eight A-Net outputs for providing remote power via Cat-5e to Pro16 Personal Mixers. A single unpowered A-Net Thru is provided for daisy-chaining additional A-Net Distributors or other Pro16 devices, such as the AN-16/o Output Module. All network connections on the A-16D Pro use heavy duty locking Neutrik® EtherCon® connectors.
A-16D Pro A-Net Distributor sPecificAtioNs
A-Net Input One Eth erCon RJ45 connec tor
A-Net Thru One Eth erCon RJ45 connec tor, unpowered
A-Net Outputs 8 Ether Con R J45 connect ors, powered (D C)
LEDs Power On; A-Net Active
A-Net Pro16 16 channels of digit al audio over Cat-5e cab le
Power Supply Intern al, univer sal switchin g type
Input Voltage 100-240VAC, 50-6 0Hz, 60W
Output Voltage for Personal Mixe rs
Dimensions 19” (482.6 mm) wide x 14.25” (362 mm) deep; 2U,
Weigh t 12.0 lbs (5.44 kil o)
uses un shielded Cat-5e UT P (or better) cable
18-24 VDC, 0.5 amp
trans mitted over the C at-5e cable
3.5” (88.9 mm) high
Inside the A-16D Pro is Aviom’s unique power sub-system, which virtually eliminates the possibility of introducing hum or ground loops into an audio system.
Alternatively, the half-rack space A-16D is powered by an external DC power supply and provides remote power over A-Net on a per-jack basis, using optional external DC power supplies. A-Net network connections use standard RJ45 jacks.
The A-16D is a cost-effective method for distributing A-Net and power to Personal Mixers, providing redundant cable runs to back-up modules, or refreshing an A-Net signal where cable runs exceed 500ft/150m.
An unlimited number of Distributors can be used in an A-Net network.
A-16D A-Net Distributor sPecificAtioNs
A-Net Input One R J45 conne ctor
A-Net Outputs 8 RJ45 c onnec tors, option ally powe red (DC)
LEDs Power; A-N et Active; DC power available
Power Supply Exte rnal, uni vers al switc hing type
Input Voltage 100-240 volts, 50/60Hz, 30VA
Output Voltage for Personal Mixe rs
DC Power Jacks 1 main; 8 aux (one per A- Net output)
Dimensions 8.5” (215 mm) wide x 6.7” (170 mm) deep
Weigh t 2.0 lbs (0.91 kilo)
All Aviom pr oducts are de signed and manufa cture d in the USA .
18-24 VDC, 0.5 amp
trans mitted over the C at-5e cable
size: 2 mm
1.2” (30.4 mm) high; can be rack-mounted on a stand ard 1U rack acces sor y shelf (opt ional)
1157 Phoenixville Pike, Suite 201 • West Chester, PA 19380
Voice: +1 610.738.9005 • Fax: +1 610.738.9950 • www.Aviom.com
A-16D Pro A-Net Distributor
&
A-Net Distributors

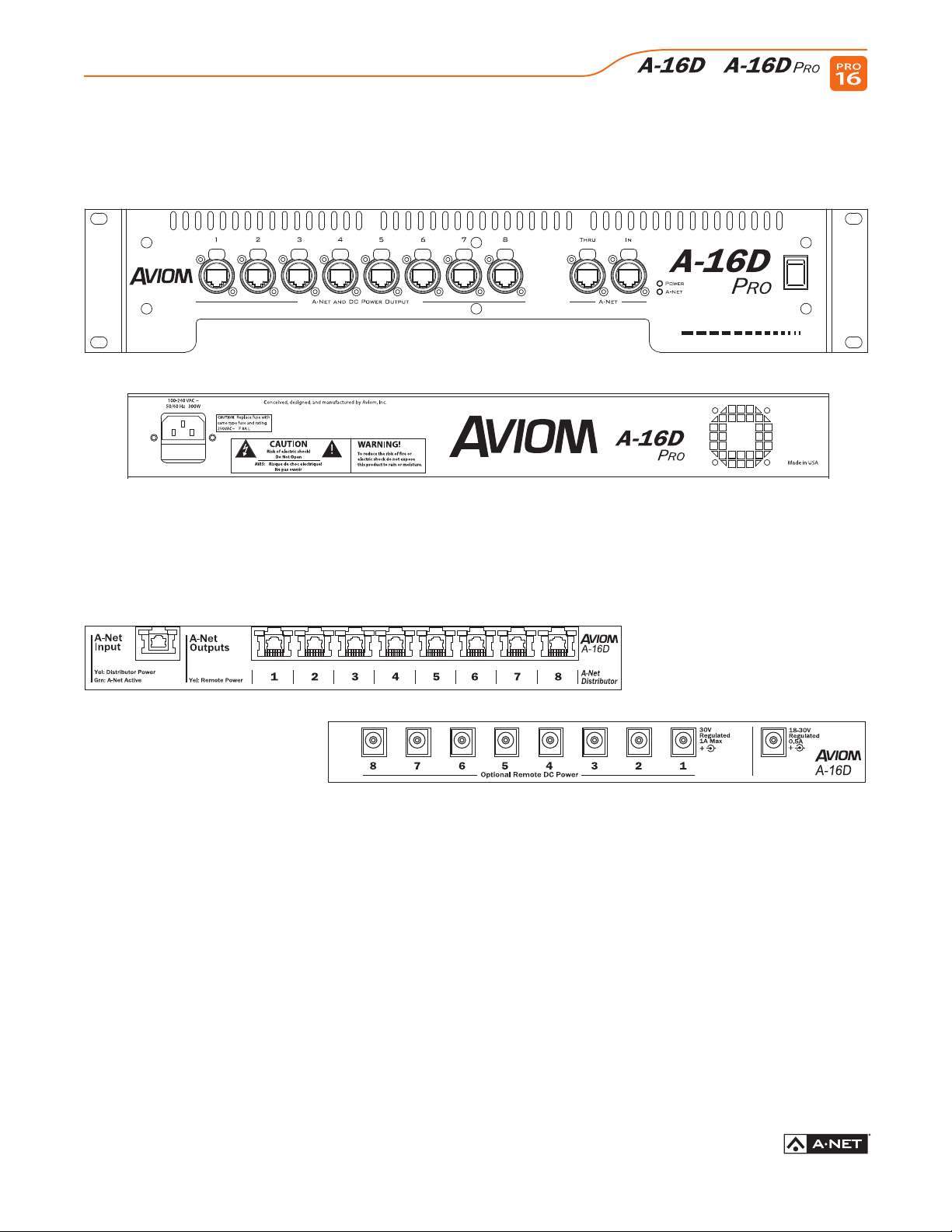

A-16D Pro Front Panel
8 A-Net Out, 1 A-Net Thru, 1 A-Net In
A-16D Pro Rear Panel
A-16D A-Net Distributor
A-16D Rear Panel
8 optional DC power in,
1 unit DC power
ArcHitec turAL sPecificAtioNs
A-16D Pro The Aviom A-16D Pro shall employ the Aviom A-Net Pro16 audio transmission
protocol to provide one channel of A-Net input and eight channels of A-Net data distribution for devices connected in an A-Net network. It shall digitally transmit full-bandwidth, high-quality audio by employing the Aviom A-Net Pro16 audio transmission protocol.
Front panel connectors shall be of the Ether Con RJ45 type. LED indicators for power and A- Net shall be provided.
The unit shall be powered from an internal universal power supply (110 to 240 VAC).
It shall provide DC power to the eight A-Net Out jacks to power Pro16 Personal Mixer products. It shall be UL and CE listed. Rear panel features shall include an
AC power receptacle with fuse and a detachable AC cable. The front panel shall
include an AC power switch.
Its dimensions shall be 19 inches wide, 14.25 inches deep, and 2U (3.5 inches) high. Its net weight shall be 12 pounds, and its steel chassis shall be finished in blue. The unit shall be Aviom, Inc. model A-16D Pro A-Net Distributor.
A-Net and the A-Net icon are registered trademarks of Aviom, Inc. All other trademarks are the property of their respective owners.
© 2006 Aviom, Inc. All rights reserved. Information subject to change without notice.
A-16 D The Aviom A-16D shall employ the Aviom A-Net Pro16 audio transmission
protocol to provide one channel of A-Net input and eight channels of A-Net data distribution for devices connected in an A-Net network. It shall digitally transmit full-bandwidth, high-quality audio by employing the Aviom A-Net Pro16 audio transmission protocol.
Front panel connectors shall be RJ45. LED indicators for power, remote power availability, and A-Net shall be provided.
Rear panel features shall include a detachable DC power cord and eight inputs for DC power supplies for Pro16 Personal Mixers. The unit shall be powered from an external universal power supply (input voltage 100 to 240 VAC; output voltage 18­24 VDC, 0.5 amps). It shall be UL and CE listed.
Its dimensions shall be 8.5 inches wide, 6.7 inches deep, and 1.5 inches high. Its net weight shall be 6.8 pounds, and its steel chassis shall be finished in blue. The unit shall be Aviom, Inc. model A-16D A-Net Distributor.
P/N 9303 0016 0001 rev. 4.2 040606
A-16D Front Panel
1 A-Net In, 8 A-Net Out
