Avidyne IFD440, IFD410, IFD100 Quick Reference Guide - Revision 1

QUICK REFERENCE

IFD4XX

IFD440 FMS/GPS/NAV/COM
IFD410 FMS/GPS
IFD100 App for iPad

avidyne.com | 800.AVIDYNE

QuickReference IFD4XX

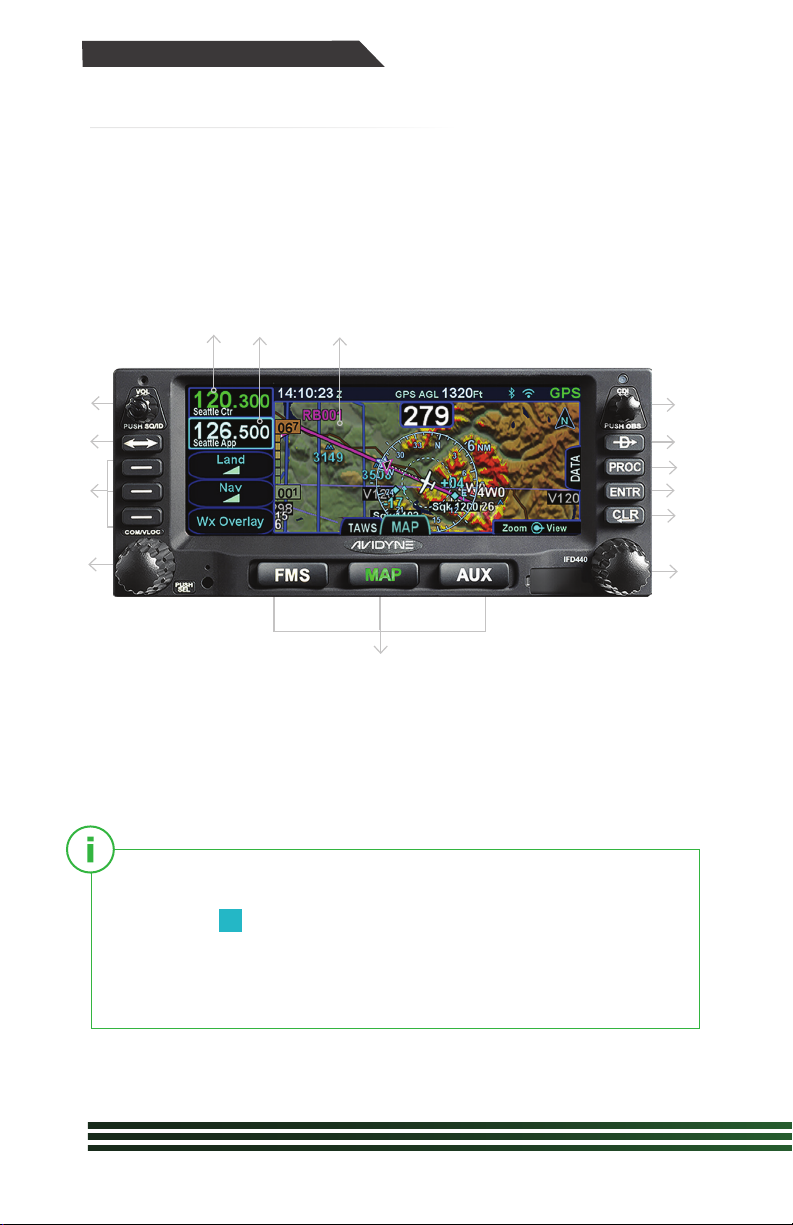

Overview Diagram

14

13

1

2

3

4

To move your cursor, either:

6

1. Turn the
whereas the inner ring scrolls through the fields of each box), or

2. Utilize hybrid touch by tapping the screen on a waypoint
or in the blank space between waypoints.

FMS knob (the outer ring scrolls through each box,

12

5

11

10

9

8

7

6

avidyne.com | 800.AVIDYNE

2

Volume/Power/

1

Squelch Knob

8

Enter (select)

Frequency Swap

2

(ip-op)

Line Select Keys

3

(LSK)

COM/NAV* Manual

4

Tuning Knob (Push for

NAV & Transponder)

Page Function Keys

5

(two-way rocker)

FMS, MAP, AUX

FMS Knob (context-

6

sensitive: scroll, zoom/

push to select)

7

Clear (delete)

9

10

11

12

13

14

Procedure

Direct To

CDI Nav Source

Active Waypoint

Standby Frequency*

Active Frequency*

To start an FMS edit, either:

1. Press the

2. Push the

3. Tap the screen in the same field twice.

* Applies to IFD440 only.

8

ENTR function key,

6

bottom right knob, or

3

QuickReference IFD4XX

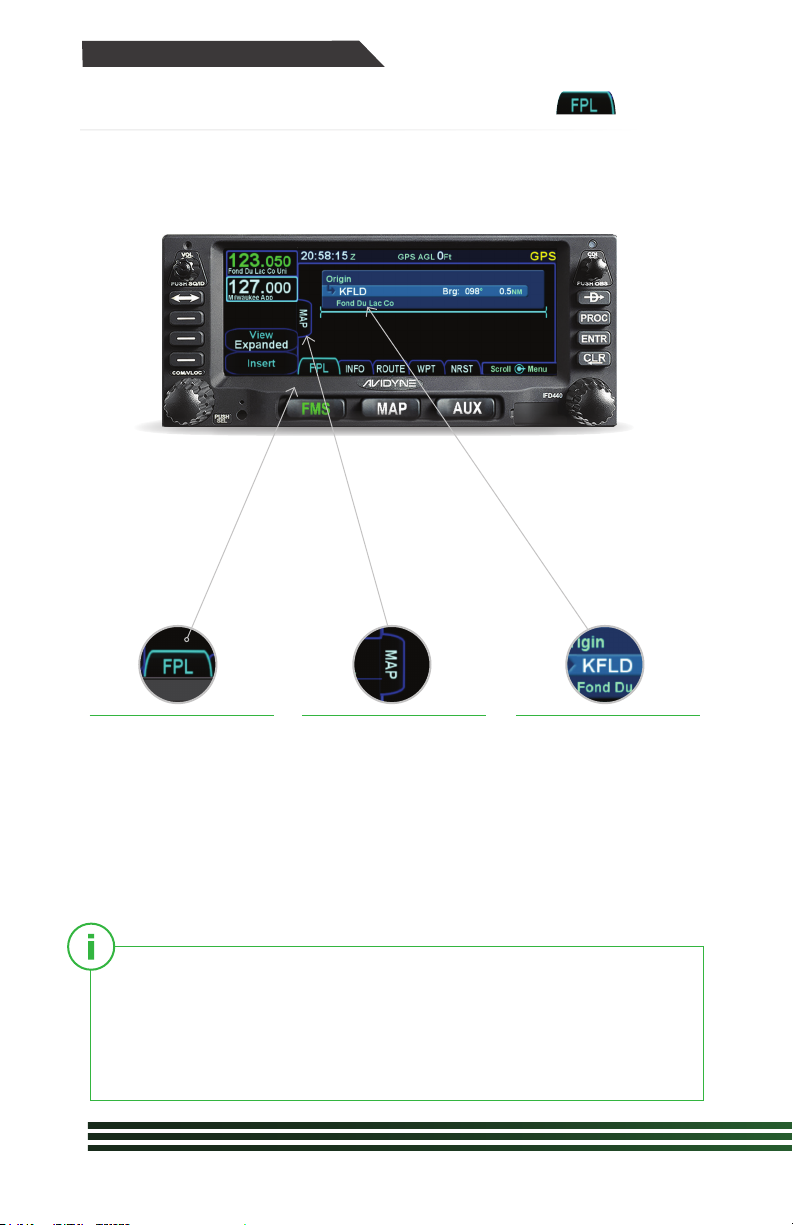

FMS Flight Plan Introduction

TAB

1 2 3

Following power­on, the first time the
“FPL” tab of the FMS
page is accessed,

an empty flight plan
page is presented with
the origin waypoint
pre-populated.

This FMS uses a database of published airways to quickly build
long flight plans. Here’s how: When a flight plan waypoint is a valid

airway entry point, a dropdown list of available airways appears.
Scroll to the desired exit point, and all intermediate intersections
along that airway are automatically populated into the flight plan.

avidyne.com | 800.AVIDYNE

4

We recommend to tap
the “Map” side tab to

view the moving Map
display while entering
your flight plan.

The origin will be the
closest airport to the
current GPS position,

or the airport from the
previous power down
if GPS position has
not locked on yet.

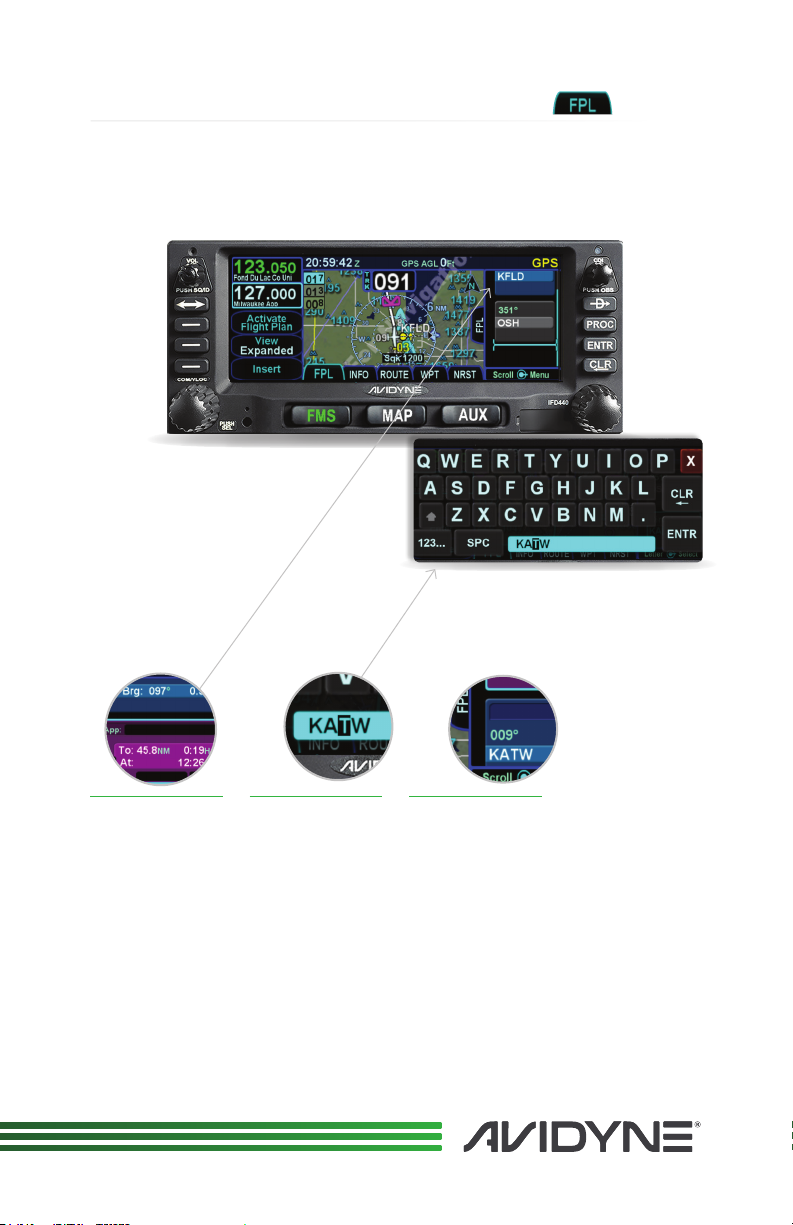

Inserting a Waypoint

TAB

1 2 3

To add a waypoint
to your flightplan,

tap the empty
space where your
cursor is below
‘Origin.’ The IFD
will present a
new waypoint
with a suggested
identifier (powered
by Geofill™).

Use the right
knobs or tap

the identifier
to display
the QWERTY
keyboard in
order to enter
the waypoint
identifier.

Push the right
knob, press
ENTR, or tap

the ENTR key
on the QWERTY
keyboard to
enter the new
waypoint into
the flight plan.

5

QuickReference IFD4XX

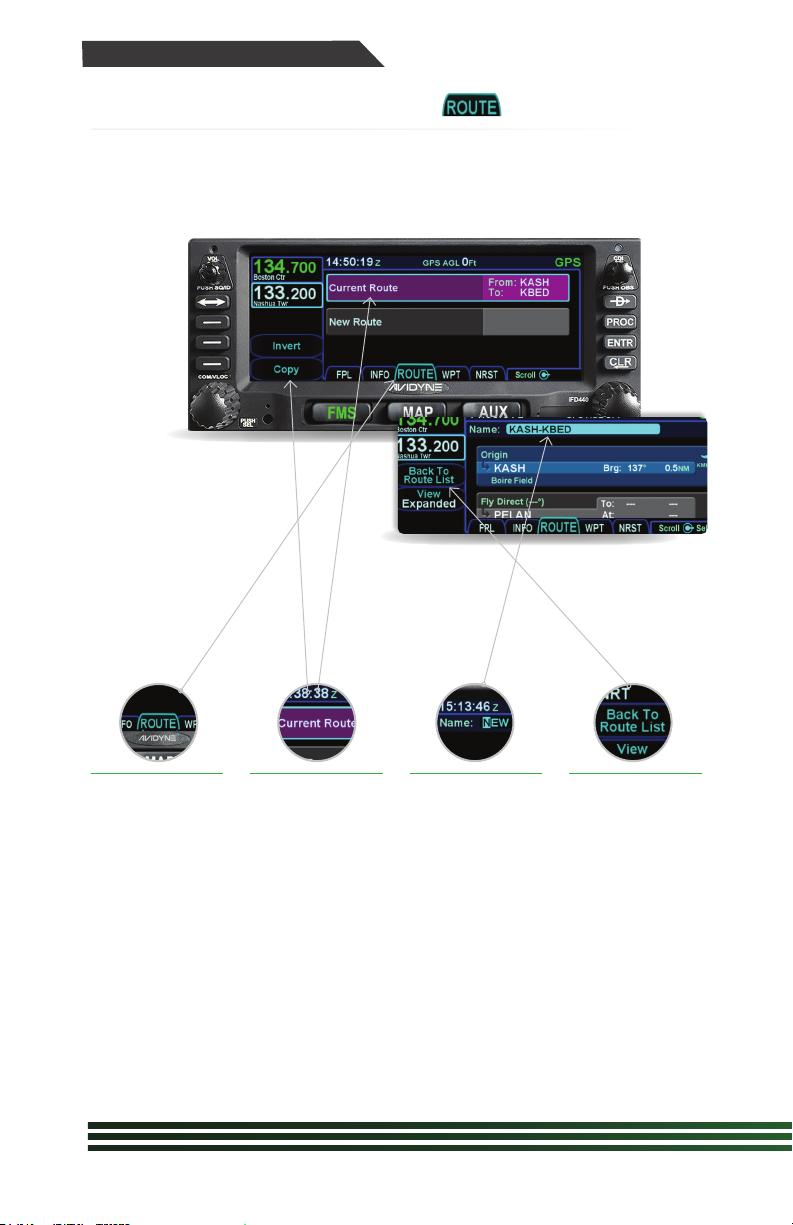

Saving the Flight Plan

TAB

1 2 3 4

Once you have
entered a Flight
Plan that you

would like to save
for future use go
to the route tab
on the FMS page.

avidyne.com | 800.AVIDYNE

6

Highlight current
route then

select Copy in
the bottom left
of the screen.

You have now
saved the Flight
Plan as a route

for future use.
(You can also
cusomize the
name of the
route here).

Select ‘Back
to Route List.’

The route will
now be one of
your saved route
selections.

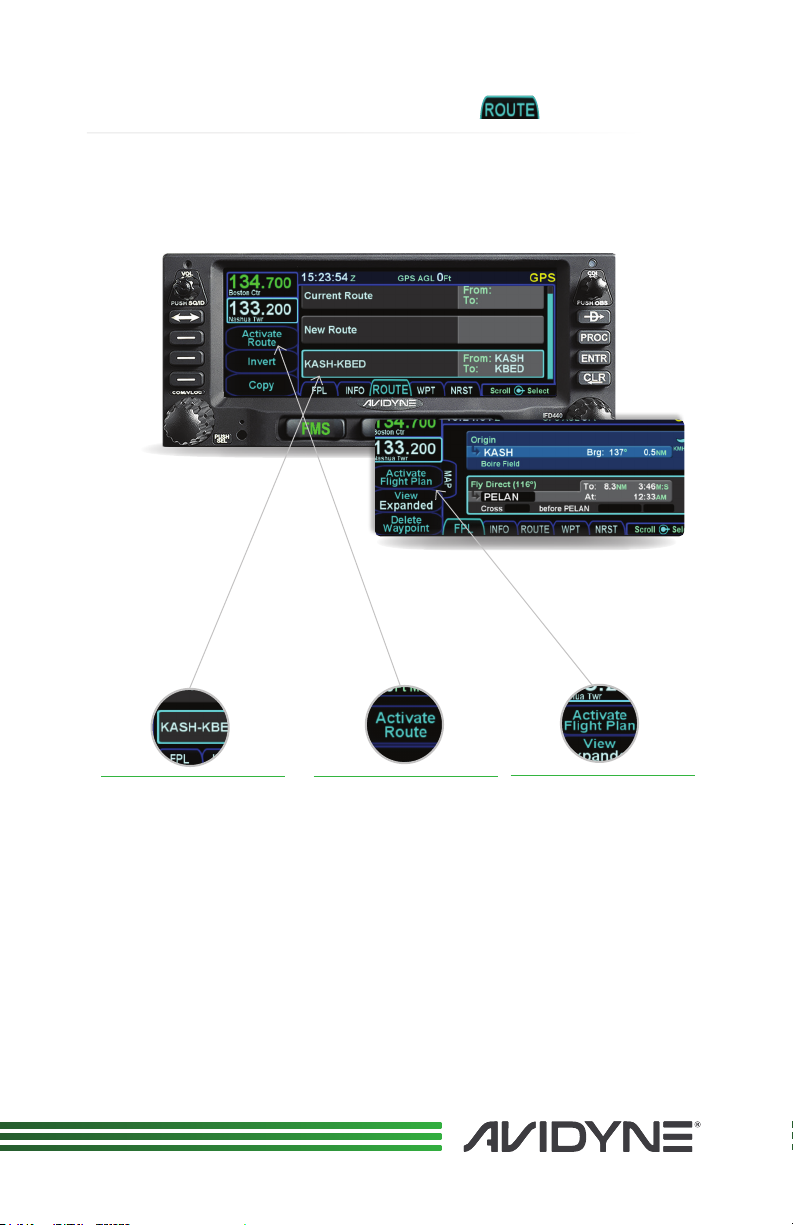

Activate a Stored Route

TAB

1 2

To activate a route
from the stored routes
list, tap the desired

route to select.

To activate, press the
“Activate Route” LSK or
touch-screen button.

3

Then press the
“Activate Flight
Plan” LSK or touch­screen button.

7

QuickReference IFD4XX

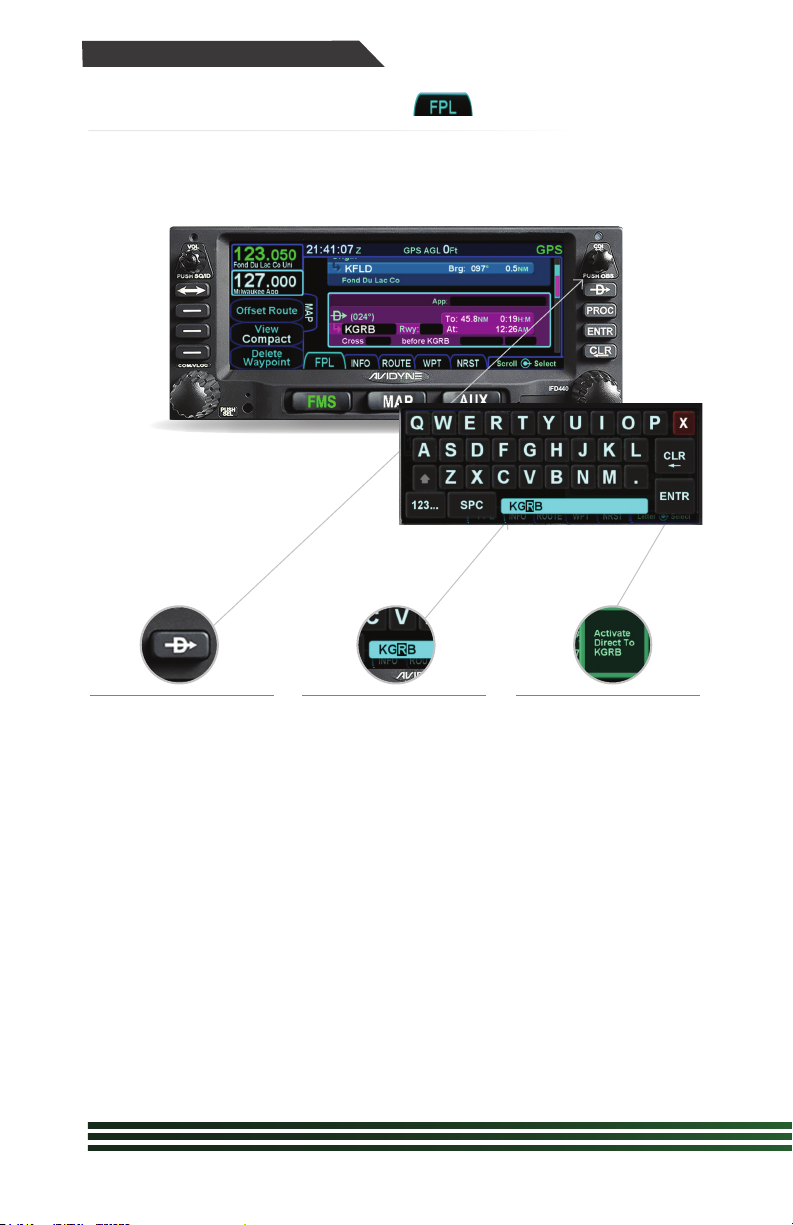

Direct-To Operation

TAB

1 2 3

Press the Direct-To
button to display a

green Direct-To dialog
box pre-populated
with a logical waypoint
(powered by Geofill™).

avidyne.com | 800.AVIDYNE

8

To enter a dierent
waypoint, tap the data

field in the top dialog
box. The QWERTY
keyboard appears for
you to enter the desired
waypoint identifier.

To approve, tap the
‘Activate’ dialog box to
select. Pressing ENTR
or the right knob can
also be used to confirm.

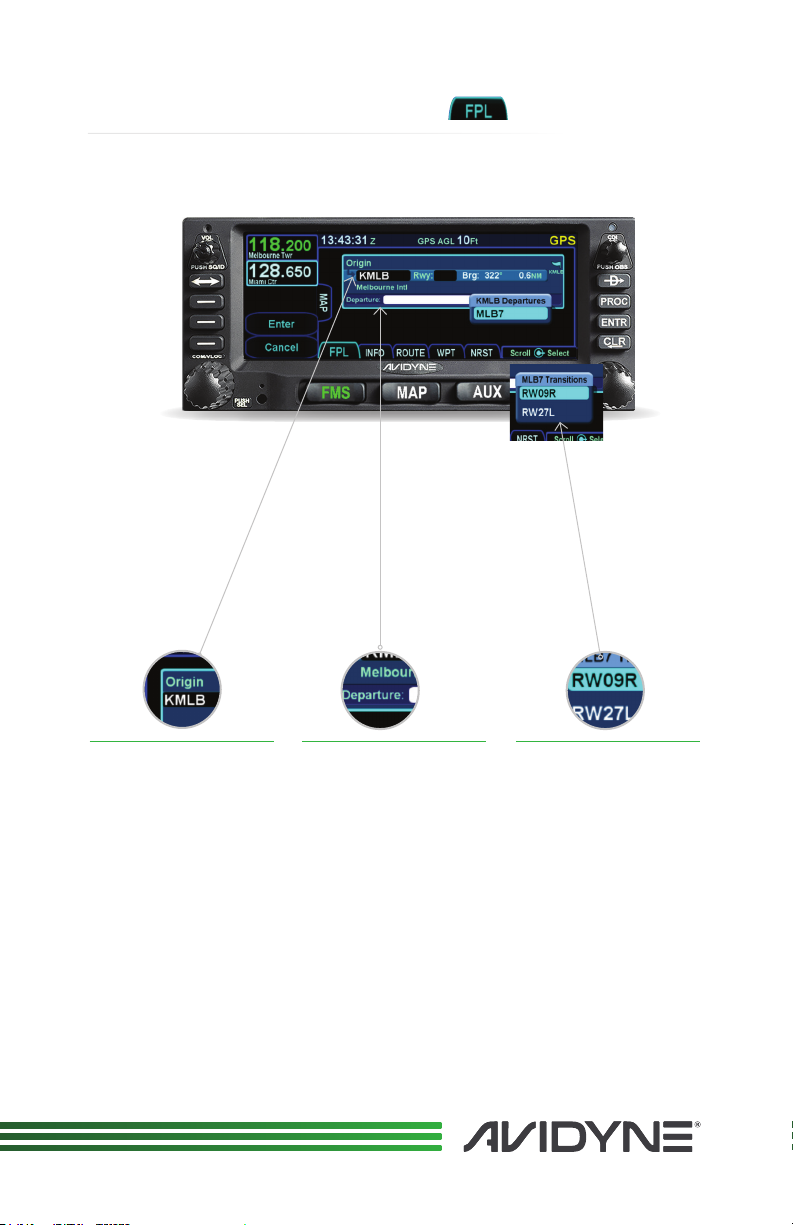

Selecting a Departure

TAB

1 2 3

To begin the process of
selecting a departure
procedure, tap on

the Origin box to
select. A ‘Departure’
field will appear.

Tap the ‘Departure’
field. A dropdown

list of available
departure procedures
will be displayed.

Select the transition
(departure Runway)

and push ENTR.

9

QuickReference IFD4XX

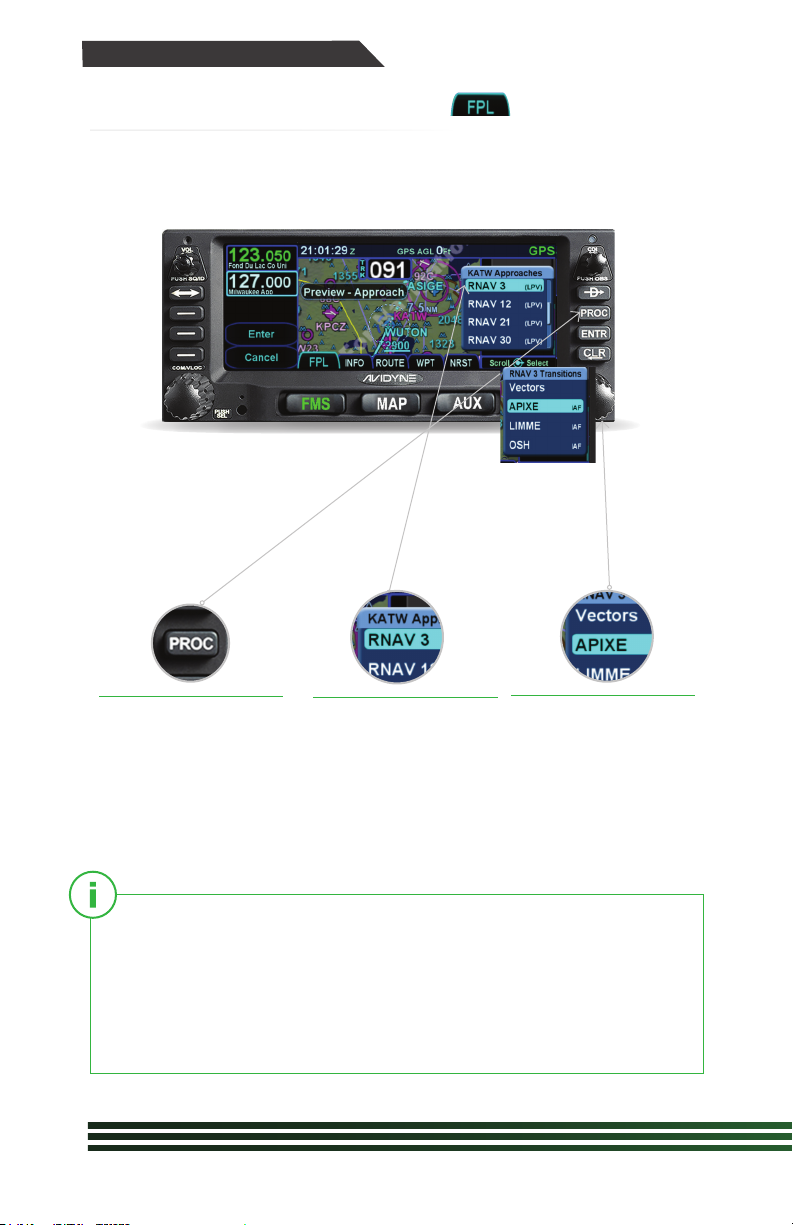

Selecting an Approach

1 2

TAB

3

To display the
Approach field of the
next destination, press

the “PROC” Function
key.* This will display a
dropdown list of available
published approaches.

*Pressing the “PROC” Function key a second time will move the cursor
over the Arrival field and present a drop down list of available published
arrivals. Each subsequent press of the “PROC” key will step through all
following destination airfield approaches/arrivals in the flight plan, and
wrap back around to the origin. When the drop down box appears over
the intended data field, tap the desired procedure to add to the flight plan.

avidyne.com | 800.AVIDYNE

10

To select the desired
Approach, twist

the FMS knob to
scroll, then push to
select, or tap the
highlighted selection.

To select the Transition,

twist the FMS knob
to scroll, then push
to select, or tap the
highlighted selection.

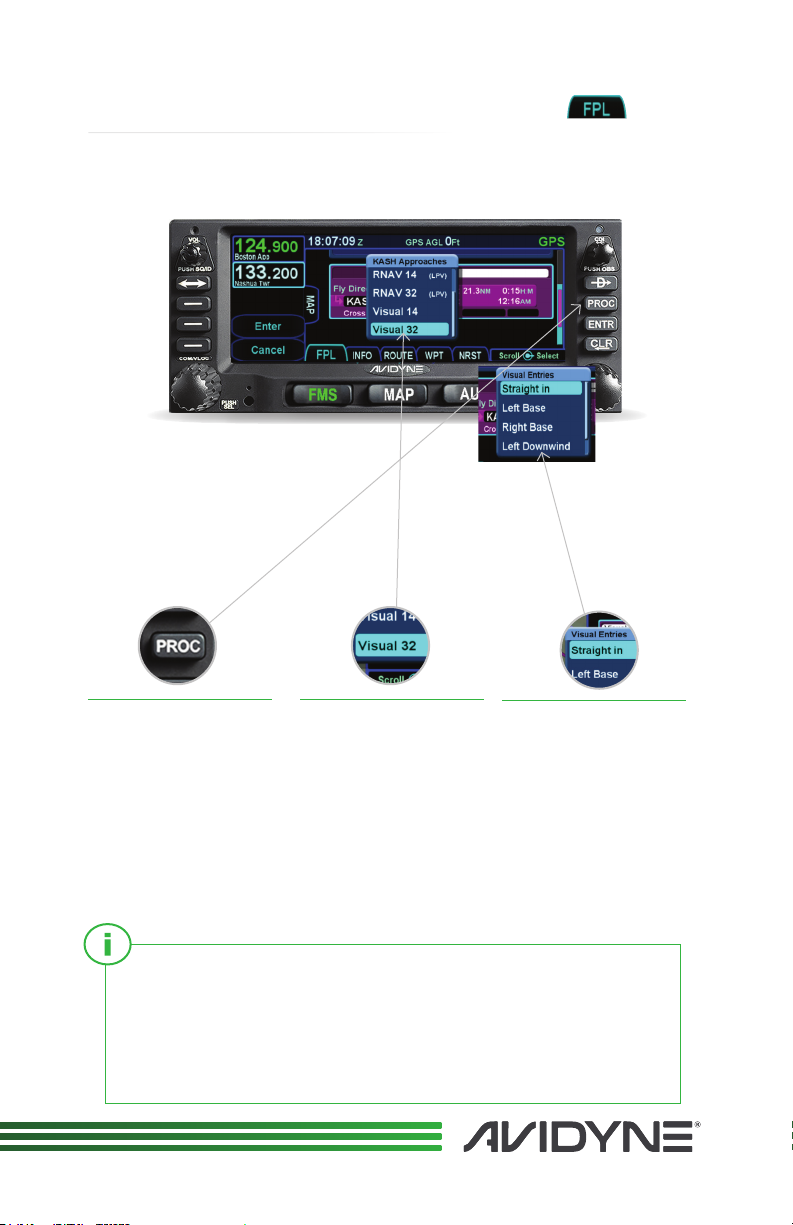

Selecting a Visual Approach

TAB

1 2

To select a Visual
Approach for your
destination airport ,

press the “PROC” Function
key.* This will display a
dropdown list of available
published approaches.

Go to Aux->Setup->FMS->Visual Approach Settings to set the
desired Glideslope Angle. The default setting is 4° but it can be
set to any angle between 1° and 6° in 0.1° increments. Glideslope
must be set to desired angle BEFORE loading the Visual Approach.
Remember you are still flying a VFR approach and proper clearance
and separation must be observed for the terrain in the area.

To select the desired
Visual Approach, twist

the FMS knob to scroll
down past any published
IFR approaches to see
the available Visual
Approaches, then push
to select, or tap the
highlighted selection.

3

Then select the Visual
Entry, (Straight In,

Left Base, Right Base,
Left Downwind, Right
Downwind) that
works best for your
direction of flight and
approach angle.

11

QuickReference IFD4XX

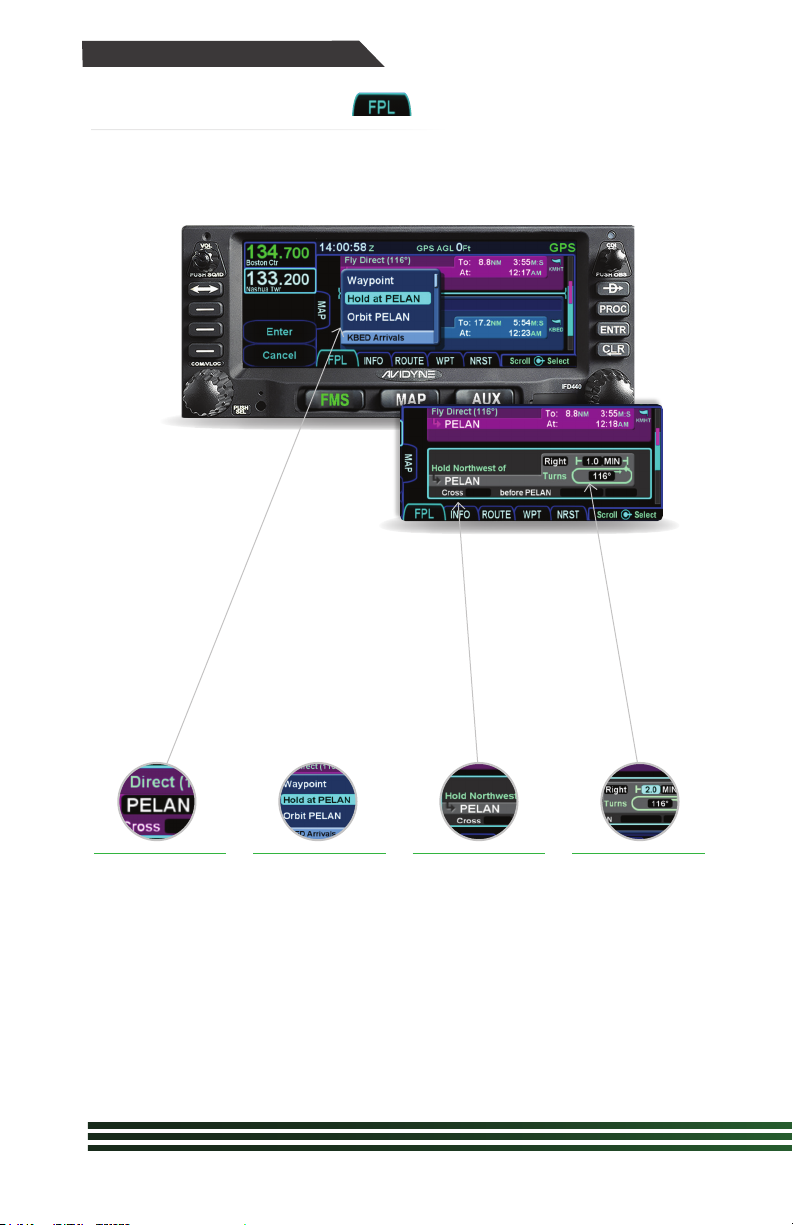

Entering a Hold

TAB

To enter a hold,
tap below the
waypoint of
interest to display
a drop down
list of options.

avidyne.com | 800.AVIDYNE

12

2 3 4

Select “Hold at
<waypoint
name>” and
push the FMS
knob to select.

A Hold Waypoint
is added to
the flight plan,

populated with
either standard
or published
hold data.

To edit the hold,
hide the map,
then touch the
field to be edited
(turn direction,
leg length,
inbound course).

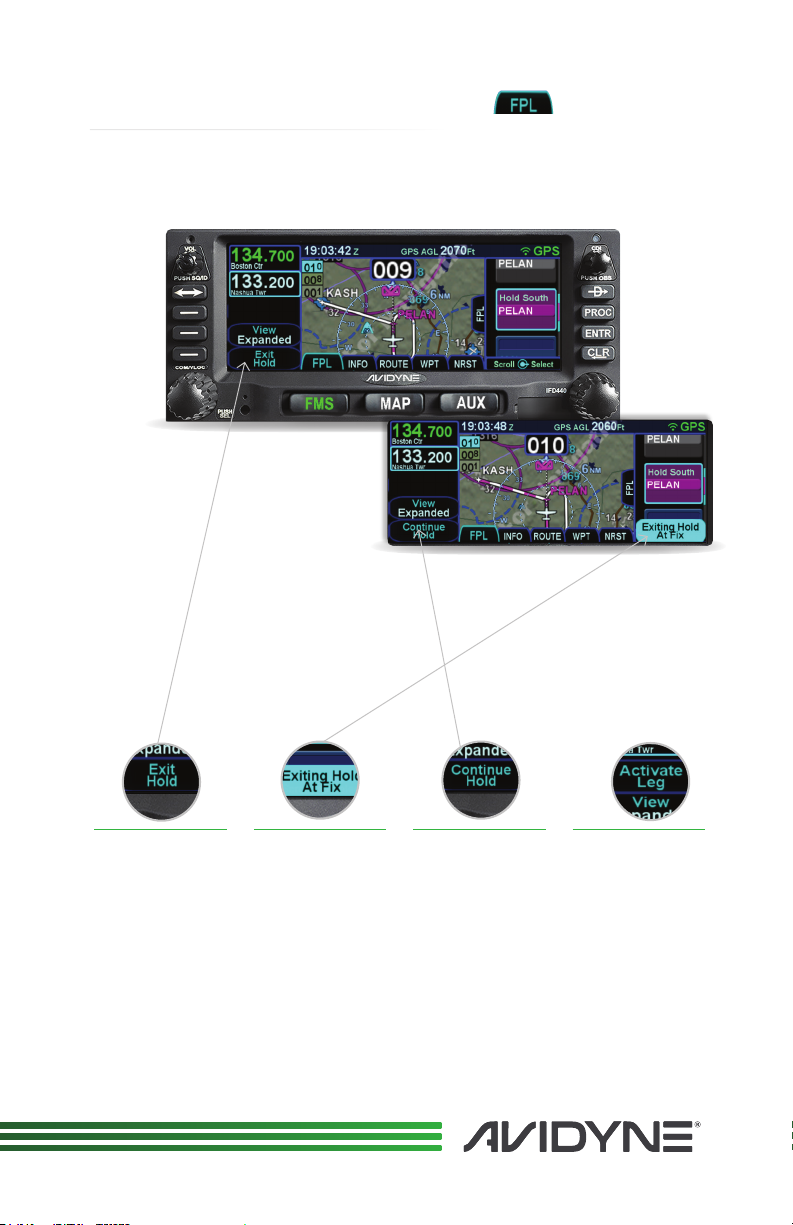

Exiting/Deleting a Hold

TAB

1

To Exit the hold,
select the “Exit
Hold” Line Select
Key (LSK1), and
the FMS will exit
the hold the next
time it passes
the hold fix.

2 3 4

A blue CAS
message will

alert you that you
are ‘Exiting hold
at Fix’ on your
next pass.

Should you need
to continue to
Hold, select

“Continue Hold”
using Line Select
Key (LSK1).

Other options

include deleting
the Hold
Waypoint with
CLR button, or
you can highlight
a downstream
waypoint in the
flightplan and
select ‘Activate
Leg’ (LSK3).

13

QuickReference IFD4XX

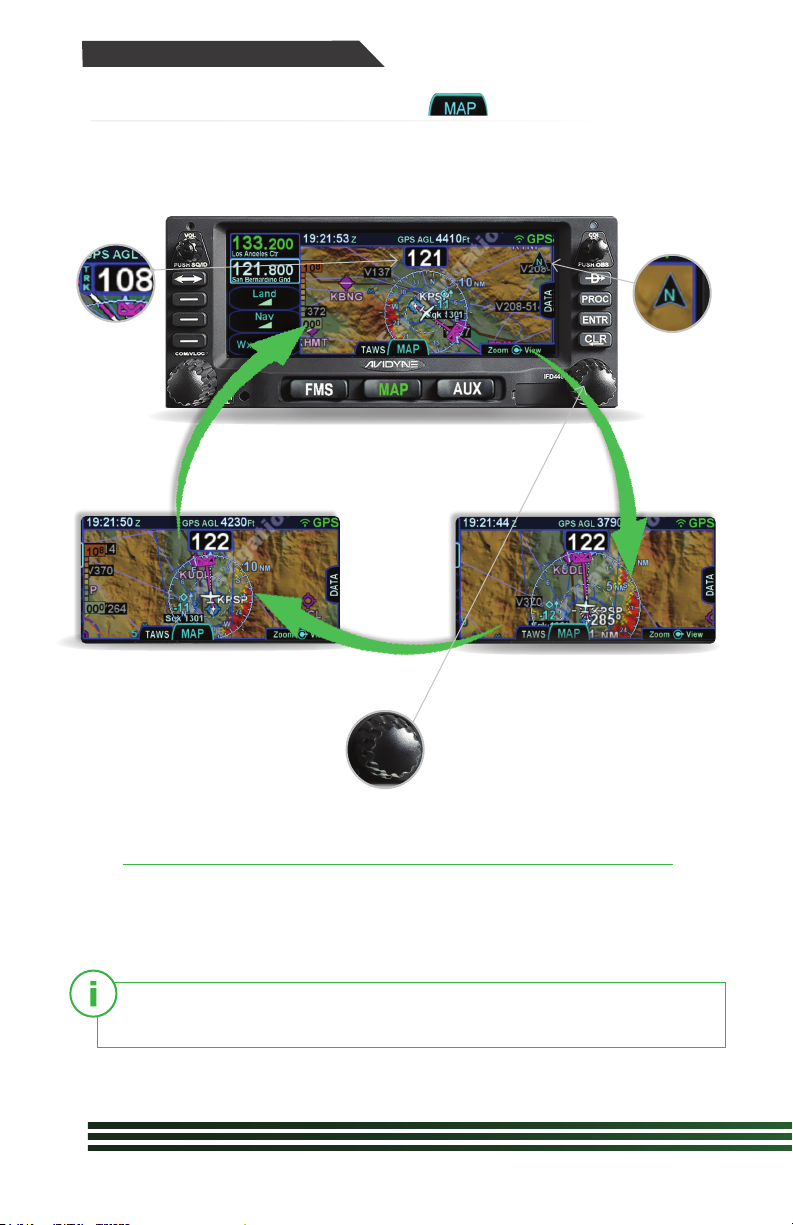

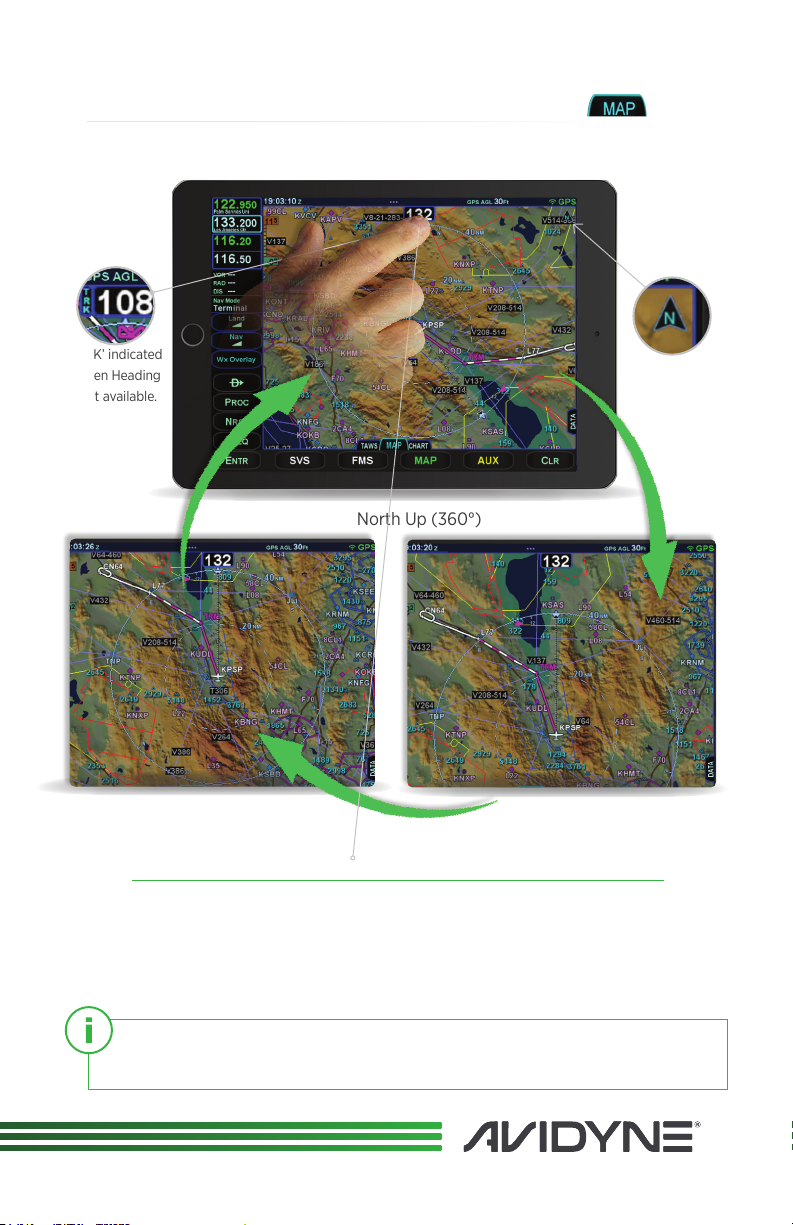

Changing Map View

‘TRK’ indicated

when Heading

not available.

North Up (360°)

TRK Up (360°)

(or HDG Up* (360°)

TAB:

Indicates

‘North Up’

TRK Up (240° arc view)

or HDG Up* (240° arc view)

To change Map View (orientation), push the small right knob,
which will cycle the Map between three dierent views:

North Up (360°) -> Track Up (240° arc view) -> Track Up (360°)

*If a Heading source is connected to the IFD, then you can set preference for
Heading Up rather than Track Up in AUX->SETUP page under Map Orientation.

avidyne.com | 800.AVIDYNE

14

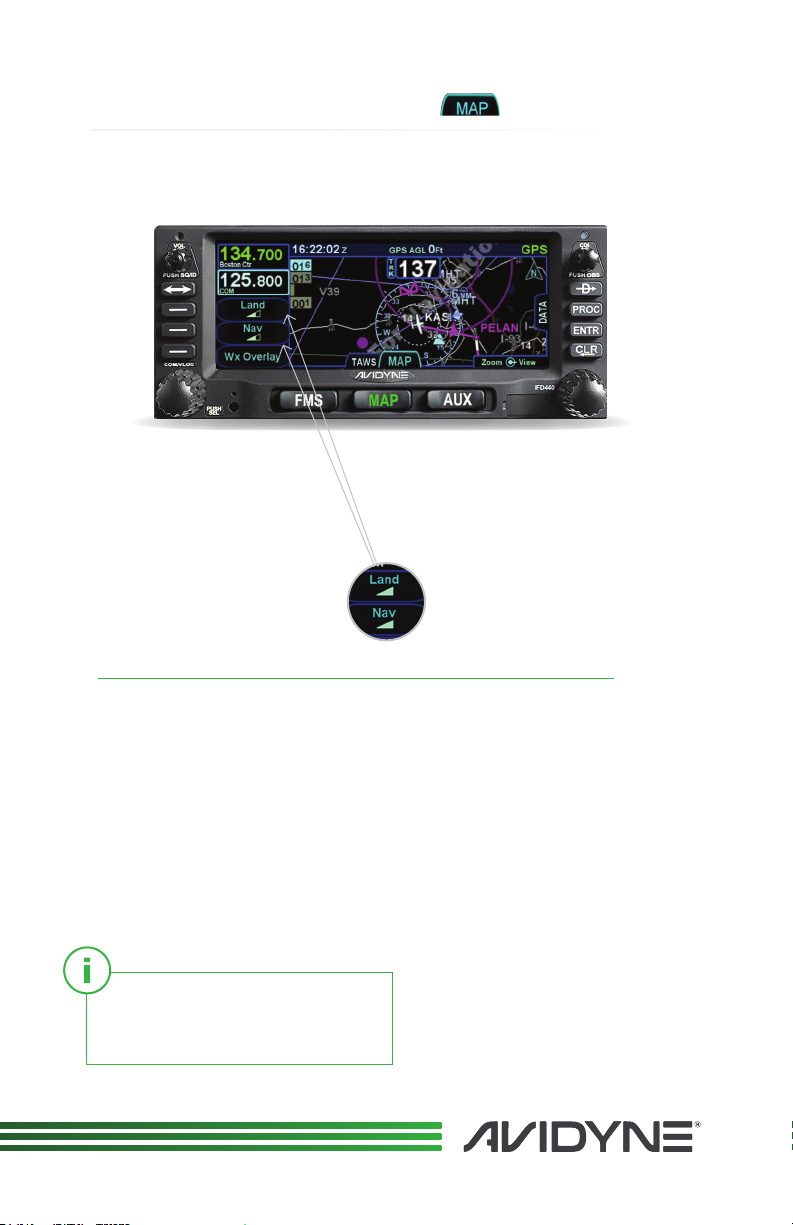

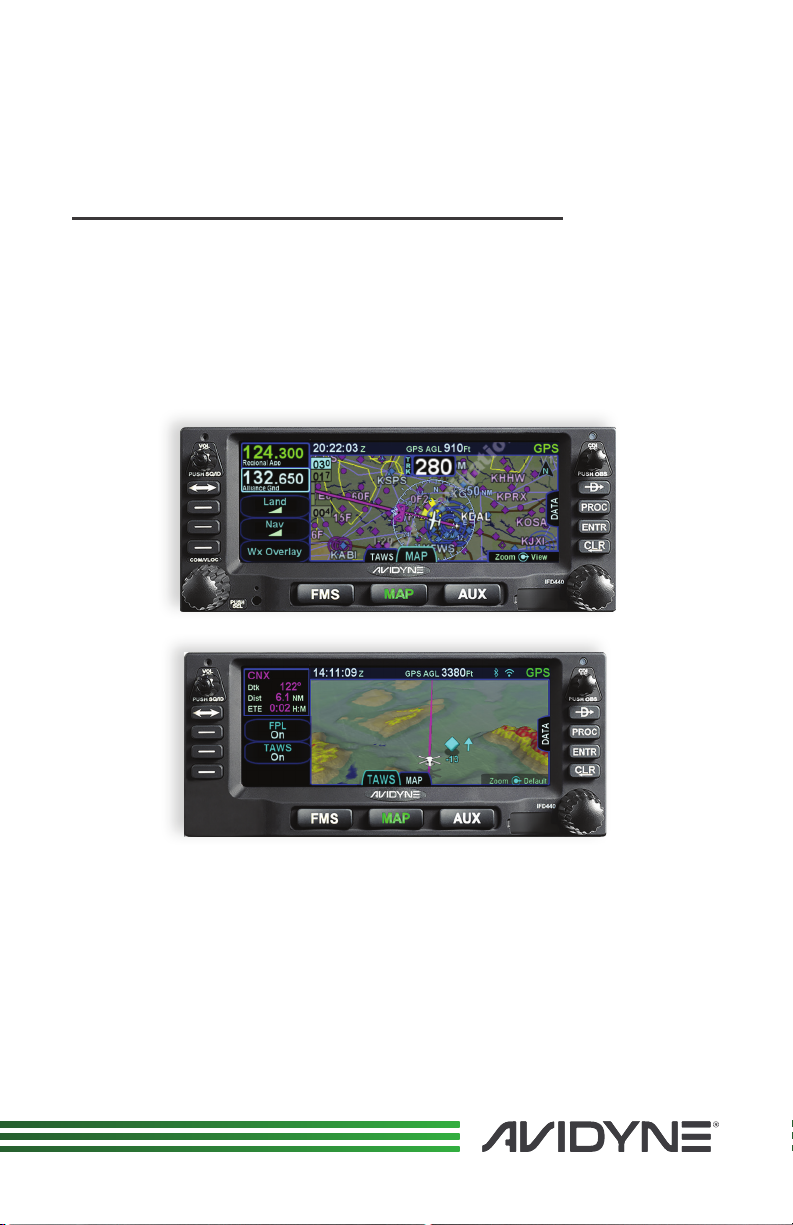

Decluttering the Map

TAB:

To select the preferred level of map density displayed, from the Map
Page, Map tab, press the “Land” LSK to declutter the terrain base map
and/or “Nav” LSK to declutter o-route NavAids (Intersections, Airports,
VORs etc). There are four levels of declutter for each. The specified level
of detail will remain consistent across all map pages. (Terrain Awareness
alerts and nearby Trac are not aected by declutter settings.)

For Tech Support and Training
information, see back cover.

15

QuickReference IFD4XX

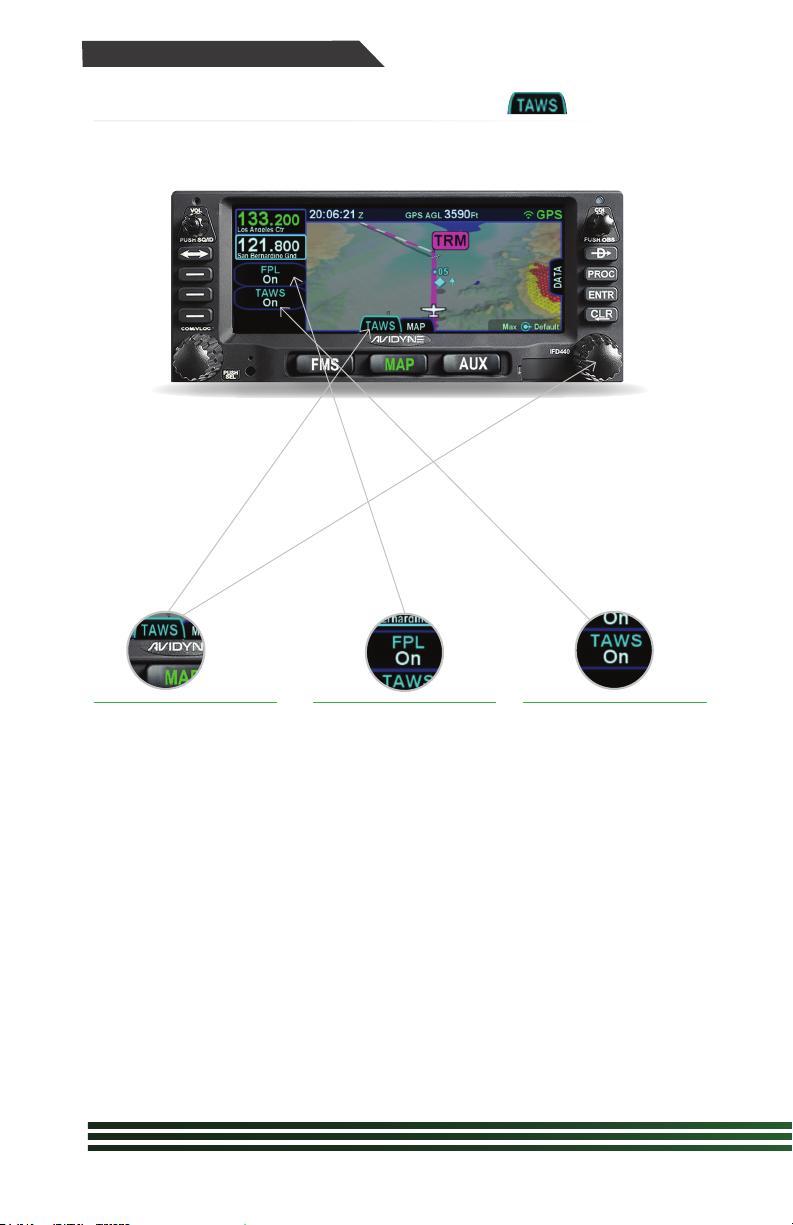

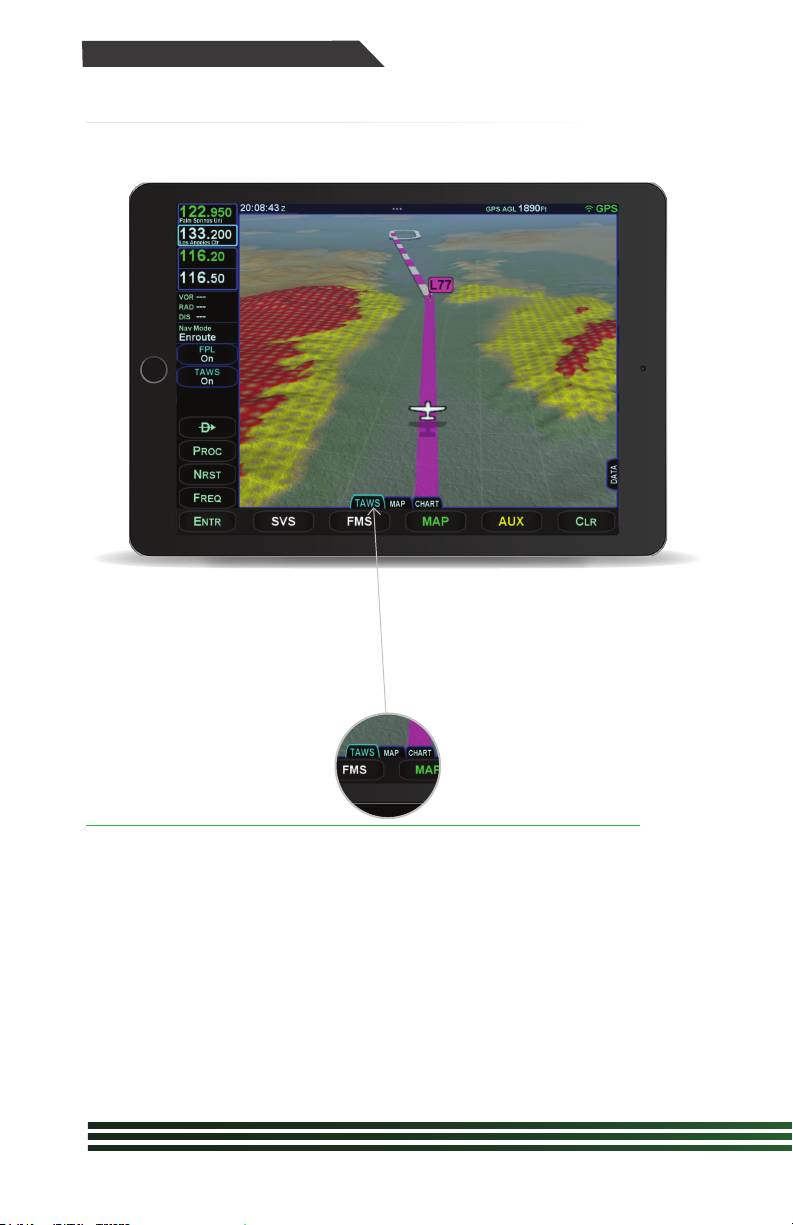

TAWS/Synthetic Vision

TAB:

Select the TAWS Tab
on the MAP page
of the IFD5XX to
view 3D Exocentric
Synthetic Vision, which

includes 3D Terrain,
Obstacles, Trac (when
available), Airports.

Turning the bottom right
knob or pinch zooming
the display will adjust
the perceived distance
above and behind the
ownship symbol.

avidyne.com | 800.AVIDYNE

16

Press the FPL button
(LSK3) to turn o

the Magenta Line and
just have the shadow
(which represents
aircraft position over
the ground), or push
again to remove both.
(On the TAWS page,
the Magenta line will
not appear unless
your aircraft is 1,000
ft AGL or greater, and
will disappear as you
descend below 1,000ft.

When TAWS button (LSK2)
is ON, the full TAWS-B

capability is enabled,
including:

- FLTA Altitude Callouts

- Premature Descent Alerts

- Excessive Descent Rate

- Negative Climb Rate

When TAWS button (LSK2)
is OFF, FLTA, and PDA

are disabled, but EDR and
NCR remain enabled.

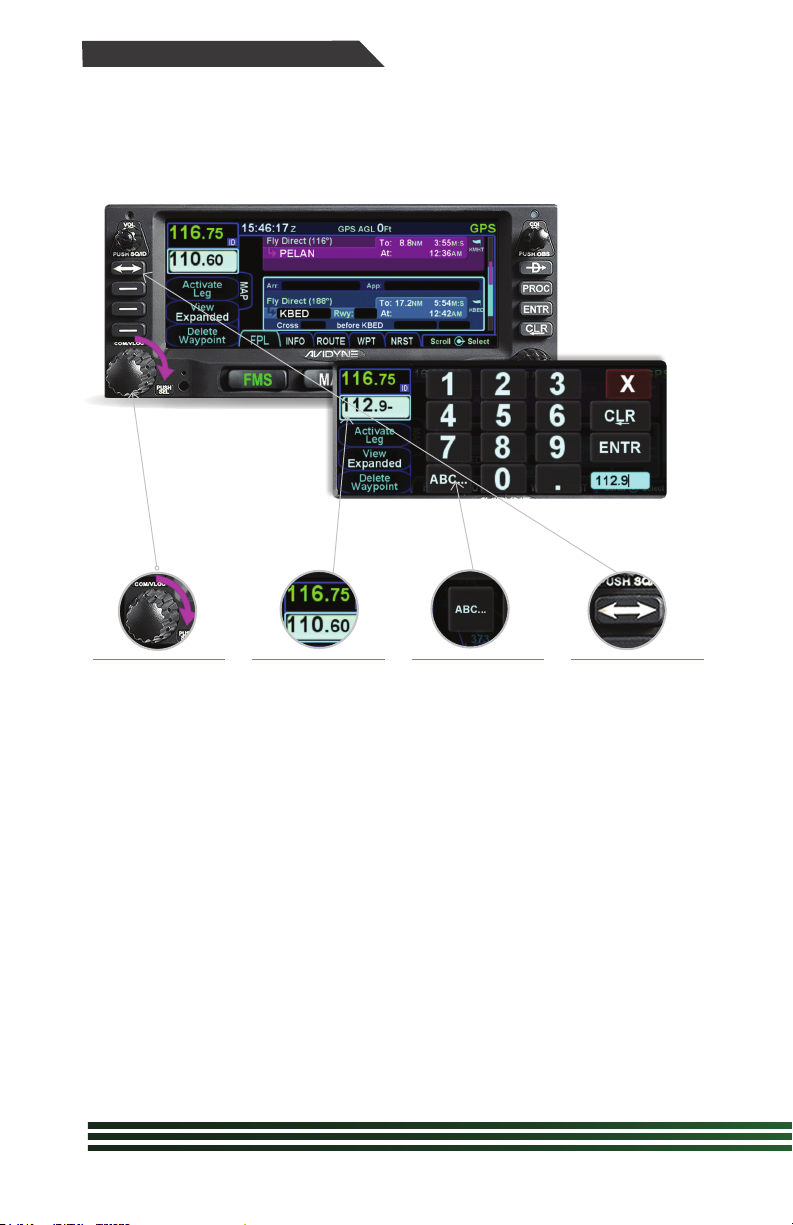

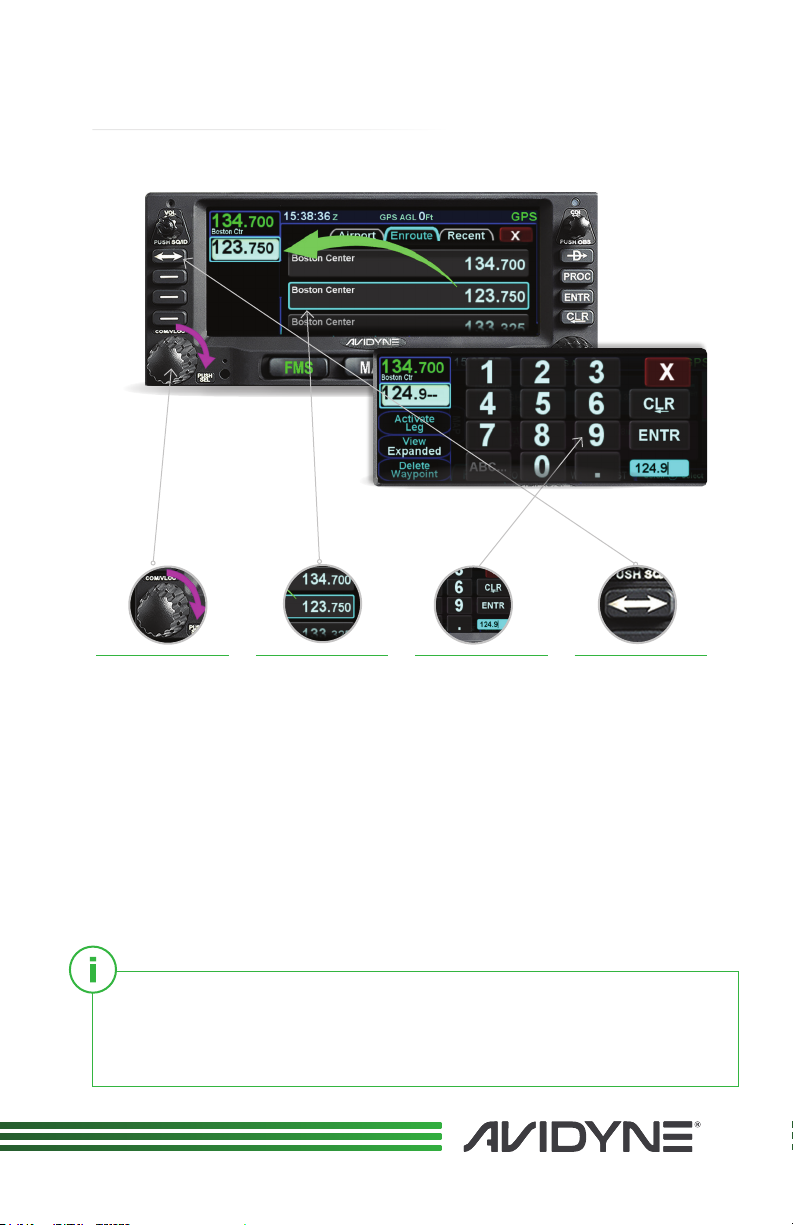

COM Radio Tuning

Radio Tuning can be accomplished through 3 dierent methods.

Applies to IFD440 only.

1 2 3 4

Twist the COM/
NAV knob to
direct-tune. Use

the inner knob
for KHz and the
outer knob to
adjust MHz.

The Emergency COM Frequency, 121.5 kHz, can be quickly
tuned into the Active com slot by pressing and holding flip­flop button for approximately three (3) seconds.

Notice that
twisting the COM/
NAV knob also

brings up the FREQ
nomination list.
Double click on the
assigned frequency
to transfer to STBY.

Touch the
standby
frequency field

to display the
numeric keypad.
Then enter the
desired frequency.

Activate the
frequency.

Once the desired
frequency has
been tuned in
to the standby,
press the flip-flop
button to make
it the active
frequency.

17

QuickReference IFD4XX

NAV Tuning

Nav radio tuning can be accomplished through 3 dierent methods.

Applies to IFD440 only.

1 2 3 4

Use the COM/NAV
knob. Push the

knob to display
NAV frequencies.
Then, twist the
inner knob to
direct-tune got
KHz and the
outer knob to
adjust MHz.

avidyne.com | 800.AVIDYNE

18

Touch the standby
frequency field
to display the
numeric keypad.

Enter the desired
frequency.

Touch the
standby
frequency,
then “ABC…”
to display
the QWERTY
keyboard. Type

the identifier
of the VOR
(powered by
GeoFill™).

Activate the
frequency.

Once the desired
frequency has
been tuned in
to the standby,
press the flip­flop button
to make it the
active frequency.

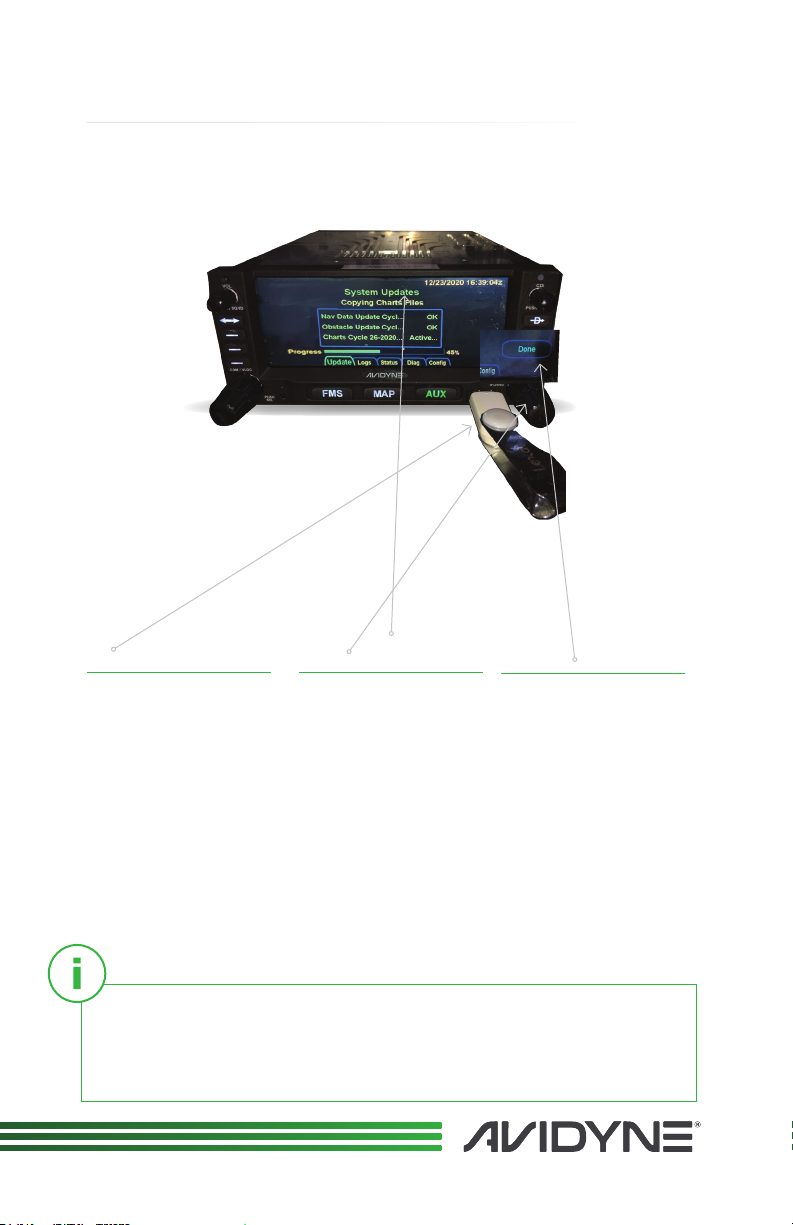

Updating Databases

1

Insert Jump Drive in
USB Port, then power
up. Jump drive must

be formatted to FAT32
and should have your
appropriate databases
loaded already.

You will notice that this operation puts the IFD into Maintenance Mode.
You can also download Maintenance Logs from this page, pair your
BT keyboard and more. Please use caution so as not to change port
settings, For Tech Support and Training information, see back cover.

2

Use right knob to
select Data file to be
transferred to IFD.

Twist the FMS knob to
highlight, then push to
select each data type.
A green Check Mark
will appear by each.
highlighted selection.

3

Press PROCEED line
select key (LSK).

Press DONE button on
screen when complete,
and IFD will restart in
normal “Flight Mode.”

19

QuickReference IFD4XX

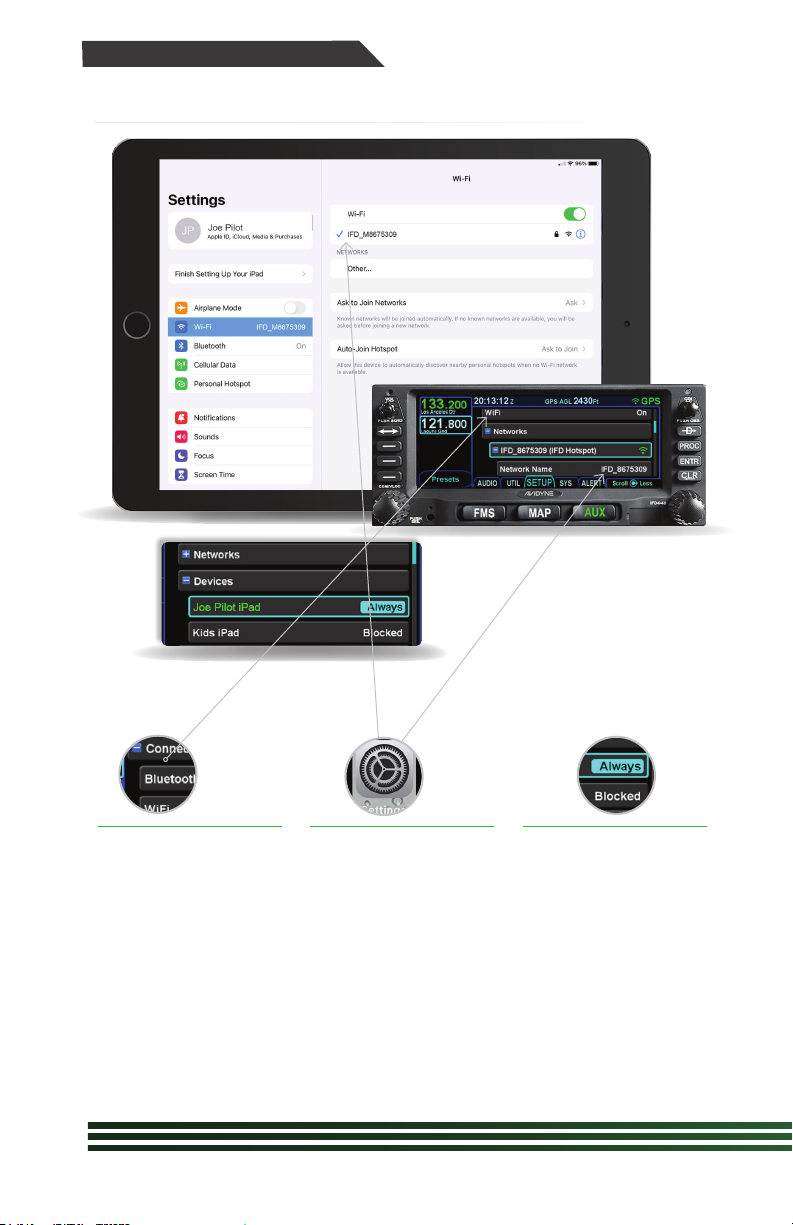

Connecting iPad to IFD via WiFi

1 2

From AUX->SETUP
page, double touch or
highlight and push right
knob to expand the

+Connectivity menu.

Set IFD WiFi to ‘ON’
using touchscreen or by
turning inner right knob.

avidyne.com | 800.AVIDYNE

20

Go to Settings Menu
on iPad and select WiFi

that matches your IFD’s
Network name. Enter
Password shown under

+Network menu. Then

launch IFD100 App
so that IFD sees that
you are trying to gain
permission to connect.

3

Under +Devices menu,

locate your iPad by
name and change
“Blocked” to “Always”
if you want it to
auto-connect on all
subsequent flights.
(you can also ‘Block’
unwanted iPad
connections).

Using IFD100 iPad App

It is important to note the NAV databases of your IFD5XX and your IFD100
App must match, in that they must be the same cycle (have the same

expiration date). If you are not seeing a Flightplan on your IFD100 after
launch and you know your WiFi connection is good, it’s most likely that
these do not match. You can verify database expiration dates by going to

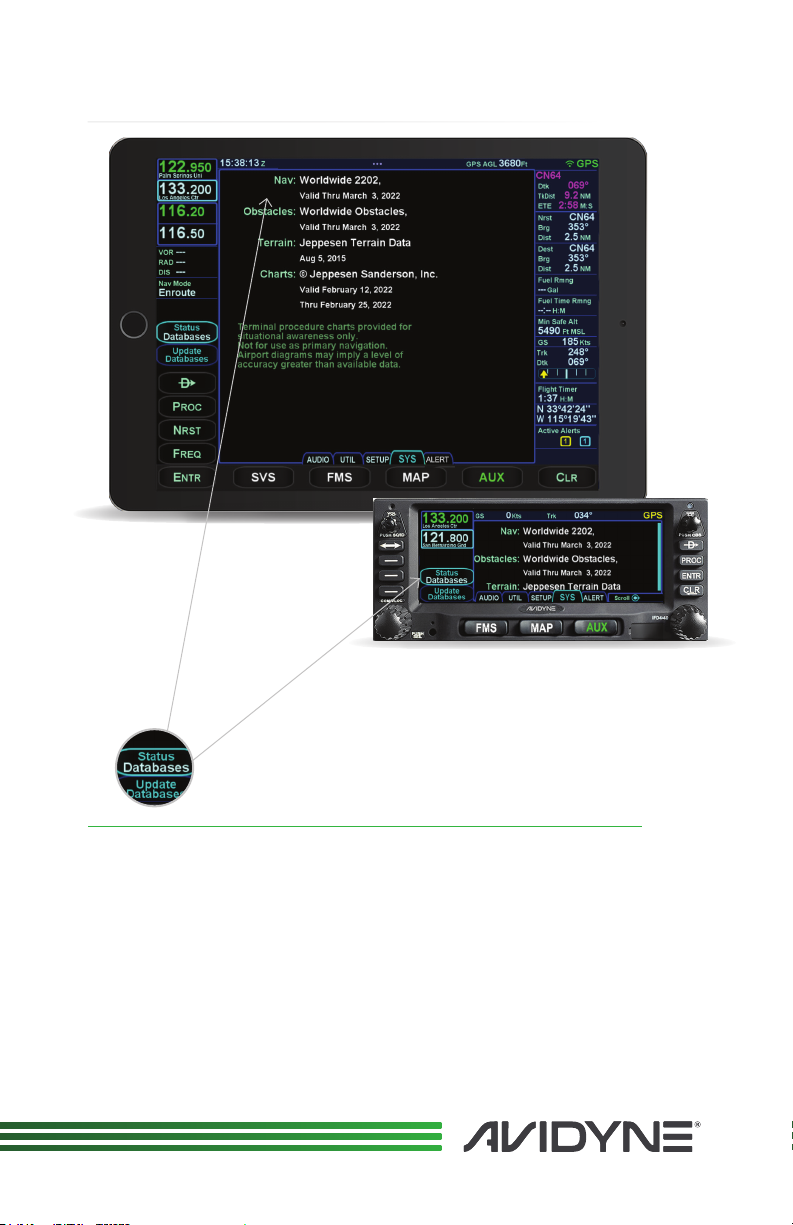

Go to AUX->SETUP and ‘Status - Databases’ page (LSK2).

21

QuickReference IFD4XX

IFD100 - Page & Tab

Select dierent screens on the IFD100 in much the same way as with the
panel mounted IFD5XX. Page buttons on the IFD100 operate much the

same as the IFD5XX. Touching any of the available Tabs will switch the
display accordingly. Or you may access push the left or right side of the
Page button on the IFD100 to sequence left or right through the available
Tabs, acting just like the two-way rocker switches on the IFD5XX. Activate
the Side Tab on the IFD100 just as you would on the IFD5XX--either by
touching it directly, or by touching andholding the highlighted Page button.

avidyne.com | 800.AVIDYNE

22

IFD100 - Changing Map View

TAB:

‘TRK’ indicated

when Heading

not available.

(or HDG Up* (360°)

You can change Map View of IFD100 (orientation)

by touching the HDG box on the MAP page, which will
cycle the Map between three dierent views:

North Up (360°) -> Track Up (240° arc view) -> Track Up (360°)

TRK Up (360°)

Indicates

‘North Up’

North Up (360°)

TRK Up (240° arc view)

or HDG Up* (240° arc view)

*If a Heading source is connected to the IFD5XX, then you can set preference for
Heading Up rather than Track Up in AUX->SETUP page under Map Orientation.

23

QuickReference IFD4XX

IFD100 - Synthetic Vision

Select the TAWS Tab on the MAP page of the IFD100 to
view 3D Exocentric Synthetic Vision, which includes 3D

Terrain, Obstacles, Trac (when available), Airports.

The Terrain Awareness and Alerting feature shows nearby
terrain within 1,000 feet as yellow hashed pattern, and terrain
within 100 feet or above in red hashed pattern.

Pinch zooming the display will adjust the perceived
distance above and behind the ownship symbol.

avidyne.com | 800.AVIDYNE

24

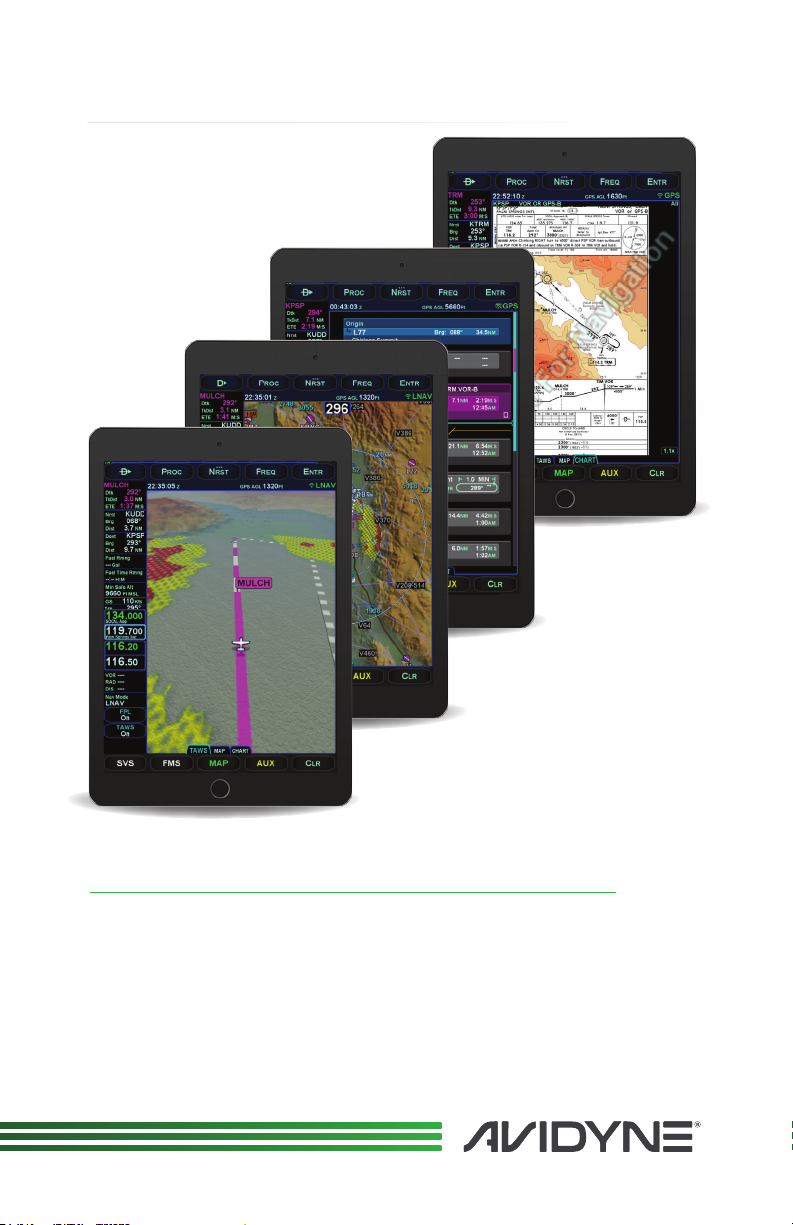

IFD100 - Portrait Mode

Rotate your iPad for Portrait display of all the same screens as
in landscape mode, but with better vertical map distance.

25

QuickReference IFD4XX

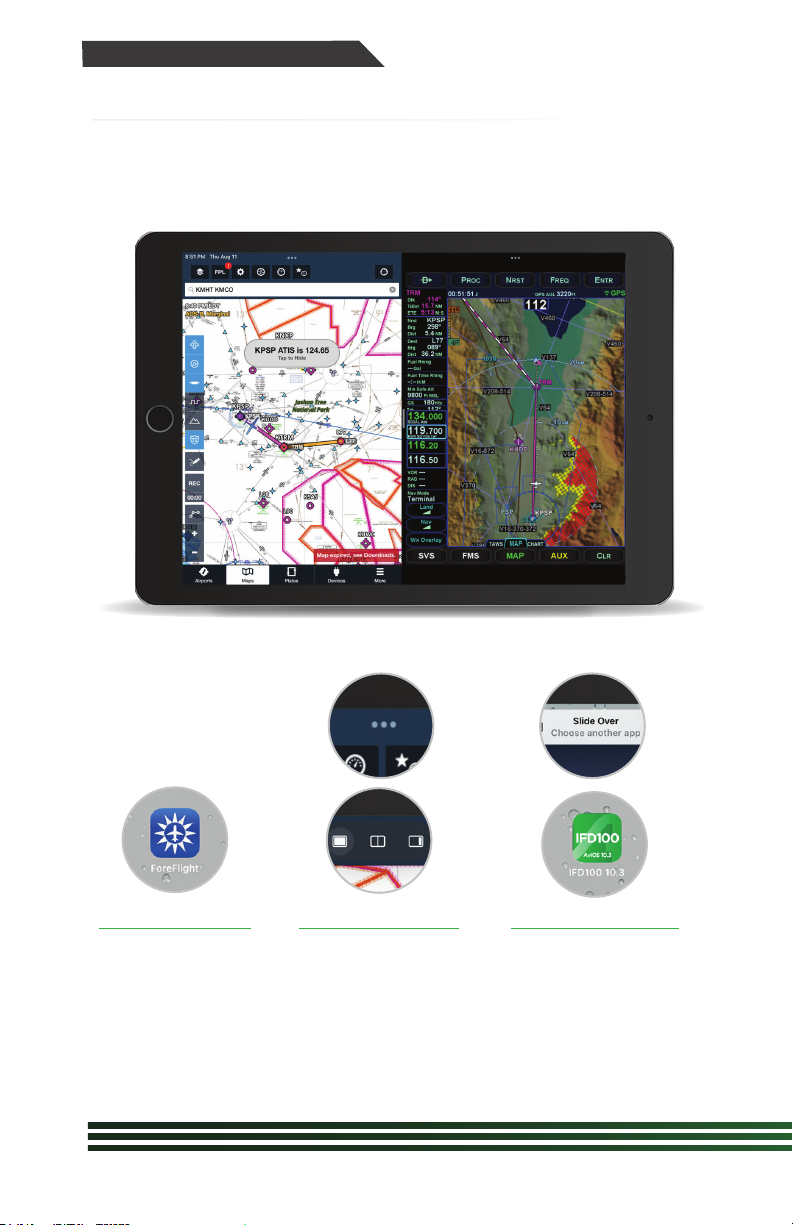

IFD100 - MultiTasking

Multitasking - allows you to view two Apps at the same time on single
iPad. In this example, we will launch Foreflight and then add IFD100.

1 2

Launch Foreflight
App.

avidyne.com | 800.AVIDYNE

26

Touch 3 dots in top­middle of screen then
select Split Screen

(Middle icon).

3

Launch IFD 100- You will
be prompted to select
another App. This is
where you launch the
IFD100 App. Both apps
will now be running.

NOTES

27

PILOT SUPPORT

888.723.7592

Mon-Fri: 8:00AM–5:00PM EDT / 1200-2100 UTC

visit: techsupport.avidyne.com
email: [email protected]

AFTER HOURS TECHLINE™

877.900.4264

PILOT TRAINING

avidynetraining.com

P/N 600-00350-000 Rev01

AVI22-033 ©2022 Avidyne Corp. All Rights Reserved. 08/22

avidyne.com | 800.AVIDYNE
