Avid Technology S6, S6 M10, S6 M40 Installation Manual

Download

Page 1

S6 Installation Guide

For Avid S6 M10 and S6 M40 Systems

Page 2

Legal Notices

© 2013 Avid Technology, Inc., ("Avid"), all rights reserved. This guide may not be duplicated in whole or in part without the written consent of Avid. 003, 192 Digital I/O, 192 I/O, 96 I/O, 96i I/O, Adrenaline, AirSpeed, ALEX, Alienbrain, AME, AniMatte, Archive, Archive II, Assistant Station, AudioPages, AudioStation, AutoLoop, AutoSync, Avid, Avid Active, Avid Everywhere, Avid Advanced Response, Avid DNA, Avid DNxcel, Avid DNxHD, Avid DS Assist Station, Avid Ignite, Avid Liquid, Avid Media Engine, Avid Media Processor, Avid MEDIArray, Avid Mojo, Avid Remote Response, Avid Unity, Avid Unity ISIS, Avid VideoRAID, AvidRAID, AvidShare, AVIDstripe, AVX, Beat Detective, Beauty Without The Bandwidth, Beyond Reality, BF Essentials, Bomb Factory, Bruno, C|24, CaptureManager, ChromaCurve, ChromaWheel, Cineractive Engine, Cineractive Player, Cineractive Viewer, Color Conductor, Command|8, Control|24, Cosmonaut Voice, CountDown, d2, d3, DAE, D-Command, D-Control, Deko, DekoCast, D-Fi, D-fx, Digi 002, Digi 003, DigiBase, Digidesign, Digidesign Audio Engine, Digidesign Development Partners, Digidesign Intelligent Noise Reduction, Digidesign TDM Bus, DigiLink, DigiMeter, DigiPanner, DigiProNet, DigiRack, DigiSerial, DigiSnake, DigiSystem, Digital Choreography, Digital Nonlinear Accelerator, DigiTest, DigiTranslator, DigiWear, DINR, DNxchange, Do More, DPP-1, D-Show, DSP Manager, DS-StorageCalc, DV Toolkit, DVD Complete, D-Verb, Eleven, EM, Euphonix, EUCON, EveryPhase, Expander, ExpertRender, Fairchild, FastBreak, Fast Track, Film Cutter, FilmScribe, Flexevent, FluidMotion, Frame Chase, FXDeko, HD Core, HD Process, HDpack, Home-to-Hollywood, HyperSPACE, HyperSPACE HDCAM, iKnowledge, Impact, Improv, iNEWS, iNEWS Assign, iNEWS ControlAir, InGame, Instantwrite, Instinct, Intelligent Content Management, Intelligent Digital Actor Technology, IntelliRender, Intelli-Sat, Intelli-Sat Broadcasting Recording Manager, InterFX, Interplay, inTONE, Intraframe, iS Expander, iS9, iS18, iS23, iS36, ISIS, IsoSync, LaunchPad, LeaderPlus, LFX, Lightning, Link & Sync, ListSync, LKT-200, Lo-Fi, MachineControl, Magic Mask, Make Anything Hollywood, make manage move|media, Marquee, MassivePack, MassivePack Pro, Maxim, Mbox, Media Composer, MediaFlow, MediaLog, MediaMix, Media Reader, Media Recorder, MEDIArray, MediaServer, MediaShare, MetaFuze, MetaSync, MIDI I/O, Mix Rack, Moviestar, MultiShell, NaturalMatch, NewsCutter, NewsView, NewsVision, Nitris, NL3D, NLP, NSDOS, NSWIN, OMF, OMF Interchange, OMM, OnDVD, Open Media Framework, Open Media Management, Painterly Effects, Palladium, Personal Q, PET, Podcast Factory, PowerSwap, PRE, ProControl, ProEncode, Profiler, Pro Tools, Pro Tools|HD, Pro Tools LE, Pro Tools M-Powered, Pro Transfer, QuickPunch, QuietDrive, Realtime Motion Synthesis, Recti-Fi, Reel Tape Delay, Reel Tape Flanger, Reel Tape Saturation, Reprise, Res Rocket Surfer, Reso, RetroLoop, Reverb One, ReVibe, Revolution, rS9, rS18, RTAS, Salesview, Sci-Fi, Scorch, ScriptSync, SecureProductionEnvironment, Shape-to-Shape, ShuttleCase, Sibelius, SimulPlay, SimulRecord, Slightly Rude Compressor, Smack!, Soft SampleCell, Soft-Clip Limiter, SoundReplacer, SPACE, SPACEShift, SpectraGraph, SpectraMatte, SteadyGlide, Streamfactory, Streamgenie, StreamRAID, SubCap, Sundance, Sundance Digital, SurroundScope, Symphony, SYNC HD, SYNC I/O, Synchronic, SynchroScope, Syntax, TDM FlexCable, TechFlix, Tel-Ray, Thunder, TimeLiner, Titansync, Titan, TL Aggro, TL AutoPan, TL Drum Rehab, TL Everyphase, TL Fauxlder, TL In Tune, TL MasterMeter, TL Metro, TL Space, TL Utilities, tools for storytellers, Transit, TransJammer, Trillium Lane Labs, TruTouch, UnityRAID, Vari-Fi, Video the Web Way, VideoRAID, VideoSPACE, VTEM, Work-N-Play, Xdeck, X-Form, and XMON are either registered trademarks or trademarks of Avid Technology, Inc. in the United States and/or other countries. The Interplay name is used with the permission of the Interplay Entertainment Corp. which bears no responsibility for Avid products. All other trademarks are the property of their respective owners.

Bonjour, the Bonjour logo, and the Bonjour symbol are trademarks of Apple Computer, Inc.

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.

This product may include software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).

This product may be protected by one or more U.S. and non-U.S. patents. Details are available at www.avid.com/patents.

Product features, specifications, system requirements, and availability are subject to change without notice.

Guide Part Number 9320-65199-00 REV B 11/13

Page 3

Contents

Part I

Part II Introduction

Chapter 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Overview of Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

System Requirements and Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Activation and Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

About www.avid.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 2. Modules and Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Master Section Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Module Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Part III Frames

Chapter 3. Assembling Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

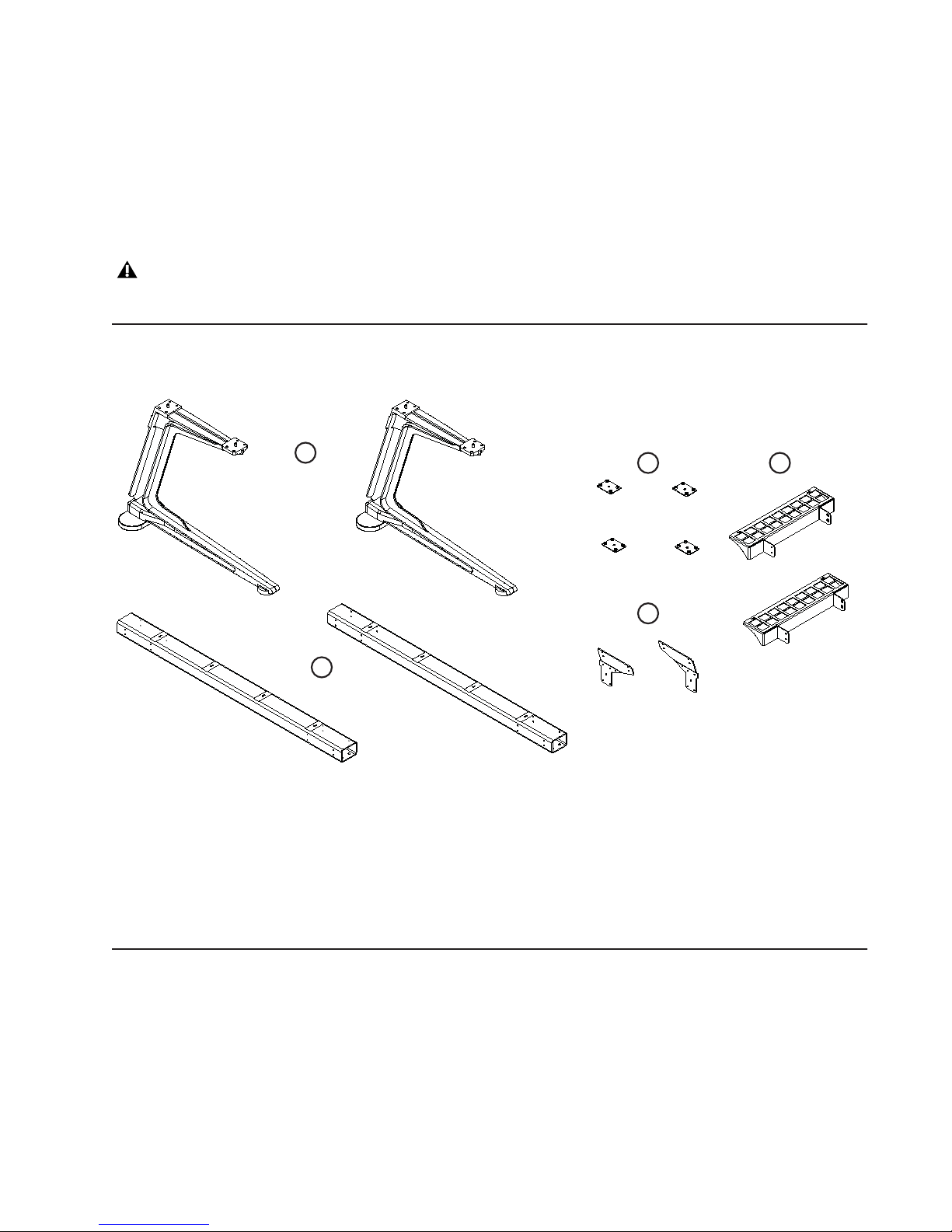

Unpack the Leg Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Overview of Leg Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

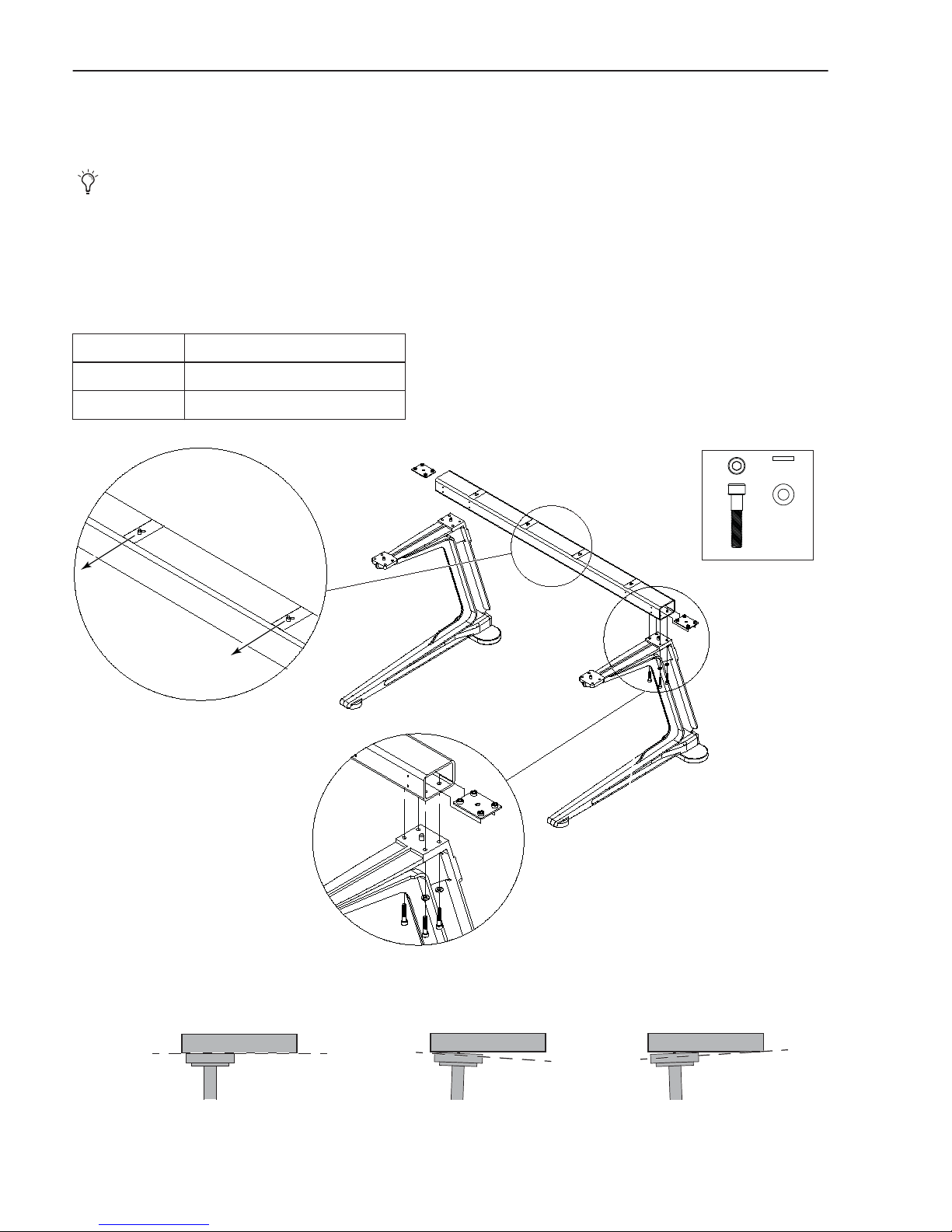

Attaching the Back Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

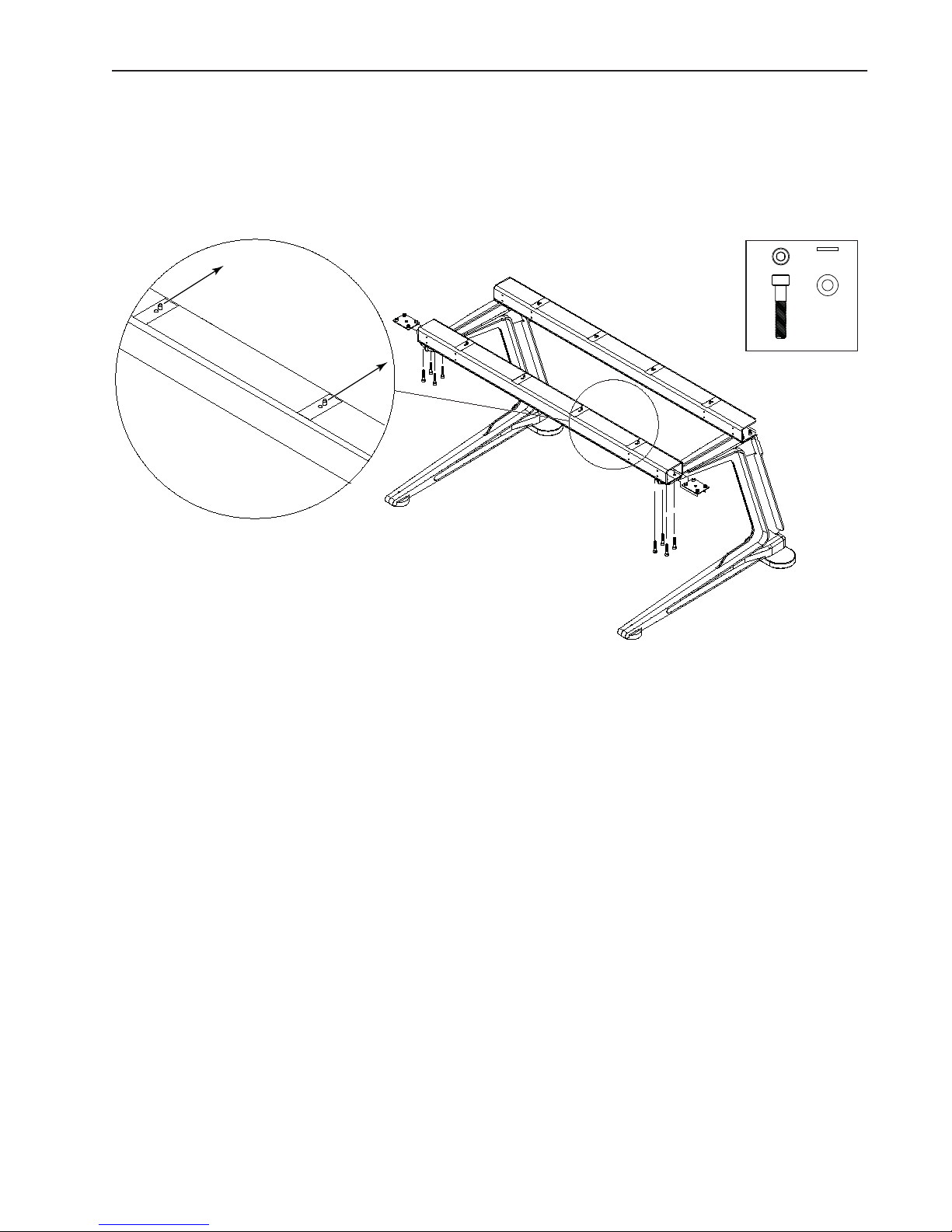

Attaching the Front Beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Attaching the Back Corner Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Attaching the End Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Leveling the Leg Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

How to Proceed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Chapter 4. Assembling Frame Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

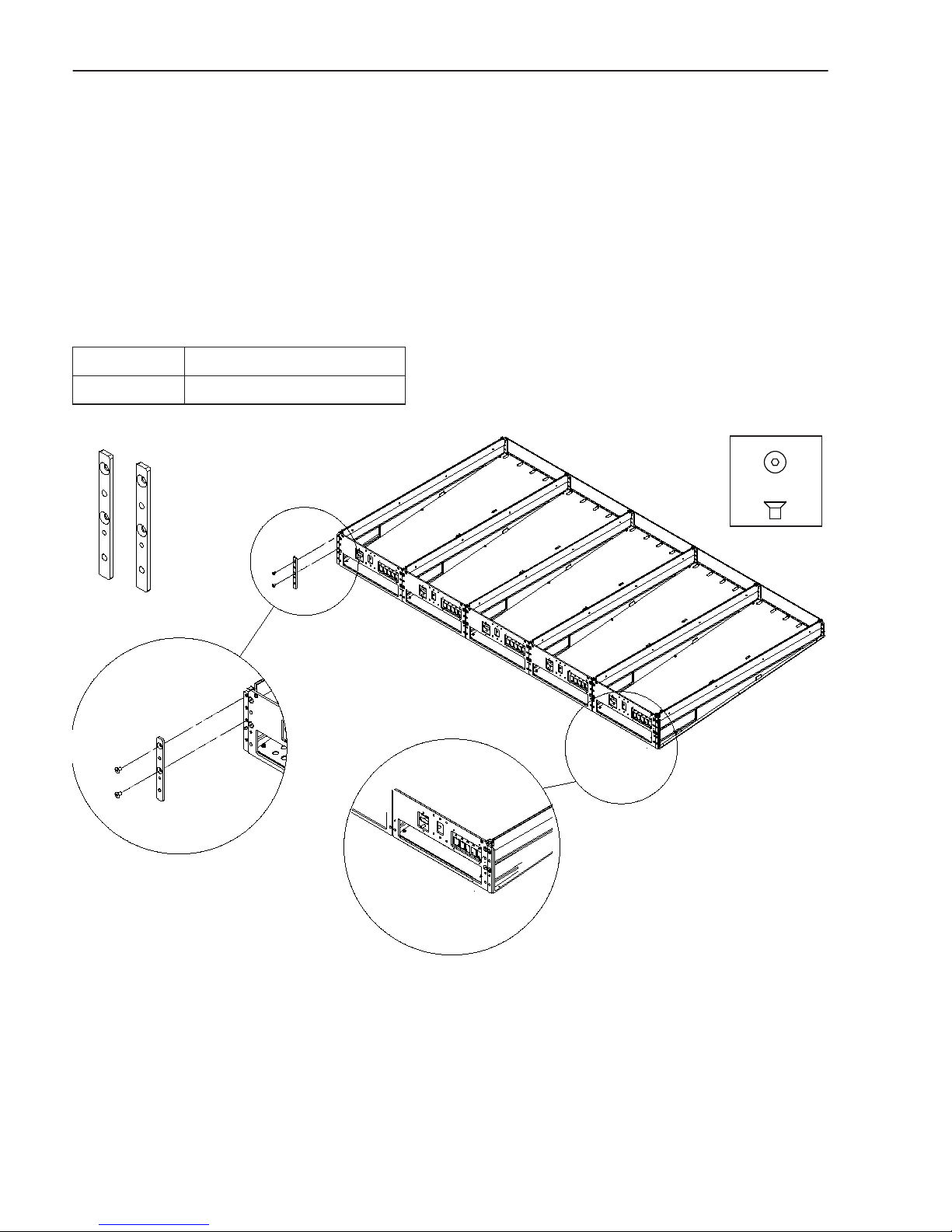

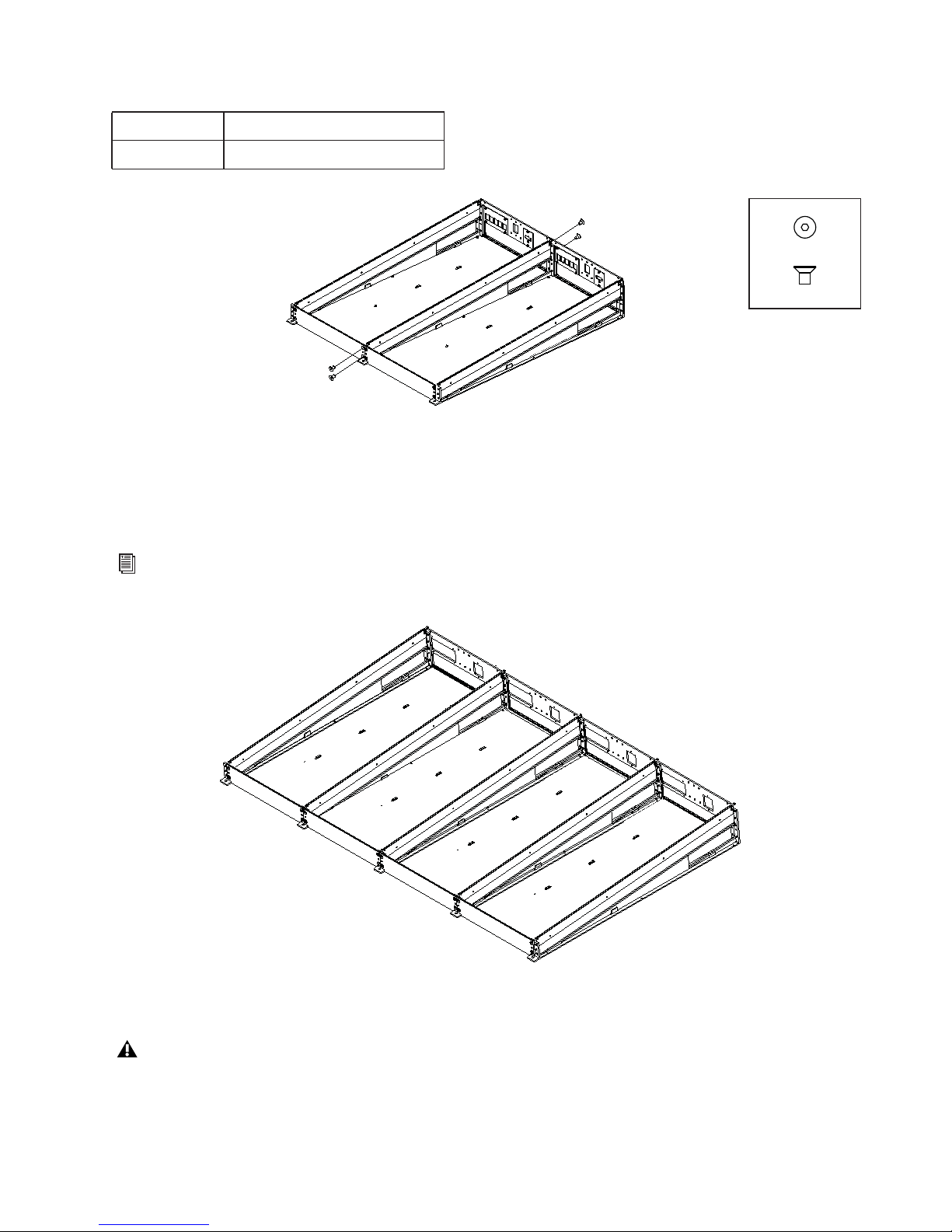

Assembling the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Attaching the Back Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Attaching the Bolster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Installing Display Module Mounting Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Installing Back Cover Mounting Brackets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

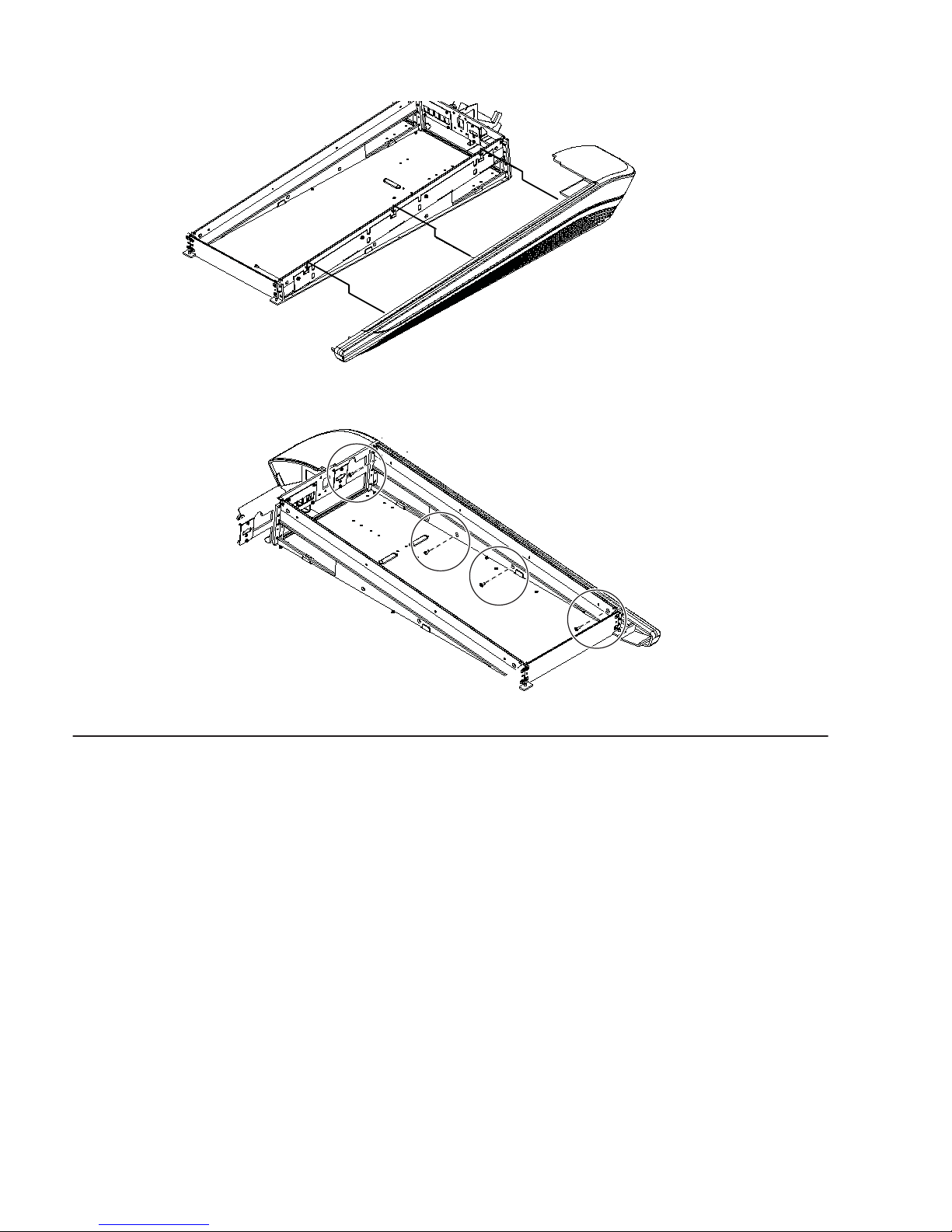

Installing Side Covers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

How to Proceed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Contents iii

Page 4

Part IV Modules

Chapter 5. Installing PSUs, Switches, and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Installing the Ethernet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

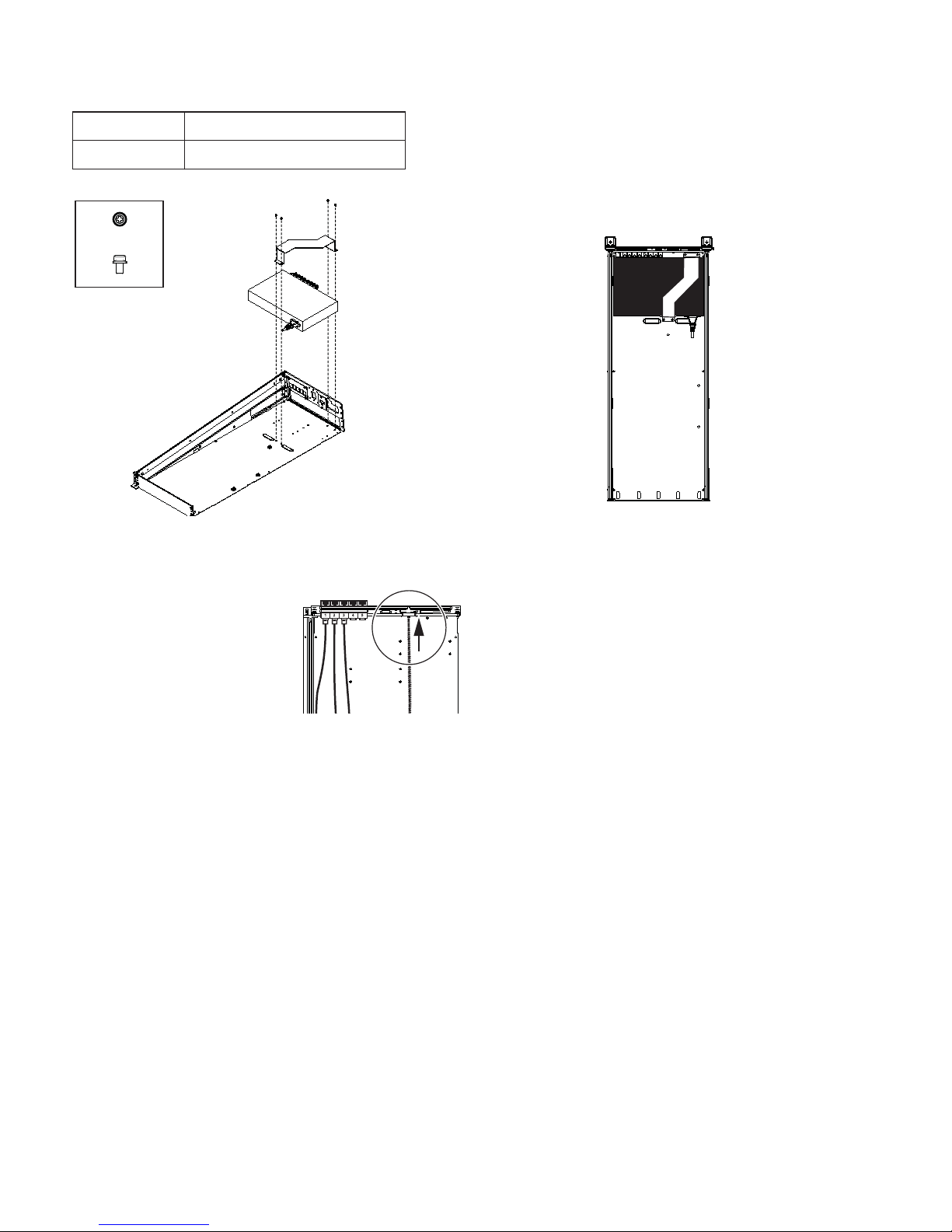

Installing PSUs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Ethernet Switch and PSU Placement per System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

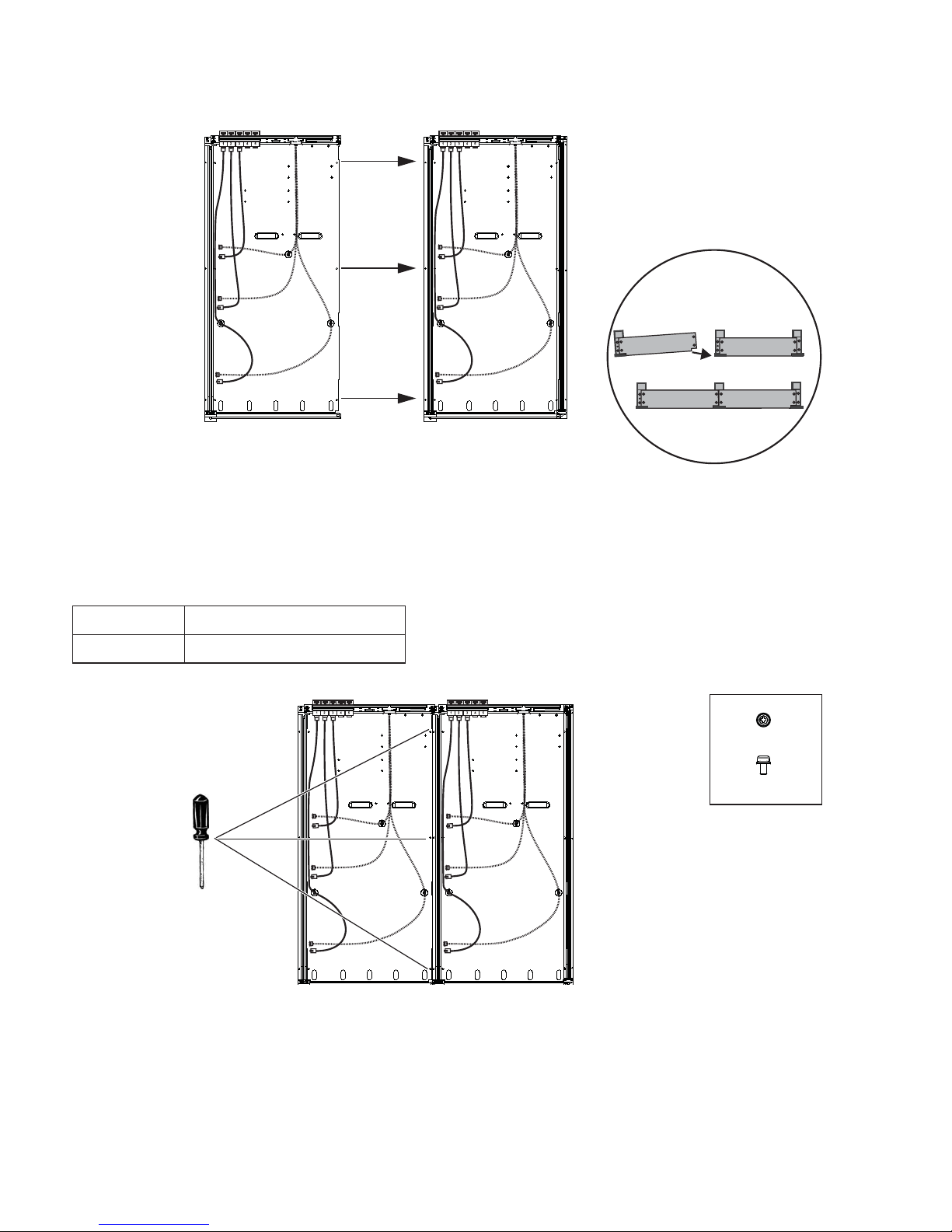

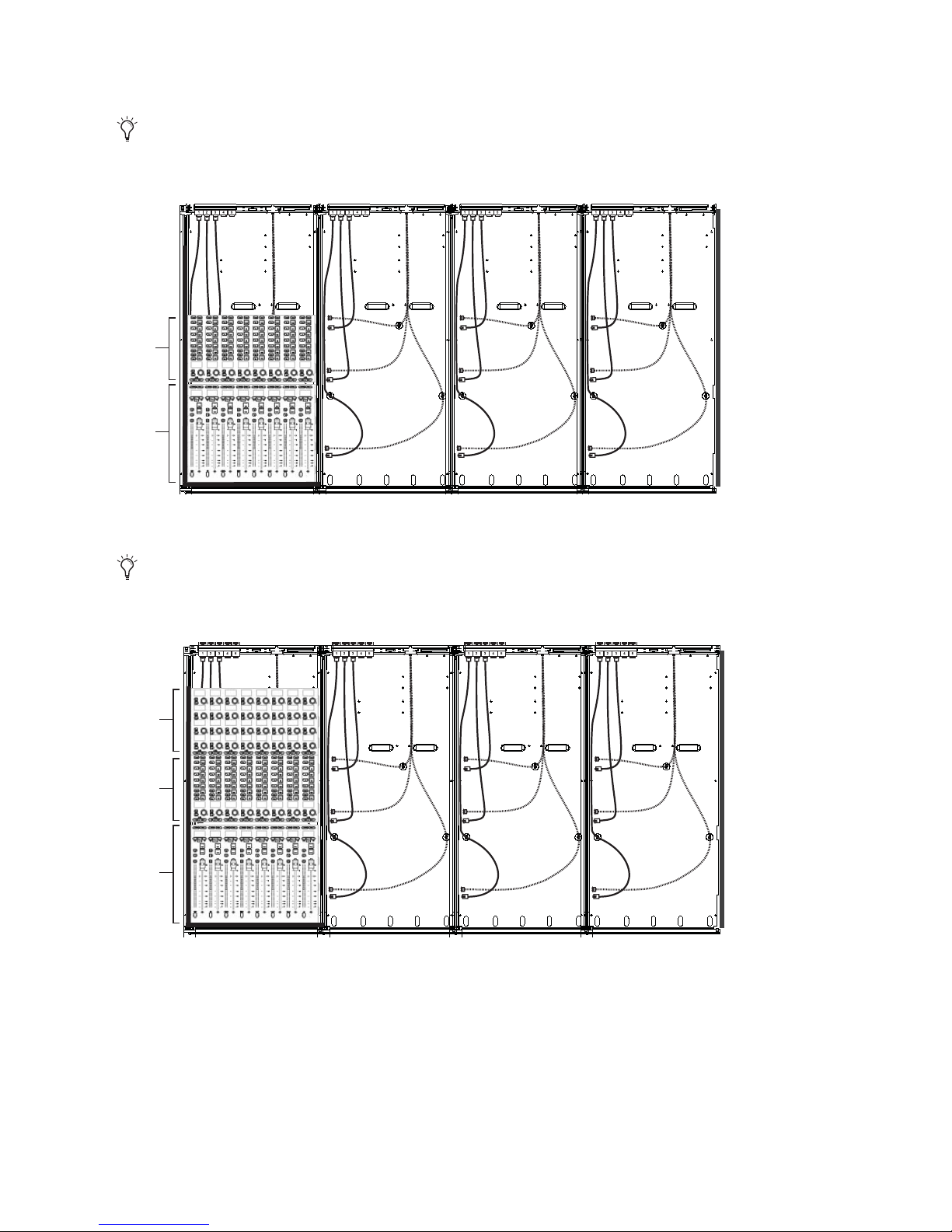

Installing and Connecting Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

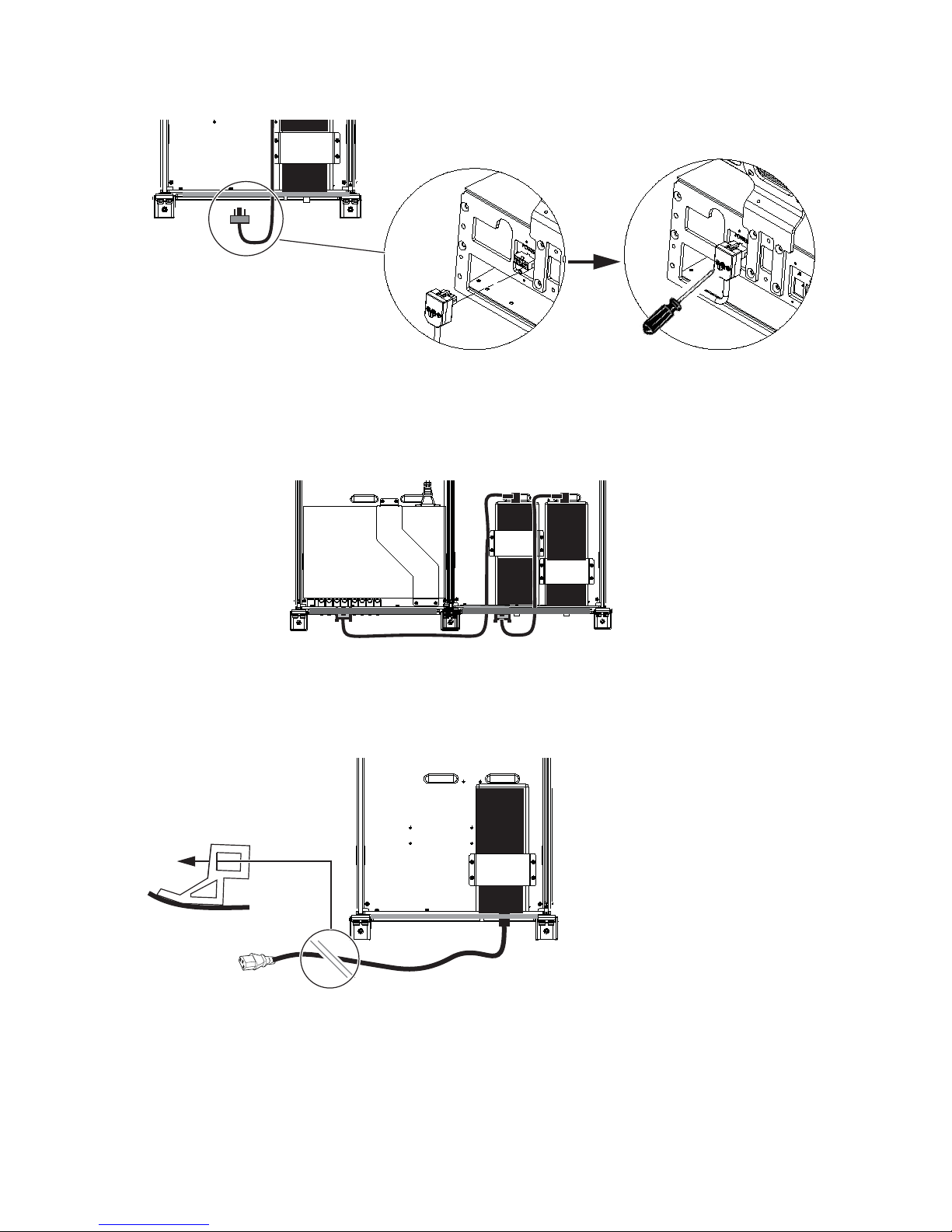

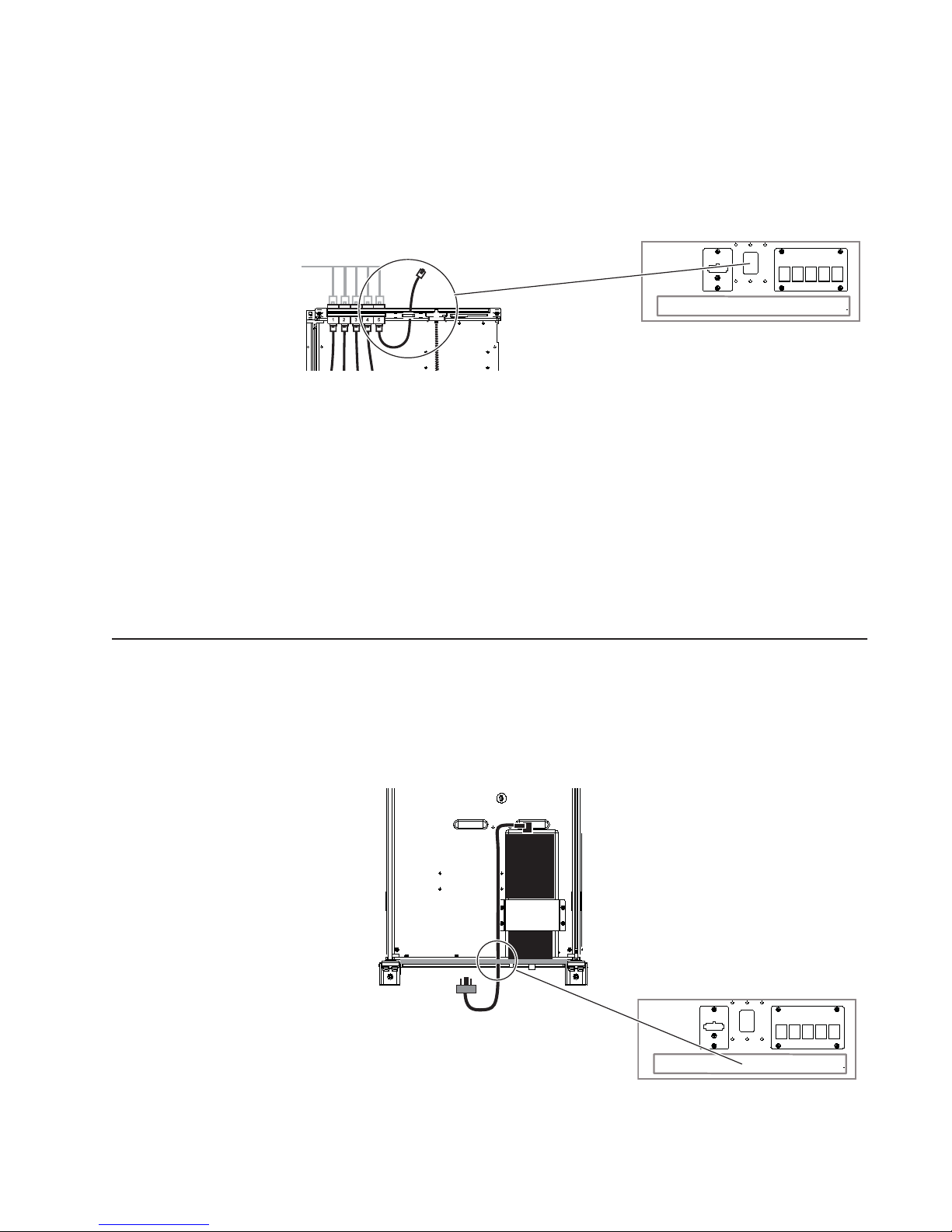

Connecting Power to the Switch and PSUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

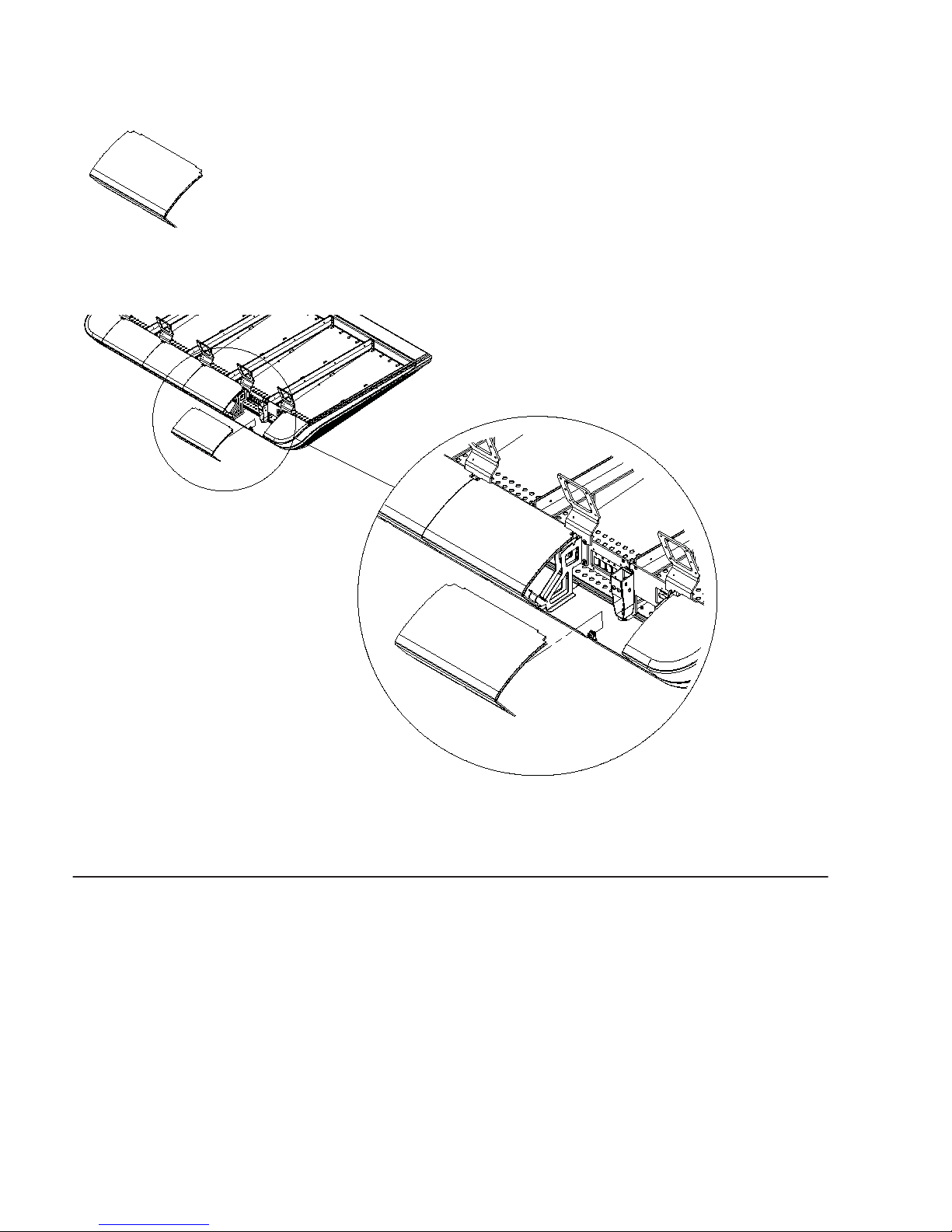

Attaching the Outer Side Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

How to Proceed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Chapter 6. Installing Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Installing Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Installing Fill Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

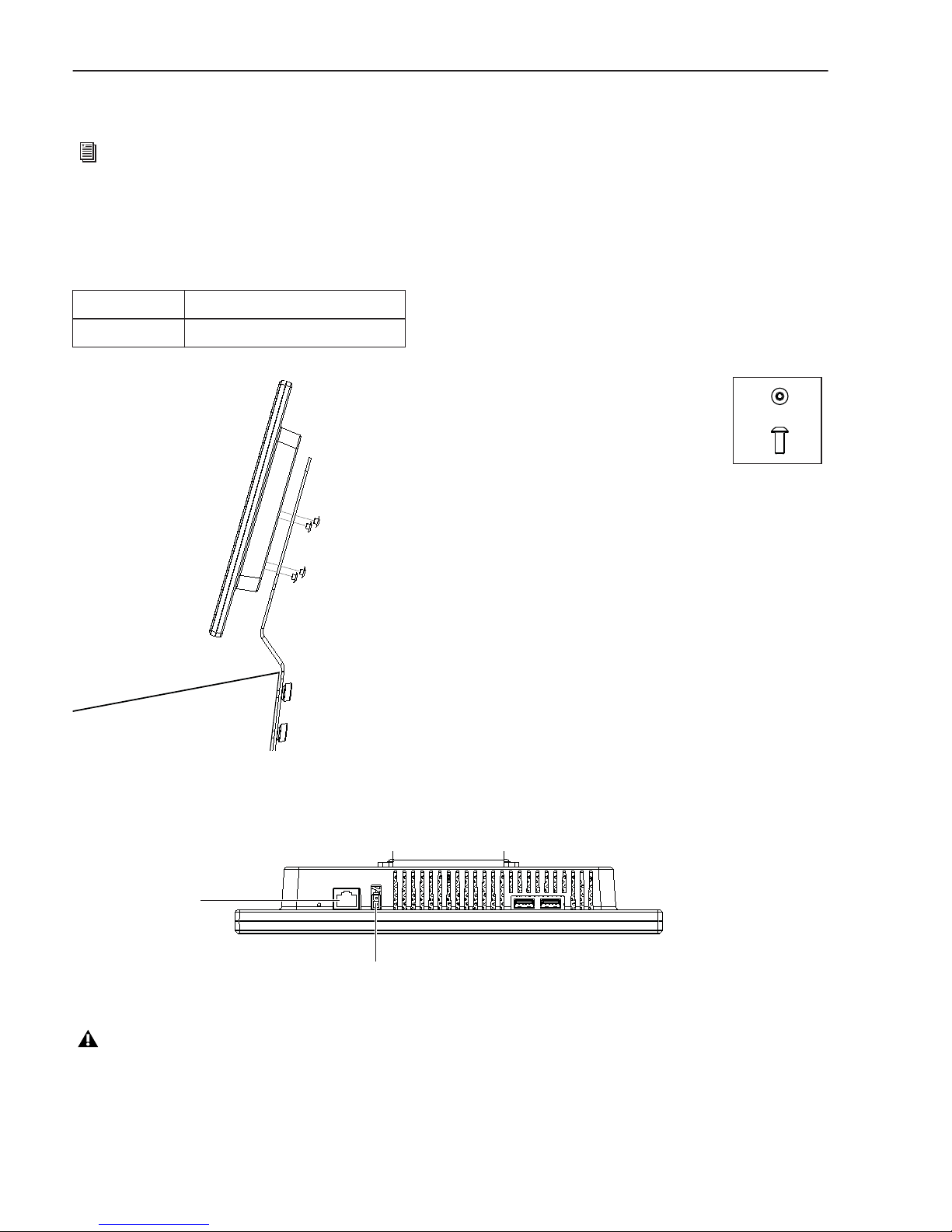

Installing Display Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Installing the Power Strip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Chapter 7. How to Proceed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Starting Up and Shutting Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Activate and Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Complete the Hardware Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

How to Proceed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Part V Appendices

Appendix A. Expanding or Disassembling S6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Removing Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Disassembling a Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Appendix B. Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

EMC (Electromagnetic Compliance) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Safety Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

S6 Installation Guideiv

Page 5

Part I:

Part I: Introduction

Page 6

Chapter 1: Introduction

Avid® S6 is a professional, modular, ergonomically designed control surface for Avid Pro Tools® and other EUCON™-compatible DAWs (Digital Audio Workstations).

S6 is flexible and scalable, letting you choose the best system for your production needs. Many different configurations are possible with different numbers of faders, knobs, and displays. All systems let you place the master section modules in any position, left-to-right, within a frame. More fader strips, knobs-per-strip, or displays can be added later to address workflow changes.

This guide explains how to assemble the system frame, how to install modules, and how to configure your S6 system.

Before You Begin

• Make sure you have the components and modules that make up your purchased system.

• Make sure you have all of the tools required for the assembly (see “Tools” on page 2).

• Make sure your workspace is clean, dry, is well lighted, and has ample room to work.

• Make sure you have a sturdy table or other flat surface, preferably with padding to protect the hardware. (If your system includes Legs, you will use the Leg Frame instead of a table.)

• Make sure you have another person available to help lift, turn, and move the system during and after assembly.

Components and systems are heavy! Team lift, always. We recommend four people, one lifting each corner. Never attempt to move systems that are five or more chassis in width. Disassemble it first (see Appendix A, “Expanding or Disassembling S6”).

Overview of Installation

Here are the basic steps to assemble and install your S6 system.

1 Assemble the frame

• Assemble Legs if your system includes them

• Assemble the Frame Chassis kits

2 Install modules

• Determine module layout

• Install power supply units (PSUs), the Ethernet switch(es), and cables

• Install modules

3 Start up your system 4 Activate your system 5 Log into your Avid Master Account to download and install S6 software updates, Workstation software installers, S6 documen-

tation and other resources.

Chapter 1: Introduction 1

Page 7

What’s Included

The Master Module package contains the following items:

• Master Module (M10 or M40)

• Registration Card

• Activation Card

• Health & Safety Guide

• S6 Software Installation Guide

• This guide (S6 Installation Guide)

• System Restore USB Flash Drive

Do not use the System Restore drive for anything other than S6 System Restor e softwar e. Do not use this drive to stor e audio files or any other data or software.

Tools

The following tools are required for assembly of the S6 frame and are included in the Side Covers package:

• Hex M3

• Hex M4

• Hex M5

• Hex M6

• Phillips screwdriver #1 (long)

• Phillip screw driver #2

• Small flat screw driver

Legs

The following tools are required for assembly of the S6 Leg Frame and are included with the Leg Set package:

• One open end wrench (13 mm)

Additional Required Components

The following items are required to use S6 and must be purchased separately:

• USB Flash drive to use when transferring and installing S6 system software updates

• Workstation running Pro Tools or other EUCON-compatible digital audio workstation (see Avid.com for compatibility information)

Optional

The following items are recommended and can be purchased separately:

• UPS (Uninterruptable Power Supply), power conditioner/timer, or other power management system

• USB computer keyboard and mouse/trackball (the Master Module has a touchscreen, but you might prefer to use a dedicated keyboard/mouse/trackball for some administrative tasks)

S6 Installation Guide2

Page 8

System Requirements and Compatibility

Avid can only assure compatibility and provide support for hardware and software it has tested and approved. For complete system requirements and a list of qualified computers, operating systems, hard drives, and third-party devices, visit:

www.avid.com/compatibility

Activation and Registration

Review the enclosed Activation Card and Registration Information Card and follow the instructions to Activate (required) and Register (optional, but highly recommended).

Activate S6 System Software Immediately

As soon as you have assembled your S6 system and confirmed a successful hardware installation, activate your S6 system software on-line. Use the alphanumeric code on the included S6 System Software Activation Card to activate and download all S6 system software and documentation.

Be sure to Activate your purchase using the enclosed Activation card so you can receive software updates directly in your Avid account. Check your Avid account for system software updates, Workstation software, and XMON EUCON software

Registering

By registering, you become eligible to receive the following:

• Technical support information

• Software update and upgrade notices

• Hardware warranty information

Chapter 1: Introduction 3

Page 9

About This Guide

This guide explains how to assemble your Avid S6 system.

Conventions Used in This Guide

All of our guides use the following conventions to indicate menu choices and key commands:

Convention Action

File > Save Choose Save from the File menu Control+N Hold down the Control key and press the N key Control-click Hold down the Control key and click the mouse button Right-click Click with the right mouse button

The names of Commands, Options, and Settings that appear on-screen are in a different font. The names of switches and keys on the control surface are shown in bold (such as

SEL).

The following symbols are used to highlight important information:

User Tips are helpful hints for getting the most from your system.

Important Notices include information that could affect your data or the performance of your system.

Shortcuts show you useful keyboard or mouse shortcuts.

Cross References point to related sections in this guide and other Avid guides.

About www.avid.com

The Avid website (www.avid.com) is your best online source for information to help you get the most out of your Avid system. The following are just a few of the services and features available.

Product Registration and Activation Support and Downloads

Contact Avid Customer Success (technical support); download software updates and the latest online manuals; browse the Compatibility documents for system requirements; search the online Knowledge Base or join the worldwide Avid community on the User Conference.

Training and Education

Study on your own using courses available online or find out how you can learn in a classroom setting at

a certified Avid training center.

Products and Developers

Learn about Avid products; download demo software or learn about our Development Partners and their

plug-ins, applications, and hardware.

News and Events

S6 Installation Guide4

Get the latest news from Avid or sign up for a product demo.

Page 10

Chapter 2: Modules and Configuration Overview

This chapter identifies each of the S6 modules, and tells you how and where they can be arranged within a system. There are two primary types of modules in a system, Master modules and Channel modules.

Master Section Modules

The S6 Master Module and S6 Automation Module are often installed in the same chassis to form a master section.

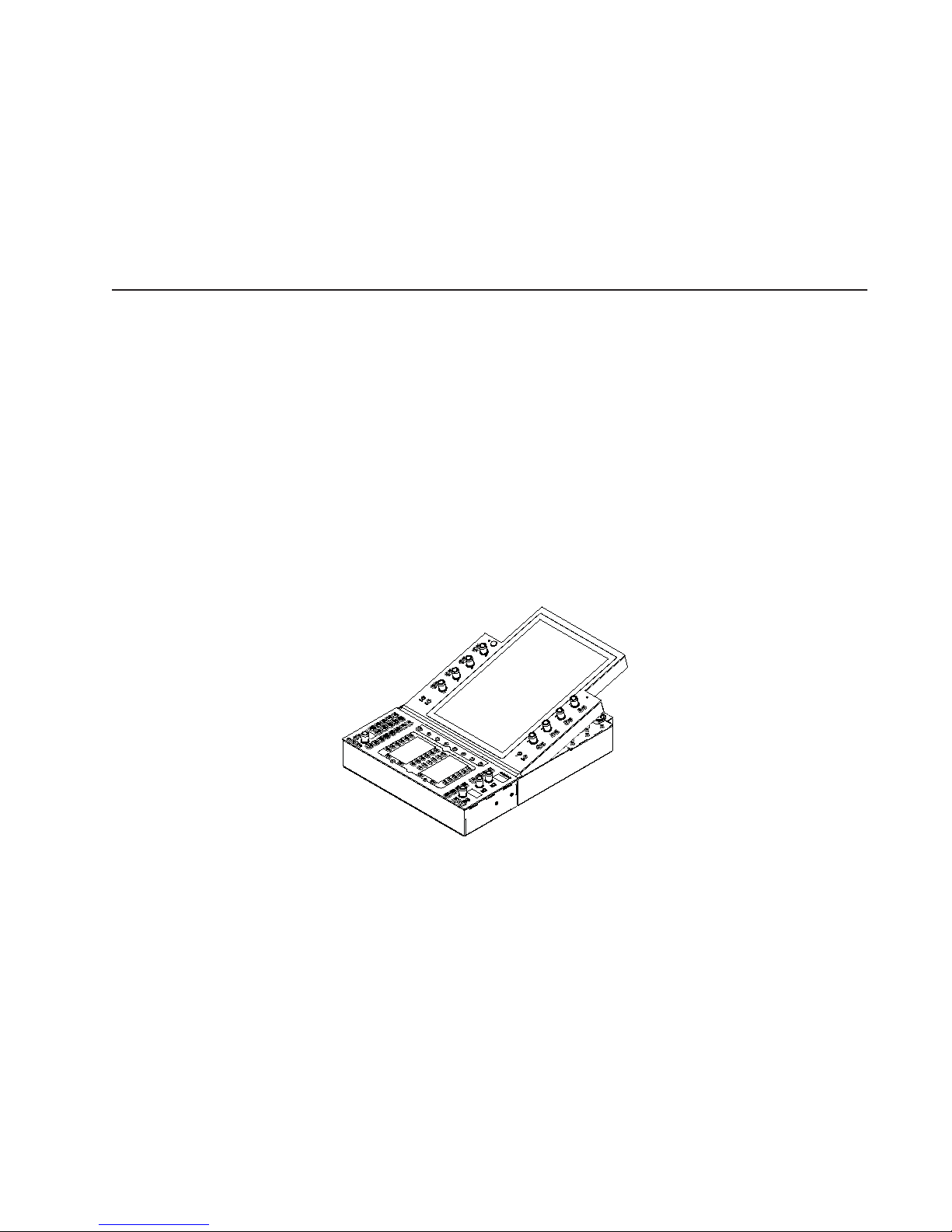

Master Module

The Master Module is the primary module of the system, providing the Touchscreen, two banks of Soft Keys, a monitoring section and other controls. Each system must have one Master Module. There are two models of Master Module (M10 and M40) that are used in S6 M10 or S6 M40 systems, respectively. They share identical controls and features, the only difference are the number of other modules they each support, and the number of workstations that can be connected.

S6 M10 Systems

workstations. S6 M10 systems accommodate 8 to 24 faders per frame and are suitable for smaller configurations. Display Modules are not supported on S6 M10 systems.

S6 M40 Systems

including Display Modules. M40 systems support up to eight attached workstations.

Master Module

These systems include an M10 Master Module that supports up to 10 other S6 modules, and up to two attached

These system include an M40 Master Module that supports up to 40 other S6 modules and up to 64 fader strips,

Chapter 2: Modules and Configuration Overview 5

Page 11

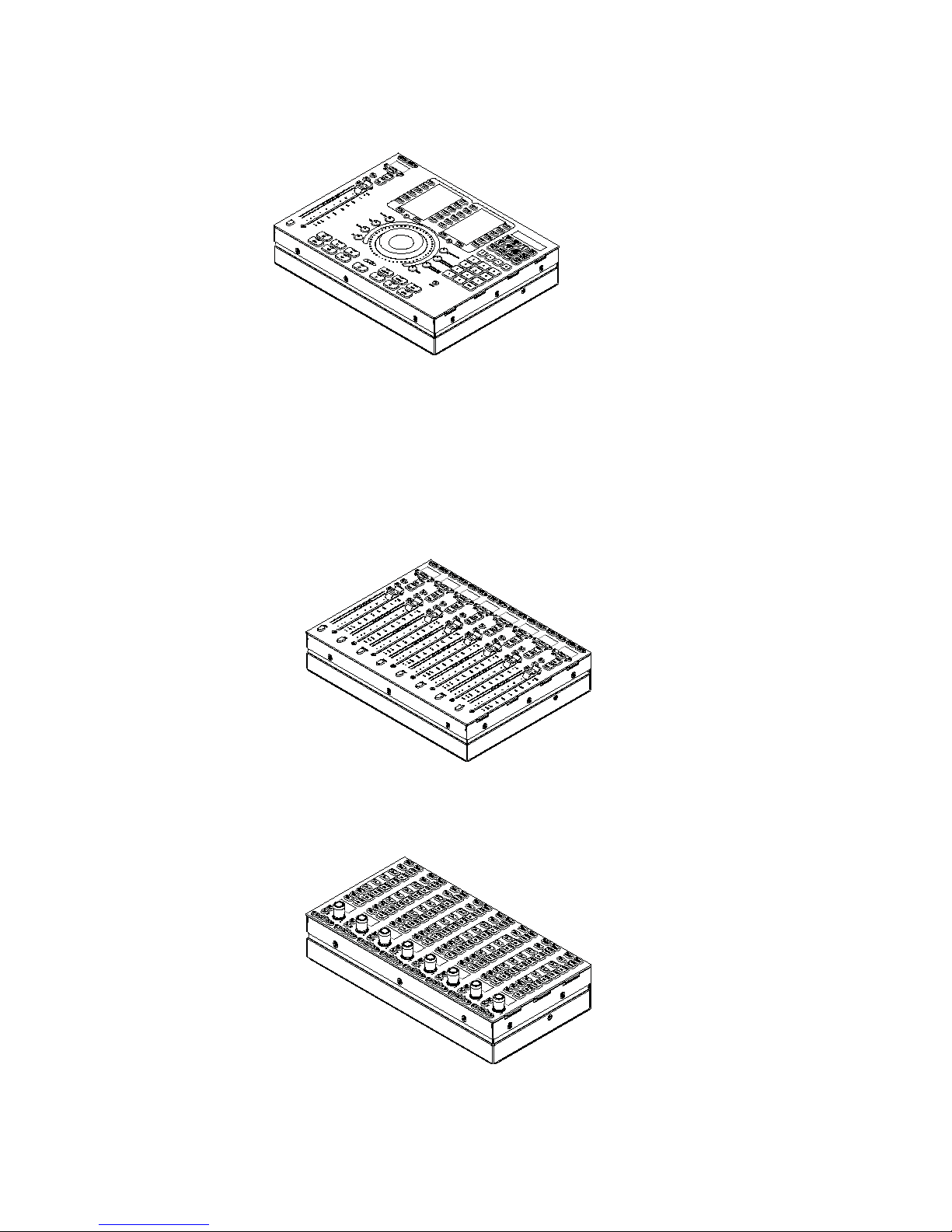

Automation Module

The Automation Module provides transport and locate controls, the Attention fader strip, Jog/Shuttle wheel, a numeric keypad, and additional Soft Keys. The Automation Module is most often installed directly below and in the same chassis as the Master Module.

Automation Module

Channel Modules

Channel modules combine to form the fader strips of the system, and include the S6 Fader Module, S6 Process Module, S6 Knob Module, and S6 Display Module. Not all configurations include each type of channel modules.

Fader Module

Each Fader Module provides eight channel faders with meters and other controls. Fader Modules are installed in the first slot of each chassis (closest to the front).

Fader Module

Process Module

Each Process Module provides eight channel strips, each with a knob, OLED displays and other controls.

Process Module

S6 Installation Guide6

Page 12

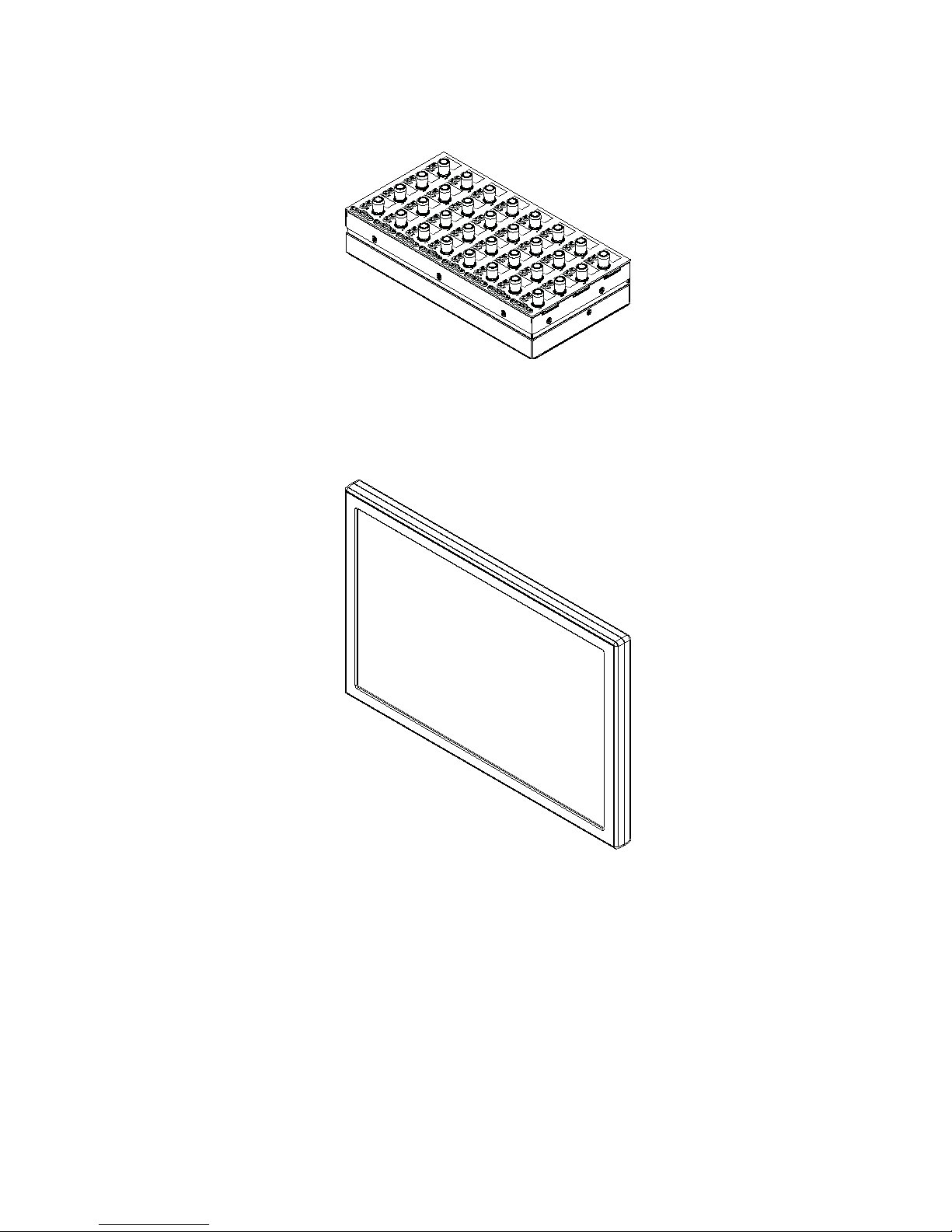

Knob Module

Each Knob Module provides eight channel strips, each with four dual-function (rotate/press switch) encoders, OLED displays, and other controls. Up to two Knob Modules can be installed in the larger chassis M40 systems only.

Knob Module

Display Module

Display Modules are supported on S6 M40 systems only. Each Display Module provides a large display that shows names, meters, waveforms, and other data for up to eight strips.

Display Module

Chapter 2: Modules and Configuration Overview 7

Page 13

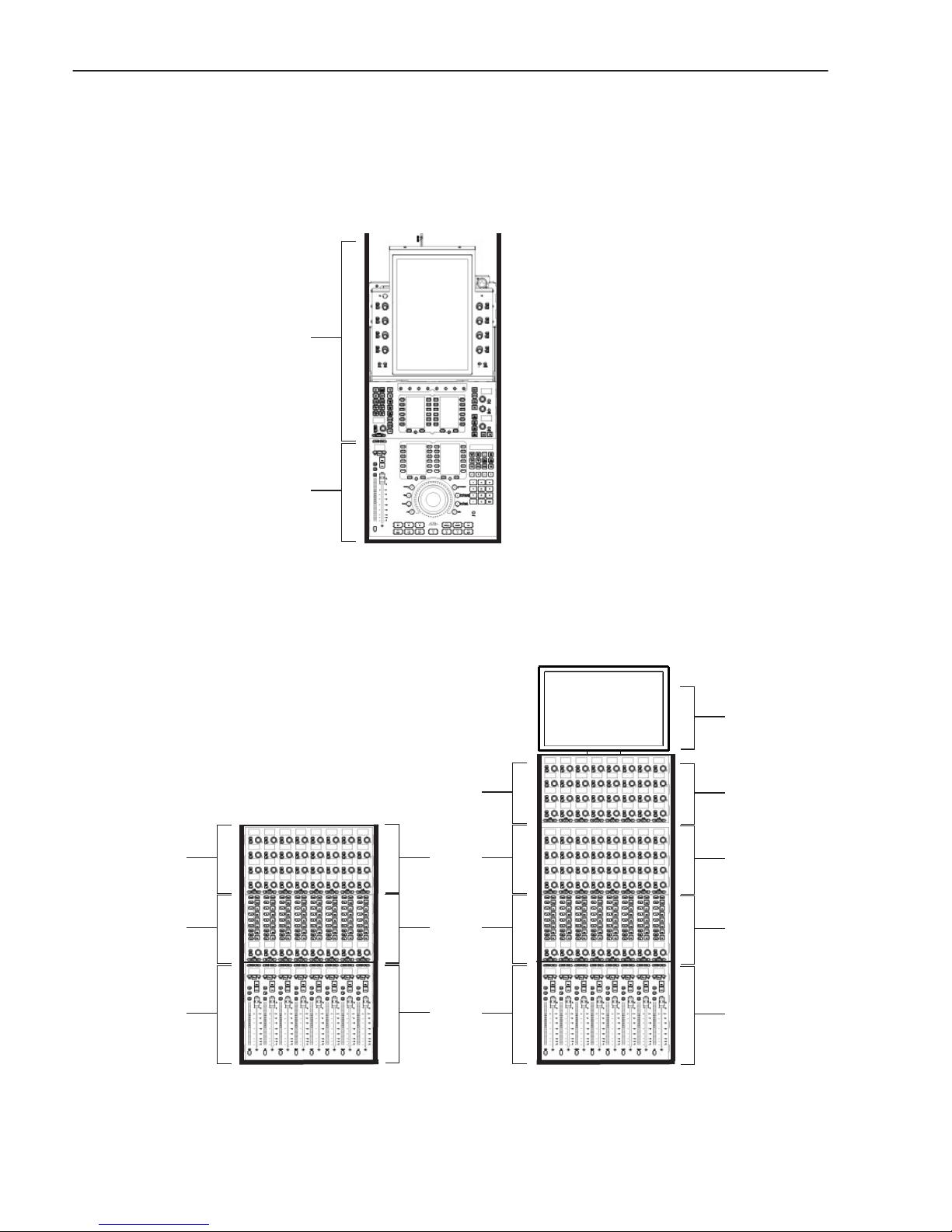

Module Layout

This section describes the arrangements of modules front-to-back in their chassis, and chassis left-to-right in the frame.

Front-to-Back Module Arrangements

In most configurations, master section modules are installed together in a single chassis with the Master Module above the Automation Module. They do not have to be in the same chassis, but for simplicity this guide shows them installed together.

Slots 2 and 3

Master Module

Automation Module

Master section modules in a Frame Chassis Small

Slot 1

Channel modules are usually installed together to provide the fader strips in a system. The Fader Module is installed in slot 1, Process Module in slot 2, and Knob Module in slot 3. Frame Chassis Small support one Knob Module per chassis; the Frame Chassis Large support up to two Knob Modules per chassis. M40-based systems also support Display Modules. Not all slots need to contain modules. Fill panels are available to cover unused slots.

Display Module

Knob

Module

Process

Module

Slot 4

Slot 3

Slot 2

Knob Module

Process Module

Fader

Module

Channel modules in a Frame Chassis Small (left) and a Frame Chassis Large (right)

S6 Installation Guide8

Slot 1

Fader Module

Page 14

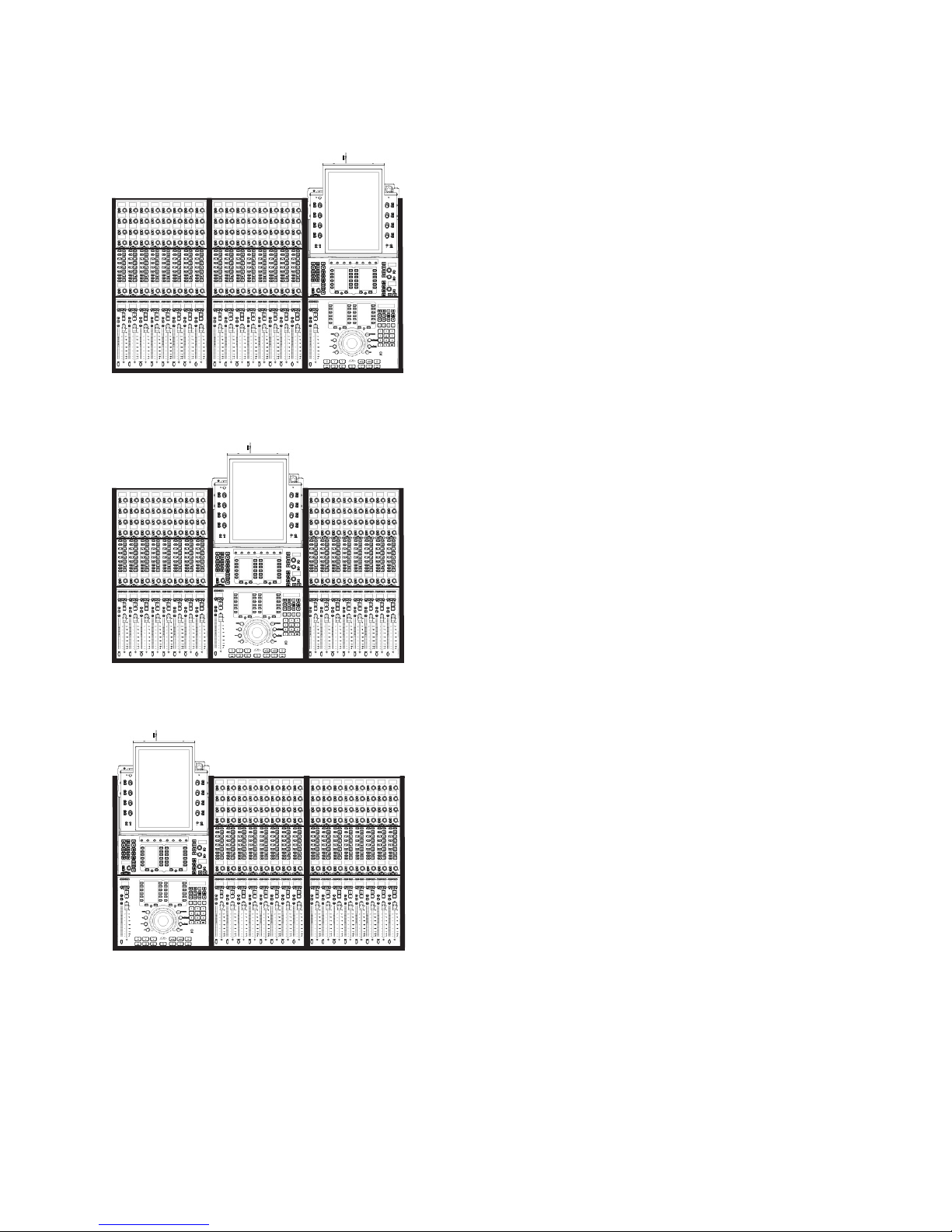

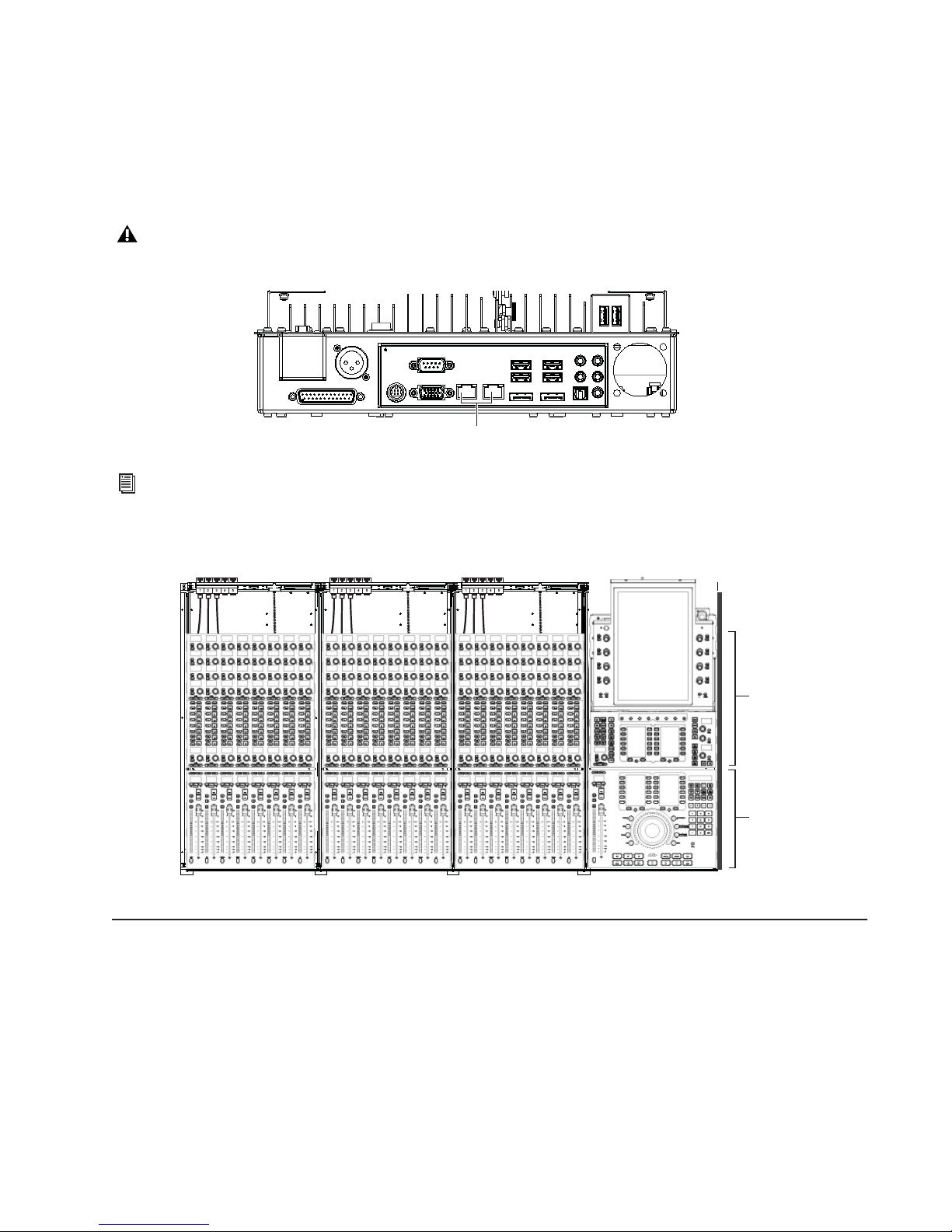

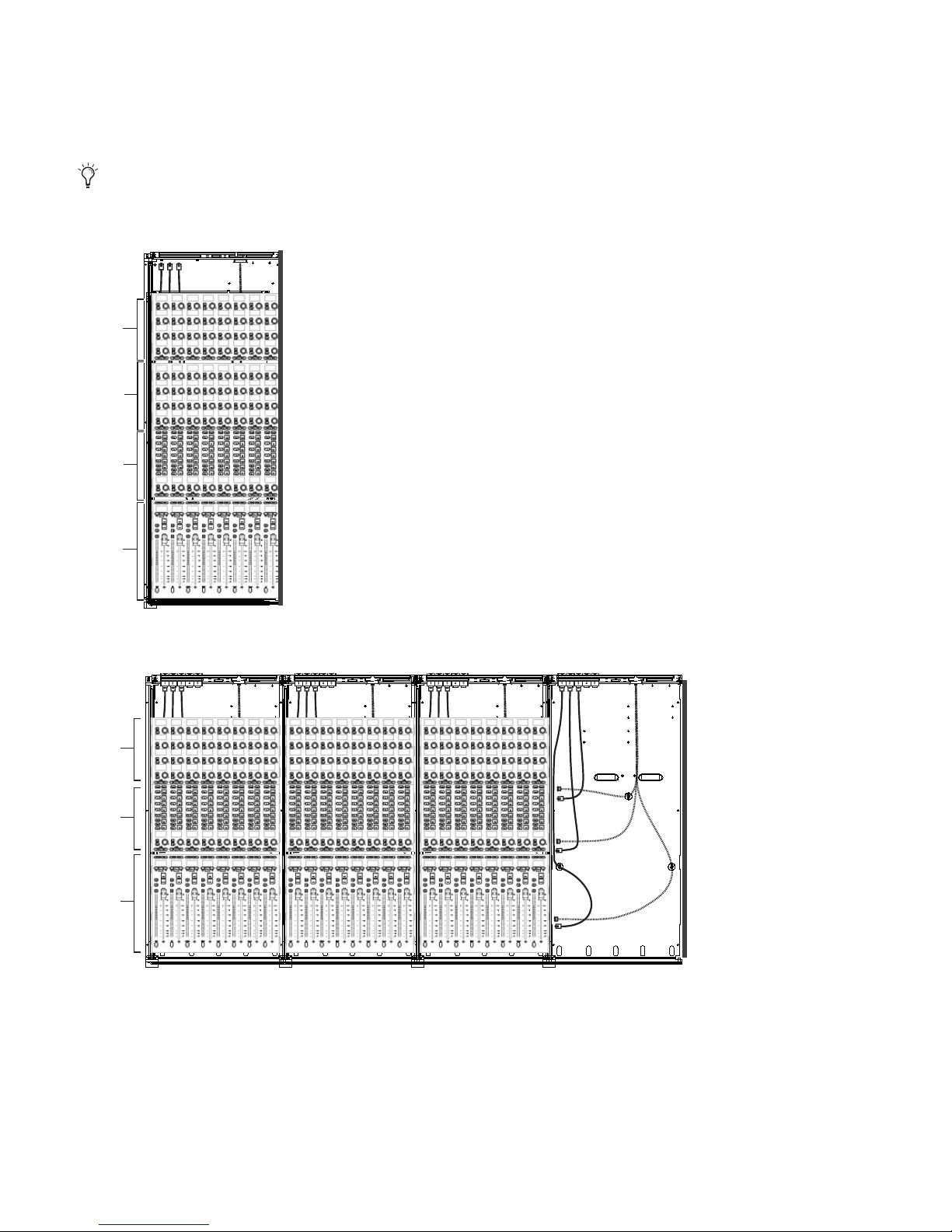

Left-to-Right Chassis and Module Arrangements

Channel sections and the master section modules can be arranged in any order, left-to-right. For example, in an S6 M10–16–5 system (16 faders with five knobs per strip) the master section modules can be located in three possible locations, as shown below.

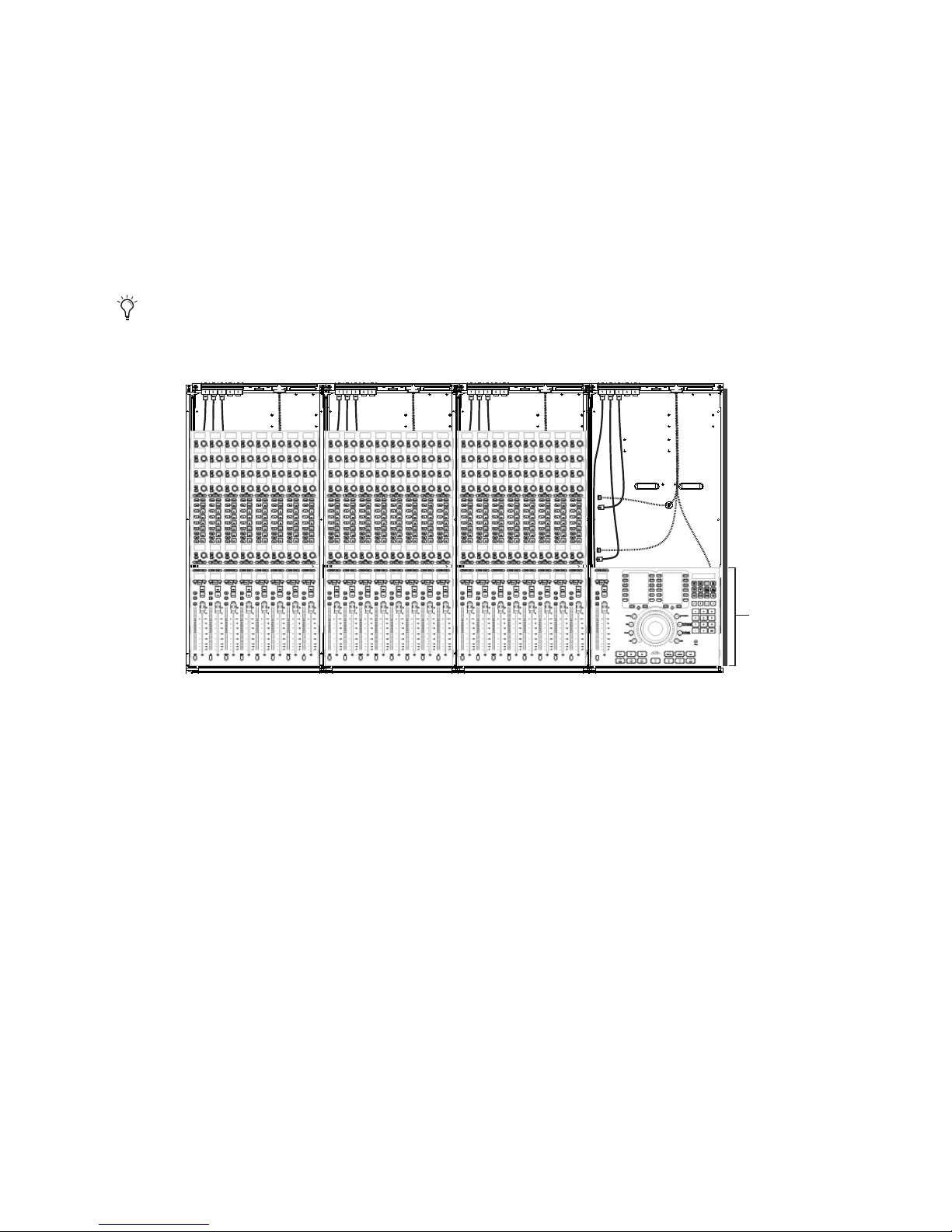

Example 1: S6 M10-16-5 with Master modules at far right

Example 2: S6 M10-16-5 with Master modules in the center

Example 3: S6 M10-16-5 with Master modules at far left

About Custom Module Configurations

While several S6 systems are available in factory configurations that support standard module arrangements, you can customize the arrangement of modules in many different ways. After you have assembled the system you will use the Touchscreen to tell the system where you have installed which modules; as you will see, there are many options for where you can place channel and master section modules within different chassis.

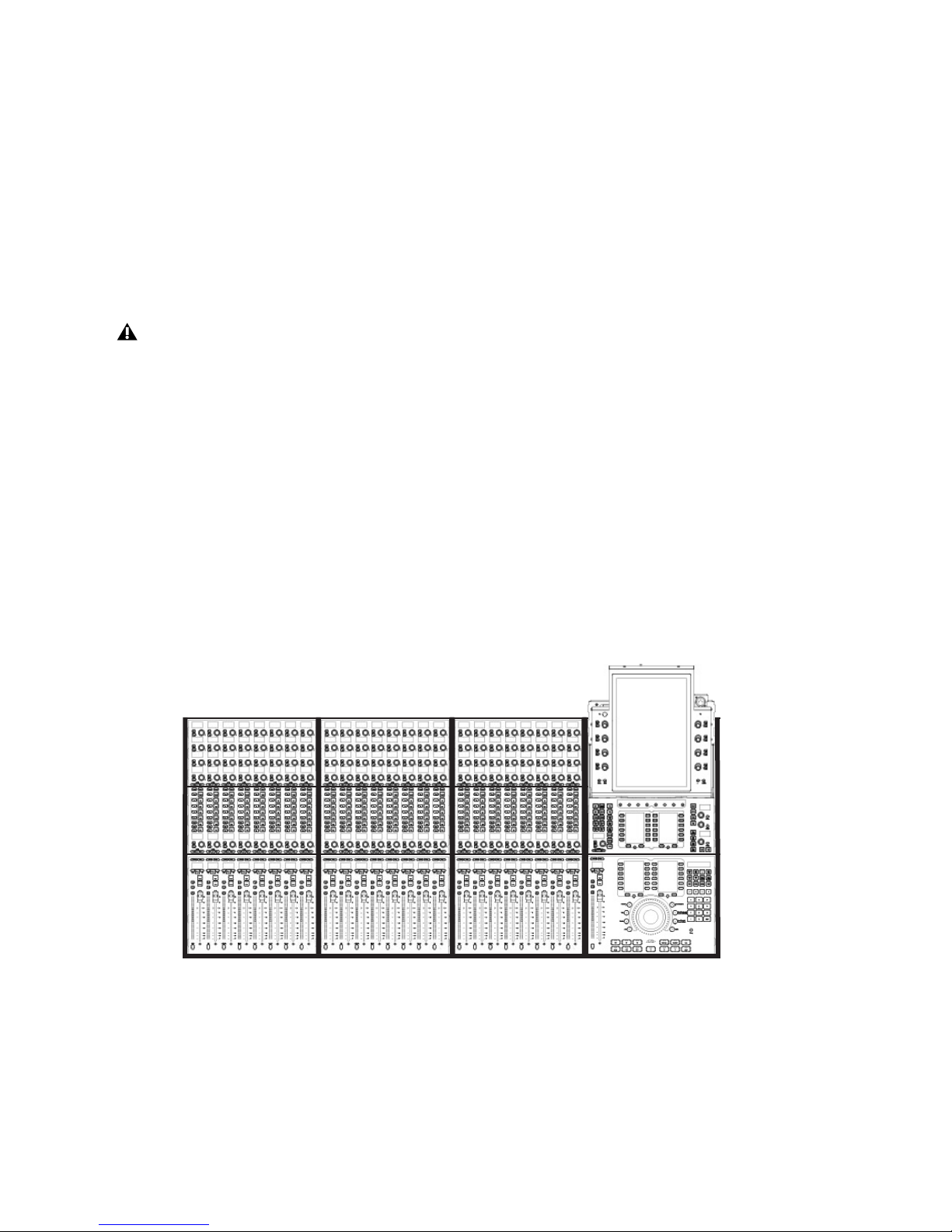

For now, decide where you want your fader strips to be in relation to the master section modules, then proceed to Part II, “Frames.”

Chapter 2: Modules and Configuration Overview 9

Page 15

S6 Installation Guide10

Page 16

Part II: Frames

Page 17

Page 18

Chapter 3: Assembling Legs

This chapter explains how to assemble the Leg Frames for the S6. Not all systems require Legs. If your system does not include Leg Frames, please proceed to Chapter 4, “Assembling Frame Chassis.”

Make sure you have at least one other person available if you need to lift, turn, or move the system during and after assembly. Components and systems are heavy! Team lift, always.

Unpack the Leg Frames

Unpack the Legs and Beams and identify the components shown in Figure 1.

Figure 1. Legs Frame components

1– Legs 2– Beams 3– Beam Mounting Plates 4– Back Corner Brackets 5– End Shelves 6– Fasteners and Tools (not shown)

Overview of Leg Frame Assembly

The Leg Frames consist of two Beams mounted across the back and front of the Legs and secured with Corner Brackets, Left and Right End Shelves, and leveling feet.

When assembling a Leg Frame as described in the next section, you should start by placing one of the Beams on the floor to gauge how far apart the Legs need to be. Place the legs parallel on the floor with proper spacing and put the first Beam across the back of the Legs, securing it with the Beam Mounting Plates and fasteners. Do not tighten down fasteners all the way until both Beams and both Back Corner Brackets are in place. Once the back Beam is secured then place the other Beam across the front and secure it with Beam Mounting Plates and fasteners.

Chapter 3: Assembling Legs 13

Page 19

Attaching the Back Beam

Attaching the back Beam:

1 Place one of the Beams on the floor to determine how far apart the Legs need to be.

Have someone help hold the components while you position the Beams on the Legs and attach the fasteners.

2 Attach the back beam by doing the following (see Figure 2):

• Put the first Beam across the back of the Legs. Align the pins on the underside of the Beams with the holes in the top of the Legs. Be sure to orient the back Beam so that the pins on the top are closer to the center of the frame.

• Using four fasteners and washers (included) per mount, secure the Beam with Mounting Plates at each end. Do not tighten down fasteners all the way until both beams and both Back Corner Brackets are in place.

Fasteners, Washers, and Tools for Legs to Beams

Fastener

M8x40

Washer Tool

M8 M6 Hex

Figure 2. Attaching a Beam to the Legs using a Beam Mounting Plate

3 Check to make sure the Beam sits flat on the top of the legs as shown in Figure 3. If necessary, move the legs in or out until the

proper alignment is achieved.

Figure 3. Back view showing correct alignment of Beam on leg (at left), and incorrect alignment (middle, and right)

S6 Installation Guide14

Page 20

Attaching the Front Beam

To attach the front Beam:

1 Align the pins on the underside of the Beam with the holes in the top of the Legs. Be sure to orient the front Beam so that the

pins on the top are closer to the center of the frame.

2 Using four fasteners and washers (included) per mount, attach the Beam across the front of the Legs using two Beam Mounting

Plates as shown in Figure 4. Do not tighten the fasteners.

Figure 4. Orientation of the pins on the top of the front beam

Chapter 3: Assembling Legs 15

Page 21

Attaching the Back Corner Brackets

To attach the Back Corner Brackets:

1 Attach the Back Corner Brackets as shown in Figure 5 using four fasteners and washers (included) per bracket. Align the pins

on the brackets with the holes in the top of the Legs.

Fasteners, Washers, and Tools for Back Corner Brackets

Fastener

M5x15

Washer Tool

M5 M4 Hex

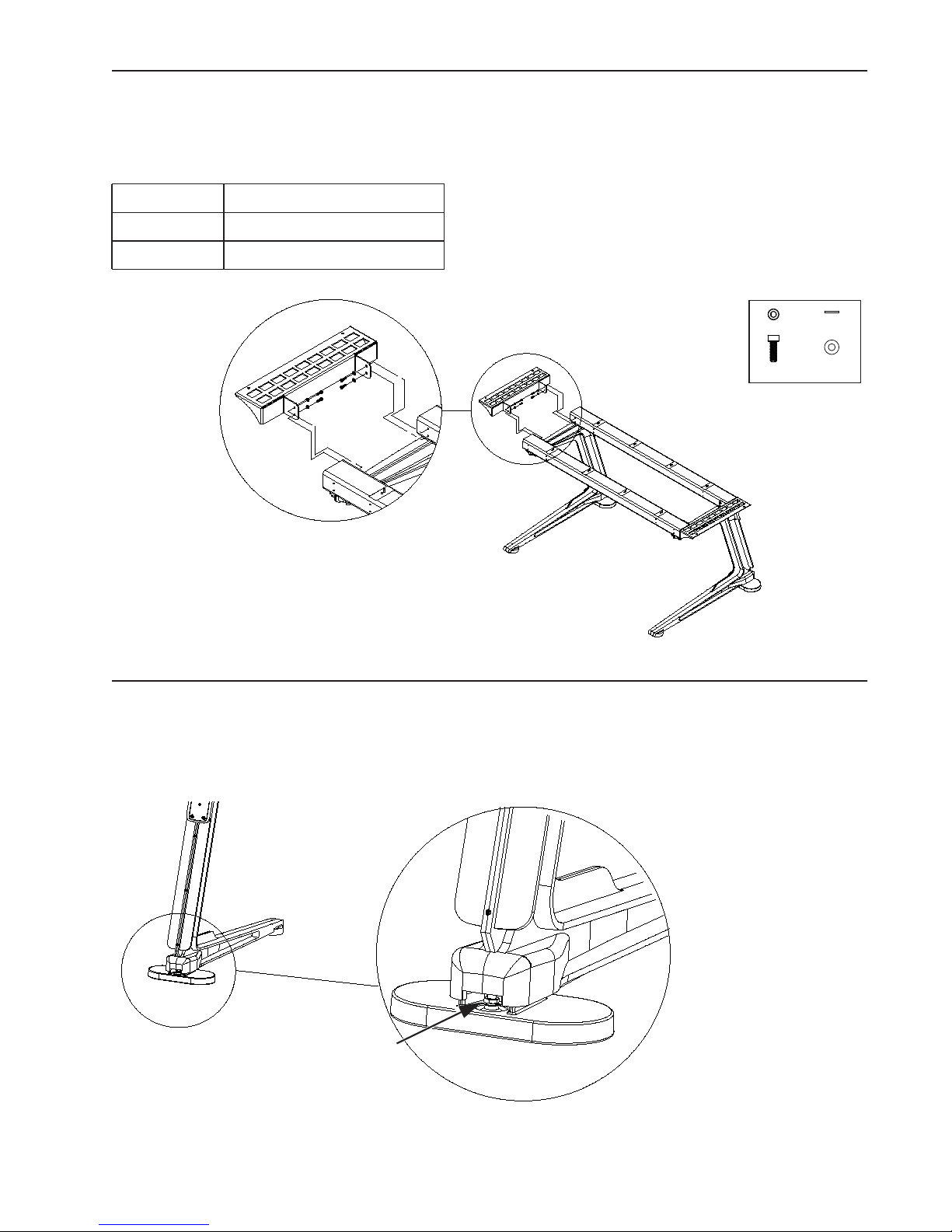

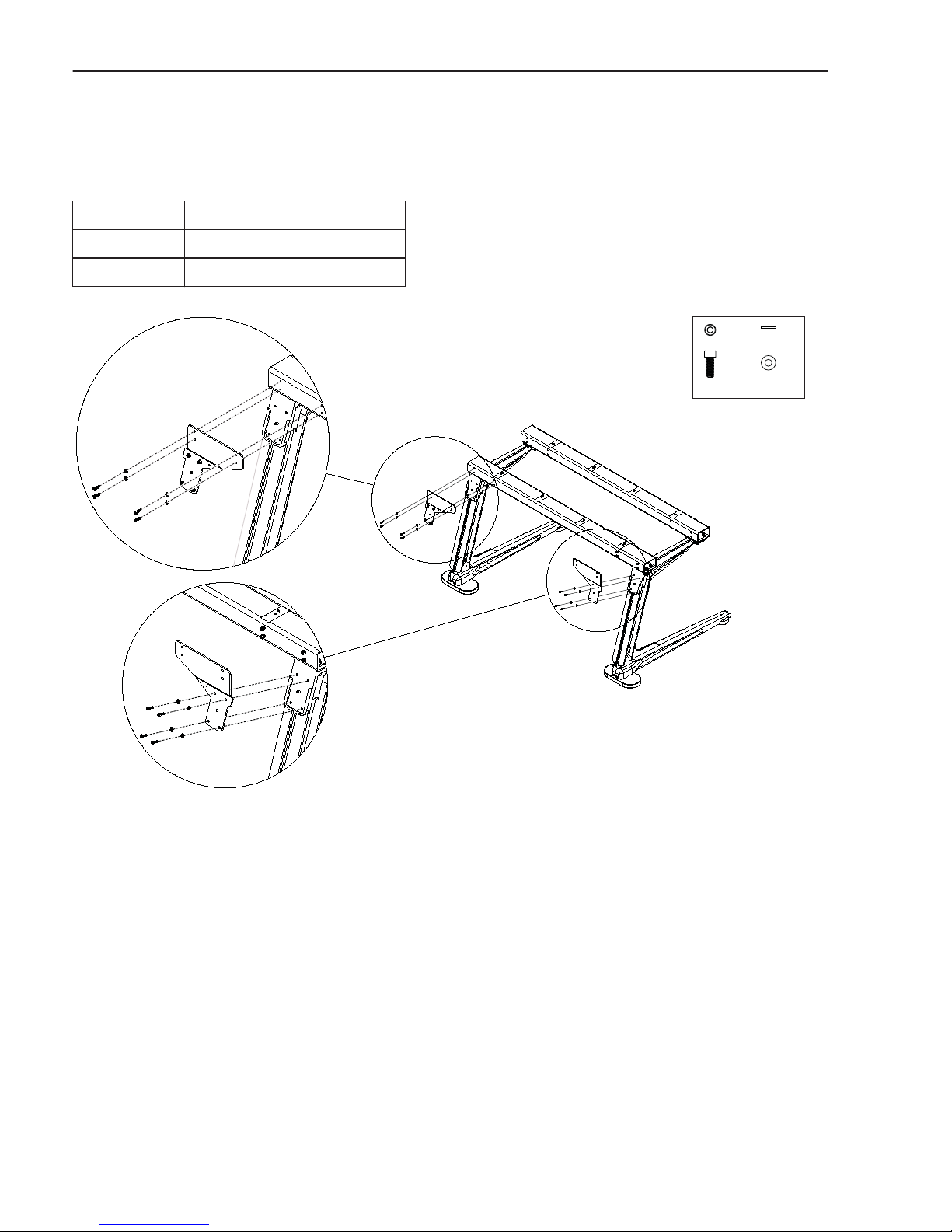

Figure 5. Attaching the Back Corner Brackets

2 Fully tighten all fasteners installed in the previous steps to completely secure the Beams and Back Cover Mounting Brackets to

the Legs. Check to make sure the Beams sit flat on the top of the legs.

S6 Installation Guide16

Page 22

Attaching the End Shelves

To attach the End Shelves:

 Using four fasteners and washers per side, attach the Left and Right End Shelves to the Legs as shown in Figure 6.

Fasteners, Washers, and Tools for End Shelves

Fastener

M5x15

Washer Tool

Figure 6. Attaching the Left End Shelf (Right End Shelf shown attached)

M5 M4 Hex

Leveling the Leg Frame

To level the back legs:

 Use the 13 mm open end wrench (included with the Legs) and adjust the leveling foot within the back foot (see Figure 7). When

looking down at the foot from above, turn the wrench clockwise to raise or counterclockwise to lower.

Figure 7. Back Leg Leveler

Chapter 3: Assembling Legs 17

Page 23

To level the front legs:

 Use an M4 Hex to adjust the leveling foot from above. Turn clockwise to raise, counterclockwise to lower.

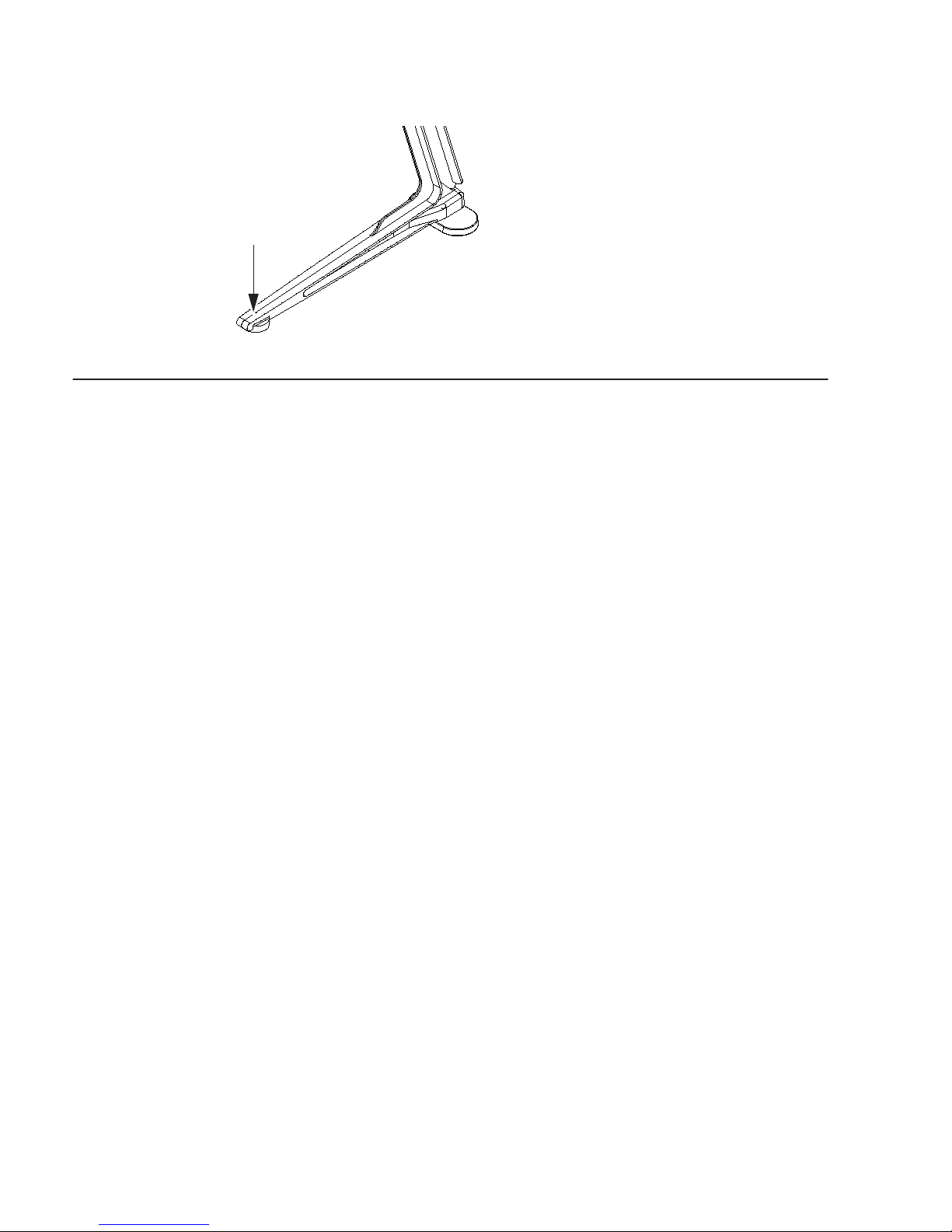

Figure 8. Front leveling foot

How to Proceed

When your Leg Frames are assembled, proceed to Chapter 4, “Assembling Frame Chassis.”

S6 Installation Guide18

Page 24

Chapter 4: Assembling Frame Chassis

This chapter explains how to assemble the chassis and attach them to each other to form the frame of your S6 system.

Before You Begin

Locate and unpack all Frame Chassis components and place them near the work area. Identify each component (see Figure 9), then note whether your Frame Chassis are Large or Small. Some steps in the assembly process vary depending the depth (Large or Small) of your Frame Chassis, as noted in these instructions.

Frame Chassis Kit Components

Frame Chassis Kits are either Large (extended depth) or Small (reduced depth). Aside from chassis size, the contents of both kits are the same.

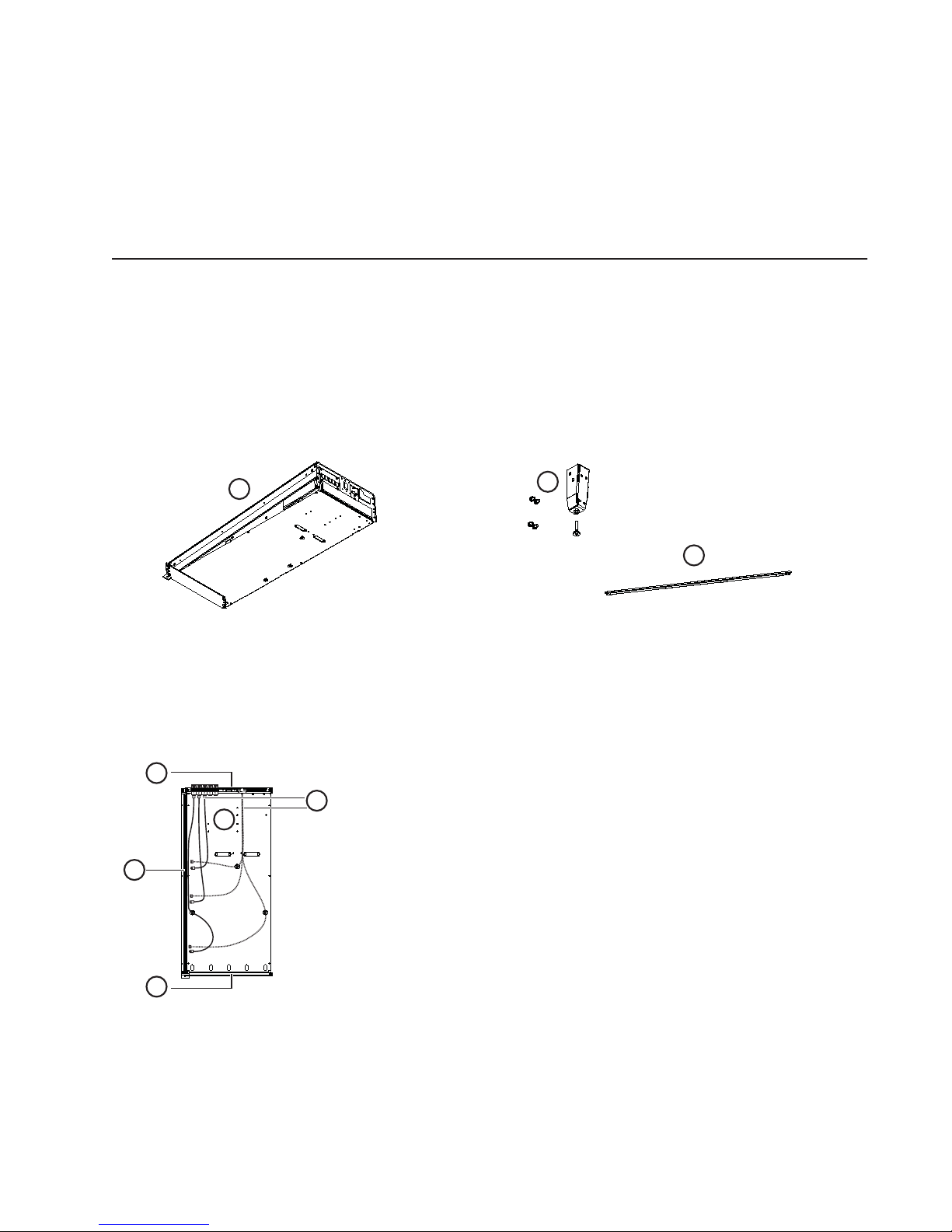

Figure 9. Frame Chassis kit components (Cable Harnesses not shown)

1– Chassis (See Figure 10) 2– Back Foot 3– T-strip 4– Cables (not shown) 5– Fasteners: Phillips and Hex fasteners (not shown)

Figure 10. Chassis parts

A– Chassis Bottom Plate B– Back Tie Plate C– Side Wall D– Front Tie Plate E– Cable Harnesses (Ethernet/Power)

Chapter 4: Assembling Frame Chassis 19

Page 25

Assembling the Chassis

If you have not already done so, unpack all Frame Chassis and arrange them next to each other on your work surface.

Figure 11. Four Frame Chassis Small

Attaching the End Side Wall

To attach the end Side Wall:

1 Open the S6 Side Covers package and unpack the included Side Wall.

Figure 12. End Side Wall

2 Attach the Side Wall to the Chassis Bottom Plate of the right-most chassis using three #1 Phillips screws. The right edge of the

Chassis Bottom Plate sits on top of the left edge of the Side Wall as shown in Figure 13.

Fasteners, and Tools for Chassis Bottom Plate to Side Wall

Fasteners Tool

M3x6 SEMS #1 Phillips

Figure 13. Securing the end Side Wall to the Chassis Bottom Plate, top view (at left) and front view (lower right)

S6 Installation Guide20

Page 26

3 Secure the Side Wall to the Back and Front Tie Plates using Hex fasteners.

Fasteners and Tools for Back and Front Tie Plates to Side Wall

Fasteners

M5x8 FHCS

Tool

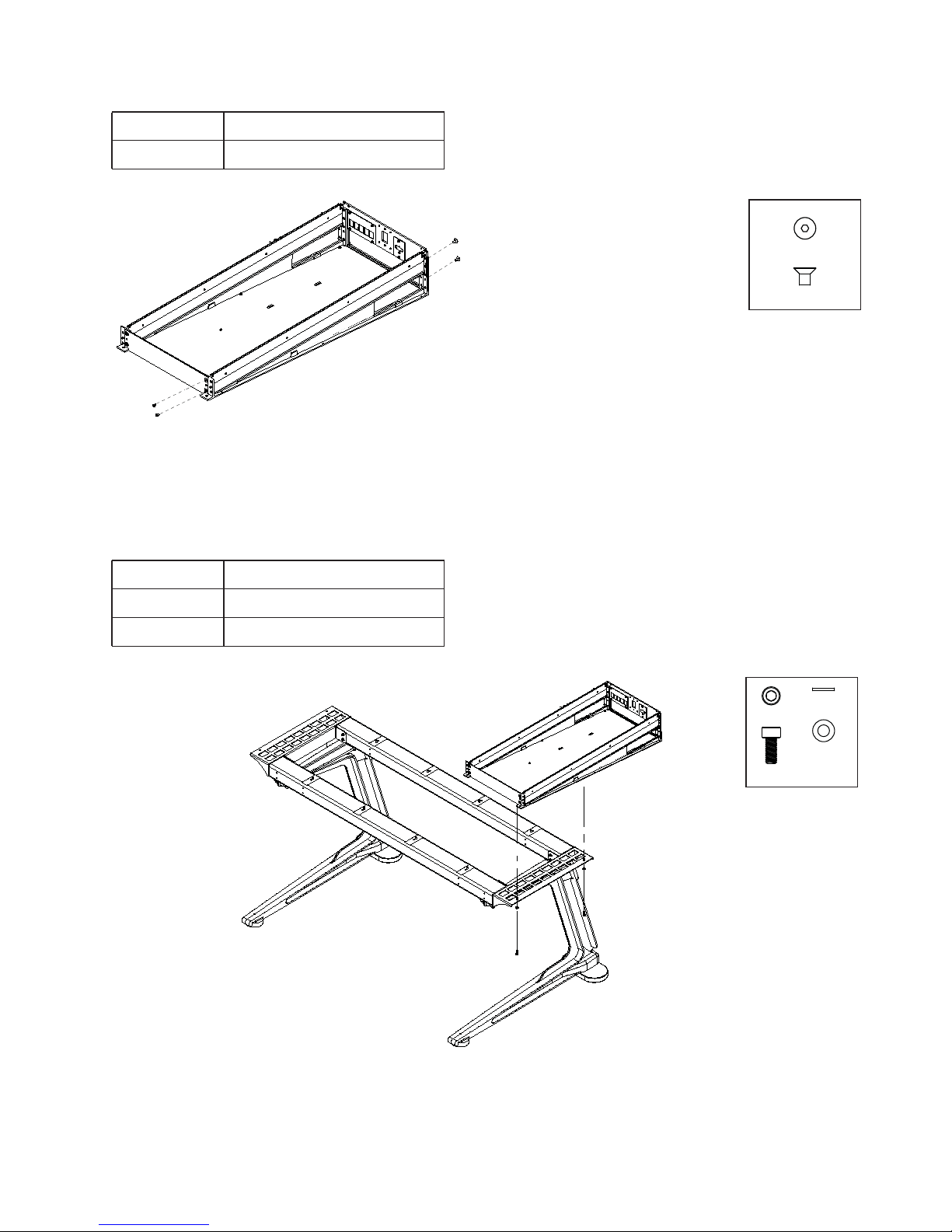

Figure 14. Attaching the final Side Wall to the Back and Front Tie Plates

4 If your system does not include Legs, proceed to Step 6. 5 If your system includes a Leg Frame, mount the first chassis on the Beams and secure it loosely to the right end shelf from un-

M3 Hex

derneath using Hex fasteners (included with the Beams) as shown in Figure 15. Make sure the pins on the top of the Beams align with and fit through the openings in the Chassis Bottom Plate. Do not tighten the fasteners.

Fasteners, Washers, and Tools for Chassis to Beams

Fasteners Washers

M6x14 Hex (SHCS) M6

Tool

Figure 15. Attaching the first chassis to the Beams of a Leg Frame

M5 Hex

Chapter 4: Assembling Frame Chassis 21

Page 27

6 Move the next chassis into position so that the right edge of its Chassis Bottom Plate sits on top of the left edge of the first chassis

as shown in Figure 16.

Figure 16. Attaching the first two chassis (top view, at left, and front view, at right)

7 If your system includes a Leg Frame, attach the second chassis to the Beams and secure loosely using more of the Hex fasteners

included with the Beams as shown in Figure 15. Tighten them enough to hold the chassis in place, but do not tighten them fully .

8 Attach the right edge of the second chassis Bottom Plate to the left edge of the Side Wall of the first chassis using three #1 Phil-

lips screws as shown in Figure 17. Do not tighten the screws fully.

Fasteners, and Tools for Chassis Bottom Plate to Side Wall

Fasteners Tool

Figure 17. Securing the Chassis Bottom Plate of the first chassis to the Side Wall of the second chassis

M3x6 SEMS #1 Phillips

S6 Installation Guide22

Page 28

9 Secure the Back and Front Tie plates of the second chassis to the first chassis using Hex fasteners as shown in Figure 18.

Fasteners and Tools for Back and Front Tie Plates to Side Wall

Fasteners

M5x8 FHCS

Tool

Figure 18. Securing the Back and Front Tie Plates of the first chassis to the Side Wall of the second chassis (cables not shown)

10 Fully tighten all screws holding the Side Walls to the Chassis Bottom Plate (Phillips), Back and Front Tie Plates (Hex). 11 If your system includes legs, fully tighten the fasteners securing each chassis to the Beams. 12 If you are assembling an 8-fader system (two chassis), proceed to “Attaching the Back Feet” on page 24. 13 All other configurations, repeat the previous steps to assemble all Frame Chassis kits, then continue to the next section.

M3 Hex

If your system includes a Producer’s Desk option, see the Producer’s Desk Guide for assembly and installation instructions.

Figure 19 shows an example illustration of four assembled Frame Chassis Large (a 24-fader system).

Figure 19. Four Frame Chassis Large (cables not shown)

Important

Do not lift or move an S6 desktop system that is five or more chassis in width (32-faders or more). If you need to move a five-or-wider S6 system that does not include Legs, you must partially disassemble the frame so that no section is more than four chassis in width. For more information, see Appendix A, “Expanding or Disassembling S6.”

Chapter 4: Assembling Frame Chassis 23

Page 29

Attaching the Back Feet

After assembling the chassis, assemble and attach the back feet.

• One Back Foot is included with each Frame Chassis Kit.

• Two Back Foot Mounting Spacer bars and an additional Back Foot are included in the Side Covers kit.

Installing Back Foot Mounting Spacers

To install the two Back Foot Mounting Spacers:

1 Locate the Back Foot Mounting Spacer bars (2) included in the Side Covers kit. 2 Standing at the back of the frame, attach one Spacer bar to the left and right back corners of the frame using two Hex fasteners

per bar as shown in Figure 20. Make sure to orient the Spacers correctly.

Fasteners and Tools for Book Foot Mounting Spacer Bars to Side Walls

Fasteners

M5x8 FHCS

Tool

M3 Hex

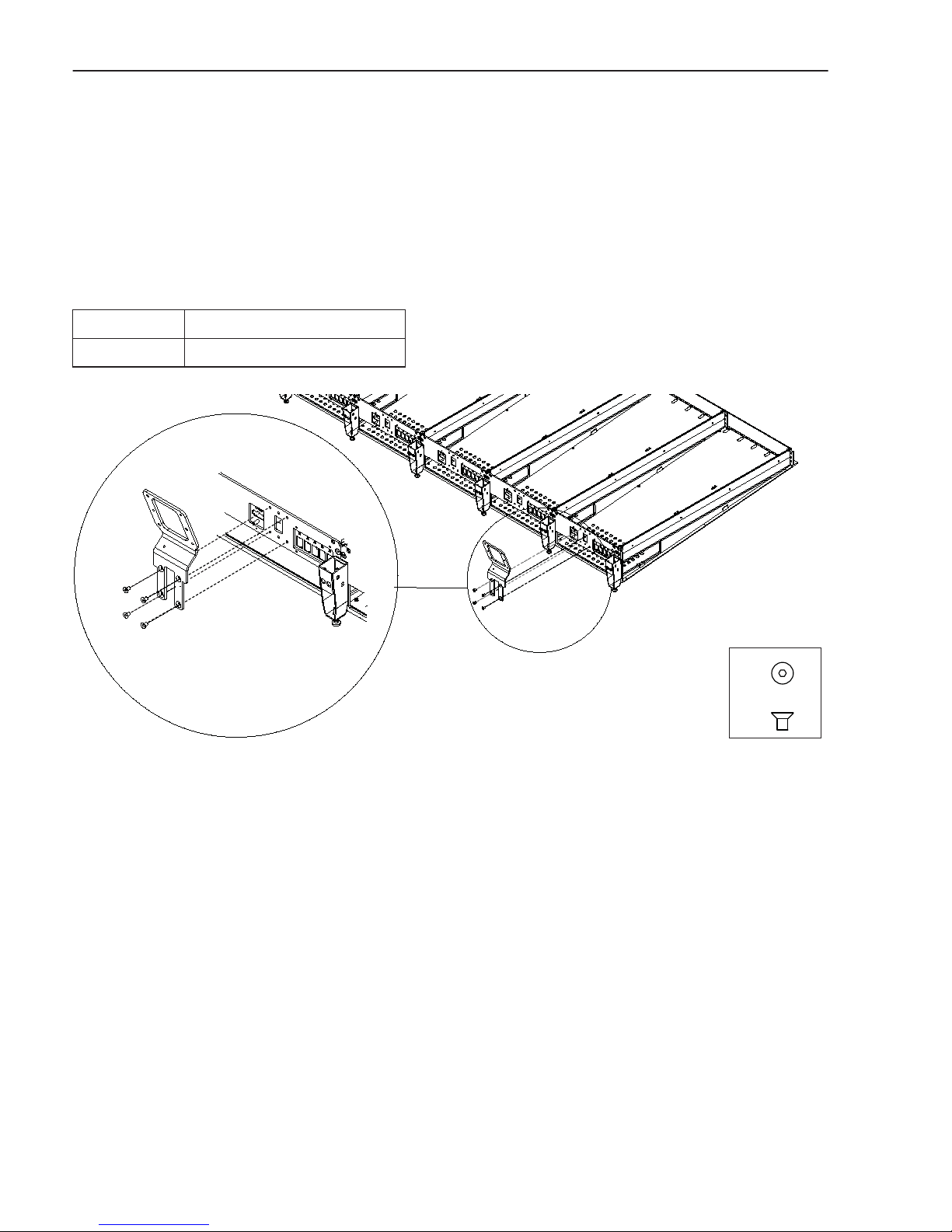

Figure 20. Back Foot Mounting Spacer Bars (upper left), and attaching the Back Foot Mounting Spacer bars

S6 Installation Guide24

Page 30

Assembling the Back Feet

To assemble the Back Feet and Mounting Brackets:

1 If you have not already done so, unpack each Back Foot, bracket, and screws from each Frame Chassis kit. Locate and unpack

the additional Back Foot in the Side Covers kit.

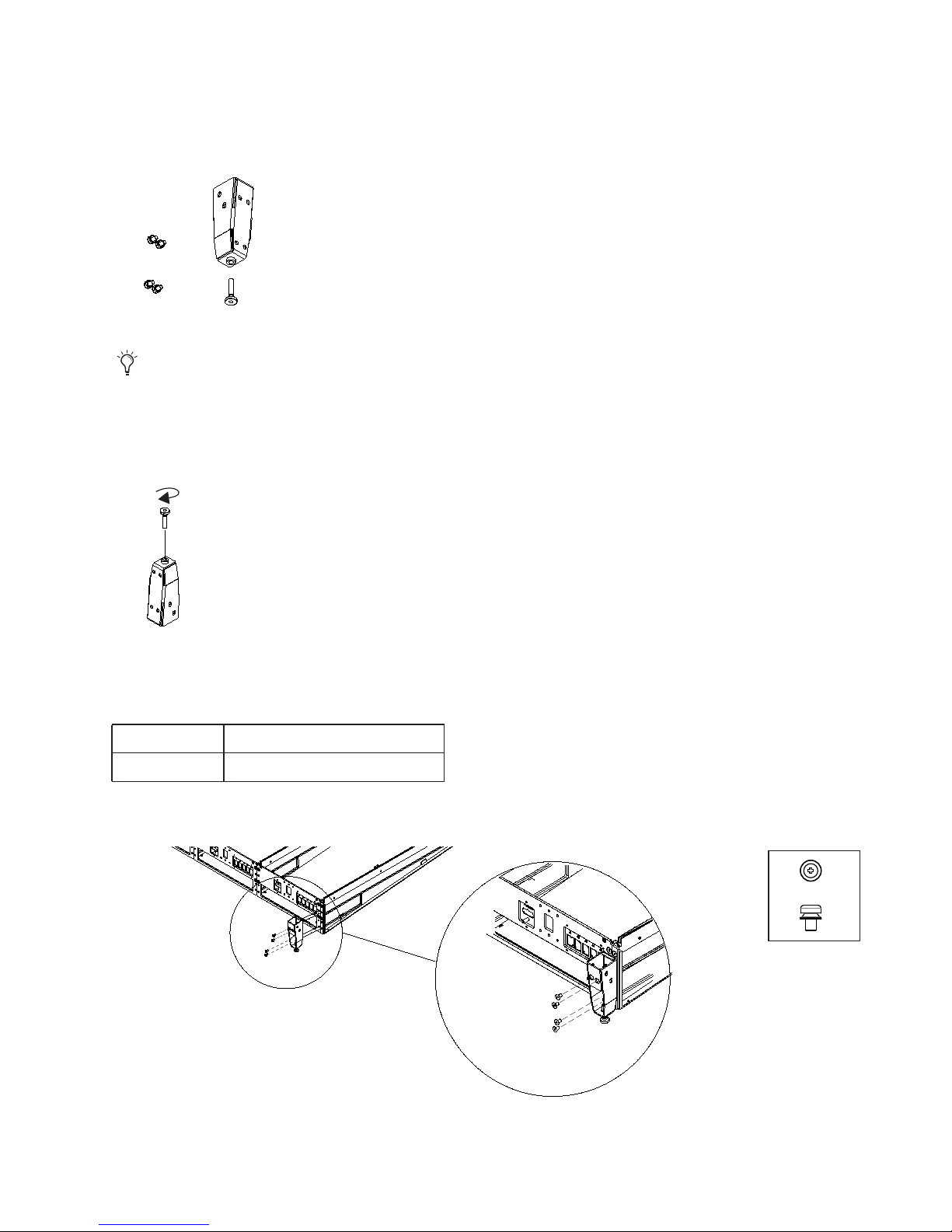

Back Foot, Mounting Bracket, and screws

The number of back feet is equal to the number of chassis (width) of the frame, plus one. For example, a 16-fader S6 system has a frame width of three chassis, so it includes four back feet (3+1=4). Similarly, a 32-fader system includes six back feet (5+1=6).

2 Attach each Foot to its Mounting Bracket by screwing the foot into the threaded receiver at the bottom (narrow end) of the

Mounting Bracket.

After the feet are mounted to the frame you can turn each foot by hand (raising it or lowering it) to level the back of the frame.

Figure 21. Inserting the foot into the bottom of the mounting bracket

3 Using a #2 Phillips screwdriver (magnetic tip recommended) and included #2 Phillips screws, attach the assembled feet to the

back of the frame. Be sure to orient them correctly before securing them to the frame.

Fasteners and Tools for Back Foot Mounting Bracket to chassis

Fasteners Tool

M5x8 SEMS #2 Phillips

• At the left- and right-most ends of the frame, attach the feet to the Spacer bars and adjacent Back Tie Plates as shown in Figure 22.

Figure 22. Attaching a Back Foot at one end of the back of the frame

Chapter 4: Assembling Frame Chassis 25

Page 31

• All other Back Feet are mounted to Back Tie Plates as shown in Figure 23.

Figure 23. Attaching a Back Foot to two adjacent Back Tie Plates

S6 Installation Guide26

Page 32

Attaching the Bolster

The Bolster is a one-piece reinforced arm rest that matches the width of your configuration. The wide, padded surface provides a comfortable work area, and its one-piece design provides additional structural support along the front of the control surface.

The Bolster hangs along the front edge of the frame and is secured from below using fasteners.

To attach the Bolster:

1 Locate the Bolster and remove it from its packaging, being careful to locate the included fasteners. 2 Pick up the Bolster using both hands. When installing larger systems (6 or more chassis in width), get someone to help. 3 Make sure the Bolster is oriented correctly and carefully lower it onto the receiving edge along the top of the front edge of the

frame, so the Bolster hangs in position as shown in Figure 24.

4 Attach the Bolster to the frame from below by partially threading all the included Hex fasteners. Do not tighten. 5 After all fasteners are in place, return to the first fastener and tighten it and the others securely.

Fasteners and Tools for the Bolster

Fasteners

M5x10 BHCS

Tool

M3 Hex

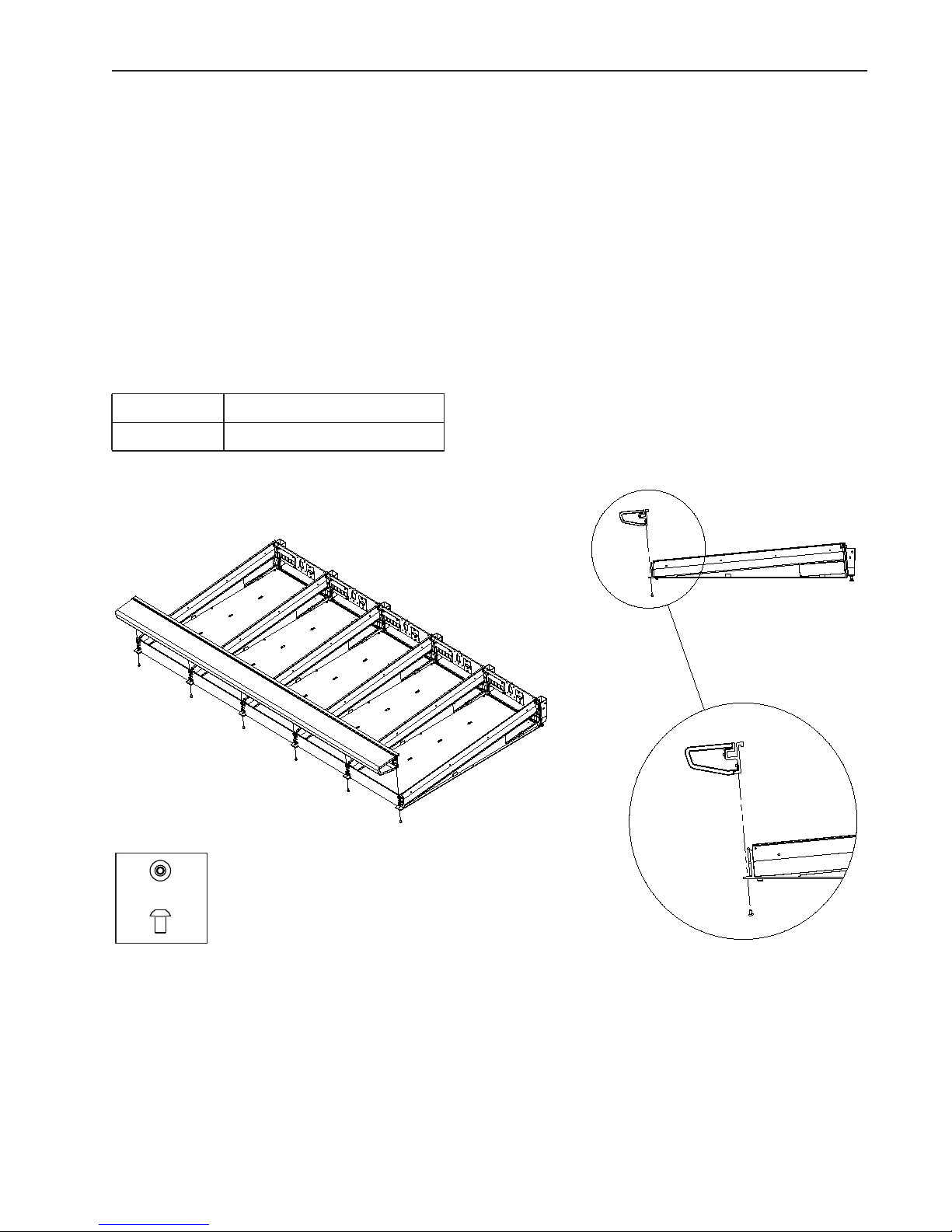

Figure 24. Attaching the Bolster

Chapter 4: Assembling Frame Chassis 27

Page 33

Installing Display Module Mounting Brackets

If your system includes Display Modules, install their mounting brackets as explained in the following instructions. (The Display Modules are attached to the mounting brackets later.)

If your system does not include Display Modules, proceed to “Installing Back Cover Mounting Brackets” on page 29.

If your system includes one or more Display Modules, do the following:

1 Unpack all S6 Display Modules and locate their mounting brackets and screws. 2 Attach the first Display Module Mounting Bracket to the four holes located on the center of each chassis’ Back Tie Plate. Be sure

to orient the brackets correctly, as shown in Figure 25.

Fasteners and Tools for the Display Module Mounting Brackets

Fasteners

M5x8 FHCS

Tool

Figure 25. Attaching Display Module Mounting Brackets

3 Leave the actual Display Modules aside for now. You will attach them to the mounting brackets later.

M3 Hex

S6 Installation Guide28

Page 34

Installing Back Cover Mounting Brackets

Back Covers support and conceal cables. Back Covers consist of two pieces, a lower bracket that mounts to the frame, and an upper, hinged cover that attaches to the bracket. The upper covers have open corners to pass cables for a CDM, and cutouts to support S6 Options (such as the Speaker Bridge and VESA Monitor mount).

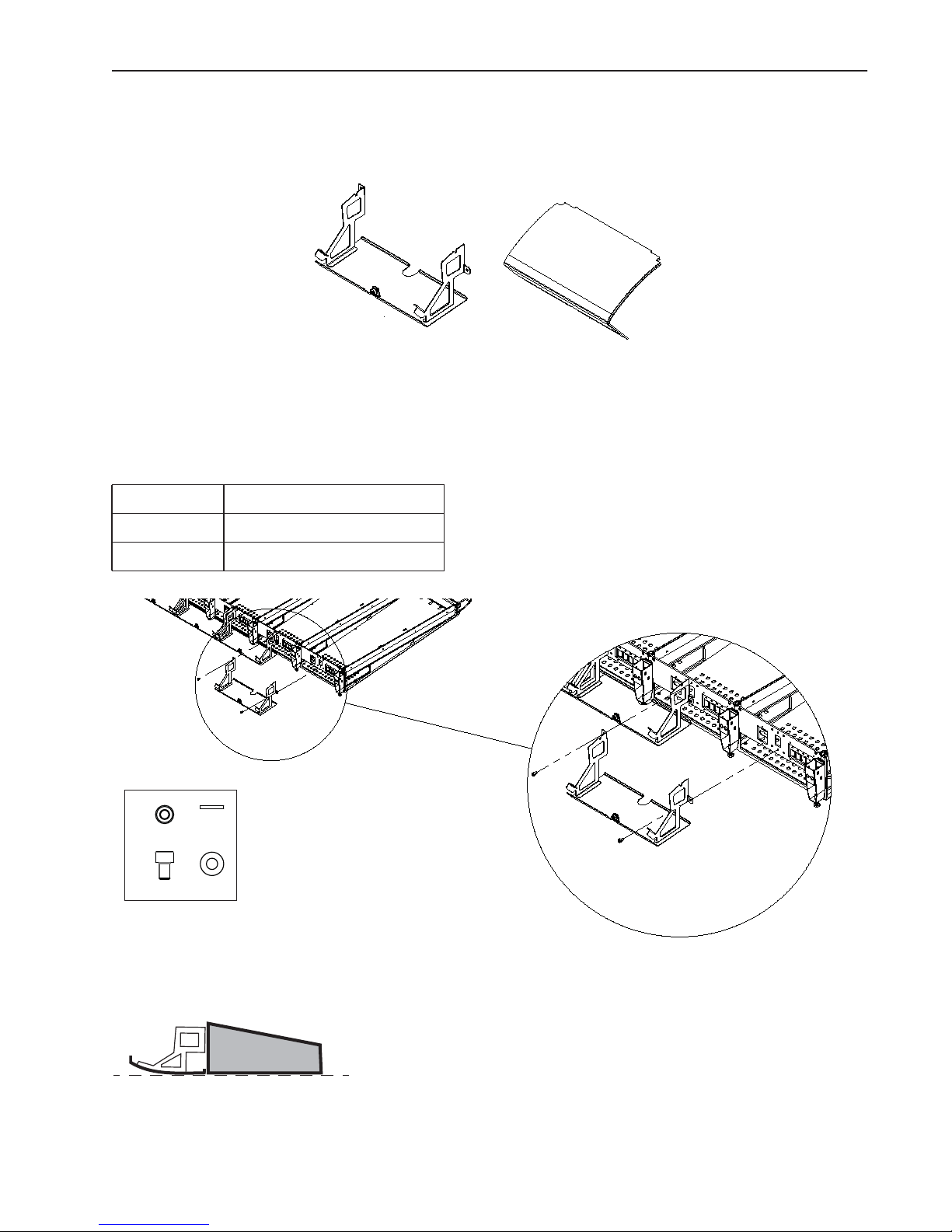

Figure 26. Back Cover Lower Mounting Bracket (left) and Upper Cover (right). Fasteners not shown.

To install the Back Cover Mounting Brackets:

1 Unpack the Back Cover lower bracket and its fasteners from their packaging (each bracket requires two Hex fasteners). 2 Standing at the back of the frame, start at the far left and attach one Back Cover bracket to the Back Tie Plates of the first two

chassis using Hex fasteners. Figure 27 shows how they are attached to the chassis.

Fasteners, Washers, and Tools for Back Cover Mounting Brackets

Fasteners

M5x8 SHCS

Washers Tool

Figure 27. Attaching Back Cover Mounting Brackets

M5 WSHR M4 Hex

Before tightening the fasteners, make sure the lip of the tray is flat against the lower back edge of the chassis (make sure the lip is not sitting on, or hooked below, the edge of the chassis) as shown in Figure 28.

Figure 28. Side view showing proper alignment of Back Cover to back of chassis

3 Set the Upper covers aside for now. These are attached to the Lower Mounting Brackets later, after cable runs are in place.

Chapter 4: Assembling Frame Chassis 29

Page 35

Installing Side Covers

Side Covers (one Left, and one Right) consist of two pieces: a mounting plate that attaches to the frame, and an outer panel that attaches to the panel and is secured from inside the chassis.

Attaching the Side Mounting Plates

To attach the Side Mounting Plates:

1 Unpack the Side Covers package and identify the Left and Right Side Mounting Plates and their fasteners. 2 Secure the Left Side Mounting Plate to the left side of the frame, making sure to orient them correctly as shown in Figure 29.

Fasteners and Tools for the Side Mounting Plate

Fasteners

M4x14 SEMS

Tool

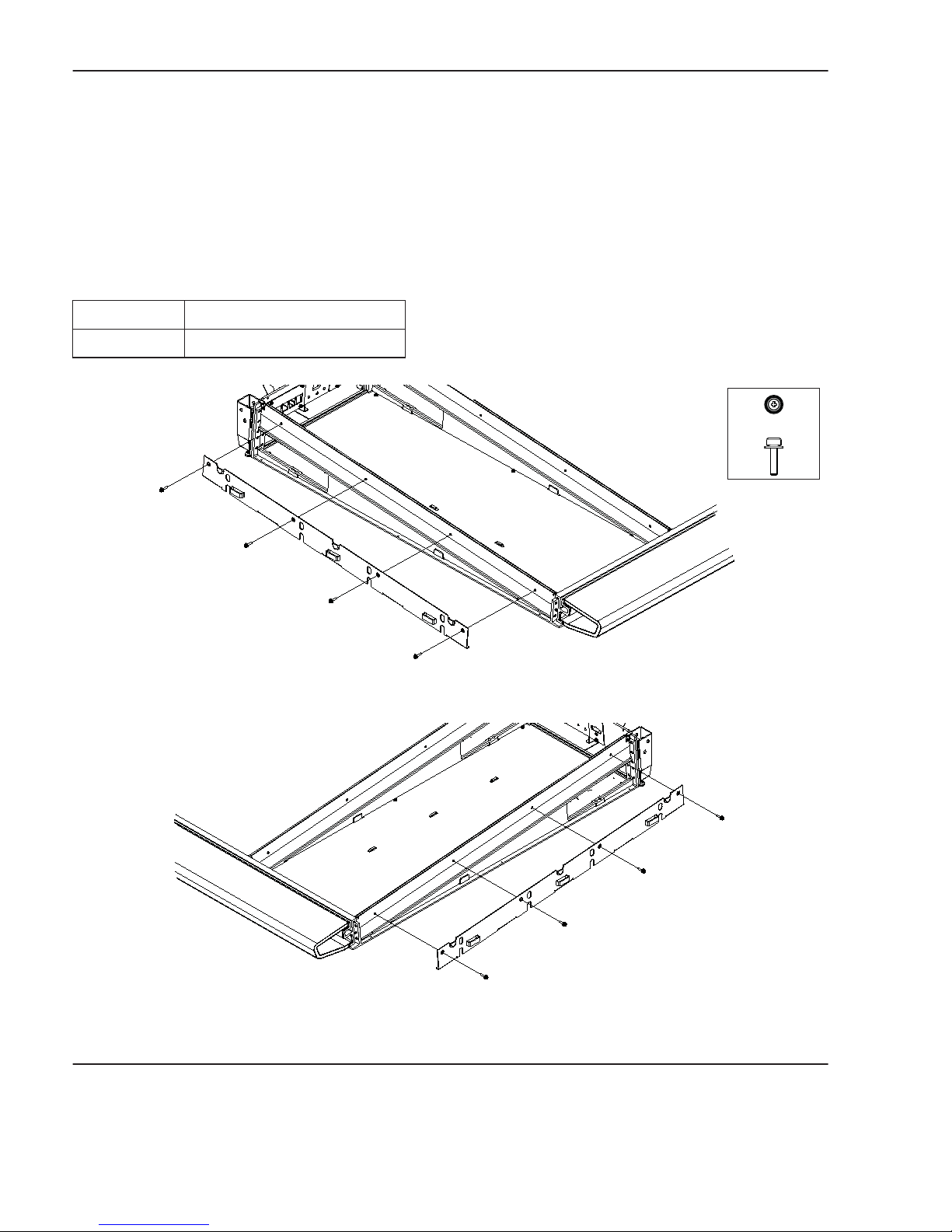

Figure 29. Attaching the left side panel mounting plates

3 Secure the Right Side Mounting Plate to the right side of the frame, making sure to orient them correctly as shown in Figure 30.

#2 Phillips

Figure 30. Attaching the right side panel mounting plates

4 Set the outer Side Covers aside for now. You will install them later, after cabling is in place.

How to Proceed

After assembling the chassis that form your system frame, proceed to Chapter 5, “Installing PSUs, Switches, and Cables.”

S6 Installation Guide30

Page 36

Part III: Modules

Page 37

Page 38

Chapter 5: Installing PSUs, Switches, and Cables

This chapter explains how and where to install Ethernet switches and Power Supply Units (PSUs), how to connect Ethernet throughout the system using the included Cable Sets, and how to connect power to PSUs and the switch.

Installing the Ethernet Switch

The capacity (number of ports) and number of switches in your system depends on the number of chassis and modules. Systems with fewer chassis and modules might only require a single 16-port switch, larger systems a 24-port switch, while the largest systems (23 or more modules) require two Ethernet switches.

Ethernet switches are installed into specific chassis and secured with the included tie-down bracket.

If your system includes a Producer’s Desk option, see the Producer’s Desk Guide for switch, PSU, and cabling instructions.

To install the Ethernet switch(es):

1 Unpack the Ethernet switch(es) and cables first. 2 Attach the included feet to the bottom of the Ethernet switch. 3 Refer to the diagrams in “Ethernet Switch and PSU Placement per System Configuration” on page 36 to determine switch and

PSU placement for your configuration.

4 After determining placement for your configuration, install the Ethernet switch(es) in the appropriate chassis by doing the fol-

lowing

• First, disconnect the power harness from the terminal port on the inside of the Back Tie Plate (see Figure 1).

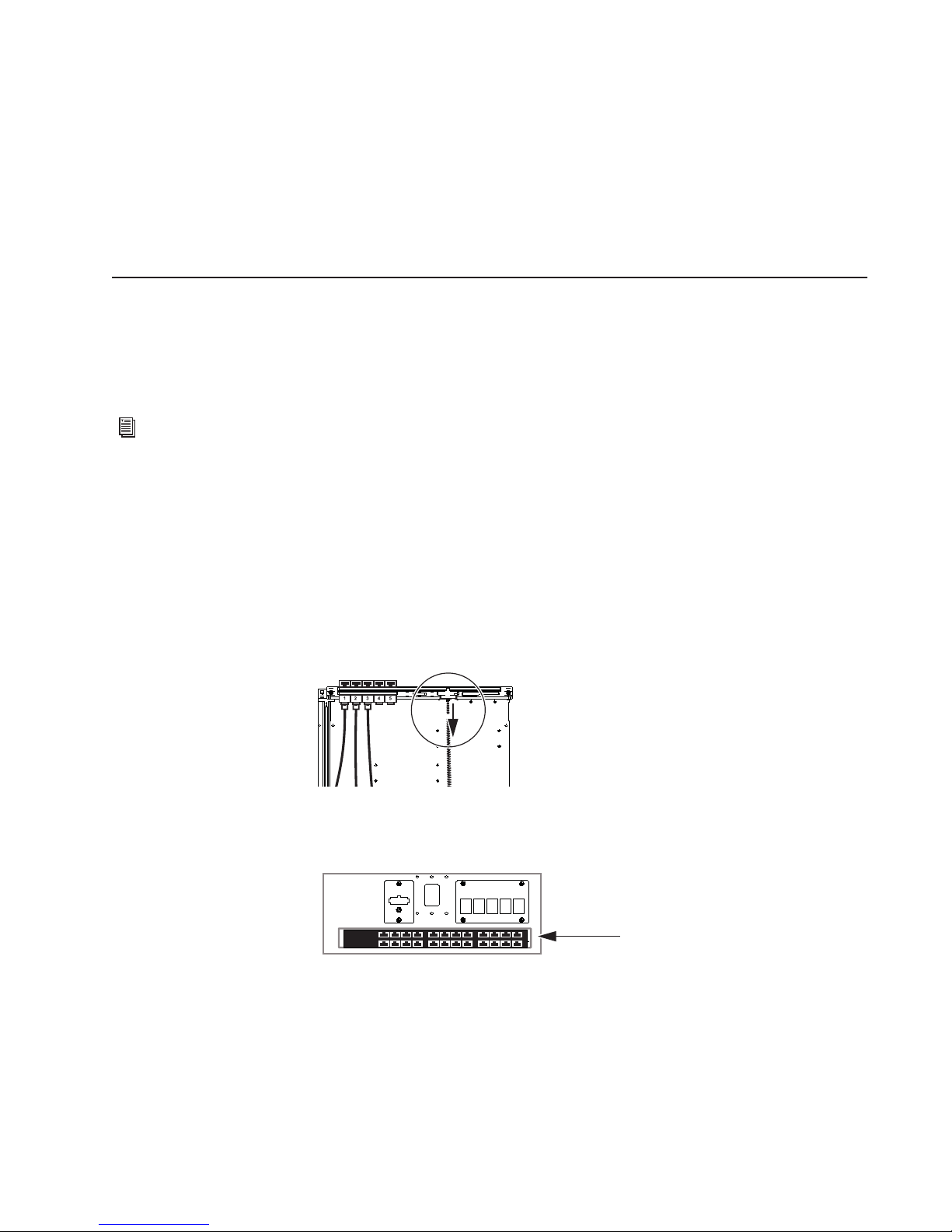

Figure 1. Power harness (disconnect before installing Ethernet switch)

• Place the switch in the chassis so that its ports face the back of the frame (the ports should be visible through the horizontal opening in the Back Tie Plate as shown in Figure 2).

Figure 2. Back view of a chassis with an Ethernet switch

Chapter 5: Installing PSUs, Switches, and Cables 33

Page 39

5 Secure the switch with the included tie-down bracket as shown in Figure 3.

Fasteners, and Tools for Ethernet switch tie-downs

Fasteners

M3x6 SEMS

Tool

#1 Phillips

Figure 3. Installing an Ethernet switch and tie-down (at left) and after installation (right). Cable Harnesses not shown.

6 Reconnect the power harness to the chassis power terminal.

Figure 4. Power harness (reconnect after installing Ethernet switch)

7 If your system includes two Ethernet switches, repeat for the other switch.

S6 Installation Guide34

Page 40

Installing PSUs

Each chassis requires one PSU to supply power for modules. PSUs are installed alone or in pairs and secured with the included tie-down brackets.

To install PSUs:

1 Unpack all PSUs, their included cables, tie-down brackets and fasteners. 2 Place one PSU in each chassis but do not place one in the same chassis as the Ethernet switch. Instead, put two PSUs in an ad-

jacent chassis. In addition:

• Place PSUs under or between (but not on top of) the built-in Cable Harnesses.

• Make sure the DC cable is facing the front of the frame, and the AC socket is to the back.

Refer to the diagrams in “Ethernet Switch and PSU Placement per System Configuration” on page 36 to determine switch and PSU placement for your configuration.

3 Feed the DC cable out through the slot in the Back Tie Plate. 4 Secure PSUs with the included tie-down bracket as shown in Figure 5.

Fasteners, and Tools for PSU tie-downs

Fasteners

M3x6 SEMS

Tool

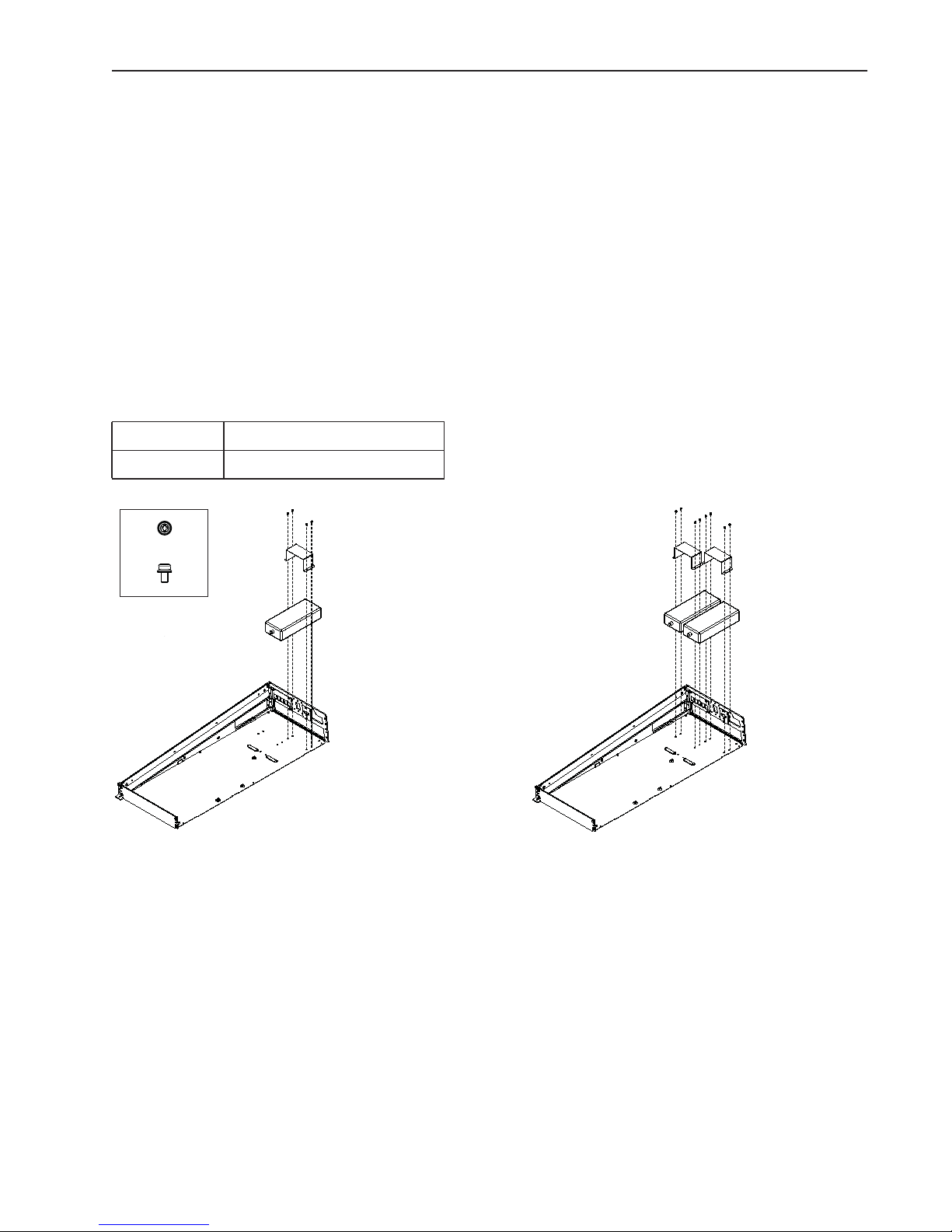

Figure 5. Installing one PSU and tie-down (shown at left) and two PSUs and tie-downs (at right). Cables and wall not shown.

#1 Phillips

Chapter 5: Installing PSUs, Switches, and Cables 35

Page 41

Ethernet Switch and PSU Placement per System Configuration

Figure 6 illustrates switch and PSU placement for an example 32-fader (five chassis wide) system.

• Install the Ethernet switch in the chassis in the middle, or next to the middle of the frame.

• Install one PSU in each chassis but do not place one in the same chassis as the Ethernet switch. Instead, put two PSUs in an adjacent chassis.

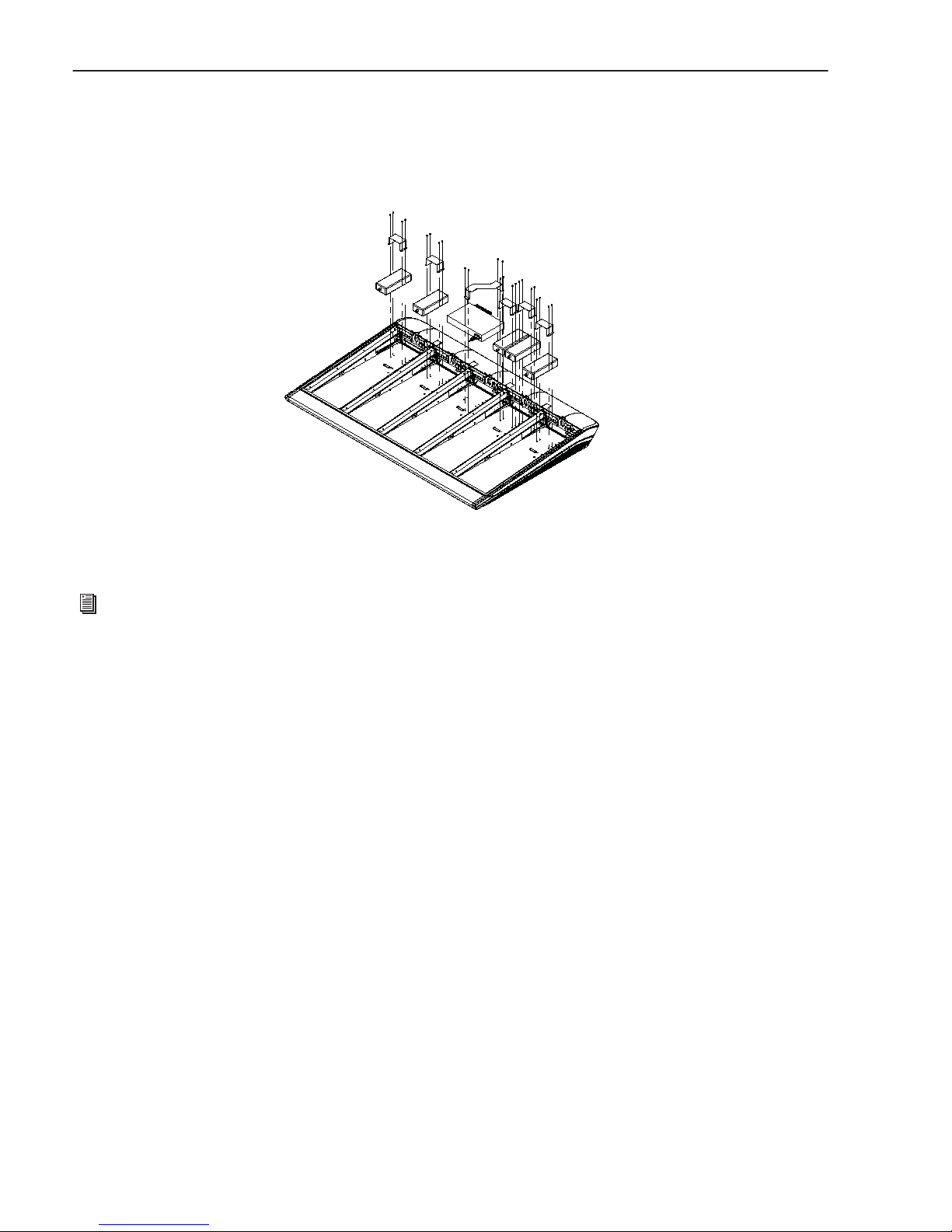

Figure 6. Placement of PSUs, Ethernet switch and tie-down brackets for an example 32-fader system (cables not shown)

The diagrams on the following pages show where to put PSUs and the Ethernet switch(es) in Avid-configured and custom configurations.

If your system includes a Producer’s Desk option, see the Producer’s Desk Guide for switch, PSU, and cabling instructions.

S6 Installation Guide36

Page 42

Switch and PSU Placement for Avid-Configured S6 Systems

These diagrams show switch and PSU placement for all frame widths available with Avid-configured S6 systems, which range in size from 8-fader/two chassis (such as an S6 M10-8-5) up to 32-fader/five chassis (such as an M40-32-9-D).

Install and secure units as shown for your frame, then proceed to “Installing and Connecting Cabling” on page 39.

2–Chassis Systems

PSUs (2)

Ethernet switch and PSU placement for an two-chassis, 8-fader system (cables not shown)

Ethernet switch

3–Chassis Systems

PSUs (2)

Ethernet switch and PSU placement for a three-chassis, 16-fader system (cables not shown)

Ethernet switch

PSU

4–Chassis Systems

PSUs (2)

Ethernet switch and PSU placement for a four-chassis, 24-fader system (cables not shown)

Ethernet switch

PSUPSU

5–Chassis Systems

PSUs (2)

Ethernet switch and PSU placement for an example five-chassis, 32-fader system (cables not shown)

Ethernet switch

PSUPSU

PSU

Chapter 5: Installing PSUs, Switches, and Cables 37

Page 43

Switch and PSU Placement for Custom S6 Configurations

These diagrams show switch and PSU placement for example systems that are six or more chassis in width. Install and secure units as shown for your frame size, then proceed to “Installing and Connecting Cabling” on page 39.

If your system includes a Producer’s Desk option, see the Producer’s Desk Guide for switch, PSU, and cabling instructions.

6-Chassis Systems

Figure 7 shows an example six-chassis system such as an M40-40-5 that requires a single 24-port Ethernet switch.

PSUEthernet switchPSUs (2) PSUPSU PSU

Figure 7. Ethernet switch and PSUs in a 40-fader system requiring one switch

Figure 8 shows a different example six-chassis system such as an M40-40-9-D. This configuration uses two Ethernet switches.

16-port switch

PSUs (2)

24-port switch

PSUPSUs (2)

PSU

Figure 8. Ethernet switches and PSUs in a 40-fader system with two switches, a 16-port in chassis 1 (far left) and a 24-port in chassis 4

7-Chassis Systems

Figure 9 shows an example seven-chassis system such as an M40-48-9-D. This configuration uses one 16- and one 24-port switch.

16-port switch

Figure 9. Ethernet switches and PSUs in a 48-fader system requiring two switches, a 16-port in chassis 2 and a 24-port in chassis 6

PSU

PSUs

24-port switch

PSUPSUPSUs

9-Chassis Systems

Figure 10 shows an example nine-chassis system such as an M40-64-9. This configuration uses one 16- and one 24-port switch.

PSUs

Figure 10. Ethernet switches and PSUs in a 64-fader system requiring two switches, a 16-port in chassis 3 and a 24-port in chassis 7

16-port switch

PSUPSU PSU

24-port switch

PSUPSU PSUs

Figure 11 shows another nine-chassis system such as an M40-64-9-D. This configuration uses two 24-port switches.

Figure 11. Ethernet switch and PSU placement for a 64-fader system with two 24-port switches, one in chassis 3 and the other in chassis 7

S6 Installation Guide38

24-port switch PSUPSU PSUsPSUs 24-port switch PSUPSU PSU

Page 44

Installing and Connecting Cabling

123 45

After placing the Ethernet switch and PSUs into their chassis you can install the Cable Sets, then connect power to the switch and all PSUs.

Cable Sets

Cable Sets are Ethernet bundles that connect Ethernet between the Ethernet switch and each chassis. Cables are labeled (1–5) to identify and organize cables and connections. Cable Sets are provided in Small, Medium, and Large (lengths), in appropriate combinations based on your frame configuration.

Large

Long enough to span up to three chassis.

Medium Small

Long enough to reach to the adjacent chassis.

Short cables to supply Ethernet to the chassis in which the Ethernet switch is installed.

For systems that require two Ethernet switches, an additional single cable is provided to connect the two switches to each other.

Installing Cable Sets

To install Cable Sets:

1 Unpack and identify all Cable Set(s) included with your system. Cable Sets are color coded according to their length (Small, Me-

dium, or Large).

2 Standing behind the chassis containing the Ethernet switch, connect cables 1–5 of the first Cable Set to ports on the Ethernet

switch by feeding them through the slot in the Back Tie Plate as shown in Figure 12.

Use whichever ports make the most sense for distance, identification or personal preference. We suggest starting on the bottom row to make it easier to connect other Cable Sets later, but your specific configuration will determine the best arrangement.

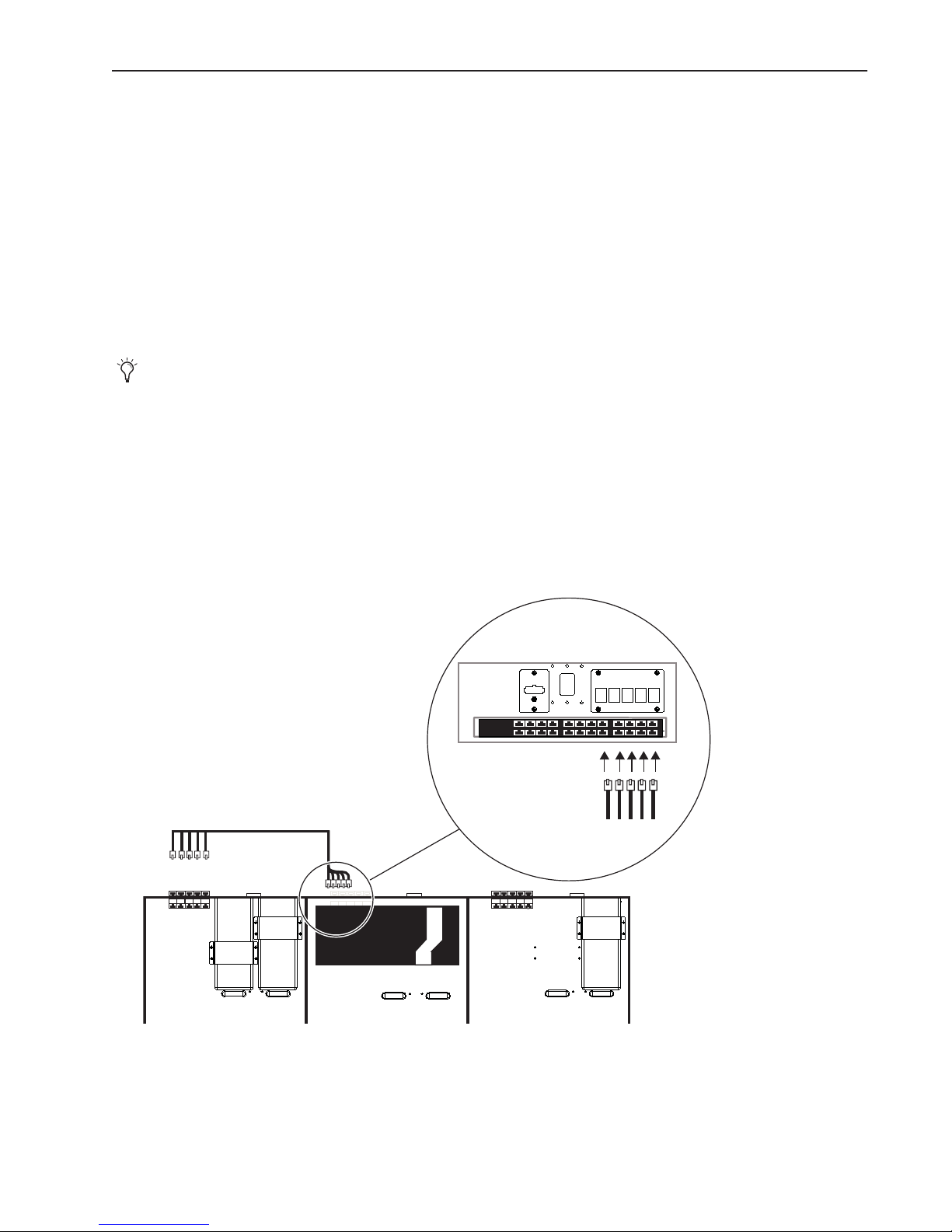

Figure 12. Connecting the first Cable Set to the Ethernet switch (top view shown at lower left; back view of chassis shown at upper right)

123 45123 45

Chapter 5: Installing PSUs, Switches, and Cables 39

Page 45

3 Run the Cable Set through the triangular openings in the Back Cover brackets to the furthest (left- or right-most) chassis the ca-

123 45

bles reach and connect the other ends (1–5) to the Ethernet terminal ports (1–5) on the outside back of the chassis as shown in Figure 13. (For systems with more than three chassis, see “Installing Cable Sets in Large Configurations” on page 41.)

123 45123 45

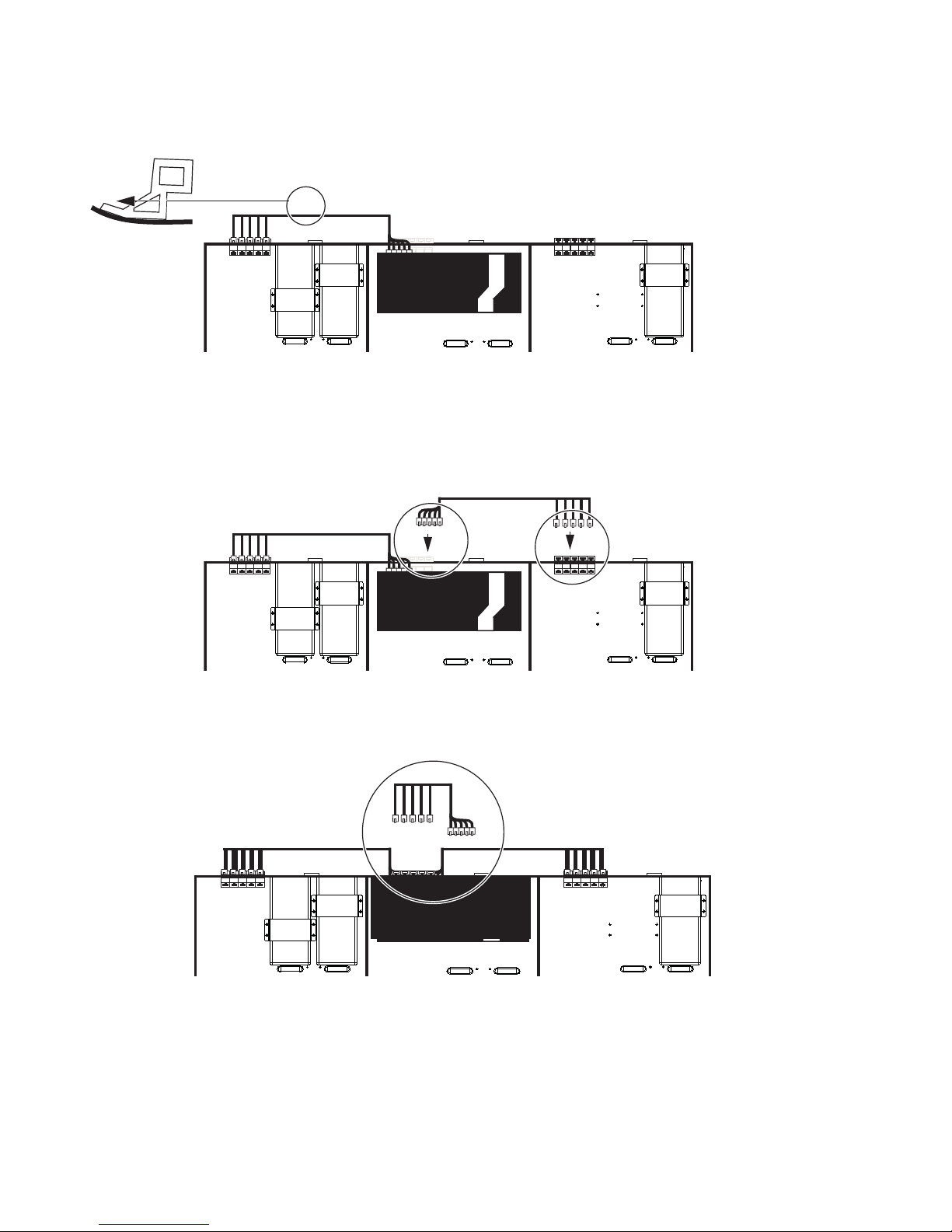

Figure 13. Connecting the first Cable Set to the first (left-most) chassis Ethernet terminal ports

4 Repeat for other Cable Sets and chassis (except the chassis containing any Ethernet switches) as shown in Figure 14:

• Connect cables 1–5 of the next set to the Ethernet switch.

• Run the cable set through the triangular openings in the Back Cover Mounts to the next chassis.

• Connect the Cable Set cables 1–5 to the Ethernet terminal ports 1–5 on each chassis.

123 45123 45

Figure 14. Connecting the next Cable Set to the right-most chassis Ethernet terminal ports

5 For the chassis containing the Ethernet switch(es), use the Small Cable Set and connect cables 1–5 to available ports on the

Ethernet switch, and connect the other ends to terminal ports 1–5 on the chassis.

123 45123 45 123 45

Figure 15. Connecting a Cable Set Small to the Ethernet terminal ports on the back of the switch chassis

S6 Installation Guide40

Page 46

Installing Cable Sets in Large Configurations

123 45

Refer to the following diagrams for Cable Set installation examples for four-chassis (24-fader) and larger system configurations. Numbers in the images indicate the suggested order of Cable Set installation.

4-Chassis Systems

Install Cable Sets in the following order (see Figure 16):

1 Cable Set Large 2 Cable Set Medium 3 Cable Set Medium 4 Cable Set Small

123 45 123 45123 45

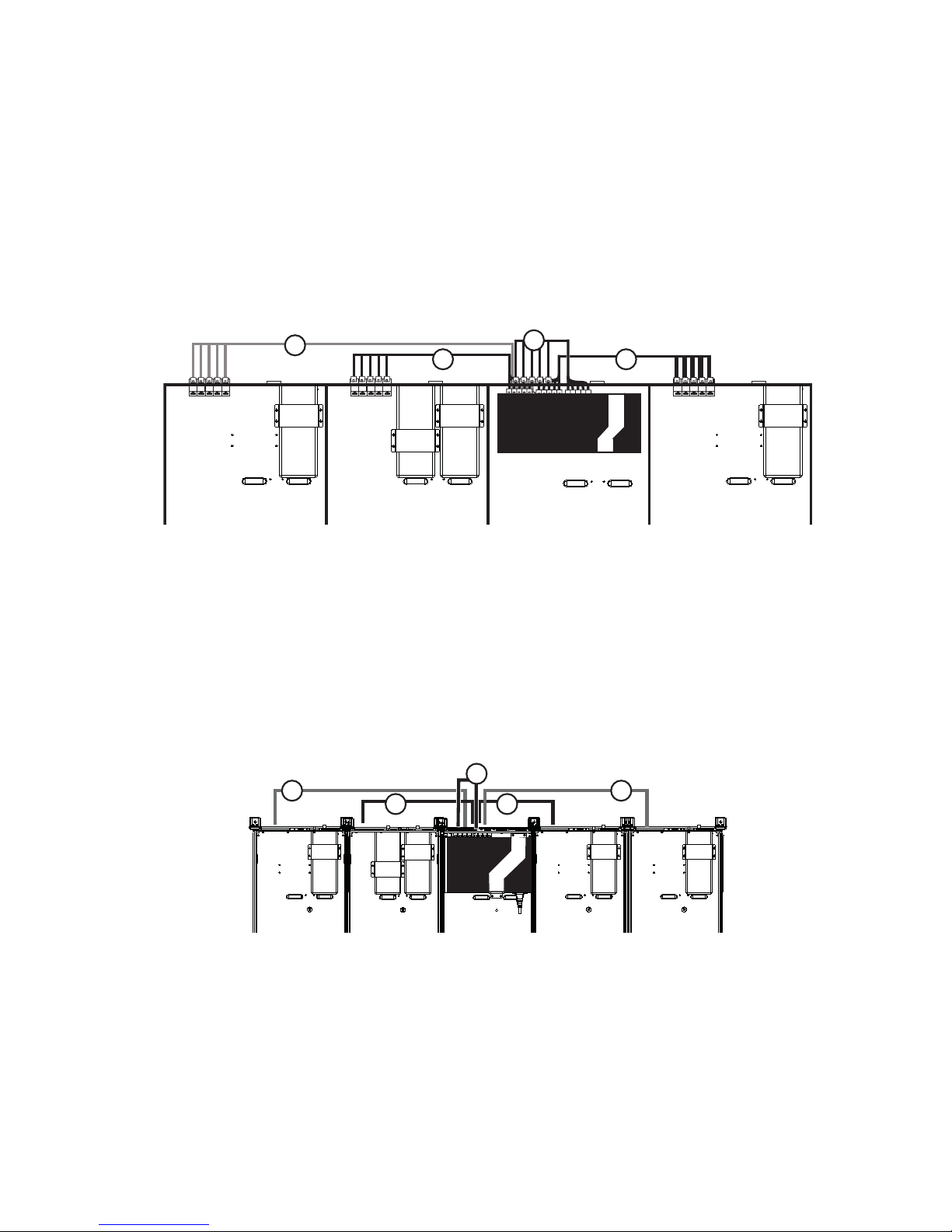

Figure 16. Cable Sets in a 24-fader (four chassis) system.

5-Chassis Systems

Install Cable Sets in the following order (see Figure 17):

1 Cable Set Large 2 Cable Set Medium 3 Cable Set Medium 4 Cable Set Large 5 Cable Set Small

2 3

Figure 17. Cable Sets in a 32-fader (five chassis) system

Chapter 5: Installing PSUs, Switches, and Cables 41

Page 47

6-Chassis Systems

Systems with 40 faders (six chassis) require slightly different cabling depending on the number of modules in the system (which determines whether the system needs one or two Ethernet switches).

Example 1 (Single Ethernet Switch): Install Cable Sets in the following order (see Figure 18):

1 Cable Set Large 2 Cable Set Large 3 Cable Set Medium 4 Cable Set Medium 5 Cable Set Large 6 Cable Set Small

4 532

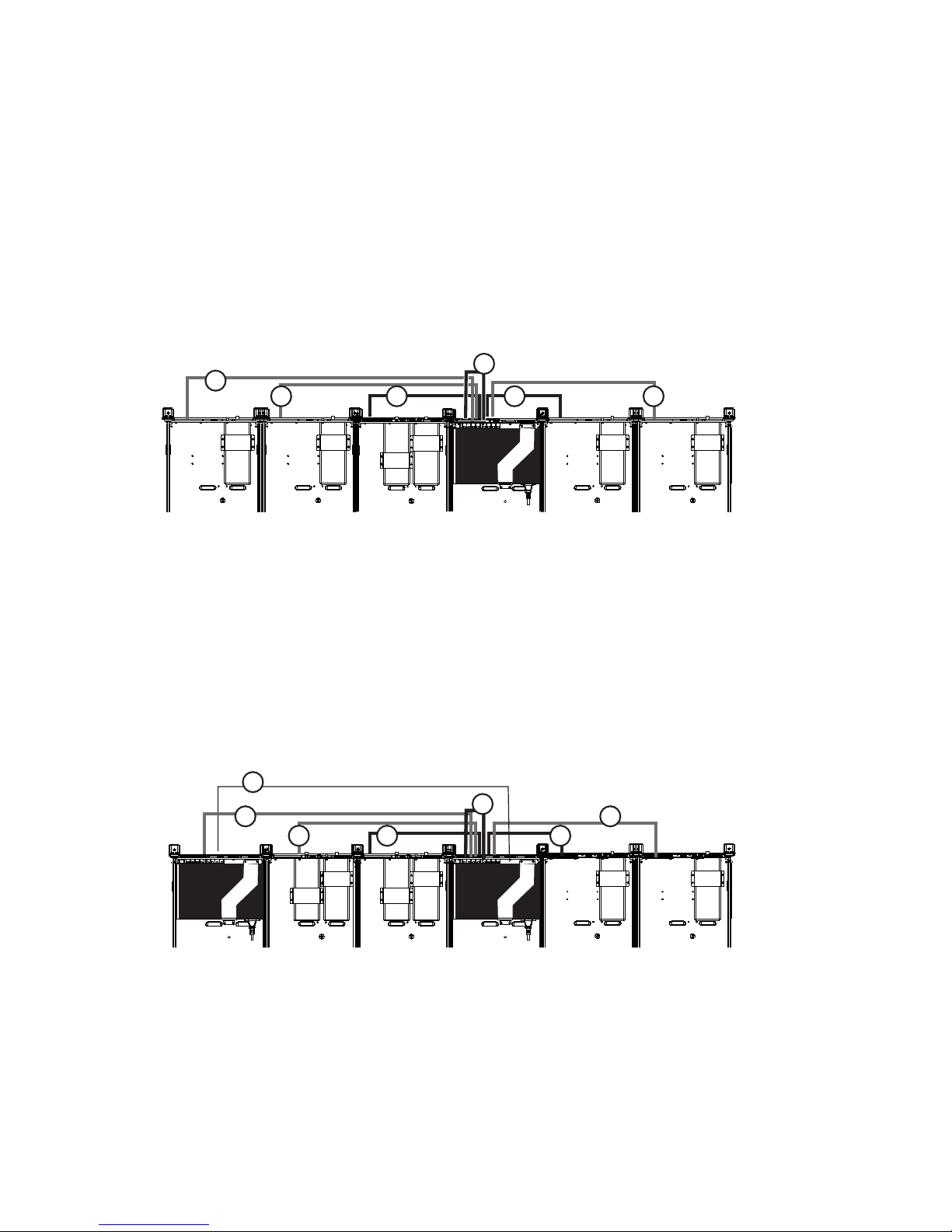

Figure 18. Example 1: Cable Sets in a 40-fader (six chassis) system with a single Ethernet switch

Example 2 (Dual Ethernet Switches): Install Cable Sets in the following order (see Figure 19):

1 Ethernet Cable (single Cat5e or better) to connect the two switches to each other 2 Cable Set Large 3 Cable Set Large 4 Cable Set Medium 5 Cable Set Medium 6 Cable Set Large 7 Cable Set Small

2 6

4 53

Figure 19. Example 2: Cable Sets in a 40-fader (six chassis) system with two Ethernet switches

7- and 9-Chassis Systems

For systems with seven or more chassis, use the previous diagrams and order of connections to install Cable Sets. For example, if you are assembling a 7-chassis system connect the Ethernet switches to each other first using the single, long Ethernet cable, then use Large and Medium Cable Sets to connect each switch to its surrounding chassis, following the examples above.

S6 Installation Guide42

Page 48

Short Ethernet Cables for Knob Modules and Display Modules

If your system includes two Knob Modules in any chassis, take one of the included 12-inch long Ethernet cables and connect one end of it to an available port on the interior of the Back Tie Plate.

If your M40-based system includes one or more Display Modules, take an included 12-inch long Ethernet cable and connect one end of it to an available port on the inside of the chassis. Feed the other end of the cable out and up through the opening in the Back Tie Plate, as shown in Figure 20. Feed an available 2-pin power cable from the Cable Harness through the same opening (you will connect these to the Display Module later).

Figure 20. routing a short Ethernet cable for a Display Module (2-pin power cable not shown)

Ethernet Cabling for Systems with Two Ethernet Switches

If your system includes 23 or more modules, two Ethernet switches are required. The two switches must be connected to each other using a single Ethernet cable.

To connect two Ethernet switches to each other:

1 Feed one end of a single Cat5e Ethernet cable through the opening in the back of either of the chassis containing an Ethernet

switch.

2 Connect it to an available port on the switch. 3 Run the cable through the triangular openings in the Back Covers and connect it to an available port on the other switch.

Connecting Power to the Switch and PSUs

After the Cable Sets are installed, connect power to the switch and each PSU with their included cables.

To connect power to PSUs and the Ethernet switch:

1 If you haven’t already, feed the DC power cable from each PSU out through the opening in the Back Tie Plate as shown in

Figure 21.

Figure 21. Power cable terminal through the Back Tie Plate

Chapter 5: Installing PSUs, Switches, and Cables 43

Page 49

2 Connect the cable terminal end from the outside back of the chassis to the power terminal connector on the Back Tie Plate as

shown in Figure 22. Use a small flathead screwdriver to secure the plug to the terminal.

Figure 22. Connecting the cable terminal at the Back Tie Plate (

3 Do the following to connect power to the chassis containing the Ethernet switch (see Figure 23):

• In the chassis with two PSUs, feed the DC cable of the second PSU through the opening in the Back Tie Plate, then run the cable across to the chassis with the switch.

• Attach the terminal end to the power terminal connector on the Back Tie Plate of that chassis.

Figure 23. Routing power cables to a chassis with an Ethernet switch

4 T aking the other AC cable included with each PSU, connect the appropriate end to the AC input on the PSU. Feed the other end

of the AC cable through the opening in the Back Tie Plate and run it through the square openings in the Back Cover (you will connect this end to the power strip later).

Figure 24. Feeding the cable through the Back Tie Plate and connecting it to the PSU (Ethernet switch not shown)

S6 Installation Guide44

Page 50

Connecting Power to the Ethernet Switch

To connect power to the Ethernet switch:

1 Take the power cable included with the Ethernet switch(es) and feed the switch end through the opening of the Back Tie Plate. 2 Connect the cable to the power connector on the Ethernet switch(es). Place the other (AC) end on the Back Covers and leave

them disconnected for now.

Attaching the Outer Side Covers

After cables are in place, install the outer side covers (outer side covers must be installed before modules).

To attach the Side Covers:

1 Set the panel into the side bracket so that its tabs snap into the slots on the mounting plate as shown in Figure 25.

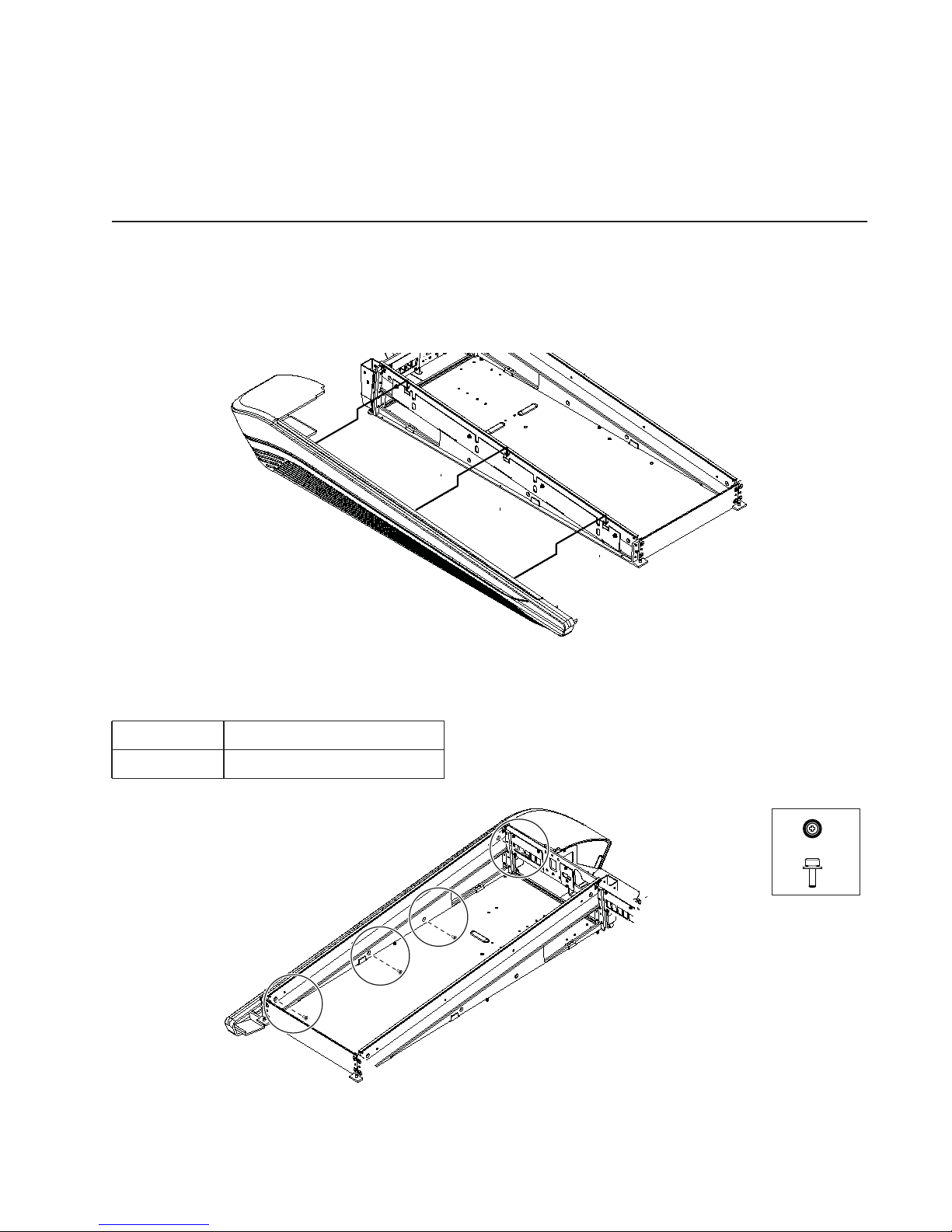

Figure 25. Attaching the left Side Cover

2 From the inside of the chassis, use four Phillips screws to secure the Side Cover to the frame as shown in Figure 26.

Fasteners and Tools for the Side Covers

Fasteners Tool

Figure 26. Securing the left Side Cover

M4x10 FHPH #2 Phillips

Chapter 5: Installing PSUs, Switches, and Cables 45

Page 51

3 Take the right Side Cover and attach it to the right mounting plate, then secure it to the frame as shown in Figure 27.

Figure 27. Attaching the right Side Cover (Bolster not shown)

4 From the inside of the chassis, use four Phillips screws to secure the right Side Cover to the frame as shown in Figure 27.

Figure 28. Attaching the right Side Cover (Bolster not shown)

How to Proceed

After assembling the frame and installing the Ethernet switch, PSUs and cabling, proceed to Chapter 6, “Installing Modules.”

S6 Installation Guide46

Page 52

Chapter 6: Installing Modules

This chapter shows you how to install and connect hardware modules into an assembled frame. The basic steps for installing and connecting modules are as follows:

• Populate the first (left-most) chassis with all its modules.

• Install and connect modules in each chassis, front-to-back.

The Master Module requires several special connections that are unique to other modules. Be sure to follow all instructions carefully.

• Repeat to populate all other chassis with modules.

• Install Display Modules, if any.

• Install Fill Panels into any empty slots, then install a Compression Panel into each chassis to complete the assembly.

About These Instructions

The following instructions often show an S6 M40–24–5 system as an example configuration (see Figure 29). This configuration provides 24 fader strips with 5 knobs per strip, plus a standard master section module configuration.

• 3 Fader Modules

• 3 Process Modules

• 3 Knob Modules

• 1 Master Module (M40)

• 1 Automation Module

Figure 29. Arrangement of modules in example S6 M40 24-5 system

This example configuration has the master section modules at the far right of the system with faders to the left. Modules can be arranged in many different positions, however, as explained in Chapter 2, “Modules and Configuration Overview.” Your exact installation procedure will differ slightly from this example configuration depending on your system and desired arrangement of modules (all variations are noted as appropriate).

Chapter 6: Installing Modules 47

Page 53

Installing Modules

Install all modules beginning with the left-most chassis. Begin with the slot/module closest to the front (slot 1). In our example S6 M40 24-5 configuration we are installing channel modules in the left-most chassis, so the first (front-most) module to install is a Fader Module. In other configurations the left-most chassis could be for Master modules (see “Installing Master Section Modules” on page 51).

Installing Channel Modules

To install Channel modules:

1 If you haven’t already done so, unpack one Fader Module, one Process Module, and one Knob Module from their packaging. 2 Holding the Fader Module close to its chassis, do the following:

• Connect the longest 2-pin Molex power cable among those in the built-in Cable Harness to the DC input on the side of the module.

• Identify the blue (longest) RJ-45 cable in the built-in Cable Harness. Connect it to the Ethernet port on the side of the module.

In Frame Chassis Large, use the blue cable. In Frame Chassis Small, use the white cable.

Power

Gigabit Ethernet RJ-45

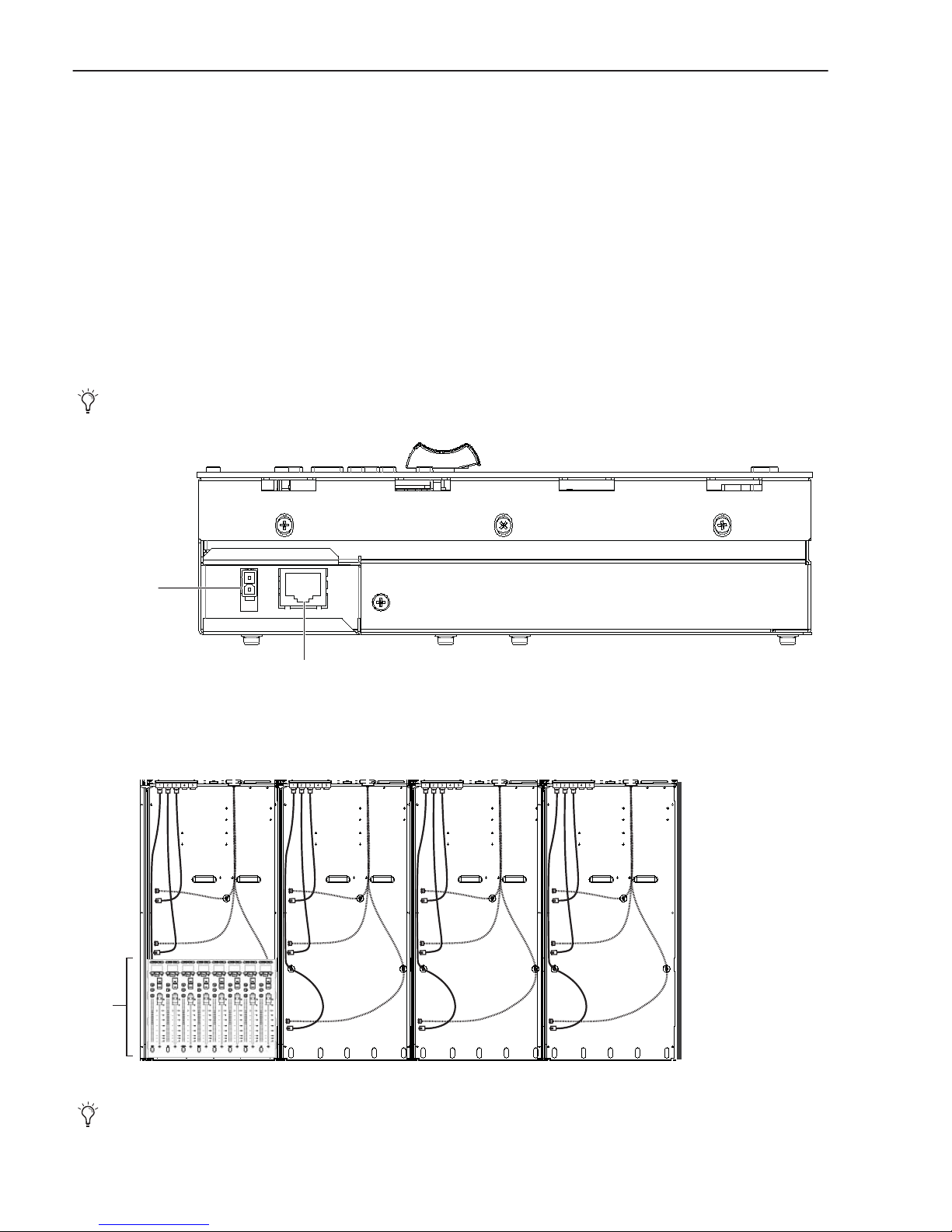

Power and Ethernet cables in the chassis (at left) and ports on the Fader Module

3 Install the connected Fader Module into the slot 1 (the front-most slot) in the chassis, being careful to orient it correctly and seat

it at the front edge of the chassis. In our example we are installing the first Fader Module into slot 1 of the first (left-most) chassis. Make sure the module sits completely into the frame and not on any cables.

Slot 1 Fader Module

Fader Module in slot 1 of the chassis (switch and PSUs not shown)

Later, after all modules are in place, they will be secured within their chassis by installing Compression Panels and T-Strips.

S6 Installation Guide48

Page 54

4 Locate the Process Module and connect power and Ethernet to it as you did for the Fader Module. Use the white (second longest)

available power and Ethernet cables in that Cable Harness.

In Frame Chassis Large, use the white Ethernet cable. In Frame Chassis Small, use the green cable.

5 Install the connected Process Module in slot 2, above the Fader Module, being careful to orient it correctly and seat it fully

against the top edge of the Fader Module. Make sure the module sits completely into the frame and not on any cables

Slot 2 Process Module

Slot 1 Fader Module

Process Module added to slot 2 of the chassis (switch and PSUs not shown)

6 Locate a Knob Module and connect power and Ethernet.

In Frame Chassis Large, use the green cable. In Frame Chassis Small, use the yellow cable.

7 Place the Knob Module in slot 3, directly above the Process Module. Be careful to orient it correctly and seat it fully against the

top edge of the Process Module.

Slot 3 Knob Module

Slot 2 Process Module

Slot 1 Fader Module

Knob Module added to slot 3 of the chassis (switch and PSUs not shown)

Chapter 6: Installing Modules 49

Page 55

8 If your system includes two Knob Modules in a Frame Chassis Large, do the following:

• Connect power to the second Knob Module.

• Take one of the included 12-inch Ethernet cables and connect it to an available chassis port at one end, and connect the other end to the Knob Module.

In Frame Chassis Large, use the yellow cable. In Frame Chassis Small, use the black cable.

• Install the second Knob Module in slot 4, directly above the first Knob Module. Make sure the module sits completely into the frame and not on any cables

Slot 4 Knob Module 2

Slot 3 Knob Module 1

Slot 2 Process Module

Slot 1 Fader Module

Example of a Frame Chassis Large with one Fader Module, one Process Module and two Knob Modules

9 Repeat steps 1–7 for all other Channel modules.

Slot 3 Knob Module

Slot 2 Process Module

Slot 1 Fader Module

Channel Modules installed (switch and PSUs not shown)

S6 Installation Guide50

Page 56

Installing Master Section Modules

Installing the Automation Module is nearly identical to installing a Fader Module.

Installing the Automation Module

To install the Automation Modules:

1 If you haven’t already done so, unpack the Automation Module and Master Module. 2 Hold the Automation module above its chassis and do the following:

• Connect the 2-pin Molex power cable to the DC input on the side of the module.

• Connect the longest Ethernet cable to the Ethernet port on the side of the module.

In Frame Chassis Large, use the blue cable. In Frame Chassis Small, use the white cable.

3 Install the connected Automation Module into the first (front-most) slot of the chassis. Make sure the module sits completely

into the frame and not on any cables

Automation Module in slot 1 of the chassis (switch and PSUs not shown)

Slot 1 Automation Module

Chapter 6: Installing Modules 51

Page 57

Installing the Master Module

Installing a Master Module is similar to other modules but requires additional connections.

To install the Master Modules:

1 Hold the Master Module above the chassis and connect two of the 2-pin Molex cables in the Cable Harness, one to each of the

two DC inputs on the side of the module as shown in Figure 30.

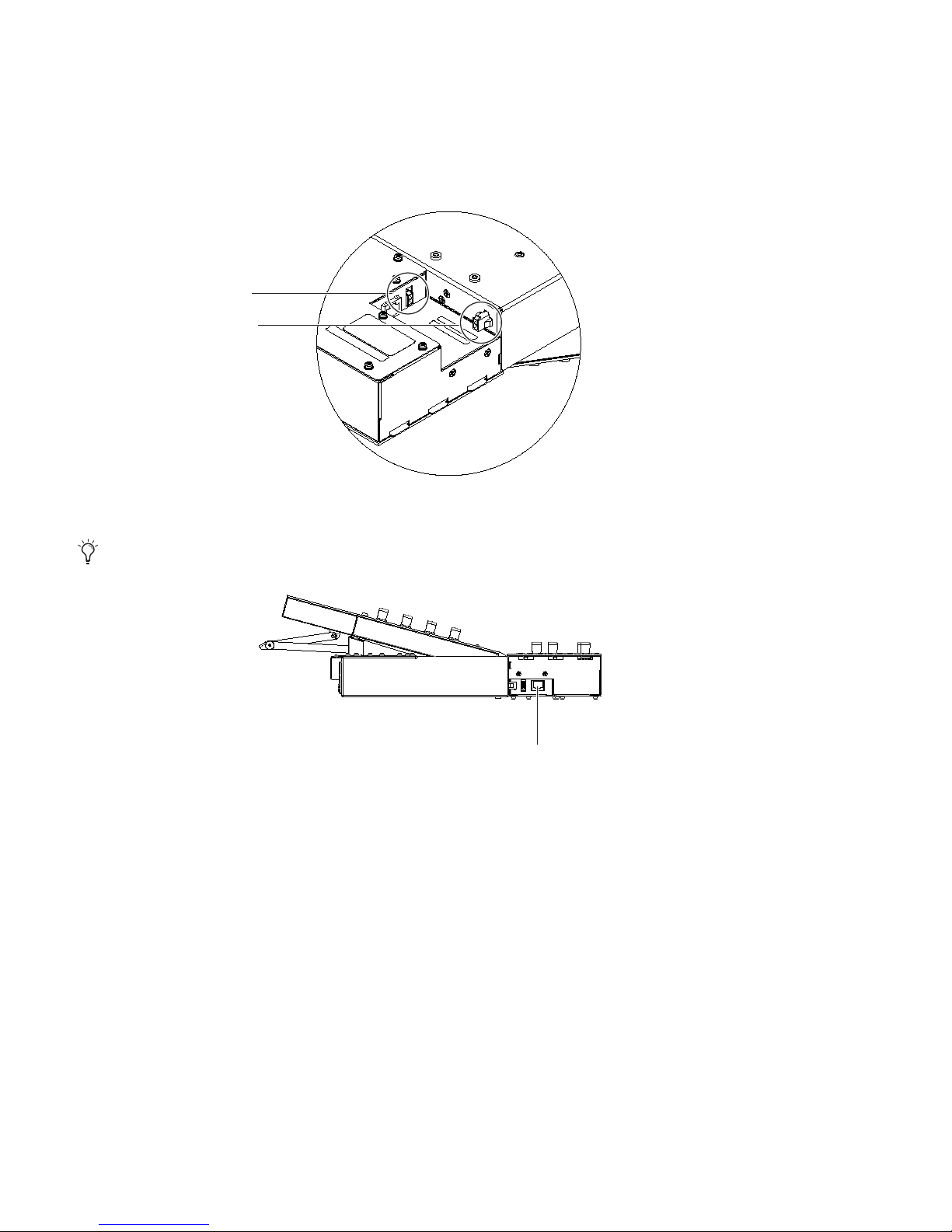

Figure 30. Connecting both DC power cables to the Master Module

2 Connect the second longest Ethernet cable to the Ethernet port on the side of the module (see Figure 31):

In Frame Chassis Large, use the white cable. In Frame Chassis Small, use the green cable.

Gigabit Ethernet RJ45

Figure 31. Master Module side panel Ethernet port

S6 Installation Guide52

Page 58

3 After connecting Ethernet to the primary (side panel) Ethernet port of the Master Module, do either of the following (see

Figure 32):

• If you already have a DHCP Server on your network, connect the second chassis Ethernet cable to Ethernet port

1 on the back

panel of the Master Module.

• If you do not have a DHCP Server on your network (and/or if you will be connecting S6 directly to only one workstation) connect the second chassis Ethernet cable to back panel Ethernet port

If you are unsure of whether you have a DHCP server on your network please consult your IT department.

Only connect chassis Ethernet to one of the two Ethernet ports on the back (in addition to the primary module connection on the side panel). The Master Module supports two Ethernet connections, total, but one must be to the primary side panel port.

Figure 32. Master Module back panel Ethernet ports 1 (at left) and 2 (right)

For more information, see the S6 Guide (included with other documentation that becomes available for download in your Avid Master Account after you activate).

4 Install the connected Master Module in slots 2 and 3 (the Master Module occupies two slots). Make sure to orient it correctly by

seating it fully against the top edge of the Automation Module. Do not fold or pinch its connected cables.

Slots 2 and 3 Master Module

Slot 1 Automation Module

Master Module and Master Automation Module

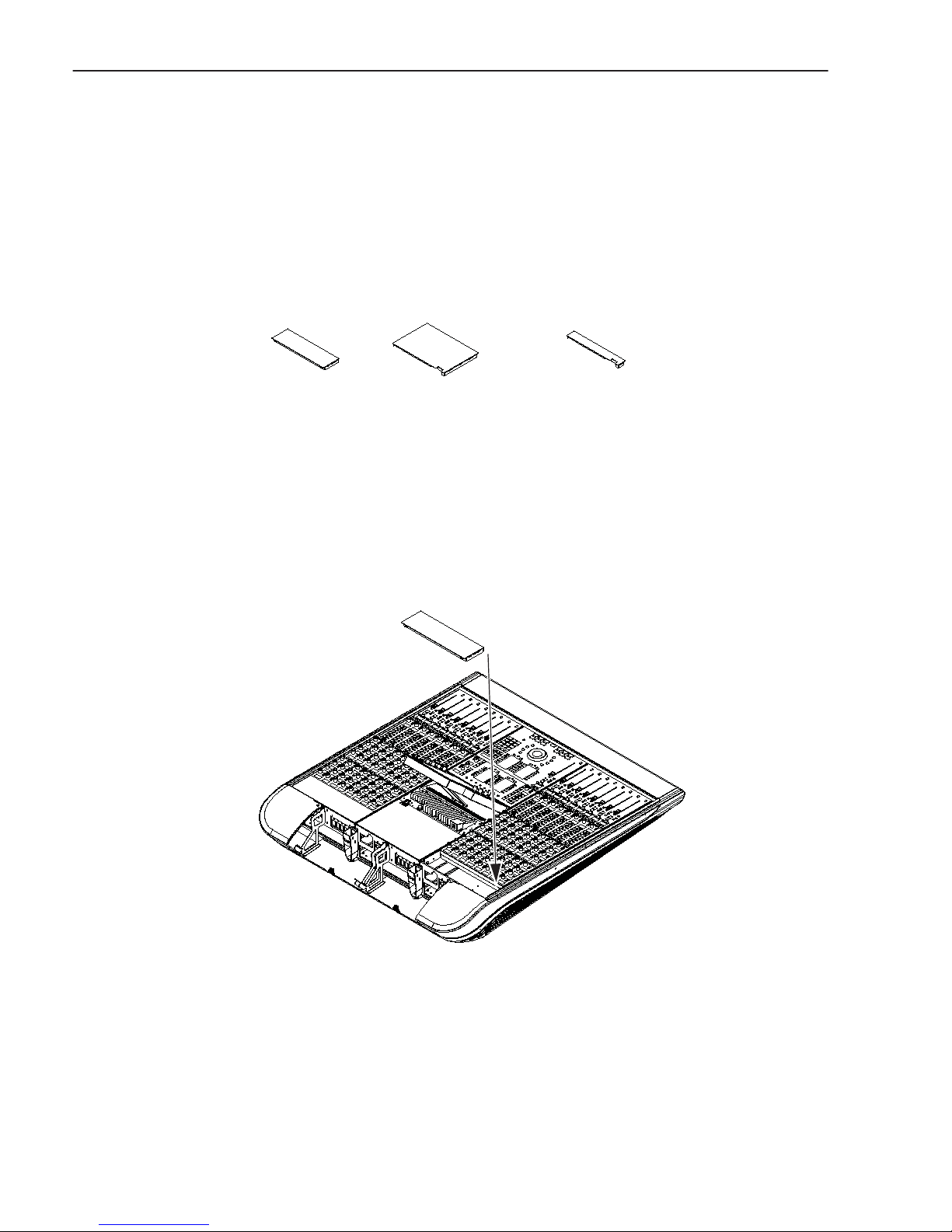

Installing Fill Panels

Fill Panels are available in metallic or acrylic finishes, and come in two sizes to fill small and large slots.

Fill Panel Small Fill Panel Large

To install Fill Panels:

 Install Fill Panels to cover any empty slots. Fill Panels slide into place, just like modules.

Same size as Process and Knob Modules for filling slots 2, 3, or 4. Same size as Fader Module for filling slot 1.

Chapter 6: Installing Modules 53

Page 59

Installing Display Modules

If your system includes Display Modules, install them next.

To install the mounting brackets, see “Installing Display Module Mounting Brackets” on page 28

To install a Display Module:

1 Locate the four mounting screws included with the Display Module. 2 There are two positions to mount the Display Module, low and high. Select a position, then attach the Display Module to a Dis-

play Module Mounting Bracket and secure it with the included mounting screws.

Fasteners, and Tools for Display Module

Fasteners

M4x10 BCHS

Tool

Attaching a Display Module to its mounting bracket (side view)

M3 Hex

3 Connect power and Ethernet to the connectors on the bottom of the display. Use the Cable Harness power cable and 12-inch

Ethernet cable you fed through the Back Tie Plate of each chassis in “Short Ethernet Cables for Knob Modules and Display Modules” on page 43.

Gigabit Ethernet RJ45

Connectors on the bottom of the Display Module

Do not connect anything to the USB ports unless directly instructed to do so by an Avid Authorized Service provider.

4 Repeat the previous steps to install other Display Modules. 5 After all Display Modules are in place, go to Chapter 7, “How to Proceed” to complete the installation of your S6 system.

S6 Installation Guide54

Power

Page 60

Installing the Power Strip

The power strip is placed across the Back Cover brackets, behind the center of the frame, and its AC supply cable fed through the opening at the corner of the Side Cover.

To install the power strip:

1 Standing behind the middle of the frame, place the power strip on the Back Cover brackets so that it sits flat against the angled

arms of the brackets as shown in Figure 33.

Figure 33. Power strip placement on a Back Cover bracket

2 T ake the power strip’ s AC cable and run it along the back of the frame to the far left or right, then feed it down through the open-

ing between the Side Cover and the last Back Cover. Leave it disconnected.

3 Starting from either end of the frame, start connecting AC cables from Ethernet switch(es) and PSUs to the sockets on the power

strip.

4 Follow the instructions in Chapter 7, “How to Proceed” to start up your system.

Chapter 6: Installing Modules 55

Page 61

S6 Installation Guide56

Page 62

Chapter 7: How to Proceed

After assembling the system and installing modules, use the instructions in this chapter to do all of the following:

• Start up the system for the first time to confirm power and Ethernet (see “Starting Up and Shutting Down” on page 57).

• Register and Activate your purchase, then download and install any available updates (see “Activate and Register” on page 57).

• Add the final hardware components to finish the frame (see “Complete the Hardware Assembly” on page 58).

Starting Up and Shutting Down

Follow these instructions when starting up S6 for the first time.

Starting Up for the First Time

To start up the system for the first time:

1 Turn on power to the S6 power strip from its power source (UPS, power conditioner, or other). 2 If a module remains dark:

• Check all Link LEDs on the Ethernet switch(es) and make sure they are all indicating communication. If not, make sure cables are fully connected into their sockets.

3 The Touchscreen displays S6 Master Module startup screens. 4 Follow the on-screen instructions to Shut Down, use a personal computer to go on-line to register and activate, then download

important software and updates and follow their included instructions (see “Activate and Register” on page 57).

Shutting Down

To shut down:

1 Navigate the Touchscreen to the About page and touch Shut Down.

To completely shut down the Master Module, press the silver Power switch behind the Touchscreen.

Always shut down the Master Module before powering down the system!

2 Turn off power at the source device supplying power to the S6 Power Strip (UPS, power conditioner or other).

Activate and Register

Before continuing, review the enclosed Activation Card and Registration Information Card. Use a separate computer and follow the instructions to Activate your Avid Master Account (required) and register your purchase (optional, but highly recommended).

Be sure to Activate your purchase using the enclosed S6 Activation card so you can receive software updates directly in your Avid Master Account. Check your Avid account for updates immediately after configuring your surface.

Chapter 7: How to Proceed 57

Page 63

Complete the Hardware Assembly

After confirming power and Ethernet connections, add Compression Panels and T-Strips to secure the modules in place, and install upper Back Covers to conceal cables.

Installing Compression Panels

After you have installed all modules and covered any empty slots with Fill Panels, install a Compression Panel at the top of each chassis.

Compression Panels are spring-loaded panels that seal the top of each chassis and hold the modules in place. Compression Panels come in three sizes, Channel (included with all frame chassis kits), Master ED (for the master chassis in systems comprised of Frame Chassis Large), and Master RD (for the master section chassis in systems comprised of Frame Chassis Small).

Figure 34. Compression Panels: Channel (left) and two Master sizes; Large (center), and Small (right)

To install Compression Panels:

1 T ake a Channel Compression Panel (included in the Back Covers package) and hold it so that the side with the springs faces the

front of the frame.

2 Holding the panel at an angle, place the spring side of the panel against the top edge of top-most module (or Fill Panel) and apply

enough pressure to compress the springs.

3 If there is a Display Module mounted for that chassis, make sure the power and Ethernet cables are routed through the opening

in the Back Tie Plate (these will be held in place later when you attach the upper Back Covers).

4 Lower the back edge of the Compression Panel into place at the top of the chassis as shown in Figure 35.

Figure 35. Installing a Channel Compression Panel

5 Repeat for other Channel chassis. 6 T ake the Master Compression Panel (included in the Side Covers package) and hold it so that the side with the springs faces the

front of the frame. If you have a Frame Chassis Small, use the smaller Master Compression Panel.

S6 Installation Guide58

Page 64

7 Holding the panel at an angle, place the spring side of the panel against the of the Master Module. Apply enough pressure to

compress the springs, then lower the back edge and snap it into place.

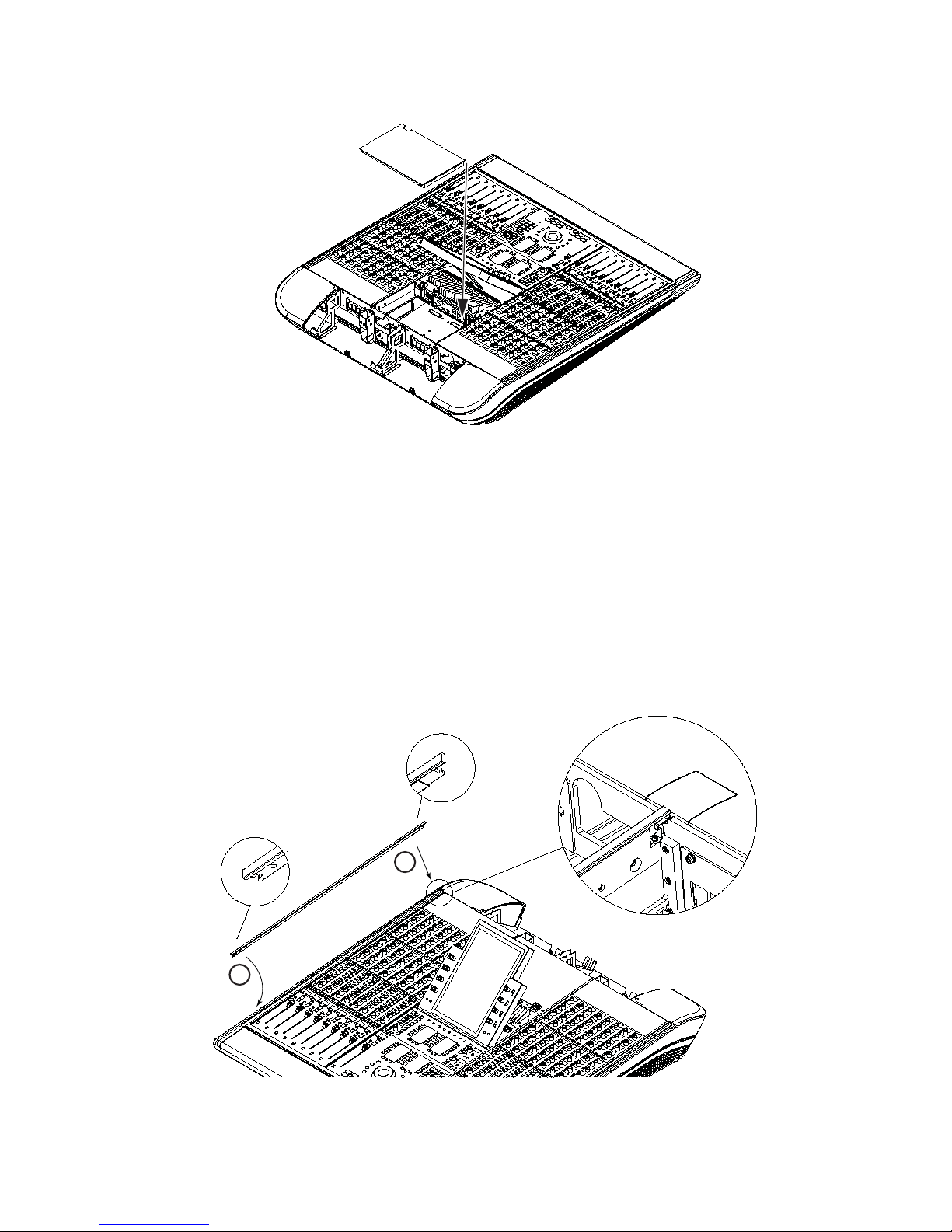

Figure 36. Installing a Master section Compression Panel

Installing T Strips

After installing modules and Compression Panels, install T-strips to further secure the modules in their chassis.

To install T-Strips:

1 Collect all T-strips (one is included with each Frame Chassis kit and one is included with the Side Covers kit). 2 Take the first T-Strip and, orienting it as shown in Figure 37, do the following:

• Insert the bottom end (the end closest to the front of the control surface) into the receiving slot in the Side Wall.

• Working towards the back, push the T-strip down into its channel.

• At the top, push the end of the T-strip down until it clicks into place.

3 Repeat for all other T-strips.

Figure 37. Installing a T-strip

If you need to remove T-strips, see “Removing Modules” on page 63.

Chapter 7: How to Proceed 59

Page 65

Attaching the Upper Back Covers

After installing and connecting all modules, attach the upper Back Covers.

Figure 38. Upper Back Cover

To install the upper Back Covers:

1 T ake one of the upper Back Covers and secure its thumb-screw into the threaded receiver on the Back Cover Mounting Bracket.

Figure 39. Attaching the Upper Back Cover

2 The upper Back Cover is hinged; guide power and Ethernet cables for Display Modules (if any) through the cutouts at the cor-

ners, then close the cover to conceal cables.

How to Proceed

After assembling and configuring your system, do the following:

1 If you haven’t already done so, use the included Registration and Activation cards to register and activate on-line. After you reg-

ister and activate, links for software downloads become available in your Avid Master Account

2 Log in to your Avid Master Account and follow links to download S6 software updates and supporting software. 3 Install S6 software updates (see the instructions included with the downloads). 4 After updating S6 system software, install supporting software such as Workstation software for W indows or Mac, then see the

S6 Guide (included with S6 documentation downloads) to configure and start learning S6.

5 For monitoring via XMON EUCON, see the XMON EUCON Application Guide (included with the download of XMON

EUCON software available in your Avid Master Account after registering and activating).

S6 Installation Guide60

Page 66

Part IV: Appendices

Page 67

Page 68

Appendix A: Expanding or Disassembling S6

This section provides disassembly instructions for modules, PSUs, Ethernet switches, and chassis (frame) components. Use these instructions when preparing to expand or move your system, or while troubleshooting.

Important

Do not attempt to lift or move an assembled S6 desktop system if it is five or more chassis in width to avoid risk of damage to the frame. If you need to move a five chassis-or-wider S6 system that does not include Legs, you must partially disassemble the frame so that no section is more than four chassis in width.

Do not lift or move an S6 desktop system that is five or more chassis in width (32 or more faders).

Overview

S6 M10 systems can be disassembled for maintenance, moving, and troubleshooting. S6 M10 systems can be expanded by adding additional channel modules up to the limits of the M10 Master Module (a maximum of 10 modules in the system, plus the M10).

S6 M40 systems can be disassembled in order to customize the system by adding or rearranging modules, for moving, or for maintenance and troubleshooting. S6 M40 systems can be customized in numerous ways. Here are a few examples:

• You can add Display Modules at any time.

• You can add channel modules and additional chassis (if necessary) to add more fader strips to the system (up to the maximum of 40 modules, plus the M40 Master Module).

• You can arrange modules in several different ways, such as having only a Fader Module in one or more chassis, or having two Knob Modules in some chassis but only one in other chassis. (Fill Panels are available to seal unused slots.)

• You can also remove modules from one system and move them into another S6 system to add more faders or knobs to that other system for big projects.

Removing Modules

This section shows how to remove modules in order to rearrange them, expand your system or replace modules.

To remove modules:

1 Make sure the system is powered down and that all modules are off. 2 Disconnect all power connections. 3 If your system includes Display Modules and you want to remove one or more of them, do the following:

• Disconnect power and Ethernet cables connected to the Display Modules.

• Remove the Hex screws that secure the Display Module mounting brackets to the frame (do not remove the Display Module from its mounting bracket) and lift the module and bracket away from the console.

4 If you want to remove channel or master modules, start by removing the T-strips from between chassis, one at a time. Start at

the top (back) of the control surface and use a small flat-head screwdriver or similar tool to gently pry the T-strips up and away from the control surface. T-strips are spring loaded and should lift out easily.

5 Next, remove Compression Panels from the top-most slot of each chassis. Once the Compression Panels are removed, any of the

modules in a chassis can be slid towards the back of the control surface and lifted out of the chassis.

6 Remove Fill Panels (if any).

Appendix A: Expanding or Disassembling S6 63

Page 69

7 Remove modules by doing the following:

• If you are removing all modules from a chassis, start at the top module (usually a Knob Module). If you are removing just one module, slide the other modules towards the back of the control surface.

• Slowly lift the module out of the chassis, being careful not to strain the power or Ethernet cables.

• Disconnect power, Ethernet and any other cables connected to the module (such as USB).

• Repeat for all other modules you want to remove.

Disassembling a Frame

You can expand your system by adding chassis to an existing frame and populating that chassis with additional modules. In order to add one or more chassis to a frame, or to move a frame that is five or more chassis in width you must first disassemble part of the frame as described in the following instructions.

To disassemble a frame:

1 Remove all modules (see “Removing Modules” on page 63). 2 Remove the Side Covers by lifting unscrewing their fasteners and lifting them out of their mounting slots. (Refer to “Installing

Side Covers” on page 30.)

3 Disconnect and set aside all Ethernet Cable Sets (the cables connecting the Ethernet Switch to each chassis). 4 Disconnect power from the Ethernet Switch and the PSU in each chassis you plan to disassemble. 5 (Optional) Remove the Ethernet Switch and/or PSU from the chassis. Only do this if you are troubleshooting or replacing a unit. 6 Remove the Back Covers by doing the following (refer to “Installing Back Cover Mounting Brackets” on page 29):

• Remove all the upper Back Covers by lifting the covers open, then loosening the thumbscrews that hold them to the lower mounting bracket.

• Remove all Back Cover Mounting Brackets.

7 Determine which chassis to detach from each other:

• If you expanding a frame, detach any two interior chassis and install the new chassis between them.

When expanding an S6 frame always insert new chassis between existing chassis (do not add a new chassis at either the extreme left or right ends, unless you are adding a Producer’s Desk to either end). This reduces the amount of hardware to disassemble and then re-install due to the unique components installed on the left and right end chassis (such as Side Panel Mounting Plates and Back Foot Spacer Bars).

• If you are disassembling a large (five chassis or wider) frame to move it, detach as many pairs of chassis as necessary so that n more than four chassis remain attached to each other.

8 Detach the two chassis by doing the following (refer to “Assembling the Chassis” on page 20):

• Remove the two Hex fasteners that secure the Front Tie Plate.

• Remove the two Hex fasteners that secure the Back Tie Plate.

• Remove the three #1 Phillips screws that secure the Side Wall to the Chassis Bottom plate of the adjacent chassis.

• If your system includes Legs, remove the Hex fasteners and washers that secure Chassis Bottom Plates to the Beams.

The two chassis can now be physically separated.

S6 Installation Guide64

Page 70

Appendix B: Compliance

Environmental Compliance

Disposal of Waste Equipment by Users in the European Union

This symbol on the product or its packaging indicates that this product must not be disposed of with other waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city recycling office or the dealer from whom you purchased the product.

Proposition 65 Warning

This product contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other r eproductive harm. Wash hands after handling.

Perchlorate Notice

This product may contain a lithium coin battery. The State of California requires the following disclosure statement: “Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardous waste/perchlorate.”

Recycling Notice

Appendix B: Compliance 65

Page 71

EMC (Electromagnetic Compliance)

Avid declares that this product complies with the following standards regulating emissions and immunity:

• FCC Part 15 Class B

• EN 55022 Class B

• AS/NZS CISPR 22 Class B

• CISPR 22 Class B

• EN 55103-1, Class E2 and E3

• EN 55103-2, Class E2 and E3

FCC Compliance for United States

Communication Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or locate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any modifications to the unit, unless expressly approved by Avid, could void the user's authority to operate the equipment.

Australian Compliance

N1709

Canadian Compliance

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le material brouilleur du Canada.

CE Compliance

(EMC and Safety)

Avid is authorized to apply the CE (Conformité Europénne) mark on this compliant equipment thereby declaring conformity to EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.

S6 Installation Guide66

Page 72

Safety Compliance

Safety Statement

This equipment has been tested to comply with USA and Canadian safety certification in accordance with the specifications of UL Standards: UL 60065 7th Ed., 2007-12-11, CAN/CSA C22.2 No. 60065-03, 1st Ed, 2006-04 +A1:2006, EN 60065:2002 + A1:2006 + A11:2008, IEC 60065:2001 + A1:2005 + A2:2010. Avid Technology Inc., has been authorized to apply the appropriate NRTL mark on its compliant equipment.

Korea Class B EMC Compliance

이 기기는 가정용 (B 급 ) 전자파적합기기로서 주 로 가정에서 사용하는 것을 목적으로 하며 , 모 든 지역에서 사용할 수 있습니다 .

Warning

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this equipment near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other equipment (including amplifiers) that produce heat.

10) Protect power cords from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the equipment.

11) Only use attachments/accessories specified by the manufacturer.

12) For products that are not rack-mountable: Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the equipment. When a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over.

13) Unplug this equipment during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the equipment has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the equipment, the equipment has been exposed to rain or moisture, does not operate normally, or has been dropped.

Appendix B: Compliance 67

Page 73

15) For products that are a Mains powered device: The equipment shall not be exposed to dripping or splashing and no objects filled with liquids (such as vases) shall be placed on

the equipment. Warning! To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

16) For products containing a lithium battery: CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

17) For products with a power switch: It should remain accessible after installation.

18) The equipment shall be used at a maximum ambient temperature of 40° C.

19) This unit is provided with a power supply cord set suitable for 120V AC input only (for U.S.A.and Canada). For other than U.S.A. and Canada, a qualified person must provide for use with this unit, an appropriate, approved power supply cord set which is in compliance with the end use country requirements and has a minimum cross-sectional area of 1.0mm2.

20) For products with more than one power cord: CAUTION: This unit has more than one power supply cord. Disconnect two power supply cords before servicing to avoid electrical

shock. ATTENTION: Cet appareil comporte plus d’un cordon d’alimentation. Afin de prévenir les chocs électriques, débrancher les deux

cordons d’alimentation avant de faire le dépannage.

21) For products with an operator-accessible fuse: CAUTION: For continued protection against risk of fire, replace only with same type and rating of fuse. ATTENTION: Pour ne pas compromettre la protection contre les risques d’incendie, remplacer par un fusible de même type et de

même caractéristiques nominales.

S6 Installation Guide68

Page 74

Avid

2001 Junipero Serra Boulevard Daly City, CA 94014-3886 USA

Technical Support (USA)

Visit the Online Support Center at www.avid.com/support

Product Information

For company and product information, visit us on the web at www.avid.com

Avid Technology S6, S6 M10, S6 M40 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
