Chapter 1: Introduction
The Avid® S6 Automation Module is the transport and automation master section module. It provides switches for time code and
transport operations, a Jog wheel, a numeric keypad, two banks of Soft Keys, and a fader strip.
Automation Module
Module Capabilities and Features
• 1 (one) fader strip
• 1 (one) Jog/Shuttle Wheel with Wheel mode switches
• Transport switches
• Numeric Keypad
• 2 (two) banks of Soft Key, each with high resolution TFT display
• Setup switch
• Timecode and Locate display and controls
• 2-pin 12V Power
• 1000-BaseT (Gigabit) Ethernet RJ45 connector
Chapter 1: Introduction 1
System Requirements and Compatibility
Avid can only assure compatibility and provide support for hardware and software it has tested and approved.
For complete system requirements and a list of qualified computers, operating systems, hard drives, and third-party devices, visit:
www.avid.com/compatibility
Registration
Review the enclosed Registration Information Card and follow the instructions on it to register your purchase online.
By registering, you become eligible to receive the following:
• Technical support information
• Software update and upgrade notices
• Hardware warranty information
About www.avid.com
The Avid website (www.avid.com) is your best online source for information to help you get the most out of your Pro Tools
system. The following are just a few of the services and features available.
Product Registration
Support and Downloads
Register your purchase online.
Contact Avid Customer Success (technical support); download software updates and the latest online
manuals; browse the Compatibility documents for system requirements; search the online Knowledge Base or join the worldwide
Pro Tools community on the User Conference.
Training and Education
Study on your own using courses available online or find out how you can learn in a classroom setting at
a certified Pro Tools training center.
Products and Developers
Learn about Avid products; download demo software or learn about our Development Partners and their
plug-ins, applications, and hardware.
News and Events
Get the latest news from Avid or sign up for a demo.
Chapter 1: Introduction 2

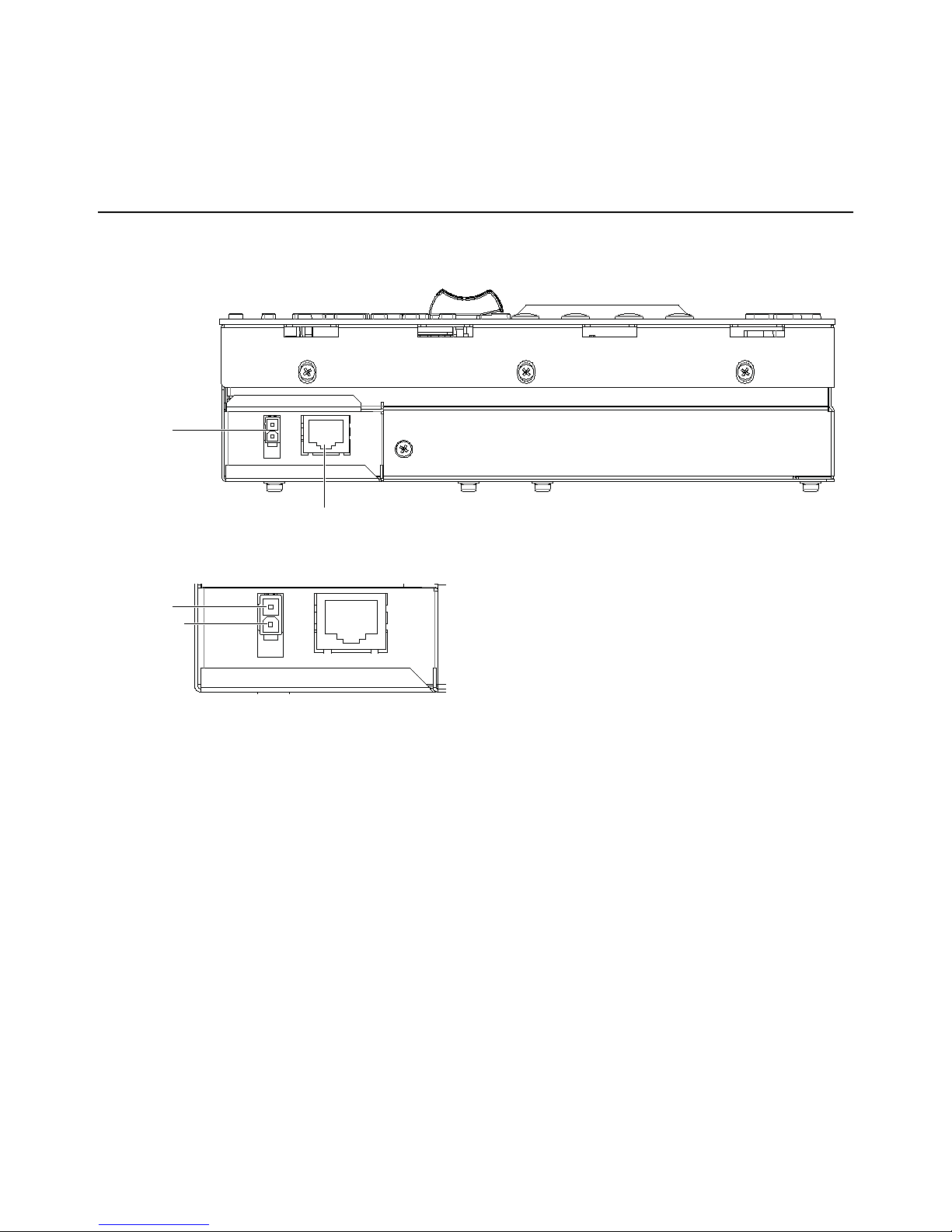

Chapter 2: S6 Automation Module Connections
Power
Gigabit Ethernet RJ45
+12V
0V
Connecting a Single Module
Connectors for power and Ethernet are located along the side of the module.
The Automation Module is powered by 12 V DC. The power input connector is a 2-conductor Molex.
Chapter 2: S6 Automation Module Connections 3

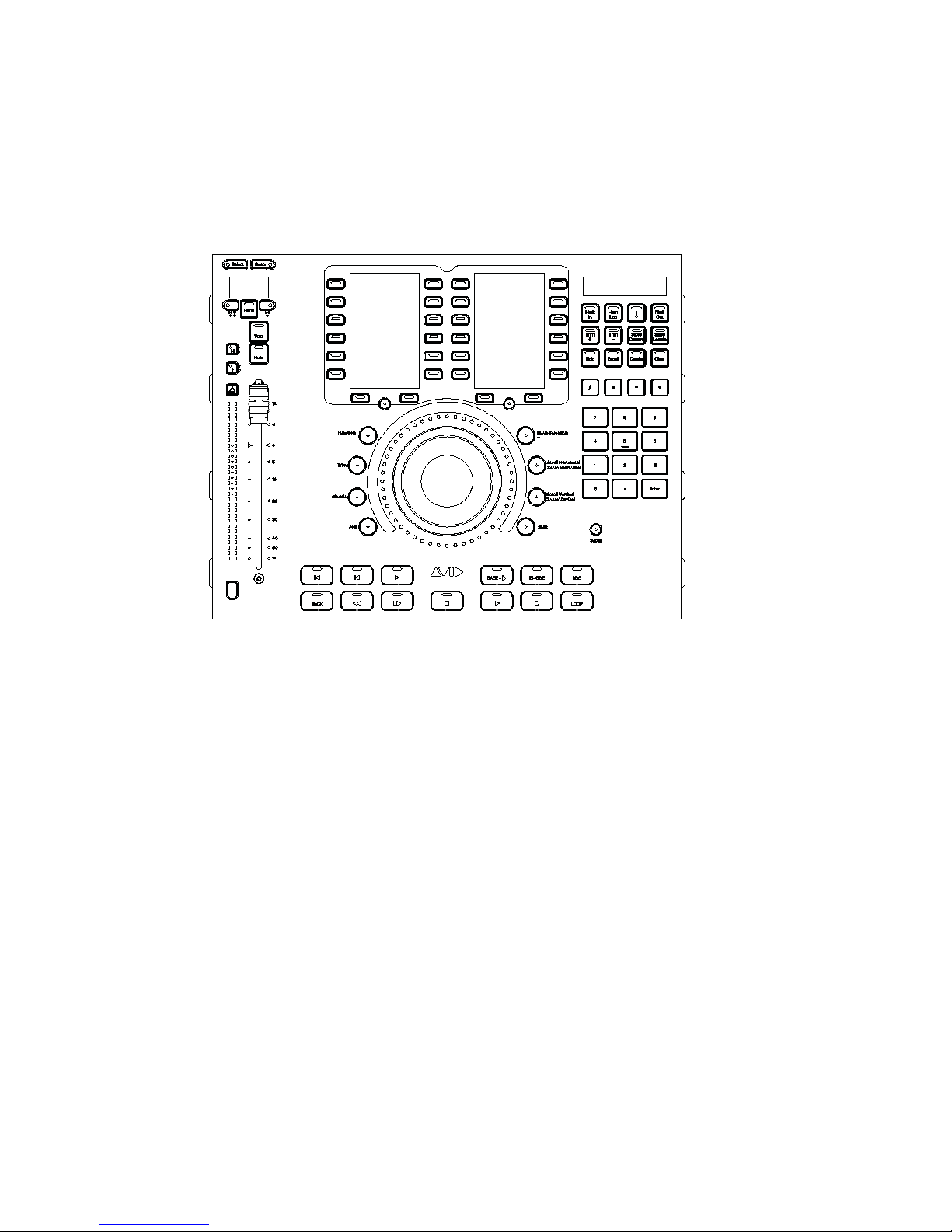

Chapter 3: S6 Automation Module Overview
This chapter identifies the hardware features on the Automation Module.
Automation Module
Chapter 3: S6 Automation Module Overview 4

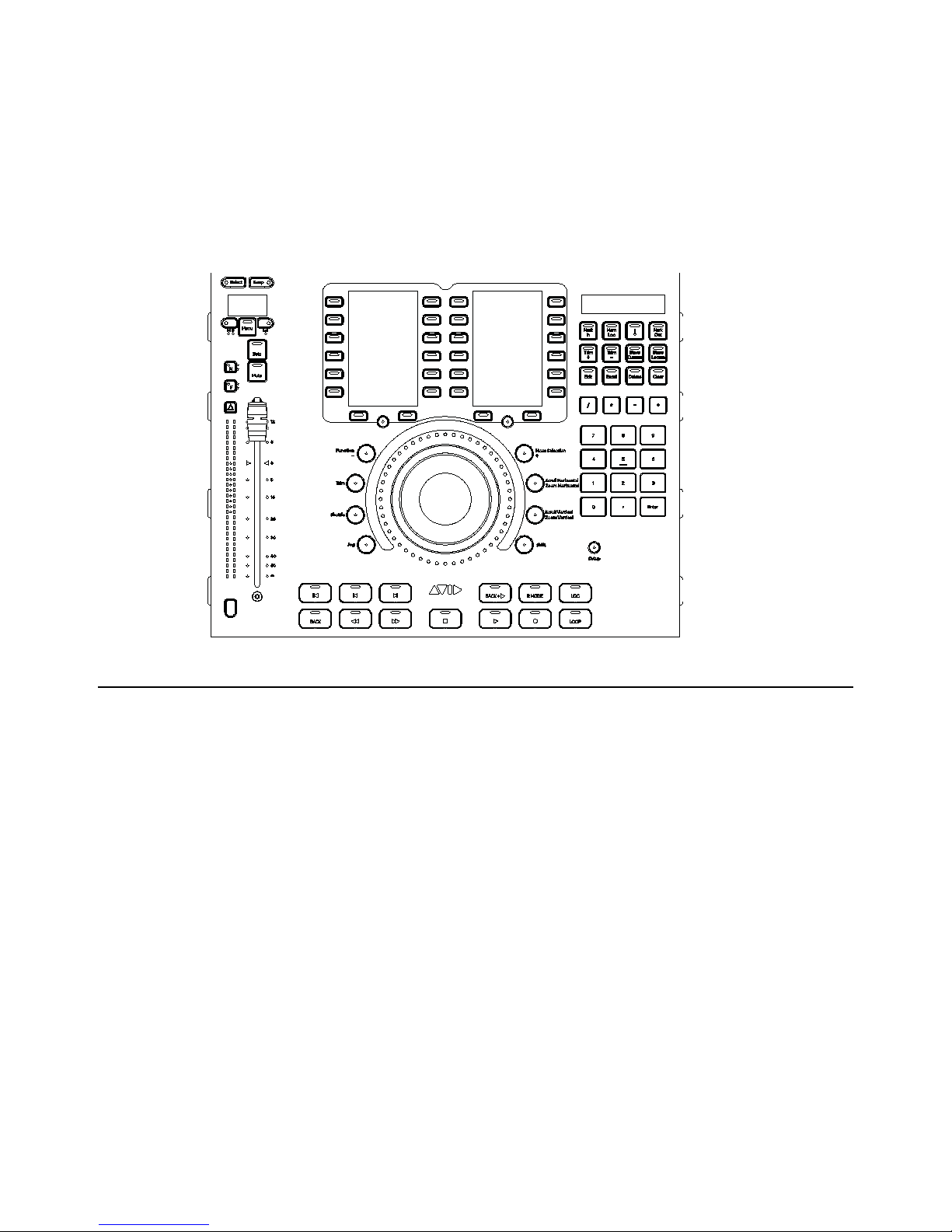

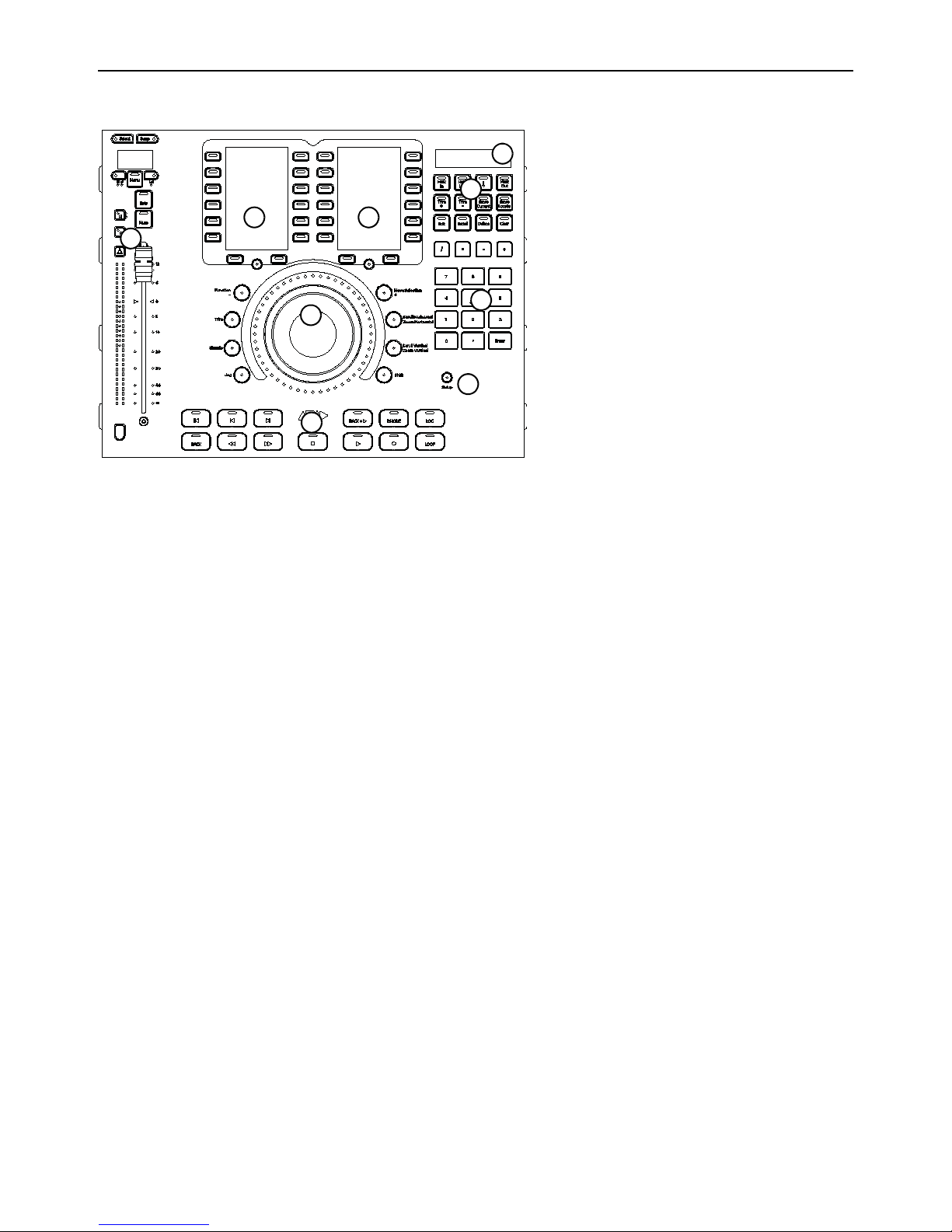

Top Panel Controls and Displays
1
2
3
4
5
6
7
8
2
Automation Module
Main Sections
1. Attention Track Fader
2. Soft Keys
3. Jog Wheel
4. Locate Controls
5. Timecode Display
6. Transport Controls

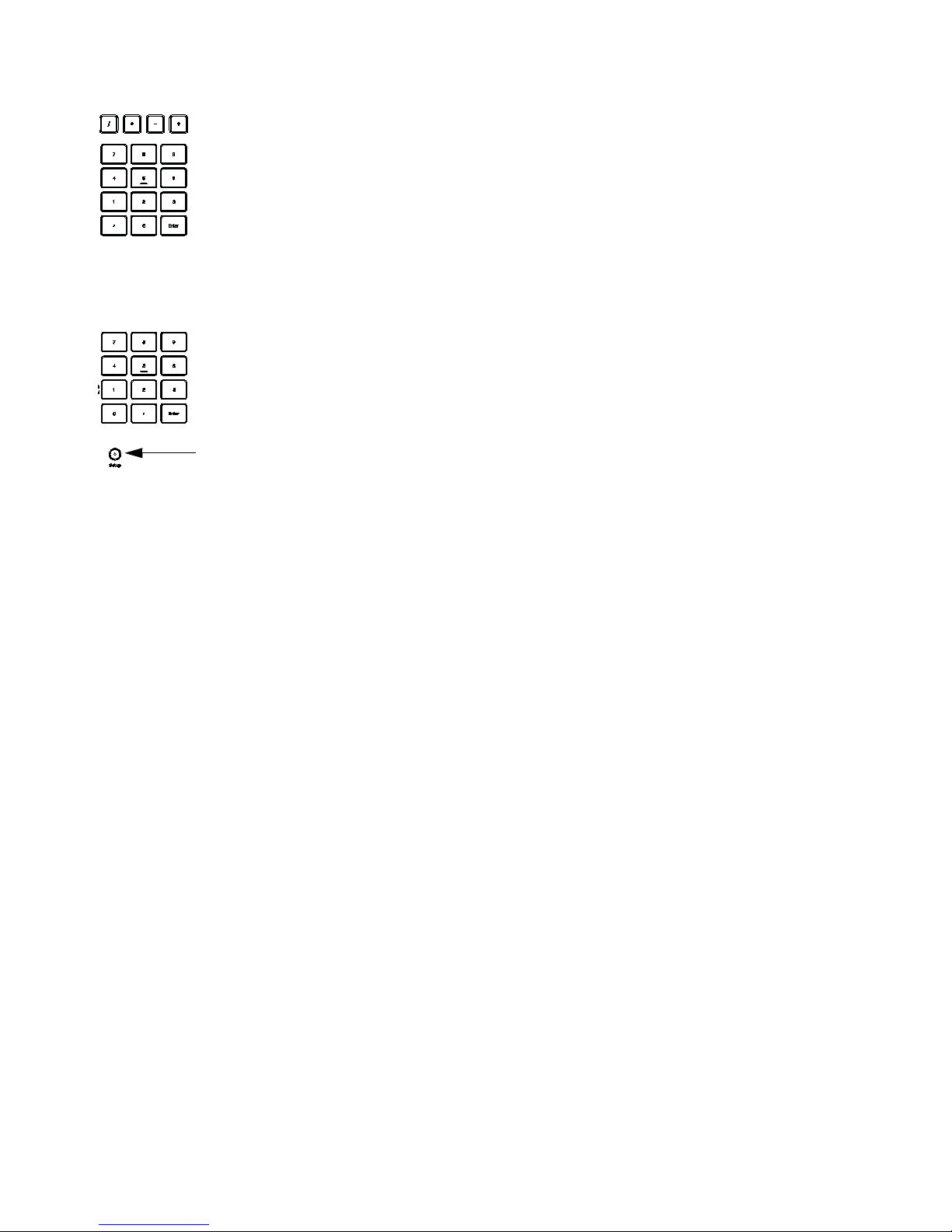

7. Numeric Keypad
8. Setup
Chapter 3: S6 Automation Module Overview 5

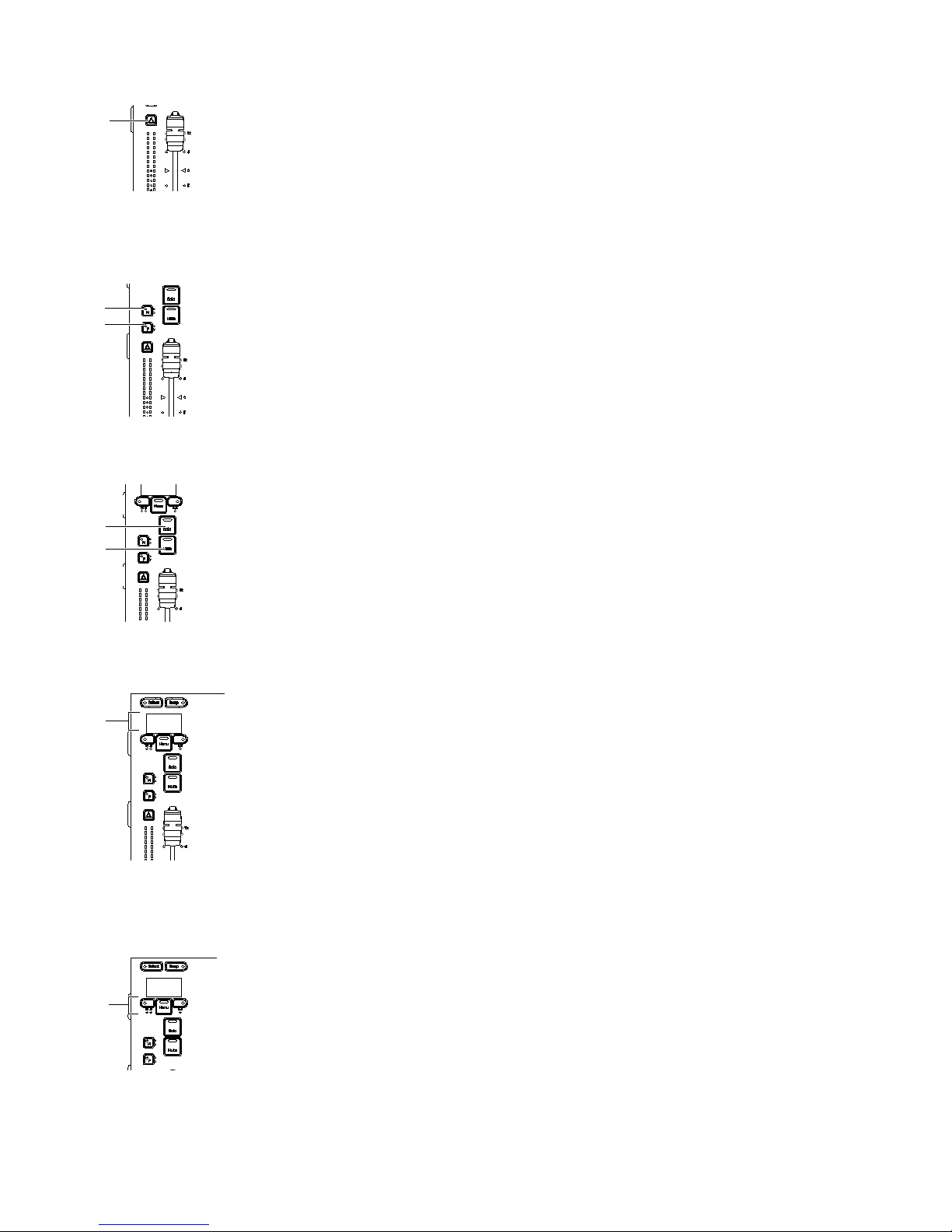

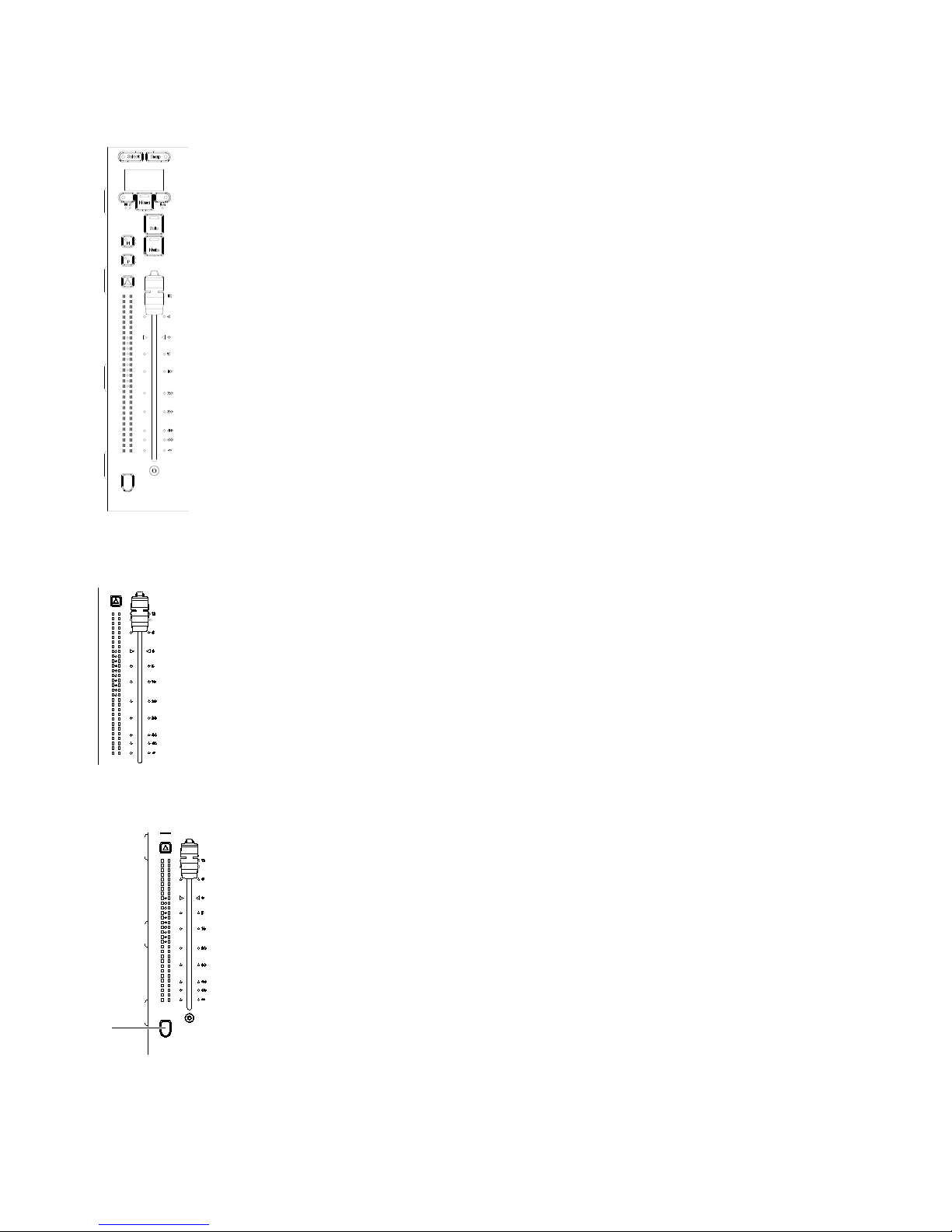

1. Attention Track Fader
The Attention Fader provides a fader strip with dual LED meters, controls and displays.
Channel Fader and Meters
Track Color/Modifier Switc h
Chapter 3: S6 Automation Module Overview 6
Attention Key
Automation Punch
The Attention Track provides two Automation Punch switches F and M, each with two Automation Indicator LEDs.
Mute and Solo Switches
OLED (Display)
Menu Switches
Menu switches include Menu Left, Menu, and Menu Down.
Chapter 3: S6 Automation Module Overview 7

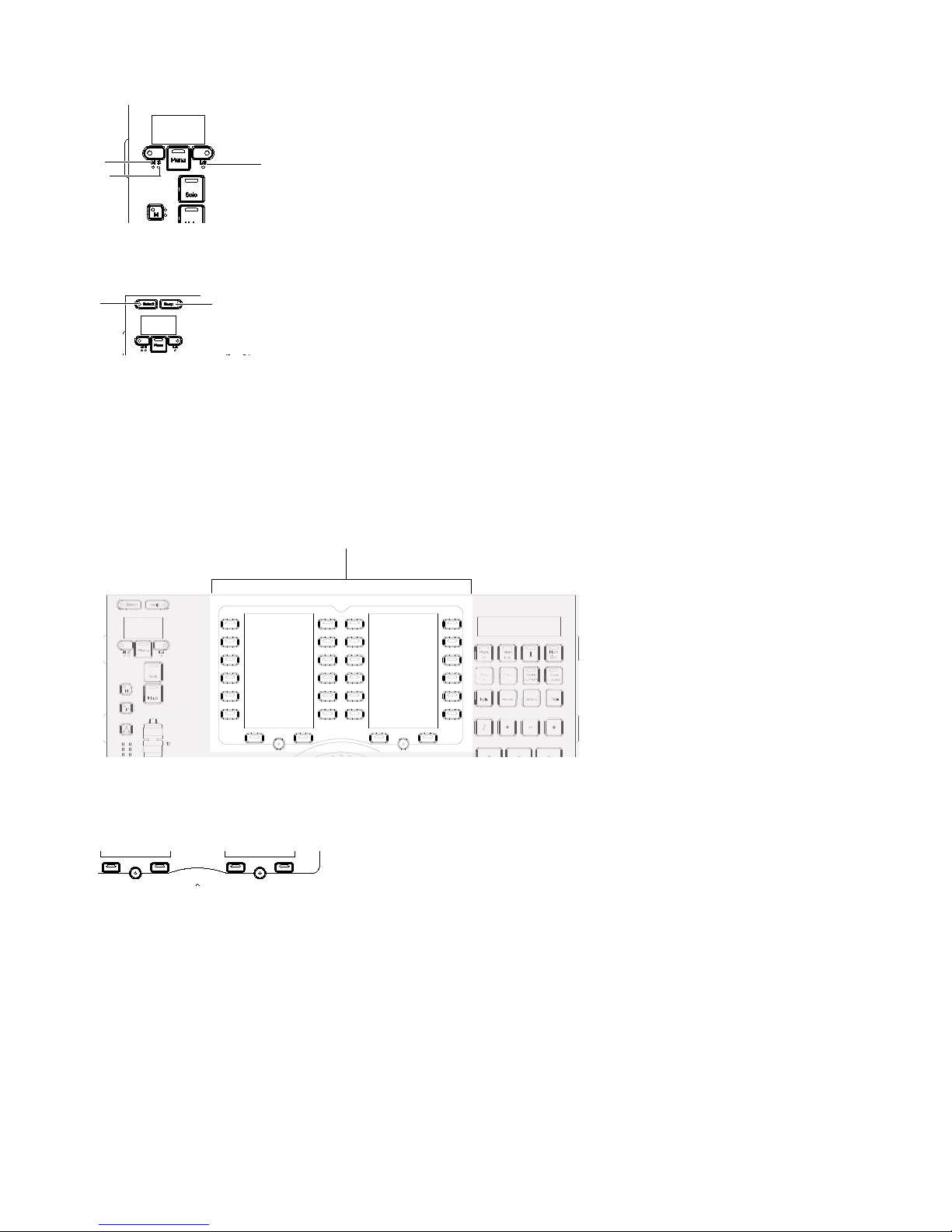

Master , Slave, and Link Indicators
Select and Swap
Select
Selects the currently attentioned track or adds it to the current selection.
Swap
This control is not implemented.
2. Soft Keys
The Automation Module provides two, 12-key Soft Key banks, each with three additional Soft Keys below, and its own high resolution TFT display. Each display is surrounded by two columns of switches for selecting assigned Soft Keys.
The keys across the bottom default to navigating to display different banks of Soft Keys. Switch functions appear along the bottom
of each Soft Key display, directly above each corresponding switch.
Chapter 3: S6 Automation Module Overview 8

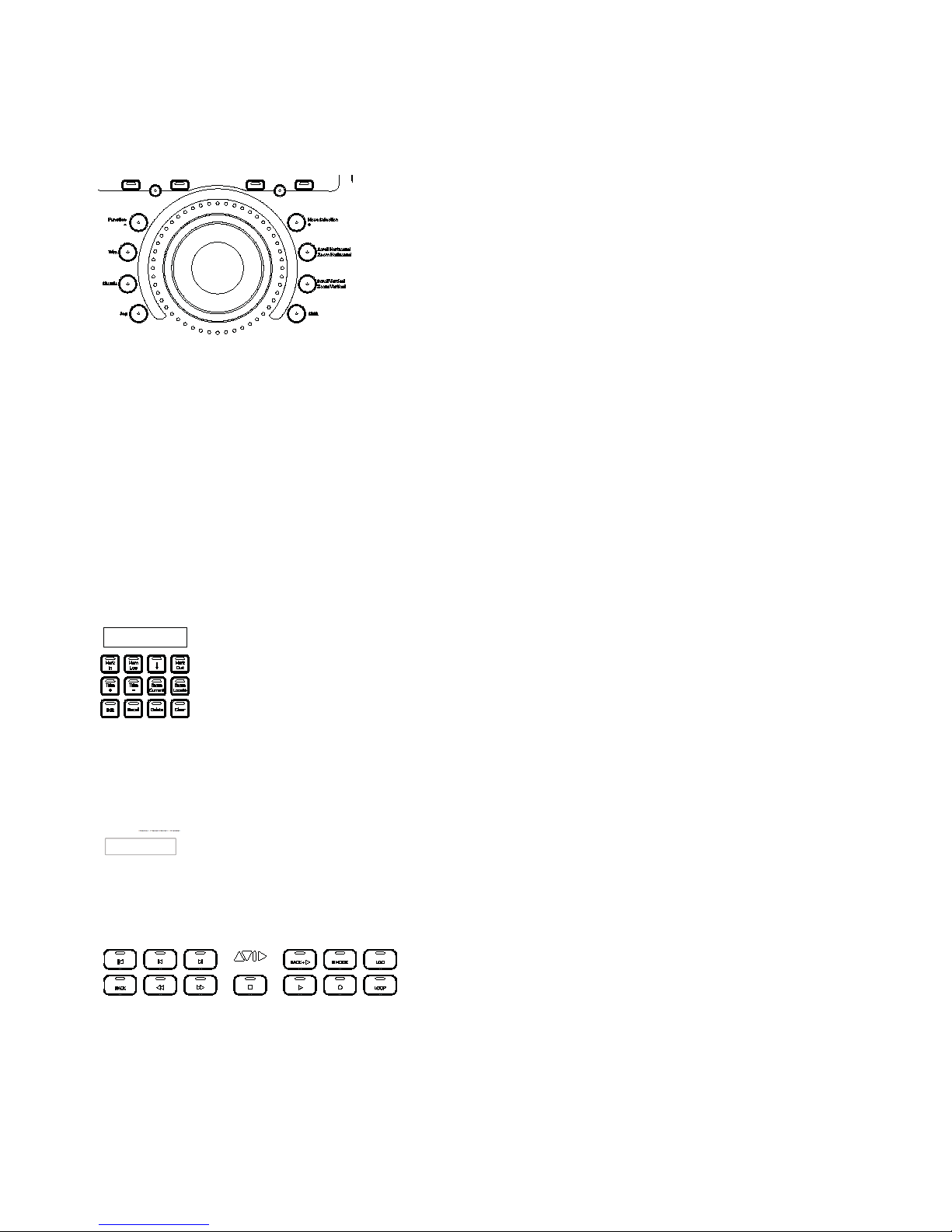

3. Jog Wheel with Mode Switches
The Jog Wheel can be assigned to many functions by enabling one of the Jog Wheel Mode switches. An LED ring surrounding the
Jog Wheel indicates wheel position and other values, depending on the current function of the wheel. The
right of the Mode Switches lets you access the
Shift (secondary) function of any Jog Wheel Mode switch.
The Jog Wheel provides the following switches that determine the function of the wheel (as available on the current DAW).
Jog
Shuttle
Trim
Function / –
Move Selection / +
Scroll Horizontal / Zoom Horizontal
Scroll Vertical / Zoom Vertical
Shift
Shift key at the lower
4. Locate Controls
5. Timecode Display
Above the Locate Controls is the two-row Timecode display.
6. Transport
The following switches are provided in the Transport section:
||◄ (RTZ), |◄ (previous), ►| (next), BACK+ ►, RMODE, LOC
•
• BACK, ◄◄ (REW), ►► (FWD), STOP, PLAY, REC, LOOP
Chapter 3: S6 Automation Module Overview 9
7. Numeric Keypad
8. Setup
Chapter 3: S6 Automation Module Overview 10
Appendix A: Specifications
Mechanical
Avid S6 Automation Module Mechanical Specifications
Parameter Specification
Dimensions (L x W x D)
Weight 5.02 lbs (2.28 kg)
Power Requirements 12 VDC, 1.5 A
Ethernet Ports (2) 1000-BaseT (Gigabit) Ethernet RJ-45
8.9 x 11.6 x 2.4 inches (+ 0.7 inches including knobs)
224 x 294 x 60 mm (+ 17mm including knobs)
Environmental
Avid S6 Automation Module Environmental Specifications
Parameter Specification Limit Units Condition/Comment
Storage Temperature –18 to +60 deg C deg C 0 to +140 deg F
Operating Temperature +4 to +40 deg C deg C +40 to +104 deg F
Storage humidity range 5 to 95 % Non-condensing
Operating Humidity Range 20 to 80 % Non-condensing
Continuous Vibration (Storage
only: non-powered transportation)
1 g RMS Random spectrum
Appendix A: Specifications 11

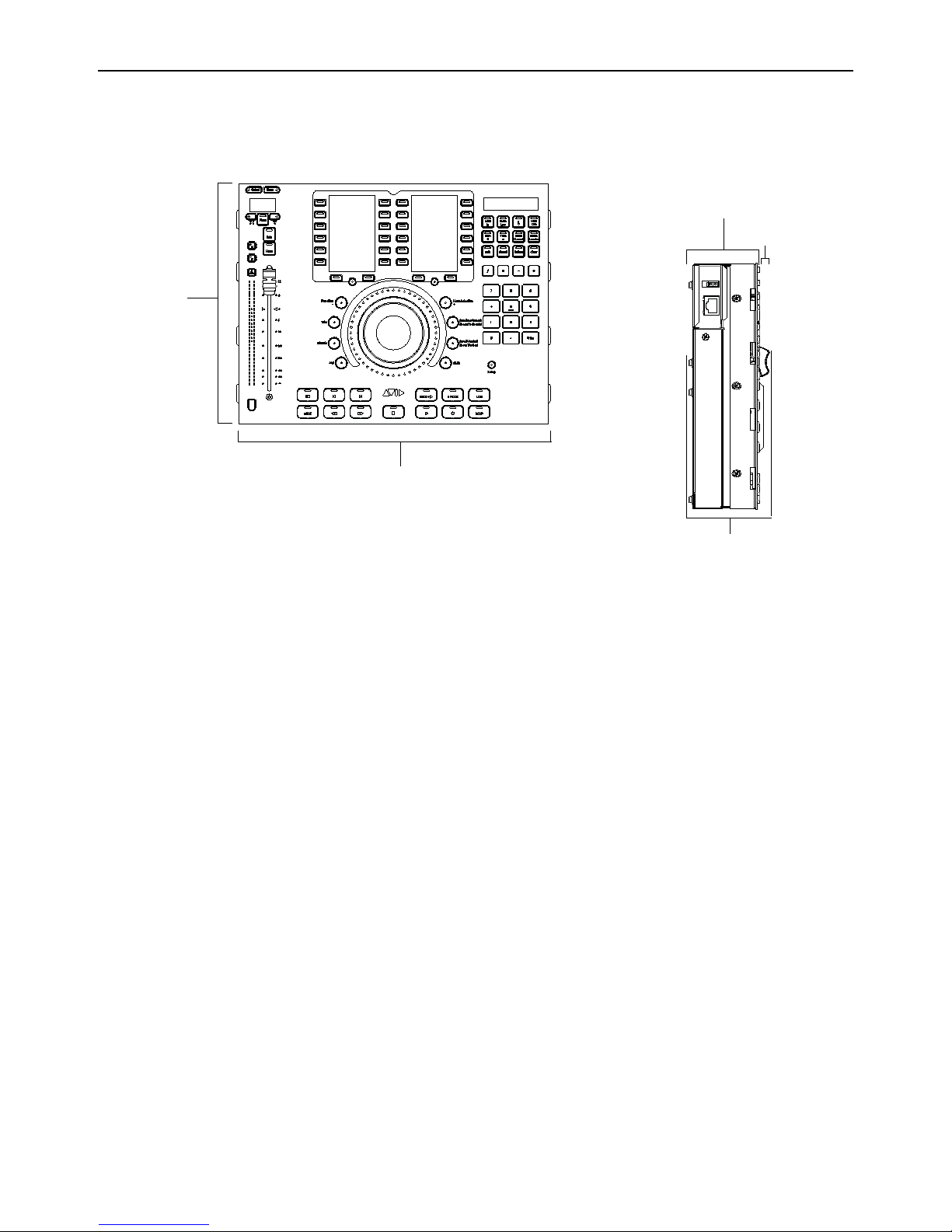

Dimensions
225mm
8.9in
290mm
11.4in
59mm
2.3in
11mm
0.4in
70mm
2.8in
Appendix A: Specifications 12
Appendix B: Compliance Information
Environmental Compliance
Disposal of Waste Equipment by Users in the European Union
This symbol on the product or its packaging indicates that this product must not be disposed of with other waste. Instead, it is your
responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city recycling office or the
dealer from whom you purchased the product.
Proposition 65 Warning
This product contains chemicals, including lea d, known to the S tate of Califo rnia to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
Perchlorate Notice
This product may contain a lithium coin battery. The State of California requires the following disclosure statement: “Perchlorate
Material – special handling may apply, See www.dtsc.ca.gov/hazardous waste/perchlorate.”
Recycling Notice
Appendix B: Compliance Information 13
EMC (Electromagnetic Compliance)
N1709
Avid declares that this product complies with the following standards regulating emissions and immunity:
• FCC Part 15 Class B
• EN 55022 Class B
• AS/NZS CISPR 22 Class B
• CISPR 22 Class B
• EN 55103-1, Class E2 and E3
• EN 55103-2, Class E2 and E3
FCC Compliance for United States
Communication Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of
the following measures:
• Reorient or locate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any modifications to the unit, unless expressly approved by Avid, could void the user's authority to operate the equipment.
Australian Compliance
Canadian Compliance
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le material brouilleur du Canada.
CE Compliance
(EMC and Safety)
Avid is authorized to apply the CE (Conformité Europénne) mark on this compliant equipment thereby declaring conformity to
EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
Appendix B: Compliance Information 14
Safety Compliance
Safety Statement
This equipment has been tested to comply with USA and Canadian safety certification in accordance with the specifications of UL
Standards: UL 60065 7th Ed., 2007-12-11, CAN/CSA C22.2 No. 60065-03, 1st Ed, 2006-04 +A1:2006, EN 60065:2002 + A1:2006
+ A11:2008, IEC 60065:2001 + A1:2005 + A2:2010.
Avid Technology Inc., has been authorized to apply the appropriate NRTL mark on its compliant equipment.
KoreaClassBEMCCompliance
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주
로 가정에서 사용하는 것을 목적으로 하며 , 모
든 지역에서 사용할 수 있습니다 .
Warning
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other equipment (including amplifiers) that produce heat.
10) Protect power cords from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they
exit from the equipment.
11) Only use attachments/accessories specified by the manufacturer.
12) For products that are not rack-mountable: Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the equipment. When a cart is used, use caution when moving the cart/equipment combination to avoid injury from
tip-over.
13) Unplug this equipment during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the equipment has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the equipment, the equipment has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Appendix B: Compliance Information 15
15) For products that are a Mains powered device:
The equipment shall not be exposed to dripping or splashing and no objects filled with liquids (such as vases) shall be placed on
the equipment.
Warning! To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.
Do not defeat the safety pu rpose of t he polarized or grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
16) For products containing a lithium battery:
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
17) For products with a power switch:
It should remain accessible after installation.
18) The equipment shall be used at a maximum ambient temperature of 40° C.
19) This unit is provided with a power supply cord set suitable for 120V AC input only (for U.S.A.and Canada). For other than
U.S.A. and Canada, a qualified person must provide for use with this unit, an appropriate, approved power supply cord set which
is in compliance with the end use country requirements and has a minimum cross-sectional area of 1.0mm2.
20) For products with more than one power cord:
CAUTION: This unit has more than one power supply cord. Disconnect two power supply cords before servicing to avoid electrical
shock.
ATTENTION: Cet appareil comporte plus d’un cordon d’alimentation. Afin de prévenir les chocs électriques, débrancher les deux
cordons d’alimentation avant de faire le dépannage.
21) For products with an operator-accessible fuse:
CAUTION: For continued protection against risk of fire, replace only with same type and rating of fuse.
ATTENTION: Pour ne pas compromettre la protection contre les risques d’incendie, remplacer par un fusible de même type et de
même caractéristiques nominales.
Appendix B: Compliance Information 16
Avid
2001 Junipero Serra Boulevard
Daly City, CA 94014-3886 USA
Technical Support (USA)
Visit the Online Support Center at
www.avid.com/support
Product Information
For company and product information,
visit us on the web at www.avid.com
Loading...
