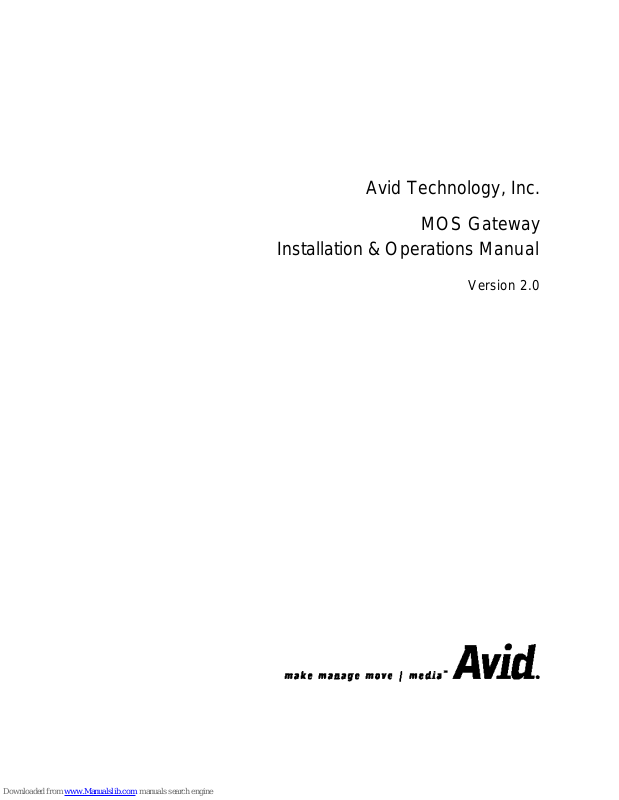

Avid Technology MOS Gateway, iNEWS Installation & Operation Manual

Avid Technology, Inc.
MOS Gateway
Installation & Operations Manual
Version 2.0
Copyright and Disclaimer
© 2003, Avid Technology, Inc. All rights reserved. All Avid products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previo1usly published material. Specifications and price change privileges reserved.
The software described in this document is furnished under a license agreement and is protected under the copyright laws of the United States and other countries.
U.S. GOVERNMENT USERS RESTRICTED RIGHTS: Use, duplication, or disclosure by the U.S. Government is subject to restriction as set forth in subparagraph (b)(2) of the Technical Data and Computer Software-Commercial items clause at DFARS 252.211-7015, or in subparagraph (c)(2) of the Commercial Computer Software-Restricted Rights clause at FAR 52.227-19, as applicable.
Avid is a registered trademark of Avid Technology, Inc. Media Browse, ControlAir, iNEWS ControlAir, and iNEWS are trademarks of iNews, LLC. Microsoft, the Microsoft logo, MS, MS-DOS, Win 32, Windows, Windows NT, Windows 2000, Windows NT Server, and the Windows operating system logo are registered trademarks of Microsoft Corporation in the United States of America and other countries. UNIX is a registered trademark of X/Open Company, Ltd. All other trademarks and registered trademarks used herein are the property of their respective owners.
Avid 6400 Enterprise Lane Madison, Wisconsin 53719 USA Tel: +1-608-274-8686 Fax: +1-608-273-5876
Avid Intec 1 Wade Road Basingstoke Hants RG24 8NE UK Tel: +44 1256 814300 Fax: +44 1256 814700
Avid 315 Alexandra Road #03-01 Performance Centre 159944 Singapore Tel: +65 3789 534 Fax: +65 475 7666
Avid Tegel Forum Breitenbachstraße 10 Berlin 13509 GERMANY Tel: +49 30 5900993 0 Fax: +49 30 5900993 24
MOS Gateway Installation & Operations Manual Version 2.0 0130-05811-01 Rev C
July 10, 2003 Printed in the United States of America
(bbl)
Contents
Preface
Who Should Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Symbols and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cross References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Keyboard Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Related Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
If You Have Documentation Comments. . . . . . . . . . . . . . . . . . . . . . . . . 11
How To Order Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 1
Chapter 2
Chapter 3
Chapter 4
Introduction to MOS Gateway
Overview of MOS Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
MOS Control Workflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Loading a Show to the MOS Gateway . . . . . . . . . . . . . . . . . . . 16
Monitor Mode - ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Monitor Mode - LOAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Preparing for Installation
Before You Begin the Installation Procedure . . . . . . . . . . . . . . . . . . . . . 20
Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Supported MOS Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installing MOS Gateway Program Files
Overview of the Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adding IP Addresses on MOS Gateway Server . . . . . . . . . . . . . . . 24
Installing MOS Gateway Software. . . . . . . . . . . . . . . . . . . . . . . . . . 25
Upgrading MOS Gateway Software. . . . . . . . . . . . . . . . . . . . . . . . . 33
Setting up the iNEWS Server
Configuring iNEWS Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3
Configuration Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Configuration Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Reconfigure the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Assigning the Mailbox to the Rundown Queue . . . . . . . . . . . . . 42
Using the list Command to View Assigned Mailboxes . . . . . . . . 43
Calculating Duration in Time Fields . . . . . . . . . . . . . . . . . . . . . . 50
Editing the /site/dict/mcs Dictionary File . . . . . . . . . . . . . . . . . . . 64
Chapter 5
Configuring MOS Gateway
MOS Gateway Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Editing the Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Stopping and Starting MOS Gateway . . . . . . . . . . . . . . . . . . . . 79
Configuration File Components Explained . . . . . . . . . . . . . . . . . . . . 80
The <logging> Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
The <tcpPorts> Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
The <ncs> Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
The <names> Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
The <roSlugMaps> Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
The <handlesEmptyStories> Group. . . . . . . . . . . . . . . . . . . . . . 85
The <handlesRoStoryMoveMultiple> Group . . . . . . . . . . . . . . . 85
The <handlesRoItemLevelCommands> Group . . . . . . . . . . . . . 86
The <prependPageNumber> Group . . . . . . . . . . . . . . . . . . . . . 86
The <prependSeparator> Group . . . . . . . . . . . . . . . . . . . . . . . . 86
The <prependStringForEmptyPageNumber> Group . . . . . . . . . 86
The <statusTranslations> Group . . . . . . . . . . . . . . . . . . . . . . . . 86
The <mosObjReplication> Group. . . . . . . . . . . . . . . . . . . . . . . . 88
Prog IDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Using the MosAdmin Application . . . . . . . . . . . . . . . . . . . . . . 91
The <roChannels> Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Adding MOS Devices to the SYSTEM.MOS-MAP Story. . . . . . . . . . . . . 95
Moving the Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Chapter 6
4
Troubleshooting
MOS Gateway Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Where to Look For Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Error Categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Appendix A
Error Messages
Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Appendix B
System Reference Files
Sample Configuration File on MOS Gateway Servers . . . . . . . . . . . . . 118
Sample Configuration File on iNEWS Servers . . . . . . . . . . . . . . . . . . . 124
Sample /etc/hosts File on iNEWS Servers. . . . . . . . . . . . . . . . . . . . . . 126
Sample System Stories in iNEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
MOSREPLICATION Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Glossary Index Reader’s Comments
5
6
Preface
Congratulations on your purchase of iNEWS MOS Gateway, the system that removes barriers between newsroom computing and broadcasting. MOS Gateway uses the MOS protocol as a standard for communications between newsroom computer systems and Media Object Servers (MOS), such as video servers, audio servers, still stores, and character generators.
Who Should Use This Guide
This manual is written for journalists, producers, directors, writers, and various technical personnel responsible for using the iNEWS MOS Gateway in a broadcast newsroom. Portions of the manual provide installation data for technicians. Other chapters provide configuration and maintenance information for system administrators who are managing the system.
n
It is strongly recommended that system administrators have prior experience in or classroom knowledge of the Windows-based systems, such as Windows XP
About This Manual
This guide will lead you through even the most complex procedures with task-oriented instructions, illustrated for a more realistic presentation of the actual icons and images you will encounter. The information provided
®
.
operating
here builds on basic user procedures, while adding a complete explanation of all the tools and techniques required to create, apply, and adjust various settings, including useful tips, shortcuts, and custom options.
The Table of Contents that precedes this preface lists all topics included in the book. They are presented with the following overall structure:
The Introduction helps you get oriented with beginning concepts and
general work flow and provides valuable pointers to keep in the back of your mind as you proceed.
The main body of the guide follows the natural flow of your work,
with clear and comprehensive step-by-step procedures.
At the back of the book is a comprehensive Glossary, providing cross-
industry terms and definitions.
Finally, a detailed Index helps you quickly locate specific topics.
This manual provides requirements and specifications for your system in the following areas:
Minimum hardware and software components
Installation procedures
System configuration and maintenance
Troubleshooting
Use this manual to prepare for and set up your system on the network, after you have purchased the MOS Gateway components according to iNews requirements and specifications. Before installing any equipment, the site must already have a configured network.
Symbols and Conventions
The MOS Gateway documentation uses the following special symbols and conventions:
1. Numbered lists, when the order of the primary items is important.
a. Alphabetical lists, when the order of secondary items is important.
8
Symbols and Conventions
Bulleted lists, when the order of primary items is unimportant.
- Indented dashed lists, when the order of secondary items is unimportant.
t A single-step procedure or as a list of optional procedures.
Look here in the margin for tips and environment-specific information.
n
c
Cross References
n
In the margin you will find tips that help you perform tasks more easily and efficiently. You will also find information specific to a particular operating environment.
A note provides important related information, reminders, recommendations, and strong suggestions.
A caution means that a specific action you take could harm your computer or cause you to lose data.
Cross references are provided throughout this manual to give readers locations where additional—sometimes more detailed—information on a certain topic can be found. In some cases, the chapter name and number is provided. In others, a heading, table number of figure number is used. In cases when the information in a chapter other than the one in which the cross reference is located, page numbers are given along with the heading.
See “About This Manual” on page 7 for more information on what chapters are in which sections of this manual.
Keyboard Conventions
Ctrl+x means to press and hold down the Control key and then press
“Type” in a command procedure means to type the command on the
“Select” means to choose an operation on a drop-down or pop-up
another key on the keyboard, represented here by x. This is also used for other key-combinations such as Alt+x or Shift+ x.
command line and then “press” the Enter key.
menu.
9
“Click” means to click the left mouse button, usually in response to a dialog box. “Right-click” means to click the right mouse button.
If You Need Help
If you are having trouble using MOS Gateway, you should:
1. Repeat the procedure, carefully following the instructions provided for the task in this guide.
2. Refer to the documentation included with your hardware to review the maintenance procedures or the hardware-related issues.
3. Check the Support section of Avid Web site at http://www.avid.com for online technical publications and additional telephone support phone numbers.
4. Maintenance Agreement contract customers can contact Avid Broadcast Customer Support personnel at any of these 24-hour global telephone numbers:
1 800 869 7009 in the Americas (All products, except Newsview)
44 1256 814222 in Europe, Africa, and Mid-East
61 2 9963 2895 in Asia/Pacific
Or online:
e-mail inews-support@avid.com
http://www.avid.com/support/contact.html
For general information, call your local Avid reseller or in North America call the Avid Broadcast Customer Relations desk at 1-800-869-7009.
Related Information
Contact your Avid Sales representative for documentation and information on other Avid® products, such as the iNEWS™ newsroom computer system, Media Browse™, EditStar™, LeaderPlus™, MOS Gateway, and so forth.
10
If You Have Documentation Comments
If You Have Documentation Comments
The Avid Broadcast Technical Publications department continually seeks to improve its documentation. We value your comments about this manual or other Avid-supplied documentation.
Send your documentation comments by e-mail to:
techpubs_wi@avid.com
Include the title of the document, its part number, revision, and the specific section that you are commenting on in all correspondence.
How To Order Documentation
To order additional copies of this documentation from within the United States, call the Avid Sales department at 1-608-274-8686. If you are placing an order from outside the United States, contact your local Avid Sales representative.
11
12
Chapter 1
Introduction to MOS Gateway
This chapter contains the following major sections:
Overview of MOS Gateway
- MOS Control Workflow
Chapter 1
Overview of MOS Gateway
The iNEWS MOS Gateway is an application that does the following:
receives information from the iNEWS newsroom computer system as machine control events are entered in production cues in scripts
converts the information into commands in version 2.8 of the MOS Protocol and directs it to specified MOS-compliant devices
routes the status of each media object in a rundown on a MOS device back to the iNEWS Workstation
MOS Gateway can handle multiple shows simultaneously.
MOS Control Workflow
MOS Gateway is designed to work with multiple vendors’ MOS devices. Each MOS device can be accompanied by an ActiveX control that is hosted by the iNEWS Workstation, or MOS item replication can be used for devices that do not have ActiveX controls.
Replication also provides users with the capability to search the MOS inventory using iNEWS search tools.
14
Replication means that MOS Gateway v2.0 supports the Media Object Metadata (MOM) connection with a MOS device as well as the Rundown/Running Order (RO) connection. Each MOS device can send MOM to a single device-specific queue, allowing iNEWS to host a copy of a MOS device’s inventory. Each story in the device-specific queue contains information about a different MOS item. The MOSREPLICATION form in iNEWS determines how MOS items are replicated to a device-specific queue—that is, whether the MOS item appears in the story form, as a production cue in the story body, or both—and what metadata is displayed as normal text in the story body.
MOS replication requires an iNEWS user account with write access to all device-specific queues that will store replicated MOS items. See
“Configure iNEWS for MOS Replication (Optional)” on page 68 for more information. Replication options are configured using the MOS
Administration tool. See “Using the MosAdmin Application” on page 91
for more information.
Overview of MOS Gateway
Windows XP /
SCO UNIX / SGI IRIX / Linux
Windows XP /
Vendor
vendor
-
specific communication
MOS Protocol
Vendor
An ActiveX control provides a live view of the media inventory on the MOS device. The news staff can use an ActiveX control (also known as a plugin) or replicated metadata to browse a MOS device’s inventory and insert the appropriate information into a machine control event in the script. See Figure1 for a visual diagram of the two paths by which a MOS device’s media inventory may be viewed at an iNEWS Workstation.
For instance, users can copy a MOS item’s production cue marker—shown at left—from a MOS device’s replication queue and paste it directly into the body of an iNEWS story. For MOS items that appear in the story form, an entire story may be duplicated from the device-specific queue into an iNEWS rundown and then its title and body edited accordingly, such as changing the existing title to the story’s name (slug) and replacing any text with the story’s script.
After the news staff has entered the machine control events in the scripts, the producer can download rundowns to the MOS device using the monitor server in iNEWS and MOS Gateway. The downloaded rundown can be controlled using the MOS device’s interface.
2000 / NT
iNEWS
Client hosts
ActiveX
Control
n
2000
Replication
iNEWS
Server

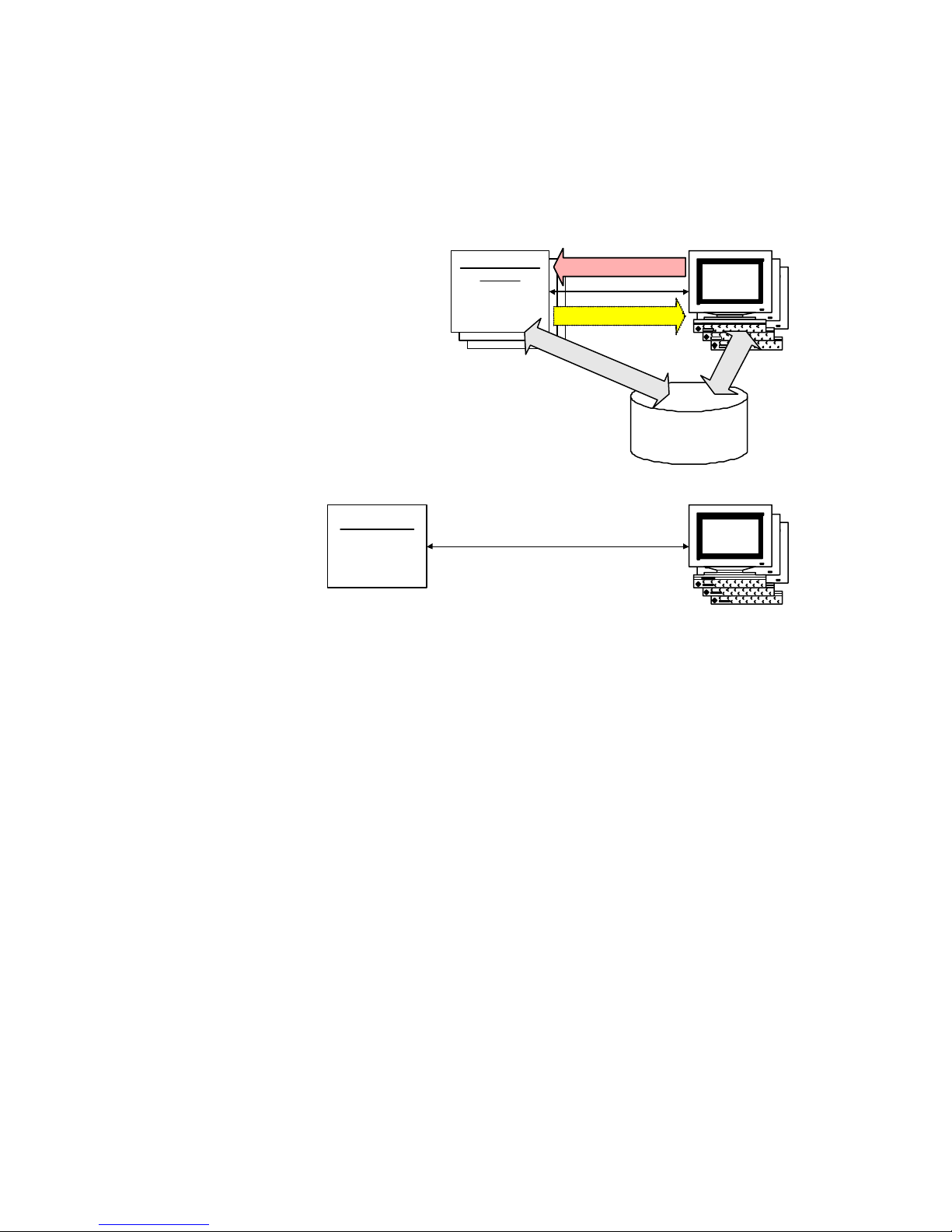

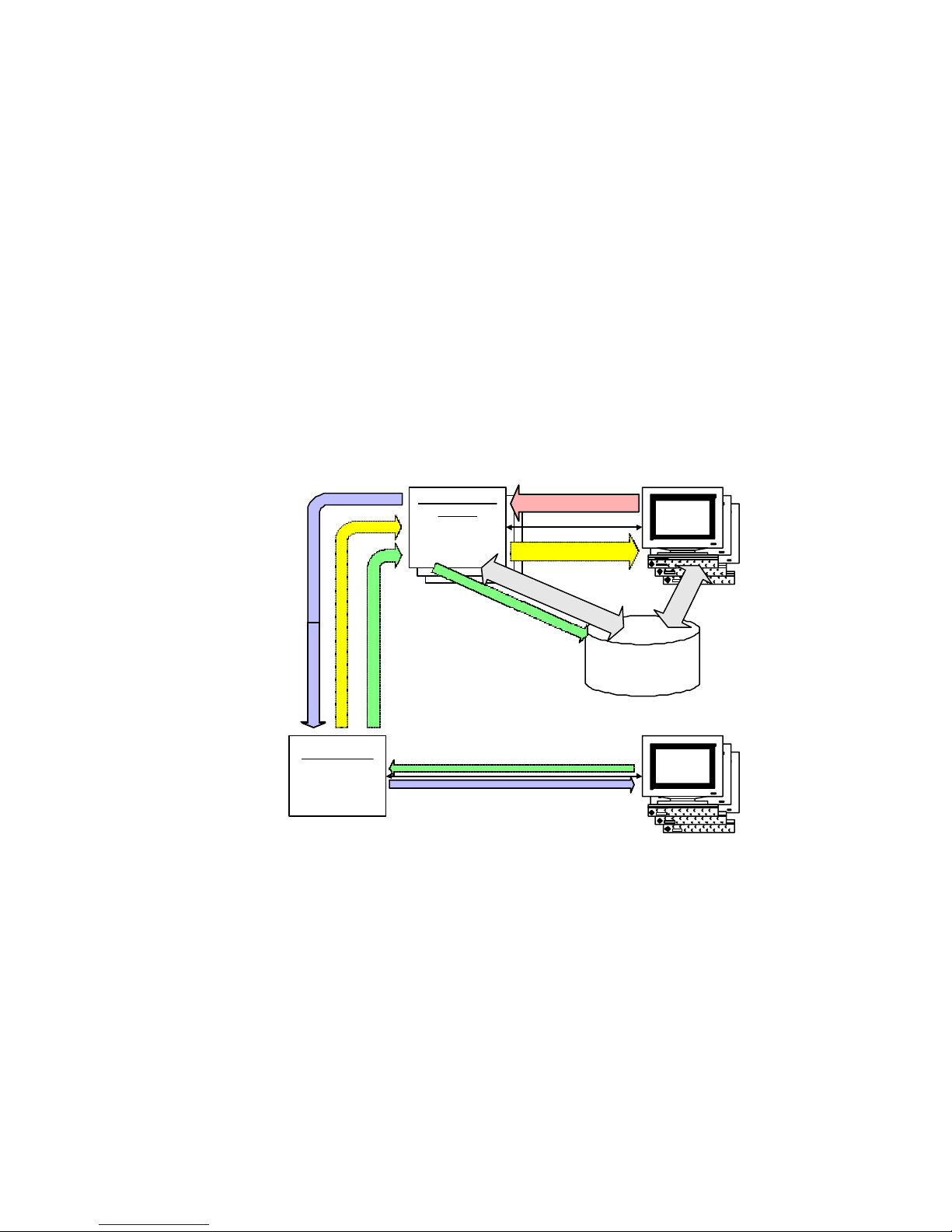

Figure 1 MOS Control Workflow Diagram
Monitor
Server
MOS
Gateway
Vendor OS
MOS
Device
Monitor server is a utility program that checks a show’s event requests for errors, creates composite and event lists, and sends playlists to MOS Gateway. For more information on creating monitor servers, see “Creating
a Monitor Server for Each Show” on page 37.
15
Chapter 1
Loading a Show to the MOS Gateway
When your newsroom staff builds a show, they insert special keywords into scripts, referred to as machine control events. These items include at least a word to identify the specific machine or a machine type, such as CG or SS, and some information to indicate that they want that machine to display. If the machine is a MOS device, these machine control events are created using the ActiveX control that came with the MOS device.
Monitor Mode - ON
When the monitor server is turned on—usually by the producer, from the iNEWS Workstation´s Tool menu—it will read all the machine control events in the rundown and build playlists, also known as event lists, for each device. The monitor server performs as much error checking as it can without communicating with any broadcast equipment.
After the monitor server is turned on, it continues to monitor the rundown, examining every story saved for new, deleted, or updated events in the playlist.
16
MOS Gateway is not yet involved. Playlists can be printed and distributed to equipment operators. The devices can be controlled using traditional methods.
Overview of MOS Gateway
Monitor Commands
(ON, LOAD, UNLOAD, OFF)
Messages
(progress, errors, warnings)
ON:
Get system info, Parse Rundown,
MOS Gateway
Retains all loaded playlists,
playlist & event status.
Distributes commands,
updated status, event
changes & messages.
iNEWS monitor
servers
ON: Watch for added,
deleted, or Modified Events
(Machine Instructions) LOAD: send playlists and updates to MOS Gateway
Build Playlist, Write Event List queues
Figure 2 Monitor Mode - ON Diagram
Monitor Mode - LOAD
iNEWS
Clients
Enter Events
Create Rundowns,
iNEWS DB
Rundown & Event List queues
System Map & Resource queues
MOS
Devices
As air time nears and the newsroom staff completes the rundown, someone—usually the producer or equipment operator—will instruct the monitor server to load the playlist into MOS devices. As the rundown is loaded in MOS Gateway, MOS Gateway loads individual playlists to the appropriate MOS device. The MOS device begins its assigned task, such as inserting CG text, checking for availability of video clips, and so forth.
Each MOS device sends MOS Gateway the status of the playlist, called a running order in the MOS Protocol. Each MOS device also sends the status of individual running order items, each one corresponding to a machine control event.
17
Chapter 1
MOS Gateway then forwards these status messages to the monitor server. Error messages are returned to the iNEWS Workstation used to load the rundown. The monitor server also inserts status for video clips, such as whether the clip is available, into stories in the rundown and event lists located in the iNEWS database.
The MOS device operator can now take control of the MOS device and take the show to air.

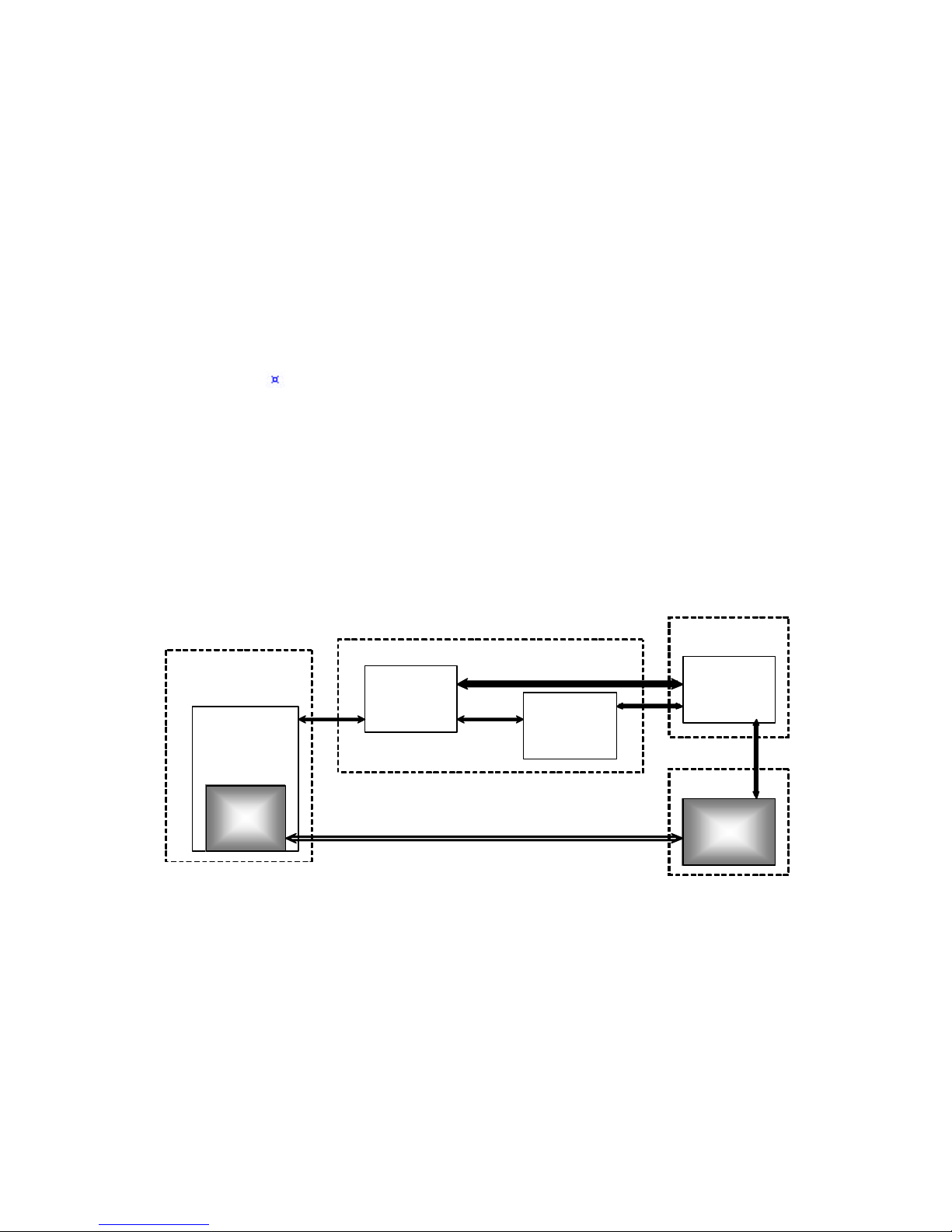

Figure3 depicts communication paths after the monitor server is instructed to load playlists, status, and user messages.
Monitor Commands
(ON, LOAD, UNLOAD, OFF)
Messages
(progress, errors, warnings)
ON:
Get system info, Parse Rundown,
Build Playlist, Write Event List queues
(Available, Cued, etc.)
System Map & Resource queues
Playlist, Event Updates
Messages (progress, errors, warnings)
MOS Gateway
Retains all loaded playlists,
playlist & event status.
Distributes commands,
updated status, event
changes & messages.
deleted, or Modified Events
Event Status
iNEWS monitor
servers
ON: Watch for added,
(Machine Instructions) LOAD: send playlists and updates to MOS Gateway
After LOAD: Event Status
Device & Event Status
Playlist, Event Updates ⇒
Figure 3 Monitor Mode - LOAD Diagram
iNEWS
Clients
Create Rundowns,
iNEWS DB
Rundown & Event List queues
MOS
Devices
Enter Events
18
Chapter 2
Preparing for Installation
This chapter describes the preliminary steps you must take before installing the MOS Gateway software, including:
Familiarizing yourself with this manual, release notes, and other iNEWS documentation.
Verifying required hardware and software components
This chapter contains the following major sections:
Before You Begin the Installation Procedure
Hardware Requirements
Software Requirements
- Supported MOS Devices
Chapter 2
Before You Begin the Installation Procedure
Setting up MOS Gateway involves doing tasks in three places:
iNEWS Servers (at the console)
MOS Gateway
MOS devices to connect to
n
You should consult the iNEWS Newsroom Computer System Operations Manual for specific information on iNEWS Servers, the console, or various related system operations.
Before you begin installing the MOS Gateway software, do the following:
Read the iNEWS MOS Gateway Release Notes for the most up-to-date product and installation information.
Familiarize yourself with the entire installation procedure described in this manual.
Ensure the installation CD is available.
Hardware Requirements
To install and run MOS Gateway, your system must have the minimum base equipment described in Table1. For a list of qualified PCs, contact Avid Broadcast Customer Support.
n
Minimum requirements are subject to change. For immediate updates on hardware and software requirements, pertaining to this and all Avid products, visit Avid’s Web site at: www.avid.com/products. MOS Gateway information is provided as part of specifications for the iNEWS newsroom computer system.
20
Software Requirements
Table 1 Hardware Required for MOS Gateway
Device Description
CPU 500 MHz Intel Pentium® II
(multi-processor CPUs not supported)
Memory 1 GB RAM
Keyboard Standard Windows-based keyboard
Monitor 15-inch color
Video card Standard SVGA 1024x768
Hard drive 10 GB drive
Disk controller IDE OK
Mouse Windows-compatible mouse
CD-ROM drive 4X CD-ROM drive
Network card Windows-compatible 10/100 NIC
Software Requirements
There are certain minimum requirements that must be met to install and operate MOS Gateway. They are:
Windows 2000 operating system with Service Pack 3, or Windows XP Professional with Service Pack 1
iNEWS newsroom computer system (version 1.5.1 or higher)
Internet Explorer 5.0 with Java Virtual Machine (version 5.0.3802 or higher)
c
All iNEWS Workstations on a network using MOS Gateway 2.0 must be running version 1.5.1 or higher of the iNEWS client software.
21
Chapter 2
Supported MOS Devices
The following is a list of supported MOS devices; however, this list is subject to change. For the latest information, visit the Avid Web site or contact Avid Broadcast Customer Support.
Avid AirSPACE (CountDown)
Chyron Aprisa (100, 250, and SSX)
Grass Valley Group’s NewsQ Pro
Netia Radio-Assist
Omnibus Columbus
Omnibus News Control
Pinnacle FXDeko
Proximity Xenostore (with Pinnacle FXDeko)
Sony NewsBase
Sundance Digital NewsLink
22
vizrt Pilot
Chapter 3
Installing MOS Gateway Program Files
This chapter describes the process of installing the MOS Gateway and contains the following major sections:
Overview of the Setup
- Adding IP Addresses on MOS Gateway Server
- Installing MOS Gateway Software
- Upgrading MOS Gateway Software
Chapter 3
Overview of the Setup
The following tasks must be performed on the MOS Gateway Server.
Add IP addresses for the MOS Gateway and iNEWS Servers
Install the MOS Gateway software
Configure the MOS Gateway software
The first two tasks are described in this chapter. The configuration of the MOS Gateway is in Chapter5.
Adding IP Addresses on MOS Gateway Server
Ideally, all MOS Gateway Servers, iNEWS Servers, and MOS devices would have each other’s IP addresses and computer names. It is not necessary to include IP addresses for iNEWS Workstations or other equipment.
24
n
The monitor server communicates with the MOS Gateway software only if the MOS Gateway Server’s IP address is added to all of the iNEWS Servers’ /etc/hosts files. Procedures for configuring iNEWS Servers, including adding MOS Gateway IP addresses, are located in “Adding IP
Addresses for the MOS Gateway” on page62 .
This section provides steps for adding IP addresses to the MOS Gateway Server.
To add IP addresses to the MOS Gateway Server:
1. Use My Computer or the Windows Explorer to open the \WINNT\system32\drivers\etc folder.
2. Double-click on the hosts file.
3. A dialog box may appear with a list of programs to use for opening the file. Scroll down the list and select Notepad. Ensure that you uncheck the box to “Always use this program.”
4. Click OK. The hosts file opens in a Notepad window.
Overview of the Setup
5. At the bottom of the file, add lines listing the IP addresses and computer names for iNEWS Servers, MOS Gateway Servers, and MOS devices. For example:
125.1.0.1 NRCS-A nrcs-a nrcs-a.yourdomain.com
125.1.0.2 NRCS-B nrcs-b nrcs-b.yourdomain.com
125.1.10.50 MOSGWY mosgwy # MOS Gateway
125.1.10.51 MOSDEV1 mosdev1 # MOS device
125.1.10.60 MG1 mg1 # MOS Gateway Server1
125.1.10.70 MG2 mg2 # MOS Gateway Server2
6. Save the file and close the Notepad window.
c
When saving the newly edited file, ensure that it does not have a .txt extension. The default options in Windows Explorer will not display this crucial information. To change this setting, open Windows Explorer and select Options from the View drop-down menu. In the dialog box, check Show All Files and uncheck Hide file extension for known file types, then click OK.
7. Repeat this procedure for each MOS device.
Installing MOS Gateway Software
This section provides information pertaining to installing MOS Gateway on a new system. If upgrading a system already running an earlier version of the MOS Gateway software, refer to “Upgrading MOS Gateway
Software” on page33.
To install MOS Gateway:
1. Insert the iNEWS MOS Gateway CD into your CD-ROM drive.
2. Open Windows Explorer. To do this, click the Start button and select Windows Explorer from the menu, or press the Windows and E keys simultaneously. The Windows key is the one with the Windows logo on it, as shown in margin.
3. In the Explorer window, select the CD drive.
25
Chapter 3
4. Click the setup.exe file. The MOS Gateway Setup dialog box opens.
26

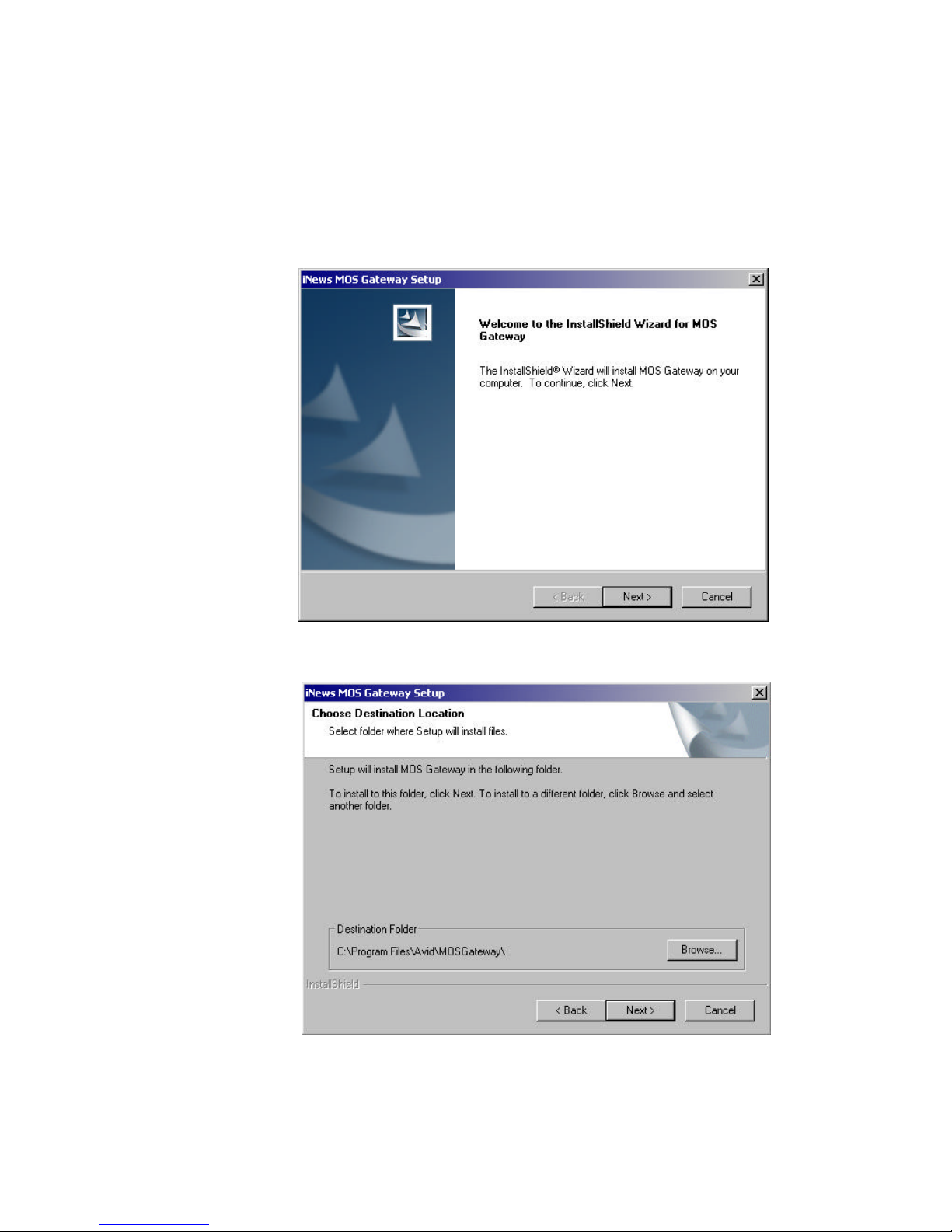

5. Click the Next button. The Choose Destination Location dialog box opens.
Overview of the Setup
6. Click Next to accept the default setting for the Destination Folder or click Browse to set another drive and directory as the destination.

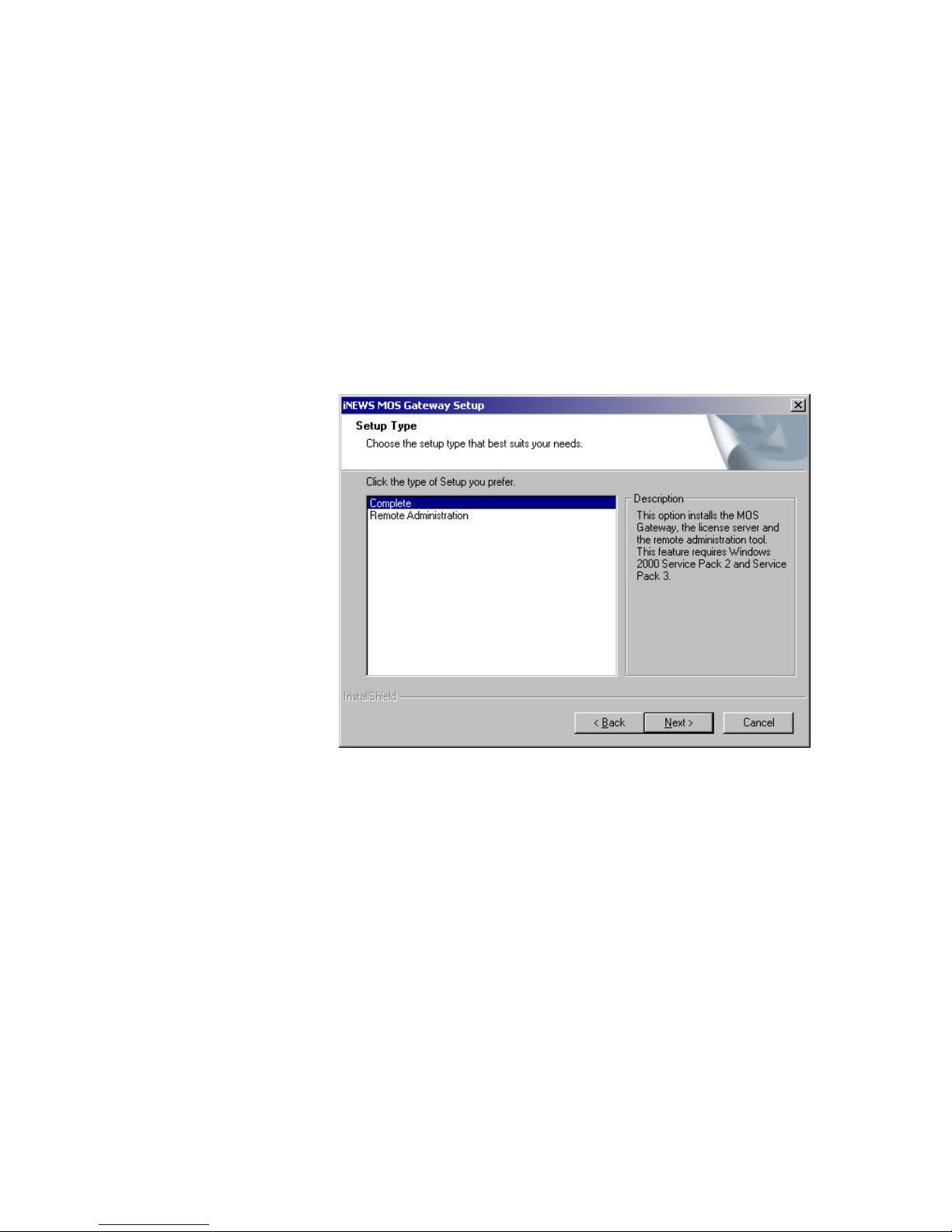

7. Select the type of setup:
A Complete setup installs the MOS Gateway Server software, the
License Service and Remote Administration tool.
A Remote Administration setup installs only the Remote Admin-
istration tool.
27
Chapter 3

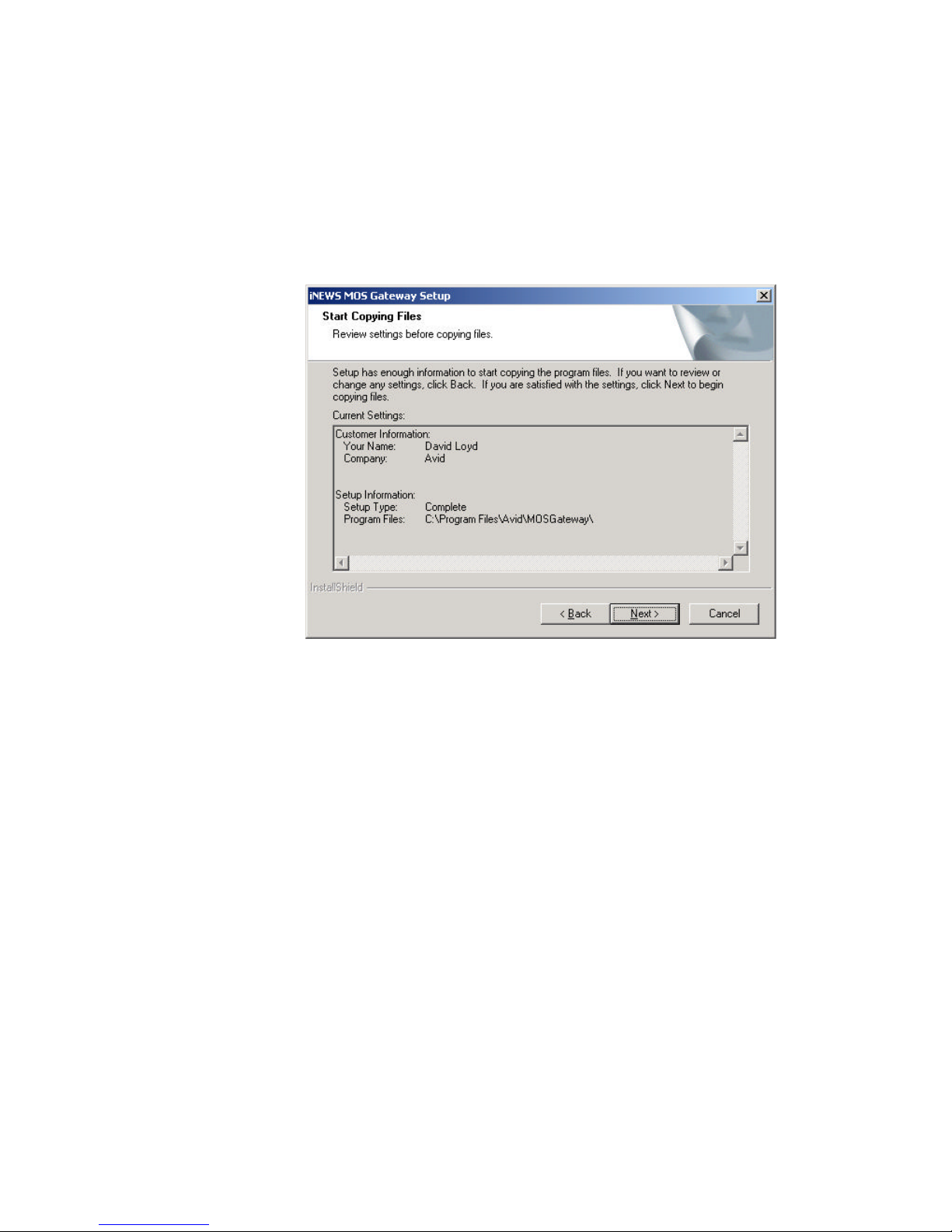

8. Click Next. The Start Copying Files dialog box appears, allowing you to review the your selections for the setup before initiating the copy process.
28
9. If a change must be made, click Back to do so; otherwise, click Next to continue.
Overview of the Setup

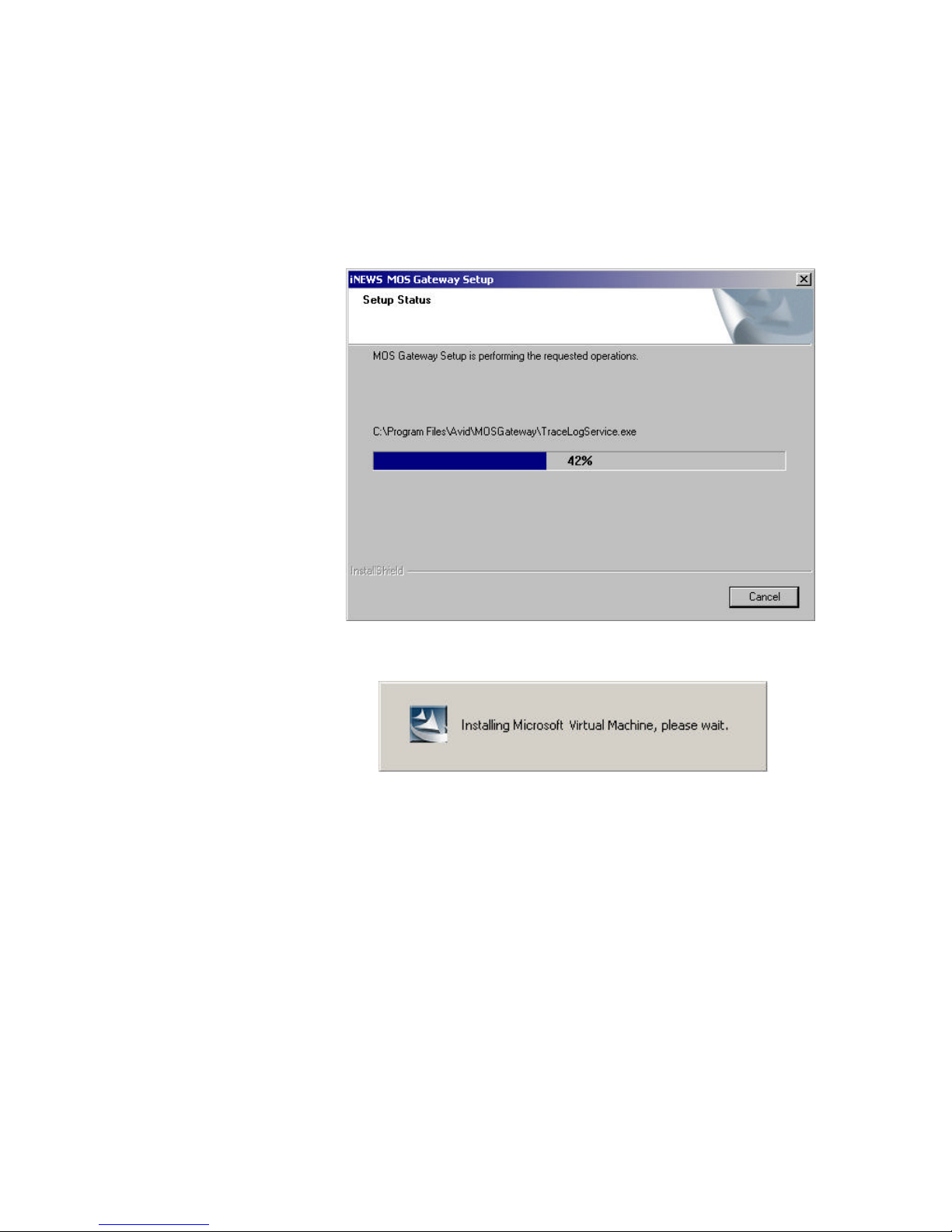

The Setup Status dialog box appears with a progress bar, indicating the percentage of installation completeness.
n

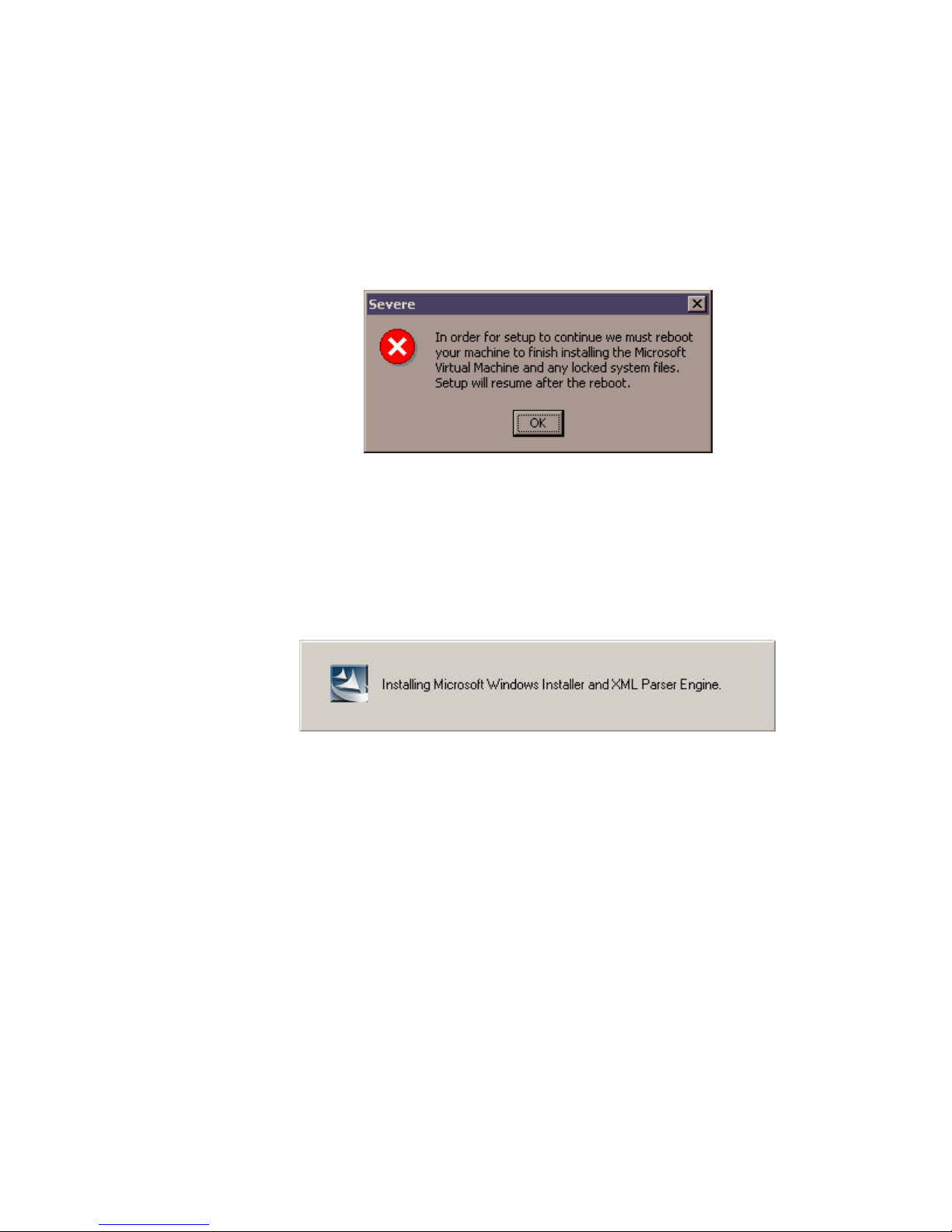

10. The MOS Gateway requires the Microsoft® Java Virtual Machine, so it is automatically installed next.
If Virtual Machine already exists on the computer, the installation program will detect it and skip steps 10 and 11.
29
Chapter 3
11. After installation of the Java Virtual Machine is complete, the following message will appear, notifying you the computer must be rebooted.
Click OK. The computer will reboot and the installation program will continue.
n
If installing the Remote Administration only—as selected in step 7—skip steps 12 through 15.
12. If a Complete setup type was chosen in step, then Setup installs the Microsoft Installer and XML Parser.
13. MOS Gateway installs a license server that listens on an IP port for license requests. In the dialog box that appears, specify an IP port that is not used by any other application on the MOS Gateway Server.
30
The default is 53211.
14. Click Next.
Overview of the Setup
The MOS Gateway License Server Key dialog box appears.
31
Chapter 3
15. If you received a license key from Avid with your purchase, you may enter it. If not, contact Avid Broadcast Customer Support with your customer ID and MOS Gateway Server hostname to receive one.

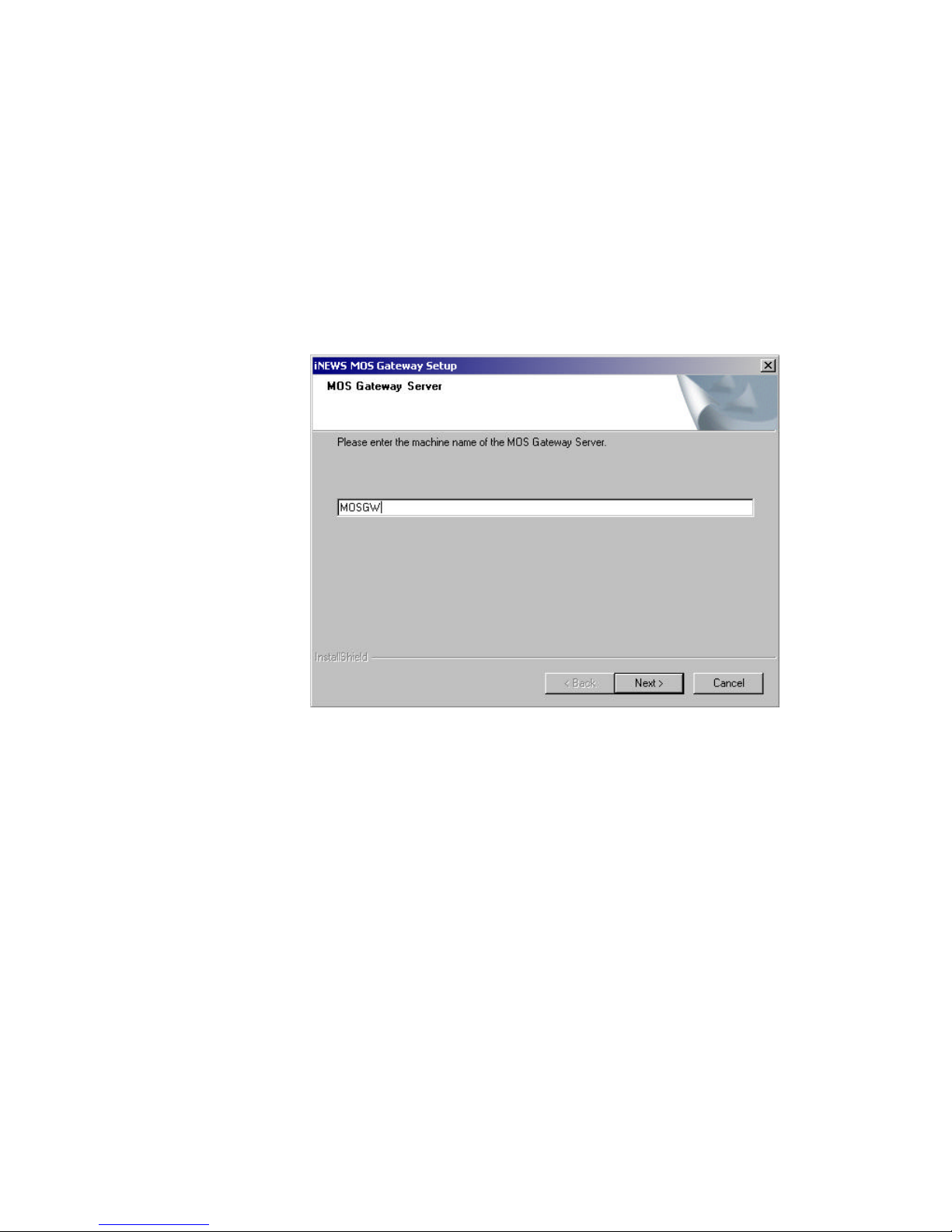

16. Type the name of the MOS Gateway Server, if necessary. Since this information is typically supplied automatically by the setup program, accept the default by clicking Next.
32
Overview of the Setup

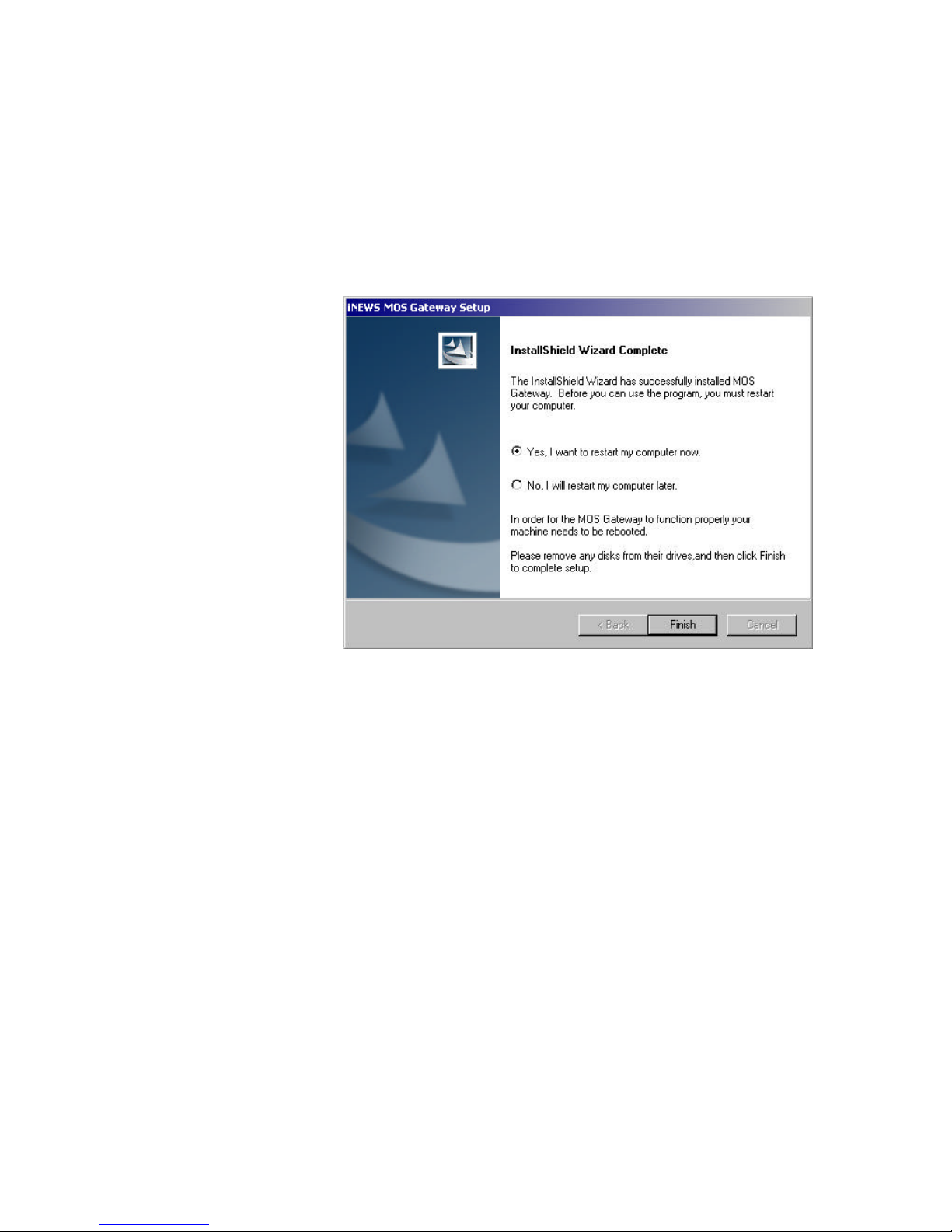

17. After the License Server Key is entered, a dialog box appears indicating the successful completion of the installation. Select Yes to restart the computer, remove any disks, and click Finish.
Upgrading MOS Gateway Software
Before upgrading to a newer version of MOS Gateway software, any previous version of the software must be uninstalled first.
c
Running the setup program on a system that already has a previous version installed will not overwrite all the necessary files.
Additionally, version 1.0 of the MOS configuration file (mosconfig.xml) cannot be used with MOS Gateway version 2.0. Since the new configuration file will require editing after the installation, print the old file as a reference before uninstalling the old software and upgrading to a new version of MOS Gateway.
33
Chapter 3
To print the MOS configuration file:
1. Open Notepad.
n
The Notepad program may typically be launched using the Start button on the Windows Task bar—for instance, select Start > Programs > Accessories > Notepad. The Notepad window opens.
2. Select File > Open.
3. Navigate to the configuration file, which is an XML file located at:
C:\Program Files\Avid\MOSGateway
4. Do one of the following to print the mosconfig.xml file:
t Select File > Print. t Press Ctrl+P.
To uninstall MOS Gateway:
t Use the Add/Remove programs feature in the Windows Control Panel.
After all previous versions of the software is uninstalled, upgrade by installing the latest version of MOS Gateway, according to the procedure in “Installing MOS Gateway Software” on page25.
After the new version of software is installed, complete the upgrade by using the printed copy of your old configuration file to edit the new default mosconfig.xml file with your site’s <mosDevice> information. See
“Editing the Configuration File” on page78 for more information.
34
Chapter 4
Setting up the iNEWS Server
After MOS Gateway is installed, you must set up the iNEWS Server to use MOS Gateway. This chapter provides the procedures for setting up the servers.
This chapter contains the following major sections:
Configuring iNEWS Servers
- Configuration Summary
- Configuration Details
Chapter 4
Configuring iNEWS Servers
There are certain tasks that must be performed on the iNEWS Servers at the console, and at an iNEWS Workstation. If you have ControlAir™ (formerly known as iNEWS Broadcast Control System or BCS), much of this work may already be done. These tasks must be completed to download playlists and updates to MOS Gateway.
This chapter assumes:
Your site has a fully functioning network.
Your newsroom computer system servers are operational and running the iNEWS Server software, which supports the MOS protocol.
The iNEWS Servers are connected to a console multiplexor, to which Customer Support technicians have dial-in access.
The person performing the installation has attended an iNEWS, AvidNews, or NetStation system administration course or has equivalent experience. This includes having a working knowledge of ed, the UNIX line editor, a familiarity with the iNEWS client software, and selecting servers at the console.
n
It is highly recommended that you have an iNEWS Newsroom Computer System Operations Manual available while conducting procedures found in this chapter. Selecting servers is explained in Chapter 2 of the operations manual and the UNIX line editor is explained in Chapter 10.
Configuration Summary
The set-up procedure has the following steps: Each step is explained further in “Configuration Details” on page37 .
1. Creating a Monitor Server for Each Show (page 37)
2. Creating Composite and Event List Queues (page 44)
3. Set Up Queue and Story Forms (page 48)
4. Edit the SYSTEM.MOS-MAP Story (page 51)
5. Assigning Forms to Queues (page 53)
36
6. Create an Entry in the SYSTEM.MAP Story (page 55)
7. Adding IP Addresses for the MOS Gateway (page 62)
8. Updating the iNEWS System Dictionaries (Optional) (page 64)
9. Configure iNEWS for MOS Replication (Optional) (page 68)
Configuration Details
The following steps do not include setting up external devices, such as character generators and still stores, which play broadcast events. Refer to the manufacturer’s documentation provided with the device for more configuration details.
The configuration procedure comprises the following steps:
Step 1: Creating a Monitor Server for Each Show
Monitor server is a utility program that checks a show’s event requests for errors, creates composite and event lists, and sends playlists to MOS Gateway.
Configuring iNEWS Servers
This section assumes rundown queues for the shows being monitored already exist. If not, create them before continuing. Refer to the
iNEWS Newsroom Computer System Operations Manual for
more information.
n
A monitor server must be assigned device and mailbox numbers—typically, these numbers are the same. A device number is chosen for monitor server so iNEWS recognizes the server as a valid device. The device number must be entered in the system’s configuration file. The mailbox number must be assigned to both the show’s monitor server and its rundown queue.
A mailbox is an activation mechanism for a server (utility) program, so if a queue has a mailbox number matching a server program, then that server is the one activated or “awakened” whenever something happens to the queue. See Chapter 14 in the iNEWS Newsroom Computer System Operations Manual for more information on mailboxes and other server programs.
37
Chapter 4
The mailbox enables iNEWS to notify the monitor server of changes made to a rundown queue while a show is monitored. The monitor server then updates composite and event lists, as well as any playlists, if necessary.
To create and configure a monitor server:
1. Check the iNEWS configuration file (/site/config) and choose the next available device number for the monitor server, from the range of 3-digit numbers reserved for use by your system’s server programs, such as 201 to 300.
Valid standard mailbox numbers are 1 through
4096. For more on mailboxes, see “Using Mailboxes” in Chapter 14 of the iNEWS
Newsroom Computer System Operations Manual.
n
2. Verify whether this same 3-digit number is available as a mailbox number by doing the following:
a. Use the
the mailbox number you have chosen. For instance, to check mailbox 266, type:
list mailbox=266 c
Information similar to the following appears:
DEV DEVICE_TYPE COMPUTER CCU PRINTER SPEED OPTIONS DEVNAME
For other list command options for determining mailbox assignments of queues and servers, see “Using the list Command to View Assigned
Mailboxes” on page43 .
b. If you see the device configuration header (as shown in step 2a)
with no information below it, then no device has that mailbox and you can use that number. However, if configuration information for a device appears below the header, that device has the same mailbox as the one you chose. Therefore, choose another mailbox number and repeat step 2a.
list console command to ensure no other device is using
n
38
If the mailbox number is already being used, and you must choose another, you may want to try another device number for the monitor server as well. Typically, mailbox numbers match server program device numbers, although this is not required. However, the mailbox number you select must be assigned to the queue monitored by the server program. Multiple queues can share the same mailbox number. See “Assigning the Mailbox
to the Rundown Queue” on page 42 for more information.
Configuring iNEWS Servers
3. Add the monitor server to the /site/config file on each iNEWS Server—such as server A and server B in a dual server system— by doing the following:
c
Changing the configuration file requires the use of ed, the UNIX line editor. See Chapter 10 of the
iNEWS Newsroom Computer System Operations Manual for more information.
Always back up the /site/config file before making any changes. See “Changing the Configuration File” in Chapter 11 of the iNEWS Newsroom Computer System Operations Manual for more information.
a. At the console, select all iNEWS Servers. Instructions for how to
do this is provided in Chapter 2 of the iNEWS Newsroom
Computer System Operations Manual .
b. Use the ed command to open and edit the configuration file, by
typing:
ed /site/config
1259
After you press Enter, the editor responds by displaying a number, as shown, indicating the file size expressed as the number of characters, including spaces and returns.
c. Add the monitor server’s device number to the servers line in
the host definition for the iNEWS Server that will run the monitor server program. For instance:
servers 261 263 265 267
The device number 267 is added to the servers line in this example.
n
Divide your server programs evenly among your iNEWS Servers to distribute the load they put on your system. For instance, put odd numbered programs on server A and even numbered ones on server B. Additionally, ensure that you also add the configuration line for the monitor server to alternate host definitions for your iNEWS Servers. This ensures it can run on the surviving computer should one of your iNEWS Servers stop functioning. A sample configuration file is provided in
AppendixB; it includes pointers indicating where in the file information is
added, as described in this procedure.
39
Chapter 4
Do not confuse the configuration line, which starts with
server, and the servers line
mentioned in 3c (page
39), which lists device
numbers.
d. Add a configuration line for the monitor server in the host
definition belonging to the iNEWS Server that will run the server program. This line begins with the word server and contains the mailbox number assigned to the monitor server.
The format for server programs’ configuration lines are:
server <device#> <type> <mailbox> <device name>
Parameter Description
device # The device number assigned to the server
program. This 3-digit number must also be listed in the servers line in a host definition.
type The type of server program, such as
monitor. Others include: action, distribution, parallel, keyword, seek, and so forth.
mailbox The mailbox the server program uses. Valid
standard mailbox numbers are 1 through 4096. This number typically matches the server program’s device number.
40
device name To give the monitor server a device name,
enter that name here (up to 8 characters). If not, enter a hyphen.
Configuring iNEWS Servers
Comments appearing after the semicolons (;) are optional.
Do not use an uppercase (W) in step
3e. See Chapter 10 in
the iNEWS Newsroom
Computer System Operations Manual for
more information.
The following are sample configuration lines for various server programs:
server 256 action 256 actphon ;action svr server 257 distribution 257 devname1 ;dist server server 258 parallel 258 devname2 server 259 keyword 259 key1 ;keyword server server 260 seek 260 seek ;seek server server 261 ftsseek 261 - ;fts searches server 262 ftsindex 262 - ;fts indexing server 263 print 263 - ;print server server 264 monitor 264 - ;monitor server server 265 monitor 265 - ;monitor server server 266 monitor 266 - ;monitor server server 267 monitor 267 - ;monitor server
e. When you finish making changes to the configuration file, save
your changes by typing:
w
f. When you press enter, a number will appear, such as 1279,
indicating the file size. You can then exit the UNIX line editor by typing:
q
n
4. (Optional) Test your configuration changes. See “Testing the Site Configuration File After Changing” in Chapter 11 of the iNEWS Newsroom Computer System Operations Manual for more information.
After editing the configuration file (/site/config), it should be backed up to tape. For more information about backing up site files, see the iNEWS Newsroom Computer System Operations Manual.
Before the monitor server can be used, two more tasks must be completed:
Reconfiguring the system to incorporate the new device (monitor server) into your system’s operation.
Adding the monitor server’s mailbox to the rundown queue it will be monitoring.
41
Chapter 4
These tasks are covered in the next two sections.
Reconfigure the System
You do not need to stop anything to reconfigure the system.
To reconfigure the system:
1. At the console, select the master computer (typically server A).
2. Type su to log in as superuser and type the superuser password.
3. Type:
NRCS-A# offline
4. Type:
NRCS-A# configure
5. When the prompt returns, bring the system online again by typing:
NRCS-A# online
A message similar to the following will appear:
A Wed Oct 3 00:18:58 2001 msg System being configured
6. After you see the System being configured message, exit from superuser mode. (Ctrl+D)
Unlike other utility programs, it is not necessary to start a monitor server when you add it to the configuration file. It starts when someone uses the monitor on or monitor load command for the rundown queue to which you have assigned the monitor server.
Assigning the Mailbox to the Rundown Queue
Mailboxes are assigned to queues in the same way other database traits are—using the Queue Properties dialog box. See Chapter 5 in the iNEWS
Newsroom Computer System Operations Manual for more
information.
42
After you choose the monitor server’s mailbox number and verify that it is not used by another device, you must also assign it to the show’s rundown queue, being monitored by the monitor server.
For instance, the rundown queue in the following procedure is SHOWS.6PM.RUNDOWN , and the mailbox being assigned is number 267.
Configuring iNEWS Servers
To assign a mailbox to the rundown queue:
1. Log in as a system administrator—that is, with a superuser account—to an iNEWS Workstation.
2. Navigate to the rundown queue, such as the queue named Rundown located in the SHOWS.6PM directory.
3. Right-click on the queue and select Properties from the pop-up menu. The Queue Properties dialog box will appear.
Using the list Command to View Assigned Mailboxes
Variations of the list command can be used at the console to determine mailbox assignments for specific devices, queues, and so forth.

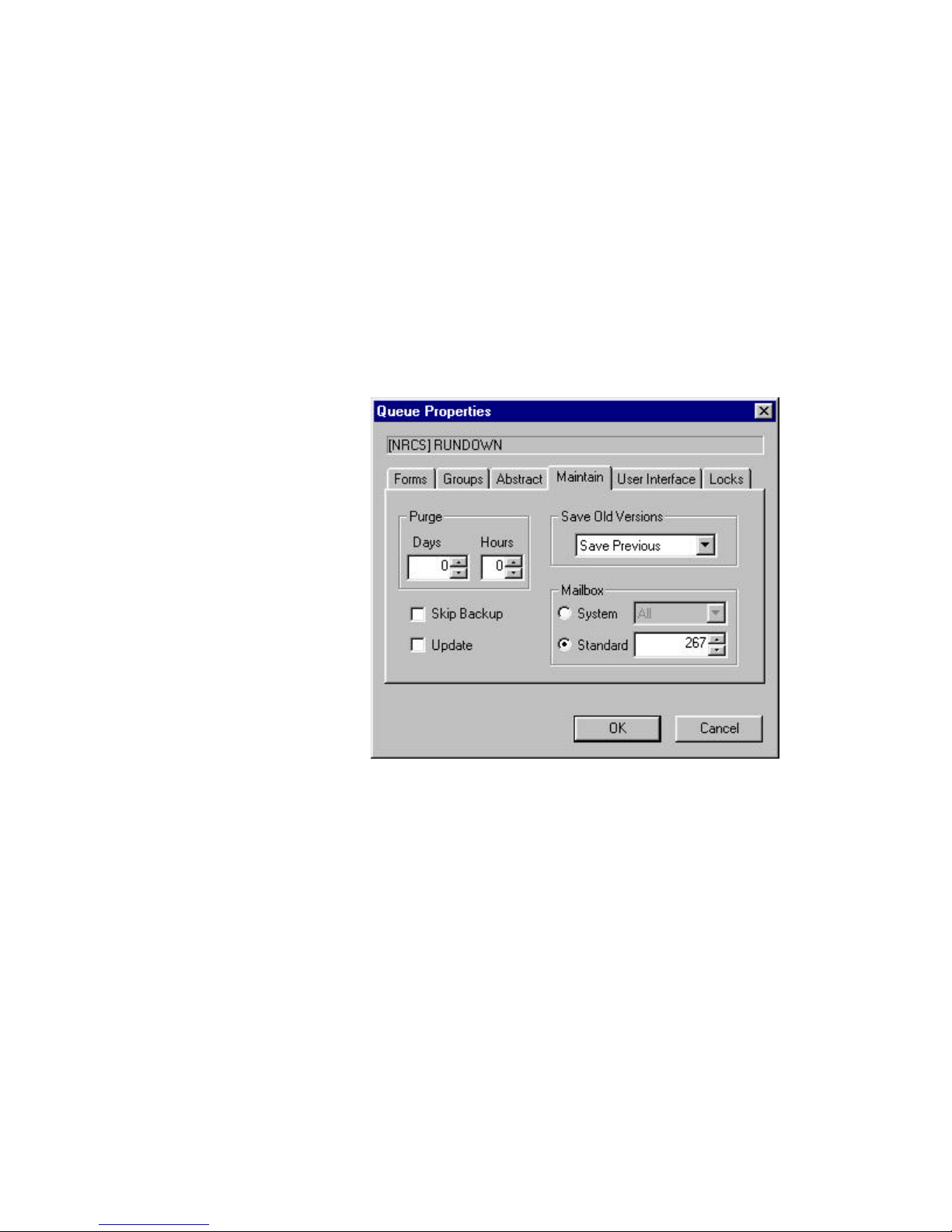

4. Click on the Maintain tab.
5. Select the Standard radio button located in the Mailbox section.
6. Type in the mailbox number, such as 267.
7. Click OK to save changes.
43
Chapter 4
Since multiple queues can share the same mailbox, you can list all queues and directories in the database that are using a certain mailbox, such as
267. To do this, type: list mailbox=267 d
To find out which monitor server mailboxes are assigned:
t Type: list c monitor
The system displays configuration information for your system’s monitor servers, similar to the following:
DEV DEVICE_TYPE COMPUTER CCU PRINTER SPEED OPTIONS DEVNAME S264 monitor A N264 S265 monitor B N265 S266 monitor A N266 S267 monitor B N267 NRCS-A:
The mailbox number assigned to each monitor server appears in the PRINTER column and begins with the letter, N.
44
To see if any servers are assigned a certain mailbox number, use the following format: list mailbox=<mailbox number> c
For instance, to check whether mailbox 267 is assigned to a server program, type: list mailbox=267 c
Step 2: Creating Composite and Event List Queues
The monitor server scans stories for machine control events and builds lists of these events, which can be referenced or used to transmit data to production devices, such as character generators (CGs) or still stores. These lists, known as composite and event lists, are valuable resources for a show’s director and production device operators. An event list contains details for a specific MOS device, while a composite list contains status information for all devices connected through MOS Gateway.
You may want to create only composite and/or event lists for certain production devices, such as MOS Gateway. If you do not create list queues for some devices, the monitor server will not create lists.
Configuring iNEWS Servers
For these lists to exist, queues for them must be created—if they do not already exist—and they must be “mapped” to the monitor server so it knows where to put composite information and event lists. This step in the procedure explains how to create queues. For more on mapping, see
“Create an Entry in the SYSTEM.MAP Story” on page55 .
To create and configure the composite and event list queues:
1. At an iNEWS Workstation, log in as a system administrator—or user with authority to create queues in the iNEWS database.
2. Navigate to and select the directory (folder) created to hold the queue you want to create.
3. Do one of the following:
t Click Tools > New Queue. t Right-click on the folder in the Directory panel, and select New
Queue from the pop-up menu.
45
Chapter 4

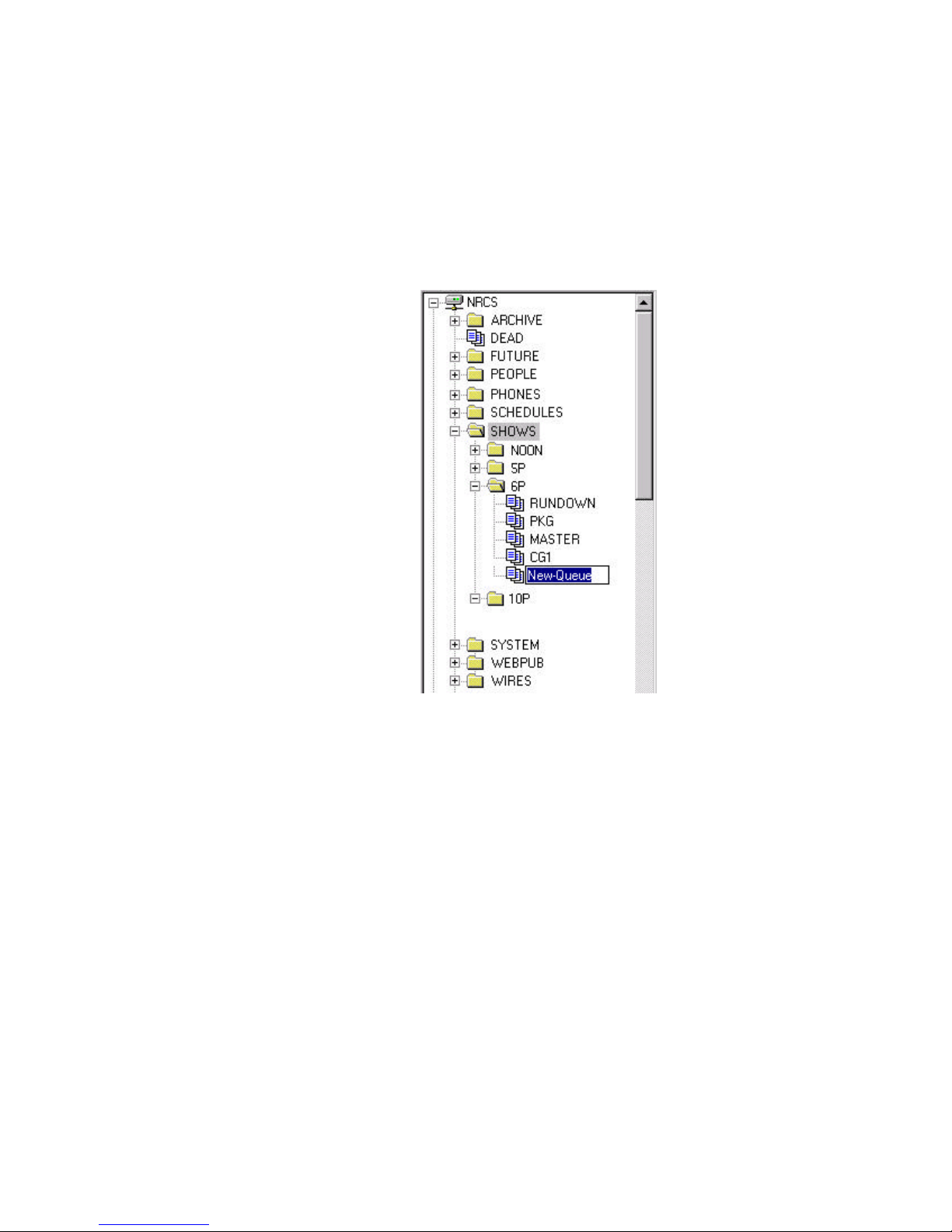

A new queue appears under the folder you selected and at the end of any list of existing queues. The title, New-Queue, is highlighted, so you can rename it.
46
n

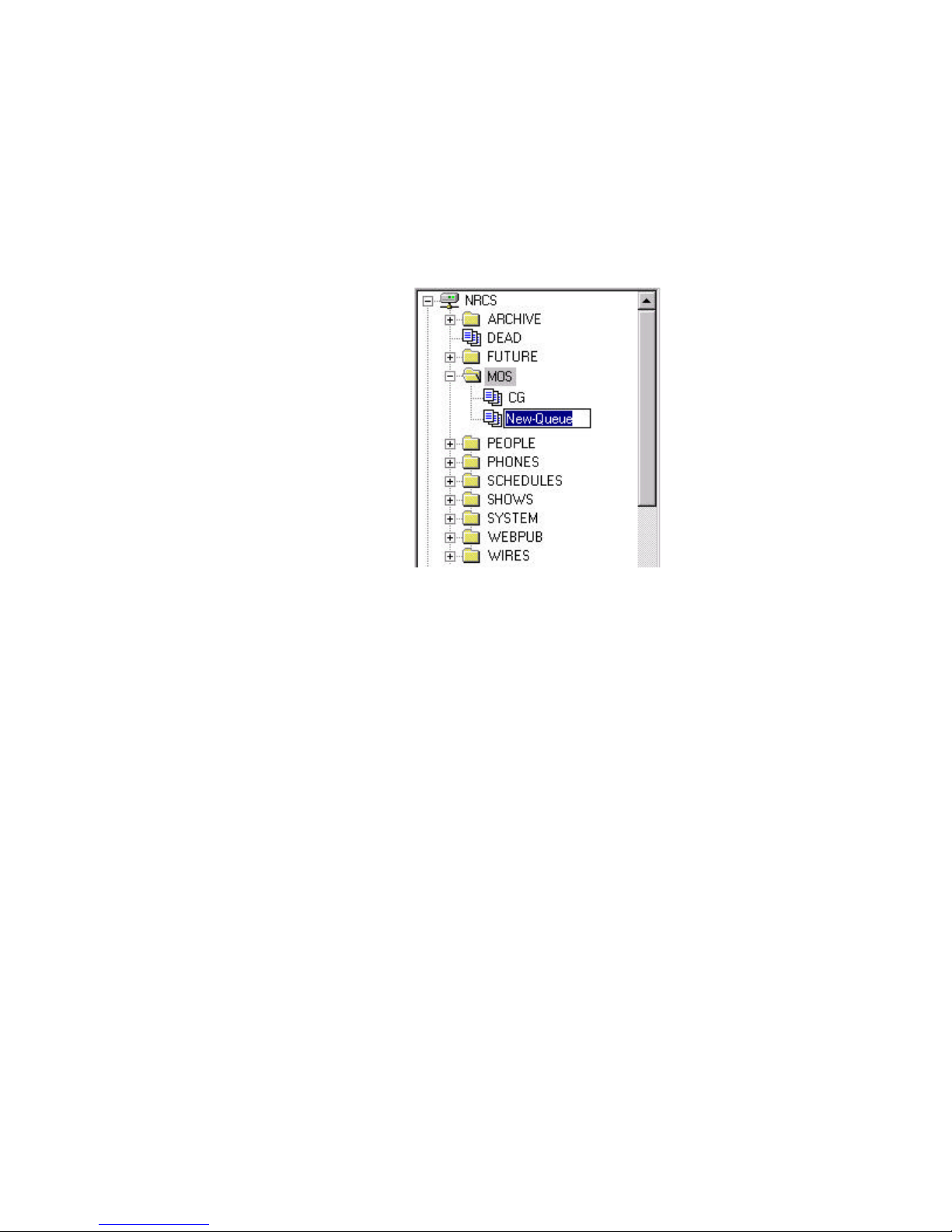

4. Type the name of the new queue, such as COMPOSITE or CG1.
The pathname of each device’s event list queue is a combination of the event list directory and the device manager’s name. For instance, if you want an event list for the 6PM show that has a character generator called CG1, you may select to place the event list queue in the SHOWS.6PM directory (as shown above). The pathname would be SHOWS.6PM.CG1. Using the same example, the pathname for the composite list queue would be SHOWS.6PM.COMPOSITE .
5. Press Enter to save the new queue name. The newly created queue will inherit database traits of its parent
directory initially. You can open the new queue by double-clicking on it. For more information about queues and their database traits, see Chapter 5 in the iNEWS Newsroom Computer System Operations
Manual.
Configuring iNEWS Servers
6. To have monitor server display information in these lists properly, each queue must have a 1-line display and be assigned the proper queue form. Assigning these forms is covered in “Assigning Forms to
Queues” on page53.
To set the display of any queue, such as a composite or event list queue:, log in as a system administrator at an iNEWS Workstation, and do the following:
a. Navigate to and right-click on the composite or event list queue in
the Directory panel.
b. Select Properties from the pop-up menu. The Queue Properties
dialog box appears.

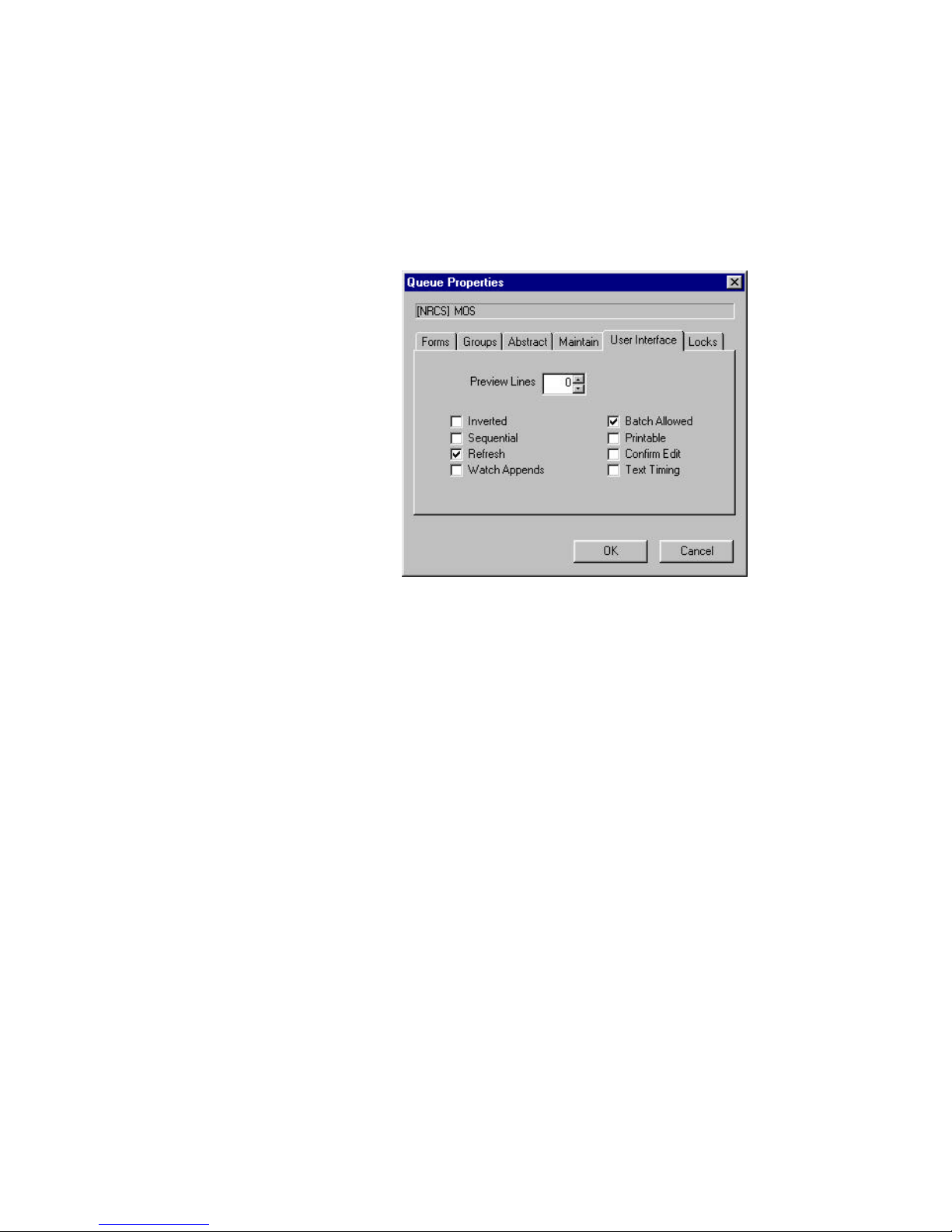

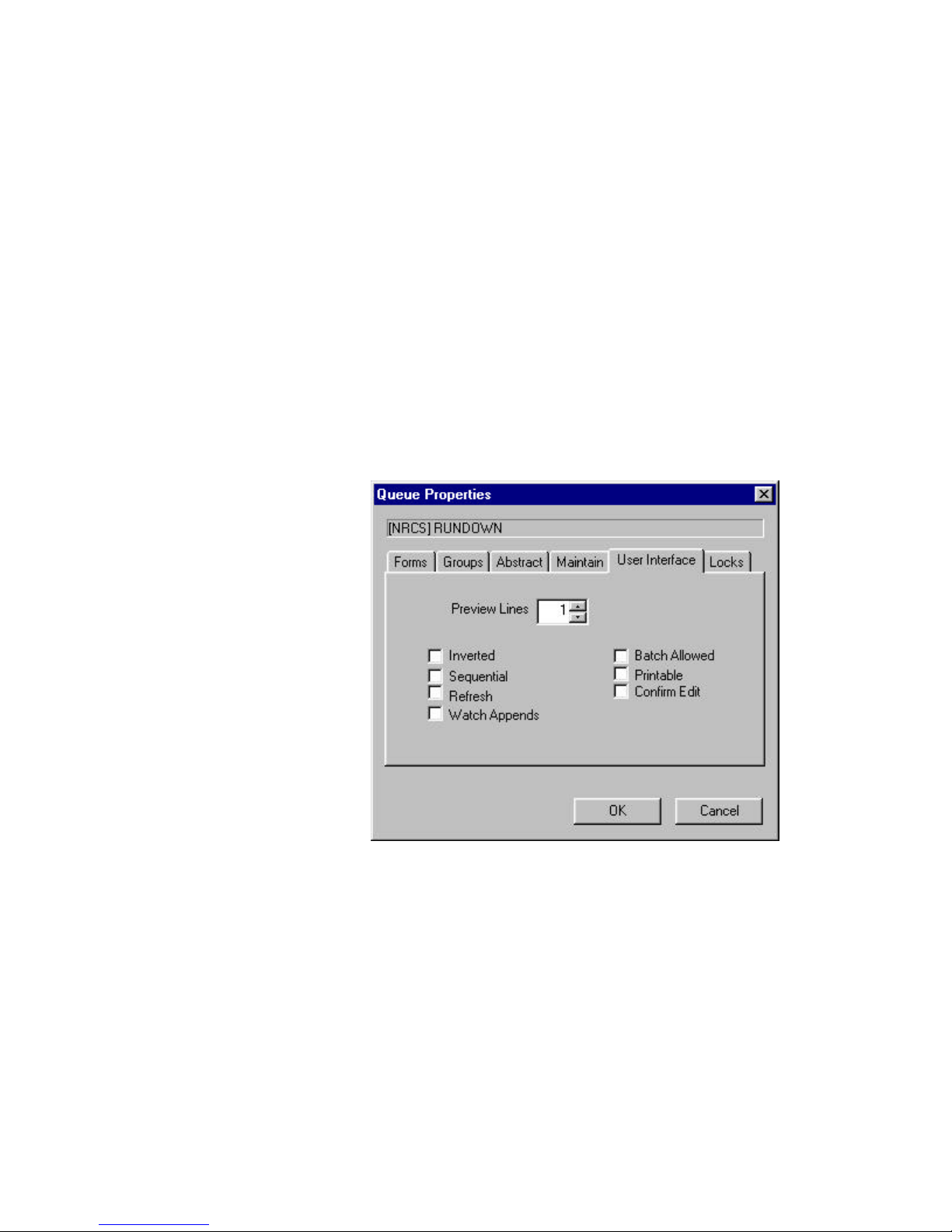

c. Select the User Interface tab. d. Set Preview Lines to the number of lines you want displayed in the
Queue panel.
e. Click OK to save changes.
47
Chapter 4
7. To ensure that you can use the queues effectively, remove the inverted database trait and apply the refresh database trait to them. This can be done by removing the check mark from the Inverted check box on the User Interface tab of the Queue Properties dialog box at any iNEWS Workstation.
For more information about assigning database traits to queues, see Chapter 5 of the iNEWS Newsroom Computer System Operations
Manual.
8. Assign a write security group to your event and composite list queues to ensure that only the monitor server makes changes to the composite and event lists. It is recommended that you restrict writing access of these queues to superusers.
For more information on how to assign write groups to queues, see “Group Traits for the Database” in Chapter 6 of the iNEWS Newsroom
Computer System Operations Manual .
After the composite and event list queues are created, the monitor server must be created—as described in step 1 on page 37—and mapped to them. This will enable the monitor server to determine the queue where the composite list should be placed and the directory where the event list queues are located. The procedures for mapping the monitor server to composite and event list queues are explained in “Create an Entry in the
SYSTEM.MAP Story” on page55 .
48
Step 3: Set Up Queue and Story Forms
Add MOS Gateway fields to existing rundown queue and story forms in iNEWS. These fields are explained in Table1.
n
For a field to exist in a queue form, it must also exist in a story form. Refer to Chapter 8 in the iNEWS Newsroom Computer System Operations Manual for details on creating or modifying forms and other form field types.
The relationship of fields pertaining to time calculations, such as RUNS­TIME and MOS-DURATION, is explained further in “Calculating
Duration in Time Fields” on page50.
Configuring iNEWS Servers
Table 1 iNEWS Form Fields for MOS Gateway
Field Type Description
MOS-ACTIVE This field is required on the story form so a queue can display whether a
MOS item, such as a Media Browse video event, is attached to a script; this is typically done by dragging and dropping the MOS item into the story form from an ActiveX plugin. The read-only field holds a short code representing certain attributes of a MOS item. If empty, no MOS item is attached.
MOS-TITLE This read-only field is used to display a brief description—or title—of the
MOS item inserted from a plugin as a primary machine control event in the story form. It is optional.
MOS-SUBEVENT This field is used to display additional descriptive information only if the
MOS item is inserted as a primary machine control event in the story form. It is optional.
MOS-DURATION This field is used by iNEWS to display the duration time of a MOS item
attached to a script through the story form. Whether any time appears in the field depends on configuration settings in the SYSTEM.MOS-MAP story created and stored in iNEWS. The field is optional and its contents are only used in calculations if the RUNS-TIME field is also present in the story form. See “Calculating Duration in Time Fields” on page 50 for more
information.
EVENT-STATUS This read-only field displays, in the rundown, the availability and play status
of a machine control event or any MOS item, as reported by the production device involved. For instance, a video event could be reported as N/L (not loaded) or OFFLINE, CUED,PLAYING, or STOPPED, among other things. In forms for rundown and event list queues, only the status of a video event can be displayed. In Machine Control Terminal (MCT) and ControlAir Workstation forms, this field can also contain the status of CG and still store events. It is optional.
ITEM-CHANNEL This read-only field is necessary only if a separate field is used to assign
channels—via the Assign Channel dialog (Shift+Alt+C) in iNEWS—for playback of MOS items. It is optional.
RUNS-TIME This field displays the sum of time in the MOS-DURATION field and all
Runs times within the story, including those from MOS items inserted in the story body. It is optional, but recommended when the MOS-DURATION field is also present in the Story Form panel. See “Calculating Duration in
Time Fields” on page 50 for more information.
49
Chapter 4
Calculating Duration in Time Fields
Some form fields in iNEWS are dependent on others. This is primarily evident in the relationship between the RUNS-TIME field and the MOS­DURATION field. Figure1 provides a visual outline of how input in certain form fields directly affects what appears in others.

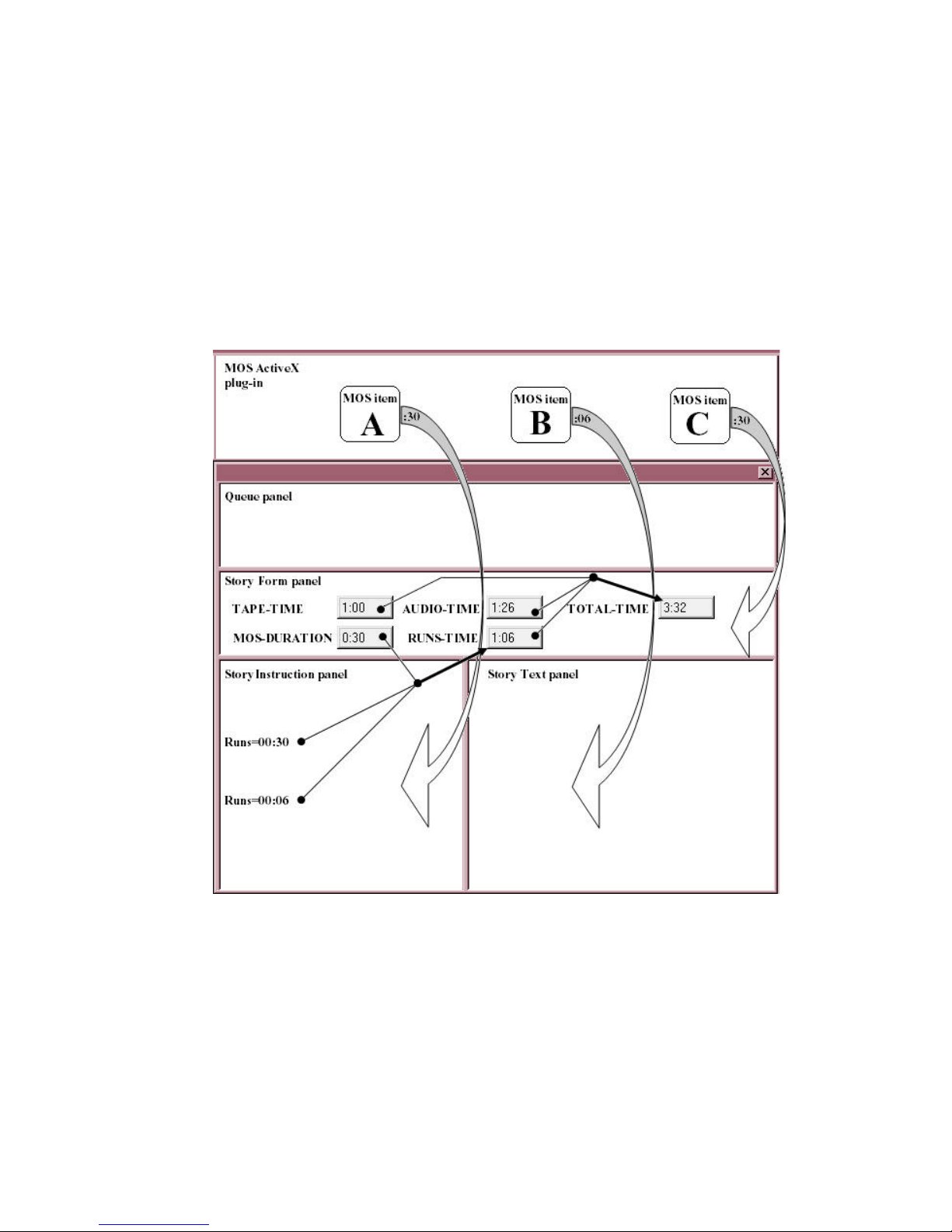

Figure 1 Relationships of Time-based Fields
In Figure1, three MOS items are inserted into the Story panel of the iNEWS Workspace. Only one—MOS item C in the example—can be dragged and dropped into Story Form panel; any additional items must be dragged and dropped into the Story Text or Instruction panels. When a
50
Configuring iNEWS Servers
MOS item is inserted into the story, the time associated with that item may be inserted too—either appearing in the MOS-DURATION field for an item dragged to the Story Form panel, or as a Runs time shown in a machine control event in the Instruction panel. Whether a MOS item’s time is inserted is determined by settings defined in the SYSTEM.MOS- MAP story. See “Edit the SYSTEM.MOS-MAP Story” on page 51 for more
information.
If both MOS-DURATION and RUNS-TIME fields are used in the Story Form panel, then the RUNS-TIME field will display the calculated sum of time appearing in the MOS-DURATION field and all Runs times from the Instruction panel. The TOTAL-TIME field will show the calculated sum of values from the RUNS-TIME, AUDIO-TIME, and TAPE-TIME fields.
n
Users may manually enter times in the TAPE-TIME field. The time appearing in the AUDIO-TIME field is the estimated read time of the text in the Story Text panel, as calculated by the iNEWS system, according to reading speeds defined by the system administrator.
Step 4: Edit the SYSTEM.MOS-MAP Story
The SYSTEM.MOS-MAP story contains a section of information, known as the DeviceTable, which consists of two columns:
The first column has the MOS device’s mosID—reported by the vendor's ActiveX control. It must match the <mos> value in the mosconfig.xml file, which is installed on the MOS Gateway Server.
The second column has an iNEWS device name associated with the mosID to display in machine control events in the story body. It must match the <amcp> value in the mosconfig.xml file.
The following is an example of a SYSTEM.MOS-MAP story with a single device listed in the DeviceTable:
TABLE-START DeviceTable Mos.omnibus.co.uk OmniMOS TABLE-END
n
If the SYSTEM.MOS-MAP story does not exist, it must be created in iNEWS as the first story in the MOS-Map queue in the System directory.
51
Chapter 4
The SYSTEM.MOS-MAP story may also be used to set up whether times related to MOS items are displayed in the Queue panel (rundown) or Story Form panel. It may be configured for all MOS devices or on an individual basis.
For sites that do not want MOS item information displayed—in the RUNS­TIME or MOS-DURATION fields—the system administrator must edit the SYSTEM.MOS-MAP story.
To block the display of time information from all MOS devices:
t Add the following line to the SYSTEM.MOS-MAP story in iNEWS:
ReplaceTime=NO
n
c
The line should precede the start of the DeviceTable in the story. If the ReplaceTime value is set to NO, it will apply to all devices listed within the DeviceTable.
To exclude time information from a single device, while allowing the display of similar input for other devices:
1. In the SYSTEM.MOS-MAP story, set the ReplaceTime value to
YES.
2. Append <noDur> to the line associated with the single device, located within the DeviceTable.
The <noDur> tag must not be used at sites with workstations running a version of iNEWS earlier than 1.5.1. Earlier versions of iNEWS do not recognize the tag as a command to suppress the display of duration information, but identify it as a channel for the MOS device, whether the device uses channels. Users on iNEWS Workstations running versions earlier than 1.5.1 may see <noDur> appear in the channel list when loading the monitor server.
52
Configuring iNEWS Servers
In the following example, no duration time will be displayed for the NewsQPro device.
ReplaceTime=YES TABLE-START DeviceTable ;MOSID AMCPDeviceName sony sonyem MOSGATE qamosgw chan1 chan2 chan3 PILOT pilot AIRSPACE airem VERTIGO vertigo NewsQPro NQPro <noDur> NETIAMOS netia TABLE-END
Step 5: Assigning Forms to Queues
After you create queues to hold the composite and event lists, you must assign forms containing MOS Gateway fields to each queue.
n
For instance:
Assign a form designed to display composite list information to
SHOWS.6PM.COMPOSITE
Assign a form designed to display the information in a character generator’s event list to SHOWS.6PM.CG1
Your system includes default forms—located in the SYSTEM.FORMS directory—for composite, still store, character generator, and video event list queues. If upgrading to iNEWS from a previous product version, such as NetStation, you must update forms for composite and event list queues, including rundown forms.

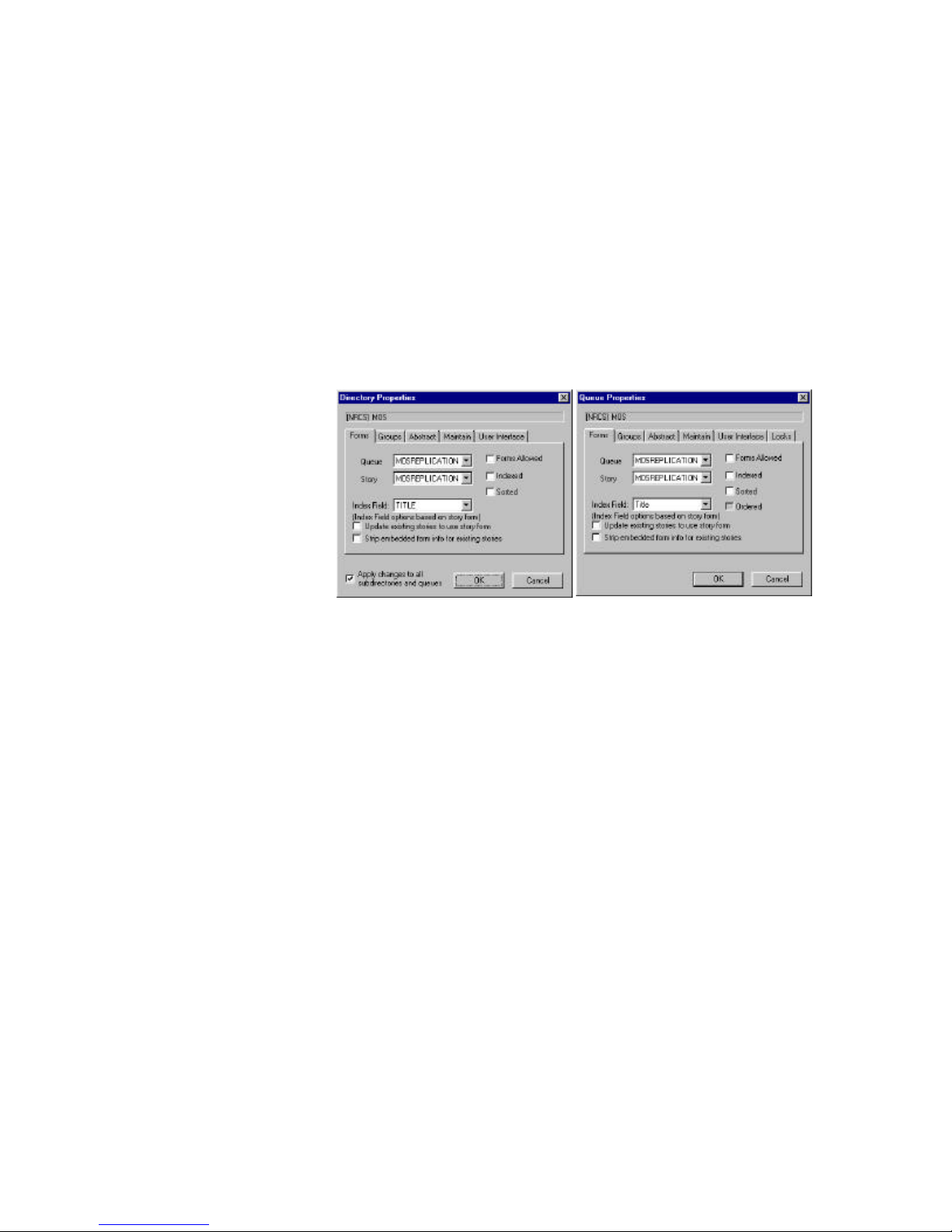

To assign a form to a queue:
1. At an iNEWS Workstation, navigate to the queue you want in the Directory panel.
2. Right-click on it. A pop-up menu will appear.
53
Chapter 4

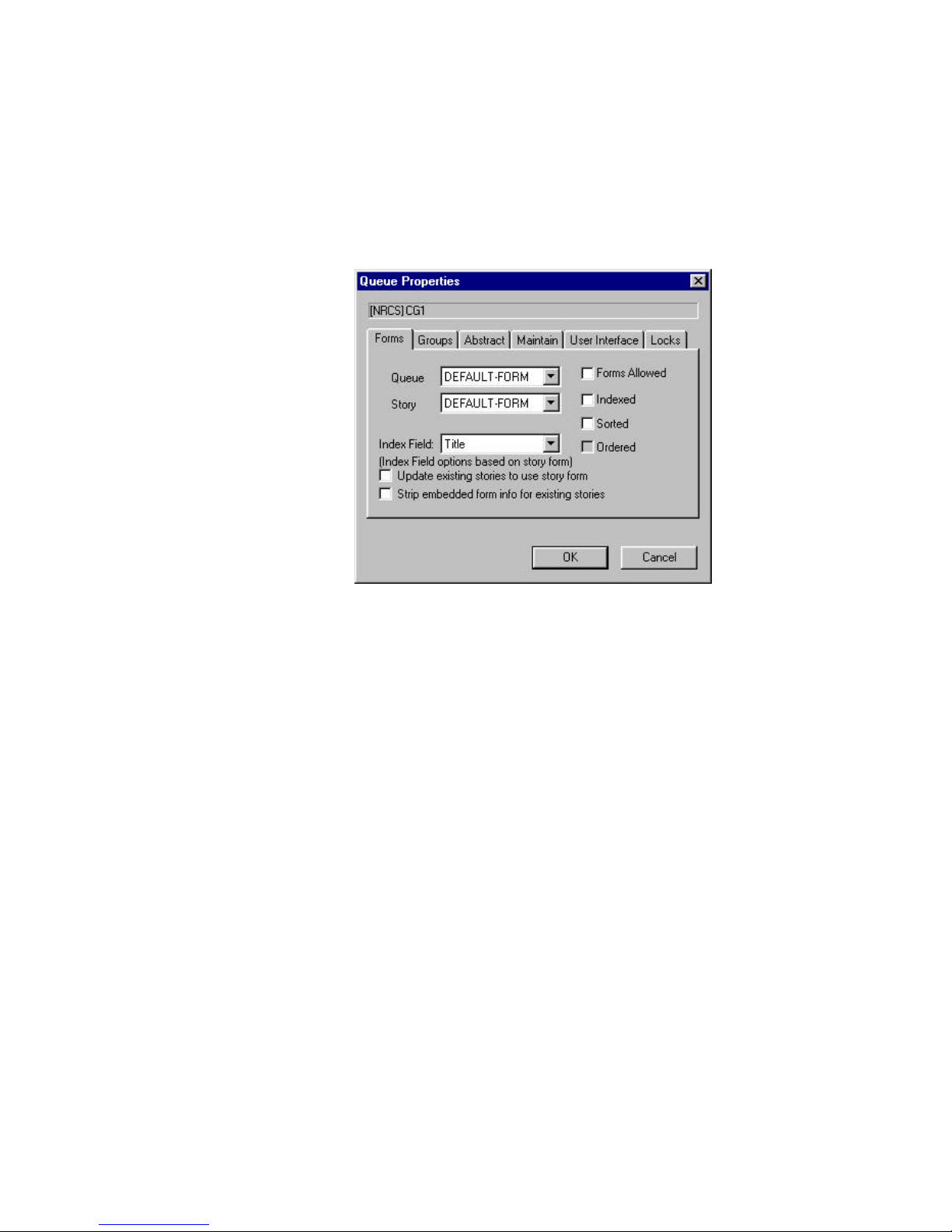

3. Select Properties. The Directory/Queue Properties dialog box will appear.
n
n
Access to the Directory/Queue Properties dialog box and its appearance vary, depending on certain circumstances. See Chapter 5 of the iNEWS Newsroom Computer System Operations Manual for more information.
4. Do either or both of the following:
Use the Queue drop-down list on the Forms tab to select the form
you want to apply to the directory as queue form database trait.
Use the Story drop-down list on the Forms tab to select the form
you want to apply to the directory as story form database trait.
5. If you made changes to an existing form, you must select the Update existing stories to use story form. When this check box is selected, iNEWS changes the story form assignment for previously existing stories with the queue.
6. Click OK to save changes and apply the new queue/story form settings.
Users should log off and sign back on to view the new queue/story form settings.
54
Configuring iNEWS Servers
You must assign a queue form and a story form. The queue form determines the look of the queue. The story form determines how an event request is displayed when you double-click it.
For instance, to assign the standard composite list queue form to the SHOWS.6PM.COMPOSITE queue, select mcs-composite from the Queue drop-down list in the Queue Properties dialog box. To assign a story form to this composite list, select mcs-composite from the Story drop-down list in the Queue Properties dialog box.
n
The forms will only appear in the drop-down lists if they exist in the database. For information about how to create your own forms or modify existing forms, and about database traits, see the iNEWS Newsroom Computer System Operations Manual .
Step 6: Create an Entry in the SYSTEM.MAP Story
The map story is a standard iNEWS database story and is always the first story in the SYSTEM.MAP queue. It can be opened and edited like any other iNEWS database story; however, access to it is typically limited to system administrators who already have access to the System directory.
When you create a show’s map story entry, you will usually specify that monitor server create and maintain event and composite lists when someone monitors the show.
n
On a small system, the work required to update composite and event lists could affect overall system performance. In these cases, specify in the show’s SYSTEM.MAP story entry that monitor server should not create composite and event lists, or that it create one and not the other.
After creating the show’s monitor server, add an entry for the show to your system’s map story. This entry specifies to the show’s monitor server the location of the show’s rundown queue, and composite and event lists. Without this information, the monitor server will not create lists.
The map story entry also specifies the list of groups that can monitor a queue, and when the monitor server turns itself off.
55
Chapter 4
To add an entry for the show in the map story:
1. Open the SYSTEM.MAP story, which contains a separate entry for each show that will be produced using MOS Gateway or ControlAir.
n
ControlAir is another Avid product that works with the iNEWS newsroom computer system to control production devices, such as character generators, still stores, and video playback machines.
Figure2 shows three sample entries in a SYSTEM.MAP story.
Each show’s map story entry must begin with a line called an entry header.
The entry header must be followed by a device list.
; RUNDOWN EVENT DIR COMP DIR GROUP (OFF TIME) ;DEVICE DEVNAME UPDATE MCT TEMPLATE (MSG DIR) ; SHOW.10P.RUNDOWN SHOW.10P SHOW.10P.COMPOSITE - 130 ss ss@bcssvr-1,bcssvr-2 UPDATE bcs-bcw cg cg@bcssvr-1,bcssvr-2 UPDATE bcs-bcw C:NAB:300 499 cart pdr@bcssvr-1,bcssvr-2 UPDATE bcs-bcw 3 mos sony@mosgwy UPDATE bcs-bcw ­; ; SHOW.6P.RUNDOWN SHOW.6P SHOW.6P.COMPOSITE - 2100 ss ss@bcssvr-1,bcssvr-2 UPDATE bcs-bcw cg cg@bcssvr-1,bcssvr-2 UPDATE bcs-bcw C:NAB:500 699 cart pdr@bcssvr-1,bcssvr-2 UPDATE bcs-bcw 3 mos sony@mosgwy UPDATE bcs-bcw ­; ; SHOW.SPECIALS.RUNDOWN SHOW.SPECIALS SHOW.SPECIALS.COMPOSITE - 130 ss ss2@bcssvr-1,bcssvr-2 UPDATE bcs-bcw cg cg2@bcssvr-1,bcssvr-2 UPDATE bcs-bcw C:NAB:300 499 cart pdr2@bcssvr-1,bcssvr-2 UPDATE bcs-bcw 3 mos sony@mosgwy UPDATE bcs-bcw -
Figure 2 Sample Map Story
2. Create an entry header. As shown in Figure3, the entry header specifies the following
information for each show:
The show’s rundown queue
The directory where you want to hold the event list queues
56
Configuring iNEWS Servers
The composite list queue
Groups of users who can monitor the show
The time you want the monitor to turn itself off—when you want the system to stop monitoring the show
The directory where
The show’s rundown queue
; RUNDOWN EVENT DIR COMP DIR GROUP (OFF TIME) ;DEVICE DEVNAME UPDATE MCT TEMPLATE (MSG DIR) ; SHOW.10P.RUNDOWN SHOW.10P SHOW.10P.COMPOSITE - 130 ss ss@bcssvr-1,bcssvr-2 UPDATE bcs-bcw cg cg@bcssvr-1,bcssvr-2 UPDATE bcs-bcw C:NAB:300 499 cart pdr@bcssvr-1,bcssvr-2 UPDATE bcs-bcw 3 mos sony@mosgwy UPDATE bcs-bcw ­; ; SHOW.6P.RUNDOWN SHOW.6P SHOW.6P.COMPOSITE - 2100 ss ss@bcssvr-1,bcssvr-2 UPDATE bcs-bcw cg cg@bcssvr-1,bcssvr-2 UPDATE bcs-bcw C:NAB:500 699 cart pdr@bcssvr-1,bcssvr-2 UPDATE bcs-bcw 3 mos sony@mosgwy UPDATE bcs-bcw ­; ; SHOW.SPECIALS.RUNDOWN SHOW.SPECIALS SHOW.SPECIALS.COMPOSITE - 130 ss ss2@bcssvr-1,bcssvr-2 UPDATE bcs-bcw cg cg2@bcssvr-1,bcssvr-2 UPDATE bcs-bcw C:NAB:300 499 cart pdr2@bcssvr-1,bcssvr-2 UPDATE bcs-bcw 3 mos sony@mosgwy UPDATE bcs-bcw -
you want to hold the event list queues
The composite list queue
Groups
The time you want the monitor to turn itself off
Figure 3 Sample Entry Header
n
The entire entry header must be in a single paragraph in the map story, and is limited to 255 characters. Any text that does not fit within this limit is not read by the monitor server. If your site’s rundown, event list, and composite list queue names are very long, you might have to shorten the names to get them to fit.
You must specify the parameters in the entry header in the order indicated in Table2 .
57
Chapter 4
Table 2 Entry Header Parameters
Parameter Definition
Rundown Queue The full pathname of the show’s rundown queue.
Event List Directory (Optional) The directory in which event lists are
stored. The monitor server combines information you put here with the device name. For instance, if you specify SHOWS.6PM here and you have a still store machine called “ss1,” the monitor server puts the still store’s event list in SHOWS.6PM.SS1. It is a good idea to use the same directory that holds the show’s rundown. If you do not use this field, put a dash here.
Composite List Queue (Optional) The queue in which the show’s
composite list is stored. It is a good idea to put the composite list in the same directory as the show’s rundown queue. If you do not use this field, put a dash here.
58
Group of Users (Optional) Put a security group in this field so that
only superusers and people assigned to that group can monitor the show.
Put a dash here if you do not want to restrict who can monitor the show.
Consider using different security groups for each show in a series of back-to-back shows to prevent one show’s producer from starting or stopping another show’s monitor server.
Configuring iNEWS Servers
Table 2 Entry Header Parameters
Parameter Definition
Quit Time The time you want the show’s monitor server to
turn itself off. You can enter this time as either a time of day or a duration.
Enter the time of day in 24-hour format. For instance, type 1915 to have the monitor server turn itself off at 7:15 PM.
Enter a duration by typing D before the value. For instance, enter a duration of one hour and 30 minutes as D130. (These values are not case- sensitive.)
3. List the devices used by the show. You must follow the entry header with a device list that identifies
production devices for which you want the show’s monitor server to process event requests. See Figure4.
n
The production device name—which is shown as sony@mosgwy in
Figure4 contains two parts. The first part that precedes the at (@) symbol
must match the <amcp> value in the mosconfig.xml file; in the example, the value is sony. The second part of the name must match the hostname of the computer with MOS Gateway’s IP address, as identified in the /etc/hosts file on the iNEWS Server. In the example, the hostname is mosgwy. A complete sample of the /etc/hosts file is provided in
AppendixB. See also step 7 on page 62 for more information on that file.
See Chapter5 for more information on the MOS configuration file, called mosconfig.xml.
59
Chapter 4
The type of
production device
The name of the production device
; RUNDOWN EVENT DIR COMP DIR GROUP (OFF TIME) ;DEVICE DEVNAME UPDATE MCT TEMPLATE (MSG DIR) ; SHOW.10P.RUNDOWN SHOW.10P SHOW.10P.COMPOSITE - 130 ss ss@bcssvr-1,bcssvr-2 UPDATE bcs-bcw cg cg@bcssvr-1,bcssvr-2 UPDATE bcs-bcw C:NAB:300 499 cart pdr@bcssvr-1,bcssvr-2 UPDATE bcs-bcw 3 mos sony@mosgwy UPDATE bcs-bcw ­; ; SHOW.6P.RUNDOWN SHOW.6P SHOW.6P.COMPOSITE - 2100 ss ss@bcssvr-1,bcssvr-2 UPDATE bcs-bcw cg cg@bcssvr-1,bcssvr-2 UPDATE bcs-bcw C:NAB:500 699 cart pdr@bcssvr-1,bcssvr-2 UPDATE bcs-bcw 3 mos sony@mosgwy UPDATE bcs-bcw ­; ; SHOW.SPECIALS.RUNDOWN SHOW.SPECIALS SHOW.SPECIALS.COMPOSITE - 130 ss ss2@bcssvr-1,bcssvr-2 UPDATE bcs-bcw cg cg2@bcssvr-1,bcssvr-2 UPDATE bcs-bcw C:NAB:300 499 cart pdr2@bcssvr-1,bcssvr-2 UPDATE bcs-bcw 3 mos sony@mosgwy UPDATE bcs-bcw -
Whether the monitor updates the device’s playlist
The ControlAir Worksta­tion form for that show, or the MCT form for that
Figure 4 Sample Device List
The address range you want to use (CGs and still stores
60
The last parameter of a device list line—Drive, Directory/User#, and so forth—is defined in Table3.
Table 3 Device List Line Parameters
Parameter Definition
Parameters for Character Generators:
Drive Select the disk drive you want the machine to use. If
you leave this field empty, the machine uses its default drive.
Directory/User# Select the directory you want the character generator
to use.
Configuring iNEWS Servers
Table 3 Device List Line Parameters (Continued)
Parameter Definition
Address/Stack Specify a range of addresses in this field. The
monitor server uses this range to store the forms it builds. To specify a range of addresses, enter the starting address, followed by a space and the ending address. For instance, to reserve addresses 1 through 199, type 1 199 in this field.
The range of numbers must be large enough to hold all character-generated graphics—also known as supers—that monitor server is likely to build for the show. Also, ensure you do not select a range that conflicts with the addresses the character generator uses to store its permanent supers or CG forms.
Parameters for Still Stores:
Drive Select the disk drive you want the machine to use. If
you leave this field empty, the machine uses its default drive.
Directory/User# If your still store machine has user numbers, use this
field to specify the user number you want to use for that show.
Address/Stack Specify the stack you want the still store to use in
this field.
Parameters for Video Machines:
Channel Assignment This parameter specifies whether the iNEWS system,
the ControlAir Workstation, the device manager, or the video (cart) device assigns channels. Use these codes: 0 to have channels assigned by device 1 to have channel assigned by iNEWS 2 to have channels assigned by device manager 3 to have channels assigned by ControlAir Workstation
61
Chapter 4
Table 3 Device List Line Parameters (Continued)
Parameter Definition
Parameters for MOS Devices:
None at Present Put a dash (-) in this field.
4. Save the map story.
5. Test monitor the show to ensure map story entries are functioning correctly.
The monitor server only examines the show’s map story entry when a user turns it on, so any changes to the show’s map story entry will not take effect until then. Changes made to the show’s map story entry after the show is monitored do not take effect until the next time the show is monitored.
For this reason, you should monitor the show after creating or modifying the show’s map story entry to test the changes you make. Monitoring the show allows the monitor server to check your work and ensures smooth operation when you produce the show.
62
Step 7: Adding IP Addresses for the MOS Gateway
To enable monitor server to communicate with MOS Gateway, the IP address of the MOS Gateway Server must be added to all iNEWS Servers’ /etc/hosts files.
Ideally, all MOS Gateway Servers and iNEWS Servers would have each other’s addresses and computer names. See “Adding IP Addresses on
MOS Gateway Server” on page 24 for more information. The following
procedures explain how to add the MOS Gateway IP addresses to the iNEWS Servers.
n
To maximize reliability and minimize latency, MOS Gateway should be installed on the Mirror Net of the iNEWS hosts, and static IP addresses should be used in /etc/hosts files. This will avoid dependence on DHCP or DNS servers.
Configuring iNEWS Servers
c
These steps require the use of ed, the UNIX line editor. For more information, see Chapter 10 of the
iNEWS Newsroom Computer System Operations Manual.
n
Always back up the /etc/hosts file before editing.
To add IP addresses to all iNEWS Servers’ /etc/hosts files:
1. Select all servers at the console. Instructions for how to do this is provided in Chapter 2 of the iNEWS Newsroom Computer System
Operations Manual .
2. Type su to log in as superuser and type the superuser password.
3. Type ed /etc/hosts This command launches the UNIX line editor, and positions the cursor
at the end of the /etc/hosts file, which contains a list of IP addresses, computer names, and comments, such as:
125.1.0.1 NRCS-A nrcs-a nrcs-a.yourdomain.com
125.1.0.2 NRCS-B nrcs-b nrcs-b.yourdomain.com
A sample /etc/hosts file is provided in AppendixB.
4. Add addresses to the file by doing the following: a. Type a and press Enter to append information to the file. b. Enter IP addresses, computer names, and comments, such as:
125.1.10.50 MOSGWY mosgwy #MOS Gateway machine
(backup MOS Gateway)
c. Type a period (.) to stop appending information to the file. d. (Optional) Type p to print the appended file and verify your
changes. e. Save the file by typing w. f. Quit ed by typing q. The following example shows the UNIX line editing commands used
in step 4 along with explanations (appearing in parentheses after the command):
a
125.1.10.50 MOSGWY mosgwy # MOS Gateway
125.1.10.60 MG1 mg1 # MOS Gateway Server1
125.1.10.70 MG2 mg2 # MOS Gateway Server2 . p
(begins append mode)
(ends append mode) (prints appended file)
63
Chapter 4
Do not use an uppercase W.
w 362 q
(saves changes by writing the file to the disk) (ed responds by displaying file size) (quits the edit session)
Step 8: Updating the iNEWS System Dictionaries (Optional)
Machine Control System (MCS) dictionary files in iNEWS can be modified to customize the appearance of status indicators from various devices. Dictionary files are located in the /site/dict directory.
For instance, an Omnibus device, connected to iNEWS, shows a video play-back status of “OnAir,” but the status field in the show rundown on iNEWS shows “Play” instead. If the system administrator wants the two status indicators to match, the MCS dictionary file in iNEWS must be modified. This will “translate” the iNEWS status wording so that it corresponds to what appears on the actual device.
Editing the /site/dict/mcs Dictionary File
In the following procedure, as an example, the term “Play” is changed to “OnAir” in the dictionary.
To edit the dictionary file:
This procedure uses the UNIX line editor. For more information, see Chapter 10 of the
iNEWS Newsroom Computer System Operations Manual.
64
1. Select all servers at the console, so changes you make are made to each server’s copy of the file. See “Selecting One or More Servers” in Chapter 2 of the iNEWS Newsroom Computer System Operations Manual for more information.
2. Open /site/dict/mcs for editing by typing:
ed/site/dict/mcs
3. Navigate to the line with the word you want changed, such as “PLAY” by typing:
/PLAY
The console will respond with a display similar to the following:
A_CAPLAY /PLAY
In the above example, PLAY appears twice in the line.
Configuring iNEWS Servers
n
n
Do not use an uppercase (W) in step 5. See Chapter 10 in the
iNEWS Newsroom Computer System Operations Manual for
more information.
When navigating in the file, remember the UNIX line editor is case­sensitive. So, typing either /Play or /play will not locate a line with “PLAY.”
4. Substitute the new word, such as “OnAir,” for the second occurrence of the existing word, PLAY, by typing:
s?/PLAY?/OnAir
The console will respond with a display similar to the following:
A_CAPLAY /OnAir
The question marks are necessary to prevent the editor from substituting “OnAir” in place of the first occurrence of the word, “PLAY.” For instance, typing s/PLAY/OnAir would result in the edited line appearing as /A_CAOnAir /PLAY.
5. When you finish making changes to the dictionary file, save your changes by typing:
w
6. When you press enter, a number will appear, such as 1279, indicating the file size. You can then exit the UNIX line editor by typing:
q
n
c
See Appendix C in the iNEWS Newsroom Computer System Operations Manual for more information about Dictionary files.
If you change your existing MCS dictionary files, you must apply those changes by running the makemctab command at the iNEWS console; however, any monitor servers that are running at the time the command is entered will not apply the changes. The monitor servers must be stopped prior to running the makemctab command.
A system administrator who knows the device numbers for monitor servers can choose to stop just those programs; however, it should be done only during off-peak hours, when the monitor servers are not used to monitor on-air shows.
65
Chapter 4
To update your iNEWS dictionaries:
The prompt endings change from a colon (:)—indicating a system operator login—to a pound sign (#)—indicating a superuser login.
1. Select all servers.
2. At the console, type su to become a superuser and type the superuser password. The prompts will appear as follows:
NRCS-A: su Password: NRCS-A#
For security reasons, the console does not display the password you type.
3. Idle the system, by doing the following: a. Type offline to take the system offline.
The
offline
command prevents users from logging in.
b. Type broadcast followed by the message warning users
already logged in that processes will be stopped. Include the time the system will be shut down. Here is an example:
NRCS-A: broadcast WARNING!Log out in 5 Min.
The
broadcast
command broadcasts a message to all users logged in
at present.
4. At the specified time, select one server and type the command list s to check who is still logged in and which server programs are still running.
66
A message similar to the following appears:
S264 2Af4 B T11 miller A T82 allen B T101 stevens A R801 stevens A
The
list s
command displays the device controlling the session, the user account used for the session, and the server servicing the session. In the example, the first line starts with an S, indicating a server (utility) program, such as a monitor server. The 3-digit number after the S is the device number.
Configuring iNEWS Servers
5. Select all servers.
6. Type logout all to log out all users. If a user is editing a story, this saves the file and logs out the user.
7. Type list s again to check for connect session users. The
logout all
currently in a connect session.
NRCS-A: list s T101 stevens A R801 stevens A
If any users are still logged in, notify them of the shutdown by some other means, such as by telephone.
console command does not log out users who are
c
If a user is in a connect session when you shut down the system, the user’s workstation stops, the session is disconnected, and any unsaved work is lost. Ensure any connect session users have logged out before you continue the shutdown procedure.
8. Type stop all to stop all server programs, including monitor servers.
9. Type maketab -i to build command and message tables and translate dictionaries for the iNEWS newsroom computer system.
10. Type makeccutab -i to build the command and error message table for the PCU dictionaries and then display how much space is unused in them.
11. Type makemctab -i to translate dictionaries used by monitor servers.
12. Type restart all to start all server programs, including monitor servers.
13. Type online to bring the iNEWS system back online, allowing users to log back in.
67
Chapter 4
Step 9: Configure iNEWS for MOS Replication (Optional)
MOS replication requires some configuration on the iNEWS Server that includes:
Adding a COM session to the iNEWS Server license. Contact Avid to purchase the COM session and have Customer Support add it to your iNEWS Server license.
Creating an iNEWS user account for MOS replication.
Creating a write group for MOS replication.
Creating device-specific queues to store replicated MOS items.
Ensuring the correct database traits and forms are assigned to the queues.
Ensuring that write permissions are assigned to the group containing only the MOS replication user account for all device-specific queues that will store replicated MOS items. All other iNEWS users should have read-only permission to those queues.
n
For more information about creating iNEWS user accounts, see Chapter 4 of the
iNEWS Newsroom Computer System Operations Manual.
68
Other configuration required for MOS replication, which must be done on the MOS Gateway Server, is explained in Chapter5. See “Using the
MosAdmin Application” on page 91 for more information.
To create an iNEWS user account for MOS replication:
1. Log in to an iNEWS Workstation, using an account capable of creating new users on the system.
2. Select Tools > Options > Users.
Configuring iNEWS Servers

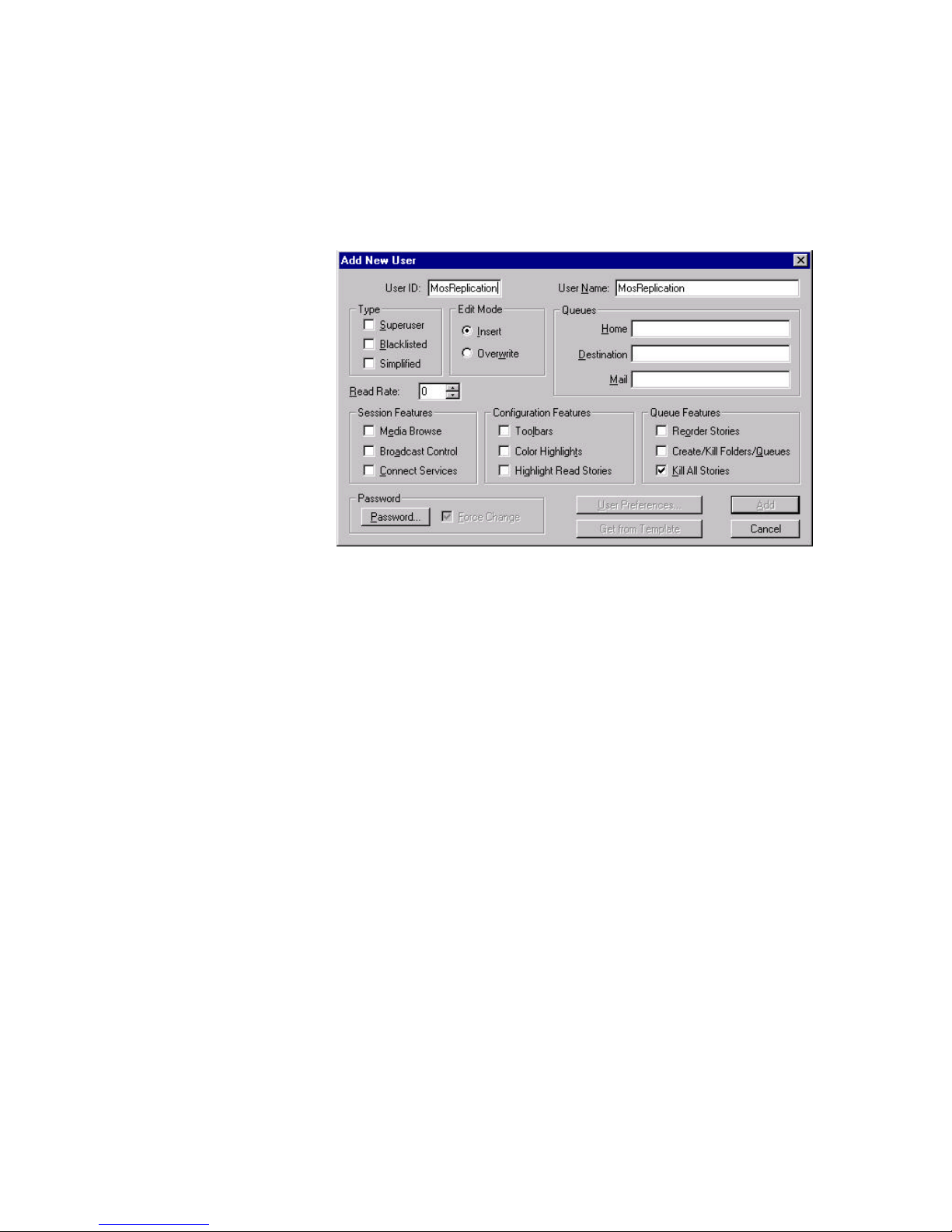

3. Click New User. The Add New User dialog box appears.
4. In the User ID field, enter the login name of the user account, such as MosReplication.
n
c
The User Name is optional and may be the same as the User ID. There is no need to assign Home, Destination, or Mail queues to a MOS replication user account. The User ID and password created in iNEWS must match exactly those values entered in the <ncs> group of the MOS configuration file. See “The <ncs> Group” on page 83 for more information.
5. Click Password to set the password for logging in.
Because the Force Change option for passwords is selected by default for all new users, and MOS replication is an automated process, that option must be removed after creating the account. See step 8.
6. Ensure Kill All Stories in the Queue Features section is checked.
7. Click Add.
8. Reopen the user account’s preferences and remove the Force Change password option by doing the following:
a. Select Tools > Options > Users. b. Type in the User ID and click Search.
69
Chapter 4
c. When the results appear, double-click on the name to open and
modify the preferences. d. Uncheck the Force Change check box. e. Click OK.
To create a write group for MOS replication:
For more information on creating groups in iNEWS, see Chapter 6 of the iNEWS
Newsroom Computer System Operations Manual.
n
1. Choose a name for the group, such as mosreplication.
2. Ensure the chosen name is not already used by the system by using a variation of the gtraits command at the iNEWS console.
For instance, type:
NRCS-A# gtraits list mosreplication mosreplication is not a user or group name
In the example, the system response indicates that mosreplication is not being used; you should receive a similar response before proceeding.
3. Use the gtraits add command to enter the new group name into the iNEWS system.
For more information about using the iNEWS console, see Chapter 2 of the iNEWS Newsroom Computer System Operations Manual. For more information about the iNEWS Workstation and the panels of the iNEWS Workspace, see the iNEWS Newsroom Computer System Training Manual.
4. Add only the MOS replication user account to the group, by doing the following:
a. At an iNEWS Workstation, log in as a system administrator—that
is, use an account capable of accessing the System directory. b. Navigate to the System folder in the Directory panel. c. Open the Groups queue. d. Create a new story by selecting File > New Story or using the
70
Insert key.
In the Queue panel, a blank row appears in the group list, and a
blank story appears in the Story panel of the iNEWS Workspace.
Configuring iNEWS Servers
e. Type the new group name, such as mosreplication, in the
Title (Slug) field of the Queue panel or in the corresponding field
in the Story Form panel. f. Press Enter. g. Click inside the Story Text panel and type the group name and
membership list in the following format:
group mosreplication
mosreplication
h. Select File > Save Story. The above procedure creates a story, stored in SYSTEM.GROUPS, that
bears the group name and contains the membership list for that group. The iNEWS system will refer to the story anytime its group is applied to security measures or other system features.
To create device-specific queues for MOS replication:
For more information on creating directories and queues in iNEWS, see Chapter 5 of the
iNEWS Newsroom Computer System Operations Manual.
1. Log in as a system administrator—using a superuser account—unless you have write-access to the parent directory and queues. This ensures that you have full access to the iNEWS database.
2. In the Directory panel, navigate to the folder in which you want to create the device-specific queues. If it does not exist, create it, using the Tools > New Folder menu option.
3. Do one of the following:
t Select Tools > New Queue. t Right-click on the folder in the Directory panel, and select New
Queue from the pop-up menu.
71
Chapter 4
A new queue appears under the selected folder and at the end of any existing queues in that folder. The title, New-Queue, is highlighted so you can rename it.
4. Type the name of the device-specific queue, such as VIDEO.
5. Press enter to save the new queue name.
n
For more information about configuring database traits of directories and queues in iNEWS, see Chapter 5 of the iNEWS
Newsroom Computer System Operations Manual.
72
The newly created queue will inherit the database traits of its parent directory initially. You can view the new queue’s properties by right­clicking on it and selecting Properties from the pop-up menu. All queues created in iNEWS to store replicated MOS items must have the Batch Allowed database trait and appropriate queue and story forms. Ensure these settings are correct by configuring the queue’s properties, as explained in the following procedure. If all device-specific queues for MOS replication are located in the same folder, the properties may be set at the directory level.
To configure properties of MOS replication device-specific queues:
1. Log in as a system administrator—using a superuser account—unless you have write-access to the parent directory or queue. This ensures that you have full access to the iNEWS database.
2. In the Directory panel, navigate to the queue and right-click on it.
3. Select Properties from the pop-up menu.
Configuring iNEWS Servers
n
To configure database traits for all queues in a directory, right-click on the parent folder instead of an individual queue and then select Properties from the pop-up menu. Make any necessary configuration changes and ensure the check box labeled Apply changes to all subdirectories and queues is selected before clicking OK.
The dialog box that appears will vary depending on whether you right­clicked on a directory or a queue.
4. On the Forms tab of the Directory/Queue Properties dialog box, ensure the correct Queue and Story forms are selected. For MOS replication, this is usually a form called MOSREPLICATION.
n
The MOSREPLICATION form is a queue located in the SYSTEM.FORMS.M directory of iNEWS. It contains three stories that define the format by which MOS items are replicated—to the story form, to the body of the story, or to both. If the MOSREPLICATION form and its stories do not exist in the iNEWS database, the iNEWS system administrator must create them, using information provided in
AppendixB. See “MOSREPLICATION Form” on page 127 for more information.
73
Chapter 4

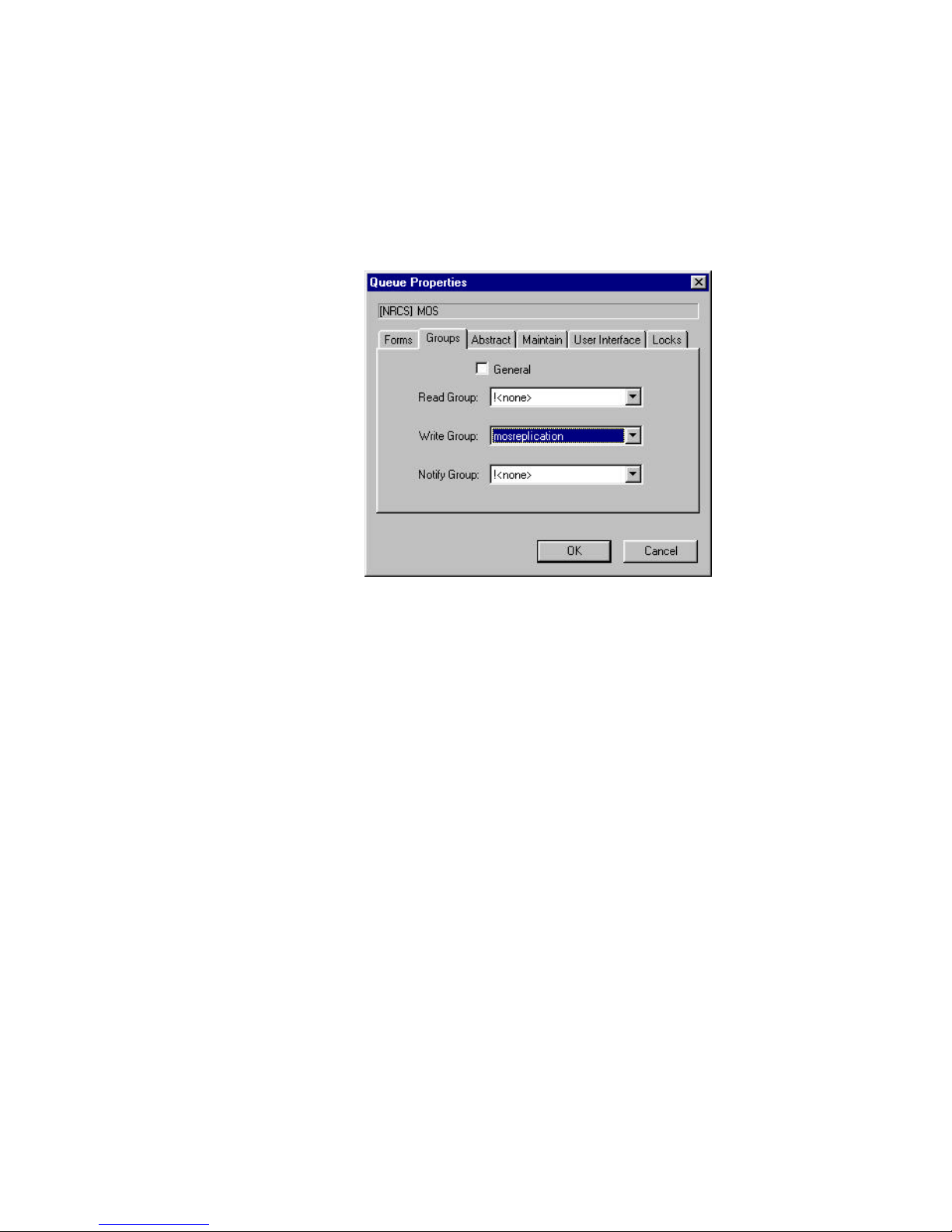

5. On the Groups tab, ensure the MOS replication group is selected as the Write Group.
n
If the appropriate group does not appear as an option in the list, it must be created in SYSTEM.GROUPS; the procedure for creating the group is on
page 70 .
It is not necessary to assign any Read or Notify groups; leave them set to !<none>.
74
Configuring iNEWS Servers
6. On the User Interface tab, ensure that Refresh and Batch Allowed are selected.
7. Click OK to save changes and apply settings.
n
Selecting and/or unselecting check boxes in the Directory/Queue Properties dialog box does not apply changes immediately. Only step 7 does that.
75
Chapter 4
76
Chapter 5
Configuring MOS Gateway
MOS Gateway must be configured to communicate with various MOS devices. This requires changes to be made in both the iNEWS Server and MOS Gateway.
This chapter contains the following major sections:
MOS Gateway Configuration File
- Editing the Configuration File
- Configuration File Components Explained
Adding MOS Devices to the SYSTEM.MOS-MAP Story
Moving the Configuration File
Chapter 5
MOS Gateway Configuration File
MOS Gateway must be configured with information about each MOS device that will connect to it. This is done by editing the MOS Gateway configuration file, which is installed on the MOS Gateway Server.
During installation, the configuration file, which is named
mosconfig.xml, is placed, by default, in the following location:
C:\Program Files\Avid\MOSGateway
n
c
The actual location may vary since the name of the folder—MOS Gateway—and its location in the iNEWS directory can be changed during the installation.
Before editing the configuration file, it is highly recommended that you make a backup copy.
Editing the Configuration File
The MOS Gateway configuration file is saved as a Unicode file, not a standard ASCII text file. You must use an editor that can process Unicode files to edit it. The Windows Notepad executable program (notepad.exe ) will edit Unicode files, so its use is recommended for editing the MOS Gateway configuration file.
n
While MOS Gateway is running, the configuration file is locked by the MosConfigService. Before editing the configuration file, ensure that MOS Gateway is stopped. For more information on the MosConfigService and procedures on stopping and starting MOS Gateway, see “Stopping and
Starting MOS Gateway” on page79.
To edit the configuration file:
1. Open Notepad.
n
78
The Notepad program may typically be launched using the Start button on the Windows Task bar—for instance, select Start > Programs > Accessories > Notepad. The Notepad window opens.
2. Select File > Open.
3. Navigate to the configuration file at:
C:\Program Files\Avid\MOSGateway
4. Make the changes you want to the file. For more information on what can or should be modified in the file, see “Configuration File
Components Explained” on page80.
5. When you are done, select File > Save.
Stopping and Starting MOS Gateway
After editing the MOS Gateway configuration file, you must restart all MOS Gateway services that run on the MOS Gateway Server. Those services—in the order they should be started—are:
MOS Gateway Configuration File
See “MOS Gateway Components” on page100 for more information.
n
Graphics for the following procedure show views similar to those of Windows 2000 and Windows XP operating systems. Steps may vary slightly, depending on the OS.
MOSConfigService
MOS Gateway Logger
MOS Gateway License Server
MOSReplicationService
MOSRouterService
MOSAdminService
When stopping services manually, the order is reversed. For instance, MOSAdminService must be stopped before MOSRouterService, and so forth, with the last service being MOSConfigService.
To stop and restart services:
1. At the MOS Gateway Server, click the Start button on the Windows Task bar.
2. Select Settings > Control Panel. The Control Panel window opens.
3. Open Adminstrative Tools, then Services.
79
Chapter 5

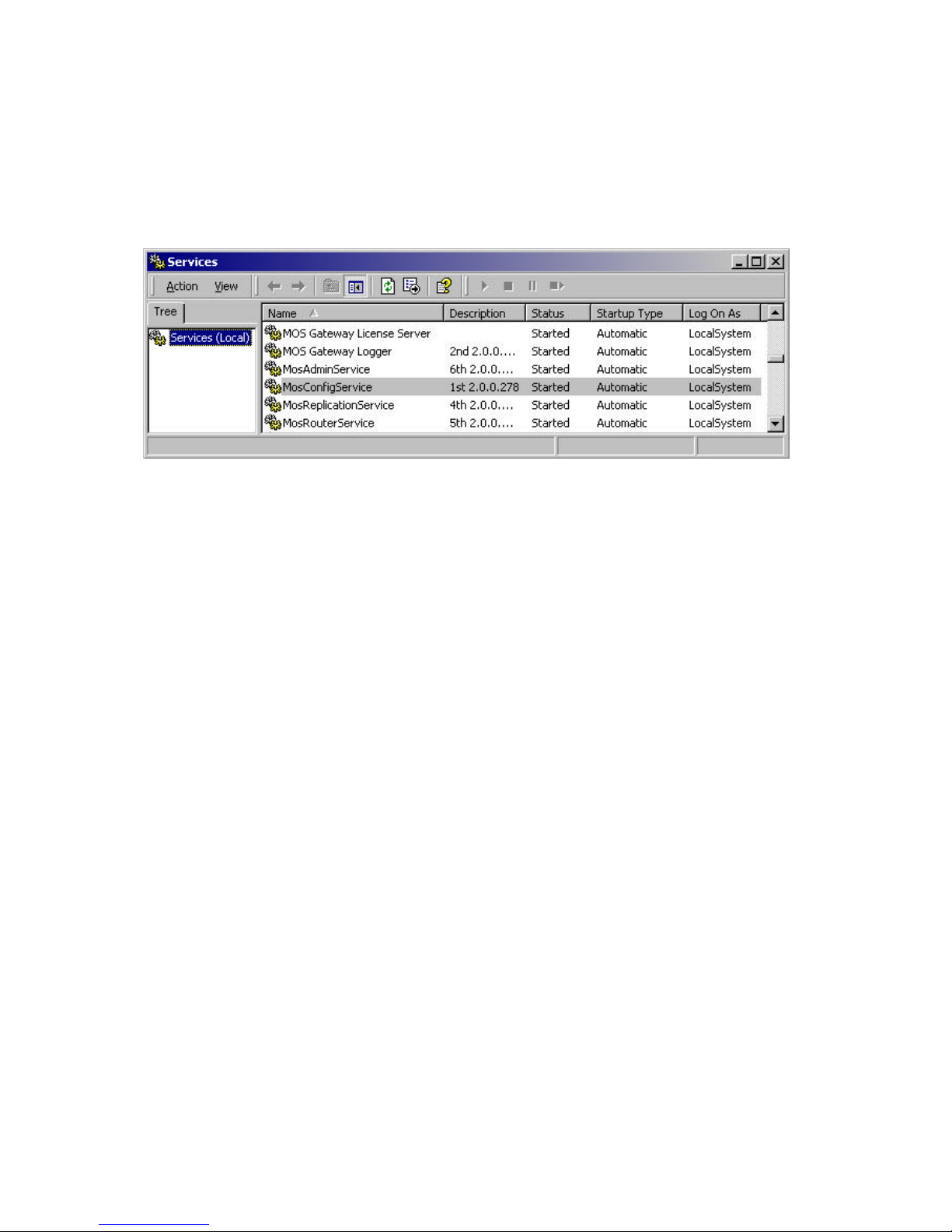

The Services dialog box will appear.
4. Select the MOSConfigService.
5. Select Action > Stop. This will stop all MOS Gateway services in the proper order.
6. Restart the services by selecting the MOSAdminService, then select Action > Start.
This will start all MOS Gateway services in the proper order.
7. Click Close.
Configuration File Components Explained
In this section, lines of the MOS Gateway configuration file are shown in groups; each group of lines is a section of the file that can or should be modified to configure the MOS Gateway to work with MOS devices at your site. The section pertaining to replication with a newsroom computer system is located between lines with <ncs> and </ncs>. The section pertaining to devices is located between lines with <listDevices> and </listDevices>. Each group describing a particular MOS device is located between lines with <mosDevice> and </mosDevice>. The information that should be modified appears in bold. An explanation of how to modify the information follows each group.
n
80
If only one MOS device is used, all other <mosDevice> groups should be removed. This helps reduce the MOS Gateway’s workload.
The <logging> Group
MOS Gateway Configuration File
<logging>
<directory>DIRECTORY_GOES_HERE</directory> <maxFileCount>COUNT_GOES_HERE </maxFileCount> <maxFileBytes>SIZE_GOES_HERE </maxFileCount> <winDebugTrace>WINDEBUGTRACE_YESNO</winDebugTrace> <socket>SOCKET_ONOFF</socket>
</logging>
The DIRECTORY_GOES_HERE should be changed to the directory in which the MOS Gateway will save its log files.
The COUNT_GOES_HERE should be changed to the maximum number of log files that the MOS Gateway will create before recycling them.
The SIZE_GOES_HERE should be changed to the maximum size each log file can be, such as 1000000 (which equals about 1MB).
n
Socket logging can affect performance, so it should not be left on all the time.
Specify values that will not overflow the available storage space. For instance, if you set the maximum file count to 100 and the maximum file size to 1000000 bytes, ensure that you have 100 MB of free space in the logging directory.
The WINDEBUGTRACE_YESNO should be changed to YES if logging should be sent to the global Win32 debug subsystem. This is useful if the system has a Win32 debugger that can display statements in real time.
The SOCKET_ONOFF should be changed to ON if socket level log files are required. Socket logging logs all incoming socket messages in network byte order. The logs are used when a device is sending data that the MOS Gateway cannot handle. Each connected device and port has its own socket log, created in the logging directory, as indicated by the MOS configuration file.
The file name of the log is created using the mosID of the device to which MOS Gateway is connected and a string that represents the connection type, according to the following format:
[mosID][space][LM|UR][space][NCSInit|MOSInit].bin
LM means "Media Object Metadata port"
81
Chapter 5
For example:
VideoDevice LM MOSInit.bin CGMos UR NCSInit.bin SSDevice2 LM NCSInit.bin
The <tcpPorts> Group
<tcpPorts>
</logging>
The MOS_OUT_UPPER_PORT_GOES_HERE should be changed to the port on which the MOS Gateway will send running order MOS commands. The recommended value is 10541.
UR means "Running Order port"
NCSInit means the MOS Gateway made the connection
MOSInit means the MOS Device made the connection
<upper>MOS_OUT_UPPER_PORT_GOES_HERE </upper> <upper>MOS_OUT_LOWER_PORT_GOES_HERE </upper> <lower>MOS_IN_UPPER_PORT_GOES_HERE </lower> <lower>MOS_IN_LOWER_PORT_GOES_HERE </lower>
82
n
The MOS_OUT_LOWER_PORT_GOES_HERE should be changed to the port on which the MOS Gateway will send media object metadata MOS commands. The recommended value is 10540.
The MOS_IN_UPPER_PORT_GOES_HERE should be changed to the port on which the MOS Gateway will receive running order MOS commands. The recommended value is 10541.
The MOS_IN_LOWER_PORT_GOES_HERE should be changed to the port on which the MOS Gateway will receive media object metadata MOS commands. The recommended value is 10540.
Running order connections are referred to as upper ports in MOS protocol. Media object metadata connections are referred to as lower ports in MOS protocol. Port settings apply to MOS devices intended for use with MOS Gateway. All MOS devices must use these same ports to connect to MOS Gateway.
The <ncs> Group
MOS Gateway Configuration File
<ncs>
<ncsID>NCS_ID_GOES_HERE</ncsID> <host>HOST_GOES_HERE</host> <AllowReplication>ALLOW_YESNO</AllowReplication> <ReplicationUsername>USER_GOES_HERE</ReplicationUsername> <ReplicationPassword>PUT_PASSWORD_HERE</ReplicationPassword>
</ncs>
The NCS_ID_GOES_HERE should be changed to the NCS ID of the iNEWS Server to which devices will be replicating MOS objects—typically, this ID is identical to the iNEWS Server’s host name.
The HOST_GOES_HERE should be changed to the network host name of the iNEWS Server to which devices will be replicating MOS objects. Verify that the server with this host name can be pinged from the MOS Gateway Server.
The ALLOW_YESNO should be changed to YES if devices are to replicate data to queues on the newsroom computer system. If this line does not appear in the configuration file, the default is YES. If set to NO replication is prevented and MOS objects are dropped at the MOS Gateway.
n
The USER_GOES_HERE should be changed to the User ID that the replication service will use to replicate MOS objects to the iNEWS Server. This user must exist on the newsroom computer system and have write permissions to the queues to which the devices will replicate their data.
The PUT_PASSWORD_HERE should be changed to password set for the user identified on the <REPLICATIONUSERNAME> line. It must also match the one set for that user on the newsroom computer system.
For more information on configuring the iNEWS newsroom computer system to support MOS replication, see “Configure iNEWS for MOS
Replication (Optional)” on page68 .
83
Chapter 5
The <names> Group
<names>
<mos>MOS_ID_GOES_HERE</mos> <amcp>iNEWS_DEVICE_GOES_HERE</amcp> <network>NETWORK_NAME_GOES_HERE</network>
</names>
The MOS_ID_GOES_HERE should be changed to the MOS ID reported by the MOS device. This ID identifies the MOS device to the MOS Gateway and is used in MOS items placed in an iNEWS rundown to indicate which MOS device receives the items.
n
Refer to the manufacturer’s documentation provided with the device for more configuration details, such as the MOS ID.
The iNEWS_DEVICE_GOES_HERE should be changed to the iNEWS device name for the MOS device. It is the same name that appears in the SYSTEM.MOS-MAP story located in the iNEWS database. See “Edit the
SYSTEM.MOS-MAP Story” on page51 and “Adding MOS Devices to the SYSTEM.MOS-MAP Story” on page95 for more information.
The NETWORK_NAME_GOES_HERE should be changed to the network (host) name of the MOS device. Contact your network administrator for this information.
The <roSlugMaps> Group
The <iNewsRunning OrderName> tags should be on the same line in the actual file, not wrapped as appears here.
<roSlugMaps>
<roSlugMap>
</roSlugMap>
</roSlugMaps>
<iNewsRunningOrderName>INEWS_RO_NAME</iNewsRunni ngOrderName>
<MOSroSlug>MOS_RO_NAME</MOSroSlug>
The group allows the name of a running order sent to a particular MOS device to be different than the running order’s name in the iNEWS Server. This is useful in cases where the MOS device provides a small space for the running order name, such as the text on a button. If the entire group is missing or a particular name for a rundown is missing, MOS Gateway will
84
send to the MOS device a default running order name, consisting of the iNEWS Server name followed by a forward slash (/) and the iNEWS rundown’s full queue name. For instance, if the server’s name is NRCS and the rundown queue is SHOW.11PM.RUNDOWN, then MOS Gateway will send the running order name as: NRCS/SHOW.11PM.RUNDOWN.
The INEWS_RO_NAME string should be changed to the iNEWS running order name.
The MOS_RO_NAME string should be changed to a MOS device’s running order name.
The <handlesEmptyStories> Group
<handlesEmptyStories>YESNO</handlesEmptyStories>
The YESNO should be changed to YES if the MOS device manages stories with no items the same way it handles stories that do have items. Some MOS vendors do not handle stories with no items as the MOS Protocol specifies; for these devices, YESNO should be set to NO.
MOS Gateway Configuration File
For instance, Table4 gives the standard settings for two MOS devices.
Table 4 handlesEmptyStories
MOS Device handlesEmptyStories Setting
®
Sony
MAV Server NO
OmniBus
Columbus YES
If the <handlesEmptyStory> parameter is absent from the file, the system defaults to YES.
The <handlesRoStoryMoveMultiple> Group
<handlesRoStoryMoveMultiple>YESNO</handlesRoStoryMoveMultiple>
The YESNO should be changed to YES if the MOS device supports the roStoryMoveMultiple MOS command; when set to YES, MOS Gateway will use the roStoryMoveMultiple command to move stories in the running order. The default is YES.
85
Chapter 5
The <handlesRoItemLevelCommands> Group
<handlesRoItemLevelCommands>YESNO</handlesRoItemLevelCommands>
The YESNO should be changed to YES if the MOS device supports the roItemInsert , roItemDelete, and roItemReplace MOS commands; when set to YES, MOS Gateway will use those commands to move items in stories. The default is YES.
The <prependPageNumber> Group
<prependPageNumber>YESNO</prependPageNumber>
The YESNO should be changed to YES if the iNEWS story’s page number is prepended to the story title—commonly known as the slug.
The <prependSeparator> Group
<prependSeparator>-</prependSeparator>
The hyphen (-) should be changed to the chosen character used to separate the story title and the page number. The default is a hyphen.
The <prependStringForEmptyPageNumber> Group
<prependStringForEmptyPageNumber>XXX</prependStringForEmpty PageNumber>
The XXX should be changed to string of characters used in place of an empty page number.
The <statusTranslations> Group
<statusTranslations>
<statusUnknown>UNKNOWN_STR</statusUnknown> <statusUnavailable>UNAVL_STR </statusUnavailable> <statusAvailable>AVAIL_STR</statusAvailable> <statusIncomplete>INCOMP_STR</statusIncomplete> <statusCueing>CUEING_STR</statusCueing> <statusCued>CUED_STR</statusCued> <statusPlayRequested>P_STR</statusPlayRequested> <statusPlaying>PLAYING_STR</statusPlaying> <statusPaused>PAUSED_STR</statusPaused> <statusStopped>STOP_STR</statusStopped>
</statusTranslations>
86
MOS Gateway Configuration File
The iNEWS Server expects one of ten event status codes to be returned as the status of a MOS item. Since the MOS Protocol specifies a string as the status of a MOS item in the roItemStat MOS command, MOS Gateway must map these strings to the iNEWS event status codes. Furthermore, different MOS devices use different strings to mean the same concept. The <statusTranslations> group specifies which string to map to each event status code.
n
There can be multiple strings that map to the same event status code, in which case, the relevant line of the <statusTranslations> group is duplicated and each string recorded. For instance: <statusCued>READY</statusCued> and
<statusCued>ON LINE</statusCued> may both appear in the <statusTranslations> group for a particular MOS device. Status
codes vary with each MOS device, so refer to the manufacturer’s documentation provided with the device for more configuration details.
The UNKNOWN_STR should be changed to the string the MOS device reports if it is unable to determine the presence or absence of the MOS item media.
The UNAVL_STR should be changed to the string the MOS device reports if the MOS item media is absent.
The AVAIL_STR should be changed to the string the MOS device reports if the MOS item media is present and ready to play.
The INCOMP_STR should be changed to the string the MOS device reports if the MOS item media is partially present. An example is media is being transferred from another machine and the transfer is not complete.
The CUEING_STR should be changed to the string the MOS device reports when a request to cue a MOS item has been received.
The CUED_STR should be changed to the string the MOS device reports when the MOS item media has been cued.
The P_STR should be changed to the string the MOS device reports when a request to play a MOS item has been received.
87
Chapter 5
The PLAYING_STR should be changed to the string the MOS device reports when the MOS item media is playing or on-air.
The PAUSED_STR should be changed to the string the MOS device reports when the MOS item media is paused.
The STOP_STR should be changed to the string the MOS device reports when the play of the MOS item media has been halted.
The <mosObjReplication> Group
<mosObjReplication>
<trigger>TRIGGER_TYPE</trigger> <replicationTime>REP_TIME</replicationTime> <clearQueue>TRUE_FALSE</clearQueue> <path>PATH_TO_QUEUE</path> <mosItemBrowserProgID>xxx.xxx.xxx</mosItemBrowserProgID> <mosItemEditorProgID>yyy.yyy.yyy</mosItemEditorProgID> <mosItemPlayerProgID>zzz.zzz.zzz</mosItemPlayerProgID>
</mosObjReplication>
88
n
The first four settings in the
<mosObjReplication>
group are configured by the MosAdmin application, so there is no need to manually edit them in the MOS Gateway configuration file. See “Using the MosAdmin Application”
on page91 for more information. The procedure for configuring
replication is provided on page 93.
The MOS item settings are optional since not all MOS devices have them, but if used the ProgID values must be manually entered in the MOS Gateway configuration file. If they are not defined in the configuration file, then users will be unable to right-click on a production cue or story form to open the ActiveX controls. For examples of the most commonly used ProgIDs, see Table5 on page89.
If the settings are manually edited, then MOS Gateway services must be stopped and restarted. See “Stopping and Starting MOS Gateway” on
page79 for more information.
The TRIGGER_TYPE may be set to MANUAL or SCHEDULED.
MOS Gateway Configuration File
The REP_TIME should be set to the time of day when MOS replication should occur. This line is only necessary if the trigger is set to scheduled replication.
The TRUE_FALSE value should be set to TRUE if all stories are to be cleared from the queue in the iNEWS database before replication is performed. If set to FALSE stories will not be cleared from the database before MOS replication occurs.
The PATH_TO_QUEUE should identify the device’s queue to which Media Object Metadata (MOM) is replicated. Each device must have a unique queue; devices cannot share the same queue.
The XXX.XXX.XXX should be replaced with the ProgID of the ActiveX Browser.
The YYY.YYY.YYY should be replaced with the ProgID of the ActiveX Editor.
The ZZZ.ZZZ.ZZZ should be replaced with the ProgID of the ActiveX Player.
Table5 shows the most common values for MOS item ProgIDs:
Table 5 ProgIDs
AirSPACE
Browser Avid.AirSPACEBrowser.1
Editor Avid.AirSPACEEditor.1
Aprisa
Browser ASTILLSTOREMOSACTIVEX.SSItemBrwsrCtl.1
Editor ASTILLSTOREMOSACTIVEX.SSItemEditorCtl.1
Player ASTILLSTOREMOSACTIVEX.SSItemPlayerCtl.1
89
Chapter 5
Table 5 ProgIDs
GVG News Q Pro
Browser GVG.XMOSCtrl.1
Omnibus
Browser OmnibusODCLauncher.Launcher
Editor OmniBusItemEdit.Edit
Thunder
Editor ThunderX.ThunderXCtrl.1
VizRT
Browser VCPAxFiller.VCPTemplateFiller
Editor VCPAxFiller.VCPTemplateFiller
90
MOS Gateway Configuration File
Using the MosAdmin Application
The MosAdmin application provides a graphical user interface (GUI) that can be run locally or remotely to configure replication options for all devices connected to the MOS Gateway.
n
Some configuration for replication must be done on iNEWS Servers. That is explained in “Configure iNEWS for MOS Replication (Optional)” on
page68 in Chapter4.
To launch the MosAdmin application:
1. Double-click the MosAdmin’s shortcut icon—shown at left—located on the desktop.
The MosAdmin window appears, with two tabbed options:
• Status – See Figure5. The Status tab is a read-only tab showing incoming MOS objects,
being replicated from the MOS device to the iNEWS Server. This information is also logged into text files by the MOS Gateway Logger.
91
Chapter 5

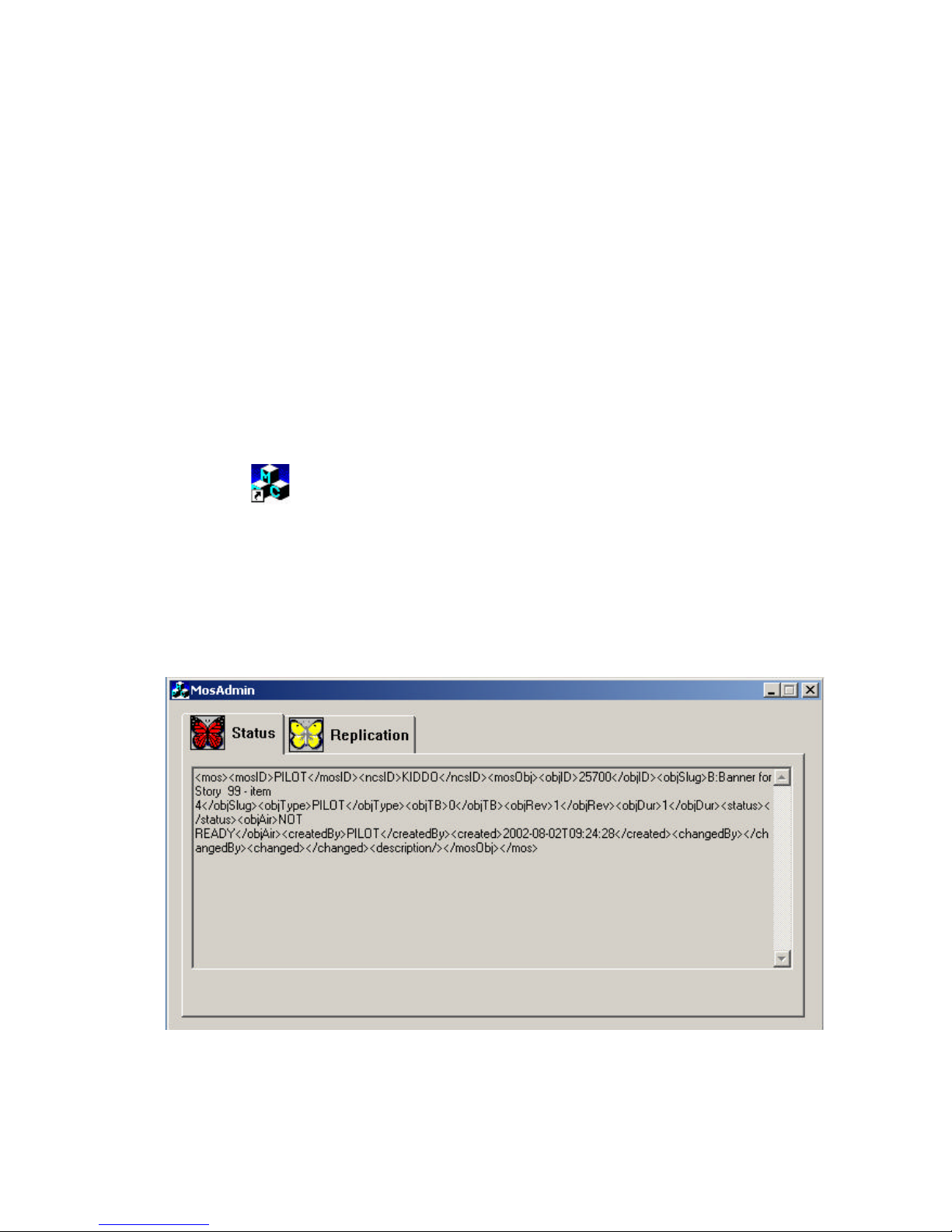

Figure 5 MosAdmin Status Tab
Replication See Figure6” on page93. The Replication tab shows a list of devices—obtained from the
mosconfig.xml file—and the current replication configuration settings for each device.
Before the Replication tab may be viewed, a dialog box appears, prompting the user for a password.

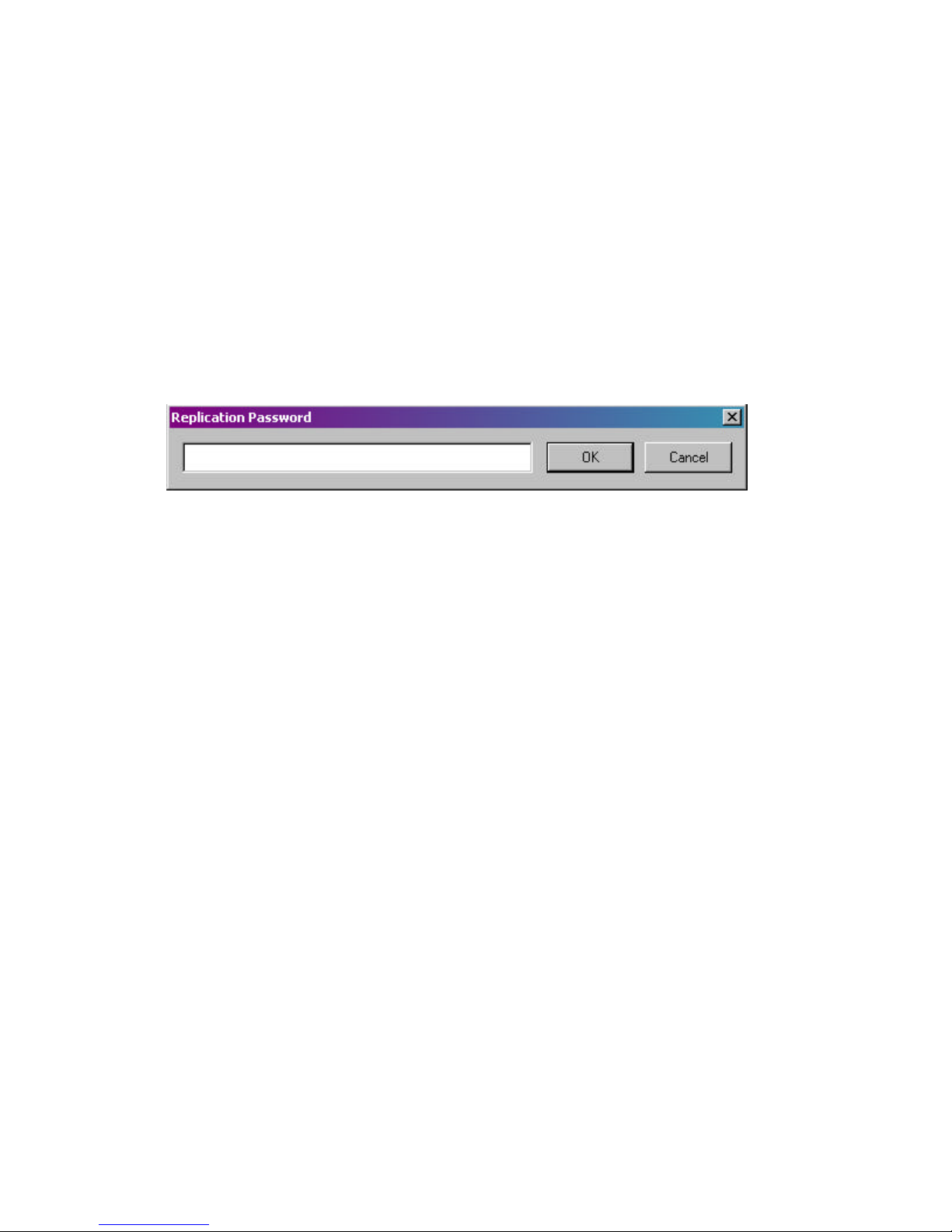

Type in the password, which should be the same one defined in the MOS configuration file and used by the MOSReplication user account in iNEWS.
n
The password is required to help prevent unauthorized use of the MosAdmin application.
On the Replication tab, the trigger can be set to either schedule replication at a set time every day or to perform replication manually by clicking a button. Changing this setting alters what appears in the Trigger column of the MosAdmin application and in between the <trigger> and </trigger> tags in the configuration file.
A check box can be set to clear all stories from the queue in the iNEWS database before performing replication. This check box determines whether TRUE or FALSE appears in the Clear column of the MosAdmin application, and in between the <clearQueue> and </clearQueue> tags in the configuration file.
92
MOS Gateway Configuration File
A Path text field specifies the queue in the iNEWS database to which media object metadata will be replicated. The queue’s pathname appears in the Directory column of the MosAdmin application and in between the <path> and </path> tags in the configuration file.

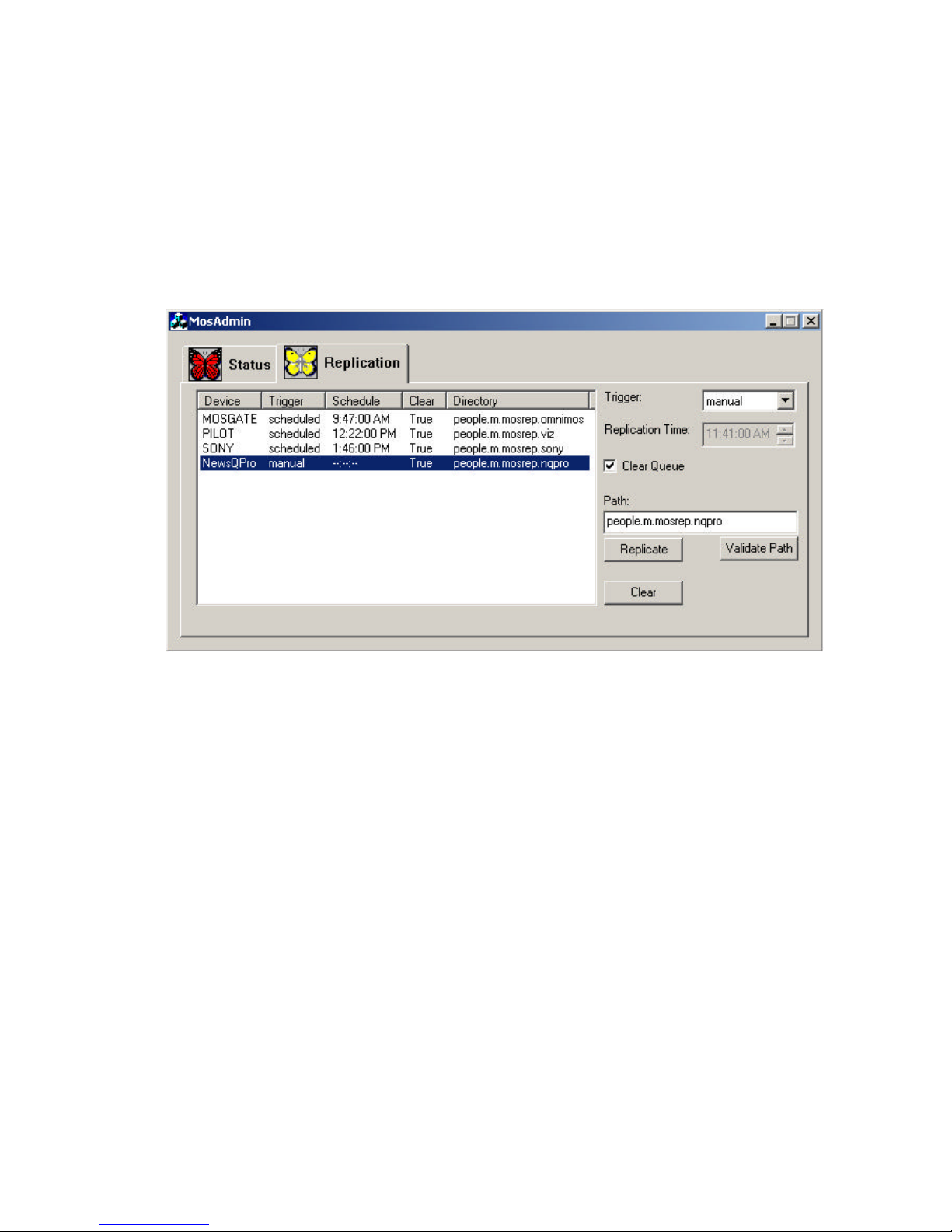

Figure 6 MosAdmin Replication Tab
To configure replication for a device:
1. Select the device from the list on the Replication tab in the MosAdmin window.
2. Select the trigger type—either manual or scheduled. If scheduled is selected, continue to step 3; otherwise, skip to step 4.
3. Set a replication time—this is the time replication is set to occur each day, if the scheduled trigger type is selected.
4. Select the Clear Queue check box to clear the iNEWS queue before replication. Checking the box is recommended.
5. Type the path to the device’s queue—created on the newsroom computer system—where the replicated MOS objects will be placed.
93
Chapter 5
n
The path must be unique to that device because each device must have its own queue for storing replicated MOS objects. Devices cannot share the same replication queue.
The <roChannels> Group
<roChannels>
<roChannel>
</roChannel> <roChannel>
</roChannel> <roChannel>
</roChannel>
</roChannels>
A MOS device may have one or more channels. Users can specify a channel to use for producing the show when they load a show to a MOS device.
<iNewsChannel>INEWS_CHAN1</iNewsChannel> <MosDevChannel>MOS_CHAN1</MosDevChannel>
<iNewsChannel>INEWS_CHAN2</iNewsChannel> <MosDevChannel>MOS_CHAN2</MosDevChannel>
<iNewsChannel>INEWS_CHAN3</iNewsChannel> <MosDevChannel>MOS_CHAN3</MosDevChannel>
94
Channel names within the iNEWS Workstation are restricted to seven characters or less; however, this limit does not apply to all MOS devices. So, it is possible that channel names will vary accordingly. For this reason, there is a group of lines in the MOS Gateway configuration file that maps the iNEWS channel name to the channel name accepted by the MOS device. The group consists of one or more <roChannel> lines, each containing values on an <iNewsChannel> line and a <MOSDevChannel> line.
The INEWS_CHAN string should be changed to a channel name no more than seven characters long. This string is also inserted in the SYSTEM.MOS-MAP table; for more information, see “Adding MOS
Devices to the SYSTEM.MOS-MAP Story” on page95 .
Adding MOS Devices to the SYSTEM.MOS-MAP Story
The MOS_CHAN string should be changed to a channel name for the MOS device.
Adding MOS Devices to the SYSTEM.MOS-MAP Story
The iNEWS system must associate the MOS ID of a MOS device with an iNEWS device name. This is because machine control commands in a story must be associated with an iNEWS device name, so the monitor server can load them to the correct device. The iNEWS Workstation uses the association to create machine control commands from MOS items that it receives from the ActiveX control associated with the MOS device.
The iNEWS system administrator creates the association by creating a table in the SYSTEM.MOS-MAP story, located in the System directory of the iNEWS database. The table has the following form:
TABLE-START DeviceTable MOSGATE.omnibus omnimos chan1 chan2 Ncsgateway.sony sonymos region1 region2 region3 TABLE-END
The table contains at least two columns of names separated by white space. The first column is the MOS ID of a MOS device; this must match the name that appears for that device in the MOS Gateway configuration file between the <mos> and </mos> tags.
The second column is an iNEWS device name, which can have no more than eight characters; this must match the name that appears for that device in the MOS Gateway configuration file between the <amcp> and </amcp> tags. See “The <names> Group” on page84 for more
information.
The table need not contain more than two columns if users are not allowed to specify the channel on which the MOS device broadcasts the show. However, if users are allowed to specify the channel, all available channels for the MOS device must be listed in additional columns on the line for that MOS device. If channels are specified, then when a user loads the show, the workstation will display the options listed in columns 3, 4, 5, and so forth. The user selects one on which to broadcast the show.
95
Chapter 5
Moving the Configuration File
MOS Gateway is configured by filling in values in the MOS Gateway configuration file. A default copy of this file is installed in the same directory as MOS Gateway executable files.
n
A sample copy of the MOS Gateway configuration file appears in
AppendixB. See “MOS Gateway Configuration File” on page78 for more information.
MOS Gateway looks for an environment variable in the Registry of the MOS Gateway Server to discover where the file is located.
To change the location of the MOS Gateway configuration file:
1. Click the Start button on the Windows Task bar.
2. Select the Run option.
3. Type regedit in the dialog box that appears. The Registry Editor window will appear.
96
Moving the Configuration File

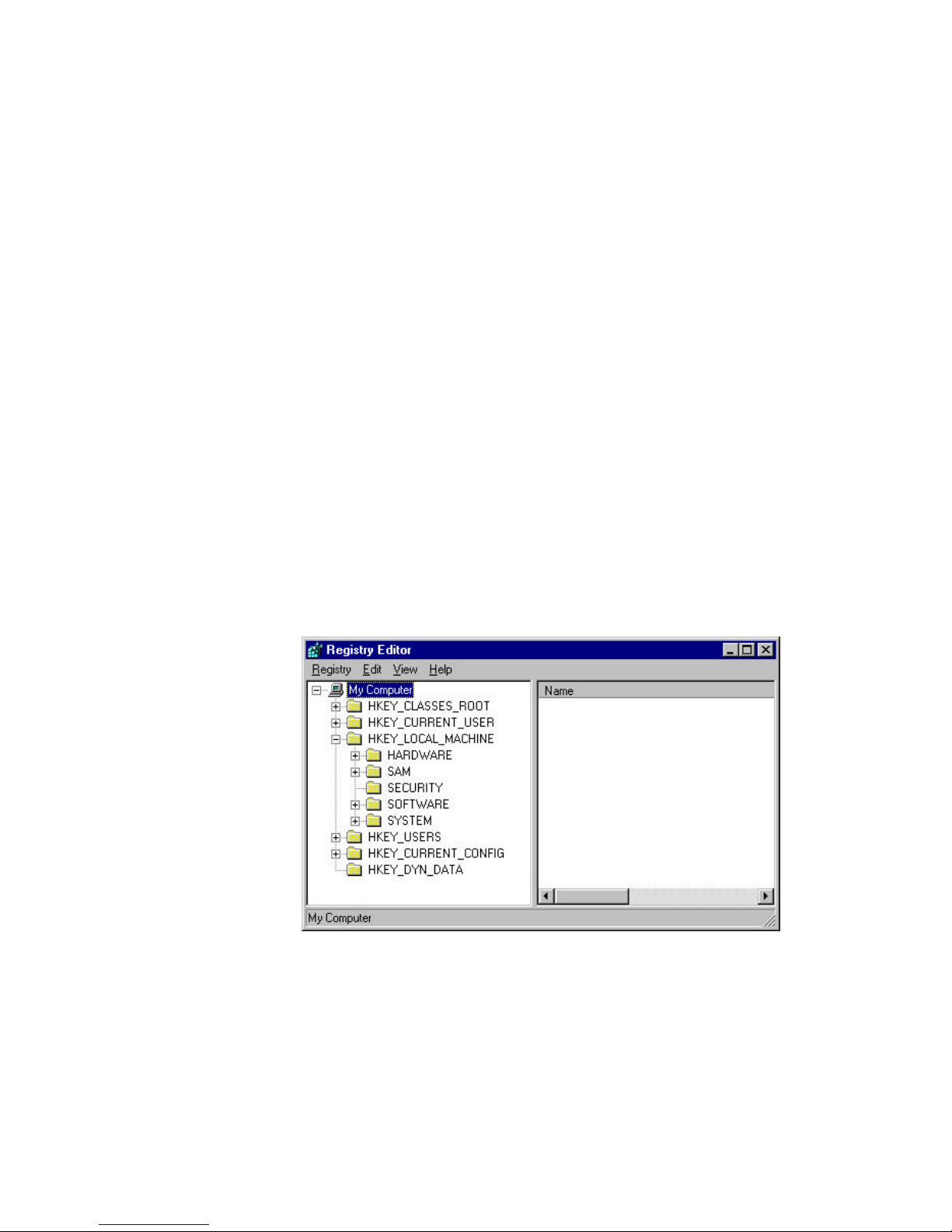

4. Navigate to the following folder (also called a key):
HKEY_LOCAL_MACHINE\
SOFTWARE\ Avid Technology\ MOSGateway
5. Right-click on the ConfigFile value in the right side of the Registry Editor window (under the Name column).
6. Select Modify from the pop-up menu.
7. Replace the existing file path with the one for the new MOS Gateway configuration file.
97
Chapter 5
98
Chapter 6
Troubleshooting
This chapter contains information to help you recover from various types of system failures. This chapter contains the following major sections:
MOS Gateway Components
Where to Look For Errors
- Error Categories
Chapter 6
MOS Gateway Components
MOS Gateway consists of three services (utility programs):
The MOS Gateway Logger, which creates log files
The MOS Gateway License Server, which controls the licensing of MOS Gateway
The MOS Gateway Router, which routes messages between iNEWS Servers and MOS devices
The MOS Gateway Replication Service, which controls the replication of MOS objects from a MOS device to the iNEWS Server
The MOS Gateway Administration Service, which is the delegate between the MosAdmin utility and the MOS Gateway Router Service
The MOS Gateway Configuration Service, which reads and writes to the MOS Gateway configuration file
MOS Gateway consists of two utilities:
LicenseManager, which sets and retrieves the license string
MosAdmin, which displays incoming MOS objects, being replicated from the MOS device to the iNEWS Server, and provides a graphical user interface for configuring replication. See “Using the MosAdmin
Application” on page91.
Where to Look For Errors
Each MOS Gateway service writes errors in one of two places:
Log files located in the Log File directory, as specified in the MOS Gateway configuration file
The Application log of events
Log files are text files, which can be opened with Notepad. To view these files, open Windows Explorer and navigate to the directory where MOS Gateway was installed.
100
Loading...
