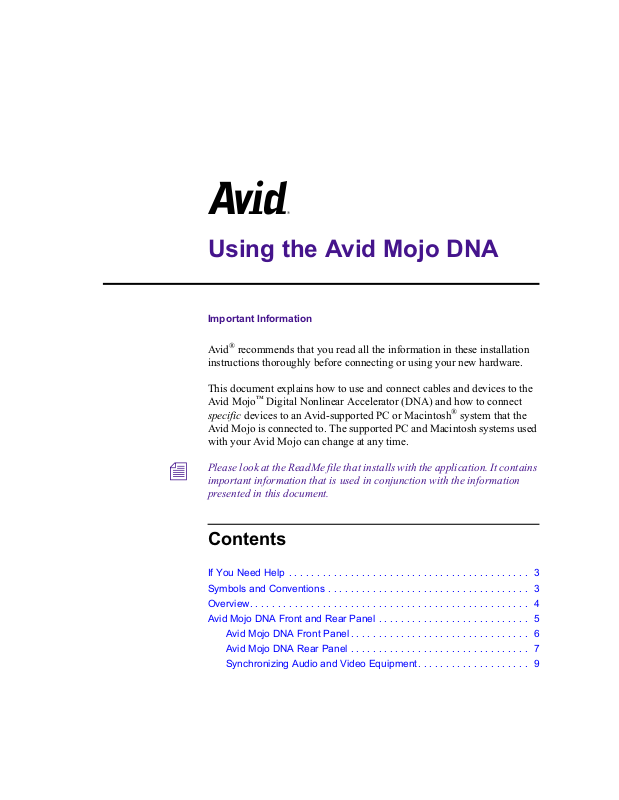

Avid® recommends that you read all the information in these installation
instructions thoroughly before connecting or using your new hardware.
n
This document explains how to use and connect cables and devices to the
Avid Mojo
specific devices to an Avid-supported PC or Macintosh
Avid Mojo is connected to. The supported PC and Macintosh systems used
with your Avid Mojo can change at any time.
Please look at the ReadMe file that installs with the application. It contains
important information that is used in conjunction with the information
presented in this document.
™
Digital Nonlinear Accelerator (DNA) and how to connect
Australia and New Zealand EMC Regulations . . . . . . . . . . . . . . . . . 26
2
If You Need Help
If you are having trouble using Avid Mojo DNA:
1. Retry the action, carefully following the instructions given for that
task. It is especially important to check each step of your workflow.
2. Check these installation instructions for the latest information that
might have become available after the documentation was published.
3. Check the documentation that came with your Avid application or your
hardware for maintenance- or hardware-related issues.
4. Visit the online Knowledge Center at www.avid.com/support. Online
services are available 24 hours per day, 7 days per week. Search this
online Knowledge Center to find answers, to view error messages, to
access troubleshooting tips, to download updates, and to read or join
online message-board discussions.
5. For Technical Support, please call 800-800-AVID (800-800-2843).
For Broadcast On-Air Sites and Call Letter Stations, call
800-NEWSDNG (800-639-7364).
If You Need Help
Symbols and Conventions
These installation instructions use the following symbols and conventions:
Symbol or Convention Meaning or Action
n
c
w
A note provides important related information,
reminders, recommendations, and strong
suggestions.
A caution means that a specific action you take could
cause harm to your computer or cause you to lose
data.
A warning describes an action that could cause you
physical harm. Follow the guidelines in this
document or on the unit itself when handling
electrical equipment.
3
Using the Avid Mojo DNA
Overview
The Avid Mojo DNA is designed to capture and output analog media and
digital media (DV 25) using digital decks and cameras.
The Avid Mojo DNA is powered by an autosensing power adapter that
plugs into a wall plug or power strip.
The Avid Mojo DNA accepts video and audio in different formats and
resolutions, and changes these formats and resolutions to Avid-specific
data for transfer to the Avid editing system over a 1394 cable. The data
transfer uses an Avid-specific protocol that describes the format and
resolution of the data being input.
You then edit the data on the Avid editing system and return it to the Avid
Mojo DNA to be changed back to the proper format and resolution as
needed for video and audio output.
n
To capture and play 1:1 video, you must have an Avid Mojo connected to
your system. Disconnecting the Avid Mojo results in a “Wrong Format”
error message for those 1:1 clips. However, without an Avid Mojo
attached, you can transcode your 1:1 video clips to DV 25 or 15:1s. For
more information, see “Using the Transcode Option” in the Help.
The Avid Mojo DNA consists of:
•The Avid Mojo DNA
•A stand
•A power adapter with power cord
Also included in the kit is a 6-pin to 6-pin 1394 cable that connects the
Avid Mojo to the host system platform and a Using the Avid Mojo DNA CD-ROM.
You can also order a special adapter cable that allows you to send a
component signal into or out of the Avid Mojo using both the S-Video and
composite connectors at the rear of the Avid Mojo.
4
Avid Mojo DNA Front and Rear Panel
Avid Mojo DNA Front and Rear Panel
You can place the Avid Mojo DNA in a stand or position it on its side. The
Avid Mojo turns on when you connect the power adapter. You attach cables
to connect the power, the system, and external devices at the rear.
Front panel
Rear
Stand

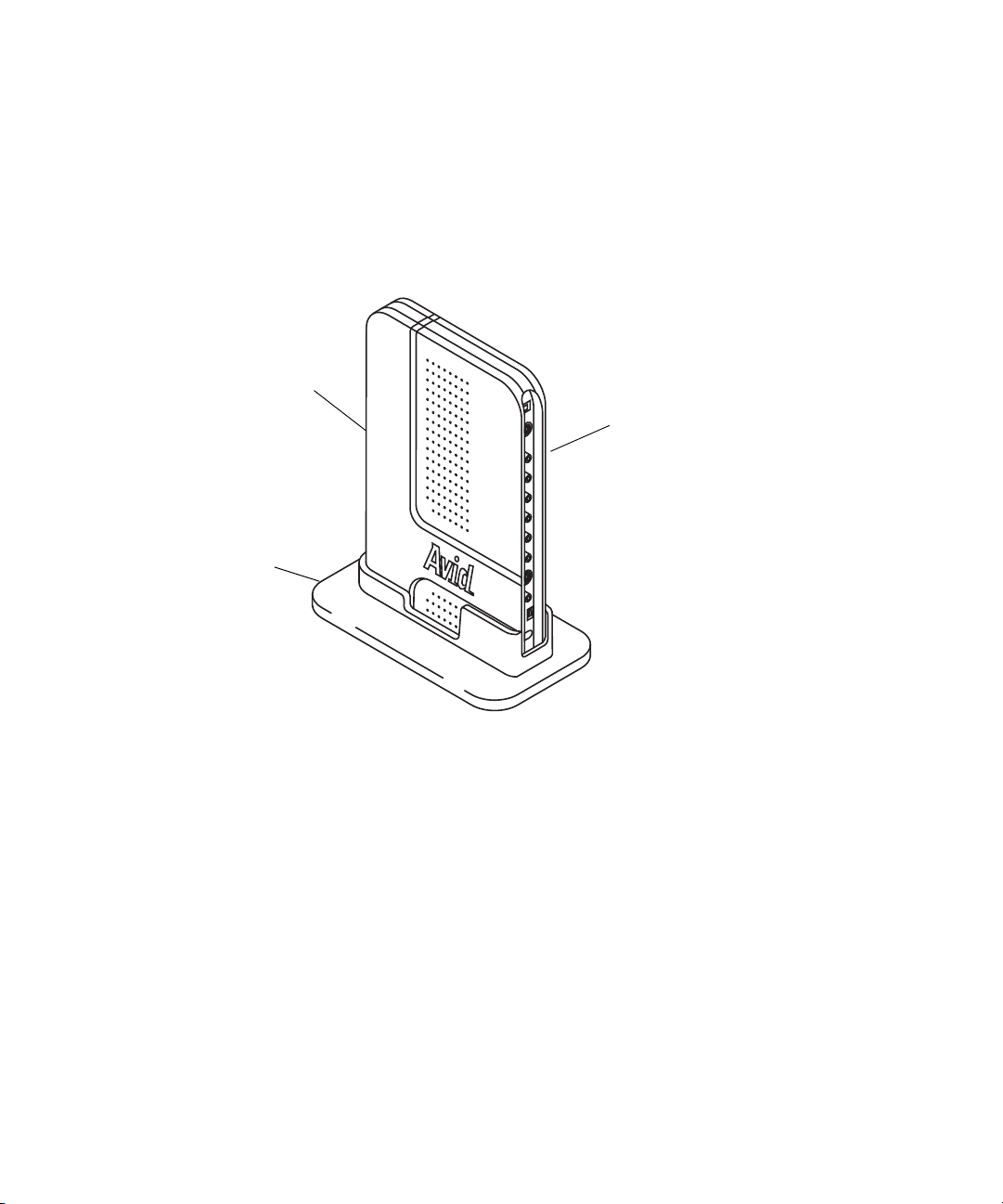

Figure 1Avid Mojo DNA in the Stand
5
Using the Avid Mojo DNA

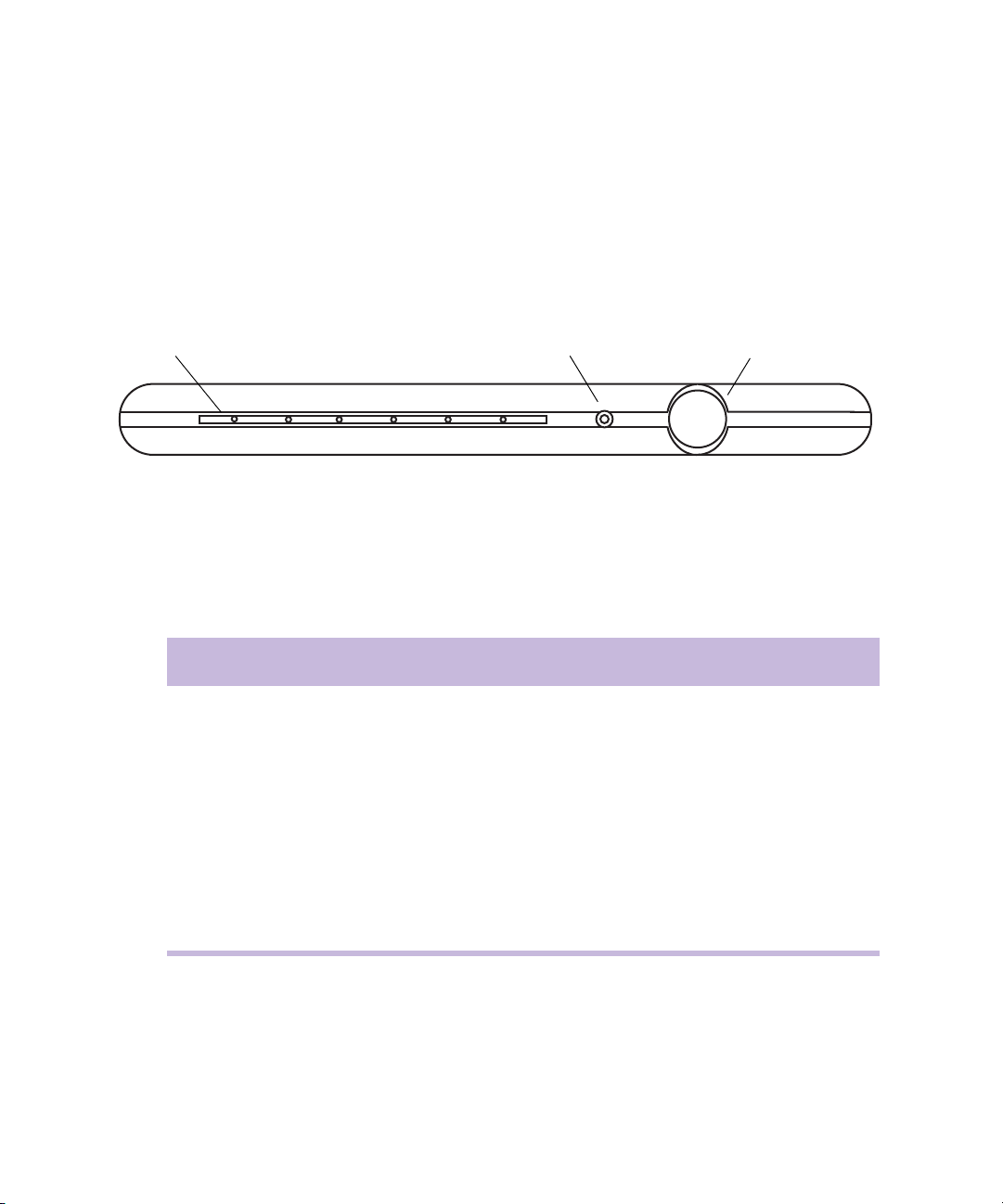

Avid Mojo DNA Front Panel
The Avid Mojo DNA front panel contains function LEDs behind a cover, a
headphone jack, and volume control for the headphones (see Figure 2).
n
LEDs
The function LEDs are not labeled on the front panel. You can see the
function names through the cover when it is lit.
Headphone jack
CLIP 48KHZDVREFHOST POWER
Figure 2Avid Mojo DNA Front Panel
Volume control
Table 1 shows the name of each LED and describes its function.
Table 1LED Functions
LEDFunction
ClipFlashes red as audio data is lost (due to overloading or peaking), and for power-on
self-test. See “Power-On Self-Tests” on page9.
48KHzLit when 48-KHz audio is selected; not lit when 44 KHz or 32 KHz is selected.
DVLit when DV input is selected in the application.
RefLit when the Avid Mojo DNA is synced to the HOST and a project is selected.
HostLit when the Avid Mojo DNA is connected to the HOST.
PowerLit when the power adapter is connected to the Avid Mojo DNA.
6
Avid Mojo DNA Rear Panel

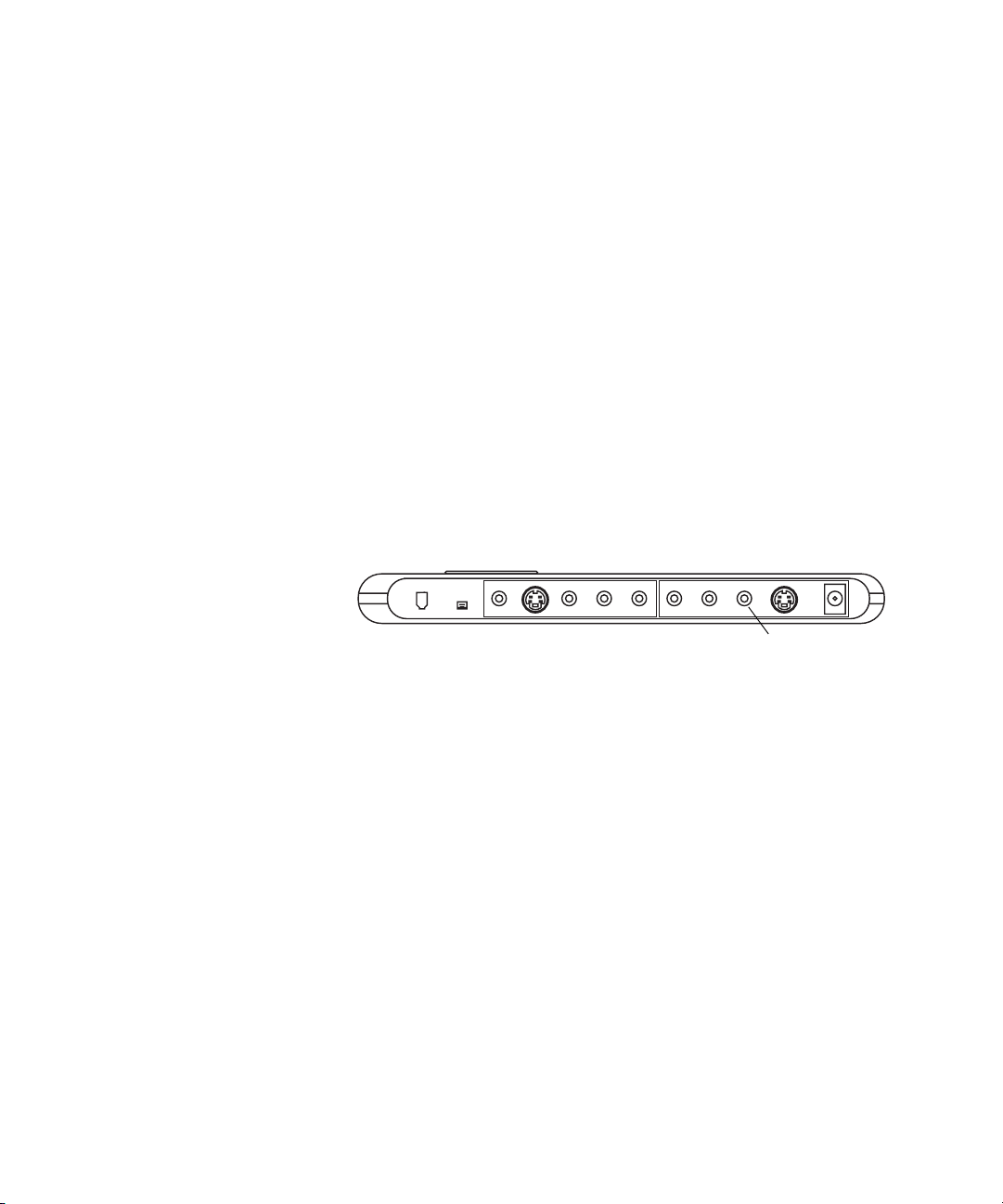

Figure 3 shows the connections on the rear of the Avid Mojo DNA, while
Table 2 describes the function of each connector. The rear connectors are
labeled on the device.
Avid Mojo DNA Front and Rear Panel
Host
DV
Ref inputS-Video
Host
Composite video
input (yellow)
input
Ref
DV
Video
Audio input
(right, red)
(left, white)
Input
Audio output
(right, red)
Audio output
(left, white)
AudioAudio
Composite video
output (yellow)
Video
Output
S-Video
output
DC InAudio input
DC
IN
Figure 3Avid Mojo DNA Rear Panel (SD video and Audio Boards)

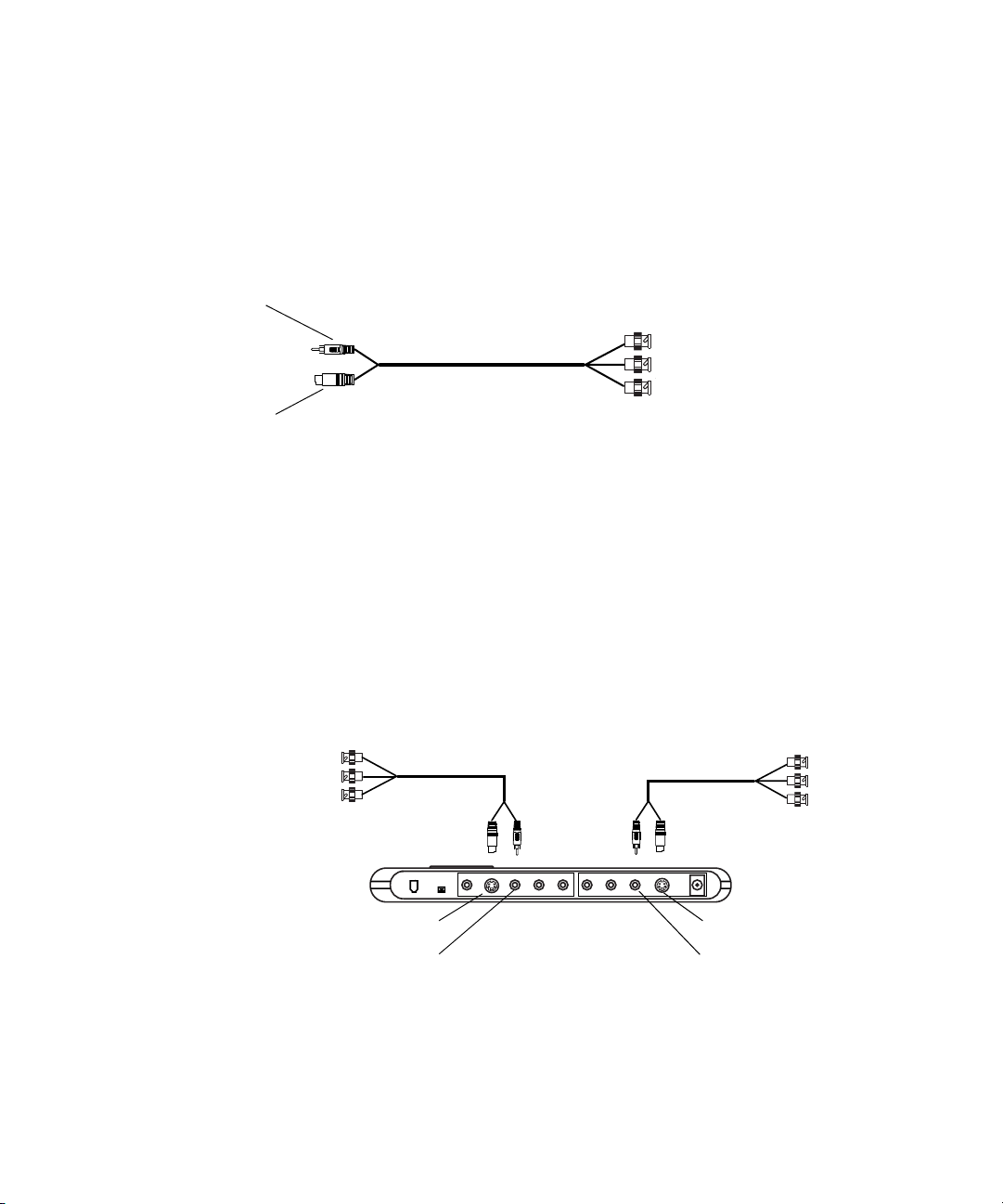

Although not labeled as a Component connection, you can connect a
custom cable to the S-Video and Composite input connectors that allows
you to input a Component signal into the Avid Mojo DNA. The same cable
can be used to output a Component signal when connected to the S-Video
and Composite output connectors. Connectors are described in Table 2.
Table 2Avid Mojo DNA Rear Connectors
LabelFunction
HostA 6-pin 1394 connector used to input and output audio and
video signals to and from the Avid editing system
DVA 4-pin 1394 connector used for input and output to and from
a DV camera or deck and the Avid Mojo DNA
REF InputAn RCA connector that provides a connection of a black burst
or house sync input; synchronizes decks that are part of the
system
7
Using the Avid Mojo DNA
Table 2Avid Mojo DNA Rear Connectors (Continued)
LabelFunction
Video InputA 4-pin S-Video connector and an RCA connector that allow
Component Input An optional cable (purchased separately) that uses the S-Video
Audio InputTwo RCA connectors used for the left and right Audio input
Audio OutputTwo RCA connectors used for the left and right Audio output
you to input video signals to the system
S-Video and Composite video connectors are used to connect
the analog video outputs of a video camera or deck.
and the Composite video input connectors, allowing you to
input a Component signal; connects to the analog video output
of a deck
signals; connect to an analog audio output of a video camera or
deck
signals; connect to an analog audio input of a video camera or
deck
Video OutputA 4-pin S-Video connector and an RCA connector that allow
you to output video signals to a video camera or deck
S-Video and Composite video connectors are used to connect
the analog video inputs of a video camera or deck.
Component
Output
An optional cable (purchased separately) that uses the S-Video
and the Composite video output connectors, allowing you to
output a Component signal; connects to analog video input of
a video deck or monitor
PowerConnects to the power adapter
8
Synchronizing Audio and Video Equipment
Avid systems require synchronization when inputting audio and video. A
synchronization signal for analog audio and analog video is generated
internally by the Avid Mojo DNA from one of the following three sources:
•Internal — The signal is generated by the Avid Mojo DNA internally.
This signal cannot be sent outside of the Avid Mojo DNA.
•Incoming video signal — The sync signal is generated from the
incoming video: component, composite, or S-Video.
•Video Reference IN (Ref) — The sync signal should be used when
you are capturing analog audio only. It should be generated from the
incoming signal (black burst generator [BBGen] or house sync). If
there is no sync connected to REF, the internal sync is used by default
to sync the incoming audio.
Power-On Self-Tests
n
By default, the sync signal is generated from incoming video whenever you
capture analog video. Depending on the configuration of the audio and
video equipment attached to the Avid Mojo DNA, you might need to use a
black burst generator or house sync; for example, when you perform an
Insert Edit.
Power-On Self-Tests
The Avid Mojo DNA runs power-on self-tests (POSTs) to determine if the
box and the board within the box are operating properly each time you turn
it on.
If a failure occurs when running a POST, the Clip LED (see Figure 2)
blinks steadily once a second. Also, if the Power LED does not light after
you connect the Avid Mojo DNA to the power adapter, the Avid Mojo
DNA is not capable of running diagnostics and is not functioning properly.
If possible, try another power adapter. If the Avid Mojo DNA does not
work with a different power adapter, replace the Avid Mojo DNA.
9
Using the Avid Mojo DNA

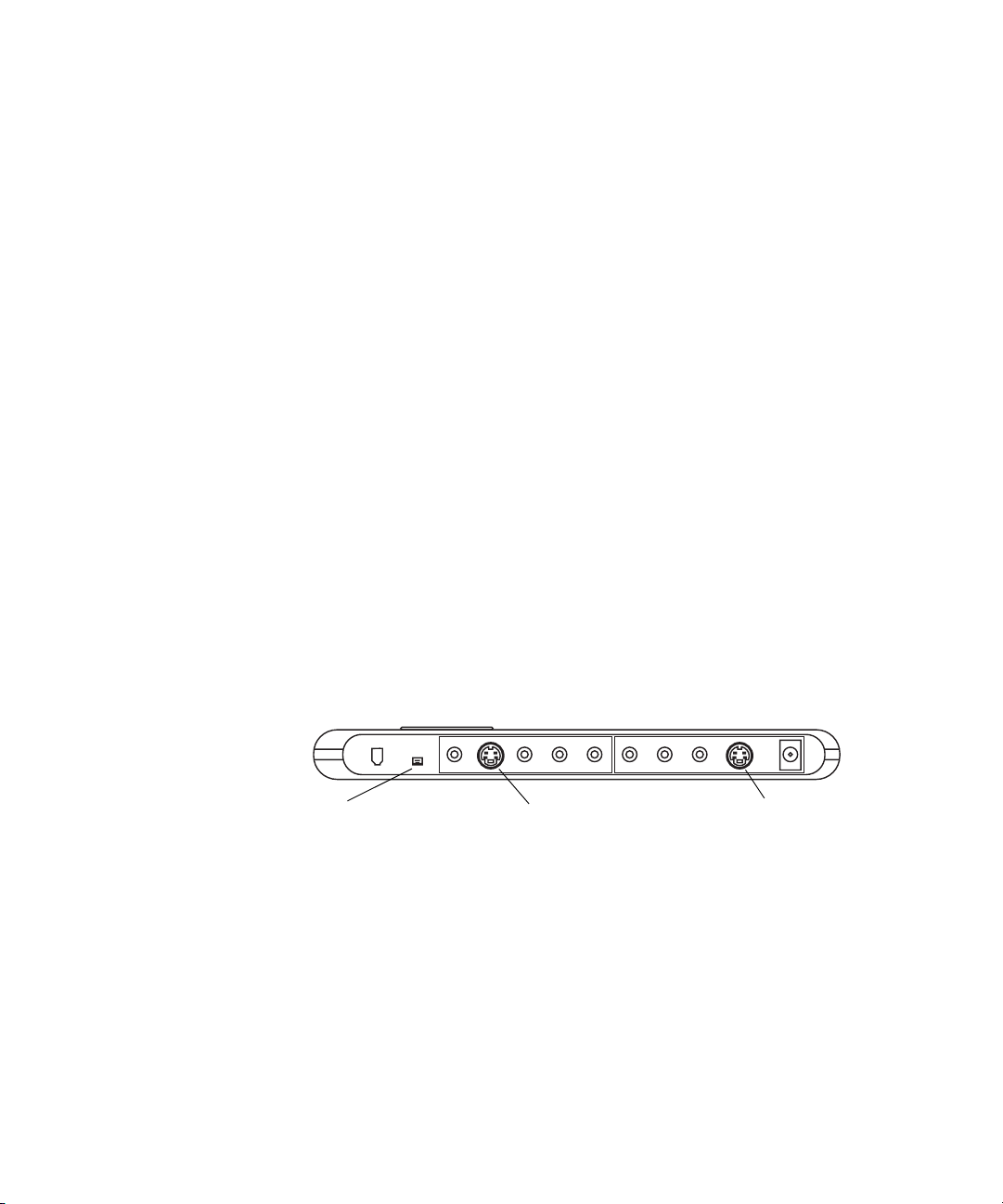

Connecting Peripheral Equipment
There are several possible cabling configurations depending on your
camera, video deck, and client monitor. The audio and video output signals
are available to each output connector at the same time. Video and audio
cables are not included with the Avid Mojo DNA. Avid provides optional
video cables that use the S-Video and Composite video connectors for a
component connection to your deck. The following sections describe
several possible connections:
•Connecting Audio Signals
•Connecting S-Video or DV Signals
•Connecting a Client Monitor
•Connecting a Video Deck — Component Signal
•Controlling a Video Deck
Connecting Audio Signals
10
Audio input and output connections on the rear of the Avid Mojo DNA use
standard RCA connectors. Audio connections require the following:
•Four audio cables with RCA connectors on both ends of the cable. You
can also use audio cables with RCA connectors on one end and XLR
connectors on the other end.
•A video deck or audio device with audio input and output connections.
Connecting Peripheral Equipment
To connect your audio to a deck or audio device:

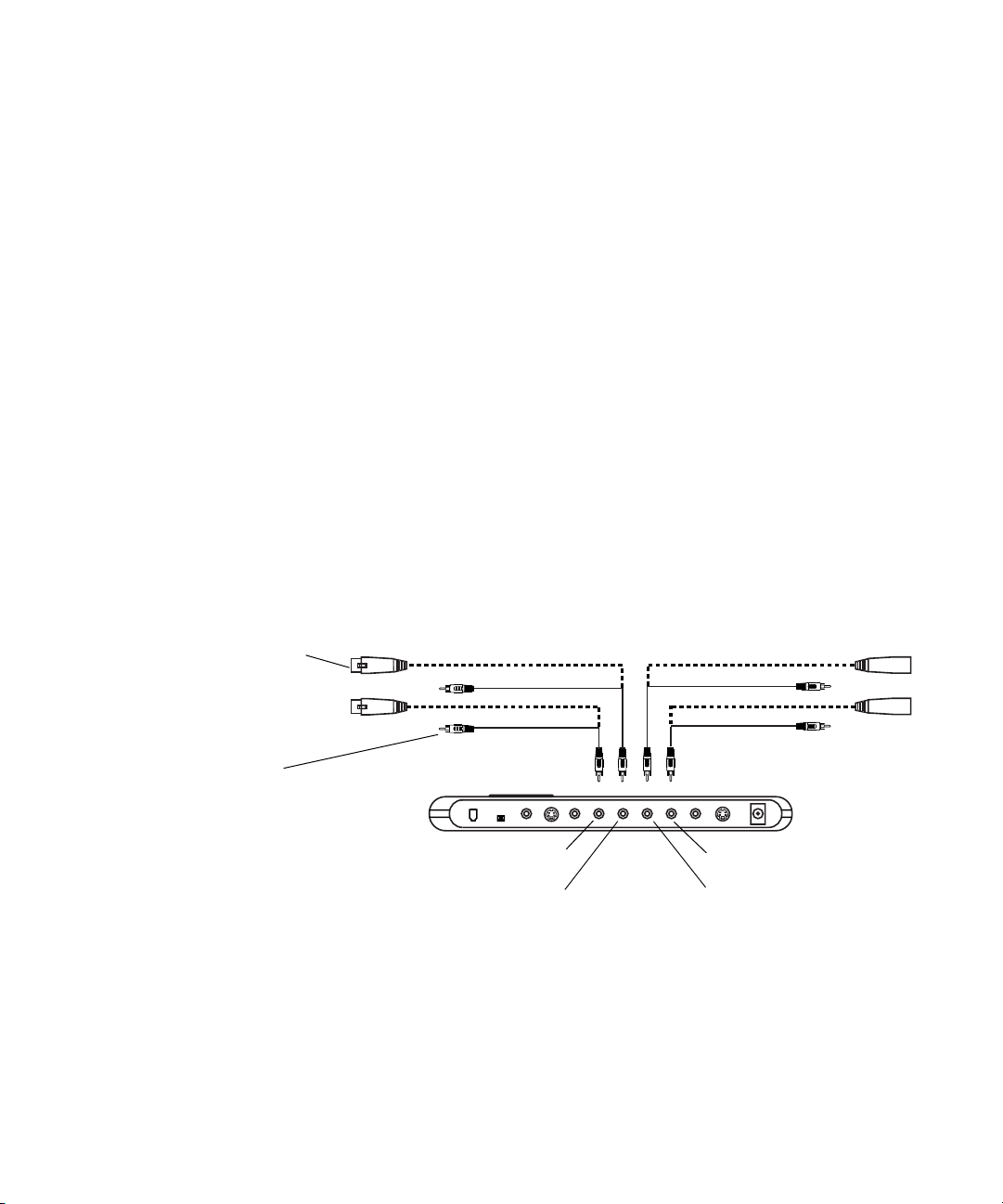

1. Attach two audio cables to the Audio input connectors (see Figure 4):
n
n
XLR connector to
RCA jack cable
Your cables might be color-coded with red and white connectors. If so,
match the colors on the RCA connectors with the color of the inputs on the
Avid Mojo DNA.
If you have RCA-to-XLR connectors on your audio cables, you must pay
attention to the male and female XLR connections attached to your audio
device.
a.Connect an RCA connector to the red Audio input connector on
the Avid Mojo DNA.
b. Connect an RCA connector to the white Audio input connector on
the Avid Mojo DNA.
2. Attach the other end of the audio cables (or XLR connectors) to Audio
output connectors on your deck or audio device.
To Audio output on the
deck or audio device
To Audio input on the
deck or audio device
RCA jack to
RCA jack cable
HOST
DV
Audio input (white)Audio output (red)
Audio input (red)Audio output (white)
Video
In
Audio InAudio Out
Ref In
Figure 4Connecting Audio to the Deck
Video
Out
Power
11
Using the Avid Mojo DNA
3. Attach two more audio cables to the Audio output connectors (see
Figure 4):
a. Connect an RCA connector to the red Audio output connector on
the Avid Mojo DNA.
b. Connect an RCA connector to the white Audio output connector
on the Avid Mojo DNA.
4. Attach the other end of the last two audio cables (or XLR connectors)
to Audio input connectors on your deck or audio device.
Connecting S-Video or DV Signals
The S-Video and DV connectors on the rear of the Avid Mojo DNA use
industry-standard connectors. The connections are as follows:
•There are two S-Video connectors on the rear of the Avid Mojo DNA.
One connector is for video input, and the other is for video output.
Figure 5 identifies the connectors.
•The DV connector uses a 4-pin 1394 cable that carries the video and
audio input and output signals to and from your DV device. You can
also use a 4-pin to 6-pin DV cable if your DV device uses a 6-pin
connector. Figure 5 identifies the connector.
12
4-pin DV
Host
DV
Video
Ref
AudioAudio
Input
S-Video input
Output
Figure 5Connecting S-Video or DV to the Deck
Video
DC
IN
S-Video output
Connecting a Client Monitor
To view the video as it passes through the Avid Mojo DNA, you might
want to connect a monitor. You have two options:
•Most video decks provide a video output connector. You can connect a
monitor to the deck to see the video sent to the Avid Mojo DNA or the
video the Avid Mojo DNA sends to the deck. See your video deck
manufacturer’s documentation for more information.
Connecting Peripheral Equipment
c
The video you see in the monitor connected to the deck might not
indicate there is a video signal going to the Avid Mojo DNA.
•You can see the input and output video signals passing through the
Avid Mojo DNA using the Composite video output connector on the
rear of the unit. Connect a composite monitor to the connector
identified in Figure 6.
Host
DV
Figure 6Connecting a Composite Monitor
Video
Ref
AudioAudio
Input
Connecting a Video Deck — Component Signal
An optional component video deck connection requires the following:
•Two Avid Mojo DNA component video cables
•A video deck with component inputs and outputs
Video
Output
Composite video output
DC
IN
13
Using the Avid Mojo DNA
To connect a deck using component signals:
1. Locate a component video cable (see Figure 7).
There are three BNC connectors on one end of the cable; the other end
has an RCA connector and an S-Video connector.
Composite video
RCA connector
S-Video connector
Three component BNC connectors
for the deck connection
Figure 7Optional Component Cable
2. Attach the RCA and S-Video end of the cable to the Avid Mojo DNA
inputs as follows (see Figure 8):
a. Connect the RCA connector to the yellow Composite video input
connector on the Avid Mojo DNA.
b. Connect the S-Video connector to the S-Video input connector on
the Avid Mojo DNA.
To component out
on the deck
To component in
on the deck
14
Host
S-Video input
DV
VideoAudioAudio
Ref
InputOutput
Video
DC
In
S-Video output
Composite video input Composite video output
Figure 8Connecting a Video Deck — Component Signal
Connecting Peripheral Equipment
3. Attach the other end of the component cable (with the three BNC
connectors) to Component output of your video deck as follows:
a. Connect the BNC attached to the green wire to the component
output connector labeled Y.
b. Connect the BNC attached to the red wire to the component output
connector labeled R-Y.
c. Connect the BNC attached to the blue wire to the component
output connector labeled B-Y.
4. Locate another component cable and attach the RCA and S-Video end
to the Avid Mojo DNA outputs as follows (see Figure 8):
a. Connect the RCA connector to the yellow Composite video output
connector on the Avid Mojo DNA.
b. Connect the S-Video connector to the S-Video output connector on
the Avid Mojo DNA.
5. Attach the other end of the component cable (with the three BNC
connectors) to Component input of your video deck as follows:
a. Connect the BNC attached to the green wire to the component
input connector labeled Y.
b. Connect the BNC attached to the red wire to the component input
connector labeled R-Y.
c. Connect the BNC attached to the blue wire to the component input
connector labeled B-Y.
n
Make sure you terminate the input signal if your video deck supports
passthrough. See the documentation that is provided with your video deck.
Controlling a Video Deck
Avid editing systems provide video deck control through a serial control
connector on most decks. You can control a single deck by using an
RS-232 to RS-422 serial adapter. An optional RS-232 to RS-422 serial
adapter kit is available through Avid.
15
Using the Avid Mojo DNA
The optional serial adapter kit that contains the following:
•An RS-232 to RS-422 serial adapter
•Two serial cables; with 9-pin male connectors at both ends
To connect a single deck to your system:
1. Locate the serial adapter kit.
2. Attach one end of a 9-pin cable to the end of the serial adapter labeled
3. Attach the other end of the 9-pin cable to the serial port on the Avid
RS-232.
editing system (see Figure 9) or to the serial connector of the
USB-to-serial adapter.
n
To video deck
n
When you attach the cable to the serial port on the PC, note if you are
using the COM1 or COM2 serial port. You need to select the port in the
Avid editing application.
RS-422 connection

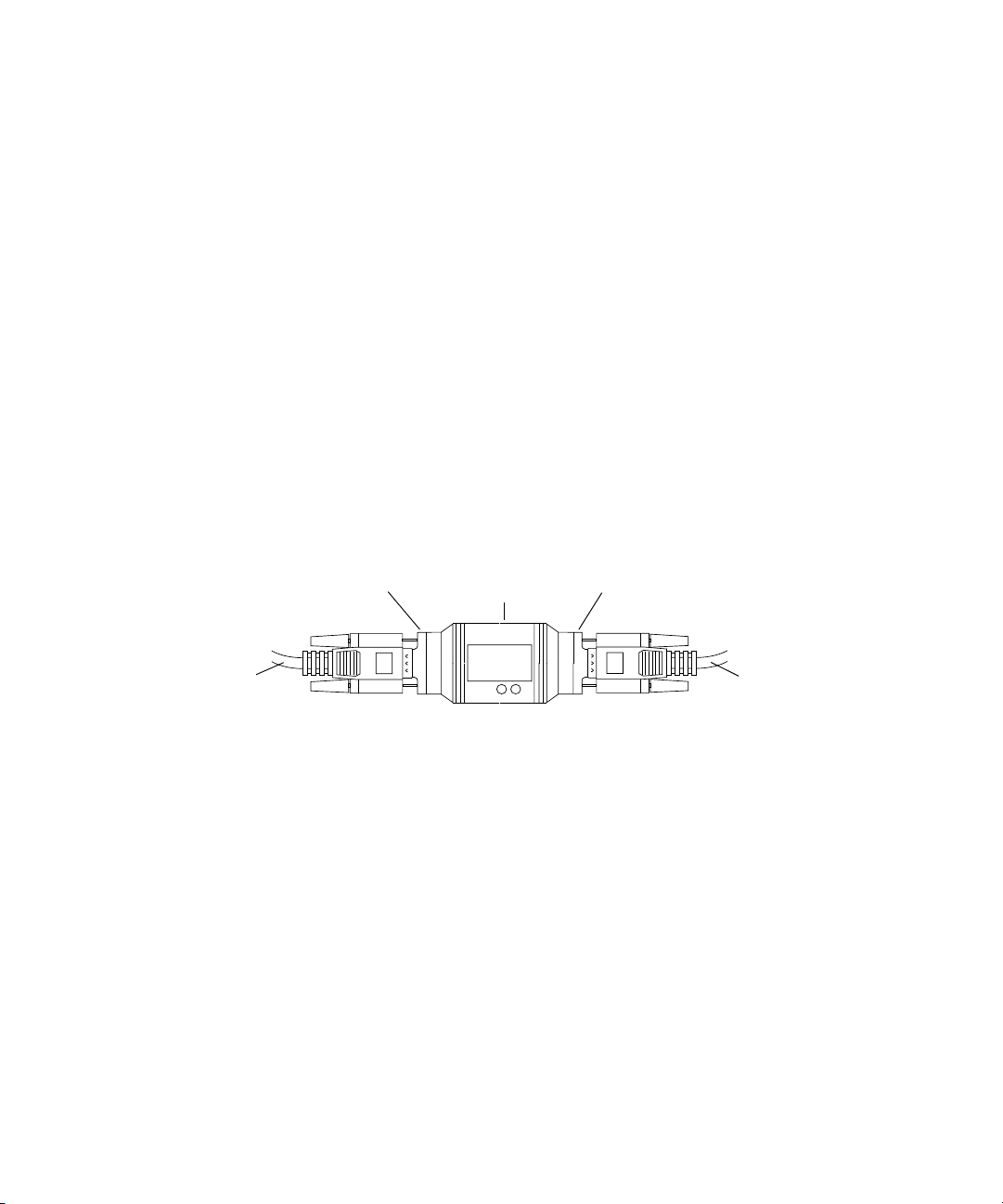

Figure 9Video Deck Control Cabling
Serial Adapter
RS-232 connection
To Avid editing
system
4. Attach one end of another 9-pin cable to the end of the serial adapter
labeled RS-422.
5. Attach the other end of the 9-pin cable to the remote serial port of the
video deck.
Place the deck in Remote mode before attempting to control the deck using
the software. See the documentation provided with your deck.
16
Supported Storage
Storage options are explained in the following sections.
FireWire Drives
When you are using an Avid Mojo DNA and you want to use FireWire®
drives, you need a second 1394 OHCI board on a different bus segment in
your Avid editing system. See your computer manufacturer’s
documentation to identify a PCI bus slot that is on a different bus segment
than the 1394 port used for the Avid Mojo DNA.
Internal IDE Drives
An internal IDE drive can be used for media storage with your
Avid Mojo DNA.
Supported Storage
Formatting and Striping MediaDrives (Windows)
To use all the resolutions available in your Avid editing application, you
might need to stripe your MediaDrives. Disk drives must be configured as
Dynamic if you are striping drives.
To configure and stripe a drive:
1. Start your system, and log in to an account with administrative
privileges.
2. Right-click the My Computer icon, and select Manage.
The Computer Management window opens.
3. Click the Disk Management folder.
n
For more information on the Computer Management window, click the
Help icon in the toolbar of the Computer Management window.
17
Using the Avid Mojo DNA
4. Make a Dynamic drive by right-clicking the disk ID section of the disk
in the Computer Management window and selecting Upgrade to
Dynamic disk, or Create Dynamic disk, depending upon the status of
your disk.
When you select a disk in the Computer Management window, the
white section of the disk changes to stripes, showing that the section
has been selected.
5. Repeat step 4 for each drive you want to stripe.
6. Right-click one of the Dynamic drives and select Action > Create
Vo l u m e .
7. Follow the instructions in the Create Volume Wizard to finish striping
the drives using NTFS format.
Formatting and Striping MediaDrives (Macintosh)
n
c
To use all the resolutions available in your Avid editing system, use the
ATTO ExpressStripe software to stripe drives on the Mac OS
system. The ExpressStripe software is installed in the following location:
/Applications/ExpressStripe
The instructions for using the software are in a PDF file, Expressstripe.pdf,
that is installed along with the ExpressStripe application.
You must be logged in as an Administrator to stripe drives.
Do not use the Apple Disk Utility application (in Applications/Utilities)
to stripe drives. If you use the Disk Utility application, you will not be
able to view the drives on the Mac OS 9 system. Additionally, Avid’s
drive filtering feature will not function properly, resulting in poor
performance.
®
X operating
18
Using Striped Drives on Mac OS X and Mac OS 9.x Systems
The Avid editing software automatically recognizes drives that were
striped on Mac OS 9.x. You should be able to use these drives to edit and
play video. However, if you move a drive that was striped on a Mac OS X
system back to Mac OS 9.x, you cannot play video from the drives on
Mac OS 9.x. If necessary, you can set up your Mac OS 9.x system so that it
recognizes the drives. You can then copy media files from the drive to your
Mac OS 9.x drives.
To set up a Mac OS 9.x system to recognize drives that were striped
on a Mac OS X system:
1. Navigate to the following folder:
Applications/Avid Goodies/OS 9/System Folder/Extensions
2. Copy the file ~~ExpressStripe_OS9_Enablr to the Extensions folder
on your Mac OS 9 system.
3. Restart the Mac OS 9 system.
The system is now able to recognize the striped drives. You can use the
drives to copy media onto your Mac OS 9 drives.
Supported Storage
c
Moving Striped Drives to Another System (Macintosh Only)
Do not run a Mac OS 9 Avid editing application on the same system as
a Mac OS X Avid editing system. There might be conflicts between the
system files used by the two applications.
In order to move striped drives to another system, you need to be able to
identify the drives that make up a particular striped set. This was easy on
Mac OS 9 because the system allowed you to use the SCSI ID order when
striping drives.
On Mac OS X, the system does not use the SCSI ID but instead uses its
internal diskn name (where n is the drive number) when creating the
striped sets. You can use Avid Storage Manager or ExpressStripe to
identify a striped set on Mac OS X.
19
Using the Avid Mojo DNA
To use Avid Storage Manager to identify a striped set:
1. Start the Avid Storage Manager application and select
2. Select the striped volume you wish to move and click Identify.
To use ExpressStripe to identify a striped set:
1. Start the ExpressStripe application.
2. In the opening dialog boxes, select Utilities and then select
3. Select the striped volume you want to move and click Start.
Specifications
View > Volumes.
The system blinks the lights on the front of the drives that make up the
volume.
Benchmark.
The system runs the benchmark test on the volume and shows activity
on the front of the drives that make up the volume.
The following sections provide specifications for the Avid Mojo DNA.
Dimensions and Weight
Table 3 shows the dimensions and weight for the Avid Mojo DNA
enclosure. The dimensions are based on the unit in the stand; the
orientation is shown in Figure 1 on page 5.
Table 3Dimensions and Weight
DimensionAvid Moj o DNAStand
Width1.13 in (28.7 mm)4.5 in (114.3 mm)
Height11.0 in (279.4 mm)2.13 in (54.1 mm)
Depth6.8 in (172.7 mm)8.5 in (215.9 mm)
Weight1.5 lb (0.68 kg) 1.32 lb (0.59 kg)
20
Environmental Specifications
Table 4 shows the environmental specifications for the Avid Mojo DNA
enclosure.
Table 4Environmental Specifications
EnvironmentSpecification
Ambient room temperature (Maximum) 95°F (35°C)
Operating humidity5% to 90% noncondensing
Storage temperature–40°F to 158°F (–40°C to 70°C)
Storage humidity5% to 95% noncondensing
Electrical Specifications
Specifications
Table 5 shows electrical specifications for the power adapter used to power
the Avid Mojo DNA enclosure.
Table 5Electrical Specifications for Power Adapter
TopicSpecification
Vo l t a g e
Input range
Output
Frequency range47 Hz to 63 Hz
Current
ac input
dc output
Watts20 w
90 V ac to 264 V ac
9 V dc
0.7 a for 115 V ac
0.4 a for 230 V ac
2.23 a
21
Using the Avid Mojo DNA
Regulatory and Safety Notices
The following sections explain the regulatory and safety notices for the
Avid Mojo DNA.
Warnings and Cautions
w
w
w
c
c
FCC Notice
Never install equipment if it appears damaged.
Disconnect the power cord before servicing unit.
Only perform the services explicitly described in this document. For
services or procedures not outlined in this document, speak with
authorized Avid service personnel.
Follow all warnings and cautions in the procedures.
Operate the device within its marked electrical ratings and product
usage instructions.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
22
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Canadian ICES-003
This Class B digital apparatus meets all requirements of the Canadian
Interference Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
European Union Notice
Declaration of Conformity
(According to ISO/IEC Guide 22 and EN 45014)
Regulatory and Safety Notices
Application of
Council Directives:
Standards to which
Conformity is
Declared:
Manufacturer’s
Name:
73/23/EEC, 89/336/EEC.
EN60950:2000 Third Edition
CISPR 22:1997 / EN55022:1994 + A1:1995 +
A2:1997 Class B
EN55024:1998/EN61000 — 3-2, 4-2, 4-3, 4-4,
4-5, 4-6, 4-8, 4-11, 3-3
Avid Technology, Inc.
1925 Andover Street
Tewksbury, MA 01876, USA
23
Using the Avid Mojo DNA
European Contact: Nearest Avid Sales and Service Office or
Type of Equipment: Information Technology Equipment
Product Name:Products for the Windows NT, Windows 2000,
Avid Technology International B.V.
Sandyford Business Center
Unit 3,
Dublin 18, Ireland
or Windows XP Operating System: Avid
Adrenaline DNA, Avid DS Nitris DNA, Avid
Equinox Break-Out-Box, Avid|DS, Avid Mojo
DNA, Avid Xpress, Avid Xpress DV,
Film Composer, Media Composer, MediaDock
2+, MediaDock LVD, MediaDrive,
MediaRAID, MEDIArray, MEDIArray Drive,
MEDIArray II, MEDIArray II Drive, Meridien
I/O box, NewsCutter, NewsCutter DV,
NewsCutter XP, Symphony
24
Products for the Mac OS X Operating System:
Avid Adrenaline DNA, Avid Mojo DNA,
Avid Xpress, Avid Xpress DV, Film Composer,
Media Composer, MediaDock 2+, MediaDock
LVD, MediaDrive, MediaRAID, MEDIArray,
MEDIArray Drive, MEDIArray II,
MEDIArray II Drive, Meridien I/O box,
Symphony
Products for the UNIX Operating System:
AirPlay, VideoSPACE
Products for MediaNetwork and Workgroups:
Avid ProEncode, Avid Unity MediaManager,
Avid Unity MediaNetwork, Avid Unity
TransferManager, LANserver, LANserver EX,
MEDIArray, MEDIArray Drive, MEDIArray
II, MEDIArray II Drive, Nearchive, PortServer,
Xdeck
Regulatory and Safety Notices
Base Model
None
Numbers:
Product Options: All
Year of Manufacture: 2003
(1) Products for the Windows NT, Windows 2000, or Windows XP
Operating System: products were tested in a typical Avid Adrenaline DNA,
Avid DS Nitris DNA, Avid Equinox Break-Out-Box, Avid|DS,
Avid Mojo DNA, Avid Xpress, Avid Xpress DV, Film Composer,
Media Composer, MediaDock 2+, MediaDock LVD, MediaDrive,
MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II,
MEDIArray II Drive, Meridien I/O box, NewsCutter, NewsCutter DV,
NewsCutter XP, or Symphony configuration.
(2) Products for the Mac OS X Operating System: products were tested in
a typical Avid Adrenaline DNA, Avid Xpress, Avid Xpress DV,
Film Composer, Media Composer, MediaDock 2+, MediaDock LVD,
MediaDrive, MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II,
MEDIArray II Drive, Meridien I/O box, or Symphony configuration.
(3) Products for the UNIX Operating System: products were tested in an
AirPlay or VideoSPACE configuration.
(4) Products for MediaNetwork and Workgroups: products were tested in a
typical Avid ProEncode, Avid Unity MediaManager, Avid Unity
MediaNetwork, Avid Unity TransferManager, LANserver, LANserver EX,
MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive,
Nearchive, PortServer, or Xdeck configuration.
I, the undersigned, hereby declare that the equipment specified above
conforms to the above Directives and Standards.
George R. Smith, Director of Hardware Engineering
25
Using the Avid Mojo DNA
Australia and New Zealand EMC Regulations
N1709
John Kells, Australian Operations Manager
Avid Technology (Australia)
Unit B
5 Skyline Place
French Forest NSW 2086
Australia
Phone: 61-2-8977-4800
Technical Support Information
Most products feature a number of coverage options. Avid Assurance
service offerings are designed to facilitate your use of Avid solutions.
Service options include extended telephone coverage, automatic software
maintenance, extended hardware warranty, and preferred pricing on
replacement parts.
For more information regarding Avid’s service offerings, visit
www.avid.com/support or call Avid Sales at 800-949-AVID (800-949-
2843).
Program availability and details might vary depending on geographic
location and are subject to change without notice. Contact your local Avid
office or your local Avid Reseller for complete program information and
pricing. However, if you need help locating an Avid office or Avid Reseller
near you, please visit www.avid.com or call in North America 800-949AVID (800-949-2843). International users call 978-275-2480.
26
Technical Support Information
Copyright and Disclaimer
Product specifications are subject to change without notice and do not represent a commitment on the part
of Avid Technology, Inc.
The software described in this document is furnished under a license agreement. You can obtain a copy of
that license by visiting Avid's Web site at www.avid.com. The terms of that license are also available in the
product in the same directory as the software. The software may not be reverse assembled and may be
used or copied only in accordance with the terms of the license agreement. It is against the law to copy the
software on any medium except as specifically allowed in the license agreement.
Avid products or portions thereof are protected by one or more of the following United States patents:
4,746,994; 4,970,663; 5,045,940; 5,267,351; 5,309,528; 5,355,450; 5,396,594; 5,440,348; 5,452,378;
5,467,288; 5,513,375; 5,528,310; 5,557,423; 5,568,275; 5,577,190; 5,584,006; 5,640,601; 5,644,364;
5,654,737; 5,715,018; 5,724,605; 5,726,717; 5,729,673; 5,745,637; 5,752,029; 5,754,851; 5,781,188;
5,799,150; 5,812,216; 5,852,435; 5,905,841; 5,929,836; 5,929,942; 5,930,445; 5,930,797; 5,946,445;
5,987,501; 5,999,190; 6,016,152; 6,018,337; 6,023,531; 6,023,703; 6,031,529; 6,058,236; 6,061,758;
6,091,778; 6,105,083; 6,118,444; 6,128,001; 6,134,607; 6,137,919; 6,141,691; 6,157,929; 6,160,548;
6,167,404; 6,198,477; 6,201,531; 6,223,211; 6,249,280; 6,269,195; 6,317,158; 6,317,515; 6,330,369;
6,351,557; 6,353,862; 6,357,047; 6,392,710; 6,404,435; 6,407,775; 6,417,891; 6,426,778; 6,449,019;
6,473,094; 6,477,271; 6,489,969; 6,512,522; 6,532,043; 6,539,163; D396,853; D398,912. Additional U.S.
and foreign patents pending.
No part of this document may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose without the express written permission
of Avid Technology, Inc.
Attn. Government User(s). Restricted Rights Legend
U.S. GOVERNMENT RESTRICTED RIGHTS. This Software and its documentation are “commercial
computer software” or “commercial computer software documentation.” In the event that such Software or
documentation is acquired by or on behalf of a unit or agency of the U.S. Government, all rights with
respect to this Software and documentation are subject to the terms of the License Agreement, pursuant to
FAR §12.212(a) and/or DFARS §227.7202-1(a), as applicable.
Trademarks
888 I/O, Adrenaline, AirPlay, AirSPACE, AirSPACE HD, AniMatte, AudioSuite, AudioVision, AutoSync, Avid,
Avid DNA, AVIDdrive, AVIDdrive Towers, AvidNet, AvidNetwork, AVIDstripe, Avid Mojo, Avid Unity,
Avid Xpress, AVoption, AVX, CamCutter, ChromaCurve, ChromaWheel, DAE, D-Fi, D-fx, Digidesign,
Digidesign Audio Engine, Digidesign Intelligent Noise Reduction, DigiDrive, Digital Nonlinear Accelerator,
DigiTranslator, DINR, D-Verb, Equinox, ExpertRender, FieldPak, Film Composer, FilmScribe, FluidMotion,
HIIP, HyperSPACE, HyperSPACE HDCAM, IllusionFX, Image Independence, Intraframe, iS9, iS18, iS23,
iS36, Lo-Fi, Magic Mask, make manage move | media, Marquee, Matador, Maxim, MCXpress,
Media Composer, MediaDock, MediaDock Shuttle, Media Fusion, Media Illusion, MediaLog, Media Reader,
Media Recorder, MEDIArray, MediaShare, Meridien, MetaSync, NaturalMatch, Nearchive, NetReview,
NewsCutter, Nitris, OMF, OMF Interchange, OMM, Open Media Framework, Open Media Management,
ProEncode, Pro Tools, QuietDrive, Recti-Fi, RetroLoop, rS9, rS18, Sci-Fi, Softimage, Sound Designer II,
SPACE, SPACEShift, Symphony, the Avid|DS logo, Trilligent, UnityRAID, Vari-Fi, Video Slave Driver,
VideoSPACE, Xdeck, and XSI are either registered trademarks or trademarks of Avid Technology, Inc. in
the United States and/or other countries.
iNEWS, iNEWS ControlAir, and Media Browse are trademarks of iNews, LLC.
FireWire, Macintosh, and Mac OS are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries. Windows is either a registered trademark or trademark of Microsoft Corporation in the United
States and/or other countries. All other trademarks contained herein are the property of their respective
owners.
Using the Avid Mojo DNA • Part 0130-05736-01 Rev. A • September 2003
27
Using the Avid Mojo DNA
28
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
