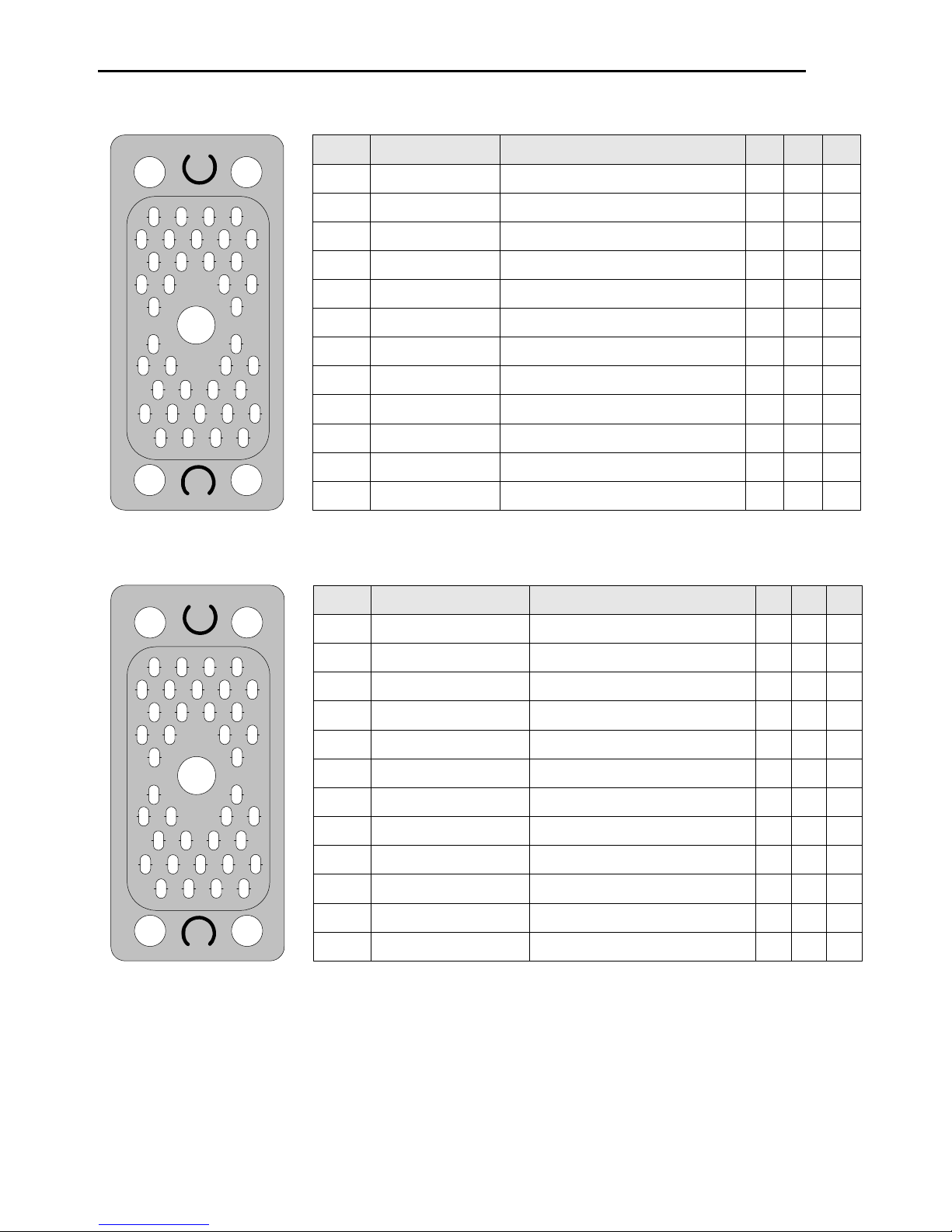

Elco 38 Input/Output Pinout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Appendix A. ML530 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Environmental and Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Appendix B. Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Environmental Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
EMC (Electromagnetic Compliance). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Safety Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contents iii
ML530 Guideiv
Chapter 1: Introduction to the ML530
The ML530 Mic-Line Interface is a 24-channel, digitally
controlled analog preamplifier. The ML530 is controlled by
the SC253i Interface Pilot, which is controlled from the
System 5 console surface. The ML530 is packaged in a 2U rack
enclosure.
Features
The ML530 provides gain over a range of -12 to +72 dB in 0.5
dB increments for each channel. The ML530 also features a
high-pass filter, HiZ/LowZ switch, and phantom power.
Applications
Used in conjunction with the Pro Series AM713 analog to
MADI converter, the ML530 provides multiple variable gain
inputs for the System 5 or Max Air. Additional ML530s can be
added if more than 24 channels of variable gain inputs are
desired.
System Requirements and
Compatibility
Front panel LEDs provide status information for all features so
the operator can quickly view the status of each input channel. Red front panel LEDs indicate signal clipping, mute, impedance, and phantom power activation. Green LEDs indicate
signal presence, activation of the high-pass filter, and pad attenuator.
Redundant power is supported by purchasing an additional
power module.
Avid can only assure compatibility and provide support for
hardware and software it has tested and approved.
For complete system requirements and a list of qualified
computers, operating systems, hard drives, and third-party
devices, visit www.avid.com/compatibility.
Chapter 1: Introduction to the ML530 1
About This Guide
About www.avid.com
This guide provides a basic overview of ML530 features and
functionality.
For complete instructions on connecting and configuring
your system, see the System 5 Installation Guide.
Conventions Used in This Guide
All of our guides use the following conventions to indicate
menu choices and key commands:
:
Convention Action
File > Save Choose Save from the File menu
Control+N Hold down the Control key and press
the N key
Control-click Hold down the Control key and click the
mouse button
Right-click Click with the right mouse button
The names of Commands, Options, and Settings that appear
on-screen are in a different font.
The following symbols are used to highlight important
information:
The Avid website (www.avid.com) is your best online source
for information to help you get the most out of your system.
The following are just a few of the services and features
available.
Product Registration Register your purchase online.
Support and Downloads Contact Avid Customer Success (tech-
nical support); download software updates and the latest online manuals; browse the Compatibility documents for system
requirements; search the online Knowledge Base or join the
worldwide Avid user community on the User Conference.
Training and Education Study on your own using courses available online or find out how you can learn in a classroom setting at a certified Avid training center.
Products and Developers Learn about Avid products; download demo software or learn about our Development Partners
and their plug-ins, applications, and hardware.
News and Events Get the latest news from Avid or sign up for
a demo.
User Tips are helpful hints for getting the most from
your system.
Important Notices include information that could affect
your data or the performance of your system.
Shortcuts show you useful keyboard or mouse shortcuts.
Cross References point to related sections in this guide and
other Avid guides.
ML530 Guide2
Chapter 2: ML530 Features
MIC LINE INTERFACE
ML
530
12345678
910111213141516
17 18 19 20 21 22 23 24
Clip Mute LowZ 48V
Sig HPF Phase Pad
Front Panel

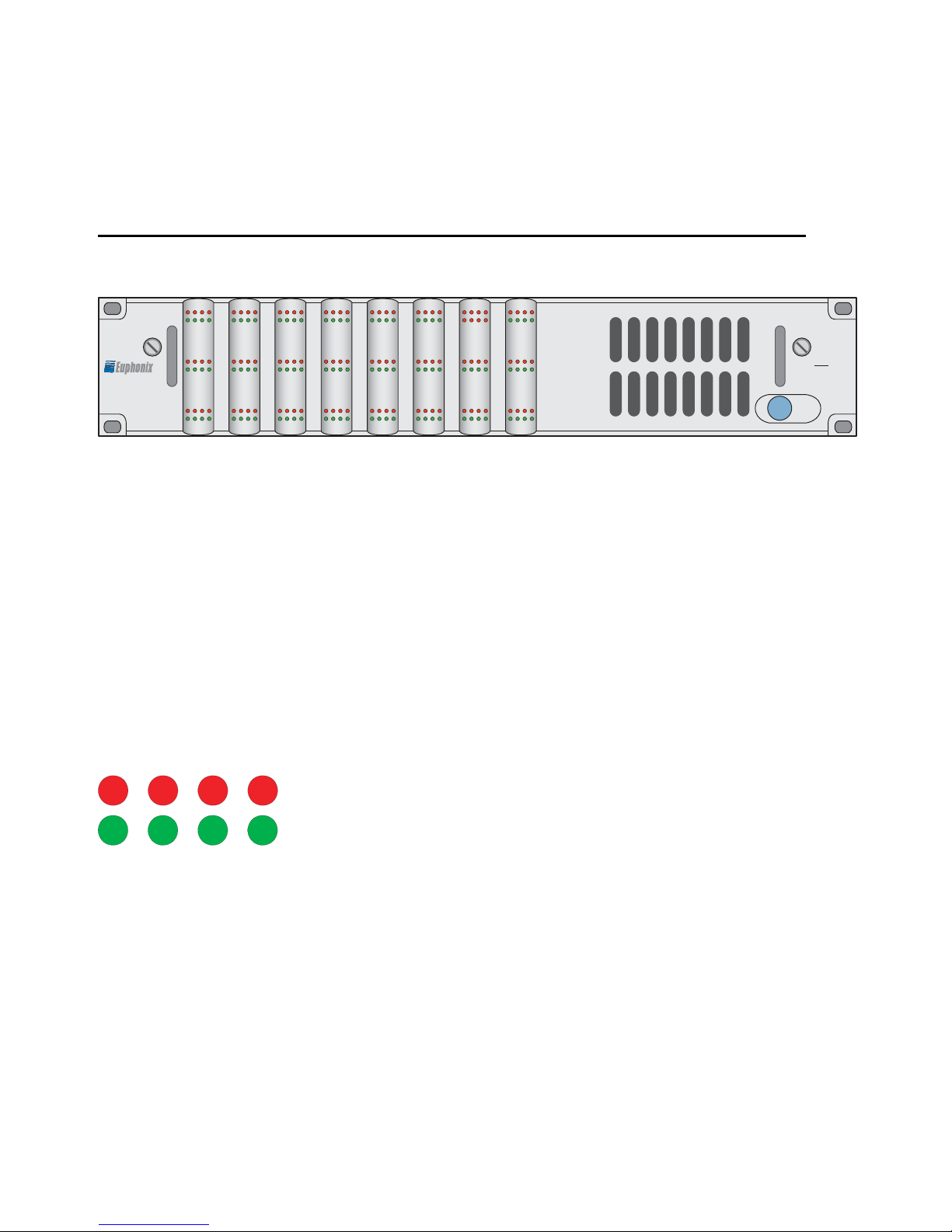

ML530 front panel
Power Switch The power switch, on the lower right, turns the
unit on/off.
Status LEDs Eight LEDs provide status information for each of
the 24 channels:
• Clip: Signal clipping (red)
• Mute: Channel muted (red)
• HiZ: High impedance (red)
• 48V: Phantom power (red)
• Sig: Signal present (green)
• HPF: High-pass filter (green)
• Phase: Phase invert (green)
• Pad: 12 dB attenuation (green)
Front panel Channel Status LEDs
Since the ML530 is software controlled, the power switch is
the only front panel control.
Chapter 2: ML530 Features 3

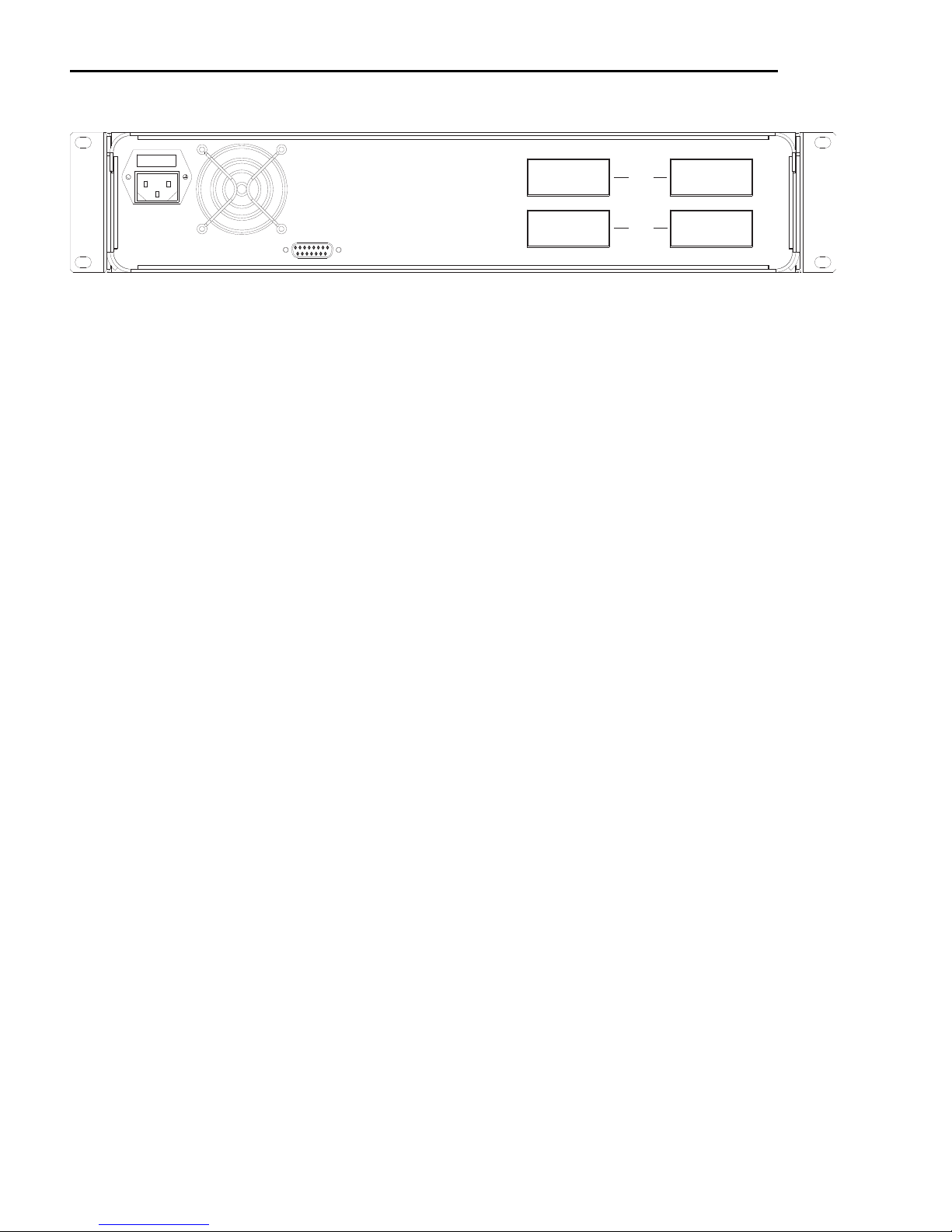

Back Panel
CONTROL
OUTPUTS INPUTS
1-12
13-24
ML530
ML530 front panel
Inputs (38-pin Elco) 24 inputs are provided on two 38-pin Elco
connectors. The level of all signals input at these ports can be
boosted or attenuated. In standard configuration, the input
cable is configured by the customer. Elco connectors and pins
are provided.
Outputs (38-pin Elco) 24 outputs are provided on two 38-pin
Elco connectors. The supplied output cables fan out to two
sets of 12 male XLRs for connection to the AM713 Analog to
MADI converter.
Control (DB-15) Input for digital control signal from PC253i
Digital Pilot. Signal format is Euphonix TCC bi-directional serial protocol. All switching and gain controls are communicated via this connector.
AC Line In (IEC) and Fuse Tray The power connector accepts
standard IEC power cords. 90–250 VAC 110, 220, or 240 VAC,
50/60 Hz can be applied at this connector.
ML530 Guide4
Chapter 3: Configuration and Connection
4
21
B
recommended locations
3
AM713
ADigital Core
B
Use relative locations to
determine cable lengths
4
ML530
Control Room
B
Machine Room
A
5,6
1 2
44
Standard Configuration

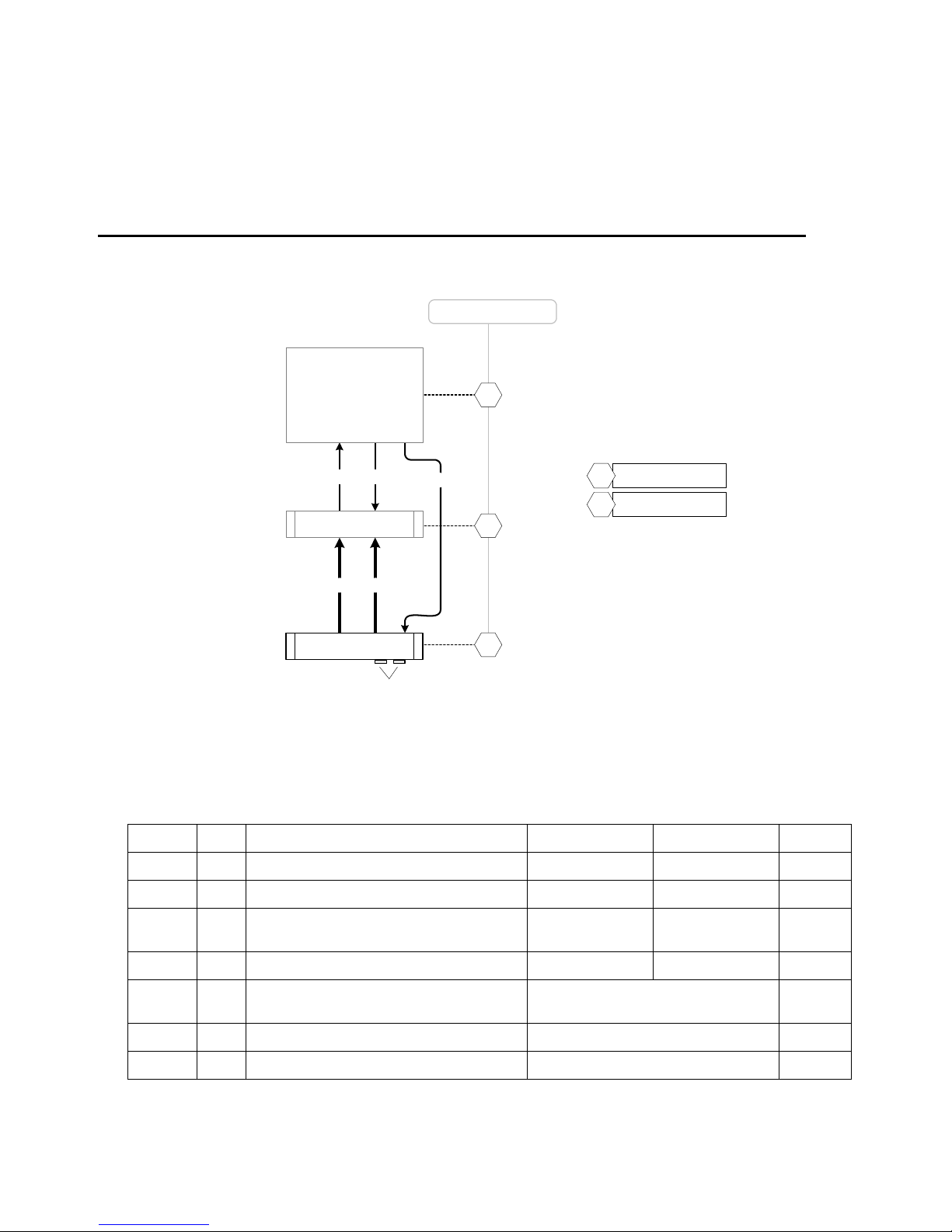

ML530 standard cable diagram
Elco crimp pins and hoods for inputs are supplied in accessory cable kits. Input cabling is not included.
Cable Specifications
Cable Qty Description 10M Part # 20M Part# Length
11MADI Output: RG59 75 coax 032-07230-00 032-07306-00
21AES/EBU Sync:
3 1 TCC Control from 253i Interface Pilot 030-06983-01 030-06985-01
4 2 ML530 Analog Out
5 2 Elco 38-Pin Connector w/hood
6 80 Elco Crimp Pins
The standard lengths specified in the table above are supplied so the mic-line interface can be located in the control room. Cable
kits are ordered separately. Custom lengths are available.
Accessory cable kits by special order 936-07083-01 936-07155-01
one male XLR <> one female XLR
one Elco 38 <> twelve male XLR
030-07085-01 030-07153-01
030-7108-01
100-02099-00
100-02100-00
Chapter 3: Configuration and Connection 5
.5 m
NA
NA

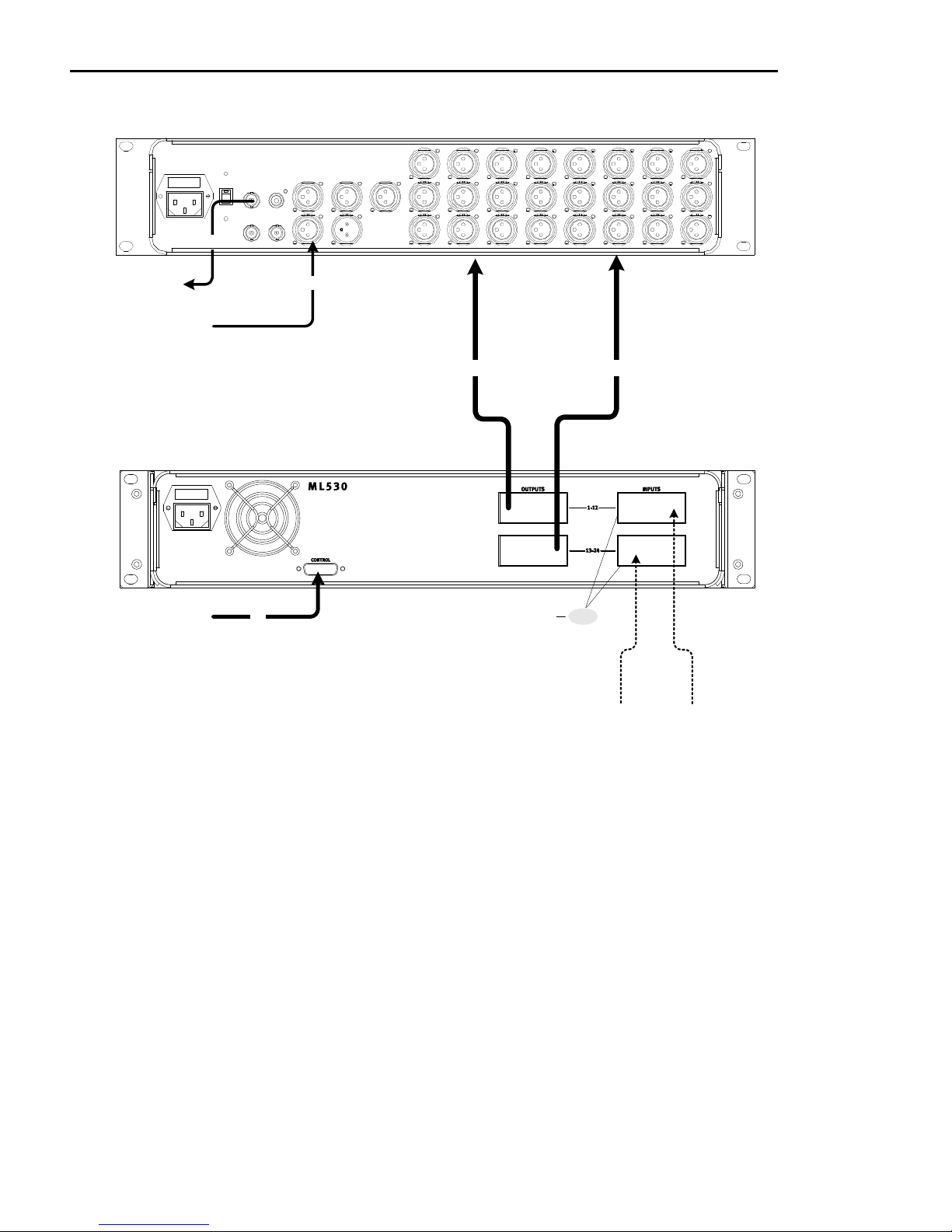

Connection Diagram
12 male XLR to one
male Elco 38
Mic/Line Analog Out
MADI out to
Studio Hub
1
AES/EBU Sync In
from Sync DA
2
Control from PC253i
Interface Pilot
AM713
MADI
OUT
4 4
3
5, 6
Elco crimp pins and hoods for user
inputs are supplied in accessory
cable kits. Input cabling supplied by
customer
ML530 standard configuration
ML530 Guide6
Optional Input Patch
5 5
4
21
B
recommended locations
3
AM713
ADigital Core
B
Mic-Line Input Patch
4
ML530
Note: The optional input patchbay ha
capacity to provide input patching to
channels or two ML530 Interfaces. A
additional set of cable D is required f
second ML530 interface.
DD
A
B, C

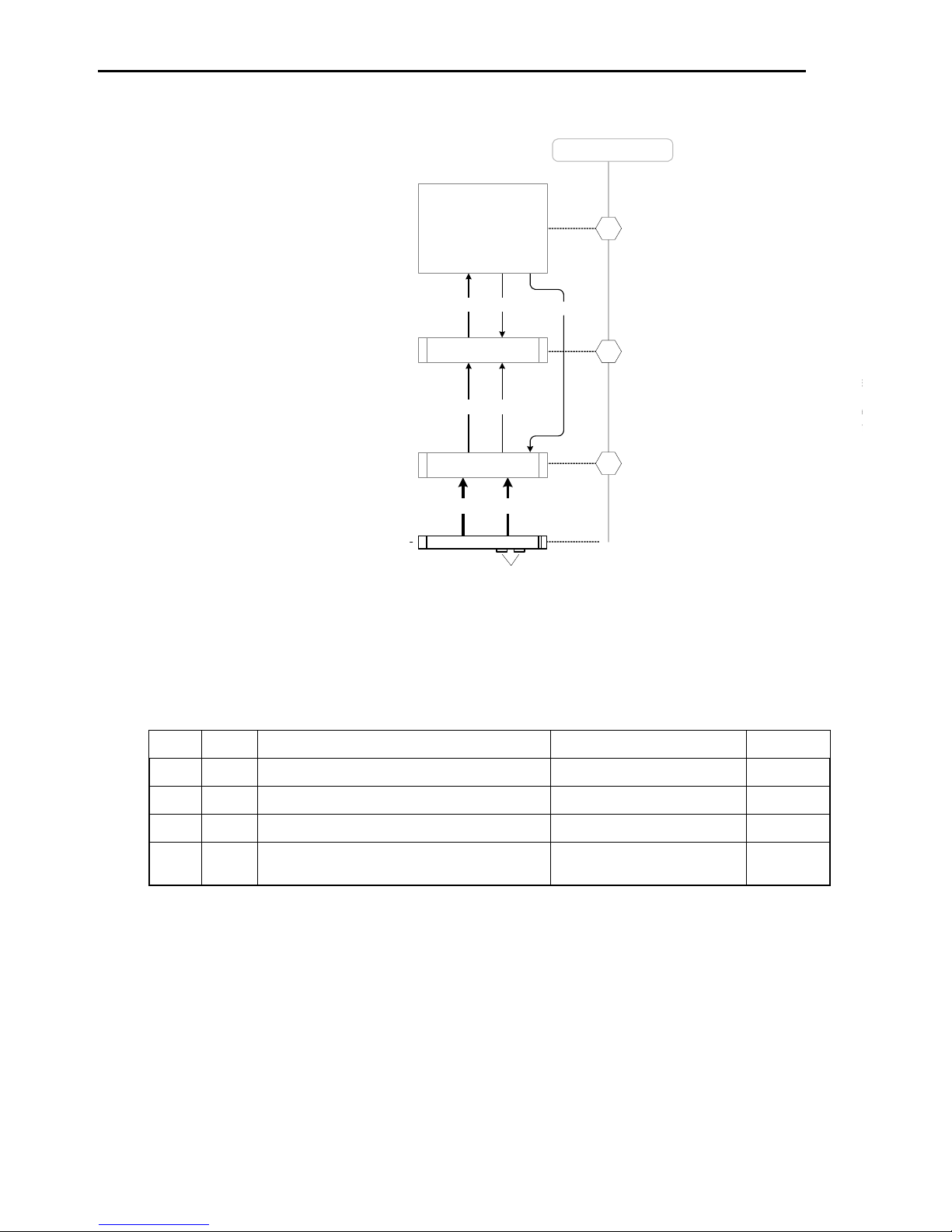

Input Patch cable diagram
The optional input patchbay has the capacity to provide input patching to 48 channels or two ML530 interfaces. An additional
set of cable D (below) is required for the second ML530 interface. Patchbay, cables, and pins are ordered separately.
Cable Specifications
Part Qty Description Part # Length
A 1 Tie Line Patch 950-03770-01 NA
B* 2 Elco 38-Pin Connector w/hood 100-02099-00 NA
C* 80 Elco Crimp Pins 100-02100-00 NA
D** 2 ML530 Analog Out
* Elco hoods and crimp pins are included in standard 10m and 20m accessory cable kits.
** 10m cable available, one male Elco 38 <> one male Elco 38, part #030-6913-01.
one male Elco 38 <> one male Elco 38
030-07158-01 2 m
Chapter 3: Configuration and Connection 7

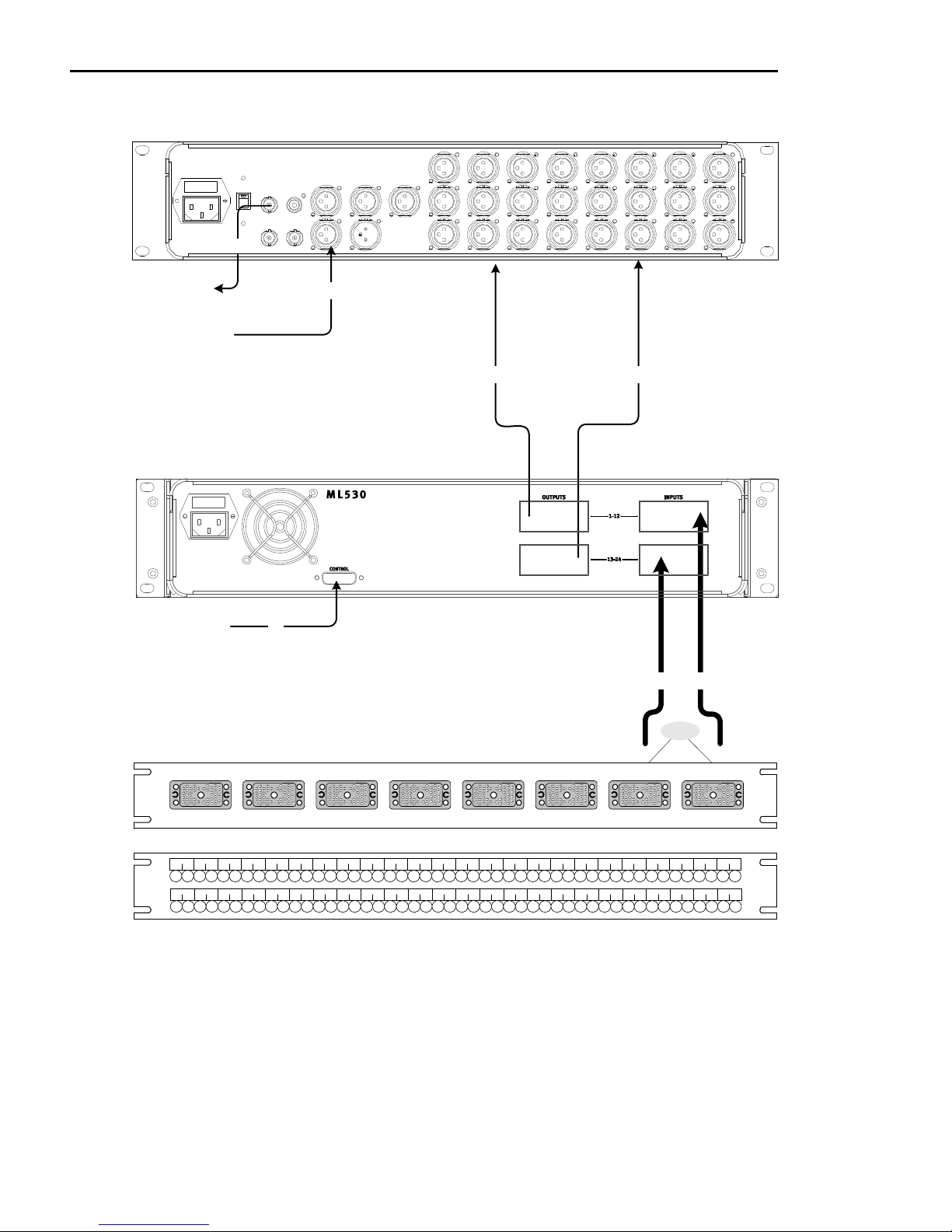

Connection Diagram
A - Optional Patchbay
12 male XLR to
one male Elco 38
Mic/Line Analog Out
MADI out to
Studio Hub
1
AES/EBU Sync In
from Sync DA
2
Control from PC253i
Interface Pilot
one male Elco 38 to
one male Elco 38
Patch to Mic/Line
AM713
MADI
OUT
4 4
3
D D
2
1
B,C
Optional Input Patch
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
Upper 37-48 Upper 25-36 Lower 37-48 Lower 25-36 Upper 13-24 Upper 1-12 Lower 13-24 Lower 1-12
Mic/Line Inputs
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
USERUSERUSERUSERUSERUSERUSERUSER
Input patch configuration
ML530 Guide8
Elco 38 Input/Output Pinout
DDEEFFH
H
PPR
R
SST
T
E
F
G
H
J
L
M
N
P
R
S
T
U
V
W
X
Y
Z
A
A
BBC
C
JJKKL
L
MMN
N
C
D
A
B
L
M
N
P
PP
RR
SS
TT
V
W
AA
CC
E
F
H
J
JJ
KK
LL
MM
S
U
Z
BB
+
A
B
C
D
DD
EE
FF
HH
R
T
X
Y
- GNum
1
2
3
4
5
6
7
8
9
10
11
12
Signal
Mic In 1 / Mic In 13
Mic In 2 / Mic In 14
Mic In 3 / Mic In 15
Mic In 4 / Mic In 16
Mic In 5 / Mic In 17
Mic In 6 / Mic In 18
Mic In 7 / Mic In 19
Mic In 8 / Mic In 20
Mic In 9 / Mic In 21
Mic In 10 / Mic In 22
Mic In 11 / Mic In 23
Mic In 12 / Mic In 24
Wiring Instruction & Description
From studio Mic 1 / 13
From studio Mic 2 / 14
From studio Mic 3 / 15
From studio Mic 4 / 16
From studio Mic 5 / 17
From studio Mic 6 / 18
From studio Mic 7 / 19
From studio Mic 8 / 20
From studio Mic 9 / 21
From studio Mic 10 / 22
From studio Mic 11 / 23
From studio Mic 12 / 24
DDEEFFH
H
PPR
R
SST
T
E
F
G
H
J
L
M
N
P
R
S
T
U
V
W
X
Y
Z
A
A
BBC
C
JJKKL
L
MMN
N
C
D
A
B
Num
1
2
3
4
5
6
7
8
9
10
11
12
L
M
N
P
PP
RR
SS
TT
V
W
AA
CC
E
F
H
J
JJ
KK
LL
MM
S
U
Z
BB
+
A
B
C
D
DD
EE
FF
HH
R
T
X
Y
- GWiring Instruction & Description
To AM713 Analog In 1 / In 13
To AM713 Analog In 2 / In 14
To AM713 Analog In 3 / In 15
To AM713 Analog In 4 / In 16
To AM713 Analog In 5 / In 17
To AM713 Analog In 6 / In 18
To AM713 Analog In 7 / In 19
To AM713 Analog In 8 / In 20
To AM713 Analog In 9 / In 21
To AM713 Analog In 10 / In 22
To AM713 Analog In 11 / In 23
To AM713 Analog In 12 / In 24
Signal
Mic Pre Out 1 / Out 13
Mic Pre Out 2 / Out 14
Mic Pre Out 3 / Out 15
Mic Pre Out 4 / Out 16
Mic Pre Out 5 / Out 17
Mic Pre Out 6 / Out 18
Mic Pre Out 7 / Out 19
Mic Pre Out 8 / Out 20
Mic Pre Out 9 / Out 21
Mic Pre Out 10 / Out 22
Mic Pre Out 11 / Out 23
Mic Pre Out 12 / Out 24
ML530 In 1/In 2 pinout: Elco 38 socket
ML530 Out 1/Out 2 pinout: Elco 38 socket
Connector Specifications
38-pin male w/ hood Elco P/N 00-8016-038000-519 (Euphonix P/N 100-02099)
Use crimp pins Elco P/N 60-8017-031300-339 (Euphonix P/N 100-02100)
Chapter 3: Configuration and Connection 9
ML530 Guide10
Appendix A: ML530 Specifications
Performance Specifications
Gain Range -12 dB to 72 dB in 0.5 dB increments
Phantom Power +48 V ±2% (Switched per channel)
Maximum Input Level 41 dB (Pad inserted, unity gain, @1 kHz, @1% THD+N)
Differential Input Impedance
Maximum Output Level 29 dB (@1 kHz, @1% THD+N)
Output Impedance 100
Frequency Response
Gain Accuracy ±0.15 dB (@1 kHz)
Distortion (THD+N)
Equivalent Input Noise (EIN) -127 dB (@66 dB gain, 22 Hz – 22 kHz filtered, Low Z mode, 150 source)
200 k (Hi Z, Pad off, +48V off)
200 k (Hi Z, Pad on, +48V off)
12.7 k (Hi Z, Pad on, +48V on)
12.7 k (Hi Z, Pad off, +48V on)
1.5 k (Lo Z, Pad off, +48V off)
1.5 k (Lo Z, Pad on, +48V off)
1.4 k (Lo Z, Pad on, +48V on)
1.4 k (Lo Z, Pad off, +48V on)
10 Hz – 60 kHz (-0.5 dB @ unity gain)
10 Hz – 50 kHz (-0.5 dB @ 30 dB gain)
10 Hz – 40 kHz (-0.5 dB @ 66 dB gain)
0.004% (@ 1 kHz @ 0 dB gain with
+13.5 dB applied, 22 kHz filtered)
< 0.02% (20 Hz – 20 kHz @ 13.5 dB 80 kHz filtered)
Common Mode Rejection (CMR) >50 dB (10 Hz – 20 kHz)
Phase Linearity ±10° (25 Hz – 20 kHz)
High-pass Filter 80 Hz 18 dB/octave switched per channel
Phase Invert 180° switched per channel
Appendix A: ML530 Specifications 11
Environmental and Power Specifications
Operating Temperature 5–35°C
Power Requirements 90–250 VAC, 50/60Hz
Power Consumption 100 W
Physical Dimensions
Height 3.5 inches
Width 19 inches
Depth 18.6 inches
Weight 17 lb
ML530 Guide12
Appendix B: Compliance Information
Environmental Compliance
Disposal of Waste Equipment by Users in the
European Union
This symbol on the product or its packaging indicates that this product must not
be disposed of with other waste. Instead, it is your responsibility to dispose of
your waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help conserve
natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off
your waste equipment for recycling, please contact your local city recycling office
or the dealer from whom you purchased the product.
Proposition 65 Warning
This product contains chemicals, including lead,
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling.
Perchlorate Notice
This product may contain a lithium coin battery. The State of California requires
the following disclosure statement: “Perchlorate Material – special handling may
apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”
Recycling Notice
Appendix B: Compliance Information 13
EMC (Electromagnetic Compliance)
N1709
Avid declares that this product complies with the following standards regulating
emissions and immunity:
• FCC Part 15 Class A
• EN55103-1 E4
• EN55103-2 E4
• AS/NZS CISPR 22 Class A
• CISPR 22 Class A
FCC Compliance for United States
Communication Statement
Note: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
Any modifications to the unit, unless expressly approved by
Avid, could void the user's authority to operate the
equipment.
Australian Compliance
Canadian Compliance
This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du
Règlement sur le material brouilleur du Canada.
CE Compliance
(EMC and Safety)
Avid is authorized to apply the CE (Conformité Europénne) mark on this compliant
equipment thereby declaring conformity to EMC Directive 2004/108/EC and Low
Voltage Directive 2006/95/EC.
ML530 Guide14
Safety Compliance
Safety Statement
This equipment has been tested to comply with USA and Canadian safety
certification in accordance with the specifications of UL Standards:
UL 60950-1:2007, 2nd Ed and CAN/CSA-22.2 No. 60950-1-07, 2nd Ed.
Avid Inc., has been authorized to apply the appropriate NRTL mark on its
compliant equipment.
War nin g
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves,
or other equipment (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect power cords from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the equipment.
11) Only use attachments/accessories specified by the manufacturer.
12) For products that are not rack-mountable: Use only with a cart, stand, tripod,
bracket, or table specified by the manufacturer, or sold with the equipment.
When a cart is used, use caution when moving the cart/equipment combination
to avoid injury from tip-over.
13) Unplug this equipment during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when
the equipment has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the equipment,
the equipment has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15) For products that are a Mains powered device:
The equipment shall not be exposed to dripping or splashing and no objects filled
with liquids (such as vases) shall be placed on the equipment.
Warning! To reduce the risk of fire or electric shock, do not expose this
equipment to rain or moisture.
16) For products containing a lithium battery:
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
17) For products with a power switch:
It should remain accessible after installation.
18) The equipment shall be used at a maximum ambient temperature of 40° C.
19) This unit is provided with a power supply cord set suitable for 120V AC input
only (for U.S.A.and Canada). For other than U.S.A. and Canada, a qualified
person must provide for use with this unit, an appropriate, approved power
supply cord set which is in compliance with the end use country requirements
and has a minimum cross-sectional area of 1.0mm2.
20) For units with more than one power cord:
CAUTION: This unit has more than one power supply cord. Disconnect two power
supply cords before servicing to avoid electrical shock.
ATTENTION: Cet appareil comporte plus d’un cordon d’alimentation. Afin de
prévenir les chocs électriques, débrancher les deux cordons d’alimentation
avant de faire le dépannage.
21) For products with an operator-accessible fuse:
CAUTION: For continued protection against risk of fire, replace only with same
type and rating of fuse.
ATTENTION: Pour ne pas compromettre la protection contre les risques
d’incendie, remplacer par un fusible de même type et de même caractéristiques
nominales.
Appendix B: Compliance Information 15
ML530 Guide16
Avid
2001 Junipero Serra Boulevard
Daly City, CA 94014-3886 USA
Technical Support (USA)
Visit the Online Support Center at
www.avid.com/support
Product Information
For company and product information,
visit us on the web at www.avid.com
Loading...
