MC Pro Operation Guide
Version 2.5.6
Legal Notices
This guide is copyrighted ©2010 by Avid Technology, Inc., (hereafter “Avid”), with
all rights reserved. Under copyright laws, this guide may not be duplicated in
whole or in part without the written consent of Avid.
003, 96 I/O, 96i I/O, 192 Digital I/O, 192 I/O, 888|24 I/O, 882|20 I/O,
1622 I/O, 24-Bit ADAT Bridge I/O, AudioSuite, Avid, Avid DNA, Avid Mojo,
Avid Unity, Avid Unity ISIS, Avid Xpress, AVoption, Axiom, Beat Detective,
Bomb Factory, Bruno, C|24, Command|8, Control|24, D-Command, D-Control,
D-Fi, D-fx, D-Show, D-Verb, DAE, Digi 002, DigiBase, DigiDelivery, Digidesign,
Digidesign Audio Engine, Digidesign Intelligent Noise Reduction, Digidesign
TDM Bus, DigiDrive, DigiRack, DigiTest, DigiTranslator, DINR, DV Toolkit,
EditPack, Eleven, EUCON, HD Core, HD Process, Hybrid, Impact, Interplay, LoFi,
M-Audio, MachineControl, Maxim, Mbox, MediaComposer, MIDI I/O, MIX,
MultiShell, Nitris, OMF, OMF Interchange, PRE, ProControl, Pro Tools M-Powered,
Pro Tools, Pro Tools|HD, Pro Tools LE, QuickPunch, Recti-Fi, Reel Tape, Reso,
Reverb One, ReVibe, RTAS, Sibelius, Smack!, SoundReplacer, Sound
Designer II, Strike, Structure, SYNC HD, SYNC I/O, Synchronic, System 5,
TL Aggro, TL AutoPan, TL Drum Rehab, TL Everyphase, TL Fauxlder, TL In Tune,
TL MasterMeter, TL Metro, TL Space, TL Utilities, Transfuser, Trillium Lane Labs,
Vari-Fi, Velvet, X-Form, and XMON are trademarks or registered trademarks of
Avid Technology, Inc. Xpand! is Registered in the U.S. Patent and Trademark
Office. All other trademarks are the property of their respective owners.
Product features, specifications, system requirements, and availability are
subject to change without notice.
Guide Part Number 9324-65007-00 REV A 11/10
Documentation Feedback
At Avid, we are always looking for ways to improve our documentation. If you have
comments, corrections, or suggestions regarding our documentation, email us
at techpubs@avid.com.
Complance Information
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Caution: Any changes or modifications made by the user that are not expressly
approved by Avid could void the user’s right to operate the equipment.
IMPORTANT SAFETY INSTRUCTIONS
The lighting ash with arrowhead symbol within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufcient magnitude to constitute a
risk of electrical shock to persons.
The exclamation point within an equilateral triangle, is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the product.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-
tus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wider blade or the third prong are provided for your safety. If
the provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
15) WARNING – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
16) Do not expose this equipment to dripping or splashing and ensure that no objects lled with
liquids, such as vases, are placed on the equipment.
17) To completely disconnect this equipment from the AC Mains, disconnect the power supply
cord plug from the AC receptacle.
18) The mains plug of the power supply cord shall remain readily operable.
19) This unit is provided with a power supply cord set suitable for 120V AC input only (for
U.S.A. and Canada). For other than U.S.A. and Canada, a qualied person must provide for
use with this unit, an appropriate, approved power supply cord set which is in compliance
with the end use country requirements and has a minimum cross-sectional area of 1.0mm2.
20) For units with more than one power cord:
Caution: This unit has more than one power supply cord. Disconnect two power supply
cords before servicing to avoid electrical shock.
Attention: Cet appareil comporte plus d’un cordon d’alimentation. An de prévenir les
chocs électriques, débrancher les deux cordons d’alimentation avant de faire
le dépannage.
21) Operator Accessible Fuse:
Caution: For continued protection against risk of re, replace only with same type and
rating of fuse.
Attention: Pour ne pas compromettre la protection contre les risques d’incendie, rem-
placer par un fusible de même type et de même caractéristiques nominales.
Media Application Controller Operation Guide
Table of Contents
Chapter 1: Introduction 1
1.1 Multiple Levels of Control 2
1.1.1 Level 1: Keyboard and Trackball 2
1.1.2 Level 2: Soft Keys 2
1.1.3 Level 3: HUI 2
1.1.4 Level 4: Mackie Control Universal 3
1.1.5 Level 5: EuCon High-Speed Control Protocol 3
1.2 Studio Monitor Express Application 4
1.3 How to Use the PDF 4
Chapter 2: Installation and Conguration 5
2.1 Hardware Information 5
2.1.1 System Optimization 5

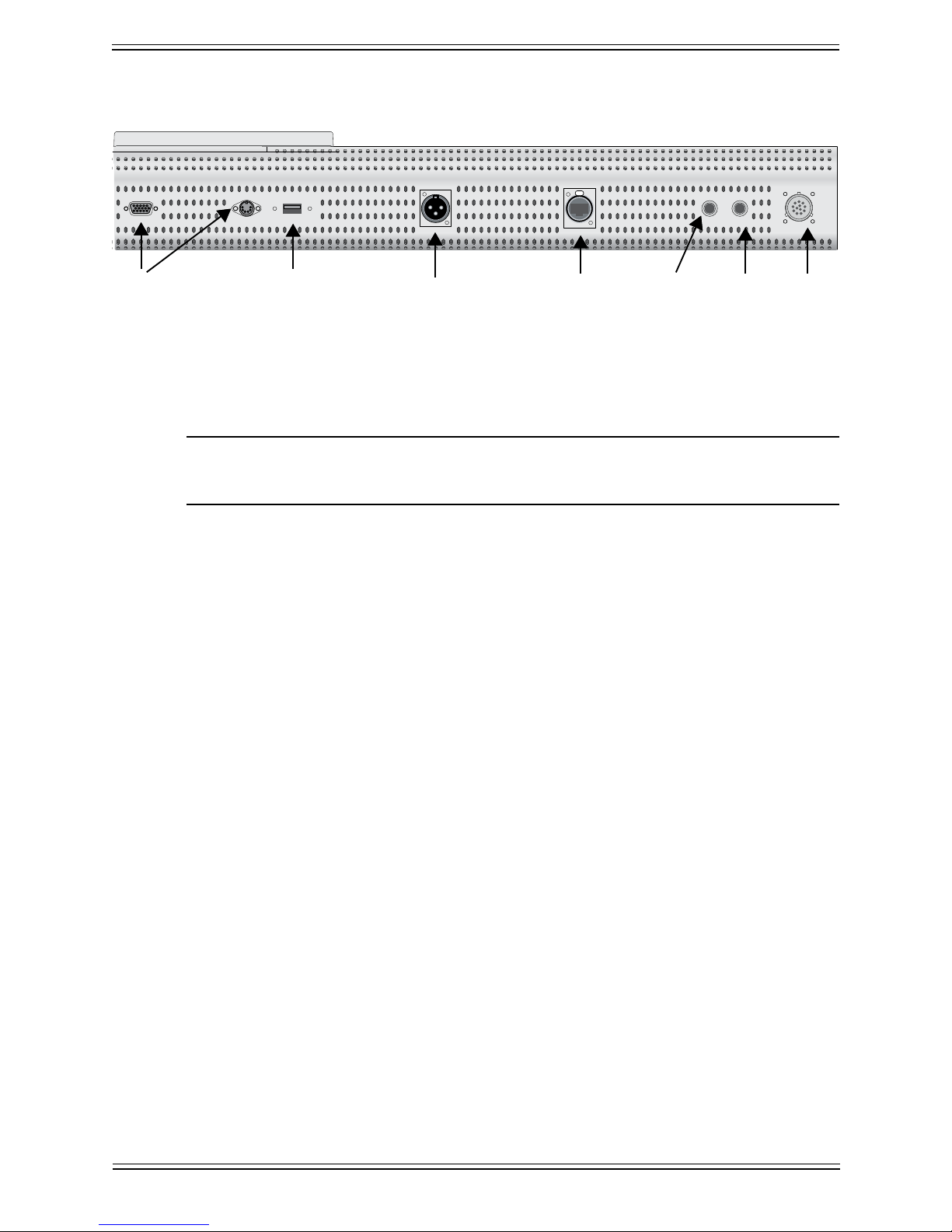

2.1.2 Rear Panel Connections 6
2.2 EuCon Software Installation 7
2.2.1 Uninstalling Previous Versions 7
2.2.2 EuCon WS Software Options (Windows) 7
2.2.3 Upgrading the EuConMC Software 8
2.2.4 Firmware Update Server (System 5-MC only) 9
2.3 Conguration 10
2.3.1 MC Client Software Conguration 10
2.3.2 MC Client and EuCon Discovery Options 11
2.3.3 IP Addressing 12

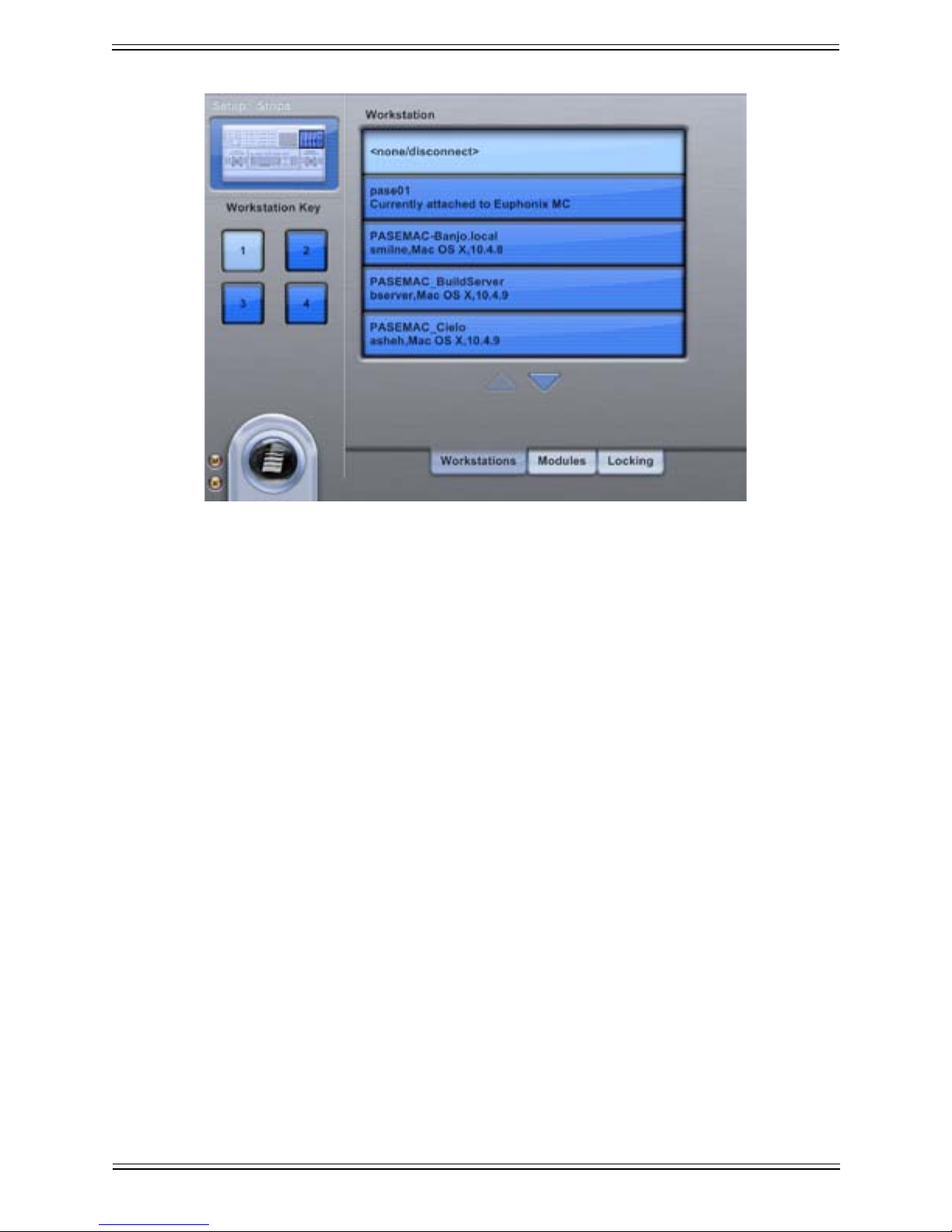

2.3.4 Workstation Control 13
2.3.5 Workstation Binding 15
2.3.6 Visit Workstation 16

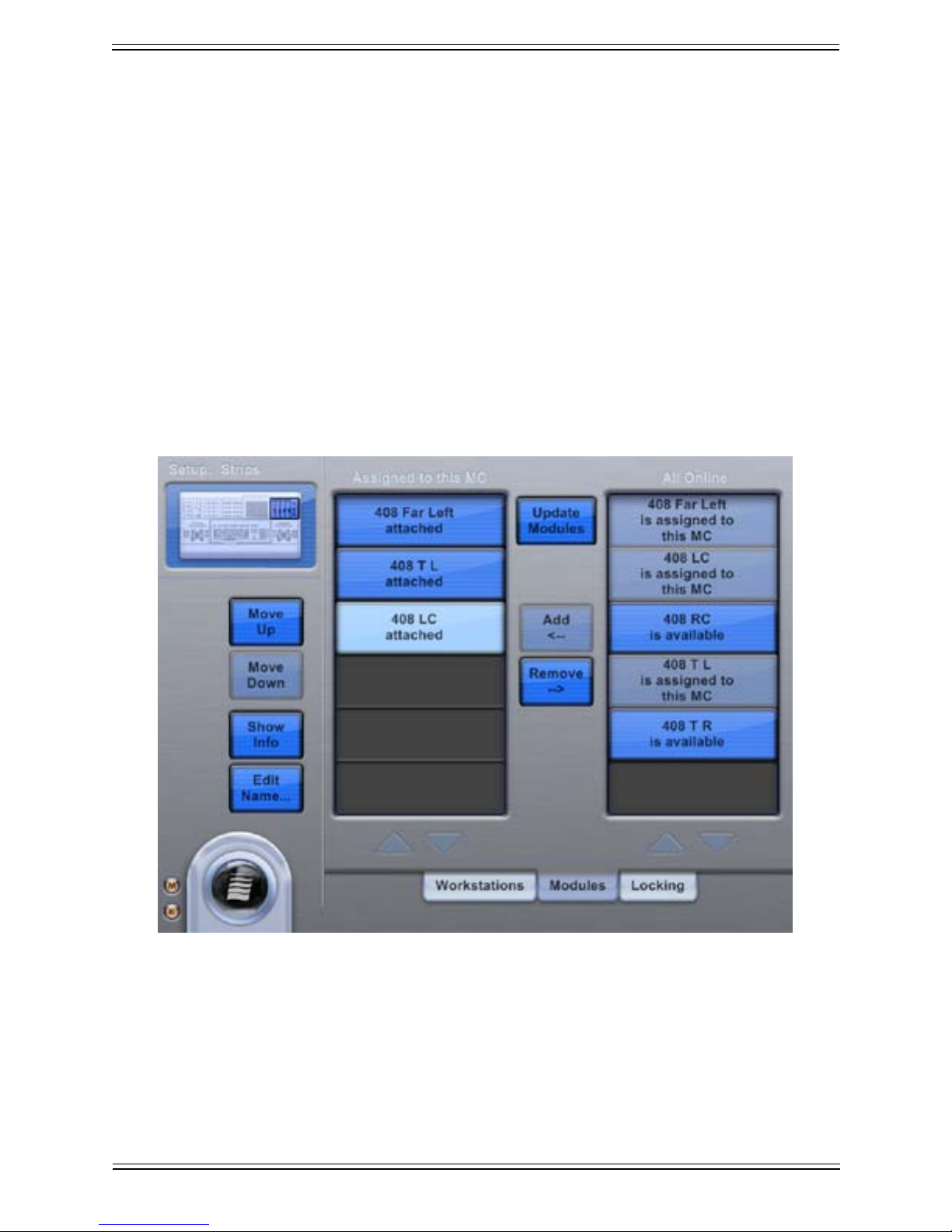

2.3.7 Modules (System 5-MC Only) 16
Chapter 3: Main Touchscreens 19

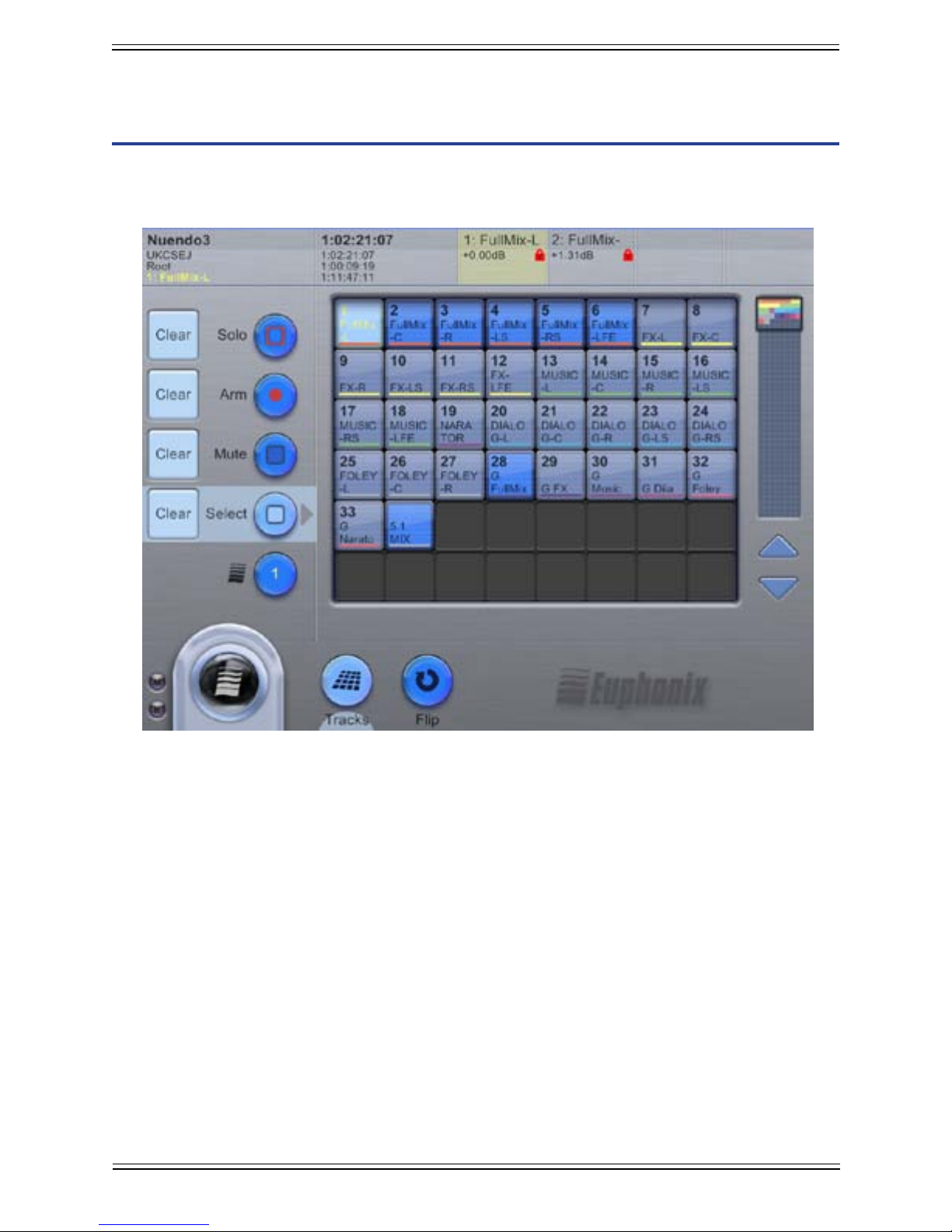

3.1 Main-Tracks 19

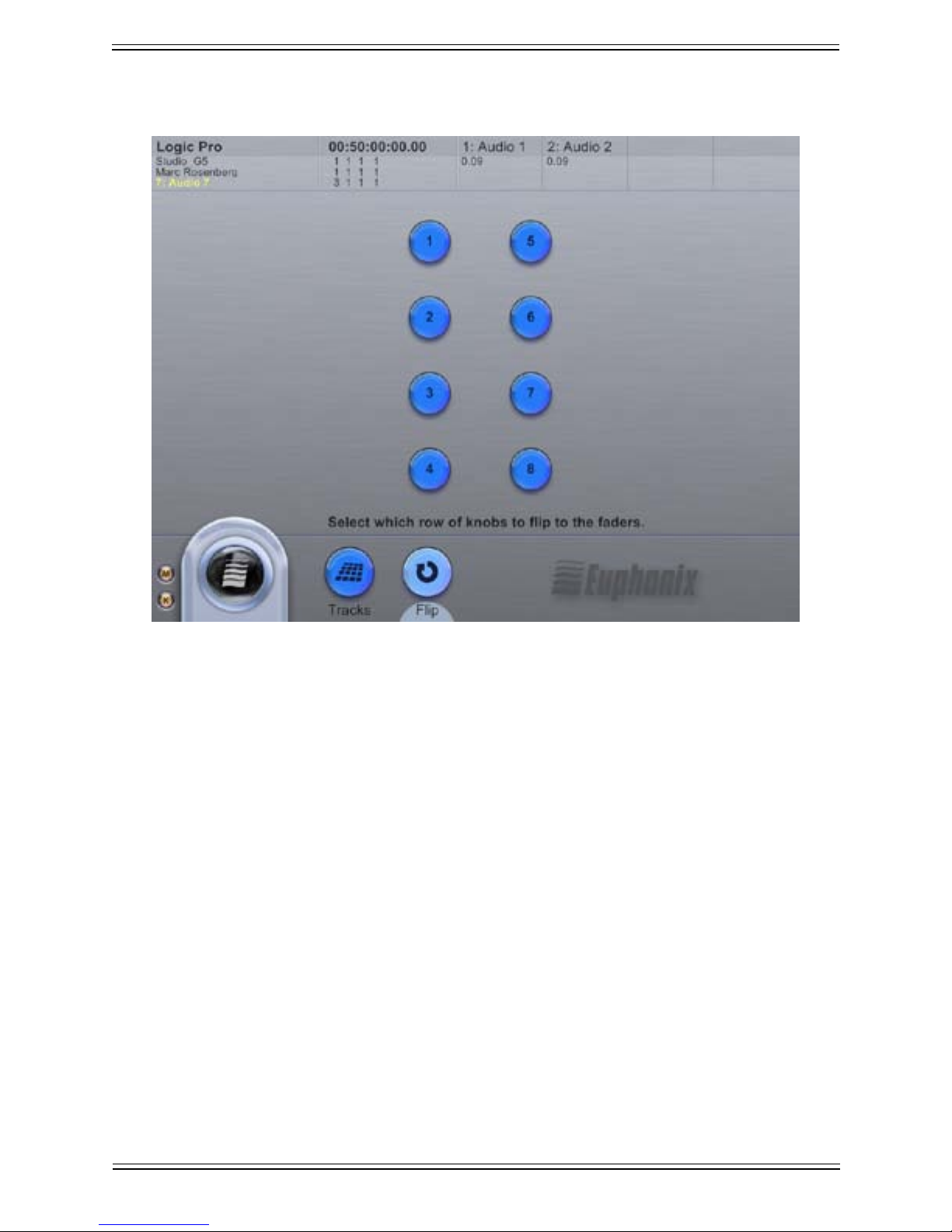

3.2 Main-Flip (System 5-MC Only) 21
3.3 Euphonix Menu 22
v
Media Application Controller Operation Guide

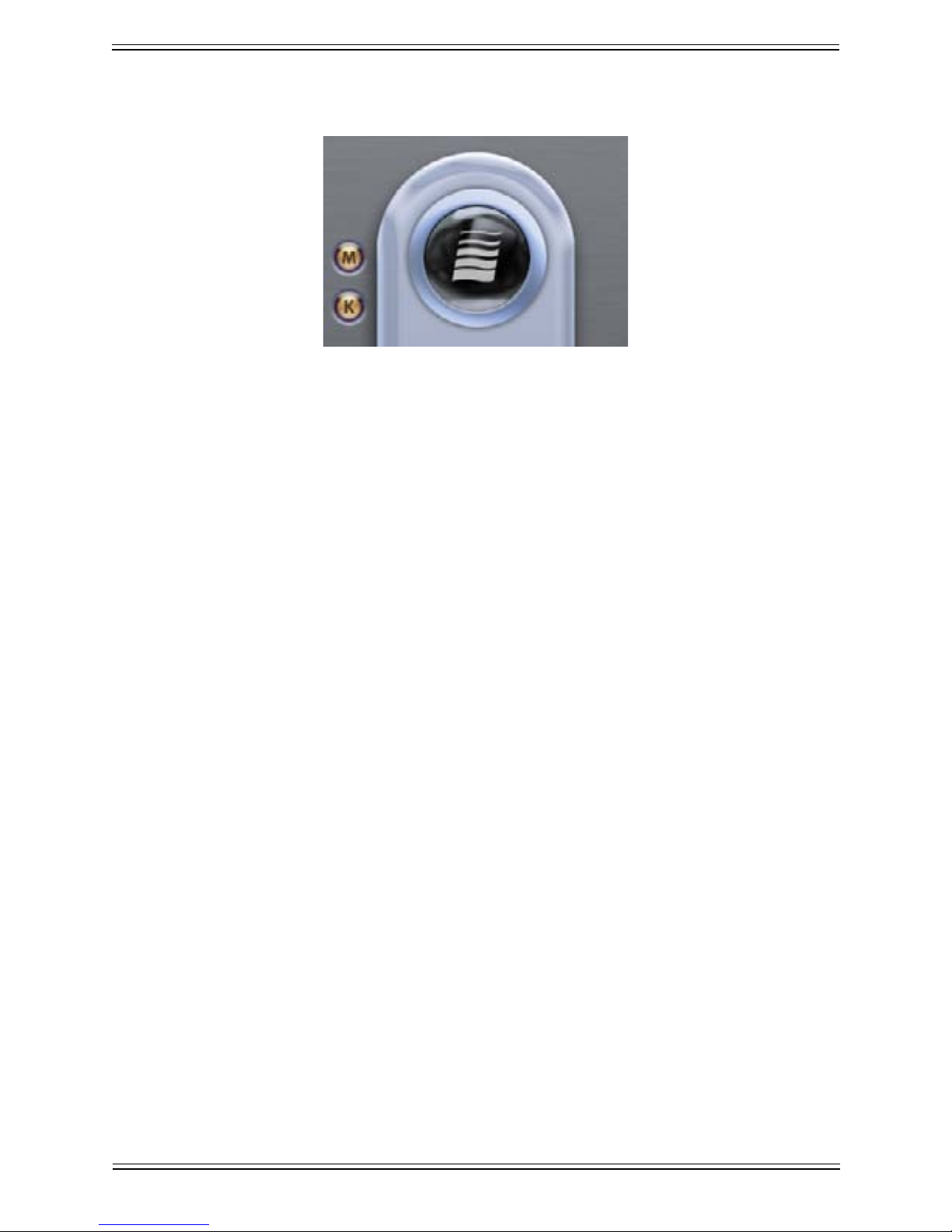

3.3.1 M and K Indicators 22
3.3.2 File 22

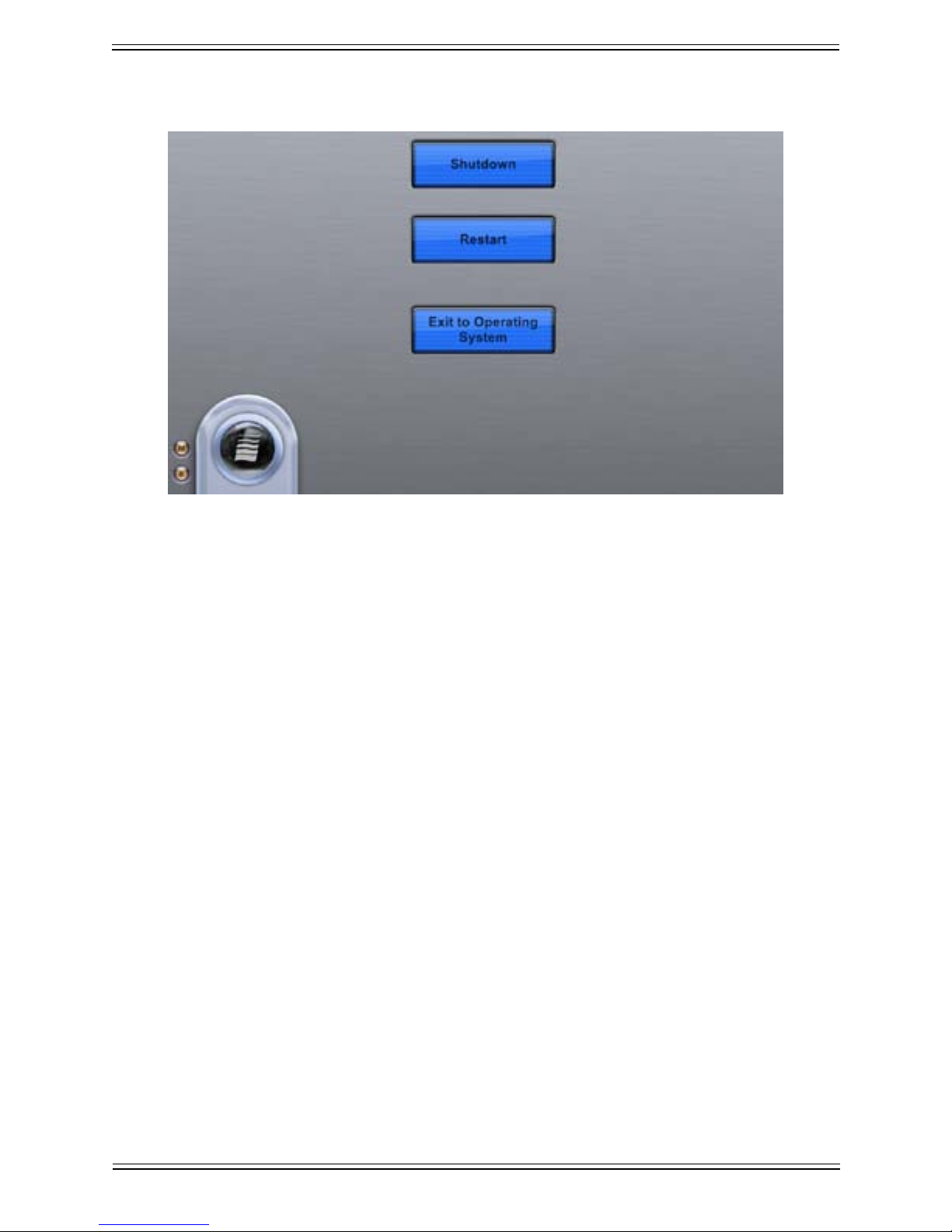

3.3.3 Shutdown 23
Chapter 4: MC Preference Settings 25

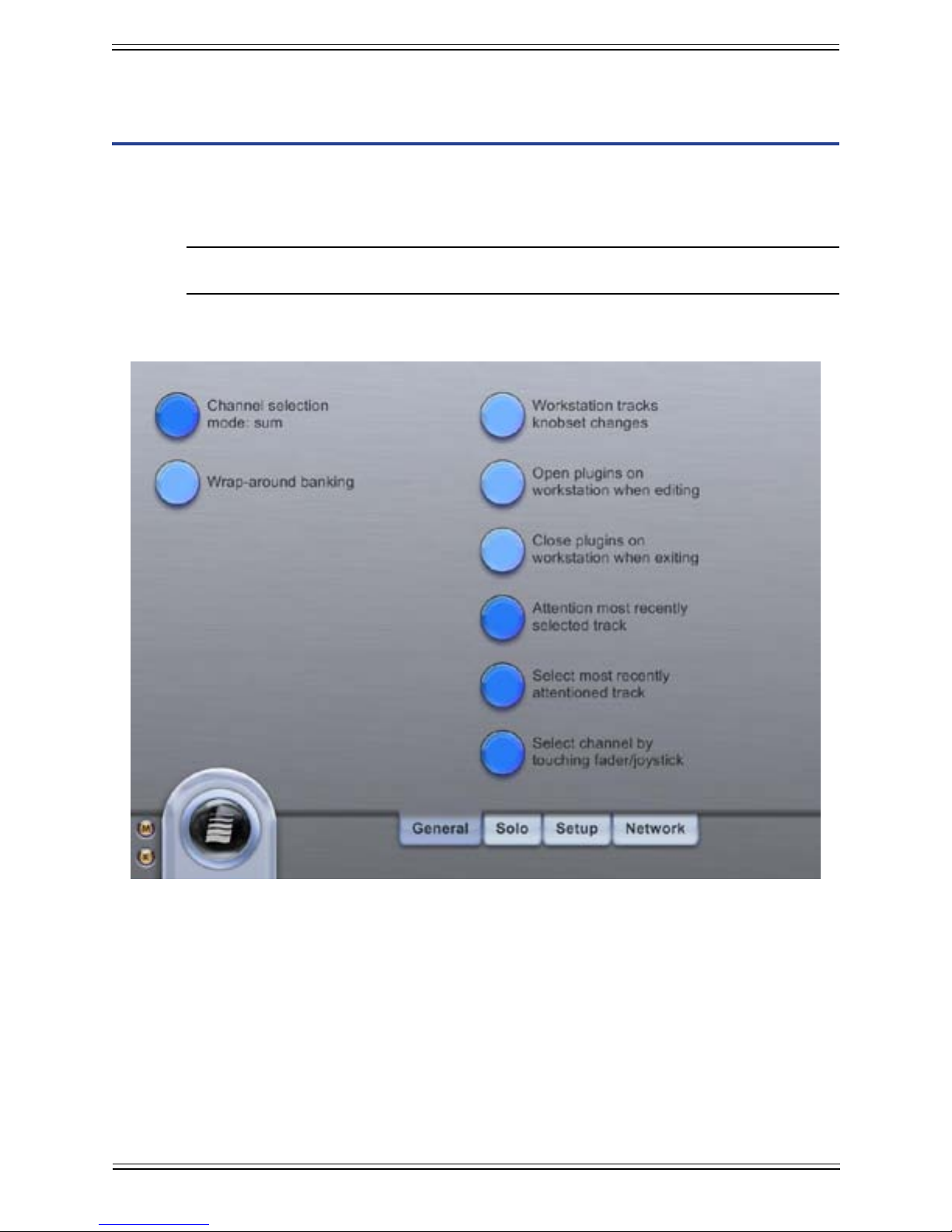

4.1 General 25

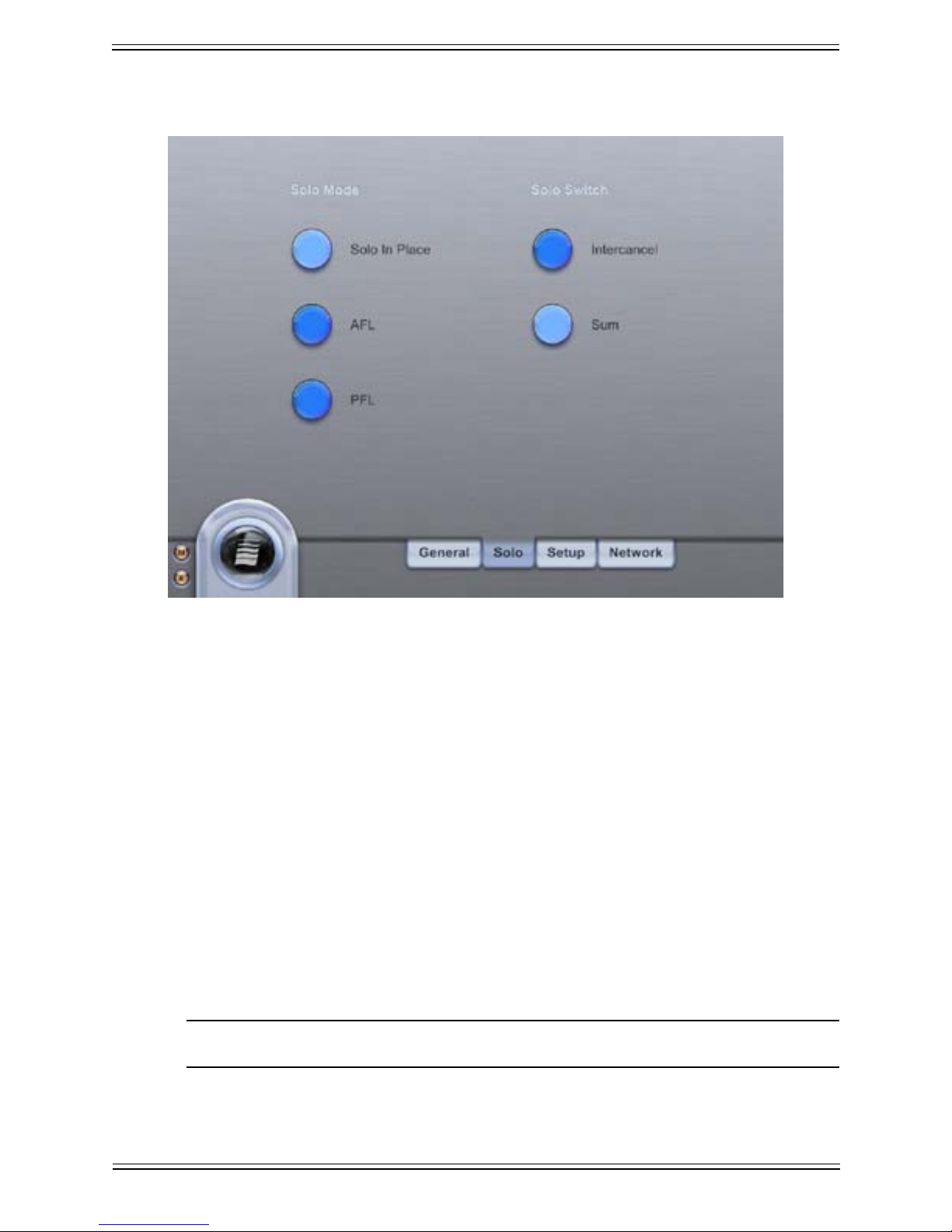

4.2 Solo 27
4.3 Setup 28
4.3.1 Devices 28
4.3.2 Jogwheel Speed 29
4.3.3 Surface Filter Update Period 29
4.3.4 Set MC Name 29
4.3.5 Fader Text Mode and Knob Text Mode 29
4.3.6 Soft Key Display and Operation 29
4.4 Network 30

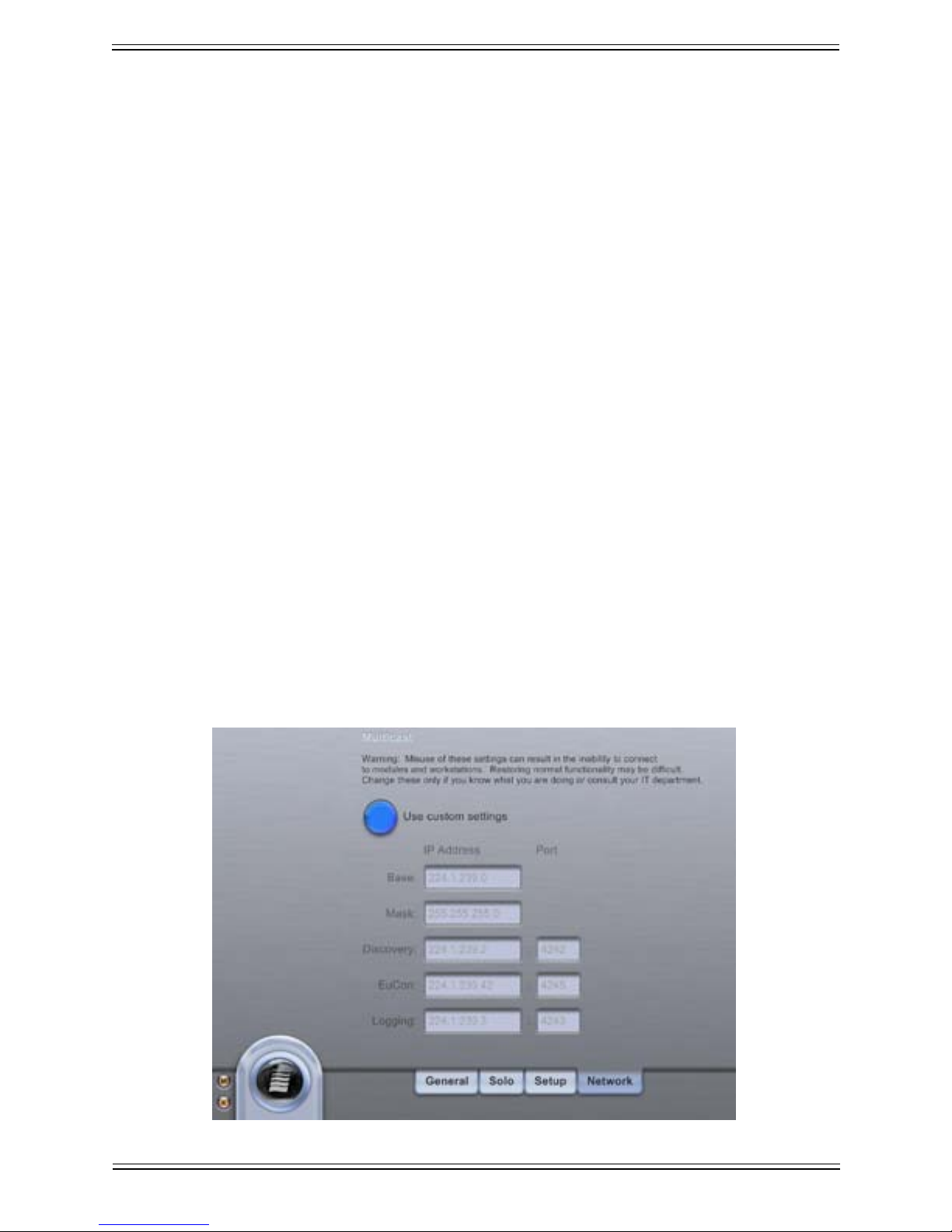

4.4.1 To set custom multicasting settings: 31
4.4.2 To set the system back to default multicasting settings: 32

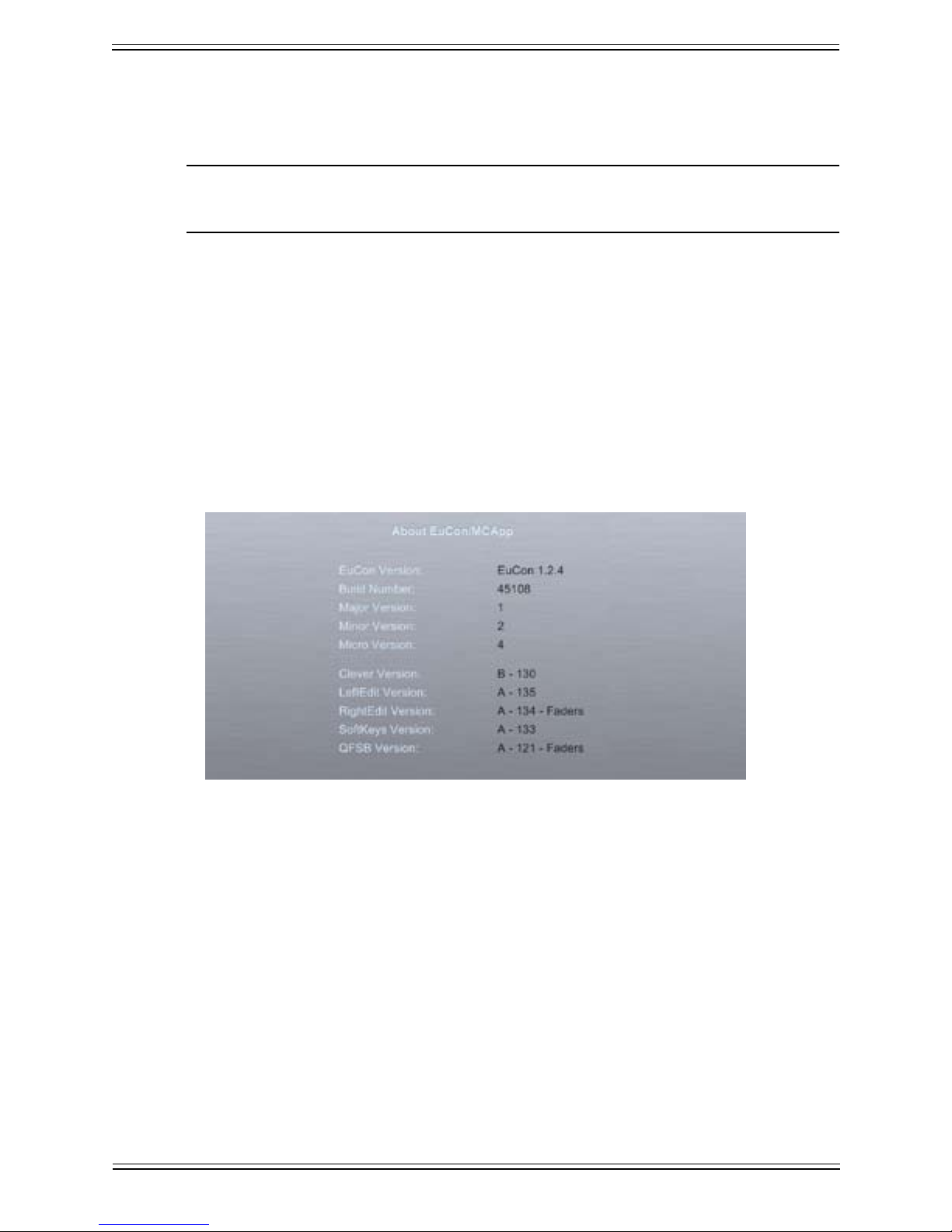

4.5 About 33

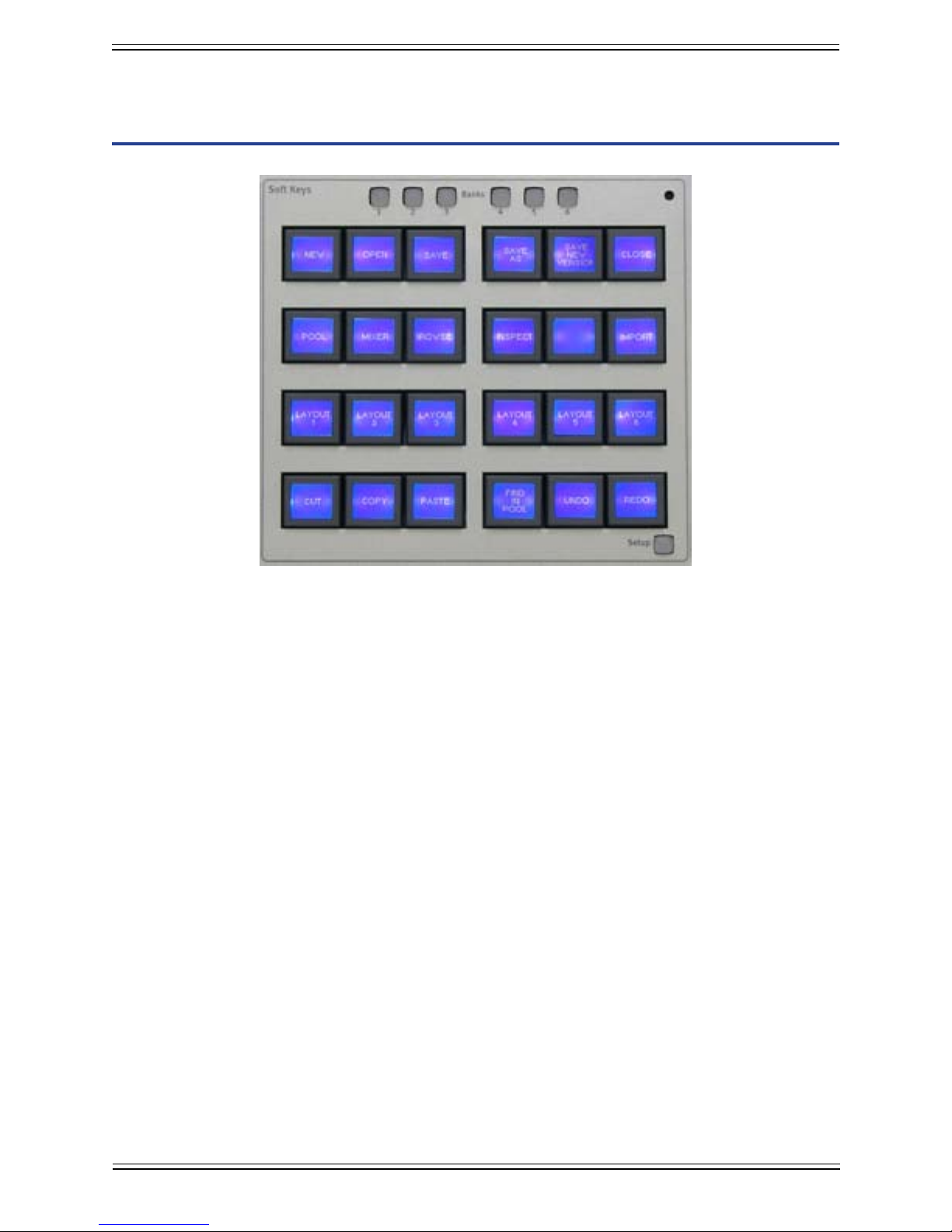

Chapter 5: Soft Keys 46
5.1 Banks 46

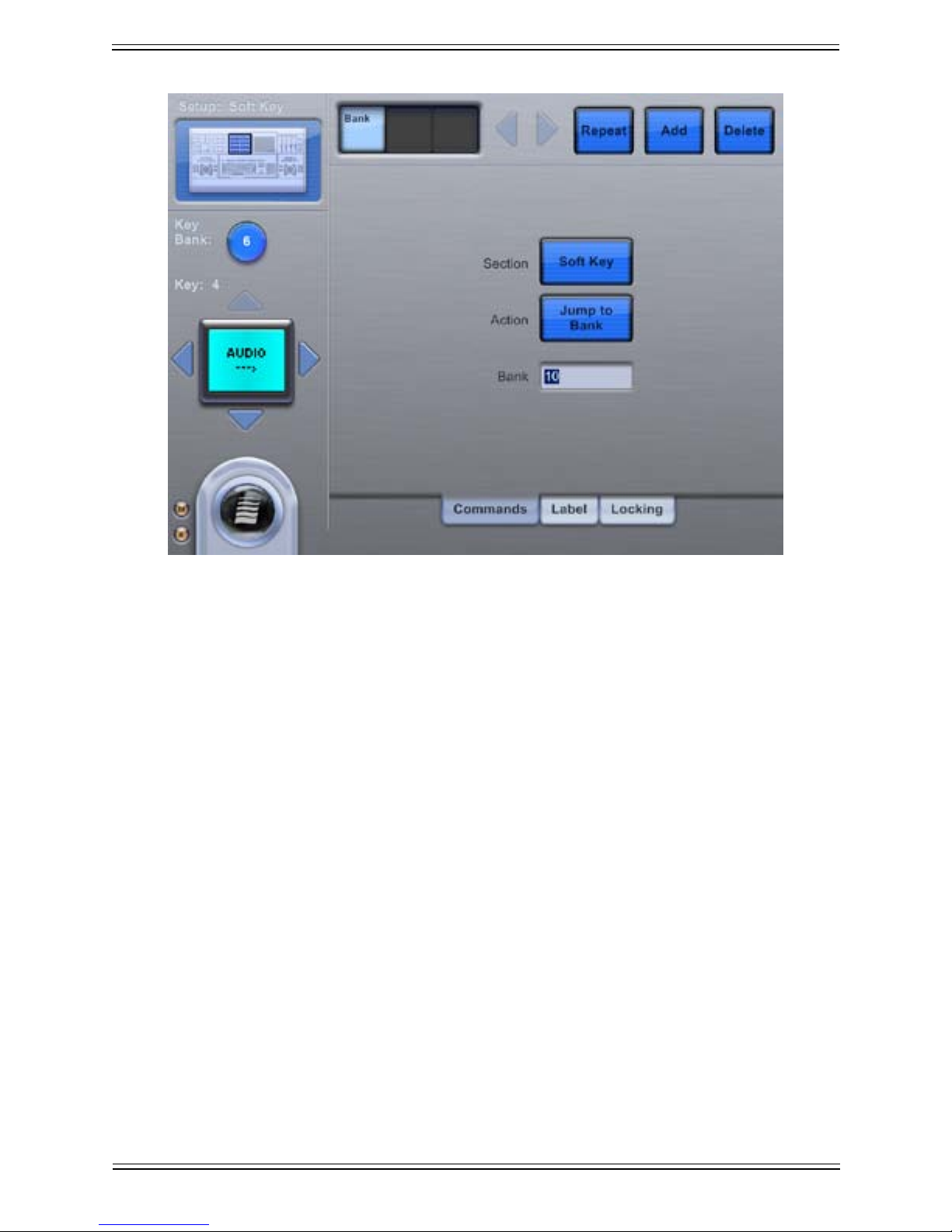

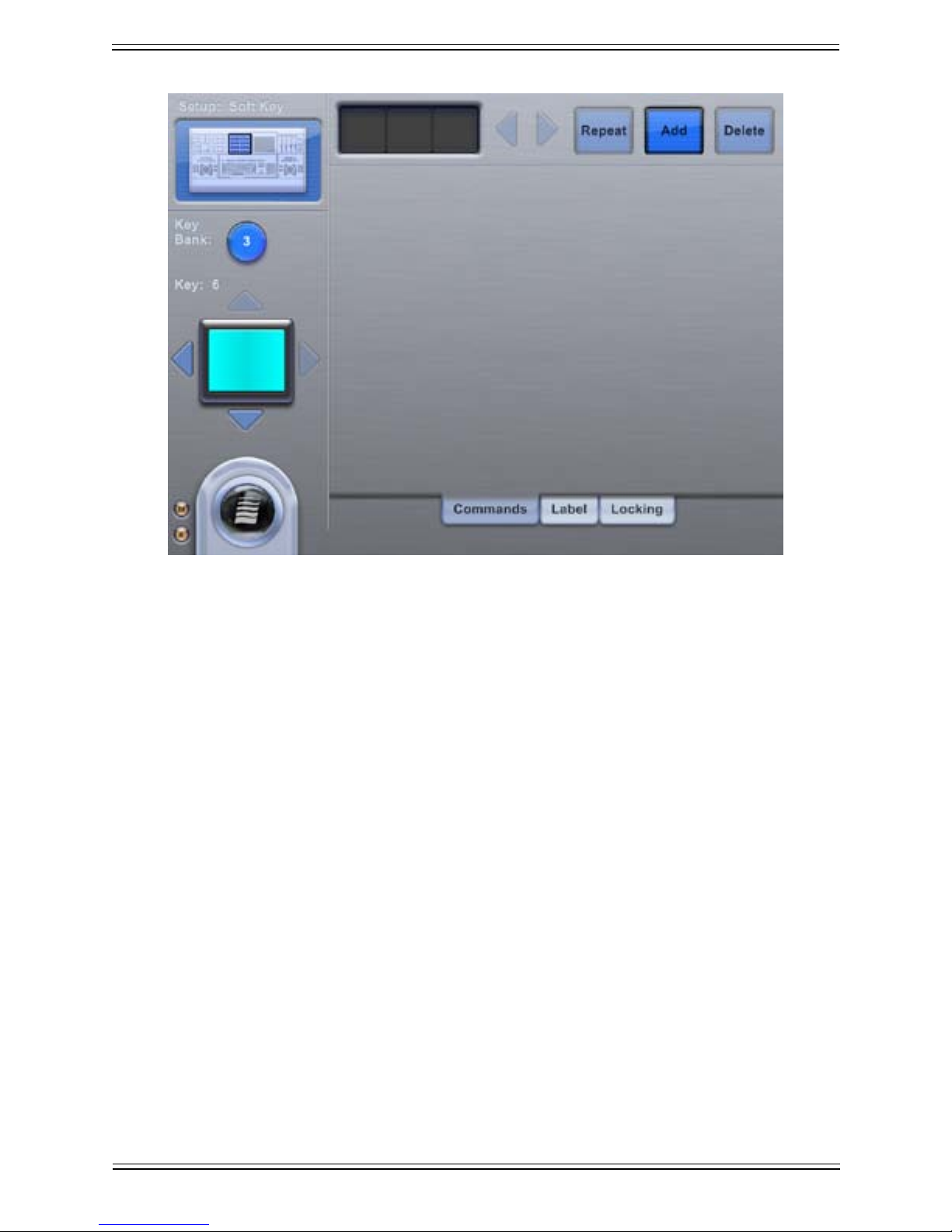

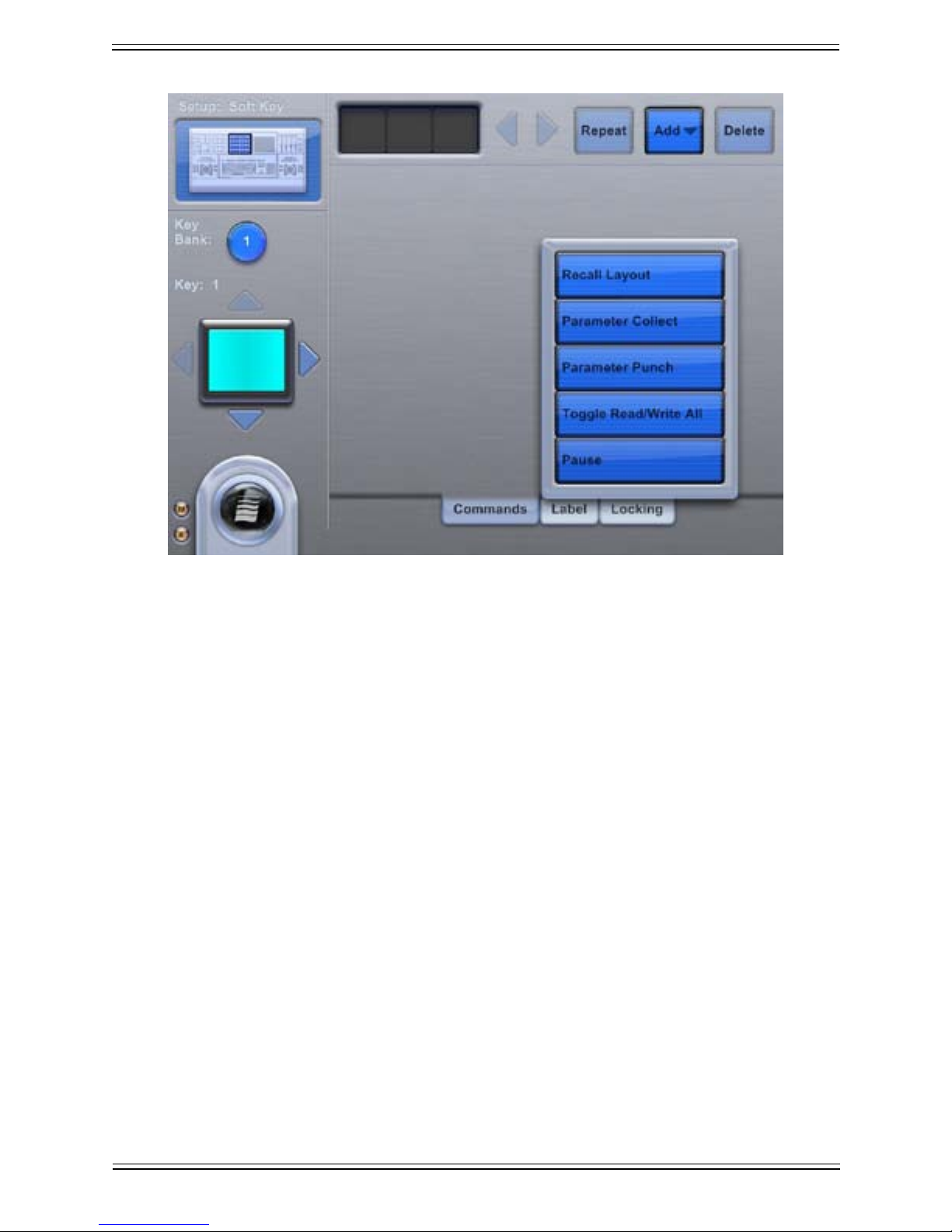

5.2 Soft Keys Setup 47

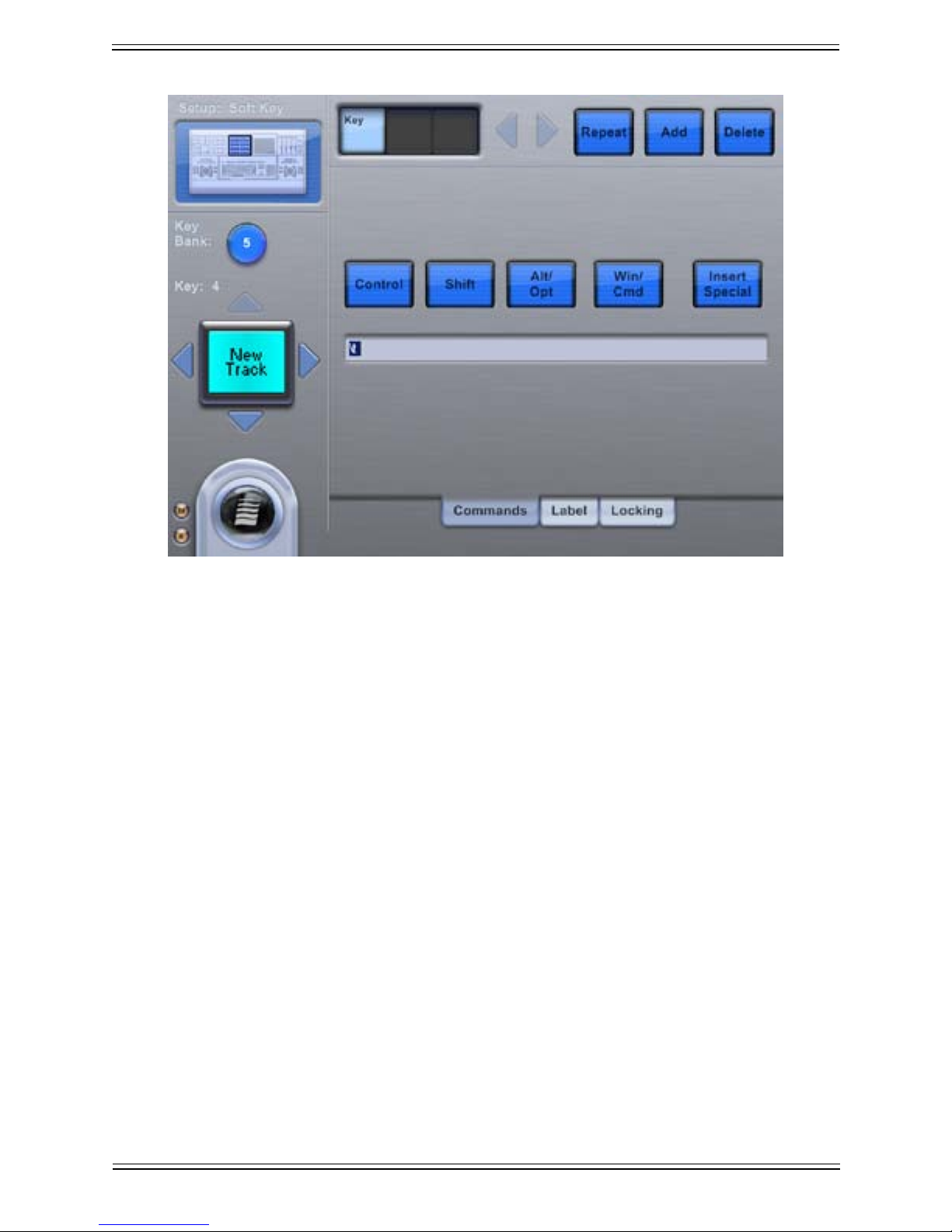

5.2.1 Commands 47
5.2.2 Menu Implementation 53

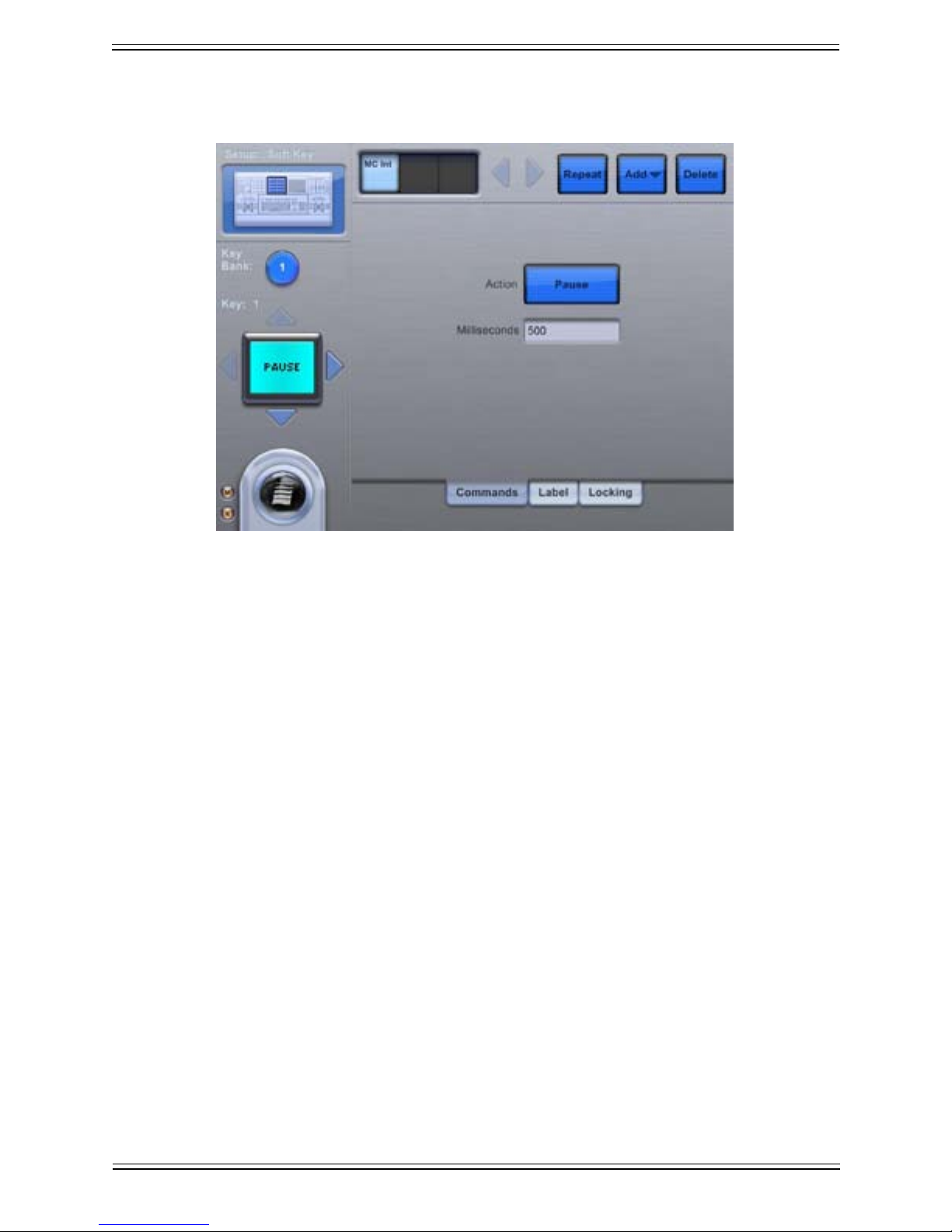

5.2.3 Pause 54

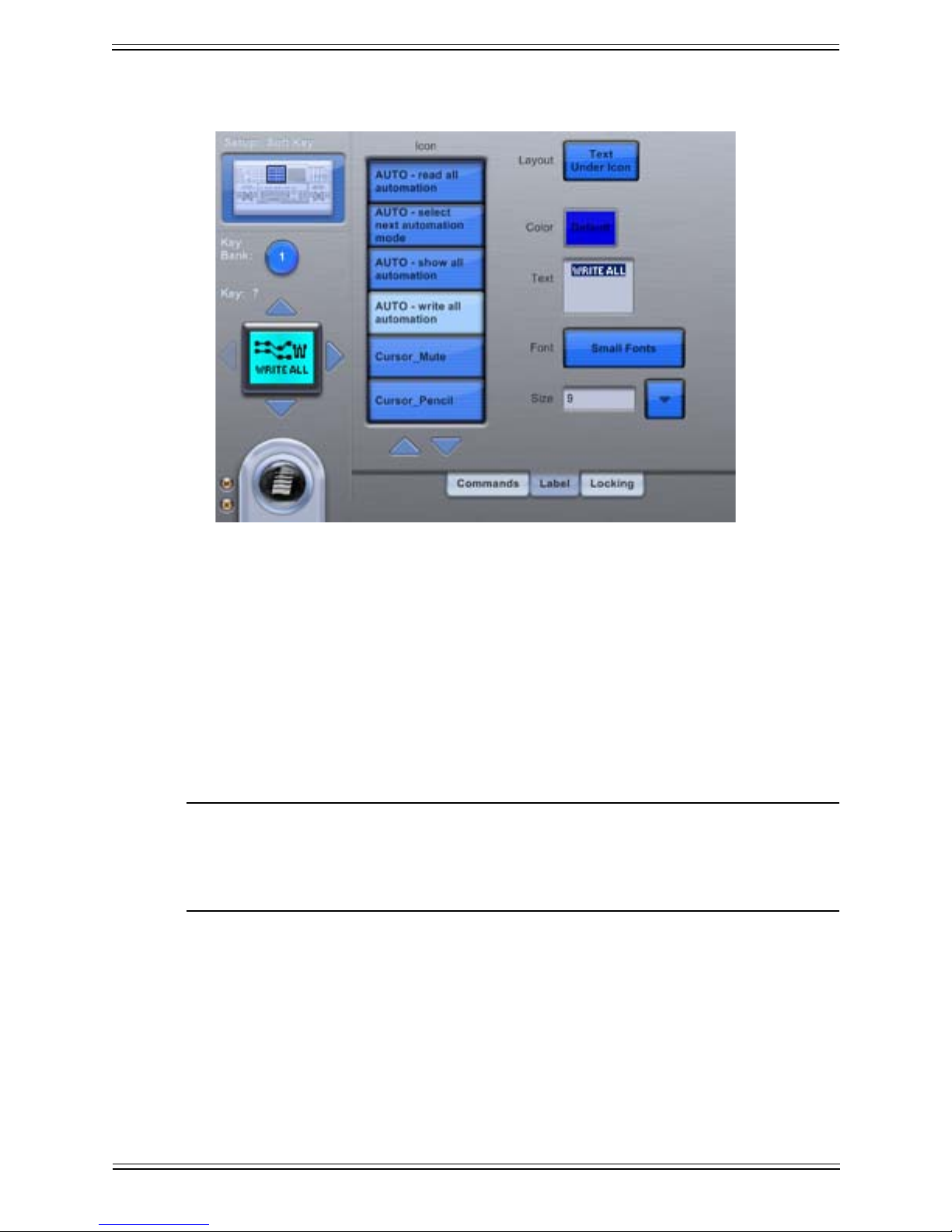

5.2.4 Label 55
5.2.5 Cut, Copy & Paste Soft Keys 56

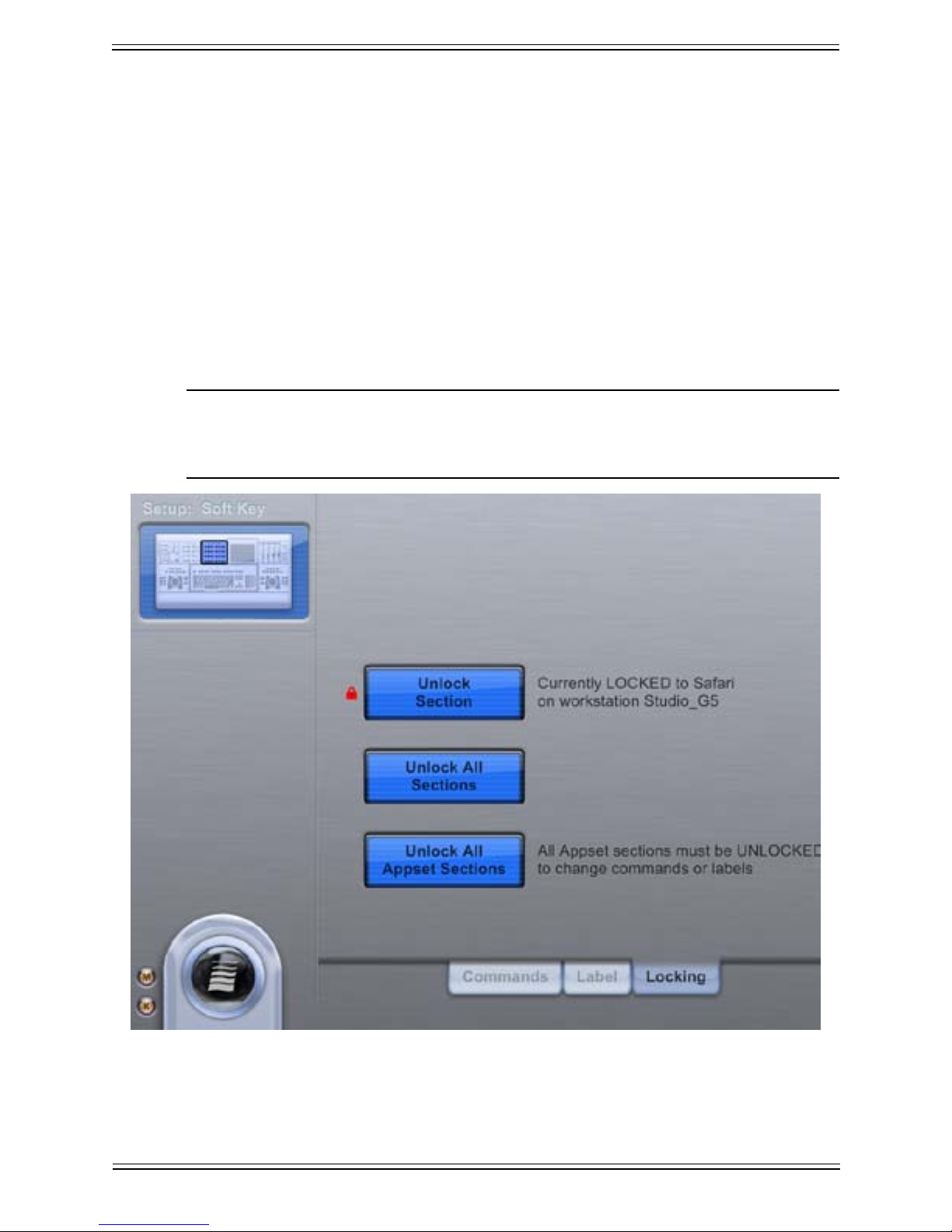

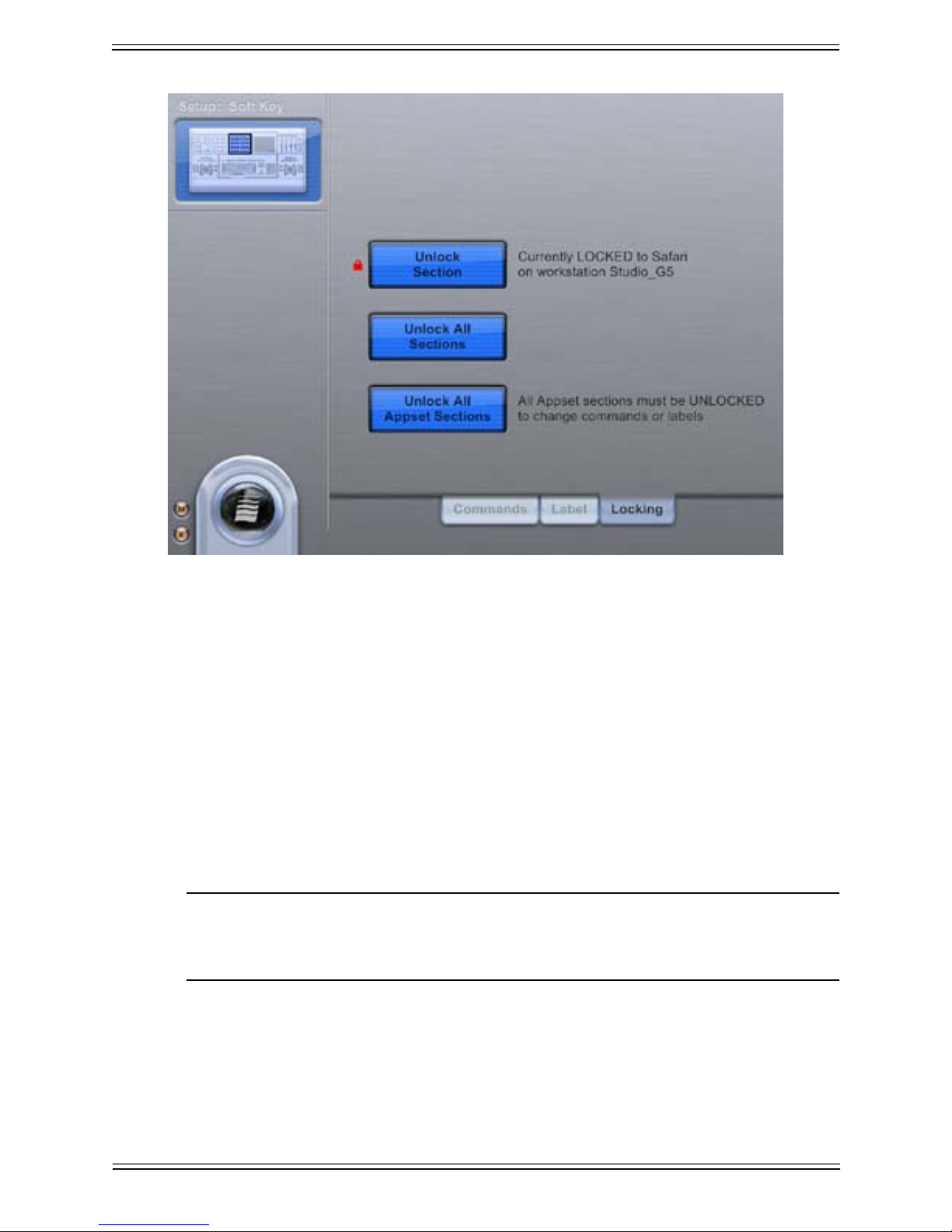

5.2.6 Locking 56
Chapter 6: Soft Knobs 60
6.1 Knob Cells 60
6.1.1 Knobsets 62

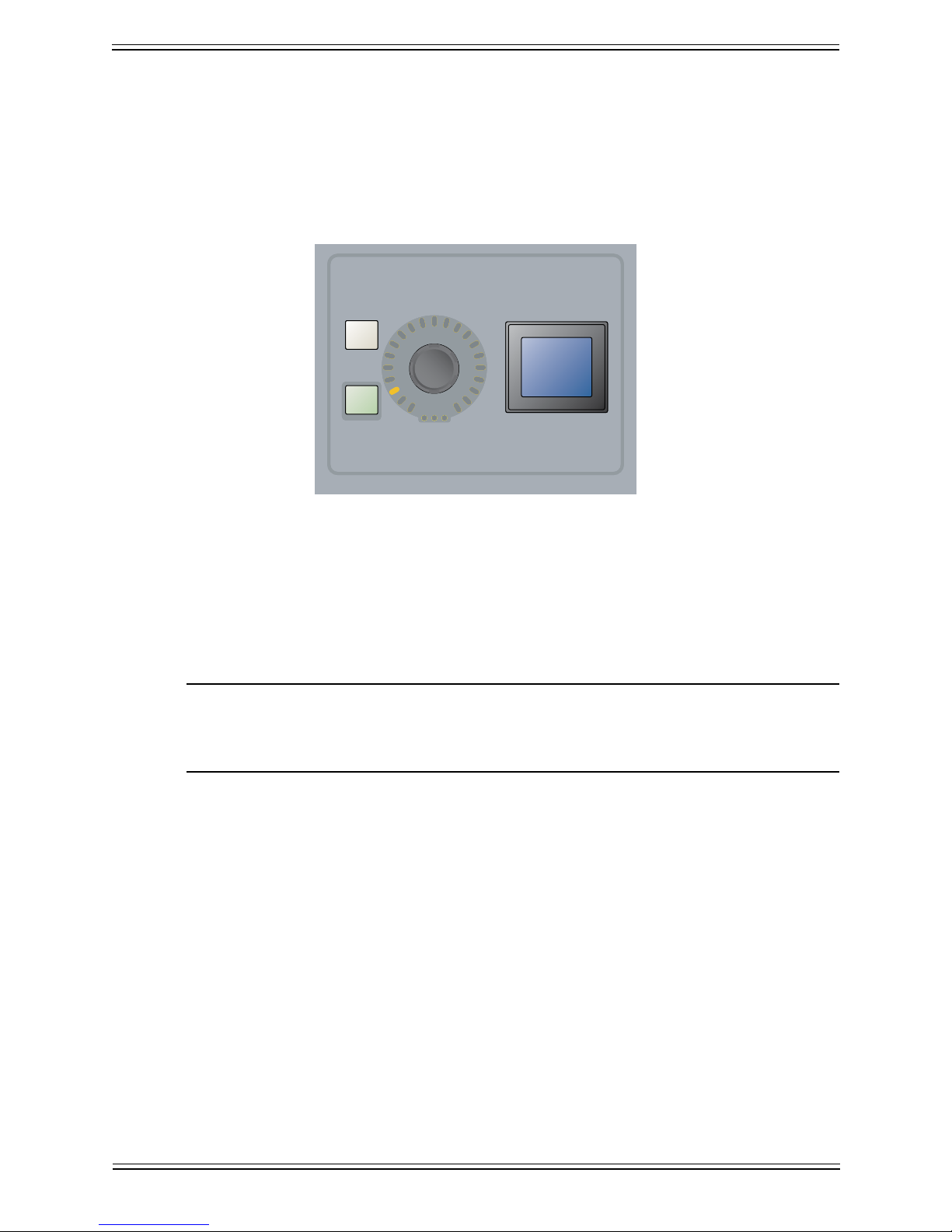

6.2 Assignable Knob 63
6.3 Changing Knobsets 63
vi
Media Application Controller Operation Guide
Chapter 7: Working with Channels 64

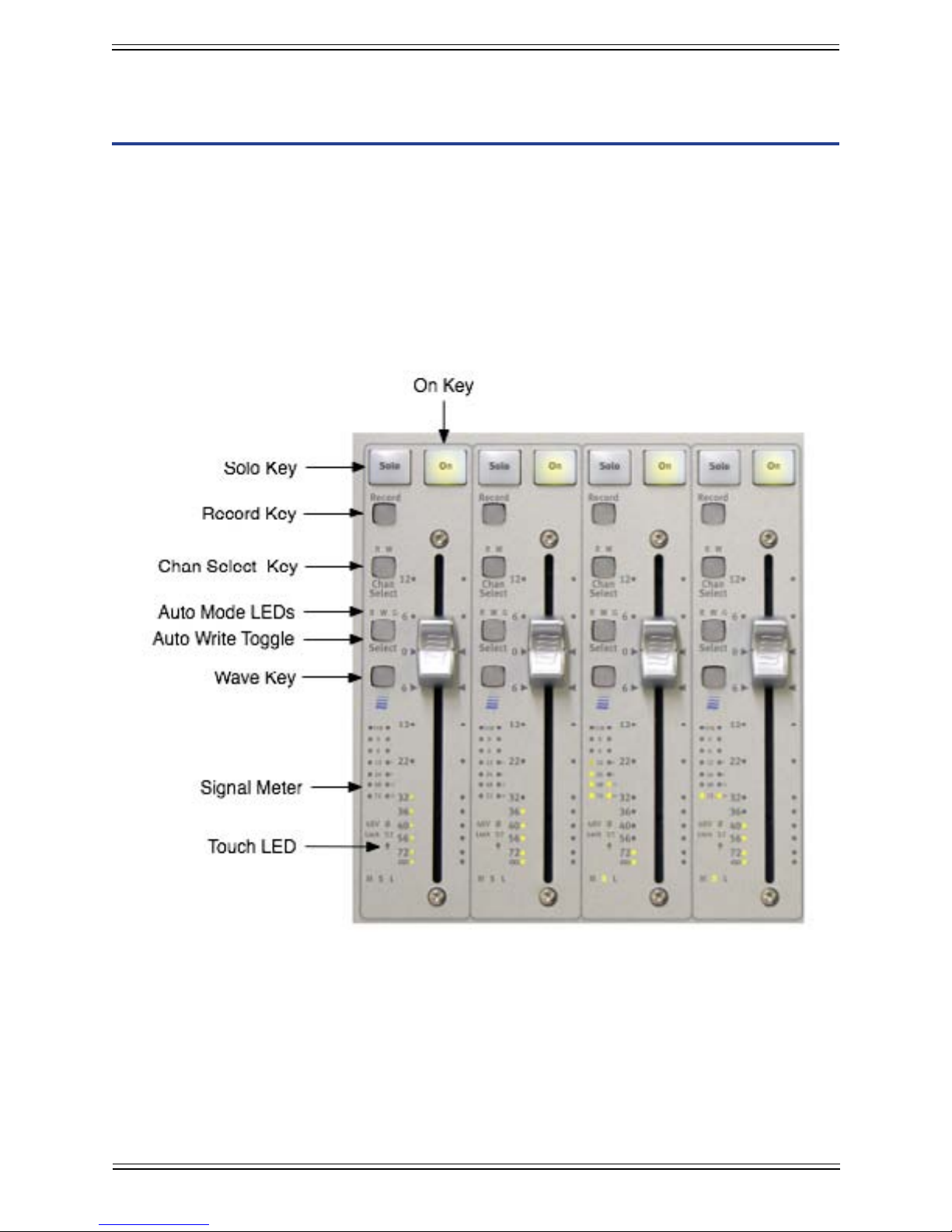

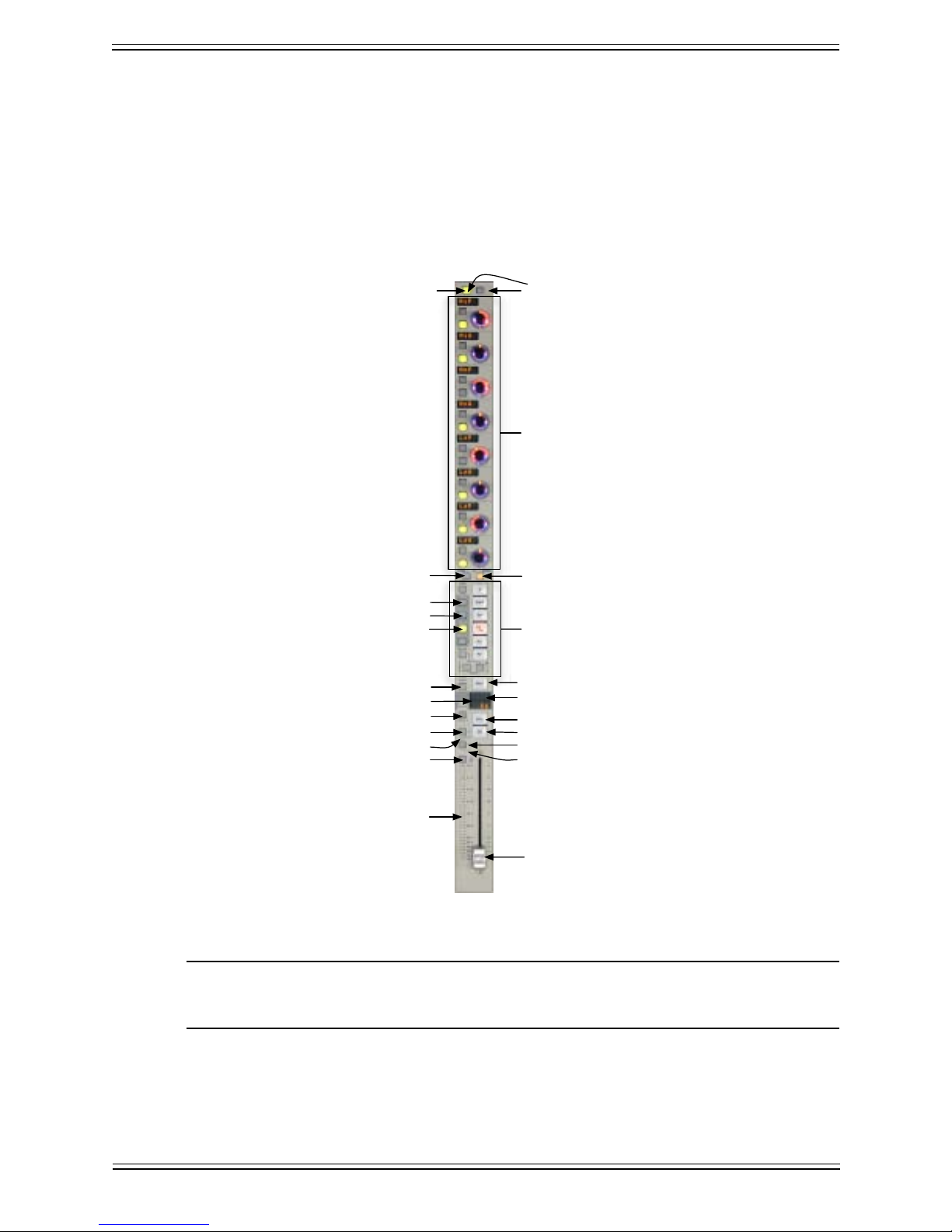

7.1 Channel Strips 64
7.1.1 Solo 64
7.1.2 On 65
7.1.3 Record 65
7.1.4 Chan Select Key 65
7.1.5 Select Key 65
7.1.6 Wave Key 66
7.1.7 Fader 66

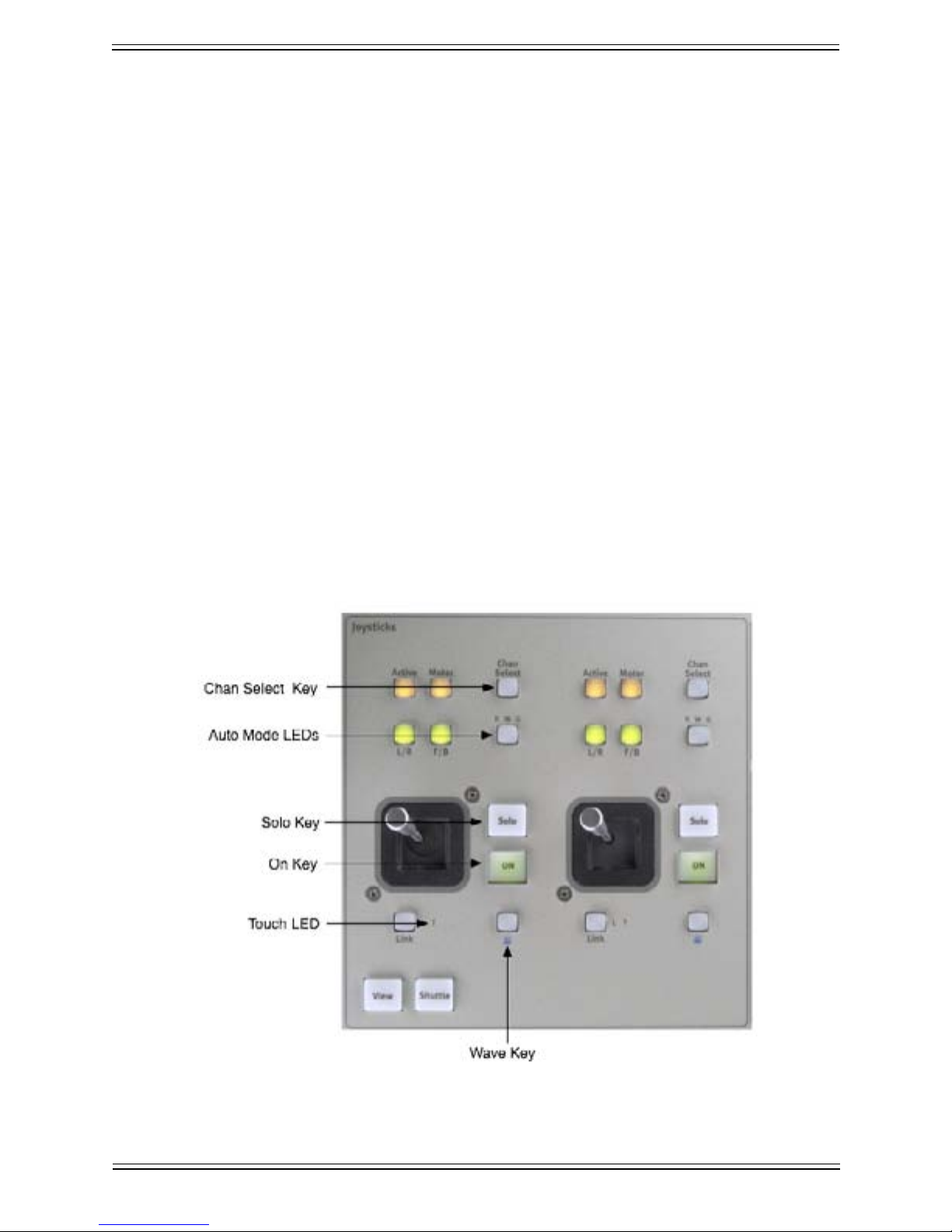

7.1.8 Joysticks 66
7.2 Strip Control Section 67
7.2.1 MC (System 5-MC Only) 67
7.2.2 Bank Keys 67
7.2.3 Nudge Keys 68
7.2.4 Home Key 68
7.2.5 Flip Key (System 5-MC Only) 68
7.2.6 Layouts Key 68

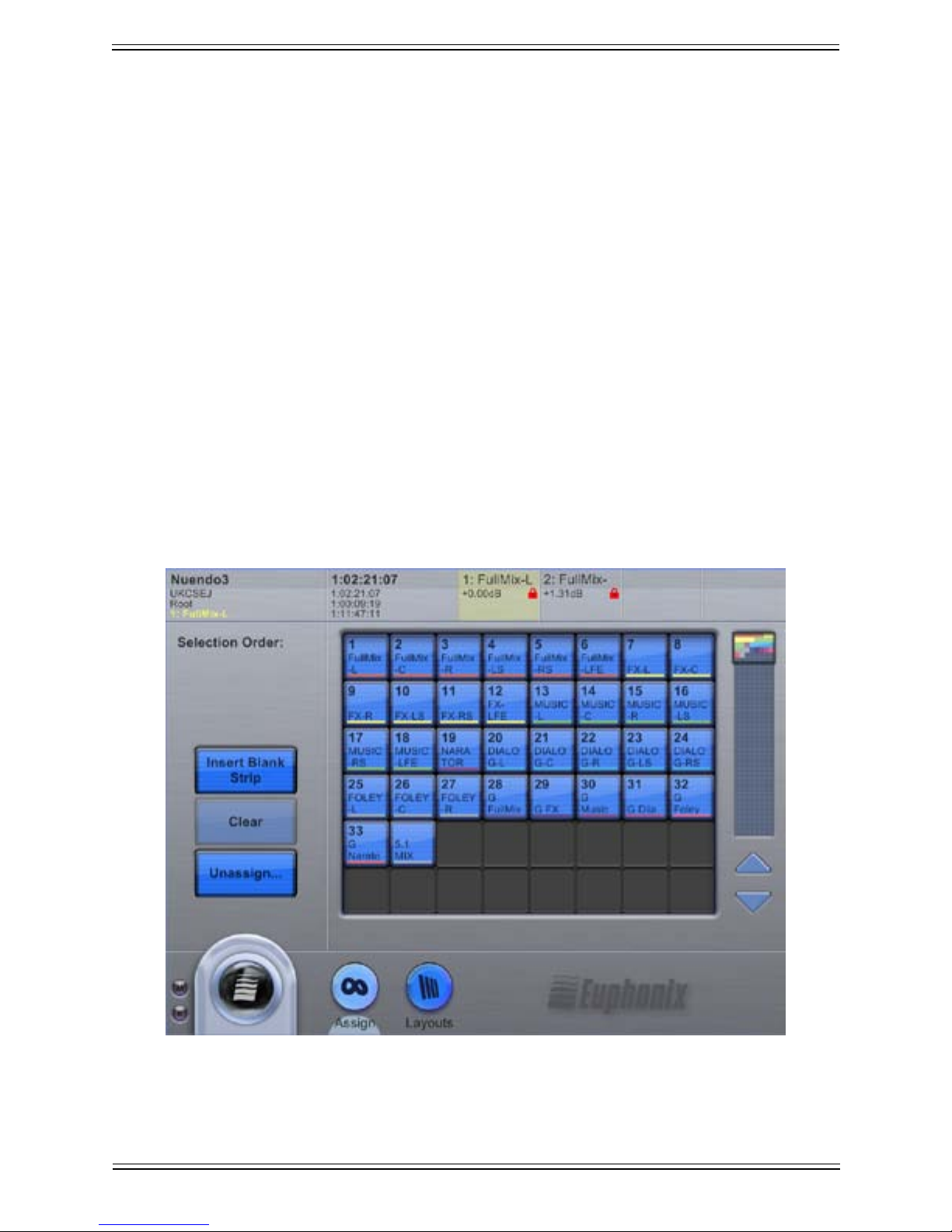

7.3 Assigning Tracks to Strips 71
7.3.1 Strips and Tracks 71
7.4 CM408T Channel Strips (System 5-MC only) 73

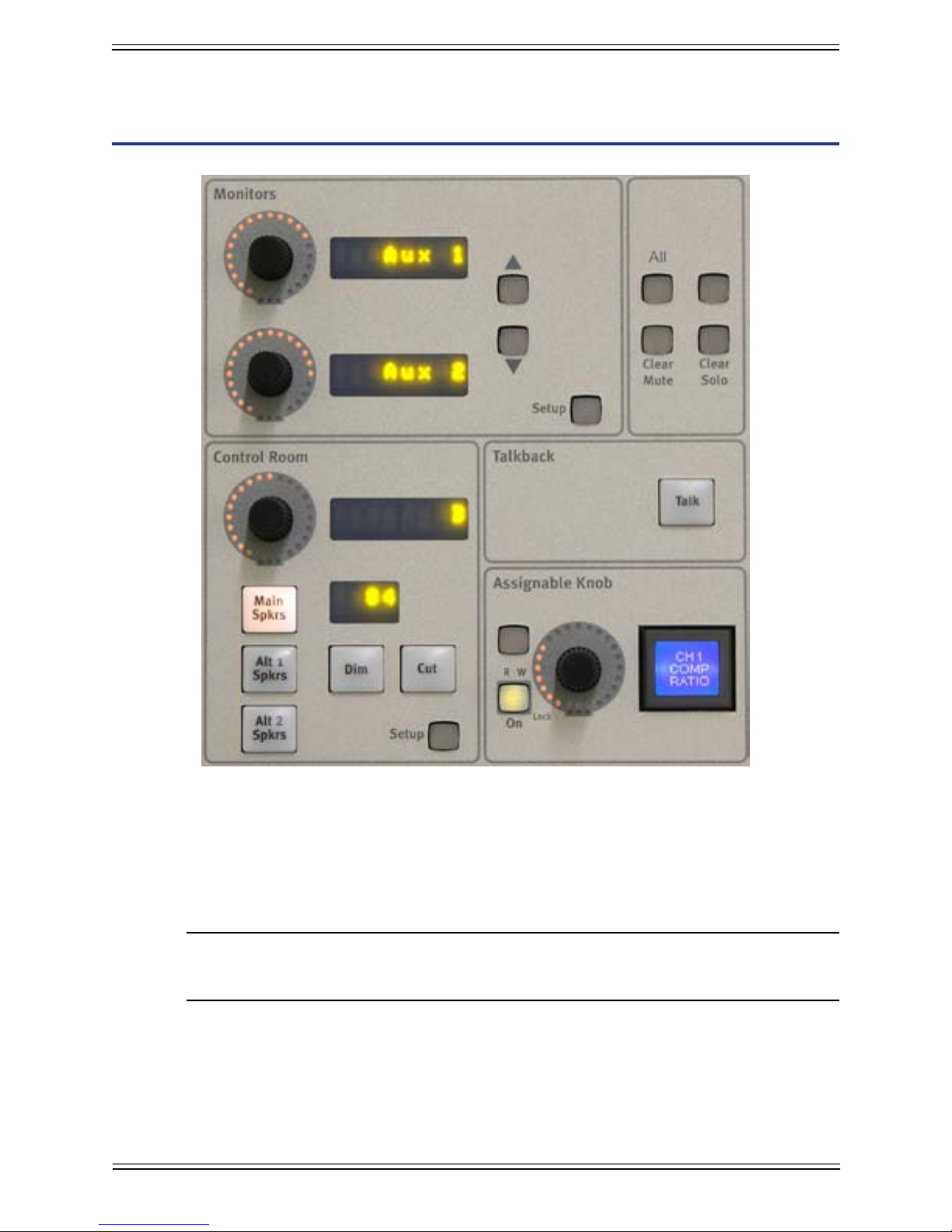

Chapter 8: Monitors and Control Room 74
8.1 Control Room 75

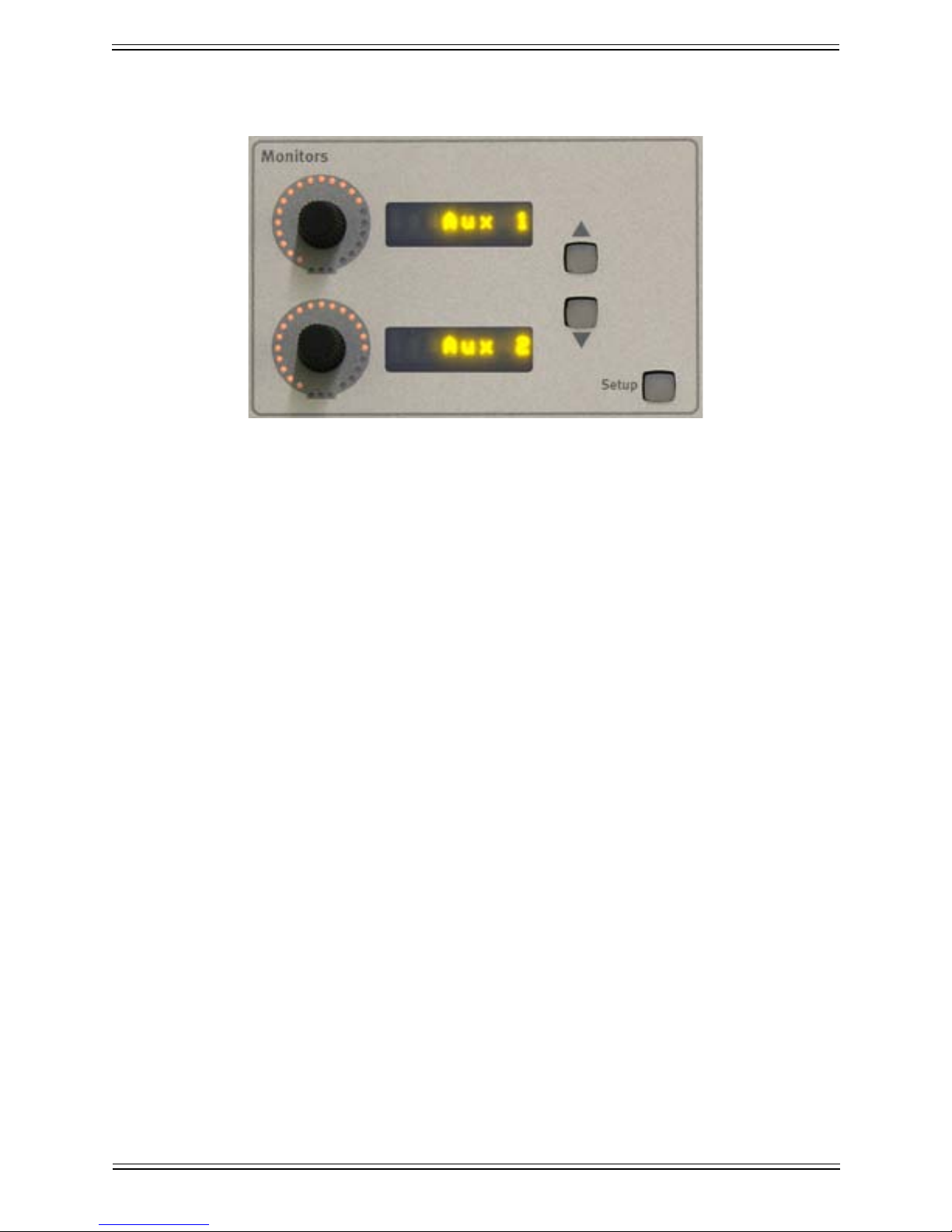

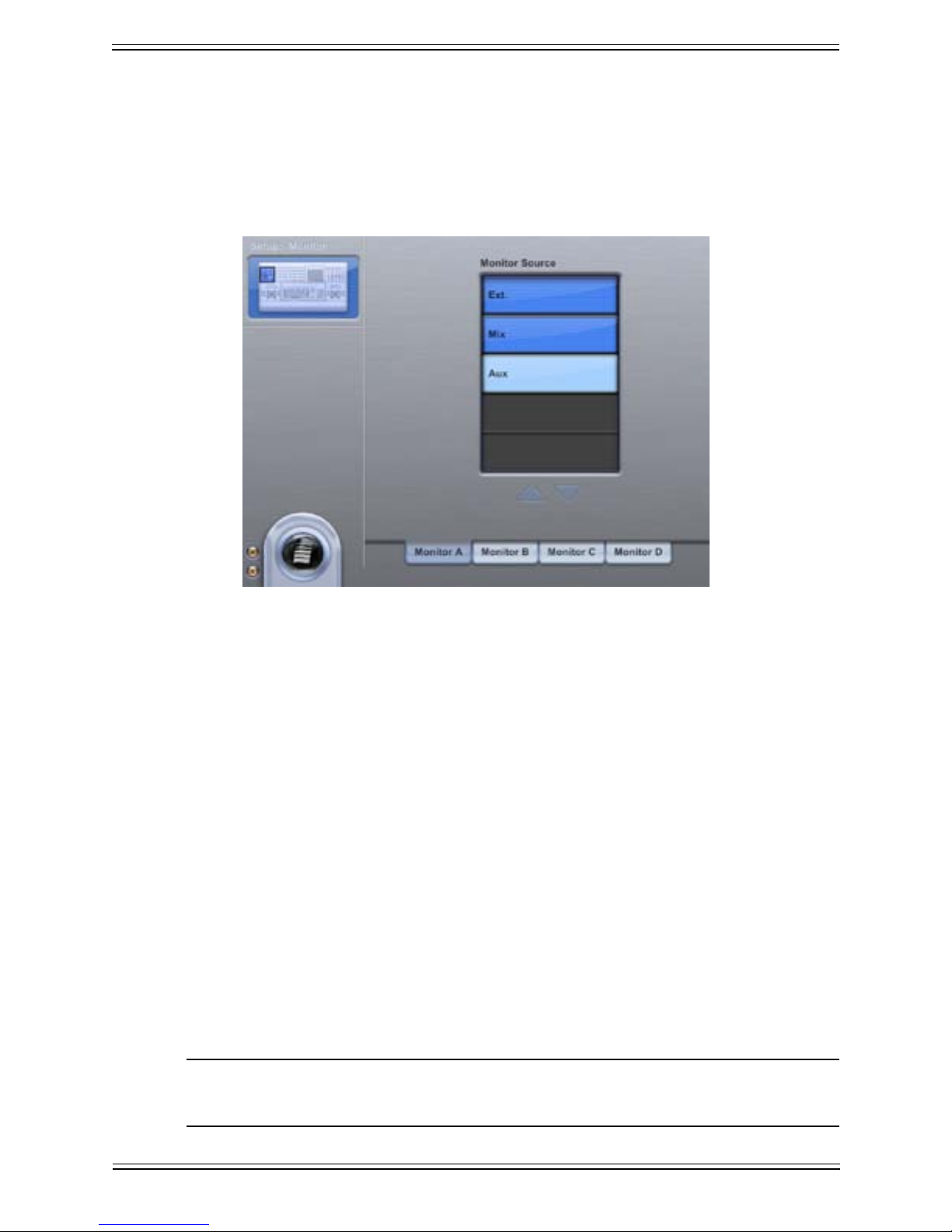

8.2 Monitors 76

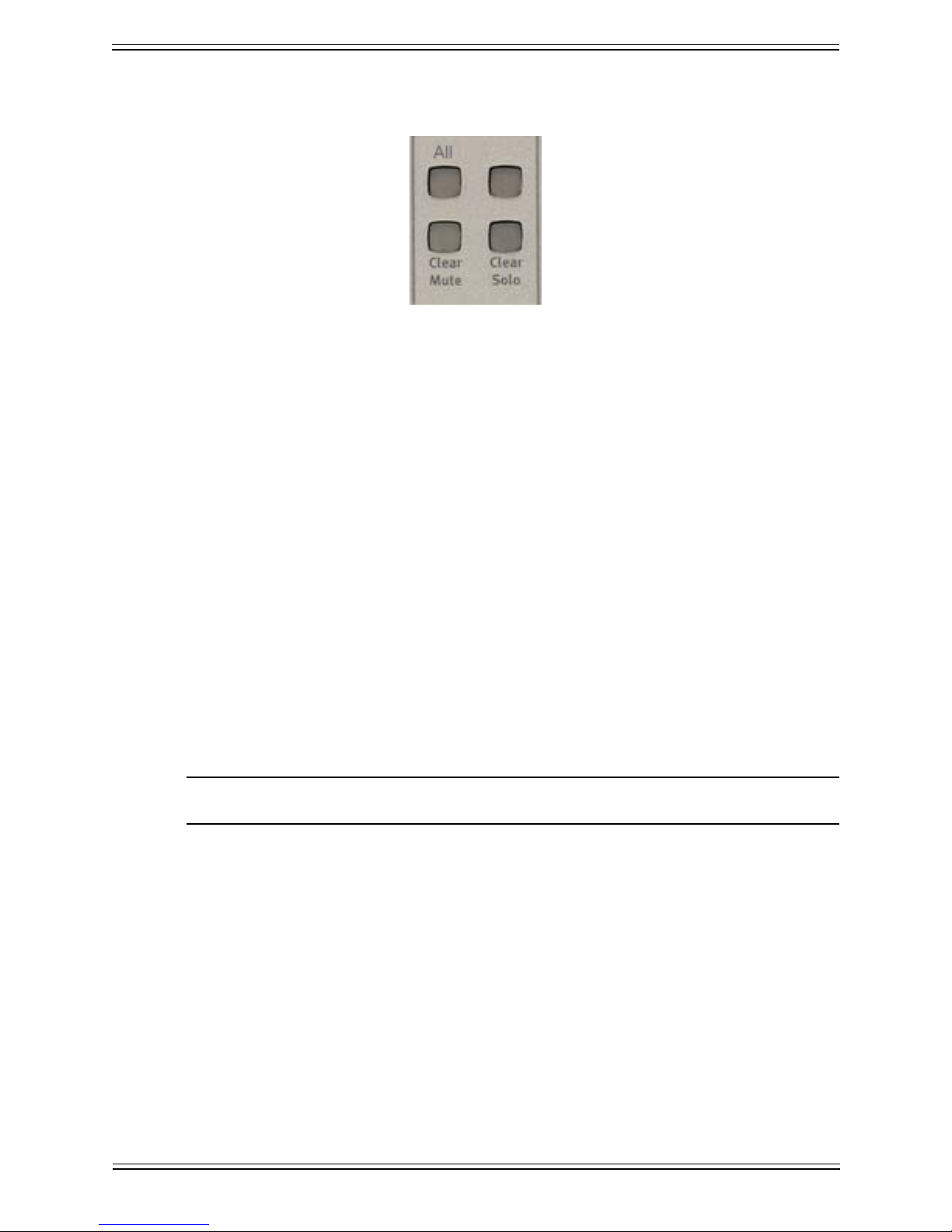

8.3 Clear and All Keys 77
8.4 Talkback 77
Chapter 9: Studio Monitor Express (Windows) 78
9.1 Main 79

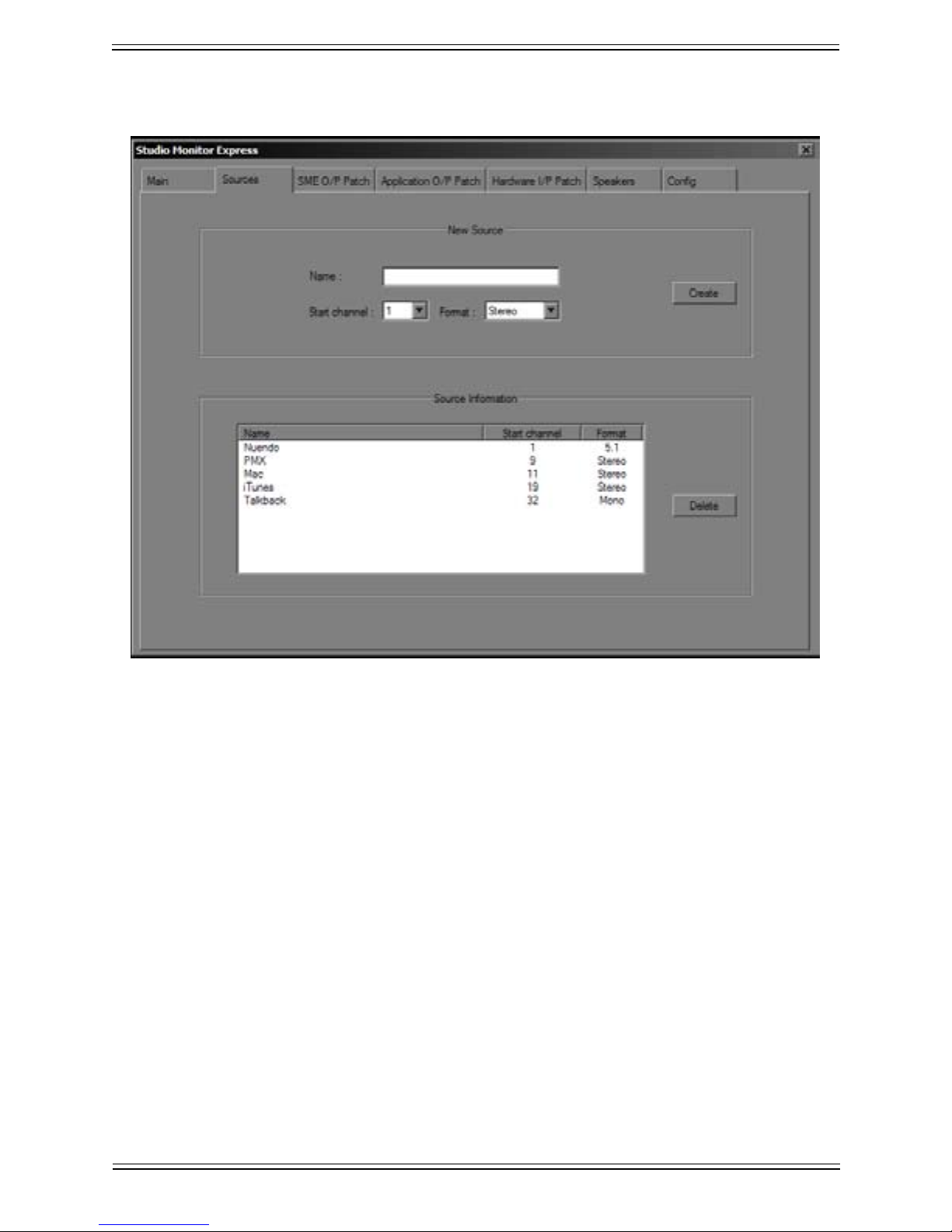

9.2 Sources 80

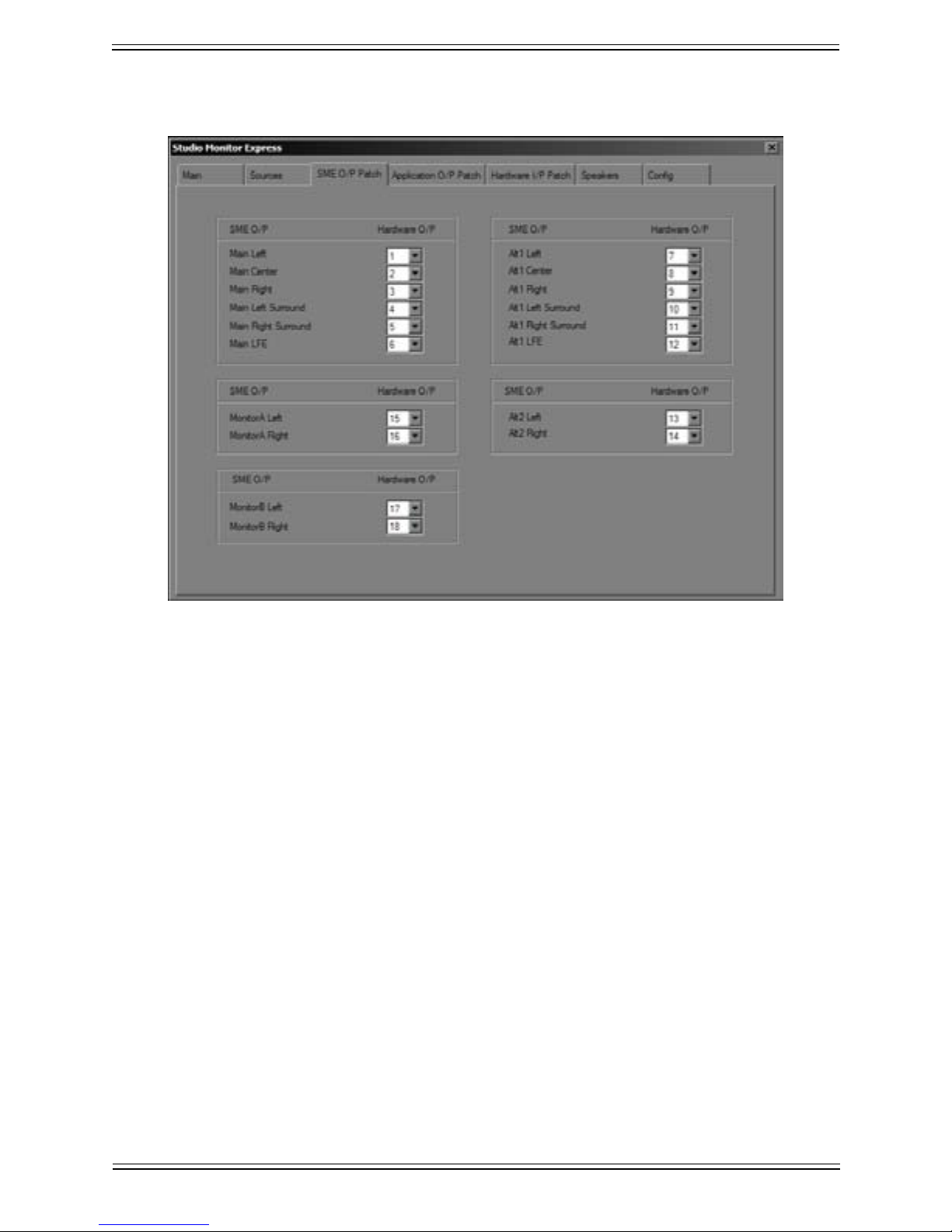

9.3 SME O/P Patch 81

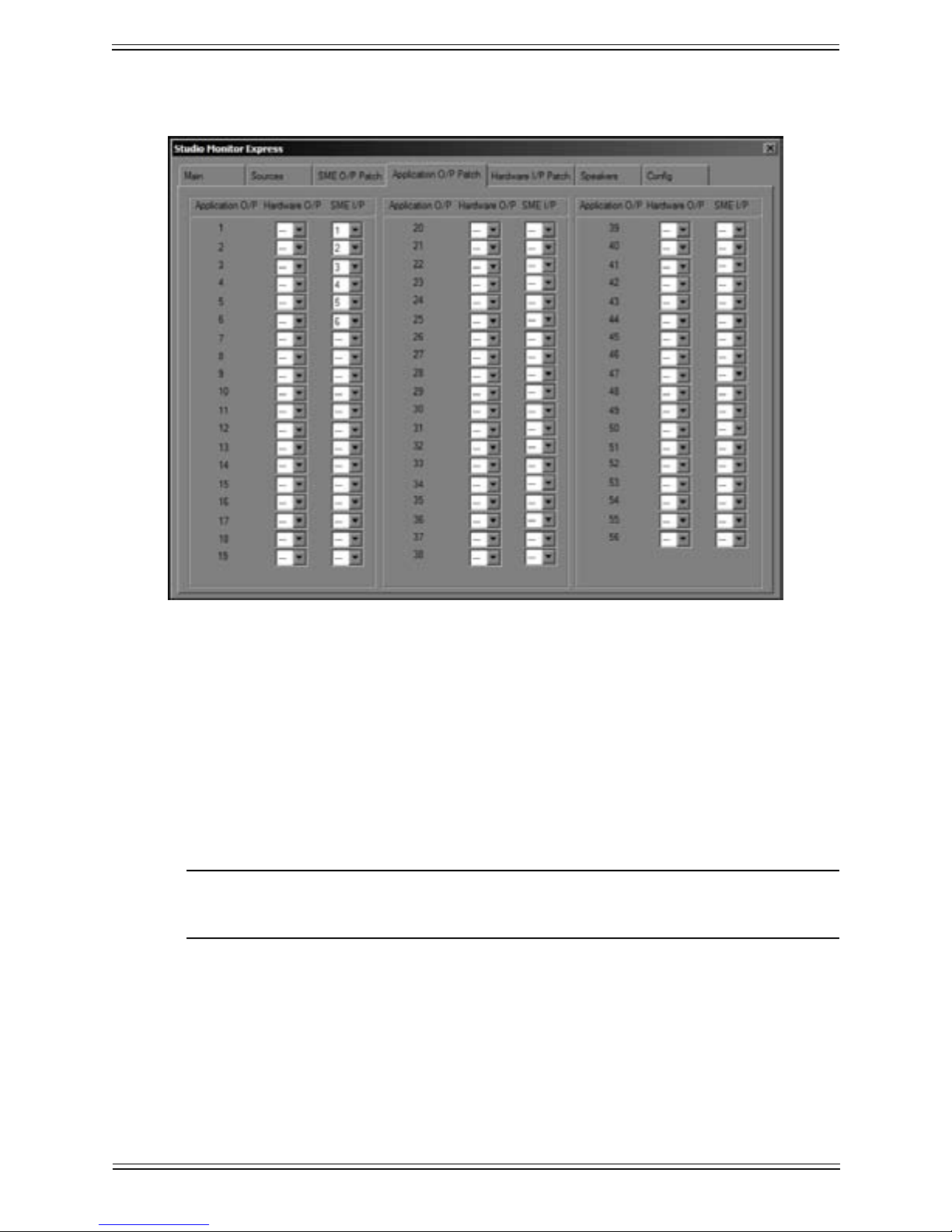

9.4 Application O/P Patch 82

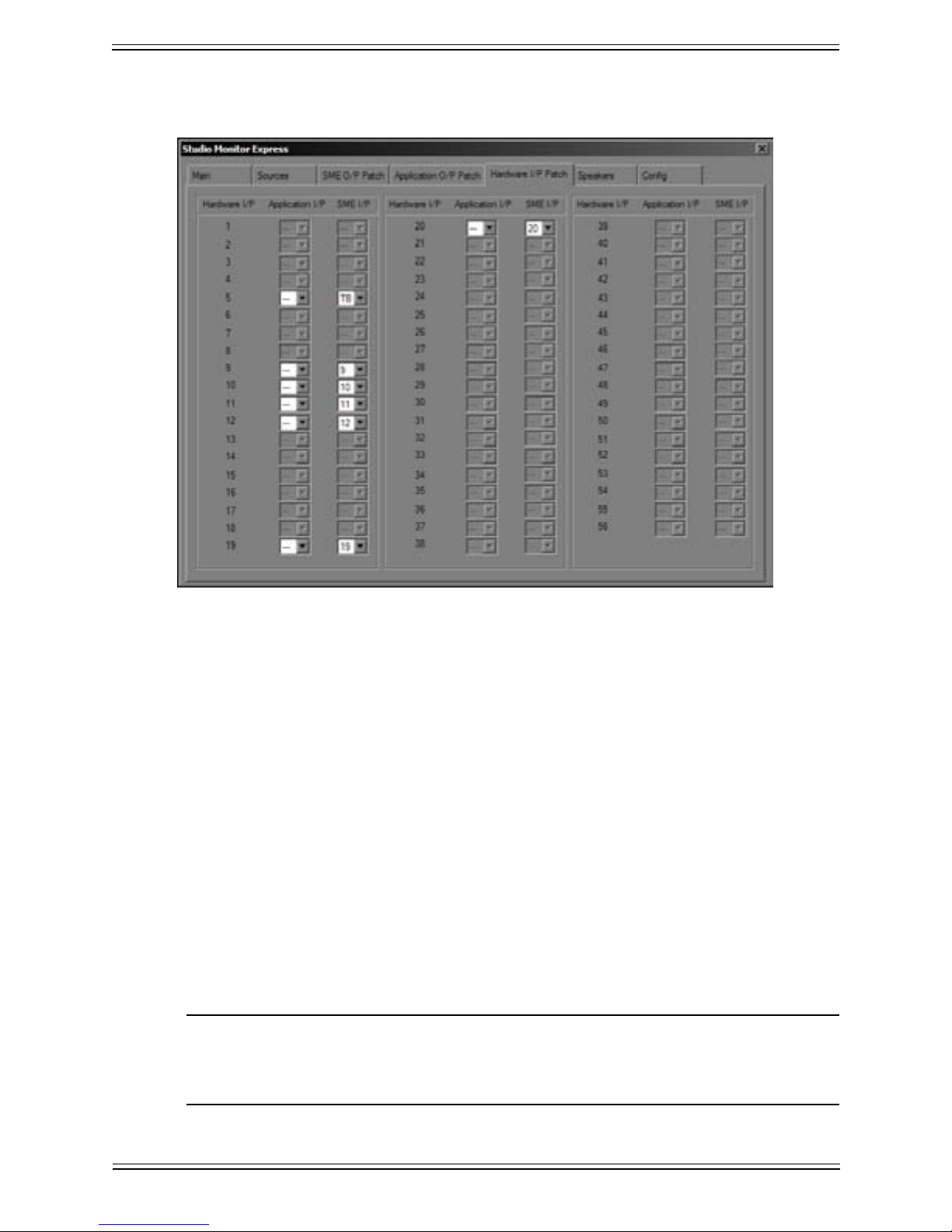

9.5 Hardware I/P Patch 83
vii
Media Application Controller Operation Guide

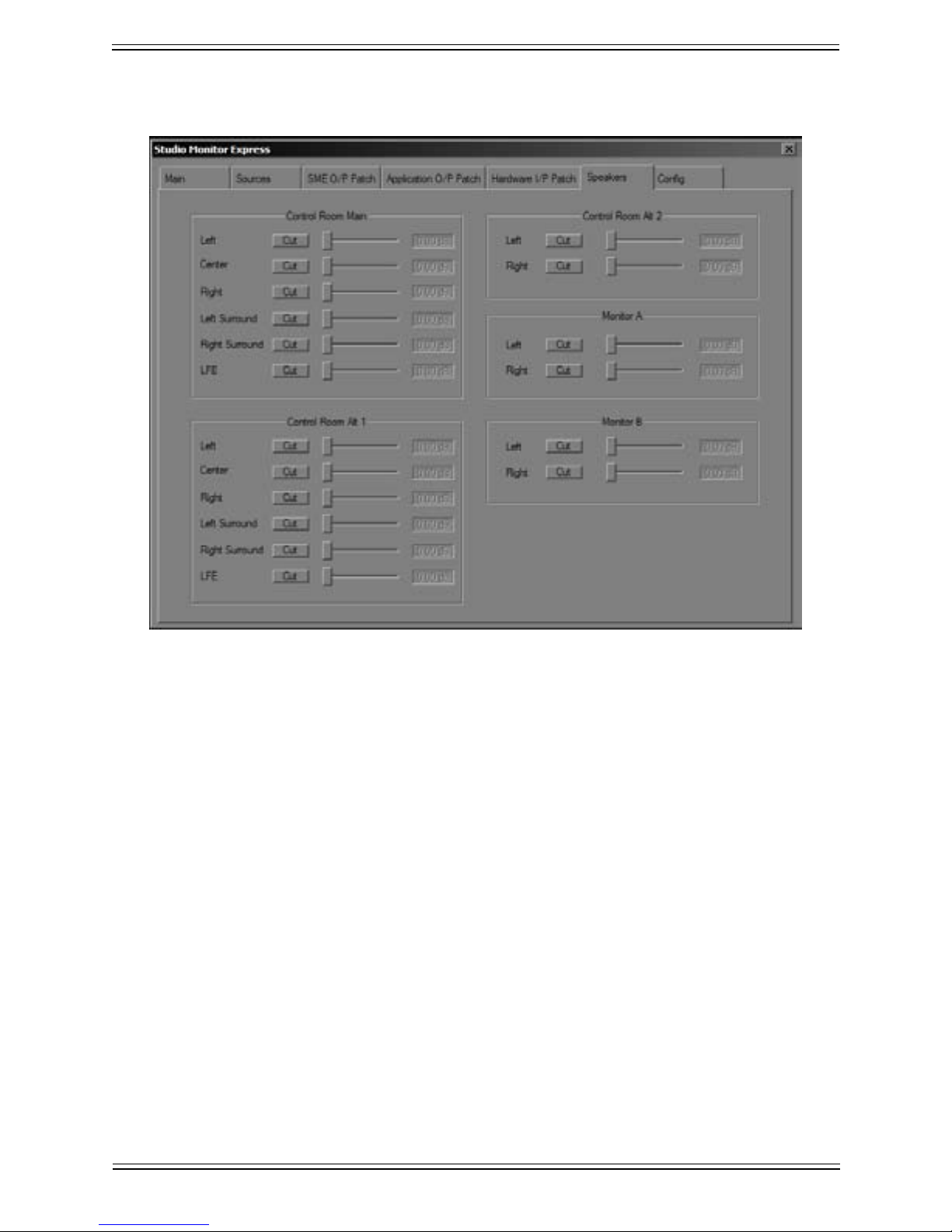

9.6 Speakers 84

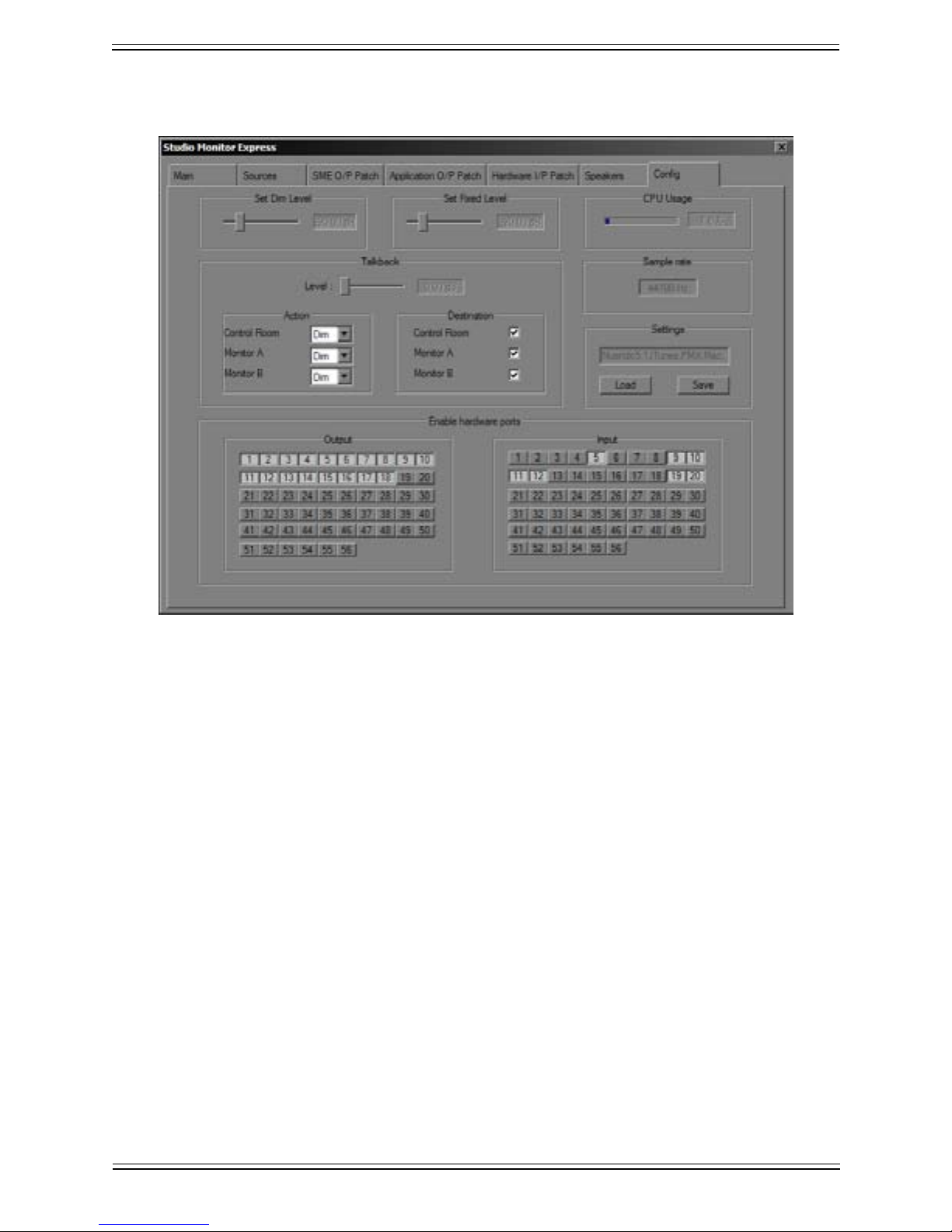

9.7 Cong 85
9.8 Conguring SME Talkback 86
Chapter 10: Studio Monitor Express (Mac) 88

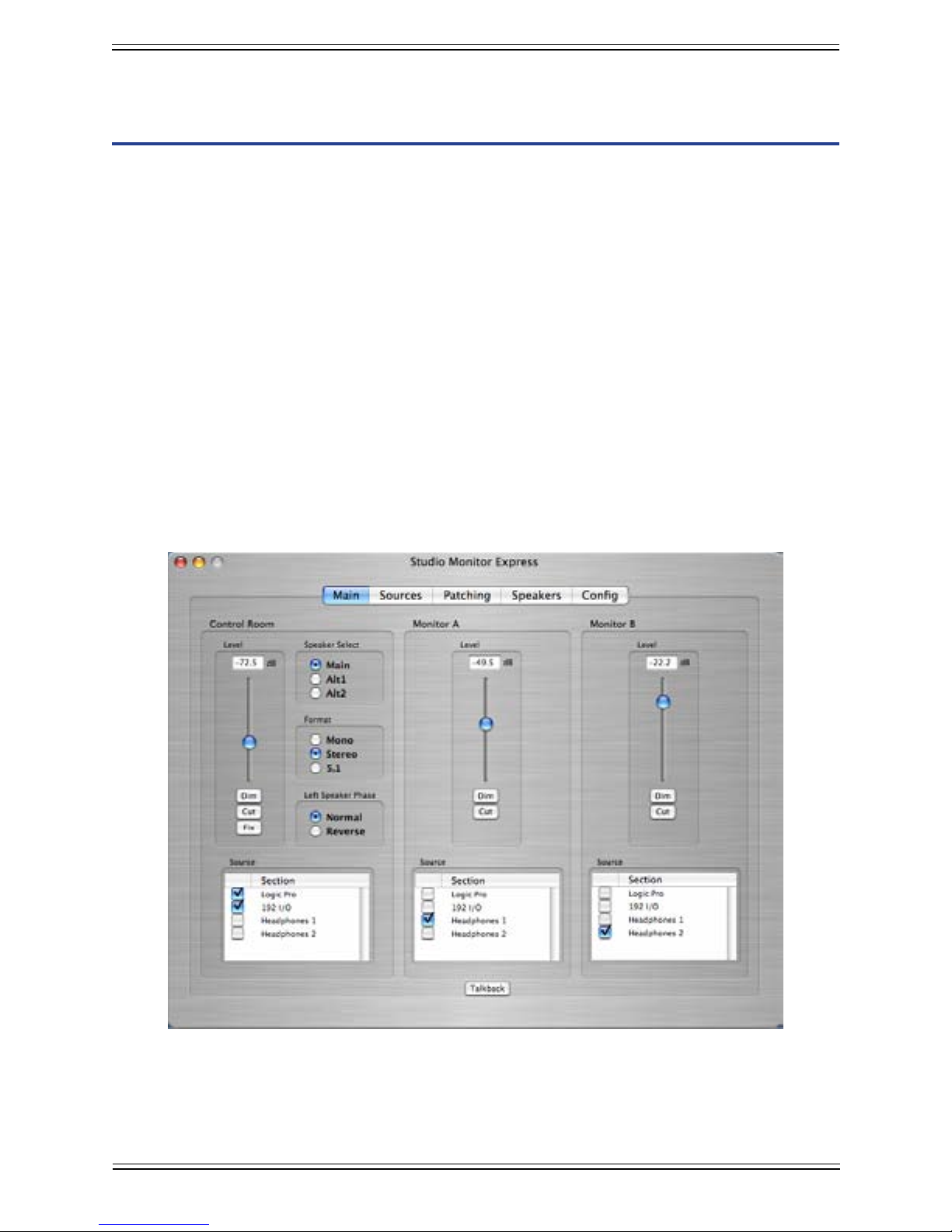

10.1 Main 88

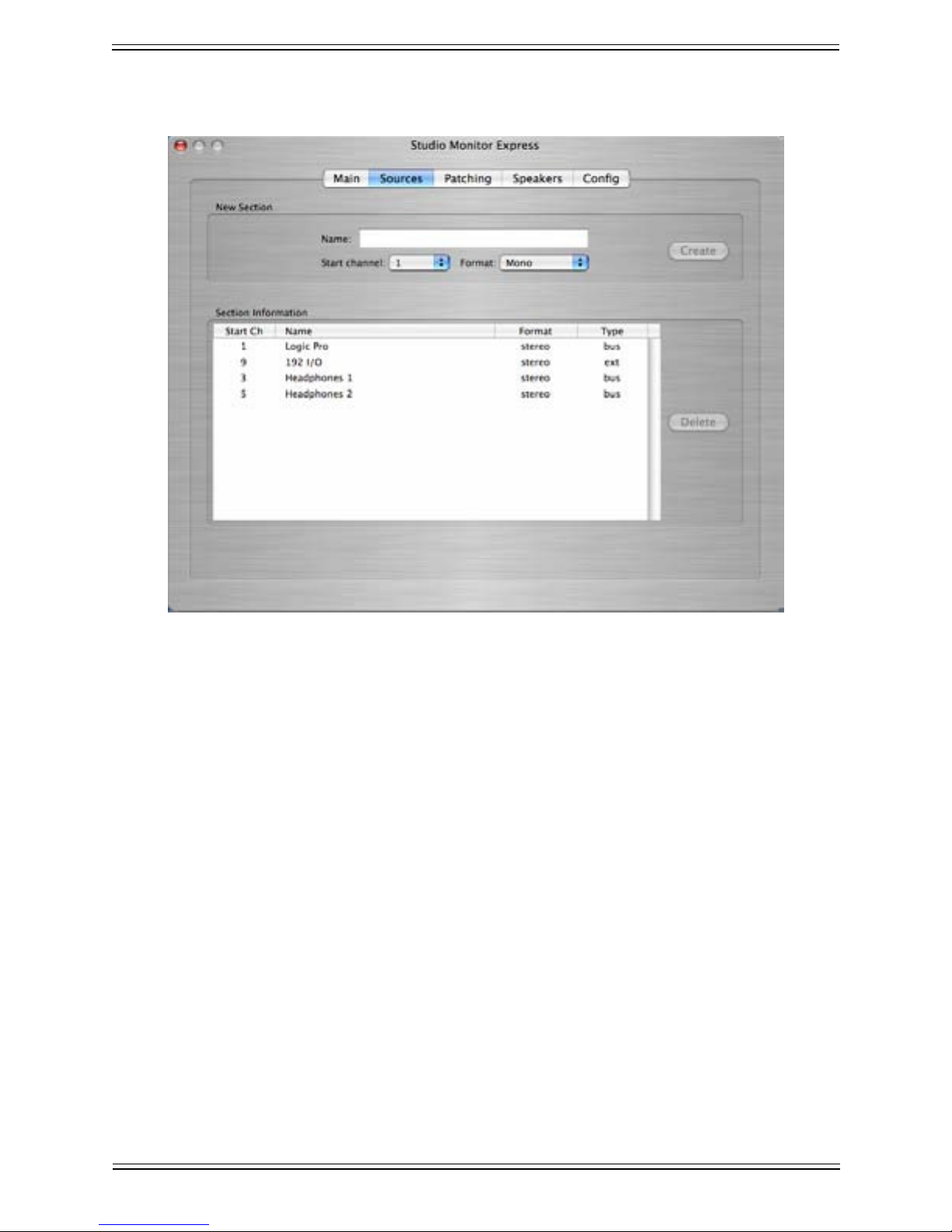

10.2 Sources 90

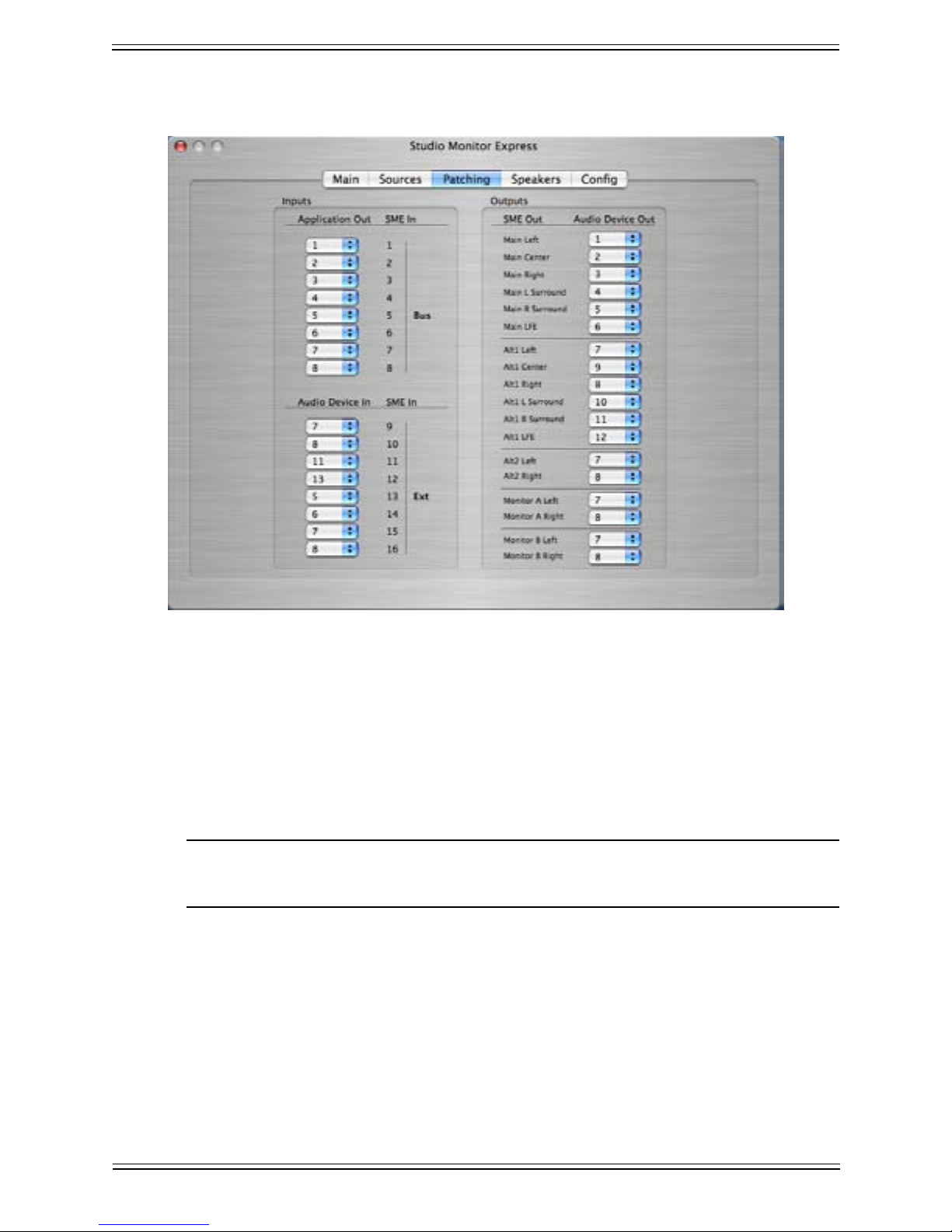

10.3 Patching 91

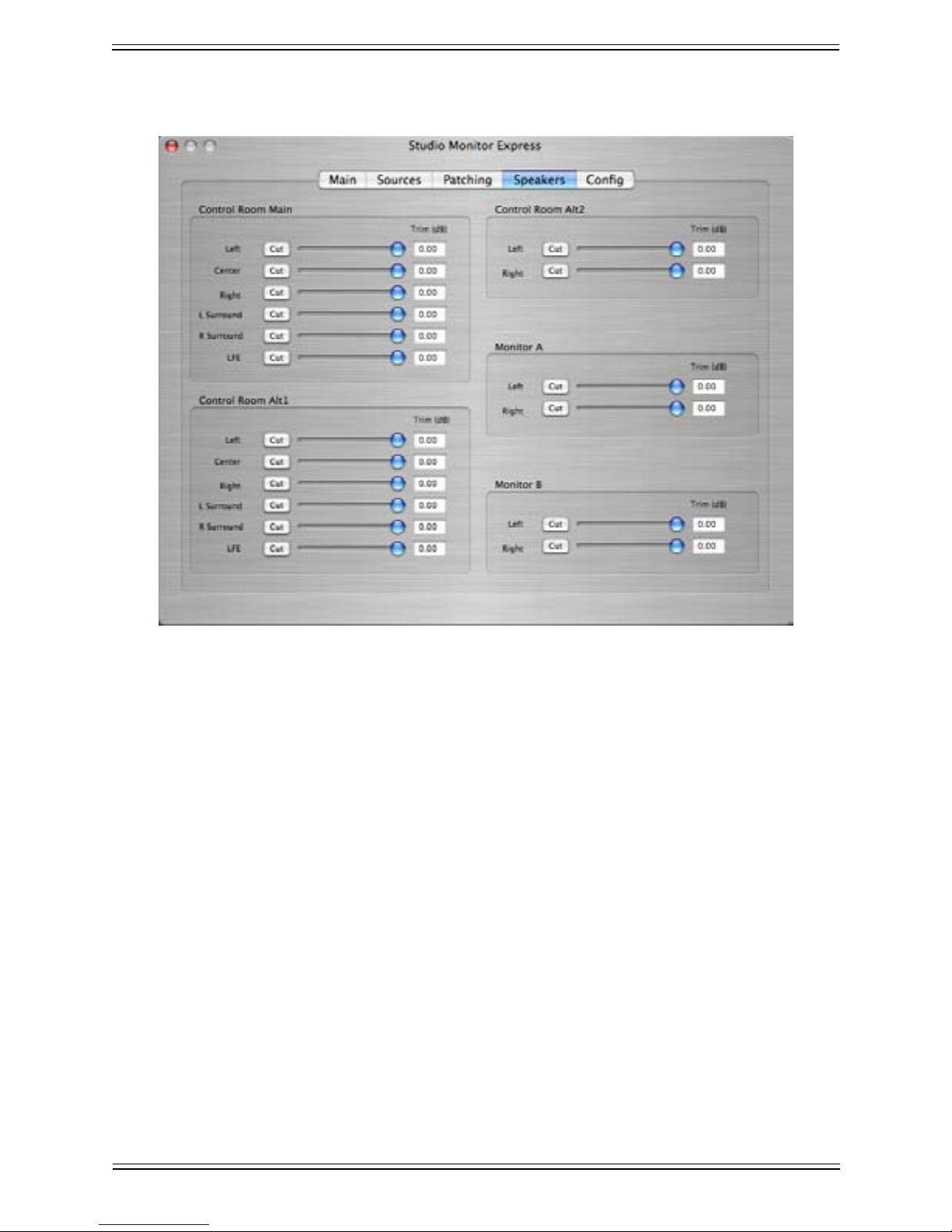

10.4 Speakers 92

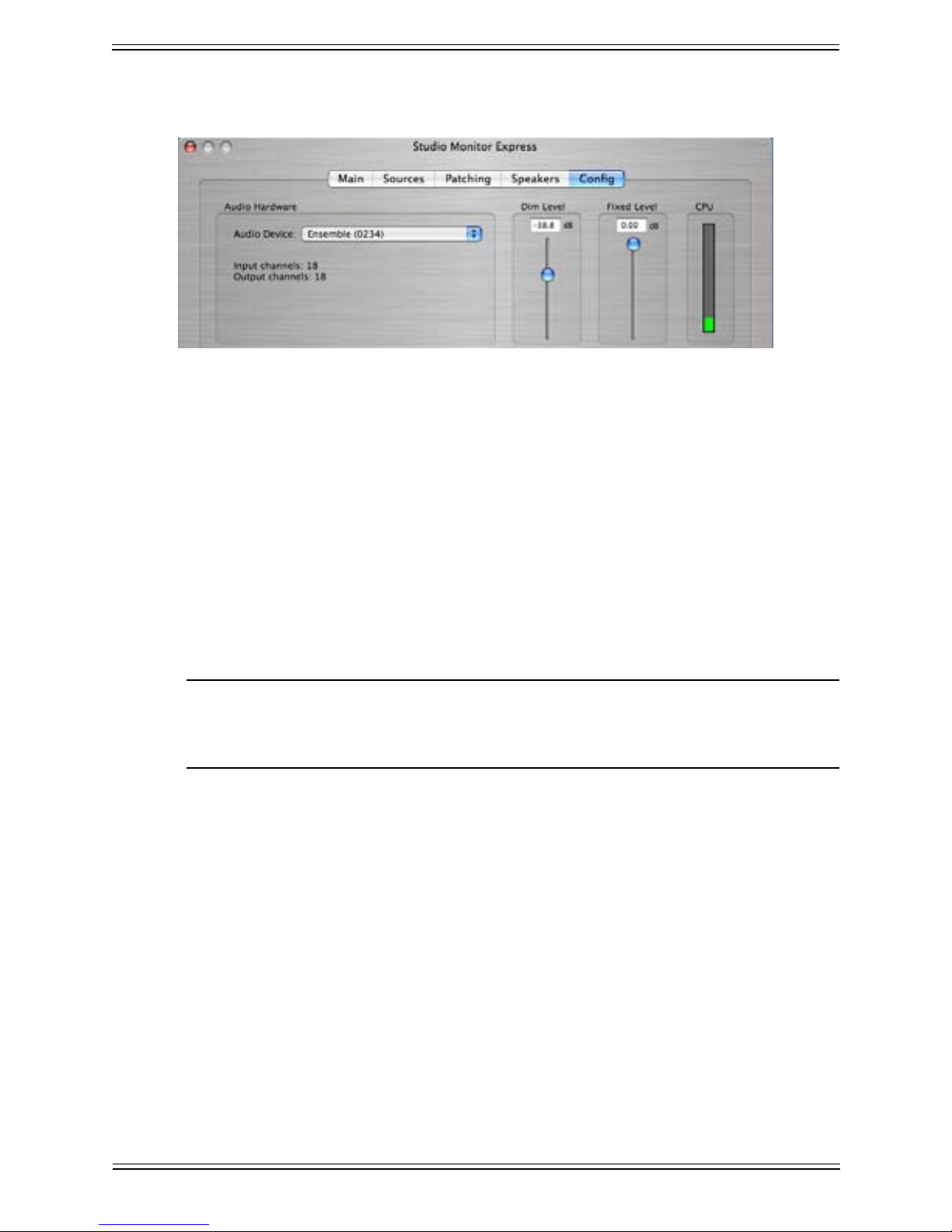

10.5 Cong 93
10.6 Talkback Setup 93
Chapter 11: DAW Integration 94

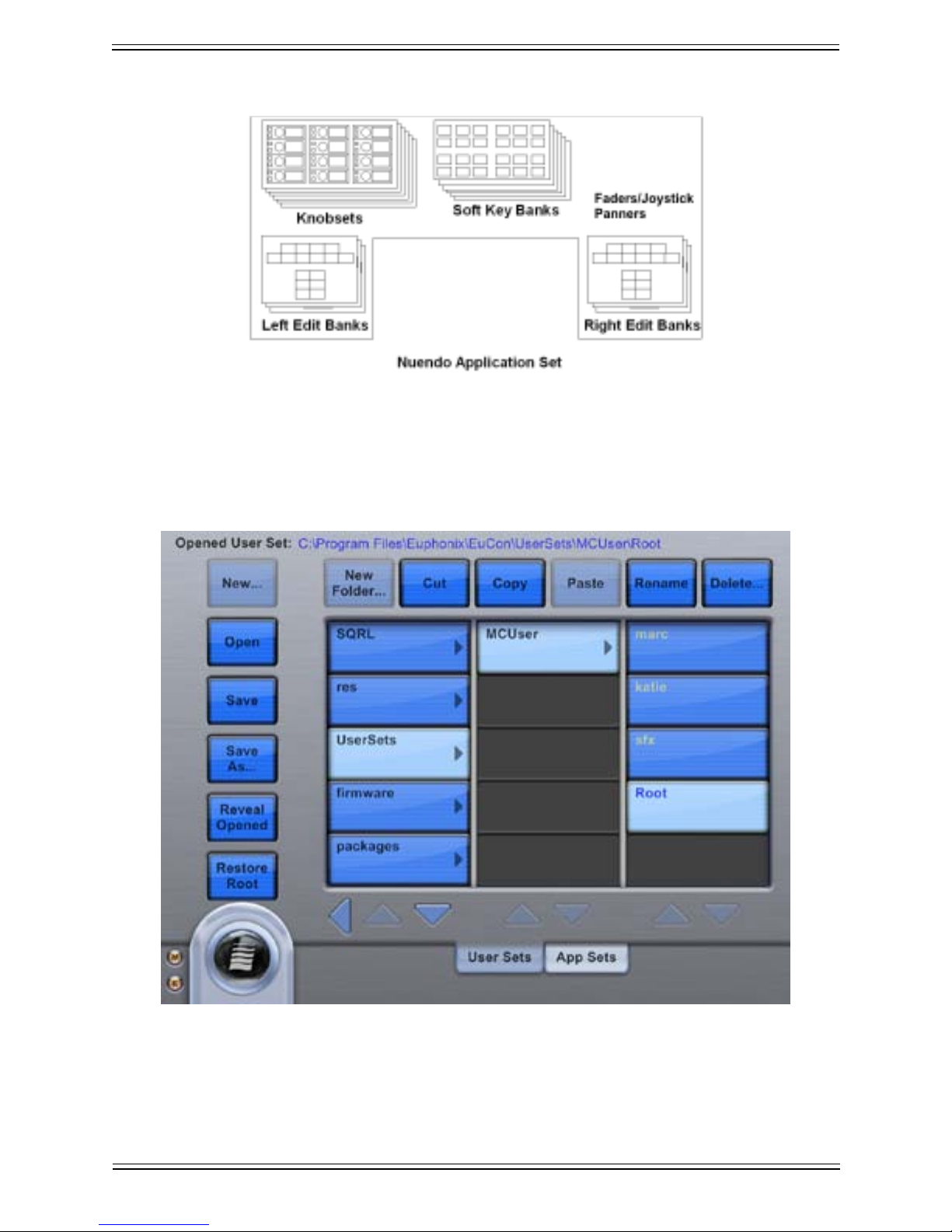

11.1 User and Application Sets 94

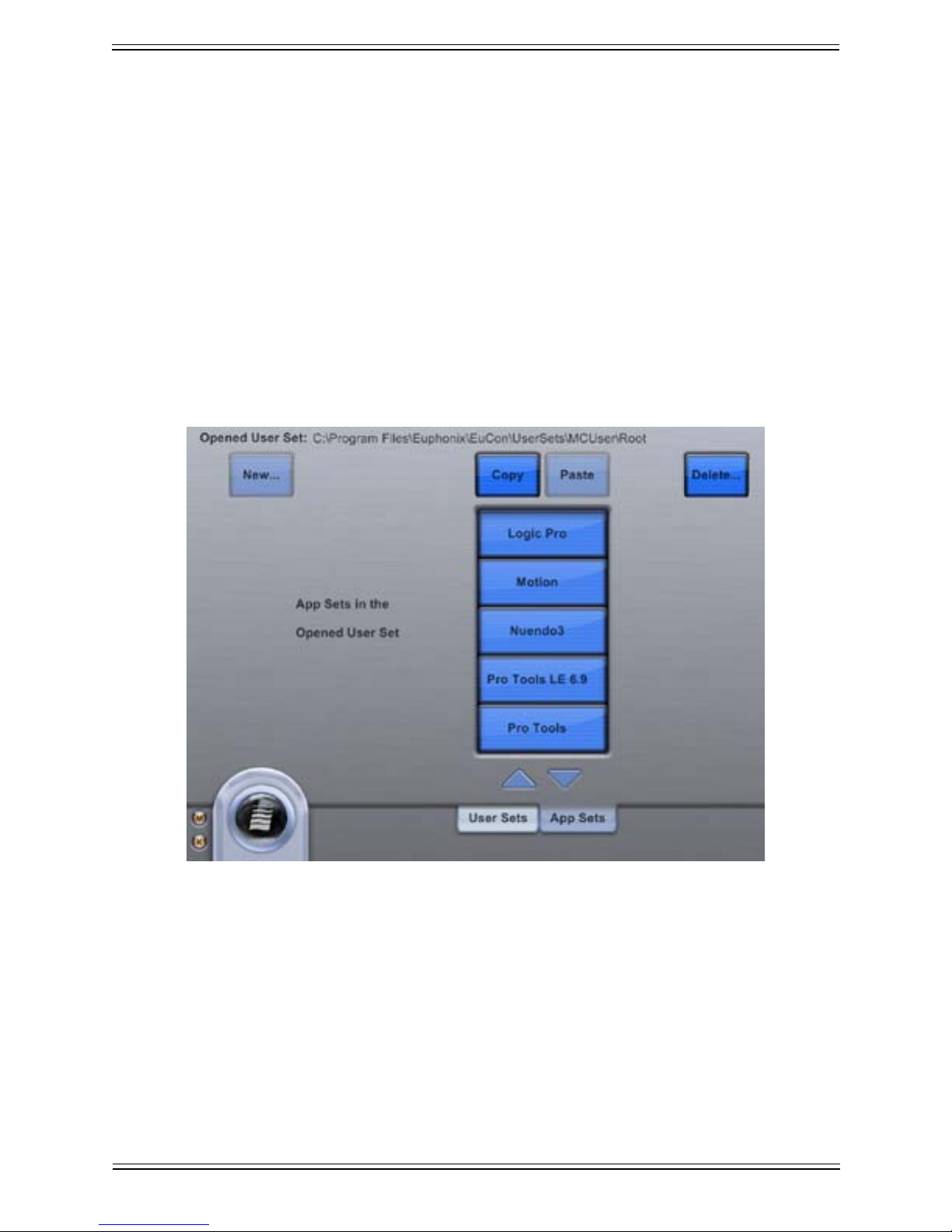

11.1.1 User Sets 95
11.1.2 Application Sets 96
11.2 Avid Pro Tools 97

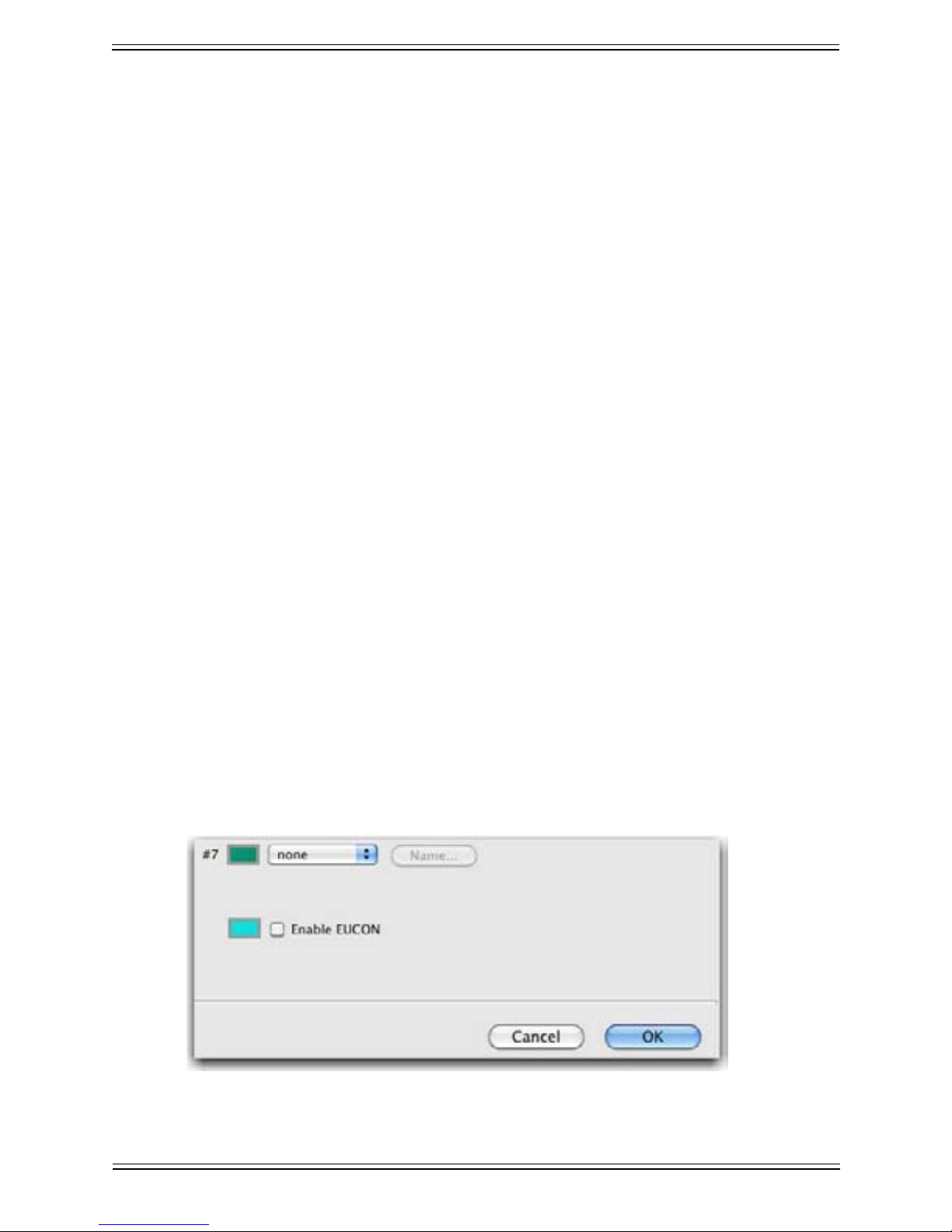

11.2.1 Enabling EUCON in Pro Tools 97
11.2.2 Conrming Communication with Pro Tools 98
11.3 Steinberg Nuendo 98
11.3.1 Conguration 98
11.3.2 Nuendo Monitor Setup 99
11.3.3 MC Control Room and Monitor Setup 101
11.3.4 Talkback 103
11.3.5 Nuendo-Specic MC Controls 104
11.4 Merging Technologies Pyramix 108
11.4.1 Conguration 109
11.4.2 Getting Started 112
11.4.3 Monitoring 114
11.4.4 Talkback 115
11.4.5 Plugin Integration 115
11.5 MOTU Digital Performer 6.02 & 7 (EuCon) 116
11.5.1 Conguration 116
viii
Media Application Controller Operation Guide
11.6 HUI Applications 117
11.6.1 Avid Pro Tools 8 and Lower 117
11.7 Mackie Control Universal 132
11.7.1 Final Cut Pro 6 and Soundtrack Pro 2 (Final Cut Studio 2) 132
11.7.2 Digital Performer 5 134
11.7.3 Sony Vegas 7 135
Chapter 12: Support and Troubleshooting 138
12.1 Support 138
12.2 Troubleshooting 138
Chapter 13: Studio Monitor Pro 2 140
13.1 What is SMP2? 140
13.2 Overview of Signal Flow and Concepts 141
13.3 Signal Flow Diagram 142
13.4 iLok Security Key 142
13.5 ASIO Selector Pro 143
13.6 Conguration 144
13.6.1 Dim level / Fixed Level 145
13.7 I/O Patching 146
13.7.1 SMP O/P Patching 146
13.7.2 Application O/P Patching 147
13.7.3 Hardware I/P Patching 148
13.8 Sources Setup 149
13.9 Talkback 150
13.10 Speakers 152
13.11 Main 153
13.12 User Formats 155
13.13 Folddown / Metering 156
13.13.1 Metering 156
13.13.2 Folddown 157
13.13.3 Fine Tune Slider Control 157
ix
Media Application Controller Operation Guide
Chapter 1: Introduction
The MC Media Application Controller is a standalone surface designed to control digital
audio workstations. The System 5-MC is an audio recording, editing, and mixing system that integrates the MC with the System 5 CM408T channel strip modules. Multiple
CM408T modules, each with eight channel strips, can be integrated to control an unlimited number of audio channels simultaneously.
The MC found in the System 5-MC has exactly the same powerful control features found
in the standalone version but is also able to manage channel strip assignments, layouts,
and strip functions. The System 5-MC is tted with a pair of joystick panners in place of
the MC’s four faders (joystick panners can also be ordered in the standalone version).
With a myriad of customized controls (keyboard, trackballs, Touchscreen, Soft Keys,
faders and knobs), the MC speeds operation, enhances creativity, and integrates the tasks
of mixing and recording. The system also includes Studio Monitor Express (SME), a sophisticated monitoring application created by Euphonix. SME provides surround monitoring with multiple speaker controls and is selected from the MC’s Touchscreen.
The MC and workstation are connected via Ethernet, sending mouse, keyboard, and EuCon commands to the workstation computer (PC or Mac). The MC integrates the control
surface with the workstation and allows open connectivity, integration with third-party
plug-ins, virtual instruments, video solutions, and I/O hardware. The MC is modular,
expandable, exible, and cost-effective.
1
Media Application Controller Operation Guide Introduction
1.1 Multiple Levels of Control
The MC uses ve levels of control:
• Keyboard and trackball
• Programmable key commands via the Soft Keys
• HUI command protocol to control Pro Tools 8.x and lower
• Mackie Control Universal protocol for DAWs/media software that support it (such
as RME HDSP Mixer and Sony Vegas)
• EuCon control of EuCon-aware applications (Pro Tools 9, Nuendo, Logic Pro, and
Pyramix)
1.1.1 Level 1: Keyboard and Trackball
The MC accesses your applications using its full-sized keyboard and two trackballs.
Each trackball has a control ring and four user-programmable switches, allowing both
left- and right-handed operation. One or both trackballs can be swapped out for a jog/
shuttle wheel, and the MC can be set to interpret the physical left and right edit controllers
as left or right, depending on the operator’s needs. For example, in large dual-operator
System 5-MC setups with two MCs, the left-side operator can use the right-side MC’s
left trackball as the right trackball or jog wheel. The trackball rings can also be used for
Wheel Edit Mode functions, like zooming, trimming, nudging and moving clips.

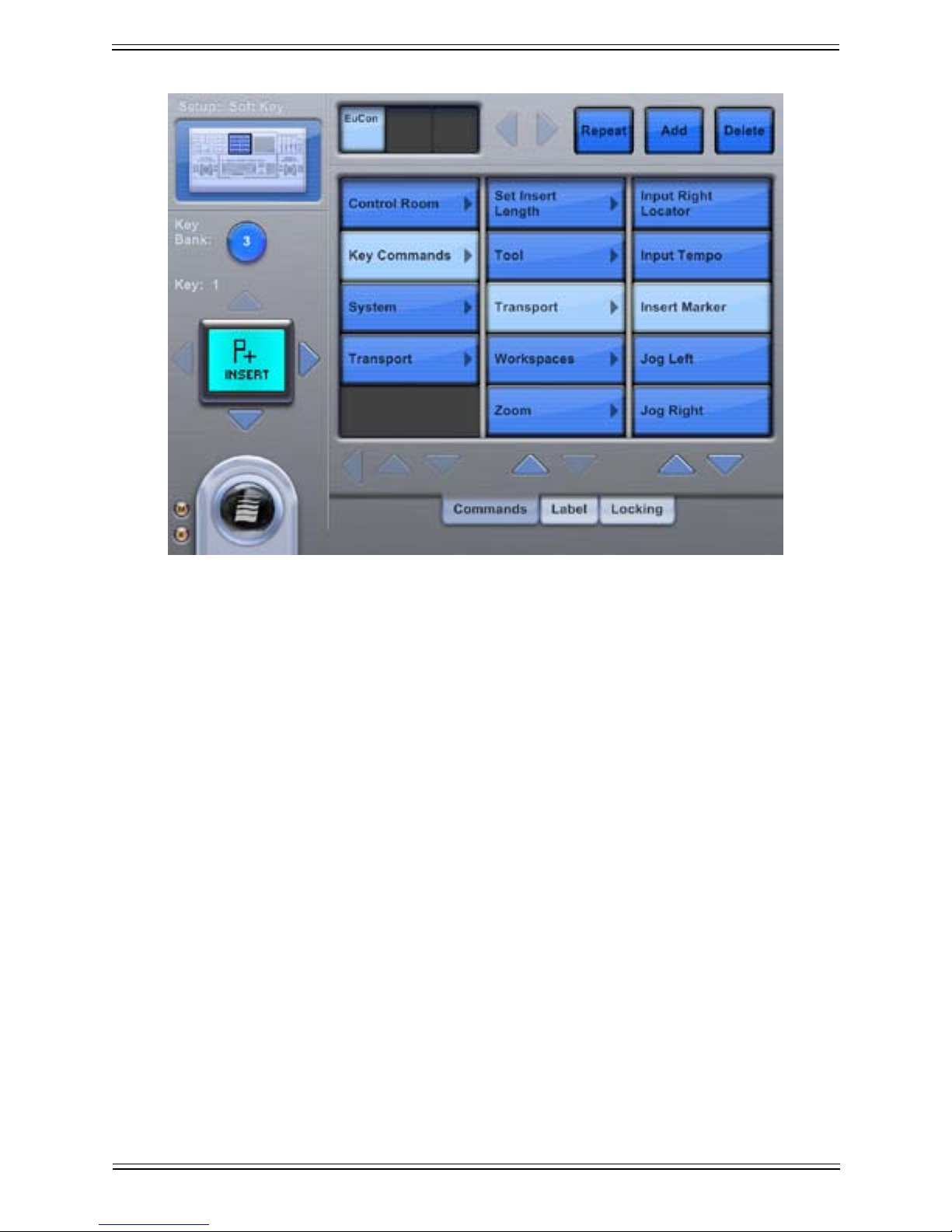

1.1.2 Level 2: Soft Keys
The MC uses Soft Keys with integrated LCDs to display switch functions and icons.
The Soft Keys can be programmed to send complex macros and simple keystroke commands and are named so their function is obvious. Any function can be assigned to each
Soft Key to suit the user’s working style.
The Soft Key mappings are saved to Application Sets, which automatically change as
each application is activated. Default Application Sets are supplied for a number of programs but these can be modied and saved. Soft Keys can be locked to a specic application, which maintains control even when it is not the workstation’s current application
(the term in focus is used for the current or front application). The Soft Key displays can
show any character set.
1.1.3 Level 3: HUI
The MC supports the HUI (Human User Interface) command protocol for control of
Pro Tools version 8 and lower (Pro Tools 9 is a EuCon-aware applciation). HUI mappings are saved with Application Sets for instant recall when each application becomes
active.
2
Media Application Controller Operation Guide Introduction
1.1.4 Level 4: Mackie Control Universal
The MC supports the Mackie Control Universal protocol to control both DAWs and
other software that supports this protocol. Mackie Control mappings are saved with Application Sets for instant recall when each application becomes active.
1.1.5 Level 5: EuCon High-Speed Control Protocol
EuCon is a control protocol originally developed to communicate between the
System 5 control surface and its software applications. Applications specically designed to work with the MC and the EuCon Application Programmer Interface are called
EuCon-aware applications, while all others are called generic. EuCon-aware applications allow a higher level of integration than generic applications.
The EuCon protocol enables high-speed, bidirectional communication between Euphonix consoles, the MC, and EuCon-aware software applications. The MC and a EuConaware application are tightly interwoven so the host application does not see the MC as
a controller, but as an integrated part of its user interface. Every MC control can intelligently and rapidly access any function in a EuCon-aware application.
Avid Pro Tools
Avid Pro Tools 9 supports the EuCon protocol for fully integrated control of Pro Tools
software.
Steinberg’s Nuendo
Nuendo includes EuCon support via an optional Nuendo EuCon module, enabling con-
trol from Euphonix control surfaces (i.e., MC, System 5-MC, and System 5 lm post-
production and music consoles). The Nuendo EuCon module is sold exclusively through
the Avid distribution network and packaged with MC and System 5-MC.
Apple’s Logic Pro
Logic Pro supports the EuCon protocol (as of v.7.2.1), enabling full control of all
Logic Pro tracks, plugins, and other parameters through the MC and System 5-MC.
EuCon support is built into the application and does not require any special conguration or additional software from Apple.
Merging Technologies’ Pyramix with OASIS and EuCon Support
Pyramix users must purchase Merging’s OASIS control protocol package option, which
automatically enables EuCon control. Oasis is available through Merging’s distribution
chain for use with the MC, System 5-MC, and System 5 Hybrid consoles.
3
Media Application Controller Operation Guide Introduction

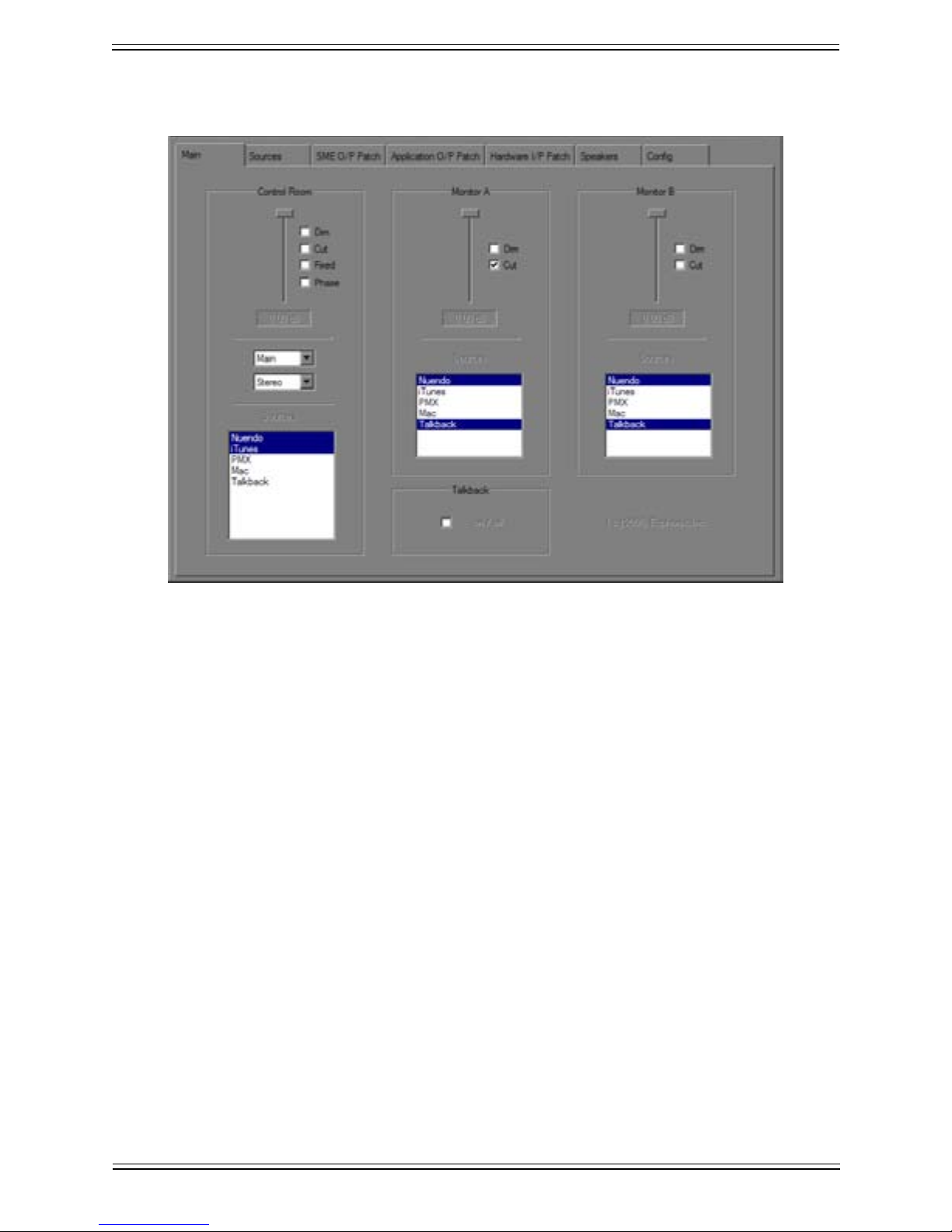

1.2 Studio Monitor Express Application
The MC includes Studio Monitor Express (SME), a powerful monitoring application
that resides on the application workstation and controls audio routing between applications that support ASIO hardware on the PC, Core Audio applications on the Mac, and
their respective hardware interfaces. To congure SME, see Chapter 9: Studio Monitor
Express (Windows) or Chapter 10: Studio Monitor Express (Mac).
1.3 How to Use the PDF
The PDF version of this manual is available on the installer disc and on the Avid website.
Adobe Reader version 7 or later is required to open the PDF. Adobe Reader can be
downloaded for free at http://www.adobe.com.
4
Media Application Controller Operation Guide
Chapter 2: Installation and Conguration
Before proceeding with this section, make sure you have followed the steps for your
single or multiple workstation conguration described in the appropriate Installation
Guide. This chapter provides in-depth information to congure your MC beyond the
basic setup discussed in the Installation Guide.
2.1 Hardware Information
This section will help streamline and optimize your MC installation.
2.1.1 System Optimization
Network
The MC, CM408T modules, and your workstation(s) must be on an isolated Ethernet
network (minimum 100 Mbit), due to the large amount of data transmitted between all
components. Network trafc unrelated to audio tasks may cause slowdowns and errors.
If your workstations absolutely require outside network access, an Ethernet DHCP rout-
er/switch must be used to separate the MC from outside networks. Avid only supports
congurations in which the MC and CM408T modules are isolated on their own separate
network.
Workstations
Make sure to keep all workstations up to date by installing the most recent drivers for
all hardware. Some older drivers, especially for network and audio processing cards,
are unable to handle the MC and CM408T data requirements. This can result in sluggish behavior that affects channel banking across modules, updating playback status on
modules, and other data-intensive functions.
5
Media Application Controller Operation Guide Installation and Conguration
2.1.2 Rear Panel Connections
FOOT
VGAKEYBOARD USB
LANLAN DC INTALKBACK MIC
SWITCH HEADPHONES
Keyboard
DC In: Connect the included DC power supply here. The supply is world-compatible
(accepts 100–240 V, 50/60 Hz) and draws 150 W maximum.
WARNING: Attach power supply to the MC BEFORE plugging into AC power or the unit
LAN (RJ-45): Network port for connecting to router (Netgear RP614 in standalone MC
setups, or SonicWALL PRO 1260 for System 5-MC). Use CAT5 or better cable.
USB: Connect external storage devices for data backup and software updates. Also used
to connect Ontrak ADU-200 relay interface for multiple workstation setups.
Talkback Mic Output (XLR): Mic-level output for built-in talkback microphone. The
output must be connected to a preamp with 48V phantom power, to obtain line-level
output (phantom power is required because it is a condenser microphone).
USB Talkback Mic Output LAN Headphone DC InVGA and
Figure 2-1 MC Rear Panel
may be damaged.
Foot Switch
Foot Switch (1/4-in Mono): The foot switch mirrors the operation of the Talkback
switch on the MC surface. Connect a standard two-conductor foot switch (like a MIDI
keyboard damper pedal) to the MC Foot Switch jack to toggle Talkback on/off.
Headphones (1/4-in Stereo): Through connection to front panel headphone connector.
Service VGA and Keyboard (DB15HD, PS2): VGA video and keyboard connection
(for service only).
6
Media Application Controller Operation Guide Installation and Conguration
2.2 EuCon Software Installation
The EuCon Software installs components that enable bi-directional communication between the MC and the workstation. The EuConWS version of the software must be installed on every workstation used with the MC. The EuConMC version is installed on
the MC when shipped and can be easily upgraded.
2.2.1 Uninstalling Previous Versions
The old version of the EuCon software must be uninstalled on the workstation before
upgrading to the new version. Close all applications and follow the procedure for Windows or OS X:
Windows: Choose Start > All Programs > EuCon, and click Uninstall. The EuCon
Uninstaller removes the EuCon software from the workstation.
OS X: Open a Finder window, navigate to the Applications folder, and run the EuCon-
WS Uninstall program to remove the EuCon software from the workstation.
Proceed with installing the new EuCon software. Rebooting the computer before installing the new software is not necessary.
2.2.2 EuCon WS Software Options (Windows)
The Windows installer offers the following options:
• EuCon Workstation Core: This is the main driver that controls communication
between the MC and workstation. This option cannot be deselected (it is grayed
out and inactive), because it must be installed for the workstation to communicate
with the MC.
• Euphonix Studio Monitor Express (SME): This software monitoring application
interfaces with the MC’s Monitor section. SME can be congured to receive audio
from applications running on the PC or from external sources via physical inputs
to your sound card, enabling extensive audio routing, source selection, and level
control from the MC. Those who prefer to use Nuendo’s Control Room Monitor
(similar to SME), may choose not to install SME.
• EuCon adapter for Nuendo: This enables EuCon communication between the
MC and Nuendo. Nuendo users must install this component. A license to enable
EuCon within Nuendo (in Nuendo’s Device Setup) is required and must be authorized on your Syncrosoft USB dongle before you can use Nuendo EuCon with the
MC.
7
Media Application Controller Operation Guide Installation and Conguration
• VST plugin layouts for Nuendo: This option installs .xml les that map parame-
ters of Nuendo’s VST plugins to the MC’s Soft Knobs and to the CM408T’s knobs.
• EuCon adapter for Pyramix: Pyramix users must install this component to en-
able EuCon control of Pyramix.
• Euphonix Studio Monitor Pro 2 (SMP2): This PC-based professional monitor-
ing application provides all the functionality of SME with additional multi-channel functionality for up to 7.1 monitoring. This application also adds assignable
Monitor Inserts and multiple talkback congurations and more. This application
requires iLok authorization to run.

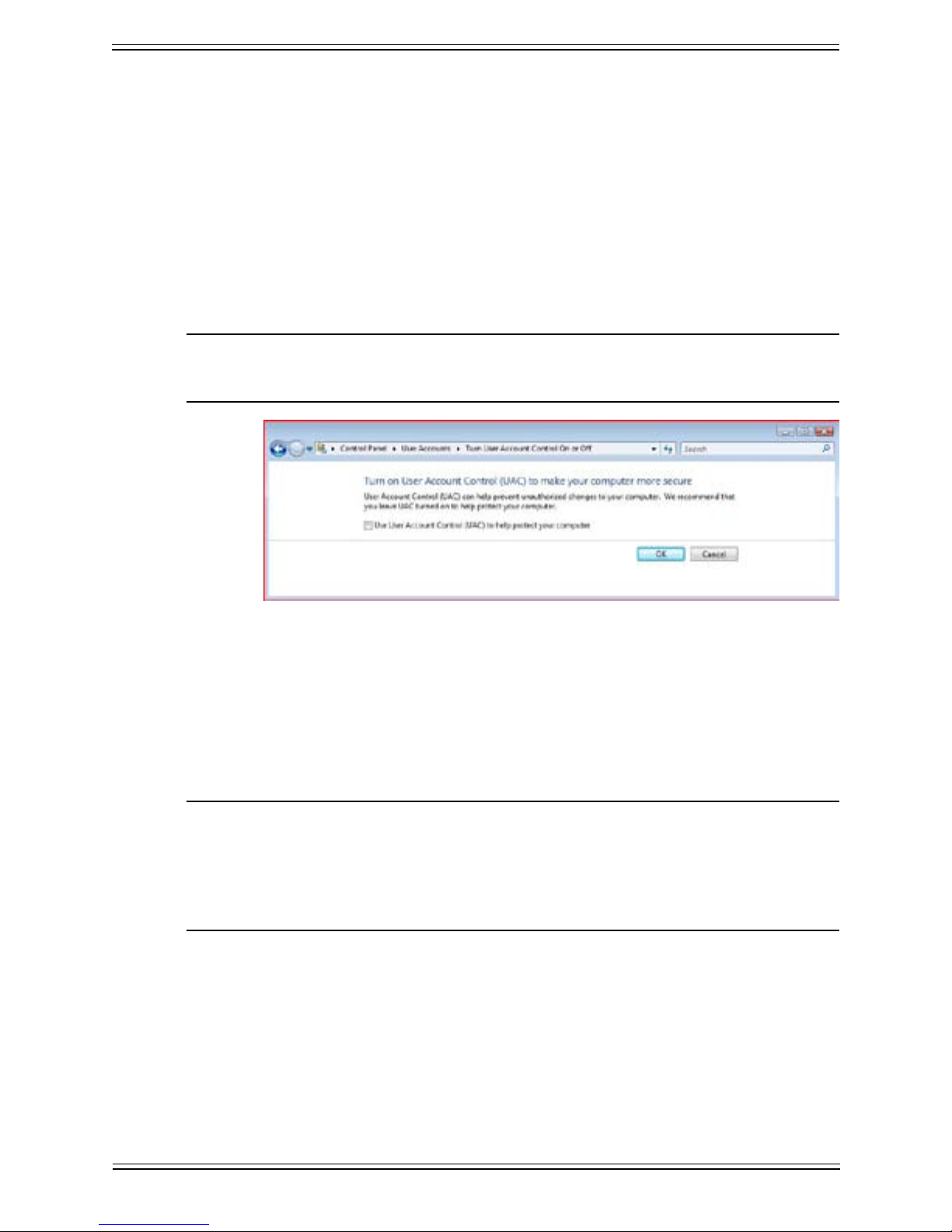

NOTE: Windows 7 users should disable User Account Control (UAC).
Go to: Control Panel > User Accounts > Turn User Account Control On or Off
Figure 2-2 Windows Vista User Account Control Preference
2.2.3 Upgrading the EuConMC Software
To upgrade the EuConMC software on the MC:
1. Download the latest version of the EuConMC software from:
http://www.avid.com/proseriessupport
NOTE: The EuConMC and the EuConWS software must have the same version and
build or they may not communicate properly. Check the EuConWS version
installed on your workstation(s). Download the current version and install it
on all workstations used with the MC if the version/build does not match the
EuConMC software you just downloaded.
2. Copy the installation executable you downloaded onto a removable USB drive.
3. On the MC, touch Euphonix Menu > Shutdown, then touch Exit To Operating
System.
This quits the MCApp software.
4. 4. On the MC, click Start > Programs > EuCon > Uninstall.
8
Media Application Controller Operation Guide Installation and Conguration
The EuCon Uninstaller removes the EuConMC software.
NOTE: User sets are not deleted during the uninstall procedure. However, updated
user sets are installed while upgrading the EuCon software. To ensure these
are installed in the default location, backup C:\Program Files\Euphonix\EuCon\User Sets to removable media, then delete the Usersets folder. The new
usersetsareNOTinstalledifthecurrentonesarenotrstremoved.
5. Restart the MC at this time.
6. Insert the removable USB drive into the MC’s USB port.
The drive appears in My Computer on the MC desktop.
7. Double-click the drive to display its contents.
8. Double-click the EuConMC executable le.
The installer program launches. Install the software to the default location
(C:\Program Files\Euphonix\EuCon).
The MC presents a list of three options to install:
• MCApp, EuCon runtime, etc. - This is the main MC software application. It is
grayed out since it must be installed for the MC to function properly.
• MCPC104Driver,hardwaresupport,rmware - This installs the actual hardware driver the EuConMC uses to control the MC surface. DO NOT UNCHECK
THIS OR YOUR MC WILL NOT FUNCTION.
• CM408T Software + Update Server - This installs the Firmware Updates server,
which updates the CM408T module rmware. See 2.2.4 Firmware Update Server
(System 5-MC only).
9. Cllick Next in the remaining dialogs in the Install Wizard.
10. Reboot the MC when the Wizard nishes.
2.2.4 Firmware Update Server (System 5-MC only)
If CM408T Software + Update Server is checked, the Firmware Update Server launch-
es after the EuConMC installation completes. The CM408T modules will then prompt
to be updated. If they do not, reboot them and they will connect to the Firmware Update Server. Press the Y key on each CM408T after the update prompt appears. Each
CM408T will apply the update, automatically reboot, and be ready to operate. After all
CM408T modules are updated, quit the Update Server.
9
Media Application Controller Operation Guide Installation and Conguration
2.3 Conguration
2.3.1 MC Client Software Conguration
General
Installing MC Client is discussed in the Installation Guides. Once installed, MC Cli-
ent does not need further conguration for applications. It automatically detects if an
application is EuCon-aware and enables EuCon communication. If not, it enables the
MC’s keyboard, trackball, and Soft Keys to control your application as if the MC were
a peripheral directly plugged into your workstation. Since MC Client runs at the operating system level, it can control all non-EuCon-aware applications just as your regular
keyboard/mouse combo can (with the useful addition of Soft Key macros).
Conguring HUI/Mackie Control Protocol
Since HUI and Mackie Control Universal use MIDI to communicate, they require allocation of MIDI ports by the operating system. The EuCon software creates a virtual
MIDI driver with up to 32 ports, but actual communication with the MC occurs via the
faster and more reliable Ethernet network. HUI and Mackie Control use up to 4 MIDI
ports per application. Ports are allocated by the user using the EuPrefs (OSX) or the
Euphonix Control Panel (Win).
• OSX: To congure applications with HUI/Mackie control in OSX, drag your de-
sired applications into the EuPrefs Pane (Apple Menu > Sytem Preferences >
EuPrefs) and select the Protocol and MIDI ports to be used.

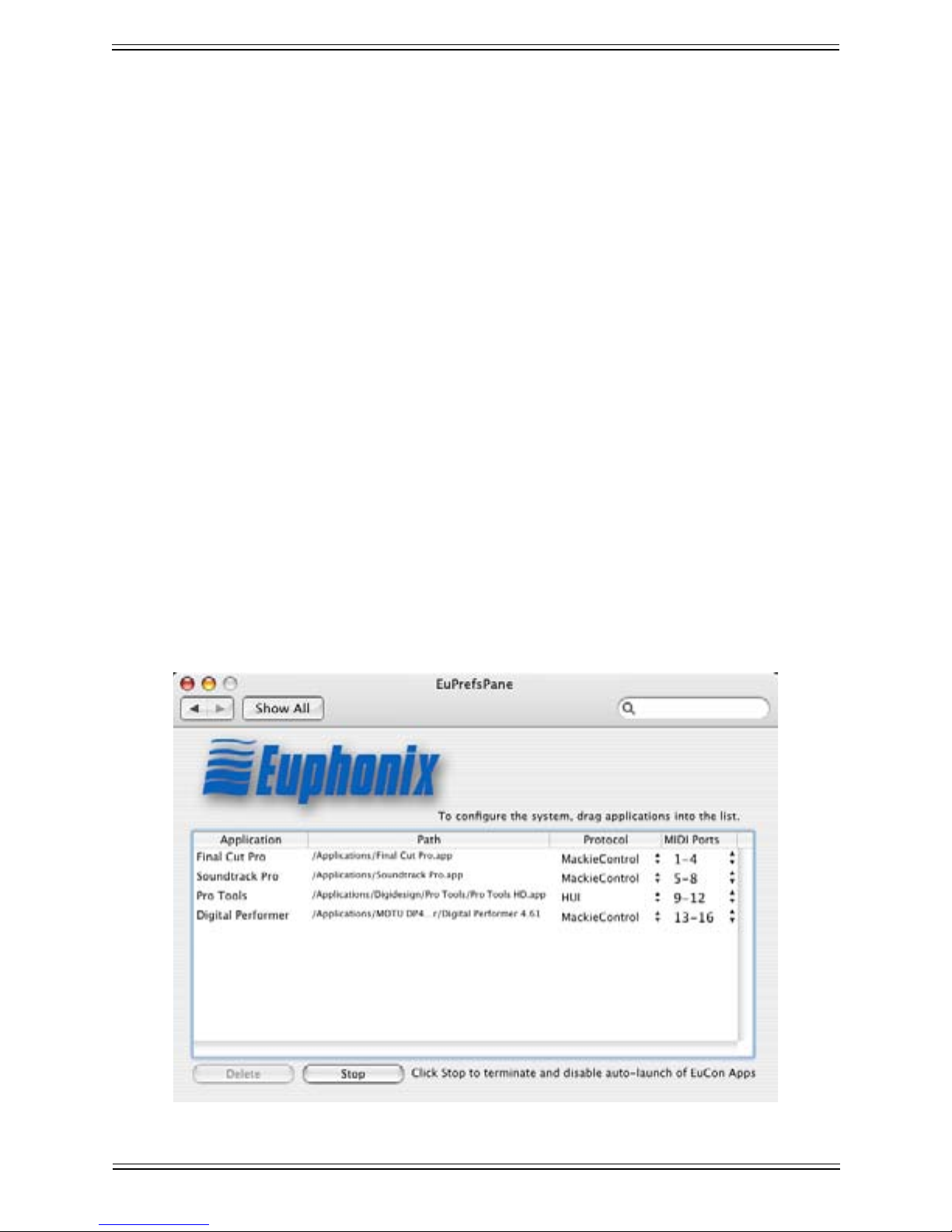

Figure 2-3 Euphonix Preferences pane
10
Media Application Controller Operation Guide Installation and Conguration

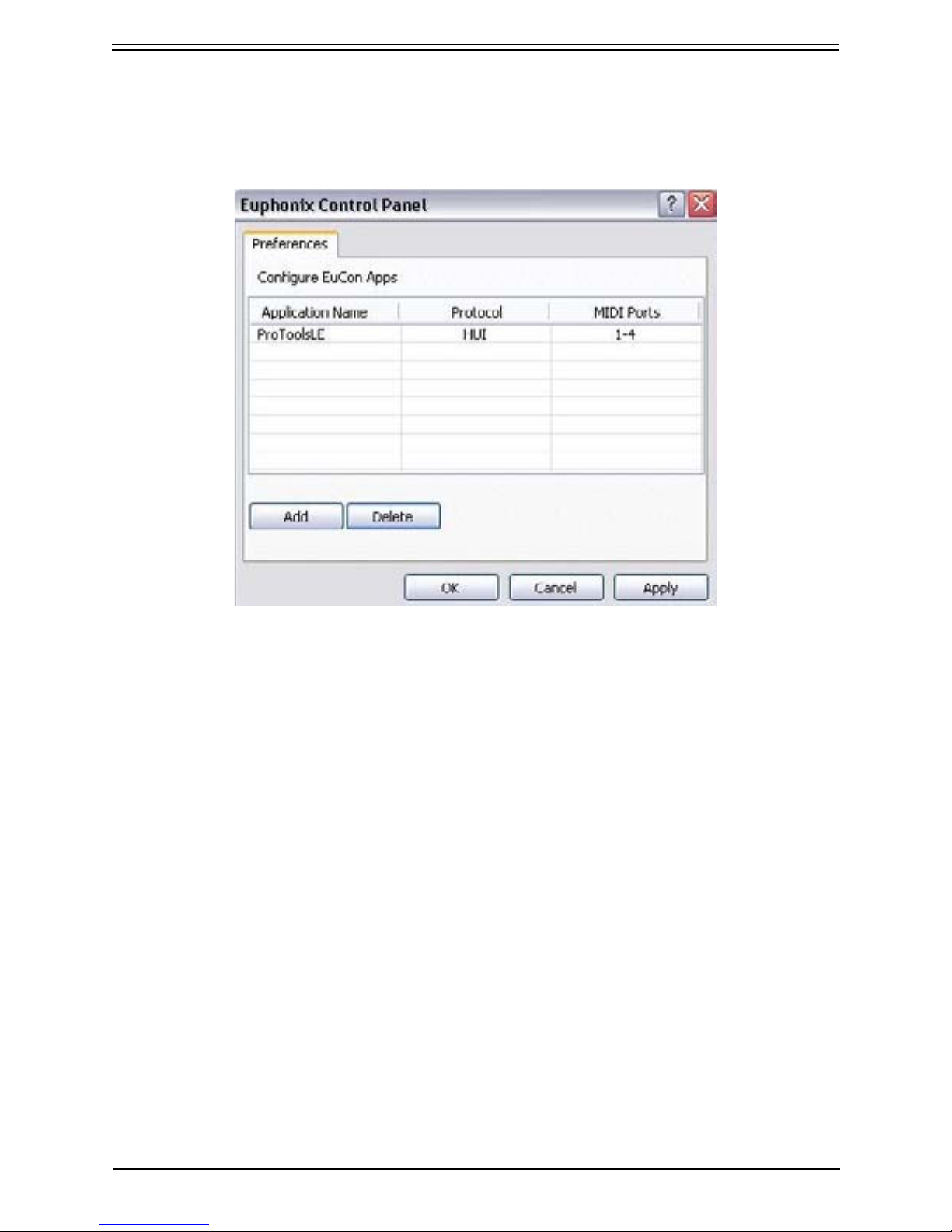

• Windows: To congure applications to be used with HUI/Mackie Control in Win-
dows, open the Euphonix Control Panel (Start > Control Panel > Euphonix),
click the ‘ADD’ button and browse to the desired application. Select the Protocol
and MIDI ports to be used. Click ‘Apply’ when you are done.
Figure 2-4
This conguration is only necessary with HUI and Mackie Control applications. EuCon-
aware applications communicate automatically with the MC. MC Client enables the
MC’s keyboard, trackball, and Soft Keys to control all non-EuCon-aware applications
just as the keyboard and mouse.
2.3.2 MC Client and EuCon Discovery Options
When Windows loads, MC Client and EuConDiscovery services automatically start, and
their icons appear in the system tray.
In OS X, MC Client launches on startup and runs invisibly if the EuPrefsPane is active.
To enable/disable MC Client and EuCon activity, open the EuPrefsPane and click the
Start/Stop button at the bottom of the window. EuCon defaults to active when installed.
In Windows, right-click the EuConDiscovery icon in the system tray for these options:
• Euphonix Network: Lists each installed network card with valid TCP/IP connec-
tion. Select the network on which the MC and your workstation will communicate
from this list.
11
Media Application Controller Operation Guide Installation and Conguration
• Enable Discovery Network Wide Logging: Toggle this setting on for debugging
only.
• Display Discovery Database: Opens list of all EuCon clients on the network.
• Quit: Shuts down the MC Client service.
2.3.3 IP Addressing
MC
The Netgear RP614 router included with the standalone MC takes care of all IP addressing, using its internal DHCP server to distribute IP addresses to the MC and your
workstation(s). Make sure the router is powered on and connected (with Ethernet cables)
to your MC and workstation(s) for the DHCP server to correctly assign IP addresses.
The WAN port on the Netgear can be connected to a studio LAN, or to an Internet connection, depending on your studio setup. Note that the MC and workstation(s) must be
on the same network subnet for the MC to connect to your workstation(s) properly (connecting them all to the LAN ports on the Netgear automatically does this).
System 5-MC
The CM408T modules do not allow static IP addressing. Use a DHCP server to autoassign their IP addresses. The SonicWALL PRO 1260 router included in the System 5-MC
system is set to perform this function by default.
To set up the System 5-MC network, connect the MC and CM408T modules to the SonicWALL 1260. The SonicWALL 1260 auto-assigns their IP addresses. The MC can now
recognize the CM408T modules. See 2.3.7 Modules (System 5-MC Only) to congure
the MC to control the CM408T modules.
Euphonix ships the SonicWALL 1260 with all default settings unchanged. To log into the
SonicWALL: Username: admin Password: euphonix The SonicWALL 1260 checks
for a DHCP server on the LAN to which it is attached. If a DHCP server is not found, it
enables its own internal DHCP server.
To access the SonicWALL’s web conguration interface:
1. Connect a workstation to one of the 1260’s LAN ports.
2. Set the workstation to obtain an IP address automatically using DHCP.
3. Open a web browser and type 192.168.168.168 (the router’s default IP address)
into the location address eld.
4. Log in to the SonicWALL: Username: admin Password: euphonix
The SonicWALL Setup Wizard then launches to congure the router settings.
12
Media Application Controller Operation Guide Installation and Conguration
Refer to the SonicWALL 1260 manual (included with your System 5-MC or available at
SonicWALL’s website) for more information on router settings. Consult your network
administrator to nd appropriate settings for your LAN.

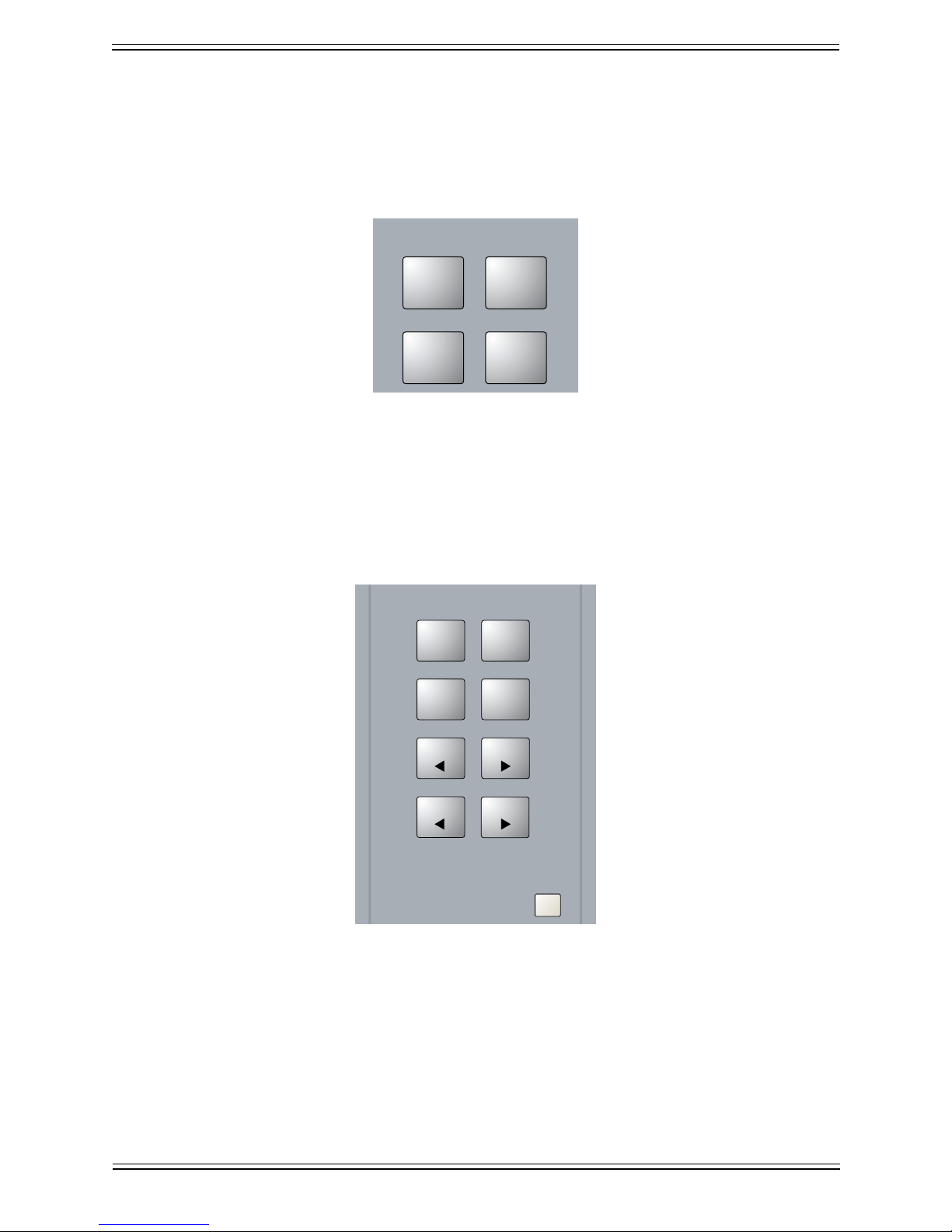

2.3.4 Workstation Control
Workstation
1
3
2
4
Figure 2-5 Workstation keys
The MC can control up to four workstations using the Workstation keys shown in Figure 2-5.
To assign Workstations:
1. Press the Strip Control Setup key on the right side of the MC.
Strip Control
Strip Control
Flip
Layouts
Home
Home
Flip
MC
MC
Nudge
Nudge
Bank
Bank
Nudge
Nudge
Bank
Bank
Setup
Setup
Figure 2-6 Strip Control Setup key
The Touchscreen in Figure 2-6 opens and displays all workstations available on
the network. Each workstation must have MC Client running to be available to the
MC.
13
Media Application Controller Operation Guide Installation and Conguration
Figure 2-7 Workstation Touchscreen
2. Touch a Workstation Key on the left of the Touchscreen.
3. Touch the Workstation name in the list to assign it to the selected number.
4. To disconnect the MC from its current workstation, touch the Workstation key
mapped to that workstation, then touch None/Disconnect.
The assignment is relinquished and the MC disconnects from the workstation.
5. To view all Workstations, use the up/down arrows to scroll.
6. Repeat Steps 2 and 3 to assign additional Workstations.
7. Press the Strip Control Setup key again to exit Workstation assignment mode.
8. Press one of the Workstations keys (Figure 2-3) to connect to that Workstation.
14
Media Application Controller Operation Guide Installation and Conguration
2.3.5 Workstation Binding
Workstation Binding is a feature that retains workstation assignments made in the Workstations Setup Touchscreen. If you reboot your workstation while connected to the MC,
upon completion of boot-up, pressing the assigned Workstation button reconnects without having to re-assign the workstation. Pressing the previously assigned Workstation
button on the MC re-connects to this workstation without needing to reassign. However,
alow time for MC Client to load as it usually takes about 15 seconds after the computer
boots to the Desktop. MC Client’s icon is visible in the Windows Taskbar when MC Cli-
ent is launched. There is no equivalent indication on the Mac However, if you use SME
and have it set to auto-launch (in System Prefs, EuPrefPane) on this Mac, MC Client
completes loading shortly after the SME interface becomes visible. This is particularly
useful if you generally use the MC with the same workstation assignment.
MC Workstation Binding
User
Assigns
MC to WS
Pressing WS
button
connects MC
to WS
WS is
rebooted
WS
becomes
available
WS
assignment
retained by
MC -
Pressing WS
button
attaches MC
to WS
WS
available
MC
auto-
connects
to WS
Pressing WS
button
connects MC
to WS
MC is
rebooted
WS Not
available
MC retains
WS
assigment
WS
becomes
available
Press WS
button, MC
connects to
WS
Figure 2-8 Workstation Binding
15
Media Application Controller Operation Guide Installation and Conguration
If the MC reboots while connected to a workstation, MCApp re-launches, then the MC
re- connects to the previously assigned workstation without needing to press the Work-
station button.
2.3.6 Visit Workstation
A workstation may be visited by pressing Shift + Workstation 1–4 key. Visiting is
a quick way to deliver keyboard and trackball commands to the visited Workstation
without actually performing a EuCon-aware workstation switch. For example, while
working in Nuendo, you can quickly switch to a Pro Tools workstation to dismiss an onscreen dialogue or do a quick edit.
Visiting also causes the (optional) Ontrak USB to GPI (for DVI switching) to switch to
the selected Workstation number.
2.3.7 Modules (System 5-MC Only)
Figure 2-9 Preferences-Modules Touchscreen
This Touchscreen assigns CM408T modules to the MC. All available CM408Ts are
listed on the right under All Online. Currently assigned CM408Ts are listed on the left
under Assigned to this MC. This is the order in which the MC assigns channel strips to
the modules.
16
Media Application Controller Operation Guide Installation and Conguration
• To assign a module to the MC, touch it in All Online and touch the Add button.
The new CM408T appears under Assigned to this MC.
• To deassign a CM408T from the MC, touch the module in the Assigned to this
MC list and touch the Remove button.
• To change the order of CM408Ts in the Assigned to this MC list, touch the mod-
ule and touch the Move Up or Move Down buttons.
• After adding, removing, or moving modules, you must touch the Update Modules
button (ashes when changes have occurred) to apply the settings.
• To display the name, MAC address, IP address, and software version of a CM408T
module, touch it in the Assigned to this MC list and touch the Show Info button.
The information appears on that CM408T’s LCD display.
To name a module, touch it, touch the Edit Name button, and type a name.
17
Media Application Controller Operation Guide Installation and Conguration
18
Media Application Controller Operation Guide
Chapter 3: Main Touchscreens
3.1 Main-Tracks
.
Figure 3-1 Main-Tracks Touchscreen
When connected to a EuCon application, this Touchscreen displays the tracks. If the
project has more than 48 tracks, use the scroll bar at the right or the arrow buttons below
it to display additional tracks.
The top-left of the screen displays the following information (top to bottom):
• Application to which the MC is currently connected
• Name of the workstation to which the MC is connected
• Current User Set
• Currently attentioned channel in yellow text
SMPTE time, minutes/seconds, feet/frames, and bar/beat counters are located to the
right of that display.
19
Media Application Controller Operation Guide Main Touchscreen
On the top-right, the Touchscreen displays either the four tracks currently assigned to the
four faders, or two tracks currently assigned to the MC’s pair of joysticks.
The left of the Touchscreen displays ve mode buttons that apply functions to selected
tracks:
• Solo: Select tracks to solo (see 4.2 Solo to learn about solo modes).
• Arm: Arm tracks for recording.
• Mute: Turn tracks on/off.
• Select: Select a track on the MC and in the DAW.
• Wave: Attention a track to the Soft Knobs.
To apply a function, touch its button and then touch track(s) in the grid to apply the function. Touch selected track(s) again to toggle that function off.
Use the Clear button beside each function to release all tracks from that function. For
example, touch the Clear button next to Solo to unsolo all soloed tracks.
The channel squares in the track grid show their status in several ways:
• Whitish-blue background coloring with yellow text means the channel is selected
• Blue-gray background coloring represents muted tracks.
• A red border around the square means the track is soloed.
• A red dot at the top right of the square means the track is armed for recording
• Colored bars below the text are DAW track colorings in DAWs that offer it.
20
Media Application Controller Operation Guide Main Touchscreen
3.2 Main-Flip (System 5-MC Only)
Figure 3-2 Main-Flip Touchscreen
A row of the CM408T module’s knobs can be ipped onto its faders. The parameters on
the row of knobs appear on the faders and the parameters on the faders appear on the row
of knobs. Flip works across the entire console surface.
The Main-Flip Touchscreen shows eight buttons corresponding to the CM408T’s eight
rows of knobs.
1. Touch a number once to ip that row.
The button stays lit while the row is ipped.
2. Touch a highlighted number to ip it back to normal.
The button extinguishes to show the row is no longer ipped.
The Flip buttons intercancel: Touch a new Flip button while a row is ipped to cancel
the rst ip and ip the new row.
21
Media Application Controller Operation Guide Main Touchscreen
3.3 Euphonix Menu
Figure 3-3 Euphonix Menu Icon
Touch the Euphonix Menu icon to display a popup menu with four options pertaining
to conguration and le operations: File, Shutdown, Prefs, and Setup.
3.3.1 M and K Indicators
The M and K indicators correspond to mouse and keyboard, respectively, and show
whether the MC’s keyboard and trackball control the MC (local) or the workstation
(remote):
Orange = mouse and keyboard control MC
Gray = Mouse and keyboard control workstation
On the MC keyboard, pressing Alt+Backslash toggles this control.
3.3.2 File
Touch Euphonix Menu > File to display the File Touchscreen (Figure 11-2). User Sets
and App Sets tabs allow typical File operations on User Sets and Application Sets, respectively. See “11.1 User and Application Sets” on page 94 for more information.
22
Media Application Controller Operation Guide Main Touchscreen
3.3.3 Shutdown
Figure 3-4 Shutdown Touchscreen
Touching Euphonix Menu > Shutdown is the only proper way to exit MCApp and has
these options:
• Shutdown: Exits MC and operating system.
• Restart: Restarts MC and operating system.
• Exit to Operating System: Exits to Windows XP operating system.
This chapter introduces the MC’s Touchscreen interface and the main Touchscreens used
for normal workow. The Touchscreen allows touching screen items that you would
normally click with a mouse. The main difference between a touch and conventional interface is that there is no double-touch corresponding to a double-click to launch or open
an item. We will use the word touch (instead of click, select, or press) to activate, select,
or open items. To select an item from a menu, we will use the following convention:
Touch Euphonix Menu > File means select File from the Euphonix Menu.
• When the MC starts, the default Touchscreen is Main-Tracks (Main Touchscreen
with Tracks tab selected as shown in Figure 3-1). The Main Touchscreen also has
Flip page.
23
Media Application Controller Operation Guide Main Touchscreen
24
Media Application Controller Operation Guide
Chapter 4: MC Preference Settings
This chapter discusses the Preference settings in the Euphonix menu that change how
the MC operates.
NOTE: Selected options are colored cyan and deselected options are royal blue.
4.1 General
Figure 4-1 Preferences-General Touchscreen
25
Media Application Controller Operation Guide MC Preference Settings
This Touchscreen controls six global preferences, each of which may be selected independently (descriptions pertain to the item when selected):
• Workstation tracks knobset changes: Workstation is aware of which knobset is
selected and displays appropriate controls.
• Open plug-ins on workstation when editing: Plug-in windows can be opened
from the surface.
• Closepluginsonworkstationwhennishedediting: Window closes when leaving Knobset.
• Attention most recently selected track: Changes the Soft Knobs to control the
knobset of the most recently selected track. In effect, this links the Wave key to
the Channel Select key.
• Select most recently attentioned track: Selects the track with the knobset most
recently assigned to the Soft Knobs. In effect, this links the Channel Select key
to the Wave key.
• Select channel by touching fader/joystick: Touching a fader assigned to a spe-
cic channel on the MC, CM408T module (System 5-MC only), or joystick panner, selects that channel in the DAW.
Touch the Wrap-Around Banking button to toggle wrap-around banking on/off. When
enabled, the Bank/Nudge buttons continuously bank through the tracks available, mov-
ing from the last track to the rst. When disabled, the banking stops at the highest track
(with the Bank Right button) and the lowest track (with the Bank Left button). This
applies to standalone MCs (with a four-fader bank) and System 5-MCs (with CM408T
channel strips).
26
Media Application Controller Operation Guide MC Preference Settings
4.2 Solo
Figure 4-2 Preferences-Solo Touchscreen
This Touchscreen controls two solo functions: Solo Mode and Solo Switch.
Solo Mode has three settings:
• Solo In Place: Mutes all tracks except solo track.
• AFL: Solo level derived after fader level.
• PFL: Solo level derived before fader level.
In both of the following Solo Switch settings, pressing an active Solo key deactivates
that key:
• Intercancel: Each usage of the Solo switch solos that channel and deactivates the
previous selection.
• Sum: Each usage of the Solo switch solos that channel and leaves other soloed
channels active.
NOTE: Solo Mode and Solo Switch settings are currently only supported by Nuendo.
27
Media Application Controller Operation Guide MC Preference Settings
4.3 Setup
Touching Euphonix Menu > Preferences > Setup opens the most recently used Setup
Touchscreen.
4.3.1 Devices
NOTE: The Filters buttons and controls are for factory use only. DO NOT modify
This setting allows the user to swap the mapping of the track wheels (jog rings around
the trackball), enabling the physical left jog wheel to be used as the logical right wheel.
This is useful for left-handed users and to allow two users access to the track wheels
with one person sitting to the left of the MC but operating the right (logical) track wheel.
To reassign either wheel:
1. Touch Identify Left Wheel or Identify Right Wheel.
The MC displays a dialog requesting movement of the track wheel to remap.

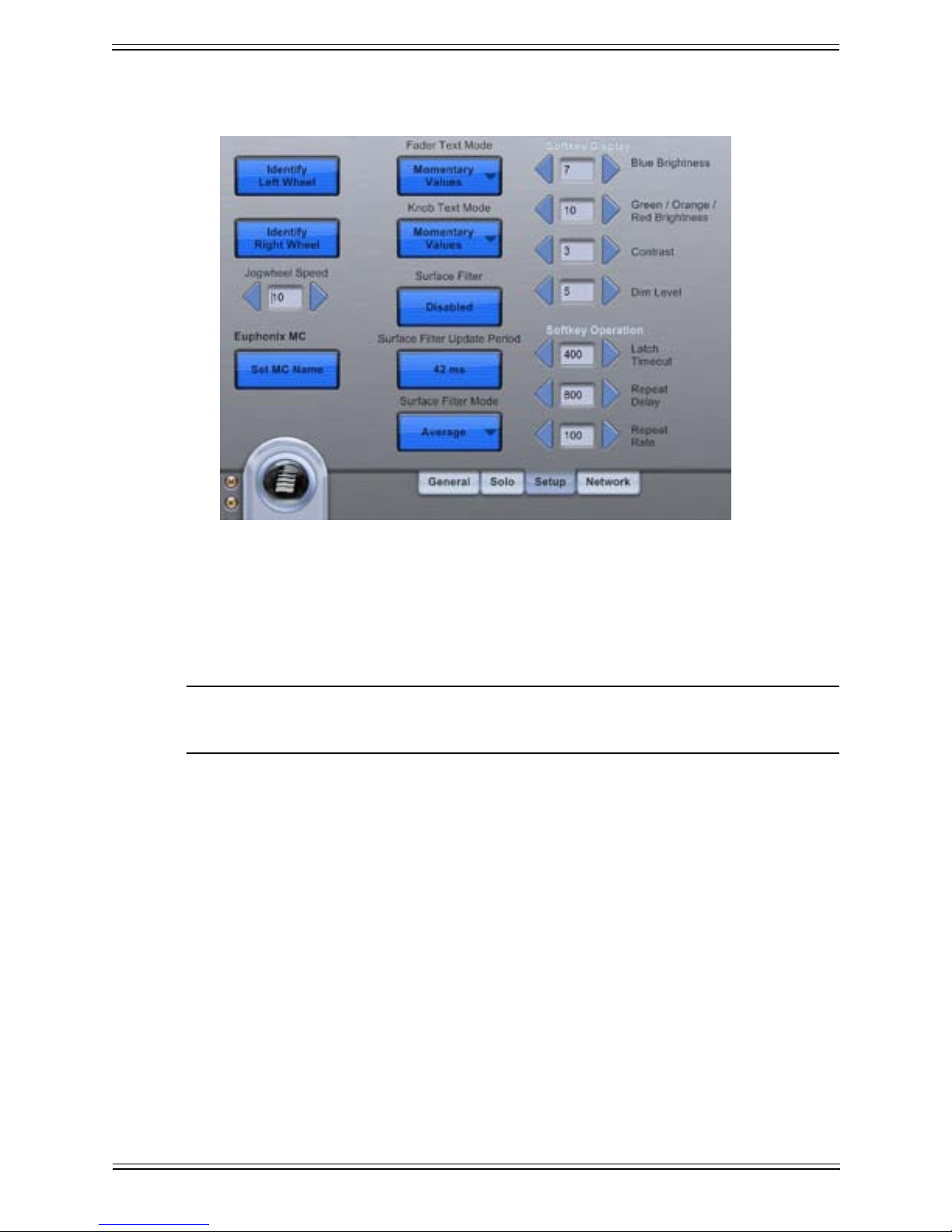

Figure 4-3 Preferences-Setup
these settings unless instructed to do so by an Avid representative.
2. Move the desired track wheel and touch OK.
The MC now interprets all commands coming from that track wheel as coming from the
Right or Left Wheel you selected.
28
Media Application Controller Operation Guide MC Preference Settings
4.3.2 Jogwheel Speed
The Jogwheel Speed adjusts the responsiveness of the Jogwheel. A setting of 10
(default) is 100%, or full speed. A setting of 1 is 10%, or slow response.
NOTE: We recommend a setting of 1–3 for Logic Pro.
4.3.3 Surface Filter Update Period
This setting modies the interval at which the MC sends automation data back and forth
to your workstation(s). The range is 5–250 ms and the default is 42 ms. You will not need
to modify this setting unless your project has extensive automation, in which case you
may need to increase it. Be careful because setting it too low (rate too high) may deliver
incorrect automation.
4.3.4 Set MC Name
The Touchscreen also displays the name of the MC (default is Euphonix MC), and allows changing it. The MC Name is used to distinguish between surfaces in multiple-MC
congurations. To change the name, touch Set MC Name, type the desired name, and
touch OK.
4.3.5 Fader Text Mode and Knob Text Mode
These settings control how fader and knobset scribble strips on the CM408T modules
behave when displaying text:
• Momentary Value: Displays values as they are changed, then reverts to the name
after a xed time interval.
• Always Show Names: The name of the control is always displayed.
• Always Show Values: The value of the parameter is always displayed.
The value for fader strips is always the channel level in dB. The knobset value changes
depending on what is assigned to the knobset (EQ, dynamics, plug-in controls, etc.).
4.3.6 Soft Key Display and Operation
This setting controls the text brightness/contrast of the integrated LCDs in the Soft Keys,
and the timing of button latching, repeat delay, and repeat rate.
29
Media Application Controller Operation Guide MC Preference Settings
To set the brightness of the Soft Keys, use the arrow keys to increase/decrease the illumination (1-10):
• Blue Brightness: Sets the illumination for the blue Soft Keys.
• Green/Orange/Red Brightness: Sets the illumination for the Green/Orange/Red
Soft Keys.
• Contrast: Changes the contrast on all soft keys.
• Dim Level: Sets the illumination for dimmed Soft Keys.
To set the button timing of the Soft Keys, use the arrow keys to increase/decrease the
time:
• Latch Timeout: Sets the amount of time (50–500 ms) before a held-down but-
ton becomes momentary or non-latching. For example, a Solo button held down
longer than the Latch Timeout setting becomes non-latching and turns off when
released. Buttons held down for a shorter time than this setting behave normally
(i.e., turn on or off depending on their prior state).
• Repeat Delay: Sets the amount of time (250–1000 ms) before a repeatable button
starts repeating its command when held down (i.e., Nudge or Zoom).
Repeat Rate: Sets the amount of time (30–400 ms) between the repeated commands
when a repeatable button is held down. The button begins repeating after being held
down for the Repeat Delay setting.
4.4 Network
30
Media Application Controller Operation Guide MC Preference Settings
The Network pane in the MC preferences section allows you to custom dene the addressing used for multicasting data used by the EuCon system.
Most systems will never need to use this feature, however special care should be taken
if it determined that custom network settings are to be used. Please advise with your
IT department to ensure proper addressing and port settings are used for your place of
operation.
4.4.1 To set custom multicasting settings:
• Connect to all the workstations and modules you want to change settings for.
• Only workstations assigned to the 4 workstation switches will be affected by this
change.
• Only CM408T modules “Assigned to this MC” will be affected by this change
• Go to Euphonix menu > Prefs > Network tab.
• Press the “Use Custom Settings” button (off by default).
• Make changes to your settings:
NOTE: Generally, users will want to choose address from the following ranges based
on direction from their IT department (which they are responsible for allocating per subnet and site). (Information taken from Stevens, Section 21.2 (pg
553),gure21.3):
Link-local 224.0.0.0 to 224.0.0.255
Site-local 239.255.0.0 to 239.255.255.255
• Go to the Setup > Modules page on the MC and “remove” all the attached
CM408T modules.
• Restart all CM408T modules by pressing the RESET button located on the bottom
front of the units.
• Restart the MC:
• Go to: Euphonix Menu > Shutdown
• Press Restart
• Log out of all your workstations and log back in.
• You may need a separate keyboard and mouse to do this since EuCon connectivity
31
Media Application Controller Operation Guide MC Preference Settings
will not be established at this point.
• When you log out, all EuCon based processes are shutdown and relaunched again
when you log in. This ensures that the new custom network settings are applied to
the workstation.
• Alternatively, you may restart your workstations, although it should not be necessary.
• Re-attach all your workstations and CM408T modules.
4.4.2 To set the system back to default multicasting settings:
• Connect to all the workstations and modules you want to change settings for.
• Only workstations assigned to the 4 workstation switches will be affected by this
change.
• Only CM408T modules “Assigned to this MC” will be affected by this change
• Go to Euphonix menu > Prefs > Network tab.
• Deselect the “Use Custom Settings” button
• The default factory multicast settings should now appear in the elds below in
DIM lettering (see below).
Base: 224.1.239.0
Mask: 255.255.255.0
Discovery: 224.1.239.2 Port: 4242
EuCon 224.1.239.42 Port: 4245
Logging: 224.1.239.3 Port: 4243
• Go to the Setup > Modules page on the MC and “remove” all the attached
CM408T modules.
• Restart all CM408T modules by pressing the RESET button located on the bottom
front of the units.
• Restart the MC:
• Go to: Euphonix Menu > Shutdown
32
Media Application Controller Operation Guide MC Preference Settings
• Press Restart
• Log out of all your workstations and log back in.
NOTE: You may need a separate keyboard and mouse to do this since EuCon
connectivity will not be established at this point.
• When you log out, all EuCon-based processes are shutdown and relaunched again
when you log in. This ensures that the network settings are applied to the workstation.
• Alternatively, you may restart your workstations, although it should not be necessary.
• Re-attach all your workstations and CM408T modules.
4.5 About
This Touchscreen displays the version of the EuCon software loaded on the MC. The
EuConMC software can be upgraded by downloading the latest version from the Avid
website.
Figure 4-4 Preferences-About Touchscreen
33
Media Application Controller Operation Guide
Chapter 5: Soft Keys
5.1 Banks
Soft Key banks are saved snapshots of all Soft Key commands for a specic MC Soft
Key section. There are three Soft Key sections, each with individual banks: the Soft
Keys section (24 Soft Keys to the left of the Touchscreen), and the Left and Right Edit
sections. The main Soft Keys section has six dedicated bank buttons at the top, and the
two Edit sections each have four bank buttons. However, using the Soft Key Bank Jump
commands, an unlimited number of banks can be created, stored, and recalled. Additionally, a Soft Key in any section can recall banks to both its own section and the other two
Soft Key sections.
A Soft Key can store a sequence of commands (enabling complicated sequences to be
carried out with one keystroke). Soft Keys can transmit four command types:
• EuCon: for in-depth control of EuCon applications (one per Soft Key)
• Key: keystroke sequences to control any application (unlimited per Soft Key)
• Bank: switch banks on one or more of the MC Soft Key sections
Figure 5-1 Soft Keys
• MC: MC-specic commands
The Bank keys display banks 1–6.
46
Media Application Controller Operation Guide Soft Keys
5.2 Soft Keys Setup
Press the main Soft Keys Setup button (bottom-right of the Soft Keys section) to cong-
ure the main Soft Keys. The Right/Left Edit section Soft Keys can be changed by pressing that section’s Setup button. The Touchscreen changes to show the Soft Keys setup.
The Commands and Labels tabs of the Soft Keys Setup Touchscreen edit the denitions
and labels of the Soft Keys. Press the Soft Key to modify; it begins ashing. The Com-
mands and Labels tabs display the Soft Key’s currently assigned commands and labels,
which can now be modied.
5.2.1 Commands
Four types of commands can be mapped to a Soft Key:
• Key: macro commands made up of computer keyboard (ASCII) characters
(Figure 5-4).
• EuCon: mapped from MC directly into application using EuCon (Figure 5-6).
• Soft Key Bank Switch: enable navigation to MC Soft Key banks (Figure 5-5).
• MC: MC specic commands are Layout Recall, Parameter Collect, Parameter
Punch, Read/Write All and Pause.
47
Media Application Controller Operation Guide Soft Keys
Figure 5-2 MC commands
Each Soft Key can contain one EuCon command and unlimited bank switch and key
commands chained together in the Soft Key denition. The one EuCon command can
be assigned in any slot. The commands assigned to the selected Soft Key are listed by
type in the three slots to the left of the Add button (Figure 5-4). Touch the arrow buttons
to the right of the three slots to move back and forth through the assigned commands.
When the Soft Key is pressed, these commands are executed sequentially from left to
right.
48
Media Application Controller Operation Guide Soft Keys
Figure 5-3 Setup-Commands Touchscreen
To assign a command, touch the Add button. A popup menu requests a choice between
adding a Key, EuCon, Soft Bank Key Switch, or MC command. Touch to select the command type and the screen for that command is displayed (see Figures 5-4, 5-5, and 5-6).
The Repeat button (next to the Add button) sets the Soft Key to be repeatable: When
the key is held down, the MC repeats the Soft Key’s command chain. This is typically
used for zoom and nudge buttons. The repeat rate for the command chain is set in the
Preferences-Soft Keys Touchscreen.
To delete a command, touch the command’s slot in the chain and touch the Delete button. If a command in the middle of the chain is deleted, the remaining commands shift
left to take its place.
49
Media Application Controller Operation Guide Soft Keys
Figure 5-4 Setup-EuCon Commands Touchscreen
This Touchscreen allows choosing from hierarchical EuCon command menus (the actual
contents depend on the EuCon application). To assign a command, touch a category in
the left-most menu, and use the submenus to nd the desired command. Touching the
command instantly assigns it to the command denition and the Soft Key displays the
default command label.
If there are more than three menu levels, they move to the left as the submenus open.
To get back up to the top of the hierarchy, use the left arrow button below the left-most
menu.
50
Media Application Controller Operation Guide Soft Keys
Figure 5-5 Setup-Key Commands Touchscreen
This Touchscreen allows typing a command string that is executed by the MC when the
specied Soft Key is pressed. Touch any of the modier buttons (Control, Shift, Alt/Opt,
Win/Cmd) to include them as part of the Soft Key’s denition. Multiple modiers can
be toggled to create complex application shortcuts. For example, to create the command
shortcut Ctrl+Alt+Shift+Z, toggle the Ctrl, Alt, and Shift modiers and type Z into the
command box.
Touch Insert Special to open a popup menu of non-alphanumeric keyboard characters
and commands (i.e., Home, End, Page Up, Page Down, Delete, Backspace, etc.). The
command string for those functions is inserted into the command box at the cursor’s
location.
Assigning a Key Command function to a Soft Key does not automatically generate its
label. See “5.2.4 Label” on page 55 to assign an appropriate label to the Soft Key.
51
Media Application Controller Operation Guide Soft Keys
Figure 5-6 Setup-Bank Switch Commands Touchscreen
This Touchscreen sets a Soft Key to jump to a specic Soft Key bank and determines
which MC Soft Key sections are affected by that bank switch.
Touch the Action button to change the bank switch action. A popup menu selects the
next, previous, or another bank. The current bank is shown to the left above the image
of the Soft Key being edited.
When the Action button is set to Jump To Bank, enter the desired bank number in the
command box below the Action button.
Touch the Section button to choose which section should switch banks. A popup menu
chooses between the Left Edit, Right Edit, or Soft Key sections. This functionality allows the Soft Key’s command to change only one of the MC’s Soft Key sections to
another bank (i.e., the Right Edit changes from Transport to Edit controls) while having
no effect on the other Soft Key sections.
Assigning a Bank Jump function to Soft Key does not automatically generate its label.
See “5.2.4 Label” on page 55 to assign an appropriate label to the Soft Key.
52
Media Application Controller Operation Guide Soft Keys
5.2.2 Menu Implementation
Allowing a Soft Key to Jump that Soft Key section to another bank provides several
interesting ways to organize Soft Keys. For example, a bank can be created that shows
the application’s pull-down menus (i.e., File, View, Insert, Format, etc.) on the top row.

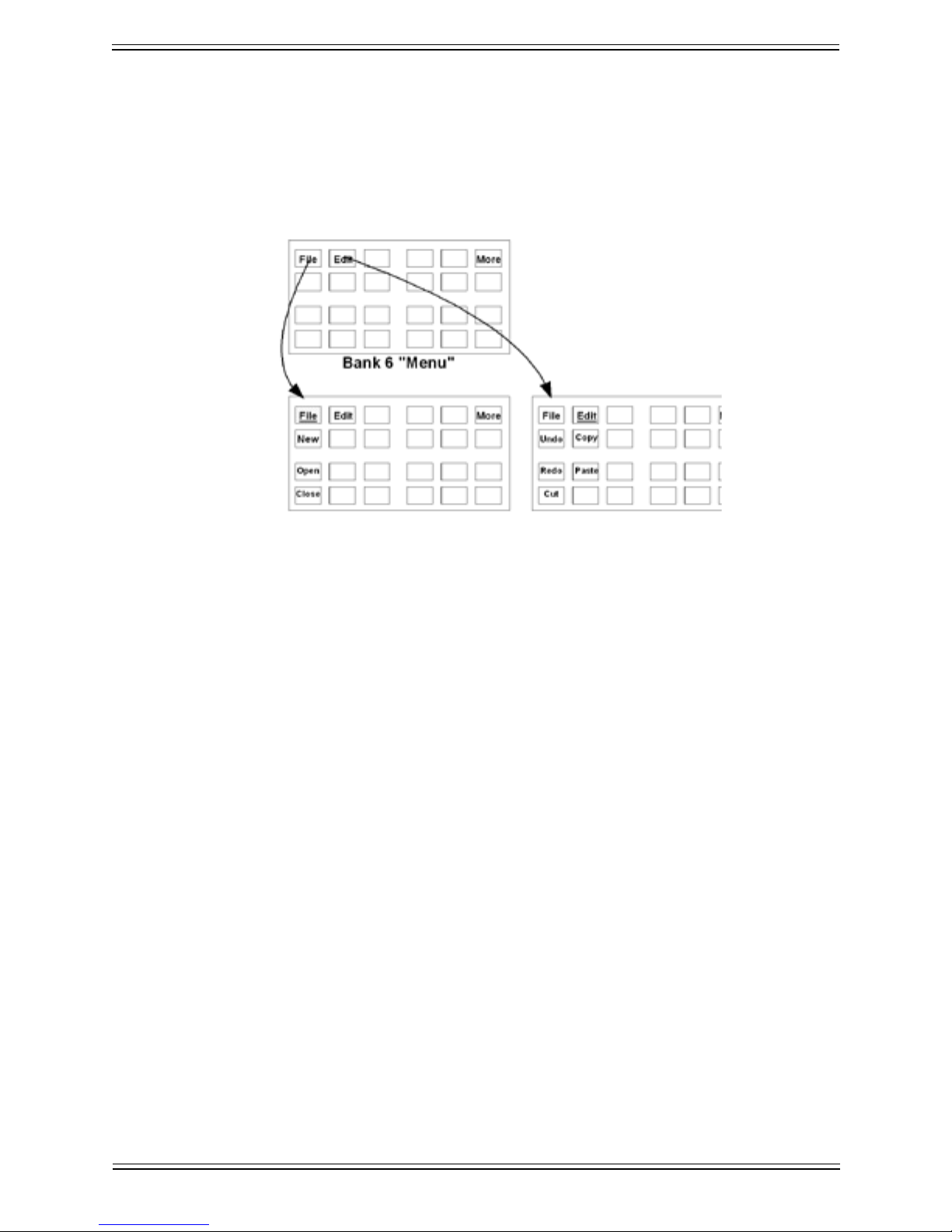

Figure 5-7 shows an example of a Soft Key menu:
Figure 5-7
The Nuendo and Pyramix Application Sets use this functionality to put the most important functions on Banks 1–6, with Soft Keys that jump to other banks to display further
options (i.e., the File Menu or the Transport commands).
When implementing this functionality, we recommend creating a Soft Key that jumps
back to one of the top level banks (i.e., the Home key at the bottom-right of every bank
in the Nuendo Application Set). Pressing the Bank 1–6 buttons at the top of the Soft
Keys also navigates back to Banks 1–6.
53
Media Application Controller Operation Guide Soft Keys
5.2.3 Pause
Figure 5-8 Pause Command
The Pause command can be used to create a delay in milliseconds in the chain of commands within a SoftKey. The range is limited to 500ms per Pause command. Multiple
Pause commands can be chained together to create longer delays.
This is especially handy when a user creates a macro that opens a windows within the
host application. A Pause command can be inserted to delay triggering the rest of the
commands while the window opens. Experimentation is key to nding the best values
to use on a case-by-case basis.
54
Media Application Controller Operation Guide Soft Keys
5.2.4 Label
Figure 5-9 Setup-Label Touchscreen
The Setup-Label Touchscreen allows customizing the appearance of the Soft Keys, including color, font, and size. An icon can be selected from the Icon list. Touch the Lay-
out button to choose from the popup menu between the following button appearances:
• text only
• text above icon
• text below icon
• icon only
NOTE: When scrolling lists of commands and icons, press and hold Shift while press-
ing Up/Down buttons on the Touchscreen to scroll by page. Press and hold
Ctrl + Shift while pressing Up/Down buttons the Touchscreen to scroll to the
bottom/top of the list.
Touch the Font and Color elds to select the desired entries from their respective popup
menus. Only Soft Keys in the Left and Right Edit sections along the top can be colorized. All other Soft Keys are blue only.
Touch the text box to enable editing. The box becomes selected, and the text for the button can be edited using the keyboard.
55
Media Application Controller Operation Guide Soft Keys
5.2.5 Cut, Copy & Paste Soft Keys
It is possible to Cut, Copy and Paste SoftKeys when editing an application set using the
MC keyboard.
• Press the section Setup button and select the SoftKey you wish to cut, copy or
paste to.
• Use the following keyboard commands to perform the desired function:
Cut: Ctrl + Shift + X
Copy: Ctrl + Shift + C
Paste: Ctrl + Shift + V
5.2.6 Locking
The Locking tab allows locking any or all of the Soft Key sections to a EuCon application, retaining their commands while the MC is switched to another application or workstation. The channel strips (or joystick panners) can also be locked in this manner. This
functionality is used to retain control of one application or DAW while using another.
For example:
• Locking the Left Edit section to the Nuendo transport controls while working in
Pyramix.
• Using one DAW for playback and another for editing/recording so there is no need
to switch back and forth between workstations in order to control both DAWs.
• Controlling different applications on the same workstation, such as Pro Tools with
the Left Edit section and Logic Pro with the Right Edit section, all while editing
video in Final Cut Pro.
56
Media Application Controller Operation Guide Soft Keys
Figure 5-10 Setup-Locking tab Touchscreen
To lock a section:
1. Bring into focus the application to which you intend to lock a section.
The application is listed at the top-left corner of the MC touchscreen.
2. Press the Setup button of the MC section (Left Edit, Soft Key, or Right Edit) being
locked.
3. Press the Strip Control Setup button to select the faders/joystick panners to lock.
4. Touch the Lock Section button to lock the section to the application on the MC’s
current workstation.
SHORTCUT: To quickly lock a section to an application, put the application in focus,
hold down the Shift key on the MC keyboard, and press the Setup key of the
section to lock. To unlock, repeat this step.
The selected section is shown at the top-left of the Locking tab Touchscreen. If that section is currently locked, the top button of the Locking tab changes from Lock Section to
Unlock Section with a red lock icon to its left (Figure 5-8). The application and workstation to which the section is locked are listed to the right of the button.
57
Media Application Controller Operation Guide Soft Keys
A locked Soft Key section retains its currently assigned commands until it is unlocked
or its individual App Set sections are unlocked.
The fader/joystick section retains its channel control when locked.
The Monitor and Control Room sections continue to monitor the outputs/application
they were locked to.
Press the Unlock All Appset Sections button (appears only when one or more Soft Key
sections are locked) to unlock all currently locked Soft Key sections, without unlocking
the fader/joystick, monitors, or control room sections.
Press Unlock All Sections to unlock all currently locked sections.
NOTE: If any Soft Key section is locked, the Application Set cannot be edited and Soft
Keydenitionscannotbechanged.AllSoftKey(AppSet)sectionsmustbe
unlockedbeforechangingSoftKeydenitions.
Figure 5-11 Locking Procedures
58
Media Application Controller Operation Guide Soft Keys
Superlock
Superlock locks the entire MC and CM408T modules (for S5-MC owners) to one application, except for the Monitor and Control Room sections, which always lock independently of all other sections. This is useful when switching to another application, without
having the MC / System 5-MC constantly switching application sets. For example, you
may switch to a database application to look up samples, but want to lock the MC to your
DAW application.
To engage Superlock, focus to the application you wish to lock to, hold down Ctrl +
Shift on the MC keyboard, and press any section’s Setup button (except the Monitor and
Control Room Setup buttons). The entire MC and CM408T modules, except Monitor
and Control Room, are now locked to that application.
To disengage Superlock, press Ctrl+Shift+ a Setup button again, or press a Setup button (showing the locking tab) and touch the Unlock All Sections button on the Touchscreen.
59
Media Application Controller Operation Guide
Chapter 6: Soft Knobs
The MC has nine touch-sensitive knobs with LED display rings to control many parameters. These can also send out HUI data but are more effective when used with
EuConaware applications in which they can intelligently access functions such as EQ,
dynamics, aux sends, or plug-ins.
Left and right keys are available to page within a knobset. The eight knobs operate on
one channel/track within the selected knobset. On the MC, the Soft Key LCD displays
show the knob function and when touched, the knob value. Switches are available for
automation and other knob-related functions.
The Assignable Knob (the bottom-left knob in the Soft Knobs section) can be dynamically assigned to most knob or switch functions in Nuendo and Logic Pro. For example,
moving the pointer over a track panner in Nuendo, assigns pan to the MC’s Assignable
Knob. With Logic Pro, clicking on a track panner, assigns that function to the MC’s Assignable Knob. The Assignable Knob can be locked to a particular function by pressing
the Assignable Knob’s top.
6.1 Knob Cells
The Soft Knobs area is like a Super Channel or Track Inspector to edit a single track. A
channel can be attentioned to the Soft Knobs area for editing, which is different from se-
lecting it. A DAW can select more than one track at once. Attentioning (sometimes called
focusing) is meaningful only for the control surface and is done one track at a time.
60
Media Application Controller Operation Guide Soft Knob

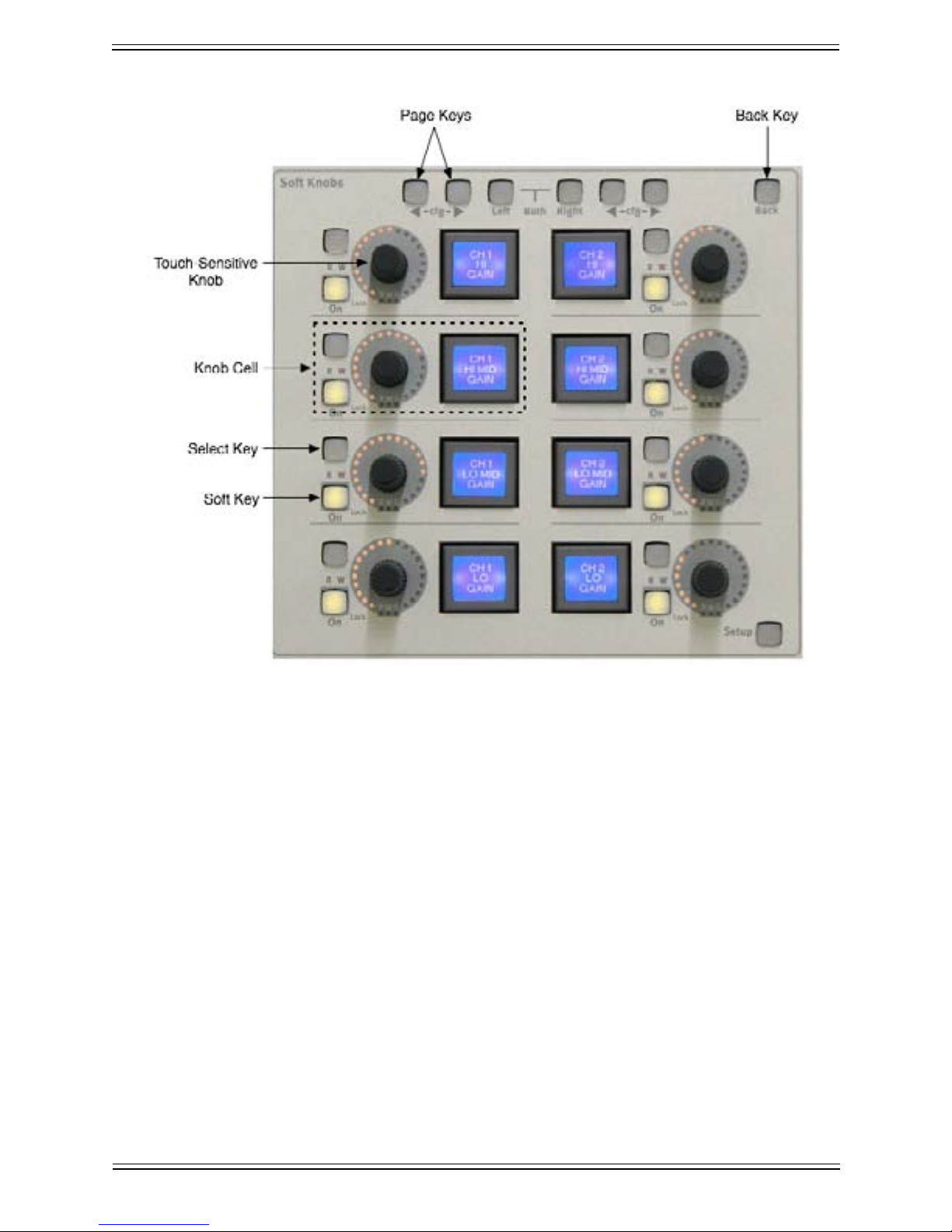

Figure 6-1 Knob cell controls in Soft Knobs area
The MC’s bank of Soft Knobs contains eight knob cells, each with a:
• Touch-sensitive knob: controls the parameter shown in the Soft Key’s LCD
• Knob top button (knob press): moves one menu level down the hierarchy
• Soft Key: Displays the current parameter assigned to that knob. Pressing the Soft
Key moves one menu level down the hierarchy (same as Knob top button).
• Select key: depends on specic knob function
• On key: activates/deactivates that parameter
• Lock LED: not currently used
• RW LEDs for On key: not yet implemented
• R and W LEDs: displays automation state of currently selected channel
• G LED: not yet implemented
• Back key: moves one menu hierarchy up. Not lit if already at top of the menu
structure
61
Media Application Controller Operation Guide Soft Knob
In addition, the top of the module has:
• Page Left and Right keys: access additional Soft Knobs pages in the knobset
• Left and Right selector keys: not yet implemented
• Back key: moves one menu hierarchy up.
6.1.1 Knobsets
Each DAW channel function (Aux Send, Inserts, EQ, Pan, etc.) has a knobset associated
with it, and the EuCon software includes knobsets for all supported plugins. A knobset
is comprised of pages of eight parameters each. The MC and CM408T’s knobsets are
identical.
Touch-sensitive Knobs
The knobs are touch-sensitive so the system can detect when the knob is touched, moved,
and released. Touching a knob displays the current parameter’s value on the Soft Key’s
LCD instead of the parameter name. Releasing a knob reverts the display back to the
parameter name.
62
Media Application Controller Operation Guide Soft Knob
6.2 Assignable Knob
The Assignable Knob can control most knob or switch parameter values in Nuendo or
Logic Pro. In Nuendo, move the cursor over a parameter on the host screen to assign it
to the Assignable Knob. With Logic Pro, you must click the parameter to assign it to the
Assignable Knob. Repeat these functions to assign to other parameters in these DAWs.
Assignable Knob
Assignable Knob
Ch 12
Ch 12
Aux01
RW
RW
RW
RW
On
On
Lock
Lock
Lock
Lock
G
G
R
R
W
W
Aux01
Hall
Hall
Figure 6-2 Assignable Knob
Press the knob top to lock the current parameter onto the Assignable Knob and light the
Lock LED. The cursor can now be moved to control other DAW parameters while the
Assignable Knob remains in control of the locked parameter. Press the knob top again
to unlock the parameter, which frees up the Assignable Knob to control another parameter.
NOTE: Pyramix does not currently support the Assignable Knob. Apple Logic Pro
usersmustclicktheparametertocontrolrst;theAssignable Knob will then
function as described.
6.3 Changing Knobsets
If the Workstation Tracks Knobset Changes preference is set (Preferences-Gener-
al touchscreen), the DAW is notied whenever a knobset is selected on the MC or a
CM408T module. This allows the DAW to show the function on the host screen. When
entering a plug-in window, the DAW will open that plug-in window if the Open plugins
on entering workstation when editing preference is selected and close it upon leaving
the Insert knobset if the Close plugins on workstation when exiting is selected.
63
Media Application Controller Operation Guide
Chapter 7: Working with Channels
7.1 Channel Strips
The MC has four channel strips to which workstation tracks can be assigned. The track
names assigned to these strips are displayed in the top-right corner of the Main-Tracks
touchscreen. Workstation tracks can be assigned to the strips using the Channel Select
and Wave strip keys, or using the Layouts-Assign Touchscreen. The System 5-MC has
two motorized joystick panners in place of the four faders.
7.1.1 Solo
When activated, this button solos the assigned channel. Solo preferences are set on the
Preferences-Solo Touchscreen.
Figure 7-1 Channel Strips Section
64
Media Application Controller Operation Guide Working with Channels
7.1.2 On
The On key must be lit (active) to hear the channel. The channel is muted when the
strip’s On button is unlit.
7.1.3 Record
Activate the Record key to enable (arm) a track for recording.
7.1.4 Chan Select Key
Press the Chan Select key to select the channel assigned to that strip. When lit, this channel is selected in the DAW for editing.
Press the Chan Select key to select a workstation track; it lights when a track is selected.
The workstation’s tracks or mixer window scrolls to show the most recently selected
track.
7.1.5 Select Key
When pressed by itself, the Select key toggles Write mode on/off for the entire track.
LEDs
The green R and red W LEDs are used to denote the automation modes shown in Table
7-1. To set the automation mode, press and hold the Wave key and press the Select key
to select from the popup menu. In Write mode, the red W LED blinks when writing automation and is solid otherwise.
Mode R LED (green) W LED (red)
Isolate off off
Read on off
Write off on
Read + Write on on
Table 7-1 Automation Modes
In Write mode, the red LED blinks when writing automation, and lights solid when the
transport is stopped.
NOTE: The yellow G LED is reserved for future use.
65
Media Application Controller Operation Guide Working with Channels
7.1.6 Wave Key
Press the Wave key to attention a track to the MC Soft Knobs for channel editing. If
Select most recently attentioned track is selected in the Preferences-General Touchscreen, this will also select the track in the DAW. The Wave key stays lit to indicate it is
the attentioned channel.
Wave + Select
Press the Wave and Select keys simultaneously to display the DAW automation (Read,
Write) mode control on the MC Touchscreen for that track.
Wave + Chan Select
Press the Wave and Chan Select keys simultaneously to assign a track to a strip. This
technique is called Direct Assignment.
7.1.7 Fader
When a workstation channel is assigned to a strip, the fader controls the workstation
track’s fader.
7.1.8 Joysticks
Figure 7-2 Joystick Touchscreen
66
Media Application Controller Operation Guide Working with Channels
Two options are available for the upper-right area of the MC. The standalone MC is usu-
ally tted with four faders. The System 5-MC includes a pair of joysticks.
The Joysticks can send stereo or surround panning to EuCon-aware applications.
The MC Joysticks section has similar functions as the fader.
7.2 Strip Control Section
Strip Control
Strip Control
Flip
Layouts
Home
Home
Nudge
Nudge
Flip
MC
MC
Nudge
Nudge

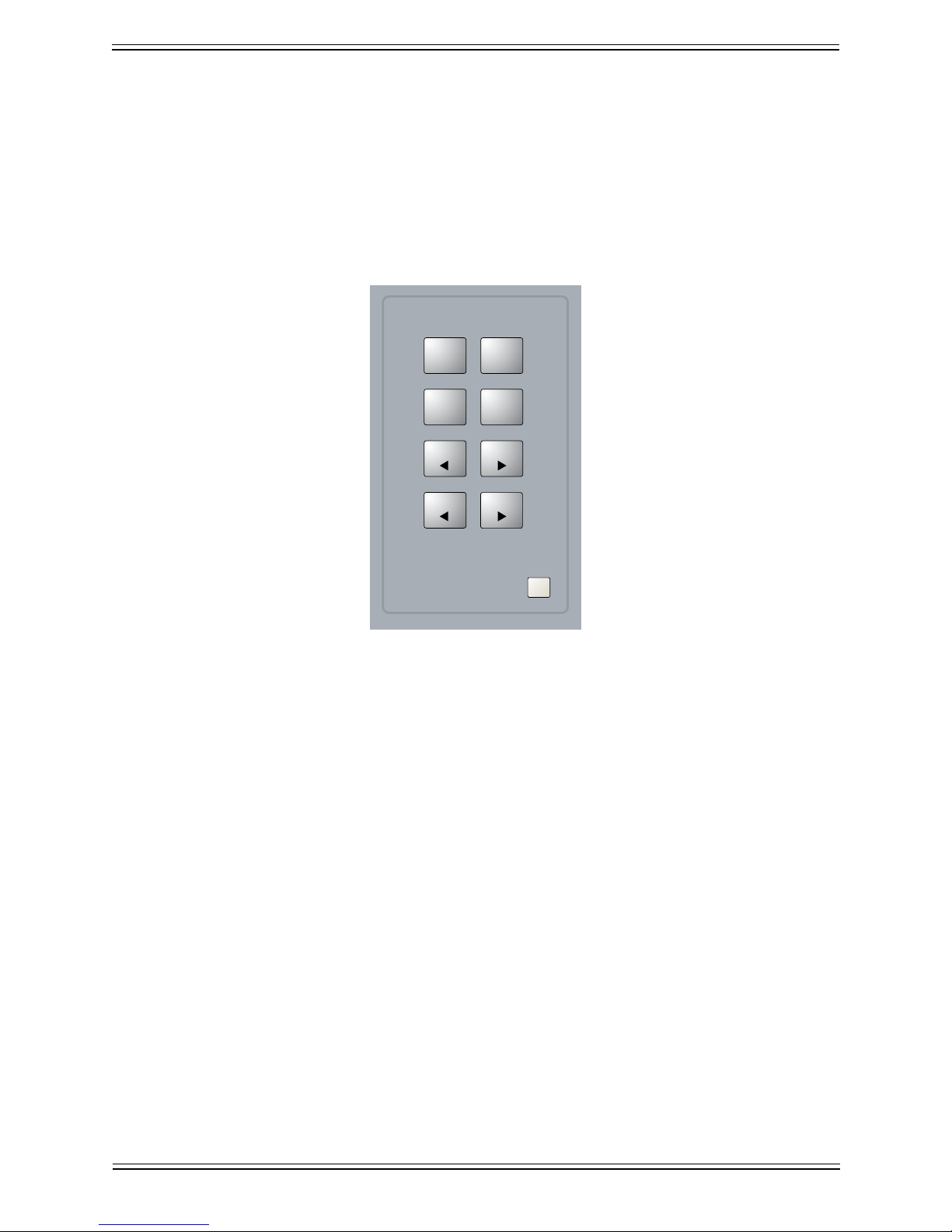

Figure 7-3 Strip Control
7.2.1 MC (System 5-MC Only)
The status of the MC key determines whether the Bank and Nudge keys apply to the
CM408T or the MC.
• MC key lit: Bank keys control the MC (default state).
• MC key unlit: Bank keys control the CM408Ts.
7.2.2 Bank Keys
Press the Bank keys to move left or right one bank of four (MC) or eight (CM408T)
strips.
Bank
Bank
Bank
Bank
Setup
Setup
67
Media Application Controller Operation Guide Working with Channels
7.2.3 Nudge Keys
Press the Nudge keys to move left or right one strip.
NOTE: The Bank and Nudge buttons adhere to the convention that the console is
being “moved” left or right. Therefore, the Bank Left button actually moves
the tracks to the right, and Bank Right moves them to the left.
7.2.4 Home Key
Press the Home key to move track 1 to the left-most strip.
7.2.5 Flip Key (System 5-MC Only)
The Flip key puts an entire row of knobs onto the faders:
1. Press the Flip key and the entire rst row of CM408T knobs is ipped to the faders
and volume control ips onto the rst row CM408T knobs.
The Flip key lights solid to indicate that a different function is on the faders.
2. Press the Flip key again and the second row of knobs is assigned to the faders.
Pressing Flip eight times cycles through all the knob assignments and back to no
knobs ipped to the faders.
Pressing the Flip key until it is not lit restores the faders to normal operation.
7.2.6 Layouts Key
Layouts are one of the MC’s most powerful features. Layouts allow the assignment of
workstation tracks on the MC/S5MC surface to be stored and recalled. A Layout stores
the mapping of tracks that are Direct Assigned to strips. They do not store mappings of
underlying tracks that are automatically assigned to strips. Press the Layouts key to ac-
cess the Assign and Layout touchscreens.
68
Media Application Controller Operation Guide Working with Channels

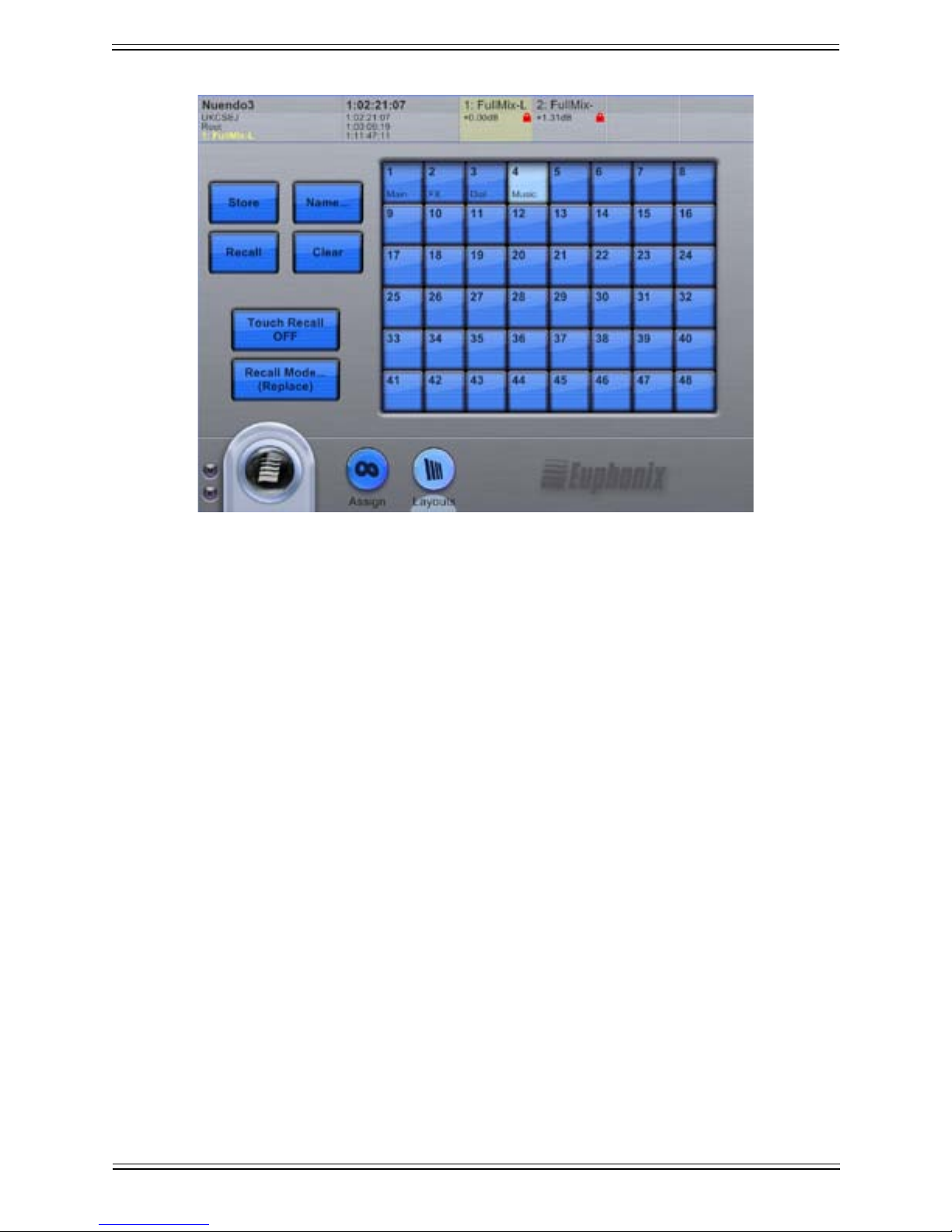

Figure 7-4 Layouts Touchscreen
To create a layout:
1. Press the Layouts button in the Strip Control Setup section on the right of the MC.
2. Touch the desired number for the layout.
3. Touch the Store button.
4. Touch the Name button to name the layout and touch OK.
To recall or clear a layout:
1. Touch the desired layout’s number.
2. Touch the Recall or Clear button.
The Touch Recall button toggles Touch Recall on/off. When on, layouts are instantly
recalled by touching the layout’s button in the grid. All other layout functions (Store,
Name, Clear) are disabled while Touch Recall is on. First create, name, and store layouts, then activate Touch Recall to have one-button access to them.
69
Media Application Controller Operation Guide Working with Channels
Touch Recall Mode to select from a popup menu the method to recall track assignments:
• Replace recalls all track assignments from the Layout and replaces the tracks cur-
rently assigned to the channels.
• Overlay recalls only the track assignments stored in the Layout to channel strips;
all other channel strips retain their current track assignments.
Layout Recall from Soft Keys
1. Press Setup in the desired Soft Key section.
2. Add a Soft Key assignment type: MC
The default MC command is Recall Layout 1.
3. To assign Soft Keys to additional stored Layouts, assign subsequent numbers of
stored Layouts from the Layout pull-down.
NOTE: Bank 5 of the default Nuendo Appset is pre-programmed to display Layout
Recall Soft Keys.
70
Media Application Controller Operation Guide Working with Channels
7.3 Assigning Tracks to Strips
The MC has four channel strips. The System 5-MC can have a virtually unlimited
number of CM408Ts. The MC and CM408T strips can be scrolled independently. The
CM408T strips can have a Main and a Swap track assigned; the CM408T strip’s Swap
key switches between Main and Swap layers.
When the MC connects to a workstation with EuCon DAW software (or Mackie Control
Universal/HUI), it automatically populates the channel strips (System 5-MC automatically populates the CM408Ts) with DAW tracks, putting track 1 on channel strip 1 and
continuing sequentially. Deleting/adding tracks or changing track order automatically
updates the MC/CM408T strips.
7.3.1 Strips and Tracks
Any track can be assigned directly to a strip, similar to System 5’s mapping of channels
to strips. Direct Assigned tracks do not move when the Nudge, Bank, and Home keys
are pressed.
Use the Assign Touchscreen to direct assign tracks to channel strips (the MC’s four
strips, or CM408T module channel strips for System-5 MC).
Figure 7-5 Assign Touchscreen
71
Media Application Controller Operation Guide Working with Channels
To assign strips:
1. Press the Layouts key in the Strip Control section on the MC (top-right of the
surface) to display the Assign Touchscreen.
2. Touch the tracks in the desired assignment order.
The track numbers appear under Selection Order at the top-left.
3. Touch Insert Blank Strip at the point where a blank strip is desired.
Blank strips appear as asterisks in the selection order.
4. Touch a selected track to remove it from the order.
If the track is in the middle of the selection order, subsequent tracks shift up to take
its place.
5. When nished creating the desired Selection Order, press the Wave key on the
channel strip where the direct assigned tracks should start.
The MC automatically assigns the tracks beginning at that channel strip. Tracks
currently direct assigned to channel strips shift to the right of all the assigned
tracks.
To remove direct assignments, touch the Unassign button. If none of the selected tracks
are currently direct assigned, the Unassign button is gray and inactive.
To direct assign just one strip, press that strip’s Wave and Chan Sel keys simultane-
ously. This pops up a list of track names to select on the CM408T’s display or MC
Touchscreen. To remove the direct assignment, choose None at the top of the list.
When a track is Direct Assigned to a strip, the underlying tracks, both Main and Swap,
are shifted to the right.
72
Media Application Controller Operation Guide Working with Channels
7.4 CM408T Channel Strips (System 5-MC only)
The CM408T channel strip is similar to the strip on the standalone MC with faders, but
also have a four-character LED scribble strip display, and a high-resolution TFT display
to show additional channel information, metering, pan, and EQ graphs.
The CM408T channel strip has the following attributes:
All Key
Page L
Insert Master
Dyn Master
EQ Master
Chan Select Key
Main Layer Display
Record Key
Input Monitor
Auto Mode LEDs
Wave Key
Back Buttons
Soft Knobs
Page R
Knobsets
Swap Key
Swap Layer Display
Solo Key
On Key
Auto Write Toggle
Touch LED
NOTE: Press and hold the strip’s left-top button then press the right button to
navigate back (up) one level.
See “7.1 Channel Strips” on page 64 for an explanation of these features.
Signal Meter
Fader
Figure 7-6 CM408T channel strip
73
Media Application Controller Operation Guide
Chapter 8: Monitors and Control Room
Figure 8-1 Monitors, Control Room, and Talkback Sections
The Monitors and Control Room sections of the MC surface allow for controlling various monitoring setups. The MC does not process or route audio: it interfaces with a
EuCon-aware application’s monitoring section or with the Euphonix Studio Monitor
Express (SME) application.
NOTE: The Monitor section may be locked to your preferred application so monitor
control is not interrupted by focusing to another workstation or application.
74
Media Application Controller Operation Guide Monitors and Control Room
8.1 Control Room
The touch-sensitive knob controls the overall Control Room volume. The level is shown
in the LED display to the right of the knob. The source is displayed in the lower LED
display.

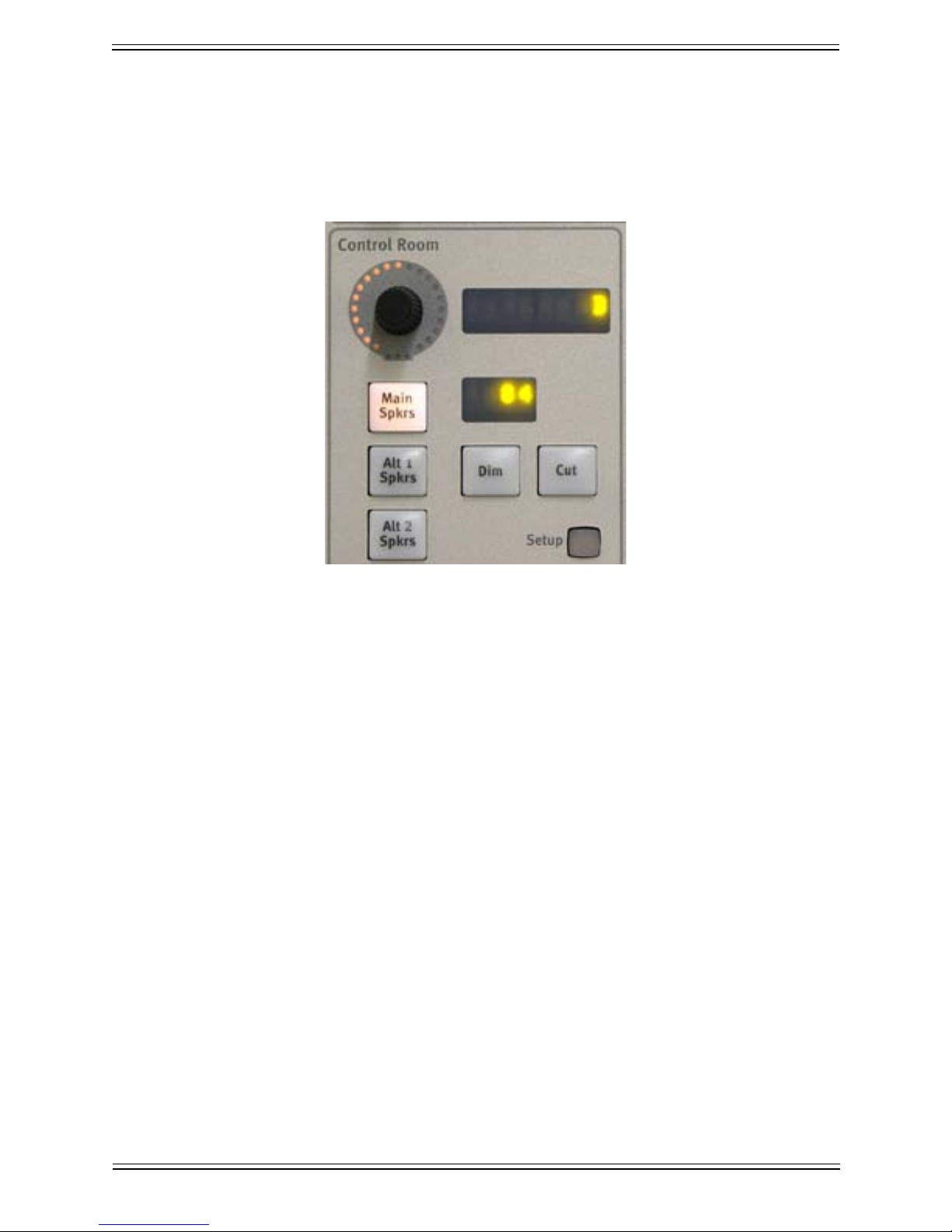

Figure 8-2 Control Room Section
Main Spkrs, Alt 1 Spkrs, Alt 2 Spkrs
These buttons switch the main Control Room feed between three sets of speakers:
• Main Spkrs:Up to 5.1 channels of Control Room Monitor Out
• Alt1 Spkrs: Up to 5.1 channels of Control Room Monitor Out
• Alt2 Spkrs: Stereo Control Room Out
The selected source is displayed in the LCD to the right of the knob. Use SME to con-
gure the Main, Alt1, and Alt2 audio sources.
Dim and Cut
The Dim key reduces the Control Room monitor level by a user-specied amount. While
Dim is engaged, moving of the Control Room knob adjusts the dim amount. Dim amount
can also be adjusted in SME.
The Cut key turns off the Control Room output.

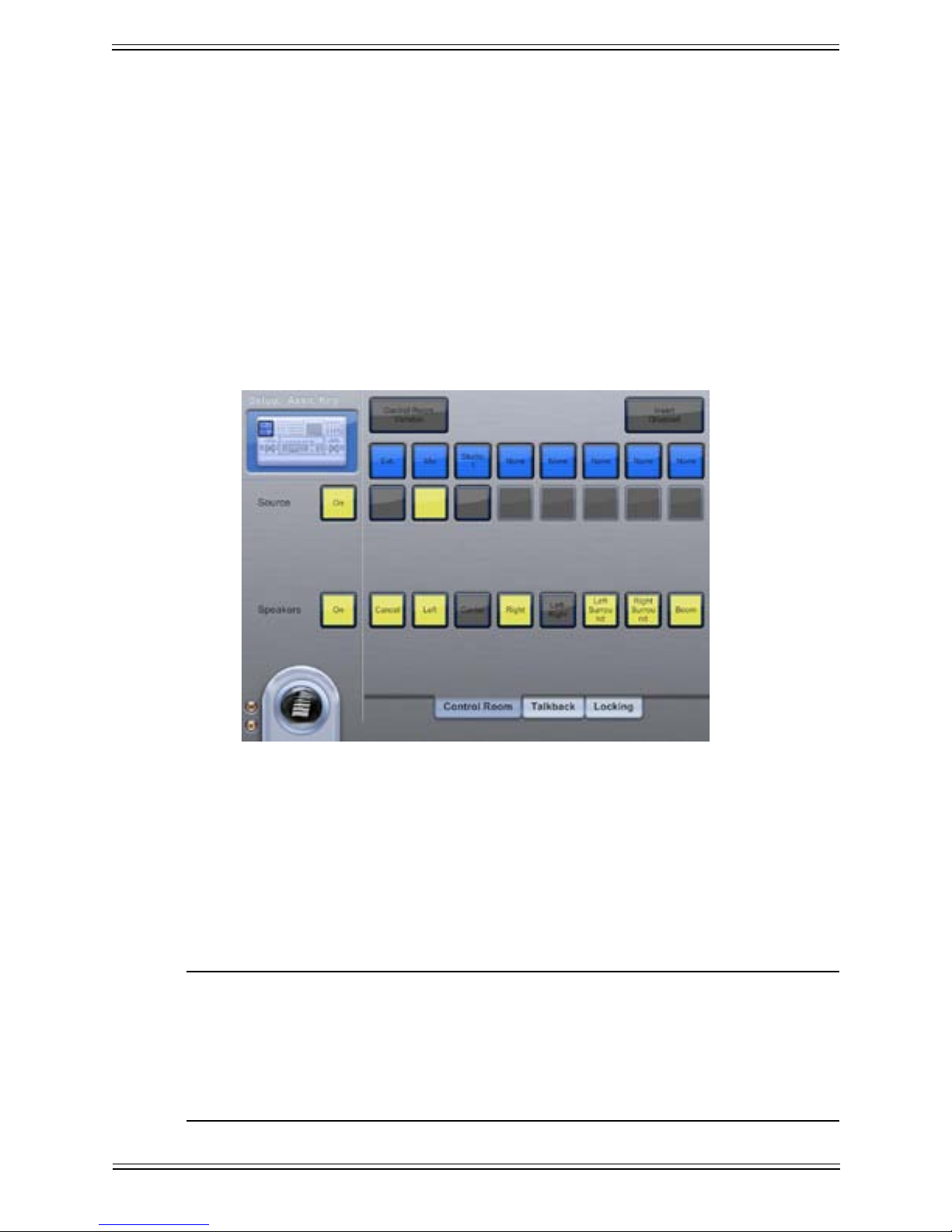

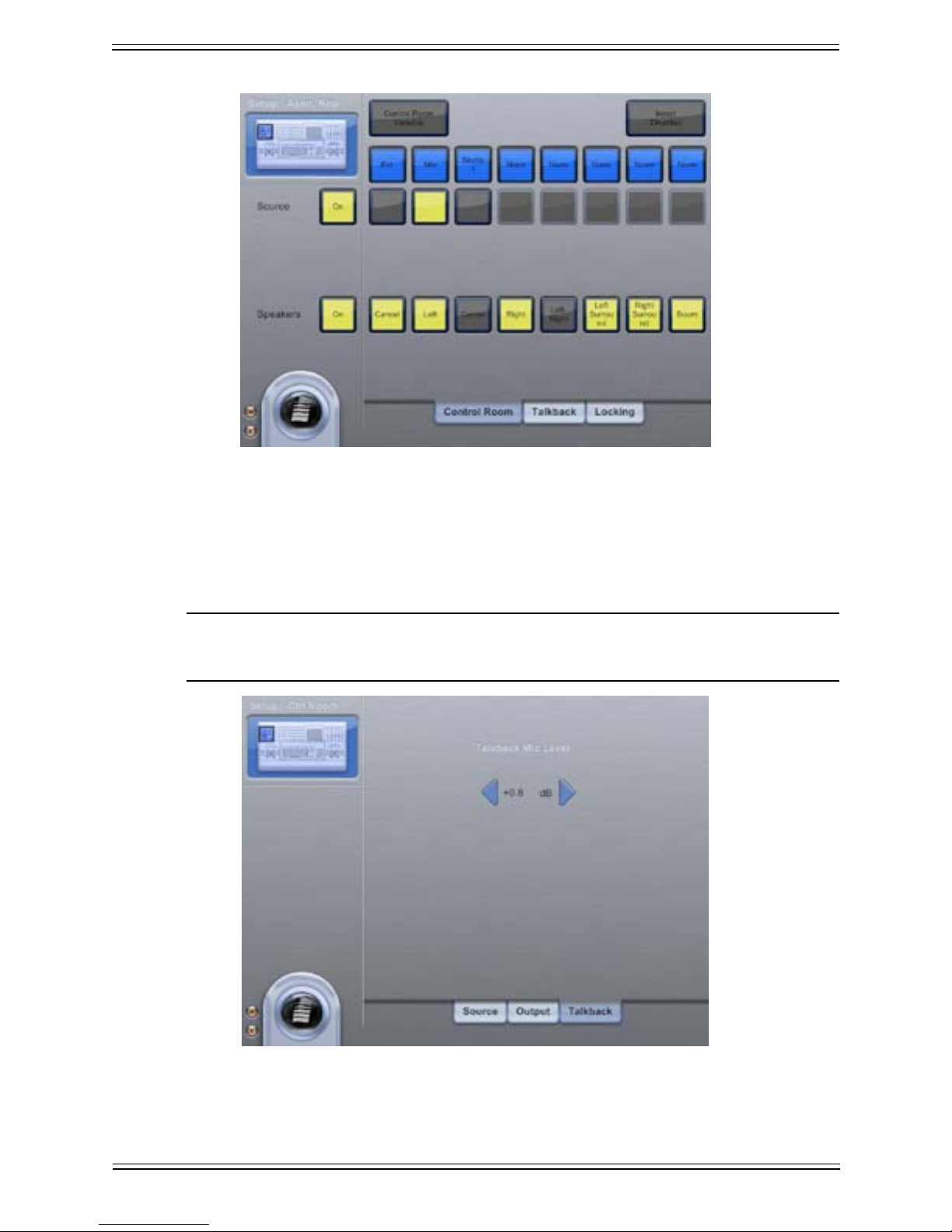

Control Room Setup
This key opens the Control Room Setup Touchscreen. This chooses the source for the
Control Room feed, selects a folddown matrix, solos speakers, and sets the dim and
talkback mic levels. See “11.3.3 MC Control Room and Monitor Setup” on page 101.
75
Media Application Controller Operation Guide Monitors and Control Room
8.2 Monitors
Figure 8-3 Monitors Section
The Monitors section of the MC surface can control up to two monitor outputs per page,
labeled Monitor A and B in SME. Audio sources for Monitor A and B are congured in
SME’s Main tab or the MC’s Touchscreen.
Touch-sensitive Knobs: These knobs control the level (displayed in the LED display to
the right of the knob) of their respective monitor outputs.
Up/Down Arrow Buttons: These buttons switch the knobs from controlling the rst two
outputs to controlling the second two outputs.
Setup: This key opens the Monitor Setup Touchscreen. Toggle selected Monitor A and
B audio source(s) from the list displayed on the Touchscreen.
The top-right unmarked key is currently not implemented.
76
Media Application Controller Operation Guide Monitors and Control Room
8.3 Clear and All Keys
Figure 8-4 Clear and All Keys
The Clear Solo key turns off the solo on all DAW tracks even if several solo modes are
supported (i.e., AFL, PFL, SIP).
The Clear Mute key unmutes all DAW tracks.
The All key is a System 5-MC only feature that, when lit, causes knobset selection on one
CM408T channel strip to be applied to all CM408T channel strips.This key functions in
Nuendo and Pyramix only.
The right unmarked key is currently not implemented.
8.4 Talkback
The Talkback button dims the Control Room output (according to the Dim Level) and
activates the Talkback Mic channels assigned in SME (the Talkback Mic is active when
the button is held down). Pressing the button momentarily latches it, and holding it down
longer than the Latch Timeout setting (see Chapter 5: Soft Keys) makes it a momentary
button; it releases when the button is released.
NOTE: The Foot Switch jack can toggle Talkback on/off (see page 6).
77
Media Application Controller Operation Guide
Chapter 9: Studio Monitor Express (Windows)
Studio Monitor Express (SME) is a powerful and exible audio monitoring software application that runs on your workstation or a dedicated computer and controls the routing
between applications, external inputs, and ASIO hardware. SME outputs are routed to
the audio I/O hardware and can be controlled from the MC’s Monitors secton. SME can
be considered a software version of a mixing console’s master and comms section.
SME provides a professional surround sound monitor mixer with up to two 5.1-speaker
outputs and an additional stereo output each with level, cut, and talkback controls. SME
can also be used to listen to external inputs without any other application open.
SME can be installed (optional) during the workstation EuCon software installation.
78
Media Application Controller Operation Guide Studio Monitor Express (Windows)
9.1 Main
Figure 9-1 Main Tab
Main tab controls:
• mapping of Sources created in the Sources tab (page 75) to Control Room, Monitor A and Monitor B, also selectable from the MC Monitor section’s Touchscreen.
• monitor level sliders, control levels to Control Room, Monitor A, Monitor B, and
correlates to the two Monitors knobs in the MC’s Monitors section.
• Cut: Cuts the Control Room signal completely; correlates to MC’s Cut button.
• Dim: Select the checkbox to attenuate the signal to the Dim Level set in the Cong
tab (page 80).
• Fix: Select the checkbox to set the signal to the Fixed Level set on the Cong tab;
correlates to MC’s Dim button (page 80).
• Phase: Select the checkbox to reverse the phase of the left channel (no surface
control for this parameter).
Only sections created in the Sources tab appear in the Source boxes (Figure 9-1). To
route a Source to a specic Monitor section, select it in the Source box for the desired
monitor output.
When the workstation and MC are connected, the changes made in this tab are reected
in the Monitor and Control Room section on the surface, and vice versa.
79
Media Application Controller Operation Guide Studio Monitor Express (Windows)
9.2 Sources
Figure 9-2 Sources Tab
The Sources tab is used to create sources to SME’s mixer inputs. To create a source, select the Format (Mono, Stereo, or 5.1), select the Start Channel, type a name into the
Name eld, and click the Create button. SME creates the input monitoring section and
adds it to the list of sections on the Main tab; it is now available for monitoring.
To create a section called CD Player: Select Stereo from the Format, select 1 as the
Start Channel, type CD Player in the Name eld, and press the Create button. This
creates a stereo monitoring section for SME mixer input channels 1 and 2. The inputs
to that section are dened in the Hardware I/P Patch tab (page 78), where a hardware
input can be patched to each SME I/P.
80
Media Application Controller Operation Guide Studio Monitor Express (Windows)
9.3 SME O/P Patch
Figure 9-3 SME O/P Patch Tab
The SME O/P Patch tab sets the physical output channels from each of SME’s monitors
sections to the audio I/O hardware. Select the desired outputs from the Hardware O/P
drop-down menus.
81
Media Application Controller Operation Guide Studio Monitor Express (Windows)
9.4 Application O/P Patch
Figure 9-4 Application O/P Patch Tab
The Application O/P Patch tab routes the application outputs (i.e. Nuendo) to the audio
I/O hardware outputs and/or SME Inputs.
The Hardware O/P drop-down allows applications using the SME ASIO driver to route
signal directly to the physical outputs (bypassing SME).
The SME I/P drop-down allows applications using the SME ASIO driver to route signal
into SME’s mixer. It is possible to select both a Hardware output and SME Input simultaneously, creating a mult.
NOTE: Only outputs enabled in the Cong tab (page 80) are available from the
Hardware O/P and SME I/P drop-down menus.
If the main outputs from your DAW application are Hardware O/Ps 1–6, they would
typically be sent to SME O/Ps 1–6. However, it is possible to route the speaker outs to a
different order (i.e., SMPTE surround format) than your monitors: For example, output
3 (which your DAW expects is Right Front but you wish to be Center) can be routed to
the actual output you use for Center.
82
Media Application Controller Operation Guide Studio Monitor Express (Windows)
9.5 Hardware I/P Patch
Figure 9-5 Hardware I/P Patch Tab
The Hardware I/P Patch tab routes audio from the hardware inputs (Hardware I/P) on
your workstation’s sound card to the Application I/P and/or inputs of SME’s mixer
inputs (SME I/P).
To pass audio from a physical input to an application, the hardware inputs (Hardware
I/P) must be patched to Application I/P inputs. We recommend a one-to-one patch to
make it easier to track the mapping between physical inputs and channel inputs in your
DAW. However, it is possible to re-route a hardware input to a different EuIn input. For
example, if the kick drum is on the 24th physical input and you wish it to appear to your
DAW that it’s on the 1st input: select 1 from the Hardware I/P 24’s Application I/P
drop-down menu.
Refer to the CD Player example on page 75: If your CD player is routed to hardware
inputs 40 and 41, select 1 and 2 from the Hardware I/P 40 and 41’s SME I/P dropdown
menus respectively. This routes the CD player to Mixer inputs 1 and 2, which were set
to a stereo monitoring section on page 75.
NOTE: Only outputs enabled in the Cong tab (page 80) are available from the
Application I/P and SME I/P drop-down menus. SME minimizes its CPU
resources if you enable only the inputs you plan to use.
83
Media Application Controller Operation Guide Studio Monitor Express (Windows)
9.6 Speakers
Figure 9-6 Speakers Tab
The Speakers tab allows attenuating and muting monitor section output levels. Drag the
faders to adjust the level indicated in the eld to the right of the fader. Click the Cut
button to mute the output.
Each monitoring section has its own controls:
Control Room: Main, Alt1, Alt2
Monitors: A and B
84
Media Application Controller Operation Guide Studio Monitor Express (Windows)
9.7 Cong
Figure 9-7 Cong Tab
The Cong tab displays the current sample rate, sets various levels, and enables the
hardware inputs and outputs that patch to sources and destinations.
Set Dim Level: This sets the attenuation amount (in dB) for the program signal when
using the talkback function.
Set Fixed Level: This sets the xed output level, which is selectable in the Main tab for
the Control Room output. This is useful for setups that have been calibrated to a specic
db level and must maintain a xed output level.
CPU Usage: This meter shows SME’s CPU usage.
Sample Rate: This shows the current sample rate to which SME is locked. This is only
an indicator since the sample rate is determined by your sound card’s settings.
Settings: This enables saving the current settings or loading previous settings, to quickly
switch between different SME congurations.
Enable hardware ports: This allows explicitly enabling or disabling each SME port.
This limits the ASIO stream’s inputs and outputs monitored by SME, thus minimizing
trafc on the PCI bus to only those ports necessary for the current setup. Only ports enabled here are available for routing to or from on the other tabs.
85
Media Application Controller Operation Guide Studio Monitor Express (Windows)
9.8 Conguring SME Talkback
To congure SME Talkback:
1. Connect the MC Talkback Mic to a microphone preamp with 48V phantom power
(required).
2. Connect the mic preamp’s output to any input on your sound card.
3. In the Cong tab, enable the input that you connected the preamp to on your sound
card.
4. In the Cong tab Talkback section, Set the desired Level, Destination and Action.
5. In the Hardware I/P Patch tab, route the Hardware Input to SME I/P “TB”, which
appears at the bottom of the pull-down list (after channel 32).
86
Media Application Controller Operation Guide Studio Monitor Express (Windows)
87
Media Application Controller Operation Guide
Chapter 10: Studio Monitor Express (Mac)
Studio Monitor Express (SME) is a powerful and exible audio monitoring software application that runs on your workstation or a dedicated computer and controls the routing
between applications, external inputs, and Core Audio compliant hardware. SME outputs are routed to the audio I/O hardware and can be controlled from the MC’s Monitors
section. SME can be considered a software version of a mixing console’s master and
comms section.
SME provides a professional surround sound monitor mixer with up to two 5.1-speaker
outputs and an additional stereo output each with level, cut, and talkback controls. SME
can also be used to listen to external inputs without any other application open.
SME can be installed (optional) during the workstation EuCon software installation and
includes a Euphonix Monitor Core Audio Driver for integration with applications you
wish to use with SME on the Mac.
10.1 Main
Figure 10-1 Main Tab
88
Media Application Controller Operation Guide Studio Monitor Express (Mac)
Main tab controls:
• mapping of Sources created in the Sources tab (page 85) to Control Room, Monitor A and Monitor B, also selectable from the MC Monitor section’s Touchscreen.
• monitor level sliders, control levels to Control Room, Monitor A, Monitor B, and
correlates to the two Monitors knobs in the MC’s Monitors section.
• Cut: Select this button to cut the signal completely.
• Dim: Select this checkbox to attenuate the signal to the Dim Level set in the Con-
g tab (page 88).
• Fix: Select this checkbox to set the signal to the Fixed Level set on the Cong tab;
correlates to MC’s Dim button (page 88).
• Phase: Select this checkbox to reverse the phase of the left channel (no surface
control for this parameter)
Only sections created in the Sources tab appear in the Source boxes (Figure 10-1). To
route a Source to a specic Monitor section, select it in the Source box for the de-
sired monitor output. Sources can also be selected from the MC Monitors section Setup
Touchscreen.
When the workstation and MC are connected, the changes made in this tab are reected
in the Monitor and Control Room section on the surface, and vice versa.
89
Media Application Controller Operation Guide Studio Monitor Express (Mac)
10.2 Sources
Figure 10-2 Sources Tab
The Sources tab creates sources to SME’s mixer inputs. To create a source, select the
Format (Mono, Stereo, or 5.1), select the Start Channel, type a name into the Name
eld, and click the Create button. SME creates the input monitoring section and adds it
to the list of sections on the Main tab; it is now available for monitoring. Channels 1–6
are used for internal busses from the application using the Studio Monitor Core Audio
driver. Channels 9–16 are reserved for external inputs, physical inputs to the audio I/O
(i.e. an external CD player connected to the sound card inputs).
To route stereo audio from an application running on the Macintosh into SME, select
Euphonix Monitor as the application’s Core Audio output driver. In the SME Sources
tab, create a stereo source, name it (Logic, Nuendo, etc.), and set the start channel to 1.
This creates a stereo monitoring source for SME mixer input channels 1 and 2. Enable
the source in SME Main tab or from the MC Monitors section setup Touchscreen.
To create a source for a stereo external input (i.e., a CD Player): Select Stereo from the
Format, select 9 as the Start Channel, type CD Player in the Name eld, and press the
Create button. This creates a stereo source for SME mixer external input channels 9 and
10. The inputs to that source are dened in the Patch tab (page 86).
90
Media Application Controller Operation Guide Studio Monitor Express (Mac)
10.3 Patching
Figure 10-3 Patching Tab
The Patching tab routes the SME inputs from applications running on the Macintosh that
are using the Euphonix Monitor Core Audio driver, external inputs to the workstation’s
sound card, and the SME outputs.
The Input section (left) has eight selectable inputs from application outputs, and eight
selectable inputs from the audio device (sound card) installed in your workstation. Each
application used with SME must be set to use the Euphonix Monitor Core Audio driver.
WARNING: Only one application may use the Euphonix Monitor Core Audio driver
at a time.
The Output section (right) sets the sound card outputs to which the SME’s Main, Alt 1,
Alt 2, Monitor A, and Monitor B outputs are routed. For example, to change a 5.1 output from L-C-R-Ls-Rs-LFE to L-R-Ls-Rs-C-LFE, you can change the output routing
instead of physically repatching the outputs to your monitors.
91
Media Application Controller Operation Guide Studio Monitor Express (Mac)
10.4 Speakers
Figure 10-4 Speakers Tab
The Speakers tab calibrates and mutes output levels. Drag the faders to adjust the level
indicated in the eld to the right of the fader. Click the Cut button to mute the output.
Each monitoring section has its own controls:
Control Room: Main, Alt1, Alt2
Monitors: A and B
92
Media Application Controller Operation Guide Studio Monitor Express (Mac)
10.5 Cong
Figure 10-5 Cong Tab
The Cong tab displays the currently selected Core Audio device driver, Dim and Fixed
output levels, and a CPU meter.
Audio Device: This pull-down menu selects the Core Audio driver for the sound card to
use with SME.
Set Dim Level: Sets the attenuation amount (in dB) for the program signal when pressing the MC monitors section Dim button.
Set Fixed Level: Sets the xed output level for the Control Room output. This is useful
for setups sending the output of the DAW to a separate mixer or router that has its own
level controls, instead of controlling the output level from SME.
CPU Usage: Shows SME’s CPU usage.
NOTE: When the output driver is changed, patching is reset to default settings with
no external or output patches enabled. Patches must be reassigned in the
Patching tab.
10.6 Talkback Setup
1. Connect the MC’s Talkback Mic to your audio interface.
2. Enable 48V phantom power for the Talkback Mic (required).
3. In the SME Sources Tab, create and name a Source Talkback (required).
4. In the Main Tab, enable Talkback for each section requiring Talkback routing
(Main, Mon A, Mon B).
5. In SME Main Tab, press the Talkback button to enable Talkback.
6. Press the MC’s Talkback button to engage Talkback (follows latching/momentary
logic dened in Soft Keys Setup on page 42).
7. Connect a standard footswitch to the MC’s rear panel Footswitch jack to toggle
Talkback on/off remotely.
93
Media Application Controller Operation Guide
Chapter 11: DAW Integration
One of the MC’s most exciting abilities is dynamically detecting application and workstation switching: all controls on the surface switch to match the active application on
the selected workstation. The MC automatically detects not only the application but also
if it is EuCon-aware, HUI, Mackie Control, or a generic application, and sets the control
mode accordingly. The MC’s surface setups can be saved to the MC’s hard drive as User
Sets, which contain Application Sets for each application.
See “2.3.4 Workstation Control” on page 13 to assign workstations to the
Workstation keys.
11.1 User and Application Sets
To view the MC User Sets or Application Sets, touch Euphonix Menu > File. The File
Menu opens, displaying the User and App Sets tabs.
A User Set is a folder that contains any number of Application Sets. User Sets can be
saved and loaded from disk, and may contain variations of the various App Sets.
For example, a user may choose to create different User Sets for specic types of Nuendo projects: Recording, Editing, Mixing, Mastering, etc. The relevant controls for
each type of project are available on the MC’s surface.
User Sets can also help if the MC is used by more than one operator by recalling setups
for each.
Upon startup, the MC loads the Root User Set, which is the default User Set containing
App Sets for many of the most widely used applications. You can modify and save the
Root User Set or create a totally new User Set.
An App Set is an XML le that contains metadata dening Soft Keys assignments for
each application, and also includes text, icon, and Soft Key color. The MC ships with
App Sets for many applications, but new App Sets can be easily created for applications
without one. Switching applications causes the MC to automatically load the focused
application’s App Set (if it exists).
Because of the exibility of the MC’s Soft Key programming, Application Sets can also
be very useful for sending key commands to generic applications (i.e., Adobe Photoshop, Acid, SoundForge).
An Application Set stores all functions specic to an application:
• All banks of 16 Edit Control Left Keys
• All banks of 16 Edit Control Right Keys
94
Media Application Controller Operation Guide DAW Integration
• All banks of 24 Soft Keys
Figure 11-1 Content of an Application Set
A Default Application Set is provided and used in case there is no App Set for the ap-
plication currently in focus.
11.1.1 User Sets
User Sets store a collection of Application Sets. The Touchscreen in Figure 11-2 displays
a le hierarchy in the columns from left to right. For example, the Root User Set is in the
MCUser folder in the User Sets folder. Each column scrolls with the up/down arrows
Figure 11-2 File-User Sets Touchscreen
95
Media Application Controller Operation Guide DAW Integration
below the column.
Copy: Copies the selected User Set into the Clipboard.
Paste: Pastes the User Set in the Clipboard and creates another with the same name ap-
pended by Copy (exactly like the Windows Explorer or MacOS Finder).
Reveal Opened: Displays the User Set currently open and in use.
Restore Root: Restores the Root User Set, the default User Set that ships with the MC.
The Root User Set contains Appsets for the most widely used applications. Use this
function only to restore the MC Root User Set back to factory settings; you will lose
changes in a modied Root User Set.
11.1.2 Application Sets
An Application Set stores the Soft Key assignments on the MC surface. An unlimited
number of Application Sets can be created, one for each of the applications you use.
Figure 11-3 File-App Sets Touchscreen
96
Media Application Controller Operation Guide DAW Integration
To create a new Application Set:
1. Connect the MC to the workstation on which the new application resides and runs.
2. Open the application if it is not already open.
If it is open, bring it into focus as the front application.
3. Open the App Sets Touchscreen (Euphonix Menu > File).
Make sure the App Sets tab is selected.
4. Touch the New button.
The Application Set is created.
5. Program the MC’s Soft Keys as desired (see Chapter 5: Soft Keys).
6. When nished, touch Save to store the programming.
The new Application Set now appears in the list with all MC App Sets.
11.2 Avid Pro Tools
Pro Tools 9.0 and higher is fully EuCon-aware.
11.2.1 Enabling EUCON in Pro Tools
To enable EUCON control in Pro Tools:
1. Launch Pro Tools.
2. Choose Setup > Peripherals, and click to go to the Ethernet Controllers tab.
3. Select Enable EUCON.
4. Click OK. You do not need to congure any other Ethernet Controllers settings.
97
Media Application Controller Operation Guide DAW Integration
These settings do not apply to EUCON.
Pro Tools scans your system until it identies attached EUCON-compatible controllers.
When Pro Tools nishes scanning your system, your controllers are ready to use with
Pro Tools.
11.2.2 Conrming Communication with Pro Tools
To conrm installation and communication:
1. Open a session if one is not already open.

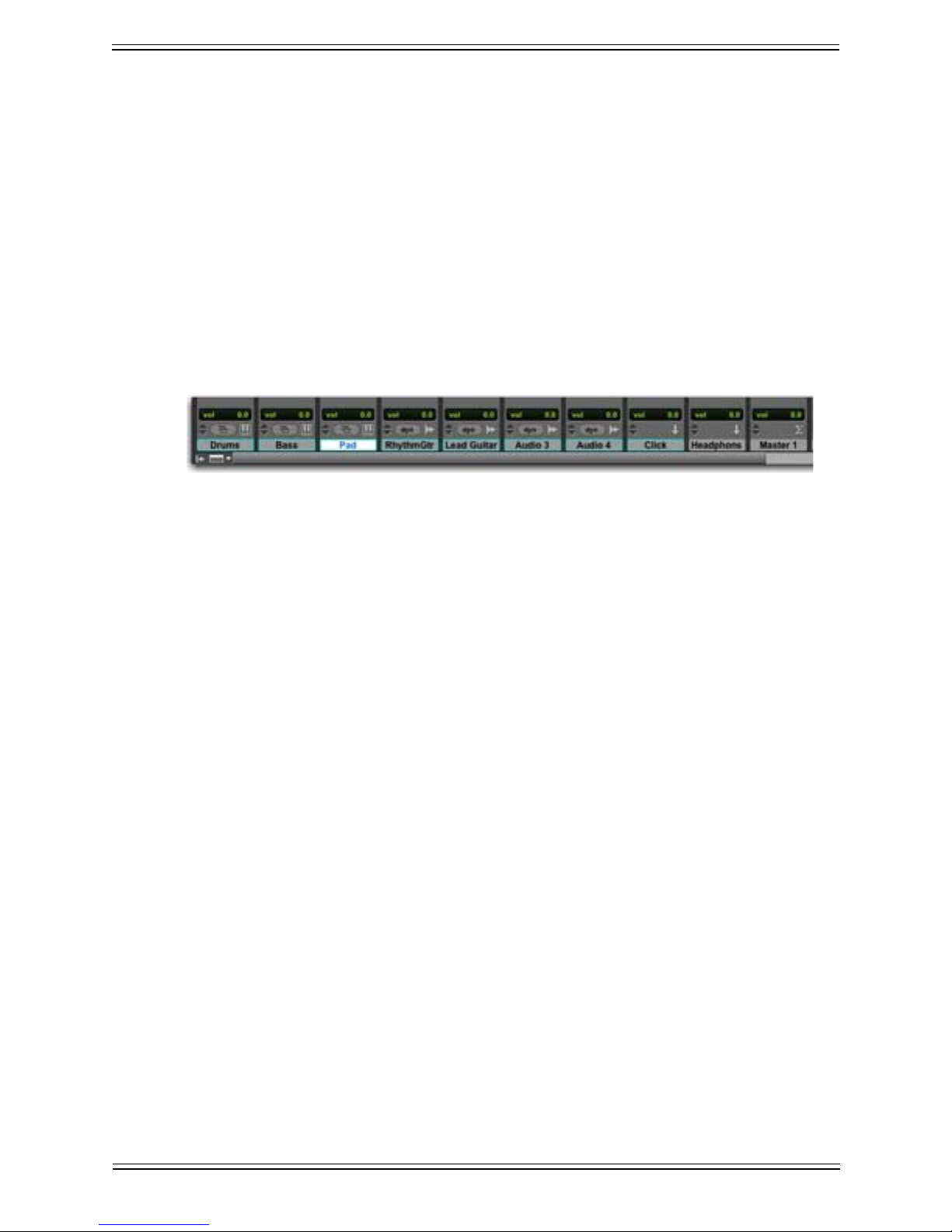

2. Verify that the Mix window displays a border around the names of the Pro Tools
tracks that are currently displayed on the MC Pro Surface.
3. Verify that the displays on your controllers show track names, location, or other
session data, depending on the conguration of your MC Pro or System 5-MC.
11.3 Steinberg Nuendo
Steinberg’s optional EuCon device driver enables fully integrated control of all of Nuendo’s functions from the MC control surface, including channel operations from the
CM408T channel strips (System 5-MC).
11.3.1 Conguration
To enable Nuendo to work with the MC, you must obtain a Nuendo EuCon Adapter license from Euphonix and download it to your Syncrosoft USB protection device
(dongle):
1. Close all open applications.
2. Start the Nuendo License Control Center by choosing Start Menu > Steinberg
Nuendo 4 > License Control Center.
3. Choose License Download from the Wizards menu.
Choose License Transfer to transfer an existing Nuendo EuCon license to a new
USB dongle.
4. Enter the activation code for Nuendo EuCon provided by Euphonix.
5. Make sure you are downloading the correct license, then click Next.
6. Make sure your USB dongle is attached to your workstation, select the target de-
vice to which the license will be assigned, and click Next.
98
Media Application Controller Operation Guide DAW Integration
7. Press Download to transfer the license onto your USB dongle.
8. Close the wizard and open Nuendo.
The Nuendo EuCon Adapter must be installed during the EuConWS software installation. Note that this is the MC Client’s Nuendo adapter. For Nuendo to communicate with
the MC, Nuendo’s EuCon device must be added in the Device Setup dialog:
1. Choose Device Setup from Nuendo’s Devices menu.
2. Click the + button (add) on the top left.
A pop-up list of devices appears. EuCon should appear near the top of the list. If
not, close Nuendo and use the EuCon Workstation installer to install the Nuendo
EuCon Adapter (this is optional in Windows installer; it installs by default with the
Mac installer).
3. Select EuCon from the pop-up list.
The EuCon device is added and the MC’s surface immediately updates with the
Nuendo default App Set and the MC faders & Soft Knobs display track functions.
On the System 5-MC, Nuendo channels are displayed on the CM408T strips, beginning with channel 1 on the leftmost strip.
11.3.2 Nuendo Monitor Setup
The MC’s Monitors section can control Nuendo’s Control Room Mixer. The Monitors
and Control Room sections (top-left of the MC surface) mirror their related GUI controls
in Nuendo: Adjusting the MC’s controls updates Nuendo’s GUI controls and vice versa.
To enable this functionality, use the following procedure to set up the Control Room in
Nuendo:
1. In Nuendo, choose Devices > VST Connections.
2. Click Studio (right-most tab).
3. Click the Enable Control Room button at the top-right of the window.
Nuendo’s Control Room Mixer is now enabled. You may now set up the monitoring busses and talkback source.
4. Right-click in the window below Bus Name.
Nuendo has the following busses available:
• External Input (6) - Create inputs for external sources to monitor in the control
room.
• Talkback (1) - The Talkback bus is controlled by the Talkback button on the
MC surface.
• Studio (4) - Create mono or stereo studio outputs for talent to monitor. These
99
Media Application Controller Operation Guide DAW Integration
are also selectable sources for the Control Room output.
• Headphone (1) - The headphone output is a dedicated stereo downmix for the
control room headphones.
• Monitor (4) - Create up to four speaker outputs (all formats up to 8.1) con-
trolled by the Main Spkrs/Alt 1 Spkrs/Alt 2 Spkrs buttons on the MC surface.
5. Click on a bus to create.
A dialog appears to name the bus and select its format (up to 8.1 depending on the
bus). When nished, it appears in the Studio tab.
6. Click Not Connected in the Audio Devices column of the bus name just created.
Select the hardware driver to use with that bus from the popup menu (your ASIO
soundcard).
7. Click the + button next to the bus name.
The display expands to show the input or output channels that are part of that bus.
After selecting the hardware, Nuendo automatically assigns each output or input
to the rst available hardware port (i.e., MADI 1, MADI 2). To reassign these,
click in each channel’s Device Port column and select the proper port from the
pop-up menu. For example, if Monitor 1 is a 5.1-channel system and should go
to outputs 20–25, click on each output (L, C, R, LFE, LS, RS) and assign them to
ports 20–25.
8. When using Nuendo’s Control Room Mixer, you may want to lock the MC Monitor section to retain Monitor control when Nuendo is not the application in focus.
To do so, press and hold the MC keyboard’s Shift Key and press the MC Monitors
section’s Setup button.
Control Room
The MC’s Control Room section switches the output between Nuendo’s Monitor busses
(output busses going to speakers). The MC’s Main Spkrs/Alt 1 Spkrs/Alt 2 Spkrs but-
tons switch the output between the rst three monitor busses created. The fourth Monitor
bus is accessed by opening the Control Room window in Nuendo (Devices > Control
Room) and clicking the D button (bottom-right).
The Dim key lowers the volume to the selected Monitor bus by the specied Dim level
(default = –30 dB). The Dim level can be adjusted by turning the Control Room knob
while DIM is selected.
The Cut key cuts the output to the selected Monitor bus.
The Soft Knob controls the level of the selected Monitor bus. When the knob is touched
or adjusted the level appears in the LCD display to the right of the knob.
100
Media Application Controller Operation Guide DAW Integration
Monitor
The Monitors section controls the levels of Nuendo’s four Studio busses, which can also
be selected as sources for the Control Room section. This allows dynamic adjustments
of the headphone feeds to the musicians. The name of the Studio bus being adjusted appears in the LCDs next to the two Soft Knobs. Move the knob to adjust the output level
for that Studio bus and the output level appears in the LCD. To switch between monitoring Studio busses 1/2 and Studio busses 3/4, press the up or down arrow keys and the
LCDs update to show which Studio busses are being controlled.
11.3.3 MC Control Room and Monitor Setup
Control Room Setup
Figure 11-4 MC Control Room Setup Touchscreen
Press the Control Room Setup button on the MC to open the Control Room Setup Touchscreen. There are three tabs:
Source: This selects what the Control Room section monitors. The Mix bus, the default
bus in Nuendo’s VST Devices Output tab (denoted by an orange speaker icon next to
its name) is always available. If Studio or External Input busses have been created, they
also appear.
NOTE: Due to Nuendo’s internal mixing structure, only one external input can be
monitored at a time. Thus, no matter how many of the six External Input busses are used in the VST Connections > Studio tab, there will be only one Ext.
selection on the MC’s Touchscreen. To switch between External Inputs, you
must use Nuendo’s Control Room Overview (Devices menu) and click on the
available External Input crosspoint boxes.
101
Media Application Controller Operation Guide DAW Integration
Figure 11-5 Control Room Setup Touchscreen
Speakers: This allows soloing or muting of one or more speakers. Touch the speakers
in the Speaker list to turn them on. They change to yellow to show that they are active.
The Left-Right option is a shortcut for a stereo feed: it automatically solos the Left and
Right speakers. Touch the ON button to the left to turn on/off all solo assignments.
NOTE: The Insert Disabled and Control Room Variable controls shown on this tab
are not enabled for use with Nuendo’s Control Room Mixer at this time.
Figure 11-6 Talkback tab in Control Room Setup Touchscreen
102
Media Application Controller Operation Guide DAW Integration
Talkback: If a Talkback bus was created in Nuendo’s VST Devices Studio tab, pressing
the MC’s Talkback button enables the talkback function in the Nuendo Control Room
Mixer. The Talkback Mic Level adjustments on the Touchscreen do not function with
Nuendo’s Control Room Mixer at this time.
Monitor Setup
The Monitor Setup key opens the Monitor Touchscreen, which controls the source for
each Studio feed. Each Studio feed has its own tab (Monitor A–D), and each tab lists the
possible sources (External Input, Main, and Aux busses). To select a source for a Studio
bus, touch the tab of the desired bus then touch the source to assign; source selections
intercancel.
11.3.4 Talkback
Once the Talkback bus is set up, pressing the MC’s Talkback button automatically dims
all output bus levels and routes the Talkback bus output to all output busses with TE
enabled in the Nuendo Control Room Mixer (green when enabled). To utilize the MC’s
built-in talkback mic, connect the XLR talkback mic output on the rear panel to an input on your Nuendo workstation’s hardware (ASIO sound card), then select that input
as the source for the Talkback bus (Device Port in the Studio tab of the VST Devices
window). The MC’s built-in talkback mic is a condenser microphone and requires 48-V
phantom power.
Figure 11-7 Monitor Touchscreen
NOTE: The rear panel Foot Switch jack can be used to toggle Talkback on/off (see
page 6).
103
