Chapter 1: Introduction to the FC726
The FC726 is a compact, 2U, digital-audio format converter that translates back and forth between MADI (Multichannel Audio
Digital Interface) and the digital audio formats listed in the table below. AES/EBU outputs are always available, regardless of the
formats being translated. The FC726 performs the highest quality sample-rate conversion (SRC) on all channels that require it.
The FC726 includes the following features:
• Can apply different format conversion and/or SRC to each bank of eight channels.
• Automatically applies SRC when necessary but can be manually disabled.
• Performs format conversion and SRC on more channels (56) than other devices.
• Each of the 56 channels is bidirectional.
• Supports 24-bit audio at a 96 kHz sample rate.
• Maintains compatibility with older devices by offering 16- or 20-bit dithering and supporting 96 kHz legacy standards.
Digital audio formats supported by the FC726
Company/Organization Format Name Equipment Using Format Transmission Medium
MADI Euphonix R-1, S-5; many large
BNC cable
format digital consoles
Audio Engineering
Society
AES/EBU (AES-3) Most DAT machines and stereo
D/A devices, sound cards,
Two balanced XLR
cables
effects processors
Tascam TDIF-1 (Teac Digital
Interface Format)
Tascam DA-88, DA-98, small
format digital consoles and
25-pin cable
workstations
Mitsubishi ProDigi Otari and Mitsubishi digital
Two 50-pin cables
multitracks
Sony SDIF-2 Sony 3324 and 3348 Two 50-pin cables
The FC726 lets you transfer digital audio between incompatible devices, including:
• M ix d own on a Sys tem 5 di g ital c ons ole at 2 4 -bit 9 6 kH z with s o urce m ateri al f rom a Pr oDi gi or S ony t ape ma chi n e at 48 kHz
(automatic SRC).
• Transfer tracks from a Tascam DA-88, Sony 3348, or Alesis ADAT to a Euphonix R-1.
Chapter 1: Introduction to the FC726 1
Basic Concepts
Channels and Banks
The FC726 can convert 56 digital audio channels in two directions simultaneously (simultaneous bidirectional conversion)
with any of the supported devices. The 56 channels are divided into seven banks, each with eight channels. Each bank
may be connected to a different third-party device running at
a different sample rate (such as Tascam DA-88 on channels
1–8, ADAT on 9–16, and AES/EBU on 40–48).
Signal Flow
Since 56 channels can be converted bidirectionally, signal
routing can become confusing. These simple rules should help
clarify the signal flow:
• Audio arriving at the MADI B Input is sent out the
Format A Output.
• Audio arriving at the Format A connectors is sent out the
MADI B Output.
• The AES outputs always mirror the Format A Output.
Sample Rate Conversion
Digital audio devices have previously been required to use the
same sample rate to operate correctly together. The FC726 removes this limitation by allowing many sample rates simultaneously. For example, by using the common DB-50 connectors, each eight-channel bank can operate at its own sample
rate. Furthermore, the FC726 detects different sample rates
and automatically activates Sample Rate Conversion (SRC).
Although the FC726 SRC is the highest quality available, some
users may still require an unaltered, bit-for-bit copy of the
data. In this case, connected devices can be slaved to the same
sample clock, which disables SRC automatically (you can also
disable SRC manually).
Format A Inputs
Three connectors can be used by third-party inputs: the common DB-50 connectors, the MADI A Inputs, and the DB-25
AES connectors. The appropriate signal is chosen according to
the following rules:
• If the MADI switch is ON, the MADI input is used for all 56
channels.
• If the MADI switch is OFF, either the common DB-50 or AES
signals are used in eight-channel banks.
• If only one connector is in use, that format is selected.
• If both are connected, the common DB-50 signal takes
precedence.
Format A Adapters
To create a compact 2U device with maximum flexibility, the
FC726 uses a common DB-50 connector for all third-party formats. An adapter is required to convert from the DB-50 connector to the company’s own connector. The adapter is not
intended to be the connecting cable; it simply adapts the common DB-50 connector so it behaves like the back panel of the
third-party device. These adapters are available separately
from Avid. In most cases, another cable is required to connect
the adapter to the third-party device. See Appendix A, “Pinout
and Cable Specifications” for detailed information.
FC726 Guide2
System Requirements and
Compatibility
Avid can only assure compatibility and provide support for
hardware and software it has tested and approved.
For complete system requirements and a list of qualified
computers, operating systems, hard drives, and third-party
devices, visit www.avid.com/compatibility.
About This Guide
This guide provides a basic overview of FC726 features and
functionality.
For complete instructions on connecting and configuring
your system, see the System 5 Installation Guide.
Conventions Used in This Guide
All of our guides use the following conventions to indicate
menu choices and key commands:
:
Convention Action
About www.avid.com
The Avid website (www.avid.com) is your best online source
for information to help you get the most out of your system.
The following are just a few of the services and features
available.
Product Registration Register your purchase online.
Support and Downloads Contact Avid Customer Success (tech-
nical support); download software updates and the latest online manuals; browse the Compatibility documents for system
requirements; search the online Knowledge Base or join the
worldwide Avid user community on the User Conference.
Training and Education Study on your own using courses available online or find out how you can learn in a classroom setting at a certified Avid training center.
Products and Developers Learn about Avid products; download demo software or learn about our Development Partners
and their plug-ins, applications, and hardware.
News and Events Get the latest news from Avid or sign up for
a demo.
File > Save Choose Save from the File menu
Control+N Hold down the Control key and press
the N key
Control-click Hold down the Control key and click the
Right-click Click with the right mouse button
The names of Commands, Options, and Settings that appear
on-screen are in a different font.
The following symbols are used to highlight important
information:
mouse button
User Tips are helpful hints for getting the most from
your system.
Important Notices include information that could affect
your data or the performance of your system.
Shortcuts show you useful keyboard or mouse shortcuts.
Cross References point to related sections in this guide and
other Avid guides.
Chapter 1: Introduction to the FC726 3
FC726 Guide4
Chapter 2: FC726 Features
444 4 4
1
2
33333
Front Panel

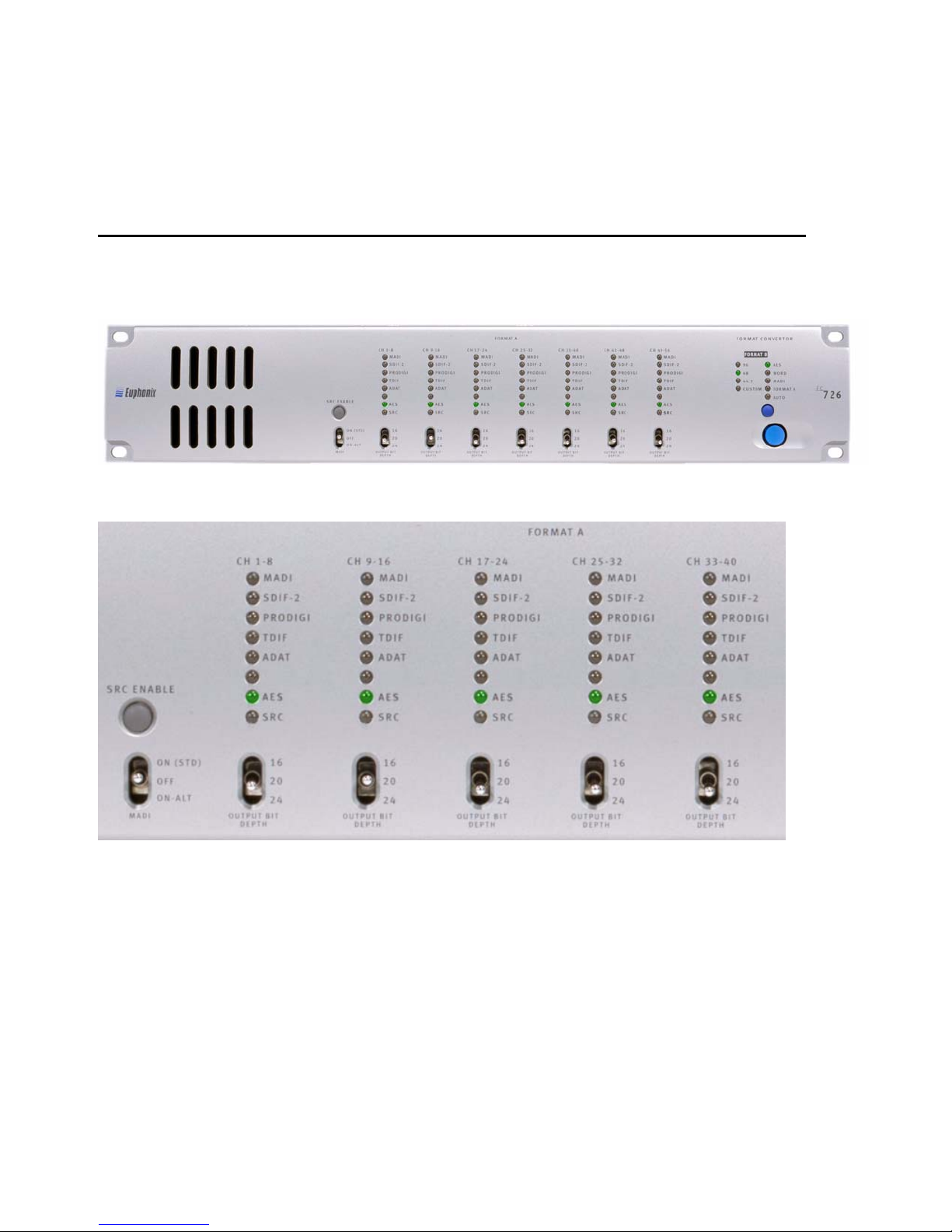

The FC726 front panel is shown below. Numbers in the subsequent figures correspond to the numbered items below.
FC726 Front Panel
FC726 front panel (center detail)
1. MADI Switch
This three-position switch selects whether MADI is used for
the Format A Input and the characteristics of the MADI signal.
ON-STD Selects the standard MADI settings used by Avid
(sample rate = frame rate).
OFF Selects the common DB-50 connectors and ignores the
Format A MADI inputs. Use this setting with SDIF, TDIF,
ProDigi, ADAT, or AES devices.
ON-ALT Selects MADI running at sample rate = 96 kHz, frame
rate = 48 kHz.
2. SRC ENABLE Button
This button lights when the FC726 detects different sample
rates on the A and B formats and SRC is being used. Press the
button when lit to turn off SRC. The button flashes if SRC is
needed but has been disabled by the user. Press the button
again to reset the automatic SRC detection circuitry.
When a device first locks to the FC726, the button may occasionally light to indicate SRC is necess ary when it is not. Press
the button twice to reset the FC726 automatic SRC detection
circuitry. SRC is not needed if the button does not light.
Chapter 2: FC726 Features 5
3. FORMAT A Input Indicator LEDs
65
7
Each eight-channel bank has seven LEDs to indicate the format attached to the Format A Input; only one of these LEDs
can be lit at a time. The LED lights dimly yellow if an adapter
is attached but the FC726 has not locked; the LED lights bright
yellow when the FC726 locks to the device.
The bottom SRC LED functions independently of the first
seven. It lights red if the FC726 has detected that SRC is required on that bank; it flashes red if SRC is required but has
been disabled by the user.
4. OUTPUT BIT DEPTH Select Switch
For each eight-channel bank, this switch sets the bit depth for
the signal output to the Format A device. When set to 24, all
24 bits are transferred from the MADI input to the Format A
output device without dithering. When set to 20 or 16, the signal is dithered to the selected number of bits before being output to the Format A device.
This switch affects the Format A output only; it has
no effect on the Format B MADI audio output.

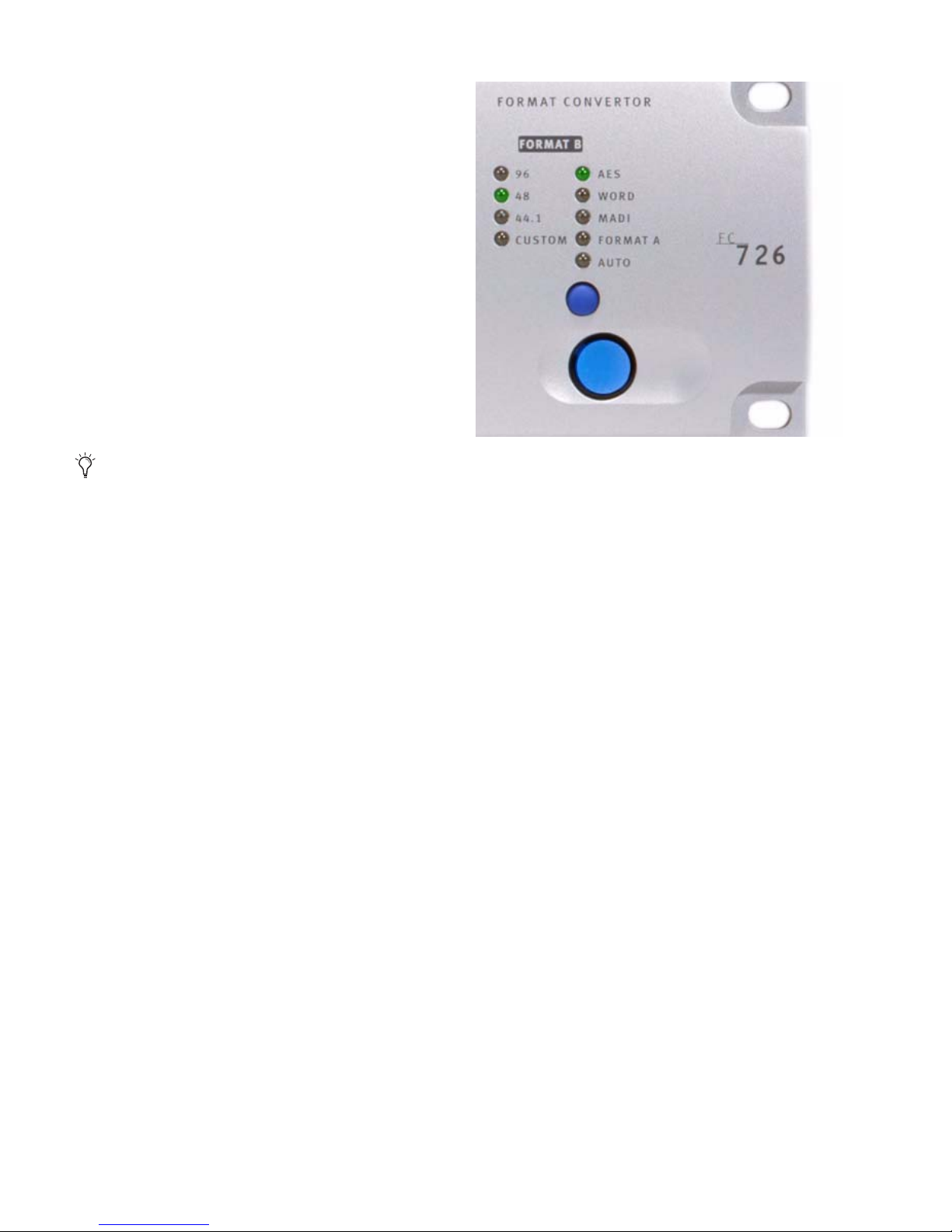

FC726 front panel (right detal)
5. FORMAT B Sample Rate LEDs
These LEDs indicate the Format B sample rate. If the rate is not
44.1, 48, or 96 kHz (±3%), the CUSTOM LED lights. Since the
FC726 supports SRC, Format A may operate at several sample
rates that are not indicated by individual LEDs.
6. FORMAT B Sync Source LEDs
These LEDs show the Format B sync source. The blue button
below the AUTO LED manually cycles the sync source sequentially from AUTO to AES, WORD, MADI, and FORMAT A.
When set to AUTO, the FC726 accepts the first sync signal detected with the following priority: AES, WORD, MADI, and
FORMAT A. For example, if MADI and Format A sync are both
present, the selected source will be MADI because it is higher
in the priority list.
7. Power Switch
This switch turns power to the FC726 on or off.
FC726 Guide6
Back Panel
FC726
EUPHONIX, INC.
PALO ALTO
MADE IN THE U.S.A.
AES 49-56 AES 41-48 AES 33-40 AES 25-32 AES 17-24 AES 9-1
SERVICE
IN
IN
AES
SYNC
MADI A
IN
CH 49-56 CH 41-48 CH 33-40 CH 25-32
CH 17-24 CH 9-16 CH1-8
SDIF-2 SYNC
or
SLAVECLK
OUT
FORMATA
OUT
VAC FUSE
100-240 1.0-0.5A 2.5A
50/60Hz SLOW
CURRENT
FMT A FMT B
AES STEREO
AES MONO
FMT A AES/FMT B/FMT A
SLAVECLK
333336 3
1
2222
22 2
5
87
94

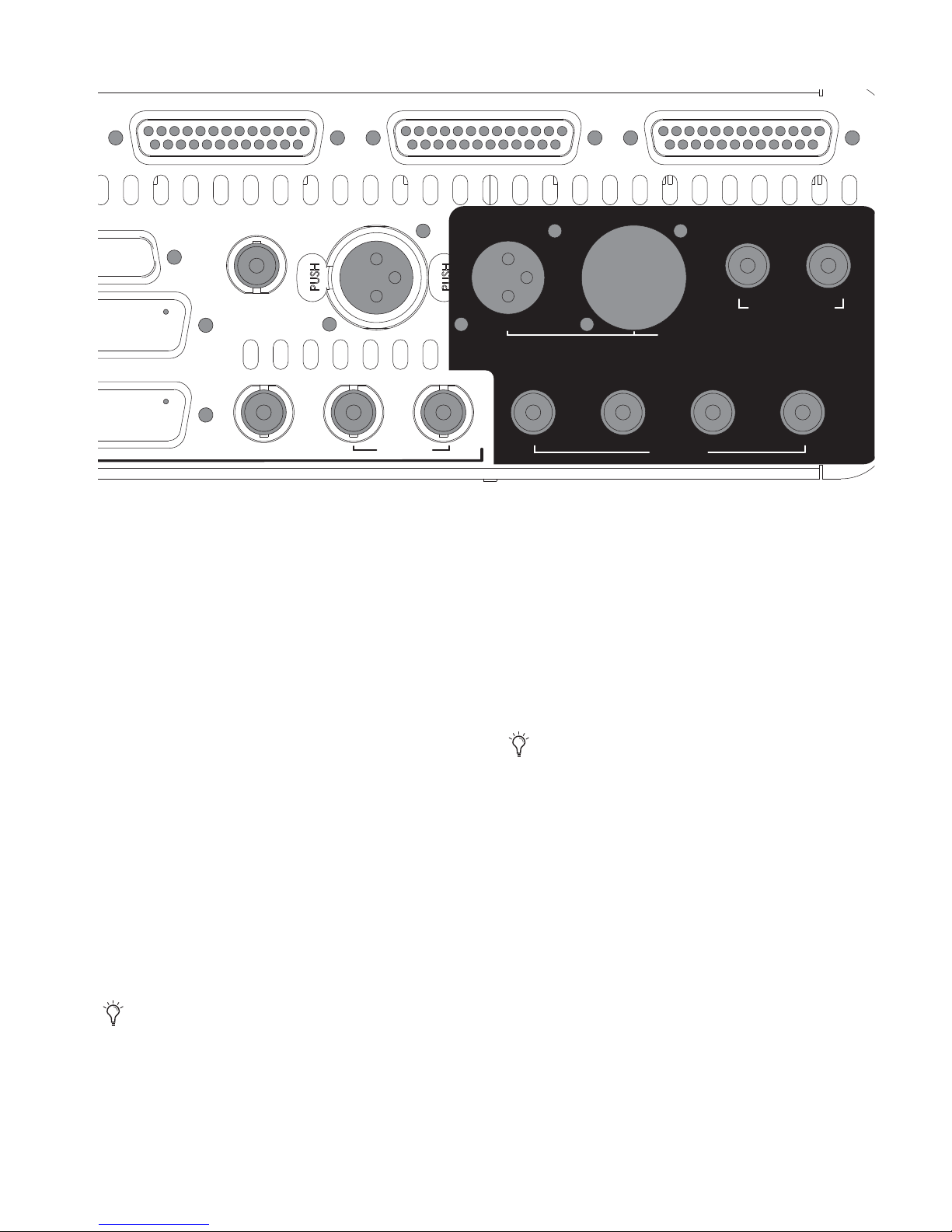

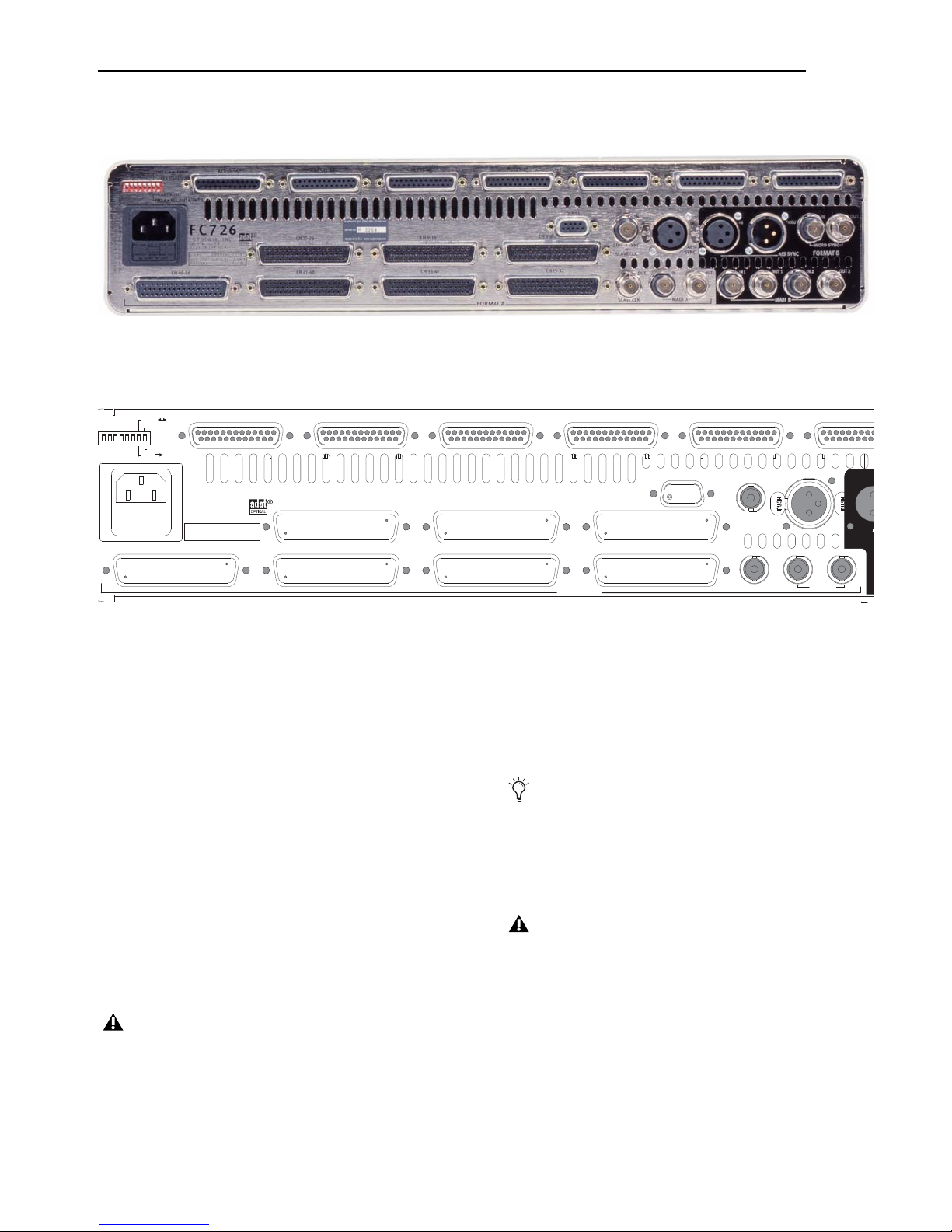

The FC726 back panel is shown below. Numbers in the subsequent figures correspond to the numbered items below.
FC726 Back Panel
FC726 back panel (left detail)
1. AC Power Input
Connect the power cable shipped with the FC726 to its AC
input and an AC mains power source.
4. Format A MADI IN and MADI OUT
The Format A MADI In and MADI Out BNC connectors interface with non-Avid MADI devices. At 48 kHz, MADI A provides 24-bit audio on 56 channels. At 96 kHz, only 28 24-bit
2. Format A Common DB-50 Connectors
Seven common DB-50 connectors connect third-party devices
to the FC726. Each connector provides eight bidirectional au-
audio channels (1–28) are available.
Unlike MADI B, which has a second set of I/O connectors, MADI A provides only 28 channels at 96 kHz.
dio channels. You must use the appropriate adapters for each
format to connect the third-party devices. See “Format A
Adapters” on page 2.
5. Service DB-9 Jack
This jack connects to a PC serial port to upgrade the FC726
firmware.
3. Format A AES Connectors
Seven DB-25 connectors connect AES devices to the FC726.
Each connector provides eight bidirectional channels (four
AES pairs). To connect to the third-party devices, use a
DB-25-to-XLR breakout cable available from Avid.
Do not connect anything to the Service DB-9 jack unless
instructed to do so by Avid technical support.
Do not use DB-25-to-XLR breakout cables made by
other companies because the pin numbering may be
incompatible. See Appendix A, “Pinout and Cable
Specifications” for specific cable information.
Chapter 2: FC726 Features 7
6. DIP Switches
7. Format A AES Sync In
These eight DIP switches (numbered 1–8 from left to right) set
various modes on the FC726. Switches 3–5 and 7 are not currently implemented.
Switch #1 Bidirectional mode
Flip this switch when converting between third-party formats
using one FC726.
Switch #2 MADI MERGE
When set to MADI MERGE (down), Format B MADI Input 1
channels 1–24 are merged with Format B MADI Input 2 channels 1–28 and Format B MADI Input 1 channels 25–28 to form
a single 56-channel input stream. Format B MADI Output 1
sends channels 1–56 and Format B MADI Output 2 sends
channels 25–56 followed by 1–24 from the third-party inputs.
Switch #6 AES MASTER/SLAVE
When set to SLAVE (up), the Format A AES outputs lock to
their corresponding AES inputs. Within each bank, all AES
outputs operate at the sample rate of the lowest-numbered,
locked AES input. For example, if the first bank (channels 1–8)
has a 44.1 kHz AES signal connected to inputs 1–2 and a 48
kHz input connected to inputs 5–6, then AES output channels
1–8 will all run at 44.1 kHz. If AES inputs are not present on a
bank, Format A will get sample clock from the Format B Sync
input. If sync is not present, Format A will then lock to the
Format B Sync Input.
Connect an AES sync signal to this XLR connector to synchronize the Format A MADI signal. According to the AES specification, the AES sync signal must use the same sample rate as
the incoming MADI signal to operate correctly.
It is possible, but not recommended, to connect a
MADI signal without using a corresponding sync
signal. Providing an AES or Word sync results in
lower jitter and should be used whenever possible.
8. SDIF-2 or SLAVE CLK IN
This connector can receive either an SDIF or slave clock sync
signal. The FC726 automatically detects which signal type has
been connected.
An SDIF device must send a word sync signal to this connector
to properly connect to the FC726.
9. SLAVE CLK OUT
If Slave Clk In has a valid sync signal, it is passed through to
Slave Clk Out. If Slave Clk In does not have a valid sync signal,
the lowest numbered bank that is locked and in use is selected
as the clock source.
When set to MASTER (down), Format A AES outputs get sample clock from the Format A Sync input. If Format A sync is
not present, the Format A AES outputs will then lock to the
Format B Sync Input.
Switch #8 AES STEREO/AES MONO
Set this switch to AES Stereo (up) for the normal configuration
where each AES signal contains two discreet channels. If the
sample rate is above 52 kHz (such as 88.2 or 96 kHz), and the
AES signal connected to the FC726 implements two-wire AES
(also referred to as mono mode AES), set the switch to AES
Mono (down). This setting treats each AES signal as a single
channel with a frame rate running at half its sample rate. For
example, a 96 kHz two-wire AES signal runs at 48 kHz by using
the left channel for the even samples and the right channel for
the odd samples. This switch affects both the AES inputs and
outputs.
FC726 Guide8
FC726 Back Panel (detail)
AES 17-24 AES 9-16 AES 1-8
SERVICE
IN
IN
AES
SYNC
AES SYNC
WORD SYNC
IN
OUT
FORMAT B
MADI A
MADI B
IN 2
OUT 2
IN 1
OUT 1
IN
SDIF-2 SYNC
or
SLAVECLK
OUT
OUT
IN THRU
SLAVECLK
10 11
12 13 14 15
10. Format B MADI IN 1 and MADI OUT 1
These BNC connectors are used to interface with a MADI device. (such as a Studio Hub, MA703, or AM713) At 48 kHz, the
Format B MADI In 1 and MADI Out1 connectors provide 56
24-bit audio channels. At 96 kHz, they provide 28 24-bit audio
channels (channels 1–28).
11. Format B MADI IN 2 and MADI OUT 2
At 96 kHz, the Format B MADI In 2and Out 2 connectors provide 28 additional 24-bit audio channels (29–56).
13. Format B AES SYNC THRU
This connector outputs a copy of the Format B AES Sync In
signal.
14. Format B WORD SYNC IN
Connect a word sync signal to this BNC connector to synchronize the Format B MADI signal. According to the AES specification, the word sync signal must use the same sample rate as
the incoming MADI signal to operate correctly.
It is possible, but not recommended, to connect a
At 48 kHz, For mat B MADI In 2 is ignored and Format B MADI
Out 2 carries the same audio as Format B MADI Out 1 but with
the channel numbering reversed: Format A channels 29–56
are output on Format B MADI Out 2 channels 1–28; Format A
channels 1–28 are output on Format B MADI Out 2 channels
29–56.
12. Format B AES SYNC IN
Connect an AES sync signal to this XLR connector to synchronize the Format B MADI signal. According to the AES specification, the AES sync signal must use the same sample rate as
the incoming MADI signal to operate correctly.
MADI signal without using a corresponding sync
signal. Providing an AES or Word sync results in
lower jitter and should be used whenever possible.
15. Format B WORD SYNC OUT
This connector outputs a copy of the Format B Word Sync In
signal. However, this output generates a word sync signal at
the Format B sample rate even if nothing is connected to Format B Word Sync In. Note this important difference in behavior from Format B AES Sync Thru.
It is possible, but not recommended, to connect a
MADI signal without using a corresponding sync
signal. Providing an AES or Word sync results in
lower jitter and should be used whenever possible.
Chapter 2: FC726 Features 9
FC726 Guide10
Chapter 3: Operating Instructions
This chapter provides instructions to connect devices
supported by the FC726.
SDIF-2
SDIF-2 is a 24-channel format with inputs and outputs on separate DB-50 connectors. The FC726 SDIF-2 adapter has three
DB-50 connectors, one for each eight-channel bank (labeled
1–8, 9–16, 17–24) but they may be connected to any FC726
bank. This allows routing the channels in eight-channel
groups.
The SDIF-2 format requires connecting an external word clock
on a BNC cable from the SDIF device to the FC726 SDIF-2 Sync
input or the FC726 will not lock. Turn the MADI switch on the
FC726 front panel to OFF (center position).
TDIF
1 Connect the TDIF adapter to the DB-50 connector(s) on the
FC726 back panel.
2 Turn the MADI switch on the FC726 front panel to OFF
(center position).
3 To avoid SRC, either lock the TDIF device to the MADI B de-
vice, or lock the MADI B device to the TDIF device:
• To lock the TDIF device to the MADI B device (i.e, System
5 or R-1), connect a word clock from the MADI device to
the TDIF device Word Sync In. The Format B Word Sync
Out on the FC726 may be used if no other word clock
output is available. Set the TDIF device to slave to its
word clock input.
• To lock the MADI B device to the TDIF device, connect
the TDIF device Word Sync Out to the MADI B device
word clock input. Set the MADI B device to slave to its
word clock input.
4 SRC is required if the MADI B device runs at 96 kHz and the
TD IF d evice a t 4 8 kHz. The T DIF and MAD I B devic e s can ea c h
run on their own internal sample clocks without additional
sync signals.
ADAT
1 Connect the ADAT adapter to the DB-50 ports on the FC726
back panel.
2 Connect the ADAT optical cables to the ADAT back panel
and to the adapter’s optical input and output.
3 Turn the MADI switch on the FC726 front panel to OFF
(center position).
4 Set the ADAT adapter switch to the same setting used on the
ADAT front panel.
• If multiple slaved ADATs are connected, this switch
should match the setting of the first (master) ADAT. Always use the ADAT INT setting to perform SRC.
The switch on the ADAT adapter has two settings to tell the
FC726 how to synchronize to the ADAT optical device(s). Its
setting depends on whether the connected ADAT optical device slaves to the FC726 or runs on its own internal clock:
ADAT INT The ADAT runs on its own internal clock (INT refers
to internal).
ADAT DIG The ADAT slaves to its optical (digital) inputs (DIG
refers to digital). Since the optical input comes from the
FC726, this setting slaves the ADAT to the FC726.
ProDigi
ProDigi (PD) is a 16-channel format with inputs and outputs
on separate DB-50 connectors. The FC726 PD adapter has two
DB-50 connectors, one for each eight-channel bank (labeled
1–8 and 9–16). They may be connected to any bank on the
FC726 with one restriction: the connector labeled 1–8 must be
connected to a lower-numbered bank than the 9–16 connector. This allows the channels to be routed in eight-channel
groups. Turn the MADI switch on the FC726 front panel to
OFF (center position).
Chapter 3: Operating Instructions 11
AES
Each of the 28 AES inputs can run at a different sample rate.
The following rules clarify how the sample rate of the AES output signal is derived:
• Within each bank, all AES outputs operate at the sample
rate of the lowest-numbered AES input that is locked. For
example, if the first bank (channels 1–8) has a 44.1 kHz
AES signal connected to inputs 1/2 and a 48 kHz input
connected to inputs 5/6, then AES output channels 1–8
all run at 44.1 kHz.
• If AES inputs are not present on a bank, but another Format A device (i.e., TDIF) is connected and locked, the AES
outputs run at the Format A sample rate for that bank.
• If a bank has neither AES inputs nor a third-party device,
the AES outputs run at the Format B sample rate.
• If the MADI switch is On, the AES outputs run at the Format A MADI sample rate.
Furthermore, these rules can be modified by DIP switch #6:
AES Master/Slave.
• If the switch is set to Master (up; the default position),
the rules stated above apply.
• If the switch is set to Slave (down), the AES outputs never
run at the AES input sample rate. Instead, they follow the
rules above assuming an AES input is not present. This
mode should be used to lock the connected AES device to
the AES output of the FC726.
Converting Between Formats
Using Two Units (56 Bidirectional Channels)
1 Connect Format B MADI Input of the first FC726 to the For-
mat B MADI Output of the second FC726.
2 Connect Format B MADI Input of the second FC726 to the
Format B MADI Output of the first FC726.
3 At 48 kHz, use the In1 and Out1 connectors; at 96 kHz, use
In1 and Out1 and In2 and Out2 connectors.
4 Connect the third-party devices as described in their sec-
tions of this chapter.
5 Connect a common sync source to both FC726s and all at-
tached third-party devices.
6 Do not allow both FC726s to attempt to lock to each other’s
MADI input.
Using One Unit (24 Bidirectional Channels)
1 Move DIP switch #1 to the down position.
2 Loop Format B MADI Out 2 to Format B MADI In 1.
3 If there is no sync on Format B, select Format A as the sync
source from the front panel.
4 Connect the third-party I/O devices.
The conversion is from third-party I/O channels 1–24 to channels 25–48. As always, all third-party inputs are still converted
to Format B MADI Out 1.
For example, to convert 24 channels of ADAT to 24 channels
TDIF (DA88), connect ADAT to third-party channels 1–24,
connect the three DA88s to channels 25–48 and follow the
steps above.
FC726 Guide12
Specifications
FC726 Performance Specifications
Sync Sources
Sync Outputs
Sync Detection
Format A Audio Inputs
Format A Audio Outputs
Signal-to-Noise Ratio
Group Delay
Format B MADI Inputs
Format B MADI Output
AES, word clock, MADI, Format A
AES thru and word clock out
Auto or switched
56 digital
AES (DB25), transformer isolated, 110
Third-Party I/O (DB50)
MADI (BNC), 75
56 digital
AES (DB25), transformer isolated, 110
Third-Party I/O (DB50)
MADI (BNC), 75
144 dB (unweighted)
120 dB (unweighted) with SRC engaged
SRC Off - 4 Fs
SRC On - 4 F
BNC 75
56 channels at 44.1/48 kHz
28 channels at 88.2/96 kHz
BNC 75
56 channels at 44.1/48 kHz
28 channels at 88.2/96 kHz
+ ms delay (43/F
s
s input
+ 45/F
s output
)
Power Requirements
Power Consumption
Temperature of Operation
Dimensions
FC726 Technical Specifications
110–240 VAC; 50 or 60 Hz (Auto-ranging)
50 W
5–35C
Height: 3.5 in (89 mm); Width: 19 in (483 mm); Depth: 18.25 in (470 mm)
Weight: 13.5 lb (6 kg)
Chapter 3: Operating Instructions 13
FC726 Guide14
Appendix A: Pinout and Cable Specifications
PARTS LIST
Item Qty Euph P/N Mfr Mfr P/N Description
1 1 AMP HD-20 series DB25-M D-sub & shell
2 1 meter Mogami 3162 AES/EBU snake cable
Alternate: Belden 1805A AES/EBU snake cable
3 4 Neutrik NC3MX 3 p XLR M
4 4 Neutrik NC3FX 3 p XLR F
5 2 inch .75 OD shrink tubing
ITEM 5
Shrink tubing
ITEM 2
AES/EBU Snake
cable with 8
cores
Typical: 110 Ohm AES core, each
core individually shielded.
NOTE Tie each shield to pin 1 of
each destination XLR connector
ITEM 1
Db25 male
connector and metal
backshell assy with
thumbscrews or
jackscrews.
J1
J2
J3
J4
J8
J7
J6
J5
ITEM 3
3-pin XLR
male connector
(4 places)
ITEM 4
3-pin XLR
Female (4 Places)
DB25
M
Approx. 1 meter
(38-40 inches)
AES/EBU
P/N 030-07658-01 REV B
Label cable with Euphonix
part number and Rev
letter as shown
Each XLR pigtail
destination label
(See Table 1 for
Nomenclature)
10 inches
each pigtail
TABLE 1 Cable Label Details
Conn. Label
DB25-M AES/EBU 030-07658-01 Rev
XLR-J1 1&2OUT
XLR-J2 3&4OUT
XLR-J3 5&6OUT
XLR-J4 7&8OUT
XLR-J5 1&2IN
XLR-J6 3&4IN
XLR-J7 5&6IN
XLR-J8 7&8IN
This appendix provides detailed information about FC726 connectors for those who want to create or repair their own
cables. Contact Avid for a list of the adapters and cables available for third-party devices.
The ADAT requires an adapter that contains active electronics with a DB-50 connector on one end and an ADAT optical connector on the other. This adapter cannot be constructed using the information presented in this appendix; contact Avid for this
adapter.
AES/EBU DB-25

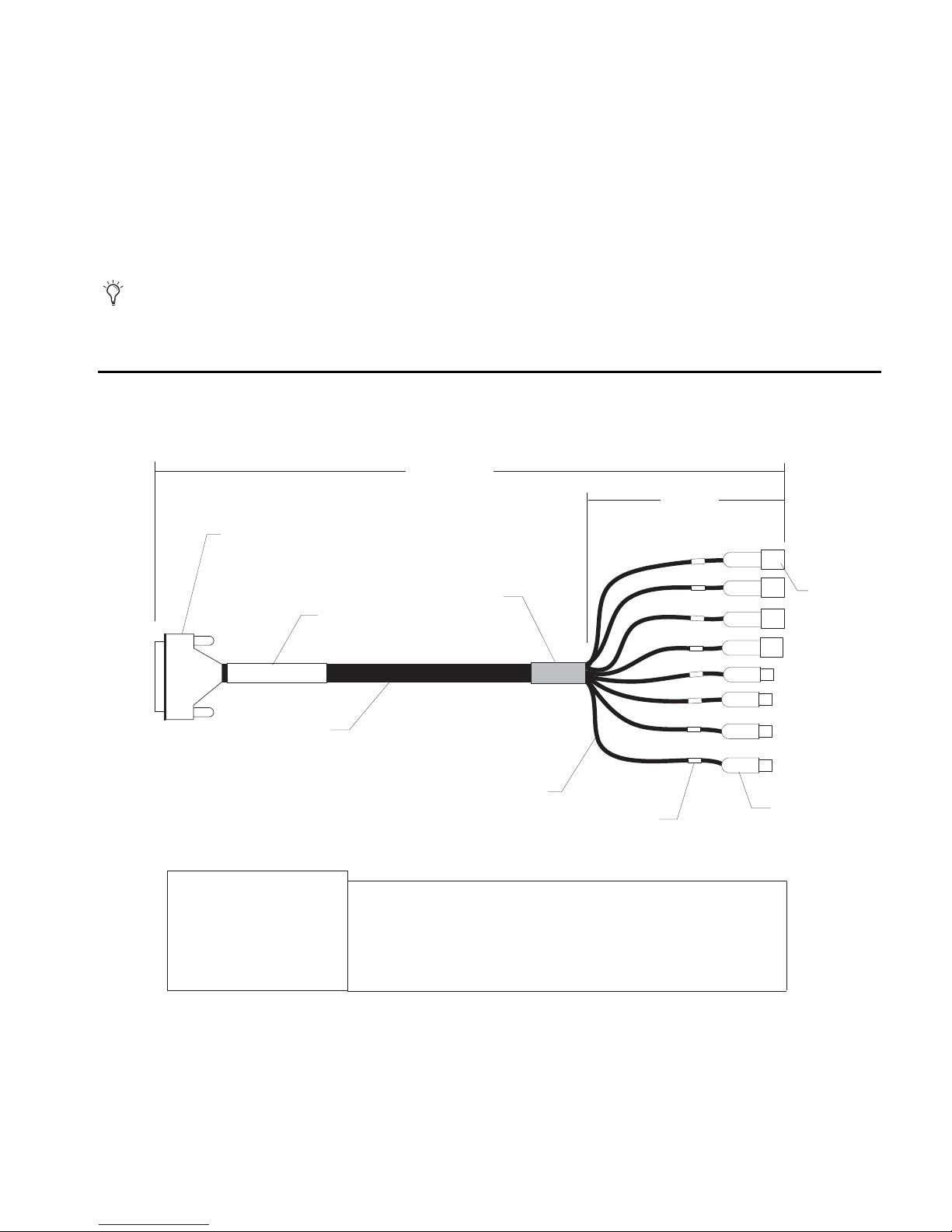

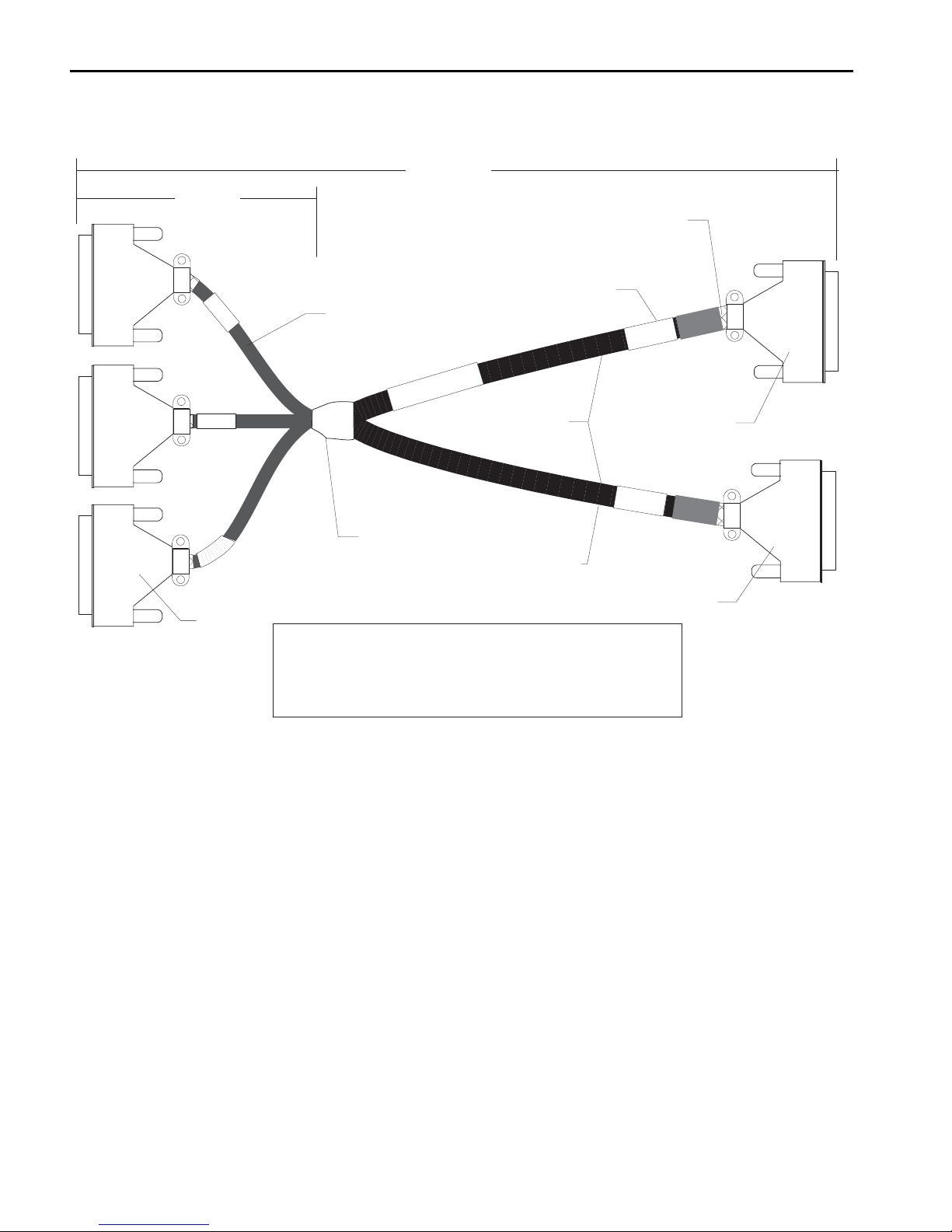

The following figure shows the cable diagram, and the table shows the pinout for the FC726 AES/EBU DB-25 connector.
AESDB-25 breakout cable assembly diagram
Appendix A: Pinout and Cable Specifications 15
Pin Description
Pin 1 N/C
Pin 2 Channel 1 / 2 In (COLD)
Pin 3 Channel 3 / 4 In (GND)
Pin 4 Channel 3 / 4 In (HOT)
Pin 5 Channel 5 / 6 In (COLD)
Pin 6 Channel 7 / 8 In (GND)
Pin 7 Channel 7 / 8 In (HOT)
Pin 8 Channel 1 / 2 Out (COLD)
Pin 9 Channel 3 / 4 Out (GND)
Pin 10 Channel 3 / 4 Out (HOT)
Pin 11 Channel 5 / 6 Out (COLD)
Pin 12 Channel 7 / 8 Out (GND)
Pin 13 Channel 7 / 8 Out (HOT)
Pin 14 Channel 1 / 2 In (GND)
Pin 15 Channel 1 / 2 In (HOT)
Pin 16 Channel 3/ 4 In (COLD)
Pin 17 Channel 5 / 6 In (GND)
Pin 18 Channel 5 / 6 In (HOT)
Pin 19 Channel 7 / 8 In (COLD)
Pin 20 Channel 1 / 2 Out (GND)
Pin 21 Channel 1 / 2 Out (HOT)
Pin 22 Channel 3 / 4 Out (COLD)
Pin 23 Channel 5 / 6 Out (GND)
Pin 24 Channel 5 / 6 Out (HOT)
Pin 25 Channel 7 / 8 Out (COLD)
In and Out are from the perspective of the FC726.
FC726 Guide16
Third-Party Devices
Pin #
(DB50 Female)
SDIF usage TDIF usage ProDigi usage ADAT usage
In 1+ In 1+ NC In 1+ In 1/2
In 1- In 1- In 1/2 In 1- NC
In 2+ In 3+ NC In 3+ In 3/4
In 2- In 3- In 3/4 In 3- NC
In 3+ In 5+ NC In 5+ In 5/6
In 3- In 5- In 5/6 In 5- NC
In 4+ In 7+ NC In 7+ In 7/8
In 4- In 7- In 7/8 In 7- NC
GND GND GND GND GND
In 5+/GP In A In 2+ NC In 2+ Error In
In 5- In 2- NC In 2- NC
In 6+/GP In B In 4+ NC In 4+ User0 In
In 6- In 4- NC In 4- NC
In 7+/GP In C In 6+ NC In 6+ User1 In
In 7- In 6- NC In 6- NC
In 8+/GP In D In 8+ NC In 8+ Mstr/Slv IN
In 8- In 8- NC In 8- NC
Cable ID2 0 (tie to pin 23) 0 (tie to pin 23) 0 (tie to pin 23) 1 (NC)
Cable ID1 0 (tie to pin 23) 1 (NC) 1 (NC) 0 (tie to pin 23)
Cable ID0 1 (NC) 0 (tie to pin 23) 1 (NC) 0 (tie to pin 23)
Bit Clk In+ NC NC Bit Clk In+ Bit Clk In
Bit Clk In- NC NC Bit Clk In- NC
GND GND GND GND GND
Word Clk In+ NC In LR Clk Word Clk In+ Word Clk In
Word Clk In- NC NC Word Clk In- GND
Out 1+ Out 1+ NC Out 1+ Out 1/2
Out 1- Out 1- Out 1/2 Out 1- NC
Out 2+ Out 3+ NC Out 3+ Out 3/4
Out 2- Out 3- Out 3/4 Out 3- NC
Out 3+ Out 5+ NC Out 5+ Out 5/6
Out 3- Out 5- Out 5/6 Out 5- NC
Out 4+ Out 7+ NC Out 7+ Out 7/8
Out 4- Out 7- Out 7/8 Out 7- NC
Out 5+/GP Out A Out 2+ FS0 out Out 2+ Mute Out
Out 5- Out 2- NC Out 2- NC
Out 6+/GP Out B Out 4+ FS1 out Out 4+ NC
Out 6- Out 4- NC Out 4- NC
Out 7+/GP Out C Out 6+ Emph Out Out 6+ NC
Out 7- Out 6- NC Out 6- NC
Out 8+/GP Out D Out 8+ NC Out 8+ NC
Out 8- Out 8- NC Out 8- NC
Bit Clk Out+ NC NC Bit Clk Out+ Bit Clk Out
Bit Clk Out- NC NC Bit Clk Out- GND
GND GND GND GND GND
Word Clk Out+ NC Out LR Clk Word Clk Out+ Word Clk Out
Word Clk Out- NC NC Wor d Clk Out- GND
Extra In/GP In E+ NC NC NC DVCO In
Extra In/GP In E- NC NC NC NC
NC NC NC NC Vcc
GND GND GND GND GND
Common DB-50 Connector Pinout and Usage with Third Party Devices
Common Connector
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Appendix A: Pinout and Cable Specifications 17
TDIF
PARTS LIST
Item Qty Mfr Mfr P/N Description
1 1 AMP HDP-20 series DB50-M
2 1 AMP HDP-20 series DB25-M
3 40 inches Madison
Approx. 1 meter
(38 to 40 inches)
P/N 030-07657-01 Rev C
ITEM 1
DB-50 male metal backshell assembly
including thumb- or jack-screws
ITEM 2
DB-25 male with
metal backshell assembly
Cable labels
(typical)
J1
TDIF
ITEM 3
SCSI cable, braided shield, low capacitance,
25 twisted pairs. Braided shields on both ends
clamped to metal backshells.
All conductors are not required.
Cut off unused wires at both ends.
Portion of braided shield pulled
back over cable insulation to
contact the cable clamp.
Heat shrink tubing to cover and
contain the exposed braid tails
TDIF
CH 1-8
J2
50SDK00130 (or equiv) SCSI cable, 25 pairs

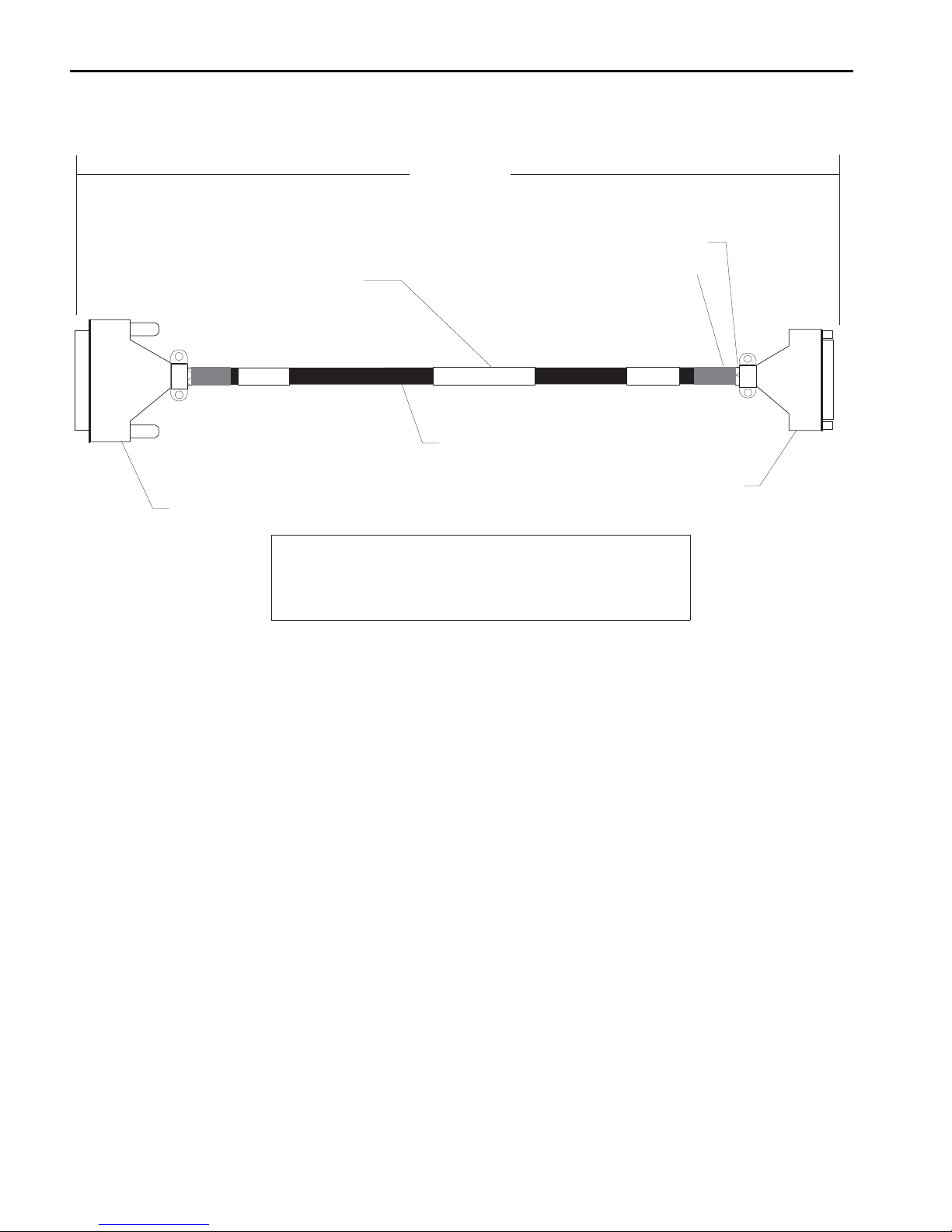

The following figure shows the cable diagram, and the table shows the pinout for the FC726 TDIF connector.
DB-50-to-DB-25 TDIF cable assembly diagram
FC726 Guide18
FC726 TDIF Cable Wiring Specification
ConnectorPin Connection Description
J1 1 NC
J1 2 J2-1 In 1/2
J1 3 NC
J1 4 J2-2 In 3/4
J1 5 NC
J1 6 J2-3 In 5/6
J1 7 NC
J1 8 J2-4 In 7/8
J1 9 J2-7,24,25 GND
J1 10 NC
J1 11 NC
J1 12 NC
J1 13 NC
J1 14 NC
J1 15 NC
J1 16 NC
J1 17 NC
J1 18 J1-23 Cable ID
J1 19 NC Cable ID
J1 20 J1-23 Cable ID
J1 21 NC
J1 22 NC
J1 23 J2-17,J1-18,J1-20 GND
J1 24 J2-5 Word Clock In
J1 25 NC
J1 26 NC
J1 27 J2-13 Out 1/2
J1 28 NC
J1 29 J2-12 Out 3/4
J1 30 NC
J1 31 J2-11 Out 5/6
J1 32 NC
J1 33 J2-10 Out 7/8
J1 34 J2-8 FS0 Out
J1 35 NC
J1 36 J2-20 FS1 Out
J1 37 NC
J1 38 J2-21 Emph Out
J1 39 NC
J1 40 NC
J1 41 NC
J1 42 NC
J1 43 NC
J1 44 J2-22,23 GND
J1 45 J2-9 Word Clock Out
J1 46 NC
J1 47 NC
J1 48 NC
J1 49 NC
J1 50 J2-14,15,16 GND
Notes:
J1 = DB-50 male
J2 = DB-25 male
Twisted pairs:
J2-1/14
J2-2/15
J2-3/16
J2-4/17
J2-5/7
J2-9/22
J2-11/23
J2-12/24
J2-13/25
The rest don't matter
In and Out are from the FC727's perspective.
Appendix A: Pinout and Cable Specifications 19
SDIF
PARTS LIST
Item Qty Mfr Mfr P/N Description
1 4 AMP HDP-20 series
DB-50 Male
2 1 AMP HDP-20 series DB-50 Female
3 2 inches 3/4" Heatshrink
4
40 inches
Madison
J1
J2
J3
J4
J5
ITEM 1 (J1, J2, J3)
DB-50 male with
metal backshell
ITEM 4
SCSI cable
Braided shield,
low capacitance,
25 twisted pairs
Approx. 1 meter
(38 to 40 inches)
16 pairs breakout (8 from each
RS422 trunk) to destinations, 10
inches in sheath, add tubular
braided shield, then insulating outer
protective covering (heat shrink)
Intersection
Tie together and
solder all shields
from the two 25-pair
trunks and the three
16-pair breakout
groups here. Add
Heat shrink tubing
after the operation.
To SDIF
OUT
To SDIF
IN
Label (typical)
SDIF
CH 9-16
SDIF
CH 1-8
SDIF
CH 17-24
24 pairs used out of 25
groups of 8 pairs per
the wiring table. Route
to destinations after the
intersection.
available. Split into 3
P/N 030-07656-01
RevB
ITEM 1 (J4)
DB-50 male with
metal backshell
ITEM 2 (J5)
DB-50 female
with metal backshell
Portion of braided shield pulled
back over cable insulation to
contact the cable clamp (typical)
10 inches
Pigtail Length
50SDK00130 (or equiv)
SCSI cable, 25 pairs
The following figure shows the cable diagram, and the table shows the pinout for the FC726 SDIF connector.
DB-50 MX3-to-DB-50 Male/Female SDIF cable assembly diagram
FC726 Guide20
FC726 SDIF Cable Wiring Specification
J1 1 J4-2 In 1+
J1 2 J4-1
J1 3 J4-6
In 3+
J1 4 J4-5
J1 5 J4-10
In 5+
J1 6 J4-9
J1 7 J4-14 In 7+
J1 8 J4-13
J1 9 NC (GND)
J1 10 J4-4
In 2+
J1 11 J4-3
J1 12 J4-8
In 4+
J1 13 J4-7
J1 14 J4-12 In 6+
J1 15 J4-11
J1 16 J4-16
In 8+
J1 17 J4-15
J1 18 J1-23
Cable ID
J1 19 J1-23
Cable ID
J1 20 NC Cable ID
J1 21 NC
J1 22 NC
J1 23 J1-18,19
GND
J1 24 NC
J1 25 NC
J1 26 J5-2
Out 1+
J1 27 J5-1
J1 28 J5-6 Out 3+
J1 29 J5-5
J1 30 J5-10
Out 5+
J1 31 J5-9
J1 32 J5-14
Out 7+
J1 33 J5-13
J1 34 J5-4 Out 2+
J1 35 J5-3
J1 36 J5-8
Out 4+
J1 37 J5-7
J1 38 J5-12 Out 6+
J1 39 J5-11
J1 40 J5-16
Out 8+
J1 41 J5-15
J1 42 NC
J1 43 NC
J1 44 NC
J1 45 NC
J1 46 NC
J1 47 NC
J1 48 NC
J1 49 NC
J1 50 NC
Notes:
J1,J2,J3 = DB-50 male
J4 = DB-50 male
J5 = DB-50 female
Jx-x denotes twisted pair
Jx-x
In and Out are from the FC727's perspective.
Connector Pin Connection Description
In 1-
In 3-
In 5-
In 7-
In 2-
In 4-
In 6-
In 8-
Out 1-
Out 3-
Out 5-
Out 7-
Out 2-
Out 4-
Out 6-
Out 8-
Appendix A: Pinout and Cable Specifications 21
FC726 SDIF Cable Wiring Specification, continued
J2 1 J4-18
In 9+
J2 2 J4-17
J2 3 J4-22
In 11+
J2 4 J4-21
J2 5 J4-26 In 13+
J2 6 J4-25
J2 7 J4-30
In 15+
J2 8 J4-29
J2 9 NC
J2 10 J4-20
In 10+
J2 11 J4-19
J2 12 J4-24 In 12+
J2 13 J4-23
J2 14 J4-28
In 14+
J2 15 J4-27
J2 16 J4-32
In 16+
J2 17 J4-31
J2 18 J2-23
Cable ID
J2 19 J2-23
Cable ID
J2 20 NC
Cable ID
J2 21 NC
J2 22 NC
J2 23 J2-18,19
GND
J2 24 NC
J2 25 NC
J2 26 J5-18
Out 9+
J2 27 J5-17
J2 28 J5-22
Out 11+
J2 29 J5-21
J2 30 J5-26 Out 13+
J2 31 J5-25
J2 32 J5-30
Out 15+
J2 33 J5-29
J2 34 J5-20
Out 10+
J2 35 J5-19
J2 36 J5-24
Out 12+
J2 37 J5-23
J2 38 J5-28
Out 14+
J2 39 J5-27
J2 40 J5-32
Out 16+
J2 41 J5-31
J2 42 NC
J2 43 NC
J2 44 NC
J2 45 NC
J2 46 NC
J2 47 NC
J2 48 NC
J2 49 NC
J2 50 NC
Connector Pin Connection Description
In 9-
In 11-
In 13-
In 15-
FC726 Guide22
In 10-
In 12-
In 14-
In 16-
Out 9-
Out 11-
Out 13-
Out 15-
Out 10-
Out 12-
Out 14-
Out 16-
FC726 SDIF Cable Wiring Specification, continued
J3 1 J4-34
In 17+
J3 2 J4-33
J3 3 J4-38
In 19+
J3 4 J4-37
J3 5 J4-42
In 21+
J3 6 J4-41
J3 7 J4-46
In 23+
J3 8 J4-45
J3 9 NC
J3 10 J4-36
In 18+
J3 11 J4-35
J3 12 J4-40
In 20+
J3 13 J4-39
J3 14 J4-44
In 22+
J3 15 J4-43
J3 16 J4-48
In 24+
J3 17 J4-47
J3 18 J3-23
Cable ID
J3 19 J3-23 Cable ID
J3 20 NC Cable ID
J3 21 NC
J3 22 NC
J3 23 J3-18,19
GND
J3 24 NC
J3 25 NC
J3 26 J5-34
Out 17+
J3 27 J5-33
J3 28 J5-38
Out 19+
J3 29 J5-37
J3 30 J5-42
Out 21+
J3 31 J5-41
J3 32 J5-46
Out 23+
J3 33 J5-45
J3 34 J5-36
Out 18+
J3 35 J5-35
J3 36 J5-40
Out 20+
J3 37 J5-39
J3 38 J5-44
Out 22+
J3 39 J5-43
J3 40 J5-48
Out 24+
J3 41 J5-47
J3 42 NC
J3 43 NC
J3 44 NC
J3 45 NC
J3 46 NC
J3 47 NC
J3 48 NC
J3 49 NC
J3 50 NC
Connector Pin Connection Description
In 17-
In 19-
In 21-
In 23-
In 18-
In 20-
In 22-
In 24-
Out 17-
Out 19-
Out 21-
Out 23-
Out 18-
Out 20-
Out 22-
Out 24-
Appendix A: Pinout and Cable Specifications 23
ProDigi
PARTS LIST
Item Qty Mfr Mfr P/N Description
1 4 AMP HDP-20 series
DB-50 Male
2 1 AMP HDP-20 series DB-50 Female
3 2 inches 3/4" Heatshrink
4
40 inches
Madison
J1
J2
J3
J4
J5
ITEM 1 (J1, J2, J3)
DB-50 male with
metal backshell
ITEM 4
SCSI cable
Braided shield,
low capacitance,
25 twisted pairs
Approx. 1 meter
(38 to 40 inches)
16 pairs breakout (8 from each
RS422 trunk) to destinations, 10
inches in sheath, add tubular
braided shield, then insulating outer
protective covering (heat shrink)
Intersection
Tie together and
solder all shields
from the two 25-pair
trunks and the three
16-pair breakout
groups here. Add
Heat shrink tubing
after the operation.
To SDIF
OUT
To SDIF
IN
Label (typical)
SDIF
CH 9-16
SDIF
CH 1-8
SDIF
CH 17-24
24 pairs used out of 25
groups of 8 pairs per
the wiring table. Route
to destinations after the
intersection.
available. Split into 3
P/N 030-07656-01
RevB
ITEM 1 (J4)
DB-50 male with
metal backshell
ITEM 2 (J5)
DB-50 female
with metal backshell
Portion of braided shield pulled
back over cable insulation to
contact the cable clamp (typical)
10 inches
Pigtail Length
50SDK00130 (or equiv)
SCSI cable, 25 pairs
The following figure shows the cable diagram, and the table shows the pinout for the FC726 ProDigi connector.
DB-50 Male/Male-to-DB-50 Male/Female ProDigi cable assembly diagram
FC726 Guide24
FC726 ProDigi Cable Wiring Specification
Notes:
J1,J2,J3 = DB-50 male
J4 = DB-50 female
Jx-x
denotes
Jx-x twisted pair
In and Out are from
J1 1 J3-1 In 1+
J1 2 J3-18
J1 3 J3-3 In 3+
J1 4 J3-20
J1 5 J3-5
In 5+
J1 6 J3-22
J1 7 J3-7
In 7+
J1 8 J3-24
J1 9 J3-17
J1 10 J3-2 In 2+
J1 11 J3-19
J1 12 J3-4 In 4+
J1 13 J3-21
J1 14 J3-6 In 6+
J1 15 J3-23
J1 16 J3-8 In 8+
J1 17 J3-25
J1 18 J1-23
Cable ID
J1 19 NC Cable ID
J1 20 NC
J1 21 J3-34 Bit Clk In+
J1 22 J3-35
J1 23 J1-18
J1 24 J3-36 Word Clk In+
J1 25 J3-37
J1 26 J4-1 Out 1+
J1 27 J4-18
J1 28 J4-3
Out 3+
J1 29 J4-20
J1 30 J4-5
J1 32 J4-7
J1 34 J4-2
J1 36 J4-4
J1 38 J4-6 Out 6+
J1 39 J4-23
J1 40 J4-8 Out 8+
J1 41 J4-25
J1 42 J4-34
Bit Clk Out+
J1 43 J4-35
J1 44 NC
J1 45 J4-36
Word Clk Out+
J1 46 J4-37
J1 47 NC
J1 48 NC
J1 49 NC
J1 50 J3-50 GND
Connector Pin Connection Description
In 1-
In 3-
In 5-
In 7GND
In 2-
In 4-
In 6-
In 8-
Cable ID
Bit Clk InGND
Word Clk In-
Out 1-
Out 3Out 5+
J1 31 J4-22 Out 5-
Out 7+
J1 33 J4-24 Out 7-
Out 2+
J1 35 J4-19
Out 2Out 4+
J1 37 J4-21 Out 4-
Out 6-
Out 8-
the FC727's perspective.
Bit Clk Out-
Word Clk Out-
Appendix A: Pinout and Cable Specifications 25
FC726 ProDigi Cable Wiring Specification, continued
J2 1 J3-9 In 9+
J2 2 J3-26
J2 3 J3-11 In 11+
J2 4 J3-28
J2 5 J3-13
In 13+
J2 6 J3-30
J2 7 J3-15 In 15+
J2 8 J3-32
J2 9 J4-17
J2 10 J3-10 In 10+
J2 11 J3-27
J2 12 J3-12 In 12+
J2 13 J3-29
J2 14 J3-14 In 14+
J2 15 J3-31
J2 16 J3-16
In 16+
J2 17 J3-33
J2 18 J2-23 Cable ID
J2 19 NC Cable ID
J2 20 NC Cable ID
J2 21 NC
J2 22 NC
J2 23 J2-18
GND
J2 24 NC
J2 25 NC
J2 26 J4-9
Out 9+
J2 27 J4-26
J2 28 J4-11 Out 11+
J2 29 J4-28
J2 30 J4-13 Out 13+
J2 31 J4-30
J2 32 J4-15
Out 15+
J2 33 J4-32
J2 34 J4-10 Out 10+
J2 35 J4-27
J2 36 J4-12 Out 12+
J2 37 J4-29
J2 38 J4-14 Out 14+
J2 39 J4-31
J2 40 J4-16 Out 16+
J2 41 J4-33
J2 42 NC
J2 43 NC
J2 44 NC
J2 45 NC
J2 46 NC
J2 47 NC
J2 48 NC
J2 49 NC
J2 50 J4-50
Connector Pin Connection Description
In 9-
In 11-
In 13-
In 15GND
FC726 Guide26
In 10-
In 12-
In 14-
In 16-
Out 9-
Out 11-
Out 13-
Out 15-
Out 10-
Out 12-
Out 14-
Out 16-
Appendix B: Compliance Information
Environmental Compliance
Disposal of Waste Equipment by Users in the
European Union
This symbol on the product or its packaging indicates that this product must not
be disposed of with other waste. Instead, it is your responsibility to dispose of
your waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help conserve
natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off
your waste equipment for recycling, please contact your local city recycling office
or the dealer from whom you purchased the product.
Proposition 65 Warning
This product contains chemicals, including lead,
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Wash hands after handling.
Perchlorate Notice
This product may contain a lithium coin battery. The State of California requires
the following disclosure statement: “Perchlorate Material – special handling may
apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”
Recycling Notice
Appendix B: Compliance Information 27
EMC (Electromagnetic Compliance)
N1709
Avid declares that this product complies with the following standards regulating
emissions and immunity:
• FCC Part 15 Class A
• EN55103-1 E4
• EN55103-2 E4
• AS/NZS CISPR 22 Class A
• CISPR 22 Class A
FCC Compliance for United States
Communication Statement
Note: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
Any modifications to the unit, unless expressly approved by
Avid, could void the user's authority to operate the
equipment.
Australian Compliance
Canadian Compliance
This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du
Règlement sur le material brouilleur du Canada.
CE Compliance
(EMC and Safety)
Avid is authorized to apply the CE (Conformité Europénne) mark on this compliant
equipment thereby declaring conformity to EMC Directive 2004/108/EC and Low
Voltage Directive 2006/95/EC.
FC726 Guide28
Safety Compliance
Safety Statement
This equipment has been tested to comply with USA and Canadian safety
certification in accordance with the specifications of UL Standards:
UL 60950-1:2007, 2nd Ed and CAN/CSA-22.2 No. 60950-1-07, 2nd Ed.
Avid Inc., has been authorized to apply the appropriate NRTL mark on its
compliant equipment.
War ning
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves,
or other equipment (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect power cords from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the equipment.
11) Only use attachments/accessories specified by the manufacturer.
12) For products that are not rack-mountable: Use only with a cart, stand, tripod,
bracket, or table specified by the manufacturer, or sold with the equipment.
When a cart is used, use caution when moving the cart/equipment combination
to avoid injury from tip-over.
13) Unplug this equipment during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when
the equipment has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the equipment,
the equipment has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15) For products that are a Mains powered device:
The equipment shall not be exposed to dripping or splashing and no objects filled
with liquids (such as vases) shall be placed on the equipment.
Warning! To reduce the risk of fire or electric shock, do not expose this
equipment to rain or moisture.
16) For products containing a lithium battery:
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
17) For products with a power switch:
It should remain accessible after installation.
18) The equipment shall be used at a maximum ambient temperature of 40° C.
19) This unit is provided with a power supply cord set suitable for 120V AC input
only (for U.S.A.and Canada). For other than U.S.A. and Canada, a qualified
person must provide for use with this unit, an appropriate, approved power
supply cord set which is in compliance with the end use country requirements
and has a minimum cross-sectional area of 1.0mm2.
20) For units with more than one power cord:
CAUTION: This unit has more than one power supply cord. Disconnect two power
supply cords before servicing to avoid electrical shock.
ATTENTION: Cet appareil comporte plus d’un cordon d’alimentation. Afin de
prévenir les chocs électriques, débrancher les deux cordons d’alimentation
avant de faire le dépannage.
21) For products with an operator-accessible fuse:
CAUTION: For continued protection against risk of fire, replace only with same
type and rating of fuse.
ATTENTION: Pour ne pas compromettre la protection contre les risques
d’incendie, remplacer par un fusible de même type et de même caractéristiques
nominales.
Appendix B: Compliance Information 29
FC726 Guide30
Avid
2001 Junipero Serra Boulevard
Daly City, CA 94014-3886 USA
Technical Support (USA)
Visit the Online Support Center at
www.avid.com/support
Product Information
For company and product information,
visit us on the web at www.avid.com
Loading...
