Digi 001 Quick Start Guide

chapter 1

Digi 001 Introduction

About Digi 001

Thank you for purchasing Digi 001, a cross-platform solution for music, sound design, and multimedia production. The Digi 001 package includes the following:

• Installer CD-ROM containing Pro Tools LE recording software, RTAS (Real-Time Audio Suite) Plug-Ins, and online PDF guides

Digi 001 Quick Start Guide

• Digi 001

• Digi 001 PCI card, connects to I/O Box and provides 8 channels of Optical I/O

• Digi 001 I/O Box with connections for analog audio, S/PDIF, and MIDI

• Rack ears, lets you install the I/O Box in a standard 19" rack

• I/O box connector cable, connects the Digi 001 PCI card to the I/O Box

• Optical cable, connects the Digi 001 to an ADAT or S/PDIF audio device

• Digidesign Registration card

, documents installation, conﬁguration, and basic tutorials for

Pro Tools LE Capabilities

The Pro Tools LE software provides the following capabilities:

• Record and play up to 24 audio tracks of digital audio (depending on the capabilities of your computer)

• Record and play up to 128 MIDI tracks

• Use non-linear, random-access editing and mix automation

• Process audio with up to 5 RTAS Plug-Ins per track, limited only by the capabilities of your computer

• Use up to 5 inserts and 5 sends per track

• Route up to 16 busses

• Work with16-bit or 24-bit sessions

Chapter 1: Digi 001 Introduction

▲

Pro Tools LE uses your computer’s CPU to mix and process audio tracks (host processing). Computers with faster clock speeds yield higher track counts and more plug-in processing.

Digi 001 Capabilities

The Digi 001 provides the following inputs and outputs:

• 8 analog audio inputs, 2 with mic preamps

• Switchable 48V phantom power on mic preamps

• 8 analog outputs and stereo monitor output

• Stereo headphone output

• Optical input for 8 channels of ADAT input or 2 channels of S/PDIF input

• Optical output for 8 channels of ADAT output or 2 channels of S/PDIF output

• 2 RCA channels of S/PDIF digital I/O

• MIDI in and out, providing up to 16 channels of MIDI I/O

In addition, the Digi 001 includes a footswitch jack for punching in and out while recording.

System Requirements

Digi 001 can be used on a Power Macintosh or Intel computer.

To use Pro Tools LE on a Macintosh, you need:

• A Digidesign-qualiﬁed Power Macintosh (G3/G4 recommended)

• Mac OS 8.6 or 9.0

• At least 128 MB RAM (192 MB recommended)

• CD-ROM drive for software install

• QuickTime 4.0 or higher (included with Pro Tools LE)

• OMS 2.3.8 or higher (included with Pro Tools LE)

To use Pro Tools LE on Windows 98, you need:

• A Digidesign-qualiﬁed Intel computer (PIII recommended)

• Windows 98, Second Edition

• At least 128 MB RAM (192 MB recommended)

• CD-ROM drive for software install

Digi 001 Quick Start Guide

Compatibility Information

Digidesign can only assure compatibility and provide support for devices it has tested and approved. For a list of Digidesign-qualiﬁed computers, SCSI accelerator cards, hard drives, diskette drives, and serial port adapters, refer to the latest compatibility information on the Digidesign Web site (www.digidesign.com):

Digidesign Registration

Make sure to complete and return the registration card included with Digi 001. Registered users are entitled to one year of free technical support, and will receive periodic software updates and upgrade notices.

About the Guides

This Quick Start Guide will get you started using Digi 001 to record, edit, and mix multiple audio and MIDI tracks. For additional information, see the following online guides:

Pro Tools Reference Guide

•

DigiRack Plug-Ins Guide

• included with Pro Tools LE

MIDI Controllers Guide

• with Pro Tools LE

Keyboard Shortcuts

•

, documents in detail Pro Tools LE software

, documents how to use the RTAS and AudioSuite Plug-Ins

, documents how to use MIDI control surfaces like the Mackie HUI

(Macintosh and Windows), lists keyboard shortcuts for Pro Tools LE

PDF versions of these guides are installed automatically with Pro Tools LE, and can be easily accessed from the Help menu in Pro Tools LE. To read the guides online, or print them, you must install Acrobat Reader (included on the Pro Tools LE Installer CD).

Chapter 1: Digi 001 Introduction

Conventions Used in This Guide

Digidesign guides use the following conventions to indicate menu choices and key commands:

Convention Action

File > Save Session Choose Save Session from the File menu

Control+N While pressing the Control key, press the N key

Option-click While pressing the Option key, click the mouse button

Right-click (Windows) Click with the right mouse button

The following symbols are used to highlight important information:

✽

User Tips are helpful hints for getting the most from your system.

▲

Important Notices include information that could affect your data or the performance of your system.

☞

Cross References point to related sections in other Digidesign guides.

Choose and Select

The words “choose” and “select” are often interchangeable in conversational english. In this guide, however, there is a distinction between the two terms.

Select

When the guide instructs you to

with dialog box options and menu items that enable or disable an option.

Choose

When the guide instructs you to

This is the case with most menu commands; they perform their chosen action only once.

Digi 001 Quick Start Guide

select

something, it stays selected. This is the case

choose

something, a one-time action is performed.

chapter 2

Macintosh Conﬁguration

Installing the Digi 001 Hardware

Before installing the Pro Tools LE software, ﬁrst install the Digi 001 card.

To install the Digi 001 card in your Macintosh:

Turn off your computer. Leave it plugged in so that it is grounded.

Open the computer case. If necessary, refer to the manufacturer’s instructions for details.

Remove the rear slot cover and screw of any available PCI expansion slot.

PCI card installation for Macintosh Blue & White G3

Before handling the Digi 001 card, discharge any static electricity by touching the outer casing of the power supply.

Remove the Digi 001 card from its anti-static bag.

Hold the card gently by the top edges, and line up its PCI connector with the PCI slot inside the computer.

Chapter 2: Macintosh Conﬁguration

When the connector and slot are aligned, press the card into the slot using ﬁrm, even pressure. The card should “pop” into place. Secure the card with the previously removed screw. Make sure the card’s audio connectors are accessible through the rear slot of the computer.

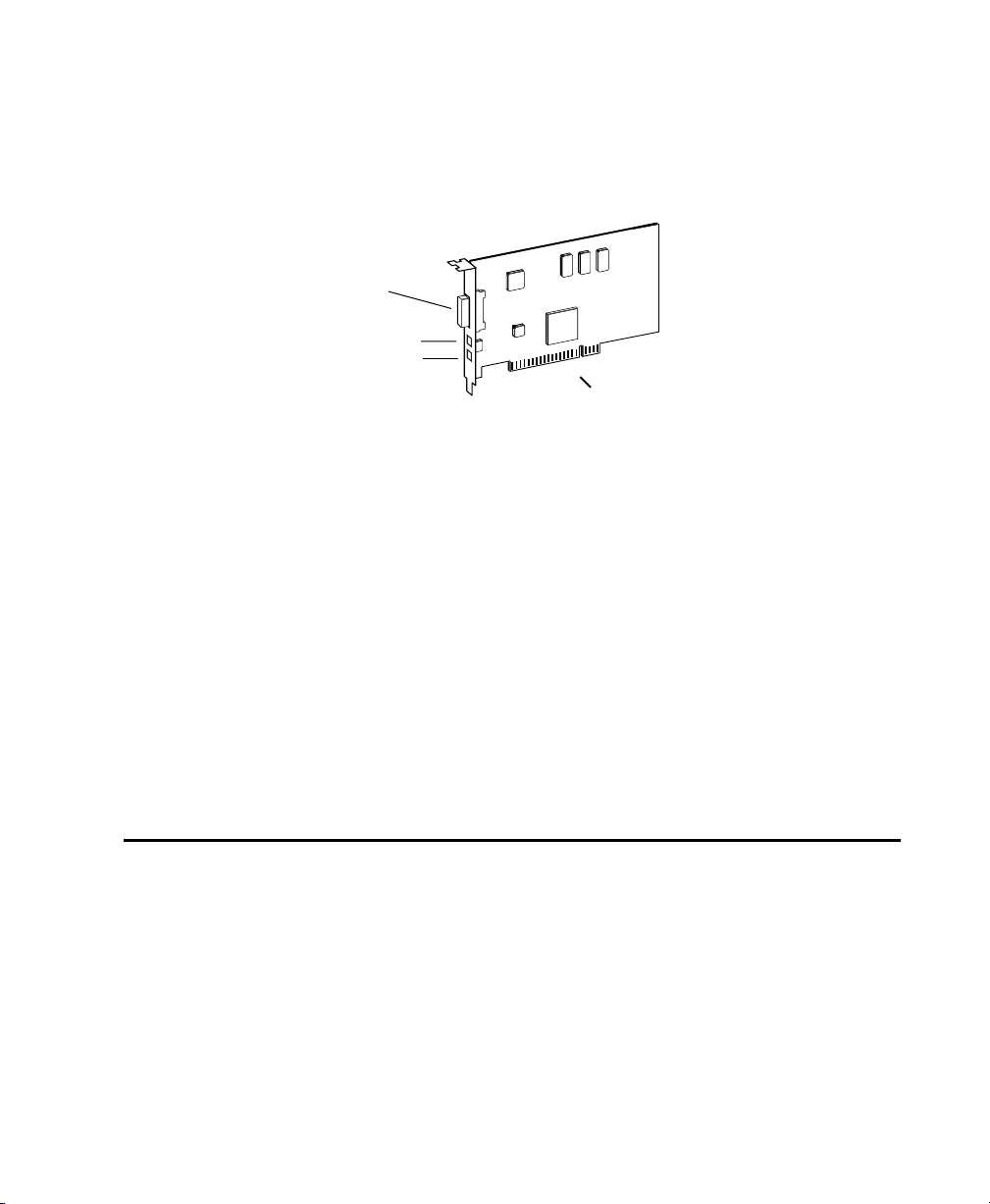

Digi 00I card

Available PCI slot in your computer

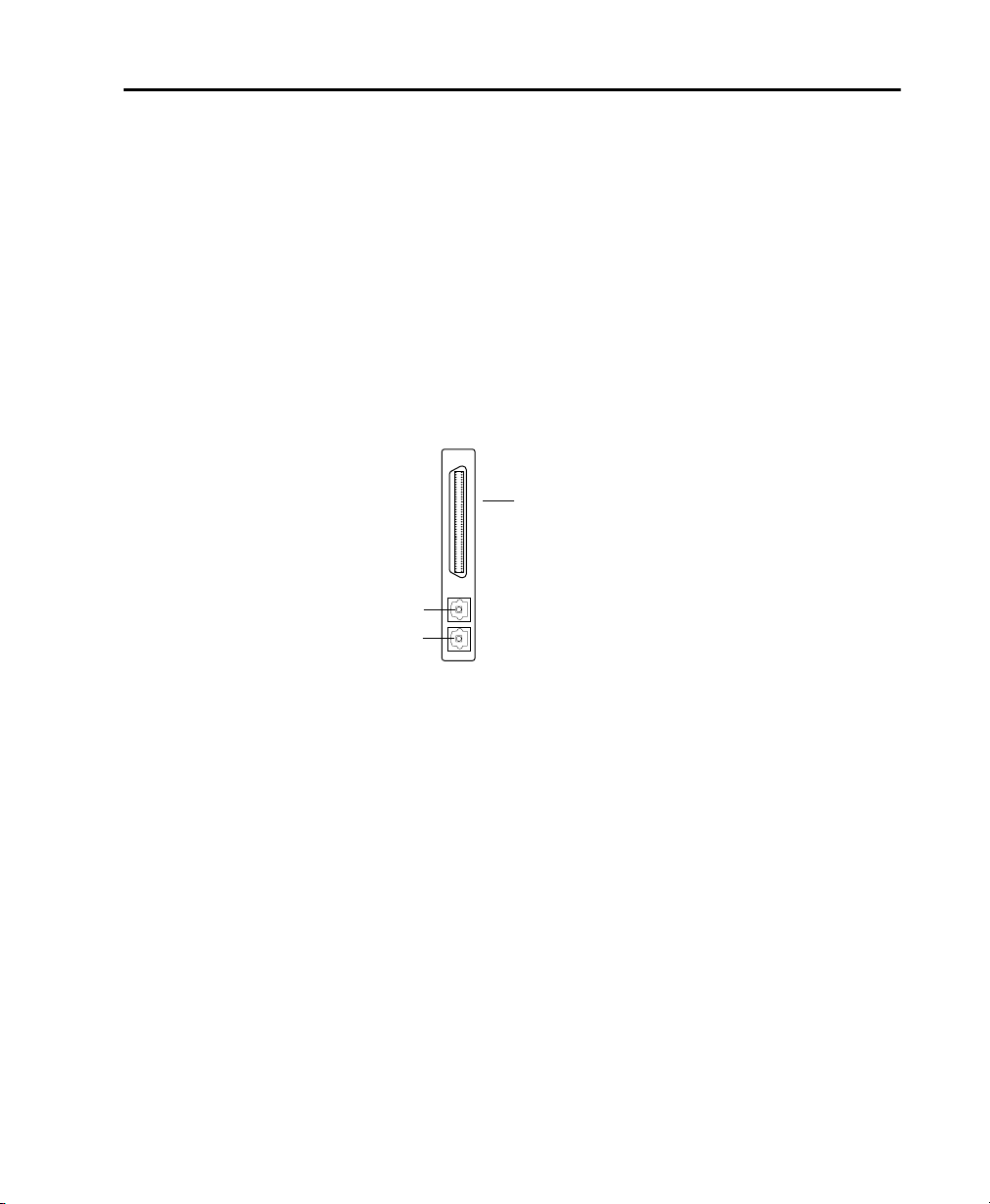

PCI card installation

Close the computer case.

Connecting the Digi 001 I/O Box

▲

Your computer must be off when you connect or disconnect the I/O Box.

To connect the Digi 001 I/O box:

Locate the connector cable with the wide ends that came with your Digi 001.

Align a cable end with the connector on the Digi 001 PCI Card, and insert the cable into the connector until it clicks into place.

Connect cable here

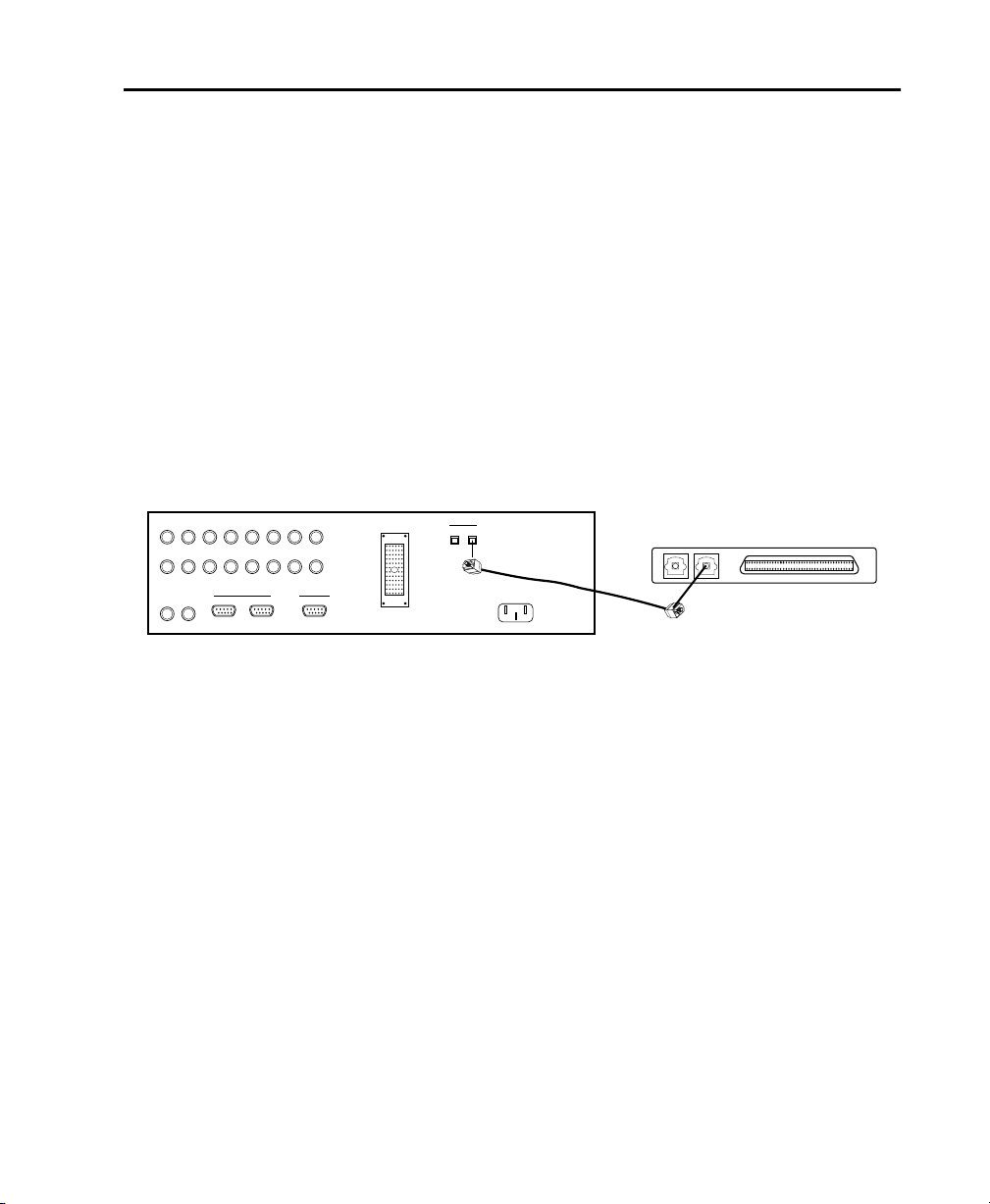

Digi 001 PCI Card (outside computer view) showing cable connector

Align the other cable end with the Computer connector on the Digi 001 I/O Box, and

insert the cable into the connector until it clicks into place.

Connect cable here

Turn on your computer.

Digi 001 Quick Start Guide

Installing the Pro Tools LE Software

Apple System Software Settings

To ensure optimum performance with the Pro Tools LE software, conﬁgure the Apple System software with the following settings.

To conﬁgure the Apple System software:

In the Memory Control Panel do the following:

• Set Virtual Memory to Off.

• Set the Ram Disk to Off.

• Set the Disk Cache to a Custom Setting of 512K.

In the Energy Saver Control Panel, set the “inactive” time to Never.

In the Appearance Control Panel do the following:

• Click the Fonts tab and set the Large System Font to Chicago. In addition, deselect “Smooth all fonts on screen.”

• Click the Sound tab and select None from the Sound Track pop-up menu.

If using a Power Macintosh 9600, set the number of colors to 256 in the Monitors & Sound Control Panel.

In the Extensions Manager Control Panel do the following:

Extensions Manager Control Panel

• Choose Mac OS 8.6 Base (or Mac OS 9.0 Base) from the Selected Set pop-up menu.

• Click Restart to restart your computer.

Chapter 2: Macintosh Conﬁguration 7

Pro Tools LE Installation

After the Apple System software settings are configured, install Pro Tools LE.

To install Pro Tools LE on your Macintosh:

Insert the Pro Tools LE Installer CD in your CD-ROM drive. Locate and double-click

“Install Pro Tools LE.”

At the Install Screen, select the install option for Pro Tools LE, and set the Install Location

to your Startup hard drive. Click Install.

Follow the on-screen installation instructions.

When installation is complete, click Quit (not Restart) and install the demo sessions (see “Installing the Demo Session” on page 8) and OMS (see “Installing and Conﬁguring OMS” on page 9).

Installing the Demo Session

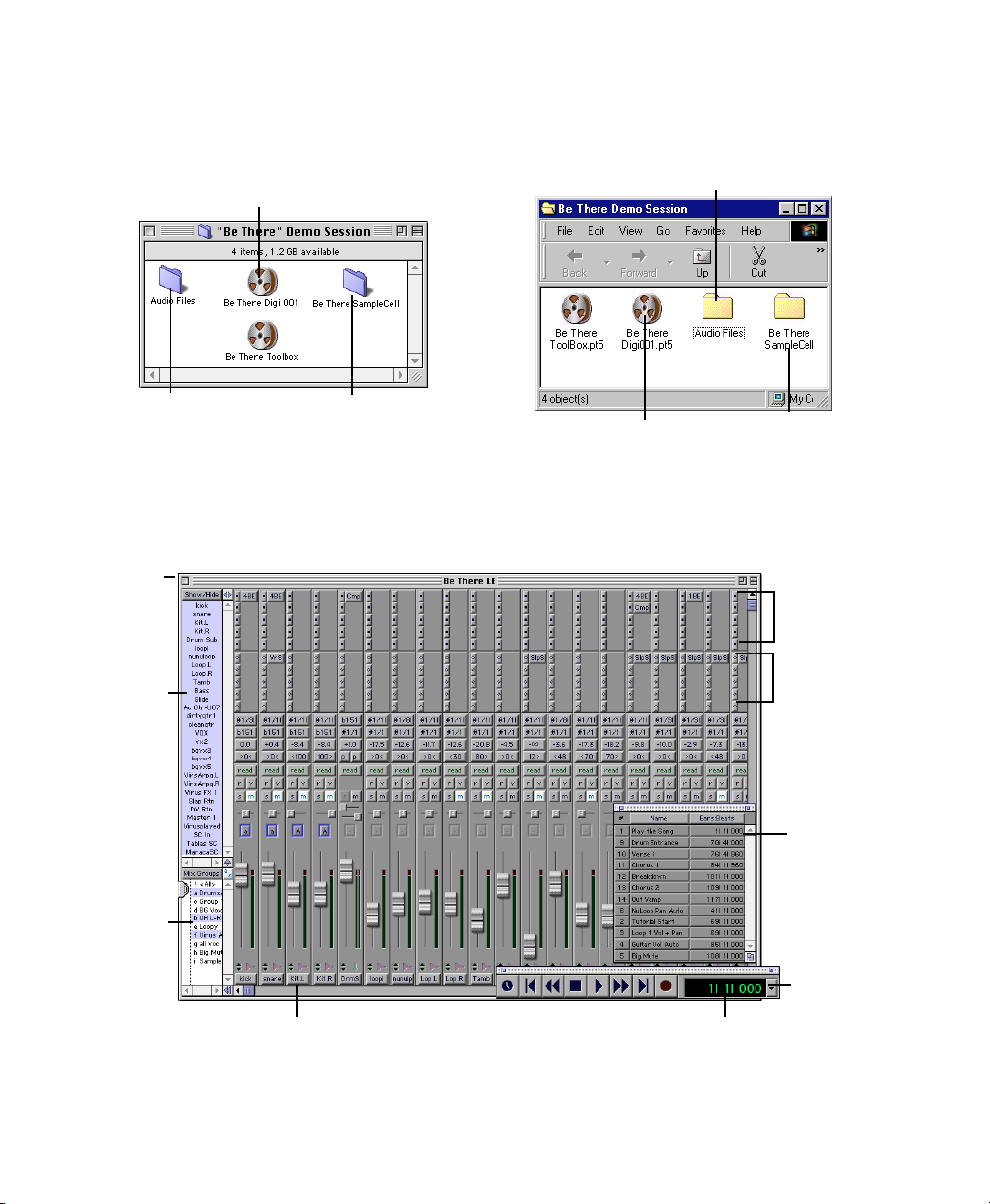

The Digi 001 system includes two demo sessions, SoundCheck Digi001 , which you can use to verify that your system is working, and that you can use to test system playback, and to learn some features of Pro Tools LE using the tutorial information in

Chapter 5: Working with the Demo Session .

▲

Be There LE Digi001 , a more full-featured demo

Before installing the demo sessions to your audio drive, make sure the drive is conﬁgured as described in “Hard Drive Requirements” on page 12.

To install the demo sessions:

Insert the Pro Tools LE Installer CD in your CD-ROM drive. Locate and double-click

“Install PT LE Demo Session.”

At the Install Screen, make sure the install options for “Be There Session” and

“SoundCheck Session” are selected.

Set the Install Location to your audio drive and click Install.

When installation is complete, click Quit.

Digi 001 Quick Start Guide

Installing and Conﬁguring OMS

(Macintosh Only)

To use Pro Tools on the Macintosh you must ﬁrst install and conﬁgure the Open Music System (OMS). OMS, which is included on the Pro Tools Installer CD, has the following capabilities:

• Keeps track of which MIDI devices you are using, how they are connected, and which patches they are using

• Enables MIDI hardware to communicate with your music applications

• Provides timing services and inter-application communication

OMS stores a description of your MIDI studio in

OMS Setup application. Once OMS is conﬁgured, your music applications know

in the which MIDI devices you are using by referencing the current Studio Setup document.

The following sections provide basic instructions for installing and configuring OMS. For more detailed information, refer to the online

Studio Setup documents, which are edited

OMS Guide installed with Pro Tools.

Installing OMS

The OMS Installer is located on your Pro Tools Installer CD-ROM.

To install OMS:

Insert the Pro Tools Installer CD in your CD-ROM drive.

Open the “OMS Installer” folder and double-click the OMS installer.

At the Install Screen, select the Easy Install option, and set the Install Location to your Startup hard drive. Click Install.

Follow the on-screen installation instructions.

When the installation is complete, restart your Macintosh.

Conﬁguring a New Studio Setup

(First-Time OMS Users Only)

Before conﬁguring OMS, make sure the Digi 001 and I/O Box have been installed, and that any other MIDI interfaces are connected according to the manufacture’s instructions and turned on.

To conﬁgure a New Studio Setup in OMS:

Launch the OMS Setup application. If OMS has not yet been conﬁgured, you’ll be prompted to conﬁgure a New Studio Setup. Click OK.

Chapter 2: Macintosh Conﬁguration 9

Select whether your MIDI interface is connected to the Modem or Printer port. If using

a USB or PCI-based MIDI interface, leave both ports unchecked. Click Search.

Ports for OMS Driver Search

OMS searches for and displays any detected MIDI interfaces, MIDI cards, and OMS drivers. If your interface is not detected, click Troubleshoot. Once your interface

detected, you

are prompted to search for MIDI instruments connected to your interface.

Click OK to search for MIDI devices connected to your MIDI interface. To be detected, the

device must be turned on with both of its MIDI ports connected to your MIDI interface.

OMS Driver Setup

OMS searches for and displays any detected MIDI devices. Some older instruments, as well as some newer ones, may not be recognized by the OMS auto-detection routines.

Undeﬁned OMS device

Devices not recognized by OMS appear with a red question mark and are named based on the interface or port to which they are connected. These devices can be defined as necessary within the OMS Setup application (see “Defining MIDI Devices in OMS” on page 11).

Click OK to save your Studio Setup document.

Digi 001 Quick Start Guide

Deﬁning MIDI Devices in OMS

To deﬁne a MIDI device in OMS Setup:

Double-click the device’s icon in the Studio Setup window.

In the MIDI Device Info dialog, select the Manufacturer and Model for the device from the pop-up menus. If the device is not listed, leave the Model set to “other” and enter a name for the device.

MIDI Device Info

Select the Receiving Channel for the device. If receiving multiple channels, select the option for “Is Multitimbral.”

If you will record from the device in Pro Tools, select the option for “Is Controller.” If the

device will be a source or destination for MIDI Time Code, Beat Clock, or MMC, select the appropriate option.

Click Ok.

Disabling Serial DMA in OMS

Pro Tools requires that you deselect the “Use Apple Serial DMA Driver When Available” option in OMS Setup. If you do not disable this option, problems will occur with MIDI and synchronization functions within Pro Tools.

To disable Serial DMA in OMS:

Double-click the OMS Setup application.

Choose Edit > Preferences.

Deselect “Use Apple Serial DMA Driver When Available” and click OK.

Quit OMS Setup.

Chapter 2: Macintosh Conﬁguration 11

Hard Drive Requirements

For audio recording and storage on the Macintosh, Pro Tools LE requires one or more qualiﬁed ATA/IDE or SCSI drives with the following properties:

• Formatted with HFS or HFS+ ﬁle system

• Data transfer rates of 3 MB per second or faster

• Drive spin speed of 7,200 RPM or faster

• Average seek time of 10.0 milliseconds or faster

✽

For the latest compatibility information on hard drives, visit the Digidesign Web site (www.digidesign.com).

Using System Drives for Audio

Although Pro Tools will let you record to your system drive, this is generally not recommended. Performance for recording and playback on system hard drives is worse than on non-system drives, resulting in lower track counts and fewer plug-ins.

You should record to system drives only when absolutely necessary—if your computer system has just one hard drive, or if your other hard drives are completely out of space.

SCSI Hard Drives

SCSI hard drives offer several advantages over ATA/IDE drives. First, SCSI drives can be external and therefore provide portable audio storage that is easily moved between systems. Second, SCSI drives offer slightly better performance when recording to large numbers of tracks; attempting to record to a large number of audio tracks with an ATA/IDE drive will result in a short delay before recording begins.

Initialize and Defragmenting Drives

It’s recommended that you start with a newly initialized audio drive. You should also periodically

If you are using a SCSI hard drive, you can use the (included on the Pro Tools LE Installer CD) to initialize and defragment the drive.

If you are using an ATA/IDE hard drive, use the System software.

Digi 001 Quick Start Guide

defragment

your audio drive to ensure continued system performance.

ExpressPro-Tools

Drive Setup

utility included with the Apple

software from ATTO

Hard Drive Storage Space

Mono audio tracks recorded with 16-bit resolution at 44.1 kHz (CD-quality) require approximately 5 MB of hard disk space per minute. The same tracks recorded with 24-bit resolution require about 7.5 MB per minute. The following table lists the required drive space for certain track numbers and track lengths. In deciding the required hard drive space for your needs, plan accordingly.

Required hard drive space for audio tracks

Number of tracks and length 16-bit at

44.1 kHz

1 track, 1 minute 5 MB 5.5 MB 7.5 MB 8.2 MB

2 tracks (stereo), 5 minutes 50 MB 55 MB 75 MB 83 MB

2 tracks (stereo), 60 minute 600 MB 662 MB 900 MB 991 MB

24 tracks, 5 minutes 600 MB 662 MB 900 MB 991 MB

24 tracks, 60 minutes 7 GB 7.8 GB 10.5 GB 11.6 GB

16-bit at

48 kHz

24-bit at

44.1 kHz

24-bit at

48 kHz

Launching Pro Tools LE the First Time

Serial Number Entry

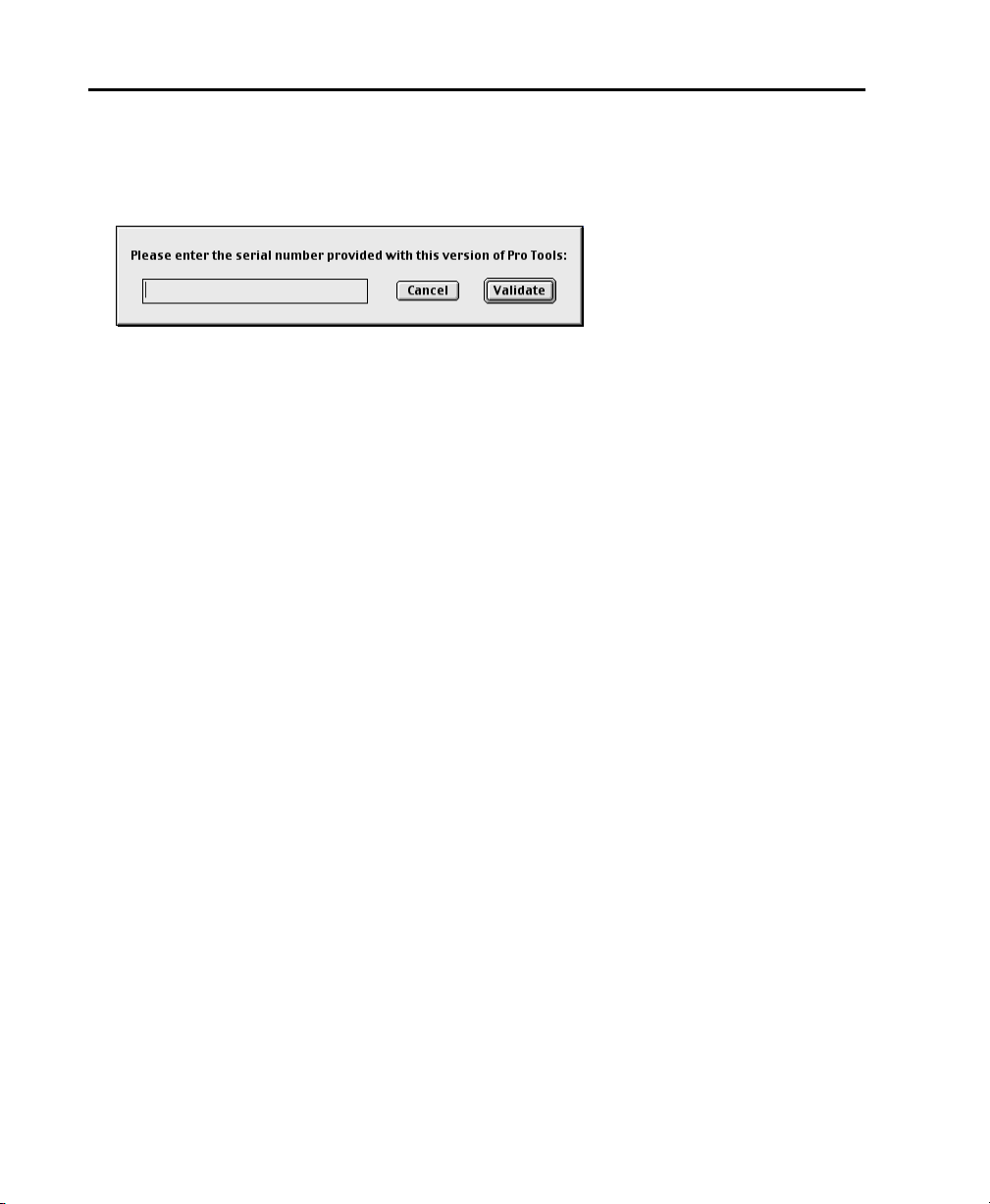

When launching Pro Tools LE the ﬁrst time, you are prompted to enter a serial number.

Serial number entry for Pro Tools

The serial number is located on the inside cover of this guide. Enter it in the dialog when prompted, making sure to observe any spaces, then click Validate.

Chapter 2: Macintosh Conﬁguration

Digi 001 Quick Start Guide

chapter 3

Windows 98 Conﬁguration

BIOS and System Modiﬁcations

Before installing any hardware or software, ﬁrst make changes to your computer’s BIOS and System settings. These settings are necessary to ensure optimum performance for Pro Tools LE on Windows 98.

BIOS Settings

Different BIOS manufacturers often use different names to describe the same system function—or in some cases, do not provide a particular configuration option at all. The names and options that appear in your computer’s BIOS may differ slightly from those described in the following procedure.

Make the following changes to your computer’s BIOS settings:

Turn on your computer, or if it is already on, restart it.

During startup, enter the BIOS Setup by pressing the appropriate key (usually indicated in the startup message) on your computer keyboard. For most computers, this will be either F1, F2, or the Delete key.

3 In the appropriate page of the BIOS Setup, disable PCI Parity. 4 Save changes, exit the BIOS Setup screen, and restart your computer.

Windows System Settings

In Windows 98, configure the following Control Panel settings.

Disable Auto Insert Notiﬁcation for CD-ROM and removable media drives:

1 From the desktop, right-click My Computer and choose Properties. 2 In the System Control Panel, click the Device Manager tab. 3 Locate and double-click the device for your CD-ROM. In the CD-ROM Properties dialog,

click the Settings tab.

Chapter 3: Windows 98 Conﬁguration

4 Deselect the option for Auto Insert Notiﬁcation and click OK. 5 Repeat for any removable media devices, such as Jaz and Zip drives. 6 Close the System Control Panel.

Enable DMA for any IDE hard drives:

1 From the desktop, right-click My Computer and choose Properties. 2 In the System Control Panel, click the Device Manager tab. 3 Locate and double-click the device for your IDE hard drive. In the Disk Drive Properties

dialog, click the Settings tab.

4 Select the DMA option and click OK. 5 Repeat for any additional IDE drives. 6 Close the System Control Panel.

Other Software and Hardware Affecting System Performance

Pro Tools LE can also be affected by other software and hardware drivers installed on your computer. For best possible performance, it is recommended that you:

• Avoid running other Windows programs at the same time as Pro Tools LE.

• Turn off any software utilities that run in the background, such as calendars and virus protection.

• Disable Windows System sounds. In the Sound Control Panel, set the Sound Scheme to No Sounds.

• If your video display card supports it, enable Bus Mastering in the manufacturer’s Control Panel.

• Disable any networking cards.

Installing the Digi 001 Hardware

Before installing the Pro Tools LE software, first install the Digi 001 card.

To install the Digi 001 card in your Intel computer:

1 Turn off your computer. Leave it plugged in so that it is grounded. 2 Open the computer case. If necessary, refer to the manufacturer’s instructions for details. 3 Remove the rear slot cover and screw of any available PCI expansion slot.

Digi 001 Quick Start Guide16

4 Before handling the Digi 001 card, discharge any static electricity by touching the outer

casing of the power supply.

5 Remove the Digi 001 card from its anti-static bag. 6 Hold the card gently by the top edges, and line up its PCI connector with the PCI slot

inside the computer.

PCI card installation for an Intel computer

7 When the connector and slot are aligned, press the card into the slot using ﬁrm, even

pressure. The card should “pop” into place. Secure the card with the previously removed screw. Make sure the card’s audio connectors are accessible through the rear slot of the computer.

PCI card installation

8 Replace the computer case.

Digi 00I card

Available PCI slot in your computer

Chapter 3: Windows 98 Conﬁguration 17

Connecting the Digi 001 I/O Box

Your computer must be off when you connect or disconnect the I/O Box.

To connect the Digi 001 I/O box:

Locate the connector cable with the wide ends that came with your Digi 001.

Align a cable end with the connector on the Digi 001 PCI Card, and insert the cable into the connector until it clicks into place.

Connect cable here

Digi 001 PCI Card (outside computer view) showing cable connector

Align the other cable end with the Computer connector on the Digi 001 I/O Box, and

insert the cable into the connector until it clicks into place.

Connect cable here

Turn on your computer.

Digi 001 Quick Start Guide

▲

Installing the Windows 98 Wave Drivers

Once you’ve installed the Digi 001 card and have turned on your computer, the Add New Hardware Wizard will prompt you to install the necessary Windows 98 drivers.

To install the WIndows 98 wave drivers:

When the Add New Hardware Wizard appears, click Next.

Add New Hardware Wizard, Windows 98

When Windows asks what you want to do, select the option for “Display a list of all the

drivers in a speciﬁc location” and click Next.

From the list of device types, select “Sound, video & game controllers,” then click Next.

Insert the Pro Tools LE CD and click Have Disk.

Click Browse. Navigate to and select the “WaveDriver98” folder on the Pro Tools LE CD,

then click OK.

Click OK to close the Install from Disk dialog.

In the Select Device dialog, choose the Digidesign Digi 001 as your device and click OK.

Click Next to install the necessary driver components.

▲

If you are prompted that “DigiProx: Cannot run with this version of XXXXX.dll,” follow the instructions in this dialog.

Once Windows has ﬁnished installing the software for your new hardware device, click Finish.

Chapter 3: Windows 98 Conﬁguration 19

Installing the Pro Tools LE Software

After installing the Digi 001 hardware and its wave drivers, install Pro Tools LE.

To install Pro Tools LE on Windows 98:

Insert the Pro Tools LE Installer CD in your CD-ROM drive. A window opens displaying the CD-ROM contents.

Open the “Pro Tools LE Installer” folder and double-click the Setup program.

When the installer opens, click Next to proceed.

Choose from the following three install options:

• Typical, recommended for ﬁrst-time users

• Compact, installs the minimum components necessary to run Pro Tools LE

• Custom, lets you select which components are installed (for advanced users)

Click Next to install the selected option. Files are installed to the “Digidesign” folder

inside the Program Files folder.

When installation is complete, restart your computer.

Installing the Demo Session

▲

The Digi 001 system includes two demo sessions, “Sound Check,” which you can use to verify that your system is working, and “Be There LE,” a more full-featured demo that you can use to test system playback, and to learn some features of Pro Tools LE using the tutorial information in

Chapter 5: Working with the Demo Session .

Before installing the demo sessions to your audio drive, make sure the drive is conﬁgured as described in “Hard Drive Requirements” on page 22.

Digi 001 Quick Start Guide

To install the demo sessions:

Insert the Pro Tools LE Installer CD in your CD-ROM drive. A window opens displaying the CD-ROM contents.

Open the “Pro Tools Demo Installer” folder and double-click the Setup program.

When the installer opens, click Browse to set the Destination Folder to your audio drive,

then click Next.

Select the install components for the “SoundCheck Session” and “Be There Session.”

Click Next to install the demo sessions.

Removing Pro Tools LE and the Digi 001 Wave Drivers

If for some reason you need to remove the Pro Tools LE software, you can do so from the Add/Remove Program Control Panel. You can also, if desired, remove the Digi 001 wave driver from the System Control Panel.

To remove Pro Tools LE from your system:

Choose Start > Settings > Control Panel.

Double-click Add/Remove Programs.

From the list of programs, select Pro Tools LE and click Add/Remove.

If the UnInstall Shield prompts you to remove shared ﬁles, click Yes to All.

Select Digidesign System Files from the list of programs and click Add/Remove.

Close the Add/Remove Programs Control Panel.

Restart your computer.

To remove the Digi 001 wave driver:

From the desktop, right-click My Computer and choose Properties.

In the System Control Panel, click the Device Manager tab.

Locate and select the Digi 001 device, then click Remove.

When prompted, conﬁrm you want to remove the device.

Close the System Control Panel.

Using Windows Explorer, locate and delete the following ﬁle:

Windows\Inf\Other\DigidesignDALWDM.inf

Restart Windows.

Chapter 3: Windows 98 Conﬁguration 21

Hard Drive Requirements

(Windows)

For audio recording and storage on the Windows 98, Pro Tools LE requires one or more qualiﬁed ATA/IDE or SCSI drives with the following properties:

• Formatted with FAT16 or FAT32 ﬁle system (FAT32 recommended)

• Data transfer rates of 3 MB per second or faster

• Drive spin speed of 7,200 RPM or faster

• Average seek time of 10.0 milliseconds or faster

✽

For the latest compatibility information on hard drives, visit the Digidesign Web site (www.digidesign.com).

Using System Drives for Audio

You should record to system drives only when absolutely necessary—if your computer system has just one hard drive, or if your other hard drives are completely out of space.

SCSI Hard Drives

Formatting and Defragmenting Drives

It’s recommended that you start with a newly formatted audio drive; and for optimum performance, the drive should be formatted with the FAT32 ﬁle system. You should also periodically

Digi 001 Quick Start Guide

defragment

✽

You can convert hard drives formatted with FAT16 to FAT32 with the

Drive Converter

your audio drive to ensure continued system performance.

utility included with Windows 98.

To format an audio drive:

From the desktop, double-click My Computer.

Right-click the hard drive you will use for audio and choose Format.

Set the Format Type to Full and click Start.

Follow the on-screen instructions. When formatting is complete, close the Format window.

To defragment an audio drive:

From the desktop, double-click My Computer.

Right-click your audio hard drive and choose Properties.

Click the Tools tab.

Click Defragment Now and follow the on-screen instructions.

When defragmenting is complete, close the Properties Control Panel.

Hard Drive Storage Space

Number of tracks and length 16-bit at

44.1 kHz

1 track, 1 minute 5 MB 5.5 MB 7.5 MB 8.2 MB

2 tracks (stereo), 5 minutes 50 MB 55 MB 75 MB 83 MB

2 tracks (stereo), 60 minute 600 MB 662 MB 900 MB 991 MB

24 tracks, 5 minutes 600 MB 662 MB 900 MB 991 MB

24 tracks, 60 minutes 7 GB 7.8 GB 10.5 GB 11.6 GB

Required hard drive space for audio tracks

16-bit at

48 kHz

24-bit at

44.1 kHz

24-bit at

48 kHz

Chapter 3: Windows 98 Conﬁguration

Launching Pro Tools LE the First Time

Serial Number Entry

When launching Pro Tools LE the first time, you are prompted to enter a serial number.

Serial number entry for Pro Tools

The serial number is located on the inside cover of this guide. Enter it in the dialog when prompted, making sure to observe any spaces, then click Validate.

Digi 001 Quick Start Guide24

chapter 4

Connecting Your Studio

This chapter explains how to connect your Digi 001 to a mixer, ampliﬁcation system, digital recorders, and other studio devices, and how to connect audio sources for recording.

Digi 001 I/O Box Inputs and Outputs

All Digi 001 inputs and outputs are factory calibrated for 14 dB of headroom below 0 dB, or full code. This means at the nominal reference input level (+4 dBu or –10 dBV) you can have up 14 dB of headroom before input or output clipping occurs.

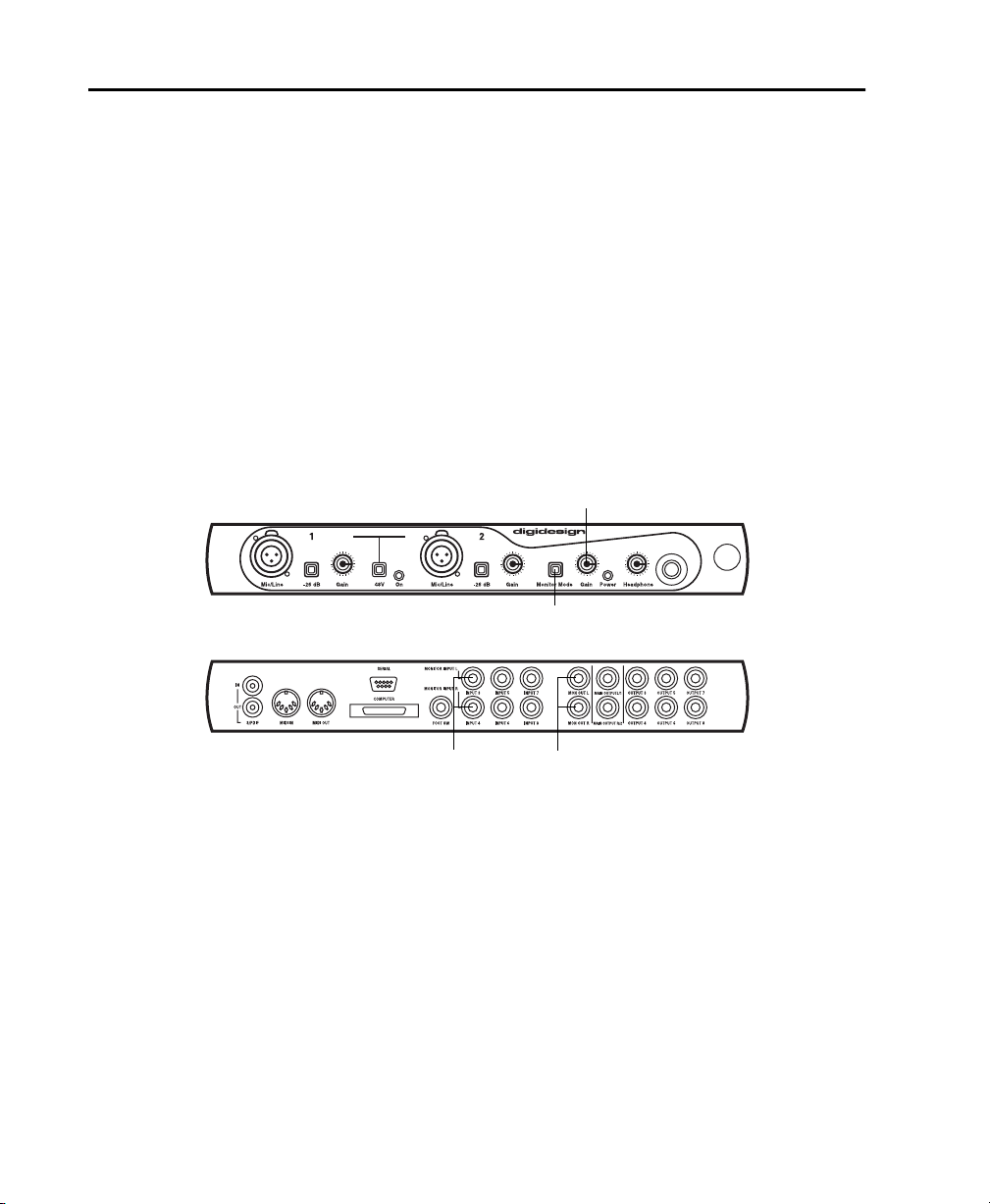

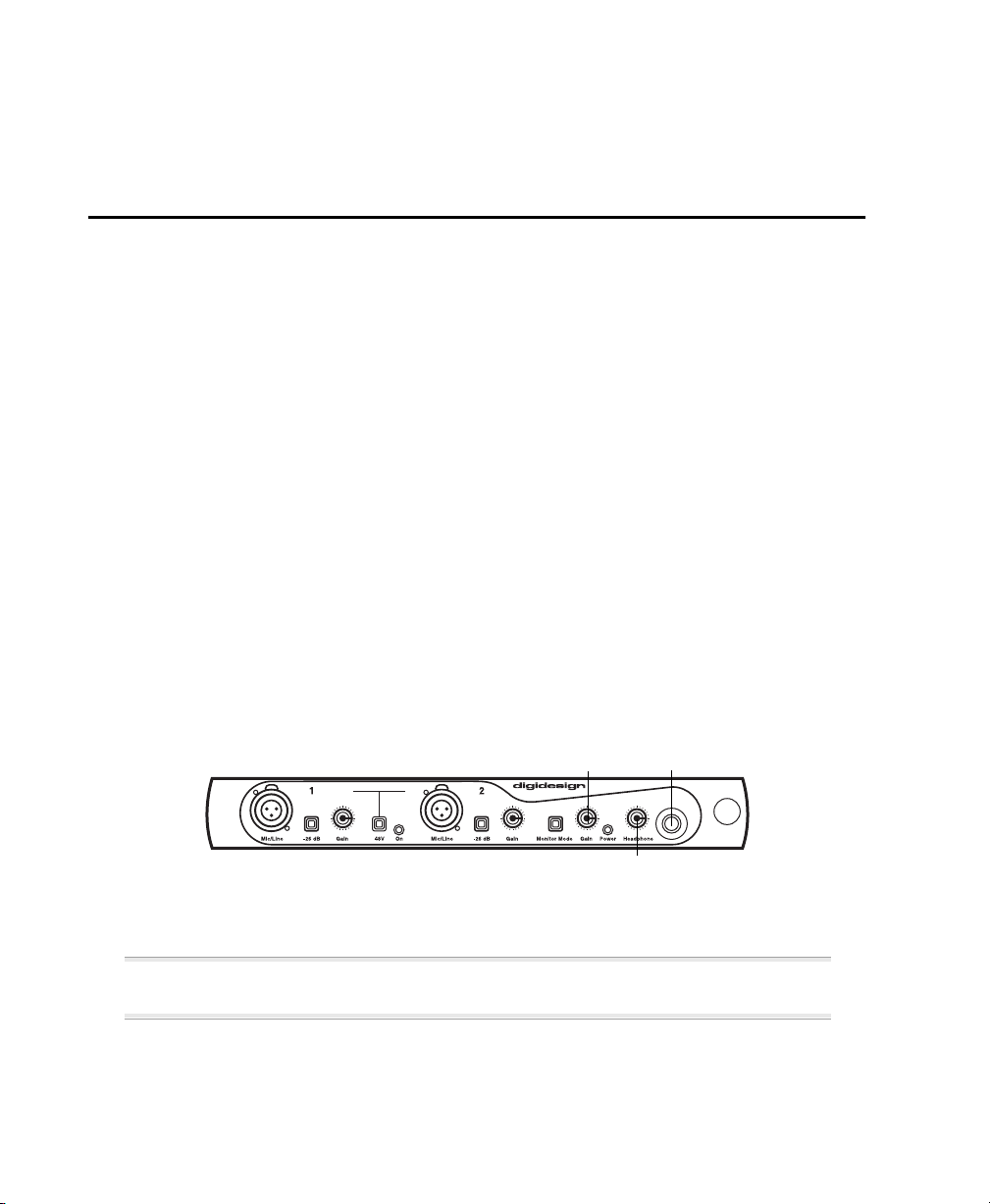

Connectors on the Digi 001 I/O Box Front Panel

Mic/Line input 1

with preamp

–26 dB

pad

48V phantom

power

input

phantom power

gain

Mic/Line input 2

with preamp

indicator

–26 dB

pad

Monitor Mode

switch

input

monitor

gain

volume

headphone

gain

power on

indicator

headphone

output

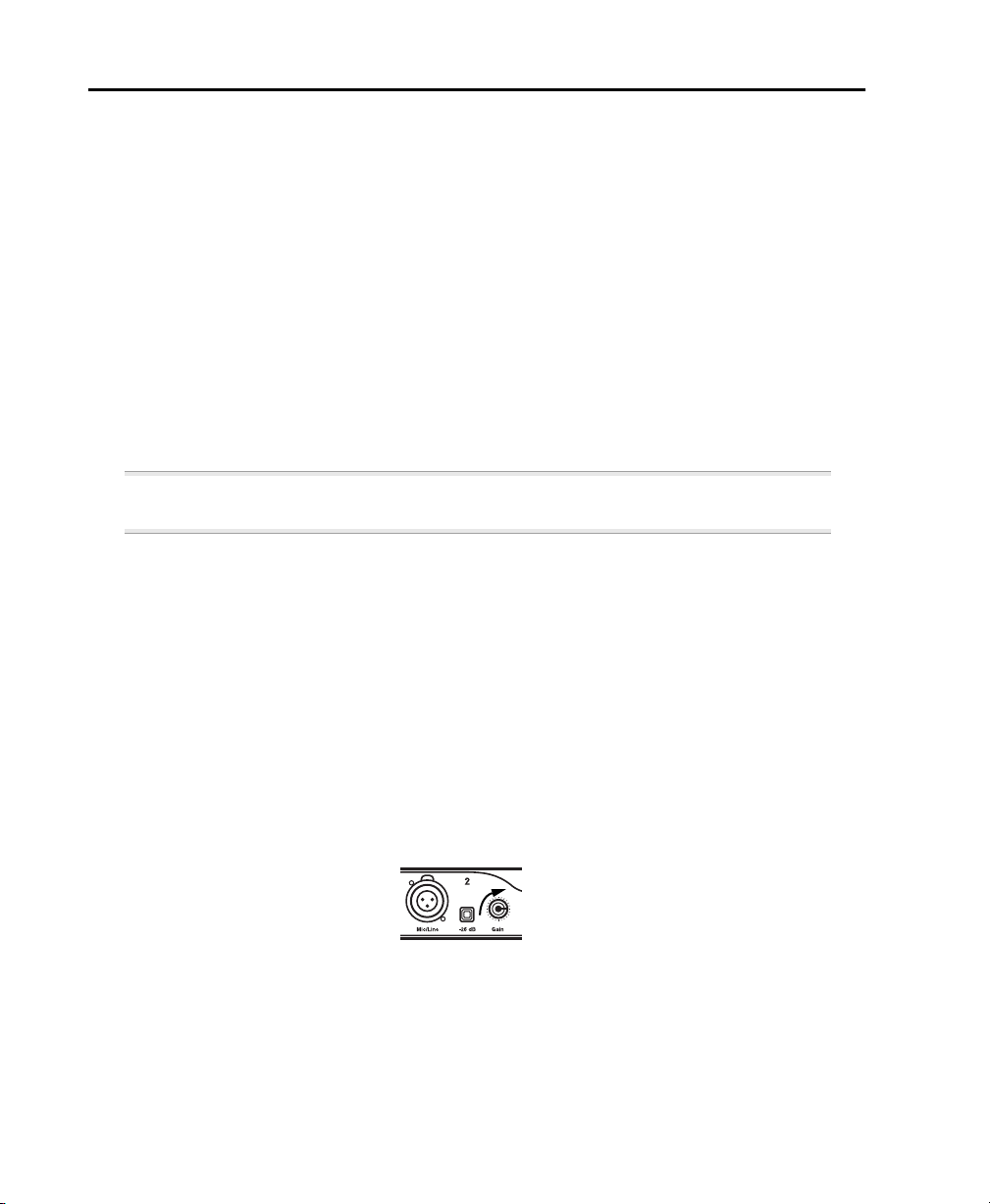

Mic/Line Inputs 1 and 2

These balanced/unbalanced inputs are designed for microphones or line-level inputs (with the –26 dB pad). They accept XLR or 1/4" analog audio input connections.

–26 dB Pads 1 and 2

These switches allow you accommodate line-level signals on Mic/Line Input 1 and 2 by reducing input sensitivity by –26 dB.

Input Gain 1 and 2

These controls adjust the input gain of Mic/Line inputs 1 and 2.

Chapter 4: Connecting Your Studio 25

Phantom Power

This switch applies 48V phantom power to Mic/Line inputs 1 and 2. These inputs provide 48V phantom power for microphones that require it to operate. This switch provides phantom power to both inputs.

Dynamic microphones (like a Shure SM57) do not require phantom power to operate, but are not harmed by it. Most condenser microphones (like an AKG C3000) do require phantom power to operate. If you are not sure about the phantom power requirements for your microphone, contact the manufacturer, or read your microphone’s documentation.

▲ Although phantom power can be used safely with most microphones, ribbon mi-

crophones can be destroyed by it. Always turn off phantom power, and wait for the red phantom power indicator light to go completely off, before connecting a ribbon microphone.

Phantom Power Indicator

When lit (red) this LED indicates that phantom power is on.

Monitor Mode

When this switch is pushed in, the Digi 001 I/O Box switches to Monitor Mode, which allows you to monitor analog inputs 3–4 on the Digi 001 I/O Box even when the power for your computer is off. Use this to monitor an audio device such as a CD player or synth without turning on the computer.

Monitor Volume

This control allows you to adjust the output level of the Left and Right Monitor Outputs. This control also adjusts the level of these outputs when the I/O Box is in Monitor Mode. The monitor outputs mirror the audio routed to outputs 1–2 in software and on the I/O Box.

Power On Indicator

When lit (green), this LED indicates that the Digi 001 I/O Box is on. Your computer must be powered on to power the Digi 001.

Digi 001 Quick Start Guide26

Headphone Gain

This control allows you to adjust the output level of the headphone jack.

Headphone Output

Use the Headphone Output to connect stereo headphones. This jack accepts a 1/4" stereo plug. This outputs any audio that is routed to analog outputs 1–2 in Pro Tools LE. The Headphone Output is disabled in unpowered Monitor Mode (see “Monitor Mode” on page 26 for more information).

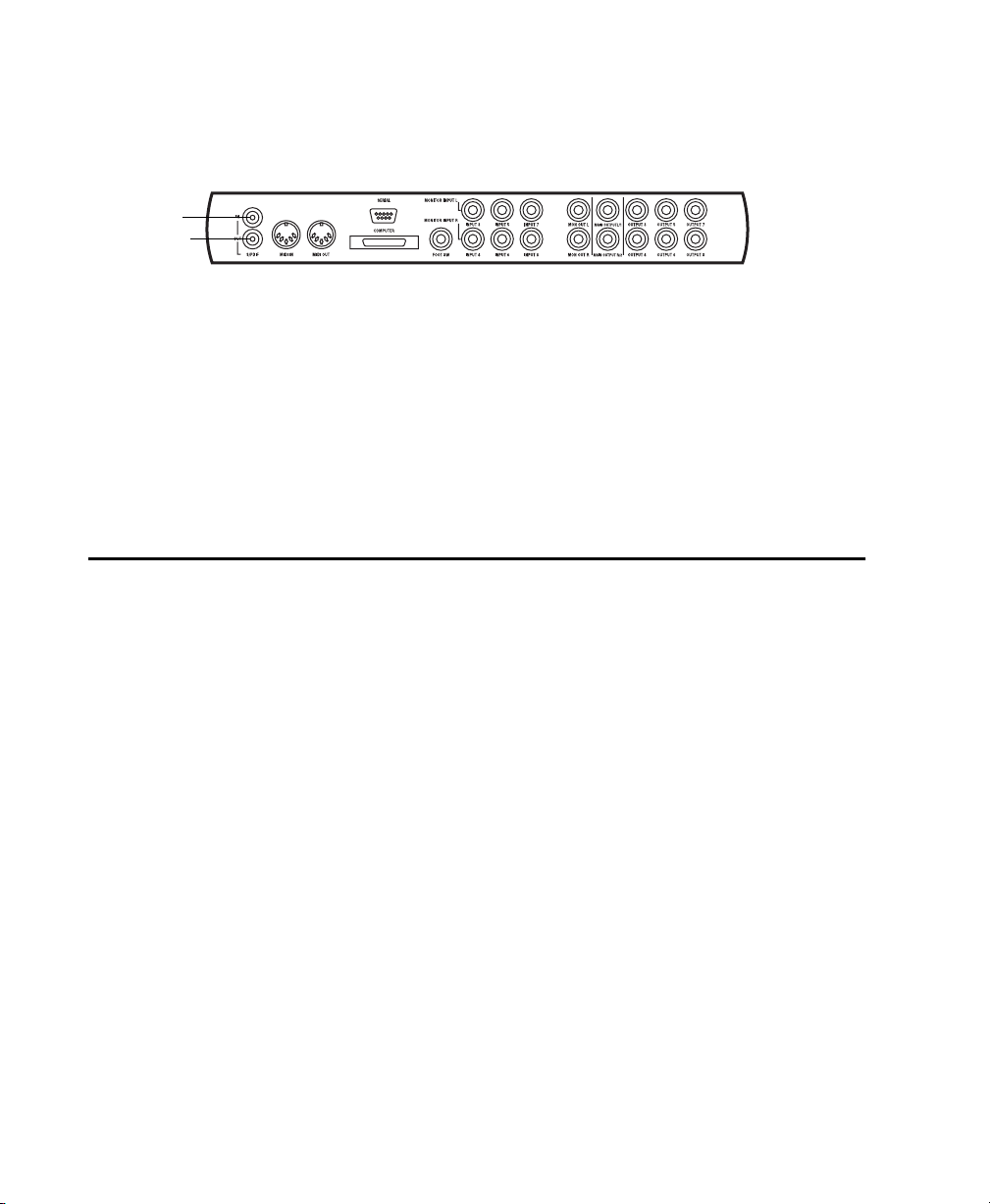

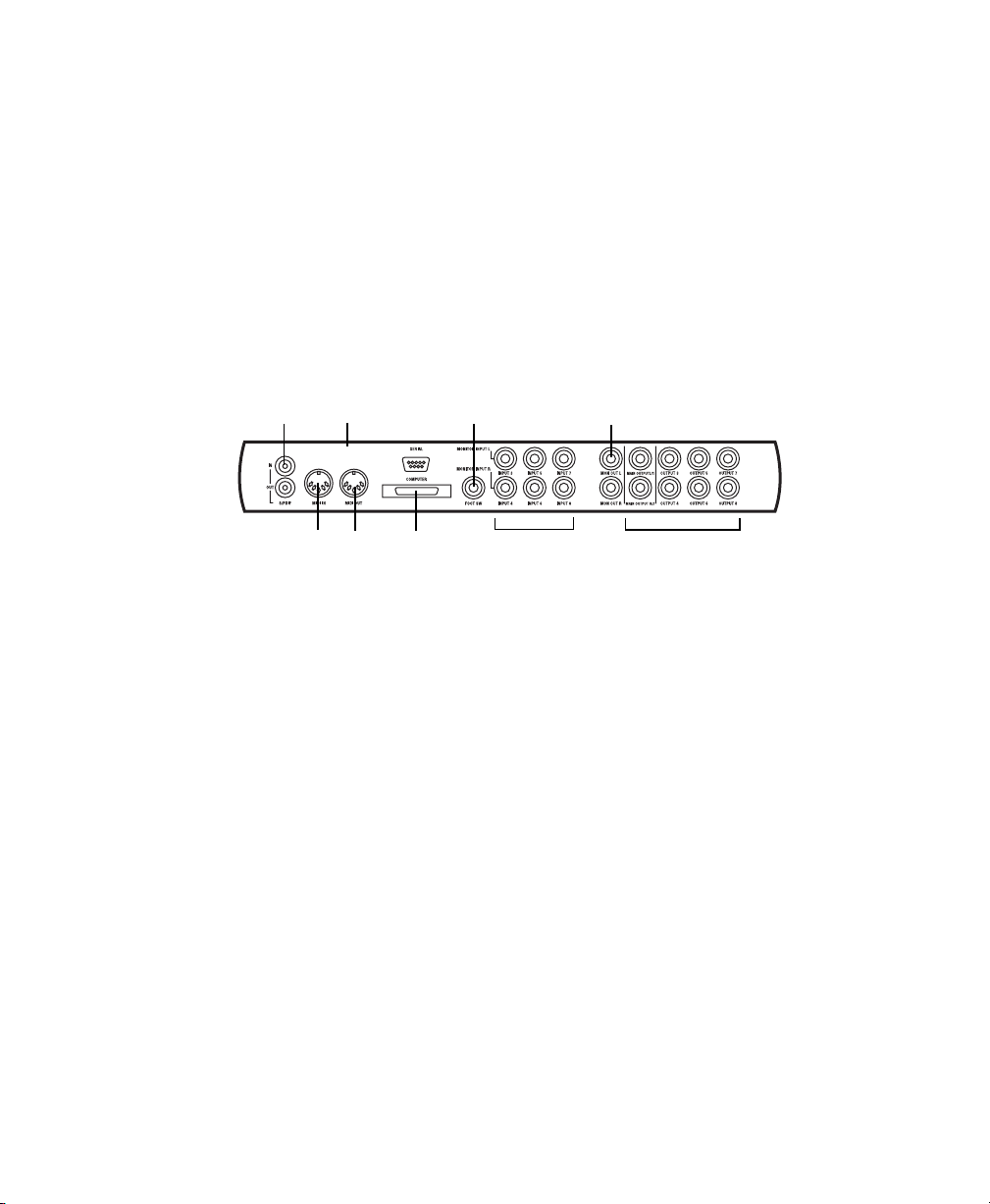

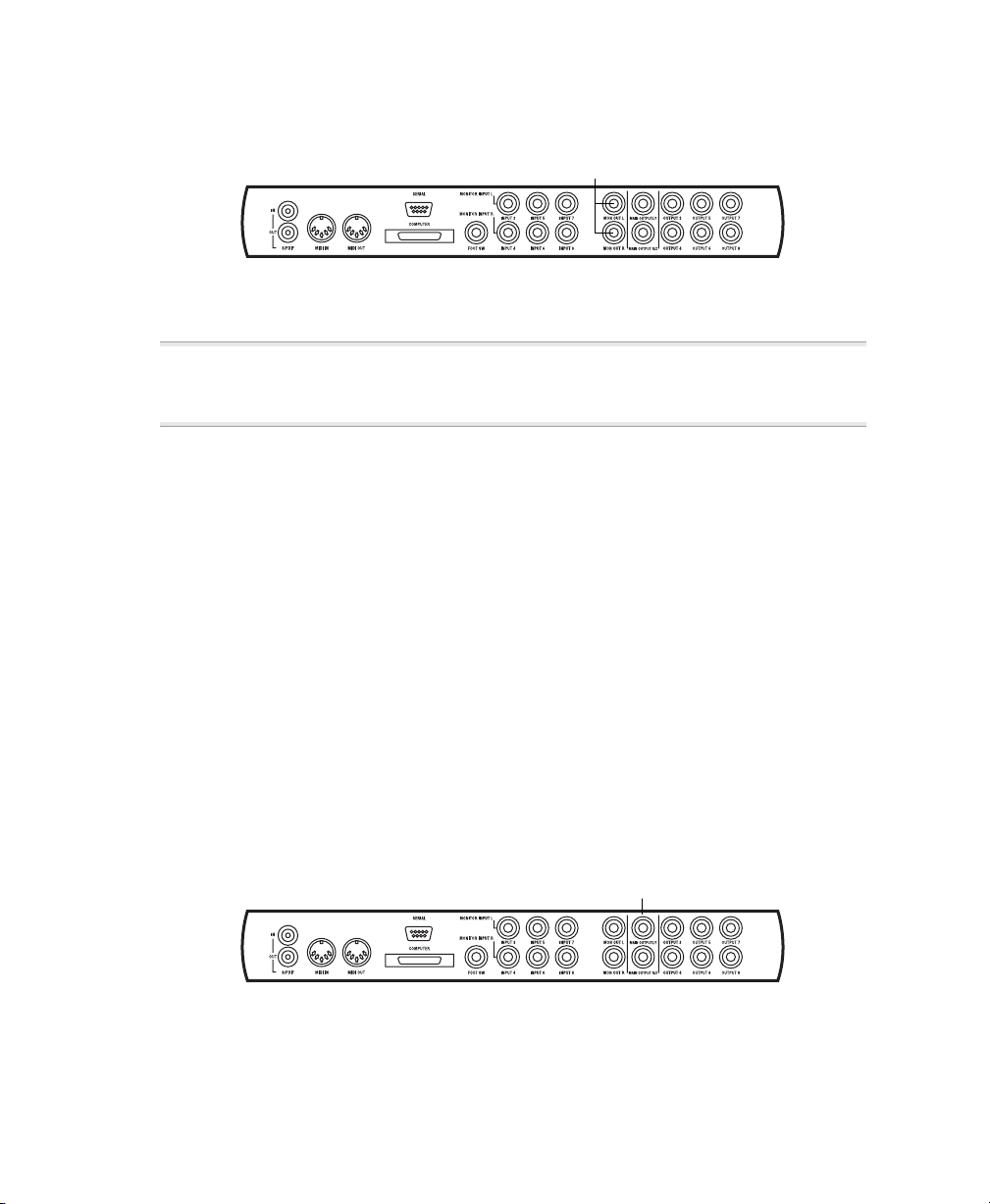

Connectors on the Digi 001 I/O Box Back Panel

S/PDIF

digital I/O

serial

number

123456789

MIDIinMIDI

out

Computer

connector

footswitch

jack

analog

inputs 3–8

monitor outputs

analog

outputs 1–8

S/PDIF Digital I/O

The Sony Phillips Digital Interface Format (S/PDIF) is used in many professional and consumer CD players and DAT recorders. The S/PDIF in/out jacks are unbalanced 2conductor phono (RCA) jacks that utilize a full 24-bit digital data stream. To avoid RF interference, use 75-ohm coaxial cable for S/PDIF transfers and keep the cable length to a maximum of 10 meters.

MIDI I/O

The MIDI connectors on the Digi 001 I/O Box allow Digi 001 to act as a MIDI interface. A MIDI driver for this device is installed when you install Pro Tools LE, and recognized by Windows Multimedia, or when you update MIDI Cards & Interfaces in OMS Setup (Macintosh). One MIDI input and one MIDI output allow you to send and receive MIDI on 16 channels. These connectors accept standard 5-pin MIDI cables. Digi 001 MIDI I/O can be used in addition to any other MIDI interfaces you are using.

Computer Connector

This connector is used to connect the I/O Box to the Digi 001 PCI card. The cable for this is supplied with your system.

Chapter 4: Connecting Your Studio 27

Footswitch Jack

This connector allows you to connect a footswitch that can be used for control of QuickPunch audio punch-in and punch-out features in Pro Tools LE, and for MIDI punchin and punch-out recording with Pro Tools LE. Both continuous on/continuous off and instantaneous on/off pedals with a 1/4" TRS connector are supported. See “Recording with a Footswitch” on page 72 for more information.

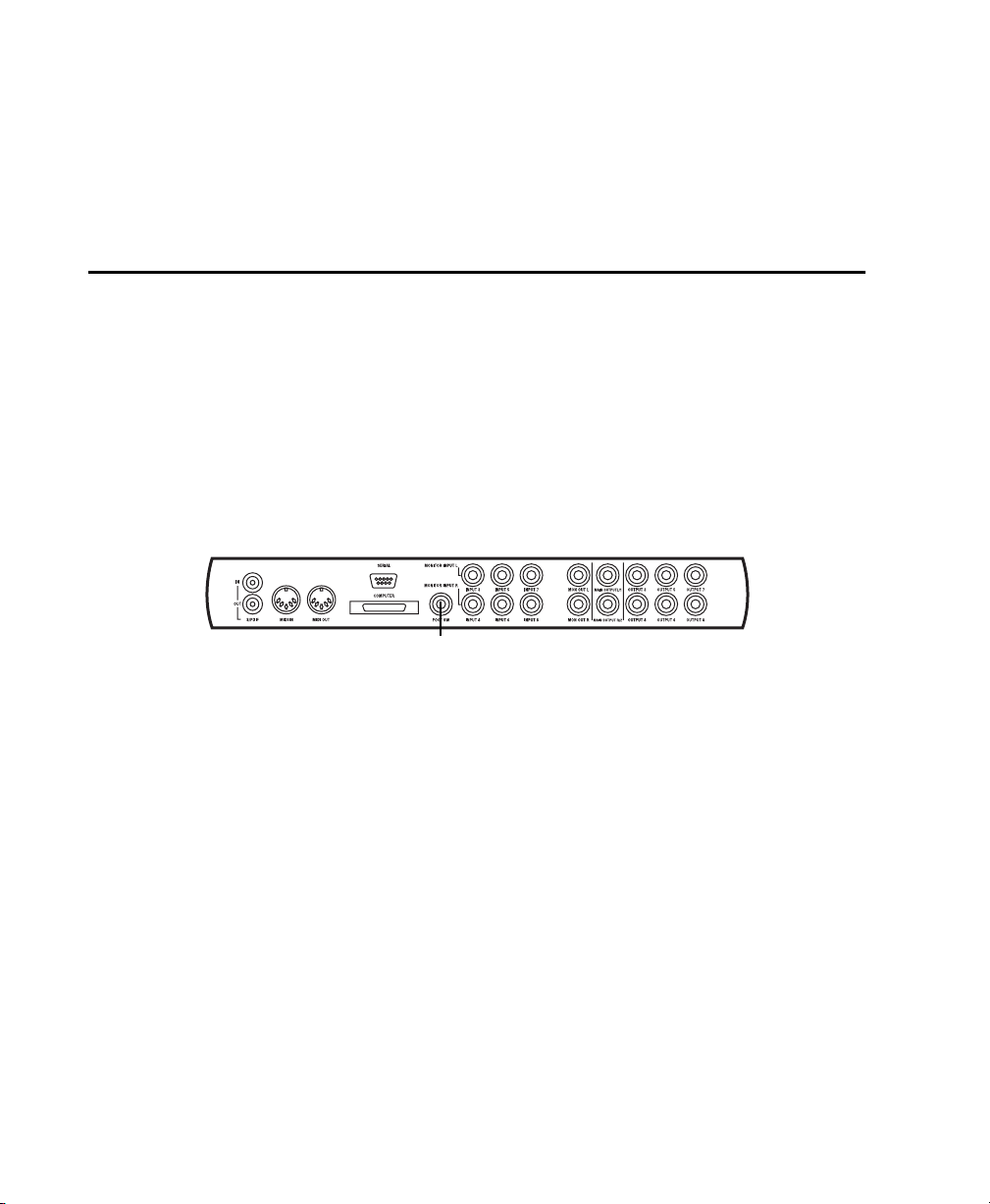

Monitor Inputs (Analog Inputs 3–4)

These connectors are used to connect analog audio sources 3–4, or to connect a stereo source such as a CD player, synth, or cassette deck to monitor when using the Digi 001 I/O Box in Monitor Mode. In Monitor Mode, input 3 is routed to the Left output and input 4 is routed to the Right output. These connectors are balanced, 1/4" TRS jacks.

Analog Inputs 3–8

These inputs are used to connect analog audio sources that are routed to Analog Inputs 3–8. These are balanced, 1/4" TRS jacks for analog audio input connections. These analog inputs feature 24-bit analog-to-digital converters.

Monitor Outputs

These outputs can be connected to powered speakers, a stereo power amp, or another stereo destination to monitor your mix. The monitor outputs play the audio that is routed to analog outputs 1 and 2. Analog output 1 material is routed to the left monitor output, and analog output 2 material is routed to the right monitor output. These analog outputs feature 24-bit digital-to-analog converters. You can control the output level of the monitor outputs with the Monitor Volume control. These connectors are balanced, 1/4" TRS jacks.

Main Analog Outputs 1–2

These main outputs play the audio that is routed to analog outputs 1–2. These outputs can provide left and right outputs to a tape deck for mixdowns, or to another stereo destination. These analog outputs feature 24-bit digital-to-analog converters. These outputs are balanced, +4 dBu line level. The connector type is 1/4" TRS.

Analog Outputs 3–8

These outputs play the audio that is routed to analog outputs 3–8. These analog outputs feature 24-bit digital-to-analog converters. These outputs are unbalanced, –10 dBu line level. The connector type is 1/4" TRS.

Digi 001 Quick Start Guide28

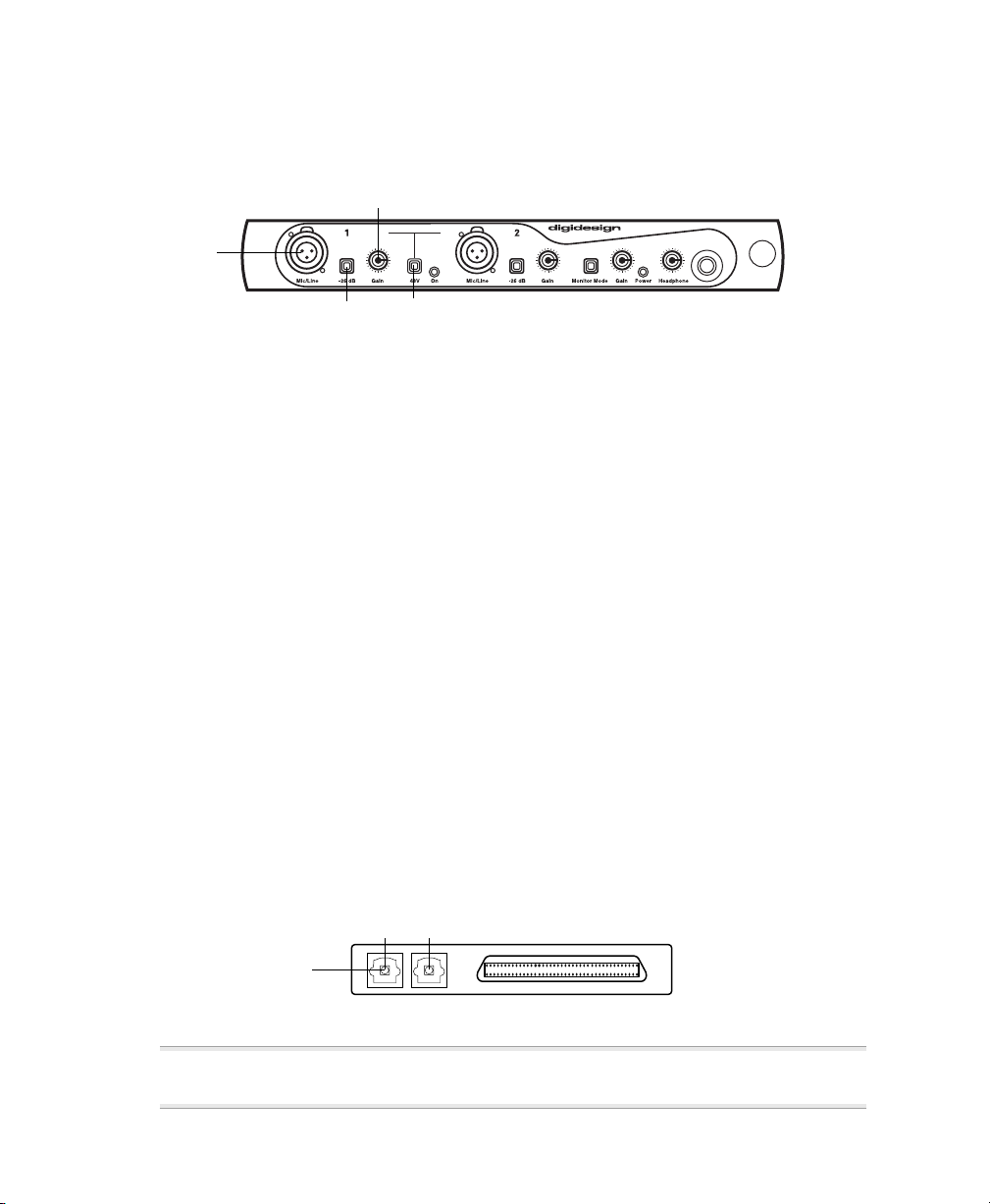

Connectors on the Digi 001 PCI Card

The Digi 001 PCI Card installs in an available PCI slot in your computer. The PCI Card includes optical digital I/O for 8 channels of ADAT I/O or 2 channels of S/PDIF I/O. The card also includes a connector for the Digi 001 I/O Box.

I/O Box connector

Optical input

Optical output (red light

identifies output)

Optical input

The optical input connects an optical digital audio source. This can be either an 8-channel ADAT format audio source or a 2-channel S/PDIF audio source. The digital format that this input accepts is switchable in Pro Tools LE. This connection provides up to 24-bit digital audio for either format. This format uses a standard optical “lightpipe” cable. One optical cable is included with Digi 001.

Optical Output

PCI Connector

The optical output sends optical digital audio to a destination like a digital mixer or a digital recorder. This can be either an 8-channel ADAT format destination or a 2-channel S/PDIF audio destination. The digital output format is switchable in Pro Tools LE. This connection provides up to 24-bit digital audio for either format. This format uses a standard optical “lightpipe” cable. One optical cable is included with Digi 001.

Output Modes

Pro Tools LE software provides two different output modes, direct outputs and stereo mix outputs. In Stereo Mix Outputs mode, each audio track or channel can be panned between

any pair of outputs (1–2, 3–4, 5–6, 7–8, etc.). By default, all tracks are routed to outputs 1–2. This is the most common method used for stereo mixing.

In Direct Outputs mode, each track/channel is routed to a discrete output on the Digi 001 I/O Box. In this mode, no panning controls are available. This mode is often used to route audio tracks to an outboard mixer, or to use outputs as sends (with inputs as returns) to process audio with external effects.

Chapter 4: Connecting Your Studio 29

ose an output mode:

To cho

1 Choose Setups > Preferences. Click the Operation button. 2 Choose the desired operating mode and click Done.

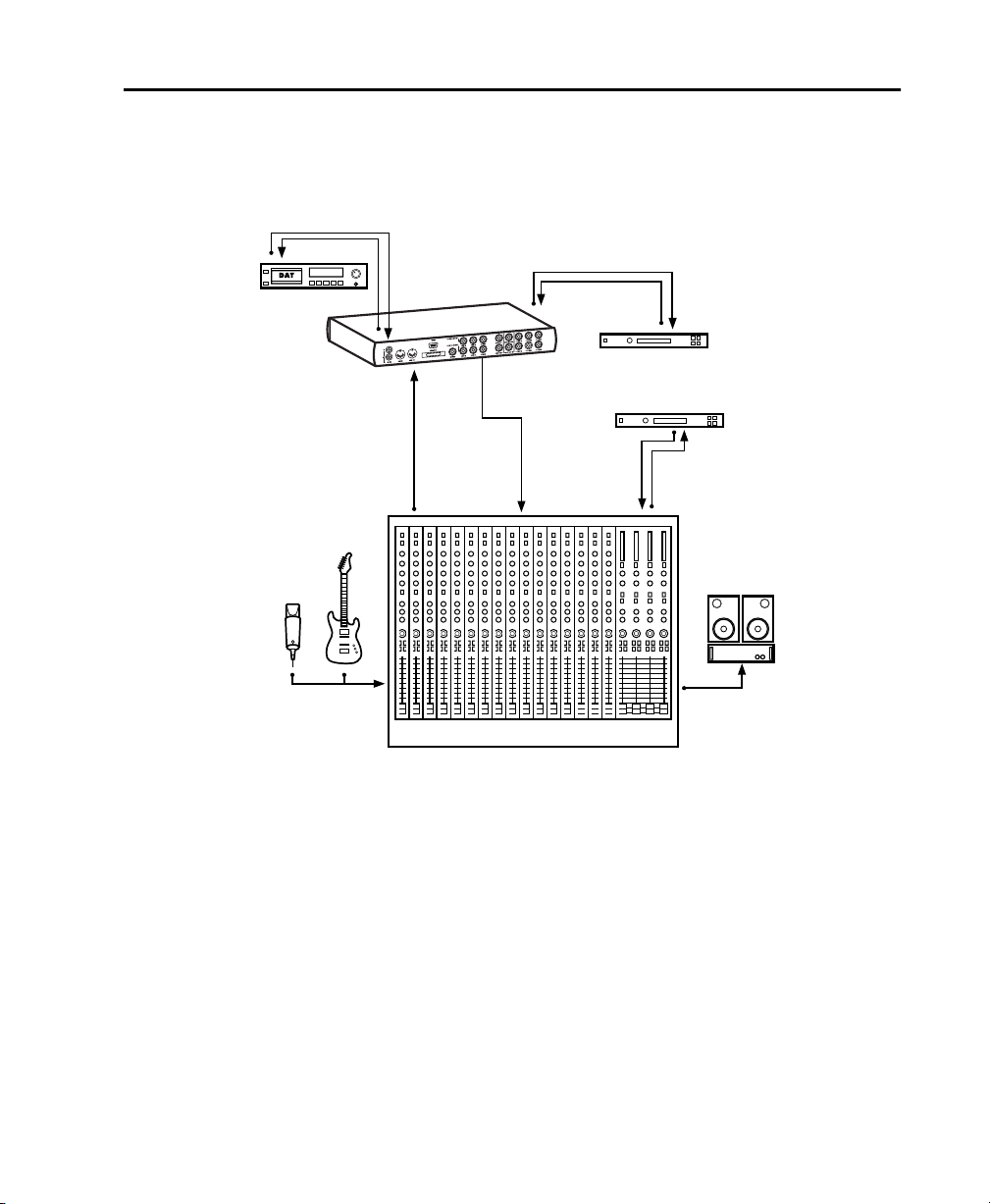

Making Signal Connections to Digi 001

You can use Digi 001 with a variety of audio setups, including:

◆ a mixer, power ampliﬁer, and speakers

◆ a mixer and a pair of ampliﬁed, self-powered speakers

◆ a stereo receiver and speakers

◆ a pair of ampliﬁed, self-powered speakers.

Monitoring Audio

Monitoring volume for speakers connected to the Monitor Outputs is controlled with the Monitor Volume knob (see “Monitor Volume” on page 26 for more information). Headphone volume is controlled with the Headphone Gain knob (see “Headphone Gain” on page 27 for more information).

To connect headphones:

1 Connect headphones to the Headphone jack on the I/O Box. The Headphone input

accepts a stereo 1/4" plug. If your headphones have a smaller “mini-plug,” purchase an adapter from your local dealer. For best results, use high-quality, closed-ear headphones.

monitor volume

2 Adjust headphone volume with the headphone gain knob.

▲ The Digi 001 headphone output can produce very loud output levels. Prolonged

headphone input

headphone gain

exposure can cause hearing damage. Adjust headphone volume carefully.

Digi 001 Quick Start Guide30

To connect a home stereo:

1 Connect 1/4" cables to the Monitor outputs on the back of the Digi 001 I/O Box.

monitor outputs

2 Connect the outputs to an available pair of left and right inputs on your stereo.

✽ Home stereo systems often use RCA connectors. You can use an adaptor or a

special cable to convert from the 1/4" connectors used by Digi 001 to the RCA connectors on your home stereo.

To connect monitor speakers with a power amp or self-powered monitor speakers:

1 Connect 1/4" cables to the Monitor outputs on the back of the Digi 001 I/O Box. 2 Connect the outputs from Digi 001 to the left and right power amp inputs, or to the left

and right self-powered speakers.

Connecting a Recorder for Mixdowns

After you record and mix your sessions using your Digi 001, you may want to mix them down to a DAT, audio cassette, or other stereo 2-track machine.

Connecting an Analog Deck

Connect your recorder (cassette deck or other analog device) to the Main outputs on the back of the Digi 001 I/O Box. L/1 connects to the Left input of your recorder, and R/2 connects to the right input. These outputs are 1/4" TRS jacks. You may need adapter cables if your mixdown deck has RCA inputs.

left and right Main outputs

Chapter 4: Connecting Your Studio 31

Connecting a Digital Deck

If you have a DAT or other digital device that can send or receive S/PDIF digital audio data, connect it to the S/PDIF In and S/PDIF Out RCA jacks on the back of the Digi 001 I/O Box.

S/PDIF in S/PDIF out

Connecting Tascam DAT Recorders

If connecting to a Tascam DAT recorder, you’ll need to set the S/PDIF I/O format in Pro Tools LE.

To set the S/PDIF I/O format in Pro Tools LE:

1 Launch Pro Tools LE and choose Setups > Hardware. 2 Click Other Options and set the S/PDIF I/O to Tascam. Click Done. 3 Click OK to close the Hardware Setup dialog.

Connecting Audio Sources to Digi 001

Audio sources of two types can be used with Digi 001: analog or digital.

Analog Audio

Analog audio signals are output by microphones, synths, mixers, and instruments with magnetic pickups. Of these sources, microphones and magnetic pickup instruments output the quietest signals, and generally require the most ampliﬁcation. Digi 001 includes preamps for these sources on Mic/Line inputs 1 and 2, and 48v phantom power for both channels. Mic/Line inputs 1 and 2 accept XLR or 1/4” connectors.

Keyboards, preamps, and mixers output “line level” audio, which varies with each device between the –10 and +4 standards. Use Digi 001’s line level inputs 3–8 (on the back of the Digi 001 I/O Box) for these devices. Digi 001 includes software controllable gain to

Digi 001 Quick Start Guide32

accommodate the different “line levels” that these devices can generate. Inputs 3–8 accept 1/4” connectors. You can also connect line-level signals to Mic/Line inputs 1 and 2 on the front by pressing the –26 dB pad switch.

Input gain

XLR & 1/4”

combo

connector

Analog preamp input

–26dB

phantom

powerpad

Digital Audio

Digital audio represents analog waveforms using thousands of digital samples of the analog waveforms each second. All audio on your hard disk in a Pro Tools LE session is digital audio.

Digi 001 provides digital inputs for ADAT and S/PDIF format digital audio.

ADAT Format

The ADAT format was developed by Alesis for use in their ADAT multitrack recorders. Each ADAT optical connection provides 8 channels of digital audio with 24-bit capability. You can connect an ADAT or other ADAT optical format device directly to the optical I/O on the Digi 001 PCI Card. The optical I/O connectors accept optical cables.

S/PDIF

S/PDIF (Sony/Phillips Digital Interchange Format) I/O is available on many DAT decks, compact disc players, and other digital devices. Each S/PDIF connection provides 2 channels of digital audio with 24-bit capability. You can connect a S/PDIF digital input to either the Optical connectors (see Figure 1), or to the S/PDIF RCA connectors on the back of the Digi 001 I/O Box. The optical connectors accept optical cables; the RCA connectors accept RCA cables.

out in

NOTE BRIGHT

RED LIGHT

Figure 1. Optical I/O on the Digi 001 PCI Card

▲ Only one S/PDIF input pair can be used at a time. For example, if you use the op-

tical input for S/PDIF data, you cannot use the RCA inputs.

Chapter 4: Connecting Your Studio 33

S/PDIF Mirroring

Pro Tools LE uses S/PDIF mirroring to automatically “mirror” the audio that is sent to outputs 1 and 2 on the S/PDIF RCA outputs. This is useful if you are monitoring a mix using your audio outputs, and also recording the same source to an external S/PDIF device.

You can disable this S/PDIF mirroring. You might do this if you wanted to use the S/PDIF outs to send a separate signal to an external digital effects unit, or if you wanted to send only certain outputs to the digital device. If you disable S/PDIF mirroring you are able to select the S/PDIF outputs separately, and route tracks or sends to them.

To enable or disable S/PDIF mirroring:

1 Choose Setups > Playback Engine. 2 Click Other Options. 3 Select or deselect the option “Enable S/PDIF Mirroring.”

Connecting Audio Sources

To connect an analog audio source:

■ Plug a microphone directly into Mic/Line Input 1 or 2 on the front of the Digi 001 I/O

Box. These inputs accept XLR connectors or 1/4" TRS connectors. If your microphone requires phantom power, press the Phantom Power switch (labeled 48V).

▲ Although phantom power can be used safely with most microphones, ribbon mi-

crophones can be destroyed by it. You should always turn off phantom power, and wait for the red light to go completely off, before connecting a ribbon microphone.

■ Plug line-level sources (synths, outputs from your mixer, or microphones or guitars that

have been ampliﬁed by an outboard preamp) into the analog inputs on the back of the Digi 001 I/O Box.

Digi 001 Quick Start Guide34

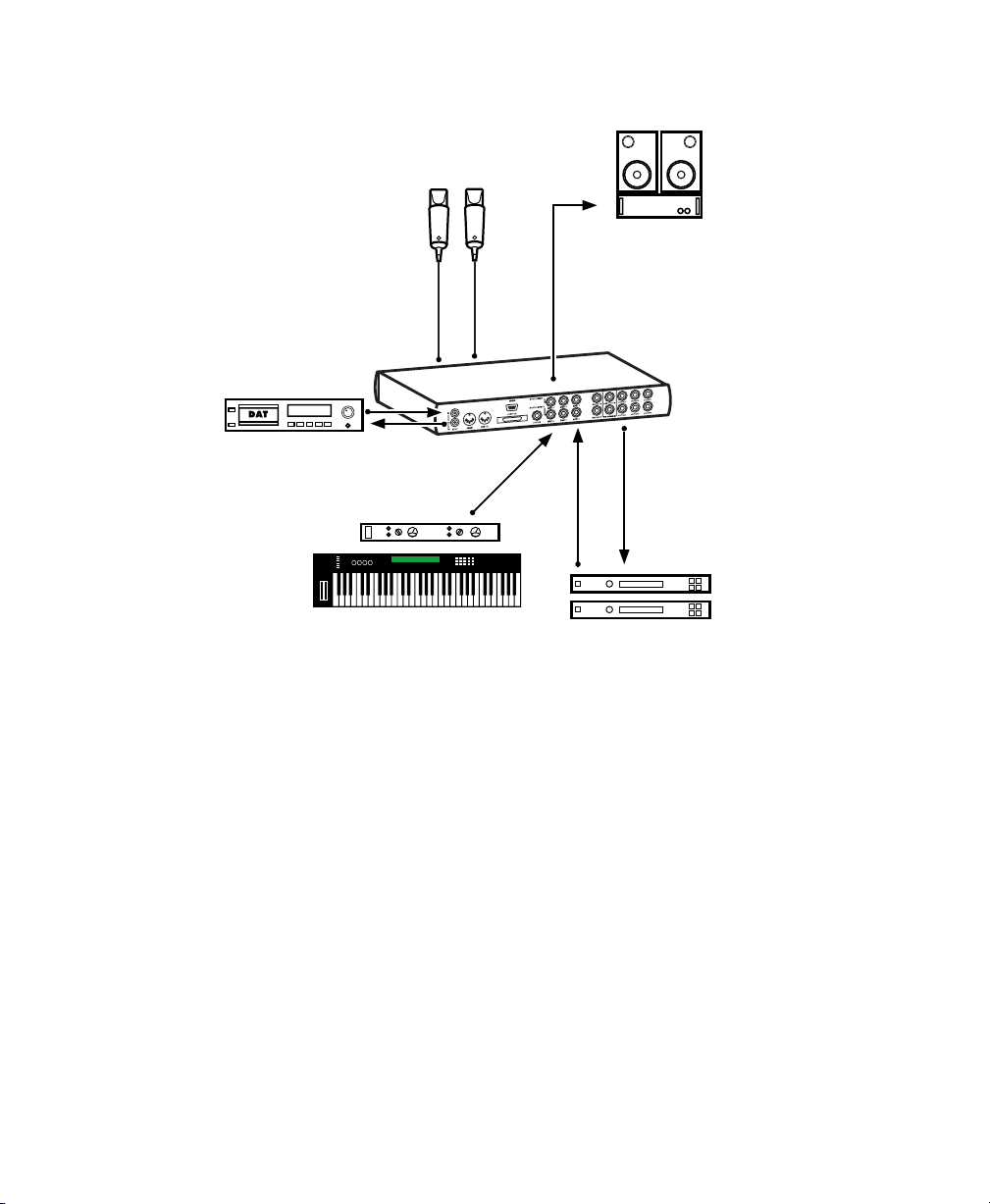

condenser mic

(usually requires

phantom power)

use 48V Phantom Power if necessary

mics3–8 go through the

mixer’s preamps

“snake” cable: you can also use

individual cables for each mic

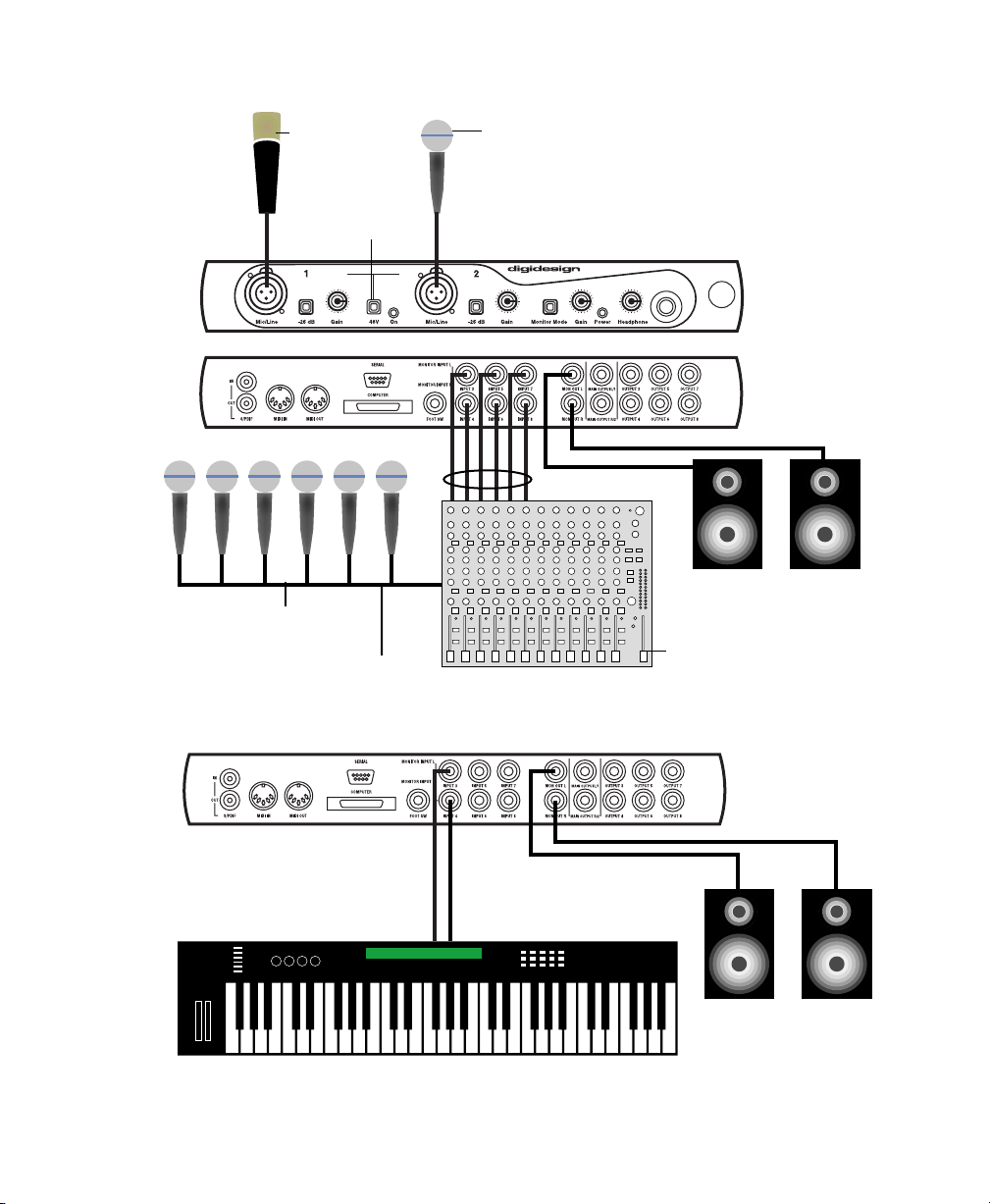

Connecting a bunch of microphones to a Digi 001

dynamic mic

(phantom power

won’t hurt it)

mic preamps out to Digi 001

powered monitor

speakers

small outboard mixer

Connecting a synth to a Digi 001

analog

inputs 3-4

L/R monitor outputs

audio out L/R

powered monitor

speakers

Chapter 4: Connecting Your Studio 35

To connect a digital audio source:

1 Connect an ADAT or S/PDIF format optical device to the Optical In on the Digi 001 PCI

Card, or connect an RCA S/PDIF device to the RCA connectors on the back of the Digi 001 I/O Box.

▲ You can only use one pair of S/PDIF inputs (either RCA or optical) at a time.

▲ The next step is only required if your device requires Pro Tools LE to sync to it.

(In most cases, it is more desirable for a device to sync to Pro Tools LE.) This might be the case if you are recording from an Optical or S/PDIF device. Read your device’s documentation for more information.

2 In Pro Tools LE, select a Sync Mode. Choose Setups > Playback Engine and select Optical

or S/PDIF (RCA), depending on where you connected your digital device.

3 If you are using the optical input on the Digi 001 PCI Card, click Other Options and

select the correct Optical Input Format (ADAT or S/PDIF).

Hardware Setup dialog

Digi 001 Quick Start Guide36

select the Sync Mode here

(see warning before step 2)

select the Optical input Format here

Studio Setup Diagrams

Your setup will differ depending on which of these systems you use. The illustrations that follow show two typical home studio setups.

S/PDIF

I/O

DAT recorder

Mics and

instruments

Analog

inputs 3-6

Analog inputs/

outputs 7-8

Analog

outputs 1-6

Mixer

channel

outs 1-4

Analog

outputs 1-6

Mixer

inputs 1-6

or tape returns

Effects device

Effects devices

Aux/Effects

sends/returns

& amplifier

Monitor

speakers

Mixer audio

inputs

Mixer

stereo

outputs

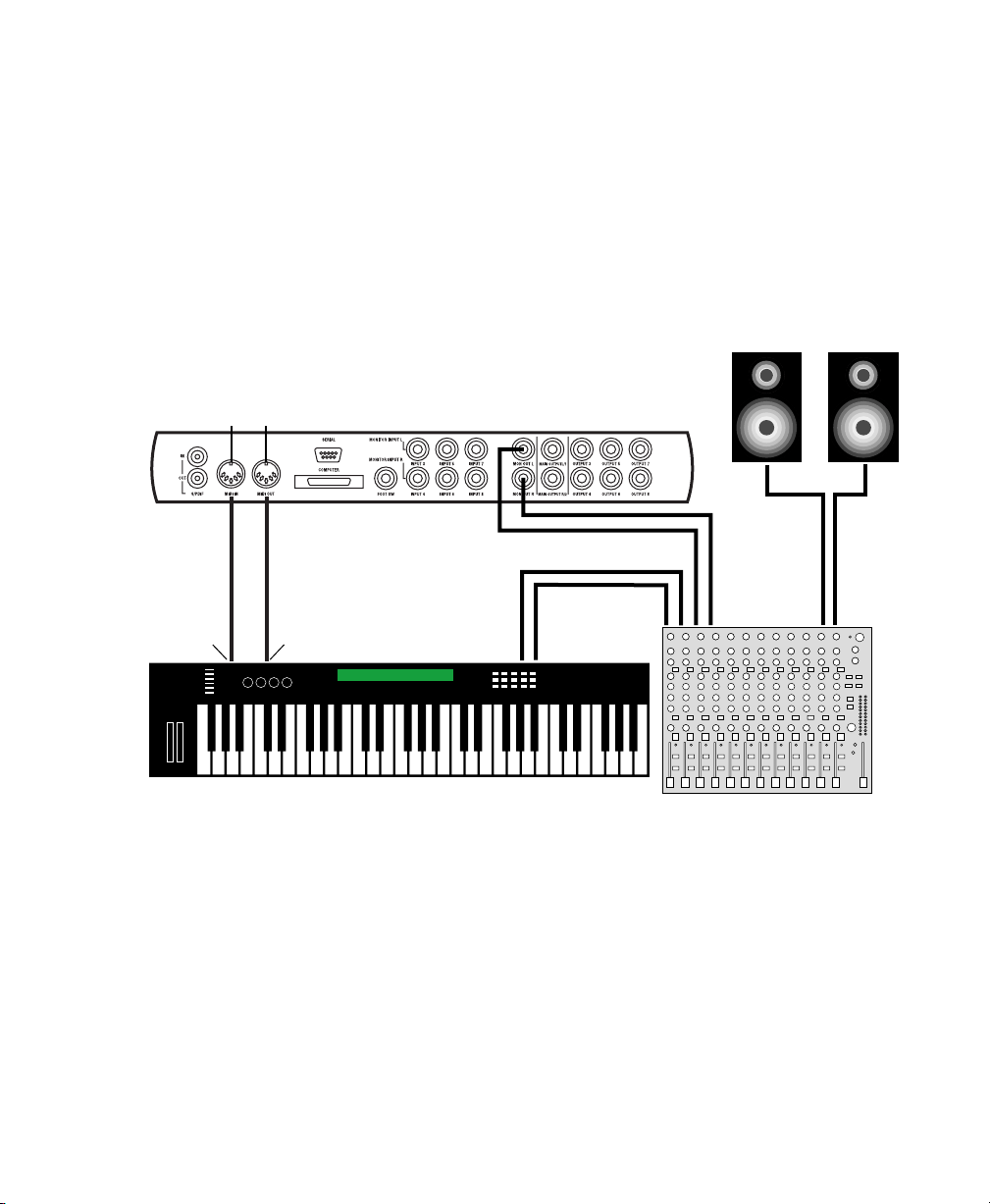

Digi 001 studio conﬁguration with a mixer—Direct Outputs mode (see “Output Modes” on page 29)

Chapter 4: Connecting Your Studio 37

S/PDIF I/O

Mic/Line

Inputs 1/2

Microphones

Monitor

Out L/R

Monitor

speakers

& amplifier

DAT recorder

Mic preamps,

synths, and other

sound modules

Analog

I/O 3–4

Analog

Inputs/

Outputs

5–8

Outboard

effects

Digi 001 studio conﬁguration without a mixer—Stereo Outputs mode (see “Output Modes” on page 29)

Digi 001 Quick Start Guide38

Connecting an ADAT to Digi 001

If you are using an ADAT or other ADAT format optical device with Digi 001, you can connect it to the optical ports on the Digi 001 PCI Card. You can also connect a S/PDIF device that uses optical connectors to this port.

After you have installed, configured, and launched Pro Tools LE, use the following instructions for connecting an ADAT.

To connect an ADAT to Digi 001:

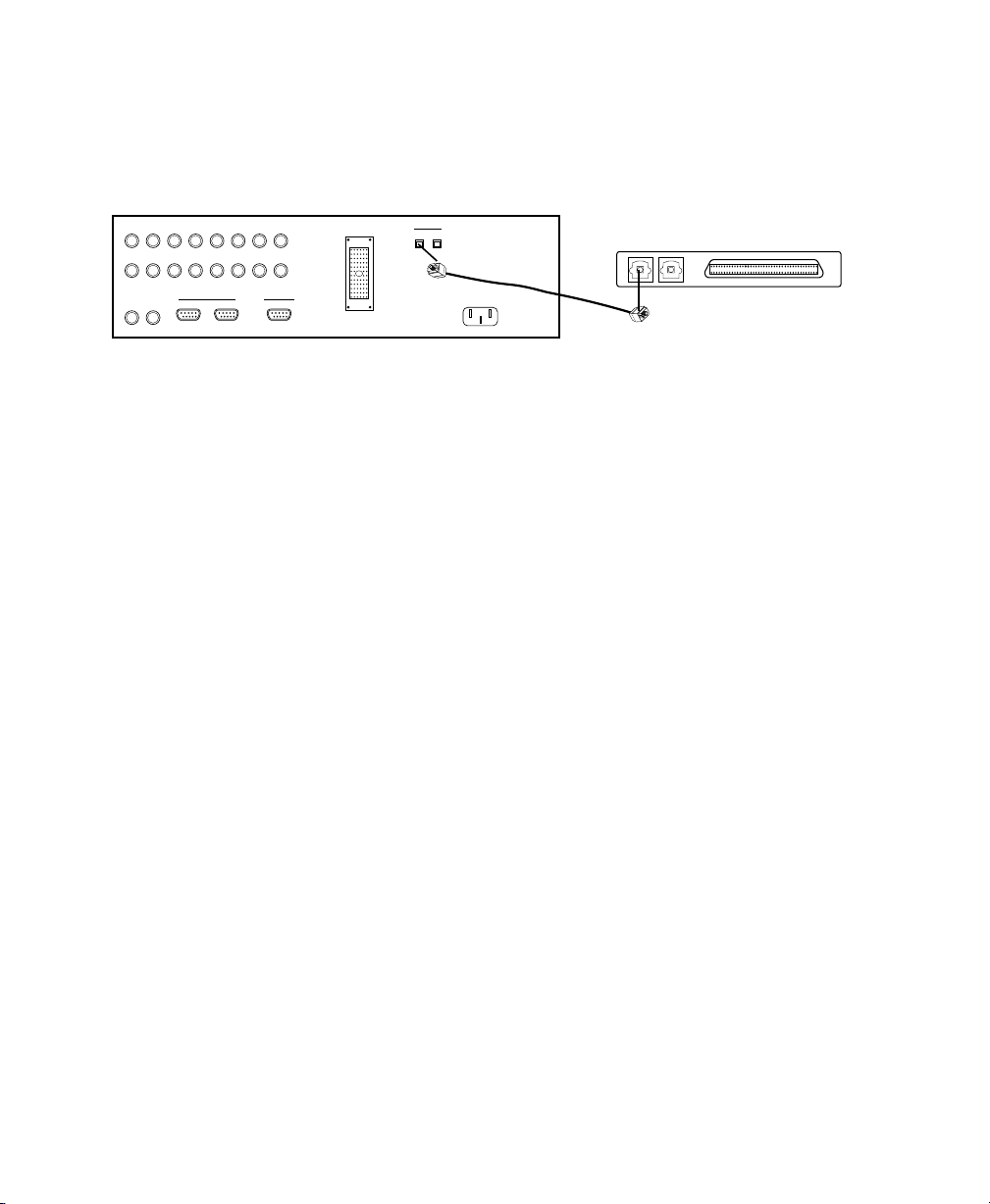

1 Connect the ADAT optical output to the Optical In port on the Digi 001 PCI Card. 2 Connect the ADAT optical input to the Optical Out port on the Digi 001 PCI Card. When

the Digi 001 is on, its Optical Out port emits a red light.

Digi 001 PCI Card

out

Red light indicates optical output

3 In Pro Tools LE, choose Setups > Playback Engine and select Optical from the Sync Mode

pop-up.

4 Click Other Options and select ADAT from the Input Format pop-up.

Chapter 4: Connecting Your Studio 39

Using Monitor Mode

The Monitor Mode feature allows you to monitor analog inputs 3–4 on the Digi 001 I/O Box even when the power for your computer is off, or your Digi 001 I/O Box is disconnected from the computer. You can use this to monitor a CD player, synth, or tape machine without an external mixer, and without your computer on.

To use Monitor Mode:

Connect analog audio outputs of your device to analog inputs 3 and 4 on the back of the Digi 001 I/O Box.

Connect speakers for monitoring audio to the Monitor outputs on the back of the

Digi 001 I/O Box (see “Monitoring Audio” on page 30 for connection information).

Press the Monitor Mode switch in.

Adjust the monitoring volume using the monitor volume knob.

use monitor volume knob

for volume control

press Monitor

Mode switch in

Using Monitor Mode

Digi 001 Quick Start Guide

connect source

(CD player, synth,

tape deck) here

connect powered speakers

or amplifier here

MIDI Connections

Using the Digi 001’s built-in MIDI ports or an external MIDI Interface, a MIDI keyboard controller and MIDI instruments, you can take full advantage of the MIDI features of Pro Tools LE. These include recording and editing MIDI tracks, synchronizing to MIDI Time Code or MIDI Beat Clock (this requires an appropriate MIDI interface) and using a MIDI control surface.

To connect MIDI devices:

Using standard 5-pin MIDI cables, connect the MIDI OUT of the MIDI device or controller to the MIDI IN of your Digi 001 I/O Box.

Connect the MIDI IN of your MIDI device or controller to the MIDI OUT of the Digi 001

I/O Box.

Connect the audio outputs of your device to the audio inputs of the Digi 001 I/O Box (or

to an external mixer if you are using one).

☞

For information on conﬁguring OMS (Open Music System), which is required by Pro Tools LE on the Macintosh, see “Installing and Conﬁguring OMS” on page 9.

For information on conﬁguring a MIDI control surface for use with Pro Tools LE, see the

Pro Tools MIDI Controllers Guide

Using External Effects Devices

The Digi 001 allows you to create dedicated connections to external analog or digital devices. You can send and return signals to analog devices using the analog inputs and outputs on the Digi 001 I/O Box. You can also send and return a digital signal to an external device that supports digital I/O (such as a reverb unit), and monitor with the analog outputs or (if unused) the other digital output.

If you want to use the digital inputs and outputs on your Pro Tools LE system as effects sends and returns to a digital effects device, Pro Tools LE should be the clock master in most cases. Set your digital effects device to accept an external digital clock so that it synchronizes to Pro Tools LE.

Chapter 4: Connecting Your Studio 41

To connect an external device to your system:

Connect an unused output (or outputs if stereo) on the Digi 001 I/O Box to an input (or inputs if stereo) of the external signal processor.

Connect the output (or outputs if stereo) of the external signal processor to an unused

input (or pair of inputs if stereo) on the Digi 001 I/O Box.

To set up a send to an external device (digital sends/returns only):

Choose Setups > Playback Engine and click Other Options.

Do one of the following:

• If the external device is connected to the S/PDIF RCA jacks, deselect S/PDIF Mirroring. (When S/PDIF Mirroring is on, digital output at the S/PDIF RCA jacks exactly mirrors the output of analog Channels 1–2.) If you disable S/PDIF Mirroring, you must reset I/O labels to reﬂect this change. See “Resetting Hardware I/O Labels” on page 42.

• If the external device is connected to the Optical ports, choose a format (most likely S/PDIF for an effects device) from the Optical Format pop-up menu.

Choose Internal from the Sync Mode pop-up menu (in most cases).

Click OK.

You can also label the inputs and outputs you are using in Pro Tools LE to quickly identify them as inserts or sends when working in a session.

To label hardware I/O Inserts or Sends:

Choose Setups > I/O Labels.

Under Display, click Inputs (for hardware inserts), or Outputs (for hardware sends) and

name the connections carrying signal to or from the external device (for example,

ReverbSend.L and ReverbSend.R or Reverb Return.L and Reverb Return.R ).

When you have ﬁnished, click OK.

Resetting Hardware I/O Labels

If you make a change to the number or type of inputs and outputs you are using (for example, if you turn S/PDIF Mirroring on or off, or you switch the Optical input format from ADAT to S/PDIF), you may want to update the I/O labels. This helps you keep track of which inputs and outputs are available, and what they are named.

To reset hardware I/O labels:

Choose Setups > I/O Labels.

Select Inputs, and click Factory Reset.

Select Outputs, and click Factory Reset.

Click OK when you are done.

Digi 001 Quick Start Guide

chapter 5

Working with the Demo Session

Playing the Demo Session

In this section, you will open and play back the sample session. You can also use the included tutorial to learn some of the mixing and editing features of Pro Tools LE.

What’s a Session?

A session is simply a Pro Tools LE document that contains all of your mixing, editing, and MIDI “instructions” for a song. Session ﬁles are covered in detail in the

Guide

Pro Tools Reference

Using an Older Macintosh?

Pro Tools LE uses your computer’s processor for audio tasks. This processing can be very intensive for older computers, such as pre-G3 Power Macintoshes. If you have an older computer, the following steps will help you get better performance from Pro Tools LE.

To set up Pro Tools LE for a slower, pre-G3 Macintosh:

Launch Pro Tools LE by opening the Digidesign folder, then the Pro Tools folder, and double-clicking Pro Tools LE.

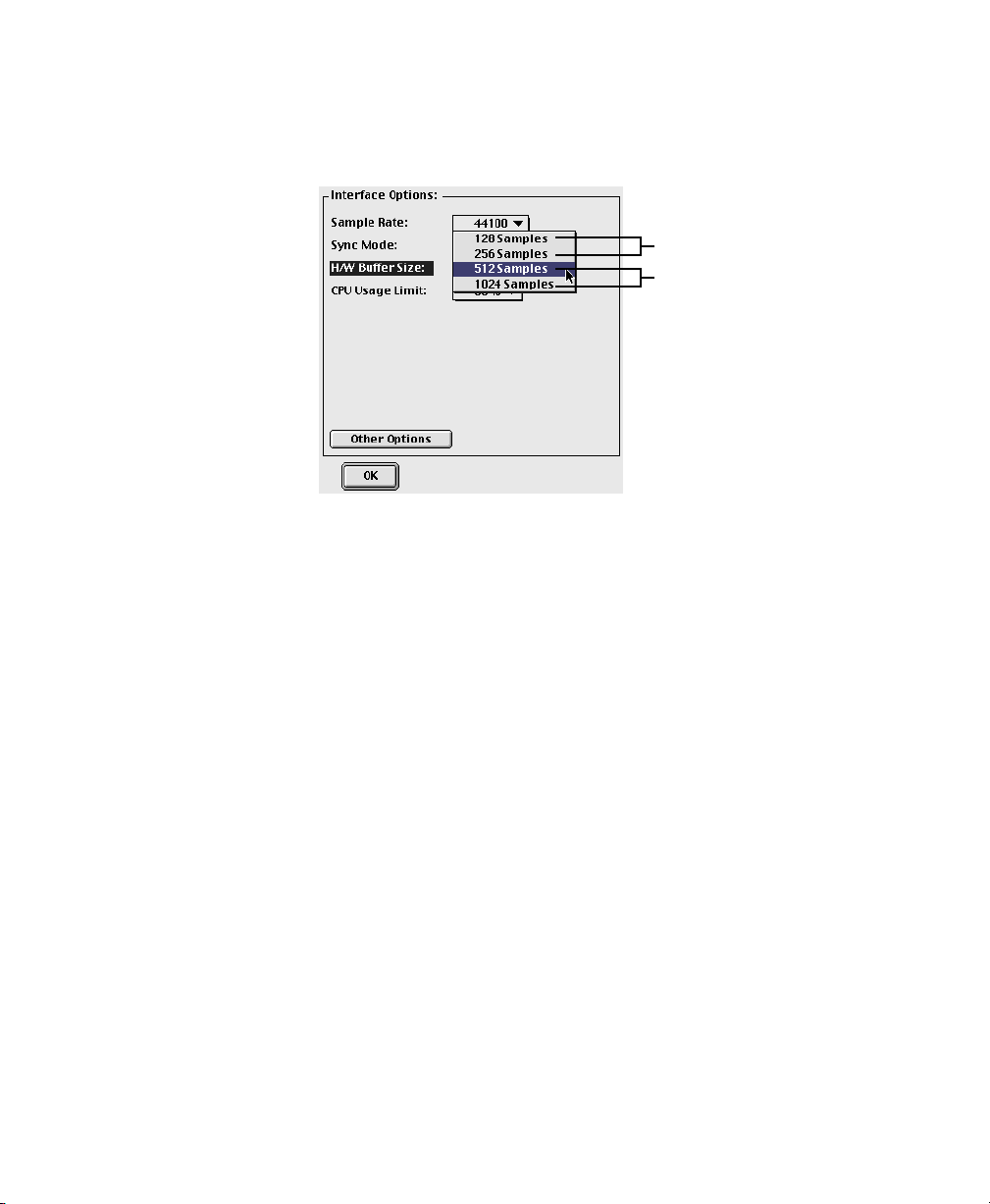

Set the maximum Hardware Buffer Size. Choose Setups > Hardware, then set the H/W Buffer Size to 1024 samples, using the pop-up.

Chapter 5: Working with the Demo Session 43

Set the maximum CPU usage limit, by setting the CPU Usage Limit in the Hardware

Setup dialog to 85%, using the pop-up.

set to 1024 Samples set to 85%

Hardware Setup dialog, showing settings for slower Macintosh computers

Using a Slow Windows PC?

Pro Tools LE uses your computer’s processor for audio tasks. Although most supported Windows machines will have plenty of horsepower to run Pro Tools LE, you may experience performance problems with slower computers. If you have an older computer, the following steps will help you get better performance from Pro Tools LE.

Launch Pro Tools LE by choosing Start > Programs > Digidesign > Pro Tools >

Pro Tools LE.

Launching Pro Tools LE in Windows

Digi 001 Quick Start Guide

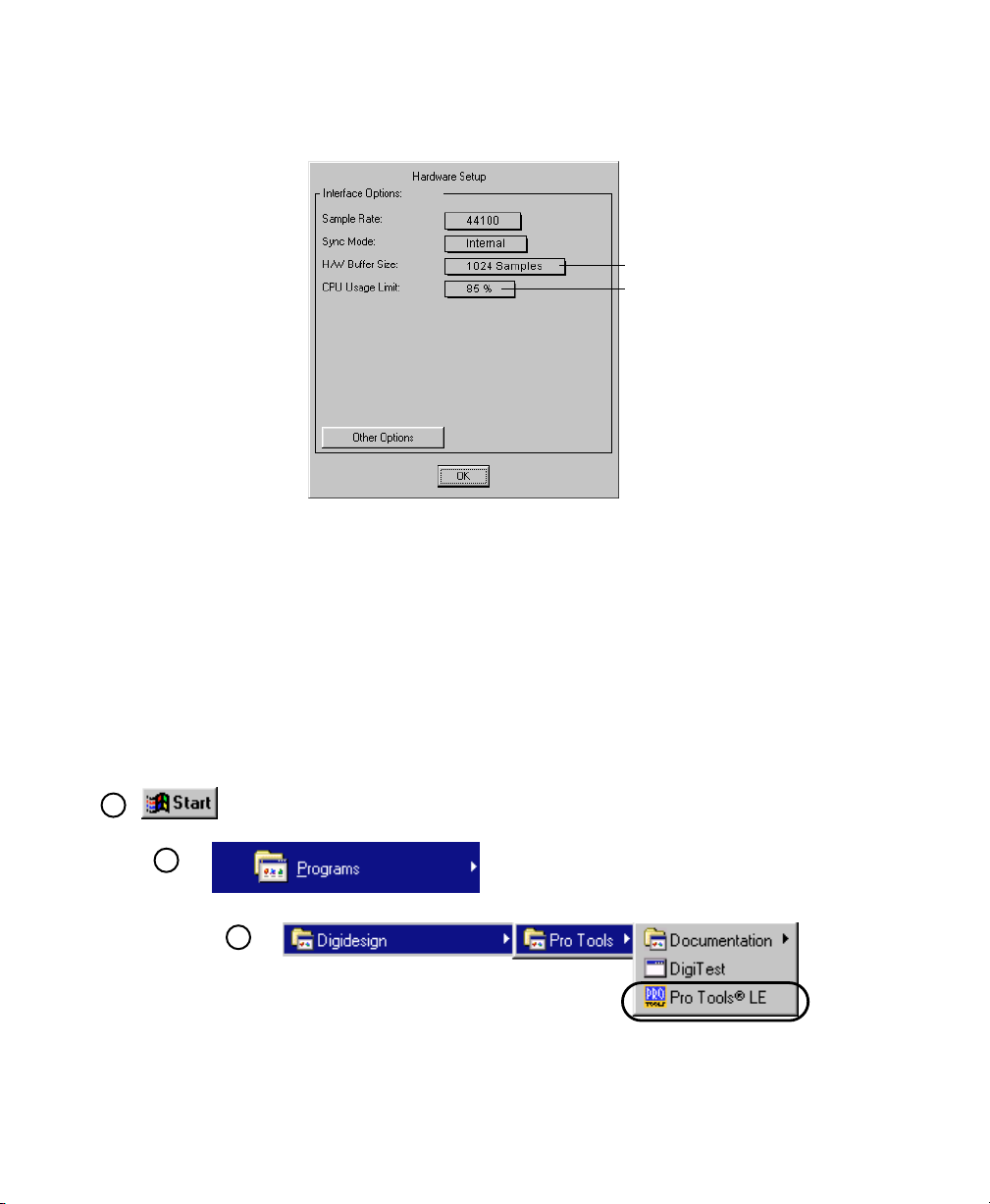

Set the maximum Hardware Buffer Size. Choose Setups > Hardware, then set the H/W Buffer Size to between 512 and 1024 samples, using the pop-up.

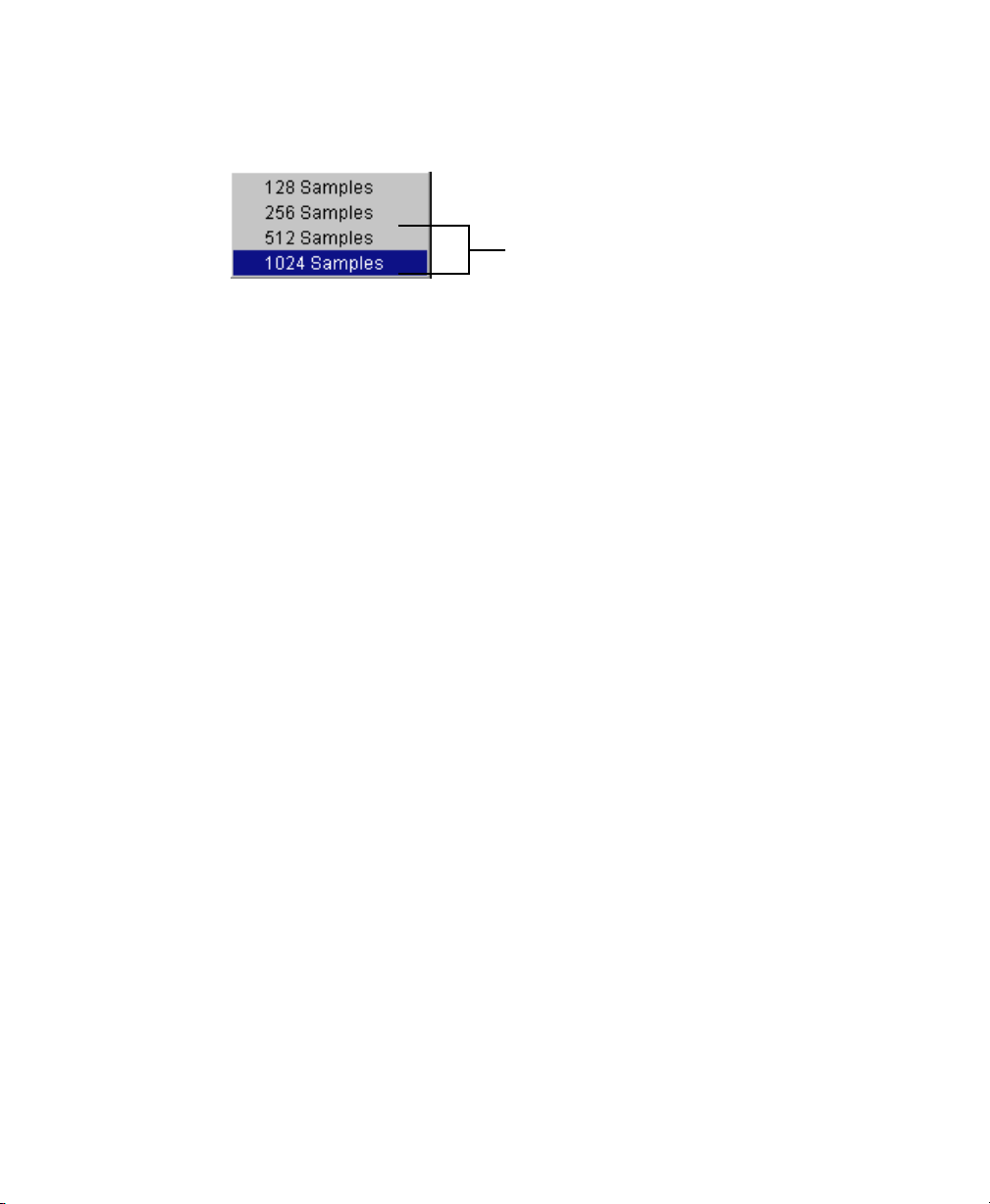

Set buffer size in this range for slower Windows PCs

Buffer settings for slower Windows PCs

Set the maximum CPU usage limit, by setting the CPU Usage Limit in the Hardware Setup dialog to 85%, using the pop-up.

How the Demo Session is Structured

The Pro Tools LE Demo Session actually contains two different mixes of the song “Be There.” The ﬁrst mix shows off the cool features and great sound quality of Pro Tools LE. The second mix is mostly the same, but it has been mixed and set up to guide you along with the tutorial information included in this guide. Go to “Mixing the Demo Session Tutorial” on page 48 when you’re ready to start this tutorial.

Play the Demo Session

To play the demo session:

Locate the demo session on the audio drive that you chose when you installed it. On the

audio drive, open the folder

Demo Session

Double-click the session ﬁle,

(Macintosh) or

Pro Tools LE Demo Sessions

Be There Demo Session

Be There Digi001

(Macintosh) or

. Then open the folder

(Windows).

Be There Digi001.pt5

“Be There”

(Windows) to open the session (if Pro Tools LE is not running, this will automatically launch it).

Chapter 5: Working with the Demo Session

Macintosh Windows

sample session for Digi 001

(double-click to open)

holds session

audio files

holds session

audio files

holds instruments

and samples

for SampleCell users

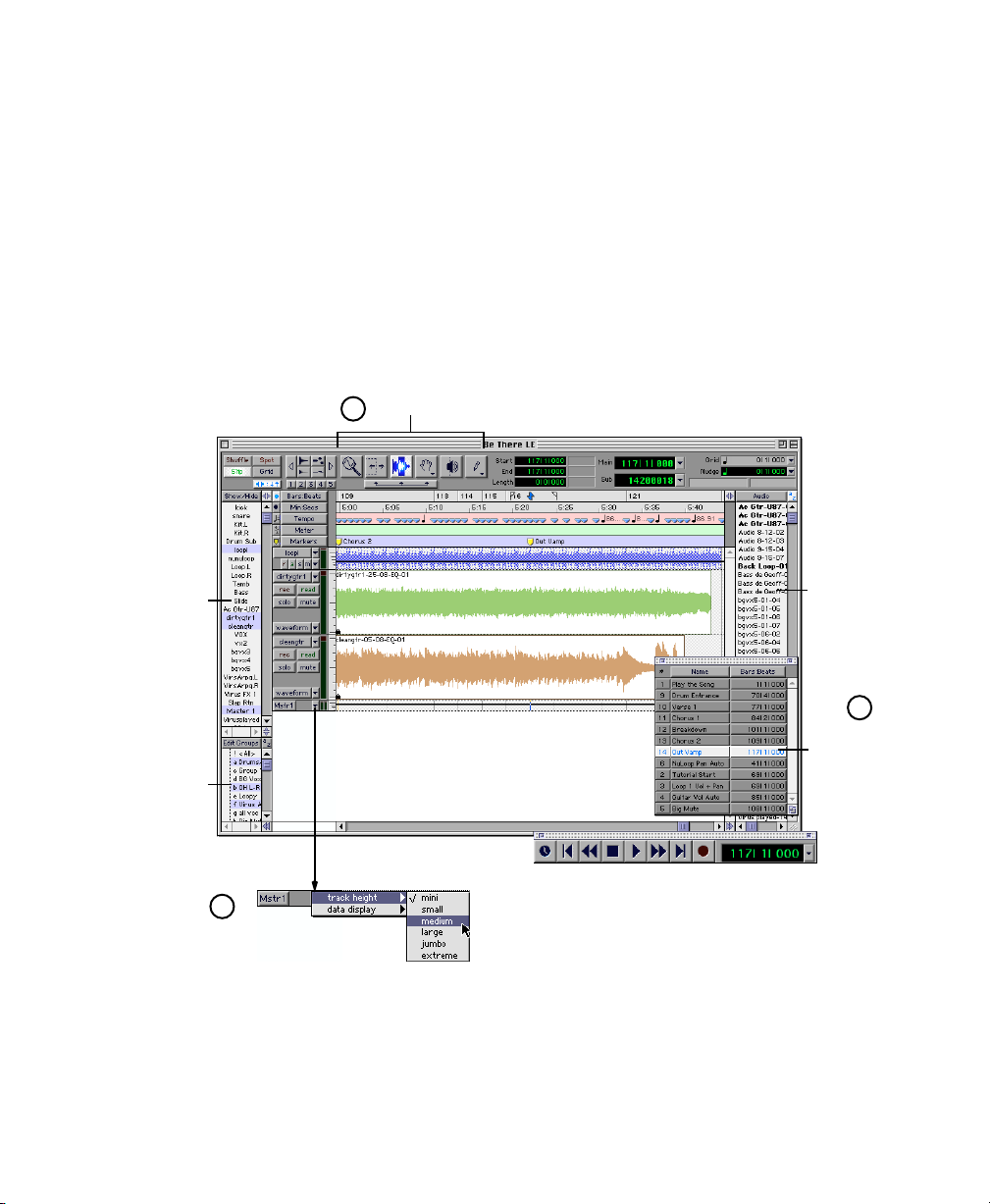

“Be There” opens, and appears like this:

Mix

window

Show/Hide

Tracks list

Groups

sample session

for Digi 001

(double-click to open)

holds instruments

and samples

for SampleCell users

Inserts

Sends

Memory

Locations

window

Tracks

Counter

The opened Be There demo session, showing the Mix, Memory Locations, and Transport windows

Digi 001 Quick Start Guide46

Transport

window

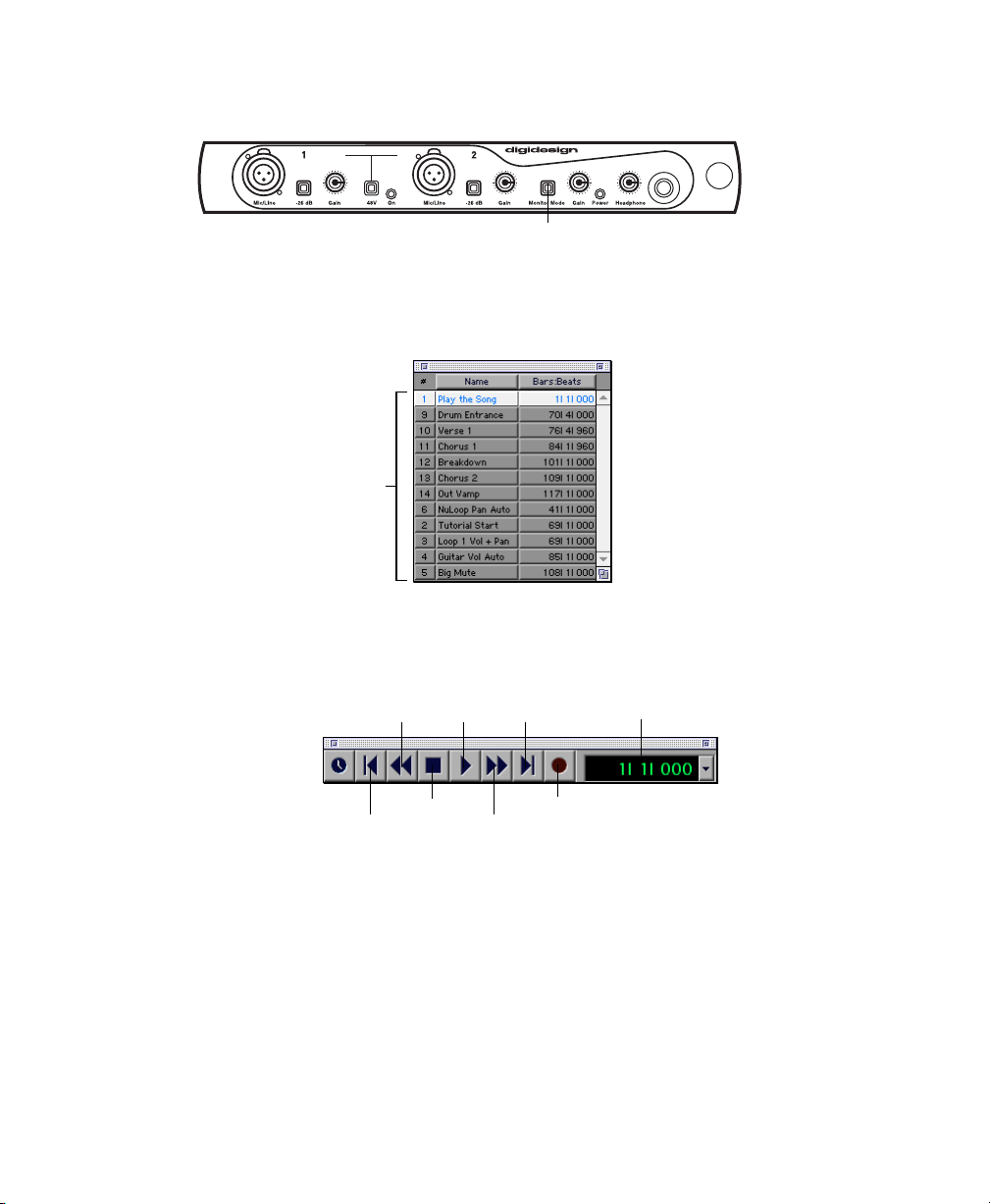

3 Make sure that the Monitor Mode switch is out (not engaged).

Monitor Mode switch

4 Click the ﬁrst Memory Location, “Play the Song,” in the Memory Locations window. This

Memory Location locates the beginning of the song. If the Memory Locations window is not showing, choose Windows > Show Memory Locations to show it.

Memory locations

(select one by clicking)

Memory Locations window

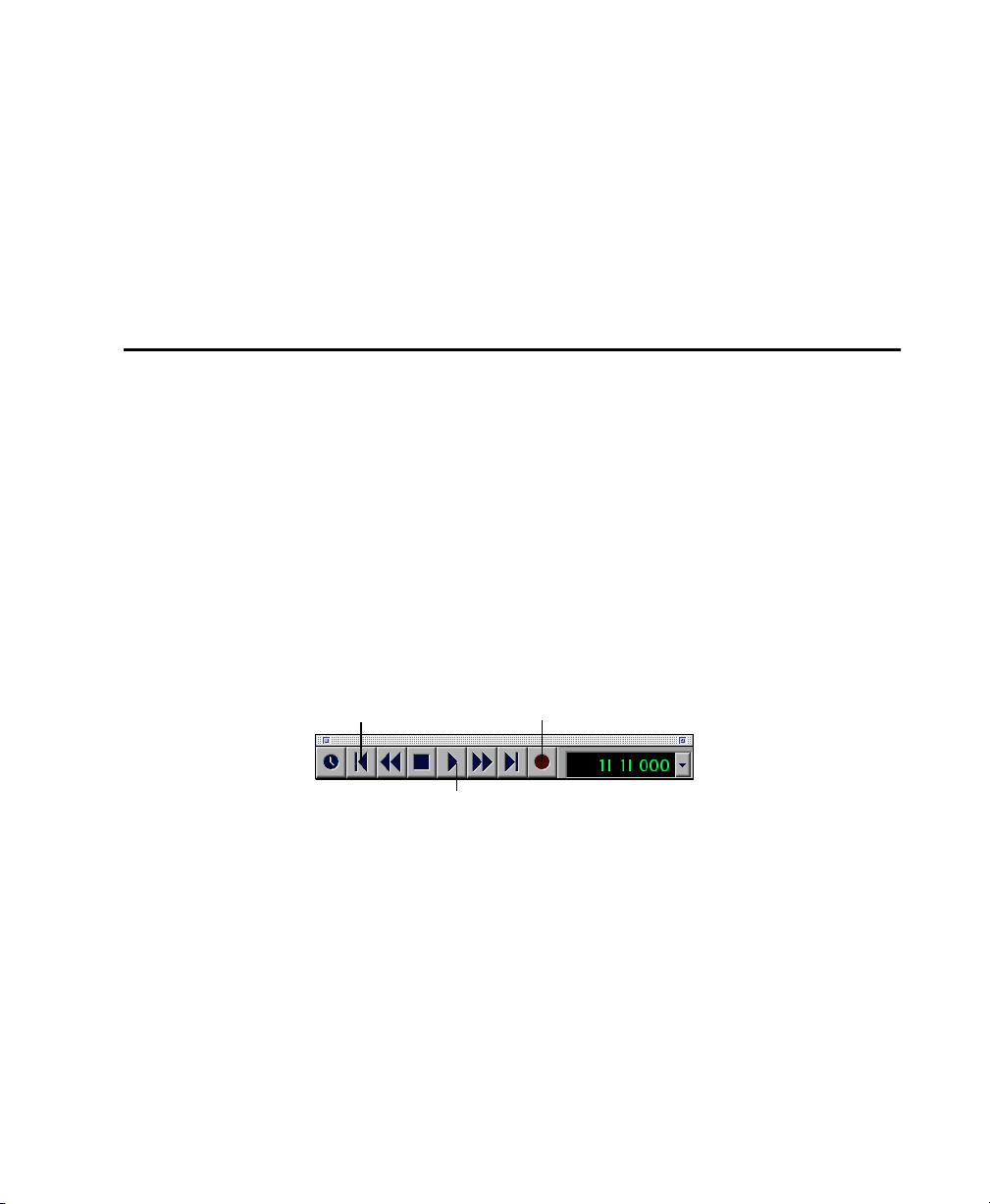

5 Click Play in the Transport window. If the Transport window is not showing, choose

Windows > Show Transport to show it.

Rewind

Return to Zero

Stop

Go to End

Play

Fast forward

Record

Counter

Transport Window

6 You should hear the song playing back. Click Stop to stop playback.

Chapter 5: Working with the Demo Session 47

Mixing the Demo Session Tutorial

Now it’s time to start mixing audio in Pro Tools LE.

But first, a common question answered for you:

Can I ruin my recording?

When you edit and mix audio in a session, you don’t actually change the underlying audio ﬁles. So even with many different sessions based on the same audio ﬁles, with different mixes and arrangements, your audio ﬁles remain physically unchanged. You don't lose your valuable recordings when you change your mix or save a different session, and you can freely try arrangements and ideas.

The Pro Tools LE Workspace

Pro Tools LE provides two main windows for visual display of your tracks—the Mix window and the Edit window. We’ll start working with the Mix window, and later we’ll work in the Edit window.

The Mix window looks and operates like a hardware mixer with automation. Each track is represented as a channel strip. Channel strips have controls for volume, panning, automation, inserts and sends, recording, and more.

Digi 001 Quick Start Guide48

Record

Input

Output

Volume

Pan

Automation mode

Solo

Mute button

Pan slider

Group enable

Clipping indicator (lights red when clipping occurs)

Volume fader

Level meter

Track name

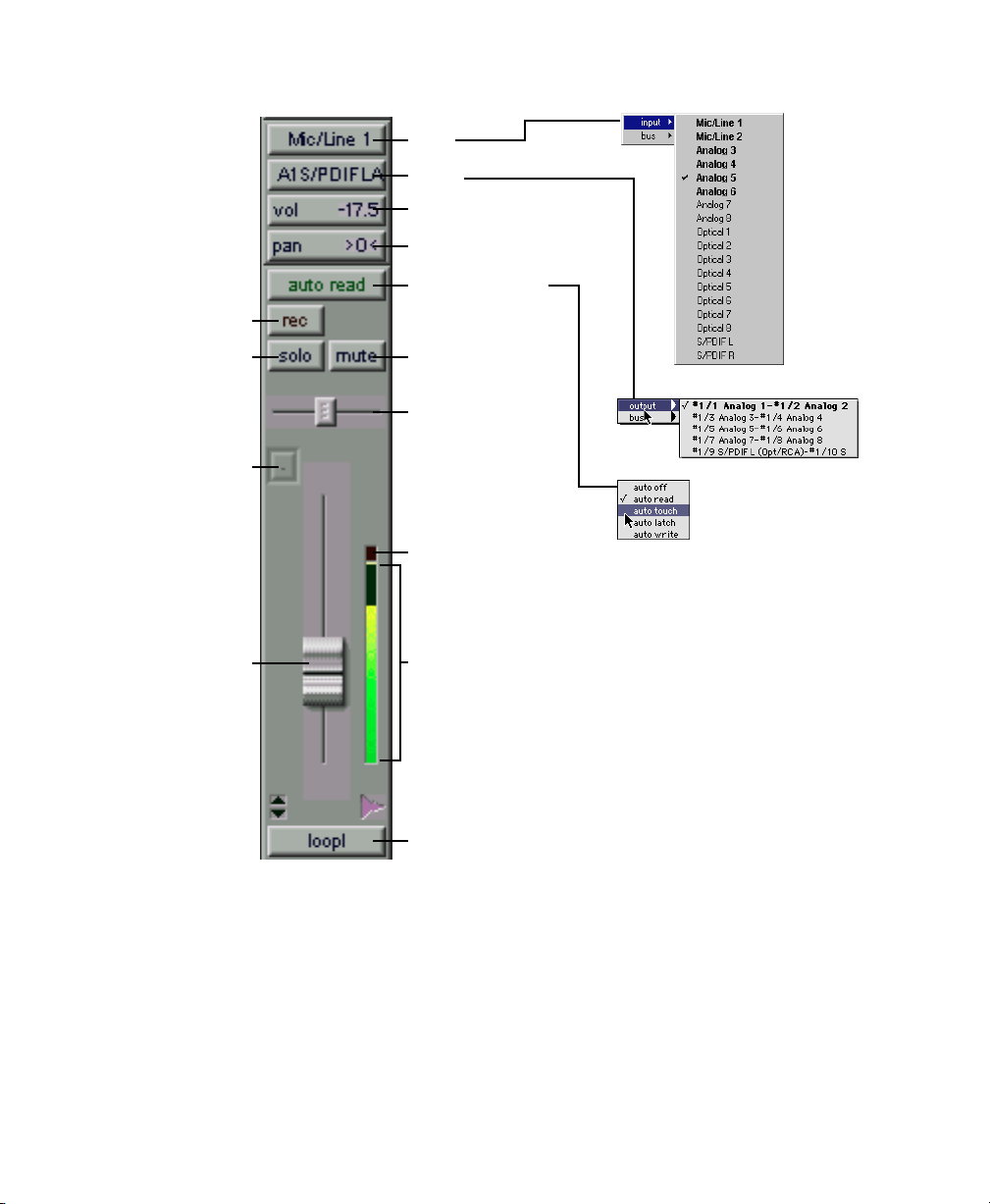

Channel strip in the Mix window and associated pop-ups

To view the Mix window:

■ Select Windows > Show Mix.

The Demo Session is set up with the Narrow Mix Window enabled. This allows you to view more tracks in the Mix window by making the channel strips narrower.

To make a normal-width Mix window narrow, or a narrow Mix window normal-width:

■ Select or deselect Display > Narrow Mix Window.

Chapter 5: Working with the Demo Session 49

All Right, Let’s Mix!

Now that you’ve been introduced to some elements of the Mix window, it’s time to dive in and start mixing the demo session.

Adjusting the Volume of a Track

First, adjust the volume of the track called “loop1.” Start by clicking the Memory Location “Loop 1 Vol + Pan” in the Memory Locations window. Play the session and view the Mix window, then adjust the volume of the track labeled “loop1” up and down, and listen to the difference in the mix. The volume is indicated on the track’s Volume indicator.

To adjust the volume of a track:

1 Locate the proper tutorial spot by clicking “Loop 1 Vol + Pan” in the Memory Locations

window. Now only the channel strip labeled “loop1” and the Master Fader channel strip are showing.

2 Click the Volume fader on the “loop1” channel strip and move it up or down to increase

or decrease volume.

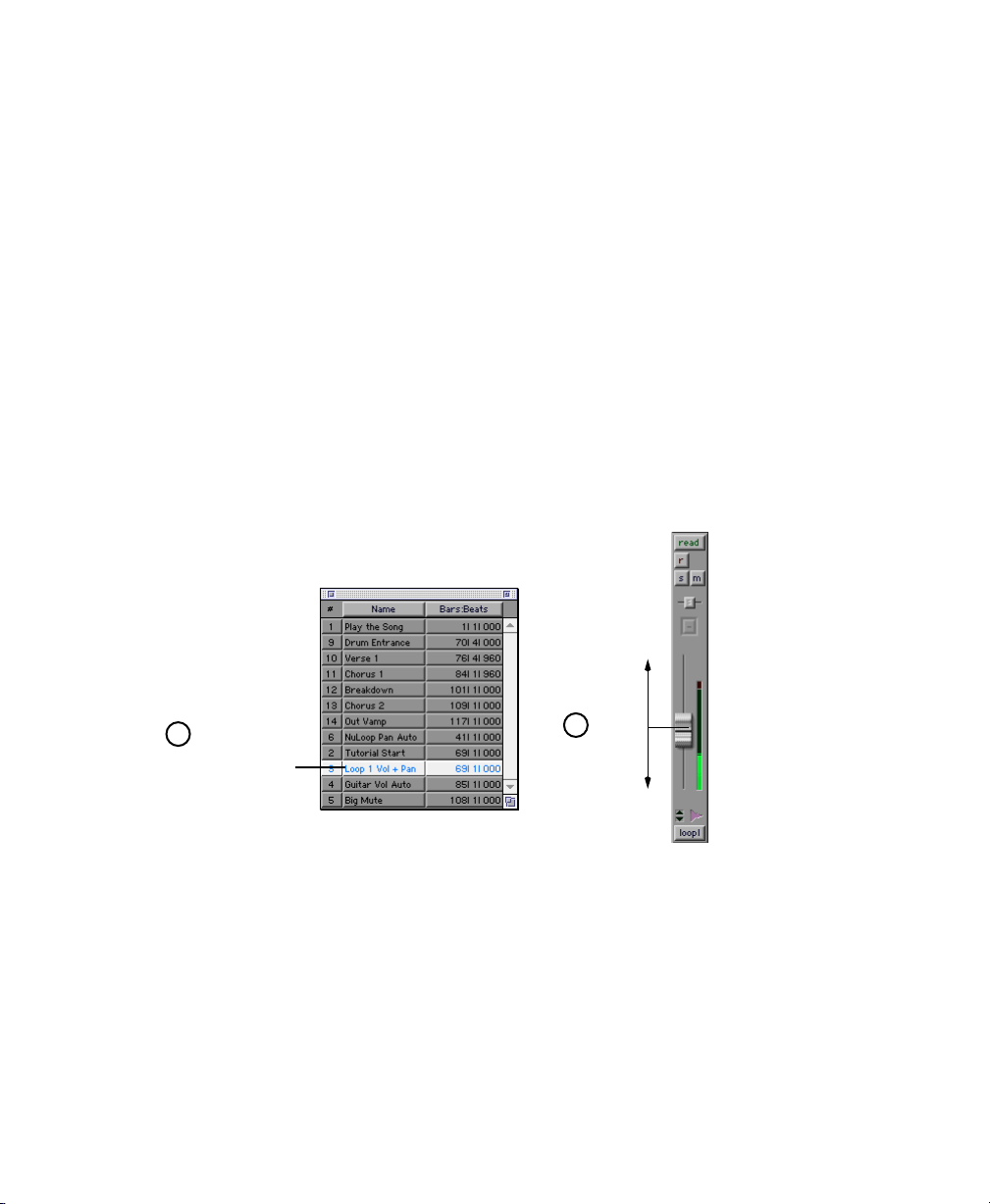

Memory Locations window

louder

click Loop 1 Vol + Pan to move to the tutorial location

quieter

Digi 001 Quick Start Guide50

Panning Tracks

Now try panning the same track. To pan a track, you click the Pan slider and drag it to the left or right, to pan the corresponding direction.

To adjust panning of a track:

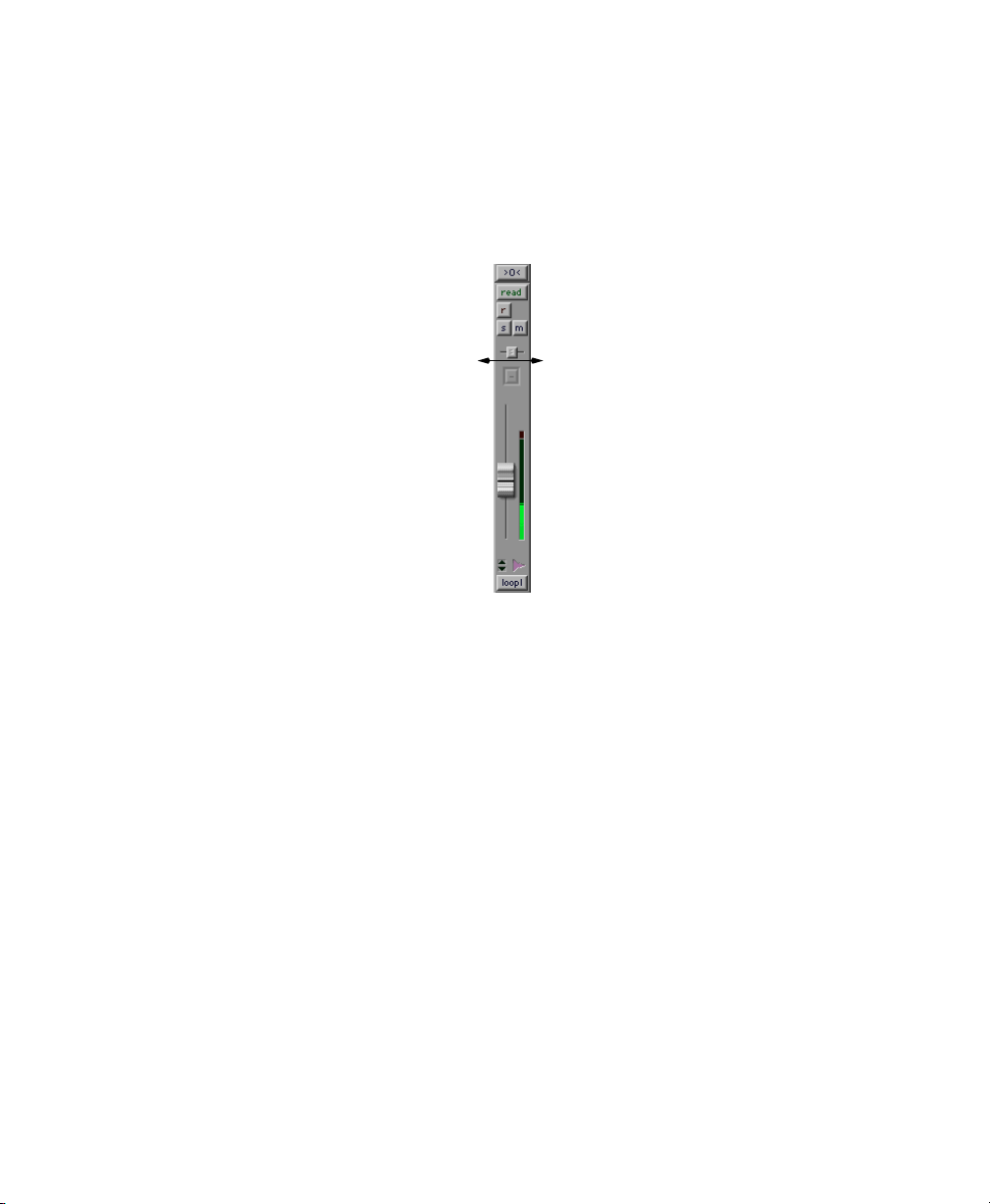

■ Click the Pan slider and drag it to the left or right to pan the track left or right in the mix.

left right

Mix Automation

Automation is a way to control the movements of faders, sliders, and other controls of the Pro Tools LE mixer, and to have the controls remember the moves you’ve made when you play back the session. You can think of automation like a person with a lot of hands and a perfect memory “riding” the controls during a mix.

Writing Your Own Automation

Let’s write some automation for the guitars. Click the Memory Location “Guitar Vol Auto,” and click Play in the Transport window. In preparation for your work here, some tracks are muted so you can easily hear how the guitars mix with the bass and drums. First, try mixing the guitar volumes like you mixed the volume for “loop1,”and notice how each volume fader moves back to its original position after you let it go.

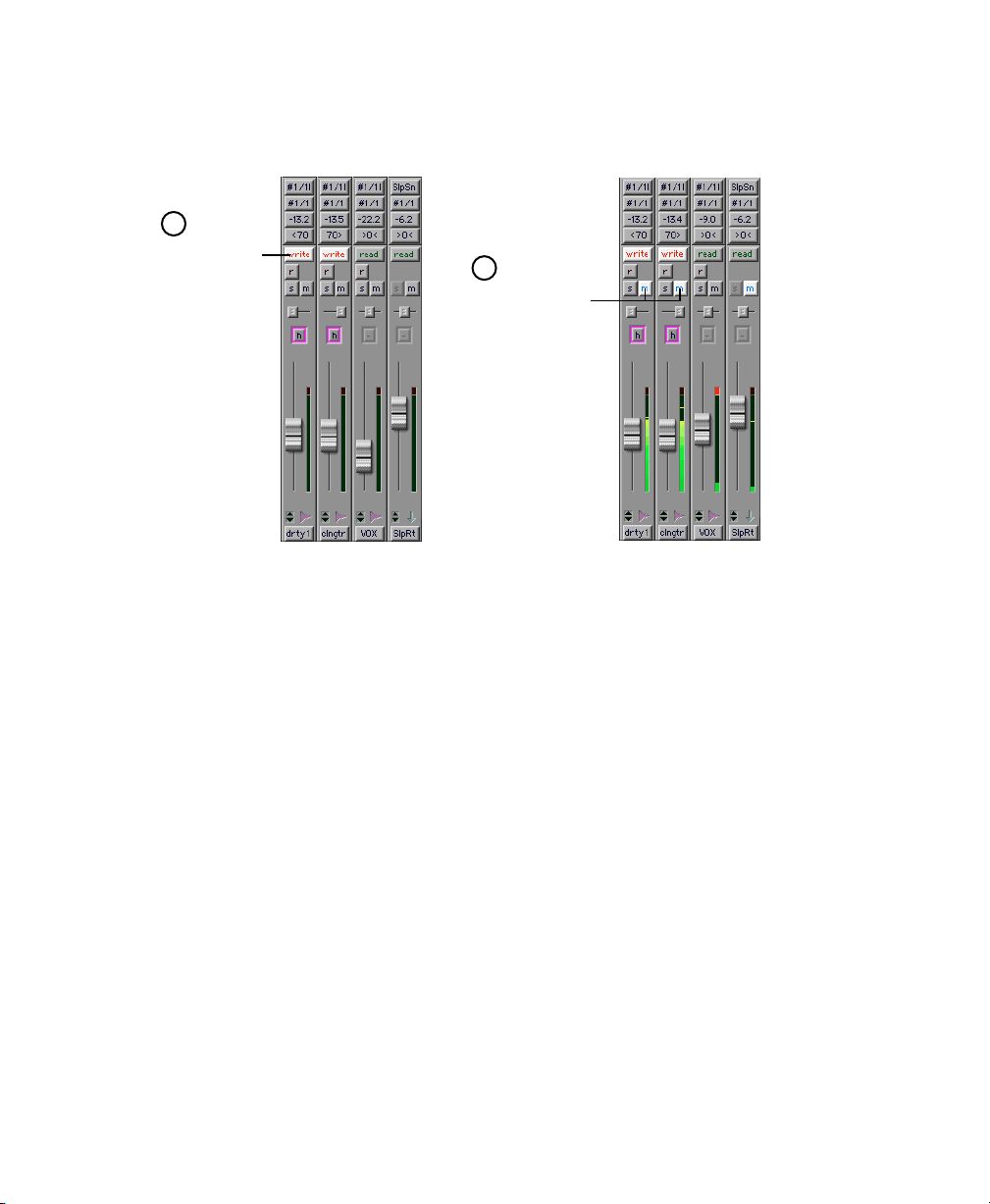

Starting with the track “cleangtr,” set the Automation Mode to Auto Write, then move the volume fader during playback to write volume automation. To hear the automation, switch back to Auto Read mode. Then do the same thing for the track “dirty1.”

Chapter 5: Working with the Demo Session 51

To write automation:

1 Click “Guitar Vol Auto” in the Memory Locations window to go to the tutorial location. 2 On the track “cleangtr,” click the Automation Mode button and choose Auto Write for

the Automation Mode.

3 Click Play in the Transport window. Automation begins writing for the track you have

selected. Move the Volume fader to write changes to the automation.

4 When you have ﬁnished writing automation, click Stop.

select Auto Write for

the Automation Mode

mix the volume during playback, and your automation is written to the session

click Guitar Vol Auto to move to the

tutorial location

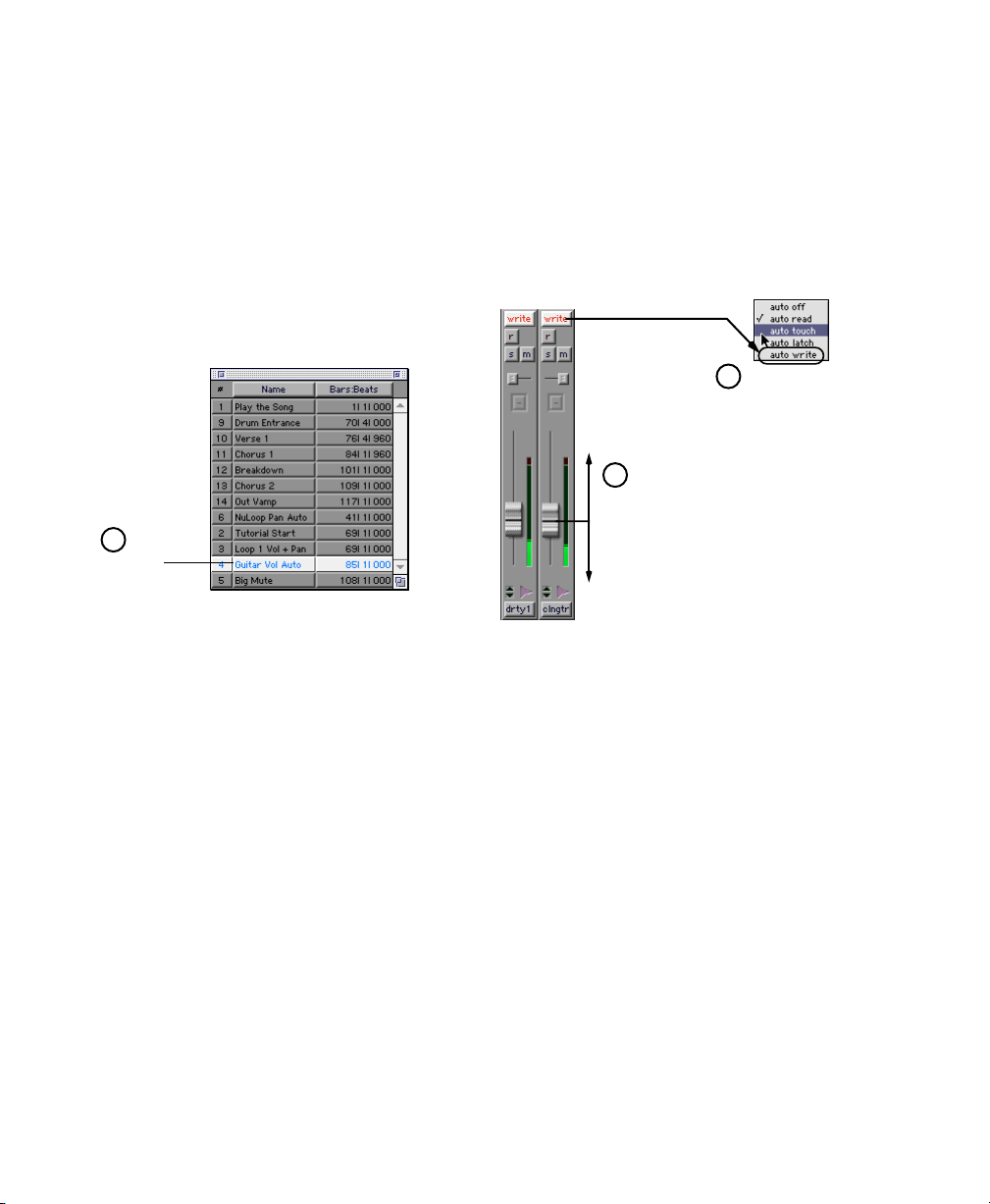

Memory Locations window

To play back automation:

1 Set the Automation Mode on the “cleangtr” track back to Auto Read. Now your

automation will be read as the track is played back.

2 Play the song. Your automation is played back as the song plays. The Volume fader in the

Mix window also moves as the song plays back, displaying your automation.

Now write volume automation for the distorted guitar track “dirty1,” using the same steps.

Mixing in the Edit Window

The Edit window can be used for many editing tasks, and it also allows you to “draw” very precise Mix automation. First, we’ll use the Edit window to expand on the automation we wrote in the Mix window by drawing a precise fade-out on the Master Fader at the end of the song.

Digi 001 Quick Start Guide52

Drawing Automation in the Edit Window

In the Edit window, you can view different data for a track, including a representation of the actual waveform, and volume, mute, and pan automation. In this example, we’ll view the Master Fader, which controls the volume of the overall mix, and fade out the end of the song to silence. Try fading out from the start of the last chorus.

To draw a volume fade in the Edit window:

1 First, click the Memory Location “Out Vamp.” Then switch to the Edit window by

choosing Windows > Show Edit.

2 Next, make the track height larger for the Master Fader track (this is shown at the bottom

of the following illustration). This will make it easier for you to draw the fade.

Editing tools

Audio Show/Hide Tracks List

Regions

list

Groups

make the track height larger for easier editing

Edit Window showing the Memory Location “Out Vamp”

Memory Location

“Out Vamp”

Chapter 5: Working with the Demo Session 53

3 Using the Grabber tool, click on the volume line at the point you want to start fading

out. A small point appears on the volume line.

4 Click again with the Grabber at the point where you want the fade-out to end (reach

silence), then drag the second small point down to the bottom of the track.

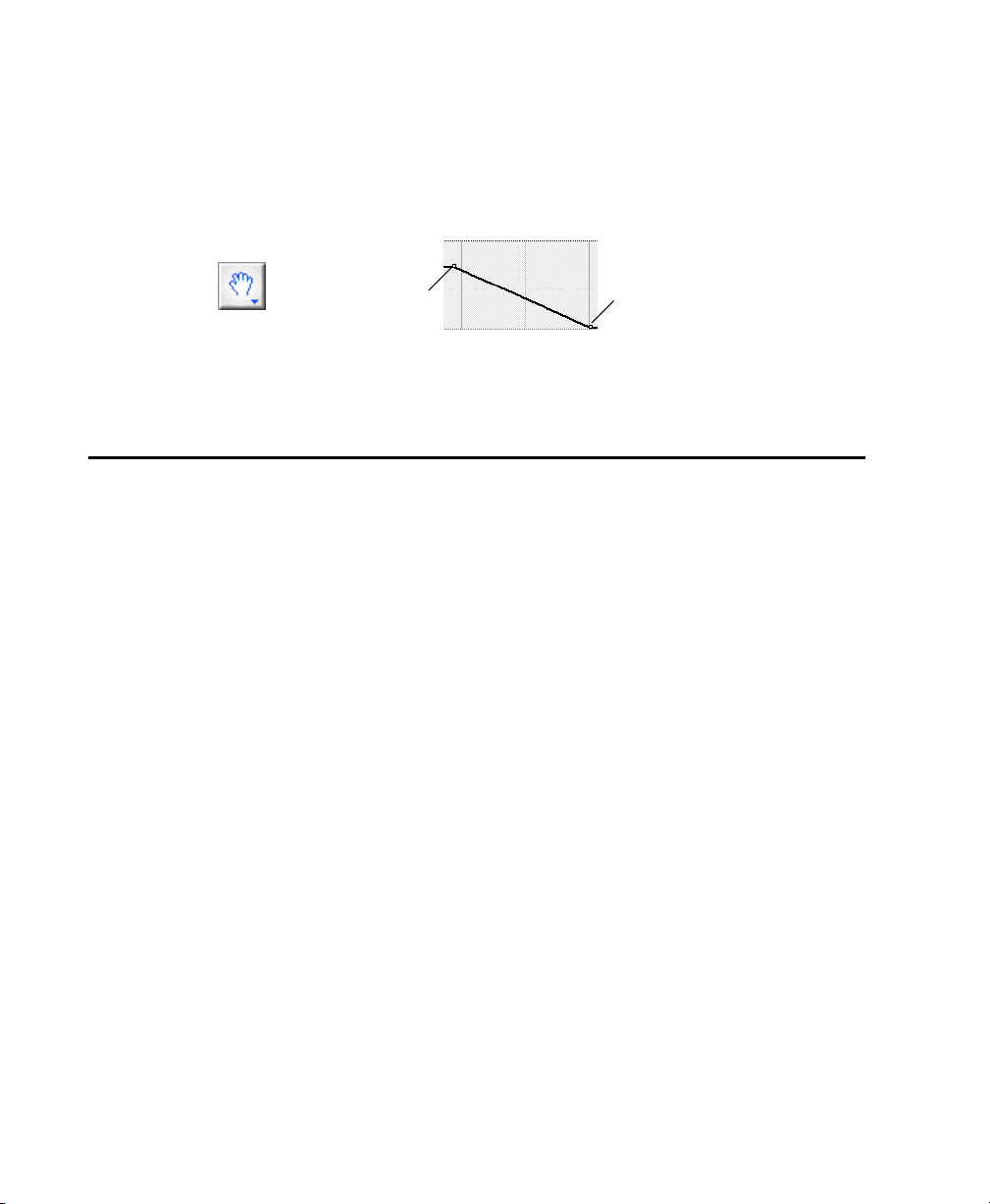

finished volume fade on the Master Fader

the Grabber tool

starts fading out here

5 You can easily adjust the start and end points of the fade by clicking on one of the points

fade ends here (silence)

you have made and dragging it to the left or right.

Plug-Ins

Pro Tools LE provides a collection of Real Time AudioSuite (RTAS) Plug-Ins that can be used to process audio tracks. RTAS Plug-Ins are provided for common effects such as equalization, compression, and delay.

Using Plug-Ins

Plug-ins are placed in a track insert. An insert, as its name implies, is used to insert something in the audio path of a track before you hear it. For example, an insert can be used to place a compressor in a track, and compress the audio before it reaches the audio outputs.

You can easily add a plug-in by clicking a free insert on a track, and choosing a plug-in from the pop-up menu. You can do this during playback or when playback is stopped. Note that you can add several different instances of a plug-in in the same session, depending on your CPU’s power. For example, the demo session uses the 4-band EQ Plug-In 3 times. Once you add a plug-in to an insert, you can open it to view and adjust settings by clicking on the plug-in name next to the insert.

Digi 001 Quick Start Guide54

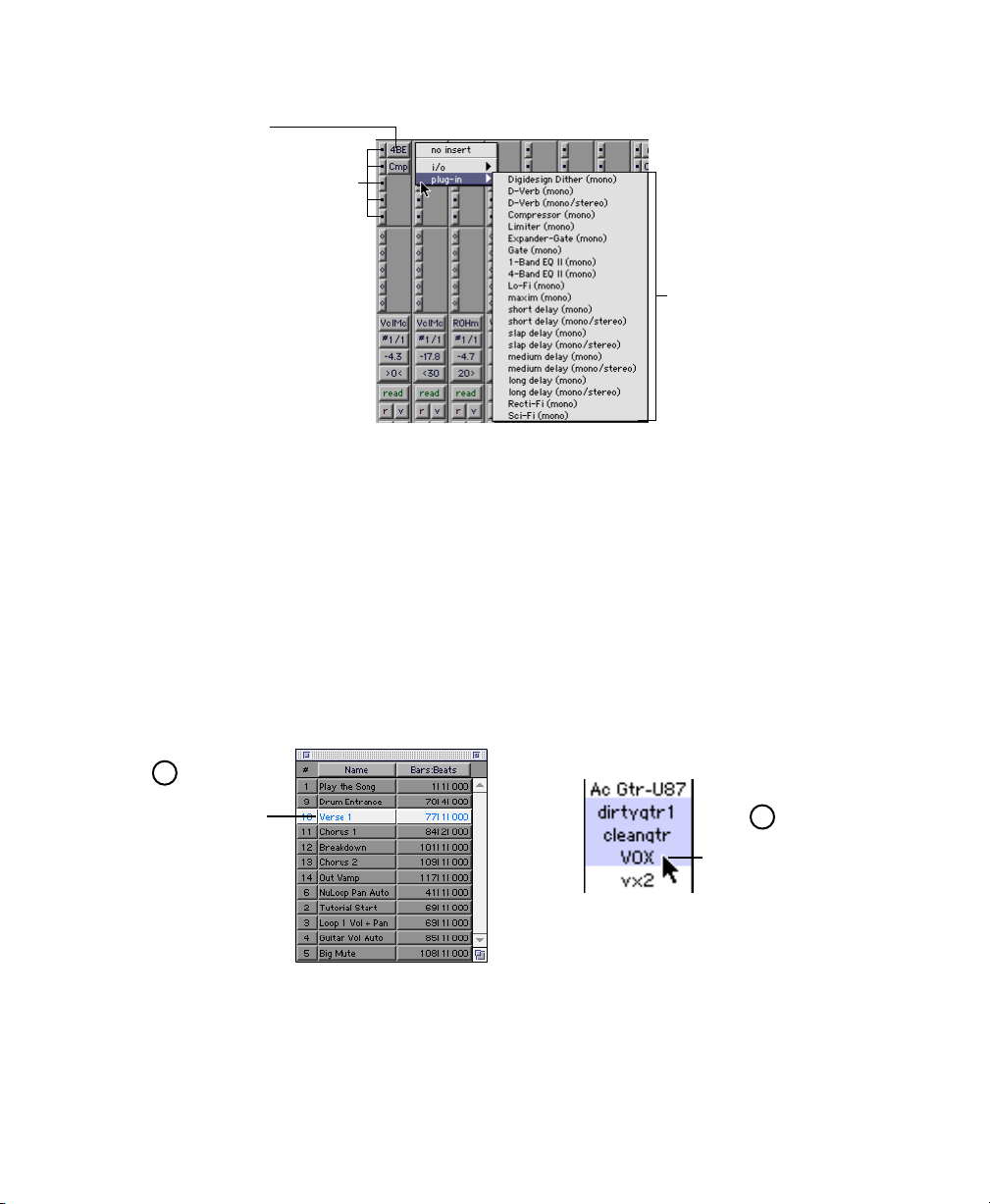

Plug-Ins: click on to view and change settings

inserts

select a plug-in by clicking on an unused insert, or select “no insert” to remove a plug-in

installed plug-ins

Try it!

Several plug-ins are already activated in the demo session “Be There.” We’ll try adjusting the EQ Plug-In on the track called “VOX.” First, you’ll have to ﬁnd a good location to hear the vocals. We’ll start at the ﬁrst verse. But since the “VOX” track isn’t showing, we’ll have to show it ﬁrst by clicking it in the Tracks list on the left of the Mix window.

To change plug-in settings:

1 Show the Mix window by choosing Windows > Show Mix. Click the Memory Location

“Verse 1.”

2 To show the vocal track, click “VOX” in the Show/Hide Tracks List.

click “Verse 1” in the Memory Locations window

click to show track (track name is highlighted)

Chapter 5: Working with the Demo Session 55

3 View the plug-in by clicking on the plug-in name next to the insert. 4 Click Play in the Transport window, and adjust the plug-in settings, listening to the

change in the audio. Feel free to tweak at will!

5 When you have ﬁnished, close the plug-in by clicking the Close box.

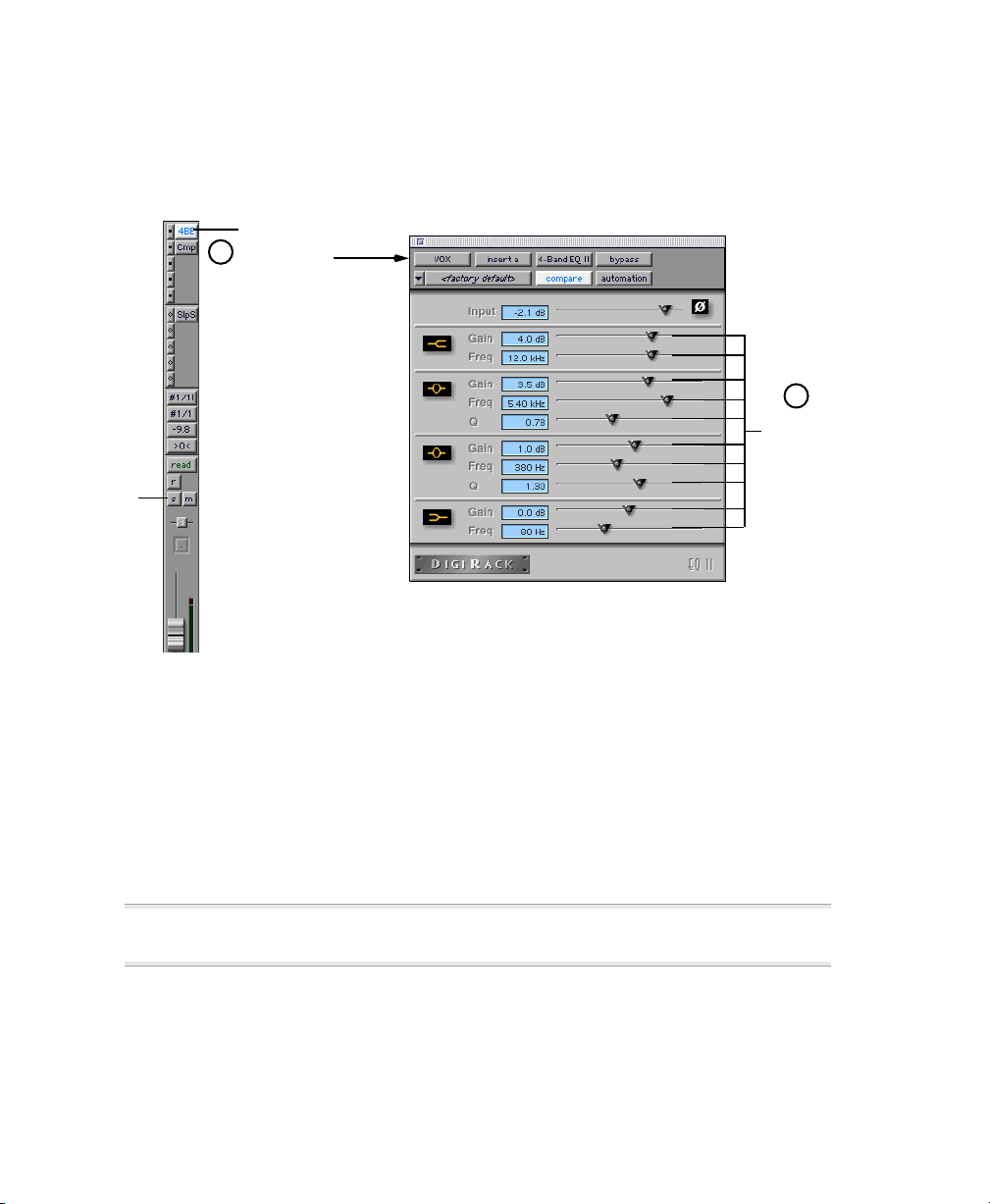

Click the 4-Band EQ on the VOX track

channel insert

press Play, then

Tweak!

solo button (see below)

Soloing

You may find it easier to adjust a plug-in while listening only to that track. This is called soloing a track.

To solo a track:

1 Click the Solo button on the channel strip. Play the song. 2 Click the Solo button again when you are done, to hear the entire mix again.

✽ You can solo more than one channel, by clicking the solo buttons for multiple

channels.

Digi 001 Quick Start Guide56

Cool Mix Tricks: The Big Mute

Now that you’ve started mixing with Pro Tools LE—and you haven’t had this much fun in years — here’s a really cool thing you can do. We call this The Big Mute, and it’s one of those tricks you hear often in popular songs of any genre. The Big Mute is basically an automated mute across a bunch of tracks used to highlight a small section of the song. We’ll write this mixing “move” as mute automation across all those tracks using an automation group that’s already set up.

✽ To understand this trick better, you can refer to the information on Mix Automa-

tion and the information on Groups in the going to give away all the tricks in this Quick Start Guide—we just want you to have an idea of what’s possible with Pro Tools LE.

To automate The Big Mute:

1 Go to the tutorial location by clicking “Big Mute” in the Memory Locations window. 2 Enable the Big Mute group by clicking “Big Mute” in the Groups list.

Pro Tools Reference Guide. We’re not

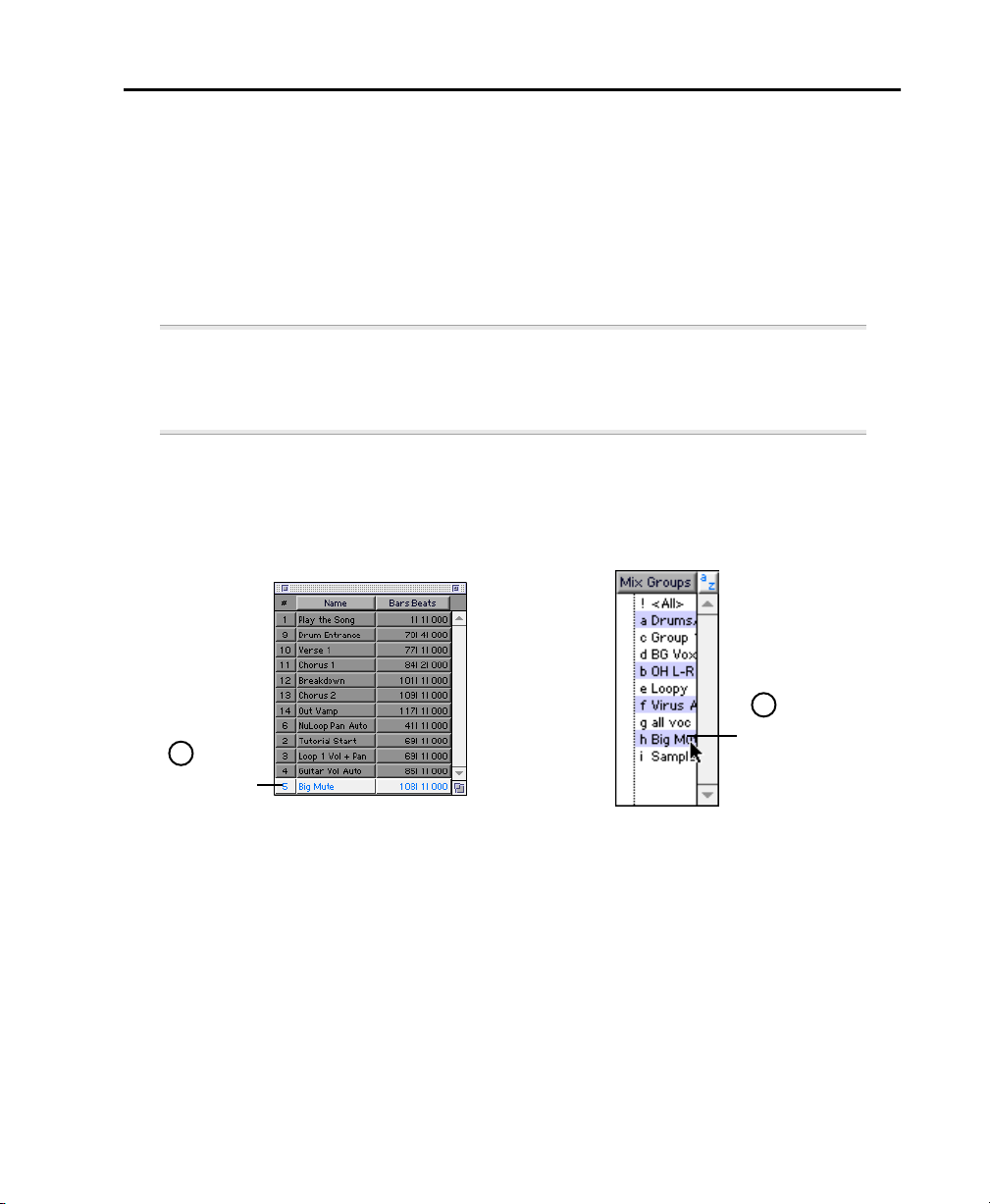

click “Big Mute”

click “Big Mute” Memory Location

3 Set the Automation Mode to Auto Write on the slap return track, called “SlpRt,” by

group to enable

clicking the Automation Mode button and selecting Auto Write from the pop-up. This will enable you to automate the muting of the slap return track, which puts a delay on the lead vocal.

4 Click Play in the Transport window, and click Mute on the track to begin writing mute

automation.

Chapter 5: Working with the Demo Session 57

5 Click Mute again to stop writing Mute Automation before the lead vocal begins the

second part of the chorus (before but when she comes around).

6 Click Stop in the Transport window to stop writing automation.

✽ The Automation Mode automatically switches to “Auto Touch” after you stop

playback. This Automation Mode, which is used to “touch up” your recorded automation, is described in the Pro Tools Reference Guide.

set Automation Mode to Auto Write

mute during playback to write Mute Automation

7 Set the “SlpRt” track back to Auto Read, click Play in the Transport, and listen to the

results. You should hear the chorus playing back without the delay on the vocals. Click Stop when you are done listening.

8 Set the Automation Mode for the Big Mute group to Auto Write by clicking the

Automation Mode button on any of the tracks in the group (for example, cleangtr) and selecting Auto Write from the pop-up. Note how all of the tracks in the group go into Auto Write mode.

9 Play the session, and click the Mute button on any of the Auto Write enabled tracks in

the Big Mute group (for example, “clngtr”) to start writing mute automation to all tracks in the group. Try to click the Mute button at the beginning of measure 109 (she says when she [mute] comes around) for greater impact.

Digi 001 Quick Start Guide58

10 Click the Mute button on the same track again to stop writing mute automation. Try to

click the button around the beginning of measure 113 (but when she [un-mute] comes around).

enable Auto Write Automation Mode

click Mute on a track in the Group during playback to start writing Mute Automation

11 Set the Big Mute group back to Auto Read mode, then click Play in the Transport

window to hear the Big Mute.

Don’t worry if you didn’t get the mute just right the first time. You can choose Edit > Undo to erase the mute and try it again.

Chapter 5: Working with the Demo Session 59

MIDI

This optional section is for MIDI users. In this section, you’ll connect your MIDI device to the Digi 001 I/O Box, then we’ll try to coax some meaningful sounds out of the MIDI tracks in the Demo Session.

MIDI conﬁguration takes place in OMS (Open Music System) on the Macintosh, and in Windows Multimedia setup.

Macintosh

When you installed Digi 001, a Digi 001 driver was placed in your OMS folder. To use this driver, you need to connect your device, then configure your OMS Studio Setup. See “Installing and Configuring OMS” on page 9 for more information.

Windows

When you installed Digi 001, a Digi 001 MIDI driver was installed. To use this driver, you need to connect your device, then configure your Windows Multimedia Setup. See “Installing the Windows 98 Wave Drivers” on page 19 for more information.

MIDI Offset

When you monitor a MIDI device through the Digi 001 audio inputs by record enabling tracks, you will hear an audio delay equivalent to the number of samples speciﬁed in your Hardware Buffer settings (see “Monitoring Latency and Recording” on page 69). This audio delay is called latency. You can counteract this latency by triggering your MIDI data early, using a feature called MIDI Offset. Refer to the Pro Tools Reference Guide for more details.

Connecting and Conﬁguring a MIDI Device

To connect a MIDI device:

1 Using standard 5-pin MIDI cables, connect the MIDI In port on the Digi 001 I/O Box to

the MIDI Out connector on your device, and connect the MIDI Out port on the Digi 001 I/O Box to the MIDI In port on your device.

2 Connect the audio output or outputs of your device.

Digi 001 Quick Start Guide60

• You can connect the audio output of the device to Digi 001 by connecting analog outputs to the analog inputs on the back of Digi 001 I/O Box, or you can connect a digital device to the proper digital inputs on either the Digi 001 I/O Box or the Digi 001 PCI Card. If you are monitoring your device through the audio inputs on Digi 001, you will have to route each input to a track and record enable that track to hear output (for instructions, see Chapter 6: Recording).

• You can also monitor your device with a separate mixer that accepts analog or digital input, then route the output into the Digi 001 audio inputs when you are ready to record the audio. Read your mixer’s documentation for more information.

MIDIinMIDI

out

powered monitor speakers

mixer

MIDI

out

MIDI

L/R audio outputs

inputs

Basic MIDI setup using an external hardware mixer

Chapter 5: Working with the Demo Session 61

Using a MIDI Device with the Demo Session

To get an idea of how to assign a MIDI instrument to a track in Pro Tools LE, let’s assign an instrument to a MIDI track that’s already in the Demo session. We’ll ﬁnd and show the track “Virusplayed,” then assign a MIDI device to it. Then we’ll play back, and you can ﬁnd suitable programs on your synth or other device to reproduce the MIDI track.

To assign a MIDI device to play back the track “Virusplayed”:

1 Click the Memory Location “Tutorial Start” to go to the beginning of the tutorial. 2 Use the menu at the top of the Show/Hide Tracks List to Hide All Tracks. Then select only

“Virusplayed” to be displayed, by clicking the track name.

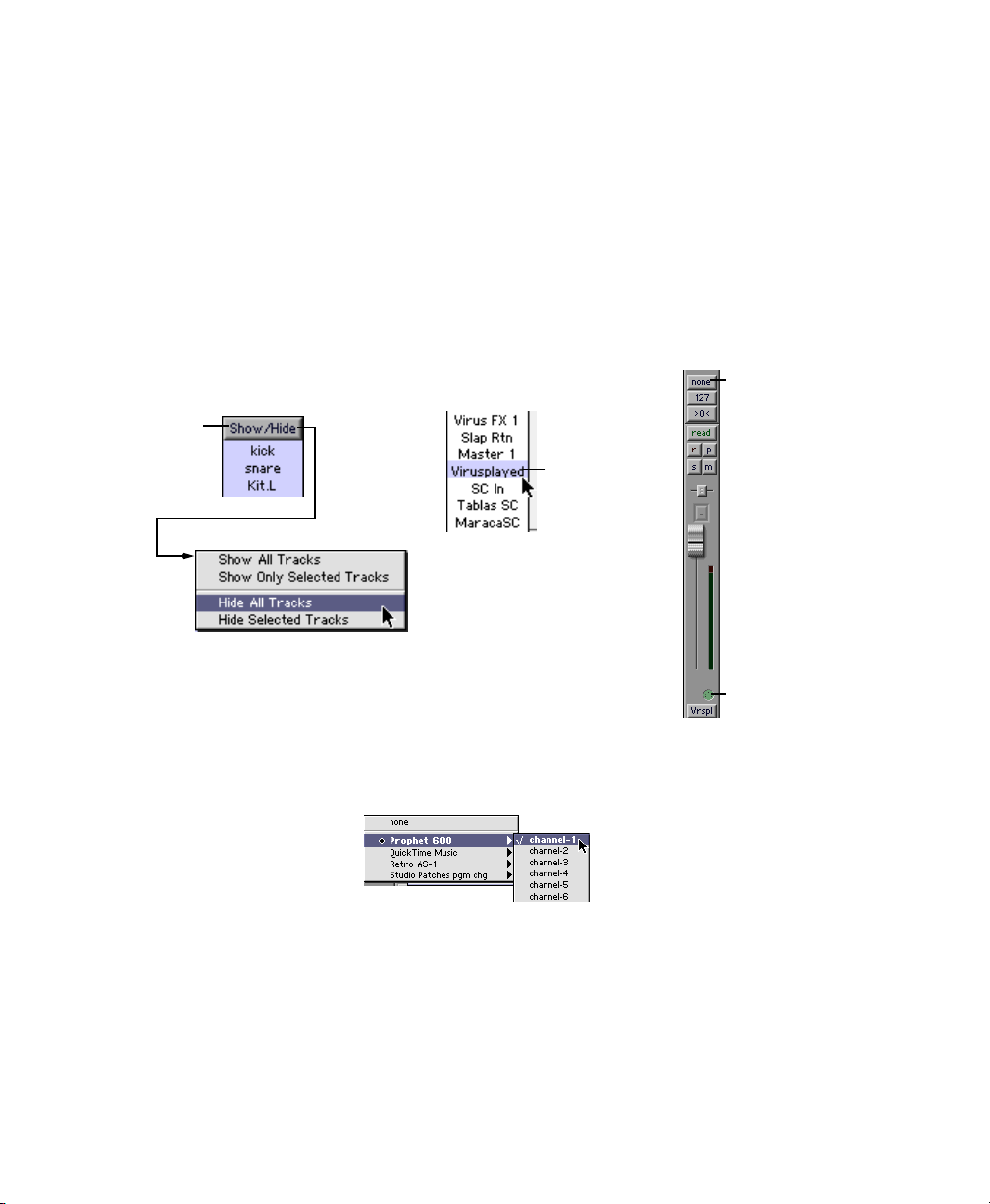

click here to select the MIDI device

click to open the Show/Hide menu

click to show the track “Virusplayed”

(currently “none”)

MIDI track indicator

3 Click on the MIDI Device/Channel Selector for the track and assign a device and channel

from the pop-up menu.

4 Click Play in the Transport window to hear your MIDI device playing back the MIDI

synth line recorded on the “Virusplayed” track.

Much more is possible with MIDI, Pro Tools LE, and Digi 001. See the Pro Tools Reference Guide for more information.

Digi 001 Quick Start Guide62

chapter 6

Recording

This section explains how to record audio and MIDI tracks using Pro Tools LE.

Routing Audio to a Track

To route audio to a track:

1 Connect your audio sources. See “Connecting Audio Sources to Digi 001” on page 32 for

more information.

2 Create the tracks you want to record on by choosing File > New Track. 3 In the Edit or Mix window, ﬁnd the I/O panel. You can show this panel if it is not visible

by selecting Display > Edit Window Shows > I/O for the Edit Window, or Display > Mix Window Shows > I/O for the Mix Window.

4 Click the Input button. 5 From the pop-up menu, select the input you are using. For example, specify Mic/Line 1

if your audio source is plugged into analog input 1, or specify Optical 7 if you are using optical input 7.

Routing an input to a track

Analog inputs

Optical (ADAT) inputs

S/PDIF (RCA) inputs

Chapter 6: Recording 63

Setting Digi 001 Input Levels

Digi 001 input levels for analog inputs 1 and 2 are adjusted using the gain knobs on the Digi 001 I/O Box for each channel. Input levels for analog inputs 3–8 are softwareadjustable to accommodate a variety of equipment output levels.

The key to setting input levels is to get a signal as “loud” as possible without creating digital clipping. Signals that get close to the top of the meter in Pro Tools LE use more of the full bit range (the 16 or 24 bits that make up each audio sample). The more you maximize this bit range, the better your sound quality. And, by keeping your levels healthy, you'll get the least possible noise and best distortion performance.

But watch out for digital clipping. Clipping occurs when you feed a signal to an audio device that is louder than the circuitry can accept. The result is distortion. Digital clipping is harsh, and usually not something you want to hear at all, so watch those meters!

✽ For best signal-to-noise performance, set the Digi 001 input gain to +4 dBu

when recording devices that provide this output level.

To adjust gain on the Digi 001 (Mic/Line inputs 1–2):

1 Connect the instrument or microphone to the input. 2 If the microphone requires phantom power, apply phantom power now by pressing the

48V switch.

3 Create an Auxiliary Input track by choosing File > New Track. 4 Set the track input to the correct Digi 001 input channel (Mic/Line 1 or 2). 5 Play the instrument or sound source at the volume you will record. 6 Adjust the input gain for the channel using the gain knob on the front of the Digi 001

I/O Box. Increase or decrease gain until you are able to achieve maximum signal level without clipping. Typically such levels are in the yellow area of the track’s meter.

increasing gain

Digi 001 Quick Start Guide64

To adjust input gain on the Digi 001 (Analog inputs 3–8):

1 Connect the instrument or device to the Digi 001 I/O Box. 2 In Pro Tools LE, choose Setups > Hardware. 3 Click Other Options. 4 Set the input trim slider to match the output level of the connected instrument. Refer to

the manufacturer’s documentation for details. If you do not know the output level of the device, use the default input trim level, then ﬁne tune the input level gain using the procedure below.

5 Click Done.

✽ Increasing gain raises the noise ﬂoor. Make sure that the device you have con-

nected is outputting as strong a signal as possible without distortion, then set the input gain accordingly.

To ﬁne tune the input level gain (Analog inputs 3–8):

1 Create an Auxiliary Input track by choosing File > New Track. This can be either mono

or stereo depending on the device you are monitoring. Option-click (Macintosh) or AltClick (Windows) the fader on the track to set it to unity gain (0 dB).

2 Set the track input to the correct Digi 001 input channels or channels. 3 Play the instrument at the volume you will record. 4 Note where the instrument output signal registers on the on-screen meters in

Pro Tools LE. Good levels are in the yellow range of the Pro Tools LE track meters. If the levels hit the red, they are clipping, and you should lower the input gain.

5 If the meters are not clipping, and they are not in the yellow range, open the Other

Options dialog and increase the input gain by raising the volume slider for the appropriate input. Click Done and play the audio source again. Repeat until you have a strong signal without clipping.

Chapter 6: Recording 65

6 Repeat this until you are able to achieve maximum signal level without clipping.

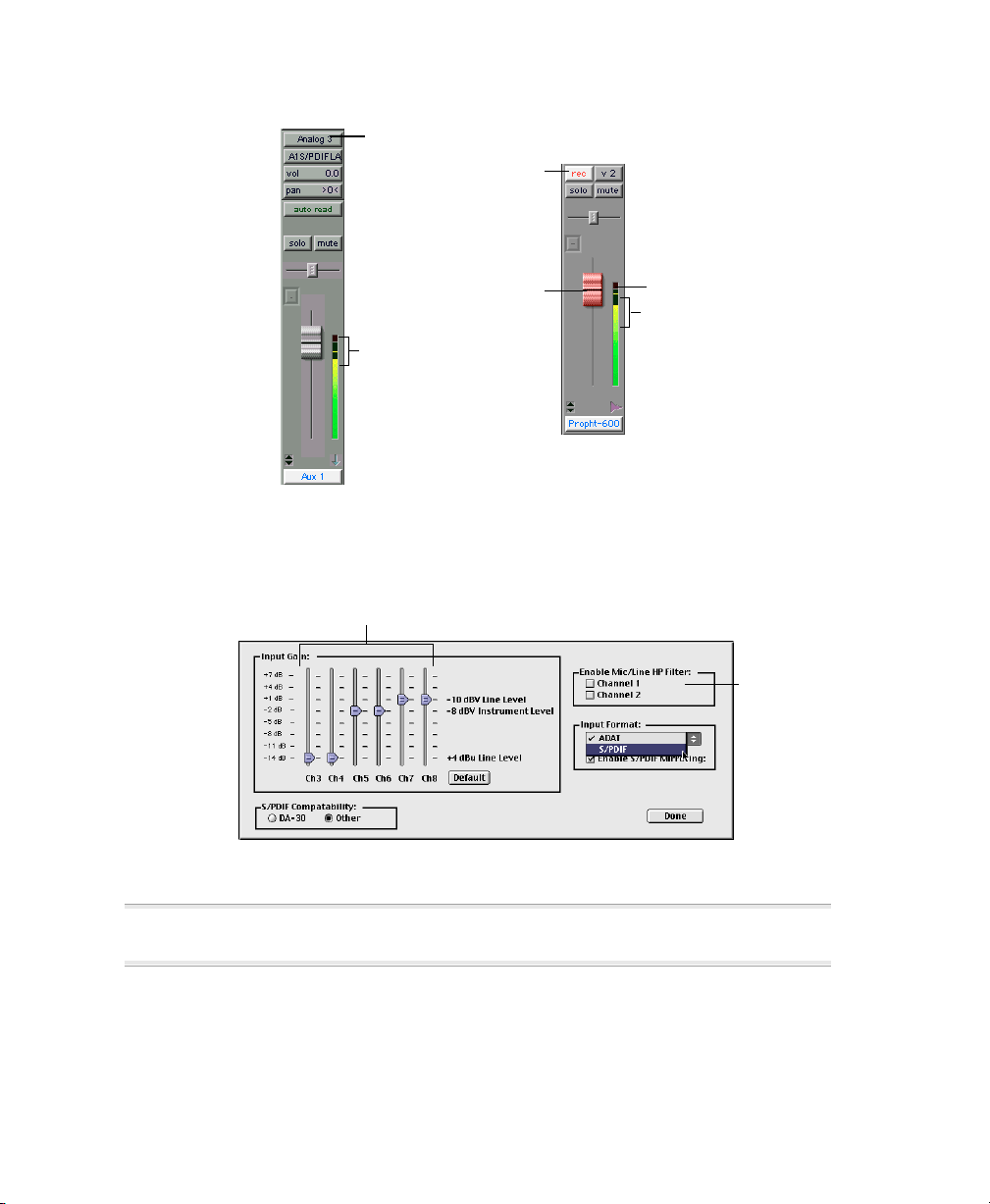

No need to record enable an aux track

input

record-enabled

(white button,

red text)

record-enabled

(red fader)

try to set input peaks here

bright red light indicates clipping!

try to set input peaks here

Setting recording input levels (Aux Track on left, Disk Track on right)

7 Adjust the gain on analog channels 3–8 by using Other Options in the Hardware Setup

dialog (Setups > Hardware, then click Other Options).

analog input gain 3–8

high-pass filters

Other Options dialog

✽ Gain cannot be adjusted for digital inputs, unless you can adjust it at the

source.

Digi 001 Quick Start Guide66

Mic/Line High-Pass Filter

Digi 001 includes a high-pass filter set at 60 Hz. This filter can be useful for filtering out low-end rumble from a noisy recording environment or microphone handling, or AC noise.

To use the high-pass ﬁlter on analog input 1 or 2:

1 Choose Setups > Hardware, then click Other Options. 2 Enable the high-pass ﬁlter for the required inputs.

Recording an Audio Track

To record a track:

1 Record enable the desired track and assign an input to it. Set the input levels

appropriately.

2 Display the Transport window (Windows > Show Transport) and click Return to Zero to

ensure that you are starting from the beginning of the session. You can also record according to a selection or from the cursor location in the Edit window.

3 Click Record in the Transport window to enable recording. 4 Click Play or press the Spacebar to record on all record-enabled tracks. 5 Click Stop in the Transport window or press the Spacebar when you are done recording.

Return to Zero

click to record from the

beginning of session

click Play to start recording

Recording from the beginning of a session

click to enable recording

(turns bright red)

Chapter 6: Recording 67

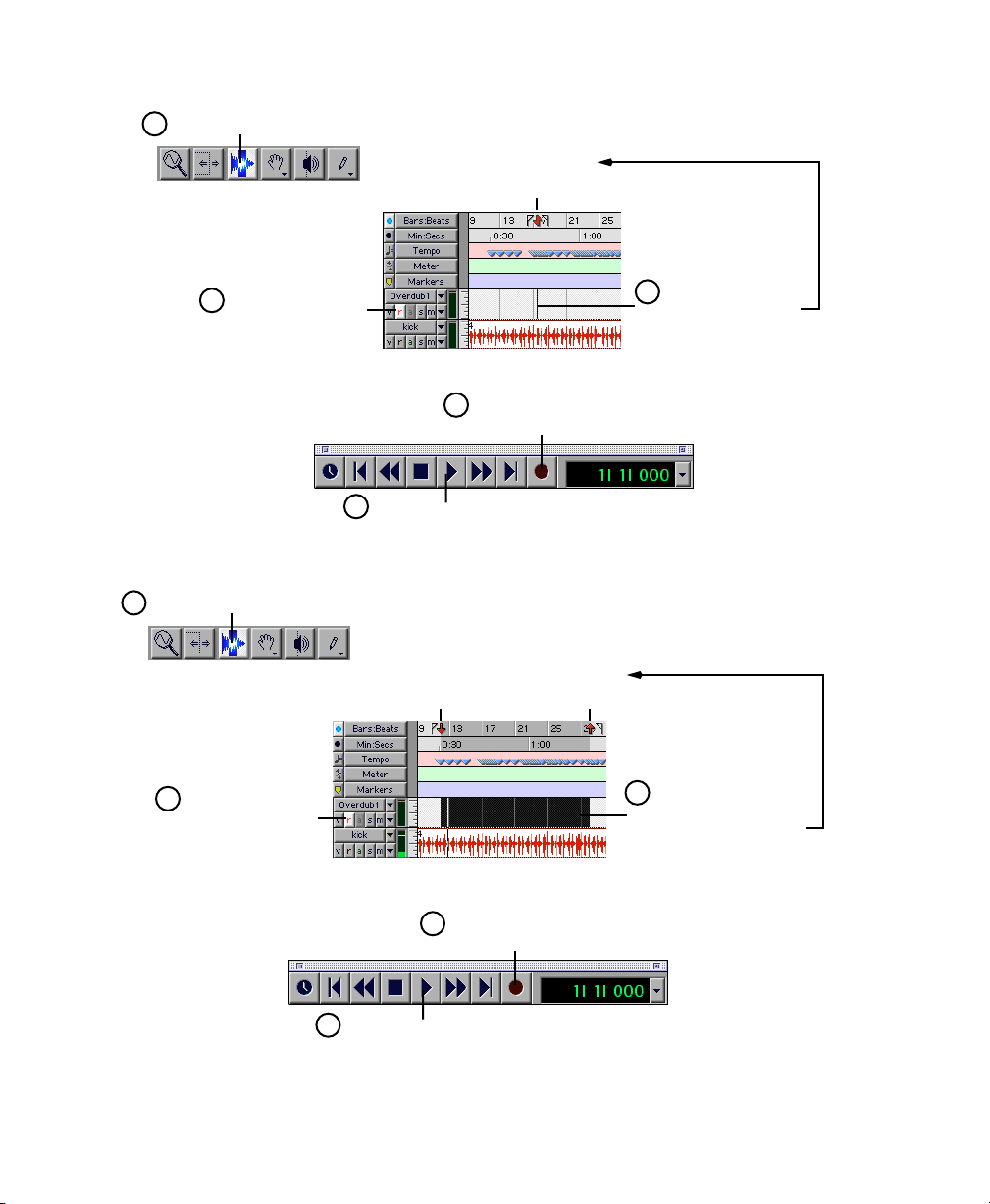

with the Selector tool

red arrow indicates

that recording will

occur at the cursor

Record enable a track

click Play to start recording

Recording from the cursor location in the Edit window

with the Selector tool

these arrows marking your selection

turn red, indicating that recording

will occur in the selection

Record enable a track

click to enable recording

(turns bright red)

place the cursor where you want to start recording

make a Selection of the length you want to record

click to enable recording

click Play to start recording

Recording the length of a selection in the Edit window

Digi 001 Quick Start Guide68

(turns bright red)

To play back a recorded track:

1 Disable recording on the track by clicking the Record button for the track again. The

button should no longer be highlighted.

2 Click Play in the Transport window or press the Spacebar to play the track. 3 Click Stop in the Transport window or press the Spacebar to stop playback.

Monitoring Latency and Recording

Because Pro Tools LE uses the host processor in your computer for audio processing, playback, and recording, there is a small amount of audio delay, or latency, when monitoring audio through the system. You can set the latency shorter when you are recording and monitoring through Digi 001, and longer when you are trying to achieve higher track counts with more plug-ins.

Sample rate Buffer setting

(samples)

128 2.9 recording drums and other timing-criti-

256 5.8 recording vocals and instruments with

44.1 kHz

512 11.6 mixing with 24 tracks

1024 23.2 ﬁnal mixdown or many plug-ins

128 2.7 recording drums and other timing-criti-

256 5.3 recording vocals and instruments with

48 kHz

512 10.7 mixing with 24 tracks

1024 21.3 ﬁnal mixdown or many plug-ins

How Hardware Buffer settings affect latency

Latency (ms) Use this setting for:

cal instruments

slower attacks (bass, guitar, etc.)

cal instruments

slower attacks (bass, guitar, etc.)

Set latency in the Hardware Setup dialog box. Latency is controlled by the Hardware Buffer Size setting, and is displayed in samples. The recommended setting for listening back to audio is 512–1024 samples. For recording, when monitoring through Digi 001, the recommended setting is 128–256 samples.

▲ If have a SampleCell II Plus card, a buffer size of 128 should not be used when

running the SampleCell Editor at the same time as Pro Tools LE. Use a larger buffer setting to avoid performance errors.

Chapter 6: Recording 69

To set the Hardware Buffer Size for record or playback:

1 Choose Setups > Hardware. 2 Choose the number of samples from the H/W Buffer Size pop-up.

set Buffer here for recording

set buffer here for playback

Setting the Hardware Buffer size in the Hardware Setup dialog

Low Latency Monitoring

Pro Tools LE includes a feature called Low Latency Monitoring for Digi 001 systems. This feature allows you to use a built-in mixer on the Digi 001 PCI card to record and monitor up to 16 inputs (8 analog and 8 ADAT) with extremely low latency. This mode can be very desirable for recording multiple instruments at the same time, or a band.

To enable Low Latency Monitoring:

■ Select Operations > Low Latency Monitoring.

To use Low Latency Monitoring tracks must be record-enabled, assigned to an actual audio input (not a bus), and assigned to outputs 1 or 2.

When Low Latency Monitoring is enabled, any plug-ins and sends assigned to recordenabled tracks (routed to Outputs 1–2) are automatically bypassed, and must remain bypassed. Also, these tracks will not register on meters for Master Faders.

Digi 001 Quick Start Guide70

Recording MIDI

To conﬁgure a new MIDI track for recording:

1 Create a new MIDI track. 2 In the Mix window, click on the track’s MIDI Device/Channel Selector and assign a

device and channel from the pop-up menu.

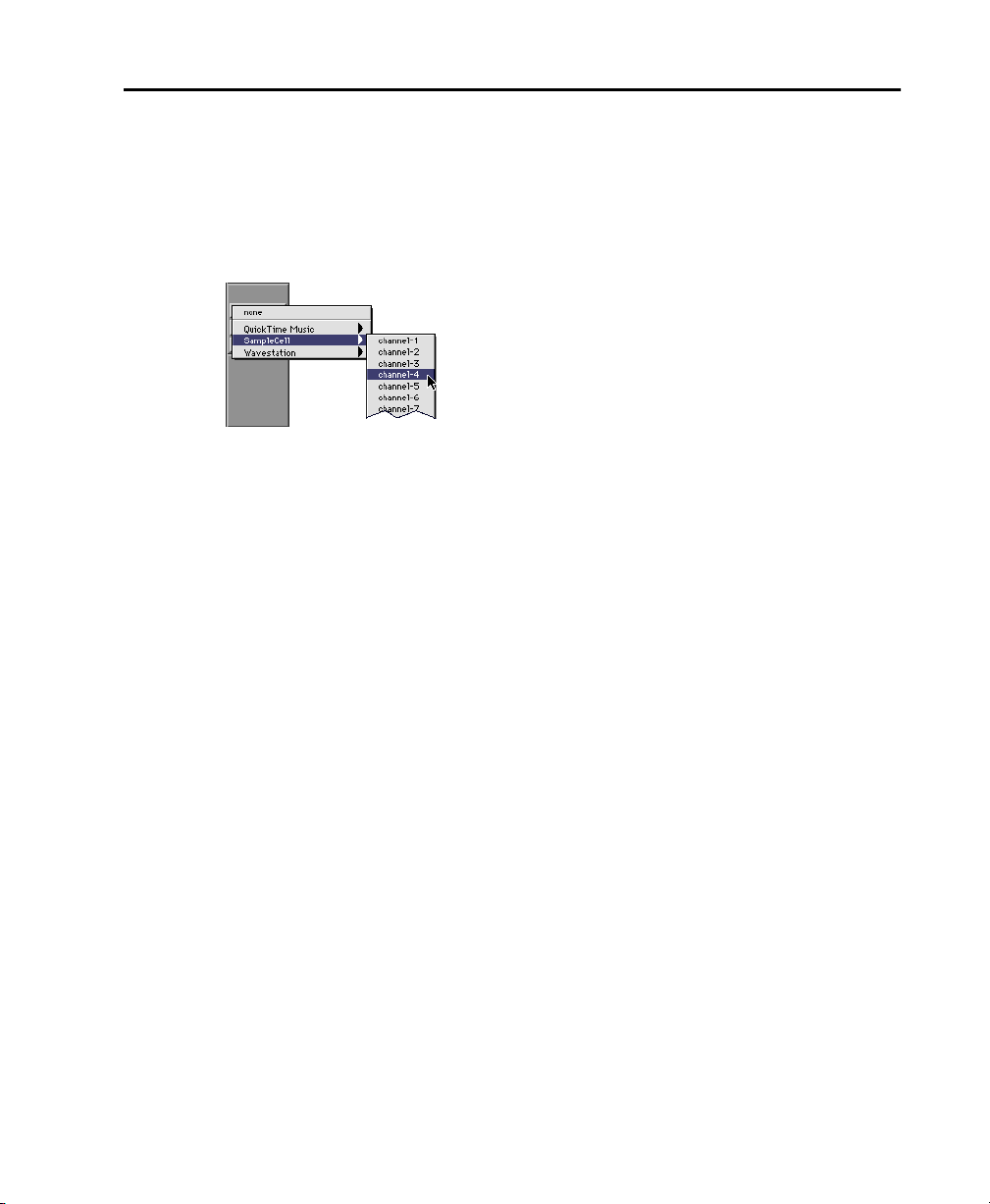

MIDI Device/Channel Selector

3 If you want, you can assign a default program change to the track. In the Mix window,

click on the Program button (Prog) and make the necessary selections for program and bank select, then click Done. Default program changes are sent when playing a track.

4 In the Mix Window, click the MIDI track’s Record button to record enable the track.

To record into the new MIDI track:

1 Put Pro Tools LE in Record mode. 2 Enable and conﬁgure the click, and set a default tempo and meter for the session. 3 Enable Wait for Note or Countoff In the Transport window. 4 Make sure MIDI > MIDI Thru is selected, then play some notes on your MIDI controller.

The MIDI instrument assigned to the track should sound, and the track’s meters should register MIDI activity.

5 In the Transport window, click Return to Zero so the start and end times are cleared. This

ensures that you’ll start recording from the beginning of the track.

6 Click Record in the Transport window.

• If using Wait for Note, the Play, Record, and Wait for Note buttons ﬂash. Recording begins when the ﬁrst MIDI event is received.

• If using Countoff, click Play. The Record and Play buttons ﬂash during the Countoff— after which, recording begins.

7 When you have ﬁnished recording, click Stop in the Transport window. The newly

recorded MIDI data appears as a MIDI region in the Edit window, and in the MIDI Regions List.

Chapter 6: Recording 71

To play back the recorded MIDI track:

1 Click the Record button for the MIDI track to take it out of record-ready mode. 2 In the Transport window, click Return to Zero. 3 Click Play in the Transport window to begin playback. The recorded MIDI data plays back

through the track’s assigned instrument and channel.

Recording with a Footswitch

You can use a standard footswitch (for example, a synth sustain pedal) with QuickPunch to “punch in” when recording audio. You can also punch in when recording MIDI, without enabling QuickPunch. For details on Punch recording, see the Pro Tools Reference Guide.

Pro Tools LE only detects the footswitch if you connect it to the Digi 001 I/O Box before you launch Pro Tools LE.

To connect a footswitch to Digi 001:

■ Plug a footswitch into the Footswitch connector on the back of the Digi 001 I/O Box.

connect footswitch here

To punch in when recording audio with QuickPunch:

1 Enable QuickPunch (Operations > QuickPunch). 2 Set input routing and click the Record button on each audio track you want to punch in.

You can punch in on up to 8 audio tracks while playing 24 tracks, or you can punch in on up to 16 tracks while playing 16 tracks.

3 Click Play in the Transport window. Press the footswitch to begin recording (punch in)

on all record-enabled tracks. Press the footswitch again to stop recording (punch out).

Note that the session continues to play, and you can continue to punch in and out as many times as you want with the footswitch.

To punch in when recording MIDI:

1 Set your MIDI input routing and click the Record button on each MIDI track you want

to punch in. QuickPunch is not required to punch in on MIDI tracks.

2 Click Play in the Transport window. Press the footswitch to begin recording (punch in)

on all record-enabled tracks. Press the footswitch again to stop recording (punch out).

Digi 001 Quick Start Guide72

Recording with an ADAT

You can use Digi 001 to interface with an ADAT, either to record tracks from an ADAT into Pro Tools LE for editing, or to record tracks from Pro Tools LE to an ADAT.

Using Output Pairs

Because of the way that outputs function in Pro Tools LE, each track “looks for” a stereo output pair. This means that in order to record to eight ADAT tracks, you have to send 4 pairs of Pro Tools LE tracks (each pair panned hard left and right) to Digi 001’s 4 pairs of ADAT Optical Digital outputs.

To record ADAT tracks into Pro Tools LE:

1 Connect the Optical Out connector from your ADAT deck to the Optical In connector on

the back of the Digi 001 PCI Card.

Alesis ADAT

OPTICAL

Digital

Input

IN OUT

Output

METER BRIDGESYNC

to ADAT

Optical out

AC POWER

to Digi 001 PCI Card

Optical In

Digi 001 PCI Card

Connecting ADAT optical output to the Digi 001 PCI Card optical input

2 Open or create a session in Pro Tools LE. 3 Record enable up to 8 audio tracks (depending on how many tracks are used on the ADAT

tape).

4 Route ADAT Optical Inputs 1–8 to your eight tracks. 5 Click Record in the Transport window. 6 Click Play in the Transport window to begin recording, then press Play on the ADAT. 7 When playback from the ADAT tape is ﬁnished, click Stop in the Transport window, or

press the Spacebar.

Chapter 6: Recording 73

To record Pro Tools LE tracks to an ADAT:

1 Connect the ADAT Optical Out connector on the back of the Digi 001 PCI Card to the

ADAT Optical In connector on the back of the ADAT deck.

Alesis ADAT

OPTICAL

Digital

Input

IN OUT

Output

METER BRIDGESYNC

to ADAT

Optical in

AC POWER

to Digi 001 PCI Card

Optical out

Digi 001 PCI Card

2 Open the session you want to record to the ADAT. 3 Record enable up to 8 audio tracks on the ADAT. 4 Pan 4 pairs of tracks so that each pair is panned hard stereo (one track of each pair is

panned all the way left, and the other is panned all the way right).

5 Route each track pair to a separate Optical output pair by selecting from the Output pop-

up menu for each track. For example, if one of your pairs was 3(L)–4(R), you could route this pair to the output labeled #1/9 Optical 1-#1/10 Optical 2.

6 Start recording on the ADAT, then click Play in the Transport window in Pro Tools LE.

When playback is complete, stop both systems.

Digi 001 Quick Start Guide74

index

Numerics

-26dB pad 25

48V phantom power 26

indicator 26

ADAT

connecting 39 recording from Pro Tools LE 74 recording to Pro Tools LE 73

adjusting Mic/Line input gain 64 adjusting track volume 50 analog audio 32 analog devices, connecting 34 analog inputs

Digi 001 I/O Box 28

analog outputs

Digi 001 I/O Box 28

analog tape deck, connecting 31 automation

drawing in the Edit window 53 overview 51 writing 52

back panel

Digi 001 I/O Box 27

Be There demo session 45 BIOS settings 15

channel strip 49 computer connector

Digi 001 I/O Box 27

connecting

a footswitch 72 analog devices 34 digital devices 32, 36 headphones 30 microphones 34 MIDI devices 41, 60 speakers 31 to a home stereo 31 to a mixdown recorder 31 to an ADAT 39

CPU Usage Limit

for Macintosh 44 for Windows 45

creating a new track 63

DAT recorder, connecting 32 demo session

playing 45 special features 45

Digi 001 2

installing in Intel computer 16 installing in Macintosh 5 studio connections 30 what’s included 1 Windows wave driver 19

Digi 001 I/O Box

analog inputs 28 analog outputs 28 back panel 27 computer connector 27 connecting 6, 18 footswitch jack 28 front panel 25 headphone gain 27 headphone output 27 input gain knobs 25 input pad 25

Index 75

main analog outputs 28 Mic/Line inputs 25 MIDI I/O 27 monitor inputs 28 monitor outputs 28 monitor volume 26 phantom power 26

indicator 26 power on indicator 26 S/PDIF I/O 27

digital audio

ADAT format 33 S/PDIF format 33

digital devices, connecting 32, 36

effects processing 54 external effects devices 41

sends to 42

footswitch jack

Digi 001 I/O Box 28

front panel

Digi 001 I/O Box 25

gain

adjusting for Mic/Line inputs 64 headphone 27

group enabling 57

hard drives

Macintosh requirements 12 storage space for audio 13, 23 Windows requirements 22

Hardware Buffer Size

for Macintosh 43 for Windows 45

headphones

connecting 30 gain 27 output 27

high-pass filter 67 home stereo, connecting to 31

I/O Labels 42 input gain knobs 25 input gain levels

fine tuning 65 setting 65

input levels 64 input pad 25 inputs

Mic/Line 25

inserts 54

latency

for recording and monitoring 69

line-level sources, connecting 34 Low Latency Monitoring 70

Macintosh

System settings 7 using an older model 43

main analog outputs

Digi 001 I/O Box 28

Memory Locations window 47 Mic/Line

high-pass filter 67

Mic/Line inputs

Digi 001 I/O Box 25

microphones, connecting 34 MIDI connections 41 MIDI devices, connecting 41, 60 MIDI I/O

Digi 001 I/O Box 27

MIDI Offset 60 MIDI tracks

assigning a device 62 playing 72 recording 71 recording with footswitch 72

Mix window 46

narrow 49 showing 49

mixdown

connecting a recorder for 31

Digi 001 Quick Start Guide76

mixing

adjusting track volume 50

muting tracks 57

panning tracks 51

writing volume automation 52

monitor inputs

Digi 001 I/O Box 28

Monitor mode 26, 40 monitor outputs

Digi 001 I/O Box 28

monitor volume 26 monitoring latency 69 multiple instantiations of plug-ins 54 muting a track 57

noise floor 65 non-destructive editing 48

OMS (Open Music System) 9

configuring New Studio Setup 9

defining a MIDI device 11

disabling SerialDMA 11

installing 9

Other Options dialog 66

panning a track 51 phantom power 26

indicator 26

plug-ins 54

adding to a track 54

assigning multiple 54

changing settings 55

power amp and speakers, connecting 31 power on indicator

Digi 001 I/O Box 26

Pro Tools LE

capabilities 1

installing, Macintosh 8

installing, Windows 20

launching the first time 13, 24

removing, Windows 21

serial number entry 13, 24

Pro Tools Reference Guide 3

punch-in recording

with footswitch 72

QuickPunch recording 72

recording

a MIDI track 71 an audio track 67 audio tracks with QuickPunch 72 automation 52 from ADAT tracks 73 MIDI tracks with footswitch 72 monitoring latency 69 to ADAT tracks 74

routing audio 63

S/PDIF I/O (RCA)

Digi 001 I/O Box 27

S/PDIF Mirroring 34 sends

to external effects devices 42

serial number entry, for Pro Tools LE 13, 24 SerialDMA, disabling 11 session 43 showing the Mix window 49 signal-to-noise performance 64 soloing a track 56 speakers, connecting 31 studio connections 30 studio setup diagrams 37 system requirements 2 System settings

for Macintosh 7 for Windows 15

Tascam DAT recorders 32 tracks

creating 63 inserts for 54 muting 57 panning 51 soloing 56

Index 77

Transport window 47

viewing the Mix window 49 volume

Digi 001 I/O Box 26

volume automation 52

Windows

System settings 15 using a slower computer 44 wave driver, installing 19 wave driver, removing 21

Digi 001 Quick Start Guide78

Avid Technology DIGI 1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

System Requirements

Compatibility Information

Digidesign Registration

About the Guides

Conventions Used in This Guide

Choose and Select

Apple System Software Settings

Installing the Demo Session

Installing OMS

Disabling Serial DMA in OMS

Hard Drive Requirements

Using System Drives for Audio

SCSI Hard Drives

Initialize and Defragmenting Drives

Hard Drive Storage Space

BIOS Settings

Windows System Settings

Other Software and Hardware Affecting System Performance

Installing the Demo Session

Hard Drive Requirements

Using System Drives for Audio

SCSI Hard Drives

Formatting and Defragmenting Drives

Hard Drive Storage Space

Connecting Your Studio

Output Modes

Monitoring Audio

Connecting a Recorder for Mixdowns

Connecting an Analog Deck

Connecting a Digital Deck

Analog Audio

Digital Audio

ADAT Format

S/PDIF

Connecting Audio Sources

Studio Setup Diagrams

Using Monitor Mode

MIDI Connections

Using External Effects Devices

Resetting Hardware I/O Labels

Working with the Demo Session

Playing the Demo Session

What’s a Session?

Using an Older Macintosh?

Using a Slow Windows PC?

How the Demo Session is Structured

Play the Demo Session

Mixing the Demo Session Tutorial

Can I ruin my recording?

All Right, Let’s Mix!

Adjusting the Volume of a Track

Panning Tracks

Mix Automation

Writing Your Own Automation

Mixing in the Edit Window

Drawing Automation in the Edit Window

Plug-Ins

Using Plug-Ins

Try it!

Soloing

Cool Mix Tricks: The Big Mute

MIDI

Macintosh

Windows

MIDI Offset

Using a MIDI Device with the Demo Session

Recording

Routing Audio to a Track

Mic/Line High-Pass Filter

Recording an Audio Track

Monitoring Latency and Recording

Low Latency Monitoring

Recording MIDI

Recording with a Footswitch

Recording with an ADAT

Using Output Pairs
