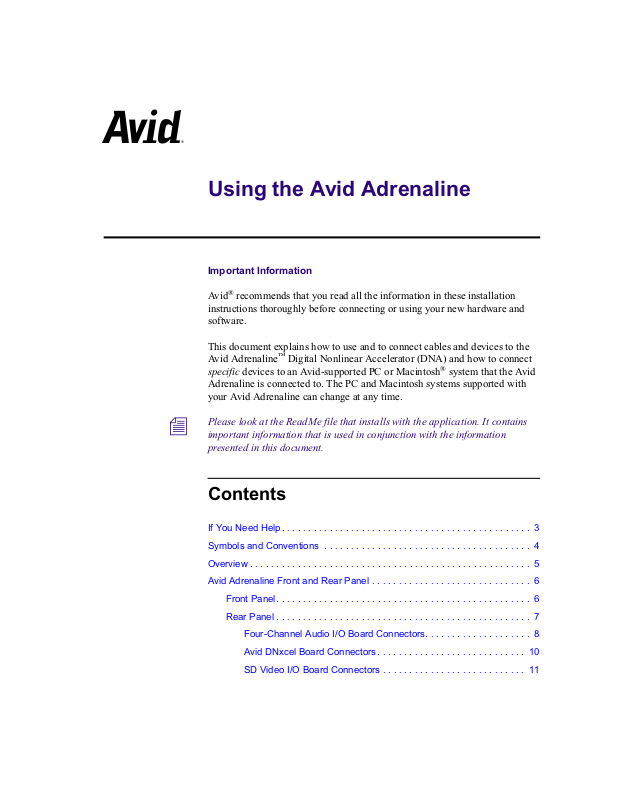

Avid Technology Avid Adrenaline User Manual

Using the Avid Adrenaline

Important Information

Avid® recommends that you read all the information in these installation instructions thoroughly before connecting or using your new hardware and software.

This document explains how to use and to connect cables and devices to the Avid Adrenaline specific devices to an Avid-supported PC or Macintosh Adrenaline is connected to. The PC and Macintosh systems supported with your Avid Adrenaline can change at any time.

Please look at the ReadMe file that installs with the application. It contains important information that is used in conjunction with the information presented in this document.

™

Digital Nonlinear Accelerator (DNA) and how to connect

system that the Avid

Contents

If You Need Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Symbols and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Avid Adrenaline Front and Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Four-Channel Audio I/O Board Connectors. . . . . . . . . . . . . . . . . . . . 8

Avid DNxcel Board Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

SD Video I/O Board Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using the Avid Adrenaline

Synchronizing Audio and Video Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 13

Power-On Self-Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1394 Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting Peripheral Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

System Connections and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

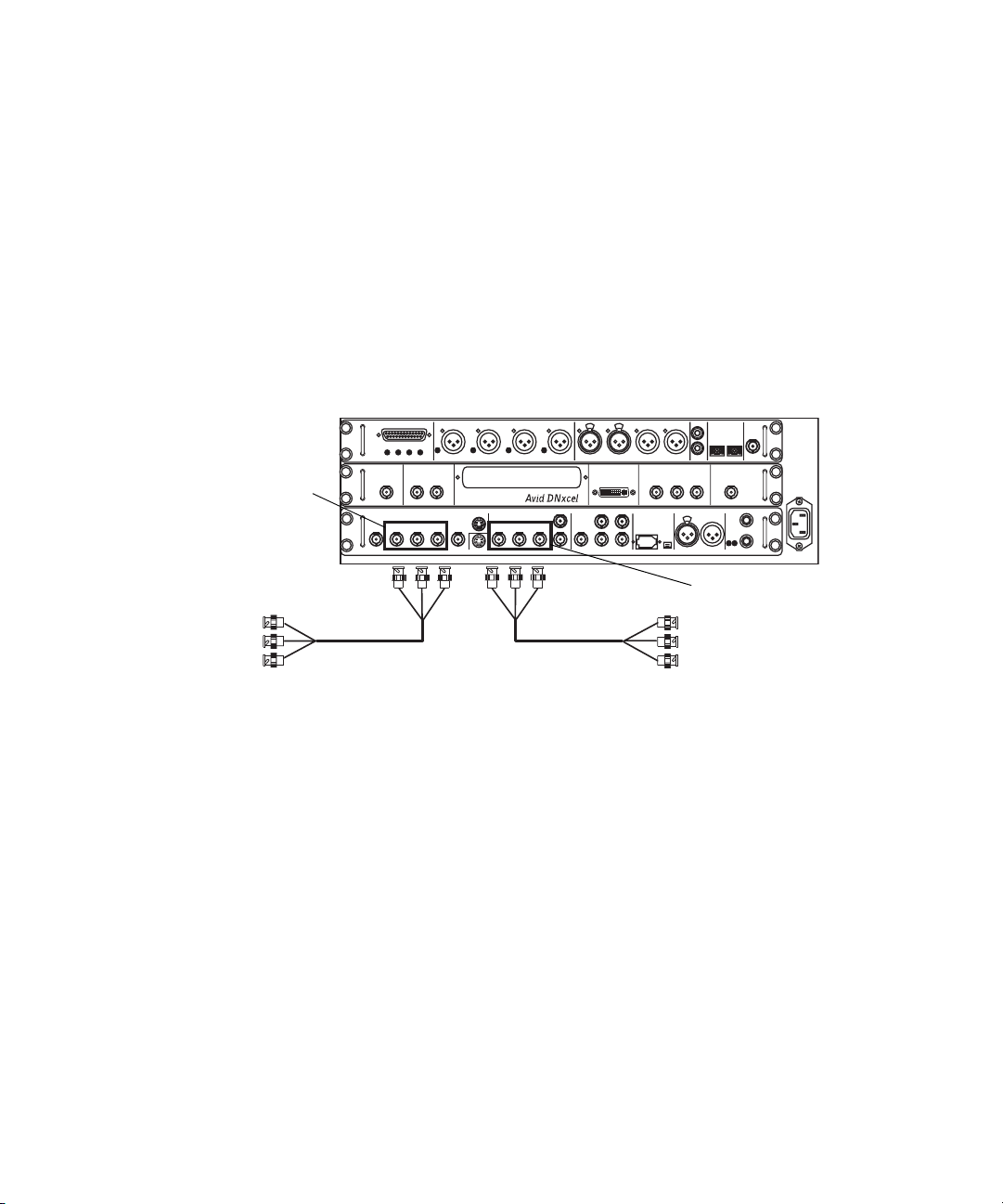

Connecting a Video Deck — Component Signal. . . . . . . . . . . . . . . . . . 17

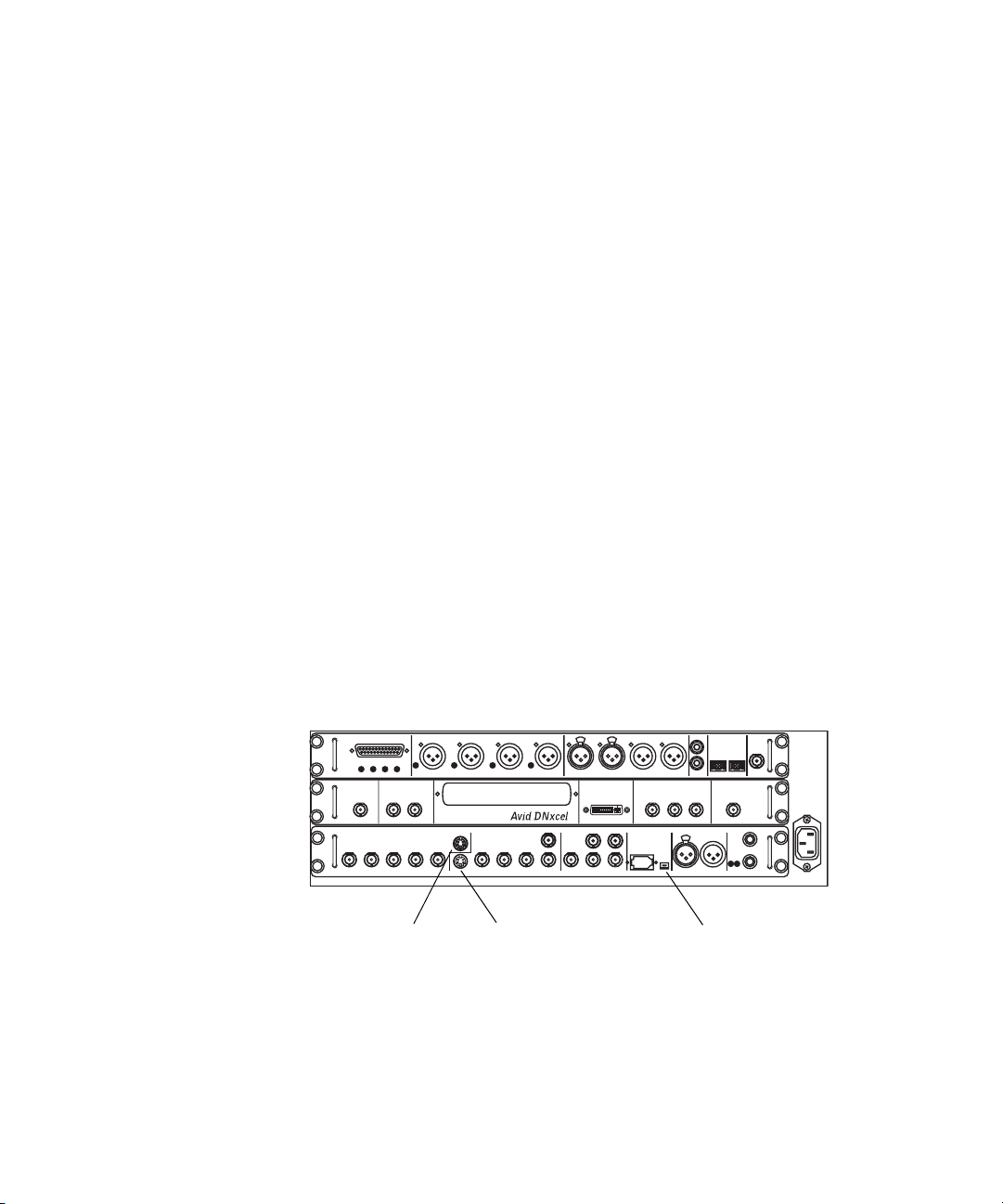

Connecting a Video Deck — Composite Signal . . . . . . . . . . . . . . . . . . 19

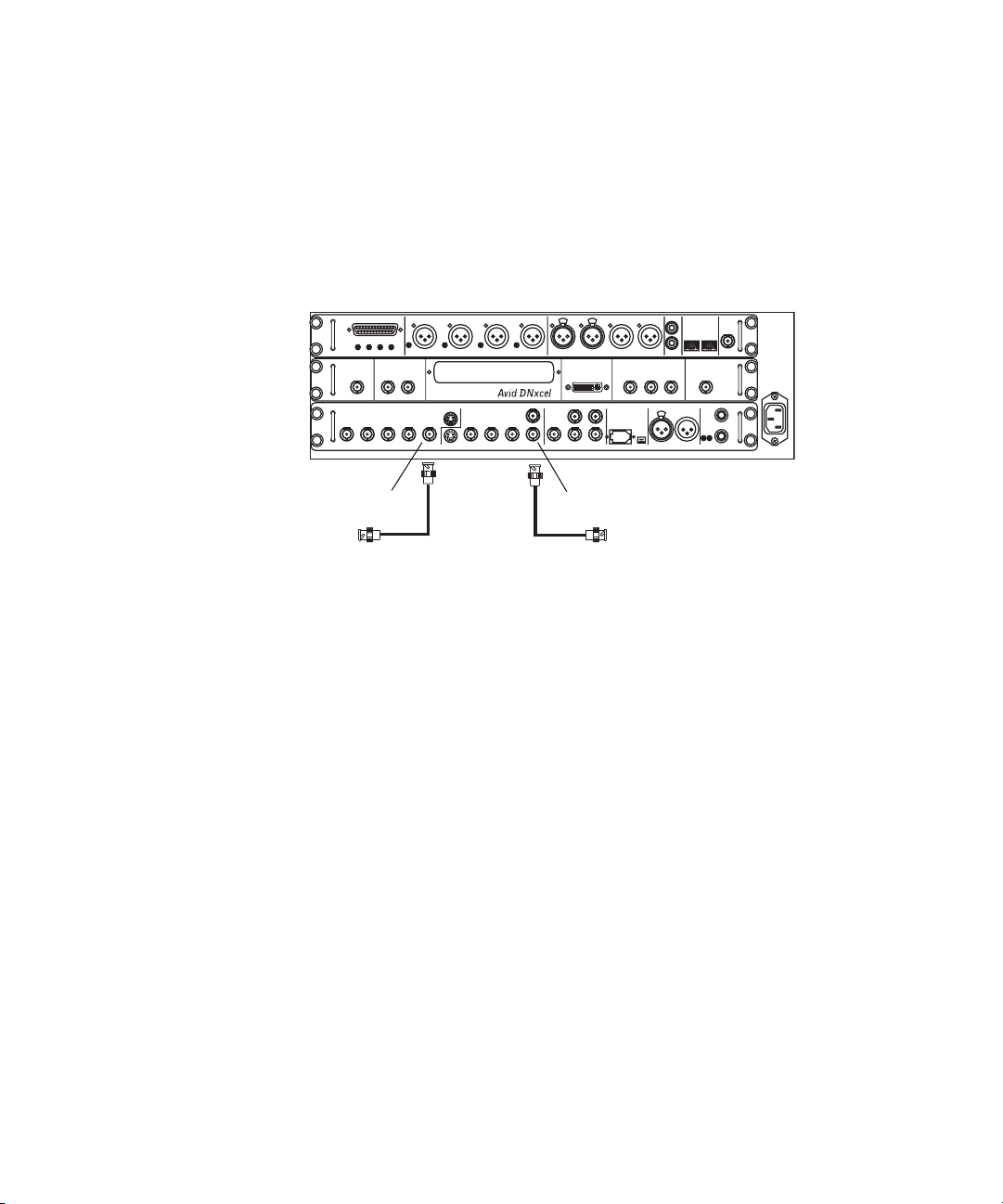

Connecting a Video Deck — Serial Digital Signal . . . . . . . . . . . . . . . . . 20

Connecting S-Video or DV Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Connecting Audio Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Connecting a Client Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Connecting the Application Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

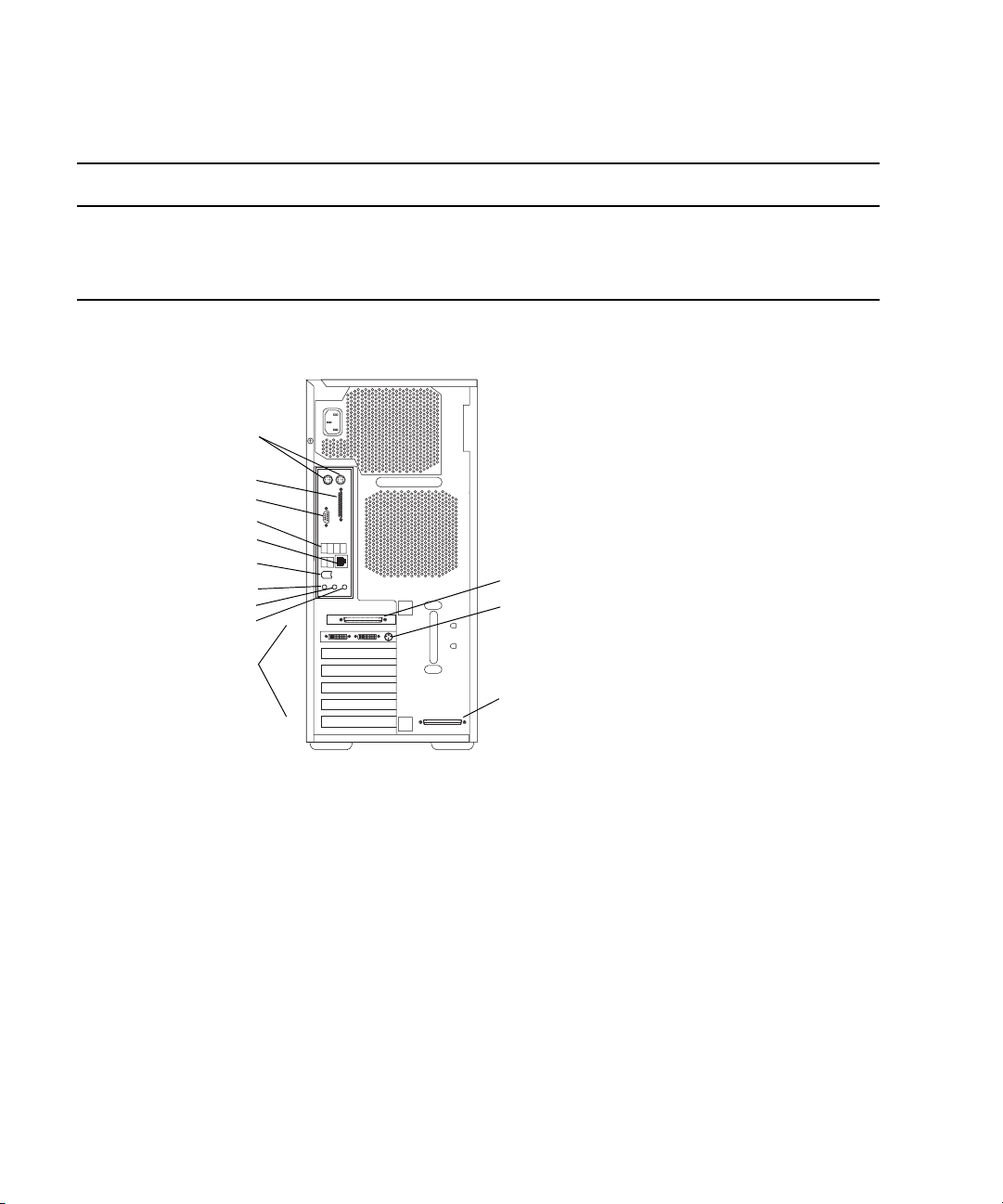

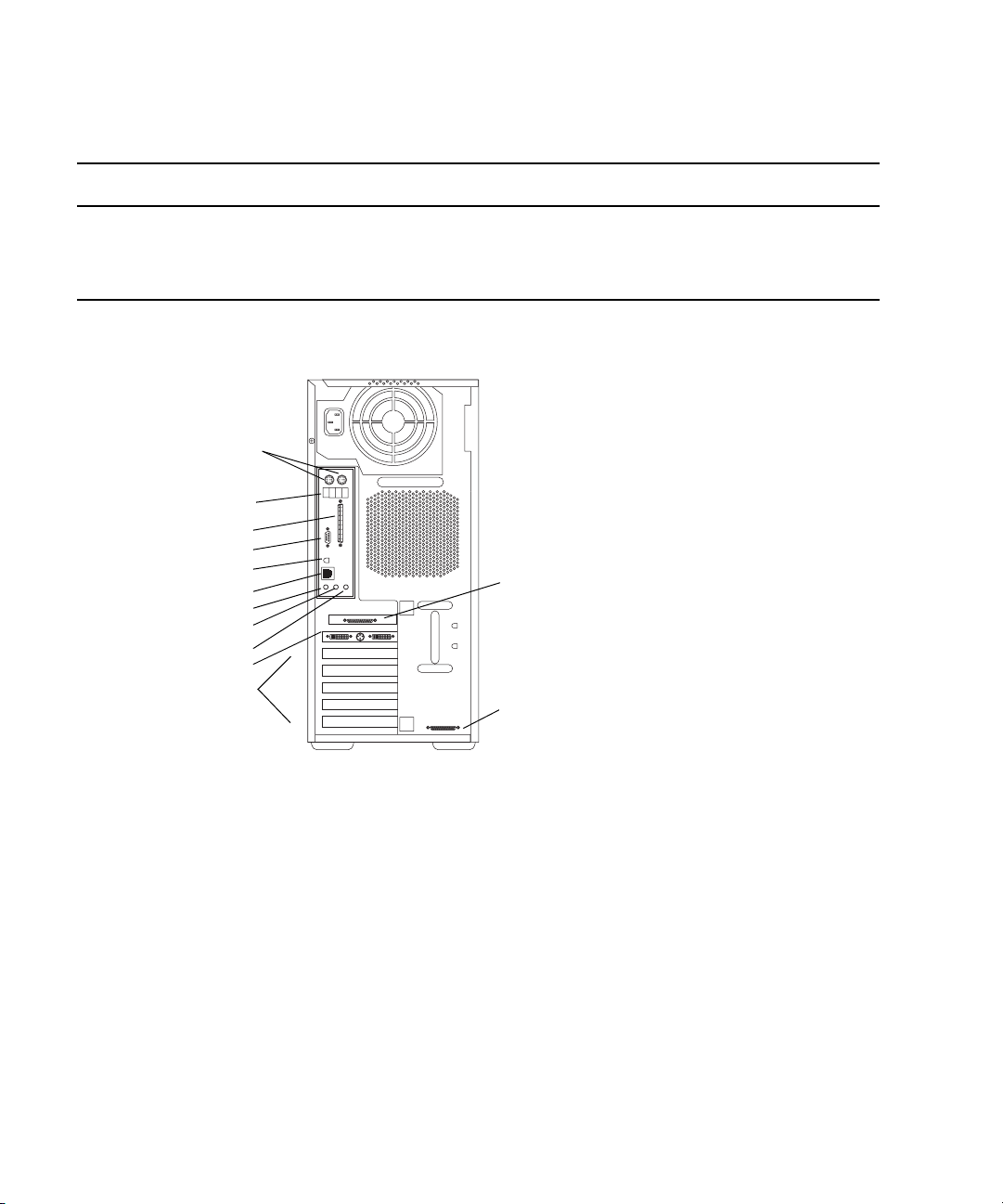

HP xw8200 System Slot Configuration and Connections . . . . . . . . . . . 27

HP xw8000 System Slot Configuration and Connections . . . . . . . . . . . 29

Macintosh G5 System Slot Configuration and Connections . . . . . . . . . 31

Macintosh G4 System Slot Configuration and Connections . . . . . . . . . 32

Connecting Serial and MIDI Port Devices . . . . . . . . . . . . . . . . . . . . . . . . . . 33

USB and Serial Differences Between Windows and

Macintosh Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

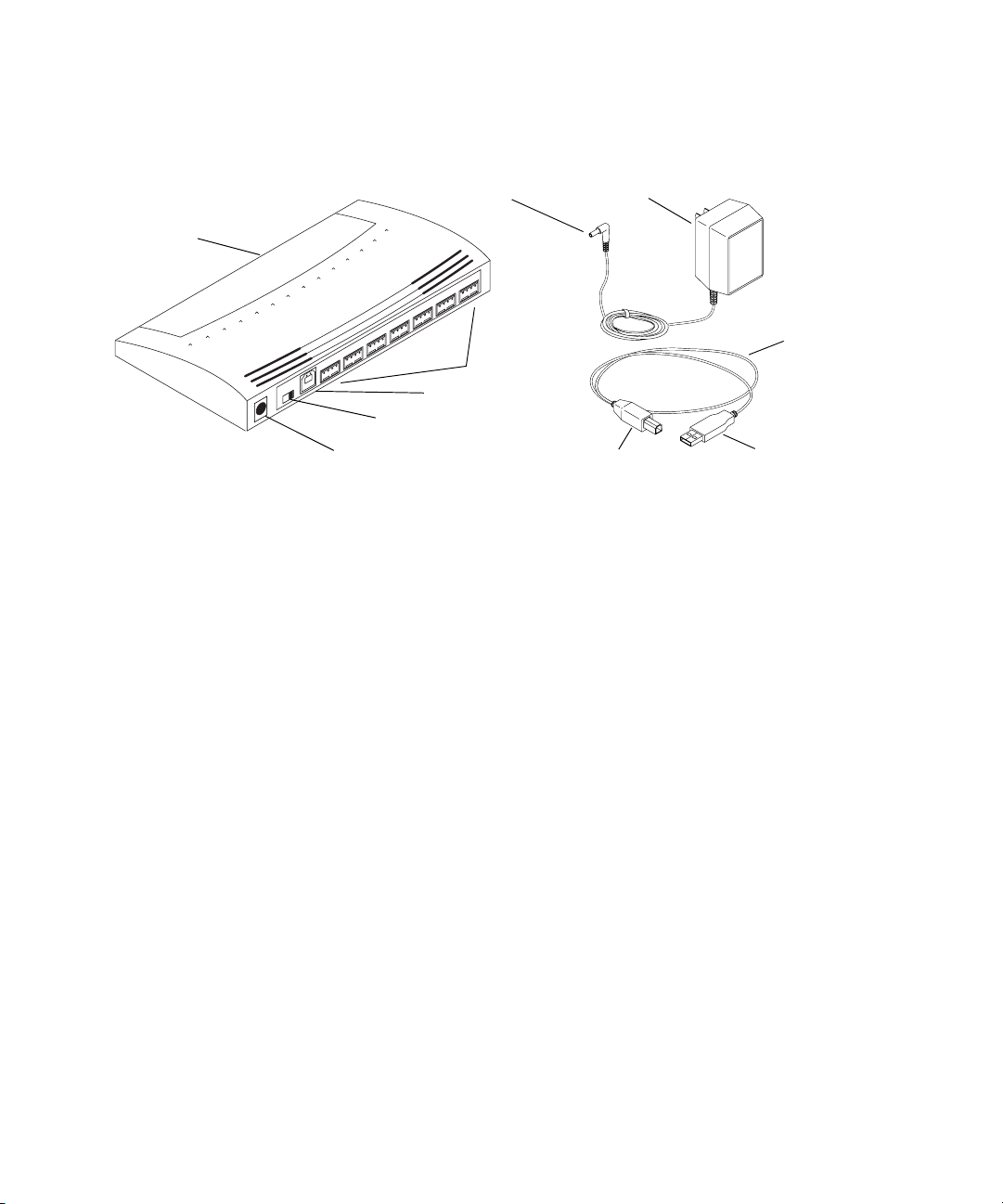

Connecting the USB Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Connecting the USB Devices to the USB Hub . . . . . . . . . . . . . . . . . . . 34

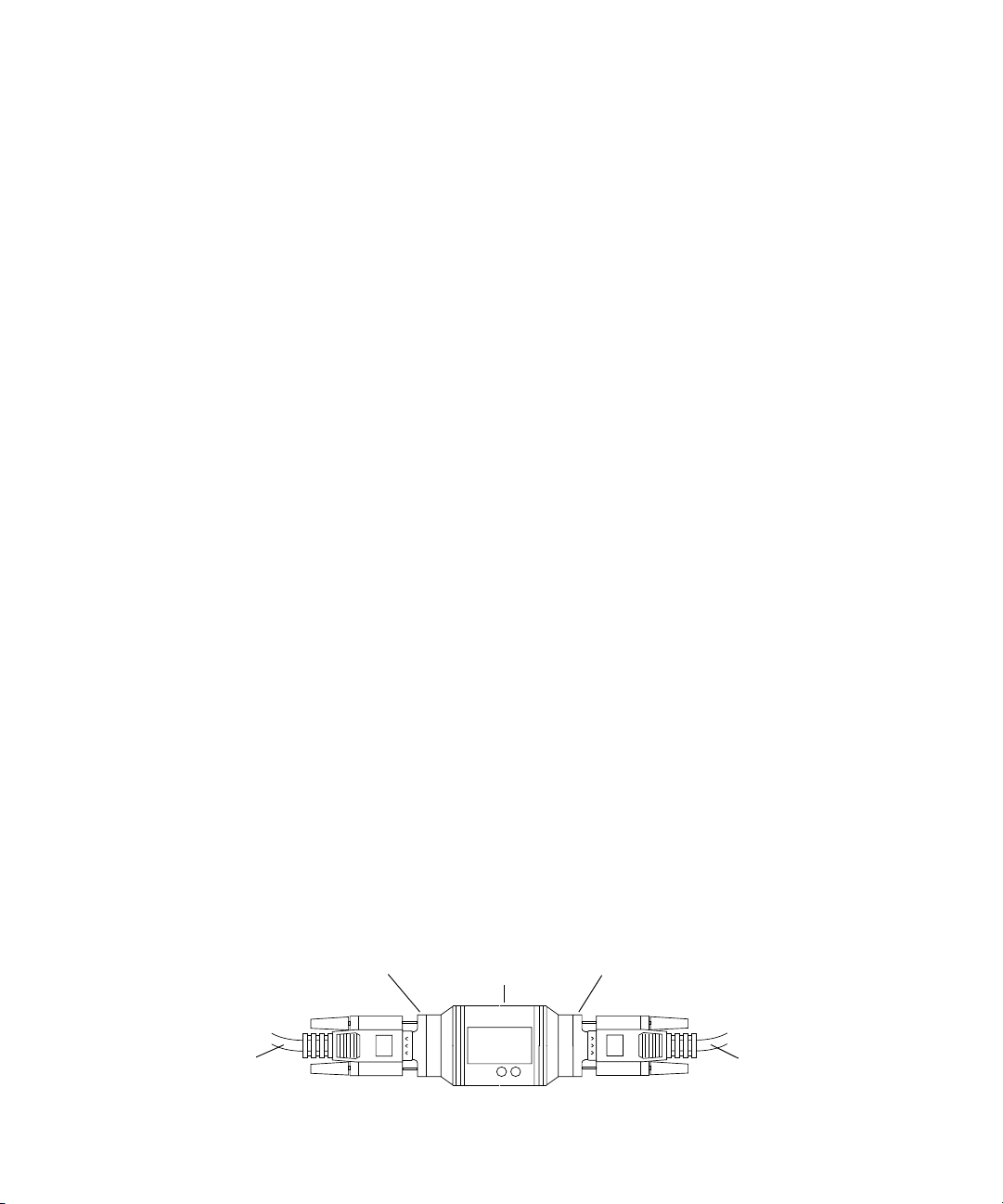

Connecting the USB-to-Serial Adapter. . . . . . . . . . . . . . . . . . . . . . 35

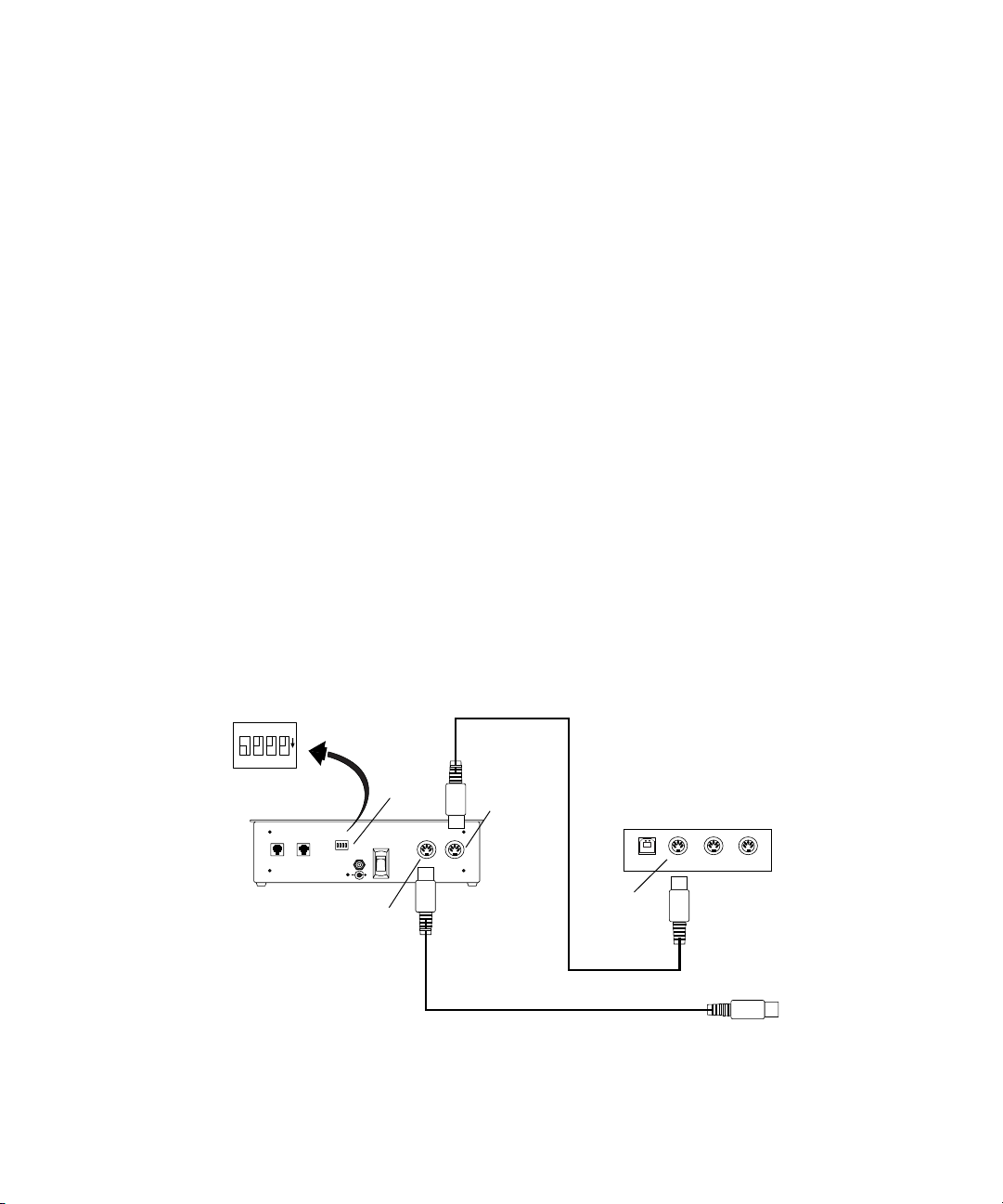

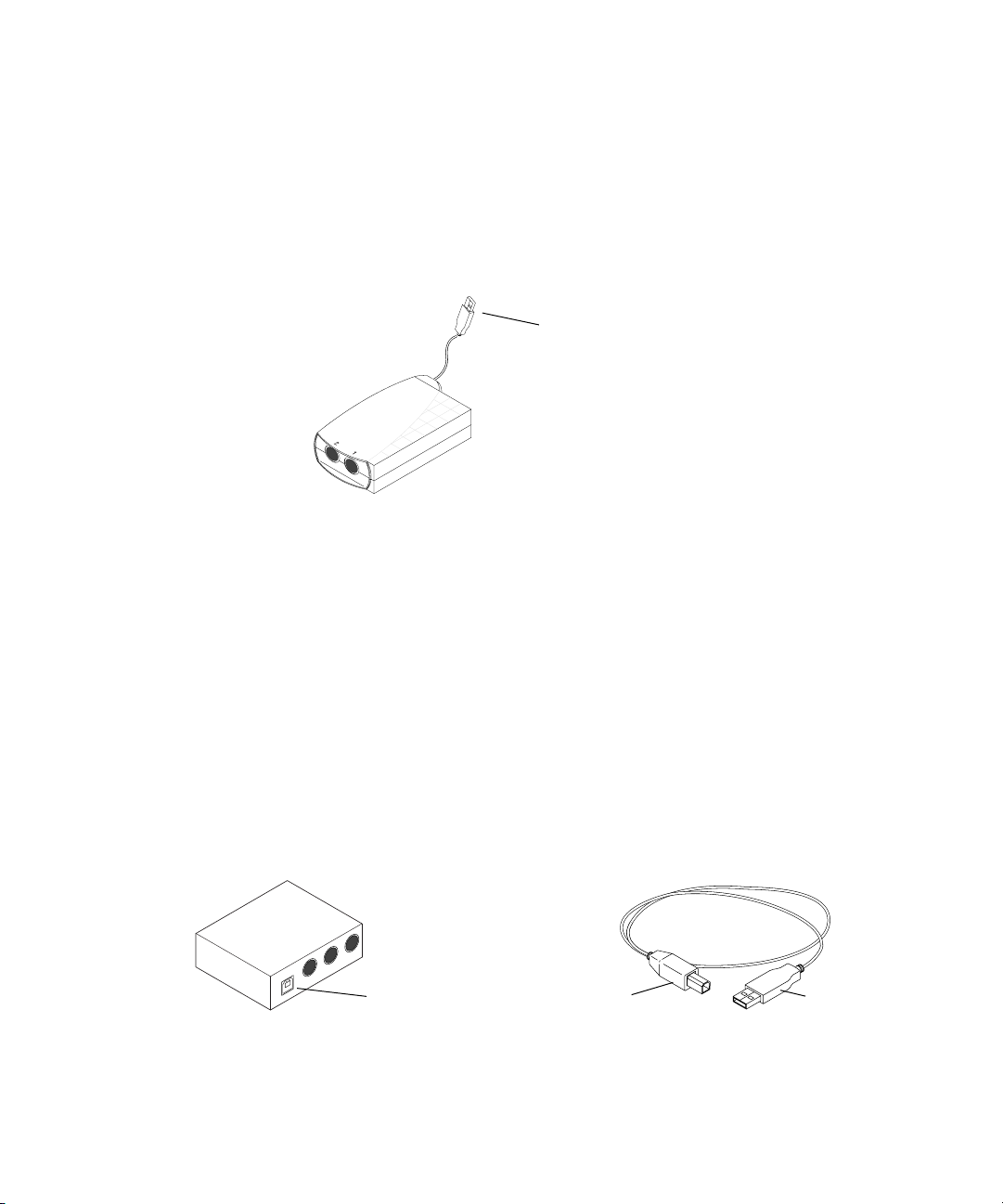

Connecting the USB-to-MIDI Converter . . . . . . . . . . . . . . . . . . . . . 35

Connecting JL Cooper Fader Controllers . . . . . . . . . . . . . . . . . . . . . . . 36

Connecting the Yamaha 01V Mixer. . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Connecting the Yamaha 01V/96 Mixer . . . . . . . . . . . . . . . . . . . . . . . . . 40

Controlling a Video Deck. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

If You Need Help

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

SCSI Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Fibre Channel Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

1394 Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Ethernet Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Formatting and Striping MediaDrives (Windows) . . . . . . . . . . . . . . . . . . 43

Formatting and Striping MediaDrives (Macintosh) . . . . . . . . . . . . . . . . . 43

Using Striped Drives on Mac OS X and Mac OS 9.x Systems . . . . 44

Moving Striped Drives to Another System (Macintosh Only). . . . . . 45

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Regulatory and Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

FCC Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Canadian ICES-003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Australia and New Zealand EMC Regulations . . . . . . . . . . . . . . . . . . . . 51

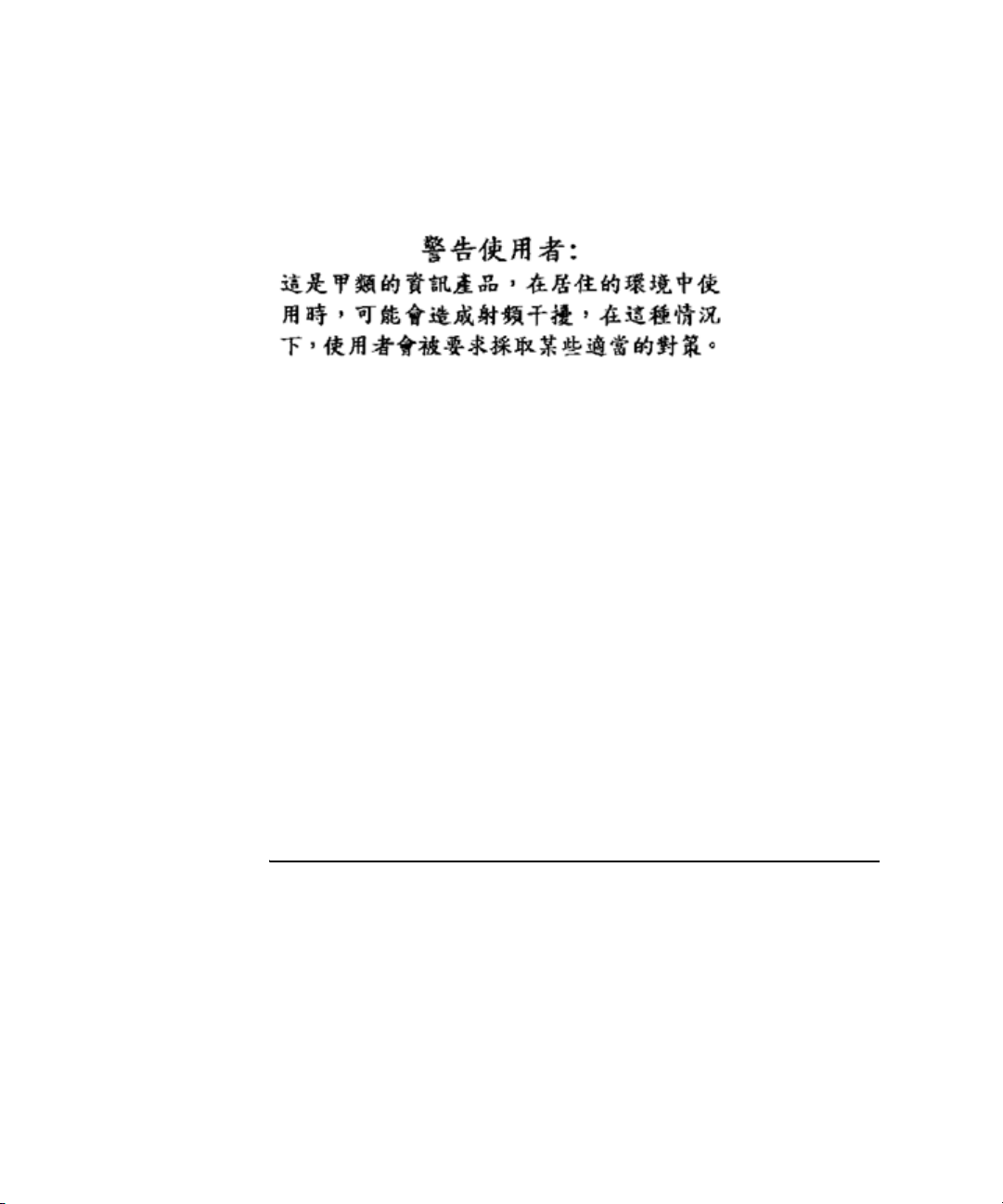

Taiwan EMC Regulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Technical Support Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

If You Need Help

If you are having trouble using Avid Adrenaline:

1. Retry the action, carefully following the instructions given for that task. It is especially important to check each step of your workflow.

2. Check this ReadMe file for the latest information that might have become available after the documentation was published.

3. Check the documentation that came with your Avid application or your hardware for maintenance or hardware-related issues.

Using the Avid Adrenaline

4. Visit Avid Online Support at www.avid.com/onlinesupport/. Online support is available 24 hours per day, 7 days per week. Search the Knowledge Base to find answers, to view error messages, to access troubleshooting tips, to download updates, and to read/join online message-board discussions.

5. For Technical Support, please call 800-800-AVID (800-800-2843). For Broadcast On-Air Sites and Call Letter Stations, call

800-NEWSDNG (800-639-7364).

Symbols and Conventions

These installation instructions use the following symbols and conventions:

Symbol or Convention Meaning or Action

> This symbol indicates menu commands (and

Italic font Italic font is used to emphasize certain words and to

A note provides important related information, reminders, recommendations, and strong suggestions.

A caution means that a specific action you take could cause harm to your computer or cause you to lose data.

A warning describes an action that could cause you physical harm. Follow the guidelines in this document or on the unit itself when handling electrical equipment.

subcommands) in the order you select them. For example, File > Import means to open the File menu and then select the Import command.

This symbol indicates a single-step procedure. Multiple arrows in a list indicate that you perform one of the actions listed.

indicate variables.

Overview

The Avid Adrenaline is designed to capture and output analog media and digital media (DV 25) using digital decks, cameras, and digital audiotapes.

The Avid Adrenaline is powered by an autosensing power supply connected by a standard power cord to a wall plug or power strip.

The Avid Adrenaline accepts video and audio in different formats and resolutions, and changes these formats and resolutions to Avid-specific data for transfer to the Avid editing system over a 1394 (FireWire

) cable. The data transfer uses an Avid-specific protocol that describes the format and resolution of the data being input.

You then edit the data on the Avid editing system and return it to the Avid Adrenaline to be changed back to the proper format and resolution as needed for video and audio output.

The Avid Adrenaline consists of:

• The Avid Adrenaline enclosure, backplane, power supply, and power cord

• A standard-definition (SD) video I/O board

™

• A high-definition (HD) video I/O board, called the Avid DNxcel

• A four-channel audio I/O board

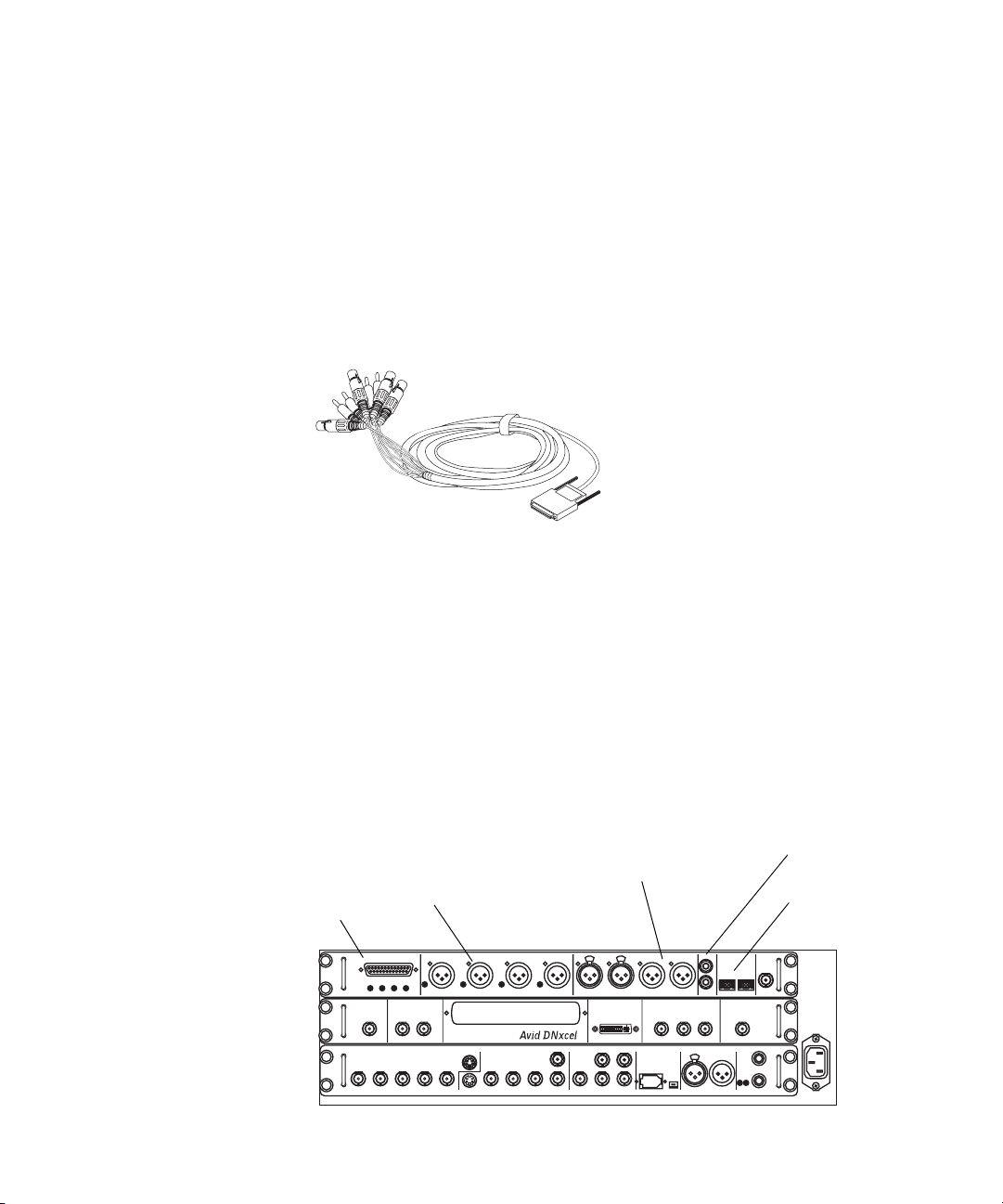

A Professional/Consumer In audio cable is provided with the Avid Adrenaline that allows you to input four channels of analog audio. The cable has a DB25 connector at one end that plugs into the Avid Adrenaline and eight separate connectors at the other end that allow you to input either four channels of professional analog audio (using XLR connectors) or four channels of

consumer analog audio (using RCA

connectors).

Also included in the kit is a 6-pin to 6-pin 1394 cable that connects the Avid Adrenaline to the host system platform.

The Avid Adrenaline is shipped with a Using the Avid Adrenaline CD-ROM that includes this online document.

Using the Avid Adrenaline

Avid Adrenaline Front and Rear Panel

The Avid Adrenaline is turned on from the front panel and most cables are connected at the rear of the enclosure.

Front Panel

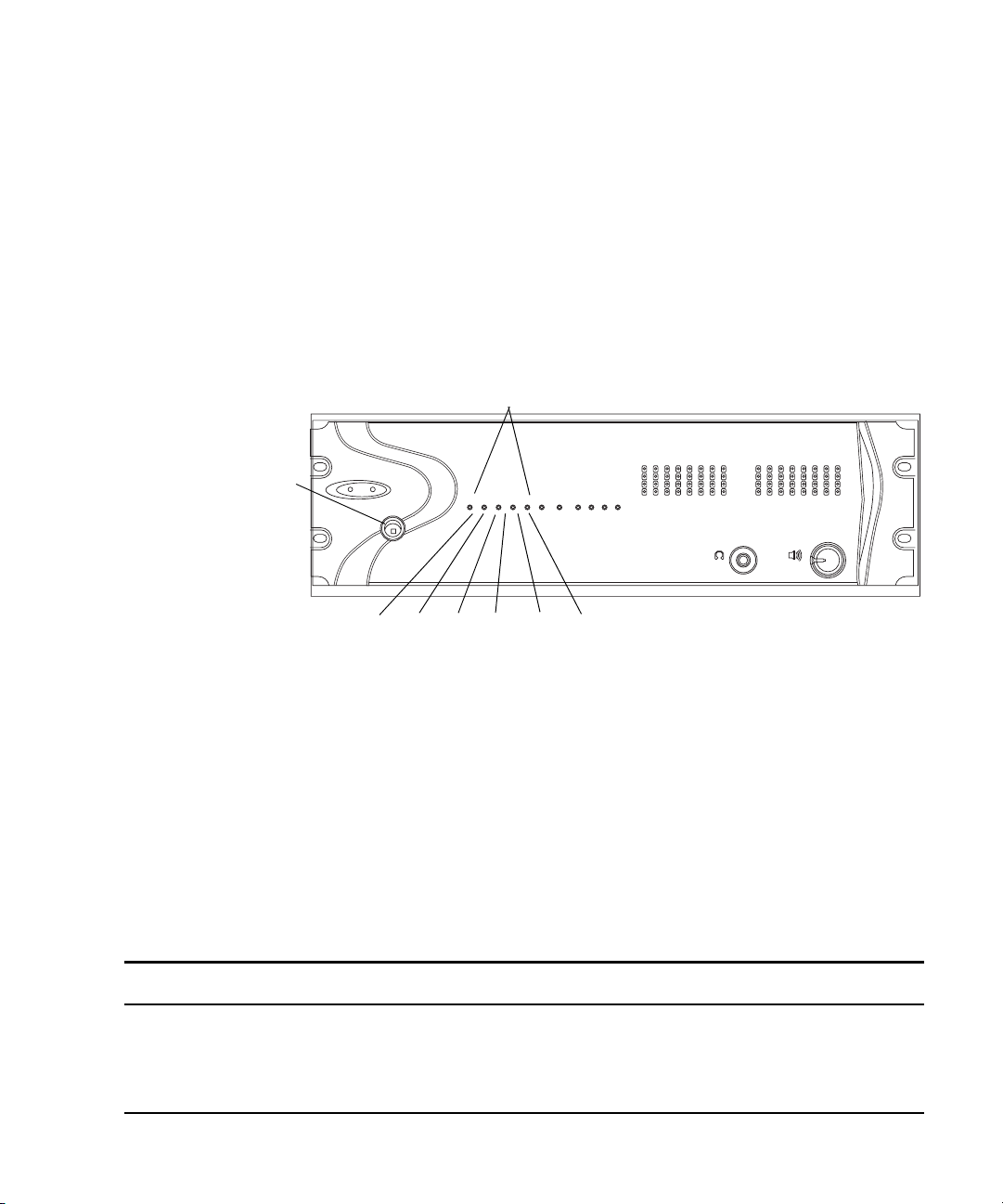

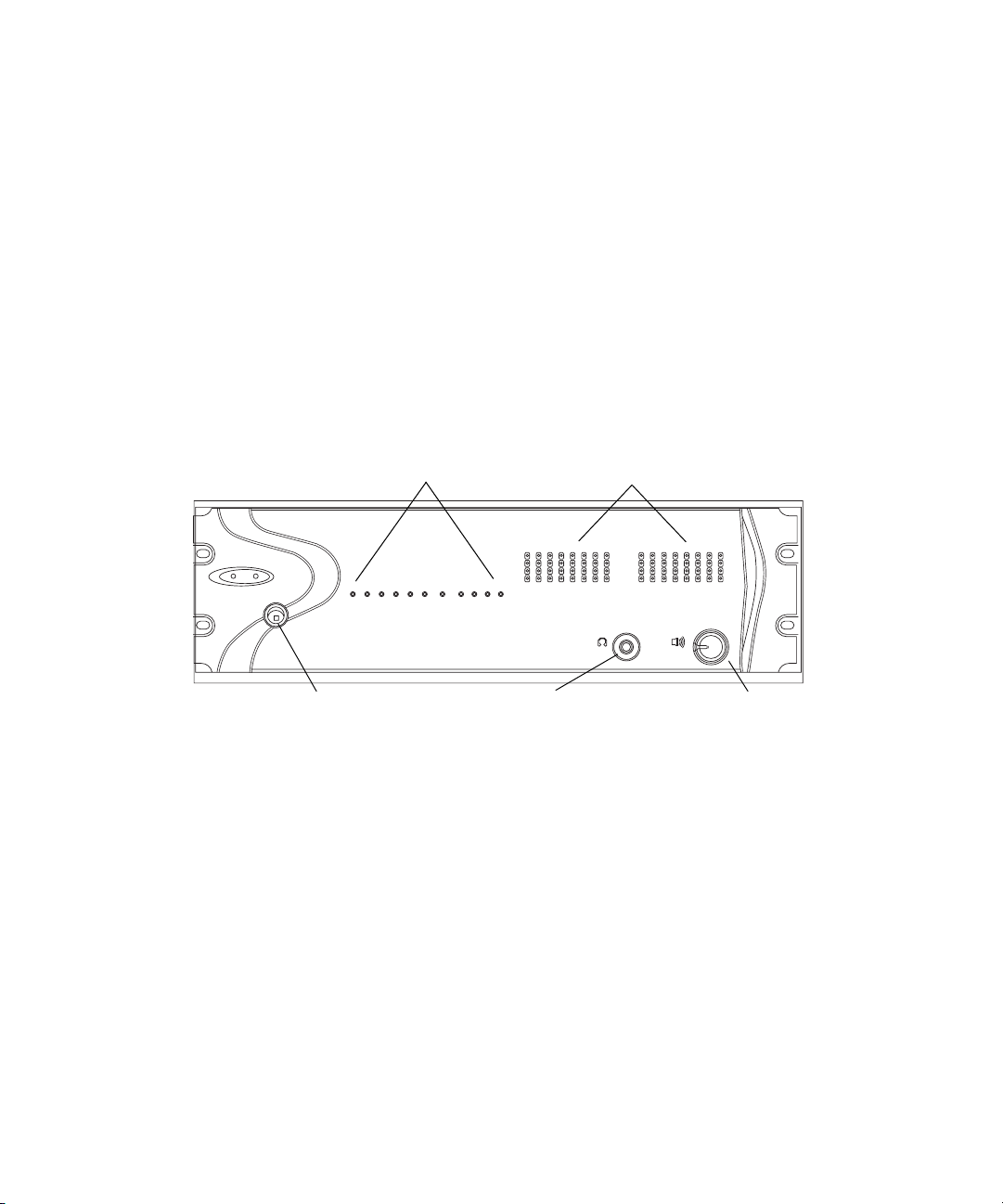

The Avid Adrenaline front panel (see the following figure) contains a power button, a ¼-inch headphone jack and volume control, audio meters, and various status LEDs.

Avid Adrenaline Front Panel

Audio metersStatus LEDs

Pull

HD SD DV NTSC PAL REF

Down

LTC 44.1 48 96

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

IN OUT

Power button Headphone volume control¼-inch headphone jack

Avid Adrenaline Front and Rear Panel

The status LEDs are used during POST (see “Power-On Self-Tests” on

page 15) and light when the function specified by the LED is active. The

following table shows the name of each LED and describes its function.

LED Functions

LED Function

HD Lit when high-definition codec is selected and POST

SD Lit when standard-definition codec is selected and POST

DV Lit when DV data is present on the 6-pin 1394 cable between the host

and the Adrenaline. These conditions are:

• When capturing from a DV source

• When capturing from an analog or SDI source, and DV is selected in the Capture tool

• When performing a Digital Cut with Digital Cut Native selected

NTSC Lit when an NTSC project is selected

PAL Lit when a PAL project is selected

Rear Panel

REF Blinks when a Reference signal is connected and constantly on when

the Avid Adrenaline is locked to the incoming Reference signal

Pull Down Lit when Pull Down is selected in the application

LTC Lit when LTC IN is being input to the Avid Adrenaline

44.1 Lit when 44.1-MHz audio is selected

48 Lit when 48-MHz audio is selected

96 Lit when 96-MHz audio is selected

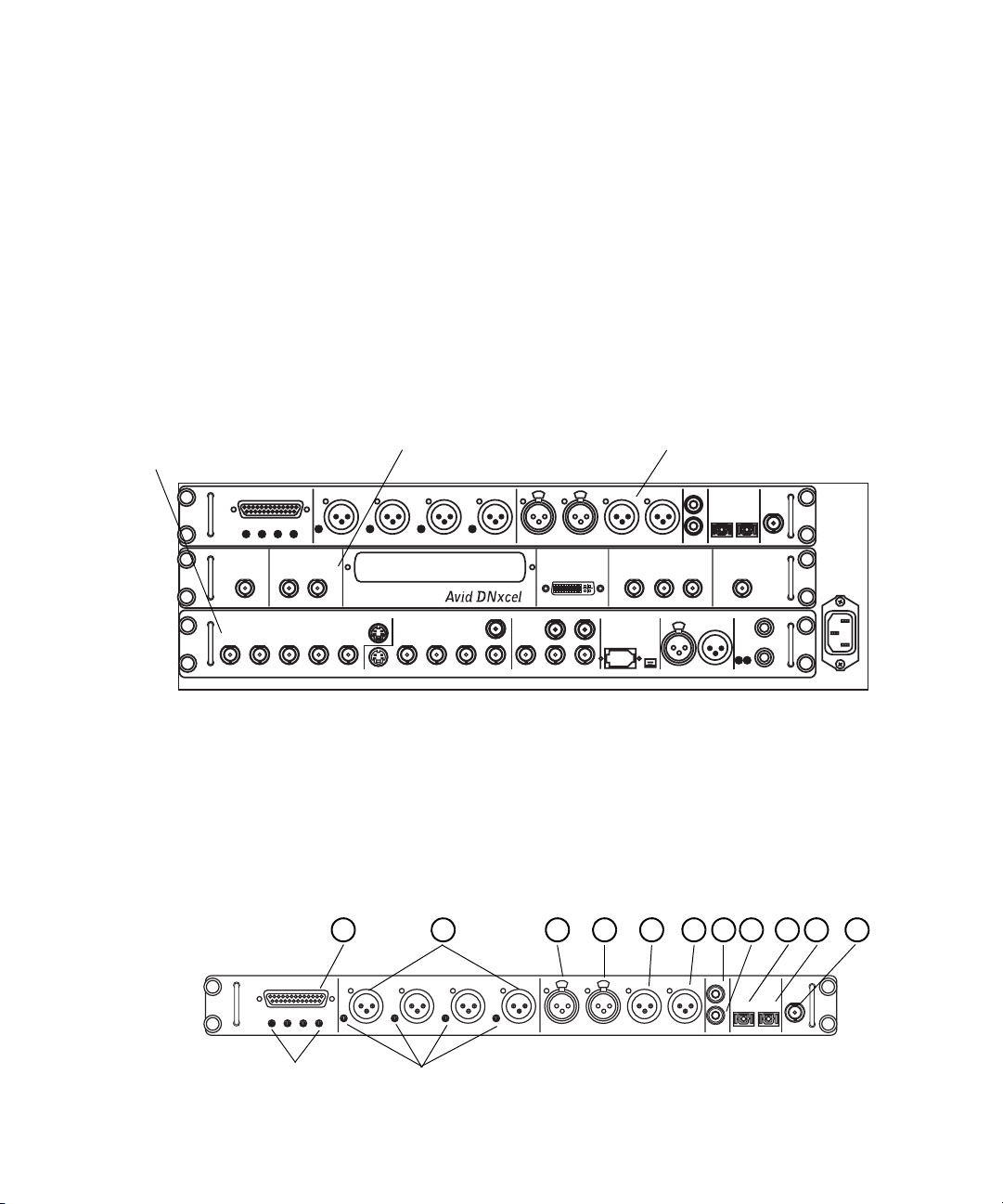

The following boards are attached to the Avid Adrenaline rear panel (see the following figure):

• Avid DNxcel (HD Video I/O) board — Provides HD SDI I/O, HD

monitor, HD component, and a HD trilevel sync connections for video equipment.

Using the Avid Adrenaline

• Four-channel audio I/O board — Provides two microphone inputs, four

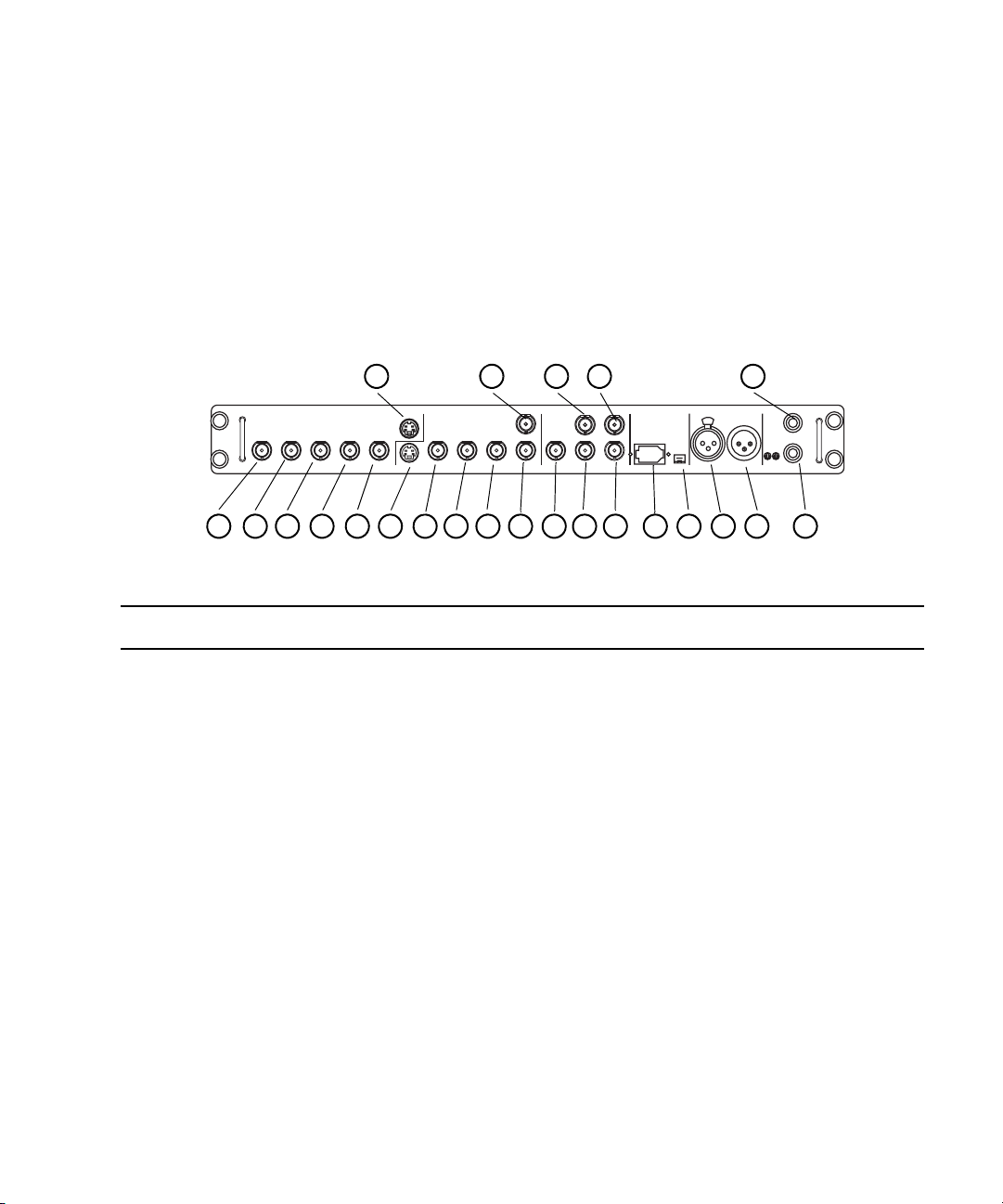

• SD Video I/O board — Provides analog and digital I/O connections for

analog I/O channels, two S/PDIF audio I/O channels, four AES/EBU audio I/O channels, and eight channels of optical ADAT.

video equipment, and connects the Avid Adrenaline to the system using a 6-pin 1394 cable. It also provides a reference for syncing equipment to the Avid Adrenaline.

If you did not order the optional Avid DNxcel board, a blank panel is installed in the middle slot on the rear of the Avid Adrenaline.

Avid Adrenaline Rear Panel Boards

SD video I/O board

ANALOG IN

OUT 1 OUT 2

ANALOG IN

GAIN

COMPOSITE

GAIN

1234

HD SDI IN HD SDI OUT HD MONITOR OUT

REF

Avid DNxcel (HD video I/O) board

ANALOG OUT

GAIN

S-VIDEO

ANALOG OUT

Four-Channel Audio I/O Board Connectors

The following figure shows the connections on the four-channel audio I/O board. The following table describes the function of each connector. You select which audio inputs to use from the Capture tool when capturing.

COMPOSITE

1/2

3/4

DVI-I

SDI IN SDI OUT SDTI OUT

AES/EBU

1/2

HD COMPONENT OUT

YPBPR

1394

HOST

Four-channel audio I/O board

SPDIFF

OUT

3/4

LTC

OPTICAL

HD TRILEVEL

OUT

SYNC

OUTIN

GAIN 2

GAIN 1

MONITOR

WORD CLOCK OUT

Four-Channel Audio I/O Board Connectors

OPTICAL

WORD CLOCK OUT

OUTIN

ANALOG IN

GAIN

1234

GAIN

2345

ANALOG OUT

GAIN

1/2

AES/EBU

3/4

OUT

1/2

SPDIFF

3/4

GainGain

Avid Adrenaline Front and Rear Panel

There is also a headphone jack and volume control located on the front of the Avid Adrenaline.

Four-Channel Audio I/O Board Identifiers

Number Label Function

1 ANALOG IN Connection for 25-pin DSUB to 4 XLRs (Professional) and 4 RCA

(Consumer) connectors

2 ANALOG OUT Channels 1 – 4 Professional level audio output, male XLR connectors

• Channels 1 and 3 are left channels.

• Channels 2 and 4 are right channels.

The audio ANALOG OUT channels 1 – 4 are in different locations

depending on the version of your Four-Channel Audio I/O Board. Check to see how your connectors are labeled

3 AES/EBU IN AES/EBU channels 1 and 2 digital input, female connectors

4 AES/EBU IN AES/EBU channels 3 and 4 digital input, female connectors

5 AES/EBU OUT AES/EBU channels 1 and 2 digital output, male connector

6 AES/EBU OUT AES/EBU channels 3 and 4 digital output, male connector

7 S/PDIF IN S/PDIF digital input, white phono (RCA) jack

8 S/PDIF OUT S/PDIF digital output, red phono (RCA) jack

9 OPTICAL IN 8 optical channels input

10 OPTICAL OUT 8 optical channels output

11 WORD CLOCK OUT Internal clock output to synchronize audio and video, BNC connector

— GAIN Gain controls for each audio channel

a. Gain control between –10 and +4 is controlled by a software switch. b. Word Clock is used to signal the timing of digital audio data words. It is not timecode, which is used to indicate your

place in the program material. Word Clock takes care of the transmission of digital audio from AES/EBU, S/PDIF, or optical connections. There is normally one device designated as the Word Clock Master (also known as House Clock) in the studio. All other digital audio devices function as a slave to the House Clock.

Using the Avid Adrenaline

Avid DNxcel Board Connectors

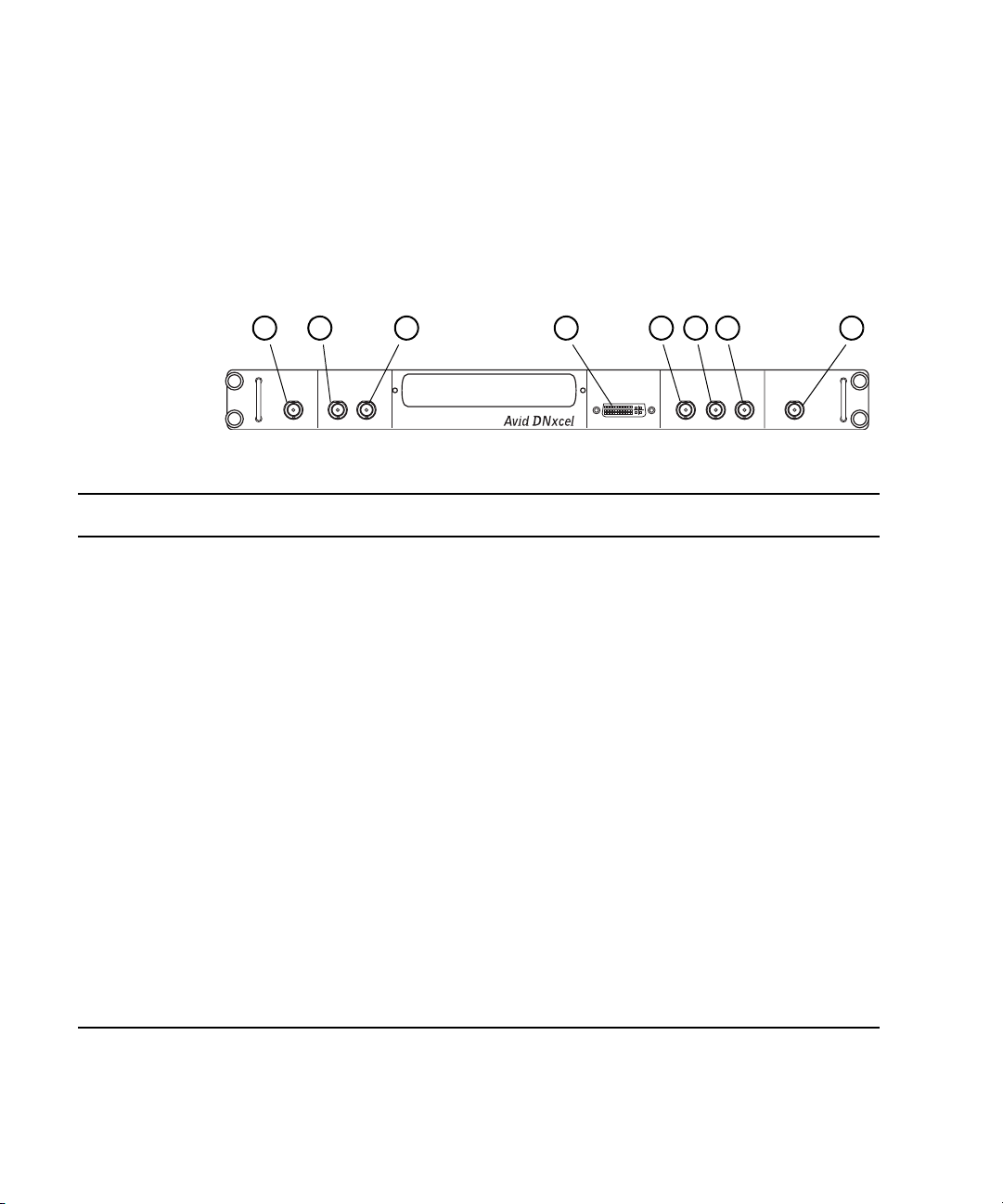

The following figure shows the connections on the Avid DNxcel (HD video I/O) board. The table following the figure describes the function of each connector.

Avid DNxcel Board Connectors

1 2 3 4 5 6 7 8

HD SDI IN HD SDI OUT

OUT 1 OUT 2

HD MONITOR OUT DVI-I

HD COMPONENT OUT

YPP

HD TRILEVEL

SYNC

Avid DNxcel Board Identifiers

Number Label Function

1 HD SDI IN High-Definition Serial Digital Interface input, BNC connector.

2 HD SDI OUT 1 High-Definition Serial Digital Interface output number 1, BNC

connector.

3 HD SDI OUT 2 High-Definition Serial Digital Interface output number 2, BNC

connector.

4 HD MONITOR OUT

DVI-I

High-Definition DVI (Digital Visual Interface) output connector; connects to an HDTV monitor.

The use of a VGA adapter is not supported.

5 Y, HD COMPONENT OUT HD analog component video output, Y luma signal, BNC connector;

connects to analog video input of a monitor or waveform /vector.

6 PB, HD COMPONENT OUT HD analog component video output, PB color difference signal,

BNC connector; connects to analog video input of a monitor or waveform /vector.

7 PR, HD COMPONENT OUT HD analog component video output, PR color difference signal,

BNC connector; connects to analog video input of a monitor or waveform /vector.

8 HD TRILEVEL SYNC High-Definition video reference input for tri-level sync.

SD Video I/O Board Connectors

The following figure shows the connections on the SD video I/O board. The following table describes the function of each connector.

Avid Adrenaline Front and Rear Panel

Video signals are output to all analog video connectors during capture and playback for client monitor use.

SD Video I/O Board Connectors

ANALOG IN

REF

23 4 567

S-VIDEO

ANALOG OUT

COMPOSITE

SDI IN SDI OUT SDTI OUT

COMPOSITE

12 1314151617 18 19 20 212223

1394

HOST

LTC

OUT

GAIN 2

GAIN 1

MONITOR

SD Video I/O Board Identifiers

Number Label Function

1 Reference IN (REF) Video reference input for a black burst or house sync signal, BNC

connector

2 Y, ANALOG IN (component) Analog component video input, Y luma, BNC connector;

connects to the Y video output of decks

3 PR, ANALOG IN

(component)

Analog component video input, PR color difference signal, BNC connector; connects to R-Y video output of decks

4 PB, ANALOG IN

(component)

Analog component video input, PB color difference signal, BNC connector; connects to the B-Y video output of decks

5 COMPOSITE, ANALOG IN Composite video input, BNC connector; connects to analog video

output of decks

6 S-VIDEO, ANALOG IN Super-video input, 4-pin connector; connects to analog video

output of decks

7 S-VIDEO, ANALOG OUT Super-video output, 4-pin connector; connects to analog video

input of decks

Using the Avid Adrenaline

SD Video I/O Board Identifiers (Continued)

Number Label Function

8 Y, ANALOG OUT

(component)

9 PR, ANALOG OUT

(component)

10 PB, ANALOG OUT

(component)

11 COMPOSITE,

ANALOG OUT 1

12 COMPOSITE,

ANALOG OUT 2

13 SDI IN Serial Digital Interface input, BNC connector

14 SDI OUT Serial Digital Interface output, BNC connector

15 SDI OUT Serial Digital Interface output, BNC connector

16 SDTI OUT

17 SDTI OUT

18 HOST, 1394 6-pin 1394 connection used to input/output audio and video

19 DV, 1394 4-pin 1394 connection used to input/output DV 25 audio and

Analog component video output, Y luma, BNC connector; connects to Y video input of decks

Analog component video output, PR color difference signal, BNC connector; connects to R-Y video input of decks

Analog component video output, PB color difference signal, BNC connector; connects to B-Y video input of decks

Composite video output, BNC connector; connects to analog video input of decks or monitor

Serial Data Transport Interface output, BNC connector

to/from system

video data to/from 1394 decks or cameras; this connection is not for DV 50 or DVCPRO HD devices. DV 50 and DVCPRO HD devices require an optional 1394 board on a separate bus.

Devices connected to the DV connector must be turned on

after the Avid Adrenaline is turned on. For more information see, “1394 Requirements” on page 16.

Synchronizing Audio and Video Equipment

SD Video I/O Board Identifiers (Continued)

Number Label Function

20 LTC IN Longitudinal timecode input, female connector; can be used in

place of 9-pin deck control when deck control is not required

21 LTC OUT Longitudinal timecode output, male connector; master clock used

to stripe tapes and synchronize systems to the house master clock (SMPTE for NTSC, and EBU for PAL)

22 MONITOR, OUT 1 ¼-inch audio tip/ring/sleeve (TRS) jacks that each output one

23 MONITOR, OUT 2

a. At this time, the SDTI outputs function as SDI outputs.

channel (left/right) of audio to speakers. The audio feeding this connection is from the incoming or outgoing audio.

This TRS jack provides balanced professional level

audio to your speaker system. Do not use ¼ mono cables in this connector, as your output levels might be too high.

Synchronizing Audio and Video Equipment

Avid editing systems require synchronization when capturing audio and video. Digital audio signals (AES/EBU, S/PDIF, and optical) contain their own synchronization (sync) signal. A sync signal for analog audio and analog video can also be generated from the connected REF signal, from incoming video, or internally by the Avid Adrenaline.

The digital signal from a 1394 device has its own sync signal, to which the Avid Adrenaline synchronizes.

When doing a digital cut, you need to select the type of sync you are using in the Video Output tool.

The following list summarizes how sync works:

• HD Tri-Level Sync — Tri-level sync signals are generated from the

incoming tri-level house sync. If there is no sync connected, an internal sync is used.

Tri-level sync works similar to an analog sync, but the tri-level sync signal consists of a three-level sync pulse: zero volts (0V) blank, a –0.3 V pulse, and a +0.3 V pulse.

Using the Avid Adrenaline

Do not connect a tri-level sync to the Ref connector on the SD Video I/O board or connect the reference sync to the tri-level sync connector on the Avid DNxcel board. The proper sync signal must be connected to the correct connector for the sync to work.

• Video Reference IN (REF) — Sync signals are generated from the

incoming black burst generator (BBGen) or from a house sync. If there is no sync connected to REF, an internal sync is used.

By default, the sync signal is generated from incoming video whenever you capture analog video. Depending on the configuration of the audio and video equipment attached to the Avid Adrenaline, you might need to use a BBGen or house sync; for example, when you perform an Insert Edit.

• Incoming video signal — When you capture video, a sync signal is

generated by the Avid Adrenaline from the incoming video: component, composite, SDI, S-Video, or DV.

When you capture analog video and audio, the Avid Adrenaline generates a sync signal from the incoming video, but it does not sync your video to your audio. You must sync these externally to the Avid Adrenaline.

• Word Clock Out signal — The Word Clock Out signal is primarily used

to sync an audio device with the Avid Adrenaline’s internal sync. When the Avid Adrenaline generates a sync signal from a video input, an audio device can use the Word Clock Out to sync to the Avid Adrenaline.

• Incoming analog audio — When you capture audio only, the Avid

Adrenaline does not sync to the incoming audio. An external sync should be used in this case.

When you capture audio using the AES/EBU inputs on the Avid Adrenaline, always use AES/EBU channels 1 and 2 first. The AES/EBU 1/2 connector syncs to the incoming digital signal. If you connect to the AES/EBU 3/4 connector only, the internal sync on the Avid Adrenaline does not sync with the incoming digital audio signal and the audio data will be corrupted. Use the AES/EBU 3/4 connector only if you need 4 channels of AES/EBU audio.

Power-On Self-Tests

The Avid Adrenaline runs power-on self-tests (POSTs) to determine if the box and the boards within the box are operating properly each time you turn it on.

If a failure occurs during the POST, specific Avid Adrenaline status LEDs on the front panel (see the following figure) light to help you determine which board within the Avid Adrenaline is not functioning properly.

Avid Adrenaline Status LEDs

Status LEDs used for POST

Power-On Self-Tests

Power button

HD SD DV NTSC PAL REF

Pull Down

LTC 44.1 48 96

REFPA LNTSCDVSDHD

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

IN OUT

The following table shows the failure codes presented on the LEDs that define passing and failing during POST, and which specific board has failed.

If no LEDs are lit 10 seconds after you turn on the Avid Adrenaline, the Avid Adrenaline has not yet reached the capability of running diagnostics and should be considered nonfunctional.

When a failure occurs in the POST, both the high-definition (HD) and standard-definition (SD) LEDs are lit and the DV and NTSC LEDs define the failing board. The PAL and REF LEDs might be on or off. For more information on the LEDs, see “Front Panel” on page 6.

POST Failure Codes

HD SD DV NTSC PAL REF Failed Board

On On On On – – Audio

On On On Off – – Avid DNxcel

On On Off – – – SD Video

Using the Avid Adrenaline

1394 Requirements

The rear of the Avid Adrenaline has two 1394 connectors. The 6-pin connector is used to connect the Avid Adrenaline to the system. The 4-pin connector is used for connecting cameras, decks or other video devices for input or output. For connector locations see, “SD Video I/O Board Connectors” on page 11.

Cable

Devices

Macintosh systems more commonly use the term FireWire, where Windows systems use the IEEE term of 1394.

The multiple FireWire connectors on Macintosh systems are on the same bus. You must install a separate 1394 board in Macintosh and Windows systems if you want to attach 1394 drives.

The IEEE 1394 cabling standard requires that IEEE 1394 (FireWire) devices be within 14.76 ft (4.5 m) of the next bus connector. When connecting a FireWire device (drive, camera, or deck), your FireWire cable must not exceed this length. Avid products do not support the use of IEEE 1394 (FireWire) repeaters to boost or extend the signal to the device.

In addition, Avid does not support any type of cable extender or FireWire hub between the Avid editing system connection and the Avid Adrenaline or the Avid Mojo the Avid Adrenaline or the Avid Mojo, the Avid product enters a nonoperating mode.

™

. If the Avid editing system does not sense a direct connection to

1394 (FireWire) decks and cameras that are connected to the Avid Adrenaline must be turned on after the Avid Adrenaline. Avid recommends you turn on your Avid editing system and start the Avid editing application as follows:

To turn on an Avid editing system with a FireWire device:

1. Turn on the system.

2. Turn on the Avid Adrenaline.

3. Turn on the 1394 (FireWire) device.

Connecting Peripheral Equipment

Although some devices appear to be turned off, they can still send data over the 1394 bus. Many support a standby mode. To ensure the device is off, disconnect the power cord.

4. Start the Avid editing application.

To capture, play, or perform a digital cut with DV 50 or DVCPRO HD media, you need to capture using a separate 1394 (FireWire) port. For more information, see “Capturing DV 50 and DVCPRO HD Media Directly from a DV Device” in the Help.

Connecting Peripheral Equipment

There are several possible cabling configurations depending on your camera, video deck, and client monitor. The audio and video output signals are available to each output connector at the same time. Industry-standard video and audio cables are not included with the Avid Adrenaline. The following sections describe several possible connections:

• Connecting a Video Deck — Component Signal

• Connecting a Video Deck — Composite Signal

• Connecting a Video Deck — Serial Digital Signal

• Connecting S-Video or DV Signals

• Connecting Audio Signals

• Connecting a Client Monitor

Connecting a Video Deck — Component Signal

A component video deck connection requires the following:

• Two component video cables with three BNC connectors at both ends

• A video deck with component inputs and outputs

To connect a deck using component signals:

1. Locate one component video cable. The cables used in the following example have three BNC connectors on

each end of the cable and are color coded (red, green, and blue).

Using the Avid Adrenaline

2. Attach one end of the cable to the Avid Adrenaline inputs as follows (see

Connecting a Video Deck — Component Signal

Component in

the following figure): a. Connect the BNC attached to the green wire to the component input

connector labeled Y.

b. Connect the BNC attached to the red wire to the component input

connector labeled PR.

c. Connect the BNC attached to the blue wire to the component input

connector labeled PB.

SPDIFF

WORD

3/4

LTC

OUT

Component out

OPTICAL

OUTIN

HD TRILEVEL

SYNC

GAIN 2

CLOCK OUT

MONITOR

GAIN 1

ANALOG IN

GAIN

1234

HD SDI IN HD SDI OUT HD MONITOR OUT

OUT 1 OUT 2

ANALOG IN

REF

ANALOG OUT

GAIN

COMPOSITE

GAIN

S-VIDEO

ANALOG OUT

COMPOSITE

1/2

DVI-I

SDI IN SDI OUT SDTI OUT

3/4

AES/EBU

1/2

HOST

OUT

HD COMPONENT OUT

YPBPR

1394

To component out on deck

To component in on deck

3. Attach the other end of the component cable to Component output of your video deck as follows:

a. Connect the BNC attached to the green wire to the component output

connector labeled Y.

b. Connect the BNC attached to the red wire to the component output

connector labeled R-Y.

c. Connect the BNC attached to the blue wire to the component output

connector labeled B-Y.

Connecting Peripheral Equipment

4. Locate another component video cable and attach it to the Avid Adrenaline outputs as follows (see the previous figure):

a. Connect the BNC attached to the green wire to the component output

connector labeled Y.

b. Connect the BNC attached to the red wire to the component output

connector labeled PR.

c. Connect the BNC attached to the blue wire to the component output

connector labeled PB.

5. Attach the other end of the component cable to Component input of your video deck as follows:

a. Connect the BNC attached to the green wire to the component input

connector labeled Y.

b. Connect the BNC attached to the red wire to the component input

connector labeled R-Y.

c. Connect the BNC attached to the blue wire to the component input

connector labeled B-Y.

Make sure you terminate the input signal if your video deck supports passthrough. See the documentation that is provided with your video deck.

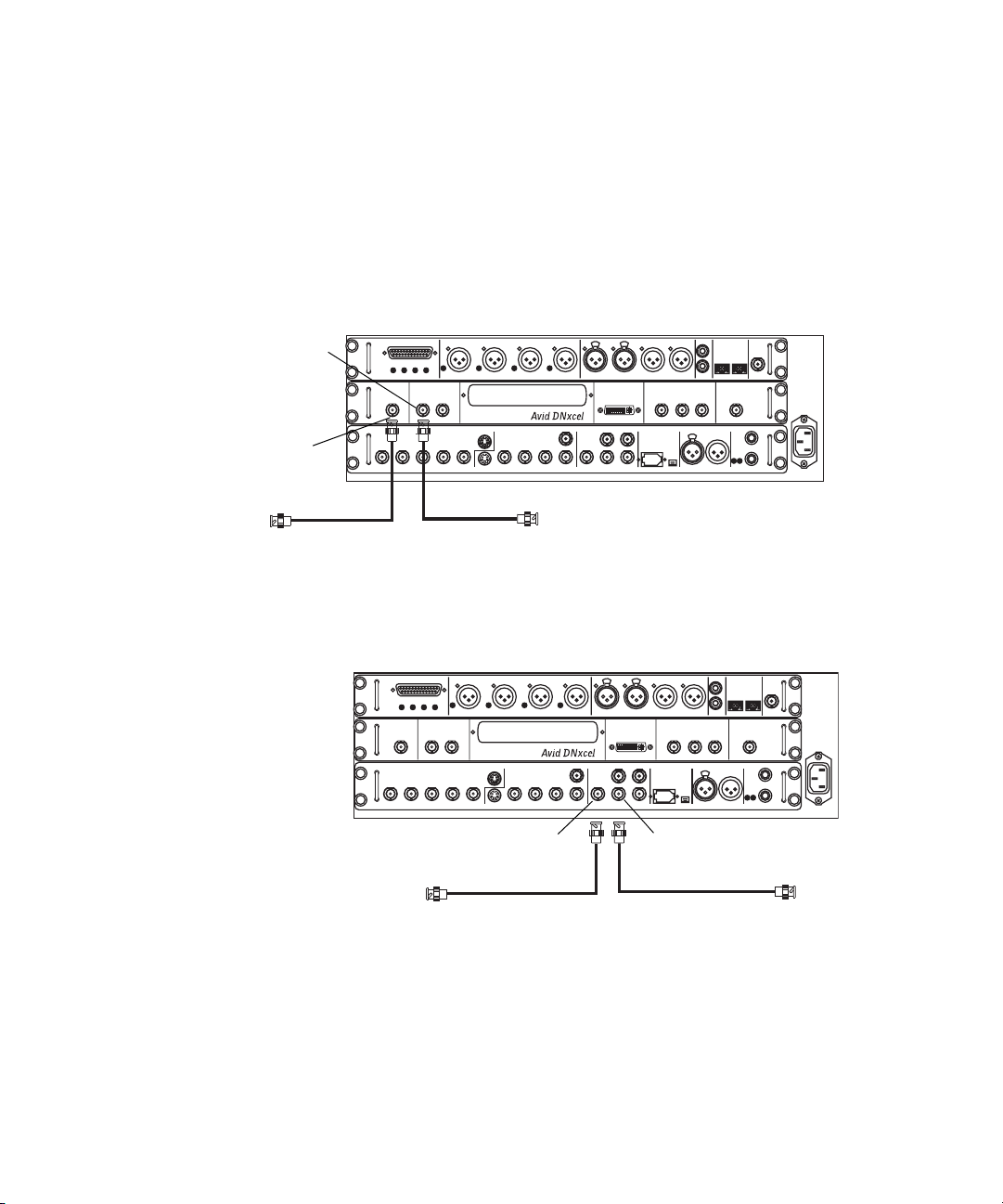

Connecting a Video Deck — Composite Signal

A composite video deck connection requires the following:

• Two composite video cables with BNC connectors at both ends

• A video deck with composite inputs and outputs

Using the Avid Adrenaline

To connect a deck using composite signals:

1. Locate one composite video cable.

2. Attach one end of the cable to the Avid Adrenaline Composite output

Connecting a Video Deck — Composite Signal

connector on the SD video I/O board (see the following figure).

SPDIFF

WORD

ANALOG IN

GAIN

1234

HD SDI IN HD SDI OUT HD MONITOR OUT

OUT 1 OUT 2

ANALOG IN

REF

ANALOG OUT

GAIN

COMPOSITE

GAIN

S-VIDEO

ANALOG OUT

COMPOSITE

1/2

3/4

DVI-I

SDI IN SDI OUT SDTI OUT

AES/EBU

1/2

HOST

OUT

HD COMPONENT OUT

YPBPR

1394

OPTICAL

CLOCK OUT

3/4

OUTIN

HD TRILEVEL

SYNC

LTC

MONITOR

GAIN 2

GAIN 1

OUT

Composite in

To composite out on Video deck

Composite out

To composite in

on video deck

3. Attach the other end of the composite cable to Composite input of your video deck.

4. Locate another composite video cable and attach it to the Avid Adrenaline Composite input on the SD video I/O board (see the previous figure).

5. Attach the other end of the composite cable to Composite output of your video deck.

Make sure you terminate the input signal if your video deck supports passthrough. See the documentation that is provided with your video deck.

Connecting a Video Deck — Serial Digital Signal

A serial digital video deck connection requires the following:

• Two serial digital cables with BNC connectors at both ends

• A video deck with serial digital inputs and outputs

HD SDI OUT

HD SDI IN

Connecting Peripheral Equipment

To connect a deck using serial digital signals:

1. Locate one serial digital cable.

2. Attach one end of the cable to the SDI IN on the Avid Adrenaline SD video I/O board or HD SDI IN on the Avid DNxcel board (see the following figures).

Connecting a Video Deck — Digital Signal to the DNxcel Board

SPDIFF

WORD

ANALOG IN

GAIN

1234

HD SDI IN HD SDI OUT HD MONITOR OUT

OUT 1 OUT 2

ANALOG IN

REF

ANALOG OUT

GAIN

COMPOSITE

GAIN

S-VIDEO

ANALOG OUT

COMPOSITE

1/2

DVI-I

SDI IN SDI OUT SDTI OUT

3/4

AES/EBU

1/2

HOST

OUT

HD COMPONENT OUT

YPBPR

1394

OPTICAL

CLOCK OUT

OUTIN

3/4

HD TRILEVEL

SYNC

LTC

MONITOR

GAIN 2

GAIN 1

OUT

To serial digital output on video deck

To serial digital input on video deck

Connecting a Video Deck — Digital Signal to the SD Video I/O Board

SPDIFF

WORD

ANALOG IN

GAIN

1234

HD SDI IN HD SDI OUT HD MONITOR OUT

OUT 1 OUT 2

ANALOG IN

REF

ANALOG OUT

GAIN

COMPOSITE

GAIN

S-VIDEO

ANALOG OUT

COMPOSITE

1/2

DVI-I

SDI IN SDI OUT SDTI OUT

SDI IN

To serial digital output on video deck

AES/EBU

OUT

1/2

3/4

HD COMPONENT OUT

YPBPR

1394

HOST

SDI OUT

To serial digital input on video deck

OPTICAL

CLOCK OUT

3/4

OUTIN

HD TRILEVEL

SYNC

LTC

MONITOR

GAIN 2

GAIN 1

OUT

3. Attach the other end of the serial digital cable to serial digital output on the video deck.

Using the Avid Adrenaline

4. Locate another serial digital cable and attach it to the SDI OUT on the

5. Attach the other end of the serial digital cable to the serial digital input on

Avid Adrenaline SD video I/O board or HD SDI OUT on the Avid DNxcel board (see the previous figures). You can use either SDI OUT connectors on the two boards.

the video deck.

Make sure you terminate the input signal if your video deck supports passthrough. See the documentation that is provided with your video deck.

Connecting S-Video or DV Signals

The S-Video and DV connectors on the rear of the Avid Adrenaline use industry-standard connectors. The connections are as follows:

• There are two S-Video connectors on the rear of the Avid Adrenaline. One connector is for video input, and the other is for video output. The following figure identifies the connectors.

• The DV connector uses a 4-pin 1394 cable that carries the video and audio input and output signals to and from your DV device. You can also use a 4-pin to 6-pin DV cable if your DV device uses a 6-pin connector. The following figure identifies the connector.

Connecting S-Video or DV to the Deck

ANALOG IN

GAIN

1234

HD SDI IN HD SDI OUT HD MONITOR OUT

OUT 1 OUT 2

ANALOG IN

REF

GAIN

S-VIDEO

COMPOSITE

ANALOG OUT

OUT

1/2

3/4

HD COMPONENT OUT

YPBPR

1394

HOST

SPDIFF

LTC

AES/EBU

1/2

3/4

DVI-I

SDI IN SDI OUT SDTI OUT

COMPOSITE

OUT

OPTICAL

OUTIN

HD TRILEVEL

SYNC

GAIN 2

WORD CLOCK OUT

MONITOR

GAIN 1

S-Video input

S-Video output

4-pin DV

Connecting Audio Signals

Avid provides a Professional Line In Audio cable with the Avid Adrenaline (see the following figure). The Avid-supplied cable uses a DB-25 connector on one end and eight separate connectors at the other end that allow you to input either four channels of professional analog audio (using XLR connectors) or four channels of consumer analog audio (using RCA connectors).

Analog Professional Line In Audio Cable

The connections between the Avid Adrenaline and video deck vary depending on the type of audio equipment and video deck you have. The following figure identifies the connections for your audio equipment. See “Four-Channel

Audio I/O Board Connectors” on page 8 for more connector information.

Channels 1 and 3 are left channels, channels 2 and 4 are right channels.

Connecting Peripheral Equipment

The audio ANALOG OUT channels 1 – 4 are in different locations depending on the version of your Four-Channel Audio I/O Board. Check to see to how your connectors are labeled.

Audio Input and Output Connections

ANALOG IN Avid-supplied analog line in cable connection

ANALOG OUT XLR audio out

AES/EBU I/O cable connection

cable connection

COMPOSITE

S-VIDEO

ANALOG OUT

GAIN

ANALOG OUT

COMPOSITE

1/2

DVI-I

SDI IN SDI OUT SDTI OUT

ANALOG IN

GAIN

1234

HD SDI IN HD SDI OUT HD MONITOR OUT

OUT 1 OUT 2

ANALOG IN

REF

3/4

AES/EBU

1/2

HD COMPONENT OUT

1394

HOST

SPDIFF

OUT

3/4

YPBPR

LTC

OUT

OPTICAL

OUTIN

HD TRILEVEL

SYNC

GAIN 2

MONITOR

GAIN 1

WORD CLOCK OUT

S/PDIF I/O connections

Optical I/O connections

Using the Avid Adrenaline

To connect your audio equipment:

1. Attach the audio output ports on the Avid Adrenaline to the input ports on

2. Connect the audio input ports on the Avid Adrenaline to the output ports

The Avid Adrenaline provides two balanced ¼-inch audio tip/ring/sleeve (TRS) jacks for monitoring your audio. The MONITOR output jacks are on the SD Video I/O board. When you play a sequence, the audio tracks are mixed down to stereo for playing through the monitor speakers (see the following figure).

the video deck or audio device (see the preceding figure).

on the video deck or audio device.

These TRS jacks provide balanced professional level audio to your speaker system. Do not use ¼-mono cables in this connector, as your output levels might be too high.

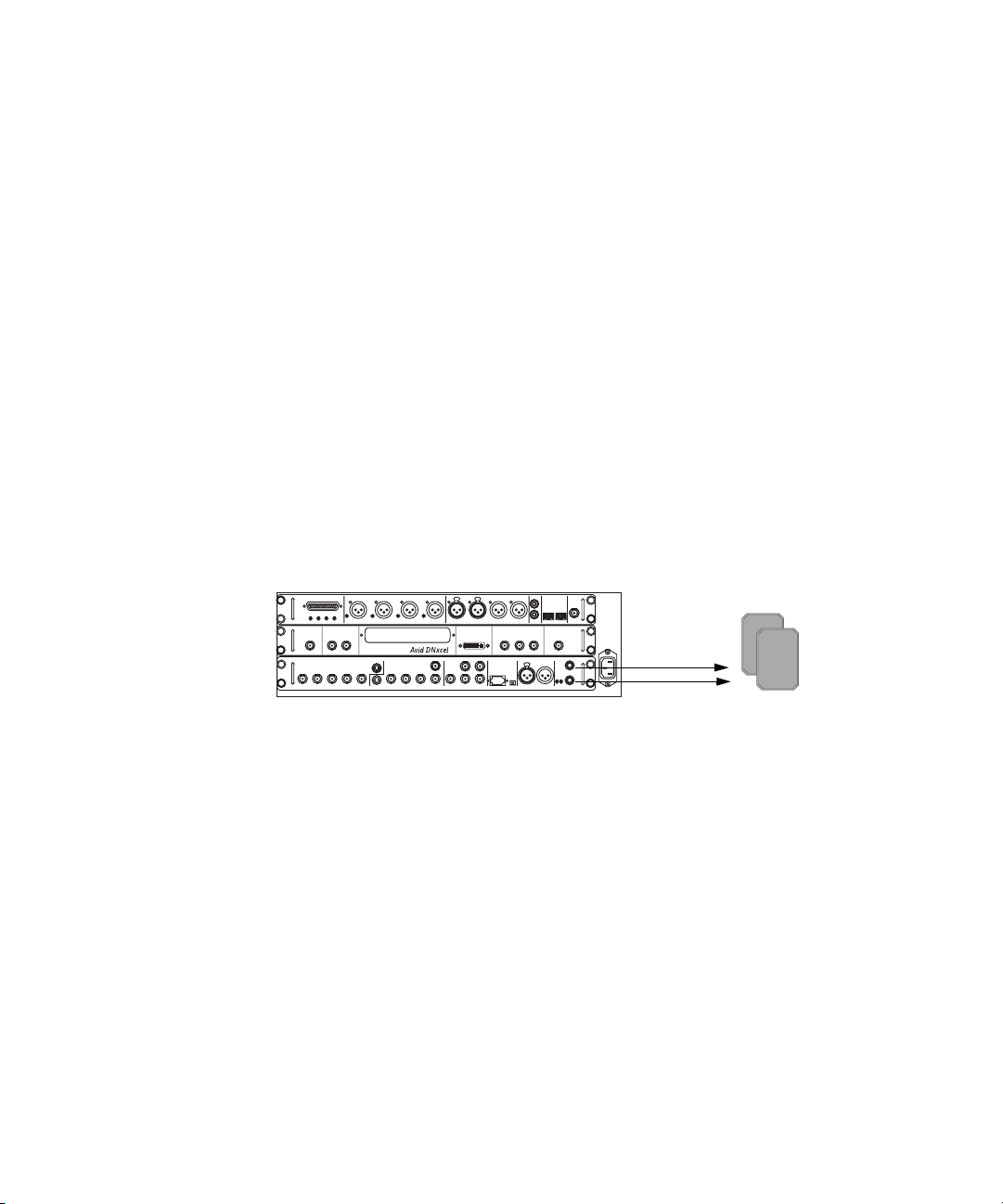

Audio Monitoring Connection

Avid Adrenaline

ANALOG IN

GAIN

1234

HD SDI IN HD SDI OUT HD MONITOR OUT

OUT 1 OUT 2

ANALOG IN

REF

ANALOG OUT

GAIN

S-VIDEO

ANALOG OUT

COMPOSITE

1/2

DVI-I

SDI IN SDI OUT SDTI OUT

COMPOSITE

3/4

AES/EBU

OUT

1/2

HD COMPONENT OUT

YPBPR

1394

HOST

SPDIFF

WORD

OPTICAL

CLOCK OUT

OUTIN

3/4

HD TRILEVEL

SYNC

LTC

MONITOR

GAIN 2

GAIN 1

OUT

Output to monitoring speakers

Speakers

Connecting a Client Monitor

To view the video as it passes through the Avid Adrenaline, you might want to connect a Client monitor. All analog video outputs are active when you play a sequence or when you capture data. A Client monitor can be connected to any of the following video outputs on the SD video I/O board (see “SD Video I/O

Board Connectors” on page 11):

• Component

•Composite

•SDI

•S-Video

•DV

System Connections and Configurations

If you use the DV connection for a Client monitor, Avid cannot guarantee that the DV device will be synchronized with the playing of the data in the system.

A Client monitor can be connected to of the following video outputs on the HD video I/O board (see “Avid DNxcel Board Connectors” on page 10):

• HD Monitor Out

• HD Component Out

Most video decks provide a video output connector. You can connect a monitor to the deck to see the video sent to the Avid Adrenaline or the video the Avid Adrenaline sends to the deck. See the documentation that came with your video deck for more information.

The video you see in the monitor connected to the deck might not indicate there is a video signal going to the Avid Adrenaline.

System Connections and Configurations

The Avid Adrenaline has been tested with the following PC and Macintosh products, which are used as examples in this document:

•HP

Workstation xw8200

• HP Workstation xw8000

Using the Avid Adrenaline

• Apple, dual 2.8-GHz (or faster) PowerPC G5 system

•Apple

FireWire 800, dual 1.42-GHz PowerPC® G4 system

The 2.4 GHz Mobile P4 Dell Latitude C840 and the 1.33-GHz Apple

PowerBook

G4 17-inch are also available for use with the Avid Adrenaline, but they are not used as examples in this document. You might need to provide a 6-pin to 4-pin cable for use with your Dell Latitude C840.

As more systems and third-party boards are tested and qualified, and as different configurations are approved, they will be placed on the Avid web site. For the latest information concerning system availability, go to

www.Av id.com . Click your product line (for example, Broadcast or Video

Editing) and then click your Avid application.

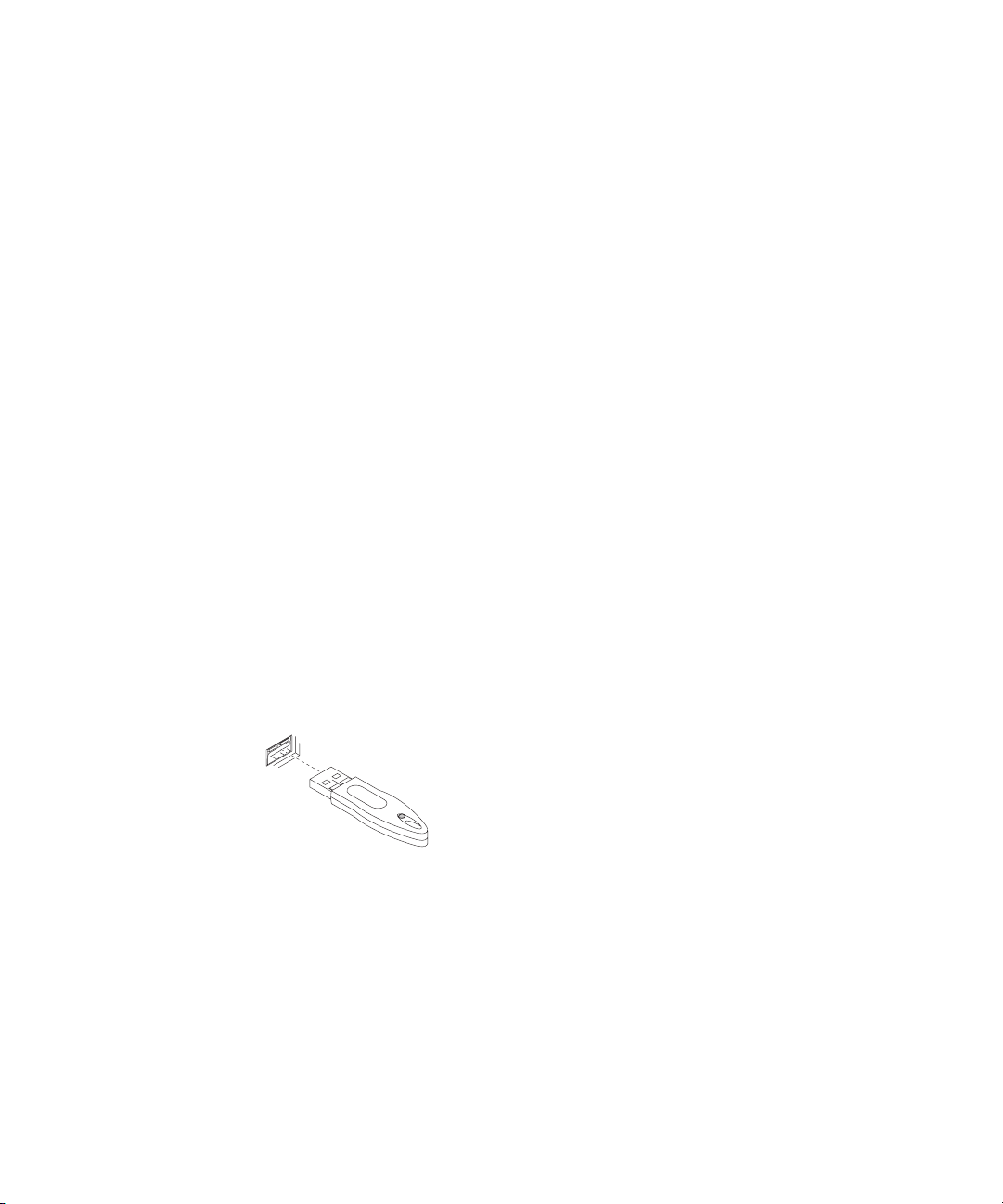

Connecting the Application Key

The application key (see the following figure), commonly referred to as a dongle, allows the Avid software to run on your system. If you have not yet connected the application key, you should do so before you run the Avid application. If your system has USB ports in the front and in the rear, Avid recommends that you connect the application key to a USB port at the rear of the system.

Application Key

System Connections and Configurations

HP xw8200 System Slot Configuration and Connections

Avid has qualified the xw8200 system with the NVIDIA® Quadro® FX 1300 graphics board to be used with the Avid Adrenaline. Other PC systems and graphics boards might be qualified at a later date.

The following table lists the Avid qualified slot configuration for the xw8200 system. The following figure identifies the slots and connections on the rear of the xw8200 system.

Slot Description

PCI slot 1 (32-bit, 33 MHz, 5 V) Do not use. (This bus segment is used by the integrated 1394 and the

PCI Express slot 2 (x16 Graphics bus) Qualified OGL graphics board

PCI slot 3 (32-bit, 33 MHz, 5 V) Do not use. This bus segment is used by the integrated 1394 and the

PCI Express slot 4 (x8 mechanically, x4 electrically)

PCI-X slot 5 (64-bit, 133 MHz, 3.3 V) (Option) Avid Unity

The ATTO™ 3300 and 3305 Fibre Channel boards are designed for 100 MHz PCI-X bus slots. If these Fibre Channel boards are installed into a PCI-X 133 MHz bus slot, you will experience data corruption and data loss. Make sure you install ATTO 3300 or 3305 Fibre Channel board in a PCI-X slot that runs at 100 MHz or less.

HP Workstation xw8200 Slot Assignments

integrated Ethernet.)

An on-board Ultra 320 SCSI connector panel occupies this

location. The on-board SCSI is on the same bus segment as slots 6 and 7.

integrated Ethernet.

Do not use. Currently, Avid has not qualified any boards for this slot.

™

LANshare EX or Avid Unity PortServer gigabit board or second 1394 board. See “Ethernet Support” on page 42 for more Ethernet informations.

Do not install the ATTO 3300 or 3500 Fibre Channel board

in this slot.

If you install a second 1394 (FireWire) board, make sure that it

runs on 3.3 volts or is a Universal board. Universal boards operate at 5 volts and at 3.3 volts.

Using the Avid Adrenaline

HP Workstation xw8200 Slot Assignments (Continued)

Slot Description

PCI-X slot 6 (64-bit, 100 MHz, 3.3 V) (Option) Fibre Channel board to Avid Unity system or Fibre Channel

board to playback device

PCI-X slot 7 (64-bit, 100 MHz, 3.3 V) Available slot

Rear View of xw8200 System

PS/2 ports

Parallel port

Serial port

USB ports

LAN connection

1394 6-pin connection

Microphone

Line OUT

Line IN

PCI Slots

1 2 3 4 5 6 7

Channel A SCSI connector

Video graphics board

Channel B SCSI connector

System Connections and Configurations

HP xw8000 System Slot Configuration and Connections

Avid has qualified the xw8000 system with the NVIDIA Quadro4 980 XGL graphics board to be used with the Avid Adrenaline. Other PC systems and graphics boards might be qualified at a later date.

The following table lists the Avid qualified slot configuration for the xw8000 system. The following figure identifies the slots and connections on the rear of the xw8000 system.

Slot Description

AGP slot Qualified OGL graphics board

PCI slot 1 (32-bit, 33 MHz, 5 V) Do not use. This bus segment is used by the integrated 1394 and the

PCI slot 2 (32-bit, 33 MHz, 5 V) Do not use. This bus segment is used by the integrated 1394 and the

PCI-X slot 3 (64-bit, 133 MHz, 3.3 V) (Option) Avid Unity LANshare EX or Avid Unity PortServer gigabit

The ATTO 3300 and 3305 Fibre Channel boards are designed for 100 MHz PCI-X bus slots. If these Fibre Channel boards are installed into a PCI-X 133 MHz bus slot, you will experience data corruption and data loss. Make sure you install ATTO 3300 or 3305 Fibre Channel board in a PCI-X slot that runs at 100 MHz or less.

HP Workstation xw8000 Slot Assignments

integrated Ethernet.

board or second 1394 board. See “Ethernet Support” on page 42 for more Ethernet informations.

Do not install the ATTO 3300 or 3500 Fibre Channel board

in this slot.

If you install a second 1394 (FireWire) board, make sure that it

runs on 3.3 volts or is a Universal board. Universal boards operate at 5 volts and at 3.3 volts.

Using the Avid Adrenaline

HP Workstation xw8000 Slot Assignments (Continued)

Slot Description

PCI-X slot 4 (64-bit, 100 MHz, 3.3 V) Available slot

PCI-X slot 5 (64-bit, 100 MHz, 3.3 V) (Option) Fibre Channel board to Avid Unity system or Fibre Channel

board to playback device

Rear View of xw8000 System

Keyboard and mouse

USB ports

Parallel port

Serial port

1394 6-pin connection

LAN connection

Microphone

Line OUT

Line IN

AGP Slot PCI Slots

1 2 3 4 5

Channel A SCSI connector

Channel B SCSI connector

System Connections and Configurations

Macintosh G5 System Slot Configuration and Connections

The following table lists the Avid qualified slot configuration for the Macintosh G5 system. The following figure identifies the slots and connections on the rear of the Macintosh G5 system.

G5 Slot Assignments

Slot Description

PCI-X slot 4 (64-bit, 133 MHz, 3.3 V) (Option) Second 1394 FireWire board or

Ultra320 SCSI (UL4D) board

PCI-X slot 3 (64-bit, 100 MHz, 3.3 V) (Option) Fibre Channel board to Avid Unity system

PCI-X slot 2 (64-bit, 100 MHz, 3.3 V) (Option) Ultra160 SCSI (UL3D) board or second 1394 FireWire

board when an Ultra320 SCSI board is used in slot 4

AGP slot Apple graphics board

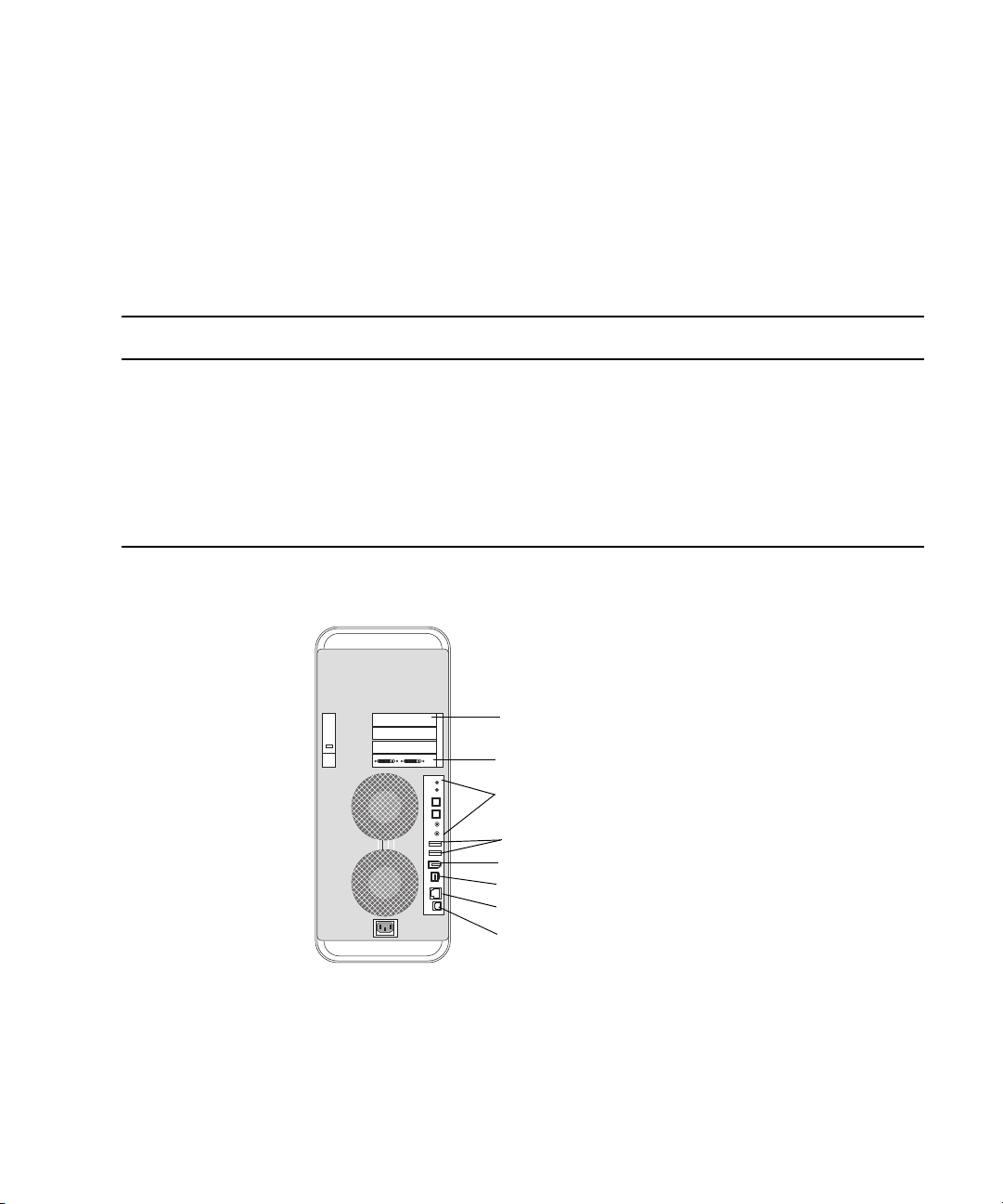

Rear View of G5 System

Slot 4

Slot 1 Apple graphics board

Audio connections

USB ports FireWire 400, 6-pin connection FireWire 800, 9-pin connection (1394B)

Ethernet connection Modem connection

Using the Avid Adrenaline

Macintosh G4 System Slot Configuration and Connections

Avid has qualified the G4 system with the NVIDIA GeForce™4 Titanium graphics board to be used with the Avid Adrenaline. Other Macintosh systems and graphics boards might be qualified at a later date.

The following table lists the Avid qualified slot configuration for the Macintosh G4 system. The following figure identifies the slots and connections on the rear of the Macintosh G4 system.

G4 Slot Assignments

Slot Description

PCI slot 5 (64-bit, 33 MHz, 5 V) Available slot

PCI slot 4 (64-bit, 33 MHz, 5 V) (Option) Avid Unity LANshare EX or Avid Unity PortServer gigabit

board or second 1394 FireWire board

PCI slot 3 (64-bit, 33 MHz, 5 V) (Option) SCSI or Fibre Channel board to Avid Unity system

PCI slot 2 (64-bit, 33 MHz, 5 V) (Option) SCSI or Fibre Channel board to Avid Unity system

AGP slot Apple graphics board

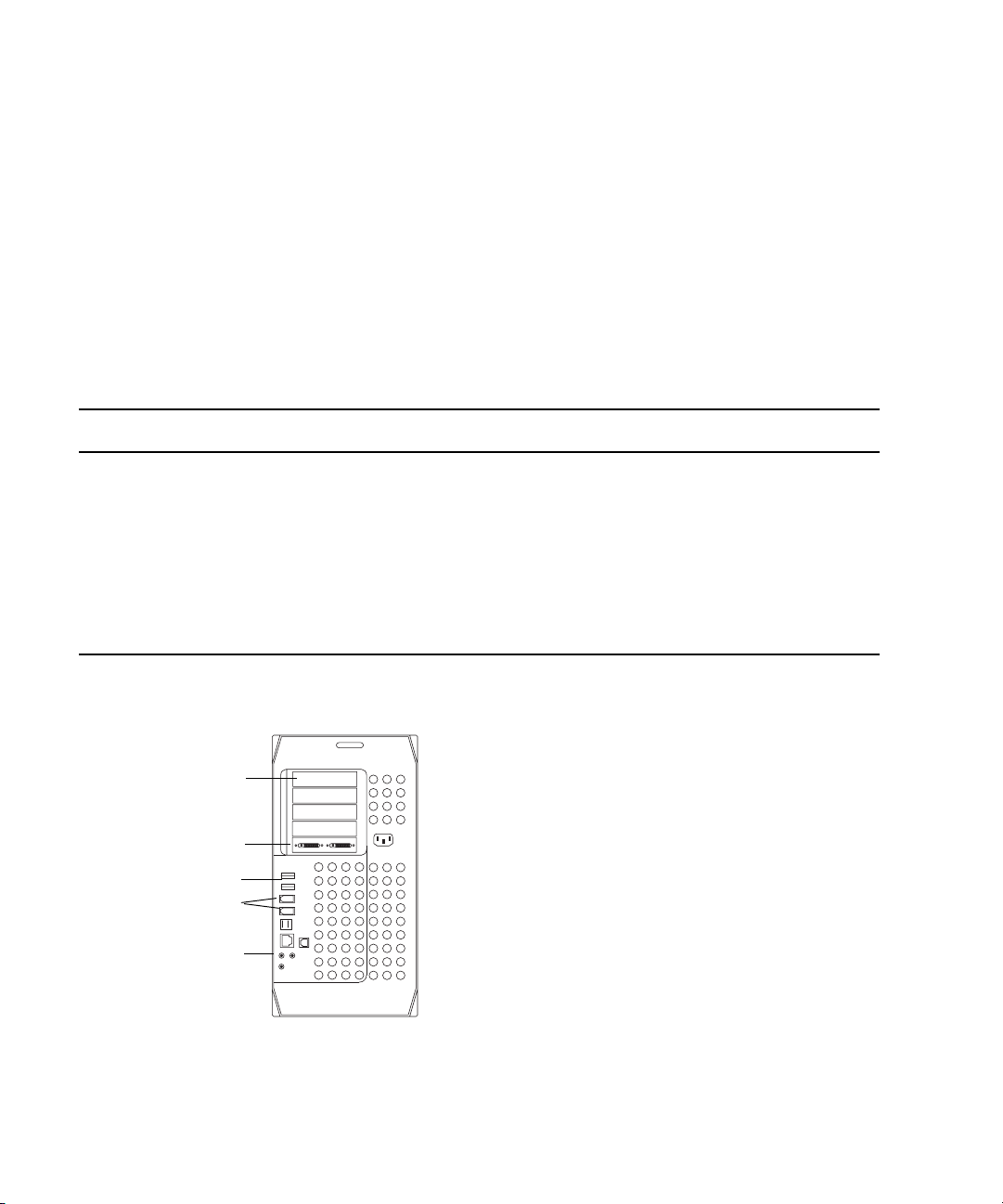

Rear View of G4 System

Slot 5

Slot 1 Apple graphics board

USB ports

FireWire 6-pin connections

Audio connections

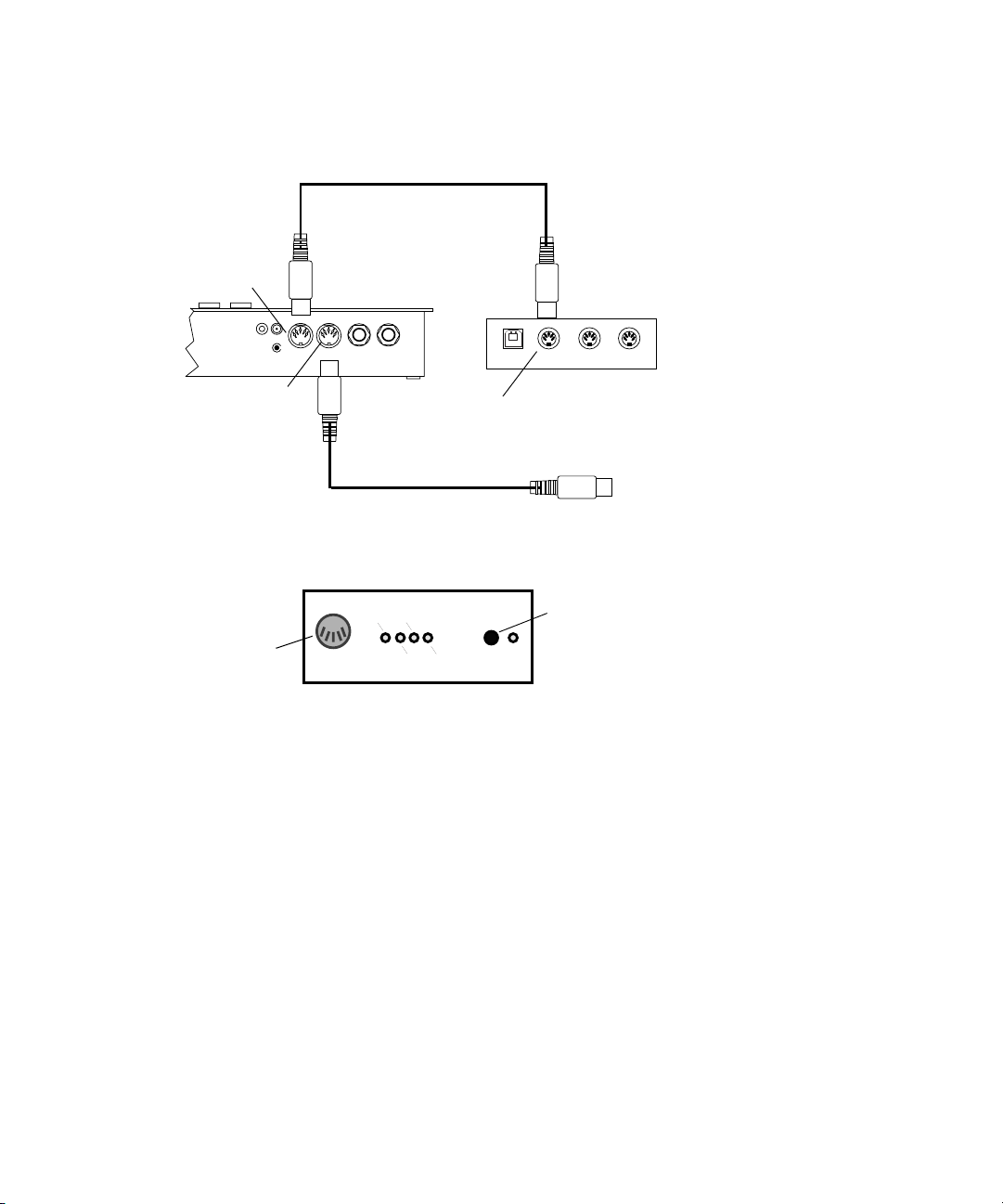

Connecting Serial and MIDI Port Devices

Avid systems support the connection of two different MIDI fader controllers and a Yamaha to the MIDISPORT The two fader controllers are the JL Cooper FaderMaster Pro Cooper MCS-3000X. Avid supports recording automation gain using the MIDI features of the 01V mixer.

01V mixer. The fader controllers and the 01V mixer connect

™

2x2 USB-to-MIDI converter attached to the USB ports.

™

and the JL

USB and Serial Differences Between Windows and Macintosh Systems

If you have a Windows system, you most likely have 2 or more USB connections and one serial connection. If you need more than one serial connection, Avid recommends using a USB-to-serial adapter. See the documentation that comes with the device.

If you have a Macintosh system, you might have two USB connectors and no serial ports. Avid suggests you attach a USB hub to the rear of the system and use a Keyspan Twin USB-to-serial adapter (Macintosh only) for deck control.

Connecting the USB Hub

The USB hub explained in this section converts one USB port into seven USB ports. The USB hub kit (see the following figure) contains a USB hub, a power adapter, and a USB cable.

The USB hub shown in the example might not be the actual USB hub you use. However, the example shown provides enough information to allow you to properly connect whatever USB hub you decide to use.

The USB hub is supported only when it is powered by an ac adapter.

The USB hub has the following connections:

• USB ports 1 through 7

• Device connection

•On/Off switch

• Power connection

Using the Avid Adrenaline

USB Hub

USB hub

DC connector

Device connection

On/Off switch

Power connection

To connect the USB hub:

USB ports

Device connector

AC power adapter

1. Connect the power adapter to the USB hub: a. Plug the dc connector of the ac power adapter into the USB hub

power connection.

b. Plug the ac power adapter into a wall outlet or power strip.

2. Connect the USB hub to the system using the USB cable: a. Plug the device connector of the USB cable into the device

connection at the rear of the USB hub.

USB cable

USB connector

b. Plug the USB connector of the USB cable into one of the USB ports

at the rear of the system.

3. Turn on the power.

Connecting the USB Devices to the USB Hub

Once the USB hub is connected to the system, you can connect the following USB devices to the USB hub:

• USB-to-serial adapter

•USB-to-MIDI converter

Connecting the USB-to-Serial Adapter

The USB-to-serial adapter connects to a USB port on the USB hub (see the following figure).

USB-to-Serial Adapter

To connect the USB-to-serial adapter to the USB hub:

1. Plug the USB-to-serial adapter cable into a USB port on the USB hub (see

“Connecting the USB Hub” on page 33 for port locations).

Connecting Serial and MIDI Port Devices

USB-to-serial adapter cable

2. Install the USB-to-serial adapter software, using the instructions that came with the USB-to-serial adapter.

Connecting the USB-to-MIDI Converter

Avid recommends the use of the MIDISPORT 2x2 USB-to-MIDI converter connected to a USB hub for the Macintosh systems or to a USB port on a PC (see the following figure).

Connecting the USB-to-MIDI Converter

USB-to-MIDI converter USB cable

Device connector Device connector

The ReadMe file and the Help in your application explains how to install the drivers and configure the USB-to-MIDI converter.

USB connector

Using the Avid Adrenaline

To connect the USB-to-MIDI converter to a port on the USB hub:

1. Locate the MIDI converter USB cable.

2. Connect the device connector of the USB cable to the device connector on

3. Connect the other end of the USB cable to a USB port on the USB hub

4. Push the USB/MIDI Thru button in to allow the device to function as a

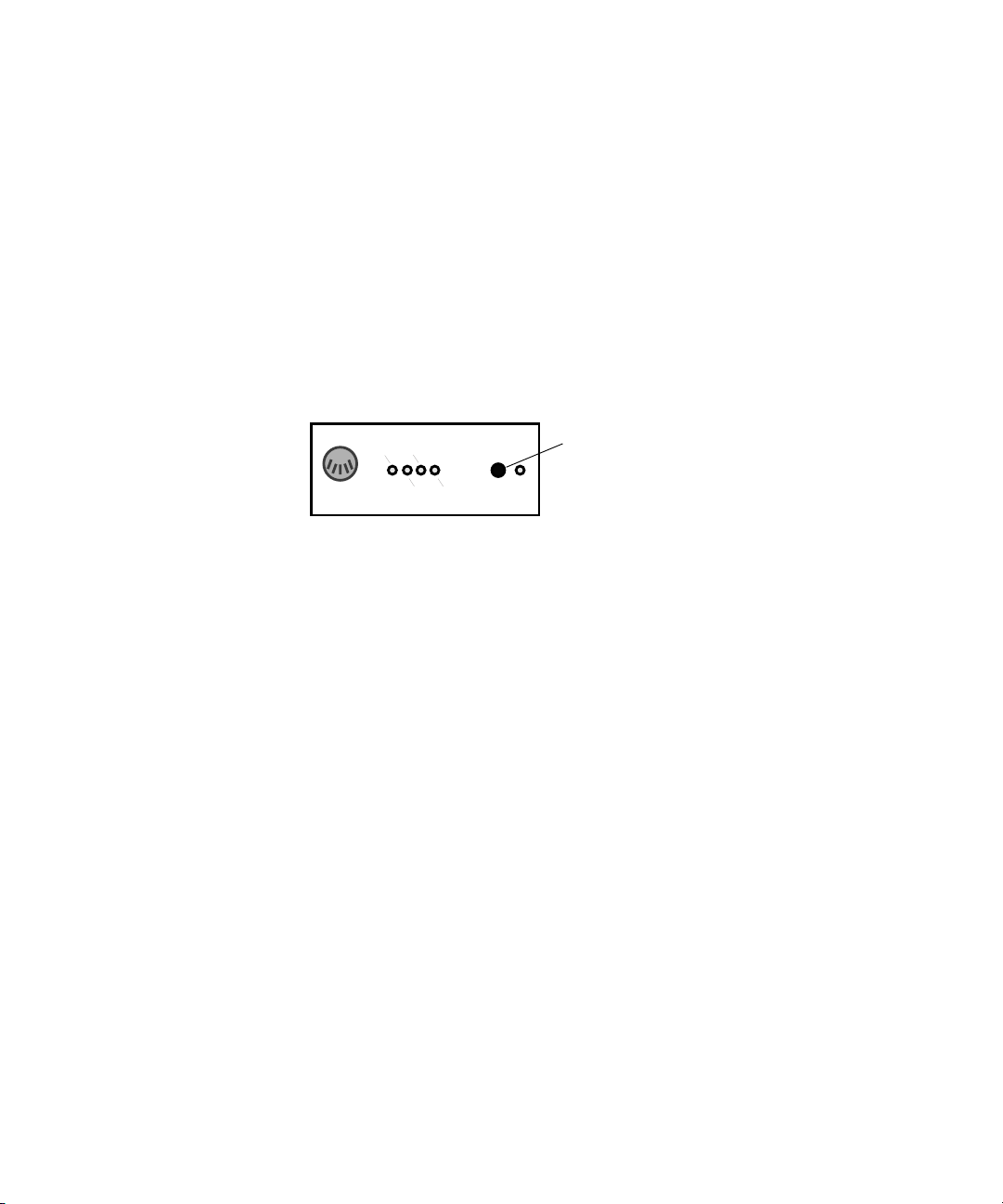

USB-to-MIDI Converter Front Panel

the USB-to-MIDI converter.

(see “USB Hub” on page 34 for a port location).

USB-to-MIDI converter (see the following figure).

USB/ MIDI Thru

USB

IN A

IN A IN B

OUT A OUT B

Connecting JL Cooper Fader Controllers

Your Avid system supports the FaderMaster Pro and the MCS-3000X fader controllers. Both of the fader controllers connect to a USB-to-MIDI converter that connects to a USB port on the system. See your Avid editing application Help to initialize your JL Cooper fader controllers.

Fader controller connections are shown for both the MCS-3000X and the FaderMaster Pro (see “JL Cooper MCS-3000X Fader Controller Cabling” on

page 37 and “JL Cooper FaderMaster Pro Fader Controller Cabling” on page 38). There are two major differences between the two fader controllers:

• The MCS-3000X has a four-position switchpack that is not on the FaderMaster Pro.

• The MIDI IN and MIDI OUT are in opposite positions in the MCS-3000X and the FaderMaster Pro.

To connect the fader controllers:

Button (In position)

1. Quit any open applications.

2. Shut down the Avid editing system.

3. Make sure your USB-to-MIDI converter is connected to the USB port as explained in “Connecting the USB-to-MIDI Converter” on page 35.

Connecting Serial and MIDI Port Devices

4. If you are cabling the MCS-3000X, set switch 4 to the ON (down) position. The switch is upside down on the MCS-3000X (see the following figure).

5. Locate two MIDI cables with 5-pin DIN connectors.

You can use the In A and Out A connector pair or the In B and Out B connector pair on the rear of the USB-to-MIDI converter. Whichever pair you use, select the corresponding port when you configure the device using the Controller Settings dialog box in the Avid editing application. For information on configuring the device, see “Using the Fadermaster Pro and MCS-3000X” in the Help.

6. Plug one end of the first MIDI cable into the In A connector of the USBto-MIDI converter (see “USB-to-MIDI Converter Front Panel” on

page 38), and the other end of the cable into the MIDI OUT connector of

the fader controller.

7. Plug one end of the second MIDI cable into the Out A connector of the USB-to-MIDI converter, and the other end of the cable into the MIDI IN connector of the fader controller.

8. Make sure the button on the front of the USB-to-MIDI converter is pushed in (see “USB-to-MIDI Converter Front Panel” on page 38).

JL Cooper MCS-3000X Fader Controller Cabling

CTS 206-4

1234

EXPANDER

SELECT

POWER

Switch

MIDI IN

MIDI OUT MIDI IN

MIDI cable

USB-to-MIDI converter (rear)

Out A

Out B

In B

MIDI OUT

Out A

MIDI cable to In A (see “USB-to-MIDI

Converter Front Panel” on page 38)

Using the Avid Adrenaline

JL Cooper FaderMaster Pro Fader Controller Cabling

MIDI IN

9VDC

Power

MIDI OUT

USB-to-MIDI Converter Front Panel

MIDI In MIDI Out

Switch In Switch Out

Out A

MIDI cable

Out B

In B

Out A

USB-to-MIDI converter (rear)

MIDI cable to In A (see “USB-to-MIDI

Converter Front Panel” on page 38)

IN A IN B

In A

IN A

OUT A OUT B

Connecting the Yamaha 01V Mixer

To connect the 01V mixer:

1. Quit any open applications.

2. Shut down the Avid editing system.

3. Make sure your USB-to-MIDI converter is connected to the USB port as explained in “Connecting the USB-to-MIDI Converter” on page 35.

4. Locate two MIDI cables with 5-pin DIN connectors.

USB/ MIDI Thru

Button (In position)

USB

Connecting Serial and MIDI Port Devices

Controller Settings dialog box in the Avid editing application. For information on configuring the device, see “Setting Up the Yamaha 01V/96 or Yamaha

01V” in the Help.

5. Plug one end of the first MIDI cable into the In A connector of the USBto-MIDI converter (see “USB-to-MIDI Converter Front Panel” on

page 38).

6. Plug the other end of the cable into the MIDI OUT connector of the 01V mixer (see the following figure).

7. Plug one end of the second MIDI cable into the Out A connector of the USB-to-MIDI converter.

8. Plug the other end of the cable into the MIDI IN connector of the 01V mixer (see the following figure).

9. Make sure button on the front of the USB-to-MIDI converter is pushed in (see “USB-to-MIDI Converter Front Panel” on page 38).

Yamaha 01V Mixer Rear View

MONITOR OUT

OMNI OUT

4321

MIDI OUT

SREREO OUT

DIGITAL STEREO

POWER

ON OFF

COAXIAL

THRU

INOUT

MIDI TO HOST

OUT

OPTION 1/0

MIDI IN

USB-to-MIDI converter (rear)

Out B

In B

Out A

MIDI cable to In A

Out A

(see “USB-to-MIDI

Converter Front Panel” on page 38)

You must set up the 01V mixer using its front panel. See your Avid editing application Help for more setup instructions.

The Yamaha 01V mixer can also be connected directly to a serial port. For information on configuring the mixer when connected to a serial port, see “Setting Up the Yamaha 01V/96 or Yamaha 01V” in the Help.

Using the Avid Adrenaline

Connecting the Yamaha 01V/96 Mixer

You can connect a Yamaha 01V/96 mixer via MIDI using the same procedure described in “Connecting the Yamaha 01V Mixer” on page 38. However, Avid recommends that you use a USB connection for this mixer. For information on configuring on connecting the Yamaha 01V/96, see “Setting Up the Yamaha 01V/96 or Yamaha 01V” in the Help.

Controlling a Video Deck

Avid editing systems provide video deck control through a serial control connector on most decks. You can control a single deck by using an RS-232 to RS-422 serial adapter. An optional RS-232 to RS-422 serial adapter kit is available through Avid.

The optional serial adapter kit that contains the following:

• An RS-232 to RS-422 serial adapter

• Two serial cables with 9-pin male connectors at both ends

To video deck

To connect a single deck to your system:

1. Locate the serial adapter kit.

2. Attach one end of a 9-pin cable to the end of the serial adapter labeled RS-232.

3. Attach the other end of the 9-pin cable to the serial port on the Avid editing system (see the following figure) or to the serial connector of the USB-to-serial adapter.

When you attach the cable to the serial port on the PC, note if you are using the COM1 or COM2 serial port. You need to select the same port in the Avid editing application.

Video Deck Control Cabling

RS-422 connection

Serial Adapter

RS-232 connection

To Avid editing system

Storage

4. Attach one end of another 9-pin cable to the end of the serial adapter labeled RS-422.

5. Attach the other end of the 9-pin cable to the remote serial port of the video deck.

Storage

SCSI Support

Place the deck in Remote mode before attempting to control the deck using the software. See the documentation provided with your deck.

You have several storage options, including SCSI, Fibre Channel, 1394, and Ethernet. To use all the resolutions available in your Avid editing application, you might need to configure and stripe your drives. Storage options are explained in the following sections.

Avid has qualified the two SCSI channels on the rear of the xw8000 system (see “HP xw8000 System Slot Configuration and Connections” on page 29). The channels connect to a dual U320 chip on the system board. You can use the two SCSI connectors at the rear of the system and a Fibre Channel board in the xw8000 system at the same time.

Avid supports the ATTO SCSI UL3D/160 LVD board in the G4 system and the G5 system. Additional boards might be supported at a later date. You can use a SCSI board and a Fibre Channel board at the same time in the G4 system or the G5 system.

Documentation for connecting storage devices is included with the devices on a CD-ROM if they are purchased from Avid. Striping information can be found on the Avid Knowledge Base.

Contact your Avid Sales and Product information line at 800-949-2843 for the latest storage product information.

Using the Avid Adrenaline

Fibre Channel Support

Avid provides support for local storage or Avid Unity MediaNetwork using the following Fibre Channel boards in the xw8000 system, G4 system, and G5 system:

• ATTO 2-Gb optical Fibre Channel (Model 3300, single channel)

• ATTO 2-Gb copper Fibre Channel (Model 3305, single channel)

1394 Support

When you are using an Avid Adrenaline and you want to use 1394 (FireWire) drives, you need a second 1394 OHCI board on a different bus segment in your Avid editing system. See your computer manufacturer’s documentation to identify a PCI bus slot that is on a different bus segment than the 1394 port used for the Avid Adrenaline.

Ethernet Support

If you use a 1394 board in slots 3, 4, or 5 (PCI-X slots) in the xw8000 it must be a “universal” PCI card and not a +5V-only board.

To determine the supported 1394 boards, go to www.Avid.com. Click your product line (for example, Broadcast or Video Editing) and then click your Avid application.

At this time, Avid has not qualified a FireWire 800 (or 1394b) drive to be used with Avid Adrenaline systems. For the latest qualified storage products, contact your local Avid Reseller or call the Avid Sales and Product information line at 800-949-2843 for the latest information about available drives.

At this time only the Alacritech® 1-Gb board is supported. For supported devices and configurations, go to www.Avid.com. Click your product line (for example, Broadcast or Video Editing) and then click your Avid application.

You cannot use the built-in 1394 connection and the built-in 1-Gb Ethernet for a Avid LANshare EX connection in the xw8000 system at the same time.

Formatting and Striping MediaDrives (Windows)

To use all the resolutions available in your Avid editing application, you might need to stripe your MediaDrives. Disk drives must be configured as Dynamic if you are striping drives.

To configure and stripe a drive:

1. Start your system, and log in to an account with administrative privileges.

2. Right-click the My Computer icon, and select Manage. The Computer Management window opens.

3. Click the Disk Management folder.

Storage

For more information on the Computer Management window, click the Help icon in the toolbar of the Computer Management window.

4. Make a drive Dynamic by right-clicking the disk ID section of the disk in the Computer Management window and selecting Upgrade to Dynamic disk, or Create Dynamic disk, depending upon the status of your disk.

When you select a disk in the Computer Management window, the white section of the disk changes to stripes, showing that the section has been selected.

5. Repeat step 4 for each drive you want to stripe.

6. Right-click one of the Dynamic drives and select Action > Create Volume.

7. Follow the instructions in the Create Volume Wizard to finish striping the drives using NTFS format.

Formatting and Striping MediaDrives (Macintosh)

To use all the resolutions available in your Avid editing system, use the ATTO ExpressStripe software to stripe drives on the Mac OS The ExpressStripe software is installed in the following location:

/Applications/ExpressStripe

X operating system.

The instructions for using the software are in a PDF file, Expressstripe.pdf, that is installed along with the ExpressStripe application.

You must be logged in as an Administrator to stripe drives.

Using the Avid Adrenaline

Using Striped Drives on Mac OS X and Mac OS 9.x Systems

Do not use the Apple Disk Utility application (in Applications/Utilities) to stripe drives. If you use the Disk Utility application, you will not be able to view the drives on the Mac OS 9 system. Additionally, Avid’s drive filtering feature will not function properly, resulting in poor performance.

There are certain considerations when using striped drives on different Macintosh operating systems and when moving striped drives.

The Avid editing software automatically recognizes drives that were striped on Mac OS 9.x. You should be able to use these drives to edit and play video. However, if you move a drive that was striped on a Mac OS X system back to Mac OS 9.x, you cannot play video from the drives on Mac OS 9.x. If necessary, you can set up your Mac OS 9.x system so that it recognizes the drives. You can then copy media files from the drive to your Mac OS 9.x drives.

To set up a Mac OS 9.x system to recognize drives that were striped on a Mac OS X system:

1. Navigate to the following folder: Applications/Avid Goodies/OS 9/System Folder/Extensions

2. Copy the file ~~ExpressStripe_OS9_Enablr to the Extensions folder on your Mac OS 9 system.

3. Restart the Mac OS 9 system.

The system is now able to recognize the striped drives. You can use the drives to copy media onto your Mac OS 9 drives.

Do not run a Mac OS 9 Avid editing application on the same system as a Mac OS X Avid editing system. There might be conflicts between the system files used by the two applications.

Moving Striped Drives to Another System (Macintosh Only)

In order to move striped drives to another system, you need to be able to identify the drives that make up a particular striped set. This was easy on Mac OS 9 because the system allowed you to use the SCSI ID order when striping drives.

On Mac OS X, the system does not use the SCSI ID but instead uses its internal diskn name (where n is the drive number) when creating the striped sets. You can use Avid Storage Manager or ExpressStripe to identify a striped set on Mac OS X.

To use Avid Storage Manager to identify a striped set:

1. Start the Avid Storage Manager application and select View > Volumes.

2. Select the striped volume you wish to move and click Identify. The system blinks the lights on the front of the drives that make up the

volume.

To use ExpressStripe to identify a striped set:

Storage

1. Start the ExpressStripe application.

2. In the opening dialog boxes, select Utilities and then select Benchmark.

3. Select the striped volume you want to move and click Start. The system runs the benchmark test on the volume and shows activity on

the front of the drives that make up the volume.

Using the Avid Adrenaline

Specifications

The following sections provide specifications for the Avid Adrenaline.

Dimensions and Weight

The following table shows the dimensions and weight for the Avid Adrenaline enclosure.

Dimensions and Weight

Dimension Avid Adrenaline

Width 17.5 in (445 mm)

Height 5.25 in (132 mm)

Depth 16.8 in (422 mm)

Weight 29.0 lb (13.2 kg)

Environmental Specifications

The following table shows the environmental specifications for the Avid Adrenaline enclosure.

In general, you should prepare a site that is clean and dust free. In addition:

• Select a location free from significant temperature or humidity changes. A location with approximately 40 percent humidity can prevent problems stemming from electrostatic discharge.

• Select a location where there is adequate space in front of and behind the system components. You must be able to connect cables and service the parts of your system; they also need adequate airflow for cooling.

Environmental Specifications

Environment Specification

Operating temperature 50°F to 95°F (10°C to 35°C)

Operating humidity 5% to 95% noncondensing

Storage temperature –40°F to 117°F (–40°C to 47°C)

Storage humidity 5% to 95% noncondensing

Electrical Specifications

The following table shows electrical specifications for the Avid Adrenaline enclosure. Select your site with these electrical requirements in mind:

• Make sure there are adequate power outlets for the Avid Adrenaline. This prevents the need for extension cords.

• Make sure your site is away from major electrical equipment such as motors, air conditioners, or elevators.

Specifications

• Make sure the location is not subject to static electrical buildup.

• Plug only the Avid Adrenaline and other system equipment into the power strip. Do not plug in coffee makers, radios, lights, or other non-Avid devices. Avid recommends the use of an uninterruptible power supply (UPS) appropriately sized for your system configuration. The UPS provides system protection against sudden power surges or losses that could cause you to lose your work.

Electrical Specifications

Topic Specification

Voltage 100 V ac to 240 V ac

Frequency range 50 Hz to 60 Hz

Watts 165 W

Using the Avid Adrenaline

Regulatory and Safety Notices

The following sections explain the regulatory and safety notices for the Avid Adrenaline.

Warnings and Cautions

w w w

c c

FCC Notice

Never install equipment if it appears damaged.

Disconnect the power cord before servicing unit.

Only perform the services explicitly described in this document. For services or procedures not outlined in this document, speak with authorized Avid service personnel.

Follow all warnings and cautions in the procedures.

Operate the device within its marked electrical ratings and product usage instructions.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Canadian ICES-003

This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

European Union Notice

Declaration of Conformity (According to ISO/IEC Guide 22 and EN 45014)

Regulatory and Safety Notices

Application of Council Directives:

Standards to which Conformity is Declared:

Manufacturer’s Name:

European Contact: Nearest Avid Sales and Service Office or

Type of Equipment: Information Technology Equipment

73/23/EEC, 89/336/EEC.

EN60950:2000 Third Edition CISPR 22:1997 / EN55022:1994 + A1:1995 + A2:1997 Class A EN55024:1998/EN61000 — 3-2, 4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11

Avid Technology, Inc. 1925 Andover Street Tewksbury, MA 01876, USA

Avid Technology International B.V. Sandyford Business Center Unit 3, Dublin 18, Ireland

Using the Avid Adrenaline

Product Name: Products for the Windows NT, Windows 2000, or

Windows XP Operating System: Avid Adrenaline DNA, Avid DS Nitris DNA, Avid Equinox Break-Out-Box, Avid|DS, Avid Xpress, Avid Xpress DV, Film Composer, Media Composer, MediaDock, MediaDock 2+, MediaDrive, MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Meridien I/O box, NewsCutter, NewsCutter DV, NewsCutter XP, Pro Tools AVoption|V10, Symphony

Products for the Mac OS X Operating System: Avid Adrenaline DNA, Avid Xpress, Avid Xpress DV, Film Composer, Media Composer, MediaDock, MediaDock 2+, MediaDrive, MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Meridien I/O box, Pro Tools AVoption|V10, Symphony

Products for the UNIX Operating System: AirPlay, AirSPACE, AirSpeed, VideoSPACE

Products for MediaNetwork and Workgroups: Avid ProEncode, Avid Unity MediaManager, Avid Unity MediaNetwork (includes File Manager), Avid Unity TransferManager, LANserver, LANserver EX, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, MEDIArray ZX, MEDIArray ZX Drive, Nearchive, PortServer, Vixel switches (8100, 7100, 7200, 9100, 9200), Xdeck

Base Model Numbers: None

Product Options: All

Year of Manufacture: 2005

Regulatory and Safety Notices

(1) Products for the Windows NT, Windows 2000, or Windows XP Operating System: products were tested in a typical Avid Adrenaline DNA, Avid DS Nitris DNA, Avid Equinox Break-Out-Box, Avid|DS, Avid Xpress, Avid Xpress DV, Film Composer, Media Composer, MediaDock, MediaDock 2+, MediaDrive, MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Meridien I/O box, NewsCutter, NewsCutter DV, NewsCutter XP, Pro Tools AVoption|V10, or Symphony configuration.

(2) Products for the Mac OS X Operating System: products were tested in a typical Avid Adrenaline DNA, Avid Xpress, Avid Xpress DV, Film Composer, Media Composer, MediaDock, MediaDock 2+, MediaDrive, MediaRAID, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, Meridien I/O box, Pro Tools AVoption|V10, or Symphony configuration.

(3) Products for the UNIX Operating System: products were tested in an AirPlay, AirSpeed, or VideoSPACE configuration.

(4) Products for MediaNetwork and Workgroups: products were tested in a typical Avid ProEncode, Avid Unity MediaManager, Avid Unity MediaNetwork (includes File Manager), Avid Unity TransferManager, LANserver, LANserver EX, MEDIArray, MEDIArray Drive, MEDIArray II, MEDIArray II Drive, MEDIArray ZX, MEDIArray ZX Drive, Nearchive, PortServer, or Xdeck configuration.

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directives and Standards.

George R. Smith, Director of Hardware Engineering

Australia and New Zealand EMC Regulations

John Kells, Australian Operations Manager

N1709

Avid Technology (Australia) Unit B 5 Skyline Place French Forest NSW 2086 Australia Phone: 61-2-8977-4800

Using the Avid Adrenaline

Taiwan EMC Regulations

Taiwan EMC Regulations BSMI Class A EMC Warning

Technical Support Information

Most products feature a number of coverage options. Avid Assurance service offerings are designed to facilitate your use of Avid solutions. Service options include extended telephone coverage, automatic software maintenance, extended hardware warranty, and preferred pricing on replacement parts.

For more information regarding Avid’s service offerings, visit

www.avid.com/support or call Avid Sales at 800-949-AVID (800-949-2843).

Program availability and details might vary depending on geographic location and are subject to change without notice. Contact your local Avid office or your local Avid Reseller for complete program information and pricing. However, if you need help locating an Avid office or Avid Reseller near you, please visit www.avid.com or call in North America 800-949-AVID (800-949-

2843). International users call 978-275-2480.

Product specifications are subject to change without notice and do not represent a commitment on the part of Avid Technology, Inc.

The software described in this document is furnished under a license agreement. You can obtain a copy of that license by visiting Avid's Web site at www.avid.com. The terms of that license are also available in the product in the same directory as the software. The software may not be reverse assembled and may be used or copied only in accordance with the terms of the license agreement. It is against the law to copy the software on any medium except as specifically allowed in the license agreement.

Technical Support Information

Avid products or portions thereof are protected by one or more of the following United States patents: 4,746,994; 4,970,663; 5,045,940; 5,267,351; 5,309,528; 5,355,450; 5,396,594; 5,440,348; 5,452,378; 5,467,288; 5,513,375; 5,528,310; 5,557,423; 5,568,275; 5,577,190; 5,583,496; 5,584,006; 5,627,765; 5,640,601; 5,644,364; 5,654,737; 5,715,018; 5,719,570; 5,724,605; 5,726,717; 5,729,673; 5,745,637; 5,752,029; 5,754,851; 5,799,150; 5,812,216; 5,828,678; 5,842,014; 5,852,435; 5,905,841; 5,929,836; 5,930,445; 5,946,445; 5,987,501; 5,999,406; 6,016,152; 6,018,337; 6,023,531; 6,038,573; 6,058,236; 6,061,758; 6,091,778; 6,105,083; 6,118,444; 6,128,001; 6,134,607; 6,137,919; 6,141,007; 6,141,691; 6,198,477; 6,201,531; 6,211,869; 6,223,211; 6,249,280; 6,269,195; 6,317,158; 6,317,515; 6,330,369; 6,351,557; 6,353,862; 6,357,047; 6,392,710; 6,404,435; 6,407,775; 6,417,891; 6,426,778; 6,477,271; 6,489,969; 6,512,522; 6,532,043; 6,546,190; 6,552,731; 6,553,142; 6,570,624; 6,571,255; 6,583,824; 6,596,031; 6,618,547; 6,636,869; 6,665,450; 6,678,461; 6,687,407; 6,704,445; 6,747,705; 6,763,134; 6,763,523; 6,766,063; 6,766,357; 6,791,556; 6,810,157; 6,813,622; 6,847,373; 6,871,003; 6,871,161; D352,278; D372,478; D373,778; D392,267; D392,268; D392,269; D395,291; D396,853; D398,912. Other patents are pending.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the express written permission of Avid Technology, Inc.

Attn. Government User(s). Restricted Rights Legend

U.S. GOVERNMENT RESTRICTED RIGHTS. This Software and its documentation are “commercial computer software” or “commercial computer software documentation.” In the event that such Software or documentation is acquired by or on behalf of a unit or agency of the U.S. Government, all rights with respect to this Software and documentation are subject to the terms of the License Agreement, pursuant to FAR §12.212(a) and/or DFARS §227.7202-1(a), as applicable.

Trademarks

888 I/O, Adrenaline, AirPlay, AirSPACE, AirSPACE HD, AirSpeed, AniMatte, AudioSuite, AudioVision, AutoSync, Avid, Avid DNA, Avid DNxcel, Avid DNxHD, AVIDdrive, AVIDdrive Towers, Avid Mojo, AvidNet, AvidNetwork, AVIDstripe, Avid Unity, Avid Xpress, AVoption, AVX, CamCutter, ChromaCurve, ChromaWheel, DAE, D-Fi, D-fx, Digidesign, Digidesign Audio Engine, Digidesign Intelligent Noise Reduction, DigiDrive, Digital Nonlinear Accelerator, DigiTranslator, DINR, D-Verb, Equinox, ExpertRender, FieldPak, Film Composer, FilmScribe, FluidMotion, HIIP, HyperSPACE, HyperSPACE HDCAM, IllusionFX, Image Independence, Intraframe, iS9, iS18, iS23, iS36, LaunchPad, Lo-Fi, Magic Mask, make manage move | media, Marquee, Matador, Maxim, MCXpress, Media Composer, MediaDock, MediaDock Shuttle, Media Fusion, Media Illusion, MediaLog, Media Reader, Media Recorder, MEDIArray, MediaShare, Meridien, MetaSync, MissionControl, NaturalMatch, Nearchive, NetReview, NewsCutter, Nitris, OMF, OMF Interchange, OMM, Open Media Framework, Open Media Management, ProEncode, Pro Tools, QuietDrive, Recti-Fi, RetroLoop, rS9, rS18, Sci-Fi, Softimage, Sound Designer II, SPACE, SPACEShift, SpectraGraph, SpectraMatte, Symphony, Trilligent, UnityRAID, Vari-Fi, Video Slave Driver, VideoSPACE, and Xdeck are either registered trademarks or trademarks of Avid Technology, Inc. in the United States and/or other countries.

iNEWS, iNEWS ControlAir, and Media Browse are trademarks of iNews, LLC.

Alacritech is a registered trademark of Alacritech, Inc. Apple, PowerBook, FireWire, Macintosh, and Mac OS are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. ATTO is a trademark of ATTO Technology, Inc. FaderMaster Pro is a trademark of JL Cooper, a division of Sound Technology. GeForce, NVIDIA, and Quadro are registered trademarks or trademarks of NVIDIA Corporation in the United States and/or other countries. HP is a registered trademark of Hewlett-Packard Company. PowerPC is a registered trademark of International Business Machines Corporation, used under license therefrom. MIDISPORT is a trademark of M-AUDIO. RCA is a registered trademark of General Electric Company. VLXi is a registered trademark of Videomedia, Inc. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Yamaha is a registered trademark of Yamaha Corporation of America. All other trademarks contained herein are the property of their respective owners.

Using the Avid Adrenaline • Part 0130-06790-01 Rev. B• April 2005

Using the Avid Adrenaline

Avid Technology Avid Adrenaline User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

If You Need Help

Symbols and Conventions

Overview

Avid Adrenaline Front and Rear Panel

Front Panel

Rear Panel

Four-Channel Audio I/O Board Connectors

Avid DNxcel Board Connectors

SD Video I/O Board Connectors

Synchronizing Audio and Video Equipment

Power-On Self-Tests

1394 Requirements

Cable

Devices

Connecting Peripheral Equipment

Connecting S-Video or DV Signals

Connecting Audio Signals

Connecting a Client Monitor

System Connections and Configurations

Connecting the Application Key

HP xw8200 System Slot Configuration and Connections

HP xw8000 System Slot Configuration and Connections

Macintosh G5 System Slot Configuration and Connections

Macintosh G4 System Slot Configuration and Connections

Connecting Serial and MIDI Port Devices

USB and Serial Differences Between Windows and Macintosh Systems

Connecting the USB Hub

Connecting the USB Devices to the USB Hub

Connecting the USB-to-Serial Adapter

Connecting the USB-to-MIDI Converter

Connecting JL Cooper Fader Controllers

Connecting the Yamaha 01V Mixer

Connecting the Yamaha 01V/96 Mixer

Controlling a Video Deck

Storage

SCSI Support

Fibre Channel Support

1394 Support

Ethernet Support

Formatting and Striping MediaDrives (Windows)

Formatting and Striping MediaDrives (Macintosh)

Using Striped Drives on Mac OS X and Mac OS 9.x Systems

Moving Striped Drives to Another System (Macintosh Only)

Specifications

Dimensions and Weight

Environmental Specifications

Electrical Specifications

Regulatory and Safety Notices

Warnings and Cautions

FCC Notice

Canadian ICES-003

European Union Notice

Australia and New Zealand EMC Regulations

Taiwan EMC Regulations

Technical Support Information
