700TVL WDR 3D DNR CAMERA
700TVL
X-WDR/3D DNR
DOME CAMERA
USER’S MANUAL
■
■
Sony 1/3” 960H CCD II
High Resolution 700TV Lines
■
■
■
■
■
■
■
■
■
■
■
X-WDR(Wide Dynamic Range)
3D DNR(Digital Noise Reduction)
Zero Defect
Sens-Up (DSS, x512)
Eclipse Function
Back Light Compensation
Day & Night (ICR-Optional)
Motion Detection
RS485 / PELCO-D
Privacy Mask(Polygonal,8 Colors)
O.S.D menu function
960H/ES 005
1. Features
WDR(Wide Dynamic Range)
Delivers a powerful Wide Dynamic Range to the camera which provides superior
images, internally and externally, even under extreme light and dark contracts.
It automatically compensates the necessary light levels to get detailed information
in the dark part of the image without saturation from the bright part. It enables the
WDR function to be very efficient, using a normal CCD, by using a Dual Shutter
(long & short shutter) algorithm, a specialised AE (Auto Exposure) and intelligent
image processing.
700 TVL ULTRA HIGH RESOLUTION
The horizontal resolution of 700 TV Lines with Sony 1/3” 960H CCD II.
It gives a vivid image output with super high horizontal resolution using our own
De-Mosaic Interpolation algorithm and a specialised built-in sharpness filter.
3D DNR(Digital Noise Reduction)
Achieves excellent 3D-DNR (3-Dimensional Digital Noise Reduction) function
using upgraded 3D filtering. This function is automatically enabled when the
camera is being used and provides clear and superior images in very low light
luminance. Normally video noise increases in low light conditions, while the gain
level of the amplifier increases. It compensates for the dynamic noise using the
inactive information of a normal frame
ZERO DEFECT
Adaptive Defect Correction delivers clear picture capture in very low light luminance
using two algorithms for defect pixel compensation.
Sens-Up(x512, DSS)
Achieves high quality pictures by supporting a long exposure time - more than
1/50second - and enables recognition of the shape and color of a suspended
object under no light conditions - in cases where exposure time is greater than
8 seconds (x512).
POLYGONAL PRIVACY MASKING(Polygonal, 8colors)
Ensures privacy protection for private and specific areas on the video signal
output using a polygonal masking function. It allows the size and position of the
masking areas to be controlled very easily, and there are 8 mask areas which are
user programmable - color, brightness and mosaic.
ECLIPSE
Enables the recognition of a visible car license plate by blocking unwanted light
sources.
HIGH SENSITIVITY TRUE DAY&NIGHT
The Day & Night function delivers high quality color rendition and converts
automatically into monochrome as luminance levels drop.
2. Components
Vandal Dome Camera(Surface Mount Type)
IR LED Vandal Dome
Non-IR LED Vandal Dome
IR LED Vandal Dome
Non-IR LED Vandal Dome
Vandal Dome Camera(Flush Mount Type)
SCREW
SIDE CAP
Mounting Template
Manual
L-WRENCH
Second Video & External OSD Control Cable
SUPER
WDR/3D DNR
DOME CAMERA
USER’S MANUAL
SUPER WDR 3D DNR
■
■
■
■
■
■
■
■
■
■
■
■
■
Sony 1/3” Color Vertical Double Density CCD
Sony 1/3” SuperHAD II CCD
960H CCD (700TV Lines)
High Resolution 600TV Lines
High Resolution 700TV Lines(960H)
WDR(Wide Dynamic Range)
3D DNR(Digital Noise Reduction)
Sens-Up Function(x512)
Eclipse Function
RS485 ( PELCO-D) Optional
UTP Interface Optional
Heater & Blower Option
35pcs IR LED Vandal Dome Camera or
Non-IR LED Vandal Dome Camera
Flush or Surface Mounting Type
True 3-Axis Easy Ball Type Gimbal Bracket built-in
IP67 rate Waterproof Design
70.0
109.0
Mounting Template
Surface Mount
70.0
109.0
Mounting Template
Surface Mount
SCREW
Mounting Template
Manual
L-WRENCH
Second Video & External OSD Control Cable
SUPER
WDR/3D DNR
DOME CAMERA
USER’S MANUAL
SUPER WDR 3D DNR
■
■
■
■
■
■
■
■
■
■
■
■
■
Sony 1/3” Color Vertical Double Density CCD
Sony 1/3” SuperHAD II CCD
960H CCD (700TV Lines)
High Resolution 600TV Lines
High Resolution 700TV Lines(960H)
WDR(Wide Dynamic Range)
3D DNR(Digital Noise Reduction)
Sens-Up Function(x512)
Eclipse Function
RS485 ( PELCO-D) Optional
UTP Interface Optional
Heater & Blower Option
35pcs IR LED Vandal Dome Camera or
Non-IR LED Vandal Dome Camera
Flush or Surface Mounting Type
True 3-Axis Easy Ball Type Gimbal Bracket built-in
IP67 rate Waterproof Design

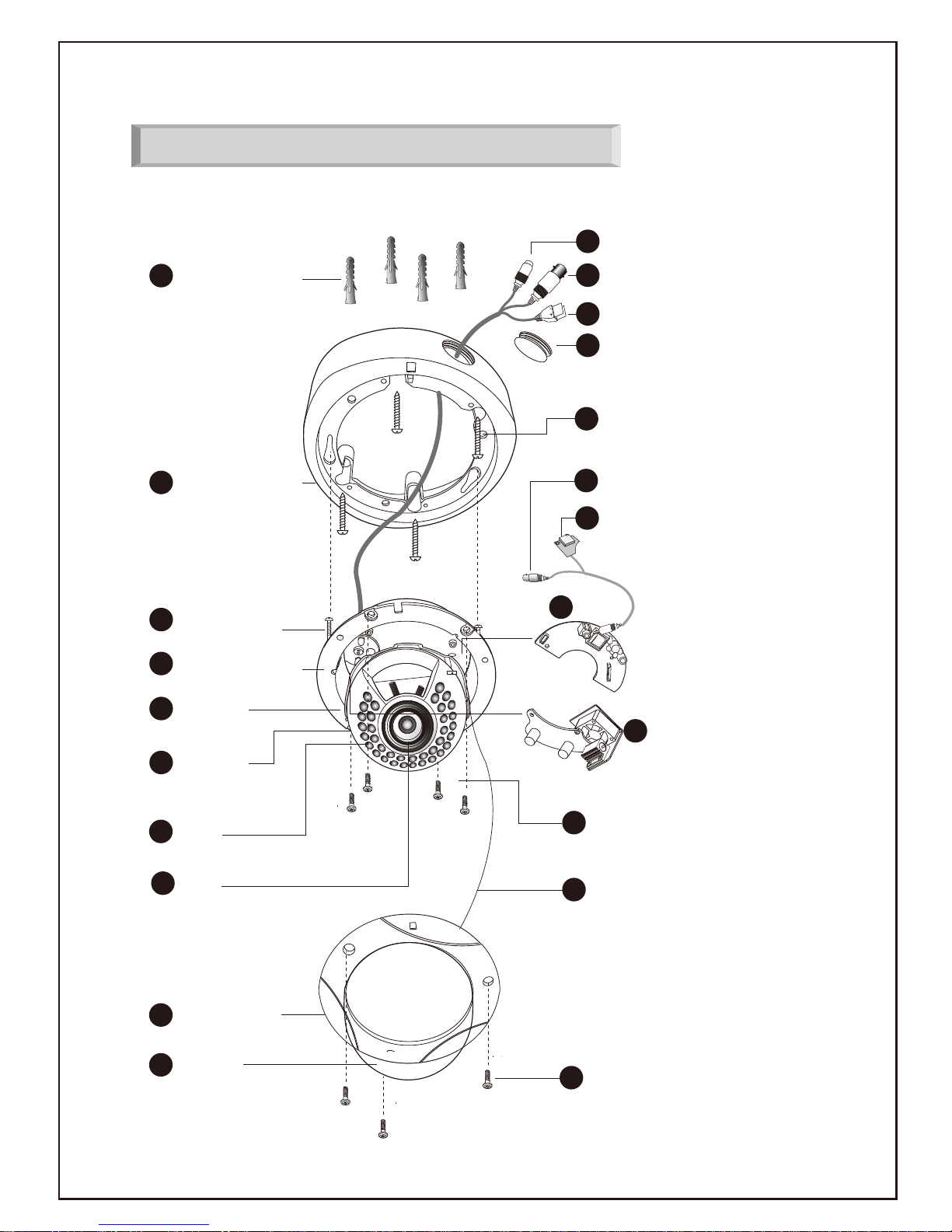

3. Names and Functions of Parts
Surface Mount
POWER
RS-485(Optional)
3/4” Cap (2EA)
BNC
Plastic Anchors
Surface Mounting Screws
M4 x 30
OSD Board
Service Video
10
11
12
13
14
15
16
17
1
Bubble
Dome Cover
2
Assembly Torx Screw
M4 X 9(3EA)
22
Flush Mount Base
7
8
9
Heater & Blower Board
(Optional)
Assembly Screw(Surface Mount)
M4 X 10 (4EA)
Lens
3
Bracket
6
Surface Mount
Fix Screw
LEDs
4
Gimbal
5
19
Safety Cable
21
20
18
Control Board
4. Installation & Connection

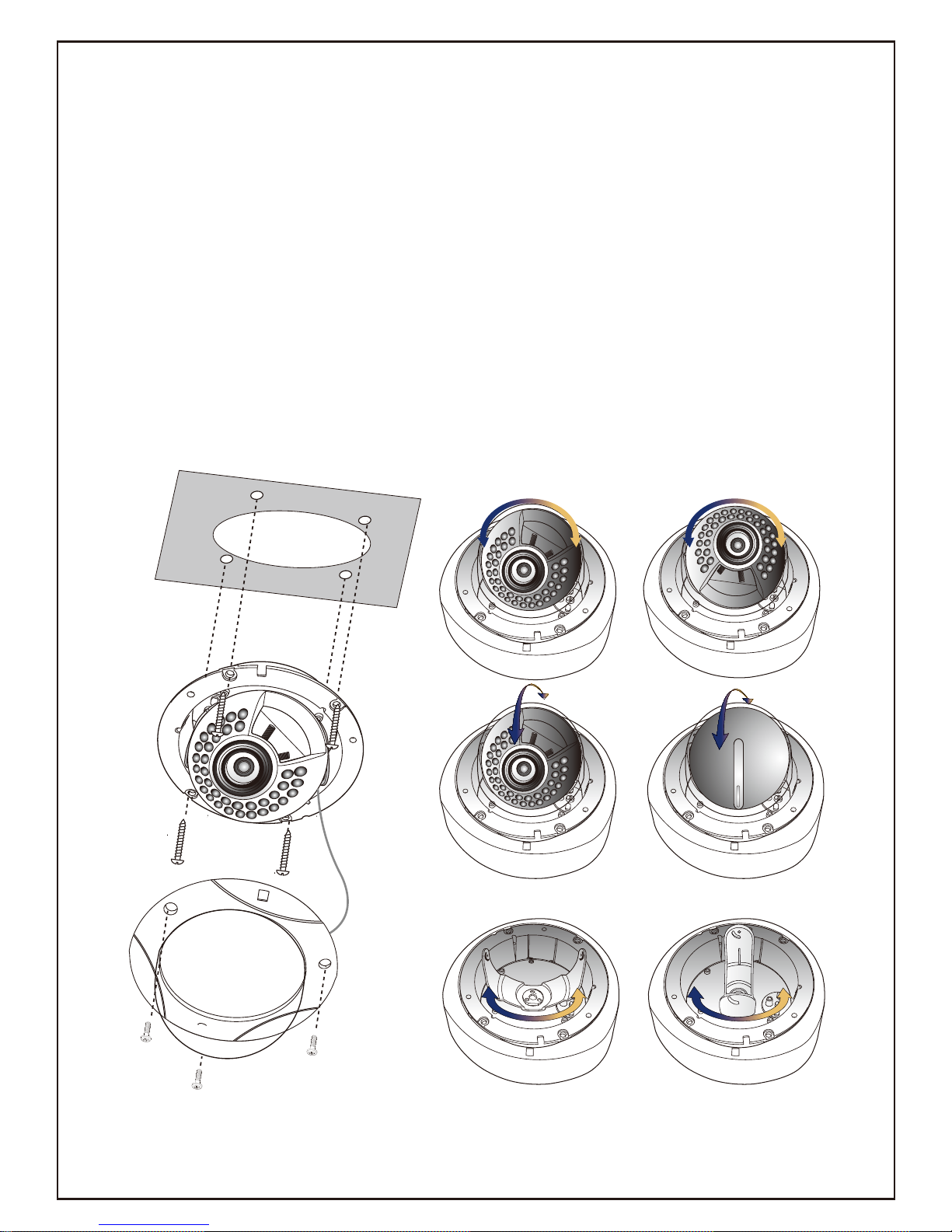

Surface Mount Installation
UNLOCK LOCK
STEP :
1. Mount the surface mount
plate to a sturdy surface or
wall with the installation
template (mouting screws
M4 x 30).
2. Connect the pre-drilled two
screws in the flush mounting
ring through the locking
hole( ) and turn it
counterwise for the
temporary locking system
before drilling four screws
(M4 x 10) of flush mount ring.
Please check if the symbol
in the surface mount ring and
the square hole ( ) in the
flush mount ring meet in a line
when it is locked.
3. Screw with four screws
(M4 x 10) from flush mount
ring to be mounted with the
surface mount.
1
2
3
1
2
3
Surface Mount Ring (Symbol)
Flush Mount Ring Square Hole
Dome Cover Ring (Symbol)
4. Adjust the lens focus and zoom of camera to monitor the objective.
5. Fit three screws(M4 x 9) from dome cover ring to the flush mount ring
and fix it by (3) screws. When you fit the dome cover ring please fit the
symbols in the line.
Adjusting the 3-Axis Gimbal Flush Mount
Power Consumption
Power Supply
Heater
Blower
430mA (Heater) / 40mA(Blower)
Only AC 24V
On : 5
℃
O : 7
℃
Continuous 24 Hour Operation

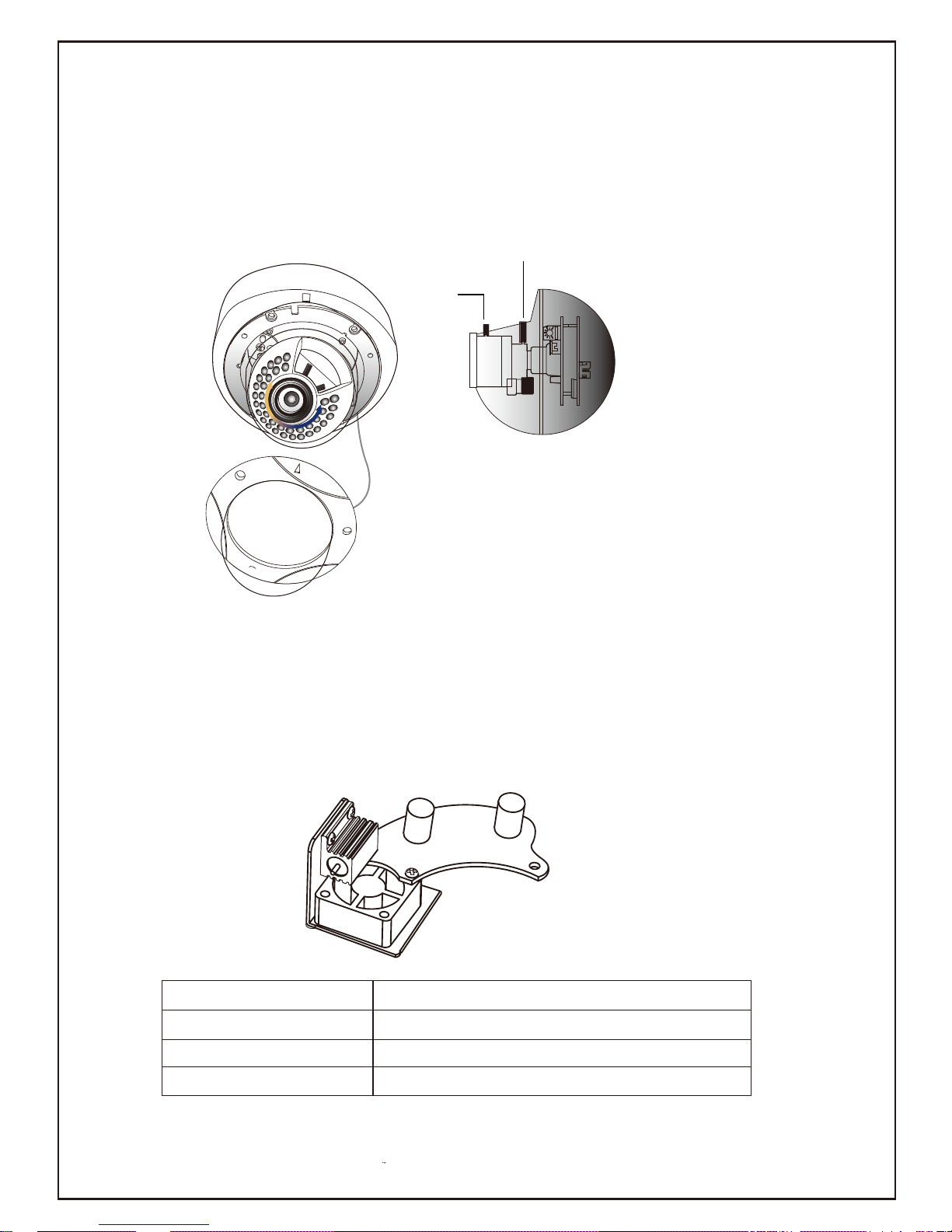

Adjusting the Varifocal DC Auto Iris Lens
Heater / Blower Specfications
FOCUS
ZOOM
Camera O.S.D Setup Controls
UP
DOWN
RIGHT
LEFT
ENTER
DVR
Monitor
Monitor
Power
(Adaptor Plug)
Adaptor
Adaptor
Video Cable
Video Cable
RS485 +
(Option)
RS485 -
AC24V + (RED)
AC24V - (BLACK)
DC Power Connecting
AC Power Connecting
DVR
RS485 +
RS485 +
(Option)
RS485 -
RS485 -
PORT2
TX
+_+_+_+
_
RX TX RX
PORT1
RS485 +
RS485 -
PORT2
TX
+_+_+_+
_
RX TX RX
PORT1
5. Setup Menu Flow
EXPOSURE LENS DC, ELC
E.SHUTTER AUTO, 1/50,1/60(NTSC),
1/100,000
BLC ON<1~255>, OFF
WDR OFF
ON
WDR LEVEL<0~20>
WEIGHT<0~20>
AGC OFF,LOW,MID,HIGH
SENS-UP
AUTO, OFF, MANUAL (x512 ~ x2)
RETURN
COLOR WB MODE AWC, ATW, MANUAL, PUSH
R-Y GAIN
B-Y GAIN
RETURN
DAY&NIGHT D&N MODE AUTO, DAY, NIGHT, EXT
LEAD TIME <1, 5, 30, 60>
BURST ON, OFF
RETURN
FUNCTION MIRROR ON, OFF
SHARPNESS <0~40>
GAMMA 0.45, 0.5, 0.6
NEGA OFF, ON
3D DNR OFF, LOW, MID, HIGH
ECLIPSE OFF
ON
SET LEVEL-LOW/MIDDLE/HIGH
HI-INV -ON/OFF
RETURN
MOTION
ALARM OFF, ON
SET WINDOWS
ALL SET
ALL CLEAR
SENSITIV
SHOW OFF, ICON, TRACE
DELAY TIME <1~15>
RETURN
PRIVACY MASK1 OFF
ON
SETWINDOWS
COLOR SET<1~8>
MASK8 OFF
ON
SET WINDOWS
COLOR SET<1~8>
RETURN
SYNC SYNC MODE AUTO, INTER
V-PHASE <0~199>
RETURN
COMMUNICATION
ADDRESS <0~255>
BAUDRATE OFF, 2400~38400
PROTOCOL PELCO-D
RETURN
SPECIAL
TITLE OFF
ON
EDIT
RESET
POSITION
LANGUAGE ENG
DPC AUTO,OFF
RETURN
EXIT SAVE&EXIT
FACTORY SET
EXIT
RETURN
6. Special Features
1. WDR(Wide Dynamic Range)
Wide Dynamic Range is essential for capturing the images at all
light levels.
1) WDR LEVEL :
You can set the WDR(Entry) LEVEL on the entry timing for this function.
You have to set the level into low number if you need a WDR function just
in more strong light.
On the contrary you have to set the level into high number if you need a
WDR function just in normal conditions(or low light) without strong lights as
like sunshine.
EXPOSURE
LENS DC
E.SHUTTER 1/60
BLC ON
WDR ON
AGC HIGH
SENS-UP MANUAL
RETURN
WDR
WDR LEVEL 11
WEIGHT 10
RETURN
WDR Entry Level
(Day Time)
(0~20)
Strong Sunshine Light
(Day Time)
Middle Light
(Day Time)
0 2 4 6 8 10 12 14 16 18 20
Low Light
(Day Time)
※Eclipse mode should be Off while you use WDR function.
(Eclipse is just a special WDR function for car license plate)
2) WEIGHT : This is a level to make the dark area more bright.
Low number for more dark condition and high number for
more brightness condition.
2. 3D DNR(Digital Noise Reduction)
Select 3D DNR ON or OFF.
3D-DNR function reduce the background noise in a low luminance
environment. Upgraded 3D filtering ensures even more clear image.
[DNR Level High : Picture image is more clear but Ghost is more increased.
DNR Level Low : Picture image is not clear but less Ghost.]
3. ECLIPSE
If there is a highlight within a limited environment such as car park,
It makes it possible to review vehicle license plates by removing the
highlight.
[Only used for car license plate in low light condition and the WDR
in OSD menu should be Off mode while Eclipse work as On mode]
FUNCTION
MAIN MENU
EXPOSURE
COLOR
DAY & NIGHT
MOTION
FUNCTION
PRIVACY MASK
SYNC
COMMUNICATION
SPECIAL
EXIT
FUNCTION
MIRROR
ON/OFF
SHARPNESS <0~40>
GAMMA 0.45
NEGA ON/OFF
3D DNR MIDDLE
ECLIPSE OFF
RETURN
MIRROR
ON/OFF
SHARPNESS <0~40>
GAMMA 0.45
NEGA ON/OFF
3D DNR MIDDLE
ECLIPSE OFF
RETURN
MAIN MENU
EXPOSURE
COLOR
DAY & NIGHT
MOTION
FUNCTION
PRIVACY MASK
SYNC
COMMUNICATION
SPECIAL
EXIT
7. Dimensions
Surface Mount Flush Mount
109.0
70.0
52.0
115.0
143.2
unit : mm
108.0
70.0
109.0
9.0°
174.7
85.1
91.3
R101.6
R51.6
9.9
4.5
53.7
PF 3/4”
113.0
8. SPECIFICATIONS
2.8~12mm TDN DC Iris Varifocal Lens(Option : w/o TDN)
Design and specifications are subject to change without notice.
NTSC PAL
Sony 1/3” 960H CCD II
976(H) X 494(V) 976(H) X 582(V)
1020(H) X 508(V) 1020(H) X 596(V)
H/V 15.734/59.94Hz H/V 15.625/50Hz
H/V 15.750/60Hz H/V 15.625/50Hz
2:1 Interlace
700 TV Lines
0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE) F1.2
0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE) F1.2
1.0Vp-p/ 75ohm Video 0.714Vp-p
0.45, 0.5, 0.6
LENS,E-SHUTTER, BACKLIGHT,WDR, AGC, SENS-UP
WHITE-BALANCE, DAY&NIGHT, MOTION, MIRROR
SHARPNESS, GAMMA, DNR,
ECLIPSE, PRIVACY
COMMUNICATION,
SYNC,
TITLE, LANGUAGE
1/60~1/100,000 1/50~1/100,000
8 Windows(Polygonal, 8 Colors)
AUTO / DAY / NIGHT / EXT
ON / OFF
OFF ~x512
AUTO / INTERNAL / DIGITAL LINE LOCK
ATW / AWC / MANUAL / PUSH
ON / OFF(WDR LEVEL, WEIGHT)
120dB Max.
(OFF, LOW, MID, HIGH
ON / OFF
L
IR LED Vandal Dome Camera Vandal Dome Camera
OW / MIDDLE / HIGH / OFF
35 pcs
Indoor 35m/Outdoor 25m
-20
℃
~60℃ /30% ~80%
-30
℃
~60℃ /20% ~90%
DC12 AC24V/DC12VV DC12 AC24V/DC12VV
500mA 260mA 120mA 90mA
TV System
S
Total Pixel
Eective Pixel
ensor
Synchronization Internal
Line Lock
Scanning System
Horizontal Resolution
Min. Illumination
Sens-Up On
Video Output
γ Correction
S/N
O.S.D
Electrical Shutter
Privacy Masking
Day & Night
Motion Detection
Sens-Up(DSS)
SYNC
White Balance
WDR
WDR Level
3D-DNR
ECLIPSE
AGC
L
Night View Distance
IR LED
Supply Voltage
Current
DC
DC
AC Only
AC/DC
ens
Operating Temperature/Humidity
Storage Temperature/Humidity
ON / OFF
NEGA
ON / OFF
MIRROR
More than 52dB(AGC o)
DPC
AC24V 720mA(LED , Blower , Heater -ON)
AC24V 560mA(Blower , Heater -ON)
DC12V 800mA(LED , Blower , Heater -ON)
AC24V 400mA(Blower , Heater -ON)
PRODUCT WARRANTY CARD
1) ITEM # :
2) S/N # :
3) INSTALLATION CONDITION
- Indoor / Outdoor
- Power supply SPECIFICATION :
DC12V / AC24V
CURRENT __________ mA
4) TROUBLESHOOTING
- No picture
- Bad image
- No power
- Water damage
- LED ON / OFF
- ETC. :
* Please keep this warranty card with the manual.
* Please fill out this warranty card and send us this warranty card
with the faulty units together.
Following cases can be charged even within the warrany period.
a. When defects are caused by user’s carelessness.
b. When improper or unauthorized repairs are done or when the inside is
modified or damaged.
c. Defects caused by natural disaster or power problem.
d. When the warranty card is not filled out or corrected unconfirmed.
Loading...
