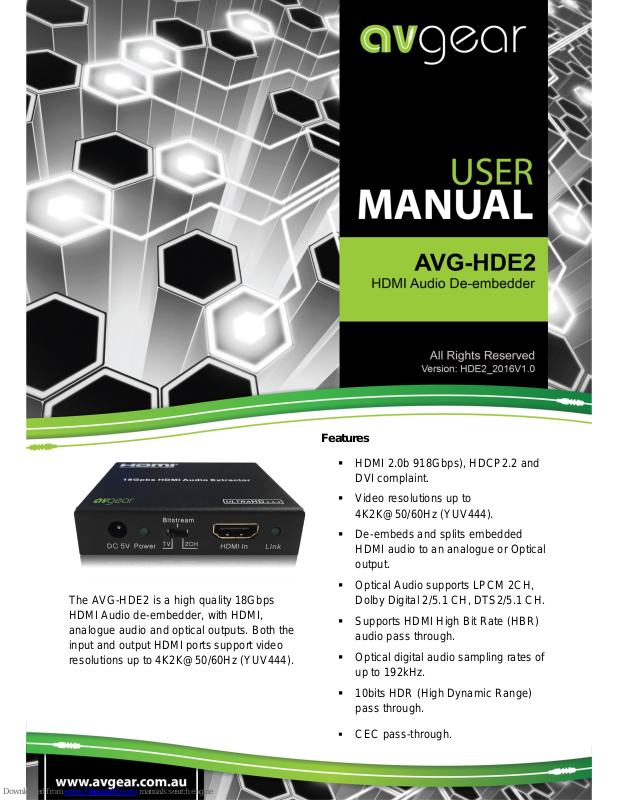

Page 1
AVG-HDE2
Features
HDMI 2.0b 918Gbps), HDCP2.2 and
DVI complaint.
Video resolutions up to
4K2K@50/60Hz (YUV444).
De-embeds and splits embedded
HDMI audio to an analogue or Optical
output.
Optical Audio supports LPCM 2CH,
Dolby Digital 2/5.1 CH, DTS2/5.1 CH.
Supports HDMI High Bit Rate (HBR)
audio pass through.
Optical digital audio sampling rates of
up to 192kHz.
10bits HDR (High Dynamic Range)
pass through.
CEC pass-through.
The AVG-HDE2 is a high quality 18Gbps
HDMI Audio de-embedder, with HDMI,
analogue audio and optical outputs. Both the
input and output HDMI ports support video
resolutions up to 4K2K@50/60Hz (YUV444).
Page 2
AVG-HDE2
PLEASE READ THIS PRODUCT MANUAL CAREFULLY
BEFORE USING THIS PRODUCT.
This manual is only for operational instruction only,
and is not intended to be used for maintenance.
The functions described in this version are current
as at November 2016. Any changes of functions
and operational parameters will be updated in
future manual versions. Please refer to your dealer
for the latest product details.
Version 1.0 21/11/16
Page 3
AVG-HDE2
SAFETY OPERATION GUIDE
In order to guarantee the reliable operation of the equipment and safety of the
user, please abide by the following procedures during installation, use and
maintenance:
1. Do not install the device in an environment where it will be exposed to
extreme hot or cold temperatures.
2. This unit will generate heat during operation, please ensure that you allow
adequate ventilation to ensure reliable operation.
3. Please disconnect the unit from mains power if it will be left unused for a
long time.
4. Please DO NOT try to open the casing of the equipment, DO NOT attempt to
repair the unit. Opening the unit will void the warranty. There are high
voltage components in the unit and attempting to repair the unit could result
in serious injury.
5. Do not allow the unit to come into contact with any liquid as that could result
in personal injury and product failure.
Page 4
AVG-HDE2
TABLE OF CONTENTS
Introduction ............................................................................................................. 1
Introduction to the AVG-HDE2 .................................................................... 1.1
Features ...................................................................................................... 1.2
What’s in the Box ....... ……………………………………………………………………2
Product Appearance of the AVG-HDE2 ................................................................. 3
Specifications .......................................................................................................... 4
Page 5
AVG-HDE2
1. Introduction
1.1. Introduction to the AVG-HDE2
The AVG-HDE2 is a high quality 18Gbps HDMI Audio de-embedder, with HDMI,
analogue audio and optical outputs. Both the input and output HDMI ports support
video resolutions up to 4K2K@50/60Hz (YUV444). It also supports 10bit HDR (High
Dynamic Range) pass through and HDMI high resolution digital audio formats bypass.
It will also pass through HDCP2.2 and CEC.
Features
HDMI 2.0b 918Gbps), HDCP2.2 and DVI complaint.
Video resolutions up to 4K2K@50/60Hz (YUV444).
De-embeds and splits embedded HDMI audio to an analogue or Optical output.
Optical Audio supports LPCM 2CH, Dolby Digital 2/5.1 CH, DTS2/5.1 CH.
Supports HDMI High Bit Rate (HBR) audio pass through.
Optical digital audio sampling rates of up to 192kHz.
10bits HDR (High Dynamic Range) pass through.
CEC pass-through.
2. What’s in the Box?
1 x AVG-HDE2
1 x Power Adapter (DC 5V 1A)
1 x User Manual
Note: Please confirm if the product and the accessories are all included, if not, please
contact your dealer.
Page 6
AVG-HDE2
3. Product Appearance of the AVG-HDE2
Front Panel
1. Power: Connect the supplied 5V/1A power adaptor.
2. Power LED indicator. Illuminates Green when powered.
3. TV/Bit Stream/2Ch: Select the audio format accordingly.
4. HDMI In. Connect your HDMI source here.
5. Link LED indicator: Illuminates on detection of HDMI signal.
Rear Panel
1. HDMI Out. Not required, but if so connect to your display or
receiver.
2. Analogue Audio out 3.5mm
3. Optical Audio out
Page 7
AVG-HDE2
Specifications
General
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18Gbps
Video Resolutions
Up to 4K2K@50/60Hz(YUV444), 4K2K@30Hz, 1080P@120Hz
and 1080P 3D@60Hz
Colour Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Colour Depth
10 bit, 12 bit
HDMI Audio Formats
(Pass through)
LPCM 2/5.1/7.1 CH, Dolby Digital, DTS 5.1, Dolby Digital+,
Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats
LPCM 2CH, LPCM5.1, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH
ESD protection
Human body model - ± 8kV (air gap discharge) & ± 4kV (contact
discharge)
Power Supply
Input: 100VAC ~ 240VAC, 50 / 60Hz
Output: 5VDC, 1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
1W max
Operating Temperature
0 ~ 40℃
Storage Temperature
-20 ~ 60℃
Relative Humidity
20% ~ 90% RH (no Condensation)
Net Weight
130g
Dimension(W*H*D)
73.5 x 17 x 60.7 mm
