MONOBLOX
INSTRUCTION FOR MOBILE PROJECTION SCREENS
MONOBLOX 32 AND MONOBLOX 64
Page 2
FOLDABLE LEGS
According to the size of the projection screen
ve dierent leg types are available

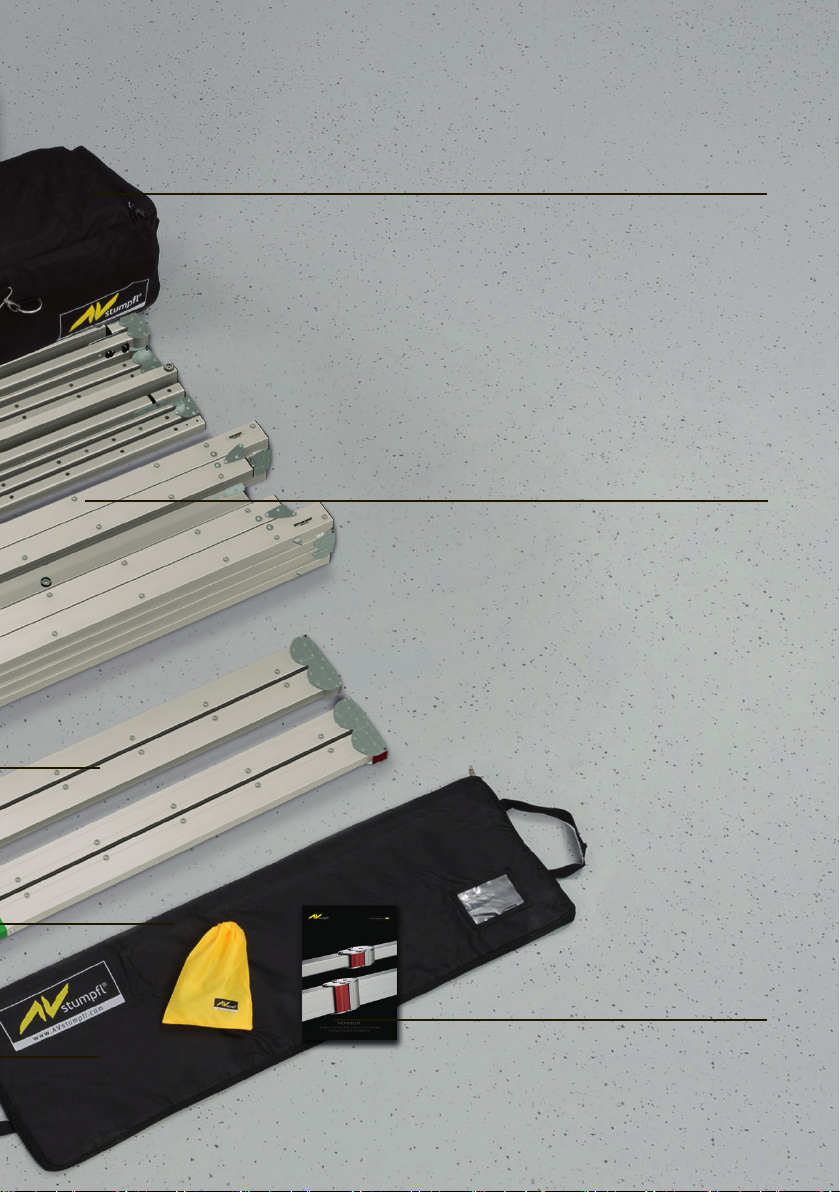

VERTICAL MODULES
Vertikal modules for Monoblox 64
By exchanging vertical modules of dierent length, the
aspect ratio can be changed easily (4:3 - 16:9 - 16:10)
WING SCREWS
Thumb screws in yellow
bag
PROJECTION SCREEN BAG
Lined storage bag for projection
screen
Page 3

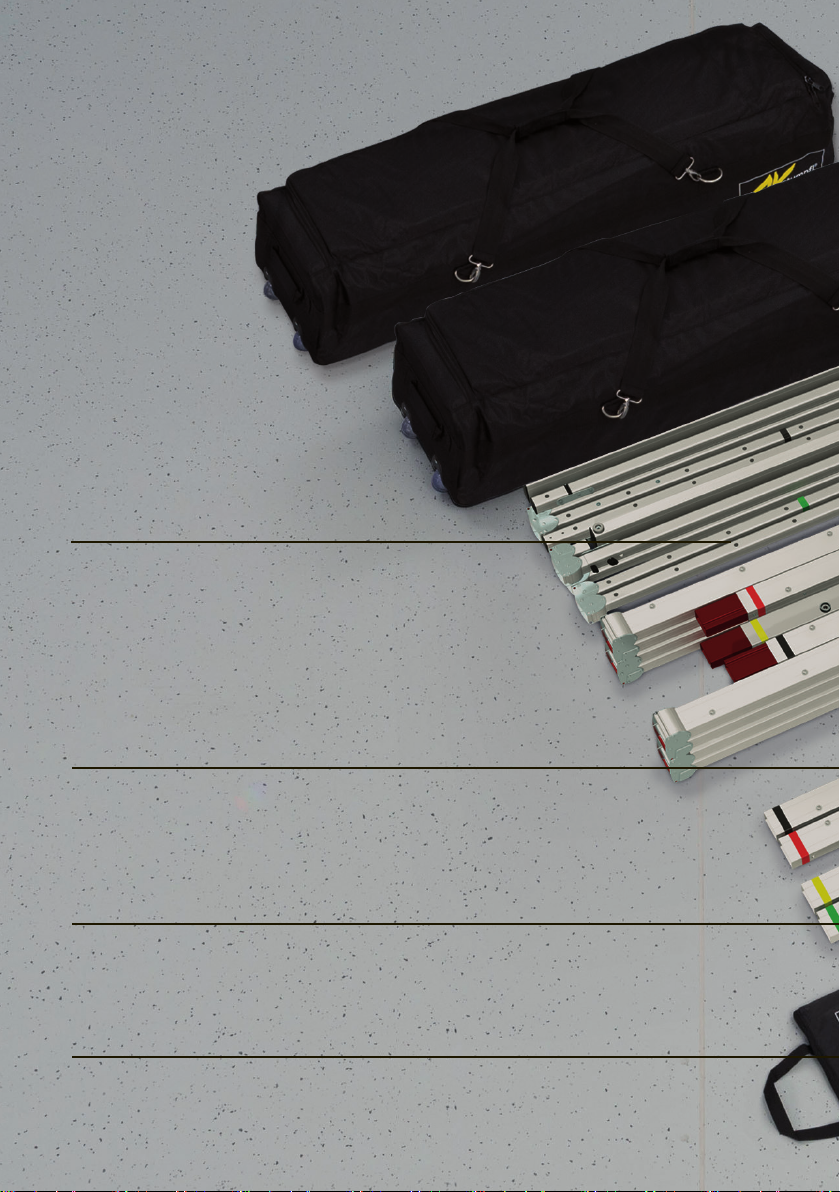

SOFTBAG WITH WHEELS
padded , tearproof nylonbag
with wheels and carrying straps
small 128x25x30 cm
big 133x31x35 cm

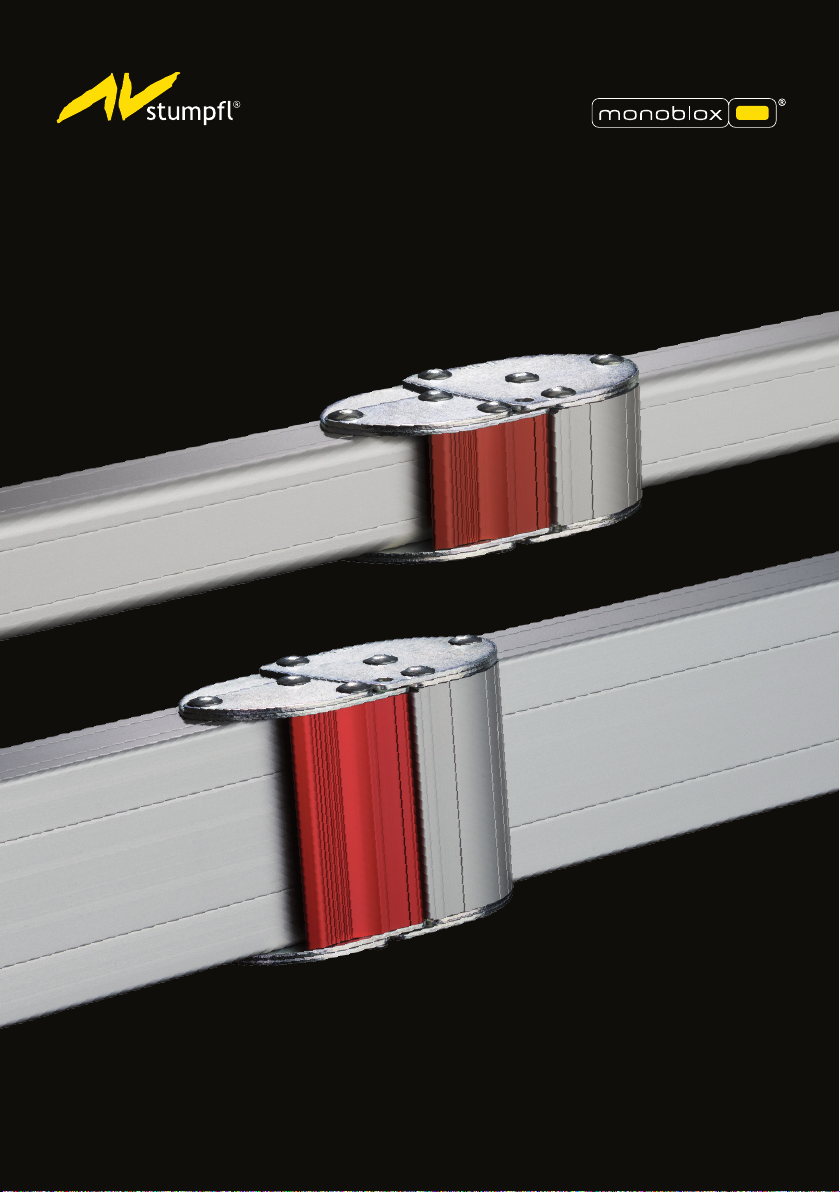

HORIZONTAL FRAME ELEMENTS

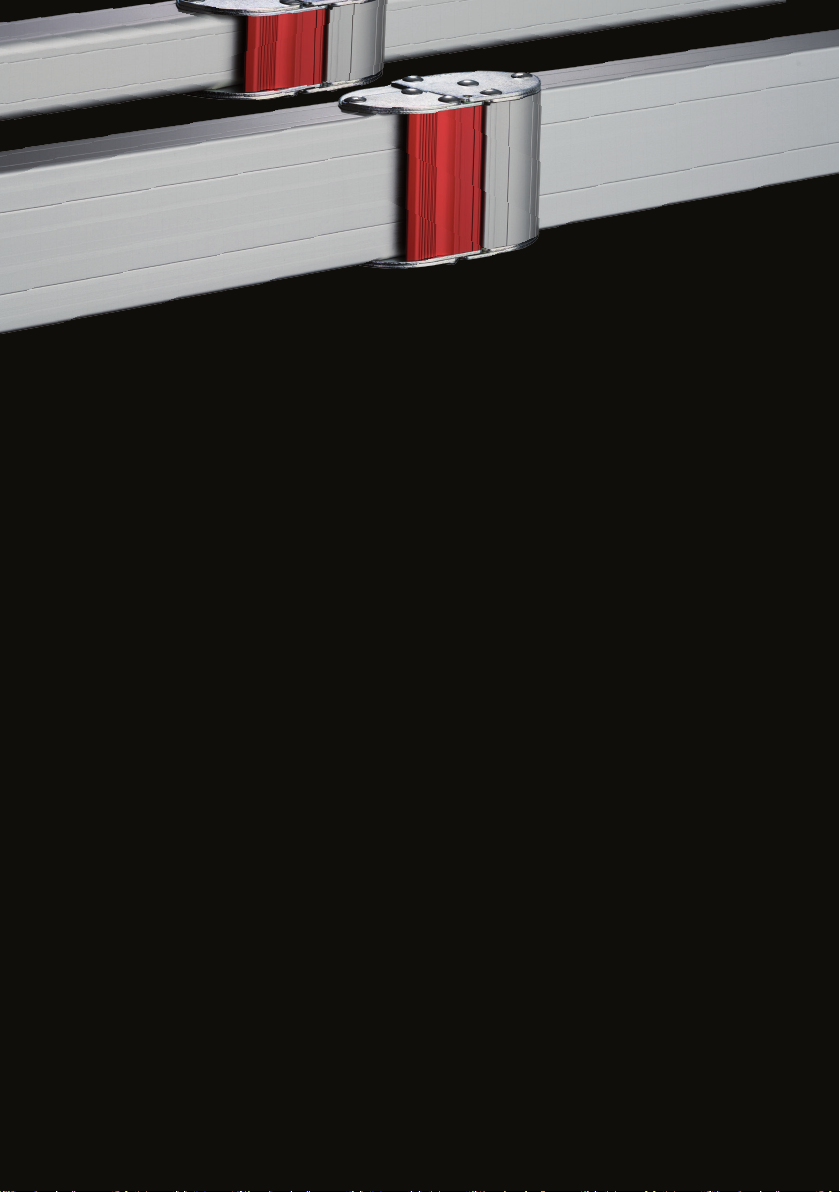

Special extruded and hardened aluminum alloy
due to patented snap joint technology
allow maximum stability at minimum weight
Compact transport volume
ASSEMBLY INSTRUCTION
Page 4
GENERAL
QUALITY AND SAFETY:
This projection screen is in accordance with the safety regulations in DIN standard 19045. The
screen fabric is comply with DIN 4102 part 1 and the specications of the according data sheet.
WARRANTY:
The warranty period for production deciencies is 5 years for the frame elements and 24 months
for the projection surface. Mobile projection screens are developed for indoor use only. Any damage and
consequential damage caused by outdoor use is not covered by warranty.
FRAME ELEMENTS:
The frame elements, legs and additional elements are maintenance-free!
PROJECTION SURFACE:
The projection surface is packed into a separate soft bag to avoid any damage by the frame parts,
bleaching and discoloration. Additionally following handling instructions have to be adhered to:
! Do not bring printed and coloring objects (instructions, magazines, etc.) in contact with the
projection surface !
! Do not mark the projection surface !
Colors penetrate the projection surface and cannot be cleaned anymore!
Store the projection surface cleaned and dry at room temperature only!
The projection surface has to be folded with the front layer inside; in order to avoid soil and
damage.
When transporting the projection surface at low temperatures, do not unfold the surface unless
it has reached its full elasticity at room temperature. Otherwise there is the risk of cold break of the
projection screen. When folding the projection surface, insert the enclosed foamed plastic foil between
snap buttons and surface to avoid permanent marks.
CLEANING OF THE PROJECTION SURFACE:
Use a white clean cotton cloth saturated with clear water (optionally mild soap water) and gently
wipe the area in one direction (no circular motion). Wipe dry with another cotton cloth.
To clean a stubborn stain, use methylated spirit and follow the same procedure.
Clean rear projection surfaces in case of imperative only!
Subject to modications, errors expected !
Page 5
1
3 4
2
MONOBLOX 64
The basic frame in System MONOBLOX 64
exists of 2 horizontal and 2 vertical frame
elements, which have to be connected and
screwed together with small wing screws.

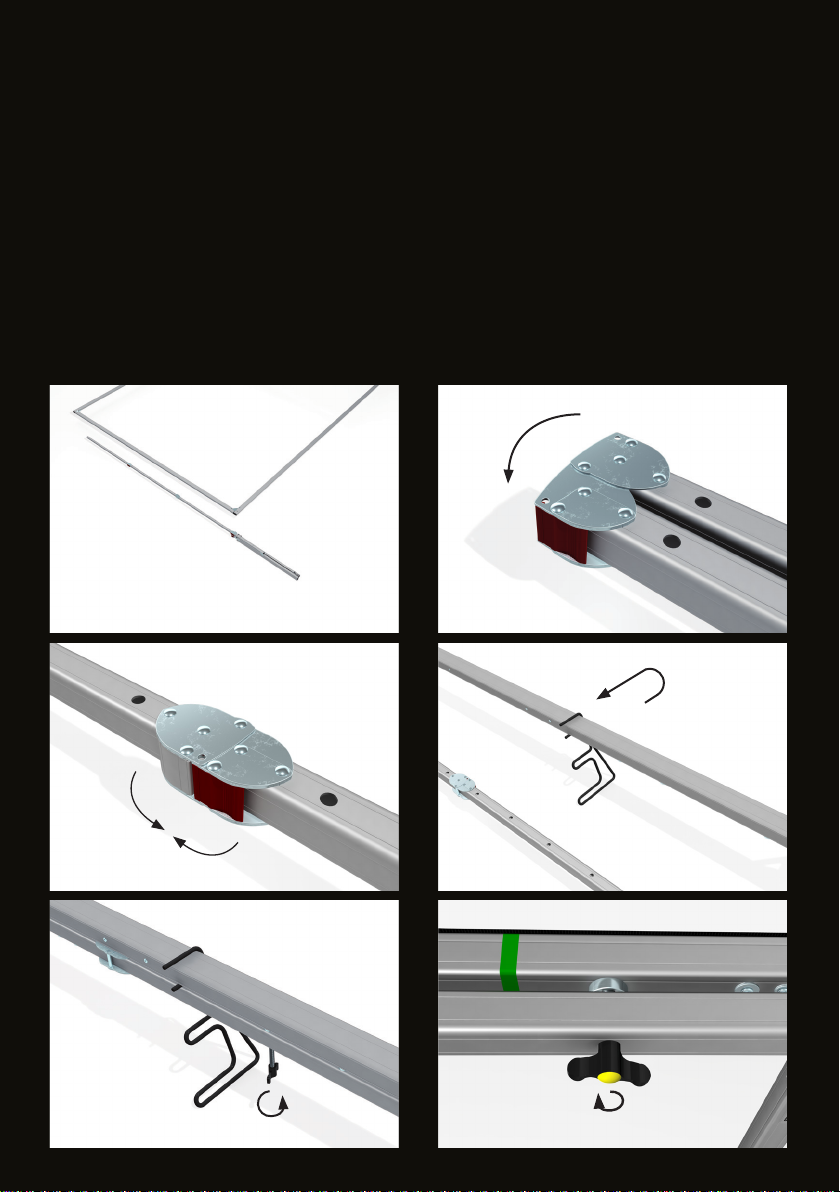

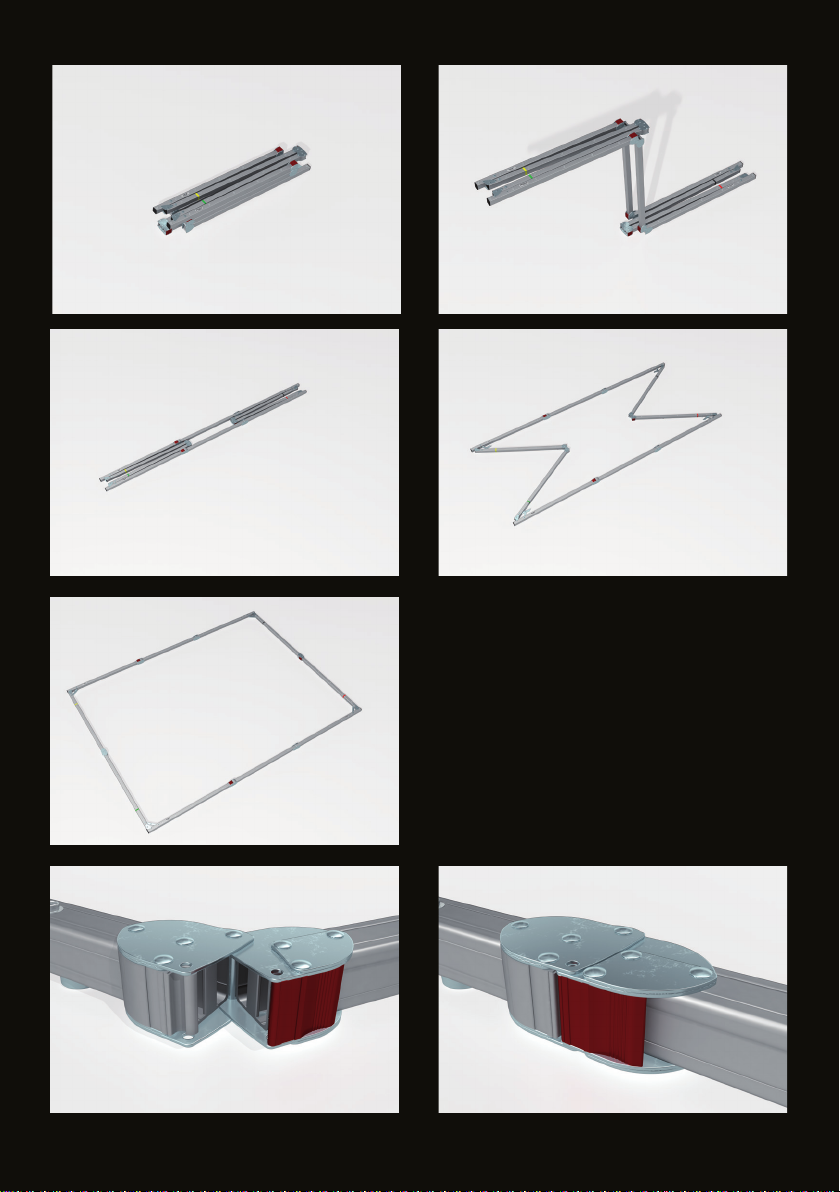

1-7 Open the folded horizontal frame
elements (top and bottom) and the snap
joints engage automatically.
5
6 7
Page 6
8
9
10
12
14
11
13

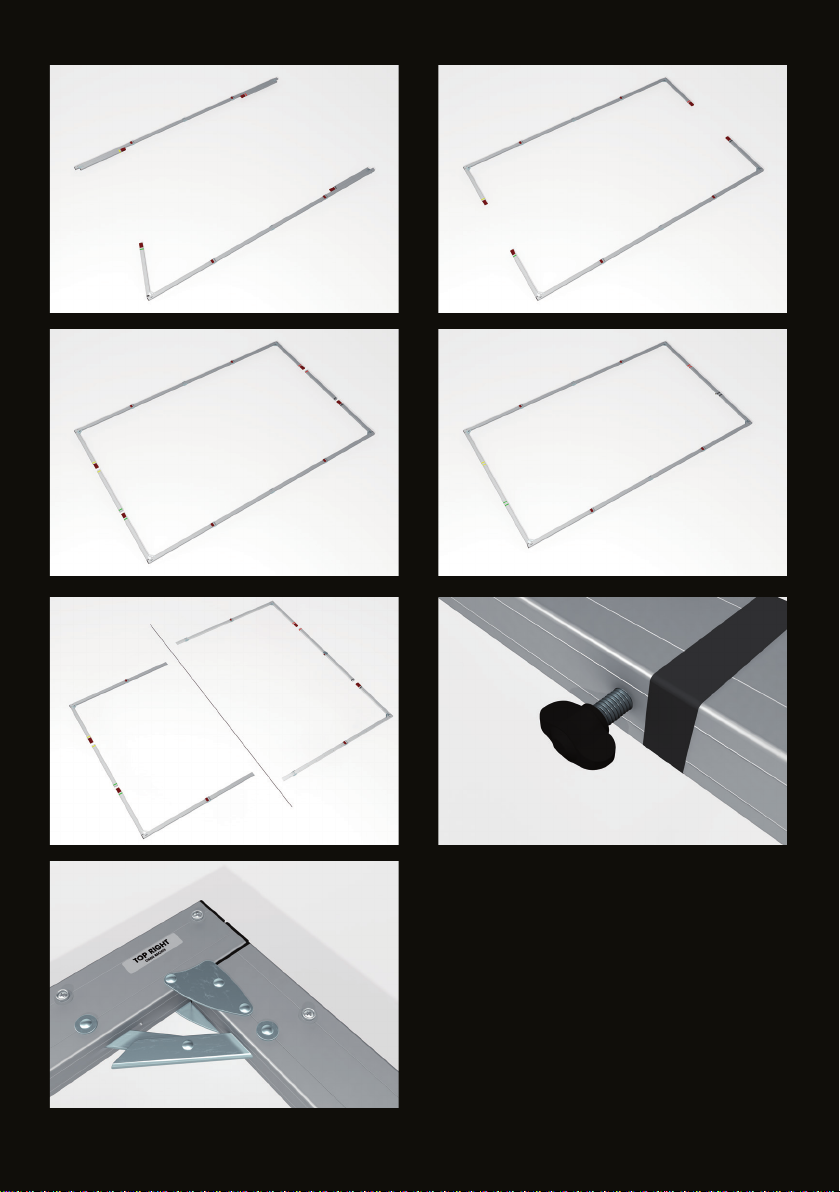

8-11 Open the corners and plug-in the vertical
elements.
12 Simply change the aspect ratio by using
vertical modules of dierent length (4:3 - 16:9 16:10)
13 The vertical modules have to be secured with
two wing screws M8x15.
14 Engaging the shear joints ensures the
maximum screen stability.
Page 7
1
2
3
MONOBLOX 32

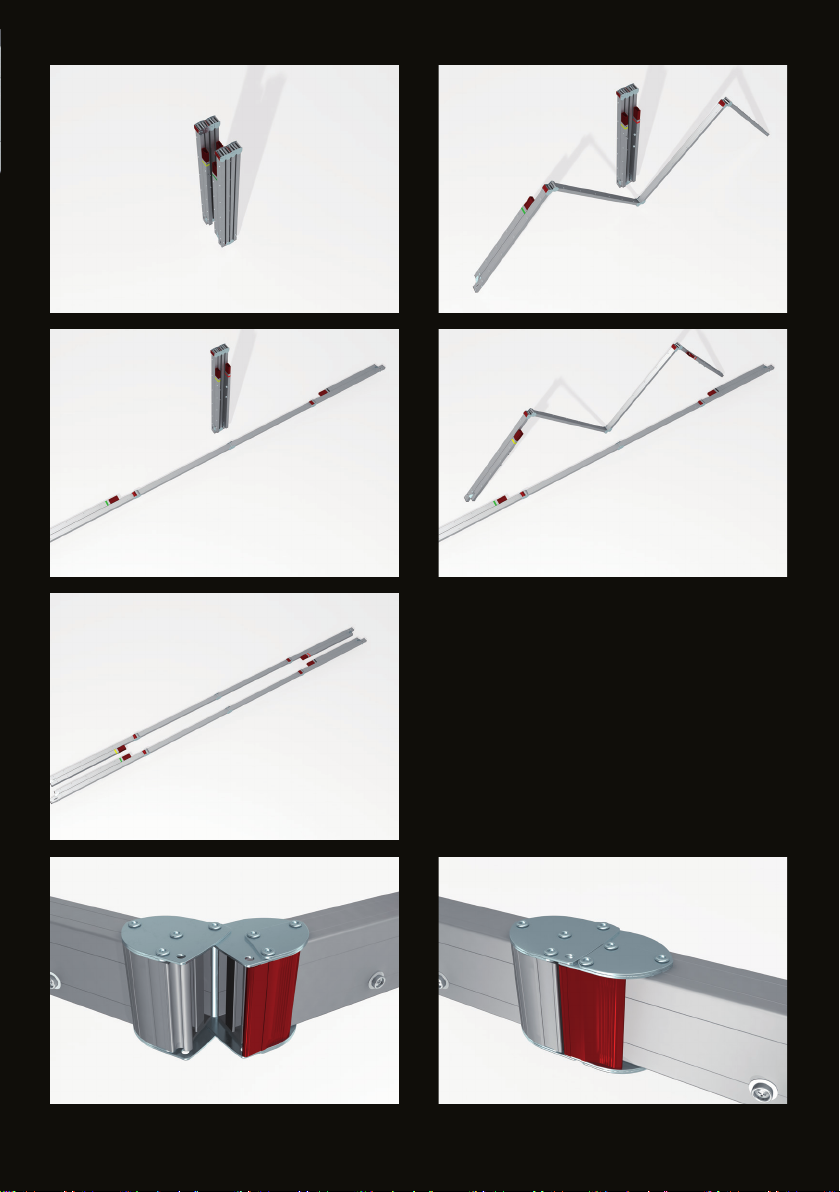

1-7 Open the folded frame horizontally
and the locking hinges quickly engage and
lock automatically. Pull the frame apart
and the vertical frame parts lock into place.
5
6
4
7
Page 8

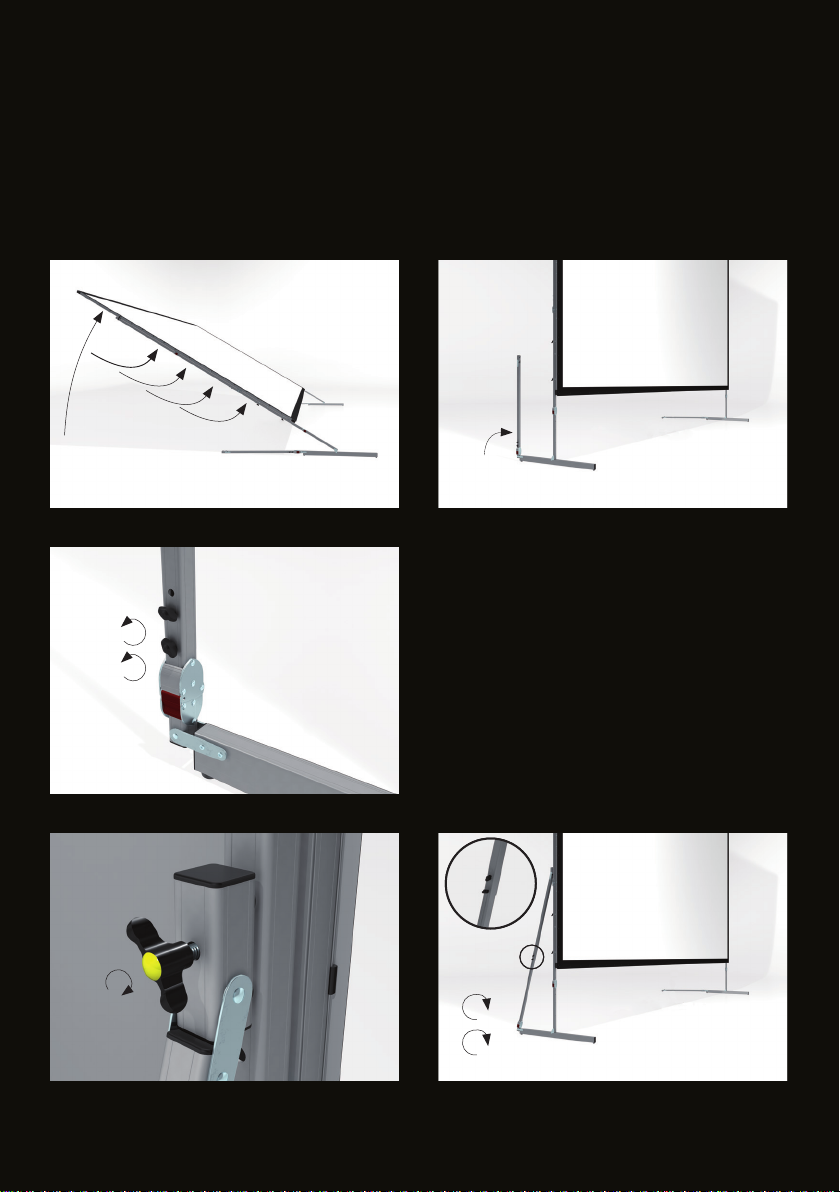

FOLDABLE LEGS FOR VERTICAL ADJUSTMENT
The legs are foldable for compact transport volume. All prole elements are connected with snap joints
or hinges inseparable.
MOUNTING
1 First open the vertical elements of the legs (with holes) 2-3 The snap joints engage automatically. 4 To
secure the legs by a single person, we recommend the use of set up supports.
Slide on with the upper round steel fork two set up supports each on the legs and center supports. Lay
on the legs on the bottom bow and align the hole pattern matching the connection points at the desired
set-up height. (Please follow the separate instructions for set up support). 5-6 The feet are secured with
wing screws on the vertical frame elements.
Note: Please nd the instructions for telescopic support attachment under chapter SET UP
Projection screen
frame
Foldable legs
1
3
5
2
4
6
Page 9

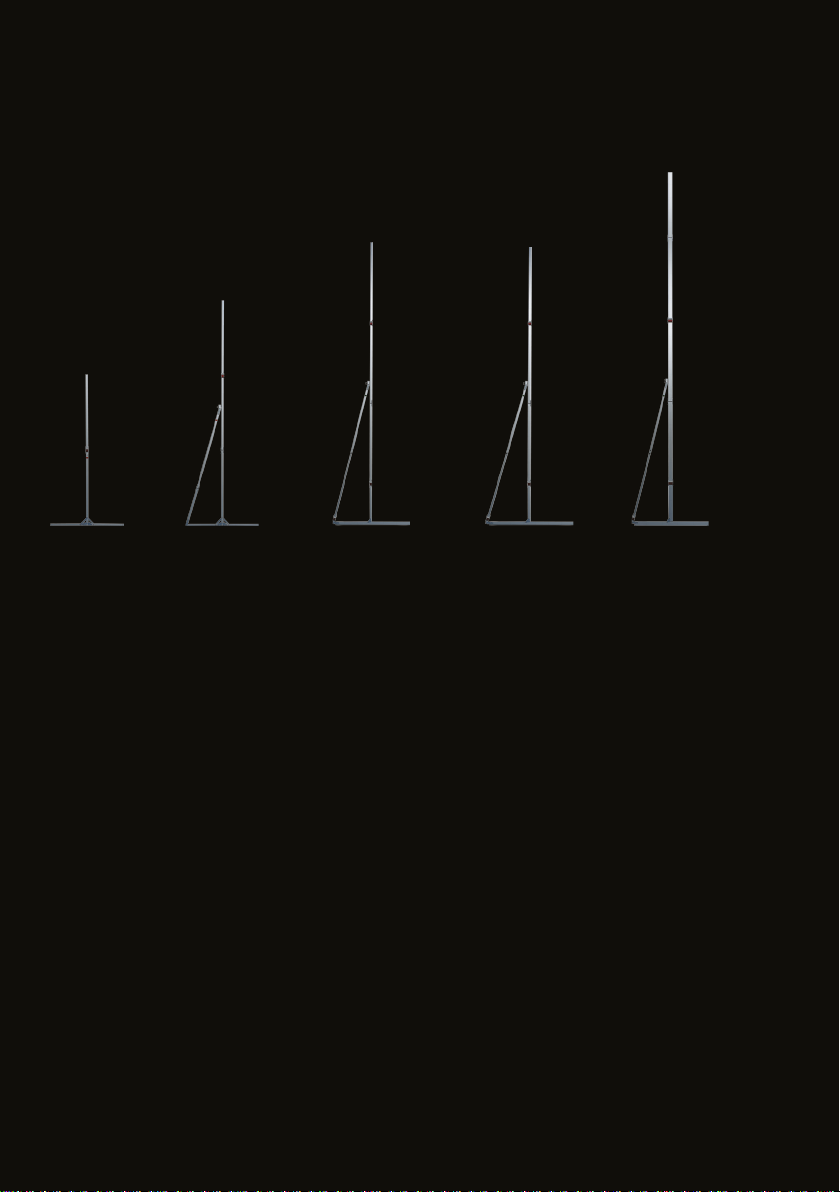

LEG TYPES
T 32
T 32
220 cm
220 cm
min: 6cm
min: 6cm
max: 82cm
max: 82cm
Please mind the maximum set-up height of the legs:
min: minimum height of the bottom edge of the frame
max: maximum height of the bottom edge of the frame without additional safeguarding
Set-up heights are points of reference and have to be adapted in accordance with the
screen size and ambient conditions. Set-up heights are based on absolute vertical alignment at indoors
without additional force eects (e.g.: wind, air condition draught,..)
When a high degree of stability is needed, especially with large screens or a high set-up
height, we recommend using following legs: AT 32 for MONOBLOX 32 and AT48 or AT64 for MONOBLOX
64. AT-Legs have a telescopic support that is tightened with two wing screws.
AT 32
AT 32
320 cm
320 cm
min: 6cm
min: 6cm
max: 113cm
max: 113cm
AT 32/64
AT 32/64
430 cm
430 cm
min: 9cm
min: 9cm
max: 146cm
max: 146cm
AT 48
AT 48
415 cm
415 cm
min: 9cm
min: 9cm
max: 161cm
max: 161cm
AT 64
AT 64
550 cm
550 cm
min: 9cm
min: 9cm
max: 176cm
max: 176cm
Page 10

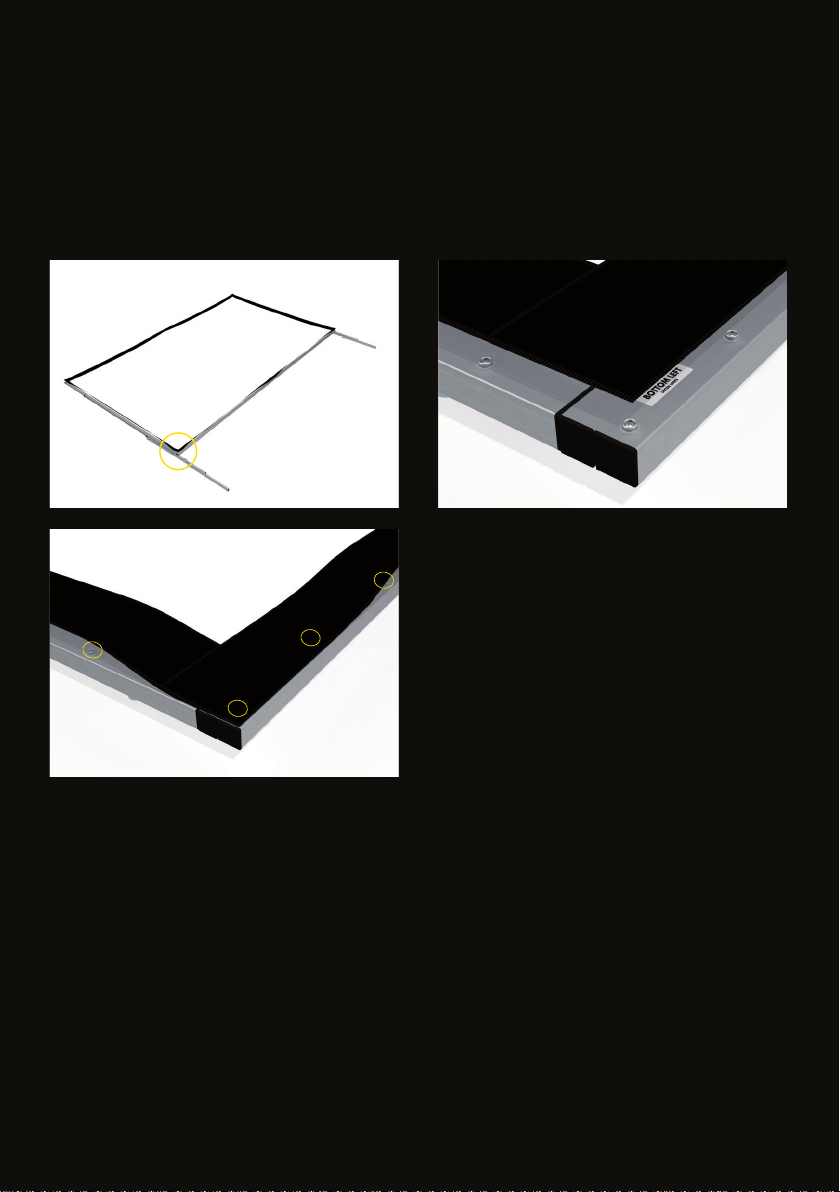

SURFACE MOUNTING
Lay out the surface on the frame with the label „OBEN-TOP“ corresponding with the upper frame bar.
Press on the projection surface by starting at one corner and fasten the buttons one by one.
! Please mind the instructions for projection surfaces in chapter GENERAL !
15
Page 11
SET UP
1 Lift the projection screen with one person at each of the top corners and put it up by supporting
the screen along the vertical frame elements.
To avoid mechanical overload and damage of the screen elements and legs with large screens or high
set-up height, the screen has to be raised with an appropriate number of persons or rather by using
hoisting devices.
1
TELESCOPIC SUPPORT ATTACHMENT
2 Raise the telescopic support. 3 Untighten
the wing screws. 4 Bolt the telescopic support
with the wing screw M8x50mm (yellow).
5 Finally retighten the telescopic support clamp.
3
4 5
2
Page 12
BREAK DOWN
Open the shear joints and telescopic leg supports with one person next to each of the foldable legs.
Bring down the screen by supporting the screen along the legs and vertical frame elements towards the
top corner edges.
Page 13

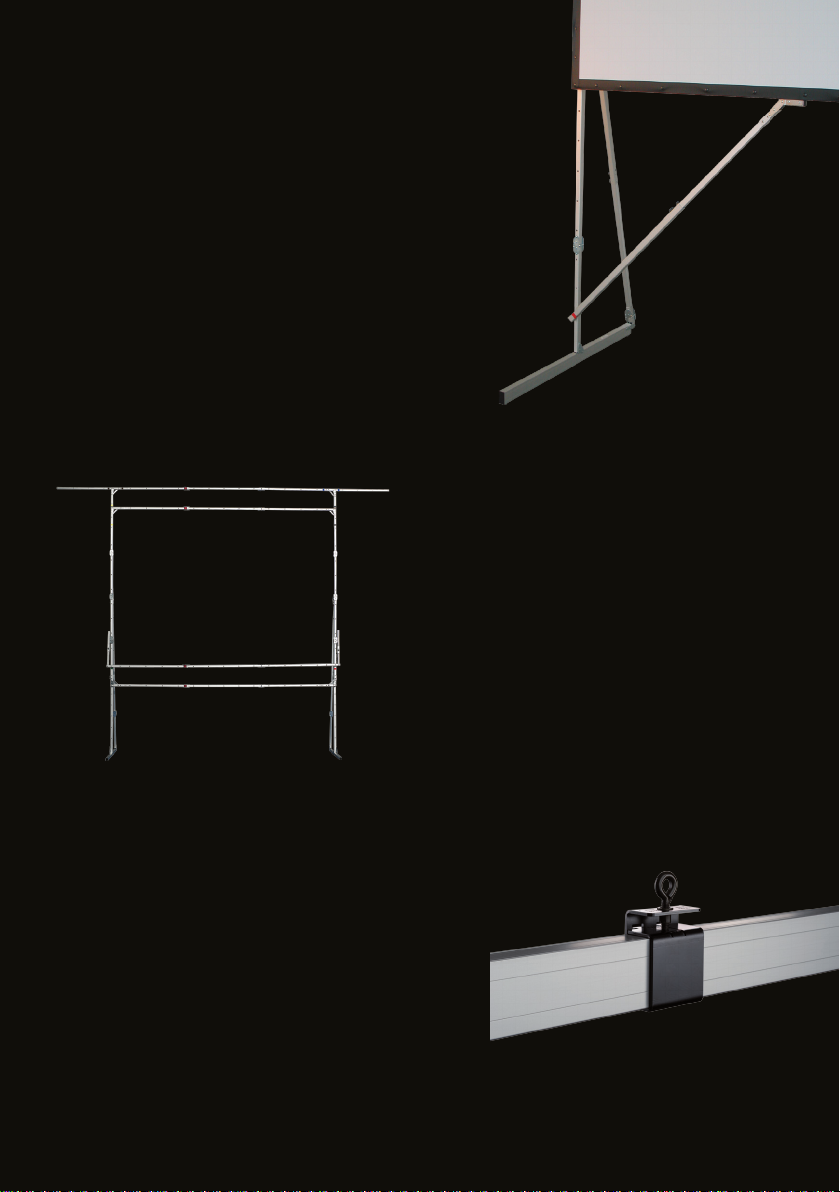

ACCESSORIES
ANTI-SWAY BRACE
To increase the side-stability of the projection
screen the in length variable Anti-Sway Brace has
to be screwed on the leg and clamped to the basic
frame.
DRAPEKIT
To drape a projection screen with decoration
curtains. Depending on requirements, various
frame parts can be used to attach the drapes
Valance Bar (top drape), Wing Bar (left and right
drape) and Skirt Bar (bottom drape - height
adjustable for aspect ratio change)
Heavy drapes have to be attached after the set
up to avoid damaging of frame parts!
EASYFLY
TM
SUSPENSION CLAMP WITH EYEBOLT
This adapters for Monoblox can be attached
quickly and easily at any point. The eyebolt xes the
adapter to the prole, oering professional hanging
possibilities. Available for prole sizes 32x32mm
and 64x32mm. max. load 30 kg/60 lbs.
Page 14

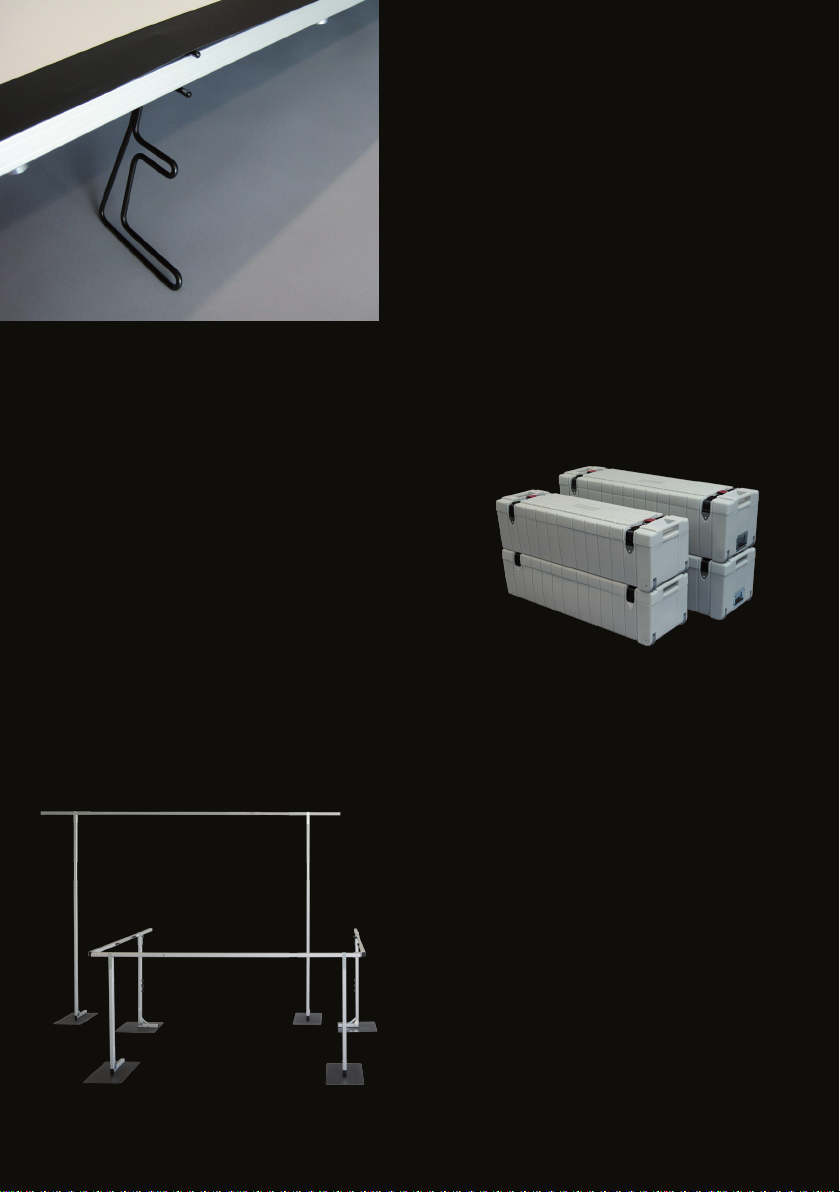

FLIGHT CASE
As an option we oer sturdy, stackable transport
cases with rollers for all mobile projection screens.
Transport case small: size 123 x 38 cm, height 34 cm
Transport case large: size 134 x 38 cm, height 37 cm
SET UP SUPPORT
The optional available set up support allows an
easy mounting of the legs. By means of the 4
round bar holders the wings screws can be bolted
by one person only without holding the frame and
leg in position.
DRAPE RUNOFF
This universal and transportable Drape System
can be used as independent partition, to mark
out control areas or to allow exible room design.
A few elements combined with the telescopic
system suce to accomplish a variety of decorative
purposes – no tools required. The decoration
material is attached by Velcro fasteners.
