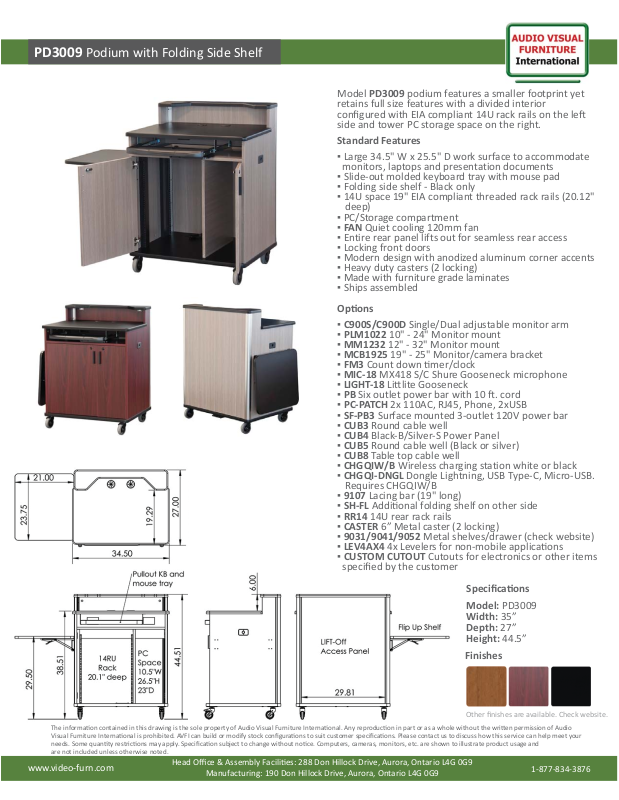

PD3009 Podium with Folding Side Shelf
Model PD3009 podium features a smaller footprint yet
retains full size features with a divided interior
configured with EIA compliant 14U rack rails on the le
side and tower PC storage space on the right.
Standard Features
▪ Large 34.5" W x 25.5" D work surface to accommodate
monitors, laptops and presentation documents
▪ Slide-out molded keyboard tray with mouse pad
▪ Folding side shelf - Black only
▪ 14U space 19" EIA compliant threaded rack rails (20.12"
deep)
▪ PC/Storage compartment
▪ FAN Quiet cooling 120mm fan
▪ Entire rear panel lifts out for seamless rear access
▪ Locking front doors
▪ Modern design with anodized aluminum corner accents
▪ Heavy duty casters (2 locking)
▪ Made with furniture grade laminates
▪ Ships assembled
OpƟons
▪ C900S/C900D Single/Dual adjustable monitor arm
▪ PLM1022 10" - 24" Monitor mount
▪ MM1232 12" - 32" Monitor mount
▪ MCB1925 19" - 25" Monitor/camera bracket
▪ FM3 Count down mer/clock
▪ MIC-18 MX418 S/C Shure Gooseneck microphone
▪ LIGHT-18 Lilite Gooseneck
▪ PB Six outlet power bar with 10 . cord
▪ PC-PATCH 2x 110AC, RJ45, Phone, 2xUSB
▪ SF-PB3 Surface mounted 3-outlet 120V power bar
▪ CUB3 Round cable well
▪ CUB4 Black-B/Silver-S Power Panel
▪ CUB5 Round cable well (Black or silver)
▪ CUB8 Table top cable well
▪ CHGQIW/B Wireless charging station white or black
▪ CHGQI-DNGL Dongle Lightning, USB Type-C, Micro-USB.
Requires CHGQIW/B
▪ 9107 Lacing bar (19" long)
▪ SH-FL Addional folding shelf on other side
▪ RR14 14U rear rack rails
▪ CASTER 6” Metal caster (2 locking)
▪ 9031/9041/9052 Metal shelves/drawer (check website)
▪ LEV4AX4 4x Levelers for non-mobile applicaons
▪ CUSTOM CUTOUT Cutouts for electronics or other items
specified by the customer
SpecificaƟons
Model: PD3009
Width: 35”
Depth: 27”
Height: 44.5”
Finishes
Other finishes are available. Check website.
The informaon contained in this drawing is the sole property of Audio Visual Furniture Internaonal. Any reproducon in part or as a whole without the wrien permission of Audio
Visual Furniture Internaonal is prohibited. AVFI can build or modify stock configuraons to suit customer specificaons. Please contact us to discuss how this service can help meet your
needs. Some quanty restricons may apply. Specificaon subject to change without noce. Computers, cameras, monitors, etc. are shown to illustrate product usage and
are not included unless otherwise noted.
