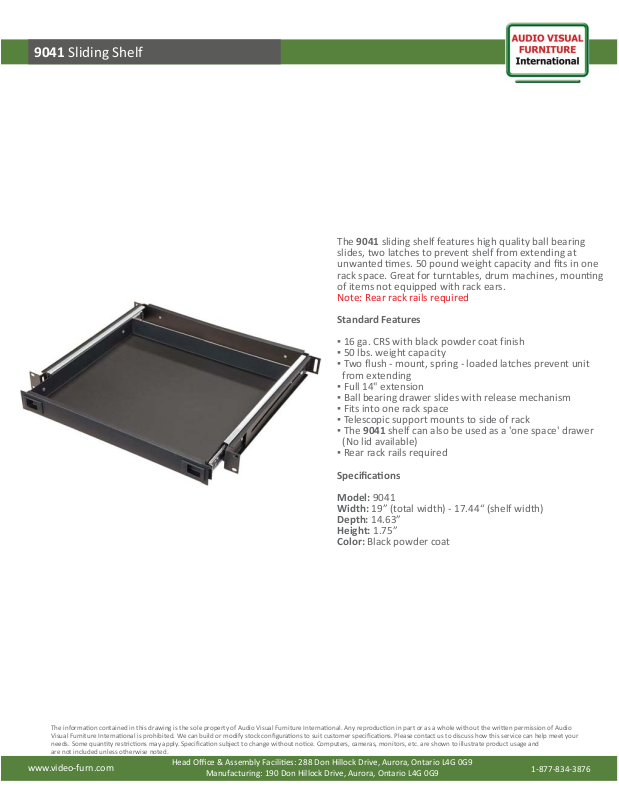

9041 Sliding Shelf
The 9041 sliding shelf features high quality ball bearing
slides, two latches to prevent shelf from extending at
unwanted mes. 50 pound weight capacity and fits in one
rack space. Great for turntables, drum machines, mounng
of items not equipped with rack ears.
Note: Rear rack rails required
Standard Features
▪ 16 ga. CRS with black powder coat finish
▪ 50 lbs. weight capacity
▪ Two flush - mount, spring - loaded latches prevent unit
from extending
▪ Full 14" extension
▪ Ball bearing drawer slides with release mechanism
▪ Fits into one rack space
▪ Telescopic support mounts to side of rack
▪ The 9041 shelf can also be used as a 'one space' drawer
(No lid available)
▪ Rear rack rails required
SpecificaƟons
Model: 9041
Width: 19” (total width) - 17.44“ (shelf width)
Depth: 14.63”
Height: 1.75”
Color: Black powder coat
The informaon contained in this drawing is the sole property of Audio Visual Furniture Internaonal. Any reproducon in part or as a whole without the wrien permission of Audio
Visual Furniture Internaonal is prohibited. We can build or modify stock configuraons to suit customer specificaons. Please contact us to discuss how this service can help meet your
needs. Some quanty restricons may apply. Specificaon subject to change without noce. Computers, cameras, monitors, etc. are shown to illustrate product usage and
are not included unless otherwise noted.
