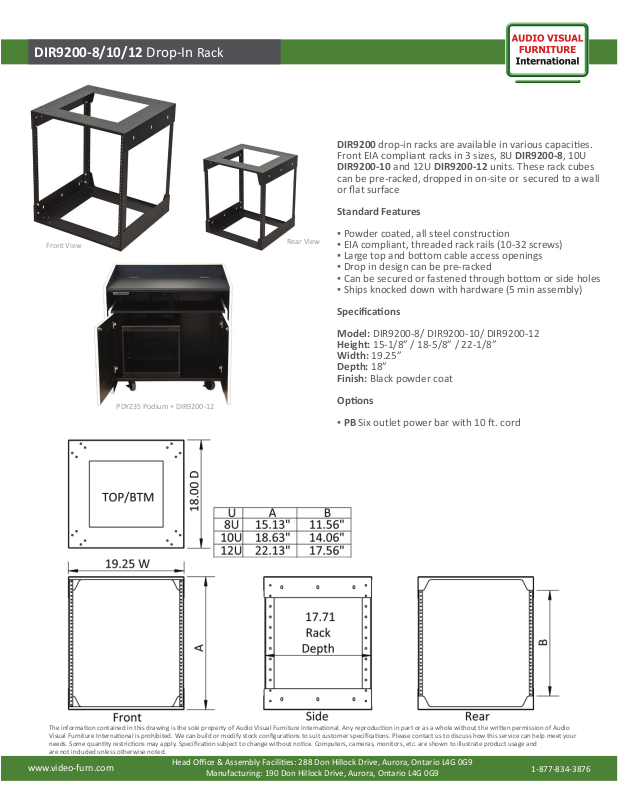

DIR9200-8/10/12 Drop-In Rack
DIR9200 drop-in racks are available in various capacies.
Front EIA compliant racks in 3 sizes, 8U DIR9200-8, 10U
DIR9200-10 and 12U DIR9200-12 units. These rack cubes
can be pre-racked, dropped in on-site or secured to a wall
or flat surface
Standard Features
Front View
PDYZ35 Podium + DIR9200-12
Rear View
▪ Powder coated, all steel construction
▪ EIA compliant, threaded rack rails (10-32 screws)
▪ Large top and bottom cable access openings
▪ Drop in design can be pre-racked
▪ Can be secured or fastened through bottom or side holes
▪ Ships knocked down with hardware (5 min assembly)
SpecificaƟons
Model:
DIR9200-8/ DIR9200-10/ DIR9200-12
Height: 15-1/8” / 18-5/8” / 22-1/8”
Width: 19.25”
Depth: 18”
Finish: Black powder coat
OpƟons
▪ PB Six outlet power bar with 10 . cord
The informaon contained in this drawing is the sole property of Audio Visual Furniture Internaonal. Any reproducon in part or as a whole without the wrien permission of Audio
Visual Furniture Internaonal is prohibited. We can build or modify stock configuraons to suit customer specificaons. Please contact us to discuss how this service can help meet your
needs. Some quanty restricons may apply. Specificaon subject to change without noce. Computers, cameras, monitors, etc. are shown to illustrate product usage and
are not included unless otherwise noted.
