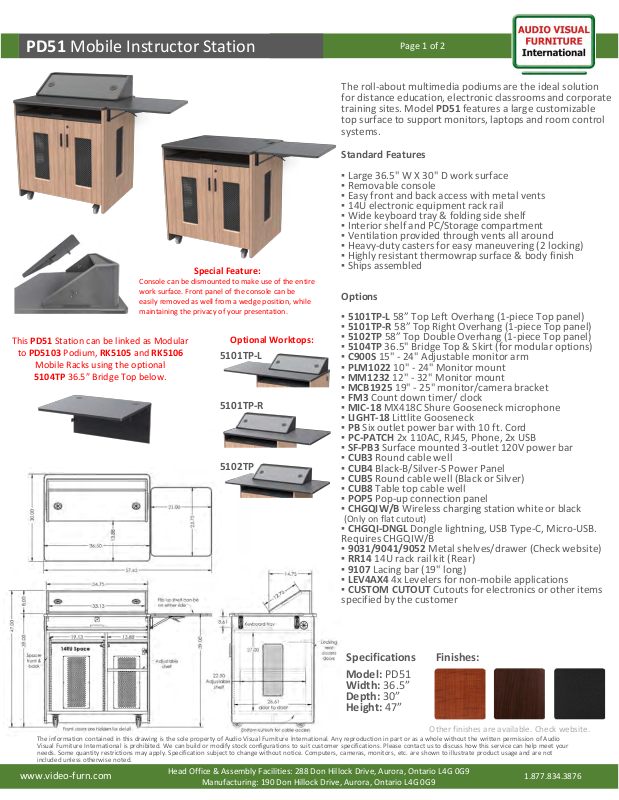

PD51 Mobile Instructor Station
Page 1 of 2
Special Feature:
Console can be dismounted to make use of the entire
work surface. Front panel of the console can be
easily removed as well from a wedge position, while
maintaining the privacy of your presentation.
This PD51 Station can be linked as Modular
to PD5103 Podium, RK5105 and RK5106
Mobile Racks using the optional
5104TP 36.5” Bridge Top below.
Optional Worktops:
5101TP-L
5101TP-R
5102TP
The roll-about multimedia podiums are the ideal solution
for distance education, electronic classrooms and corporate
training sites. Model PD51 features a large customizable
top surface to support monitors, laptops and room control
systems.
Standard Features
▪ Large 36.5" W X 30" D work surface
▪ Removable console
▪ Easy front and back access with metal vents
▪ 14U electronic equipment rack rail
▪ Wide keyboard tray & folding side shelf
▪ Interior shelf and PC/Storage compartment
▪ Ventilation provided through vents all around
▪ Heavy-duty casters for easy maneuvering (2 locking)
▪ Highly resistant thermowrap surface & body finish
▪ Ships assembled
Options
▪ 5101TP-L 58” Top Left Overhang (1-piece Top panel)
▪ 5101TP-R 58” Top Right Overhang (1-piece Top panel)
▪ 5102TP 58” Top Double Overhang (1-piece Top panel)
▪ 5104TP 36.5" Bridge Top & Skirt (for modular options)
▪ C900S 15" - 24" Adjustable monitor arm
▪ PLM1022 10" - 24" Monitor mount
▪ MM1232 12" - 32" Monitor mount
▪ MCB1925 19" - 25" monitor/camera bracket
▪ FM3 Count down timer/ clock
▪ MIC-18 MX418C Shure Gooseneck microphone
▪ LIGHT-18 Littlite Gooseneck
▪ PB Six outlet power bar with 10 ft. Cord
▪ PC-PATCH 2x 110AC, RJ45, Phone, 2x USB
▪ SF-PB3 Surface mounted 3-outlet 120V power bar
▪ CUB3 Round cable well
▪ CUB4 Black-B/Silver-S Power Panel
▪ CUB5 Round cable well (Black or Silver)
▪ CUB8 Table top cable well
▪ POP5 Pop-up connection panel
▪ CHGQIW/B Wireless charging station white or black
(Only on flat cutout)
▪ CHGQI-DNGL Dongle lightning, USB Type-C, Micro-USB.
Requires CHGQIW/B
▪ 9031/9041/9052 Metal shelves/drawer (Check website)
▪ RR14 14U rack rail kit (Rear)
▪ 9107 Lacing bar (19" long)
▪ LEV4AX4 4x Levelers for non-mobile applications
▪ CUSTOM CUTOUT Cutouts for electronics or other items
specified by the customer
The information contained in this drawing is the sole property of Audio Visual Furniture International. Any reproduction in part or as a whole without the written permission of Audio
Visual Furniture International is prohibited. We can build or modify stock configurations to suit customer specifications. Please contact us to discuss how this service can help meet your
needs. Some quantity restrictions may apply. Specification subject to change without notice. Computers, cameras, monitors, etc. are shown to illustrate product usage and are not
included unless otherwise noted.
www.video-furn.com
Specifications
Finishes:
Model: PD51
Width: 36.5”
Depth: 30”
Height: 47”
Other finishes are available. Check website.
Head Office & Assembly Facilities: 288 Don Hillock Drive, Aurora, Ontario L4G 0G9
Manufacturing: 190 Don Hillock Drive, Aurora, Ontario L4G 0G9
1.877.834.3876
PD51 Series Podium and Rack Modular
Page 2 of 2
The PD51 Series Podium and Rack Mobile Modular brings modern look and feel to educational and corporate training sites.
Made with highly resistant thermowrap finish and designed for easy installation and flexible enough to arrange according to
the choice and room spacing.
PODIUM AND RACK CONFIGURATION EXAMPLES
Components: PD51, 5104TP & RK5105
39” height work surface Mobile Station & rack
94.875”W x 30”D
FEATURES & BENEFITS
▪ Customizable Work surface. Front panel of the console
can be easily removed or the complete console to make
use of the entire work surface.
▪ 58” Worktops available for PD51 Station that can be easily
attached according to choice. Folding side shelf and other
components can be installed on either side of the Station.
▪ Highly resistant thermowrap surface & body finish.
PD51
with
folding
shelf
Audience View
with
5101TP-L
Top
Components: PD5103, 5104TP & RK5106
Podium & rack with ADA complaint desk work surface
88.125”W x 30”D (30” height desk top)
with
5101TP-R
Top
5102TP
with
Top
▪ Front and rear lockable doors provide security and quick access to racks and multimedia equipment.
▪ Rack rails or Rack frame included for equipment mounting.
▪ Metal perforated plates all around keep the equipment ventilated and cool.
▪ Heavy-duty casters for easy maneuvering (2 locking) or levelers for non-mobile applications.
▪ Custom cutouts available for accessories, electronics or other items specified by the customer.
▪ Visit our website for individual component information, futures and other available accessories.
STANDARD FINISHES
Other finishes are available. Check website.
AVAILABLE COMPONENTS
5101TP-L 58” Top Left overhang
5101TP-R 58” Top Right overhang
PD51 Mobile Station
36.5”W x 30”D x 47”H
The information contained in this drawing is the sole property of Audio Visual Furniture International. Any reproduction in part or as a whole without the written permission of Audio Visual Furniture
International is prohibited. We can build or modify stock configurations to suit customer specifications. Please contact us to discuss how this service can help meet your needs. Some quantity
restrictions may apply. Specification subject to change without notice. Computers, cameras, monitors, etc. are shown to illustrate product usage and are not included unless otherwise noted.
www.video-furn.com
5102TP 58” Top Double overhang
Head Office & Assembly Facilities: 288 Don Hillock Drive, Aurora, Ontario L4G 0G9
Manufacturing: 190 Don Hillock Drive, Aurora, Ontario L4G 0G9
PD5103 Podium
29.75”W x 30”D x 47”H
5104TP Bridge Top & Skirt
36.5”W x 30”D x 17”H
RK5105 14U Mobile Rack
21.875”W x 30”D x 39”H
RK5106 12U Mobile Rack
21.875”W x 30”D x 30”H
