Page 1

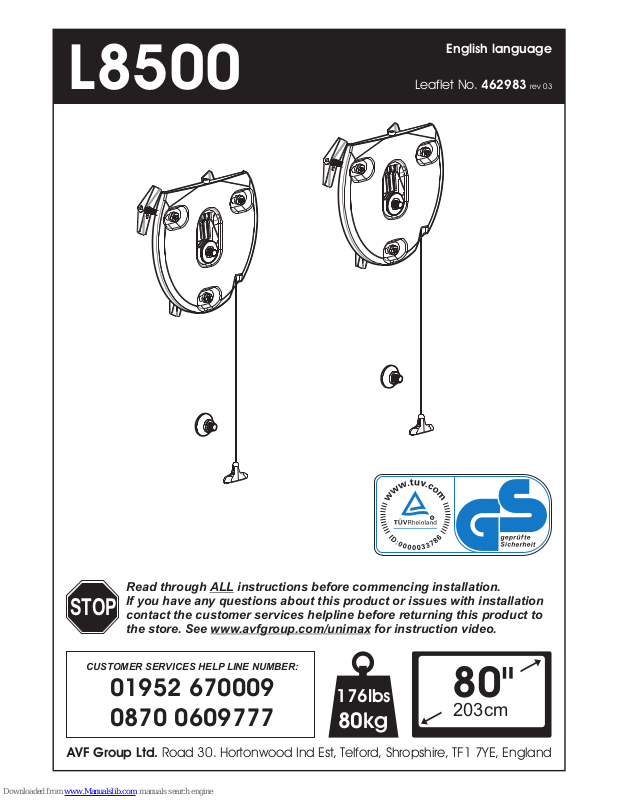

L8500
Leaflet No. 462983 rev 03
English language
AVF Group Ltd. Road 30. Hortonwood Ind Est, Telford, Shropshire, TF1 7YE, England
80"
203cm
CUSTOMER SERVICES HELP LINE NUMBER:
01952 670009
0870 0609777
STOP
176lbs
80kg
Read through instructions before commencing installation.
If you have any questions about this product or issues with installation
contact the customer services helpline before returning this product to
the store. See for instruction video.
ALL
www.avfgroup.com/unimax
Page 2
1

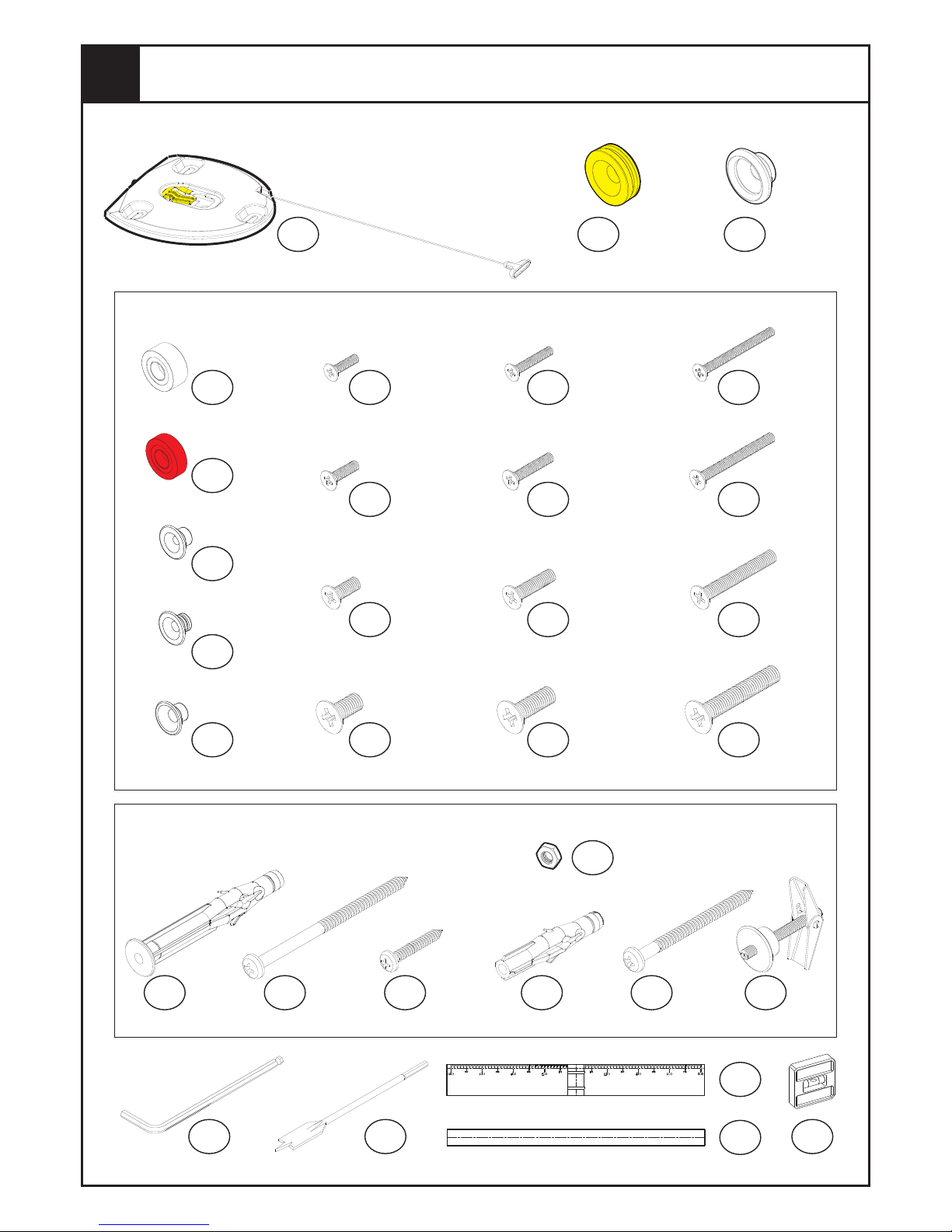

Boxed Parts
A - x2
Wall Bracket
B - x2
Hanger (Yellow)
C - x2
Stand-off
Template
M4 45mmM4 25mm
F1 - x4
M4 16mm
E1 - x4
M4 Adaptor
You will not need all these parts, so expect there to be some left over depending upon the
specification of your TV.
TV Fixings: Parts go on the back of the TV (specification of your TV will determine which
ones you require - see section 11).
F2 - x4 F3 - x4
M5 45mmM5 25mm
F4 - x4
M5 16mm
E2 - x4
M5 Adaptor
F5 - x4 F6 - x4
M6 45mmM6 25mm
F7 - x4
M6 16mm
E3 - x4
M6 Adaptor
F8 - x4 F9 - x4
M8 45mmM8 25mm
F10 - x4
M8 16mm
D1 - x12
Spacer
F11 - x4 F12 - x4
Wall Fixings: Parts to attach to the wall (type of wall will determine which fixings you
require).
H - x6
Long Wall Plug
J - x6
Long Screw
K - x2
Metal Stud Screw
M - x6
Screw
No.14 x 105mm
No.14 x 70mm
L - x6
Wall Plug
I - x12
G - x6
Wall fixing
Included Tools
O
18mm Wood Drill
N
3mm Hex Key
P1
P2
Lock Nut
No.12 x 25mm
Spacer (Red)
D2 - x4
Q
Level
Page 3
2
Tools Required
3
Determine Correct TV Screw Size
Choose from the TV Fixings selection.
You need to determine which length
and diameter of screws fits your TV.
To determine the correct screw diameter,
try screwing (F2), (F5), (F8) & (F11) into
one of the fixing holes on the back of the
screen until you find the one that fits.
4
Fit Screen Hangers To TV
Once you have established which screws you need for your TV, you can attach the Hangers (B)
and Stand-offs (C) to the back of your TV.
Typical recommended example shown is for fixings with the TV spaced 20mm from the wall.
The TV Mount can position your TV between 12mm and 40mm from the wall. For alternative
configurations see section 11.
You might need to use spacers to increase the clearance of your TV from the wall in order to avoid
cables coming out of your TV and improve access and ventilation to the back of your TV (spacers
(D1) allow you to have a gap of 20mm or 40mm, see section 11).
In certain circumstances it may be necessary to use red spacer (D2) as either a replacement or
addition to spacer (D1), for more information please see section 11.
If your TV fixing centres don’t fit, STOP installation and contact the customer services helpline.
Top Fixings
E1, 2, 3
*
If Required
F2, 5 ,8, 11
TV must be parallel
to wall. Use spacers /
stand-offs as shown.
B
D1
F2, 5 ,8, 11
Bottom Fixings
If using screw use Adapter (E1)(F2)
If using screw (F5) use Adapter (E2)
If using screw (F8) use Adapter (E3)
If using screw (F11) No Adapter required
*
*
E1, 2, 3
F2, 5 ,8, 11
C
D1
Page 4
5

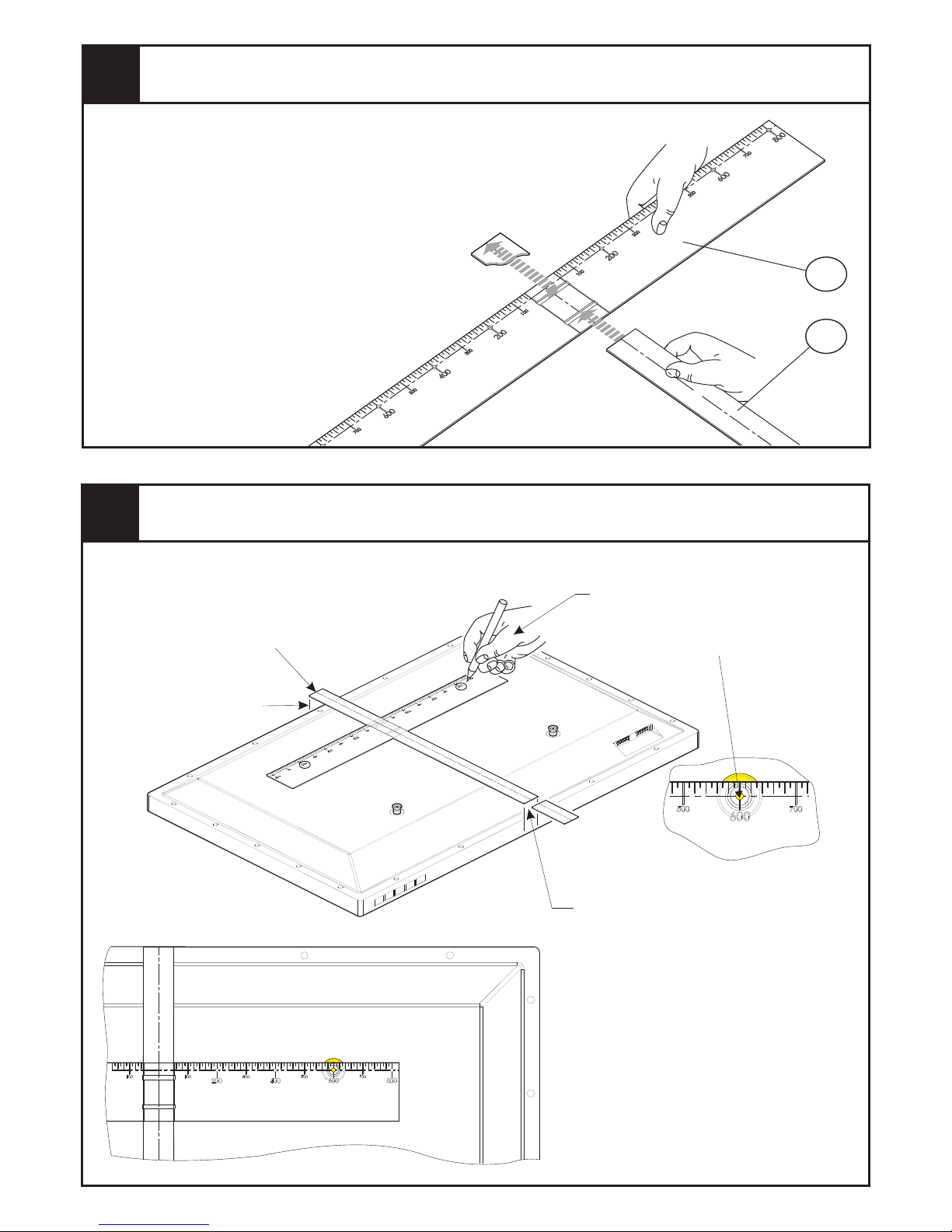

Assemble Positioning Template
The horizontal part of the positioning template is used to mark out
where you need to drill the mounting holes on your wall. The vertical
part is just a guide to allow you to see how high up the wall your TV
will be to help you find the perfect position for viewing your screen.
Thread template (P2) through template (P1) as shown.
P2
P1
6
Determine Bracket Hole Centres
If your screen fixings do not line
up with any holes on the template
then ensure template is on the
centre of the screen, and punch
holes to suit your screen fixings
centres with a pencil or sharp
object.
Line up the template with
the centre of the screen.
Mark off the fixing centres.
Tear off the template flush with the
bottom of your TV so that when
the template is on the wall you can
see exactly where your TV will be
vertically (distance from the floor
and ceiling).
Line up with top of
the screen.
Lay the template on the back of the TV and follow the instructions below.
The centre line of the template
represents the centre of your TV.
Page 5
7

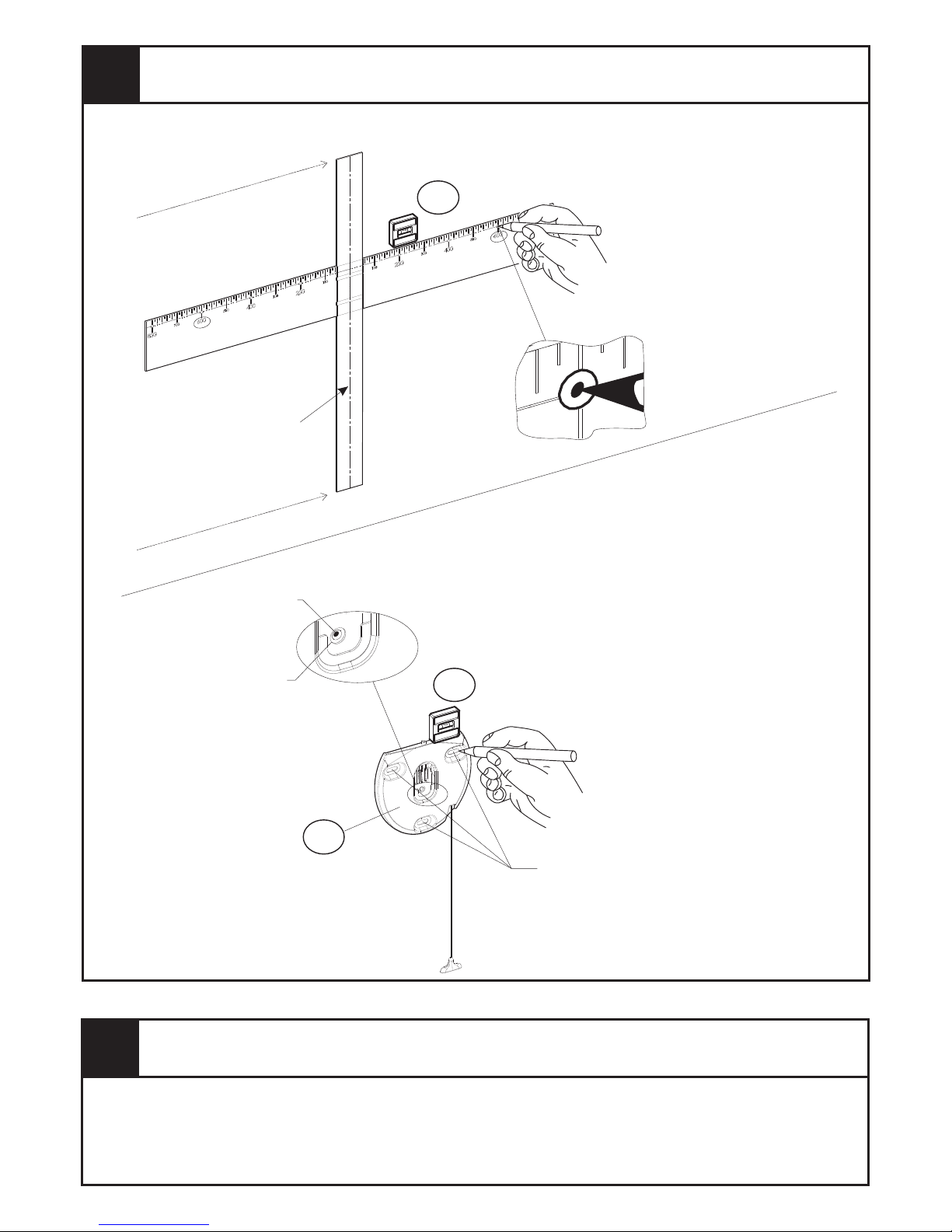

Marking Wall For Drill Points
Use your template to mark two points on the wall that correspond with the top fixing centres of
your TV.
Next, use the Wall Bracket (A) as a template and
position it over one of the PENCIL MARKS you
have made, so that the mark is in the middle of the
CENTRAL HOLE of the Wall Bracket (A). Ensure
the bracket is level and mark the three DRILL
POINTS with a pencil. Repeat for both brackets.
Drill points.
Pencil Mark
Central Hole
8
Planning & Preparation
Determine the wall type that you have (i.e. Brick/Stud/Plasterboard/Sheetrock).
Ensure the drilling area is free from mains services (Gas/Electric/Water).
Drill six 3mm diameter pilot holes to verify the wall type and select the appropriate fixings (See
Section 9).
A
Q
Represents the top
of your TV
.
Represents the base
of your TV
.
Represents the
centre of your TV.
Q
Page 6
9

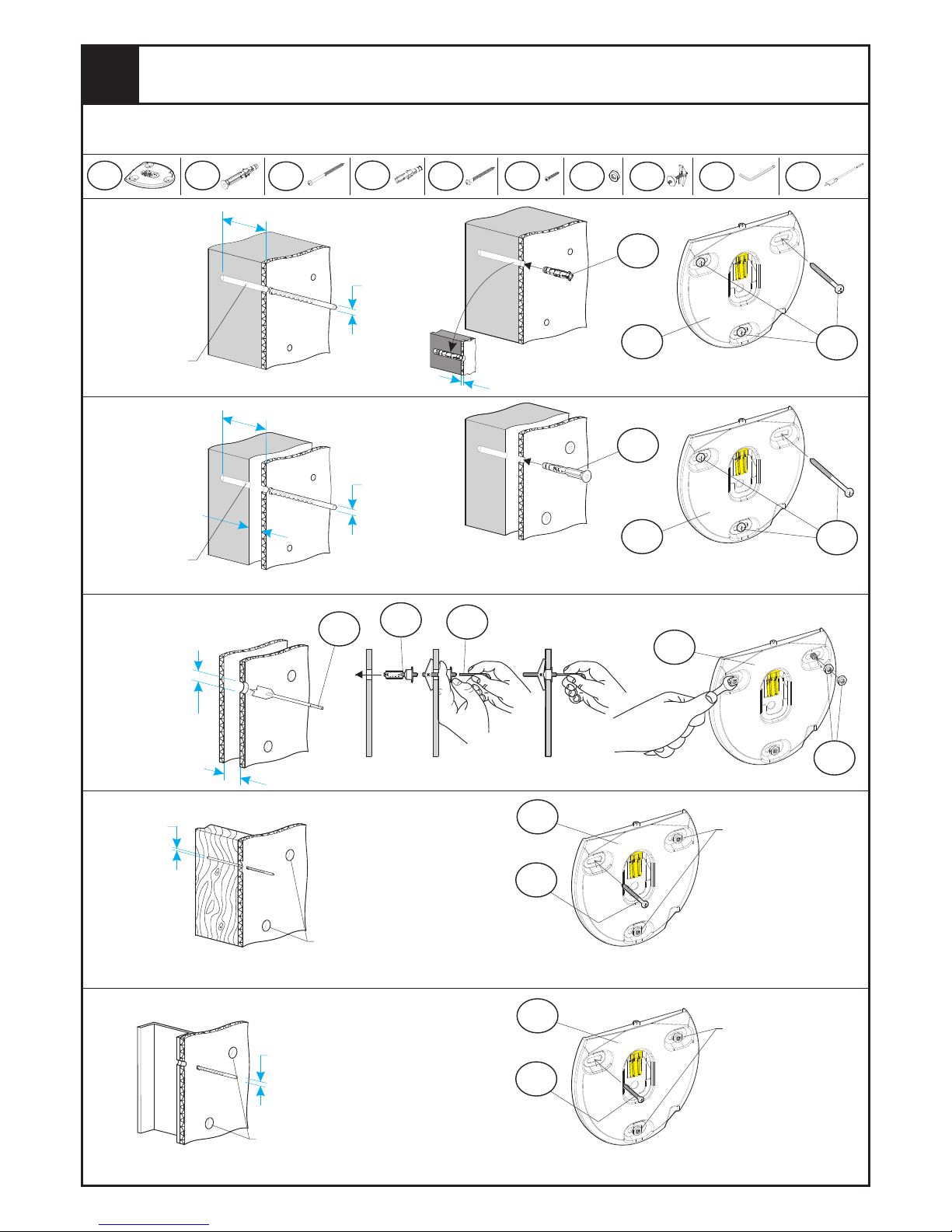

Install Wall Fixings
Use the correct fixings for your wall type. Mixing fixing types may be required for installations that
span different wall types. DO NOT OVER TIGHTEN SCREWS.
Ø10mm
(25/64")
Remove
dust from hole
Ø18mm
(3/4")
J
L
M K
H
I
G
A
O
N
Solid WallDot & DabPlasterboard
/ Sheetrock
Wood StudMetal Stud
75mm (3")
108mm (4-1/4")
Ø10mm
(25/64")
Remove
dust from hole
40mm Max
(1-9/16")
O
If gap is above 40mm (1-9/16") use
Plasterboard / Sheetrock fixing method
Ø3mm
(1/8")
Use Plasterboard
/ Sheetrock fixings
Ø3.5mm
(9/64")
Use Plasterboard
/ Sheetrock fixings
Only one fixing will be in the wood stud. The other fixings will be in plasterboard / sheetrock (see above).
Only one fixing will be in the metal stud. The other fixings will be in plasterboard / sheetrock (see above).
H
L
N
Lubricate screw
thread with soap
A
M
Lubricate screw
thread with soap
A
J
A
I
A
M
Use Plasterboard
/Sheetrock fixings
Lubricate screw
thread with soap
A
K
Use Plasterboard
/Sheetrock fixings
Hand tighten
only
*
*
Turn until secure
Do not over
tighten
40mm (1-9/16") Min gap
G
Page 7
10

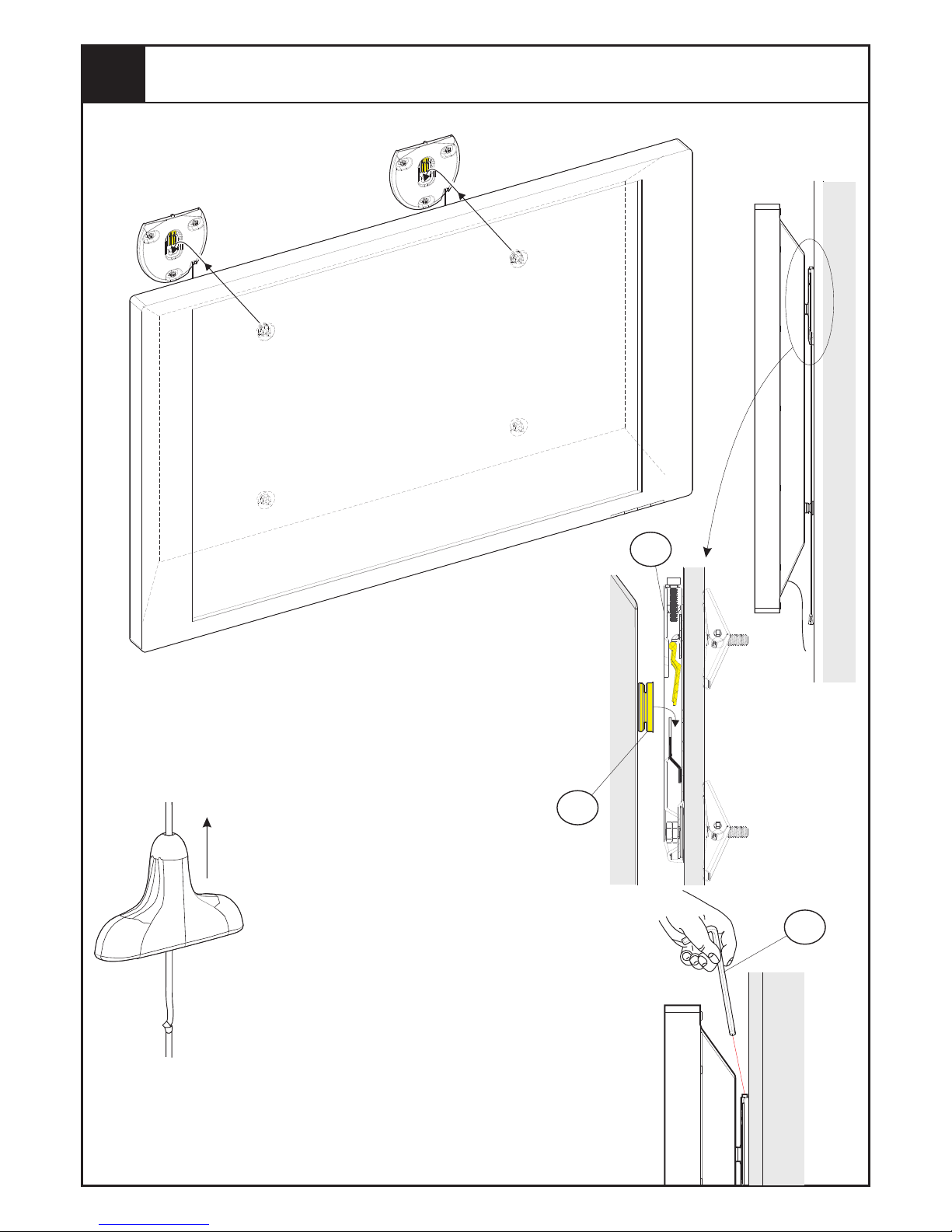

Hanging The TV
Push the yellow Hangers (on the back of the TV) in to the yellow
receptor on the Wall Brackets. Slide down into place. Ensure both
yellow Hangers are fully engaged. If cables from the TV prevent
the TV resting against the wall then an alternative fixing
configuration will be required (See Section 11).
Slide the pull cord handles up
the cord so they are behind the
TV (still accessible but not visible
from the front of the TV). Tie a
knot in the cord and cut off the
excess.
Use the 3mm hex key
(N) to fine adjust the
level of the TV once
fitted to the wall.
N
A
B
Removing the TV:-
This is a two person job. To remove the TV, one person
should pull both Pull Cords while another lifts the TV.
TV must be parallel
to wall. Use spacers /
stand-offs as shown.
Page 8
11

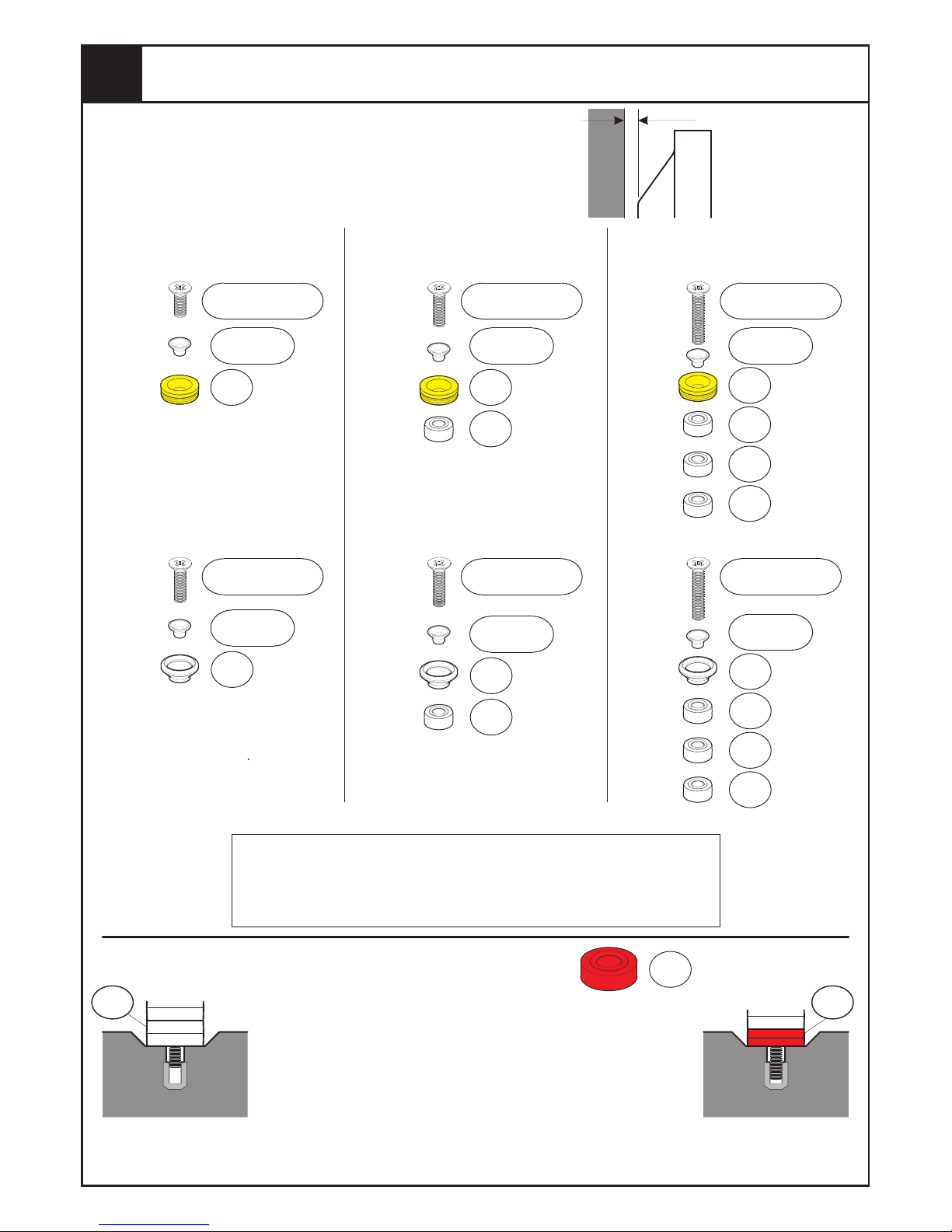

Alternative Hanger Configurations
Alternative Wall spacings of 12mm, 20mm & 40mm can
be achieved using the spacer / screw combinations
listed in this section.
20mm Wall Space
(as shown in section 4)
12mm Wall Space 40mm Wall Space
*
E1, 2, 3
F1, 4, 7, 10
Top FixingsTop Fixings Top Fixings
B
*
E1, 2, 3
F2, 5, 8, 11
B
*
E1, 2, 3
F3, 6, 9, 12
B
D1
Wall Space
D1
Bottom Fixings
D1
D1
*
When is it necessary to use red spacers?
D2
- x4
TV TV
D1 D2
It is recommended that when fitting Hangers ( ) and
Stand-offs ( ) to your TV you have at least 5-10mm of
screw engagement. In certain circumstances you may
need to use red spacers ( ) as either a replacement, or
together with spacers ( ) to achieve this. Whenever
you use red spacers (D2) you must use all 4 provided.
B
C
D2
D1
Problem
Not enough
screw engagement
Solution
Red spacer (D2) has
replaced spacer (D1)
TV must be parallel to wall. Use spacers / stand-offs as shown.
If using screw (F1),(F2) or (F3) use Adapter (E1)
If using screw (F4),(F5) or (F6) use Adapter (E2)
If using screw (F7),(F8) or (F9) use Adapter (E3)
If using screw (F10),(F11) or (F12) No Adapter required
Bottom FixingsBottom Fixings
F1, 4, 7, 10
*
E1, 2, 3
F2, 5, 8, 11
*
E1, 2, 3
C
F3, 6, 9, 12
*
E1, 2, 3
C
D1
C
D1
D1
D1
