Avet Reels Pro EX 50-2 User Manual

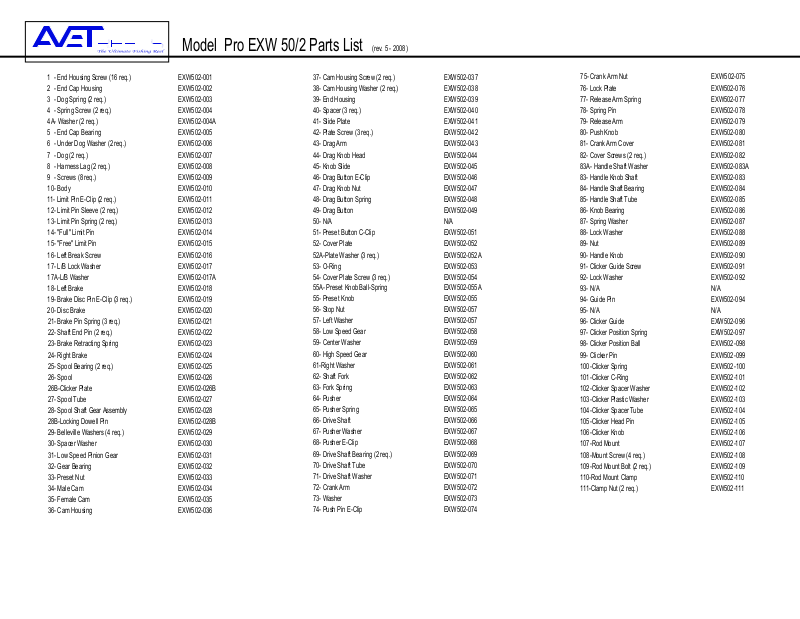

Model Pro EXW 50/2 Parts List

(rev. 5 - 2008)

1 - End Housing Screw (16 req.) EXW502-001
2 - End Cap Housing EXW502-002
3 - Dog Spring (2 req.) EXW502-003
4 - Spring Screw (2 req.) EXW502-004
4A- Washer (2 req.) EXW502-004A
5 - End Cap Bearing EXW502-005
6 - Under Dog Washer (2 req.) EXW502-006
7 - Dog (2 req.) EXW502-007
8 - Harness Lag (2 req.) EXW502-008
9 - Screws (8 req.) EXW502-009
10- Body EXW502-010
11- Limit Pin E-Clip (2 req.) EXW502-011
12- Limit Pin Sleeve (2 req.) EXW502-012
13- Limit Pin Spring (2 req.) EXW502-013
14- "Full" Limit Pin EXW502-014
15- "Free" Limit Pin EXW502-015
16- Left Break Screw EXW502-016
17- L/B Lock Washer EXW502-017
17A-L/B Washer EXW502-017A
18- Left Brake EXW502-018
19- Brake Disc Pin E-Clip (3 req.) EXW502-019
20- Disc Brake EXW502-020
21- Brake Pin Spring (3 req.) EXW502-021
22- Shaft End Pin (2 req.) EXW502-022
23- Brake Retracting Spring EXW502-023
24- Right Brake EXW502-024
25- Spool Bearing (2 req.) EXW502-025
26- Spool EXW502-026
26B-Clicker Plate EXW502-026B
27- Spool Tube EXW502-027
28- Spool Shaft Gear Assembly EXW502-028
28B-Locking Dowell Pin EXW502-028B
29- Belleville Washers (4 req.) EXW502-029
30- Spacer Washer EXW502-030
31- Low Speed Pinion Gear EXW502-031
32- Gear Bearing EXW502-032
33- Preset Nut EXW502-033
34- Male Cam EXW502-034
35- Female Cam EXW502-035
36- Cam Housing EXW502-036

37- Cam Housing Screw (2 req.) EXW502-037
38- Cam Housing Washer (2 req.) EXW502-038
39- End Housing EXW502-039
40- Spacer (3 req.) EXW502-040
41- Slide Plate EXW502-041
42- Plate Screw (3 req.) EXW502-042
43- Drag Arm EXW502-043
44- Drag Knob Head EXW502-044
45- Knob Slide EXW502-045
46- Drag Button E-Clip EXW502-046
47- Drag Knob Nut EXW502-047
48- Drag Button Spring EXW502-048
49- Drag Button EXW502-049
50- N/A N/A
51- Preset Button C-Clip EXW502-051
52- Cover Plate EXW502-052
52A-Plate Washer (3 req.) EXW502-052A
53- O-Ring EXW502-053
54- Cover Plate Screw (3 req.) EXW502-054
55A- Preset Knob Ball-Spring EXW502-055A
55- Preset Knob EXW502-055
56- Stop Nut EXW502-057
57- Left Washer EXW502-057
58- Low Speed Gear EXW502-058
59- Center Washer EXW502-059
60- High Speed Gear EXW502-060
61-Right Washer EXW502-061
62- Shaft Fork EXW502-062
63- Fork Spring EXW502-063
64- Pusher EXW502-064
65- Pusher Spring EXW502-065
66- Drive Shaft EXW502-066
67- Pusher Washer EXW502-067
68- Pusher E-Clip EXW502-068
69- Drive Shaft Bearing (2 req.) EXW502-069
70- Drive Shaft Tube EXW502-070
71- Drive Shaft Washer EXW502-071
72- Crank Arm EXW502-072
73- Washer EXW502-073
74- Push Pin E-Clip EXW502-074

75- Crank Arm Nut EXW502-075
76- Lock Plate EXW502-076
77- Release Arm Spring EXW502-077
78- Spring Pin EXW502-078
79- Release Arm EXW502-079
80- Push Knob EXW502-080
81- Crank Arm Cover EXW502-081
82- Cover Screws (2 req.) EXW502-082
83A- Handle Shaft Washer EXW502-083A
83- Handle Knob Shaft EXW502-083
84- Handle Shaft Bearing EXW502-084
85- Handle Shaft Tube EXW502-085
86- Knob Bearing EXW502-086
87- Spring Washer EXW502-087
88- Lock Washer EXW502-088
89- Nut EXW502-089
90- Handle Knob EXW502-090
91- Clicker Guide Screw EXW502-091
92- Lock Washer EXW502-092
93- N/A N/A
94- Guide Pin EXW502-094
95- N/A N/A
96- Clicker Guide EXW502-096
97- Clicker Position Spring EXW502-097
98- Clicker Position Ball
99- Clicker Pin EXW502-099
100-Clicker Spring EXW502-100
101-Clicker C-Ring EXW502-101
102-Clicker Spacer Washer EXW502-102
103-Clicker Plastic Washer EXW502-103
104-Clicker Spacer Tube EXW502-104
105-Clicker Head Pin EXW502-105
106-Clicker Knob EXW502-106
107-Rod Mount EXW502-107
108-Mount Screw (4 req.) EXW502-108
109-Rod Mount Bolt (2 req.) EXW502-109
110-Rod Mount Clamp EXW502-110
111-Clamp Nut (2 req.) EXW502-111

EXW502-098
