Avet Reels MXL - 6-4 User Manual

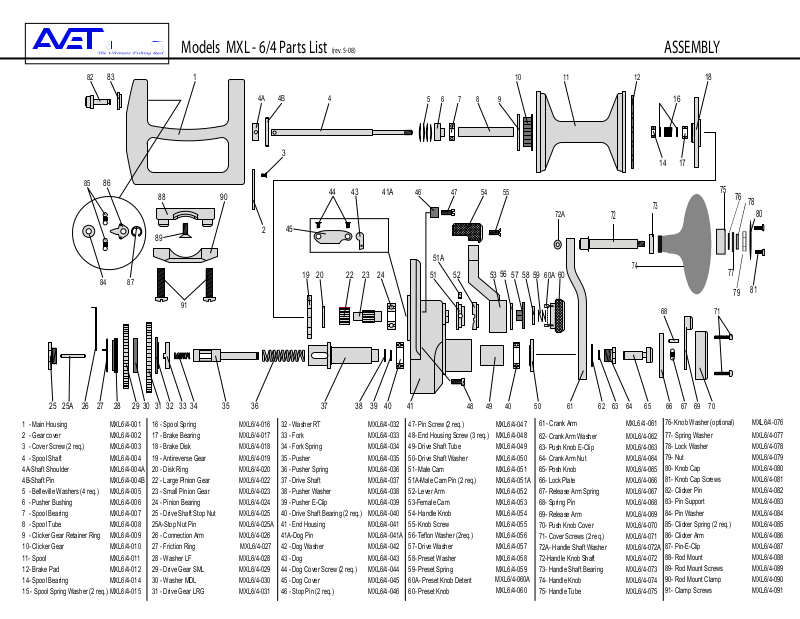

Models MXL - 6/4 Parts List

(rev. 5-08)

ASSEMBLY

83

82

1

4A

4B

4

6 7

5

10

98

11

12

18

16

3

14

17

85

86

88

90

41A4344

45

2

55544746

72A

72

73

75

76

78

80

89

51A

87

84

91

19 20 22 23 24 51

52

56

53 60

595857

60A

74

68 71

77

79

81

25 25A 28 29 30 31

1 - Main Housing MXL6/4-001
2 - Gear cover MXL6/4-002
3 - Cover Screw (2 req.) MXL6/4-003
4 - Spool Shaft MXL6/4-004
4A-Shaft Shoulder MXL6/4-004A
4B-Shaft Pin MXL6/4-004B
5 - Belleville Washers (4 req.) MXL6/4-005
6 - Pusher Bushing MXL6/4-006
7 - Spool Bearing MXL6/4-007
8 - Spool Tube MXL6/4-008
9 - Clicker Gear Retainer Ring MXL6/4-009
10- Clicker Gear MXL6/4-010
11- Spool MXL6/4-011
12- Brake Pad MXL6/4-012
14- Spool Bearing MXL6/4-014
15 - Spool Spring Washer (2 req.) MXL6/4-015

2726 32 33 34 35 36 37 38 39 40 41

16 - Spool Spring MXL6/4-016
17 - Brake Bearing MXL6/4-017
18 - Brake Disk MXL6/4-018
19 - Antireverse Gear MXL6/4-019
20 - Disk Ring MXL6/4-020
22 - Large Pinion Gear MXL6/4-022
23 - Small Pinion Gear MXL6/4-023
24 - Pinion Bearing MXL6/4-024
25 - Drive Shaft Stop Nut MXL6/4-025
25A-Stop Nut Pin MXL6/4-025A
26 - Connection Arm MXL6/4-026
27 - Friction Ring MXL6/4-027
28 - Washer LF MXL6/4-028
29 - Drive Gear SML MXL6/4-029
30 - Washer MDL MXL6/4-030
31 - Drive Gear LRG MXL6/4-031

32 - Washer RT MXL6/4-032
33 - Fork MXL6/4-033
34 - Fork Spring MXL6/4-034
35 - Pusher MXL6/4-035
36 - Pusher Spring MXL6/4-036
37 - Drive Shaft MXL6/4-037
38 - Pusher Washer MXL6/4-038
39 - Pusher E-Clip MXL6/4-039
40 - Drive Shaft Bearing (2 req.) MXL6/4-040
41 - End Housing MXL6/4-041
41A-Dog Pin MXL6/4-041A
42 - Dog Washer MXL6/4-042
43 - Dog MXL6/4-043
44 - Dog Cover Screw (2 req.) MXL6/4-044
45 - Dog Cover MXL6/4-045
46 - Stop Pin (2 req.) MXL6/4-046

48

49 40

47- Pin Screw (2 req.) MXL6/4-047
48- End Housing Screw (3 req.) MXL6/4-048
49- Drive Shaft Tube MXL6/4-049
50- Drive Shaft Washer MXL6/4-050
51- Male Cam MXL6/4-051
51A-Male Cam Pin (2 req.) MXL6/4-051A
52- Lever Arm MXL6/4-052
53-Female Cam MXL6/4-053
54- Handle Knob MXL6/4-054
55- Knob Screw MXL6/4-055
56- Teflon Washer (2req.) MXL6/4-056
57- Drive Washer MXL6/4-057
58- Preset Washer MXL6/4-058
59- Preset Spring MXL6/4-059
60A- Preset Knob Detent
60- Preset Knob

MXL6/4-060A
MXL6/4-060

50

61

61- Crank Arm

62- Crank Arm Washer MXL6/4-062
63- Push Knob E-Clip MXL6/4-063
64- Crank Arm Nut MXL6/4-064
65- Posh Knob MXL6/4-065
66- Lock Plate MXL6/4-066
67- Release Arm Spring MXL6/4-067
68- Spring Pin MXL6/4-068
69- Release Arm MXL6/4-069
70- Push Knob Cover MXL6/4-070
71- Cover Screws (2 req.) MXL6/4-071
72A- Handle Shaft Washer MXL6/4-072A
72-Handle Knob Shaft MXL6/4-072
73- Handle Shaft Bearing MXL6/4-073
74- Handle Knob MXL6/4-074
75- Handle Tube

626364 65 66 67 69 70

MXL

6/4-061

MXL6/4-075

76- Knob Washer (optional) MXL6/4-076

77- Spring Washer MXL6/4-077
78- Lock Washer MXL6/4-078
79- Nut MXL6/4-079
80- Knob Cap MXL6/4-080
81- Knob Cap Screws MXL6/4-081
82- Clicker Pin MXL6/4-082
83- Pin Support MXL6/4-083
84- Pin Washer MXL6/4-084
85- Clicker Spring (2 req.) MXL6/4-085
86- Clicker Arm MXL6/4-086
87- Pin-E-Clip MXL6/4-087
88- Rod Mount MXL6/4-088
89- Rod Mount Screws MXL6/4-089
90- Rod Mount Clamp MXL6/4-090
91- Clamp Screws MXL6/4-091
