Avet Reels MXL 5.8 User Manual

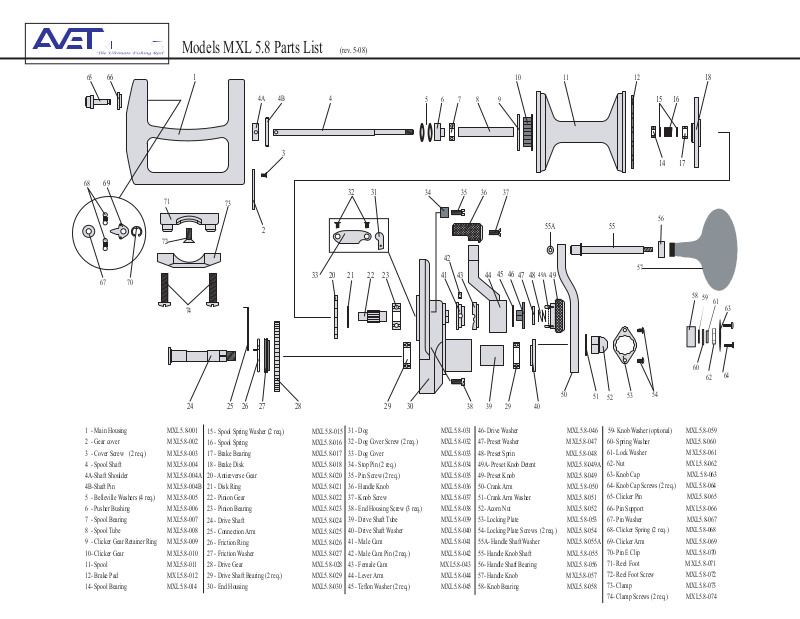

Models MXL 5.8 Parts List

(rev. 5-08)

66

65

1

4A

4B

4

5 6 7

10

98

11

12

16

15

18

3

14

17

68

69

71

73

2

72

3132

37363534

55A

55

56

42

45

33

20 22 23 41

70

67

74

21

43

46

44 49

49A

4847

57

58

59

61

63

60

64

62

1 - Main Housing MXL5.8-001
2 - Gear cover MXL5.8-002
3 - Cover Screw (2 req.) MXL5.8-003
4 - Spool Shaft MXL5.8-004
4A-Shaft Shoulder MXL5.8-004A
4B-Shaft Pin MXL5.8-004B
5 - Belleville Washers (4 req.) MXL5.8-005
6 - Pusher Bushing MXL5.8-006
7 - Spool Bearing MXL5.8-007
8 - Spool Tube MXL5.8-008
9 - Clicker Gear Retainer Ring MXL5.8-009
10- Clicker Gear MXL5.8-010
11- Spool MXL5.8-011
12- Brake Pad MXL5.8-012
14- Spool Bearing MXL5.8-014

27 28

262524 29 30

15 - Spool Spring Washer (2 req.) MXL5.8-015
16 - Spool Spring MXL5.8-016
17 - Brake Bearing MXL5.8-017
18 - Brake Disk MXL5.8-018
20 - Antireverse Gear MXL5.8-020
21 - Disk Ring MXL5.8-021
22 - Pinion Gear MXL5.8-022
23 - Pinion Bearing MXL5.8-023
24 - Drive Shaft MXL5.8-024
25 - Connection Arm MXL5.8-025
26 - Friction Ring MXL5.8-026
27 - Friction Washer MXL5.8-027
28 - Drive Gear MXL5.8-028
29 - Drive Shaft Bearing (2 req.) MXL5.8-029
30 - End Housing MXL5.8-030

31 - Dog MXL5.8-031
32 - Dog Cover Screw (2 req.) MXL5.8-032
33 - Dog Cover MXL5.8-033
34 - Stop Pin (2 req.) MXL5.8-034
35 - Pin Screw (2 req.) MXL5.8-035
36 - Handle Knob MXL5.8-036
37 - Knob Screw MXL5.8-037
38 - End Housing Screw (3 req.) MXL5.8-038
39 - Drive Shaft Tube MXL5.8-039
40 - Drive Shaft Washer MXL5.8-040
41 - Male Cam MXL5.8-041
42 - Male Cam Pin (2 req.) MXL5.8-042
43 - Female Cam MXL5.8-043
44 - Lever Arm MXL5.8-044
45 - Teflon Washer (2 req.) MXL5.8-045

50

38

39 29

46- Drive Washer MXL5.8-046
47- Preset Washer MXL5.8-047
48- Preset Sprin MXL5.8-048
49A- Preset Knob Detent MXL5.8-049A
49- Preset Knob MXL5.8-049
50- Crank Arm MXL5.8-050
51- Crank Arm Washer MXL5.8-051
52- Acorn Nut MXL5.8-052
53- Locking Plate MXL5.8-053
54- Locking Plate Screws (2 req.) MXL5.8-054
55A- Handle Shaft Washer MXL5.8-055A
55- Handle Knob Shaft MXL5.8-055
56- Handle Shaft Bearing MXL5.8-056
57- Handle Knob MXL5.8-057
58- Knob Bearing MXL5.8-058

40

54

51

53

52

59- Knob Washer (optional) MXL5.8-059
60- Spring Washer MXL5.8-060
61- Lock Washer MXL5.8-061
62- Nut MXL 5.8-062
63- Knob Cap MXL5.8-063
64- Knob Cap Screws (2 req.) MXL5.8-064
65- Clicker Pin MXL5.8-065
66- Pin Support MXL5.8-066
67- Pin Washer MXL5.8-067

68- Clicker Spring (2 req.) MXL5.8-068

69- Clicker Arm MXL5.8-069
70- Pin E Clip MXL5.8-070
71- Reel Foot MXL5.8-071
72- Reel Foot Screw MXL5.8-072
73- Clamp MXL5.8-073
74- Clamp Screws (2 req.) MXL5.8-074
