Avet Reels MXJ - 6-4 User Manual

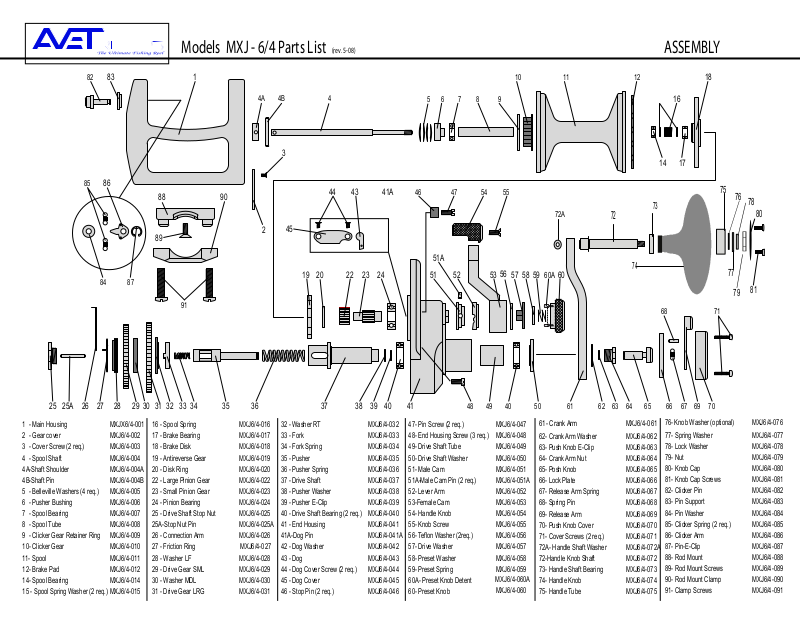

Models MXJ - 6/4 Parts List

(rev. 5-08)

ASSEMBLY

83

82

1

4A

4B

4

6 7

5

10

98

11

12

18

16

3

14

17

85

86

88

90

41A4344

45

2

55544746

72A

72

73

75

76

78

80

89

51A

87

84

91

19 20 22 23 24 51

52

56

53 60

595857

60A

74

68 71

77

79

81

25 25A 28 29 30 31

1 - Main Housing MXJX6/4-001
2 - Gear cover MXJ6/4-002
3 - Cover Screw (2 req.) MXJ6/4-003
4 - Spool Shaft MXJ6/4-004
4A-Shaft Shoulder MXJ6/4-004A
4B-Shaft Pin MXJ6/4-004B
5 - Belleville Washers (4 req.) MXJ6/4-005
6 - Pusher Bushing MXJ6/4-006
7 - Spool Bearing MXJ6/4-007
8 - Spool Tube MXJ6/4-008
9 - Clicker Gear Retainer Ring MXJ6/4-009
10- Clicker Gear MXJ6/4-010
11- Spool MXJ6/4-011
12- Brake Pad MXJ6/4-012
14- Spool Bearing MXJ6/4-014
15 - Spool Spring Washer (2 req.) MXJ6/4-015

2726 32 33 34 35 36 37 38 39 40 41

16 - Spool Spring MXJ6/4-016
17 - Brake Bearing MXJ6/4-017
18 - Brake Disk MXJ6/4-018
19 - Antireverse Gear MXJ6/4-019
20 - Disk Ring MXJ6/4-020
22 - Large Pinion Gear MXJ6/4-022
23 - Small Pinion Gear MXJ6/4-023
24 - Pinion Bearing MXJ6/4-024
25 - Drive Shaft Stop Nut MXJ6/4-025
25A-Stop Nut Pin MXJ6/4-025A
26 - Connection Arm MXJ6/4-026
27 - Friction Ring MXJ6/4-027
28 - Washer LF MXJ6/4-028
29 - Drive Gear SML MXJ6/4-029
30 - Washer MDL MXJ6/4-030
31 - Drive Gear LRG MXJ6/4-031

32 - Washer RT MXJ6/4-032
33 - Fork MXJ6/4-033
34 - Fork Spring MXJ6/4-034
35 - Pusher MXJ6/4-035
36 - Pusher Spring MXJ6/4-036
37 - Drive Shaft MXJ6/4-037
38 - Pusher Washer MXJ6/4-038
39 - Pusher E-Clip MXJ6/4-039
40 - Drive Shaft Bearing (2 req.) MXJ6/4-040
41 - End Housing MXJ6/4-041
41A-Dog Pin MXJ6/4-041A
42 - Dog Washer MXJ6/4-042
43 - Dog MXJ6/4-043
44 - Dog Cover Screw (2 req.) MXJ6/4-044
45 - Dog Cover MXJ6/4-045
46 - Stop Pin (2 req.) MXJ6/4-046

48

49 40

47- Pin Screw (2 req.) MXJ6/4-047
48- End Housing Screw (3 req.) MXJ6/4-048
49- Drive Shaft Tube MXJ6/4-049
50- Drive Shaft Washer MXJ6/4-050
51- Male Cam MXJ6/4-051
51A-Male Cam Pin (2 req.) MXJ6/4-051A
52- Lever Arm MXJ6/4-052
53-Female Cam MXJ6/4-053
54- Handle Knob MXJ6/4-054
55- Knob Screw MXJ6/4-055
56- Teflon Washer (2req.) MXJ6/4-056
57- Drive Washer MXJ6/4-057
58- Preset Washer MXJ6/4-058
59- Preset Spring MXJ6/4-059
60A- Preset Knob Detent
60- Preset Knob

MXJ6/4-060A
MXJ6/4-060

50

61

61- Crank Arm

62- Crank Arm Washer MXJ6/4-062
63- Push Knob E-Clip MXJ6/4-063
64- Crank Arm Nut MXJ6/4-064
65- Posh Knob MXJ6/4-065
66- Lock Plate MXJ6/4-066
67- Release Arm Spring MXJ6/4-067
68- Spring Pin MXJ6/4-068
69- Release Arm MXJ6/4-069
70- Push Knob Cover MXJ6/4-070
71- Cover Screws (2 req.) MXJ6/4-071
72A- Handle Shaft Washer MXJ6/4-072A
72-Handle Knob Shaft MXJ6/4-072
73- Handle Shaft Bearing MXJ6/4-073
74- Handle Knob MXJ6/4-074
75- Handle Tube

626364 65 66 67 69 70

MXJ

6/4-061

MXJ6/4-075

76- Knob Washer (optional) MXJ6/4-076

77- Spring Washer MXJ6/4-077
78- Lock Washer MXJ6/4-078
79- Nut MXJ6/4-079
80- Knob Cap MXJ6/4-080
81- Knob Cap Screws MXJ6/4-081
82- Clicker Pin MXJ6/4-082
83- Pin Support MXJ6/4-083
84- Pin Washer MXJ6/4-084
85- Clicker Spring (2 req.) MXJ6/4-085
86- Clicker Arm MXJ6/4-086
87- Pin-E-Clip MXJ6/4-087
88- Rod Mount MXJ6/4-088
89- Rod Mount Screws MXJ6/4-089
90- Rod Mount Clamp MXJ6/4-090
91- Clamp Screws MXJ6/4-091
