Avet Reels JX 6.0 User Manual

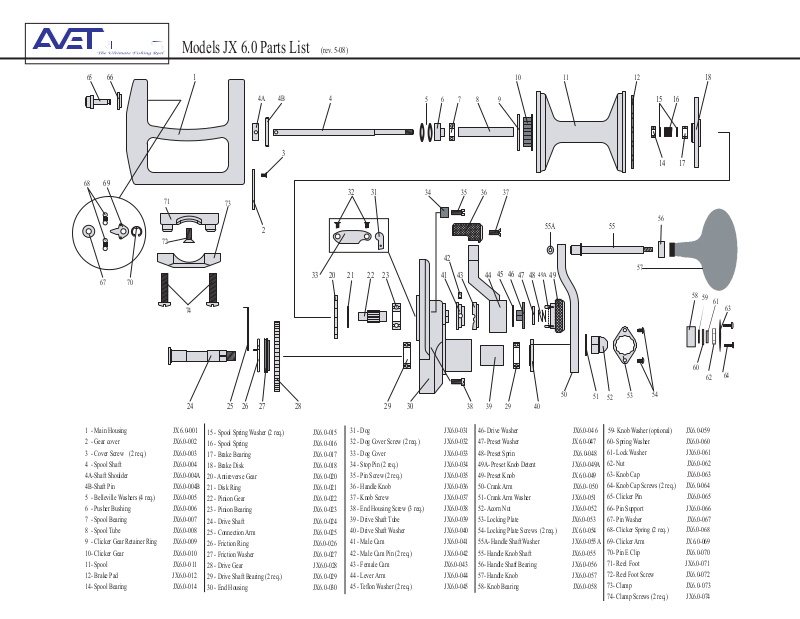

Models JX 6.0 Parts List

(rev. 5-08)

66

65

1

4A

4B

4

5 6 7

10

98

11

12

16

15

18

3

14

17

68

69

71

73

2

72

3132

37363534

55A

55

56

42

45

33

20 22 23 41

70

67

74

21

43

46

44 49

49A

4847

57

58

59

61

63

60

64

62

1 - Main Housing JX 6.0-001
2 - Gear cover JX6.0-002
3 - Cover Screw (2 req.) JX6.0-003
4 - Spool Shaft JX6.0-004
4A-Shaft Shoulder JX6.0-004A
4B-Shaft Pin JX6.0-004B
5 - Belleville Washers (4 req.) JX6.0-005
6 - Pusher Bushing JX6.0-006
7 - Spool Bearing JX6.0-007
8 - Spool Tube JX6.0-008
9 - Clicker Gear Retainer Ring JX6.0-009
10- Clicker Gear JX6.0-010
11- Spool JX6.0-0 11
12- Brake Pad JX6.0-012
14- Spool Bearing JX6.0-014

27 28

262524 29 30

15 - Spool Spring Washer (2 req.) JX6.0-015
16 - Spool Spring JX6.0-016
17 - Brake Bearing JX6.0-017
18 - Brake Disk JX6.0-018
20 - Antireverse Gear JX6.0-020
21 - Disk Ring JX6.0-021
22 - Pinion Gear JX6.0-022
23 - Pinion Bearing JX6.0-023
24 - Drive Shaft JX6.0-024
25 - Connection Arm JX6.0-025
26 - Friction Ring JX6.0-026
27 - Friction Washer JX6.0-027
28 - Drive Gear JX6.0-028
29 - Drive Shaft Bearing (2 req.) JX6.0-029
30 - End Housing JX6.0-030

31 - Dog JX6.0-031
32 - Dog Cover Screw (2 req.) JX6.0-032
33 - Dog Cover JX6.0-033
34 - Stop Pin (2 req.) JX6.0-034
35 - Pin Screw (2 req.) JX6.0-035
36 - Handle Knob JX6.0-036
37 - Knob Screw JX6.0-037
38 - End Housing Screw (3 req.) JX6.0-038
39 - Drive Shaft Tube JX6.0-039
40 - Drive Shaft Washer JX6.0-040
41 - Male Cam JX6.0-041
42 - Male Cam Pin (2 req.) JX6.0-042
43 - Female Cam JX6.0-043
44 - Lever Arm JX6.0-044
45 - Teflon Washer (2 req.) JX6.0-045

50

38

39 29

46- Drive Washer JX6.0-04 6
47- Preset Washer JX6.0-047
48- Preset Sprin JX6.0-048
49A- Preset Knob Detent JX6.0-049A
49- Preset Knob JX6.0-049
50- Crank Arm JX6.0-050
51- Crank Arm Washer JX6.0-051
52- Acorn Nut JX6.0-052
53- Locking Plate JX6.0-053
54- Locking Plate Screws (2 req.) JX6.0-054
55A- Handle Shaft Washer JX6.0-055 A
55- Handle Knob Shaft JX6.0-055
56- Handle Shaft Bearing JX6.0. -056
57- Handle Knob JX6.0-057
58- Knob Bearing JX6.0-058

40

54

51

53

52

59- Knob Washer (optional) JX6.0-059
60- Spring Washer JX6.0-060
61- Lock Washer JX6.0-061
62- Nut JX6.0-062
63- Knob Cap JX6.0-063
64- Knob Cap Screws (2 req.) JX6.0-064
65- Clicker Pin JX6.0-065
66- Pin Support JX6.0-066
67- Pin Washer JX6.0-067

68- Clicker Spring (2 req.)

69- Clicker Arm JX6.0-069
70- Pin E Clip JX6.0-070
71- Reel Foot
72- Reel Foot Screw JX6.0-072
73- Clamp JX6.0-073
74- Clamp Screws (2 req.) JX6.0-074

JX6.0

JX6.0

-068

-071
