1General information and warnings
1.1About this manual
This manual is divided into chapters by the chapter number and the large text at the top
of a page. Subsections are labeled as shown by the 1.1 and 1.1.1 headings. The
names of the chapter and the next subsection level appear at the top of alternating
pages of the manual to remind you of where you are in the manual. The manual name
and page numbers appear at the bottom of the pages.
1.1.1Text conventions
Key names are shown in bold and reflect the case of the key being described. If a key
has a dual function it may be referred to by its alternate function.
Displayed messages appear in bold italic type and reflect the case of the displayed
message.
Annunciator names appear as italic text and reflect the case of the annunciator.
1.1 About this manual
1.1.2Special messages
Examples of special messages you will see in this manual are defined below. The
signal words have specific meanings to alert you to additional information or the relative
level of hazard.
CAUTION!
This is a Caution symbol.
Cautions give information about procedures that, if not observed, could result
in damage to equipment or corruption to and loss of data.
NOTE: This is a Note symbol. Notes give additional and important information, hints
and tips that help you to use your product.
1.2Installation
NO USER SERVICEABLE PARTS. REFER TO QUALIFIED SERVICE
PERSONNEL FOR SERVICE.
ZM303 Indicator User Instructions7
Page 8
General information and warnings
1.2.1Safe handling of equipment with batteries
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s instructions.
ATTENTION: Il y a danger d'explosion s'il y a remplacement incorrect de la
batterie, remplacer uniquement avec une batterie du même type ou d'un type
équivalent recommandé par le constructeur. Mettre au rebut les batteries
usagées conformément aux instructions du fabricant.
1.2.2Wet conditions
Under wet conditions, the plug must be connected to the final branch circuit via an
appropriate socket / receptacle designed for washdown use.
Installations within the USA should use a cover that meets NEMA 3R specifications
as required by the National Electrical Code under section 410-57. This allows the unit
to be plugged in with a rain tight cover fitted over the plug.
Installations within Europe must use a socket which provides a minimum of IP56
protection to the plug / cable assembly. Care must be taken to make sure that the
degree of protection provided by the socket is suitable for the environment.
1.3Routine maintenance
IMPORTANT: This equipment must be routinely checked for proper operation
and calibration.
Application and usage will determine the frequency of calibration required for
safe operation.
Always isolate the indicator from the power supply before starting any routine
maintenance to avoid the possibility of electric shock.
8ZM303 Indicator User Instructions
Page 9
1.4Cleaning the machine
Table 1.1 Cleaning DOs and DON’Ts
DODO NOT
1.4 Cleaning the machine
Wipe down the outside of standard products
with a clean cloth, moistened with water and
a small amount of mild detergent
Spray the cloth when using a proprietary
cleaning fluid
Attempt to clean the inside of the machine
Use harsh abrasives, solvents, scouring cleaners or
alkaline cleaning solutions
Spray any liquid directly on to the display windows
1.5Training
Do not attempt to operate or complete any procedure on a machine unless you have
received the appropriate training or read the instruction books.
To avoid the risk of RSI (Repetitive Strain Injury), place the machine on a surface which
is ergonomically satisfactory to the user. Take frequent breaks during prolonged usage.
1.6Sharp objects
Do not use sharp objects such as screwdrivers or long fingernails to operate the keys.
1.7FCC and EMC declarations of compliance
United States
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
Canada
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de
la Classe A prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada.
European Countries
WARNING: This is a Class A product. In a domestic environment, this product may cause radio interference in which the user may be
required to take adequate measures.
ZM303 Indicator User Instructions9
Page 10
General information and warnings

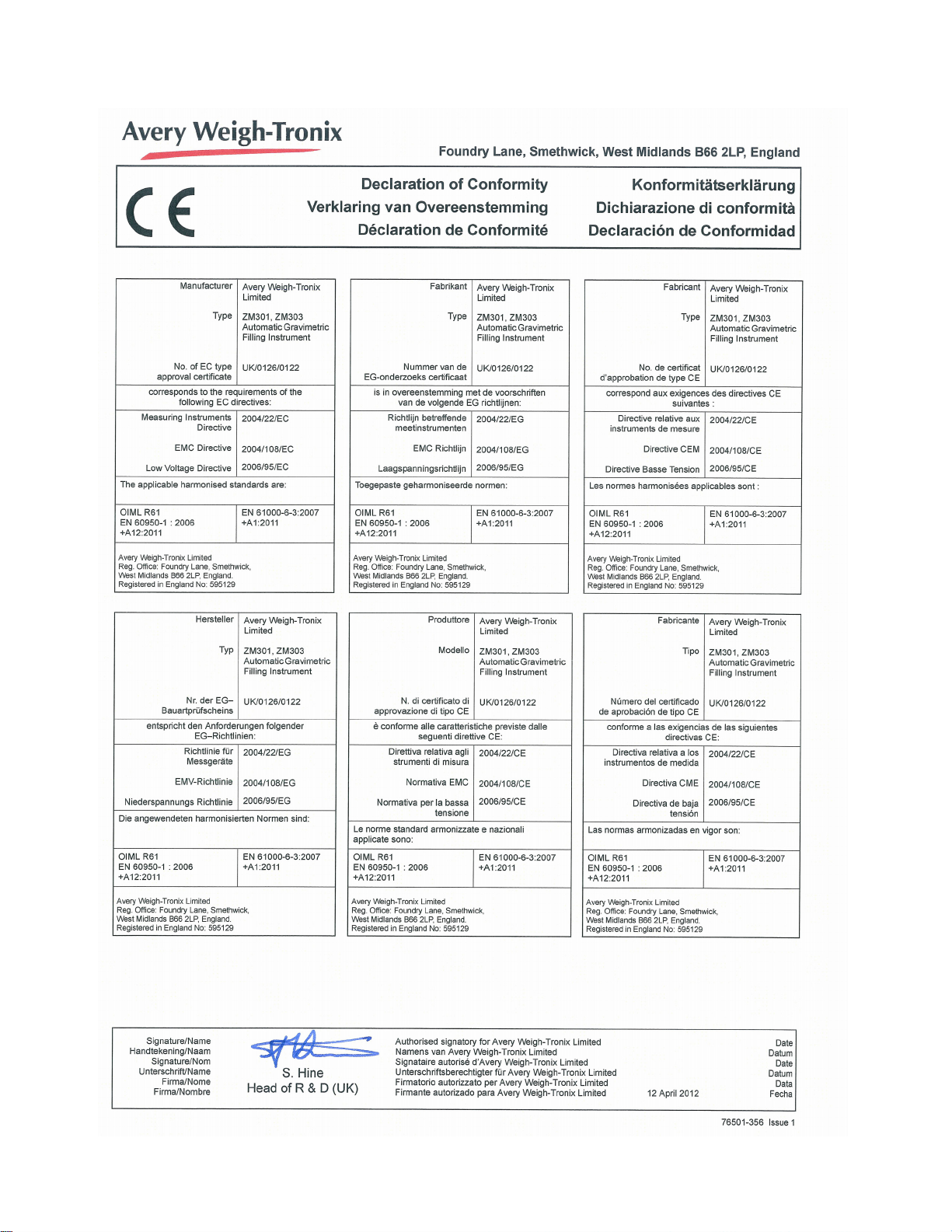

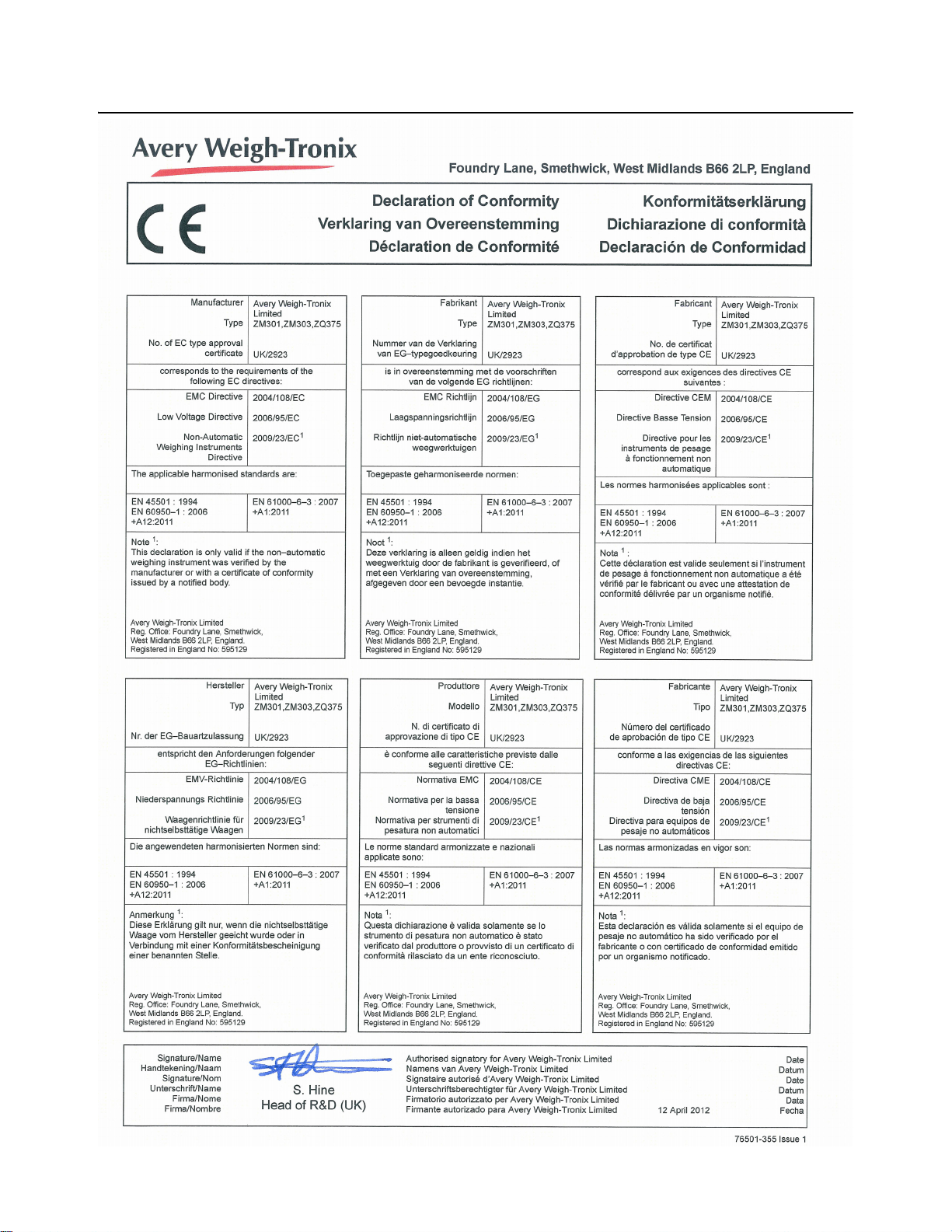

1.8Declarations of conformity
10ZM303 Indicator User Instructions
Page 11
1.8 Declarations of conformity
ZM303 Indicator User Instructions11
Page 12
Introduction
ID
TAR ESE LEC T
SAMPLE
UNITS
123
456
789
C0
ZM303
ZERO
PRINT
F1
START
SETUP
STOP
TAR GE T
GROSS
NET
TARE
COUNT
PRINT
SP1 SP2SP3
QTY
PT
oz
g
kg
lb
GROSS
NET
TARE
COUNT
PRINT
SP1 SP2SP3
QTY
PT
oz
g
kg
lb
2Introduction
The ZM303, shown in Figure 2.1, is an easy to use indicator for weighing with a numeric
keypad. The ZM303 comes in three housing types: stainless steel, aluminum desktop
and stainless steel panel mount. It comes with one of two display types for indoor or
outdoor use. The indicator has a USB port, two serial COM ports and an Ethernet port.
Available options are Analog Output, Current Loop/RS485/RS422, USB Device and
Wireless 802.11g internal module cards.
The indicator also has three logic level inputs with configurable functions and three
setpoint outputs. See the Specification literature for a full list of specifications.

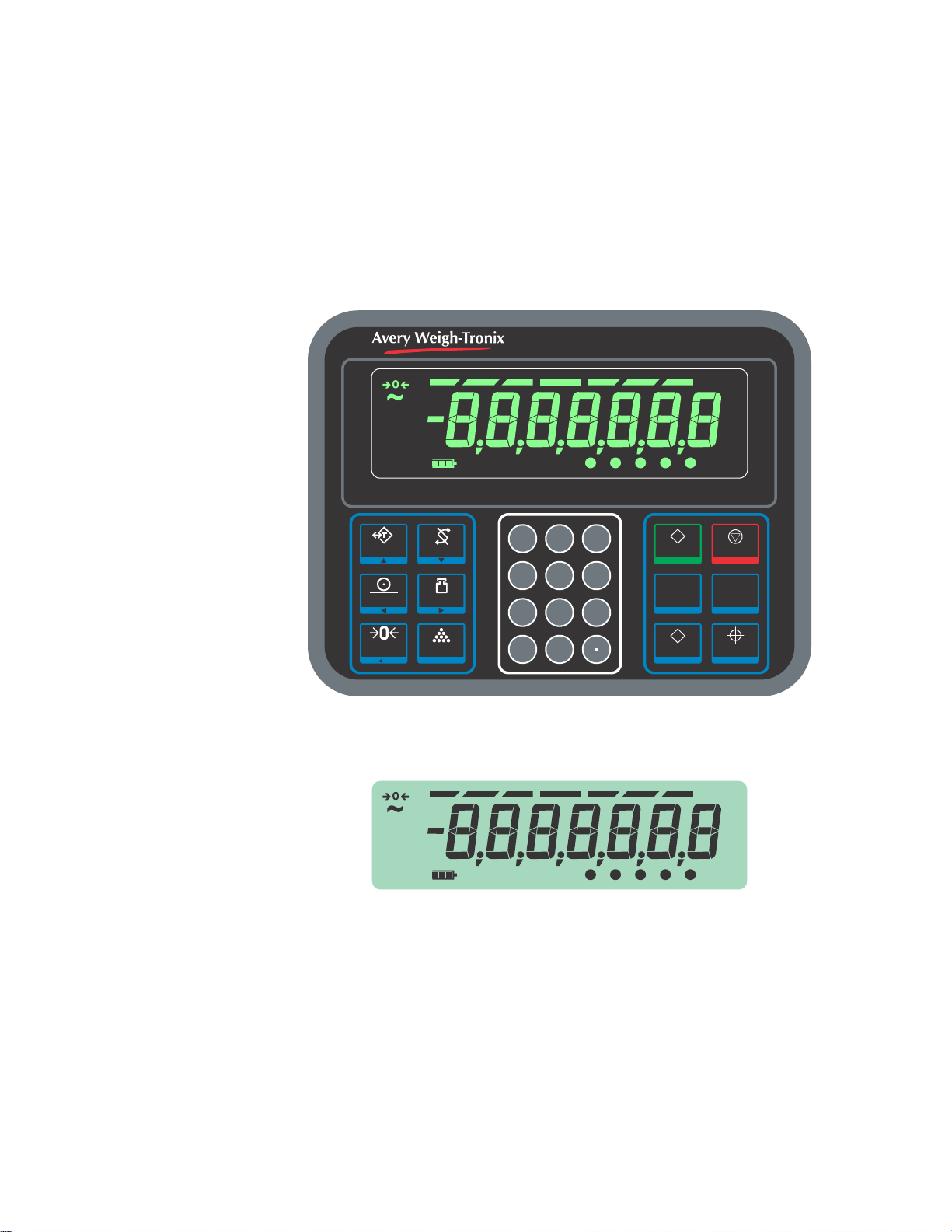

Figure 2.1 Front panel of the ZM303 indicator display
Figure 2.2 Outdoor display example
The ZM303 can connect to USB flash drives, printers, remote displays, computers and
other peripheral devices via USB, ethernet and serial connections.
12ZM303 Indicator User Instructions
Page 13
2.1Front panel
The front panel, shown in Figure 2.1, consists of the keys and display.
Never press a key with anything but your finger. Damage to the overlay may result if
sharp or rough objects are used.

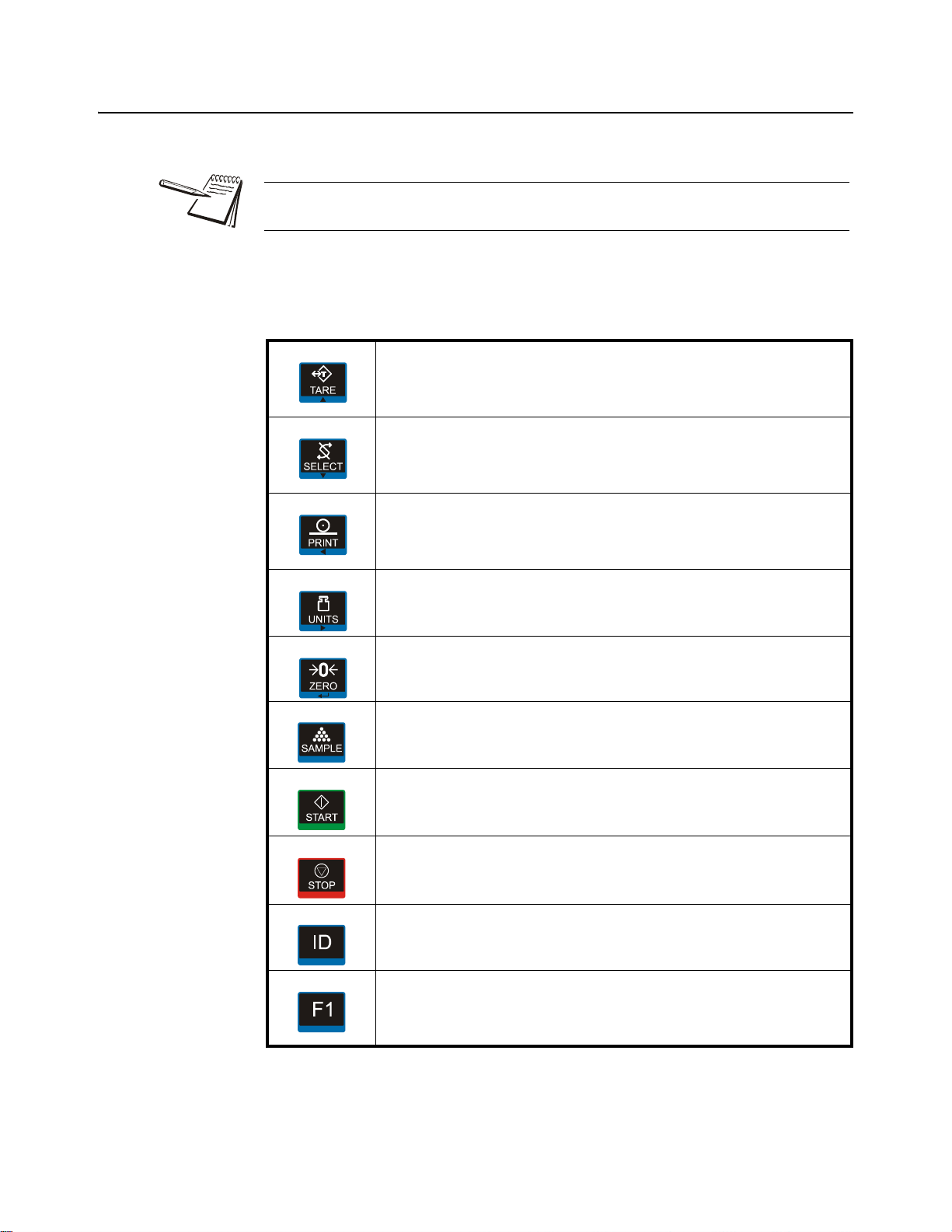

The normal function of the keys on the front panel are listed below. Some keys will have
special functions in certain applications. Details are provided in the individual
application sections.
2.1 Front panel
Press the TARE key to perform a tare function.
Also prompts for a keyboard tare, if enabled.
Acts as an up arrow key for menu navigation.
Allows you to access minus and comma signs.
Press the SELECT key to toggle between the active display values.
Press and hold to enter the setpoint editor.
Acts as a down arrow key for menu navigation.
Allows you to access minus and comma signs.
Press the PRINT to send information to a peripheral device through a configured
communications port.
Performs accumulator function, if enabled.
Acts as a left arrow key for menu navigation.
Press the UNITS key to scroll through the available units of measure while in
normal operating mode.
Acts as a right arrow key for menu navigation.
Press the ZERO key to zero the display.
Acts as an ENTER key to accept a displayed value or function.
Press the SAMPLE key to setup counting functions.
Press the START key to start or resume a batching specific action.
Press the STOP key to stop or pause a batching specific action.
Press ID to show the current ID value.
Press and hold ID to enter a new ID value.
Press the F1 key to select application specific choices.
Aborts a numeric entry and acts as an ESCAPE key in the menu navigation.
Also used to display or enter an accumulator channel.
Press and hold to view the password entry screen for menu access.
ZM303 Indicator User Instructions13
Page 14
Introduction
GROSS
NET
TARE
COUNT
PRINT
SP1SP2SP3
QTY
PT
oz
g
kg
lb
bargraph
center-of-zero
motion
Gross weight
Net weight
Tare weight
Print
Count
battery
setpoints
See Table 2.1
quantity
preset tare
units of
measure

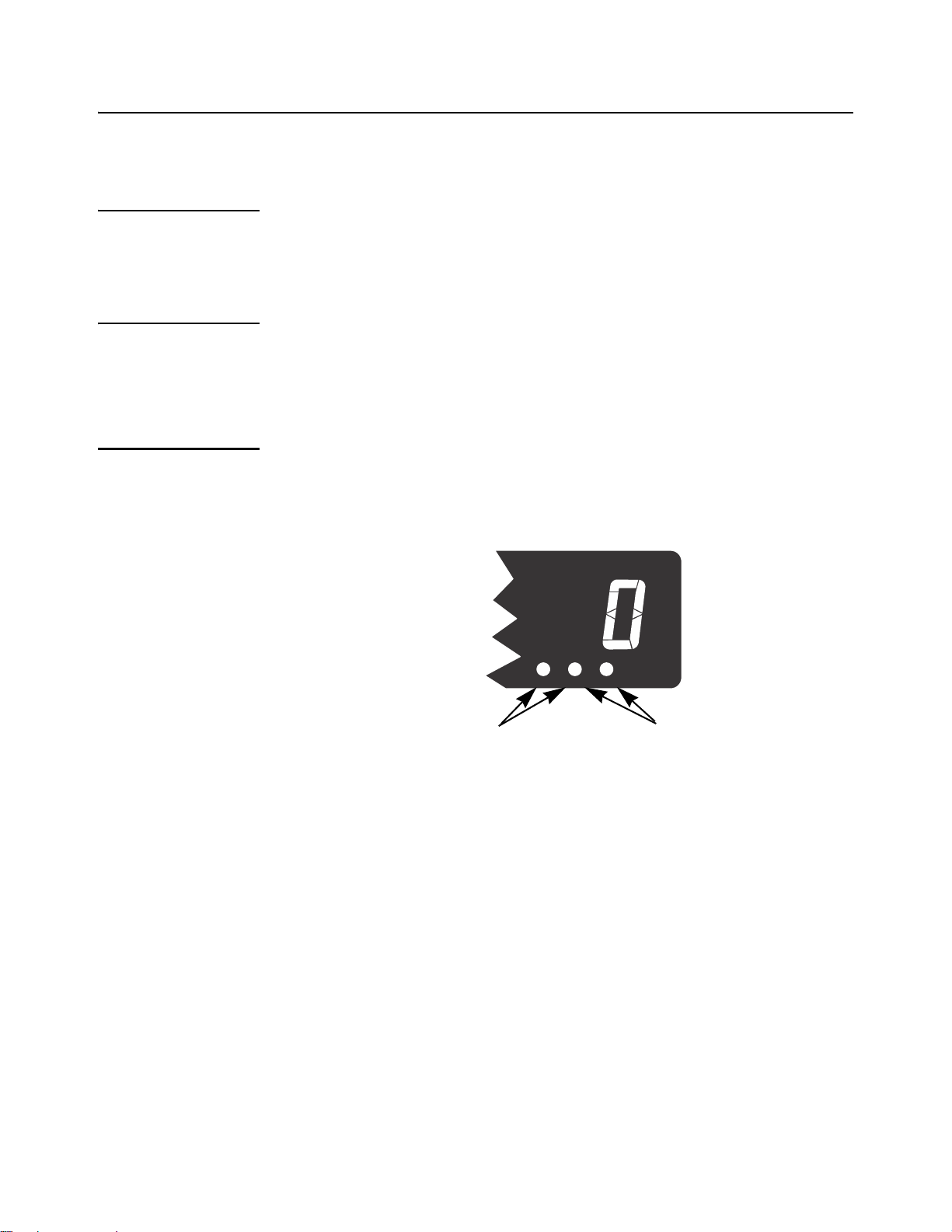

2.1.1Annunciators

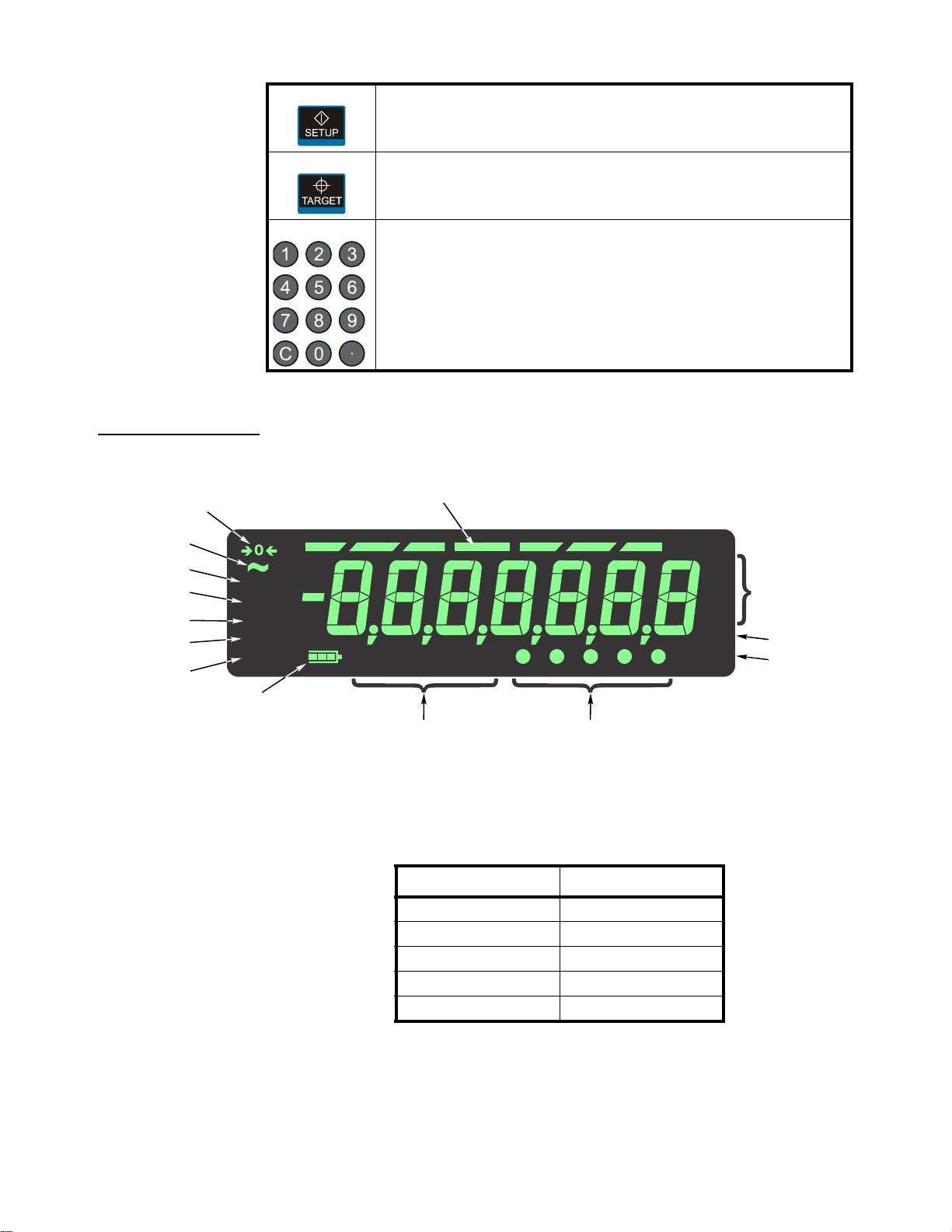

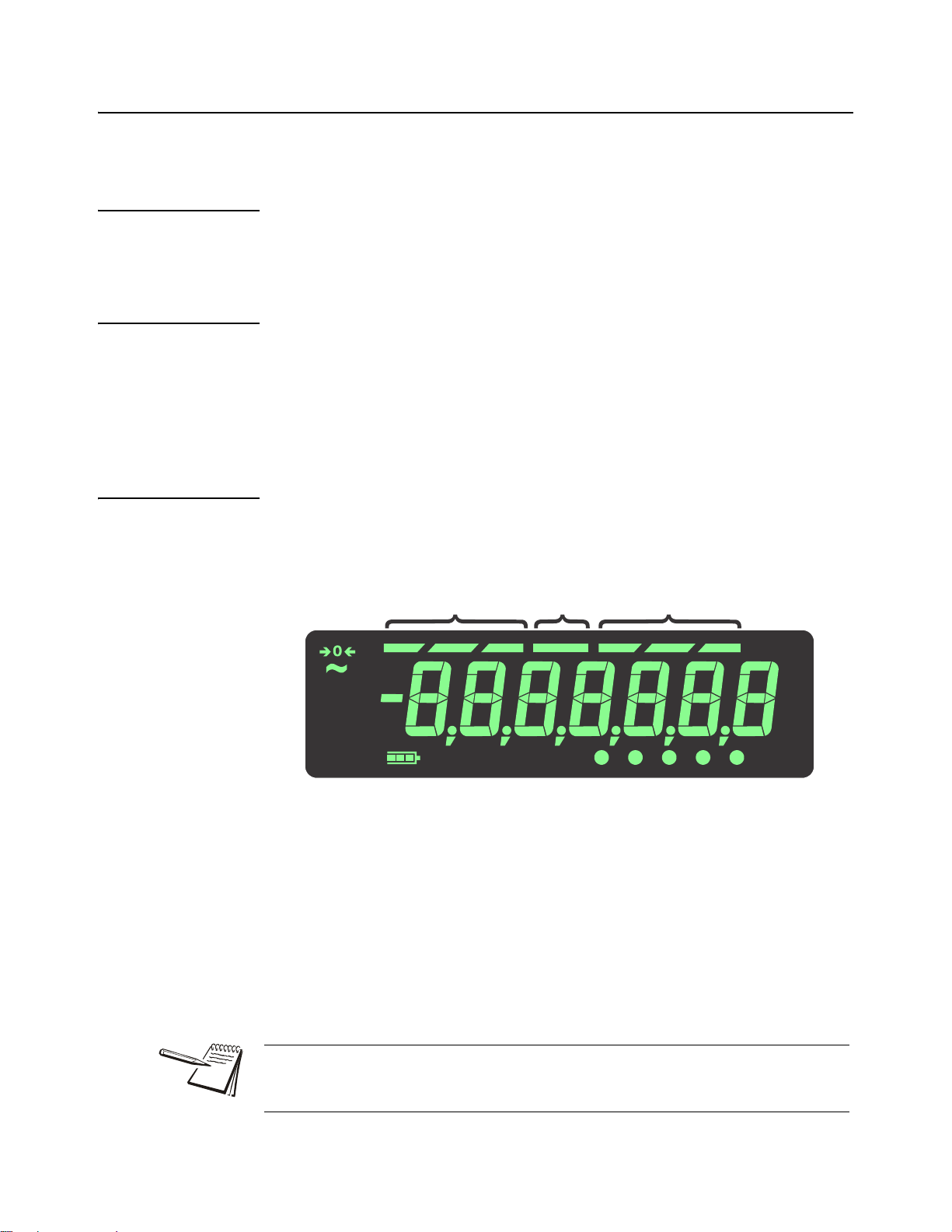

The annunciators on the display are shown and labeled in Figure 2.3.
Press the SETUP key to access the setpoint editor.
Press and hold to view the password entry screen for menu access.
Press the TARGET key setup checkweighing functions.
Use the numeric keypad to enter numbers in the appropriate screens.
Press the C (CLEAR) key to clear the last entry.
Figure 2.3 Annunciators
These annunciators will light during operation to inform the user of the weighing mode,
active unit of measure, etc.
Table 2.1 Circle Annunciator assignments
AnnunciatorIndicates
Circle 1 (left most)Network activity
Circle 2Custom unit
Circle 3Pieceweight
Circle 3 & 4Minimum
Circle 4 & 5Maximum
14ZM303 Indicator User Instructions
Page 15
2.2Powering up the ZM303
The indicator is always active as long as power is received. Power can be supplied by:
l AC power cord connected to a properly grounded outlet (100 VAC - 240 VAC,
50 or 60 Hz)
l ZM-BAT - Optional external non-charging battery pack with 4 D cells (12 hr
operation with one loadcell. 11 hr with four loadcells)
l AC to DC power converter. (12 to 36 VDC)
2.3Entering a negative number
To enter a negative number, press the C key to clear the current value from the display.
With only one digit displayed press SELECT. The first character will be the (-) negative
sign. Enter the rest of the digits normally.
2.2 Powering up the ZM303
ZM303 Indicator User Instructions15
Page 16
Indicator applications
3Indicator applications
This indicator has several weighing applications that can be enabled through a
password protected menu. Only one application can be enabled at a time. The
applications available are:
l General Weighing(explained on page 16)
l Accumulator(explained on page 21)
l Parts Counting(explained on page 23)
l Checkweighing(explained on page 26)
l Batching(explained on page 29)
l Peak Hold(explained on page 32)
l Remote Display(explained on page 33)
The indicator comes with the default application called General Weighing active.
3.1General weighing application
This section applies if the General Weighing application is active. Features described
here also apply to the other applications except where noted in those application
instructions.
3.1.1SELECT key default function

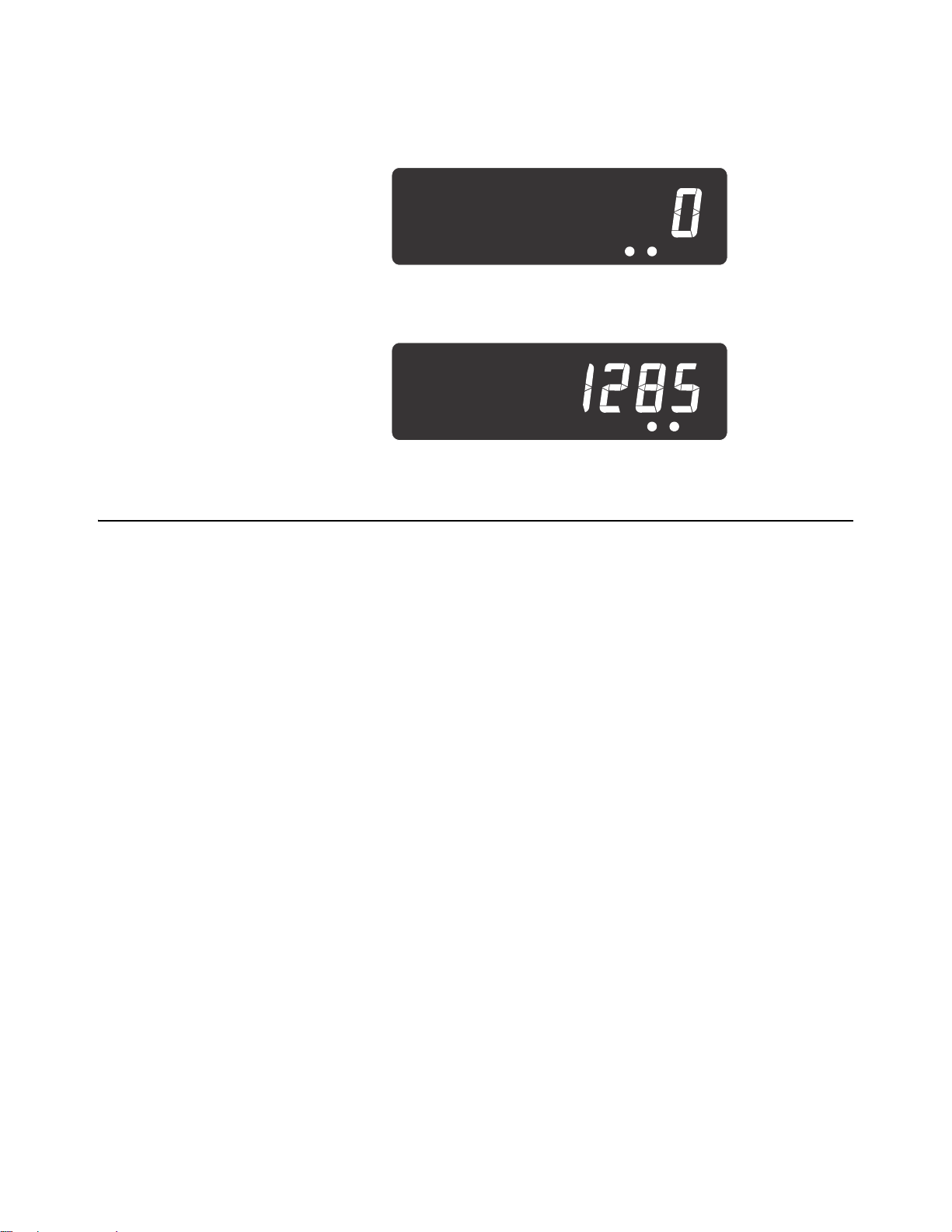

In the General Weighing application you can view the gross, net and tare display values
by repeatedly pressing SELECT.
3.1.2Gross weighing
To change unit of measure, press UNITS.
To perform gross weighing, power up the unit and follow these steps:
1.Empty the scale and press ZERO to zero the display …
0 is displayed and the center-of-zero annunciator lights.
2.Place item to be weighed on the scale …
Weight is displayed.
3.Repeat steps 1 and 2.
16ZM303 Indicator User Instructions
Page 17
3.1.3Net weighing
Net weighing is available via three types of tare entry.
Pushbutton tareWhen enabled press TARE to tare the weight on the scale.
Entered tareWhen enabled key in a tare weight and press TARE to set.
Preset tareWhen enabled press TARE to recall a preset tare numbered 1-10.
Pushbutton and Entered Tares can be enabled simultaneously. If Preset Tare is
enabled, Pushbutton and Entered Tares are automatically disabled.
There is an auto tare clear feature. If this is enabled, after a weighment, when the
weight falls into the gross zero band, tare is cleared to zero.
Definition: Gross zero band - this is a configured value that defines a window around
gross zero. This is used in several ways in different applications.
3.1 General weighing application
The three types of tare are explained below.
Using Pushbutton Tare
To perform a net weighment using pushbutton tare, power up the unit and follow these
steps:
1.With no weight on the scale, if the display does not read 0 press ZERO …
0 is displayed and the center-of-zero annunciator lights.
2.Place item to be tared on the scale …
Weight is displayed.
3.Press TARE …
0 is displayed and the NET annunciator lights.
4.Place material to be weighed into or on the tared item on the scale …
Net weight of material is displayed.
5.Repeatedly press SELECT to view the gross, tare, and net values.
6.If repeated weighments use the same tared item, you do not need to establish
a new tare value as described in step 2 and 3.
If gross weight is not at 0, press the ZERO key; then press the TAR E key to clear the
tare value.
ZM303 Indicator User Instructions17
Page 18
Indicator applications
Using Entered Tare
To perform a net weighment using entered tare, the following steps describe a typical
operation:
1.With no weight on the scale, if the display does not read 0 press ZERO …
0 is displayed and the center-of-zero annunciator lights.
2.Key in the tare value of the container or box that will be used to hold the
material that requires a net weight value, and press TARE …
Tare weight is displayed as a negative value and the NET annunciator
lights.
3.Place the container or box and material to be weighed on the scale …
Net weight of material is displayed.
4.If repeated weighments use the same tared item, you do not need to establish
a new tare value as described in step 2.
5.To remove the tare weight from the scale, enter 0, then press TARE …
The tare is cleared and the scale is in gross weigh mode.
Using Preset Tare
Preset tares are entered in a password protected menu. There can be up to 10 tares
numbered 1-10. To perform a net weighment using one of the preset tares, follow these
steps:
1.With no weight on the scale, if the display does not read 0 press ZERO …
0 is displayed and the center-of-zero annunciator lights.
2.Press TARE …
Tare number entry screen appears.
3.Key in the preset tare number and press ZERO …
Tare weight is displayed as a negative value and the NET annunciator
lights.
4.Place container or box and material to be weighed on the scale …
Net weight of material is displayed.
5.Repeat step 4 until you are finished using that tare weight.
Tare is removed automatically if Auto Tare Clear is enabled. To remove the tare
weight manually, select a preset tare register that has a value of 0 for the tare.
If the active unit of measure is lb-oz then tare weights must be entered in the oz
equivalent. To enter 2 lb 4.5 oz you would need to enter 36.5 oz (2 lb = 32 oz plus the
4.5)
18ZM303 Indicator User Instructions
Page 19
3.1.4Using setpoints
out1
out2
out3
Setpnt
Key
in
setpoint
Key
in
setpoint
Key
in
setpoint
Press SETUP
Setpoints are values (weight) at which outputs are triggered automatically. Outputs can
control relays connected to valves, lights, other machinery, etc. Setpoint outputs can
be configured in the setpoint menu shown in Figure 3.1.
See the note below for an overview of how setpoints function.
Default Setpoint operation
Outputs must be enabled for setpoints to operate. See the Service Manual:
3.1 General weighing application
Figure 3.1 Setpoint menu
Below Configured Value:
Outputs are OFF
Annunciators are OFF
Above Configured Value:
Outputs are ON
Annunciators are ON
The setpoint outputs and setpoint annunciators logic state can be inverted
from their default settings to be ON when below and OFF when above the
configured value. Refer to details in the password protected menu settings in
the section titled Setpoint on page 49.
The annunciator and output will turn on when weight goes above the setpoint for that
output and will remain on until the weight falls below the setpoint.
Follow these steps to configure the outputs:
1.With the indicator powered up, press SETUP …
SEtPnt is displayed. Refer to the Setpoint menu, shown in Figure 3.1
while following the steps below
2.Press SELECT …
out1 is displayed.
3.Press SELECT …
Current value is displayed with the last digit flashing.
4a.Key in a value and press ZERO to accept the value …
out1 is displayed.
ZM303 Indicator User Instructions19
Page 20
Indicator applications
3.1.5Printing
OR
4b.Press UNITS to select the next output …
out2 is displayed.
5.Repeat steps 3 - 4b for each output.
6.Press F1 twice to return to normal weighing mode with the setpoints active.
To print the current weight information, press PRINT. The configured print format will be
output through the configured port to the connected peripheral device. The indicator
can be configured to only allow one print for each weighing sequence. If PRINT is
pressed when so configured, the message cAnt will appear.
Refer to Default print formats on page 45.
Printing any of the configured print formats is possible using the Numbered Print
feature. Enter the print format number and then press the PRINT key. The selected
print format will be transmitted out all ports that are configured to print.
3.1.6ID Entry
An ID can be entered for use with transmitted or printed transactions. Press and hold
the ID key and the message id is displayed followed by the current ID value. Enter up
to seven digits (numeric only) and press ZERO. To review press the ID key and the
active ID will be displayed for a few seconds before returning to normal operation.
20ZM303 Indicator User Instructions
Page 21
3.2Accumulator application
This section applies if the Accumulator application is active.
3.2.1SELECT key default function
In the Accumulator application you can view the Gross, Net, Tare, Gross Total, Net
Total and Transaction Count display values by repeatedly pressing SELECT.
When the Gross Total is displayed, both the GROSS and QTY annunciators will be lit.
When the Net Total is displayed, both the NET and QTY annunciators will be lit. When
the Transaction Count is displayed, the QTY annunciator is lit.
3.2.2Special key functions
The following key has an extra function in this application:
F1Press F1 and the active accumulator channel (chAn X) appears. Scroll
through the list of channels (chAn 1 - chAn 10), using PRINT or UNITS.
Press ZERO to activate that channel.
3.2 Accumulator application
3.2.3Accumulator operation
The accumulator application can be used to record totals of individual weighments.
Follow these steps:
1.Press ZERO to zero the scale, if necessary …
0 is displayed.
2.Place item on the scale …
Weight is displayed.
You can use gross or net weighing with the accumulator application as it stores both
gross and net totals. You have 10 accumulator channels that can be used to store
totals for up to 10 separate products.
F1 accesses the different channels for accumulating data. Pushbutton tare is
available for the current channel.
Each accumulator channel has it's own individual gross, tare and net totals,
transaction counter and an ID, if entered.
Press SELECT to toggle through the current values. When annunciators QTY &
GROSS are lit, this indicates the total for the gross value. When annunciators QTY &
NET are lit this indicates the total for the net value. When annunciators QTY & TARE
are lit this indicates the total for the tare value. When QTY only is lit this is the current
number of transactions.
ZM303 Indicator User Instructions21
Page 22
Indicator applications
3.Press PRINT to add weight to the accumulator and to print the selected print
format …
The PRINT annunciator lights briefly.
4.Remove weight from the scale. Weight must return to inside the gross zero
band before another print and accumulation can be recorded.
5.Repeat steps 2 through 4 for each weighment you want to accumulate.
If enabled, press and hold PRINT for three seconds to print and/or clear the active
accumulator values. These functions are enabled or disabled in a password protected
menu.
22ZM303 Indicator User Instructions
Page 23
3.3Counting application
This section applies if Counting is active.
3.3.1SELECT key default function
In the Counting application you can view the gross, net, tare, count and piece weight
display values by repeatedly pressing SELECT.
3.3.2Special key functions
The following keys have an extra function in this application:
SAMPLEPress SAMPLE to perform the sample operation as described below in the
Dribble and Bulk sections.
Press and hold SAMPLE to perform the piece weight entry as described
below.
F1F1 works the same as the SAMPLE key when pressed.
3.3 Counting application
3.3.3Sample operation
There are two types of sampling to select from; bulk and dribble. Either type is
selectable under a password protected menu.
Dribble sampling In this sampling method you can count out the specified number
Bulk samplingIn this sampling method you place the specified number of items
Each method is described below.
3.3.4Dribble sampling
With the dribble sampling method active, follow these steps to count.
1.Press ZERO to zero the scale, if necessary.
2.Use a tare method to tare a container, if necessary. See Net weighing on page
17.
of items onto the scale and when you are ready, press the
SAMPLE or F1 key and the scale starts to calculate piece weight
and then shows the count.
on the scale all at once (in bulk) and the scale automatically starts
to calculate piece weight and then shows the count. This is the
default sampling method.
3.Press SAMPLE or F1 …
ZEroing is briefly displayed. This means the indicator is zeroing itself.
A numeric value (XX) is then displayed. This is the current sample size.
4a.Accept the current sample size by pressing ZERO
OR
ZM303 Indicator User Instructions23
Page 24
Indicator applications
4b.Enter a new sample size and press ZERO …
Add is displayed. Count the number of sample items onto the scale and
when ready press SAMPLE or F1 …
buSY is briefly displayed, followed by one of two possible outcomes:
a. If the sample met the minimum sample requirements and the weight is
stable, the display will show the correct number of parts on the scale
and COUNT is lit.
bIf the sample size was not large enough or if the weight was unstable,
Abort is briefly displayed and the display returns to gross weighing
mode. Repeat steps 3 through 5 using a larger sample size.
Minimum sample weight is the gross zero band value. The initial sample count is 5
pieces. The maximum number of pieces that can be sampled is 100,000.
5.Place the parts on the scale to be counted. To accumulate the count and
number of transactions, press PRINT while in count mode.
6.If enabled, press and hold PRINT for three seconds to print and/or clear the
active count total. These functions are enabled or disabled in a password
protected menu.
3.3.5Bulk sampling
With the counting application and the bulk sampling method active, follow these steps
to count.
1.Press ZERO to zero the scale, if necessary.
2.Use a tare method to tare a container, if necessary. SeeNet weighing on page
3.Press SAMPLE or F1 …
4a.Accept the current sample size by pressing ZERO
OR
4b.Enter a new sample size and press ZERO …
5.Place the correct number of samples on the scale all at the same time.
17.
ZEroing is briefly displayed. This shows the indicator is zeroing itself. A
numeric value (XX) is then displayed. This is the current sample size.
Add is then displayed.
buSY is briefly displayed, followed by one of two possible outcomes:
a. If the sample met the minimum sample requirements and the weight is
stable, the display will show the correct number of parts on the scale
and COUNT is lit.
24ZM303 Indicator User Instructions
Page 25
Minimum sample weight is the gross zero band value. The initial sample count is 5
pieces. The maximum number of pieces that can be sampled is 100,000.
6.Place the parts on the scale to be counted. To accumulate the count and
number of transactions, press PRINT while in count mode.
7.If enabled, press and hold PRINT for three seconds to print and/or clear the
active count total. These functions are enabled or disabled in a password
protected menu.
3.3.6Piece weight entry
Piece weight can be entered manually.
1.Press and hold SAMPLE.
3.3 Counting application
bIf the sample size was not large enough or if the weight was unstable,
Abort is displayed and the display returns to gross weighing mode.
Repeat steps 3 through 5 using a larger sample size.
The current piece weight is displayed.
2.Key in a new value and press ZERO to accept.
ZM303 Indicator User Instructions25
Page 26
Indicator applications
GROSS
NET
TARE
COUNT
PRINT
SP1SP2SP3
QTY
PT
oz
g
kg
lb
Under
target weight
Over
target weight
On
target
3.4Checkweighing application
This section applies if your indicator has the Checkweighing application enabled.
3.4.1SELECT key default function
In the Checkweighing application you can view the gross, net and tare display values
by repeatedly pressing SELECT.
3.4.2Special key functions
The following keys have an extra function in this application:
TARGETPress TARGET to set the target weight or upper and lower limits, as
described below.
F1F1 works the same as the TARGET key when pressed.
3.4.3Checkweigh operation
Checkweighing allows a quick, visual check of the acceptability or unacceptability of an
item’s weight. Figure 3.2 shows the checkweighing bargraph at the top of the display.
Figure 3.2 Checkweighing bargraph
There are two ways to set a target weight:
l Weigh the target object - If you use this method the acceptable weight will
be the actual weight of the target sample ± a predefined range (default is ±1
division).
l Key in upper and lower weight limits - If you use this method the
acceptable weight is any weight which falls between the upper and lower
limits.
Each of these is explained below.
The checkweighing annunciators are based off of net weight so if a tare is active only
the net weight is considered for checkweighing. If there is no tare, gross weight is
used as the basis for the annunciators.
26ZM303 Indicator User Instructions
Page 27
3.4.4Weighing a target object
With the indicator in checkweighing mode, follow these steps to set a target by
weighing an object.
1.Press ZERO to zero the scale, if necessary.
2.Enter a tare if necessary. Refer to Net weighing on page 17 for instructions.
3.Place an object of the desired weight on the scale and press TARGET …
The weight is displayed and the middle bargraph segment lights as well
as the SP2 annunciator.
The acceptable target window is a range from Target Object weight ± a predefined
range entered in a password protected menu.
The farther the weight is from the target weight, more over or under bargraph
segments will light. The UNDER and OVER bargraph segments are fixed at 1 division
each.
4.Remove the object and replace with the next object to be checked.
3.4 Checkweighing application
The bargraph will show if the weight is under, over or within the target
weight range. If the weight is under, SP1 annunciator and the UNDER
bar segments will light. If the weight is over, SP3 annunciator and the
OVER bar segments will light.
5.Repeat step 4 until you are finished weighing items.
The current target weight will be active until you repeat steps 1 through 3 with a new
item of a different weight.
3.4.5Setting upper and lower limits
With the indicator in checkweighing mode, follow these steps to set a target by setting
upper and lower limits.
1.Press ZERO to zero the scale, if necessary.
2.Enter a tare if necessary. Refer to Net weighing on page 17 for instructions.
3.With weight inside the gross zero band, press TARGET …
Lo will be displayed briefly and then the current value for the lower
accept weight.
4.Press ZERO to accept this or key in a new lower accept weight and press
ZERO …
Hi is briefly displayed and then the current value for the upper accept
weight.
5.Press ZERO to accept this or key in a new upper accept weight and press
ZERO …
The display returns to normal weighing mode.
ZM303 Indicator User Instructions27
Page 28
Indicator applications
6.Place a weight on the scale …
If the weight is below the lower accept weight, the left bargraph
segments will light.
Any weight between the lower and upper acceptable weights will cause
the middle bargraph segment to light to show the weight is within the
target range.
If the weight is above the upper acceptable weight, the right bargraph
segments will light.
7.Remove the item from the scale and repeat step 6 to check other items.
8.To set new upper and lower limits, repeat steps 1 through 5.
3.4.6Setpoint operation in the checkweighing application
Inside the Gross Zero Band = All outputs and annunciators are off.
Under Target or Below Low Accept Weight = SP1 annunciator and Output 1 are on.
Inside Target = SP2 annunciator and Output 2 are on.
Over Target or Above Upper Accept Weight = SP3 annunciator and Output 3 are on.
Outputs have to be enabled (see Service manual).
Contact AWTX technical support for information about setpoint use with battery
operated scales.
Outputs can be set as latched or unlatched in a password protected menu.
If outputs are unlatchedThe annunciators and outputs follow the status of
the bargraph except in gross zero band.
If outputs are latchedThe annunciators’ and outputs’ status is
determined by where the first stable weight
occurs after an item is placed on the scale. The
latched annunciator and output is reset OFF only
when weight returns inside the gross zero band.
28ZM303 Indicator User Instructions
Page 29
3.5Batching application
out1
out2out3
Setpnt
Preact1
Preact2
Preact3
Press SETUP
Key in
setpoint
value
Key in
setpoint
value
Key in
setpoint
value
Key in
preact
value
Key in
preact
value
Key in
preact
value
This section applies if your indicator has the Batching application active.
3.5.1SELECT key default function
In the Batching application you can view the gross, net and tare display values by
repeatedly pressing SELECT.
3.5.2Special key functions
The following keys have an extra function in this application:
STARTPress START to start or resume a batch operation.
STOPPress STOP to pause a batch operation.
Press STOP a second time in succesion to abort the batch operation.
F1 F1 acts as a START and a STOP key on successive presses.
3.5 Batching application
The Batch application has added selections for Preact values (1-3) in the Setpoint
menu, shown below:
Setpoint or Preact values can be either positive or negative, up to or equal to scale
capacity. See Entering a negative number on page 15 on how to enter negative values.
PREACT definition - A preact is the amount of material in free fall.
For example: You would like 1000 lbs of material added to a scale but when the
supply valve closes you always end up with a final weight that is 120 lbs over the
desired amount.
To correct this, set a preact of 120 lbs. This causes the setpoint controlling the
material to stop sooner and allows the material in free fall to be accounted for in the
final weight.
In Discharge or Negative fill applications using manual preact, the preact weight will
typically be entered as a negative value.
ZM303 Indicator User Instructions29
Page 30
Indicator applications
3.5.3Batching operation
Batching allows the indicator to control up to three motors, timers, augers, gates, etc.
using the three outputs for the purpose of making batches based on weight.
There are four types of batching operation:
l 2-speed single ingredient
l Ingredient filling (up to three ingredients)
l Independent setpoints filling
l Fill/discharge operation
Other parameters, that are set in a password protected menu, affect the batching
operation.
The bargraph will sequentially light up to show from 0 to 100% of the batch weight in
all types of batching except the independent setpoints.
3.5.42-Speed filling
2-Speed is for a single ingredient with a dual speed filling control (Fast/Slow), typically
a valve or hopper gate that can be full open, partially open or closed. When the fill starts
both SP1 and SP2 are turned on (outputs activated) which should set the dual speed
control to full open (Fast speed). When the Out 1 value is reached SP1 and Output 1
are turned off and this should set the dual speed control to partial open condition (Slow
speed). When Out 2 value is reached SP2 and Output 2 are turned off to close the
control device and complete the fill.
1.Press SETUP or press and hold SELECT to access the setpoint editor.
2.Set Out1 to the fast fill value and Out 2 to the slow fill value.
Example: To fill a product to 100 lb with the last 5 lb on slow fill: Out 1 should be set to
95 and Out 2 should be set to 100.
3.To start or restart the 2-speed filling process, press START or F1.
4.To stop the filling process, press STOP or F1. (F1 toggles the process on and
off.)
3.5.5Ingredient filling
Ingredient filling is for batching up to 3 different ingredients controlled by Out 1, 2 and
3 values. If Out 2 value is 0 then it operates as a single ingredient filler. If Out 3 value
is 0 then it operates as 2 ingredient batcher.
1.Press SETUP or press and hold SELECT to access the setpoint editor.
2.Set Out1 to the ingredient 1 value, Out 2 to the ingredient 2 value and Out 3 to
the ingredient 3 value. See more details on Gross or Net weight batching in
Notes on batching on page 69.
3.To start or restart the batching process, press START or F1.
30ZM303 Indicator User Instructions
Page 31
4.To stop the batching process, press STOP or F1. (F1 toggles the process on
and off.)
3.5.6Independent setpoints
Independent Setpoint works like the general weighing mode setpoints with the addition
of start/stop controls. You can also do negative weight/discharge using this mode.
1.Press SETUP or press and hold SELECT to access the setpoint editor.
2.Set Out1, Out 2 and Out 3 values.
3.To start or restart the setpoints, press START or F1.
4.To stop the process, press STOP or F1. (F1 toggles the process on and off.)
3.5.7Fill/Discharge
Fill/Discharge mode is typically used for applications that use negative filling to
dispense a smaller amount of product from a large vessel, tank or hopper type scale.
The vessel (tank or hopper) is filled to a set gross weight and then multiple operations
of filling via negative amount of weight into bags or containers can be completed before
the vessel (tank or hopper) requires a recharge or refill.
3.5 Batching application
FillOut 1 is assigned as the gross fill amount for the vessel (tank or
hopper) and START or F1 key starts the fill. The fill is based only
on gross weight. If you have Out 1 set to 2000 and the scale
already has 500 lb remaining, the Output 1 will cutoff (and
annunciator SP1 turns off) when the additional 1500 is added for
a total gross of 2000 lb.
DischargeOut 2 is assigned as the discharge fill amount (negative weight)
with the TARE key used to initiate the discharge cycle. The scale
will tare prior to activating Output 2 (SP2 annunciator will light). An
operator can perform multiple discharge operations. When the
vessel gross weight is low, perform a refill.
1.Press SETUP or press and hold SELECT to access the setpoint editor.
2.Set Out1 to the gross fill weight in the vessel or container. Set Out 2 to the
weight of the product to be discharged into smaller bags or containers.
3.To start or restart the large vessel fill process, press START or F1.
4.To stop the large vessel filling process, press STOP or F1.
5.Press TARE to start the bag filling process.
6.To stop bag filling process, press STOP or TARE.
ZM303 Indicator User Instructions31
Page 32
Indicator applications
lb
These two
annunciators light
for minimum weight
These two
annunciators light
for maximum weight
3.6Peak hold application
This section applies if your indicator has the Peak Hold application active.
3.6.1SELECT key default function
In the Peak Hold application you can view the gross, max and min display values by
repeatedly pressing SELECT.
3.6.2Special key functions
The following key has an extra function in this application:
F1F1 resets the min and max peak weights to the current gross weight.
3.6.3Peak hold operation
Only the highest weight applied to the scale is displayed when the peak weight value
is selected to be displayed. Minimum weight is designated by a pair of green circle
annunciators. Maximum weight is designated by a different pair of green circle
annunciators. See Figure 3.3.
32ZM303 Indicator User Instructions
Figure 3.3 Min/Max annunciators
With the Peak application active, follow these steps to perform and view peak
weighments.
1.Repeatedly press SELECT until the two green circle annunciators on the right
light up. See Figure 3.3. This means you are now viewing the peak or maximum
weight.
2.With no weight on the scale, press ZERO, if necessary press F1 to reset any
previous peak value on the display.
3.Place weight on the scale and then remove it …
The display will show the peak weight recorded during the weighment.
4.To reset the peak, press F1 …
The minimum and maximums are reset to the current gross weight.
Page 33
3.7 Remote display application
lb
lb
5.Repeat the steps to perform another peak weighment.
Below is an example of the minimum weight display. Note the pair of circle annunciators
that are lit.
Below is an example of the maximum weight display. Note that a different pair of circle
annunciators are now lit.
3.7Remote display application
This section applies if you have the Remote Display application active.
The indicator can be configured to work as a remote display with other compatible
indicators or the GSE 350/355IS.
To use a ZM indicator to operate as a Remote display for a Primary indicator you must
configure settings in the Supervisor menu and in a separate password protected menu.
A remote indicator will display the same information as the primary indicator and
pressing the main function keys (Tare, Select, Zero, Print, and Units) on the remote will
function as if they were pressed on the primary indicator.
If the Remote indicator is connected to a GSE 35xIS Primary indicator, then additional
features and options may be available for use from the remote such as setpoints,
remote inputs, Com port communication forwarding to local devices and analog output
option.
Contact your local Avery Weigh-Tronix representative for information on setting up the
ZM indicator as a Remote or Primary indicator.
ZM303 Indicator User Instructions33
Page 34
Menus
Press SELECT/ to move down in a menu
Press TARE/ to move up in a menu, except at the
bottom item in a menu, then use ZERO/ or F1
Press PRINT/ to move left in a menu
Press UNITS/ to move right in a menu
Press ZERO/ to accept a value or choice and
move up in the menu.
Press F1 to escape and move up in the menu
4Menus
Password protected menus are available to configure the indicator and/or view
information.
4.1Accessing the menus
Follow these steps to access the menus in the ZM303.
1.With the indicator powered up and in normal operating mode, press and hold
F1 …
Pass is displayed, prompting you to enter the password.
2.Key in the password for the menu you want and press the ZERO key …
The first item in the top level of the menu you accessed is displayed.
3.Use the navigation keys, shown below, to navigate through the menu
structure. The symbols in the chart appear on the bottom of the keys.
4.2Menu annunciators
The menu structure is made up of menu items, parameters, value entry screens and
lists from which you choose one item. To help you know where you are in the menu,
the bargraph at the top of the display is on while the indicator is in the menus and will
change appearance according to the following rules:
All segments flashingThis means you are in the menu structure but not
Center flashing / others solidThis means you are in a parameter prompt
Center flashing / others offThis means you are in a numeric entry screen.
34ZM303 Indicator User Instructions
Right flashing / others offThis means you are in a list. Scroll through the
in any of the following screens.
screen.
Enter a number and press ZERO to accept.
choices with the PRINT and UNITS keys and
press ZERO to accept.
Page 35
4.3Exiting the menus
UserAboutAudit
See
page 36
See
page 39
See
page 43
Normal
Weighing Mode
Press and
hold F1 key
Enter 111
& press ZERO
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
1.If you are at the bottom item in a menu use ZERO to accept a choice or value
and move up a level, or use F1 to escape and move up one level without
accepting the choice or value. From that point, press TARE repeatedly until …
SAVE no is displayed. This means “Do not save changes.“
2.Press UNITS to scroll through the choices: SAVE no, SAVEYES and CAnCEL.
Press ZERO to accept the displayed choice.
If you choose SAVE no or SAVEYES the indicator exits the menu and
returns to normal weighing mode.
OR
If you choose CAnCEL, the indicator remains in the menu.
4.4USER level menus
The USER level menus are available to the user. The other menu levels are for
supervisors and technicians only.
4.3 Exiting the menus
The USER level (password 111) contains the User, About, and Audit menus arranged
as shown in Figure 4.1.

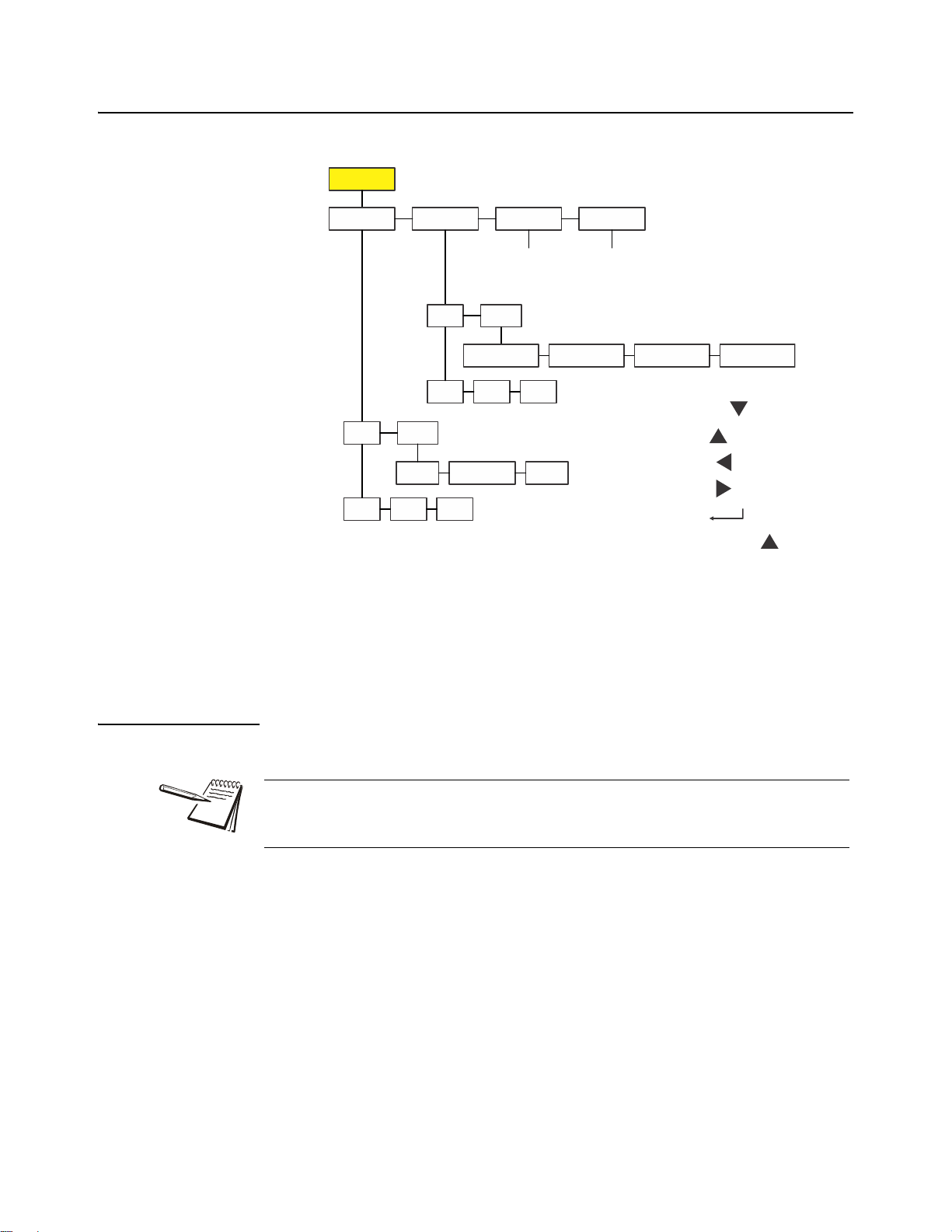

Figure 4.1 USER level (password 111) menus
ZM303 Indicator User Instructions35
Page 36
Menus
User
Site ID
Seal
Time
Date
Set
Style
h-m-s-
12hr12hr-AP24hr
Set
Style
y-m-d-
MMDD4YMMDD2YDDMM2Y
DDMM4Y
Enter
Site ID
View
Seal
Status
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
4.5User menu
The User menu is shown in Figure 4.2.
4.5.1Time
User Time
Figure 4.2 User menu
Use this menu to set the time and date, to enter a site ID, and view the physical seal
status. Each is explained below:
The and symbols used in this section stand for direction moved in the menu. So
User Time, shown above, illustrates that you move down from uSEr to tiME. This
will help you keep track of where you are in the menu structure.
1.Access the User menu (see Accessing the menus on page 34) and press
SELECT …
tiME is displayed. Use this to set the time and clock style.
2.Press SELECT …
SEt is displayed.
3.Press SELECT …
h- x is displayed, with the x flashing. This is a numeric entry screen for
the hour value.
36ZM303 Indicator User Instructions
Page 37
4.5 User menu
4.Key in the hour of the day using military (24 hr) time and press ZERO to
accept …
M- x is displayed, with the x flashing. This is a numeric entry screen for
the minute value.
5.Key in the minute value and press ZERO to accept …
S- x is displayed, with the x flashing. This is a numeric entry screen for
the second value.
6.Key in the seconds value and press ZERO to accept …
SEt is displayed.
7.Press UNITS …
StYLE is displayed. Use this to set the style of clock for printouts.
Choices are 12hr, 12hr-AP (AM/PM) and 24hr (military time).
8.Press SELECT …
12hr is displayed.
9.Press UNITS to scroll through the choices. Press ZERO to accept the
displayed choice …
4.5.2Date
User Time Date
StYLE is displayed.
10.Press TARE …
tiME is displayed.
1.From tiME, press UNITS …
dAtE is displayed.
2.Press SELECT …
SEt is displayed.
3.Press SELECT …
y- x is displayed, with the x flashing. This is a numeric entry screen for
the year value.
4.Key in the year and press ZERO to accept …
M- x is displayed, with the x flashing. This is a numeric entry screen for
the month.
5.Key in the month value and press ZERO to accept …
d- x is displayed, with the x flashing. This is a numeric entry screen for
the day value.
6.Key in the day value and press ZERO to accept …
SEt is displayed.
ZM303 Indicator User Instructions37
Page 38
Menus
7.Press UNITS …
8.Press SELECT …
9.Press UNITS to scroll through the choices. Press ZERO when your choice is
displayed …
10.Press TARE …
4.5.3Site ID
User Time Date Site ID
1.From dAtE, press UNITS …
StYLE is displayed. Use this to set the style of date for printouts.
Choices are MMDD2Y, MMDD4Y, DDMM2Y and DDMM4Y.
MMDD2Y is displayed.
The choice is made and StYLE is displayed.
dAtE is displayed.
SitE id is displayed.
2.Press SELECT …
A numeric entry screen is displayed.
3.Key in a site ID number on the numeric keypad and press ZERO to accept …
SitE id is displayed.
The Site ID can be used in transmitted or printing information.
4.5.4Seal
User Time Date Site ID Seal
1.From SitE id, press UNITS …
SEAL is displayed.
2.Press SELECT …
unSEALE or SEALEd is displayed. This is the status of the physical seal
inside the indicator. If the unit is sealed, no changes can be made to the
configuration of the indicator.
3.Press F1 to return to the SEAL display.
4.To exit the menu, see Exiting the menus on page 35.
38ZM303 Indicator User Instructions
Page 39
4.6About menu
Serial
About
App.
EnetOption
FirmBoot
Ver s ionPartno
IP
Gateway
Subnet
Versio nPartno
Versio nPartno
Ver s ion
Mac
Dload
Sserial
Dserial
Type
Displays the
bootloader
PN
Displays the
bootloader
version #
Displays the
firmware
part number
Displays the
firmware
version number
Displays the
application
part number
Displays the
application
version
number
View
Serial
Number
Displays
IP address
Displays
Subnet
info
Displays
Gateway
info
Displays
Mac
info
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
The About menu is shown in Figure 4.3.
4.6 About menu
Figure 4.3 About menu
Use this menu to display information about the various items shown in Figure 4.3. Each
is explained below:
4.6.1Boot
About Boot
1.Access the About menu and press SELECT …
boot is displayed.
2.Press SELECT …
3.Press SELECT …
ZM303 Indicator User Instructions39
4.Press ZERO to return to the PAr t no display.
5.Press UNITS …
6.Press SELECT …
PArtno is displayed
The 1st half of the bootloader PN is displayed. Press UNITS to view the
2nd half.
VErSion is displayed.
The version number of the bootloader is displayed.
Page 40
Menus
7.Press ZERO to return to the VErSion display.
8.Press TARE to return to the boot display.
4.6.2Firm and App
About Boot Firm and App
1.From boot, press UNITS …
FirM is displayed. This stands for firmware.
2.Repeat the same pattern of key presses in steps 2 through 7 to view the part
number and version for the FirM. and APP menu items.
4.6.3Serial
About Boot Firm App Serial
1.With APP displayed, press UNITS …
SEriAL is displayed.
2.Press SELECT …
The first four digits of the indicator serial number are displayed. Press
UNITS to view the last five digits.
3.Press TARE to return to the SEriAL display.
4.6.4Option
About Boot Firm App Serial Option
1.From SEriAL, press UNITS …
oPtion is displayed.
2.Press SELECT …
VErSion is displayed. This stands for the software version of the
currently installed option card. This can be useful service information.
3.To view the version, press SELECT …
The software version number is shown.
4.Press ZERO …
oPtion is displayed.
5.Press UNITS …
tYPE is displayed. This stands for the type of option card installed. The
four option cards are: Analog, 802.11g wireless, USB-d, and Current
Loop/RS485/RS422.
6.Press SELECT …
The currently installed option card name is displayed.
40ZM303 Indicator User Instructions
Page 41
7.Press ZERO …
tYPE is displayed.
8.Press TARE …
oPtion is displayed.
4.6.5Enet
About Boot Firm App Serial Option Enet
If the indicator is connected to an ethernet network, the values displayed will be the
current assigned addresses.
1.From oPtion, press UNITS …
EnEt is displayed. Use this item to view the values for the IP, Subnet,
Gateway and MAC addresses.
2.Press SELECT …
4.6 About menu
iP is displayed. Use this item to view the four part IP address.
3.Press SELECT …
1 XXX is displayed. This is first octet of the IP address
4.Press ZERO …
2 XXX is displayed. This is second octet of the IP address.
5.Press ZERO …
3 XXX is displayed. This is third octet of the IP address.
6.Press ZERO …
4 XXX is displayed. This is fourth octet of the IP address.
7.Press ZERO …
iP is displayed.
8.Press UNITS …
Subnet is displayed.
9.Repeat this sequence of key presses for the Subnet, Gateway and MAC
addresses.
10.When finished press TARE …
EnEt is displayed.
ZM303 Indicator User Instructions41
Page 42
Menus
4.6.6Dload
About Boot Firm App Serial Option Enet Dload
1.From EnEt, press UNITS …
dLoAd is displayed. This stands for download. Under SSEriAL you can
view the serial number of the software application that created the
configuration file. Under dSEriAL you can view the serial number of the
software application that downloaded the configuration file. This is used
for security and licensing purposes.
2.Press SELECT …
SSEriAL is displayed.
3.Press SELECT …
The 1st half of the serial number of the creating application of the
configuration file is displayed.
4.Press ZERO to show the 2nd half.
5.Press F1 …
SSEriAL is displayed.
6.Press UNITS …
dSEriAL is displayed.
7.Press SELECT …
The 1st half of the serial number of the downloading application of the
configuration file was downloaded to, is displayed.
8.Press ZERO to show the 2nd half.
9.Press F1 …
dSEriAL is displayed.
10.Press TARE until About is displayed.
11.To exit the menu, see Exiting the menus on page 35.
42ZM303 Indicator User Instructions
Page 43
4.7Audit menu
Audit
Print
Counter
ConfigCalib
Port 1Port 2
USB
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
Displays
number of
configurations
Displays
number of
calibrations
The Audit menu is shown in Figure 4.4.
Use this menu to display audit counters for configuration and calibration and to print the
information. Each is explained below:
4.7 Audit menu

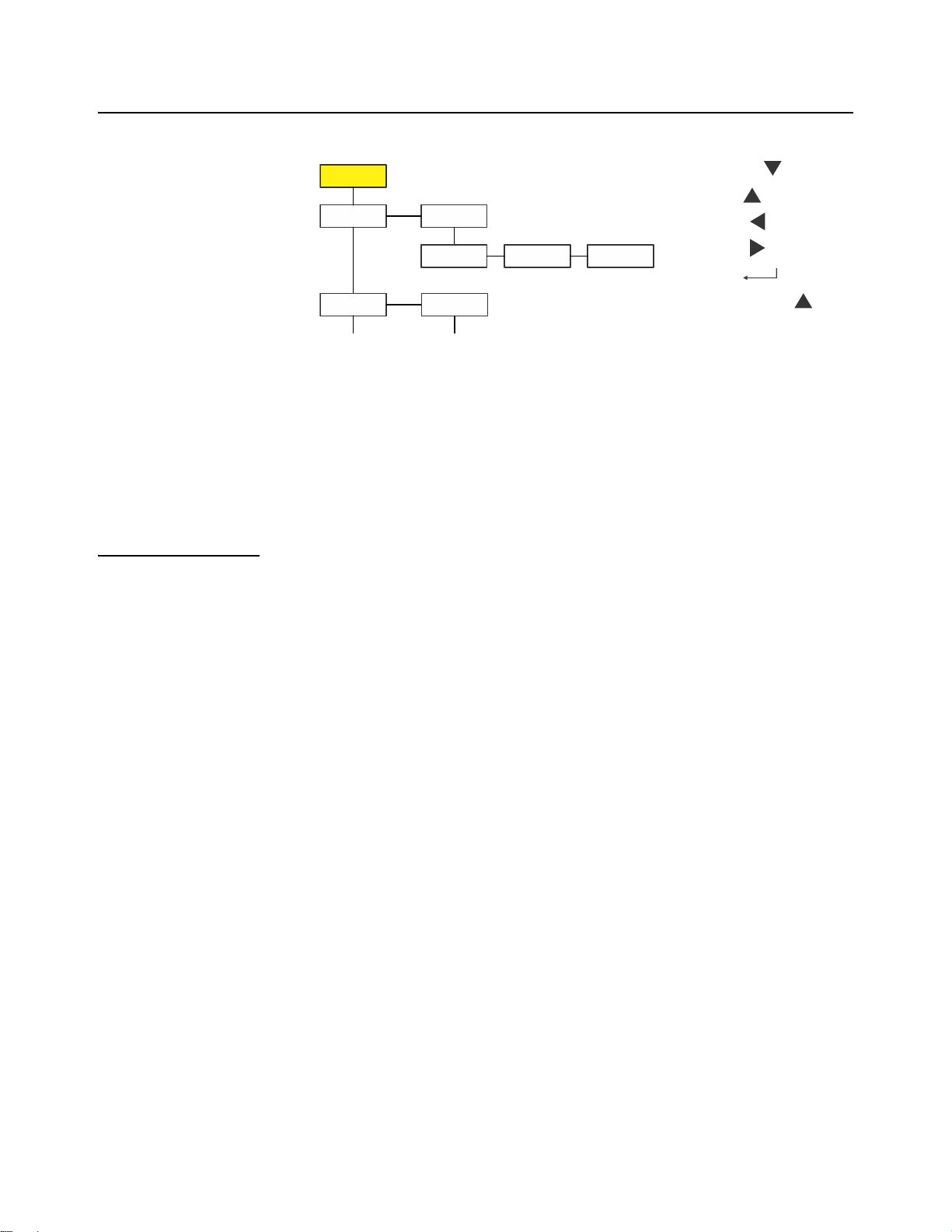

Figure 4.4 Audit menu
4.7.1Counter
Audit Counter
ZM303 Indicator User Instructions43
1.Access the Audit menu and press SELECT …
countEr is displayed. This has two counters that tell you how many
times the indicator has been configured and calibrated.
2.Press SELECT …
conFig is displayed.
3.Press SELECT again …
A number appears showing how many times the indicator has been
configured.
4.Press ZERO …
conFig is displayed.
5.Press UNITS …
cALib is displayed.
6.Press SELECT …
A number appears showing how many times the indicator has been
calibrated.
7.Press ZERO …
cALib is displayed.
8.Press TARE …
countEr is displayed.
Page 44
Menus
4.7.2Print
Audit Counter Print
1.From countEr, press UNITS …
2.Press SELECT …
3.Press UNITS to scroll through the choices and press ZERO when your choice
4.This completes the Audit menu. To exit the menu, see Exiting the menus on
Print is displayed.
Port1 is displayed. This is the first of three choices: Port 1, Port 2 or
uSb. Use these to select which port to print the audit report through.
is displayed …
The audit log is printed through the chosen port and Print is displayed.
page 35.
44ZM303 Indicator User Instructions
Page 45
5Communications
Gross 272.04 lb
Tare 95.88 lb
Net 176.16 lb
Transaction Count: 10
Gross 272.04 lb
Tare 95.88 lb
Net 176.16 lb
Count 176
Net 176.16 lb
G 272.04 lb
Peak Max 1000.02 lb
272.04 lb G
The ZM303 can communicate through these ports:
l Serial
l Ethernet
l USB
l Wireless 802.11g
5.1Default print formats
Below are examples of the default formats that are available:
General Weighing (Format #1)
5.1 Default print formats
Accumulated Gen. Weigh (Format #2)
Counting (Format #3)
Checkweighing (Format #4)
Batching (Format #5)
Peak Weighing (Format #6)
ZM303 Indicator User Instructions45
Remote Display (Format #7)
The indicator can be configured for many other outputs to match the application.
Page 46
Error messages

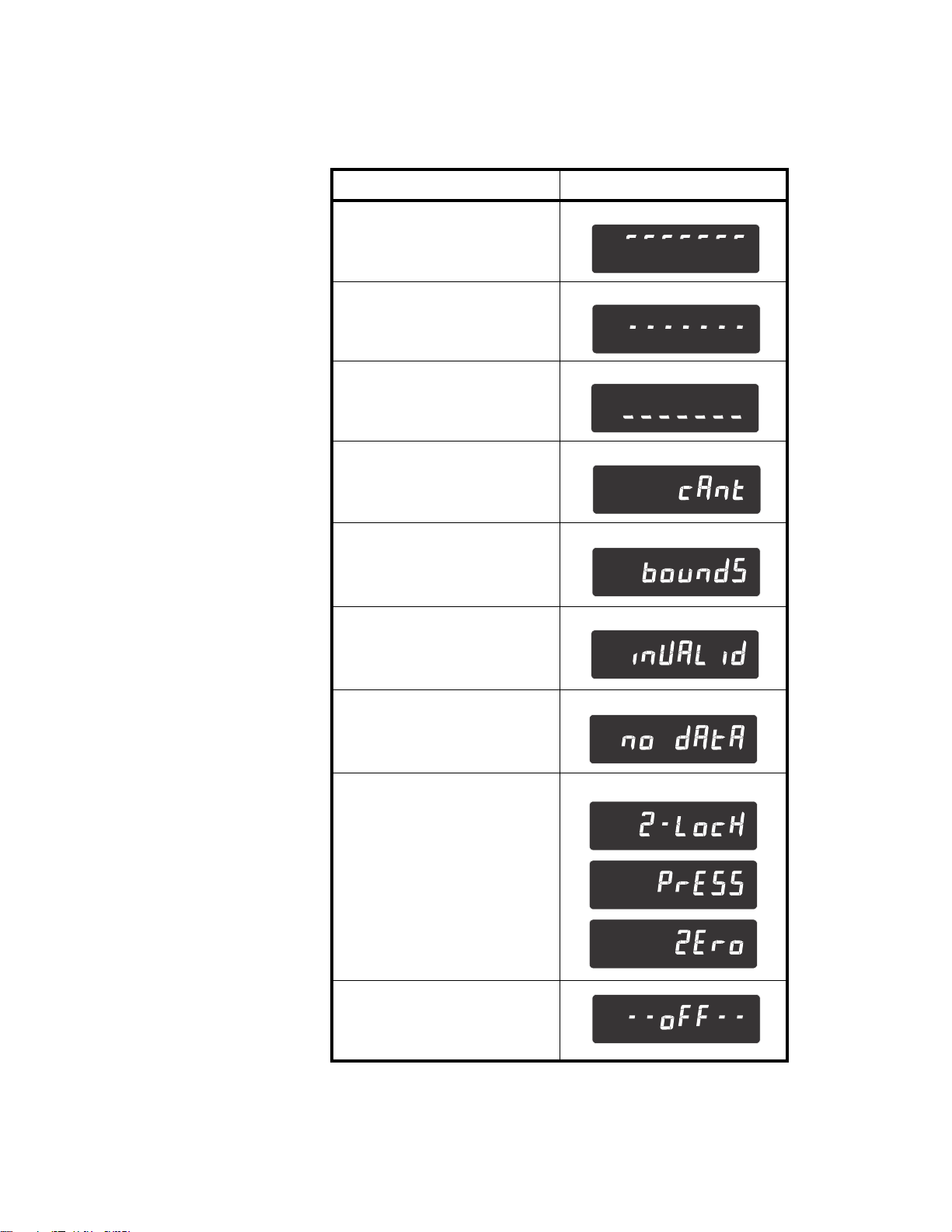

6Error messages
The following error messages may be displayed during use of the indicator:
MessageDisplay
Overload
Can’t fit on display
Underload
Can’t
Entry not in valid range
Password entry failed
Remote display not receiving data
from the master indicator
Indicator did not reach a stable zero
weight within time window set for
automated weighing process.
Indicates the battery is enabled and
TMOUT value is set but the indicator is
not operating with the proper battery
shutoff circuitry
46ZM303 Indicator User Instructions
Page 47
7Supervisor menu
This menu allows a supervisor to change those functions of an application that are
configurable. Access the supervisor menu using the password 1793. Refer to
Accessing the menus on page 34 for instructions.
Wherever there is an option to print information in the any of the supervisor’s menus,
the information will print out of Port 1, Port 2 or to USB, whichever is configured.
The menus are always explained in a sequential manner to cover all information in a
logical fashion. You will probably never access all the menu items in this manner. You
can navigate to the area of the menu that needs to be changed by using the
navigation key chart shown with each menu.
The Supervisor menu changes based on the active application. Go to the appropriate
section.
l General Weighing application supervisor menu on page 48
l Accumulator application supervisor menu on page 55
l Counting application supervisor menu on page 59
l Checkweighing application supervisor menu on page 63
l Batching application supervisor menu on page 66
l Peak Hold application supervisor menu on page 71
l Remote Display application supervisor menu on page 73
ZM303 Indicator User Instructions47
Page 48
Supervisor menu
Super
Setpnt
Off
On
EditPrintReset
AnnunOut1Out2Out3In1
No
Yes
In2
In3
None
Print
UnitsSelectTa reZero
Sample
F1
Tar ge t
Start
StopIDSetupUnder
Over
Accu
PrntHld
Tar e
EditPrint
Reset
No
Yes
Tar e 1Ta re 10
Battery
Enable
Tmout
Off
On
Port 1
Port 2USB
Port 1
Port 2USB
Mode
Act Abv
Act Bel
User
Bold boxes and text
denote defaults.
Appears only if Preset
Tare is enabled
1-3600
minutes
Key
in
value
Key
in
value
Key
in
value
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
7.1General Weighing application supervisor menu
Figure 7.1 shows the Supervisor menu when you are in the General Weighing
application.

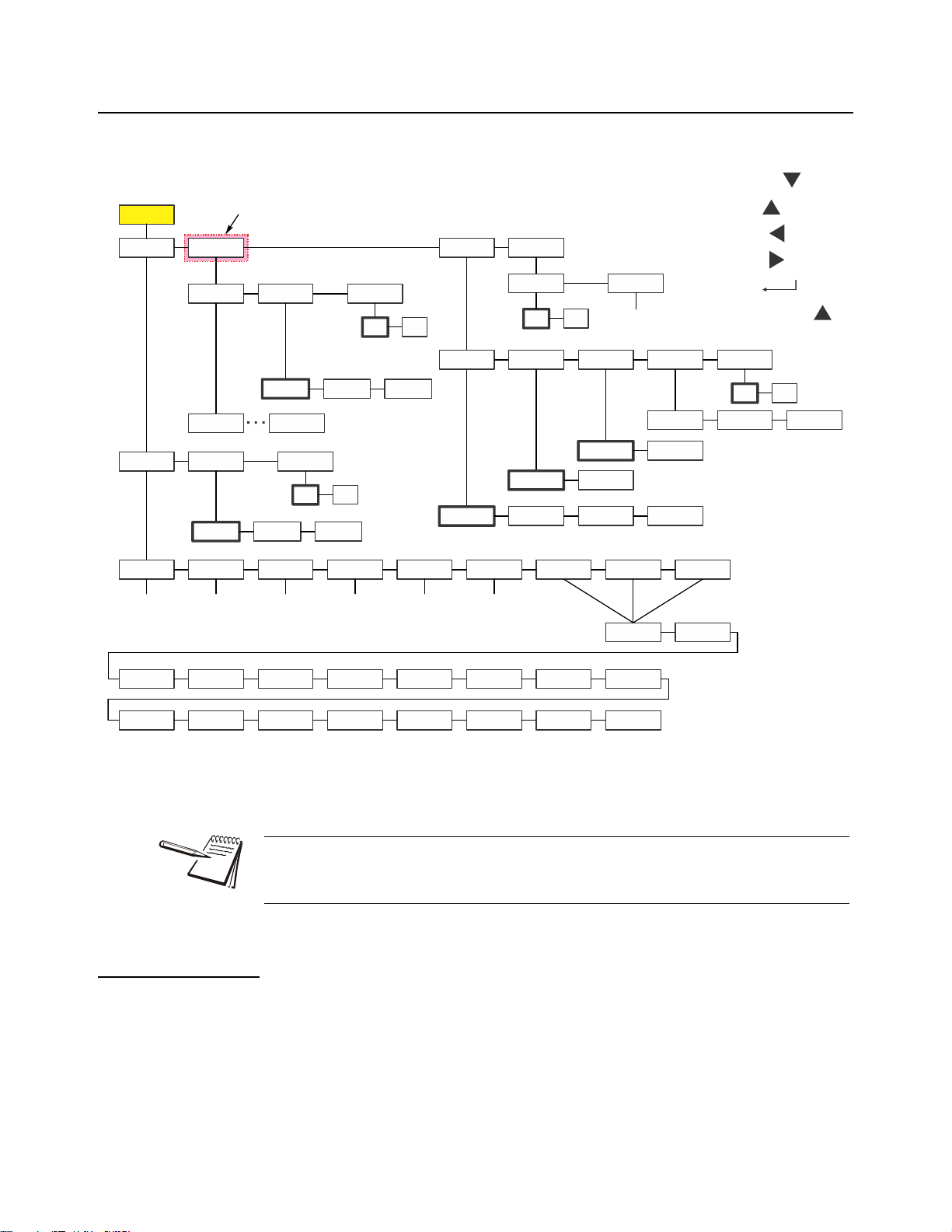

Figure 7.1 Supervisor menu for the General Weighing application
The Setpoint menu is the same for all the applications so will only be explained once
here. Exceptions are noted in the text.
Follow these steps to set the items in the Supervisor menu.
48ZM303 Indicator User Instructions
Page 49
7.1.1Setpoint
Super Setpoint
7.1 General Weighing application supervisor menu
The and symbols used in this section stand for direction moved in the menu. So
Super Setpoint, shown above, illustrates that you move down from SuPEr to
SEtPnt. This will help you keep track of where you are in the menu structure.
If you are using a battery operated indicator with any application, setpoint output #3
can be configured for shutting down the battery for power saving. See the Service
manual for information on setting up setpoint outputs and optional power saving
circuitry you can create to shutdown power from a battery. The ZM-BAT (the optional
D-cell battery pack) made for the ZM303 does not contain the power saving
circuitry.
A setpoint value can be entered ranging from +/- scale capacity. See Entering a
negative number on page 15 for the negative numeric entry process.
Turn off or disable any setpoints you are not using. See the Service manual for
information on disabling or turning off setpoints.
1.With the General Weighing application active, access the Supervisor menu.
Refer to Accessing the menus on page 34 for instructions. From SuPEr, press SELECT …
SEtPnt is displayed. Use this to:
lset the function of the setpoint annunciators
lenter up to three setpoint values
lselect inputs for up to three inputs
lset the mode of setpoint operation
lprint the setpoint settings
lreset all setpoint settings to factory defaults.
Annunciators
Setpoint Edit Annun
2.Press SELECT …
Edit is displayed.
3.Press SELECT …
Annun is displayed. (Annun is not included in the Batch application
Supervisor menu. Skip steps 3 through 5).
This stands for annunciators, referring to the SP1, SP2 and SP3 setpoint
annunciators. By default (oFF) these annunciators are ON when the
displayed weight is below the setpoint value or OFF above the setpoint
value. If you select on, the annunciators work in the opposite fashion-OFF when below, ON when above.
ZM303 Indicator User Instructions49
Page 50
Supervisor menu
4.Press SELECT …
The current setting is displayed (oFF or on).
5.Press UNITS to toggle between the choices and when your choice is
displayed, press ZERO to accept …
Annun is displayed.
Outputs
Setpoint Edit Annun Out
6.Press UNITS …
out1 is displayed. This is the weight value for setpoint 1.
7.Press SELECT …
The current value is displayed with a flashing right digit.
8.Press ZERO to accept the displayed value or key in a new value and press
ZERO to accept …
out1 is displayed.
9.Press UNITS …
out2 is displayed.
Inputs
Setpoint Edit Annun Out In
10.Repeat steps 7 through 9 for out2 and out3. Press UNITS when finished …
in1 is displayed. This stands for input 1. Use this to assign a function to
input 1 when an external switch is tripped. Default choice is nonE. The
choices are listed in Figure 7.1.
The remote input can be used to perform an accumulated print total function. Use the
PrintHoLd function to simulate a “press and hold” of the PRINT key. If you are using
a momentary switch, press and release. If you are using a toggle switch, switch it ON
then OFF to reset the function for the next time.
Inputs and Outputs must be enabled ON in a separate password protected menu.
Some input choices will not apply in the application that is active.
11.From in1, press SELECT …
The current choice is displayed.
12.Press UNITS to scroll through the choices and when your choice is displayed,
press ZERO to accept …
in1 is displayed.
50ZM303 Indicator User Instructions
Page 51
7.1 General Weighing application supervisor menu
13.Press UNITS …
in2 is displayed.
14.Repeat steps 11 through 13 for in2 and in3.
15.Press UNITS …
modE is displayed.
Mode
Setpoint Edit Annun Out In Mode
Use Mode to select the mode of operation of the hardware outputs: ON above and
OFF below or vice versa.
16.Press SELECT …
The current setting is displayed: Act Abv or Act bEL
17.Press UNITS to toggle between the choices. When your choice is displayed,
press ZERO to accept …
modE is displayed.
18.Press TARE when finished …
Edit is displayed.
Print
Setpoint Edit Print
19.Press UNITS …
Print is displayed. Use this to print the settings under SEtPnt.
20.Press SELECT …
Port 1 is displayed.
21.Press F1 to abort the print process or press UNITS to scroll to the desired port
and press ZERO to print the information …
Print is displayed after either action.
Reset
Setpoint Edit Print Reset
22.Press UNITS …
rESEt is displayed. Use this to reset the settings under Edit to factory
defaults.
23.Press SELECT …
no is displayed.
24.Press ZERO to abort the reset or press UNITS …
YES is displayed.
ZM303 Indicator User Instructions51
Page 52
Supervisor menu
25.Press ZERO to reset the settings to factory defaults …
26.Press TARE …
7.1.2Tare
Super Setpoint Tare
If Preset Tare is not enabled, skip to step 7. If it is enabled continue to the next step.
1.Press UNITS …
rESEt is displayed.
SEtPnt is displayed.
tArE is displayed.
Use this to:
lset values for up to 10 preset tares
lprint the values of the preset tares
lreset all preset tares to factory defaults of 0
The following steps describe the procedures.
Tare Register 1-10
Tare Edit Tare 1-10
2.Press SELECT …
Edit is displayed.
3.Press SELECT …
tArE 1 is displayed. This is the first of the 10 preset tare values you can
set.
4.Press SELECT …
The current value is displayed with a flashing right digit.
If the active unit of measure is lb-oz then tare weights must be entered in the oz
equivalent. To enter 2 lb 4.5 oz you would need to enter 36.5 oz (2 lb = 32 oz plus the
4.5)
5.Press ZERO to accept the displayed value or key in a new value and press
ZERO to accept …
tArE 1 is displayed.
6.Press UNITS …
tArE 2 is displayed.
7.Repeat steps 4 through 6 for tArE 2 through tArE 10. Press TARE when
finished …
Edit is displayed.
52ZM303 Indicator User Instructions
Page 53
7.1 General Weighing application supervisor menu
Printing
Tare Edit Print
8.Press UNITS …
Print is displayed. Use this to print the preset tare values.
9.Press SELECT …
Port 1 is displayed.
10.Press F1 to abort the print process or press UNITS to scroll to the desired port
and press ZERO to print the information …
Print is displayed after either action.
Reset
Tare Edit Print Reset
11.Press UNITS …
rESEt is displayed. Use this to reset the all the preset tares to the factory
default of 0.
12.Press SELECT …
13.Press ZERO to abort the reset or press UNITS …
14.Press ZERO to reset the settings to factory defaults …
15.Press TARE …
7.1.3Battery
Super Setpoint Tare Battery
1.Press UNITS …
no is displayed.
YES is displayed.
rESEt is displayed.
tArE is displayed.
bAttErY is displayed. Use this to enable the battery and to set a timeout
length (in minutes). If this time expires with no scale or keypad activity,
setpoint #3 will change states so the battery will shut off if the proper
external circuitry is provided. See the Service manual.
ZM303 Indicator User Instructions53
Page 54
Supervisor menu
Enable
Battery Enable
Only enable the battery and set the tMout value if the battery has the proper external
shutoff circuitry. If battery use is enabled, setpoint output 3 cannot be used for
setpoints in any application. It is used as a shutoff signal. The ZM-BAT (the optional
D-cell battery pack) made for the ZM303 does not contain the power saving
circuitry.
2.Press SELECT …
EnAbLE is displayed. Choices are oFF and on. Choose oFF to disable
battery usage. Choose on to enable battery usage.
3.Press UNITS to toggle between the choices and when your choice is
displayed, press ZERO to accept …
EnAbLE is displayed.
Timeout
Battery Enable Timeout
4.Press UNITS …
tMout is displayed. This stands for timeout. Use this to set the length of
time before inactivity of the scale and keypad cause battery power to be
shutoff. Values between 1 and 3600 minutes are valid. This function
only works if the battery has shutoff circuitry.
5.Press SELECT …
A numeric entry screen appears.
6.Key in a value, in minutes and press ZERO to accept …
tMout is displayed.
7.This completes the Supervisor menu for General Weighing. Repeatedly press
TARE until the indicator returns to normal weighing mode.
The current weight value is displayed.
54ZM303 Indicator User Instructions
Page 55
7.2 Accumulator application supervisor menu
Super
SetpntTa re
EditPrintReset
No
Yes
EditPrintReset
No
Yes
Tar e 1Ta r e 10
Accum
Prt Tot
Tot Fm t
Clr Tot
Print
Reset
Off
On
No
Yes
Off
On
Battery
Enable
Tmout
Off
On
Off
On
AnnunOut1Out2Out3In1
In2
In3
None
Print
UnitsSelectTa r eZeroSampleF1
Target
Start
StopIDSetupUnderOver
Accu
Port 1
Port 2USB
Port 1
Port 2USB
Port 1
Port 2
USB
PrntHld
Mode
Act Abv
Act Bel
User
Bold boxes and text
denote defaults.
Appears only if Preset
Tare is enabled
1-3600
minutes
Key
in
value
Key
in
value
Key
in
value
Enter Print
format #
for Total
operation
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
7.2Accumulator application supervisor menu
Figure 7.2 shows the Supervisor menu when you are in the Accumulator application:

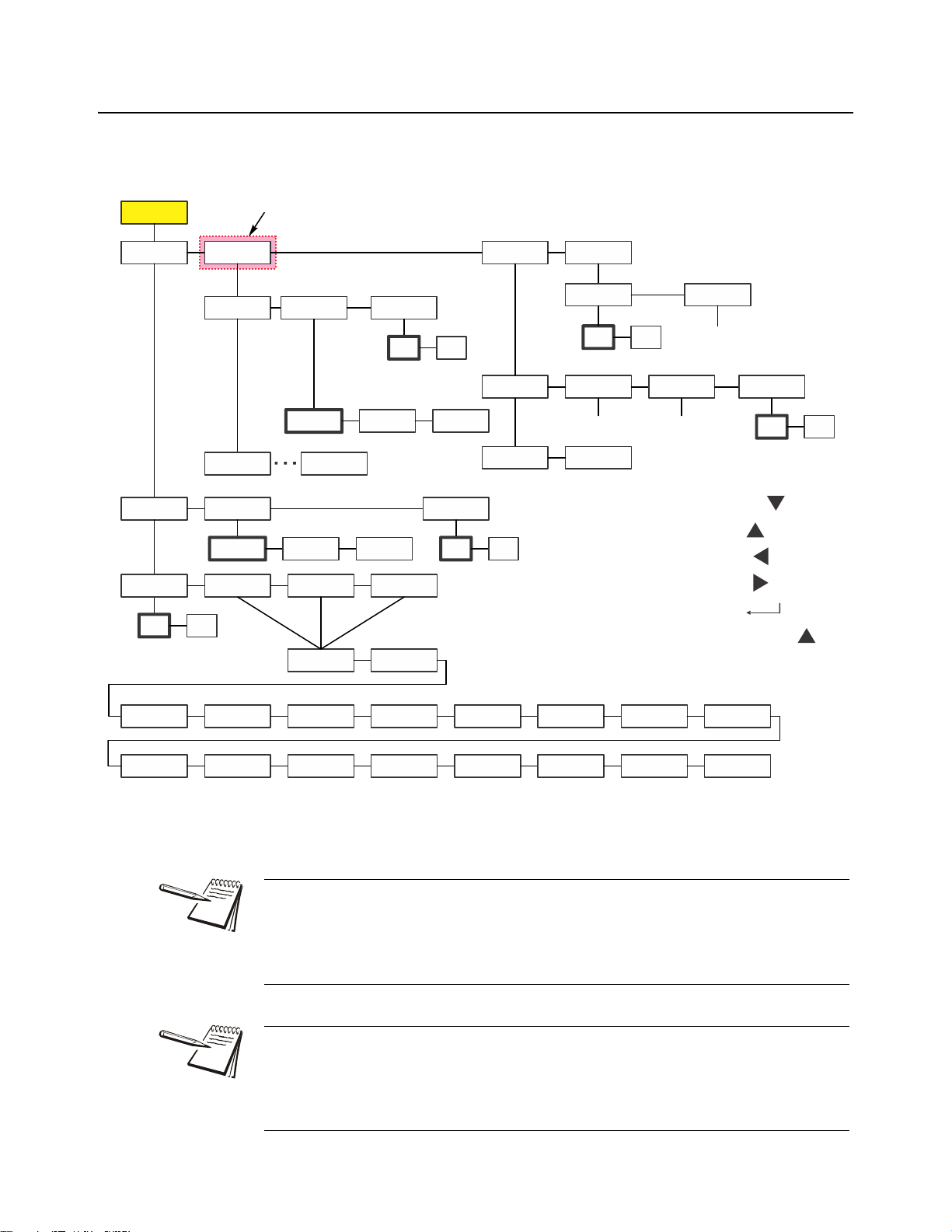

Figure 7.2 Supervisor menu for the Accumulator application
Follow these steps to set the items in the Supervisor menu.
The Setpnt, Tare and bAttErY submenus in Figure 7.2 are the same as described in
General Weighing application supervisor menu on page 48. Go there for information
on those submenus. The unique submenus to this application are described below.
ZM303 Indicator User Instructions55
Page 56
Supervisor menu
7.2.1Accumulator
Super Setpoint Tare Accum
1.With the Accumulator application active, access the Supervisor menu using
password 1793. Refer to Accessing the menus on page 34 for instructions.
From SuPEr, press SELECT …
2.Press UNITS until …
SEtPnt is displayed.
AccuM is displayed. Use this to set the items relating to accumulation.
Under AccuM you can do the following:
lEnable/Disable the ability to print the accumulated total (Prt tot).
lKey in a print format number for printing the total accumulated weight
information (tot FMt).
lEnable/Disable the ability to clear the total accumulation information
when the total is printed (clr tot).
lPrint the accumulation report for all 10 memory channels (Print).
lReset all 10 accumulator memory channel values to 0 (rESEt).
The following steps describe the procedure to set these items.
Print total
Accum Print Total
3.From AccuM, press SELECT …
Prt tot is displayed. This stands for print total.
4.Press SELECT …
oFF is displayed.
5.Press ZERO to keep the print total function disabled or press UNITS to toggle
to on and press ZERO to enable printing of the accumulated total …
Prt tot is displayed.
If enabled, during normal operation the user can press and hold PRINT
for three seconds and the selected total print format (see step 8 below)
will be sent out any port that is set up to printed. The display will flash
Prn-tot.
Total format
Accum Print Total Total Format
6.Press UNITS …
tot FMt is displayed. This stands for the total print format.
7.Press SELECT …
The current print format number is displayed with a flashing right-most
digit. (Default is format 8)
56ZM303 Indicator User Instructions
Page 57
7.2 Accumulator application supervisor menu
8.Press ZERO to accept the existing setting or key in a new format number and
press ZERO …
tot FMt is displayed.
Clear total
Accum Print Total Total Format Clear Total
9.Press UNITS …
cLr tot is displayed. This stands for clear total. Choose on to enable
clearing the accumulated total when printed. Choose oFF to disable this
function.
If enabled, the total is cleared if the user presses and holds the PRINT
key for three seconds. The message cLr-tot will flash. The total is
printed prior to clearing if this was enabled in step 5 above.
10.Press SELECT …
The current setting is displayed.
11.Press UNITS to toggle between the choices and when your choice is
displayed, press ZERO to accept …
cLr tot is displayed.
Print
Accum Print Total Total Format Clear Total Print
12.Press UNITS …
Print is displayed. This stands for print the accumulation report. Choose
a port to print the accumulated totals report for all 10 memory channels.
13.Press SELECT …
Port 1 is displayed.
14.Press F1 to abort the print process or press UNITS to scroll to the desired port
and press ZERO to print the information …
Print is displayed after either action.
Reset
Accum Print Total Total Format Clear Total Print Reset
15.Press UNITS …
rESEt is displayed. Use this to reset the all the items under AccuM to
the factory defaults.
16.Press SELECT …
no is displayed.
17.Press ZERO to abort the reset or press UNITS …
YES is displayed.
ZM303 Indicator User Instructions57
Page 58
Supervisor menu
18.Press ZERO to reset the settings to factory defaults …
rESEt is displayed.
19.Press TARE …
AccuM is displayed.
20.Press UNITS …
bAttErY is displayed. The battery menu is identical in all the
applications. Refer to step 1 on page 53 for information on setting up the
battery.
21.This completes the Supervisor menu for the Accumulation application.
Repeatedly press TARE until the indicator returns to normal weighing mode.
The current weight value is displayed.
58ZM303 Indicator User Instructions
Page 59
7.3 Counting application supervisor menu
Count
Mode
BulkDribble
Super
SetpntTa re
EditPrintReset
No
Yes
EditPrint
Reset
No
Yes
Tar e 1Tar e 1 0
Battery
Enable
Tmout
Off
On
Prt TotTo t Fm t
Clr Tot
Off
On
Off
On
Off
On
Annun
Out1
Out2Out3In1
In2
In3
None
Print
UnitsSelectTa re
Zero
Sample
F1
Target
Start
StopIDSetupUnder
Over
Accu
Port 1
Port 2USB
Port 1
Port 2USB
PrntHld
Mode
Act Abv
Act Bel
User
Bold boxes and text
denote defaults.
Appears only if Preset
Tare is enabled
1-3600
minutes
Key
in
value
Key
in
value
Key
in
value
Enter Print format #
for Total operation
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
7.3Counting application supervisor menu
Figure 7.3 shows the Supervisor menu when you are in the Counting application:
Figure 7.3 Supervisor menu for the Count application
Follow these steps to set the items in the Supervisor menu.
The Setpnt, Tare and bAttErY submenus in Figure 7.3 are the same as described in
General Weighing application supervisor menu on page 48. Go there for information
on those submenus. The unique submenus to this application are described below.
The cnt Acc submenu is the same described in the Accum submenu in the
Accumulator application. Refer to step 3 on page 56.
ZM303 Indicator User Instructions59
Page 60
Supervisor menu
7.3.1Count
Super Setpoint Tare Count
1.With the Count application active, access the Supervisor menu using password
1793. Refer to Accessing the menus on page 34 for instructions. From SuPEr,
press SELECT …
2.Press UNITS twice …
Mode
SEtPnt is displayed.
count is displayed. Use this to set the items relating to counting:
lSelect between bulk and dribble mode.
lEnable/Disable the ability to print the count total (Prt tot).
lKey in a print format number for printing the total count information
(tot FMt).
lEnable/Disable the ability to clear the total count information when the
total is printed (clr tot).
The following steps describe the procedure to set these items.
Count Mode
3.Press SELECT …
ModE is displayed. There are two modes for sampling: buLK and
dribbLE.
BulkIn bulk sampling you place the specified number of items on
the scale all at once (in bulk) and the scale automatically
starts to calculate piece weight when the weight stabilizes.
The count is then displayed.
DribbleIn dribble sampling method you count out the specified
number of items onto the scale and when you are ready,
press the SAMPLE key and the scale calculates piece
weight and then shows the count.
4.With ModE displayed, press SELECT …
buLK is displayed.
5.Press UNITS to toggle between the choices and when your choice is
displayed, press ZERO to accept …
ModE is displayed.
Print total
Count Mode Print Total
6.Press UNITS …
Prt tot is displayed. This stands for print total.
7.Press SELECT …
no is displayed.
60ZM303 Indicator User Instructions
Page 61
7.3 Counting application supervisor menu
8.Press ZERO to keep the print total function disabled or press UNITS to toggle
to YES and press ZERO to enable printing of the count total …
Prt tot is displayed.
If enabled, during normal operation the user can press and hold PRINT
for three seconds and the selected total print format (see step below)
will be sent out any port that is set up to printed. The display will flash
Prn-tot.
Total format
Count Mode Print Total Total Format
9.Press UNITS …
tot FMt is displayed. This stands for the total print format.
10.Press SELECT …
The current print format number is displayed with a flashing right-most
digit. (Default is format 8)
11.Press ZERO to accept the existing setting or key in a new format number and
press ZERO …
tot FMt is displayed.
Clear total
Count Mode Print Total Total Format Clear Total
12.Press UNITS …
cLr tot is displayed. This stands for clear total. Choose YES to enable
clearing the count total when printed. Choose no to disable this function.
If enabled, the total is cleared if the user presses and holds the PRINT
key for three seconds. The message cLr-tot will flash. The total is
printed prior to clearing if this was enabled in step 8 above.
13.Press SELECT …
The current setting is displayed.
14.Press UNITS to toggle between the choices and when your choice is
displayed, press ZERO to accept …
cLr tot is displayed.
15.Press TARE …
count is displayed.
16.Press UNITS …
bAttErY is displayed. The battery menu is identical in all the
applications. Refer to step 1 on page 53 for information on setting up the
battery.
ZM303 Indicator User Instructions61
Page 62
Supervisor menu
17.This completes the Supervisor menu for the Counting application. Repeatedly
press TARE until the indicator returns to normal weighing mode.
The current weight value is displayed.
62ZM303 Indicator User Instructions
Page 63
7.4 Checkweighing application supervisor menu
Undrdiv
Overdiv
Outputs
Check
Latch
Unlatch
Super
Setpnt
Off
On
Ta re
EditPrintReset
AnnunIn1
No
Yes
In2In3
NonePrint
UnitsSelectTa reZero
Sample
F1
Ta rg e t
Start
StopIDSetupUnder
Over
Accu
EditPrintReset
No
Yes
Tar e 1Tar e 10
Reset
No
Yes
Battery
Enable
Tmout
Off
On
Port 1
Port 2USB
Port 1
Port 2USB
PrntHld
User
Bold boxes and text
denote defaults.
Appears only if Preset
Tare is enabled
1-3600
minutes
0-1000-100
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
7.4Checkweighing application supervisor menu
Figure 7.4 shows the Supervisor menu when you are in the Checkweighing application:
Figure 7.4 Supervisor menu for the Checkweighing application
Follow these steps to set the items in the Supervisor menu.
The Setpnt, Tare and bAttErY submenus in Figure 7.4 are the same as described in
General Weighing application supervisor menu on page 48. Go there for information
on those submenus. The one exception is that out1, out2 and out3 are not in the
Setpnt menu. They do not apply in the Checkweighing application. The unique
submenus to this application are described below.
If Battery option is enabled (only necessary when the indicator is used with a battery
shutdown circuit) in the check weighing application, Setpoint output #1 represents
“Reject” (over & under conditions). Setpoint output #2 represents “Accept” (target).
Setpoint output #3 is dedicated to battery shutoff circuitry. See the Service manual for
information on setting up setpoint outputs.
ZM303 Indicator User Instructions63
Page 64
Supervisor menu
7.4.1Check
Super Setpoint Tare Check
1.With the Checkweighing application active, access the Supervisor menu using
password 1793. Refer to Accessing the menus on page 34 for instructions.
From SuPEr, press SELECT …
2.Press UNITS twice …
Outputs - Latch & Unlatch
Check Outputs Latch & Unlatch
SEtPnt is displayed.
chEcK is displayed. This stands for checkweigher. Use this to set the
items relating to checkweighing:
lSet conditions for using the outputs. (outPutS)
lSet under divisions for acceptable target weight (undrdiv)
lSet over divisions for acceptable target weight (oVErdiV)
lReset the target values to zero.(rESEt)
3.Press SELECT …
outPutS is displayed. There are two choices for outputs, LAtch and
unLAtch. If you choose LAtch, this means that the weight has to
stabilize before the annunciator and output for the appropriate condition
(Under, Accept or Over) is activated. If you choose unLAtch, the
annunciator and output will change instantly as the weight changes
checkweigh condition.
In latch mode, once activated the annunciator and output will remain
unchanged until the item is removed and the gross weight returns to
inside the gross zero band.
4.From outPutS, press SELECT …
LAtch is displayed.
5.Press UNITS to toggle between the choices and when your choice is
displayed, press ZERO to accept …
outPutS is displayed.
If the checkweigh mode is currently using the LO and HI limit values, viewing or
entering the Under or Over division settings will change these Limit values
accordingly.
Under divisions
Check Outputs Under divisions
6.Press UNITS …
undrdiv is displayed. Use this to set the number of divisions (0-100)
below the target weight that is still within the accept window.
64ZM303 Indicator User Instructions
Page 65
7.4 Checkweighing application supervisor menu
7.Press SELECT …
The current value is shown with a flashing right-most digit.
8.Press ZERO to accept the current value or key in a new value and press
ZERO to accept …
undrdiv is displayed.
Over divisions
Check Outputs Under divisions Over divisions
9.Press UNITS …
oVErdiV is displayed. Use this to set the number of divisions (0-100)
above the target weight that is still within the accept window.
10.Press SELECT …
The current value is shown with a flashing right-most digit.
11.Press ZERO to accept the current value or key in a new value and press
ZERO to accept …
oVErdiV is displayed.
Reset
Check Outputs Under divisions Over divisions Reset
12.Press UNITS …
rESEt is displayed. Use this to reset the all the checkweigher variables
to the factory defaults.
13.Press SELECT …
no is displayed.
14.Press ZERO to abort the reset or press UNITS …
YES is displayed.
15.Press ZERO to reset the settings to factory defaults …
rESEt is displayed.
16.Press TARE …
chEcK is displayed.
17.Press UNITS …
bAttErY is displayed. The battery menu is identical in all the
applications. Refer to step 1 on page 53 for information on setting up the
battery.
18.This completes the Supervisor menu for the Checkweighing application.
Repeatedly press TARE until the indicator returns to normal weighing mode.
The current weight value is displayed.
ZM303 Indicator User Instructions65
Page 66
Supervisor menu
Super
SetpntTa r e
EditPrintReset
No
Ye s
EditPrintReset
No
Yes
Tar e 1Ta r e 10
Batch
TypeModeDispPreact
Neg Fil
Off
On
Auto
Manual
Clear
Net
Gross
Auto
Manual
2 Speed
Ingred
Indep
Fil-DSC
Battery
Enable
Tmout
Off
On
Out1Out2Out3
UnitsSelectTa r eZeroSample
F1
Ta rg et
Start
StopIDSetupUnderOver
Accu
User
Port 1
Port 2USB
Port 1
Port 2USB
In1
In2
In3
None
Print
Preact1
Preact2Preact3
PrntHld
Bold boxes and text
denote defaults.
Appears only if Preset
Tare is enabled
1-3600
minutes
Key
in
value
Key
in
value
Key
in
value
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
Key
in
value
Key
in
value
Key
in
value
7.5Batching application supervisor menu
Figure 7.5 shows the Supervisor menu when you are in the Batching application:
7.5.1Batch
Super Setpoint Tare Batch
Figure 7.5 Supervisor menu for the Batching application
Follow these steps to set the items in the Supervisor menu.
The Setpnt, Tare and bAttErY submenus in Figure 7.5 are the same as described in
General Weighing application supervisor menu on page 48. Go there for information
on those submenus. The unique submenus to this application are described below.
1.With the Batching application active, access the Supervisor menu using
password 1793. Refer to Accessing the menus on page 34 for instructions.
From SuPEr, press SELECT …
SEtPnt is displayed.
66ZM303 Indicator User Instructions
Page 67
2.Press UNITS twice …
bAtch is displayed. Use this to set the items relating to batching:
lSet the type of batch operation. (tYPE)
lSelect auto or manual operation. (ModE)
lSet gross or net display mode. (diSP)
lSet the conditions for preact. (PrEAct)
lSelect negative filling operation.(nEG FiL)
Type
Batch Type
3.Press SELECT …
tYPE is displayed. There are 4 choices under Type: 2 SPEEd, iNGrEd,
iNdEP and FiL-dSc. Each is explained below:
2 SPEEdChoose 2 speed when you have one ingredient with a speed
control device.
iNGrEdChoose ingredient for sequential filling for up to 3 products
at a single speed.
7.5 Batching application supervisor menu
iNdEPChoose independent when the filling process is run based
on the values set for the outputs.
FiL-dScChoose fill-discharge when performing a fill operation
(negative weight) from something like a hopper scale.
See Notes on batching on page 69 for information about settings for each of these
types of batching.
4.Press SELECT …
The current setting is displayed.
5.Press UNITS to scroll through the choices and when your choice is displayed,
press ZERO to accept …
tYPE is displayed.
Mode
Batch Type Mode
6.Press UNITS …
ModE is displayed. Mode has two choices: Auto or MAnuAL. There is a
detailed description for each type in the section titled Batching
application on page 29
7.Press SELECT …
The current setting is displayed.
8.Press UNITS to toggle between the choices and when your choice is
displayed, press ZERO to accept …
ModE is displayed.
ZM303 Indicator User Instructions67
Page 68
Supervisor menu
Display
Batch Type Mode Display
9.Press UNITS …
diSP is displayed. Display has two choices: NEt or GroSS. Each is
explained below:
NEtChoose Net to base batching on net weights.
GroSSChoose Gross to base batching on gross weights.
10.Press SELECT …
The current setting is displayed.
11.Press UNITS to toggle between the choices and when your choice is
displayed, press ZERO to accept …
diSP is displayed.
Preact
Batch Type Mode Display Preact
12.Press UNITS …
PrEAct is displayed.
Preact can be used to compensate for product weight that continues to
fill into the bag or container after the setpoint output turns off and before
the final weight stabilizes. If a preact value is automatically calculated or
manually entered, the actual cutoff weight will equal the entered setpoint
value minus the preact value.
PrEAct has three choices: Manual, Auto, or cLEAr. Each is explained
below:
ManualWhen Manual, the preact values entered in the SETPNT
AutoWhen set to Auto, preact is automatically calculated. The
cLEArWhen cLEAr is selected, the current preact values will be
submenu for PREACT 1, 2 and 3 are used.
amount of compensation is calculated based on the average
variance between the entered setpoint value and the actual
fill weights recorded during the most recent batch cycles.
Auto Preact is only available in certain Batch Types as
noted in their descriptions. Calculated Preact values can be
viewed in the SETPNT submenu for PREACT 1, 2 and 3.
set to 0. If PrEAct was set to Auto, a new set of
compensation values will be calculated on continuing
batches. If preact was set to oFF, then preact will be
disabled or new values can be manually entered in the
setpoint menu.
13.Press SELECT …
The current setting is displayed.
68ZM303 Indicator User Instructions
Page 69
7.5 Batching application supervisor menu
14.Press UNITS to scroll through the choices and when your choice is displayed,
press ZERO to accept …
PrEAct is displayed.
Negative fill
Batch Type Mode Display Preact Negative Fill
15.Press UNITS …
NEG FiL is displayed. This stands for negative fill. This has two choices:
oFF or on. Each is explained below:
Choose oFF to disable negative fill. (default)
Choose on to enable negative fill. Operation varies depending on Type
chosen. See Notes on batching on page 69.
16.Press SELECT …
The current setting is displayed.
17.Press UNITS to scroll through the choices and when your choice is displayed,
press ZERO to accept …
18.Press TARE …
19.Press UNITS …
20.This completes the Supervisor menu for the Batching application. Repeatedly
press TARE until the indicator returns to normal weighing mode.
7.5.2Notes on batching
2 Speed
MODE setting does not apply to 2 SPEED.
If DISP is set to NET, an autotare will occur prior to the start of the fill.
NEG FiL is displayed.
bAtch is displayed.
bAttErY is displayed. The battery menu is identical in all the
applications. Refer to step 1 on page 53 for information on setting up the
battery.
The current weight value is displayed.
If DISP is set to GROSS, no autotare will occur and the fill cutoffs are based on
actual Gross weight.
PREACT, if used, only affects the cutoff value of Out 2. See details of PREACT
below.
If NEG FILL is set to YES, then DISP should be set to NET so that an autotare
occurs prior to start and the cutoffs will be based on negative entered values for
Out 1 and Out 2.
ZM303 Indicator User Instructions69
Page 70
Supervisor menu
Ingredient
If the START button is pressed during the batch cycle, the current ingredient fill will be
terminated and the batch cycle will continue to the next ingredient fill.
If MODE is set to AUTO, the batch process will continue until the final ingredient
is completed. Between each ingredient there will be a slight delay to allow for
motion, final weight and preact calculations.
If MODE is set to MANUAL, this requires that you press F1 or START between
each ingredient to complete the fill cycle.
If DISP is set to NET, an autotare will occur prior to each ingredient and the Out
1, 2 and 3 fill weights will be based on Net weight.
If DISP is set to GROSS, no autotare will occur and the Out 1, 2 and 3 fill weights
would be based on the Gross weight of the accumulated ingredients. If Ingredient
1 amount is 10, Ingredient 2 amount is 20 and ingredient 3 amount is 30 then you
would enter Out 1 = 10, Out 2 = 30 (10 + 20) and Out 3 = 60 (10 + 20 + 30).
Output cutoffs are based on the actual displayed Gross weight so if inaccurate
amounts of ingredient are experienced during the batch then it may affect the
amount of each subsequent ingredient that is added.
If PREACT is set to AUTO, then it will be calculated for each ingredient to adjust
the cutoff weight accordingly.
If NEG FILL is set to YES, it will only operate for a single ingredient with OUT 1
used for discharge filling based on negative weight.
Independent Setpoints
Out 1, 2 and 3 values operate the Outputs independently. Press F1 or START for
initial start.
MODE setting does not apply to INDEPENDENT setpoints.
If DISP is set to NET, this uses net weight and if DISP is set to GROSS, this uses
gross weight for cutoff value
Auto PREACT is not available in INDEPENDENT filling.
If NEG FILL is set to YES, this allows operation of Out 1, 2 and 3 values in
negative weight mode.
Fill/Discharge
MODE setting does not apply to Fill/Discharge
If DISP is set to NET, the display will remain in net weight mode after the
discharge cycle.
If DISP is set to GROSS, the display will switch to gross weight mode after the
discharge cycle.
If PREACT is set to AUTO it only applies during the Out 2 discharge cycle.
NEG FILL setting does not apply to Fill/Discharge
70ZM303 Indicator User Instructions
Page 71
7.6 Peak Hold application supervisor menu
Super
Setpnt
Off
On
EditPrintReset
AnnunOut1Out2Out3In1
No
Yes
In2
In3
None
Print
UnitsSelectTa reZeroSampleF1
Target
Start
StopIDSetupUnderOver
Accu
Port 1
Battery
Enable
Tmout
Off
On
P-hold
Reset
No
Yes
Port 2USB
PrntHld
Mode
Act Abv
Act Bel
User
Key
in
value
Key
in
value
Key
in
value
Bold boxes and text
denote defaults.
1-3600
minutes
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
7.6Peak Hold application supervisor menu
Figure 7.6 shows the Supervisor menu when you are in the Peak Hold application:
Figure 7.6 Supervisor menu for the Peak Hold application
The Setpnt and bAttErY submenus in Figure 7.6 are the same as described in
General Weighing application supervisor menu on page 48. Go there for information
on those submenus. The unique submenus to this application are described below.
7.6.1Peak hold
Super Setpoint P-hold
1.With the Peak Hold application active, access the Supervisor menu using
password 1793. Refer to Accessing the menus on page 34 for instructions.
From SuPEr, press SELECT …
SEtPnt is displayed.
2.Press UNITS twice …
P-hoLd is displayed. Use this to reset the min/max peak. If the F1 key is
disabled, which is the normal key to reset min/max, the supervisor
needs an alternate method to reset these values.
ZM303 Indicator User Instructions71
Page 72
Supervisor menu
Reset
P-hold Reset
3.Press SELECT …
rESEt is displayed.
4.Press SELECT …
no is displayed.
5.Press UNITS to toggle between the no and YES choices. Press ZERO to
accept
…
The min/max are reset and rESEt is displayed.
6.Press TARE repeatedly to return to normal weighing operation.
72ZM303 Indicator User Instructions
Page 73
7.7 Remote Display application supervisor menu
Super
Setpnt
EditPrintReset
No
Yes
R-disp
Off
On
AnnunOut1Out2Out3In1
In2
In3
None
Print
UnitsSelectTa reZeroSample
F1
Ta rg et
Start
StopIDSetupUnder
Over
Accu
Port 1
Port 2USB
RD4000350iS
Mode
Off
On
Enable
PrntHld
Mode
Act Abv
Act Bel
User
Battery
Enable
Tmout
Off
On
BindFwd
Port 1Port 2Enet 1
Enet 5
Key
in
value
Key
in
value
Key
in
value
Bold boxes and text
denote defaults.
1-3600
minutes
SELECT =
TARE =
PRINT =
UNITS =
ZERO =
F1 = Escape or
7.7Remote Display application supervisor menu
To configure the indicator for remote display operation you must choose the mode of
operation in the supervisor menu and configure the port. Configuring the port is done
through a password protected menu. Contact your supervisor or your local Avery
Weigh-Tronix representative for more information.
Figure 7.7 shows the Supervisor menu when you are in the Remote Display
application:
The Setpnt and bAttErY submenus in Figure 7.7 are the same as described in
General Weighing application supervisor menu on page 48. Go there for information
Figure 7.7 Supervisor menu for the Remote Display application
on those submenus. The unique submenu to this application is described below.
1.With r-diSP displayed press SELECT …
EnAbLE is displayed. Use this to enable or disable the remote display
function. Choices are OFF (disable) or on (enable).
2.Press SELECT …
The current setting is displayed.
ZM303 Indicator User Instructions73
Page 74
Supervisor menu
3.Press UNITS to toggle between the choices and press ZERO to accept the
displayed choice …
EnAbLE is displayed.
4.Press UNITS …
ModE is displayed. Choices are 350iS or rd4000. Choose which type of
remote display protocol to receive.
5.Press SELECT …
The current setting is displayed.
6.Press UNITS to toggle between the choices and press ZERO to accept the
displayed choice …
ModE is displayed.
7.Press UNITS …
bindFwd is displayed. Choose which port will be used for printing/
communication forwarding from the Main indicator. Choices are Port 1,
Port 2, Enet1 through Enet 5.
8.Press SELECT …
The current setting is displayed.
9.Press UNITS to scroll through the choices and press ZERO to accept the
displayed choice …
bindFwd is displayed.
10.This completes the Supervisor menu for the Remote Display application.
Repeatedly press TARE until the indicator returns to normal weighing mode.
The current weight value is displayed.
The indicator can be configured to work as a remote display with other compatible
indicators or the GSE 350/355IS.
Settings in two password protected menus must be made to configure the indicator for
remote display operation. Contact your local Avery Weigh-Tronix representative for
information on setting up the indicator as a Primary or Secondary indicator.
74ZM303 Indicator User Instructions
Page 75
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
