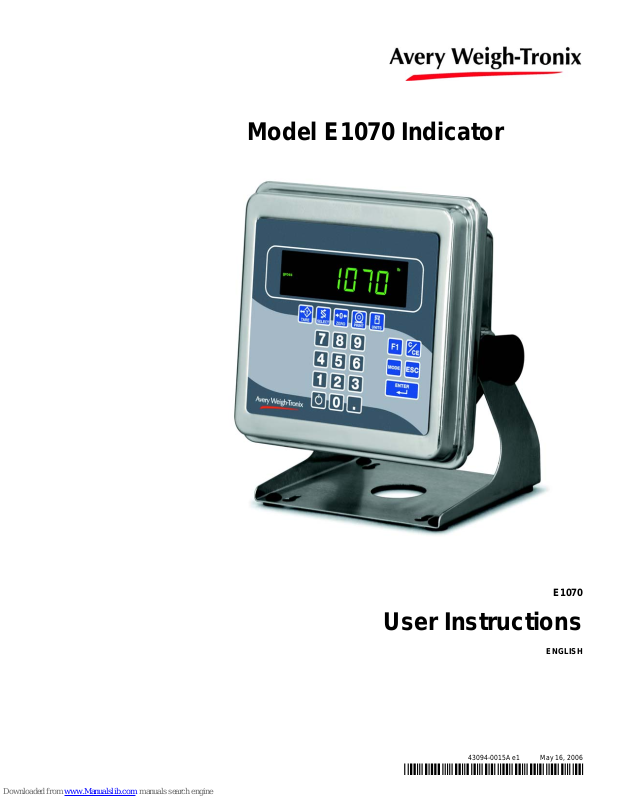

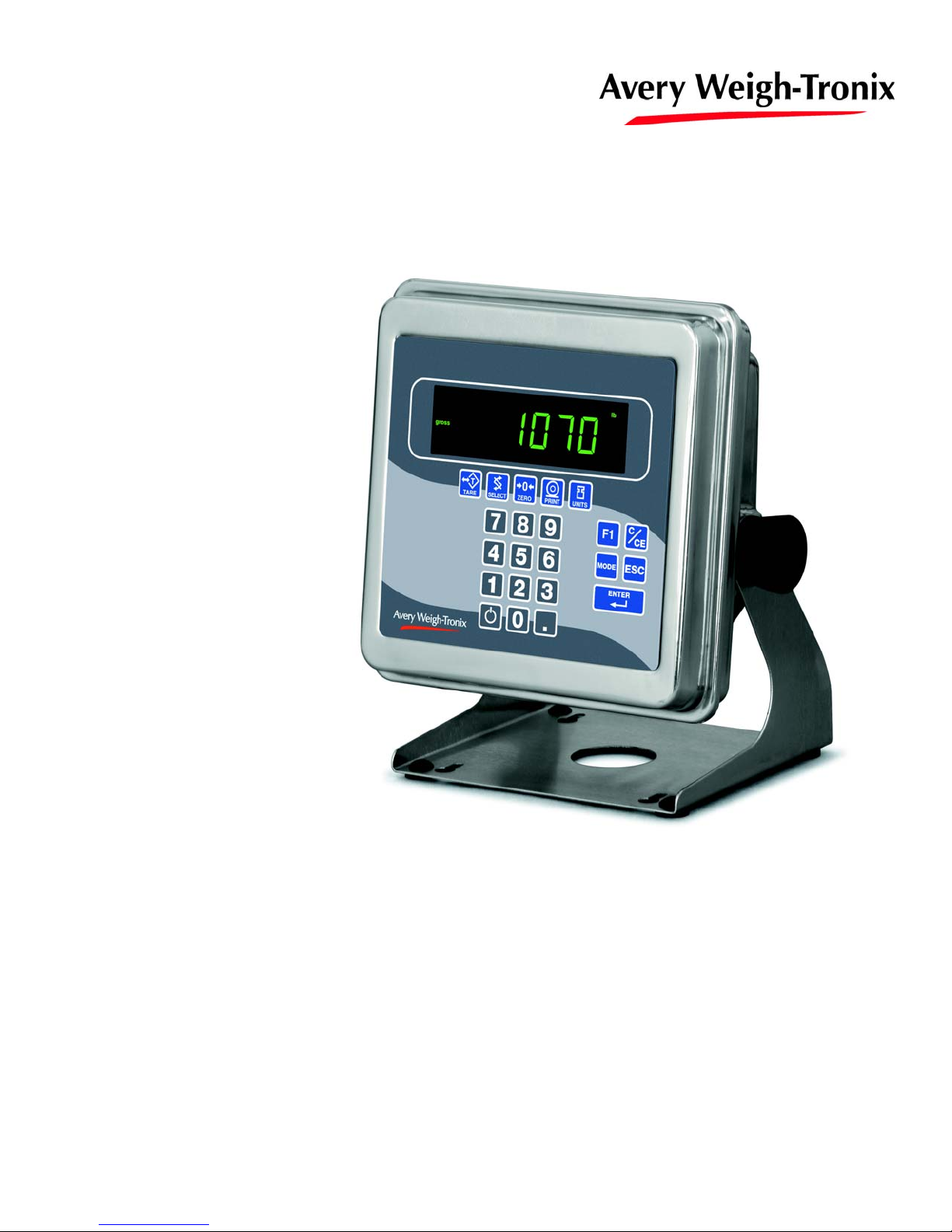

Model E1070 Indicator
E1070
User Instructions
ENGLISH
43094-0015A e1 May 16, 2006
*43094-0015*
Page 2
E1070_rev2006_u.book
Page 3
©Avery Weigh-Tronix LLC, 2006. All rights reserved.
The information contained herein is the property of Avery WeighTronix, Inc and is supplied without liability for errors or omissions.
No part may be reproduced or used except as authorized by
contract or other written permission. The copyright and the
foregoing restriction on reproduction and use extend to all media
in which the information may be embodied.
Avery Weigh-Tronix is a trading name of Weigh-Tronix, Inc
Trademarks and acknowledgements
Avery Weigh-Tronix, Avery Berkel, Dillon, NCI and Salter
Brecknell are registered trademarks in certain jurisdictions.
All third party brands and product names used within this
document are trademarks or registered trademarks of their
respective holders.
IMPORTANT
When programming or configuring the equipment you mu st ensure
that you comply with all relevant standards and legislation. The
example settings given in this book may not be le gal for trade with
the public.
Declarations of compliance
United States
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable prot ection again st harmful i nterference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and , if
not installed and used in accordance with the instruction manual, m ay cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Canada
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la Classe A
prescrites dans le Règlement sur le brouillage radioélectrique edicté par le
ministère des Communications du Canada.
European Countries
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which the user may be required to take adequate
measures.
Page 4
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED
BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.
ATTENTION: IL Y A DANGER D'EXPLOSION S'IL Y A REMPLACEMENT
INCORRECT DE LA BATTERIE, REMPLACER UNIQUEMENT AVEC UNE
BATTERIE DU MÊME TYPE OU D'UN TYPE ÉQUIVALENT
RECOMMANDÉ PAR LE CONSTRUCTEUR. METTRE AU REBUT LES
BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS DU
FABRICANT.
CAUTION: THE POWER SUPPLY CORD IS USED AS THE MAIN
DISCONNECT DEVICE, ENSURE THAT THE SOCKET-OUTLET IS
LOCATED/INSTALLED NEAR THE EQUIPMENT AND IS EASILY
ACCESSIBLE
ATTENTION: LE CORDON D'ALIMENTATION EST UTILISÉ COMME
INTERRUPTEUR GÉNÉRAL. LA PRISE DE COURANT DOIT ÊTRE
SITUÉE OU INSTALLÉE À PROXIMITÉ DE L'ÉQUIPEMENT ET ÊTRE
FACILE D'ACCÉS".
Page 5
Declaration of Conformity
Manufacturer Avery Weigh-Tronix
Type E1065, E1070
No. of EC type approval
UK 2722
certificate
corresponds to the requirements of the following EC directives:
Non–Automatic Weighing
90/384/EEC
1
Instruments Directive
EMC Directive 89/336/EEC
Low Voltage Directive 73/23/EEC
The applicable harmonised
standards are:
1
Note
: This declaration is only valid if the non–automatic weighing
EN 45501, EN 61000-4,
EN 55022, EN 60950
instrument was verified by the manufacturer or with a
certificate of conformity issued by a notified body.
A copy of the original signed declaration for this instrument is available
from:
Avery Weigh-Tronix, Foundry Lane, Smethwick, West Midlands B66 2LP England
Page 6
Verklaring van Overeenstemming
Fabrikant Avery Weigh-Tronix
Type E1065, E1070
Nummer van de Verklaring van
UK2722
EG-typegoedkeuring
is in overeenstemming met de voorschriften van de volgen d e E G-
richtlijnen:
Richtlijn Niet-automatische
90/384/EEG
1
Weegwerktuigen
Richtlijn EMC 89/336/EEG
Richtlijn Laagspanning 73/23/EEG
Toegepaste geharmoniseerde
normen:
1
Noot
: Deze verklaring is alleen geldig indien het weegwerktuig door
EN 45501, EN 61000-4
EN 55022, EN60950
de fabrikant is geverifieerd of met een Verklaring van
Overeenstemming, afgegeven door een bevoegde instantie
Een kopie van de originele ondertekende verklaring is verkrijgbaar
door contact op te nemen met:
Avery Weigh-Tronix, Foundry Lane, Smethwick, West Midlands B66 2LP England
Page 7
Déclaration de Conformité
Fabricant Avery Weigh-Tronix
Type E1065, E1070
No. de certificat d’approbation de
UK2722
type CE
correspond aux exigences des directives CE suivantes :
Directive pour les instruments de
90/384/CEE
1
pesage à fonctionnement non
automatique
Directive CEM 89/336/CEE
Directive Basse Tension 73/23/CEE
Les normes harmonisées
applicables sont :
1
Nota
: Cette déclaration est valide seulement si l’instrument de
EN 45501, EN 61000-4
EN 55022, EN 60950
pesage à fonctionnement non automatique a été vérifié par
le fabricant ou avec une attestation de conformité délivrée
par un organisme notifié.
Une copie originale de la déclaration signée pour cet appareil est
disponible à l’adresse suivante :
Avery Weigh-Tronix, Foundry Lane, Smethwick, West Midlands B66 2LP England
Page 8
Konformitätserklärung
Hersteller Avery Weigh-Tronix
Typ E1065, E1070
Nr. der EU-Bauartzulassung UK2722
entspricht den Anforderungen folgender EU-Richtlinien:
Waagenrictlinie für
90/384/EWG
1
nichtselbsttätige Waagen
EMV-Richtlinie 89/336/EWG
Niederspannungsrichtlinie 73/23/EWG
Die angewendeten
harmonisierten Normen sind:
Anmerkung
1
: Diese Erklärung gilt nur, wenn die nichtselbsttätige
EN 45501, EN 61000-4
EN 55022, EN 60950
Waage vom Hersteller geeicht wurde oder in Verbindung mit
einer Konformitätsbescheinigung einer benannten Stelle.
Eine Abschrift der original unterschriebenen Konformitätserklärung ist
unter untengenannter Adresse erhältlich von:
Avery Weigh-Tronix, Foundry Lane, Smethwick, West Midlands B66 2LP England
Page 9
Dichiarazione di conformità
Produttore Avery Weigh-Tronix
Tipo E1065, E1070
N. - certificato di approvazione
UK2722
CE
conforme alle caratteristiche previste dalle seguenti direttive CE:
Normativa per satrumenti di
90/384/CEE
1
pesatura non automatici
Normativa EMC 89/336/CEE
Normativa per la bassa tensione 73/23/CEE
Le norme standard armonizzate
applicate sono:
1
Nota
: Questa dichiarazione è valida solamente se lo strumento di
EN 45501, EN 61000-4
EN 55022, EN 60950
pesatura non automatico è stato verificato dal produttore o
provvisto di un certificato di conformità rilasciato da un ente
riconosciuto.
Se richiesta, è disponibile una copia del certificato originale firmato
presso:
Avery Weigh-Tronix, Foundry Lane, Smethwick, West Midlands B66 2LP England
Page 10
Declaración de Conformidad
Fabricante Avery Weigh-Tronix
Tipo E1065, E1070
Número del certificado de
UK2722
homologación CE
conforme a las exigencias de las siguientes directivas CE:
Directiva para equipos de pesaje
90/384/EEC
1
no automáticos
Directiva CEM 89/336/EEC
Directiva de baja tensión 73/23/EEC
Las normas armonizadas en
vigor son:
1
Nota
: Esta declaración es válida solamente si el equipo de pesaje
EN 45501, EN 61000-4
EN 55022, EN60950
no automático ha sido verificado por el fabricante o con
certificado de conformidad emitido por un organismo
notificado.
Una copia del certificado de homologación que corresponde a este
equipo se puede obtener en:
Avery Weigh-Tronix, Foundry Lane, Smethwick, West Midlands B66 2LP England
Page 11
Contents
Chapter 1: Safety and Warnings ................................................................................. 13
Chapter 2: Introduction................................................................................................ 25
Chapter 3: Front Panel................................................................................................ 26
Chapter 4: Menu Mode................................................................................................ 30
page
Installation and service (English)............................................................................ 13
Installatie en service (Dutch)..................................................................................15
Installation et Service (French)...............................................................................17
Installation und Wartung (German) ........................................................................ 19
Installazione e manutenzione (Italian)....................................................................21
Instalación y Mantenimiento (Spanish) .................................................................. 23
About This Manual ................................................................................................. 25
Setup and Power-up...............................................................................................25
Keys .......................................................................................................................26
Annunciators .......................................................................................................... 28
User Menu.............................................................................................................. 30
Supervisor Menu ................. ... ... ... ... .... ... ... ... .... ... ... ... .... ... ... ... ... ............................. 31
DATE (Set date)............................................................................................32
HOUR (Set time)...........................................................................................32
SETUP (Setup menu)....................................................................................33
TEST (Test menu).. .... ...................................... .... ... ... ... ... .... ......................... 44
AUDIT (Audit counters) menu................................................. ... ... .... ... ... ... ... 47
Chapter 5: Indicator Operations ..................................................................................49
PLU Channels ................. .... ... ... ... ... .... ... ... ... .... ...................................... .... ... ... ... ... 49
Entering an ID Number...........................................................................................49
Print Operations ..................................................................................................... 50
General Gross Weighing........................................................................................50
General Tare/Net Weighing....................................................................................50
Using Outputs in the General Weighing Application ..................................... 51
Accumulator Weighing ........................................................................................... 52
Using Outputs in the Accumulator Application.............................................. 53
Batch Weighing ............ ... .... ... ... ... ... ....................................... ... .... ... ... ... .... ............54
Auto Batching by Weight............................................................................... 56
Manual Batching by Percentage ................ ... ... .... ... ... ... ... .... ... ... ... .... ... ... ... ... 56
Checkweighing....................................................................................................... 58
Limits Mode: Entering Upper and Lower Limits................................. ... ... ... ... 59
Performing a Checkweighment in Limits Mode.............................................60
Sample Mode: Using Product to Set Target Weight...................... .... ... ... ... ... 60
Performing a Checkweighment in Sample Mode..........................................60
Using Outputs in Checkweigher Application .................................................61
Model E1065 Indicator User Instructions 11
Page 12
Target Outputs..................................................... ... ... ................................... 61
Counting................................................................................................................. 62
Bulk Sampling............................................................................................... 62
Dribble Sampling........................................................................................... 63
Displaying Count Information..................... ... ... .... ......................................... 63
Using Outputs in the Counting Application ................................................... 64
Peak Weighing....................................................... ... ....................................... ... ... 65
Using Outputs ............................................................................................... 65
Chapter 6: Communications........................................................................................ 66

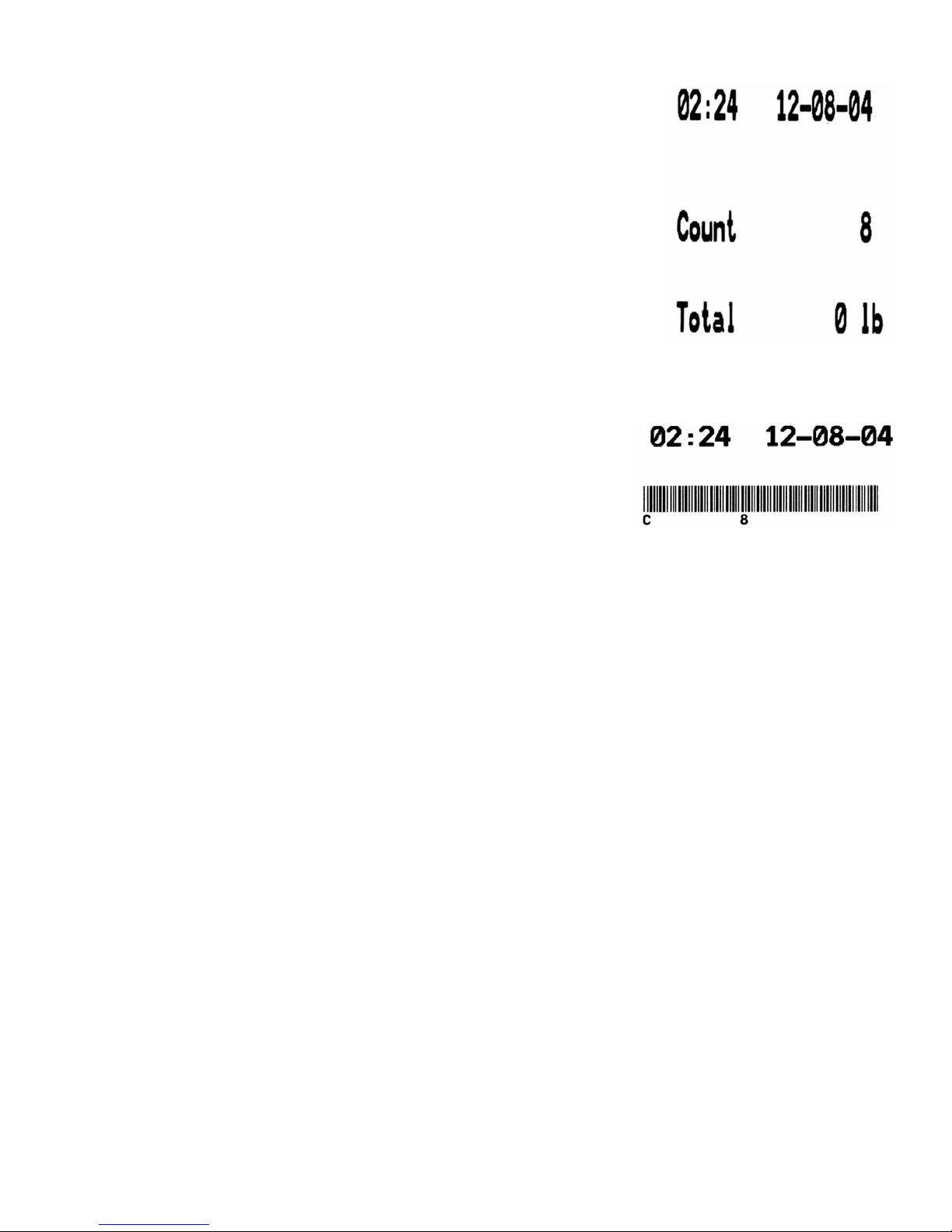

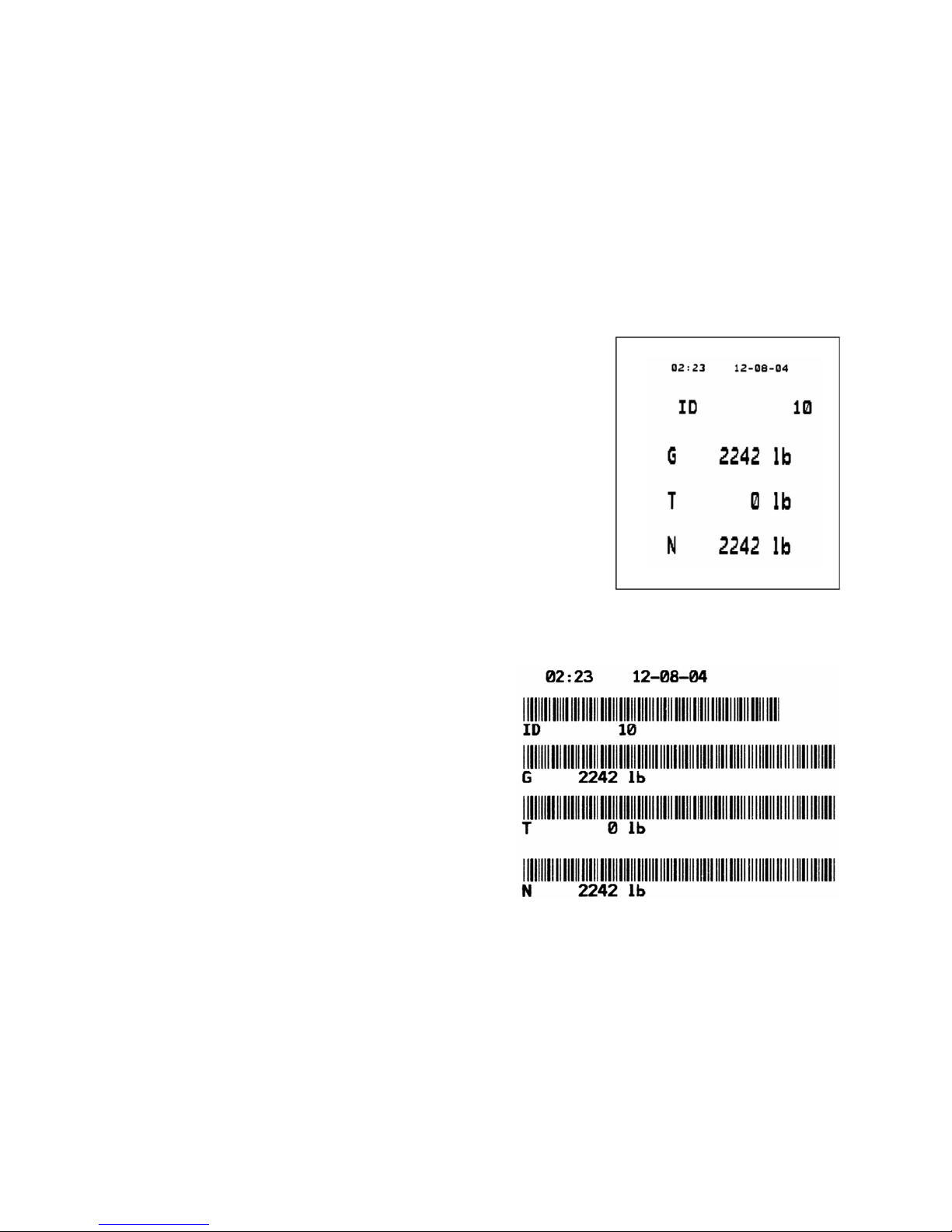

Thermal Labels Print Formats....................................................................... 67

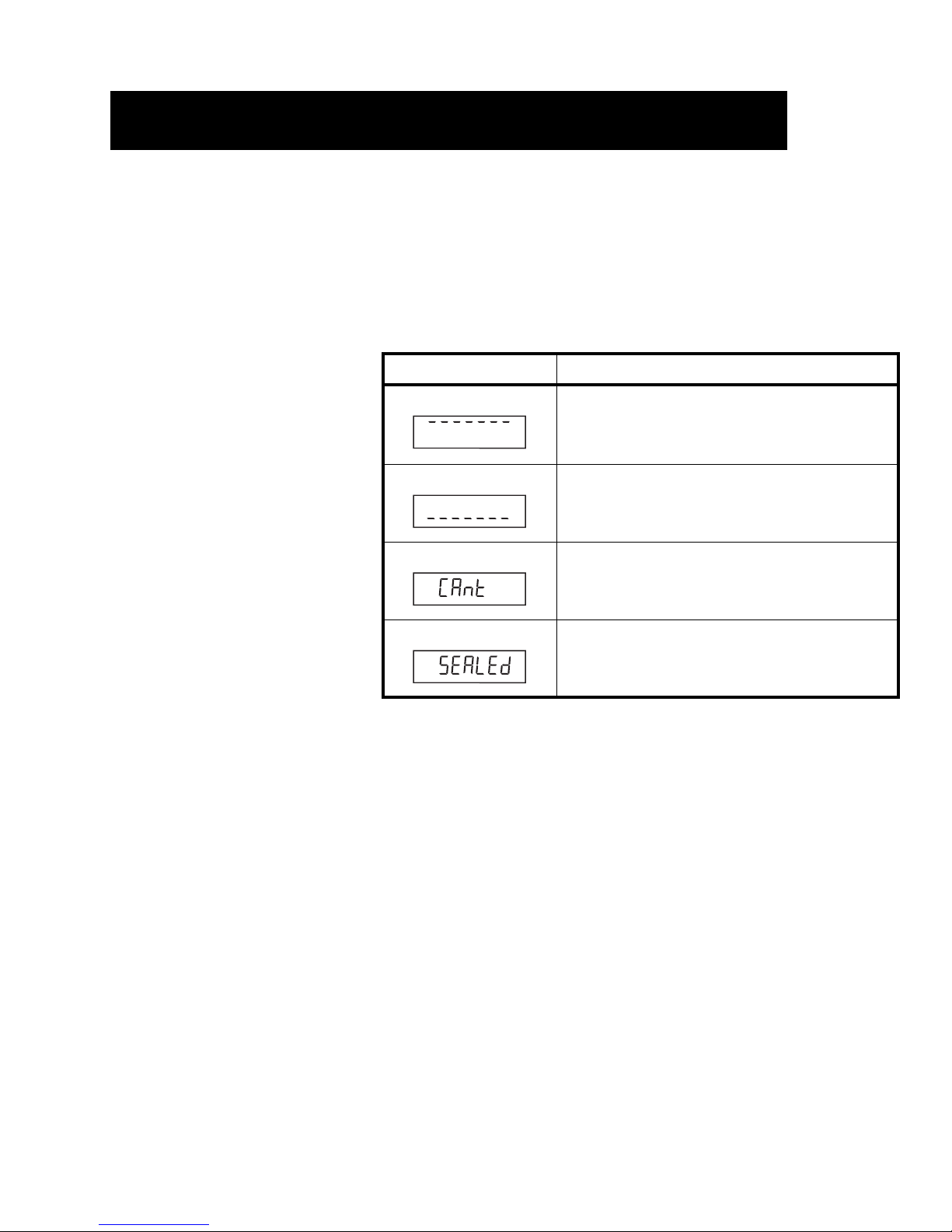

Chapter 7: Error Messages......................................................................................... 69

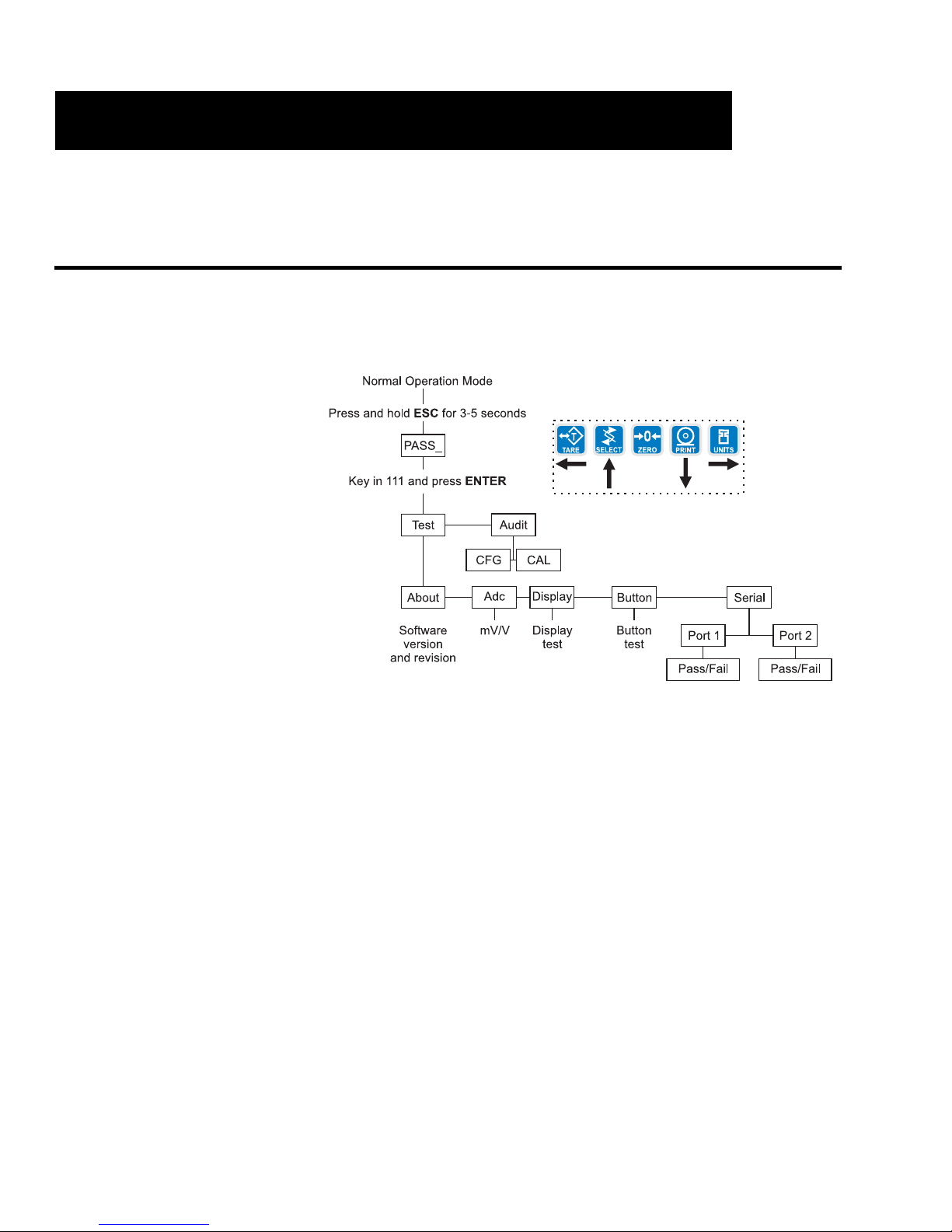

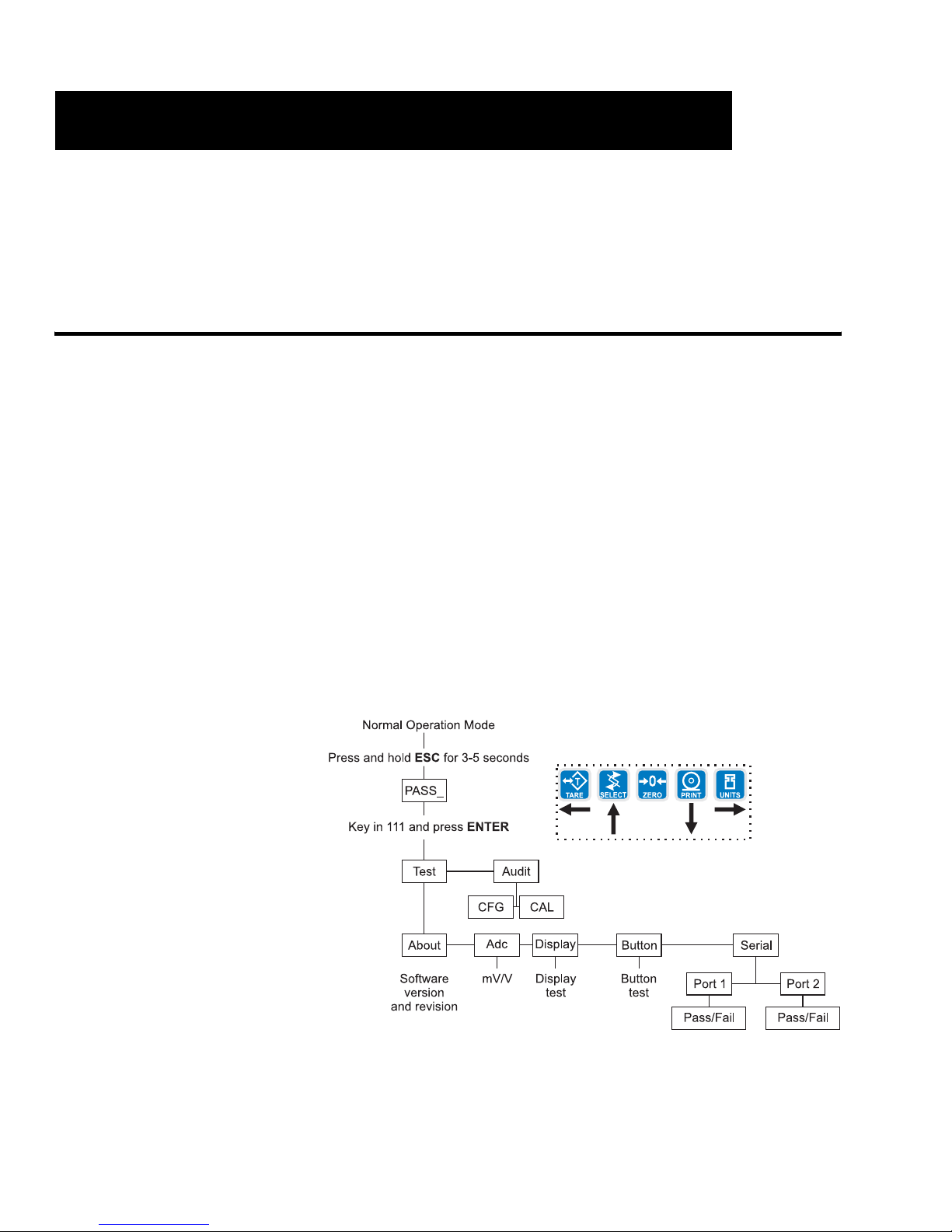

Chapter 8: Indicator Diagnostics................................................................................. 70
Testing Indicator Functions.................................................................................... 70
Chapter 9: Specifications ............................................................................................ 73
12 Model E1065 Indicator User Instructions
Page 13
Model E1070 Indicator User Instructions 13
1.1 Installation and service (English)
THE EQUIPMENT CONTAINS NO USER SERVICEABLE COMPONENTS.
Installation and maintenance of the equipment must only be carried out by
trained and authorized personnel.
1.2 Electrical installation
The mains lead must be connected to a supply outlet with a protective earth
contact. The electrical supply at the socket outlet must provide over current
protection of an appropriate rating.
For your protection all mains (110V or 230V) equipment used out of doors
or in wet or damp conditions should be supplied from a correctly fused
source and protected by an approved ground fault protection device (RCD,
GFCI etc.)
IF IN DOUBT SEEK ADVICE FROM A QUALIFIED ELECTRICIAN.
Pluggable equipment Pluggable equipment must be installed near an easily accessible socket
outlet.
Permanently wired equipment Isolator requirements
Permanently connected equipment must have a readily accessible
disconnect device incorporated in the fixed wiring. (An isolator or circuit
breaker with at least 3mm contact separation).
The isolator MUST NOT be installed into the flexible mains cable supplied
with the unit.
Electrical installation (supplementary notes for wet
conditions)
Under wet conditions the plug must be connected to the final branch circui t
via an appropriate socket / receptacle designed for wash down use.
Installations with in the USA should use a ‘Rain tight while in use
specification grade cover’, such as those manufactured by Leviton.
These allow the unit to be plugged in with a rain tight cover fitted over the
plug / receptacle allowing it to meet a NEMA 3R rating, as required by the
national electrical code under section 410-57. Note that the particular cover
mentioned is listed in UL file #E13397.
Installations within Europe must use a socket which provides a minimum
of IP56 protection to the plug / cable assembly. Care mus t be take n to
ensure that the degree of protection provided by the socket is suitable for the
environment.
Safety and Warnings
1
Page 14
14 Model E1070 Indicator User Instructions
Safety and Warnings
1.3 Routine maintenance
To avoid the possibility of electric shock or damage to the machine,
always switch off the machine and isolate from the power supply
before carrying out any routine maintenance.
To avoid the risk of the machine falling, where applicable, ensure that it is
placed securely on a flat and level surface.
1.4 Cleaning the machine
The outside of standard products may be wiped down with a clean cloth,
moistened with water containing a small amount of mild detergent.
Harsh abrasives, solvents, scouring cleaners and alkaline clea ning
solutions, such as washing soda, should not be used especially on
the display windows. Under no circumstances should you attempt to
wipe the inside of the machine.
Do not spray any liquid directly onto the display windows. If you are
using a proprietary cleaning fluid ensure you spray the cloth and not
the display.
1.5 Training
Do not attempt to operate or carry out any procedure on a machine unless
you have received the appropriate training or read the Instruction Books.
To avoid the risk of RSI (Repetitive Strain Injury) it is important to ensure
that the machine is placed on a surface which is ergonomically satisfactory
to the user. It is recommended that frequent breaks are taken during
prolonged usage.
1.6 Sharp objects
Do not use sharp objects (screwdrivers, long fingernails etc.) to operate
the keys.
1.7 EMC compliance
The following warning may be applicable to your machine.
WARNING:This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
Page 15
Model E1070 Indicator User Instructions 15
1.8 Installatie en service (Dutch)
1.8 Installatie en service (Dutch)
DE APPARATUUR BEVAT GEEN VOOR EEN SERVICEBEURT IN
AANMERKING KOMENDE ONDERDELEN.
Installatie en onderhoud van de apparatuur mag alleen worden uitgevoerd
door getraind en bevoegd personeel.
1.9 Elektrische installatie
De netstroomkabel moet worden aangesloten op een geaarde conta ctdoos.
De stroomvoorziening op de contactdoos moet overstroombeveiliging van
een toelaatbaar vermogen bieden.
Voor uw veiligheid moet alle in open lucht of onder natte of vochtige
omstandigheden gebruikte netstroomapparatuur (110 V of 230 V) zijn
voorzien van een goedgekeurde aansluitingsbescherming (RCD, GFCI
enz.)
BIJ TWIJFEL DIENT ADVIES TE WORDEN GEVRAAGD AAN EEN
GEKWALIFICEERDE ELEKTRICIEN.
Op een contactdoos aan te
sluiten apparatuur
Op een contactdoos aan te sluiten apparatuur moet worden geïnstalleerd in
de buurt van een goed te bereiken wandcontactdoos.
Permanent bedrade apparatuur
- Vereisten voor
isolatieschakelaar
Apparatuur die permanent op een contactdoos is aangesloten, moet in de
vaste bedrading zijn voorzien van een goed te bereiken
scheidingsschakelaar. (Een isolatieschakelaar of stroomonderbreker met
een minimale contactscheiding van 3 mm).
De isolatieschakelaar MAG NIET worden geïnstalleerd in de met de
installatie meegeleverde flexibele netstroomkabel.
Elektrische installatie (aanvullende opmerkingen voor
natte omstandigheden)
Onder natte omstandigheden moet de stekker op het eindtakcircuit worden
aangesloten met een contactdoos dat geschikt is voor contact met water.
Installaties in de VS moeten gebruik maken van een ‘Rain tight while in use
specification grade cover’, zoals die worden gemaakt door Leviton.
Hierdoor kan de apparatuur worden aangesloten met een waterdicht deksel
dat over de stekker / contactdoos wordt geplaatst. Zo voldoet de installatie
aan NEMA 3R zoals vereist in de "national electrical code", sectie 410-57.
Het betreffende deksel is vermeld in UL reg #E13397.
Installaties in Europa moeten gebruik maken van een stopcontact dat
minimaal IP56 bescherming biedt aan de stekker / kabelassemblage. Men
dient ervoor te zorgen dat de door de contactdoos geboden mate van
bescherming geschikt is voor de omgeving.
1.10 Periodiek onderhoud
Schakel de apparatuur altijd uit en haal deze uit de conta ctdoos
voordat u periodiek onderhoud pleegt om het risico van een
elektrische schok of beschadiging van de apparatuur te voorkomen.
Zorg dat de apparatuur zich altijd op een vlak en effen oppervla k bevindt om
te voorkomen dat deze op de grond valt.
Page 16
16 Model E1070 Indicator User Instructions
Safety and Warnings
1.11 Het apparaat reinigen
De buitenkant van de standaardproducten kan met een schone vochtige
doek met een klein beetje mild reinigingsmiddel worden afgenomen.
Gebruik geen schuurmiddelen, oplosmiddelen, schuurpoeder of
alkalische reinigingsmiddelen (zoals soda) om het apparaat te
reinigen. Gebruik deze middelen in elk geval nooit op de
displayvensters. De binnenkant van het apparaat mag nooit wo rden
gereinigd.
Spuit geen vloeistof direct op het displayvenster. Als u een
schoonmaakmiddel in een spuitbus gebruikt, spuit het middel op de
doek en niet op het displayvenster.
1.12 Training
Tracht geen procedure op de machine uit te voer en, beha lve wanneer u de
relevante training gehad, of de instructieboeken gelezen heeft.
Om RSI (Repetitive Strain Injury = letsel door repetitieve werkzaamheden)
te voorkomen, is het belangrijk ervoor te zorgen dat het apparaat op een
werkoppervlak wordt geplaatst dat ergonomisch voldoet voor de gebruiker.
In gevallen van lang gebruik adviseren wij regelmatig een pauze in te
lassen.
1.13 Scherpe voorwerpen
Gebruik geen scherpe voorwerpen (schroevendraaiers, lange
vingernagels etc.) om de toetsen te bedienen.
1.14 EMC-naleving
De volgende waarschuwing kan op uw apparaat van toepassing zijn.
WAARSCHUWING: Dit is een klasse A-product. In huiselijke omgeving
kan dit product radiostoring veroorzaken in welk geval de gebruiker de
noodzakelijke maatregelen dient te nemen.
Page 17
Model E1070 Indicator User Instructions 17
1.15 Installation et Service (French)
1.15 Installation et Service (French)
CET EQUIPEMENT NE CONTIENT AUCUN COMPOSANT PERMETTANT
L'INTERVENTION TECHNIQUE DE L'UTILISATEUR.
L'installation et la maintenance de cet équipement doivent être exécutées
uniquement par du personnel spécifiquement formé et habilité à intervenir.
1.16 Installation électrique
Le câble d'alimentation doit être branché sur une prise équipée d'un
dispositif de masse - mise à la terre. L'alimentation électrique au niveau de
la prise doit assurer une protection d'une valeur appropriée contre une
surcharge de courant.
Par mesure de sécurité, tous les équipements fonctionnant sous 110 ou 230
V utilisés en extérieur ou dans des conditions d'humidité doivent être
raccordés à une source avec un coupe-circuit et protégé par un appareil
homologué de protection contre les défauts de masse (normes RCD, GFCI,
etc.)
EN CAS DE DOUTE, DEMANDER L'AVIS D'UN TECHNICIEN QUALIFIE.
Equipement avec prise secteur Ces équipements électriques doivent être installés près d'une prise
facilement accessible.
Equipement connecté en
permanence - Consignes
d'isolement
Les équipements qui doivent être alimentés en permanence doivent être
dotés d'un système de déconnexion facilement accessible et intégré au
câblage (un circuit isolant ou coupe-circuit avec une séparation de contact
d'au moins 3 mm).
Le circuit isolant ne doit pas être installé dans le câble flexible fourni avec
l'appareil.
Installation électrique Information supplémentaire
pour conditions d'humidité
Dans des environnements humides, la fiche d'alimentation doit être
connectée à une prise ou boîtier spécialement conçu et protégé contre les
jets d'eau.
Les installations effectuées aux États-Unis doivent utiliser un couvercle
imperméable, tel que ceux fabriqués par Leviton. Ce couvercle, classé
NEMA 3R, permet de protéger l'appareil et la prise conformément au code
national électrique, section 410-57. Remarque : le couvercle mentionné cidessus est répertorié dans le fichier UL #E13397.
Pour les installations en Europe il est nécessaire d'utiliser au minimum
une connexion aux normes IP56 pour la prise, la fiche secteur et le câble.
Veiller à ce que la protection fournie par le point de connexion soit adaptée
à l'environnement.
1.17 Maintenance de routine
Avant toute maintenance de routine, pour éviter toute possibilité de
choc électrique ou de dommage à l'appareil, éteindre toujours la
machine et la déconnecter de l'alimentation secteur.
Pour éviter tout risque éventuel de chute de la machine, vérifier qu'elle soit
placée sur une surface plane et à niveau.
Page 18
18 Model E1070 Indicator User Instructions
Safety and Warnings
1.18 Nettoyage de l'appareil
L'extérieur des produits standard peut être nettoyé avec un chiffon propre,
humidifié avec de l'eau et une petite quantité de détergent.
Ne pas utiliser de détergents abrasifs ou de solutions alcalines telle
que la soude ménagère, surtout sur les écrans. Ne jamais essayer de
nettoyer l'intérieur de la machine.
Ne jamais vaporiser de liquide directement sur l'écran. En cas
d'utilisation d'un liquide de nettoyant ménager, asperger le chiffon et
non l'écran.
1.19 Formation
Ne pas essayer d'utiliser la machine ou suivre une procédure quelconque
sans avoir reçu la formation appropriée ou avoir lu les manuels
d'utilisation.
Pour éviter le risque de microtraumatismes répétés, il est importa nt de
s'assurer que la machine soit placée sur une surface ergonomiquement
satisfaisante pour l'utilisateur. Il est recommandé que l'utilisateur fasse
des pauses fréquentes en cas d'une utilisation prolongée.
1.20 Objets tranchants
Ne pas utiliser d'objets tranchants (tournevis, ongles trop longs…) pour
actionner les touches.
1.21 EMC
L'avertissement suivant pourrait concerner votre appareil.
Attention. Ceci est un appareil de classe A. Dans un environnement
domestique, cet appareil peut être la cause d'interférences radio. Dans ce
cas, l'utilisateur peut être obligé de prendre les mesures adéquate s.
Page 19
Model E1070 Indicator User Instructions 19
1.22 Installation und Wartung (German)
1.22 Installation und Wartung (German)
DAS GERÄT ENTHÄLT KEINE TEILE, DIE VOM BENUTZER GEWARTET
WERDEN KÖNNEN.
Die Installation und Wartung des Gerätes darf nur von geschultem und
autorisiertem Personal durchgeführt werden.
1.23 Elektrische Installation
Die verwendete Steckdose muss unbedingt mit einem Schutzleiter
ausgestattet sein. Die Stromversorgung über die Steckdose muss durch
einen vorschriftsmäßigen Fehlerstrom-Schutzschalter geschützt sein.
Zu Ihrer eigenen Sicherheit sollten
alle Netzstrom betriebenen (110V
oder 230V) Geräte, die im Freien
oder unter feuchten Bedingungen
verwendet werden, von einer
gesicherten Stromquelle, die über
eine zugelassene FehlerstromSchutzeinrichtung (FI-Schalter)
geschützt ist, versorgt werden.
IN ZWEIFELSFÄLLEN WENDEN
SIE SICH BITTE AN EINEN
QUALIFIZIERTEN
ELEKTRIKER.Angeschlossene
Geräte
Ans Netz angeschlossene Geräte müssen leicht vom Netz trennbar sein.
Ständig angeschlossene Geräte - Trennscha lterAnforderungenDauerhaft angeschlossene Geräte müssen über einen
leicht zugänglichen, in den festen Stromkreis integrierten Notschalter
verfügen. (Einen Trenn-schalter oder Sicherun gsautomaten mit mindestens
3mm Kontakt-Trennung).
Der Trennschalter DARF NICHT in das mitgelieferte flexible Netzkabel
installiert werden.
Elektrische Installation (Zusatz-Hinweise bei nassem
Umfeld)
Im Freien oder unter feuchten Bedingungen muss der Stecker direkt über
eine geeignete abwaschbare Steckdos e an die Str om ve rs or gun g
angeschlossen werden.
Anschlüsse in den USA sollten mit einer Abdeckung mit dem
Spezifikationsgrad ‚Wasserundurchlässig während in Betrieb’ versehen
sein, wie beispielsweise die von Leviton.
Dadurch kann das Gerät an eine Steckdose mit einer wasserdichten
Abdeckung laut NEMA 3R angesteckt werden, wie dies nach dem ‚National
Electrical Code’ Abschnitt 410-57 erforderlich ist. Hinweis: die genannte
Abdeckung ist unter UL E13397 aufgelistet.
Anschlüsse in Europa müssen über eine Steckdose erfolgen, die die
Mindest-Anforderungen der IP56-Schutzvorkehrung für Stecker / Kabelanschlüsse erfüllt. Es muss darauf geachtet werden, dass der von der
Steckdose gewährleistete Schutz den Anforderungen des entsprechenden
Umfelds entspricht.
1.24 Regelmäßige Wartung
Zum Schutz vor Stromschlägen und um Besc hädigungen des Geräte s
vorzubeugen, muss dieses vor der Durchführung von Wartungsarbeiten ausgeschaltet und vom Netz getrennt werden.
Um das Herunterfallen des Gerätes zu vermeiden, sollte dieses sicher auf
einer ebenen und waagerechten Oberfläche platziert werden.
Page 20
20 Model E1070 Indicator User Instructions
Safety and Warnings
1.25 Reinigung des Gerätes
Das Gehäuse kann von außen mit einem feuchten Tuch gereinigt werden.
Dem Wasser kann eine kleine Menge eines milden Reinigungsmittels
beigefügt werden.
Zu Reinigungszwecken, besonders im Fall von Monitoren, dürfen
keine Scheuermittel, Lösungsmittel oder andere alkalische
Reinigungsmittel verwendet werden. Die Innenseite des Gerätes darf
unter keinen Umständen nass gereinigt werden.
Sprühen Sie keine Flüssigkeiten direkt auf das Display. Wenn Sie
eine Reinigungsflüssigkeit verwenden, sprühen Sie die se auf ein
Tuch und nicht auf das Display.
1.26 Schulung
Ohne Durchlesen der Bedienungsanleitung bzw. einer Einweisung durch
das Fachpersonal sollte das Gerät nicht bedient oder ein Verbundsystem in
Betrieb genommen werden.
Um Fehlbelastungen zu vermeiden, sollte die Waage so platziert werden,
dass sie den ergonomischen Ansprüchen des Bedieners gerecht wird. Es
wird empfohlen, bei lang andauernder Bedienung des Gerätes regelmäßige Pausen einzulegen.
1.27 Spitze Gegenstände
Verwenden Sie keine spitzen Gegenstände (Schraubenzieher, lange
Fingernägel usw.), um die Tasten zu bedienen.
1.28 EMV-gerecht
Der folgende Warnhinweis trifft unter Umständen auf Ihr Gerät zu.
WARNUNG: Bei diesem Gerät handelt es sich um ein Gerät der Klasse A.
Dieses Gerät kann bei einem Betrieb in Wohngegenden Funkstörungen
verursachen. Ist dies der Fall muss der Benutzer eventuell entsprechende
Maßnahmen treffen.
Page 21
Model E1070 Indicator User Instructions 21
1.29 Installazione e manutenzione (Italian)
1.29 Installazione e manutenzione (Italian)
L'APPARECCHIATURA NON CONTIENE COMPONENTI RIPARABILI
DALL'UTENTE.
L'installazione e la manutenzione dell'apparecchiatura devono essere
eseguite esclusivamente da personale addestrato e autorizzato.
1.30 Impianto elettrico
Il cavo di alimentazione deve essere collegato ad una presa di cor rente con
un contatto di messa a terra protettiva. La fornitura elettrica alla presa di
corrente deve prevedere una protezione contro le so vracorrenti di un in dice
appropriato.
Per sicurezza l'apparecchiatura di rete (110 V o 230 V) utilizzata all'aperto
oppure in condizioni di bagnato o umidità deve essere alimentata da una
sorgente opportunamente equipaggiata con fusibili e protetta da un
dispositivo approvato di protezione contro i guasti di terra, come ad esempio
un dispositivo di corrente residua (RCI), un interruttore del circuito di
rilevamento di fughe a terra (GFCI), ecc.
IN CASO DI DUBBI RIVOLGERSI AD UN ELETTRICISTA QUALIFICATO.
Apparecchiatura collegabile L'apparecchiatura collegabile deve essere installata in prossimità di una
presa elettrica facilmente accessibile.
Apparecchiatura cablata
permanentemente - requisiti
dell'isolatore
L'apparecchiatura collegata in modo permanente deve disporre di un
dispositivo di disconnessione facilmente accessibile, incorporato nel
cablaggio fisso – un isolatore o un interruttore salvacircuito con una
separazione dei contatti di almeno 3 mm.
L'isolatore NON DEVE essere installato nel cavo di rete flessibile in
dotazione con l'unità.
Impianto elettrico - (note
aggiuntive in caso di condizioni
di bagnato)
In condizioni di bagnato, la spina deve essere collegata al circui to terminale
di derivazione tramite un'apposita presa concepita per applicazioni di
lavaggio.
Per gli impianti negli Stati Uniti occorre utilizzare un "coperchio conforme
alla specifica e un dispositivo di tenuta a prova di pioggia", come quelli
prodotti da Leviton.
Questi consentono il collegamento dell'unità con un coperchio a prova di
pioggia montato su presa che consente di soddisfare la classificazione
NEMA 3R, secondo quanto richiesto dal codice nazionale per il materiale
elettrico nell'articolo 410-57. Si noti che il coperchio menzionato è elen cato
nel file UL #E13397.
Per gli impianti in Europa occorre utilizzare una presa che fornisca almeno
una protezione IP56 per il complesso spina/cavo. Assicurarsi che il grado di
protezione fornito dalla presa sia adatto per l'ambiente.
1.31 Manutenzione di routine
Per evitare la possibilità di scosse elettriche o danni alla macchina,
spegnere sempre la macchina e isolarla dall'alimentazione elettrica
prima di eseguire gli interventi di manutenzione di routine.
Per evitare il rischio di caduta della macchina, laddove applicabile,
assicurarsi che sia posizionata in modo sicuro su una superficie piana e
orizzontale.
Page 22
22 Model E1070 Indicator User Instructions
Safety and Warnings
1.32 Pulizia della macchina
La parte esterna dei prodotti standard può essere pulita con un panno
pulito, inumidito con acqua contenente una piccola quantità di detergente
neutro.
Non utilizzare sostanze abrasive corrosive, solventi, deterg enti
sgrassanti e soluzioni detergenti a base alcalina, come ad esempio
carbonato di sodio, particolarmente sui display. Non tentare mai d i
pulire l'interno della macchina.
Non spruzzare alcun liquido direttamente sui display. Se si utilizza un
apposito liquido detergente assicurarsi di sp ruzza re il liquido su un
panno e non sul display.
1.33 Formazione
Non tentare di azionare la macchina o non eseguire alcun intervento su di
questa a meno che non si riceva una formazione appropriata o senza aver
letto il manuale di istruzioni.
Per evitare lesioni derivanti da sollecitazioni ripetitive (RSI, Repetitive
Strain Injury), è importante assicurarsi che la macchina venga posta su
una superficie che sia posizionata in modo soddisfacente da un punto di
vista ergonomico per l'utente. Si consiglia di effettuare frequenti
interruzioni durante l'uso prolungato.
1.34 Oggetti appuntiti
Non utilizzare oggetti appuntiti (cacciaviti, unghie lunghe, ecc.) per
azionare le chiavi.
1.35 Conformità alla direttiva sulla compatibilità elettromagnetica (EMC)
Per la macchina è possibile che sia applicabile la seguente avvertenza.
AVVERTENZA: questo è un prodotto di classe A. In un ambiente
domestico, questo prodotto può causare interferenze radio e in tal caso è
possibile che l'utente debba intraprendere misure adeguate.
Page 23
Model E1070 Indicator User Instructions 23
1.36 Instalación y Mantenimiento (Spanish)
1.36 Instalación y Mantenimiento (Spanish)
EL EQUIPO NO TIENE PARTES QUE PERMITEN UN MANTENIMIENTO
POR EL USUARIO.
La instalación y el mantenimiento del equipo sólo pueden ser realizados por
el personal calificado y autorizado.
1.37 Instalación eléctrica
El cable de electricidad debe ser conectado a un enchufe con toma de tierra.
La alimentación eléctrica en el enchufe debe estar provista de una
protección adecuada de sobrecorriente.
Para garantizar su seguridad, todo
el equipo conectado a la red (110V
o 230V) que se utiliza en el exterior
o bajo condiciones de humedad
debe ser alimentado por una fuente
con fusibles adecuados y protegida
por un dispositivo de protección
contra la pérdida de tierra
aprobado (RCD, GFCI, etc.).
EN CASO DE DUDA, CONSULTE
UN TÉCNICO CALIFICADO.
Equipo conectado
Todo el equipo que se puede conectar a la red eléctrica se debe instalar
cerca de una toma de corriente fácilmente accesible.
Equipo conectado
permanentemente – Requisitos
de aislador
Si el equipo está permanentemente conectado, debe existir un mecanismo
de desconexión accesible incorporado en el cableado de la instalación
eléctrica. (Un aislador o interruptor del circuito con una separación mínima
del contacto de 3mm).
NO SE DEBE instalar el aislador dentro del cable de red flexible facilitado
con la máquina.
Instalación eléctrica - (avisos
adicionales para condiciones de
humedad)
Bajo condiciones de humedad se debe conectar el en chufe directamente al
suministro de corriente por medio de una toma de corriente adecuada e
impermeable.
Instalaciones en los EEUU deberán pr oveer de una cubierta con un grado
de especificación ‘Impermeable mientras en funcionamiento’ como aquellas
fabricadas por Leviton.
Esto permite que la unidad sea enchufada con una cubierta imperm eable
colocada sobre el enchufe permitiendo cumplir con el grado NEMA 3R,
según es requerido por el código nacional eléctrico bajo la sección 410-57.
Aviso: La cubierta mencionada está listada en el archivo UL número
E13397.
Instalaciones en Europa deben usar una toma de corriente que pr ovea un
mínimo de protección de IP56 a la conexión de enchufe / cable. Hay que
asegurarse de que el grado de protección realizado por el enchufe
corresponde a las exigencias del entorno.
Page 24
24 Model E1070 Indicator User Instructions
Safety and Warnings
1.38 Mantenimiento rutinario
Para evitar la posibilidad de un choque eléctrico o daños a la máquina,
siempre apague la máquina y desconéctela del suministro eléctrico
antes de realizar cualquier operación rutinaria de mantenimiento.
Para evitar el riesgo de caída de la máquina, asegúrese de colocarla
adecuadamente sobre una superficie lisa y nivelada.
1.39 Limpieza de máquina
El exterior de los productos estándares se puede limpiar con un paño
limpio humedecido con agua conteniendo una pequeña ca ntidad d e
detergente suave.
No se deben usar abrasivos duros, disolventes, estro pajos o
soluciones de limpieza alcalinas, tales como soda cáustica,
especialmente en las pantallas de visualización. En ningún caso
debe intentar limpiar el interior de la máquina.
No rocíe ningún líquido directamente a las pantallas de visualización.
Si utiliza un fluido de limpieza específico asegúrese que lo rocía al
paño y no a la pantalla.
1.40 Formación
No intente operar o llevar a cabo ningún procedimiento en la máq uina si no
ha recibido la capacitación apropiada o leído los Libros de Instrucción.
Para evitar el riesgo de LTR (lesión de la tensión repetida) es importante
asegurarse que la máquina sea colocada en una superficie
ergonómicamente satisfactoria para el usuario. En casos de un uso
prolongado se les recomienda descansos frecuentes a los operarios.
1.41 Objetos afilados
No utilice objetos afilados (destornilladores, uñas largas, etc.) para
teclear.
1.42 Conformidad de ESD
La siguiente advertencia se puede aplicar a su máquina.
ADVERTENCIA: Esto es un producto de clase A. En un ambiente
doméstico este producto puede causar interferencias radiofónicas, en
cuyo caso podría ser necesario que el usuario adopte medidas
adecuadas.
Page 25
Introduction
2.1 About This Manual
2
The Model E1070 is a full function, high connectivity indicator for most
weighing applications and process control situations. It is ideal for connected
system weighing applications. The display includes a multi-segment fan
graph for fast visual awareness for checkweighing. Also, the indicator can
perform counting functions, peak weight functions, and act as a remote
display. The indicator also has 11 memory channels for storing data.
Communication ports allow connection to a many peripheral devices and to
DeviceNet, ProfiBus and EtherNet/IP interfaces.
All this in a NEMA 6/4X rated enclosure.
Major sections of this manual are headed by titles in a black bar like
Introduction above. Subheadings appear in the left column. Instr uctions and
text appear on the right side of the page. Occasionally notes, tips, and
special instructions appear in the left column.
2.2 Setup and Power-up
Plug the Model E1070 into properly
grounded socket-outlet of the
correct voltage, installed near the
equipment and easily accessible.
Never use the unit without an
appropriate earthground
connection.
Any computer based system
should have a separate, grounded
power circuit. We recommend one
for the Model E1070.
Your indicator will be installed by a qualified Avery Weigh-Tronix distributor.
They will make the required connections to your scale and peripheral
devices.
1. With the unit plugged in, see note at left, press and release the on/off
switch, shown below, to turn the indicator on.
2. The indicator powers up in normal operation mode.
Model E1070 Indicator User Instructions 25
Page 26
Front Panel
Front Panel
3
The front panel, shown in Figure 1, consists of the keys and display.
3.1 Keys
Never press a key with anything
but your finger. Damage to the
overlay may result if sharp or rough
objects are used.
26 Model E1070 Indicator User Instructions

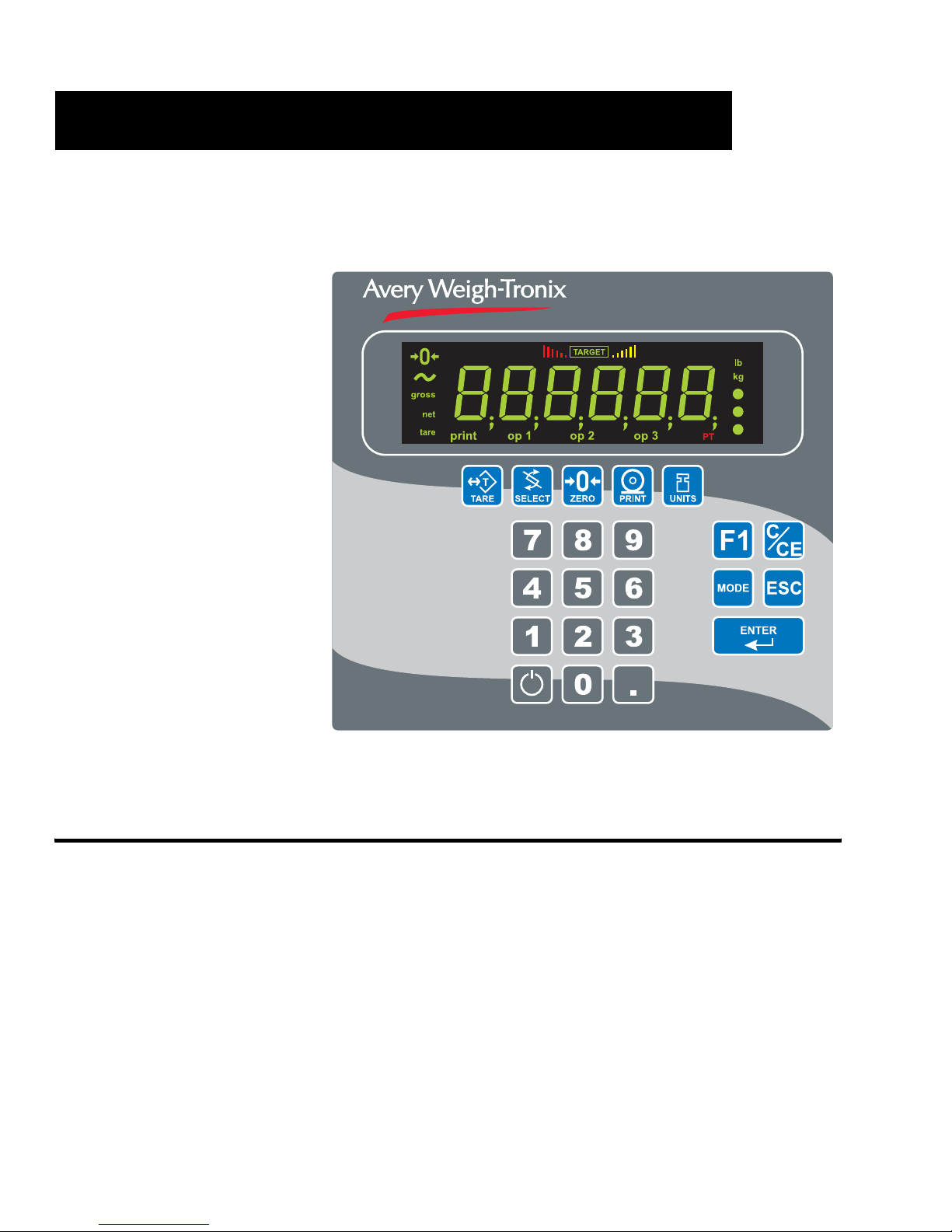

Figure 3.1 E1070 front panel
The functions of the keys on the front panel are listed below.
Page 27
Press the TARE key to perform a tare function. Also acts as
a left arrow key when in the menu structure.
Press the SELECT key to toggle between Gross, Tare, Net,
Count, Gross Accumulator, Net Accumulator, Transaction
Counter, Piece Weight, and Peak. Dependent on the current
application. Also acts as an up arrow key when in the User
menu. Press and hold to access the output menu.
Press the ZERO key to zero the display.
Press the PRINT key to send information to a peripheral
device through the Comm port. Also acts as a down arrow
key when in the menu structure.
Press the UNITS key to scroll through the available units of
measure while in normal operating mode. Also acts as a
right arrow key when in the menu structure.
Press the F1 key to select application specific choices. Also
used to access PLU memory channels.
Press the C/CE key to clear entries.
Press the MODE key to scroll through the activated
applications. Press and hold for 3-5 seconds to see the
name of the currently active application.
Press the ESC key to escape a function or return to normal
operation mode. Use to access the password display for the
menu structure.
Model E1070 Indicator User Instructions 27
Page 28
Front Panel
Press the ENTER key to accept displayed choices.
Use the numeric keypad to enter values.
Press and release the ON/OFF key to turn the unit on. Press
and hold the ON/OFF key until the unit turns off.

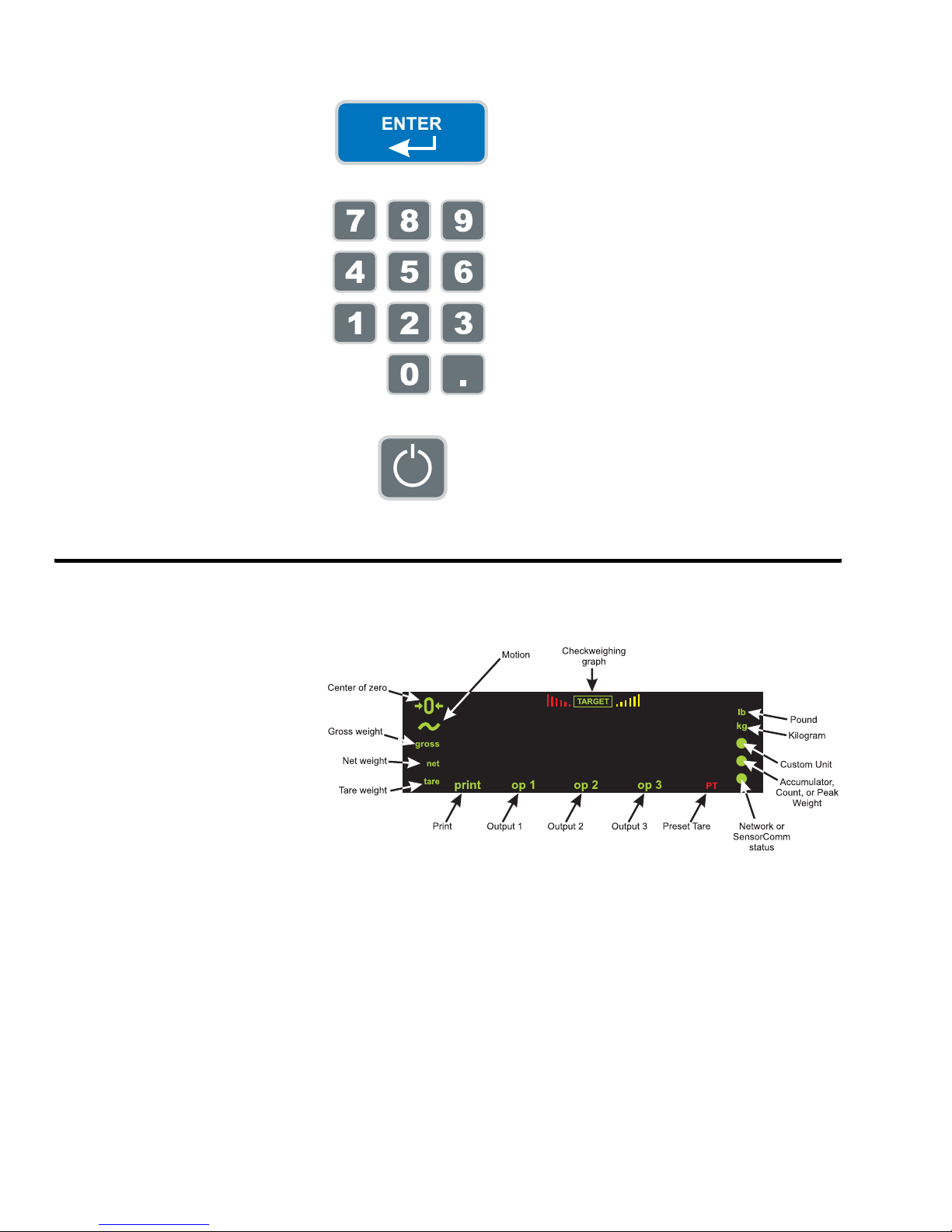

3.2 Annunciators
There are several annunciators around the edge of the display. Figure 3.2
explains each one.
Figure 3.2 Annunciators
.
Center of Zero Lights when weight on the scale is within the zero range
Motion Lights during scale motion. Goes out when scale is stable
Gross Lights when gross weight is displayed
Net Lights when net weight is displayed
Tare Lights when tare weight is displayed
Print Lights when print format sent through serial port
OP 1 Lights when output one is activated
OP 2 Lights when output two is activated
28 Model E1070 Indicator User Instructions
Page 29
Bottom LED color
SCOM:
Red – a cell has been ghosted. Check
the ghost log.
Green – a sensorcomm error has
occurred. Check the error log.
Off – Scale is functioning normally.
Network 1 or 2:
Red – A network error has occurred.
Check the network settings on the
indicator and PLC, and reboot the
indicator.
Green – The network connection has
been established.
Amber – The network is ready for a
connection, but no connection has been
established
OP 3 Lights when output three is activated
PT Lights when preset tare is active
Network &
SensorComm
This is configurable to light to show status of the Network 1,
Network 2 or SensorComm. See note at left.
Status
Accumulator, Count Lights when an accumulation occurs and while in the count and
peak applications
Custom Unit Lights when a custom unit of measure is active
KG Lights when kilograms is the active unit of measure
LB Lights when pounds is the active unit of measure
Checkweigher Lights when checkweighing application is active
Model E1070 Indicator User Instructions 29
Page 30
Menu Mode
Menu Mode
4.1 User Menu
4
The E1070 has a User and a Supervisor men u you can use to perform tests
on the indicator and to set up some indicator functions. Each is described
below.
Use the User menu to do the following:
User menu password is 111. You
must key in the password within 10
seconds or the display returns to
normal operation mode.
The display represents M by nn so
min becomes nnin, mode becomes
nnode, etc.
• See so ftware information
• See A to D mV/V values
• Do a display test
• Do a button test
• Test the serial ports
• Audit the number of configurations and calibrations performed
1. Access the User menu by pressing and holding the ESC key for
3-5 seconds. Release the key when…
PASS_ is disp laye d.
2. Key in the User menu password = 111 and press ENTER. Figure 4.1
shows a flowchart of the User menu items. Use the keys shown in the
box in Figure 4.1 to navigate through the menu and choose the items
you want.
30 Model E1070 Indicator User Instructions
Figure 4.1 User menu flowchart
Specific instructions on the User menu appear in the section Indicator
Diagnostics later in the manual.
Page 31
4.2 Supervisor Menu
4.2 Supervisor Menu
Password for the Supervisor menu
is 1793.
The Supervisor menu is shown in Figure 4.2. Use this menu to set time and
date, clear and print reports, perform diagnostic tests and view audit
counters.
WARNING: Entering this menu and changing settings may affect
operation of the indicator and may require a service ca ll to correct. Be
sure you want to change settings before doing so.
Model E1070 Indicator User Instructions 31

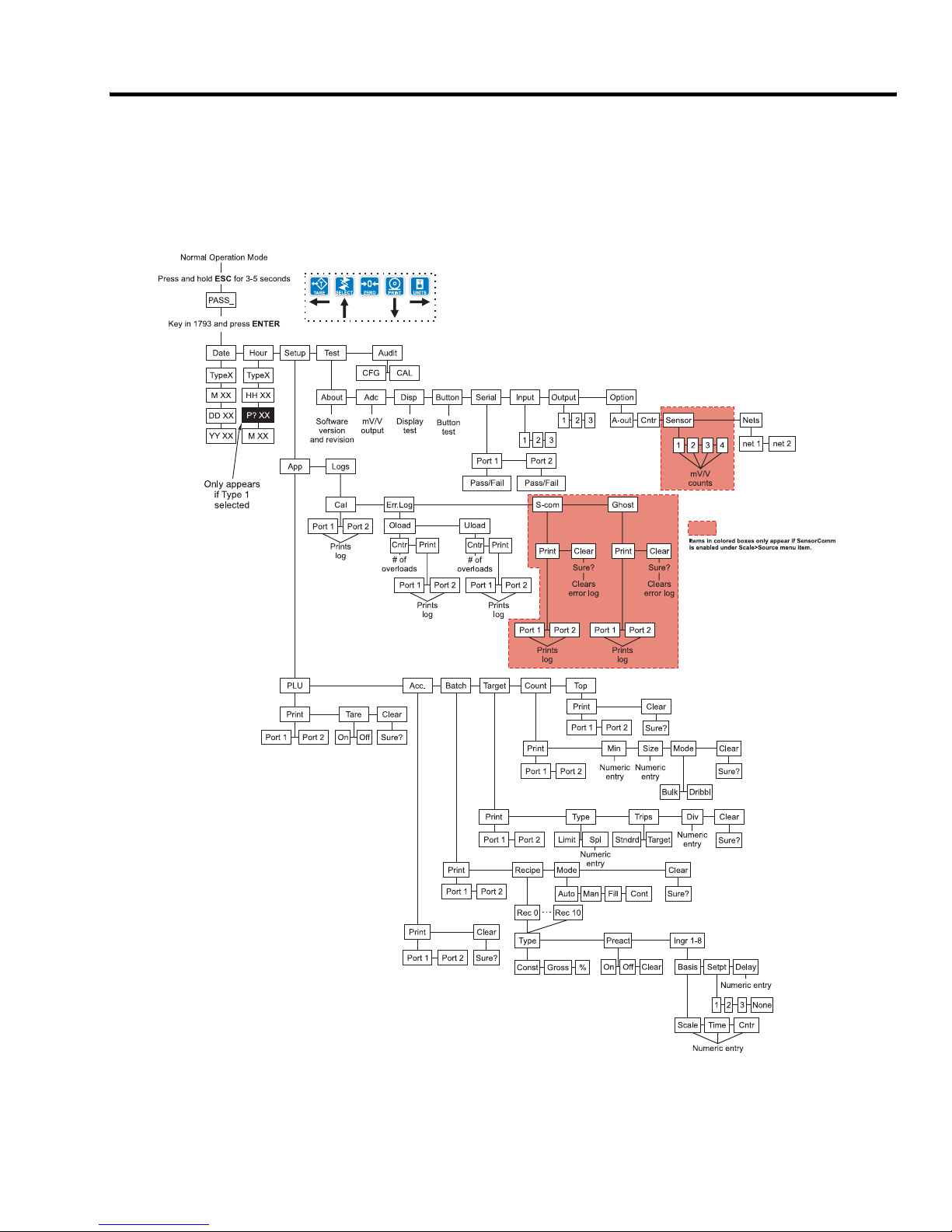

Figure 4.2 Supervisor menu
Page 32
Menu Mode
1. Access the Supervisor menu by pressing and holding the ESC key for
3-5 seconds…
PASS_ is displayed.
Password for the Supervisor menu
is 1793.
2. Key in the password, 1793, and press ENTER…
DATE is displayed. Use this to set the current date.
DATE (Set date) 3. Press the PRINT key…
TYPE0 is displayed. Dates styles are listed below along with
number you enter to create that style:
0=MM/DD/YY
1=MM/DD/YYYY
2=DD/MM/YY
3=DD/MM/YYYY
4. Scroll through the choices using the TARE or UNITS key and press
the ENTER key when your choice is displayed…
M XX is displayed. This stands for month.
See Figure 4.2 to reference the
Supervisor’s menu.
While in a menu, the fan graphs at
the top of the display flash as a
reminder.
5. Key in the month number (01 for Jan., 02 for Feb., …12 for Dec) and
press the ENTER key…
DD XX is displayed. DD stands for date and XX represents the
current value.
6. Key in the date and press the ENTER key.
YY XX is displayed. YY stands for year and XX represents the
current value.
7. Key in the year (04=2004, etc.) and press the ENT E R ke y …
DATE is displayed.
HOUR (Set time) 1. Press the UNITS key…
HOUR is displayed. Set the time in this item.
2. Press the PRINT key…
TYPE0 is displayed. Time can be in 24 hour or 12 hour styles:
0=HH:MM
1=HH:MM AM/PM
3. Scroll through the choices using the TARE or UNITS key and press
the ENTER key when your choice is displayed…
HH XX is displayed. This stands for hour and its current value.
4. Key in the hour based on the type of time you selected in step 2 and
press the ENTER key. If you picked 0 (military time) in step 2, skip to
step 5. If you picked 1 (AM/PM time) continue below…
P? yes or P? no is displayed. P? yes for PM. P? no for AM.
32 Model E1070 Indicator User Instructions
Page 33
5. Toggle between the choices using the TARE or UNITS key and press
the ENTER key when your choice is displayed…
M XX is displayed. M stands for minute and XX represents the
current value.
6. Key in the minute and press the ENTER key …
HOUR is displayed.
SETUP (Setup menu) 1. Press the UNITS key…
SETUP is displayed. Use this submenu to print and/or clear
application reports, choose operation modes or values for
applications which have choices and view various func tion lo gs.
Each is explained in the following steps.
4.2 Supervisor Menu
APP
(Application submenu)
PLU
(Product Look Up)
The PLU report contains the
following information for each of
the 11 channels:
Channel #
ID #
Gross Accum.
Net Accum.
Count Accum.
Total
Tare Value
Lower Limit
Upper Limit
Piece Weight
Output Wt1
Output Wt2
Output Wt3
2. Press the PRINT key…
APP is displayed. As stated in the Service menu section of the
manual, applications are enabled in the Service menu but you do
each application’s setup in this area of the Supervisor menu.
3. Press the PRINT key…
PLU is displayed. This stands for Product Look Up. There are 11
PLU memory channels, numbered 0-10. Each channel contains all
the parameter values and accumulator totals associated with all the
different applications. This menu item lets you print out all the
information in each channel, in all the applications, and/or clear the
information.
4. Press the PRINT key…
PRINT is displayed. Use this item to print out a complete report of
all application parameters and totals.
5. Press the PRINT key …
PORT 1 or PORT 2 is displayed. Use this item to select which port
to use for printing the report. See note at left.
6. Toggle between PORT 1 and PORT 2 using the TARE or UNITS key.
Press the ENTER key when your choice is displayed…
The report is printed and display shows BUSY briefly then returns
to PRINT.
7. Press the UNITS key…
TARE is displayed. Use this item to en able multichannel pre set
tares.
The scale must be in the center-ofzero window for the tare weight to
be accepted.
Model E1070 Indicator User Instructions 33
8. Press the PRINT key…
ON or OFF is displayed.
9. Toggle between the choices using the TARE or UNITS key and press
ENTER to accept the displayed choice…
If ON is chosen, the tare value for each channel can be entered. 0
will be displayed. Use the TARE or UNITS key to change the
channel number. Press the ENTER key when the correct channel
number is displayed to enter the tare value for that channel.
Page 34
Menu Mode
10. Press the UNITS key…
CLEAR is displayed. Use this item to clear all the information
stored for each application. WARNING - Only do this if you are
sure you want the information permanently removed!
You may want to print out the reports before clearing all the
information. See step 4 above.
11. Press the PRINT key to clear all the information
OR
Skip to step 12…
SURE? is displayed. This is asking if you are sure you want to clear
the information. If you are, press the PRINT key. If you do not want
to clear the data, press the SELECT key…
CLEAR is displayed.
12. Press the SELECT key…
PLU is displayed.
ACC Application 1. Press the UNITS key…
ACC. is displayed. This stands for the accumulator application.
See Figure 4.2 to reference the
Supervisor’s menu.
2. Press the PRINT key…
PRINT is displayed. Use this item to print out a complete report of
accumulator totals for each PLU similar to the one shown below:
Channel #:
ID: 0
Gross Accum: 0 lb
Net Accum:0 lb
Total:0
3. Press the PRINT key …
PORT 1 or PORT 2 is displayed. Use this item to select which port
to use for printing the report.
4. Toggle between PORT 1 and PORT 2 using the TARE or UNITS key.
Press the ENTER key when the choice you want is displayed…
Display shows BUSY briefly then returns to PRINT.
5. Press the UNITS key…
CLEAR is displayed. Use this item to clear all the information
stored for this application. WARNING - Only do this if you are
sure you want the information permanently removed!
34 Model E1070 Indicator User Instructions
You may want to print out the report before clearing all the
information. See step 2 above.
Page 35
6. Press the PRINT key to clear all the information
OR
Skip to step 7…
SURE? is displayed. This is asking if you are sure you want to clear
the information. If you are, press the ENTER key. If you do not want
to clear the data, press the SELECT key…
CLEAR is displayed.
7. Press the SELECT key…
ACC. is displayed.
BATCH Application 1. Press the UNITS key…
BATCH is displa yed.
2. Press the PRINT key…
PRINT is displayed. Use this item to print out a complete report of
recipe information.
3. Press the PRINT key …
PORT 1 or PORT 2 is displayed. Use this item to select which port
to use for printing the report.
4.2 Supervisor Menu
4. Toggle between PORT 1 and PORT 2 using the TARE or UNITS key.
Press the ENTER key when the choice you want is displayed…
Display shows BUSY briefly then returns to PRINT.
5. Press the UNITS key…
RECIPE is displayed. Use this item to create a recipe.
6. Press the PRINT key…
REC 0 is displayed.
7. Press the PRINT key to configure recipe #0 or use the TARE or
UNITS key to scroll to another recipe number. Press the PRINT key
when the recipe you want is displayed…
TYPE is displayed. Set the type of recipe; Constant (CONST)
Gross or Percentage (%):
CONSTANT You set the weights for each ingredient and the
batch size is always the total of these ingredient
weights.
GROSS You set the gross weight at which each
ingredient will stop. The ingredient is complete
when the gross weight on the scale reads the
value that was set, regardless of the weight on
the scale when the batch was started.
Model E1070 Indicator User Instructions 35
PERCENTAGE You set the percentage of a total batch for each
8. Press the PRINT
Current setting is displayed.
ingredient and you can pick a batch size and
each ingredient amount will be calculated
automatically.
key…
Page 36
Menu Mode
9. Toggle between the choices by pressing the TARE or UNITS key.
Press the PRINT key when your choice is displayed…
Your choice is selected and TYPE is displayed.
10. Press the UNITS key…
PREACT is displayed. A preact is the time it takes an ingredient
(which is falling from an auger or other feeder) to reach the scale
after the auger or feeder is shut off. There will always be material in
“free-fall” after an ingredient is shut off and the indicator will
automatically calculate this and update this value.
The first time a batch is run, overage for any ingredient weight is
calculated and the next time the ingredient is being weighed the
output will be shut down so approximately 70% of the overage is
reduced. This occurs each time a batch is run so that the system
quickly learns and produces accurate batches.
Under this item you can turn the preact on or off, or clear a current
preact.
11. Press the PRINT key to set the preact…
ON or OFF is displayed.
See Figure 4.2 to reference the
Supervisor’s menu.
12. Scroll through the choices (ON, OFF, CLEAR) with the TARE or
UNITS key. Press ENTER when your choice is displayed…
PREACT is displayed.
13. Press the UNITS key…
INGR X is displayed. X is the ingredient number. You have up to 8
ingredients for which you can set the following:
BASIS Set whether the ingredient is based on weight (Scale),
time (Time) or pulse counts (Cntr).
SETPT Set the output you want associated with the ingredient.
Choices are 1, 2 , 3 or None. Outputs must be enabled
in a password protected menu. Contact your local Avery
Weigh-Tronix supplier or distributor for assistance.
DELAY Set a time delay betwe en when a b asis is met and the
next ingredient action is started.
14. Press the PRINT key…
BASIS is displayed.
15. Press the PRINT key…
The current setting is displayed; SCALE, TIME, or CNTR.
16. Scroll through the choices with the TARE or UNITS key. Press
ENTER when your choice is displayed…
If SCALE is chosen for the basis,
you can enter a negative weight to
do an “unload.” The selected
output will activate until the entered
amount of weight is removed from
the scale.
36 Model E1070 Indicator User Instructions
If you choose SCALE you are prompted to enter an ingredient
weight. If you choose TIME, your are prompted to enter a time
value. If you choose CNTR, your are prompted to enter the number
of pulses.
17. Key in values and press the ENTER key…
BASIS is displayed.
18. Press the UNITS key…
SETPT is displayed.
Page 37
4.2 Supervisor Menu
19. Press the PRINT key…
1 is displayed. This stands for Setpoint 1.
20. Scroll through the choices with the TARE or UNITS key. Press
ENTER when your choice is displayed…
SETPT is displayed.
If you chose 1 this ingredient will use output #1. The same is true
for the 2 and 3 choices. If you choose NONE, no output will be
activated when the ingredient is called by the recipe.
21. Press the UNITS key…
DELAY is displayed.
22. Press the PRINT key…
The current delay value in seconds is displayed.
23. Accept this value by pressing ENTER or key in a new value and press
ENTER…
DELAY is displayed. Repeat steps 13 through 23 for all the
ingredients in your recipe.
24. Press the SELECT key twice…
RECIPE is displayed.
25. Press the UNITS key…
MODE is displayed. Use this item to set the mode of the batching
application to Automatic, Manual, Fill or Continuous batching.
AUTO In auto mode, after the user begins the batching process
the indicator will activate the OP2 output when the weight
for OP1 has been reached. When the weight for OP2 is
reached, OP3 will activate. This happens with no
intervention from the operator.
MAN. In manual mode, after the user begins the batching
process, the user must press the F1 key to activate each
subsequent output after each output weight is reached.
FILL In FILL mode, any recipe that has been setup is ignored.
The filling process is run based on the values set for the
outputs. In order to complete the filling process, at least
one output must be enabled.
CONT Continuous batching mode. This mode is very close to
the Auto mode, but in continuous mode, another batch is
started immediately after the previous batch has finished.
In Auto mode, the user must press the F1 key to start
each batch.
26. Press the PRINT key…
Model E1070 Indicator User Instructions 37
The current mode setting is displayed.
27. Toggle between the choices by pressing the TARE or UNITS key.
Press the ENTER key when your choice is displayed…
MODE is displayed.
28. Press the UNITS
key…
CLEAR is displayed. Use this item to clear all the information
stored for this application. WARNING - Only do this if you are
sure you want the information permanently removed!
Page 38
Menu Mode
You may want to print out the report before clearing all the
information. See step 2 in this section.
29. Press the PRINT key to clear all the information
OR
Skip to step 30…
SURE? is displayed. This is asking if you are sure you want to clear
the information. If you are, press the ENTER key. If you do not want
to clear the data, press the SELECT key…
CLEAR is displayed.
30. Press the UNITS key…
PRINT is displayed.
31. Press the PRINT key…
PORT 1 is displayed.
32. Toggle between PORT 1 and PORT 2 using the TARE or UNITS key.
Press the ENTER key when your choice is displayed…
The recipes and batch report will be printed.
TARGET application
(Checkweighing)
You do not set the limits in this
menu item. Limits are set in normal
operation mode. This menu item,
TYPE, allows you to set the mode
of choosing the target weight and
limits.
To use Sample mode, both multiinterval and preset tares should be
disabled. To disable multi-interval,
set the scales division size to a
whole number (not 1/2, 2/5, 5/10,
10/20 or 20/50). Preset tares are
disabled in the
Supervisor>Setup>App>PLU
menu.
33. Press the SELECT key…
BATCH is displayed.
1. Press the UNITS key…
TARGET is displayed. Use this item to print and cle ar reports for
the checkweigher application and to set the type of sampling to be
used, Limit or Sample.
2. Press the PRINT key…
PRINT is displayed. Use this item to print out a complete report of
checkweigher information.
3. Press the PRINT key …
PORT 1 or PORT 2 is displayed. Use this item to select which port
to use for printing the report.
4. Toggle between PORT 1 and PORT 2 using the TARE or UNITS key.
Press the ENTER key when the choice you want is displayed…
Display shows BUSY briefly then returns to PRINT.
5. Press the UNITS key…
TYPE is displayed. Use this to choose the mode of setting the
target weight for the checkweighing application. You have two
choices; LIMIT and SPL (sample). See note at left.
LIMIT In this mode you enter the upper and lower limits for your
item and the indicator will use those values to run the
display.
SPL In this mode you use a cor rect weight “produ ct” on the
scale to set the target weight. The indicator will use this
weight to run the display. After SPL is chosen, a number is
displayed. This is the sample tolerance. When a sample is
done, the upper and lower limits will automatically be
±(sample tolerance) divisions from the target weight.
38 Model E1070 Indicator User Instructions
Page 39
4.2 Supervisor Menu
6. Toggle between the choices by pressing the TARE or UNITS key.
Press the ENTER key when your choice is displayed…
TYPE is displayed.
7. Press the UNITS key…
TRIPS is displayed. Use this to set outputs to follow over/under/
accept or to function as standard outputs.
Target outputs can only be reset
when the scale returns to within the
configured Gross Zero Band.
Gross Zero Band is configured in a
password protected menu. Contact
your local Avery Weigh-Tronix
supplier or distributor for
assistance.
8. Toggle between TARGET and STNDRD by using the TARE or UNITS
key:
TARGET OP1 is Under
OP2 is Accept
OP3 is Over
STANDARD You can configure outputs from weigh mode.
Generally Accept/Reject.
9. Press ENTER to accept the displayed choice…
TRIPS is displayed.
10. Press the UNITS key…
DIV is displayed.

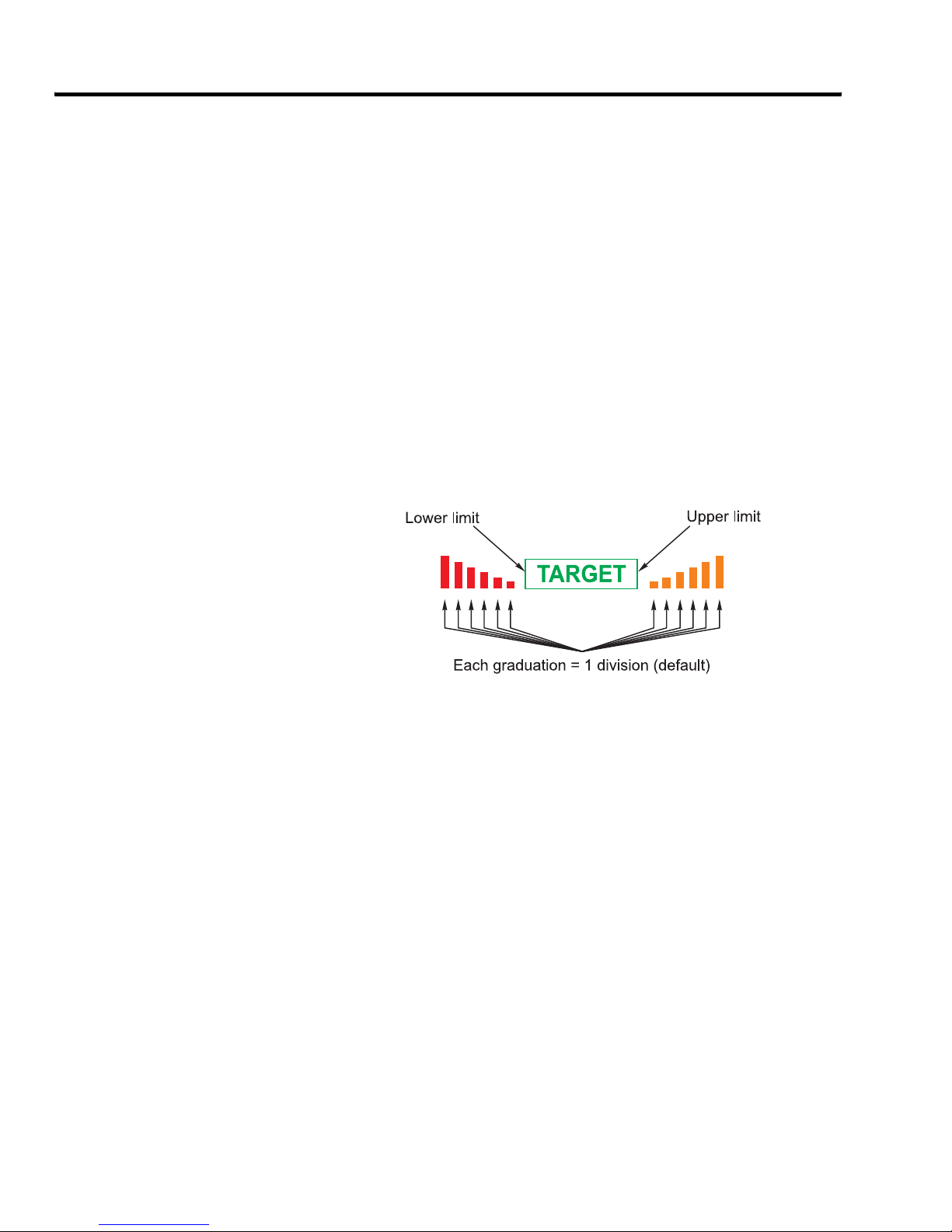

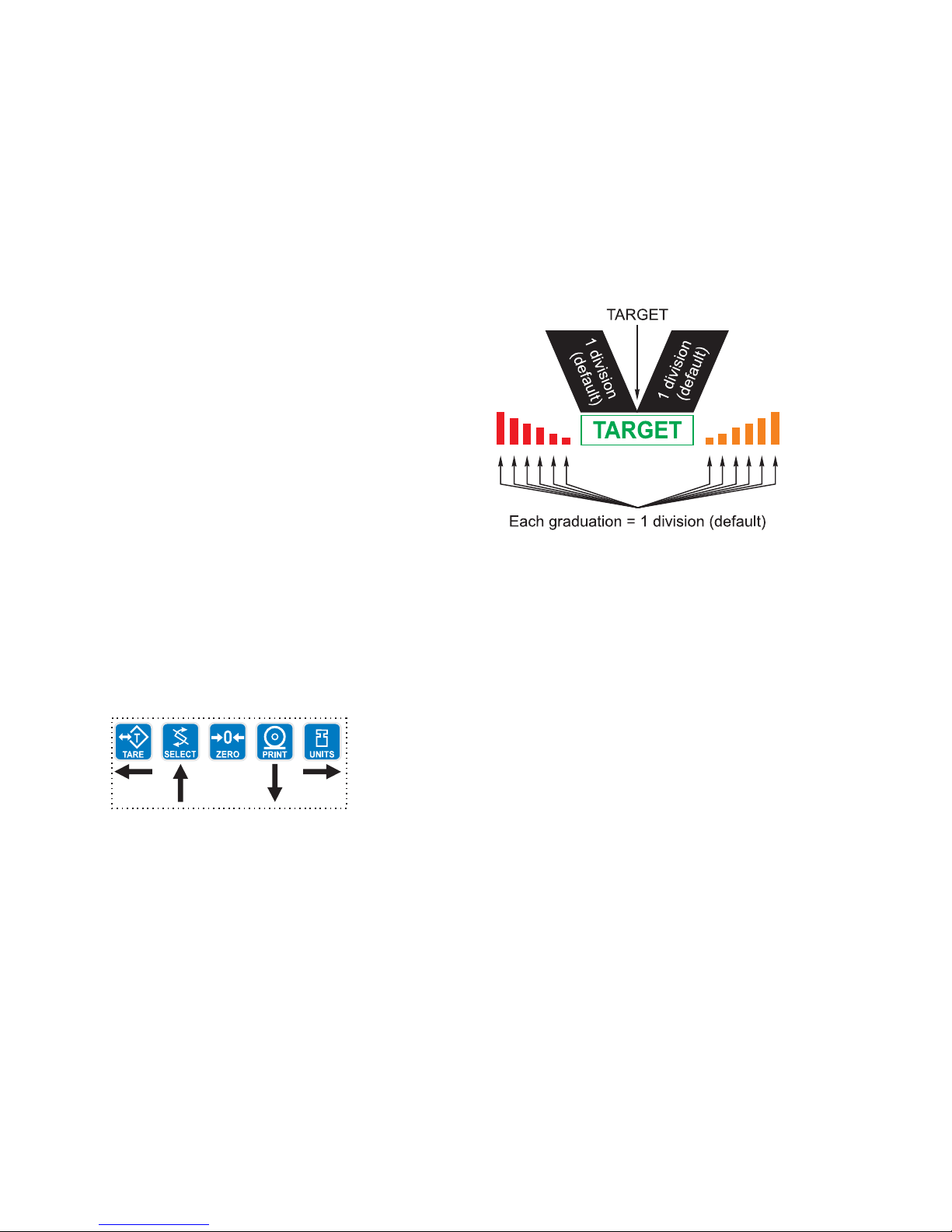

11. To configure how many divisions will be equal to one graduation on
the fan graph, press the PRINT key…
A number is displayed.
12. Press ENTER to accept the displayed number of divisions or enter a
new number and press ENTER…
DIV is displayed.
13. Press the UNITS key…
CLEAR is displayed. Use this item to clear all the information
stored for this application. WARNING - Only do this if you are
sure you want the information permanently removed!
You may want to print out the report before clearing all the
information. See step 2 in this section.
14. Press the PRINT key to clear all the information
OR
Skip to step 15…
SURE? is displayed. This is asking if you are sure you want to clear
the information. If you are, press the ENTER key. If you do not want
to clear the data, press the SELECT key…
CLEAR is displayed.
15. Press the SELECT key…
TARGET is displayed.
Model E1070 Indicator User Instructions 39
Page 40
Menu Mode

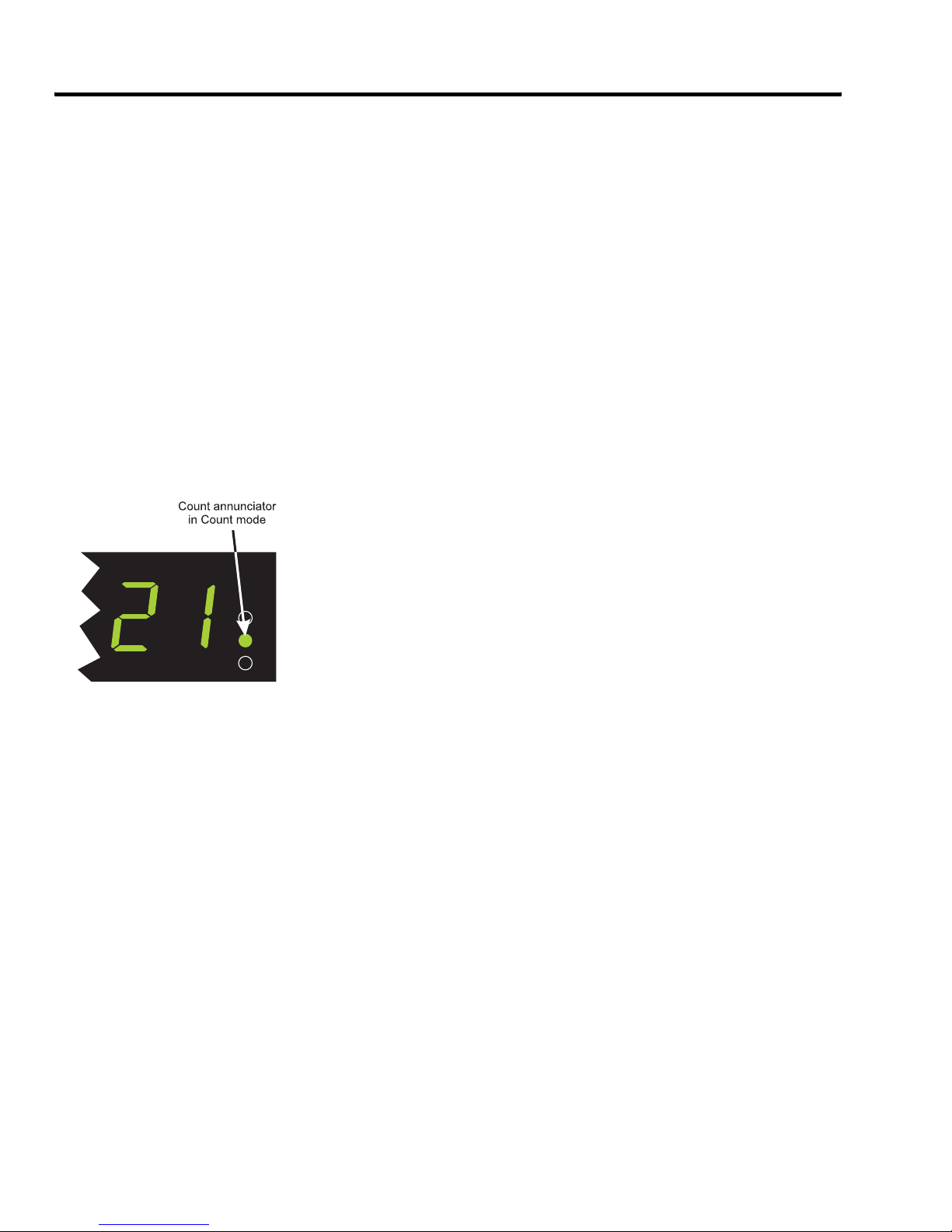

COUNT Application 1. Press the UNITS key…
COUNT is displayed. Use this item to clear and print reports for the
count application.
2. Press the PRINT key…
PRINT is displayed. Use this item to print out a complete report of
count application information.
3. Press the PRINT key …
PORT 1 or PORT 2 is displayed. Use this item to select which port
to use for printing the report.
4. Toggle between PORT 1 and PORT 2 using the TARE or UNITS key.
Press the ENTER key when the choice you want is displayed…
Display shows BUSY briefly then returns to PRINT.
5. Press the UNITS key…
MIN is displayed. Use this item to set the minimum sample weight
as a percent of capacity.
6. Press the PRINT key…
Current value is displayed.
7. Key in a percentage from 0-100% and press ENTE R …
MIN is displayed.
8. Press the UNITS key…
SIZE is displayed. This is the sample size parameter. Use this to
set the sample size for the counting application.
9. Press the PRINT key…
Current sample size is displayed.
10. Key in a new sample size. Press ENTER to accept…
SIZE is displayed.
11. Press the UNITS key…
MODE is displayed. Use this to select the sampling mode; Bulk or
Dribble.
Bulk sampling In this sampling method you place the
specified number of items on the scale all at
once (in bulk) and the scale automatically
starts to calculate piece weight when the
weight stabilizes. The count is then displayed.
Dribble sampling In this sam pling method you count out the
specified number of items onto the scale and
when you are ready, press the F1 key and the
scale starts to calculate piece weight and then
shows the count.
40 Model E1070 Indicator User Instructions
12. Toggle between the choices by using the TARE or UNITS
ENTER when your choice is displayed…
MODE is displayed.
13. Press the UNITS key…
CLEAR is displayed. Use this item to clear all the information
stored for this application. WARNING - Only do this if you are
sure you want the information permanently removed!
key. Press
Page 41
You may want to print out the report before clearing all the
information. See step 2 in this section.
14. Press the PRINT key to clear all the information
OR
Skip to step 15…
SURE? is displayed. This is asking if you are sure you want to clear
the information. If you are, press the ENTER key. If you do not want
to clear the data, press the SELECT key…
CLEAR is displayed.
15. Press SELECT…
COUNT is displayed.

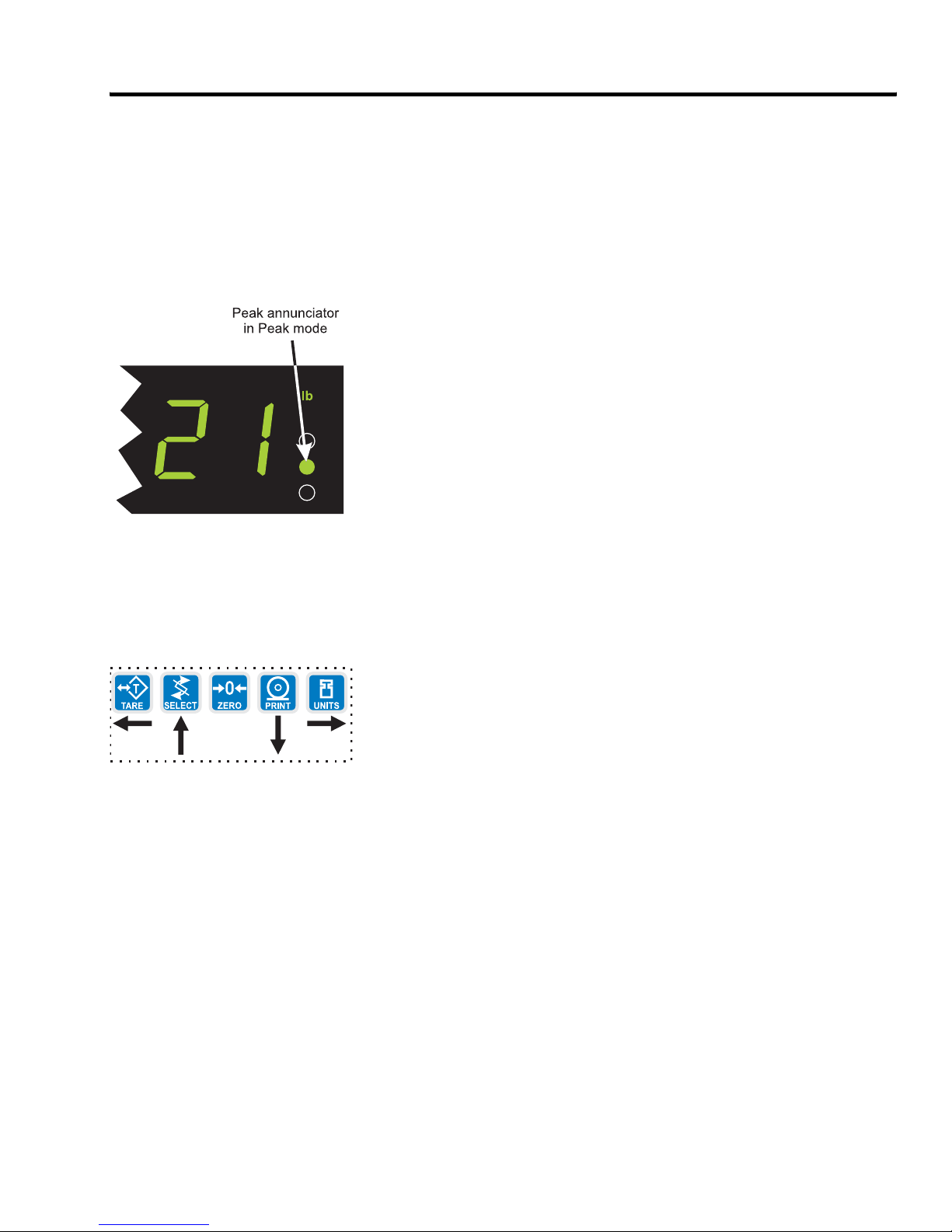

TOP (Peak) Application 1. Press the UNITS key…
TOP is displayed. Use this item to clear and print reports for the
peak application.
2. Press the PRINT key…
PRINT is displayed. Use this item to print out a complete report of
peak application information.
4.2 Supervisor Menu
3. Press the PRINT key …
PORT 1 or PORT 2 is displayed. Use this item to select which port
to use for printing the report.
4. Toggle between PORT 1 and PORT 2 using the TARE or UNITS key.
Press the ENTER key when the choice you want is displayed…
Display shows BUSY briefly then returns to PRINT.
5. Press the UNITS key…
CLEAR is displayed. Use this item to clear all the information
stored for this application. WARNING - Only do this if you are
sure you want the information permanently removed!
You may want to print out the report before clearing all the
information. See step 2 above.
6. Press the PRINT key to clear all the information
OR
Skip to step 7…
SURE? is displayed. This is asking if you are sure you want to clear
the information. If you are, press the ENTER key. If you do not want
to clear the data, press the SELECT key…
CLEAR is displayed.
Model E1070 Indicator User Instructions 41
7. Press the SELECT key…
TOP is displayed.
8. Press the SELECT key…
APP is displayed.
Page 42
Menu Mode
LOGS
(Log submenu)
9. Press the UNITS key…
LOGS is displayed. The Logs menu item allows you to view, print
or clear logs for the following:
Calibration
Overload and Underload Errors
SensorComm Errors
Ghost Errors
10. Press the PRINT key…
CAL is displayed. You must print out this log to view it. Below is a
sample of a calibration log printout:
Calibration Log:
Time: 23:58
Date: 12/17/2003
Scale Serial#: 123456
Calibration Zero:
0.3456 mV/V
Calibration Span:
2.3455 mV/V @ 3000 lb
11. Press the F1 key to print the report…
PORT 1 or PORT 2 is displayed. Use this to choose which port to
print through.
12. Toggle between the port choices using the TARE or UNITS key and
press ENTER when your choice is displayed…
Report is printed and display returns to CAL.
13. Press the UNITS key…
ERR.LOG is displayed.
14. Press the PRINT key…
OLOAD is displayed. This is the overload counter.
15. Toggle between OLOAD and ULOAD (overload) by using the TARE
or UNITS key and press ENTER when your choice is displayed…
Under both OLOAD and ULOAD are choices to view the counter
(CNTR) or print (PRINT) the report.
42 Model E1070 Indicator User Instructions
Page 43
4.2 Supervisor Menu
16. Toggle between CNTR and PRINT by using the TARE or UNITS key
and press ENTER when your choice is displayed…
If you choose CNTR, the overload or underload count will be
displayed.
If you choose PRINT, you can choose the port to print through and
press ENTER. The counter value for overload or underload will be
printed.
Example:
Overloads:
0 overloads
00:00 on 00-00-00
Underloads:
0 underloads
00:00 on 00-00-00
17. When you are done with the error log section, press the SELECT key
repeatedly until…
ERR.LOG is displayed.
See the section SensorComm
Errors to see the list of error codes.
The S-COM log only appears if the
scale is configured as a
SensorComm scale. The Ghost log
will only appear if ghosting is
enabled.
18. Press the UNITS key…
S-COM is displayed. This is the SensorComm error log. See a
sample below and the note at left.
SensorComm Log:
Error #1 @ 15:00 on 12-17-03
19. Press the PRINT key…
PRINT is displayed.
20. Press the PRINT key to print the report.
PORT 1 or PORT 2 is displayed. Use this item to select which port
to use for printing the report.
21. Toggle between PORT 1 and PORT 2 using the TARE or UNITS key.
Press the ENTER key when the choice you want is displayed…
Display shows BUSY briefly then returns to PRINT.
22. Press the UNITS key…
CLEAR is displayed. Use this to clear the log from memory.
23. Press PRINT to clear the log…
SURE? is displayed.
Model E1070 Indicator User Instructions 43
Page 44
Menu Mode
24. Press ENTER to clear the log…
CLEAR is displayed.
25. Press the SELECT key…
S-COM is displayed.
26. Press the UNITS key…
GHOST is displayed. This is the Ghost error log. See a sample
below.
Ghost Log:
Ghost is not engaged.
27. Press the PRINT key…
PRINT is displayed.
28. Press the PRINT key to print the report.
PORT 1 or PORT 2 is displayed. Use this item to select which port
to use for printing the report.
29. Toggle between PORT 1 and PORT 2 using the TARE or UNITS key.
Press the ENTER key when the choice you want is displayed…
Display shows BUSY briefly then returns to PRINT.
30. Press the UNITS key…
CLEAR is displayed. Use this to clear the log from memory.
31. Press PRINT to clear the log…
SURE? is displayed.
32. Press ENTER to clear the log…
CLEAR is displayed.
33. Press the SELECT key…
GHOST is displayed.
34. Repeatedly press the SELECT key until…
SETUP is displayed.
This completes the Setup submenu of the Supervisor menu. You
can return to normal operation (step 35) or go to the next submenu
item, TEST, by pressing the UNITS key.
35. Press the ESC key to return to normal weighing mode. You will be
prompted to save the changes you’ve made. Press the ESC key to
abort any changes made or press
ENTER to accept them and return
to normal operating mode.
TEST (Test menu) 1. Proceed to the next menu by pressing the UNITS key…
TEST is displayed. This menu lets you view indicator information
and test the display, keypad, serial ports, inputs and outputs.
44 Model E1070 Indicator User Instructions
Page 45
4.2 Supervisor Menu
ABOUT
(Indicator information)
ADC
(Analog scale test)
DISP
(Display test)
2. Press the PRINT key…
ABOUT is displayed. Press the PRINT key then repeatedly press
the UNITS key to view the part number and revision level for the
software found in your indicator.
Press SELECT key to return to ABOUT.
3. Press the UNITS key…
ADC is displayed. This is the mV/V output of the connected analog
scale.
4. Press the PRINT key…
The mV/V value is displayed. This value should increase as weight
is applied to the scale
5. Press the SELECT key…
ADC is displayed.
6. Press the UNITS key…
DISP is displayed. This is the display test item.
7. Press the PRINT key to perform a dynamic test of the display.
8. Press the ESC key to stop the dynamic test…
The display flashes a few more times then DISP is displayed.
BUTTON
(Key test)
SERIAL
(Serial port test)
9. Press the UNITS key…
BUTTON is displayed. This is the button test item.
10. Press the PRINT key to perform a button test. Each key you press will
be reflected on the display screen to confirm the button is functioning
correctly.
11. Press the ESC key to stop the button test.
BUTTON is displayed.
12. Press the UNITS key…
SERIAL is displayed. This is the serial test item.
13. Press the PRINT key to access the serial test.
PORT 1 is displayed.
14. Jumper the transmit and receive lines on the serial port and press the
PRINT key…
The display should show PASS. If there is a problem the display
will show FAIL.
15. Press the SELECT key…
PORT 1 is displayed.
16. Press the UNITS key…
PORT 2 is displayed. Repeat steps 14 and 15 to test port 2.
Model E1070 Indicator User Instructions 45
17. Press SELECT key…
SERIAL is displayed.
Page 46
Menu Mode
INPUT
(Input test)
OUTPUT
(Output test)
18. Press the UNITS key…
INPUT is displayed. This is the input test item.
19. Press the PRINT key to access the test.
1 2 3 is displayed. 1 stands for input 1, etc.
20. If you jumper pins 1 and 2 of the I/O connector on the bottom of the
indicator…
1 becomes 0 until the jumper is removed.
To test input 2, jumper pins 1 and 3. 2 becomes 0 until the jumper
is removed.
To test input 3, jumper pins 1 and 4. 3 becomes 0 until the jumper
is removed.
21. Press the SELECT key…
INPUT is displayed.
22. Press the UNITS key…
OUTPUT is displayed. This is the output test item.
23. Press the PRINT key to access the test.
OUT 1 is displayed. This stands for output 1.
24. Press the PRINT key…
The display toggles between ON and OFF. This will toggle the
output off and on. Monitor the output to see that it is turning off and
on. Use a Trips Interface Unit (TIU3) or other output device.
25. Stop the test by pressing the SELECT key…
OUT 1 is displayed.
26. Press the UNITS key…
OUT 2 is displayed.
27. Repeat steps 23 and 25 for outputs 2 and 3…
28. Press the SELECT key…
OUTPUT is displayed.
OPTION 29. Press the UNITS key…
OPTION is displayed.
A-OUT test 30. Press the PRINT key…
A-OUT is displayed. This stands for the analog output test.
31. Press the PRINT
key…
A numeric entry screen is displayed.
32. Key in a perce ntage between 0 and 100 and press the ENT E R ke y…
The analog output will put out that percentage of voltage. For
example: If you have output set from 0 to 10V and you key in a
percentage of 25, the analog output voltage should read 2.5 volts.
You can continue to key in other percentages, press ENTER and
check the analog output voltage.
46 Model E1070 Indicator User Instructions
33. When you are finished testing the analog output, press the ESC key…
A-OUT is displayed.
Page 47
CNTR test 34. Press the UNITS key…
CNTR is displayed. This checks the pulse counter.
35. Press the PRINT key to check the counter…
0 is displayed if the pulse counter is inactive. If pulse input are
occurring the display will show the increasing pulse counts.
36. Press SELECT or ENTER to stop the test…
CNTR is displayed.
SENSOR test 37. Press the UNITS key…
SENSOR is displayed. Use this to test the function of each weight
sensor attached via SensorComm.
4.2 Supervisor Menu
This test can be used to properly
adjust the deadload of the scale.
Each sensor should have similar
mV/V outputs if the physical load
on the scale is equally distributed.
NETS test 44. Press the UNITS key…
38. Press the PRINT key…
1 is displayed.
39. Scroll through the available weight sensor numbe rs by pressin g the
TARE or UNITS key. Press the ENTER key when the sensor you want
to test is displayed…
mV/V output of the selected sensor is displayed.
40. Apply weight to the scale to verify the mV/V level changes.
41. Press the ENTER key to exit the test…
Sensor number is displayed.
42. Repeat steps 38 through 40 for each sensor you want to test.
43. Press the SELECT key…
SENSOR is displayed.
NETS is displayed.
45. Press the PRINT key…
NET 1 is displayed.
46. Toggle between NET 1 or NET 2 using the TARE or UNITS key and
press PRINT when the network you want to view is displayed.
The first screen of network configuration information is displayed.
AUDIT (Audit counters)
menu
Model E1070 Indicator User Instructions 47
47. Repeatedly press the PRINT key to view all the configuration
information. The display will return to NET 1 or NET 2 when you’ve
seen all the information.
48. This completes the TEST submenu. Press the SELECT key until
TEST is displayed.
To return to normal weighing mode, press ESC. If you press ESC you will
be prompted to save any changes made. Press ESC to abort any changes
or press ENTER to save changes.
The next section of the Supervisor menu is the AUDIT submenu. This menu
lets you view configuration and calibration audit counters. These counters
cannot be changed, only viewed.
Follow these steps to access each item in the AUDIT submenu:
Page 48
Menu Mode
CFG
(Configuration audit counter)
CAL
(Calibration audit counter)
1. Press the UNITS key…
AUDIT is displayed.
2. Press the PRINT key…
CFG is displayed. This stands for the Configuration audit counter.
Use this item to see how many times this indicator has been
configured.
3. Press the PRINT key…
A number is briefly displayed, then CFG is displayed. This is the
number of times this indicator has been configured.
4. Press the UNITS key…
CAL is displayed. This stands for the Calibration audit counter. Use
this item to see how many times this indicator has been calibrated.
5. Press the PRINT key…
A number is briefly displayed, then CAL is displayed. This is the
number of times this indicator has been calibrated.
6. Press the SELECT key…
AUDIT is displayed.
This completes the AUDIT submenu and the Supervisor menu. Press the
SELECT key to return to normal weighing mode.
48 Model E1070 Indicator User Instructions
Page 49
Indicator Operations
5
Press the MODE key to scroll
through the activated applications.
The name of the active application
will be briefly displayed or, press
and hold the MODE key for 3-5
seconds to see the name of the
currently active application.
5.1 PLU Channels
This indicator has an 11 channel
PLU (Product Look Up) memory.
To access a memory channel,
press a number from 0 to 10, then
press the F1 key.
The E1070 comes equipped with several weighin g applications;
• General weighing (default setting)
• Accumulator weighing
• Batch weighing
• Checkweighing
• Counting
• Peak weighing
These different applications are activated using a password pro tected menu.
Contact your local Avery Weigh-Tronix supplier or distributor for
assistance.
This indicator has an 11 channel PLU (Product Look Up) memory. To access
a memory channel, key in a number from 0 to 10, then press the F1 key. The
following information, if present, becomes active:
Channel #
ID #
Gross Accum.
Net Accum.
Count Accum.
Total
Tare Value
The general weighing application comes as the default application. You can
do gross weighments, tare/net weighments and print a print format. Below
are instructions for each.
Lower Limit
Upper Limit
Piece Weight
Output Wt1
Output Wt2
Output Wt3
5.2 Entering an ID Number
Model E1070 Indicator User Instructions 49
You can enter an ID number which is then part of the active PLU channel.
To enter an ID, key in a number on the keypad then press the ENTER key.
Page 50
Indicator Operations
5.3 P rint Operations
This indicator has multiple print functionality.
Method 1 - Each application can use multiple print formats. (This is
configured from a password protected menu. Contact your local Avery
Weigh-Tronix supplier or distributor for assistance. Press the PRINT key to
print all the configured print formats.
Method 2 – With multiple print formats configured, selecting the number of
that print format will print only the selected format.
Example: Checkweigher application using print formats 1, 2, 3 and 4. Each
print format references a different customer. Press 1 then the PRINT key to
print only print format 1. Press 2 and the PRINT key to print only print format
2.
5.4 General Gross Weighing
To perform general gross weighing, power up the unit and follow these
steps:
To change unit of measure, press
the UNITS key.
1. Empty the scale and press ZERO key to zero the display…
0 is displayed.
2. Place item to be weighed on the scale…
Weight is displayed.
5.5 General Tare/Net Weighing
To perform a general net weighment, po we r up the un it an d fo llow thes e
steps:
1. Empty the scale and press ZERO key to zero the display…
0 is displayed.
2. Place item to be tared on the scale…
Weight is displayed.
3. Press the TARE key…
0 is displayed and the NET annunciator lights.
4. Place material to be weighed on the scale…
Net weight of material is displayed.
To clear a tare weight, remove all
weight from the scale and press
the TARE key.
5. Repeatedly press the SELECT key to scroll through gross, tare, and
net modes. Remove the weight from the scale and press TARE to
return to gross mode.
50 Model E1070 Indicator User Instructions
Page 51
5.3 Print Operations
Using Outputs in the
General Weighing
Application
Output operation in the general
weighing application:
Below Configured Value:
Outputs are ON
Annunciators are OFF
TIU3 Relays are ON
Above Configured Value:
Outputs are OFF
Annunciators are ON
TIU3 Relays are OFF
You can use the outputs function if so desired while in the general weighing
application. Follow these steps to setup the outputs.
1. With the indicator powered up, press and hold the SELECT key until…
OP1 is displayed.
2. Press the PRINT key to see a value entry screen…
Press the PRINT key to accept the displayed value or key in a new
value and press the ENTER key to accept. OP2 will be displayed.
3. Repeat for the other outputs. You can skip the displayed output b y
pressing the ESC key.
4. After OP3 has been set, or skipped, the indicator will automatically
return to normal weighing mode.
Model E1070 Indicator User Instructions 51
Page 52
Indicator Operations
5.6 Accumulator Weighing
The accumulator is memory that collects individual weighments (gross and
net) and stores the totals. These totals can be recalled at any time. The
number of weighments included in the totals can be displayed and all
information can be reviewed and deleted.
To use the accumulator, power up the unit and follow these steps:
1. Empty the scale and press ZERO key to zero the display…
2. Place item on the scale…
0 is displayed.
Weight is displayed.
You can use t are /net weighi ng with
the accumulator application. The
accumulator stores both gross and
net totals for later recall.
You must remove all weight from
the scale to scroll through the items
listed at right. With weight on the
scale, repeatedly pressing the
SELECT key will only show the
gross, net and tare values.
3. Press the F1 or PRINT key to add weight to the accumulator.
Pressing the PRINT key also prints the default print format …
A circle annunciator lights briefly on the right side of the display to
show the weight was accumulated.
4. Remove weight from the scale. Weight must return to zero before
another accumulation can be recorded.
5. Repeat 2 through 4 for each weighment you want to accumulate.
6. To review the accumulator total and the number of weighments,
remove all weight from the scale and press the SELECT key
repeatedly…
1st press = Net weight displayed
2nd press = Tare weight displayed
3rd press = Display toggles between showing ACCUM. and
gross total of all weighments
4th press = Display toggles between showing ACCUM. and net
total of all weighments
5th press = Display toggles between showing TOTAL and
number of weighments
6th press = Display returns to gross weigh mode
Press the MODE key to scroll
through the activated applications.
The name of the active application
will be briefly displayed or, press
and hold the MODE key for 3-5
seconds to see the name of the
currently active application.
52 Model E1070 Indicator User Instructions
Clear the accumulator in the Supervisor menu. See Supervisor Menu on
page 31.
Page 53
5.6 Accumulator Weighing
Using Outputs in the
Accumulator Application
Output operation in the
accumulator application:
Below Configured Value:
Outputs are ON
Annunciators are OFF
TIU3 Relays are ON
Above Configured Value:
Outputs are OFF
Annunciators are ON
TIU3 Relays are OFF
If enabled, you can use the output function while in the accumulator
application. Outputs are enabled in a password protected menu. Contact
your local Avery Weigh-Tronix supplier or distributor for assistance. Follow
these steps to set up to three outputs:
1. With the indicator powered up, press and hold the SELECT key until…
OP1 is displayed.
2. Press the PRINT key…
The current value for OP1 is displayed.
3a). Press ENTER to accept this value
OR
3b).Key in a value and press the ENTER key.
OP1 is displayed.
4. Scroll through all three outputs by using the TARE or UNITS key.
5. Repeat steps 2 and 3a or 3b for each output.
6. Press ESC key…
7. Press ENTER to save the changes or ESC to abort the changes…
The unit returns to normal operation mode with the saved outputs
active.
8. As you apply weight to the scale, output one will activate above its
setpoint and deactivate below its setpoint. The same is true for the
other two outputs. When activated each output’s annunciator will light
on the display.
Model E1070 Indicator User Instructions 53
Page 54
Indicator Operations
5.7 Batch Weighing
This section applies if your indicator has the batching application active.
Press the MODE key to scroll
through the activated applications.
The name of the active application
will be briefly displayed or, press
and hold the MODE key for 3-5
seconds to see the name of the
currently active application.
This indicator has an 11 channel
PLU (Product Look Up) memory.
To access a memory channel, key
in a number from 0 to 10, then
press the F1 key.
The batching application has 11 recipes, each with up to 8 ingr edients. In the
recipe, the following items are set:
Batch type can be by constant weight, percentage or gross. Explained
below.
Constant Weight Batches are all the same size and the weight of each
ingredient is predetermined by the recipe.
Percentage Batch size is chosen by the operator and each ingredient
is determined by the percentage set in the recipe.
Gross Each ingredient r uns un til the g ross we ight on th e scale
reaches the value that was set, regardless of the weight
on the scale when the batch was started.
Batching mode can be Manual, Automatic, Filling or Continuous. (The PLU
recipe channel must be selected prior to a batching operation.)
Manual If the recipe is set u p for manual mode, you press the F1
key to start the batch and you need to press the F1 key
each time an output is reached to activate the next
ingredient output.
Automatic If the recipe is set up for automatic mode, you press the
F1 key to start the batch and each output is activated and
deactivated automatically by the indicator.
Filling In FILL mode, any recipe that has been setup is ignored.
The filling process is run based on the values set for the
outputs. In order to complete the filling process, at least
one output must be enabled.
Press the F1 key to start the filling process.
1. a. If output 1 is enabled, and the net weight on
the scale is below the value of the output,
output 1 will come on.
Pulse count requires optional
feature.
54 Model E1070 Indicator User Instructions
b. If outp ut 2 is enabled, and the n et weight on
the scale is below the value of the output,
output 2 will come on.
c. If output 3 is enabled, and the net weight on
the scale is below the value of the output,
output 3 will come on.
2. Each output will remain on until its output value is
met.
3. The filling process can be restarted by pressing the
F1 key.
Continuous Continuous batching mode. This mode is very close to
the Auto mode but, in continuous mode another batch is
started immediately after the previous batch has
finished. In auto mode the user must press the F1 key to
start each batch.
Page 55
5.7 Batch Weighing
The Basis of each ingredient can be weight, time or pulse counts.
Weight If an ingredient basis is weight, the output activates at the
appropriate time and deactivates when the weight set in the
recipe is reached.
Time If an ingredient basis is time, the output activates for the time
set in the recipe and then deactivates.
Counter If an ingredient basis is counts from a pulse counter, the output
activates for the value based on pulse count units set in the
recipe and then deactivates.
In filling mode the process can be changed by changing the value(s) of the
outputs.
Output operation in batching
application:
Before activation by recipe:
Outputs are OFF
Annunciators are OFF
TIU3 Relays are OFF
After activation by recipe:
Outputs are ON
Annunciators are ON
TIU3 Relays are ON
Follow these steps to set up the three outputs:
1. With the indicator powered up, press and hold the SELECT key until…
OP1 is displayed.
2. Press the PRINT key…
The current value for OP1 is displayed.
3. Press ENTER to accept this value (or ESC to abort) or key in a value
and press the ENTER key.
OP1 is displayed.
4. Scroll through all three outputs by using the left and right arrow keys.
5. Repeat steps 2 and 3 for each output.
6. Press ESC key to exit the outputs setup.
7. Press F1 to save the changes or ESC to abort the changes.
In automatic or manual mode, a recipe must be setup. The recipe val ues are
set in a password protected menu. However, a shortcut can be used to
change the amount of each ingredient.
To access this shortcut menu:
1. Press and hold the SELECT key until
rec 0 is displayed. This is the recipe for PLU channel 0.
Model E1070 Indicator User Instructions 55
2. Press the PRINT key to edit the recipe 0 or use the TARE or UNITS
keys to scroll to another recipe and press the PRINT key when the
recipe you want to edit is displayed…
ing 1 is displayed.
3. Press the PRINT key to change the amount of ingredient 1 to batch.
A numerical value is displayed.
4. Key in a new value and press ENTER or press ENTER to accept the
value that is shown. The UNITS and
TARE keys allow you to access
all 8 ingredients.
5. When finished, press the ESC key to escape from this menu.
Save is displayed.
6. To save the changes you made, press F1. To exit without saving,
press the ESC key.
The batch type, batch mode, and ingredient basis cannot be changed
through this shortcut. Contact your local Avery Weigh-Tronix supplier or
distribu t or f or a s s is t ance on creating a recipe. Examples of two batching
routines are given on the next pages.
Page 56
Indicator Operations
Auto Batching by Weight Following is an example of batching for a recipe set as follows:
Batch type: Constant
Batch mode: Automatic
Basis: Weight
1. With the indicator powered up and the scale empty, ze ro the scale by
pressing the ZERO key…
0 is displayed.
2. Press the F1 key…
The OP1 annunciator lights and output 1 is activated.
Each ingredient may have a built in
delay time between deactivation of
one ingredient and activation of the
next.
Manual Batching by
Percentage
3. Add weight to the scale…
When the weight reaches the setpoint for ingredient 1, OP1
annunciator light goes out, OP2 annunciator lights and output 2
activates. See note at left.
4. Add weight to the scale…
When the weight reaches the setpoint for ingredient 2, OP2
annunciator light goes out, OP3 annunciator lights and output 3
activates. See note at left.
5. Add weight to the scale…
When the weight reaches the setpoint for ingredient 3, OP3
annunciator light goes out and output 3 deactivates.
6. Empty the scale and repeat steps 1-5 for the next batch.
Following is an example of batching for a recipe set as follows:
Batch type: Percentage
Batch mode: Manual
Basis: Weight
1. With the indicator powered up and the scale empty, ze ro the scale by
pressing the ZERO key…
0 is displayed.
56 Model E1070 Indicator User Instructions
2. Press the F1 key…
The size of the last batch is displayed.
3a). Press the ENTER key to accept the batch size
OR
3b).Key in a new batch size and press the ENTER key…
The OP1 annunciator lights and output 1 is activated.
4. Add weight to the scale…
When the weight reaches the percentage of the batch size set in
the recipe for ingredient 1, OP1 annunciator light goes out.
5. Press the F1 key…
OP2 annunciator lights and output 2 activates.
6. Add weight to the scale…
When the weight reaches the percentage of the batch size set in
the recipe for ingredient 2, OP2 annunciator light goes out.
Page 57
5.7 Batch Weighing
7. Press the F1 key…
OP3 annunciator lights and output 3 activates.
8. Add weight to the scale…
When the weight reaches the percentage of the batch size set in
the recipe for ingredient 3, OP3 annunciator light goes out and
output 3 deactivates.
9. Empty the scale and repeat steps 1-8 for the next batch.
Model E1070 Indicator User Instructions 57
Page 58
Indicator Operations
5.8 Checkweighing
A segment of the fan graph, shown
in Figure 5.1, will be lit when in the
checkweighing mode as a
reminder that this application is
active.
The graph is based off of net
weight so, if a tare is active, only
the net weight is considered for
checkweighing. If there is no tare,
gross weight is used as the basis
for the graph.
This section applies if your indicator has the checkweighing application
active. Applications are activated through a password protected menu.
Contact your local Avery Weigh-Tronix supplier or distributor for
assistance.
Checkweighing allows a quick, visual check of the acceptability or
unacceptability of an item’s weight.
You set your target weight in one of two ways. It depends on how your
indicator is configured. See the Supervisor M enu on page 31 an d TARGET
application (Checkweighing) on page 38
Your unit will be configured with limits mode or sample mode. Each are
explained below;
Limits Mode Enter the upper and lower limits for the item and the
indicator will use those values to run the display. See
Figure 5.1. Each graduation equals one division by
default but, this can be changed in a password protected
menu so that one graduation is equal to a set number of
divisions.
Figure 5.1 Limits mode
58 Model E1070 Indicator User Instructions
Page 59
5.8 Checkweighing
Sample Mode Place a correct weight “product” on the scale and press
the F1 key. The indicator will use this weight to run the
display. Upper and lower limits will automatically be one
division above and below the target weight respectively
by default. This can be changed in a password protected
menu so that the Upper and Lower limits are set to an
equal number of divisions above and below the target
weight. Figure 5.2 shows how the graphic display works
in Sample mode. Each graduation is equal to 1 scale
division. The TARGET light stays lit if weight is within the
upper and lower limits.
Limits Mode: Entering
Upper and Lower Limits
You can repeatedly press the
SELECT key to view the items
listed in the Sample and Limits
modes on this page.
Figure 5.2 Sample mode
Directions for using each mode follow.
Follow these steps to setup and use the checkweigher in limits mode:
1. Empty the scale, press the ZERO key to zero the display, then press
the F1 key…
Hi is displayed.
2. Press the ENTER key to accept the value or ESC to skip…
LO is displayed.
3. Key in the lower weight limit. Press the F1 key to accept the value…
4. Place item(s) on the scale and the display will show if the weight is
over, under or acceptable based on the limits you have set.
You can repeatedly press the SELECT key to view the following from the
gross weight display:
1st press Net annunciator lights and net weight is displayed.
2nd press Tare annunciator lights and tare weight is displayed.
3rd press Display toggles between HI and the upper weight tolerance, in
the current unit of measure.
Model E1070 Indicator User Instructions 59
4th press Display toggles between LO and the lower weight tolerance, in
the current unit of measure.
5th press Display returns to gross weighing mode.
Page 60
Indicator Operations
Performing a
Checkweighment in Limits
Mode
Sample Mode: Using
Product to Set Target
Weight
1. With your target weight set as described above, place your item on the
scale…
If the weight is within the upper and lower tolerances you set, the
TARGET annunciator lights. If not, the upper or lower segments
will be lit.
2. Repeat step 1 for all products of this weight.
Follow these steps to setup and use the checkweigher in sample mode:
1. Zero the empty scale then place a sample of the correct weight on the
scale…
Weight is displayed.
2. Press the F1 key.
The weight is captured, the display reads 0 (net weight) and your
indicator is ready to use as a checkweigher. The target weight will
be the same as your sample item and the target will stay lit
whenever an item’s weight is within the upper and lower
tolerances. By default this is ±1 division from the target weight.
You can repeatedly press the SELECT key to view the following from the
gross weight display:
1st press Net annunciator lights and net weight is displayed.
Performing a
Checkweighment in
Sample Mode
You can repeatedly press the
SELECT key to view the items
listed in the Sample and Limits
modes on this page.
2nd press Tare annunciator lights and tare weight is displayed.
3rd press Display toggles between HI and the upper weight tolerance, in
the current unit of measure.
4th press Display toggles between LO and the lower weight tolerance, in
the current unit of measure.
5th press Display returns to gross weighing mode.
1. With your target weight set as described above, place your item on the
scale…
If the weight is correct, 0 is displayed and the TARGET annunciator
lights. If the weight varies from the target value, upper or lower
segments may be lit and the weight will show a plus or minus
weight reading for the deviation from the target weight.
2. Repeat step 1 for all products of this weight.
60 Model E1070 Indicator User Instructions
Page 61
5.8 Checkweighing
Using Outputs in
Checkweigher Application
Standard Outputs 1. With the indicator powered up in normal checkweighing mode, press
Output operation in the
checkweigher application:
Outputs are OFF in gross zero
band
Annunciators are OFF
TIU3 Relays are OFF
Outputs latch on for appropriate
ABOVE, OVER and ACCEPT
Annunciators are ON
TIU3 Relays are ON
If enabled, you can use the output function while in the checkweigher
application. Outputs are enabled in a password protected menu Contact
your local Avery Weigh-Tronix supplier or distributor for assistance. Follow
these steps to set up to three outputs:
and hold the SELECT key until…
OP1 is displayed.
2. Press the PRINT key…
The current value for OP1 is displayed.
3a). Press ENTER to accept this value
OR
3b).Key in a value and press the ENTER key.
OP1 is displayed.
4. Scroll through all three outputs by using the left and right arrow keys.
5. Repeat steps 2 and 3a or 3b for each output.
6. Press ESC key to exit the outputs setup.
7. As you apply weight to the scale, output one will activate below its
setpoint and deactivate above its setpoint. The same is true for the
other two setpoints. Each output’s annunciator will light on the display
when the output value is reached.
Target Outputs If outputs are configured for Target mode in the Supervisor menu, outputs
will follow the limits and accept values. This means there is no additional
configuration required.
Model E1070 Indicator User Instructions 61
Page 62
Indicator Operations
5.9 Counting
Press the MODE key to scroll
through the activated applications.
The name of the active application
will be briefly displayed or, press
and hold the MODE key for 3-5
seconds to see the name of the
currently active application.
This indicator has an 11 channel
PLU (Product Look Up) memory.
To access a memory channel, key
in a number from 0 to 10, then
press the ENTER key.
This section applies if your indicator has the counting application active.
Applications are activated through a password protected menu. Contact
your local Avery Weigh-Tronix supplier or distributor for assistance.
There are two types of sampling; bulk and drib ble. See the Supervisor Menu
on page 31 and COUNT Application on page 40
Bulk sampling In this sampling method you place the specified number
of items on the scale all at once (in bulk) and the scale
automatically starts to calculate piece weight and then
shows the count.
Dribble sampling In this sampling method you can count out the specified
number of items onto the scale and when you are ready,
press the F1 key and the scale starts to calculate piece
weight and then shows the count.
Each method is described below.
Bulk Sampling 1. In gross weight mode, press the F1 key…
A numeric value is displayed. This is the current sample size.
2a). Accept the current sample size by p ressing ENTER
OR
2b).Enter a new sample size and press ENTER…
The display is showing counts
when the green annunciator on the
right of the display is lit.
Zeroin is briefly displayed. This shows the indicator is zeroing
itself. Add is then displayed.
3. Place the correct sample size on the scale all at the same time.
Busy is briefly displayed, followed by one of two possible
outcomes:
a. If the sample met the minimum sample requiremen ts and th e
weight is stable, the display will show the correct number of
parts on the scale and the green annunciator is lit.
b. If the sample size was not large enough or if the weight was
unstable, Abort is displayed and the display returns to gross
weight mode. Repeat steps 1-3 using a larger sample size.
4. Place the parts on the scale to be counted.
5. You can accumulate the counts and track the number of transactions
by pressing the PRINT key while in count mode. See Displaying
Count Information on page 63 about displaying this information.
62 Model E1070 Indicator User Instructions
Page 63
Dribble Sampling 1. In gross weight mode, press the F1 key…
A numeric value is displayed. This is the current sample size.
2a). Accept the current sample size by pressing ENT ER
OR
2b).Enter a new sample size and press ENTER…
Zeroin is briefly displayed. This shows the indicator is zeroing
itself. Add is then displayed.
3. Place the correct sample size on the scale and press the F1 key…
Busy is briefly displayed, followed by one of two possible
outcomes:
a. If the sample met the minimum sample requirements and the
weight is stable, the display will show the correct number of parts
on the scale and the Count annunciator is lit.
b. If the sample size was not large enough or if the weight was
unstable, Abort is displayed and the display returns to gross
weight mode. Repeat steps 1-3 using a larger sa mple size.
4. Place the parts on the scale to be counted.
5. You can accumulate the counts and track the number of transactions
by pressing the PRINT key while in count mode. See Displaying
Count Information below about displaying this information.
If the piece weight of the item being counted is known, you can manually
enter the piece weight by keying in the weight with the keypad and pressing
and holding the SELECT key.
5.9 Counting
Displaying Count
Information
You can scroll through the following information by using the SELECT key:
From count displaypress SELECT - The display toggles between PIECE and the piece
weight.
press SELECT - The display toggles between CNT TOT and the count
total.
press SELECT - The display toggles between TOTAL and the number of
accumulations done.
press SELECT - The Gross annunciator lights and gross weight is
displayed.
press SELECT - The Net annunciator lights and net weight is displayed.
press SELECT - The Tare annunciator lights and tare weight is displayed.
press SELECT - The count display returns.
Model E1070 Indicator User Instructions 63
Page 64
Indicator Operations
Using Outputs in the
Counting Application
You can press the SELECT key or
the ESC key to abor t the process in
step 3.
Output operation in the counting
application:
Below Configured Value:
Outputs are ON
Annunciators are OFF
TIU3 Relays are ON
Above Configured Value:
Outputs are OFF
Annunciators are ON
TIU3 Relays are OFF
If enabled, you can use the output function while in the counting application.
Outputs are enabled in a password prot ect ed me nu . Con tact your local
Avery Weigh-Tronix supplier or distributor for assistance. Follow these
steps to set up to three outputs:
1. With the indicator powered up, press and hold the SELECT key until…
OP1 is displayed.
2. Press the PRINT key…
The current value for OP1 is displayed.
3a). Press ENT E R to accept this value
OR
3b).Key in a value and press the ENTER key.
OP1 is displayed.
4. Scroll through all three outputs by using the left and right arrow keys.
5. Repeat steps 2 and 3a or 3b for each output.
6. Press ESC key to exit the outputs setup.
7. As you apply weight to the scale, output one will activate above its
setpoint and deactivate below its setpoint. The same is true for the
other two setpoints. When activated each output’s annunciator will
light on the display.
64 Model E1070 Indicator User Instructions
Page 65
5.10 Peak Weighing
5.10 Peak Weighing
This section applies if your indicator has the Peak application active.
Press the MODE key to scroll
through the activated applications.
The name of the active application
will be briefly displayed or, press
and hold the MODE key for 3-5
seconds to see the name of the
currently active application.
Only the highest weight applied to the scale is displayed in the Peak
application. As a reminder that you are in peak mode, a green annunciator
is lit to the right of the weight display.
1. Add weight to the scale…
Weight is displayed.
2. Remove weight…
Peak weight is displayed.
3. To clear the peak value, be sure scale is empty and press the F1
key…
0 is displayed.
4. Repeat steps 1-3.
5. Press the SELECT key to cycle through Gross, Tare, Net and Peak.
Using Outputs If enabled, you can use the output function while in the peak application.
Outputs are enabled in a password protected menu. Contact your local
Avery Weigh-Tronix supplier or distributor for assistance. Follow these
steps to set up to three outputs:
You can press the SELECT key or
the ESC key to abort the process in
step 3.
Output operation in the peak
application:
Below Configured Value:
Outputs are ON
Annunciators are OFF
TIU3 Relays are ON
Above Configured Value:
Outputs are OFF
Annunciators are ON
TIU3 Relays are OFF
1. With the indicator powered up, press and hold the SELECT key until…
OP1 is displayed.
2. Press the PRINT key…
The current value for OP1 is displayed.
3a). Press ENTER to accept this value
OR
3b).Key in a value and press the ENTER key.
OP1 is displayed.
4. Scroll through all three outputs by using the left and right arrow keys.
5. Repeat steps 2 and 3a or 3b for each output.
6. Press ESC key to exit the outputs setup…
7. As you apply weight to the scale, output one will activate above its
setpoint and deactivate below its setpoint. The same is true for the
other two setpoints. When activated each output’s annunciator will
light on the display.
8. As weight is removed the displayed weight will remain unchanged
due to being in peak mode but the OP annunciators will go out as
each output is reached.
Model E1070 Indicator User Instructions 65
Page 66
Communications
Communications
6
The E1070 provides an RS-232 output for data transmission to a peripheral
device. Contact your local Avery Weigh-Tronix supplier or distributor for
assistance on RS-232 interface connections.
The default serial port parameters
are 9600 baud, 8 databits, no parity
and 1 stop bit.
Stop bits for the serial
communication are preset to 1
stop bit. This is not configurable.
If your indicator has a peripheral device connected, from the gross/net
weighing mode press the PRINT key to transmit the selected output(s).
The PRINT annunciator will illuminate while data is tran smitted and the data
configured to be printed will be output to the printer.
Following are the default print formats
Print Formats 1-8 are for the Zebra Thermal printer. See examples in Fig ure
on the following pages.
Print Formats 9-15 are for a standard ASCII characters for use with dot
matrix printer.
Print Formats 9 & 10
G 123456 lb
{ACT}{DSP}{UN}<CR><LF>{EOS}
Accumulator (Print Format 11), Batching (12) and Checkweigher (13)
all use the following:
G 123456 lb
{ACT}{DSP}{UN}<CR><LF>{EOS}
Counting, Print Format 14
Piece Count: 48
66 Model E1070 Indicator User Instructions
Piece Count: {CNT}<CR><LF>{EOS}
Peak Print Format 15
123456 lb
{PWT} {UN}<CR><LF>{EOS}
Remote Display Print Format 16
G 123456 lb
{ACT} {DSP} {UN}<CR><LF>{EOS}
Page 67
The following are the default print formats are for the corresponding “Mode”
setting in the serial port configuration menu.
17 Port 1 Enquire (HEX05)
18 Port 1 Broadcast
19 Port 1 RD4100
20 Port 2 Enquire (HEX05)
21 Port 2 Broadcast
22 Port 2 Remote display
G 123456 lb
{ACT} {DSP} {UN}<CR><LF>{EOS}
Thermal Labels Print
Formats
Format 1, 2 & 3
Time Date
G Gross Weight
T Tare Value
N Net Weight
Format 1 label 1.25” Wide x 1.00” Long
Format 2 label 2.50” Wide x 4.00” Long
Format 3 label 4.00” Wide x 6.00” Long
Print Format 4, same as above with barcode.
Label Size:
2.50” Wide
4.00” Long
Model E1070 Indicator User Instructions 67
Page 68
Communications
Thermal Labels Print Formats
Print Formats 5, 6 & 7
Time Date
PLU Totals Information
Gross Total Accumulator
Format 5 label 1.25” Wide x 1.00” Long
Format 6 label 2.50” Wide x 4.00” Long
Format 7 label 4.00” Wide x 6.00” Long
Print Format 8, same as above with barcode.
Label Size
2.50” Wide
4.00” Long
68 Model E1070 Indicator User Instructions
Page 69
Error Messages
The display represents M by nn so
min becomes nnin, mode
becomes nnode, etc.
7
The following are displays you may see if problems occur or if invalid
operations are attempted with your indicator:
Display Description
Over-range weight
Under-range weight
The unit cannot perform a function
Displayed while a key is pressed when attempting to
modify a sealed selection without edit privileges.
Model E1070 Indicator User Instructions 69
Page 70
Indicator Diagnostics
Indicator Diagnostics
8.1 Testing Indicator Functions
The user menu lets you test various functions of the indicator. The user
menu is shown in Figure 8.1. Instructions for using the menu are found
below.
8
Figure 8.1 User Menu
1. Access the User menu by pres sin g an d ho ld ing the ESC key for 3-5
seconds.
PASS_ is displayed.
2. Key in the User menu password (111) and press ENTER.
TEST is displayed.
3. Press the PRINT key.
ABOUT is displayed. Press the PRINT key then the UNITS key to
view the part number and revision level for the software found in
your indicator.
Press SELECT key to return to ABOUT.
4. Press the UNITS key…
ADC is displayed. This is the mV/V output of the connected analog
scale.
5. Press the PRINT key…
The mV/V value is displayed. This value should increase as weight
is applied to the scale.
70 Model E1070 Indicator User Instructions
Page 71
6. Press the SELECT key…
ADC is displayed.
7. Press the UNITS key…
DISP is displayed. This is the display test item.
8. Press the PRINT key to perform a dynamic test of the display…
All parts of the display flash.
9. Press the ESC key to stop the test…
The display flashes a couple more times and then DISP is shown.
10. Press the UNITS key…
BUTTON is displayed. This is the button test item.
11. Press the PRINT key to perform a button test. Each key you press will
be reflected on the display screen to confirm the button is functioning
correctly . The ESC key is excluded from this test. It is used to stop the
testing and return to the menu item
12. Press ESC key to stop the button test.
BUTTON is displayed.
13. Press the UNITS key…
SERIAL is displayed. This is the serial test item.
14. Press the PRINT key to access the serial test.
PORT1 is displayed. If you jumper the transmit and receive lines on
the serial port and press the PRINT key, the display should show
PASS. If there is a problem the display will show FAIL.
15. Press the SELECT key after checking the port function…
PORT1 is displayed.
16. Press the UNITS key…
PORT 2 is displayed. Repeat the test from step 14 to check the
port.
17. Press the SELECT key twice to exit the serial test.
SERIAL is displayed.
18. Press the SELECT key…
TEST is displayed.
19. Press the UNITS key…
AUDIT is displayed.
20. Press the PRINT key…
CFG is displayed. This stands for the configuration audit counter.
21. Press the PRINT key to see the number of times the configuration has
been altered on this indicator.
Model E1070 Indicator User Instructions 71
22. Press the SELECT key…
CFG is displayed.
23. Press the UNITS key…
CAL is displayed. This stands for the calibration audit counter.
Page 72
Indicator Diagnostics
24. Press the PRINT key…
The number of times the indicator has been calibrated is displayed.
25. Press the ESC key twice…
The display returns to normal operation mode.
This completes the User menu.
72 Model E1070 Indicator User Instructions
Page 73
Specifications
9
Power requirements
• 85-265 Volts AC @ 0.3Amp maximum
• 50/60 Hz
Excitation
• +/- 5 volt s DC
• Supports up to eight 350-ohm weight sensors
Analog signal input range
• +/-60 mV
Analog signal sensitivity
• 0.2 µV/V/divisions minimum
• 1.0 µV/V/divisions recommended
Calibration
• 2 to 5 points stored
Operational keys
• Twenty-two keys: Tare, Select, Zero, Print, Units,
F1, Clear, Mode, Escape, Enter, On/Off, Decimal,
0-9 numericf
Operational annunciators
• Center of Zero, Motion, Gross, Net, Tare,
• Under/Target//Over
• Units of measure (LB, KG)
• Print, OP1, OP2, OP3, Pt Tare
Display
• Six-digit, seven-segment, 0.8-inch high, LED
Display rate
• Selectable (1, 2, 5, 10)
Analog to digital conversion rate
• 100 times per second
Unit of measure
• Pounds, kilograms, custom
Capacity selections
• 999,999 with decimal located from zero to five
places
Incremental selections
• Multiples and sub- multiples of 1, 2, 5
Programmable selections
• Zero range, motion detection, automatic zero
tracking, five-point linearization.
Time and date/RAM
• Battery backed up real time clock and RAM
standard
Internal resolution
• 53,687,100 counts per mV/V per second
Harmonizer™ digital filtering
• Fully programmable to ignore noise and vibration
Standard inputs
• Three logic level inputs for: Zero, Print, T are, Unit s,
F1, Start and Stop
Standard outputs
• 1 0/ 10 0 Eth er n et (M o db us /T CP, TCP/IP, SMTP,
DHCP, Ethernet/IP)
• PROFIBUS DP
• DeviceNet
• T hr e e ou tp uts
• Two serial ports
• RS-232/422/485 (SensorComm) - one
• RS-232 or 20mA current loop
Serial Command Inputs/Outputs
• Programmable serial response to ASCII character
input
• SMA protocol, Broadcast, Enquire, RD-4100, Eseries remote display
Self diagnostics
• Display, keys, inputs, outputs, serial port, A to D
converter
Circuitry protection
• RFI, EMI, and ESD protection
Options
• Analog output/Pulse input
• R e m ot e I/O
• ControlNet
•TIU3
• Washdown remote foot control
Operating applications
• General weighing, Accumulation, Batching,
Counting, Checkweighing, Peak measurement,
Remote display
Operating temperature
• 14 to 104° F (-10 to 40° C)
• -40 to 140° F (-40 to 60° C) non-legal
• Up to 95% non-condensing humidity
Enclosure
• Stainless steel NEMA 6/4X
TM
Model E1065 Indicator User Instructions 73
Page 74
Specifications
Dimensions
• 9.25" W x 9.25" H x 4.5" D (without mounting
bracket)
• 9.75" W x 11" H x 7" D (with mounting bracket)
Weight
• 8.5 lb, 4 kg
Agencies
• NTEP CC#04-031 Class III/IIIL:10,000 divisions
• OIML Cert. # R76/1992 - GBI - E410
• Canadian Weights and Measures pending
•UL/CL
• CE marked
ODVA™, Ethernet/IP™ and DeviceNet™ are
trademarks of ODVA.
PROFIBUS® is a registered trademark of PROFIBUS
International.
74 Model E1065 Indicator User Instructions
