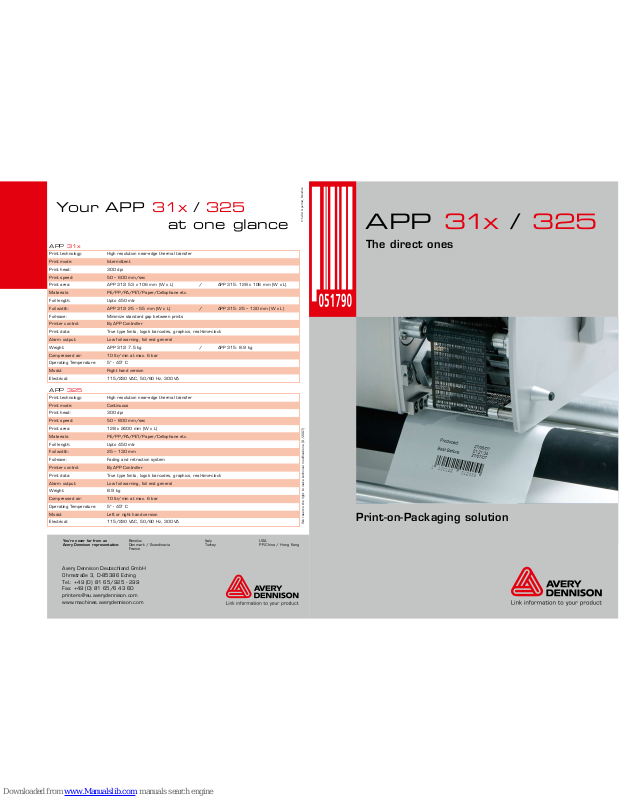

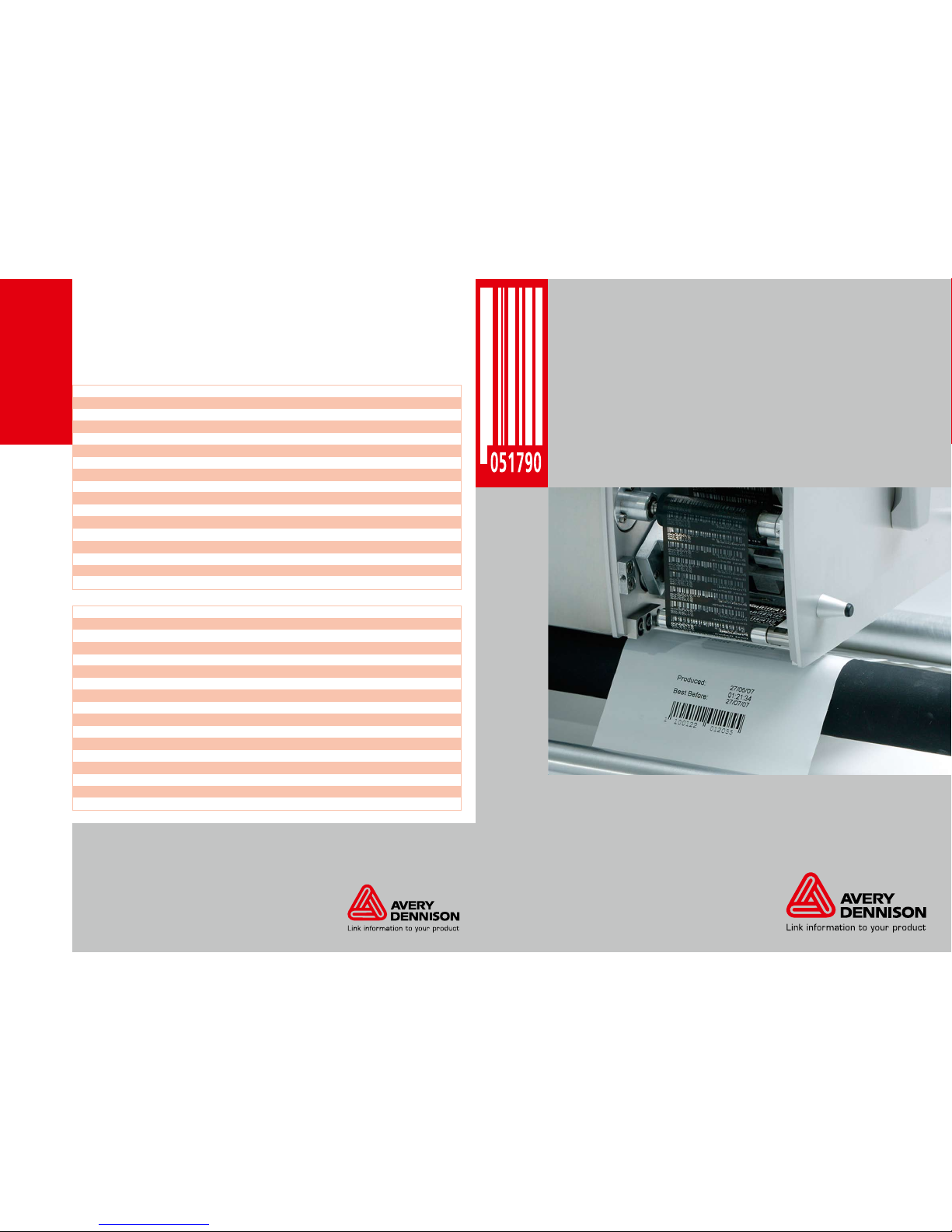

Print-on-Packaging solution

APP 31x / 325

The direct ones

Your APP 31x / 325
at one glance

Print technology: High resolution near-edge thermal transfer

Print mode: Intermittent

Print head: 300 dpi

Print speed: 50 – 600 mm/sec

Print area: APP 312: 53 x 106 mm (W x L) / APP 315: 128 x 106 mm (W x L)

Materials: PE/PP/PA/PET/Paper/Cellophane etc.

Foil length: Upto 450 mtr

Foil width: APP 312: 25 – 55 mm (W x L) / APP 315: 25 – 130 mm (W x L)

Foil-save: Minimize standard gap between prints

Printer control: By APP Controller

Print data: True type fonts, logo’s barcodes, graphics, real-time-clock

Alarm output: Low foil warning, foil end general

Weight: APP 312: 7.5 kg / APP 315: 8.9 kg

Compressed air: 10 ltr/min at max. 6 bar

Operating Temperature: 5° - 45° C

Modul: Right hand version

Electrical: 115/230 VAC, 50/60 Hz, 300 VA

APP 31x

Print technology: High resolution near-edge thermal transfer

Print mode: Continuous

Print head: 300 dpi

Print speed: 50 – 800 mm/sec

Print area: 128 x 2400 mm (W x L)

Materials: PE/PP/PA/PET/Paper/Cellophane etc.

Foil length: Upto 450 mtr

Foil width: 25 – 130 mm

Foil-save: Fading and retraction system

Printer control: By APP Controller

Print data: True type fonts, logo’s barcodes, graphics, real-time-clock

Alarm output: Low foil warning, foil end general

Weight: 8.9 kg

Compressed air: 10 ltr/min at max. 6 bar

Operating Temperature: 5° - 45° C

Modul: Left or right hand version

Electrical: 115/230 VAC, 50/60 Hz, 300 VA

APP 325

We reserve the right to make technical modifications. (6/2007)

The APP family –
your solution for direct
Print-on-Packaging

You are a thriving player in the industr y,
especially in food, pharmaceuticals or
cosmetics. The packaging of your products
is essential to your success in the industry.
Therefore, you print for example best-before­codes, charge-numbers, barcodes or other
variable data directly onto the packaging
material. To communicate this important
information as best as possible, you need
special thermal transfer printers with a high
degree of quality. Here’s your solution.

The APP family

Printers of the APP series by Avery Dennison
are of strong quality, have a high engineering
level and specifications that exceed those of
the competition. They will help you to opti­mize production line uptime while reducing
total cost of ownership.

The thermal transfer printers deliver a sharp and
clear print result image without compromising
print speed or production output, on materials

like PE, PP and paper and even on Tyvek®.
The APP family provides a comprehensive range
of high-speed thermal transfer printers for
intermittent and continuous mode.

The intermittent Print-on-Packaging solution

APP 312 and APP 315 are Avery Dennison’s

printer-solutions for intermittent applications.
With print widths from 53 x 106 mm
(APP 312) and 128 x 106 mm (APP 315),

the APP 31x family covers the demand for fle­xible and reliable thermal transfer printing on
all kinds of material. In combination with a

print speed up to 600 mm/sec, the APP
31x family takes care for high output of your

products.

As with all Avery Dennison’s APP print modules,

the APP 31x are controlled by the APP Control-

ler. This user-friendly device with touch screen
enables you to integrate the APP 31x in your

production-line fast and easily. Create your

print design on the APP Controller or by use
of the EasyDesign software on a PC.

Everything

under control

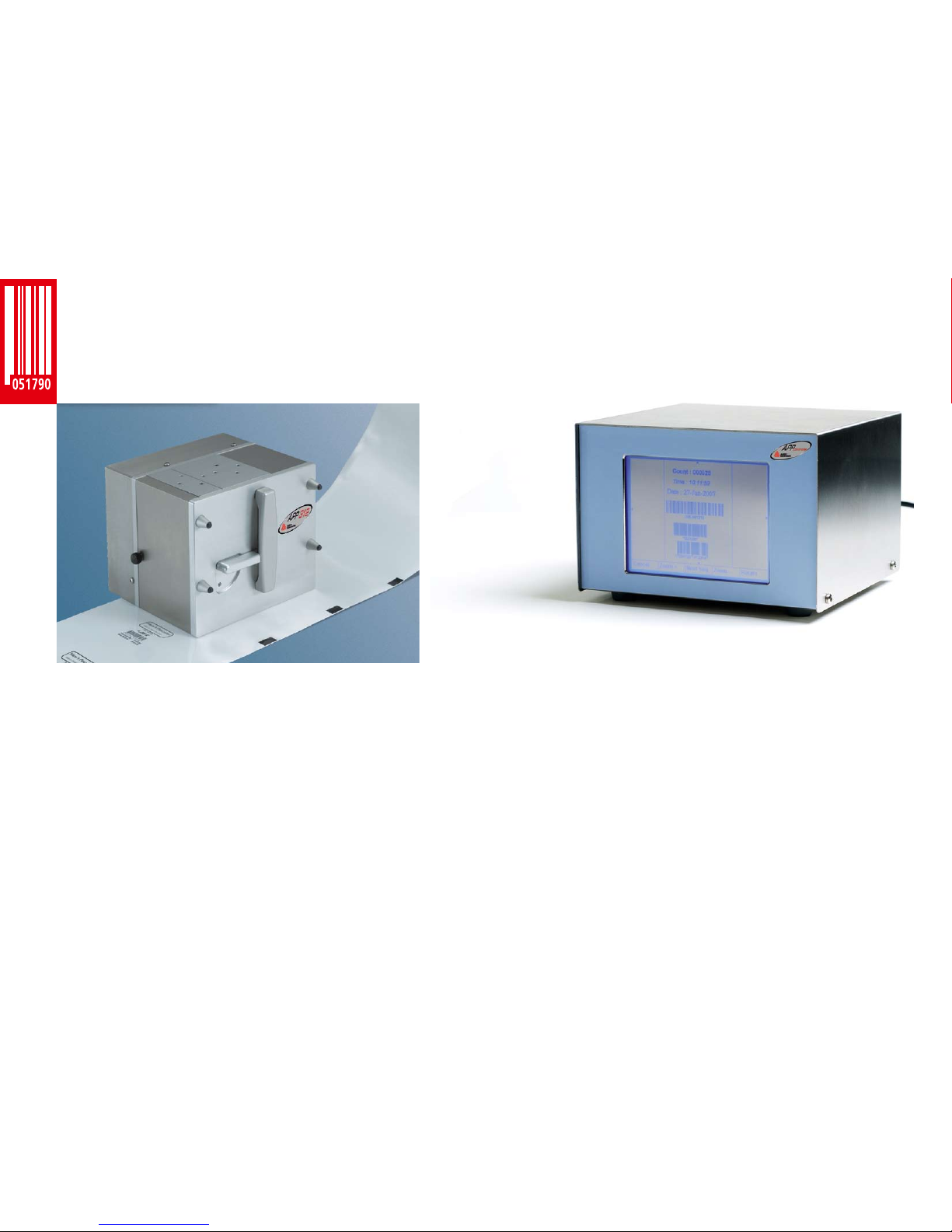

All Avery Dennison APP-printers for printing
on packaging are supplied with an APP
Controller. The APP controller has a 5,7”
LCD touch screen. Convince yourself of the
user-friendly menu structure.

Designing your print can be done by using
the touch screen or by connecting the APP
Controller with an external PC. The standard
built-in Ethernet-port can be used for any net­work-connectivity.

Besides the print-design, the APP Controller
can be used to handle the printer-settings
and parameters, define macro’s or run a
users-administration.

The Windows-based system guarantees
you easy use. Its CF card has an internal
memory of 128 MB, upgradeable to 512 MB
with external CF. You operate the system
on a 5.7” touch screen.

The full printdesign-feature eliminates the
need for additional design-software.

Connectivity is ensured via serial RS 232
and Ethernet. For harsh environment, the
APP Controller is also available in a pro-

tected housing.

Your benefits:

✓ Easy and quick print-design using the

touch-screen

✓ Easy handling of settings and parameters

thanks to the structured menu

✓ 5.7” screen with clear, understandable

commands

✓ Multi-lingual menu structure
✓ Full control of your APP printer without

the need of external devices

✓ Increased security level through multi-level

password protection

✓ Online manual for any specific function
✓ Harsh environment-protected

APP Controller optional available

APP 31x/325
benefits for you

Top quality print
results

The APP 31x and
325 print in high reso­lution of 300 dpi.
The print width of the
APP 312 amounts to
53 mm, the printwidth
of the APP 315 and
325 to 128 mm.

User-friendly print­design

The APP Controller
guarantees easy use
and full control at any
time. Layout can be
adapted via touch­screen to create
different print designs,
for example barcodes,
tags or other variable
data.

Integrative solutions

The APP 31x and 325
can be integrated in
general all packaging­lines due to their flexible
range of bracketries.

High capacity

The high print speed
of up to 800 mm/sec
resp. 48 m/min
ensures high output.
No direct drive system
enables faster printing
due to less resistance.

Maximum uptime

The low maintenance,
the quick change of
the foil-cassette and
the design with its
low number of wearing
parts makes the
APP 31x and 325 fit
for the industrial
environment.

Reduced foil
consumption

Avery Dennison offers
the entire portfolio of
thermal transfer foils
for any PoP application.
Enjoy all the benefits of
true one-stop-shopping,
from synergy effects to
overall efficiency. Plus,
the foil saving and foil
fading* features reduce
your foil consumption.

*only available for APP 325

Your continuous

Print-on-Packaging solution

The APP 325

The APP 325 is Avery Dennison’s thermal

transfer print solution for large print widths
at high print speed.

The APP 325 prints 128 mm width print

designs at a print speed of 800 mm/sec
easily. This is your perfect, reliable solution
for continuous print-mode.

The APP 325 includes a revolutionary foil-

fading system, that allows up to 80 % foil
saving. This fading system results in the print
used on the foil being less than the actual
print achieved. A feature which will reduce
the costs of printing by at least 20 % in
relation to competing printers.

Your economical solution

High output, robust design and low foil

consumption makes the APP 325 your

economical solution and creates the best

possible cost of ownership.

As with all Avery Dennison’s APP print

modules, the APP 325 is controlled by the

APP Controller. This user-friendly device with

touch screen enables you to integrate the
APP 325 in your production-line fast and
easily. The APP 325 is kind to printhead,

which reduces its wear and tear and pro-

longs its working life. Create your print

design on the APP Controller or by use of

the EasyDesign software on a PC.

Your integrative solution

Avery Dennison offers various mounting

bracketries. They serve to integrate the

PoP printers APP 312, 315 and 325 easily
into existing production lines.
The result is: a high level flexibility through
easy mechanical integration.

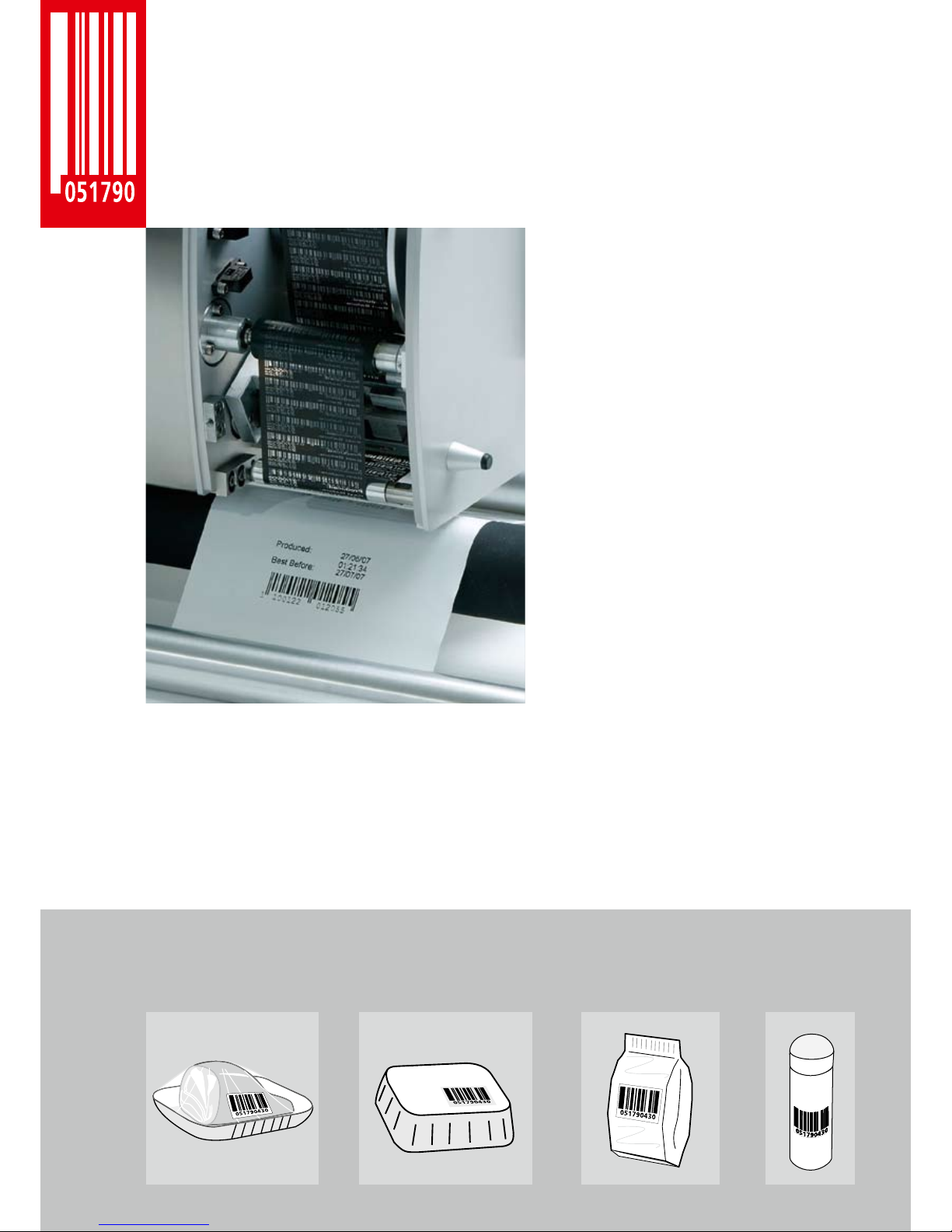

Typical applications

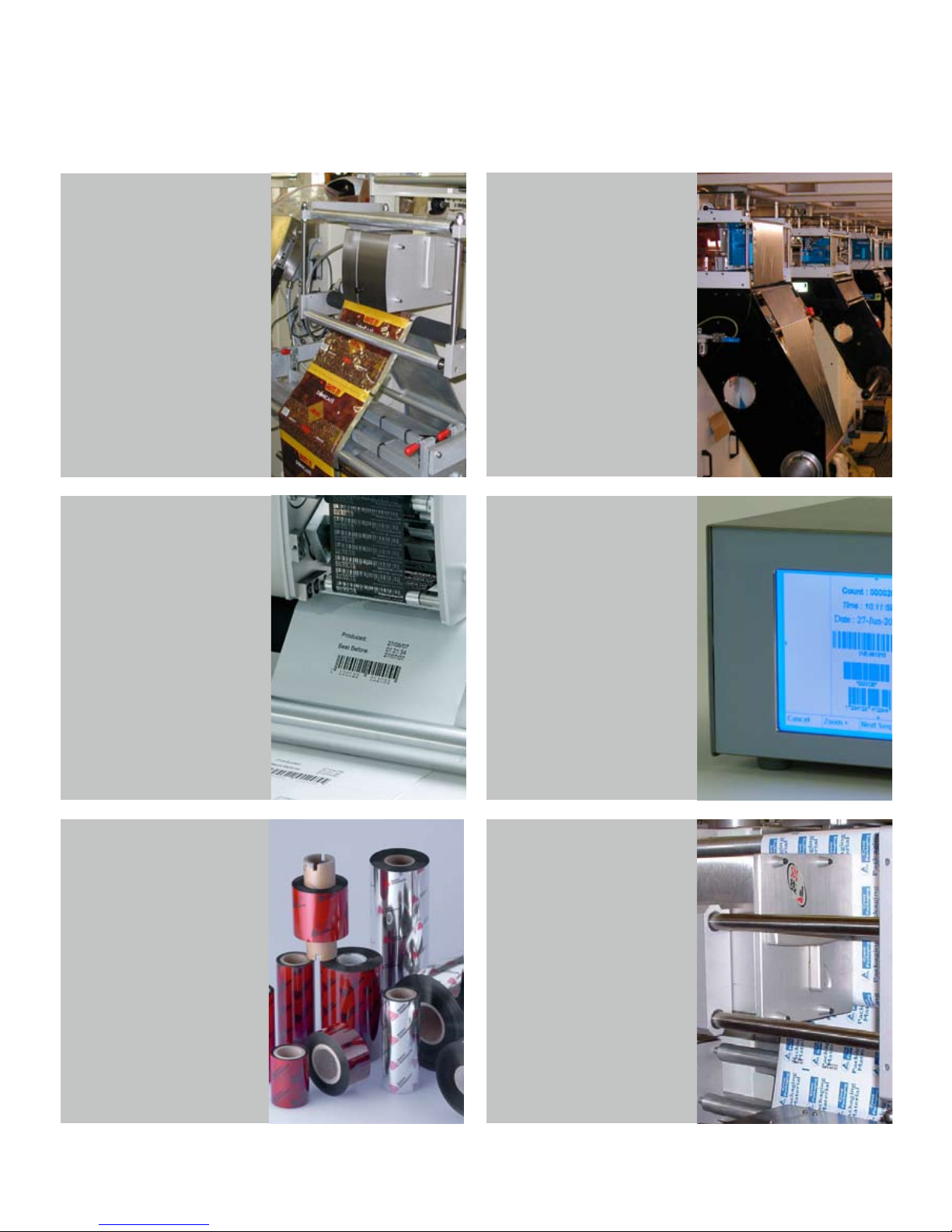

The APP 31x / 325 are designed for industries where information is printed directly onto packaging
material. Here are some examples:
