09/10 Rev. 5.05-09 USER / SERVICE MANUAL
AP5.4 – AP 5.6
Technical Data
Dimensions ................................................... 2
Measures .................................................. 2
Weight ....................................................... 2
Performance Data ......................................... 3
Print Technology .......................................3
Printhead Type ..........................................3
Printhead characteristics ........................... 3
Label sensor .............................................. 3
Max. print length ........................................ 4
Zero line ....................................................4
Fonts ......................................................... 4
Modifying Fonts ......................................... 4
Impression accuracy .................................4
Image formats ...........................................5
Bar codes ................ ........... .......... ........... ..6
2-dimensional bar codes ...........................6
GS1 Databar & CC bar codes ................... 6
Printer emulation ....................................... 6
Label Stock ...................................................7
Material Types ........................................... 7
Material Thickness ....................................7
Material Width ...........................................7
Label Length ............................................. 7
Gap size .................................................... 7
Label Roll ..................................................8
Thermotransfer Ribbon ................................. 9
Ribbon Roll ................................................ 9
Connections, device data ............................ 10
Protection class ....................................... 10
Mains Voltage ......................................... 10
Mains Frequency ..................................... 10
Power Consumption ................................ 10
Current Consumption .............................. 10
Interfaces ..................................................... 11
Electronic Configuration ..............................12
Specifications only for AP5.4/5.6 dispenser 13
Environmental Conditions ...........................14
Operating Temperature ...........................14
Storage Temp. .........................................14
Relative Humidity .....................................14
Protection category ..................................14
Noise ........................................................ 14
Test Marks, certificates ...............................15
CE ............................................................ 15
CTÜVUS-Mark ........................................15
TÜV -Mark ................................................ 15
CB ............................................................ 15
FCC .........................................................15
GOST R ...................................................15
Limitations ...................................................16
Print width limitations at AP5.6 ................16
01/11 Rev. 5.05-09 USER / SERVICE MANUAL Technical Data
AP5.4 – AP 5.6
2
Dimensions
Measures

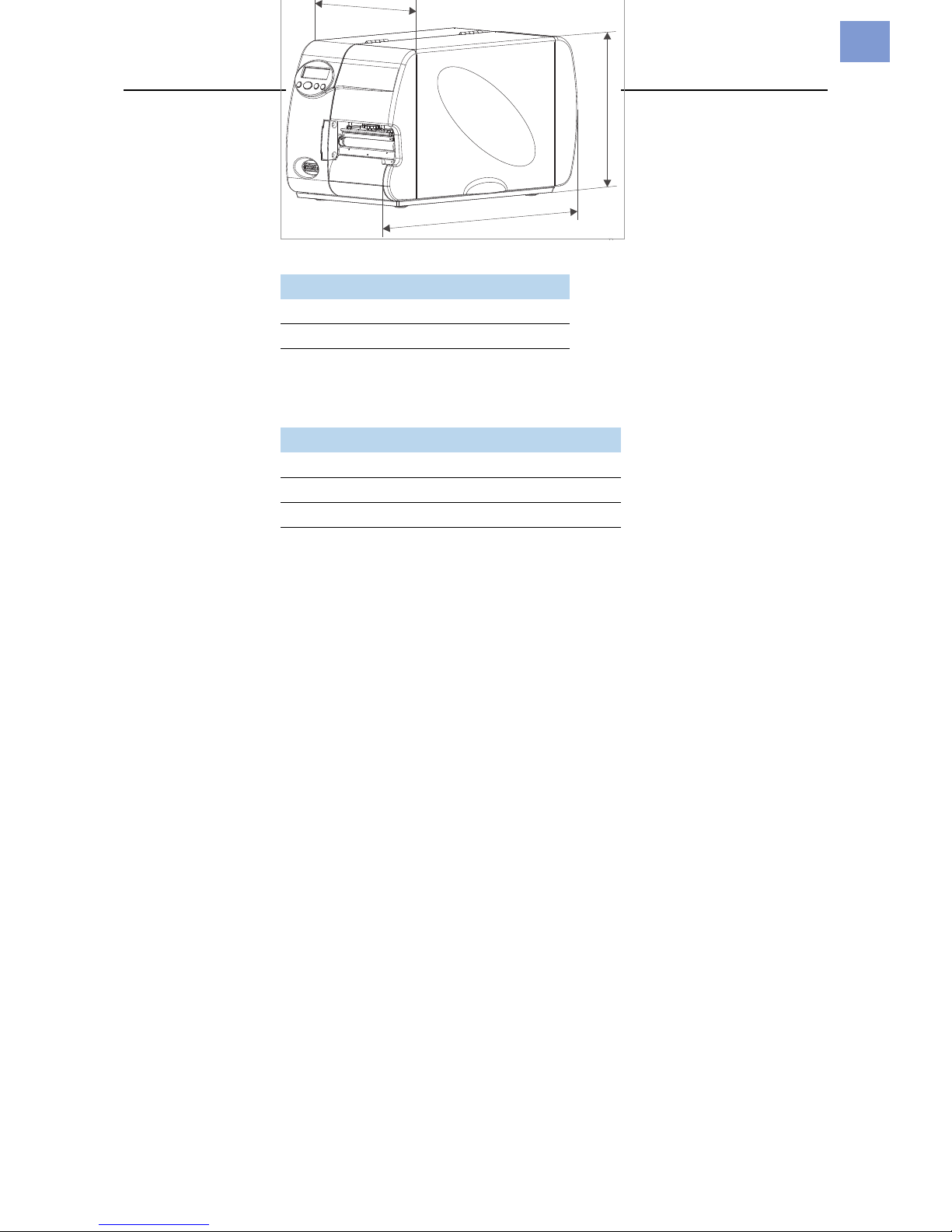

[1] Dimensions of the AP5.6 and AP 5.4 (H=Height, W=Width, D=Depth).
Weight
Printer Measures (H x W x D)
AP5.4 272 x 260 x 462mm
AP5.6 272 x 335,5 x 462mm
[Tab. 1] Measures
Printer Weight
AP5.4/5.6 14kg
AP5.4 basic / peripheral 14kg
AP5.4 dispenser / internal rewinder 16kg
[Tab. 2] Printer weight
H
B/W
T/D
01/11 Rev. 5.05-09 USER / SERVICE MANUAL Technical Data
AP5.4 – AP 5.6
3
Performance Data
Print Technology
Thermodirect and thermotransfer printing
Printhead Type
• “Flat Head” type (ceramic thin film flat head)
• 8.0 dot/mm (203dpi)
• 11.8 dot/mm (300dpi)
Printhead characteristics
Label sensor
The dark/light change at the reflex sensor is taken as the label beginning
(= end of the reflex mark)
CAUTION!
The maximum achievable print width of the AP5.6 is limited by print speed
and print contrast.
Pay attention to the limitations, see Print width limitations at AP5.6 on
page 16.
Printer
Resolution
(Dot/mm)
Resolution
(dpi)
Printspeed
(mm/s)
Printspeed
(Inch/s)
Max. printwidth
(mm)
AP5.4
8.0
11.8
203
300
50-200
50-150
2-8
2-6
104
105.7
AP5.6
8.0
11.8
203
300
50-200
50-150
2-8
2-6
168
[Tab. 3] Important printhead data.
Sensor type
Setting range
(Size c)
Punch length
(Size b)
Punch width
(Size a)
Transmission sensor
(Standard)
0–60mm 0.8–14mm min. 4mm
Reflex-sensor
(optional)
6–66 mm
4mm
(recommended)
12mm
(recommended)
[Tab. 4] Required punch measures.
01/11 Rev. 5.05-09 USER / SERVICE MANUAL Technical Data
AP5.4 – AP 5.6
4
[2] Measures and setting range of the punch / reflex mark.
Max. print length
The maximum print length depends on the following:
• Printer type
• Printer resolution
• Firmware version
• Parameter settings regarding memory allocation (e.g. SYSTEM
PARAMETERS > Free store size)
Zero line
Offset of the material zero line to the print zero line: 1mm (what means that a
stripe of 1mm width at the inner label margin is unprintable)
Fonts
• 17 Fixsize fonts , including OCR-A and OCR-B
• 3 scalable fonts (Speedo fonts)
• Truetype fonts are supported
• Optionally can Truetype, Speedo and Fixsize fonts be stored on SD-card
Modifying Fonts
• Up to factor 8 scaling in x/y direction
• Rotation by 0, 90, 180 and 270 degrees
Impression accuracy
[3] The impression accuracy depends on the print position on the label: the longer the distance to the gap
is, the lower is the impression accuracy. The maximum impression accuracy is at the gap position with
+/- 1mm.
Reading examples:
A: Print positioin 1 is located 50mm behind the gap position. The maximum
possible deflection from the theoretical print position is +/- 1.5mm.
B: Print positioin 1 is located 250mm behind the gap position. The maximum
possible deflection from the theoretical print position is +/- 3.5mm.
Those va lues are empirical for typical applications with common label stock
/ foil combinations. Since the deflection of the print position strongly depends
on the applied label stock / foil combination, it can turn out higher if unfavora ble
combinations are used.
a
b
c
Z0211.cdr
A
A
B
B
01/11 Rev. 5.05-09 USER / SERVICE MANUAL Technical Data
AP5.4 – AP 5.6
5
Image formats
BMP, PCX, JPEG, TIFF, GIF, Easy Plug logos
