FX 220
User Instructions
Retail Price Computing Scale
Brisch number 76102-649 Issue 2 07/06/01
ENGLISH
*76102-649*
Warnings
For your protection, all mains (110V or 230V) equipment used where
damp or wet conditions may occur, must be supplied from a correctly
fused source and protected by an approved RCD to BS7071 or BS7288
or IEC1008-2-2 BS EN 61008:1995. IF IN DOUBT SEEK ADVICE
FROM A QUALIFIED ELECTRICIAN.
To avoid the possibility of electric shock or damage to the machine,
always isolate from the mains power supply before carrying out any
routine maintenance.
Cleaning the scale
Harsh abrasives, solvents, scouring cleaners and alkaline cleaning
solutions, such as washing soda, should not be used especially on the
display windows. Under no circumstances should you attempt to wipe
the inside of the machine.
The outside of the machine may be wiped down with a clean cloth
moistened with water containing a small amount of washing up liquid.
Product variations
Note: Depending on country, some functions may not be available; the
legend on some of the keys may also be different. For example:
Or Or
Short press
Short press
Short press
Short press
Installation
Make sure that the work surface is firm, steady and free from vibration
and draughts.
To avoid the risk of RSI (Repetitive Strain Injury) it is important to
ensure that the machine is placed on a surface which is ergonomically
satisfactory to the user. In cases where usage is prolonged we
recommend frequent breaks for the user.
Installing the head-up display option
Using a flat-bladed screwdriver, remove the blanking plate from the
back of the scale.
Carefully insert the plug from the display into the socket at the
screws.
back of the scale. Replace the blanking plate.
Attach the display to the scale using the two slotted
Caution:
Do not lift the scale by the head-up display or the weighplate.
Error messages
If a persistent error message appears, disconnect then
E30
Temporary
Error codes:
E 5 Disconnect then reconnect the scale to the power supply.
E 10 Battery failure.
E 11 Power supply voltage is too high.
E 15 Contact your authorised service agent.
E 20 Weight error.
E 30 Invalid product configuration.
E35
E 100 Invalid PLU contents (try re-programming the PLU).
E 101 Transaction failed.
E 102 PLU write failed.
E 103 Tare failed.
E 151 Product configuration memory failed.
E 152 User does not have access to this item (in management mode).
reconnect the scale to the power supply. If the scale remains
inoperative, contact your authorised service agent.
error
Contact your authorised service agent.
Weight
unsteady
Balance
failed
Under
range
Over
range

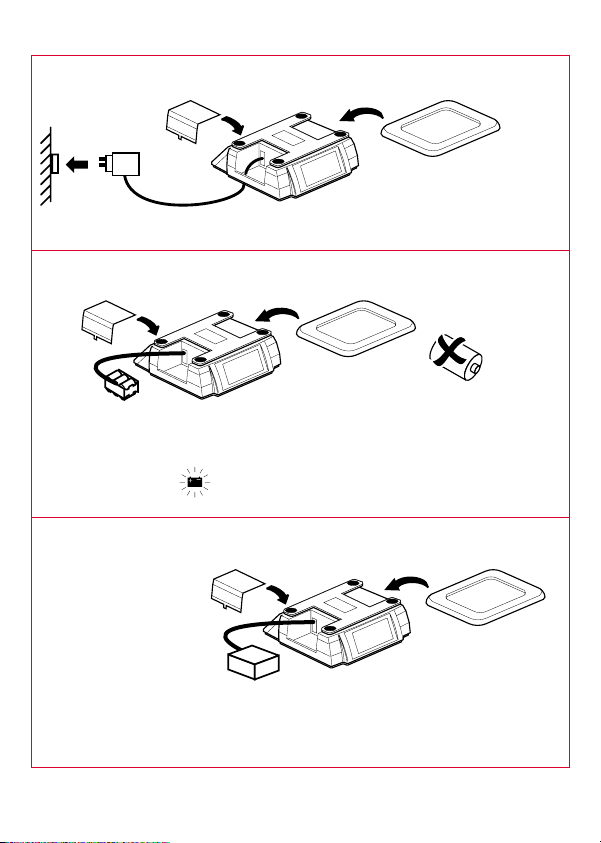

Switching on the scale
Connecting to the mains
cover and weighplate then switch on using the mains ON/OFF switch.
- Plug in the mains cable, replace the
Warning:
Using batteries
pack into the recess. Replace the cover and weighplate.
Caution:
remove flat or damaged batteries immediately.
When you see the symbol flashing on the display, then you must
either replace the batteries (or recharge the rechargeable batteries).
Using a rechargeable battery pack
battery pack into the scale and place the pack into the recess. Replace
the cover and weighplate.
Recharging the battery pack
bottom of the scale, then switch on using the mains ON/OFF switch.
Note:
Do not use the mains adaptor if it is damaged.
- Plug the battery pack into the scale and place the
NiCad
To avoid damage to the scale caused by leaking batteries,
- Plug the rechargeable
- Plug in the mains cable to the
You can still use the scale while the battery is being charged.
Bleeps
Short press (Press once) Long press (Press and hold)
Testing the display/Selecting sleep mode
Short press
Long press
SLEEP
Service
information =
Wake up:
Short press
Short press
X2
101d
0-6-0

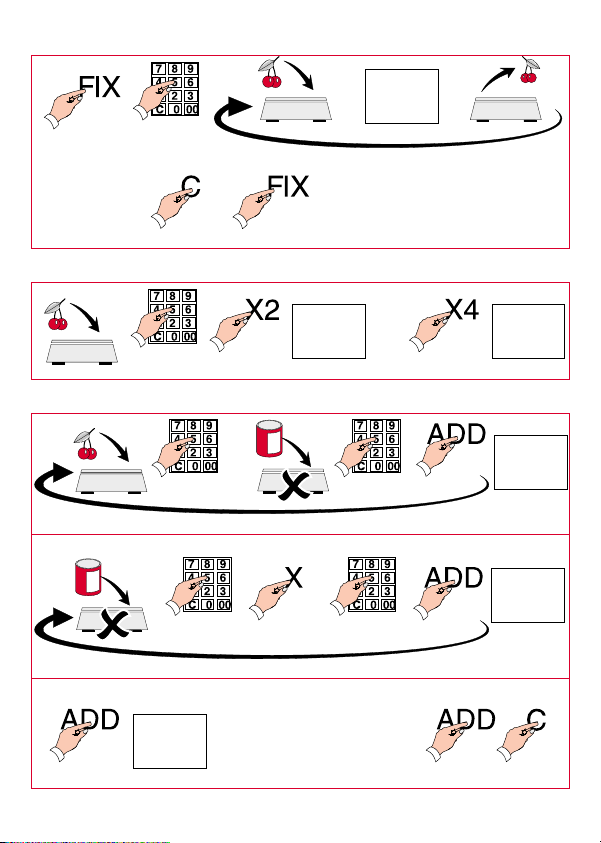

Using the scale
Zeroing the scale - Make sure that the scale is at zero before
weighing any goods.
00,000
0,00
Short press
0,00
Weighing goods - Place the goods onto the scale and enter the unit
price.
1,572
0,26
Unit price
Short press
0,40
Using the Clear key
To clear the last number entered: To clear the entire entry:
1,572
0,26
Short press Long press
0,40
1,572
0,00
0,40
1
Selecting an alternate price base/Alternative units
00,000
0,00
0,00
Short press
Short press
Retaining a unit price
Short press
To cancel a
unit price:
Unit price
Short press
Long press
Multiplying a unit price
1,572
0,26
0,40
Repeat until all the goods have been weighed
Short press
1,572
0,26
Or
Unit price
Short press
Short press Short press
0,40
Using the add key
Unit price
Short press
Or
Item price
Short press
Repeat until all the goods have been weighed
Multiplying non-weighed items
Item price
Short press
Short press
No of items
Short press
Repeat until all the goods have been weighed
Viewing the total Cancelng the total
5
Short press Short press
1,80
Short press
Short press
1,572
0,26
0,80
6
1,36
5
0,36
Long press
Using tares
Semi-automatic tares
Short press
Retaining a tare
Unit price
Short press
1,572
0,26
0,40
Unit price
Short press
Short press
Short press
Repeat until all the goods have been weighed
To cancel
a retained tare:
Short press
Long press
Cumulative tare
Short press
Repeat until all the goods have been weighed
Keyboard entered tare
Tare value
Short press
Short press
Proportional tare
% tare X10
Short press
Short press
For example, 33 = 3.3%, 205 = 20.5%
Unit price
Short press
Unit price
Short press
1,572
0,26
0,40
Unit price
Short press
1,572
0,26
0,40
1,572
0,26
0,40
1,572
0,26
0,40
Programming a weighed goods PLU hot-key
Assign a tare to the PLU (if required)
Note: For some countries, the tare value canot be saved.
Or Or
Short press
% of tare
Short press
Short press
Tare value
Short press
Assign a unit price to the the PLU (if required) Select the PLU key:
Note: To programme
PLUs 10 - 20 refer to
Unit price
Short press
management mode.
Long press
Programming a non-weighed PLU hot-key
Assign a unit price to the PLU
Short press
Item price
Short press
You will not be able to programme a PLU hot key if it has already
Note:
Short press
Long press
been changed in management mode.
Using PLUs
Using the PLU hot keys - For example, PLU .
0,000
0,26
Short press
Using PLUs1-9- For example, PLU 7.
Short press Short press
Short press
Using PLUs 10 - 20 - For example, PLU 12.
Short press
Short press Short press
0,00
2
1,572
0,26
0,40
1,572
0,26
0,40
1,572
0,26
0,40
Management mode
Entering management mode
Make a note of this
number, cut out and
keep in a safe place.
Short press
Navigating management mode
Branch
C
For example, turn the keyboard bleeper off and change the backlight
time to 5 seconds.
19.00
Go to the next branch (long press)
Go to next sub-branch (short press)
Go to the previous branch (long press)
Go to previous sub-branch (short press)
Select value to be changed (short press)
Return to Branch 00 (Long press)
Increment the value (short press)
Increment the value X10 (long press)
Change the value (short press)
Note:
go to the next branch to accept the value.
Exit management mode
C
Sub-branch
Value
1
After changing a value, you must
6231
Short press
For Example:
Branch ( )
Sub-branch ( )
Branch ( )
Sub-branch ( )
Sub-branch ( )
19
00
20
00
01
0.00
0
Long press
19.00
1
Short press
20.00
Long press
Long press
Note: Depending on country, some functions may not be available.
4
Short pressShort press
19.01
20.00
19.01
1
Short press
20.00
0
Short pressShort press
0
1
Switching the bleeper alarm on/off
Go to branch 19, Sub-branch 00
19.00
0=Off
1=On
1
Switching the keyboard bleeper on/off
Go to branch 19, sub-branch 01
19.01
0=Off
1=On
1
Target bleep
Branch 19, sub-branch 02 - Not applicable for this machine.
Error bleeper
Go to branch 19, sub-branch 03
19.03
0=Off
1=On
1
Changing the bleeper volume
Go to branch 19, sub-branch 04
1
0 = Quiet
1 = Loud
19.04
Changing the backlight time
Go to branch 20, sub-branch 00
0 = always off
1
1 = 5 seconds
2 = 1 minute
3 = 5 minutes
4 = always on
20.00
Changing the sleep time
Go to branch 20, sub-branch 01
0 = none
20.01
1 = 1 minute
2 = 5 minutes
1
3 = 30 minutes
Changing the duration of a 'Long' press
Go to branch 29, sub-branch 00
29.00
200
Enter a value in units of 10 milliseconds (50 -255).
For example :
200 = 2 seconds
150 = 1½ seconds
100 = 1 second
Changing the default price base
Go to branch 61, sub-branch 00
1
0 = 100g
1 = kg (lb)
61.00
Changing a PLU unit price
Go to branch 100 + PLU number, sub-branch 00
For example, PLU 05 Branch, 100+5=105
105.00
235
Unit price = 2.35
0 = No unit price
You must now select the PLU price base.Note:
Changing a PLU price base
Go to branch 100 + PLU number, sub-branch 03
For example, PLU 05 Branch, 100+5=105
105.03
4 = 100g
5
5 = kg (lb)
Changing a PLU tare
Go to branch 100 + PLU number, sub-branch 01
105.01
Weighed tare: Keyboard entered tare:
For example, PLU 05 Branch, 100+5=105
50
Short press
Or
Short press Short pressShort press
X2
Short press
Changing a PLU proportional tare
Go to branch 100 + PLU number, sub-branch 02
For example, PLU 05 Branch, 100+5=105
105.02
