Page 1
We Advance Education

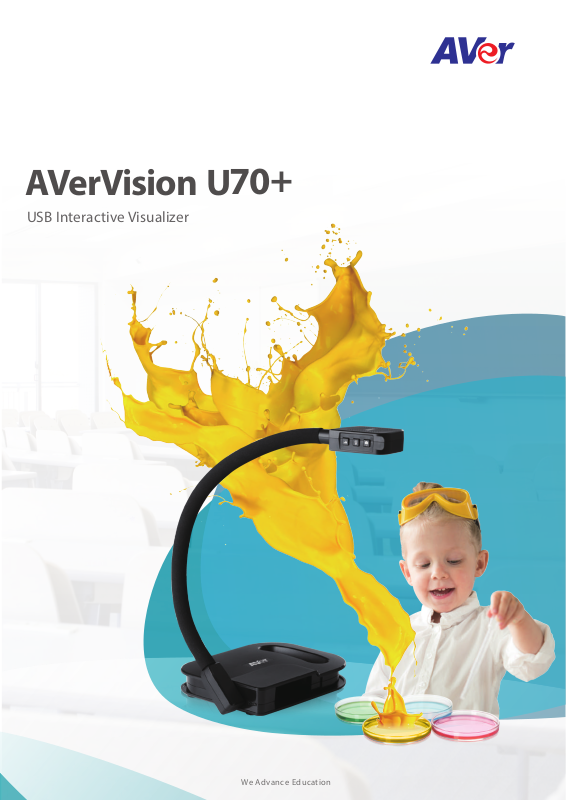

AVerVision U
USB Interactive Visualizer
70
+
Page 2
4K
13
Simple,
Flexible,
More Powerful
Hassle-free Live 4K Imaging
Show vivid, blur-free live video at 4K output resolution that will dazzle any
audience, while utilizing the visualizer’s wide shooting area and long fexible
arm to easily capture complete images of documents & objects larger than
an A3 sheet of paper.
Easy Online Video Streaming
Take advantage of U70+’s quality 13-megapixel camera sensor, nearly
instantaneous auto focus and built-in microphone to video chat through
Skype™ and similar programs, streaming live images from the visualizer to
friends, colleagues and pupils online.
USB
USB
3.0
Enjoy Superior Quality with SuperSpeed USB 3.0
Connect your visualizer to your computer or IWB easily via the U70+’s USB 3.0
port. Both live video and recording are extra-clear and ultra-smooth at full HD
up to 60 fps.
Compact and Portable Design
Bring your U70
lightweight design, a fexible arm and camera head that eortlessly slip
into the visualizer’s frame and a built-in handle for easy toting.
+
visualizer along with you wherever you go thanks to a
Page 3
with a USB visualizer, you can display...
2
S
A+ Suite Classroom Software for AVer Visualizer
Explore new possibilities!
· Integrate live images into existing teaching material, while accessing to
visualizer functions.
· Upload lessons to YouTube™, DropBox™, classroom management sites
and more!
· Stream live video from a second visualizer in picture-in-picture mode.
· Create your own media library then compare them side-by-side.
· View and adjust live visualizer images via an Interactive Flat Panel (IFP)
or IWB.
· Create an interactive, and 1 to 1 learning environment with Sphere2 and
ClassSend.
Film slides / Filmstrips
Real-time movements
Documents
3D objects
X-rays
input output
show images to your audience through...
Interactive
at panelTVmonitor
Projection
screen
Digital
monitor
Page 4
We Advance Education
Product specications
Image sensor
．1 / 3.06” CMOS color image sensor
Total pixels
．13M
Output resolution
．4K (3840 x 2160)
TV lines
．1400 (max.)
Zoom
．16X digital zoom
Frame rate
．60 fps (max.)
Focus
．Auto / Manual
Shooting area
．Larger than A3 landscape
．530 x 396 mm (4:3) / 545 x 305 mm (16:9)
Image rotation
．Electronic rotation 0° / 90° / 180° / 270°
(via software)
Annotation
．Yes (via software)
Image eects
．Color / B&W / Freeze (via software)
Image adjustments (white balance / exposure)
．Auto / Manual (via software)
Presentation tools
．Yes (Spotlight & Visor via software)
Built-in MIC
．Yes
Capture mode
．Single / Continuous (via software)
Light source
．Embedded LED lamp
USB 3.0 port
．1 out
Dimensions (W x H x D)
．Operating: 233 x 312 x 468 mm
．Folded: 242 x 188 x 44 mm
Net weight
．1.7 kg (3.7 lbs)
Power source
．USB powered
Recording
．Yes (via software)
A+ Suite OS compatibility
Windows® OS
．Windows® 7 (32 / 64-bit), Windows® 8 (32 / 64-bit)
．Windows® 10 (32 / 64-bit)
macOS®
．OS X v10.10 Yosemite, Mac OS X v10.11 El Capitan
Specications may vary depending on countries and are subject to change without notice.
Package content
- AVerVision U70+ unit
- A+ Suite software CD (available for selected markets)
- Warranty card
- USB 3.0 cable
- Quick guide
Product apperance
Camera head U70+ base
Zoom in
Light
Auto focus Zoom out
©2018 AVer Information Inc. All rights reserved.
All brand names and logos are trademarks of their respective companies.
www.aver.com
Rotate Capture
USB 3.0 port
Distributor/Dealer
(201806)
