Averatec N3400 User Manual

N3400 Series User’s Guide

Space Saving Contemporary Design

i

Before You Start

Regulations Information

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures :

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Note

✓ The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority

to operate the equipment.

✓Shield interface cables and AC power cord, if any must be used in order to comply with the emission limits.

ii

Before You Start

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Radlo Frequency Interference Requlrements

1. This device has no Ad-hoc capability for 5250 ~ 5350 and 5470 ~ 5725 MHz.

2. This device is restricted to INDOOR USE due to its opration in the 5.15 to 5.25GHz frequency range. FCC requires this
product to be used indoors for the frequency range 5.15 to 5.25GHz to reduce the potential for harmful interference to
co-channel of the Mobile Satellite Systems.
High power radars are allocated as primary user of the 5.25 to 5.35GHz and 5.65 to 5.85GHz bands. These radar stations
can cause interference with and / or damage this device.

RF exposure warning

The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
SAR Value : 0.561 W/Kg

iii

Before You Start

Safety Guideline for Using Lithium Battery

(Danish) ADVARSEL! Lithiumbatteri --- Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri af same fabrikat og type. Levé det brugte batteri tilbage til leverandøren.

(Deutsch) VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch denselben
oder einen vom Hersteller empfohlenen gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben
des Herstellers.

(English) CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used
batteries according to manufacturers instructions.

(Finnish) VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.

(French) ATTENTION: II y a danger dex;losion sil y a remplacement incorrect de la batterie. Remplacer uniquement
avec une batterie du meme type ou dun type équivalent recommandé par le constructeur. Mettre au rebut les
batteries usages conformément aux instructions du fabricant.

(Norwegian) ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt same batteritype eller en tilsvarende
type anbefalt av apparatfabrikanten.
Brukte batterier kasseres I henhold til fabrikantens instruksjoner.

(Swedish) VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som
rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruction.

iv

Before You Start

Optical Device Drive Notice

Macrovision Notice

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

CAUTION

✓ This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read

the instruction manual carefully and keep this manual for your future reference. In case of any trouble with this model,
please contact your nearest “AUTHORIZED service station.” To prevent direct exposure to the laser beam, do not try to
open the enclosure.

Power management status

System Sleep Mode

System Off Mode

1.3W

0.6W

with WOL
with WOL

v

Before You Start

Safety Instructions

1. Read the safety instructions carefully and thoroughly.

2. Save this User Guide for possible use later.

3. Keep this equipment away from humidity and high temperature.

4. Lay this equipment on a stable surface before setting it up.

5. The openings on the enclosure are used for air convection and to prevent the equipment from overheating. Do not
cover the openings.

6. Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100~240V
before connecting the equipment to the power inlet.

7. Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.

8. Always unplug the power cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. If any of the following situations arises, get the equipment checked by a service personnel:

✓ The power cord or plug is damaged.
✓ Liquid has penetrated into the equipment.
✓ The equipment has been exposed to moisture.
✓ The equipment has not worked well or you can not get it work according to Users Manual.
✓ The equipment was dropped and damaged.
✓ The equipment has obvious signs of breakage.

vi

Before You Start

11. Never pour any liquid into the opening that could damage the equipment or cause an electrical shock.

12. Do not leave the equipment in an unconditioned environment with a storage temperature of 60°C (140°F) or above,
which may damage the equipment.

13. To prevent explosion caused by improper battery replacement, use the same or equivalent type of battery
recommended by the manufacturer only.

vii

Before You Start

Information about ENERGY STAR

- The ENERGY STAR Computers Program was created by the EPA to promote energy efficiency and reduce air pollution
through more energy-efficient equipment in homes, offices, and factories.

- One way products achieve this is by reducing power consumption when not being used through the Microsoft Windows®
Power Management feature.

- The Power Management feature allows the computer to enter into a low-power or “sleep” mode after a period of user
inactivity.

Trigem computers marked with the ENERGY STAR Logo are compliant with the applicable U.S.
Environmental Protection Agency ENERGY STAR specifications for computers. The EPA ENERGY STAR Logo
does not imply endorsement by the EPA. As an ENERGY STAR Partner, Trigem Computer (AVERATEC) has
determined the products marked with the ENERGY STAR Logo are ENERGY STAR qualified as per the
applicable ENERGY STAR guidelines for energy efficiency.

When used with an external ENERGY STAR compliant monitor, this feature will also support similar power management
features of the monitor. To take advantage of this energy savings:

• The Power Management feature has been preset to power down the computer after 20 minutes of user inactivity.

• The Power Management feature has been preset to power down the monitor after 10 minutes of user inactivity.

• Power Management Status of Product

System Idle Mode

System Sleep Mode

System Off mode

About 10 W

1.3 W

0.6 W

with WOL

viii

Before You Start

- Both the computer and monitor can be woken from “sleep” mode through user interaction with any of the computer’s
input devices (ex: mouse, keyboard, etc).

- When configured with Wake On LAN (WOL) enabled, the computer can also be awoken by a network signal.

More information on the energy and financial savings potential of the Power Management Feature can be found at the
EPA’s ENERGY STAR Power Management Web site :

www.energystar.gov/powermanagement<http://www.energystar.gov/powermanagement>

More information on the ENERGY STAR program and its environmental benefits are available by visiting the EPA’s ENERGY
STAR Web site address : www.energystar.gov

ix

Before You Start

WEEE Statement

x

Before You Start

Trademarks

All trademarks are the properties of their respective owners.

✓ Microsoft is a registered trademark of Microsoft Corporation.

Windows98/ME, 2000/XP are registered trademarks of Microsoft Corporation.

✓ PCMCIA and CardBus are registered trademarks of the Personal Notebook Memory Card International Association.

Release History

Version

1.0

1.1

Revision Note

First Release

Second Release

Date
03, 2009
06, 2009

xi

Before You Start

Before You Read

The information in this user’s guide is subject to change without notice.

TriGem Computer, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental
or consequential damages resulting from the furnishing, performance, or use of this material.

AVERATEC is a trademark or registered trademark of TriGem Computer, Inc. in the United States and/or other countries.
All other product and brand names are trademarks of their respective owners.

©2009 TriGem Computer, Inc. All rights reserved.

Note

✓ Depending on the model, your computer’s components may vary and look slightly different than those pictured.

xii

Before You Start

Table of Content

Before You Start

Regulations Information i
Safety Guideline for Using Lithium Battery iii
Optical Device Drive Notice iv
Macrovision Notice iv
Power management status iv
Safety Instructions v
Information about ENERGY START vii
WEEE Statement ix
Trademarks x
Release History x
Before You Read xi

Chapter 1 Introduction

Unpacking 2
Introduction 3

Chapter 2 Getting Started

Connecting to a Power Source 10
Turning On Your Notebook Computer 11

Operating on Battery Power 11
Charging the Battery Pack 12

Chapter 3 Using the Notebook Computer

Adjusting the LCD Screen Display 14
The Notebook’s Hot Key Controls 16
The TouchPad 17

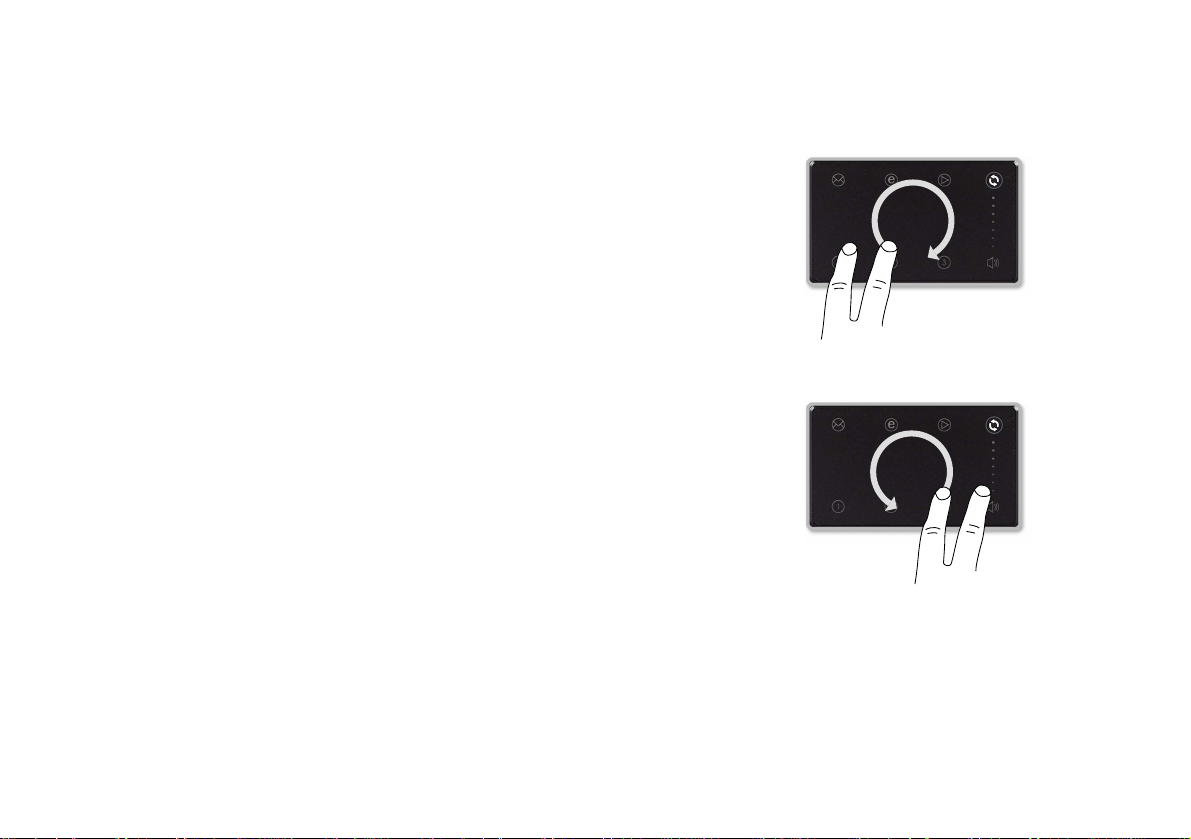

Gesture Applications 20

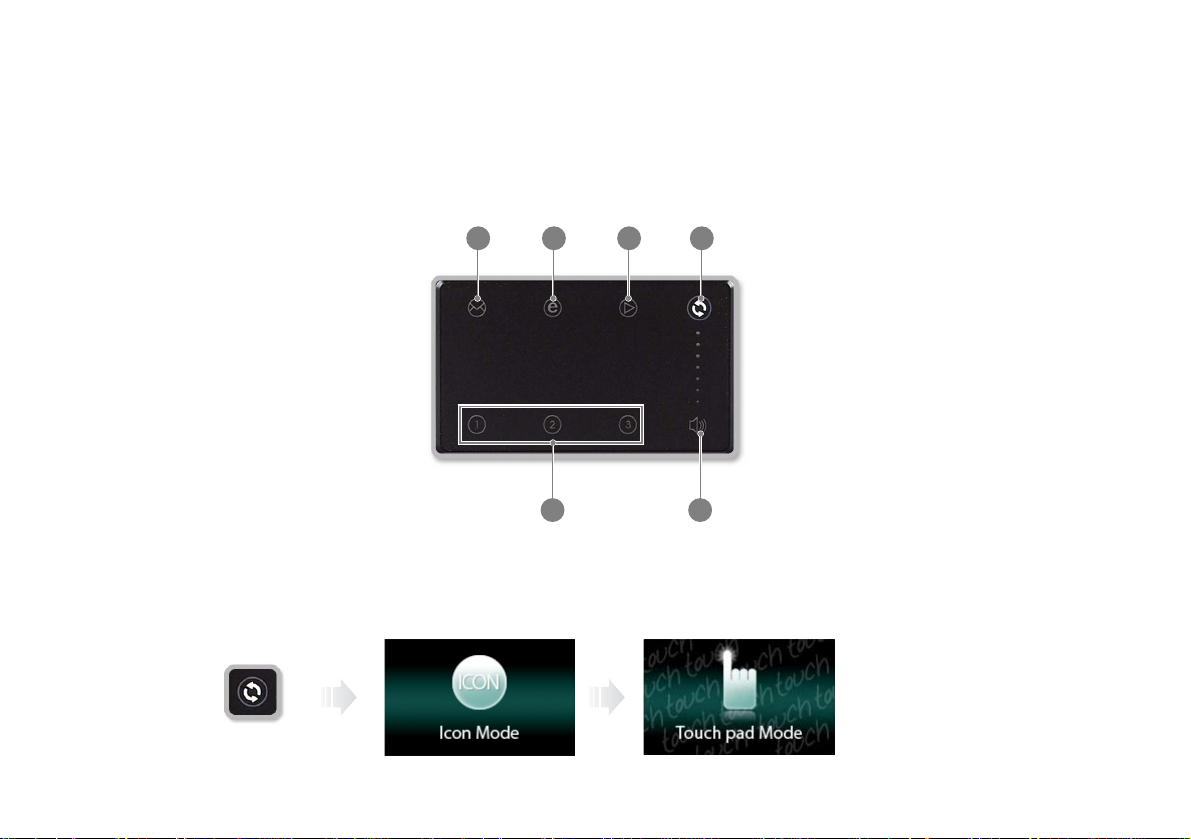

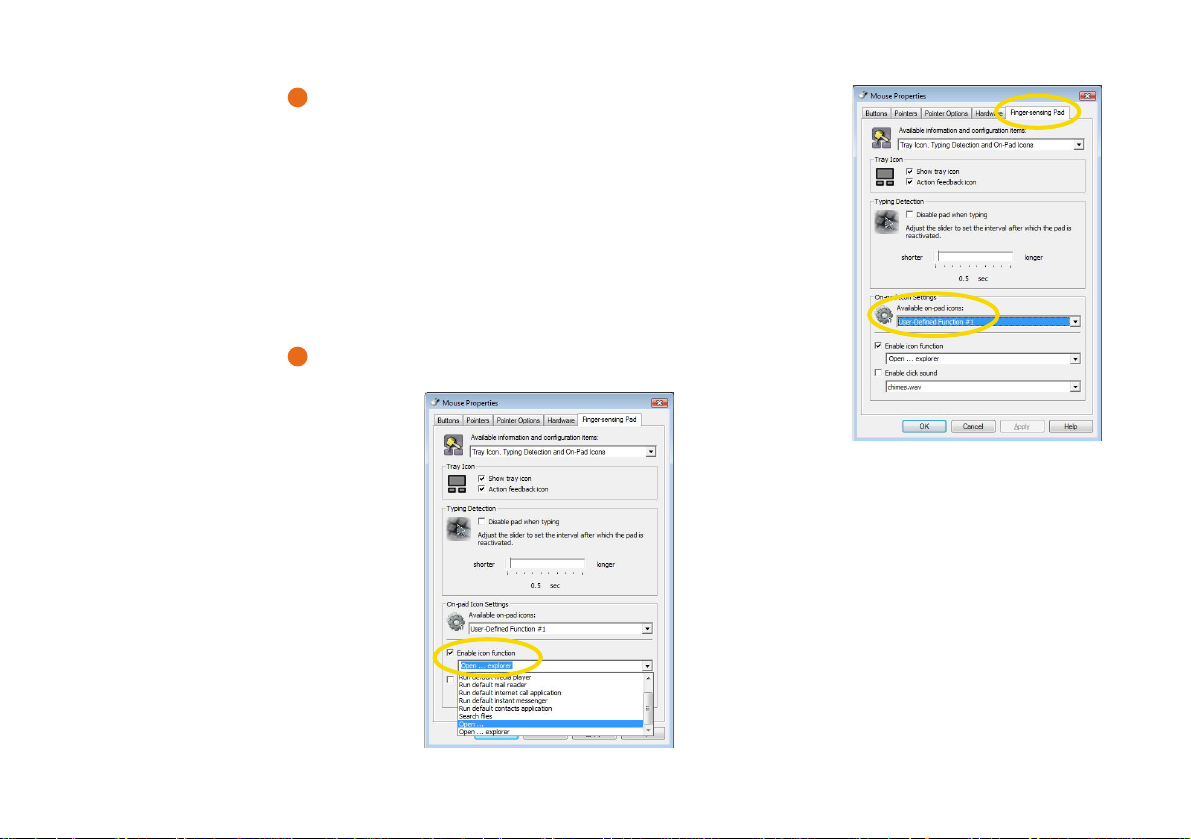

Dual Pad function 24
Power Saving Modes 28
Adjusting the Brightness 32

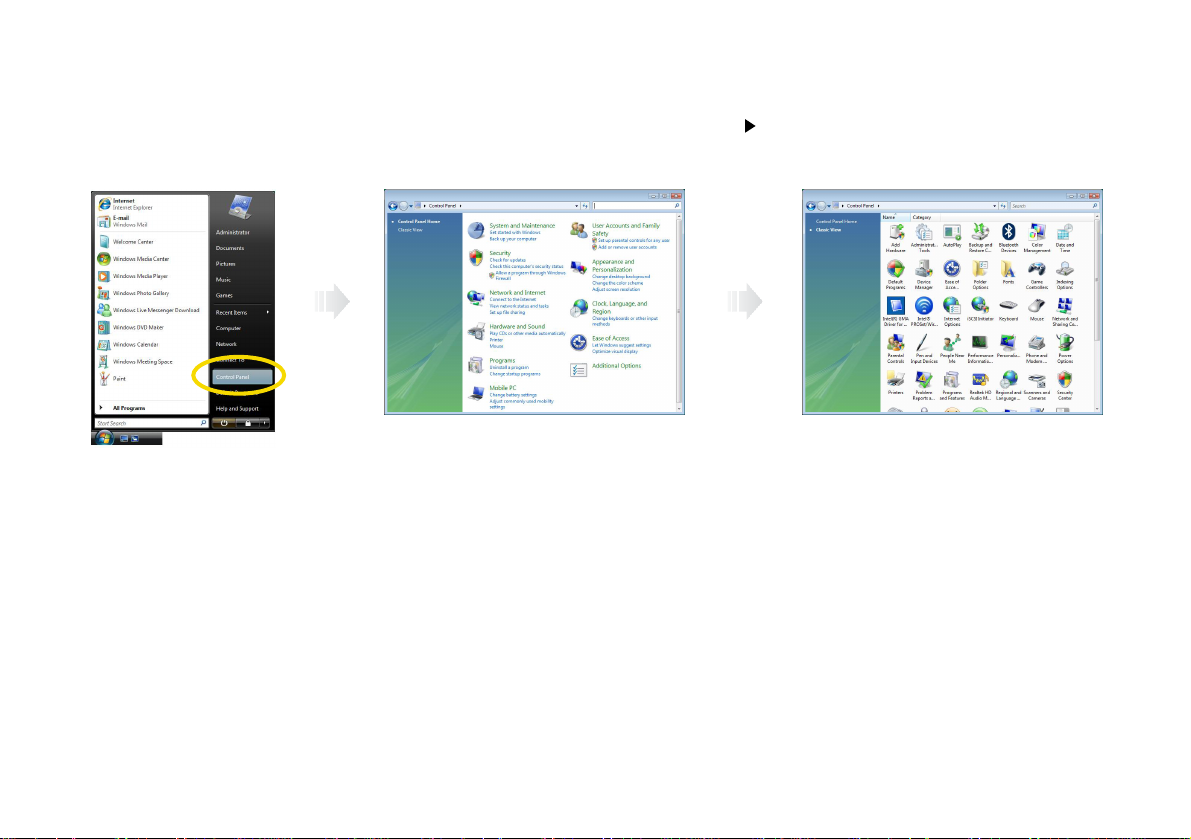

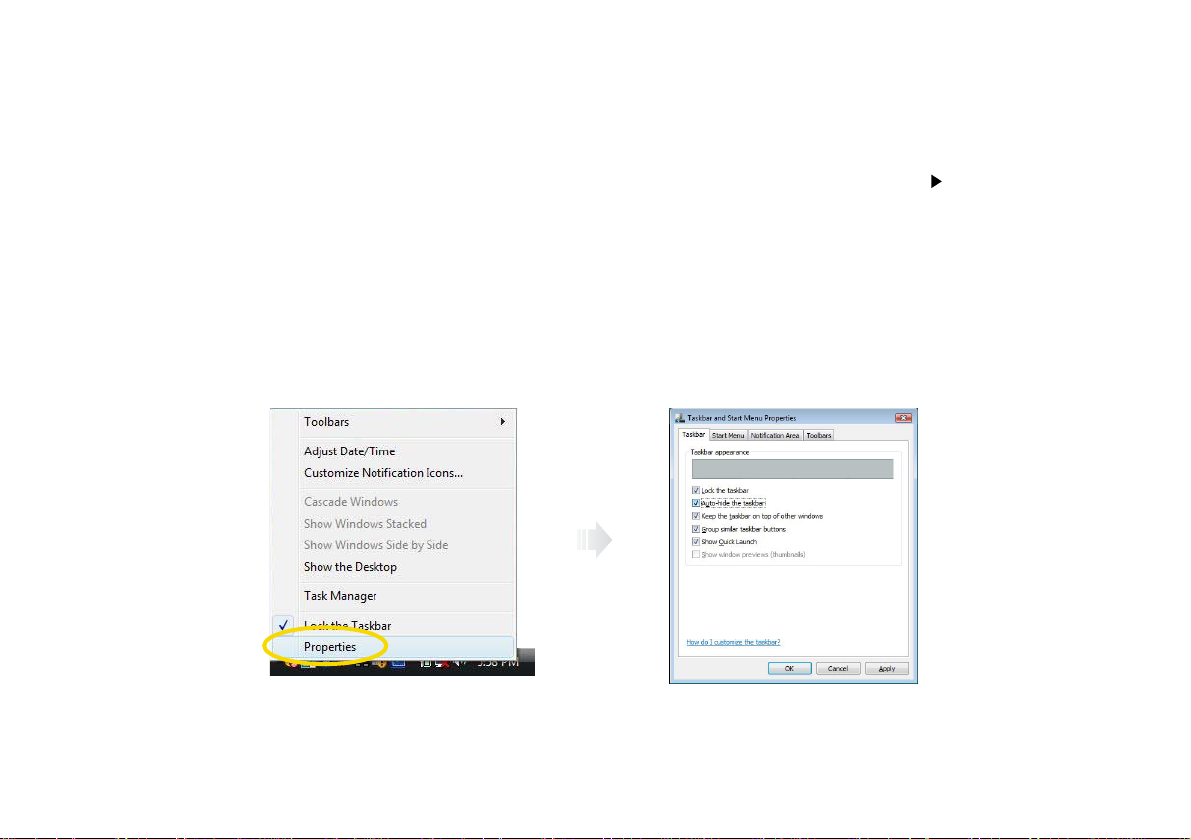

Using the Windows 33

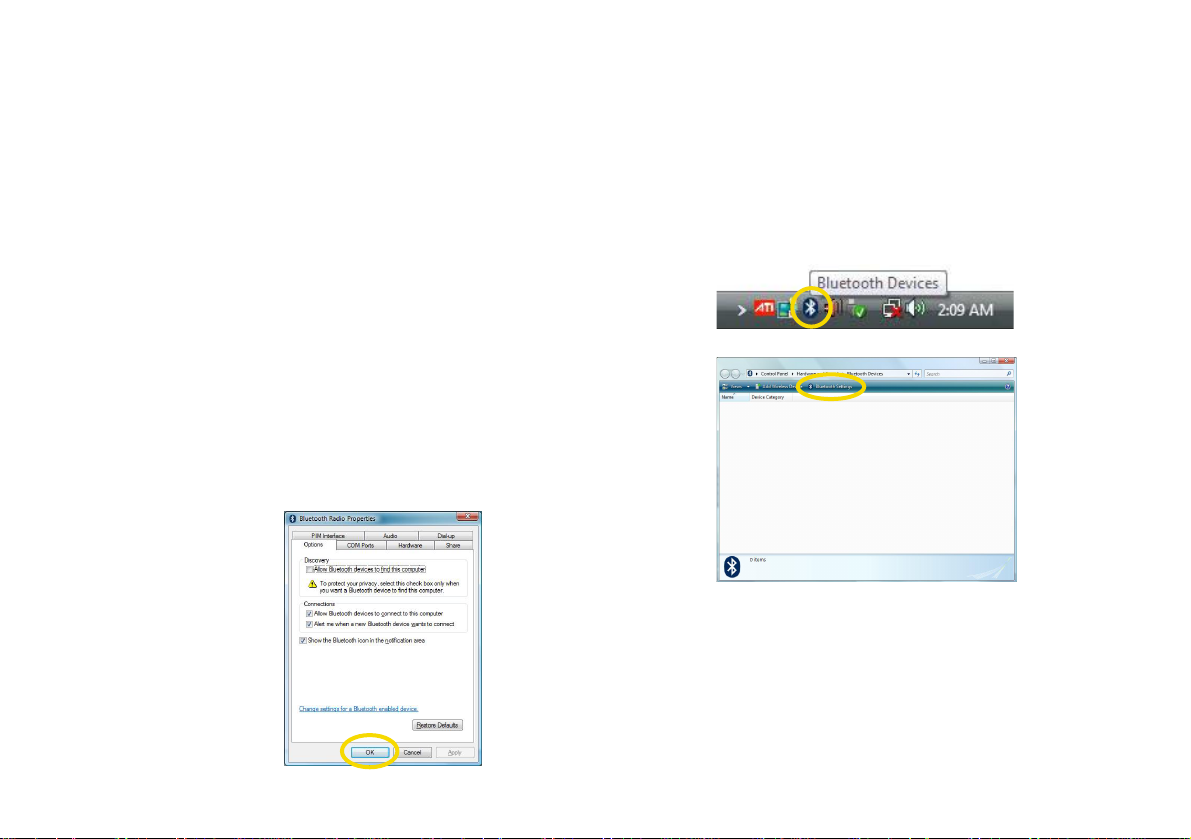

Using the Bluetooth 37

Chapter 4 Desktop Operation

Audio 39

Chapter 5 Internet Connection

Using a Wired LAN for Connection to the Internet 42

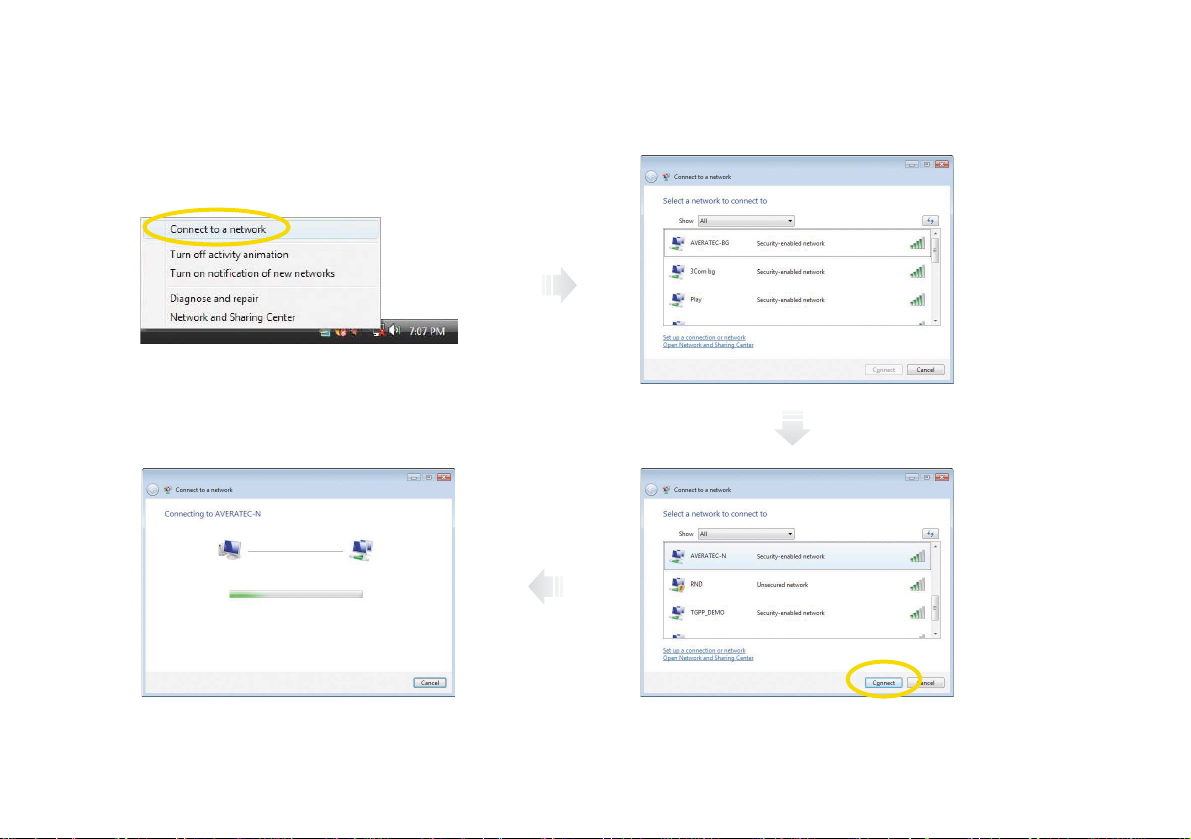

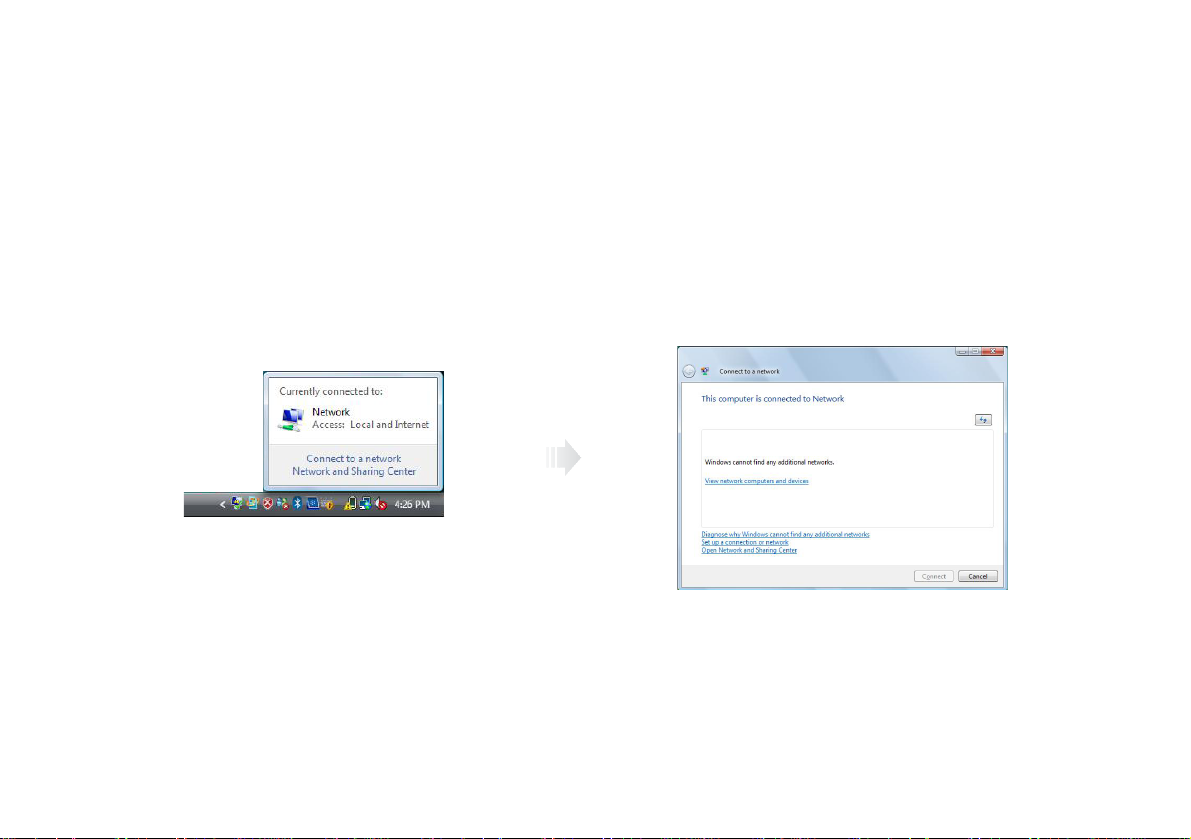

Using Wireless LAN Network for Connection to

xiii

Before You Start

the Internet 43

Chapter 6 Running BIOS Setup

Entering the BIOS Setup Screen 45
Leaving the BIOS Setup Screen 45
BIOS Action Keys 46
Modifying the BIOS Settings 47

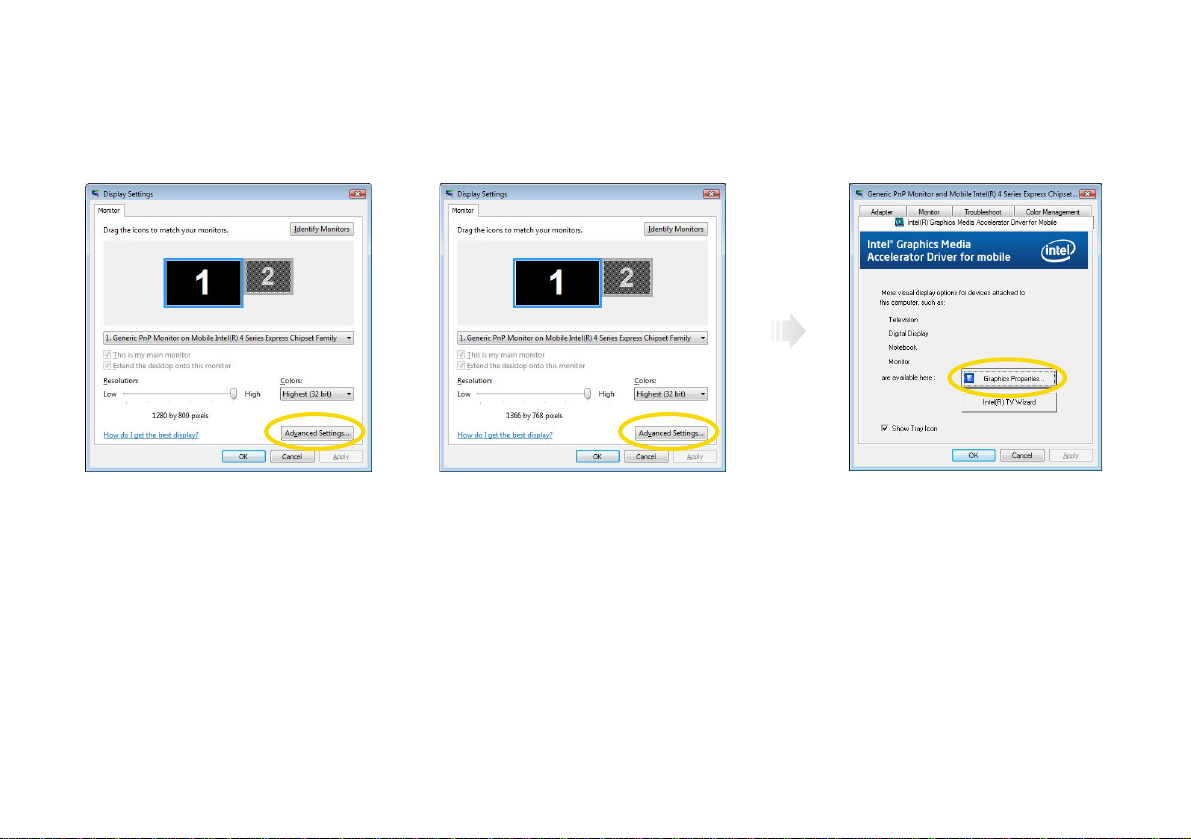

Chapter 7 VGA Utilities

Display Devices 52

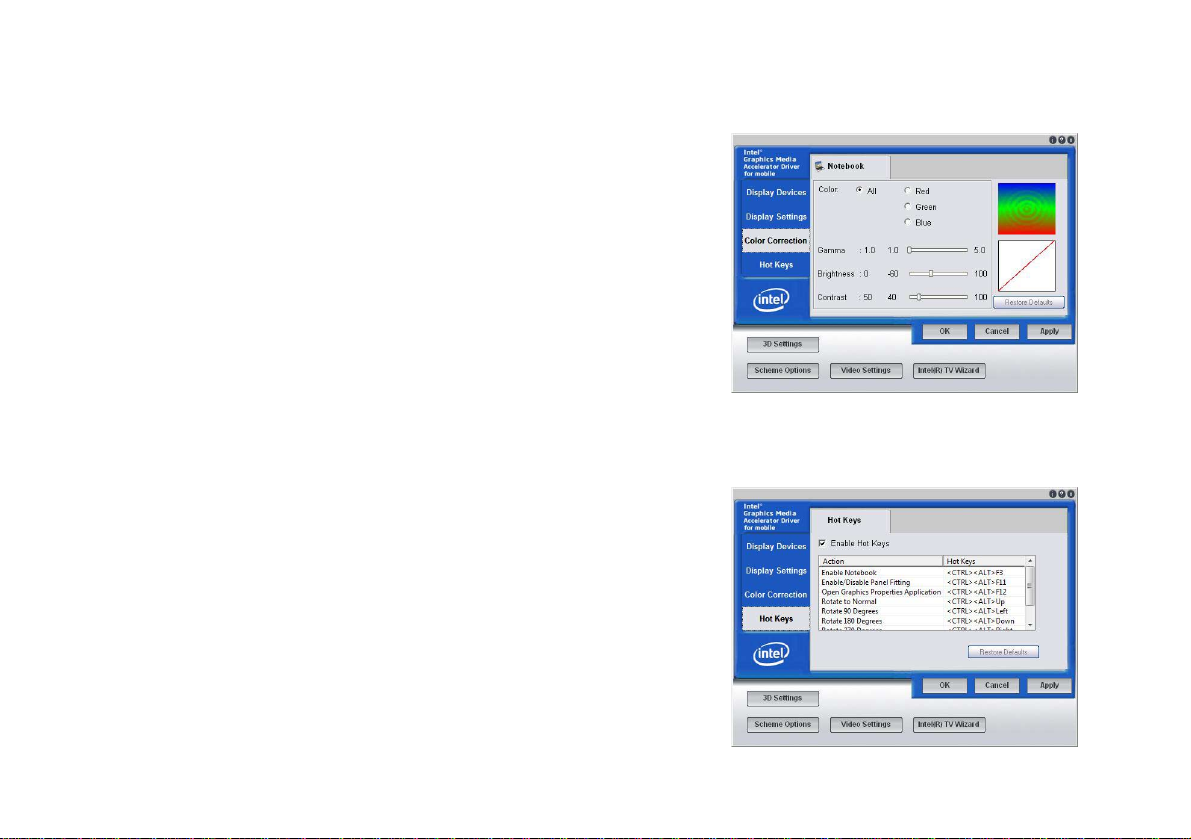

Display Settings 52
Color Correction 53
Hot Keys 53

Chapter 8 Troubleshooting

Audio Problems 57
Hard Disk Problems 58
Display Problems 59
Keyboard and Mouse Problems 60
CMOS Battery Problem 61
Memory Problems 61
PC Card Problems 62
Performance Problems 63

USB2.0 Problems 64
Recovering Your Original Software 65

Chapter 9 Specification

CPU 68
Memory 68
Core Logic 68
VGA 69
Audio Codec 69
Card reader (4 in 1) 69
LAN Controller 70
Wireless LAN (Optional) 70
Keyboard 70
Pointing Device 70
LCD 71
HDD 71
Battery Pack 71
AC-Adapter 71
BIOS 72
Physical Dimensions 72
Camera module 72

1

Chapter 1 Introduction

Introduction

Chapter

1

2

Chapter 1 Introduction

Unpacking

First, unpack the notebook from the shipping carton and check all items carefully. If any item is damaged or missing,
please contact your local dealer immediately. Keep the box and packing materials in case you need to ship the unit in for
service in the future.

The package should contain the following items:

✓ Notebook Computer
✓ Quick Start Guide
✓ Carry Pouch
✓ External CD drive(optional)
✓ AC adapter and power cord

These accessories listed above may change without notice.

3

Chapter 1 Introduction

Introduction

Welcome to the Notebook PC

Congratulations on your purchase of the Notebook PC. Your Notebook features the latest advances in portable computing
technology. The Notebook’s modular design provides maximum expandability without compromising portability.

Getting to Know Your Computer

Opening the LCD Panel

WARNING

✓ To avoid damage to the display panel:

1. Try not to slam the display upon closing it.

2. Try not to place any object on top when it is closed or open.

3. Be sure the system is turned off or in suspend mode before you close the display panel.

4

Chapter 1 Introduction

1. Integrated webcam

2. Built-in microphone

3. LCD display

With the LCD screen open, you will see several features important for operating your Notebook computer.

Front View

To open, lift the top cover (LCD Panel). The image of the top-open view and descriptions below will help you to get
familiarized with the main features of your notebook.

WARNING

✓ Do not place any heavy objects

on the top of notebook.
This may damage the display.

3

5

6

4

7

1

2

8

5

Chapter 1 Introduction

4. Power button / Power Indicator

• Press momentarily to turn on the system.

• Press and hold for at least 4 seconds to turn off the system.

• Persistent green light indicates the Power is ON

5. Keyboard

6. Touchpad

7. LED Status Indicator

8. Touchpad left / Right buttons

Blue light indicates the WLAN module is active.

LED Graphic Symbol Indication

Set the Bluetooth ON to use the Bluetooth function.

If the <Caps Lock> key is pressed, the <Caps Lock> control will be lighted.
In this state, you can enter capital letters without pressing the <Shift> key.

If the <Num Lock> function is active, the <Num Lock> control will be lighted.
Press the <Num Lock> key to use the numeric pad.

Blinking orange light indicates the battery is being charged.
Blinking red light indicates the battery power is low when the system is turned ON.
Persistent green light indicates the Power is ON.

Green light indicates the hard drive and/or optical drive is being accessed.

6

Chapter 1 Introduction

Left Views

1. Power jack (DC-in)

2. Ventilation grill

3. USB connector

4. 4-in-1 card reader
The 4-in-1 Card Reader supports SD Card, MMC Card, MS and MS-Pro Card.

1

2 3 4

7

Chapter 1 Introduction

Note

✓ When using a LAN, please use an EMI Shielding Cable to minimize an inteference when transmitting.

Right View

1. Headphone/Speaker/SPDIF jack

2. Microphone jack

3. USB connectors

4. Network connector (LAN)

5. VGA port

6. Kensington lock

3 4 5 61 2

8

Chapter 1 Introduction

Bottom View

3

2

1

1. Ventilation grill

2. CPU/Hard disk drive / Battery pack / Main memory cover

3. Integrated speakers

9

Chapter 2 Getting Started

Getting Started

Chapter

2

10

Chapter 2 Getting Started

Connecting to a Power Source

Connecting the AC Adapter

A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack. The
adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost
every country.
To connect the computer to an external power source:

Whenever possible, keep the AC adapter plugged into the Notebook and an electrical outlet to recharge the battery.

WARNING

✓ Do not use inferior extension cords as this may result in damage to your Notebook. The Notebook comes with its own AC

adapter. Do not use a different adapter to power the computer and other electrical devices.

WARNING

✓ Never turn off or reset your Notebook while the hard disk is in use and the CD-ROM status icon is lit; doing so can result in

loss or destruction of your data. Always wait at least 5 seconds after turning off your Notebook before turning it back on;
turning the power on and off in rapid succession can damage the Notebook’s electrical circuitry.

11

Chapter 2 Getting Started

Turning On Your Notebook Computer

Turn on your Notebook by pressing the power button. Hold the button down for a second or two and release. The Power­On Self Test (POST) runs automatically.
After the POST is completed, the computer reads the operating system from the hard disk drive into computer memory

(this is commonly referred to as “booting” a computer). If your OS (Operating System such as Windows Vista.... etc) is

installed, it should start automatically.
To turn the Notebook off, save your work and close all open applications, click on Start, then Shut Down and select Shut
down the computer and click "Yes" or press the power button for 4-6 seconds.

Operating on Battery Power

Your computer comes with a rechargeable battery pack that lets you operate the computer without an external power
source. When the battery pack is the charged, you can operate the computer under the following conditions:

• The battery pack is installed and no AC adapter is plugged in

WARNING

✓ Only use batteries that are approved by an authorized dealer. All batteries are not the same and therefore should not be

treated as such. Using the wrong battery could cause serious damage to your computer and yourself through toxic
emissions.

CAUTION

✓ Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the

manufacturer. Discard used batteries according to the manufacturer’s instructions or local laws.

12

Chapter 2 Getting Started

Charging the Battery Pack

The installed battery pack charges automatically any time the computer is connected to the AC adapter and an external
power source. It is a good idea to occasionally discharge the battery pack fully to preserve its operating performance.

13

Chapter 3 Using the Notebook Computer

Using the Notebook Computer

Chapter

3
