Congratulations on your purchase of a Notebook computer! Your new notebook
features the most innovative advances in portable computing technology. It
combines state-of-the-art ergonomics with sophisticated architecture to provide
you with a personal computer that is compact, powerful, and easy to use.
Designed for a wide range of general, business, and personal productivity
applications, this notebook is an ideal choice for use in the office, at home, and
on the road.
For maximum expandability without compromising portability, the notebook
accommodates a number of modules, including a combo DVD+CD-RW optical
drive, two USB ports, one PCMCIA and one 4-in-1 card slot. The high capacity
hard disk drive provides you with plenty of storage space for multimedia files
and applications.
This Manual contains all the information you need to set up and use your new
notebook. It describes all the features of the notebook in an easy-to-read yet
thorough manner.
Introduction — Chapter 1
Inventory
This computer system is designed for years of productive and pleasurable
computing. Use this section to keep details of your purchase. This information
will be required should you need to make repairs to your notebook during the
warranty period. Update this section when you add new options.
DATE OF PURCHASE:
PLACE OF PURCHASE:
STORE NAME:
STORE ADDRESS:
TELEPHONE:
E-MAIL ADDRESS/WWW:
CONTACT PERSON:
MODEL NUMBER:
SERIAL NUMBER:
The serial number is on the label (with a bar code) on the bottom side of the
computer.
Chapter 1 — Introduction
Safety and Maintenance
You can use your computer under a wide range of environmental conditions.
However, to ensure long use and continued high performance, consider the
following factors when setting up your computer:
x Follow all warnings and instructions noted in this documentation and
in the Windows Help program.
x The first time you use your computer, we recommend that you
carefully read the Making Connections section of this manual and
initialize the battery to ensure optimum battery performance.
x Unplug the computer from the power outlet before cleaning. Use a
damp cloth for cleaning. Do not use aerosols, solvents, or strong
detergents.
x Do not use the computer near open water or other liquids. Never
spill liquid onto the computer.
x Do not place the computer in an unstable location where it might slip
or be knocked over. Serious damage could result from a fall.
x Slots and openings in the system cabinet are for ventilation
purposes. Do not block or cover these openings or the system could
overheat. Do not use or store the computer near a source of heat or
dust.
x On the base or rear panel of this notebook, there is a label with
information on the power requirements of this system. These
requirements must be followed. If you are unsure of your local power
supply, consult your dealer or local Power Company.
x Do not step on or place anything on the power cord.
x If you use the computer with an extension cord, ensure that the total
ampere ratings of all the devices sharing the extension do not
exceed the rating of the extension cord or the rating of the wall outlet.
x Never push foreign objects into the computer through any of the
slots or openings. Dangerous voltages are present, which could
cause electric shock or fire, or damage sensitive components.
Introduction — Chapter 1
x For best results, use a power strip with a built-in surge protector. Do
not use inferior extension cords as this may result in damage to your
computer.
x Set the computer on a flat, stable surface. To prevent damage to the
computer’s hard disk drive, avoid using the computer where it will be
exposed to strong vibration.
Checklists
After opening the package, carefully inspect the contents. If any of the items
are missing or appear damaged, contact your dealer. The shipping carton
should contain the following:
STANDARD
x Notebook computer
x Internal battery
x AC adapter with power cord
Caution: When purchasing any of the accessories
listed above, purchase only those accessories that
are approved for use with your computer. The above
accessories are proprietary items. Your system
vendor can obtain these approved accessories. If
you use items that are not approved for use with
this computer, you may cause your computer to
malfunction, or to emit or receive electro-magnetic
radiation in excess of local regulations. For nonproprietary accessories such as PC cards or
printers, ensure that the accessory functions
properly in your computer before making the
purchase. Your system vendor may be able to
recommend reliable brands and models.
Chapter 1 — Introduction
Features
High Capacity Hard Disk Drive
The computer has a high capacity hard disk drive, to store your favorite
programs and large multimedia files.
Built-in Modem/LAN Capability
A built-in 56k modem and 10/100 Mbps Ethernet port allows you to access the
Internet or a local area network (LAN).
AveraBrite™ LCD Display
Your computer has an easy-to-view WXGA LCD panel with AveraBrite™
Built-in Stereo Speakers
The stereo speakers output sound from your multimedia applications.
Windows Media® Player Quick Launch
One button lets you play movies, or music by quickly launching Windows
Media® Player.
Introduction — Chapter 1
Where to Look For Information
About Your Computer
This User’s Manual describes the key elements of your computer. New users
can find a simple step-by-step orientation in the Quick Start section of this
chapter.
About Windows
Windows Online Help, found on the Start menu, offers extensive Windows
assistance. Tour Windows XP offers an online orientation for new Windows
users. Find it in: Start/Programs/Accessories
Chapter 1 — Introduction
Quick Start
Turning on the Computer for the First Time
1. Connect the power cord
to the AC adapter.
2. Connect the AC adapter
to the DC power port on
the rear of your
computer.
3. Connect the AC adapter
power cord to an AC
outlet.
4. Open the LCD panel to
a comfortable viewing
angle.
5. Press the power button
to turn on the power.
Note: The battery is not fully charged.
Allow your battery to fully charge before
using it (i.e., before disconnecting AC
power). Calibrating the battery before use
is also highly recommended. Refer to
Chapter 5, Power Management, for further
information.
Adjusting the Volume
You can adjust the volume with hot key combination as below:
x Fn + F8 decreases the volume
x Fn + F9 increases the volume
x Fn + F10 Mute the volume
Introduction — Chapter 1
Alternatively, you can adjust
the volume with the Windows
volume control applet located
on the taskbar.
Adjusting the Brightness
Use the following hot key combinations to adjust the LCD panel brightness:
x Fn + F6 decreases the brightness
x Fn + F7 increases the brightness
Turning off Your Computer
Turning off the computer properly is important in maintaining your computer.
1. On the Start menu, click
Shut Down.
If you are going to be away from the computer for a short period, there are
ways of conserving power without shutting down the system. See Chapter
5, Power Saving Modes, for details.
2. Click the red button in the Shut
Down Windows screen, and then
click OK.
Chapter 1 — Introduction
Warning: Shutting off the computer improperly
may result in data loss.
Tips for New Owners
Take responsibility for backup
Back up files often. Users who need to manage large amounts of data may
wish to use backup devices such as a USB drive. If you use your notebook as
a networked workstation with system backup, talk to the system administrator
about backup procedures for your notebook.
Don't leave passwords anywhere on your notebook or carrying case
Be careful when placing your notebook on an airport security conveyor
belt
In most airports, security conveyor belts are safe for computers. If you are not
sure, ask the security staff. You should keep a close eye on your computer.
When you are in a hurry, make sure that you walk away with the correct
notebook computer!
Tape your business card to the notebook and accessories
In the workplace, notebooks and accessories may often look exactly alike,
leading to equipment mix-ups. Prevent such mix-ups by placing your name on
your equipment.
Never take the notebook anywhere without a carrying case
A broken screen or case can be costly to repair. Prevent accidents by carrying
the computer in a suitable carrying case.
Consider using a lock
For added security, consider purchasing a Kensington lock to put into the
Kensington lock hole on the right side of your computer (see Chapter 2, Left
View). Use the Kensington lock to secure the computer to a desk or table.
Introduction — Chapter 1
Note: Using a computer for extended periods of
time with a poor workstation setup and incorrect
work habits can cause health problems.
CChhaapptteerr2
2
GGeettttiinnggSSttaarrtteed
d
Chapter 2 — Getting Started
Hardware and Software
This chapter introduces the different components and controls of your
notebook computer, including the hardware components, the software, and
the audio and video systems.
Getting Started
Before you begin using your computer, read this chapter to familiarize
yourself with the main components installed in the system.
Front View
Getting Started — Chapter 2
1. LCD panel
2. Speakers
3. Power button
4. Keyboard
5. Status indicators
9
6. Touchpad
7. Touchpad buttons
8. Wireless LAN switch
9. Windows Media® Player
Quick Launch Button
1
2
3
4
5
6
8
7
Chapter 2 — Getting Started
Left View
123 4 5 6 7
1. LAN RJ-45 jack
2.
Fax/modem RJ-11 Jack
3. IEEE 1394 port
4. Optical drive Bezel
5. Optical drive button
6. PCMCIA card slot
7. PCMCIA card eject button

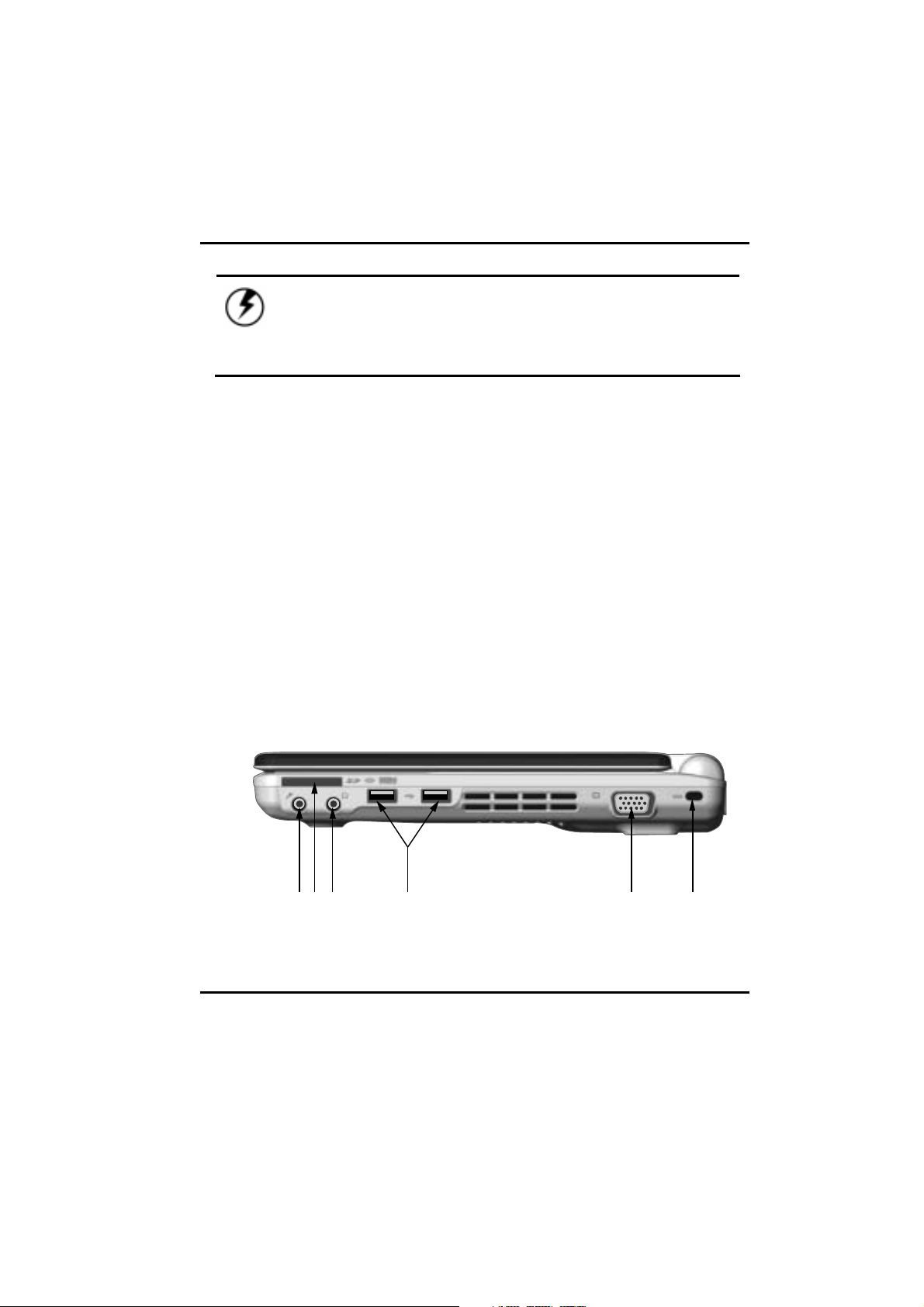

Right View
123 4 5 6
1. Microphone jack
2. MS/MMC/SD/MS Pro card slot
3. Ear phone jack
4. USB ports
5. VGA external video display port
6. Kensington lock hole
Getting Started — Chapter 2
Loading...
