Page 1

SVC100/500

User Manual

Page 2

FCC NOTICE (CLASS A)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATIONS COMMISSION STATEMENT

NOTE- This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/television technician for help.

CLASS A ITE

Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits. Such equipment should not be restricted in its sale but the following warning shall be included in the instructions for use:

Warning - This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

EUROPEAN COMMUNITY COMPLIANCE STATEMENT (CLASS A)

This product is herewith confirmed to comply with the requirements set out in the Council Directives on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive 2014/30/EU.

Warning - This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures to correct this interference.

DISCLAIMER

No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice. In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

Page 3

TRADEMARKS

“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.

means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

The mark of Crossed-out wheeled bin indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. For more information about where to drop off your waste equipment for recycling, please contact your household waste disposal service or the shop where you purchased the product.

Page 4

CONTENTS

INTRODUCTION ...................................................................................................................... 1

Features .......................................................................................................................................................... 1

Package Contents ........................................................................................................................................... 2

INSTALLATION ....................................................................................................................... 3

Getting Familiar with the SVC -Series ............................................................................................................. 3

Main System ............................................................................................................................................... 3

MIC ............................................................................................................................................................. 5

Camera ....................................................................................................................................................... 5

Remote Controller ....................................................................................................................................... 6

Connections ................................ ..................................................................................................................... 9

Connecting Monitors (HDMI Out) .............................................................................................................. 10

Connecting the Camera (Camera In) ........................................................................................................ 10

Connecting the 2nd Camera (HDMI In) ...................................................................................................... 11

Connecting the MIC (MIC In) .................................................................................................................... 11

Connecting the LAN (RJ-45) ..................................................................................................................... 12

Connecting the Power (DC 12V) ............................................................................................................... 12

Connecting PC (HDMI In/DVI In) .............................................................................................................. 13

Connecting the Audio (Audio In/Out) ........................................................................................................ 13

USB Storage (USB Ports) ......................................................................................................................... 14

Install Cable Retainer ................................................................................................................................ 15

CAMERA AND MICROPHONE INTRODUCTION .................................................................... 16

Using the Camera .......................................................................................................................................... 16

Infrared Sensor (IR) ....................................................................................................................................... 16

Positioning the MIC ....................................................................................................................................... 17

AVER SVC WIZARD SETUP .................................................................................................. 18

Start .......................................................................................................................................................... 18

Language .................................................................................................................................................. 19

Site Name ................................................................................................................................................. 19

Network Setting ......................................................................................................................................... 19

Public IP Configuration (Outside of Firewall): ........................................................................................... 20

Private IP Configuration (behind firewall port forwarding): ........................................................................ 21

SIP Settings .............................................................................................................................................. 23

AVER SVC OPERATION ........................................................................................................ 26

Before You Begin .......................................................................................................................................... 26

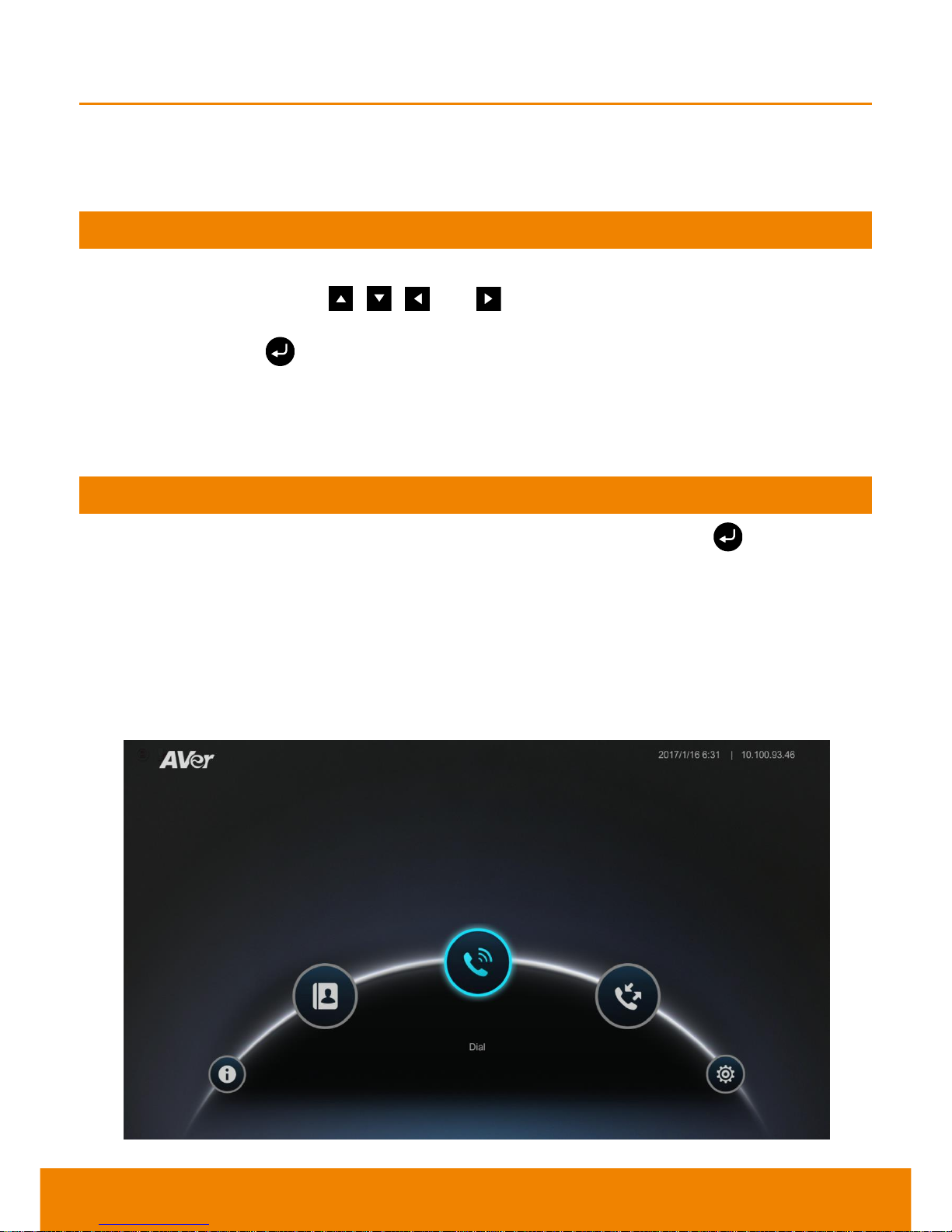

Home Screen ................................................................................................................................................. 26

Configuration Icons ................................................................................................................................... 26

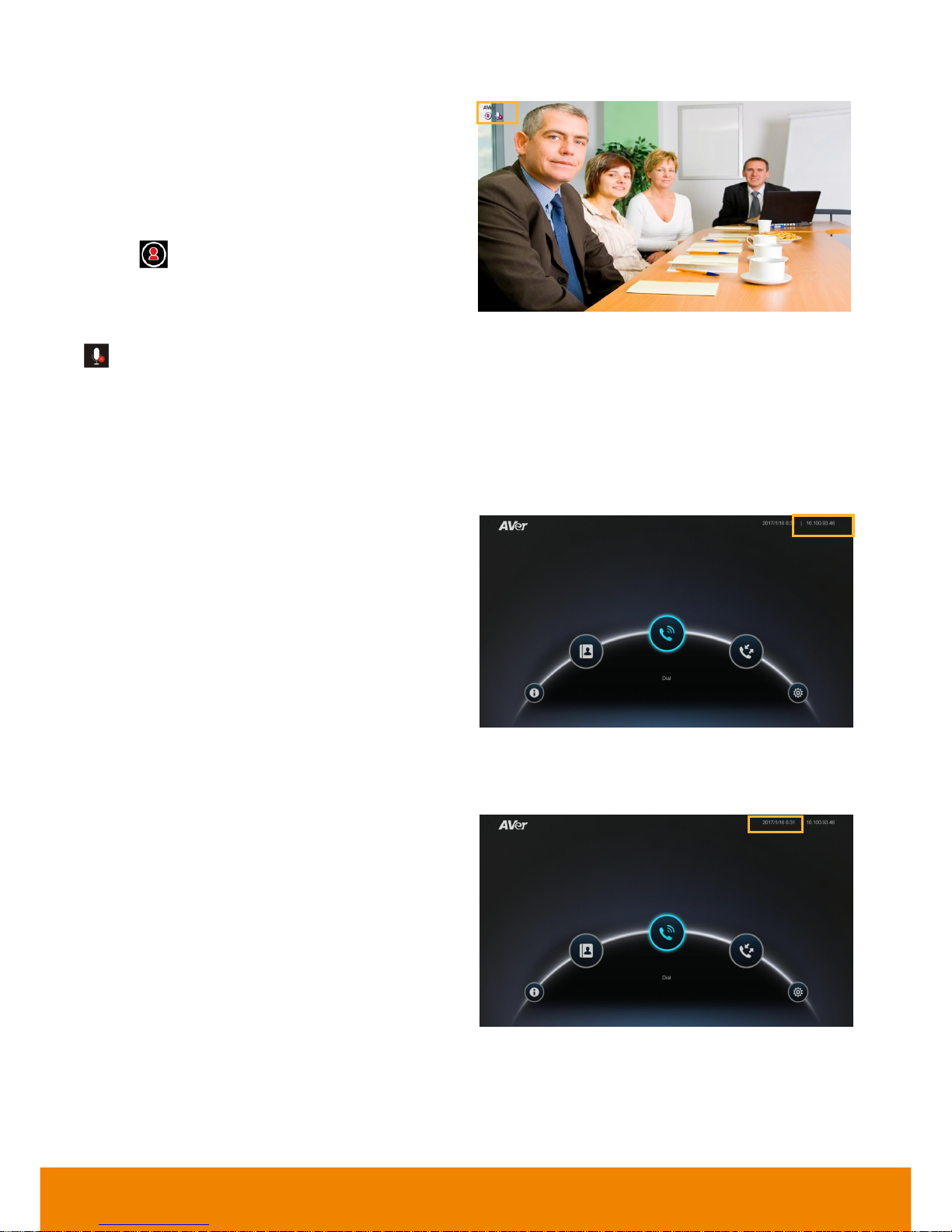

Camera and MIC Icons ............................................................................................................................. 27

WAN Address ........................................................................................................................................... 27

Real-Time Clock ....................................................................................................................................... 27

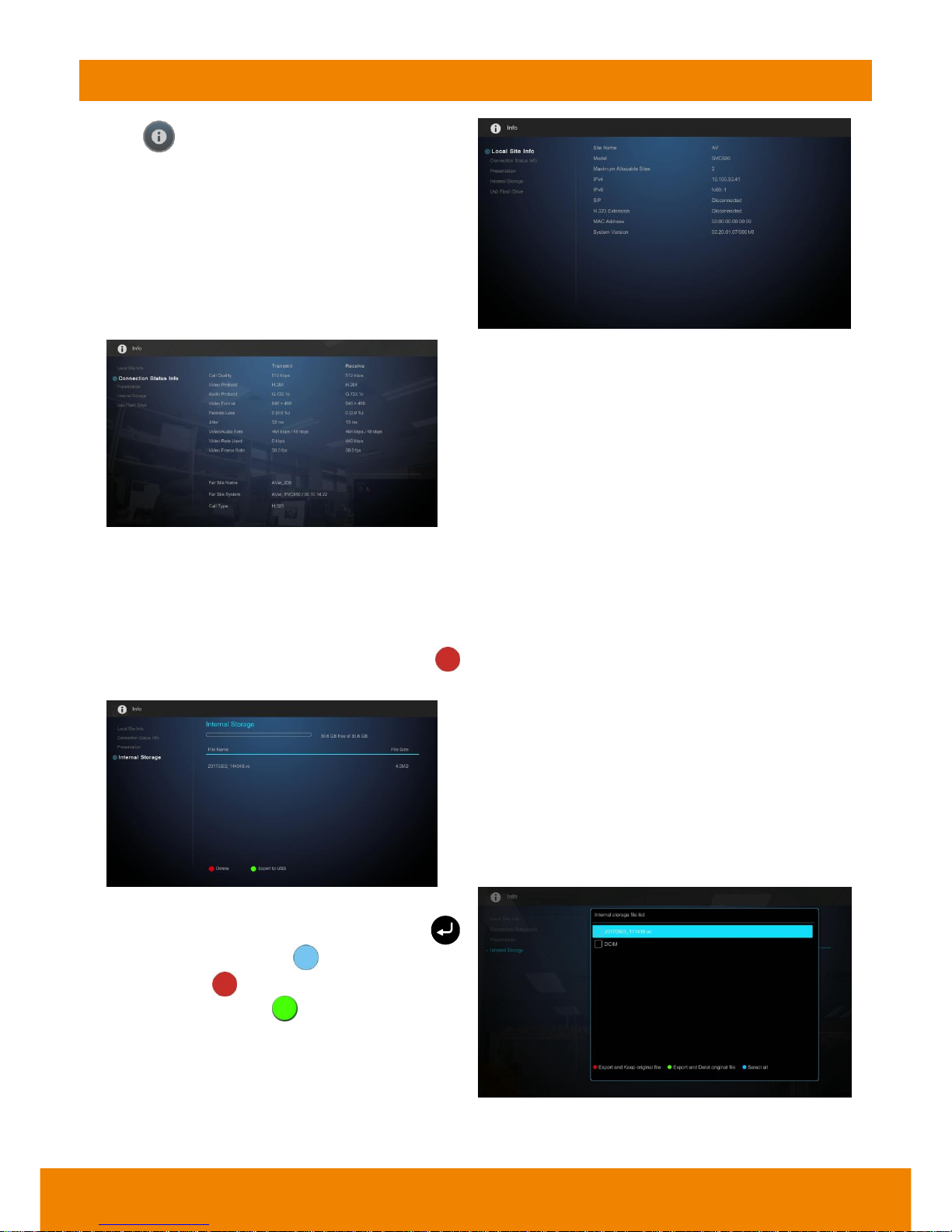

System Info .................................................................................................................................................... 28

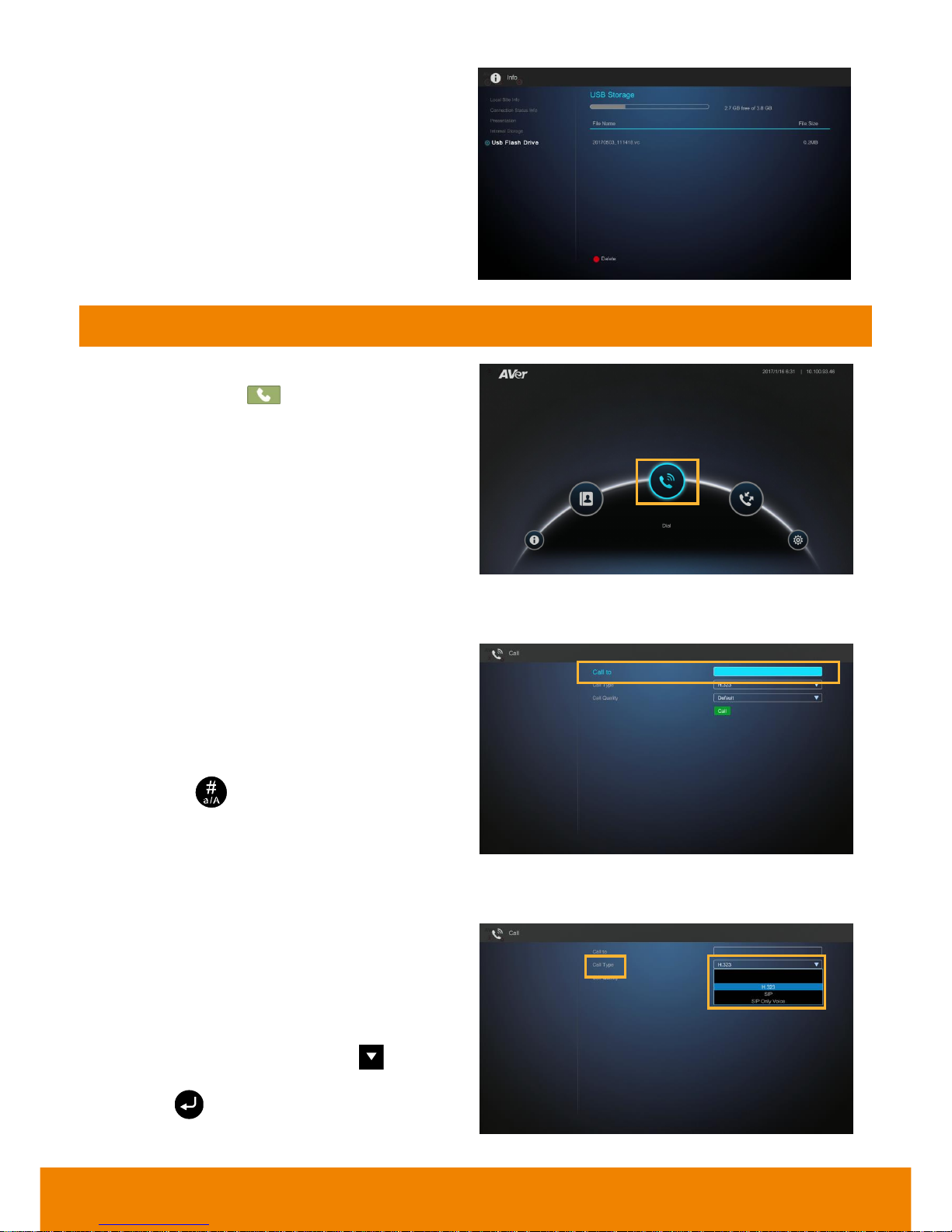

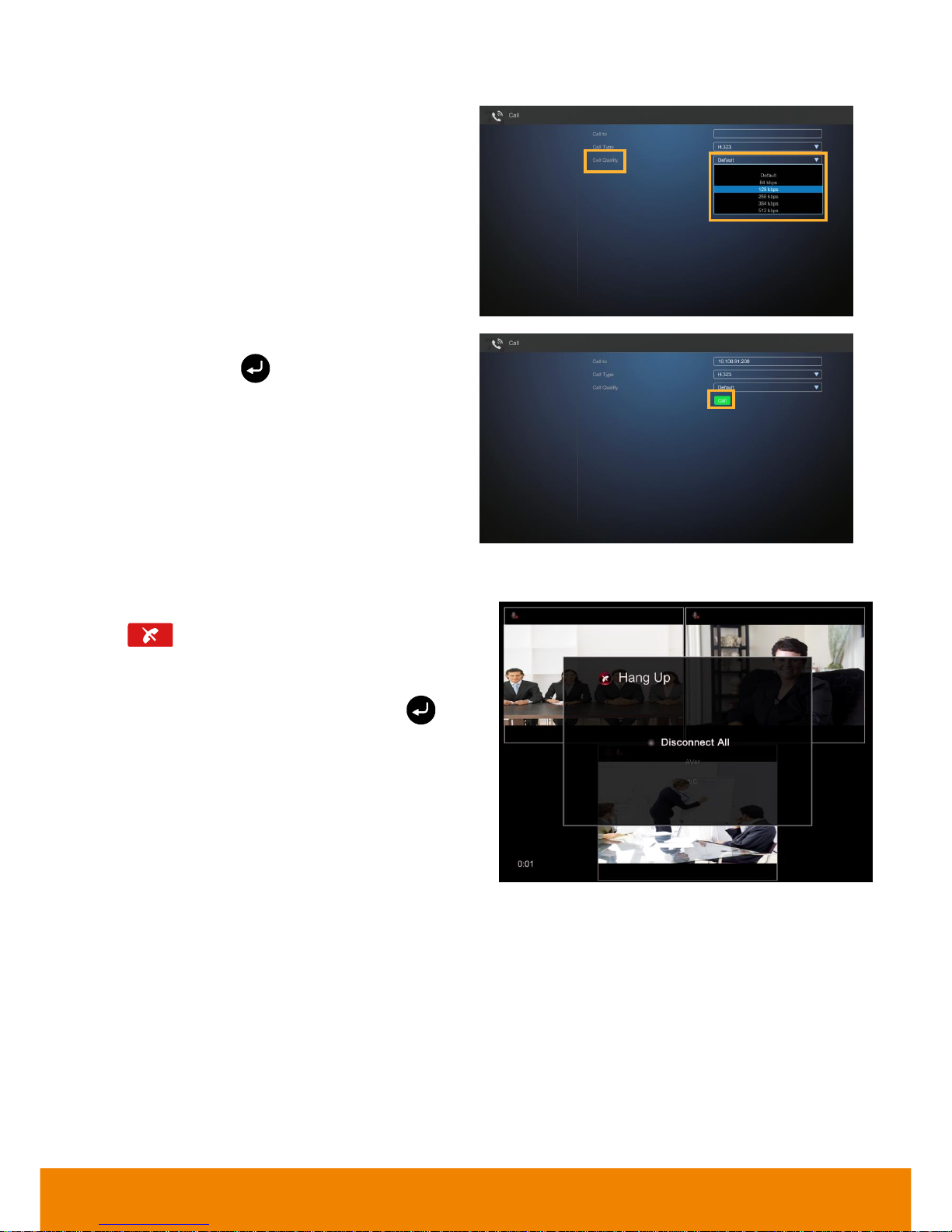

Dial ................................................................................................................................................................ 29

Hang up the call ........................................................................................................................................ 30

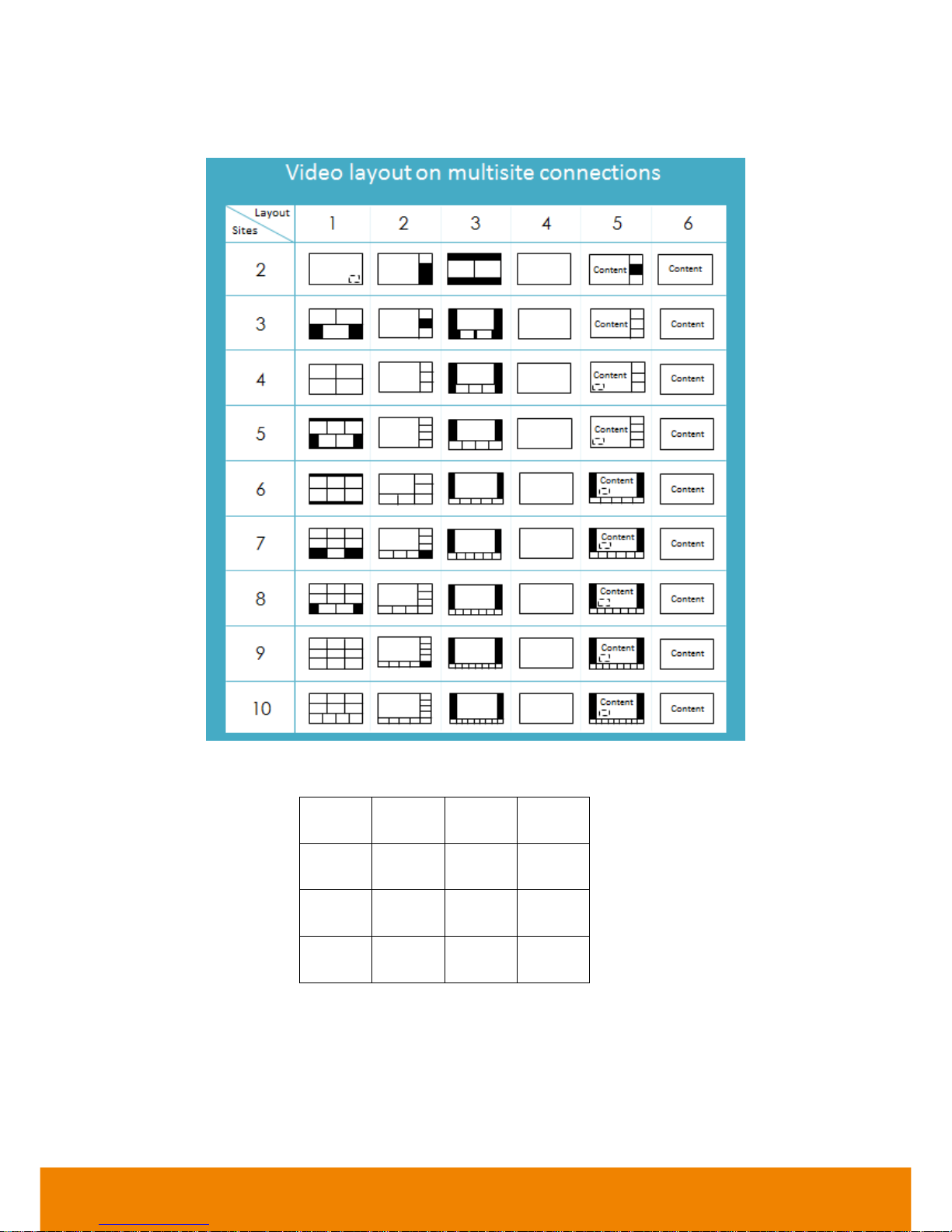

Video Layout ............................................................................................................................................. 31

Page 5

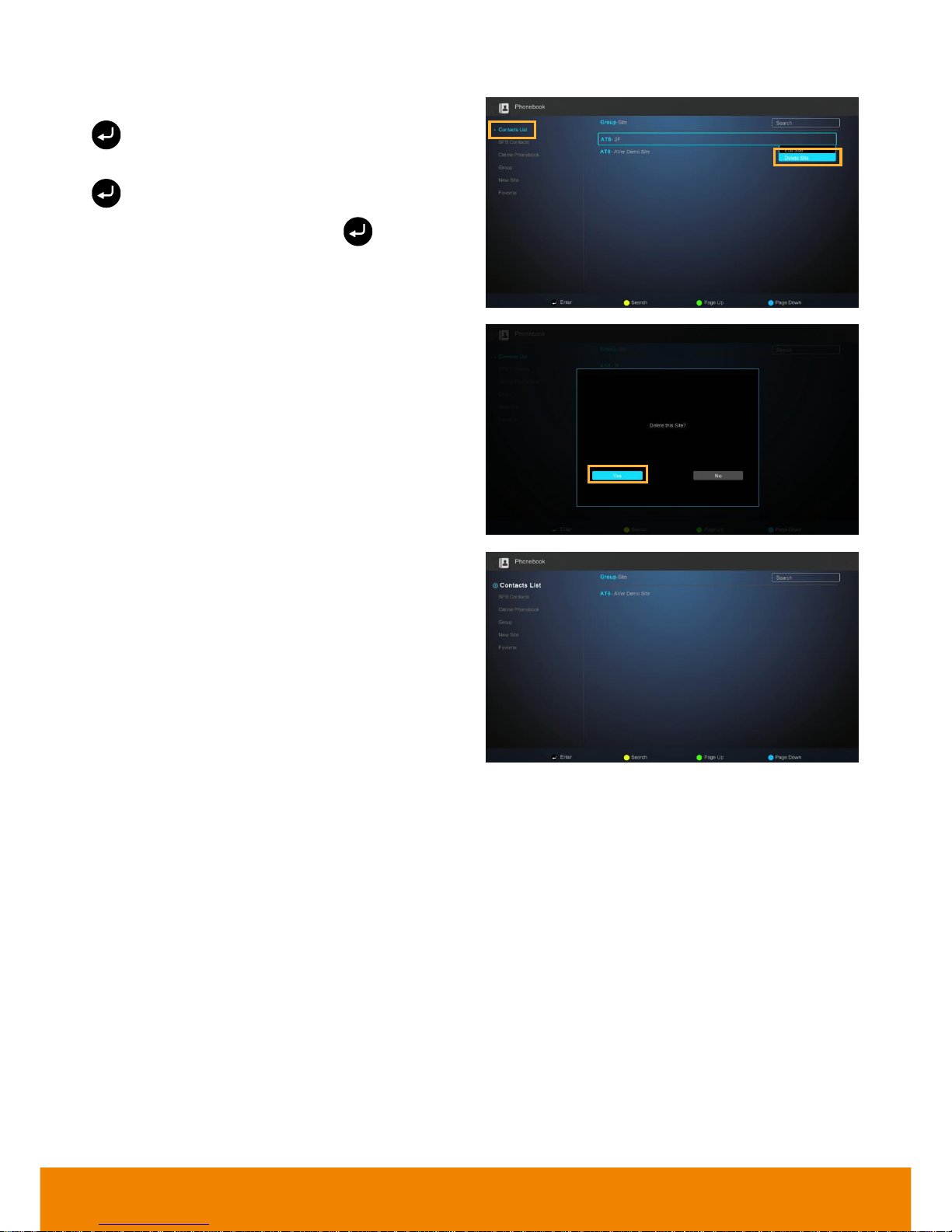

Phonebook .................................................................................................................................................... 32

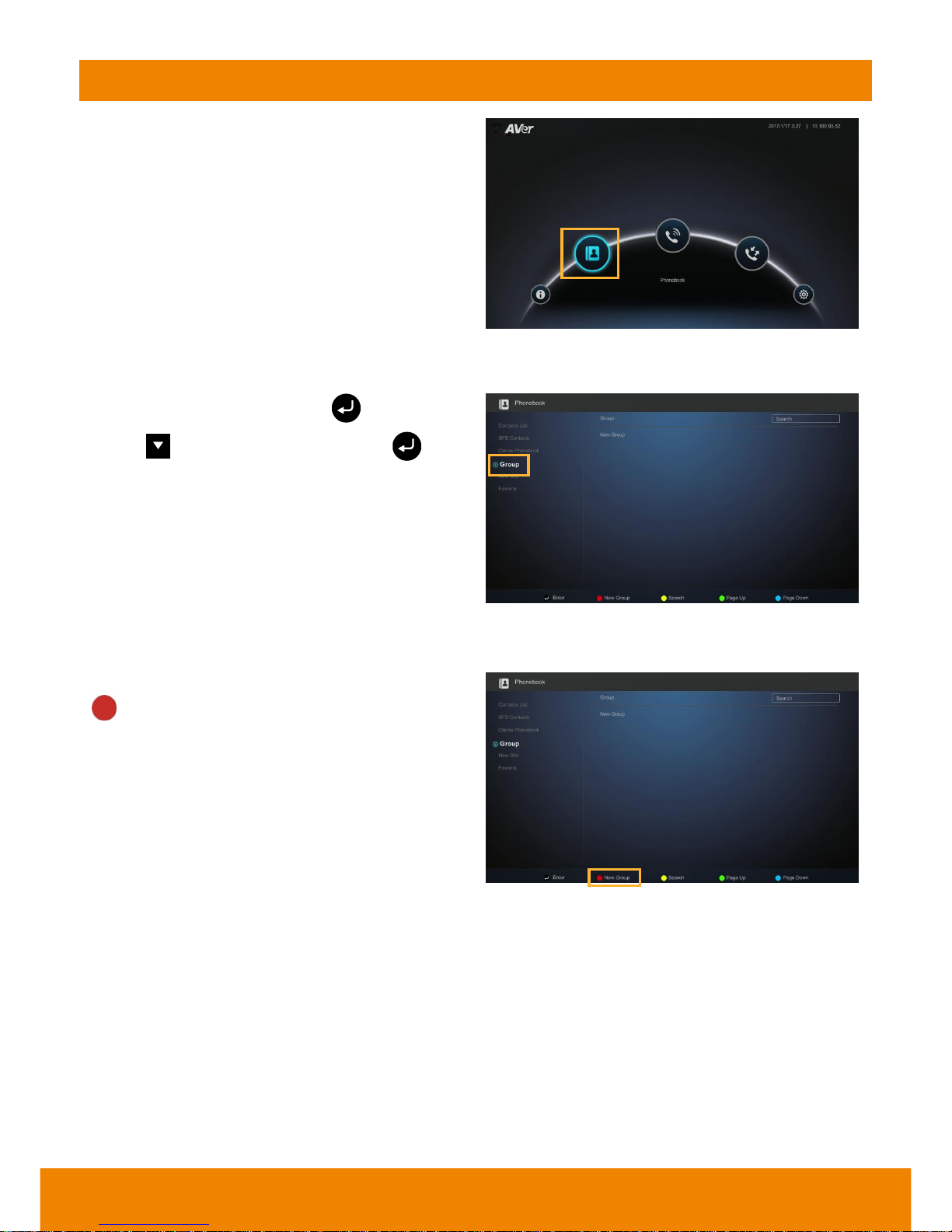

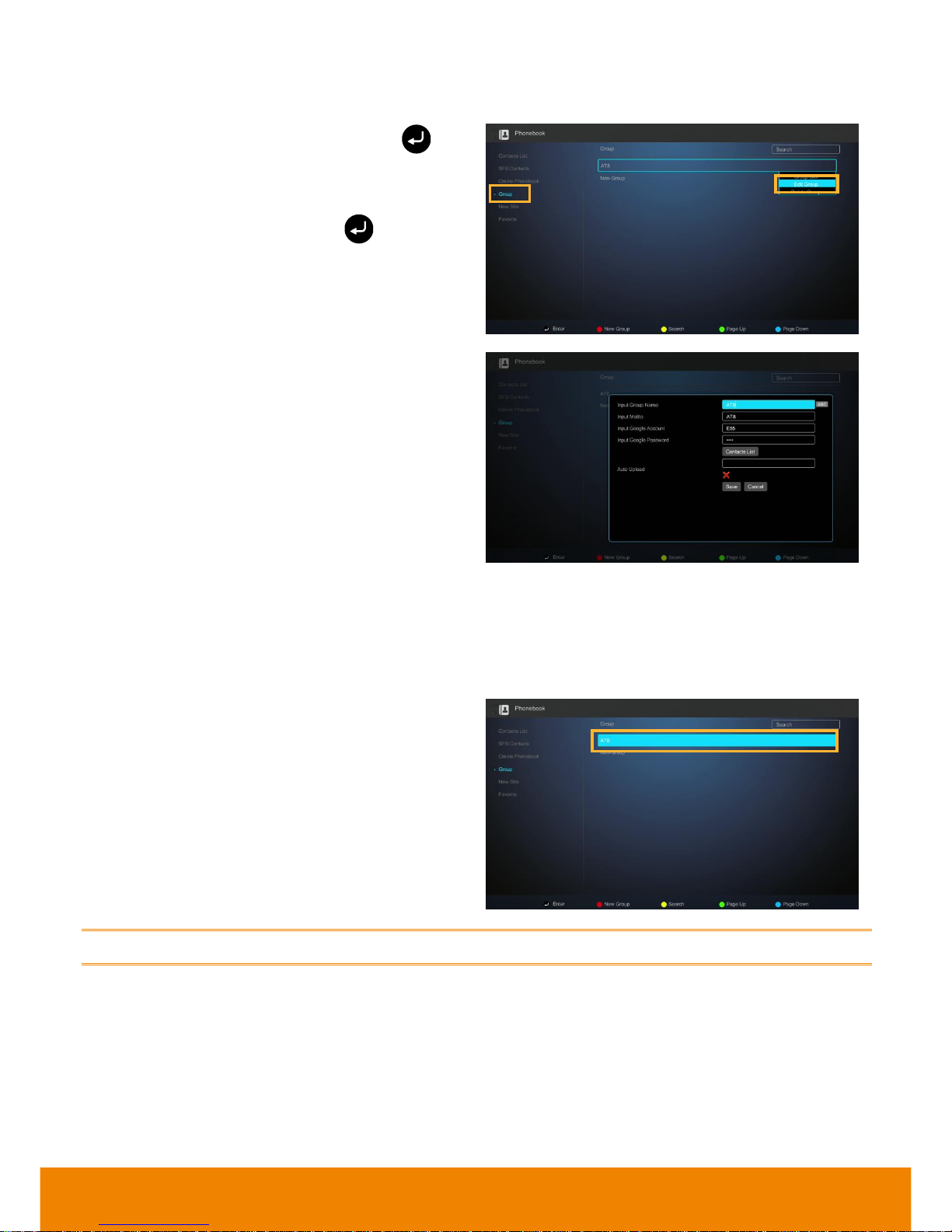

Group ........................................................................................................................................................ 32

New Site (Contact in Phonebook) ............................................................................................................. 38

Contacts List ............................................................................................................................................. 42

SFB Contacts ............................................................................................................................................ 42

Online Phonebook .................................................................................................................................... 42

Favorite ..................................................................................................................................................... 43

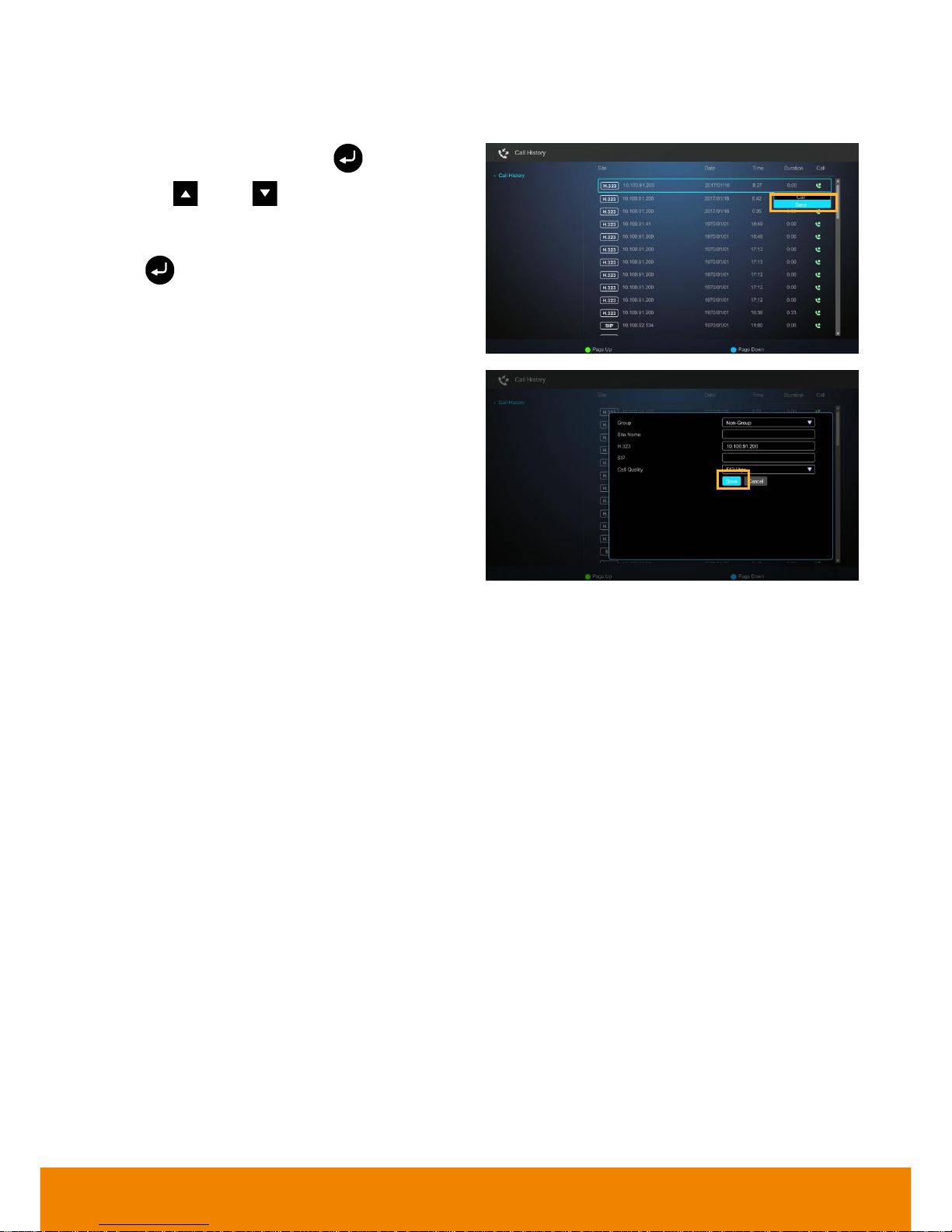

Call History .................................................................................................................................................... 44

Settings .......................................................................................................................................................... 46

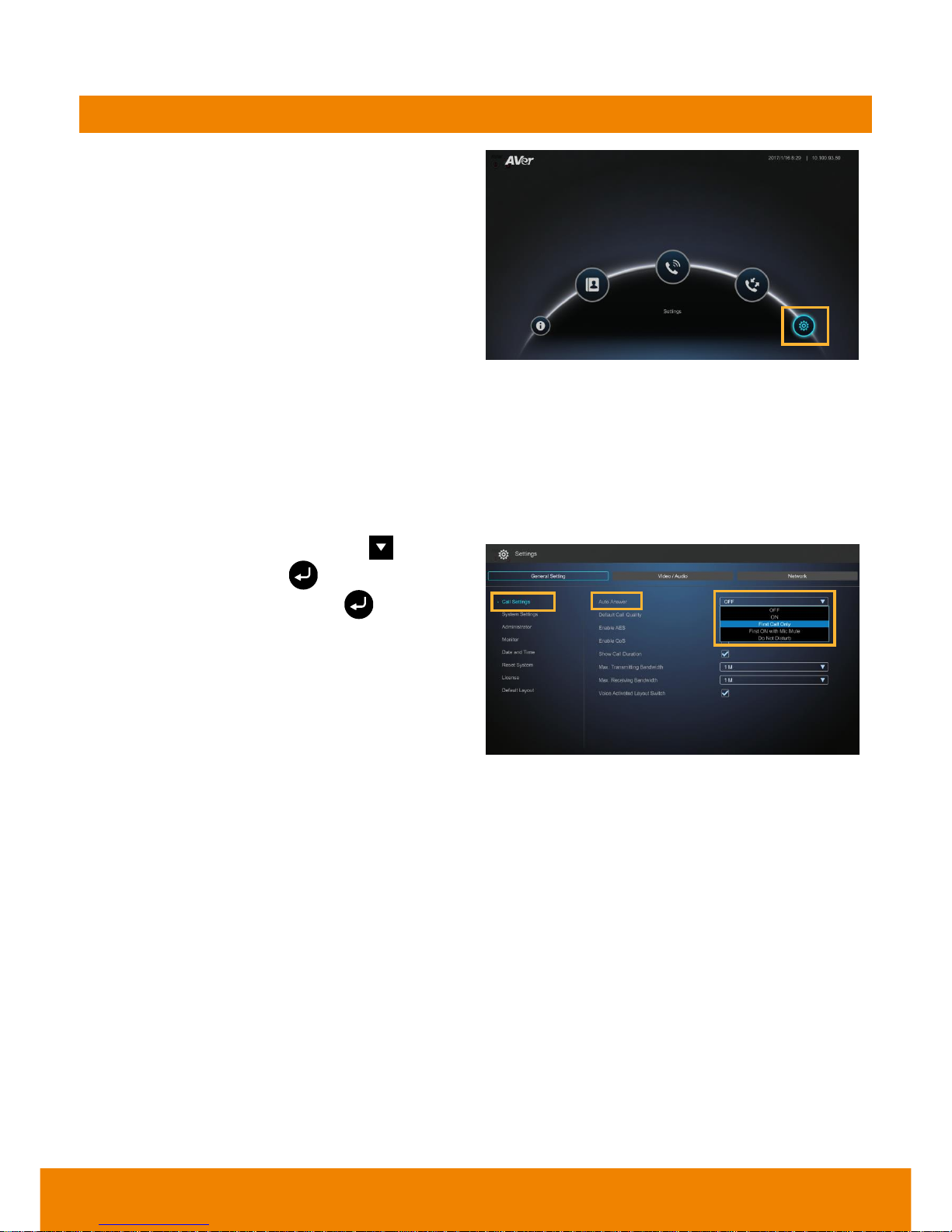

Call Settings .............................................................................................................................................. 46

System Settings ........................................................................................................................................ 49

Administrator ............................................................................................................................................. 51

Monitor ...................................................................................................................................................... 55

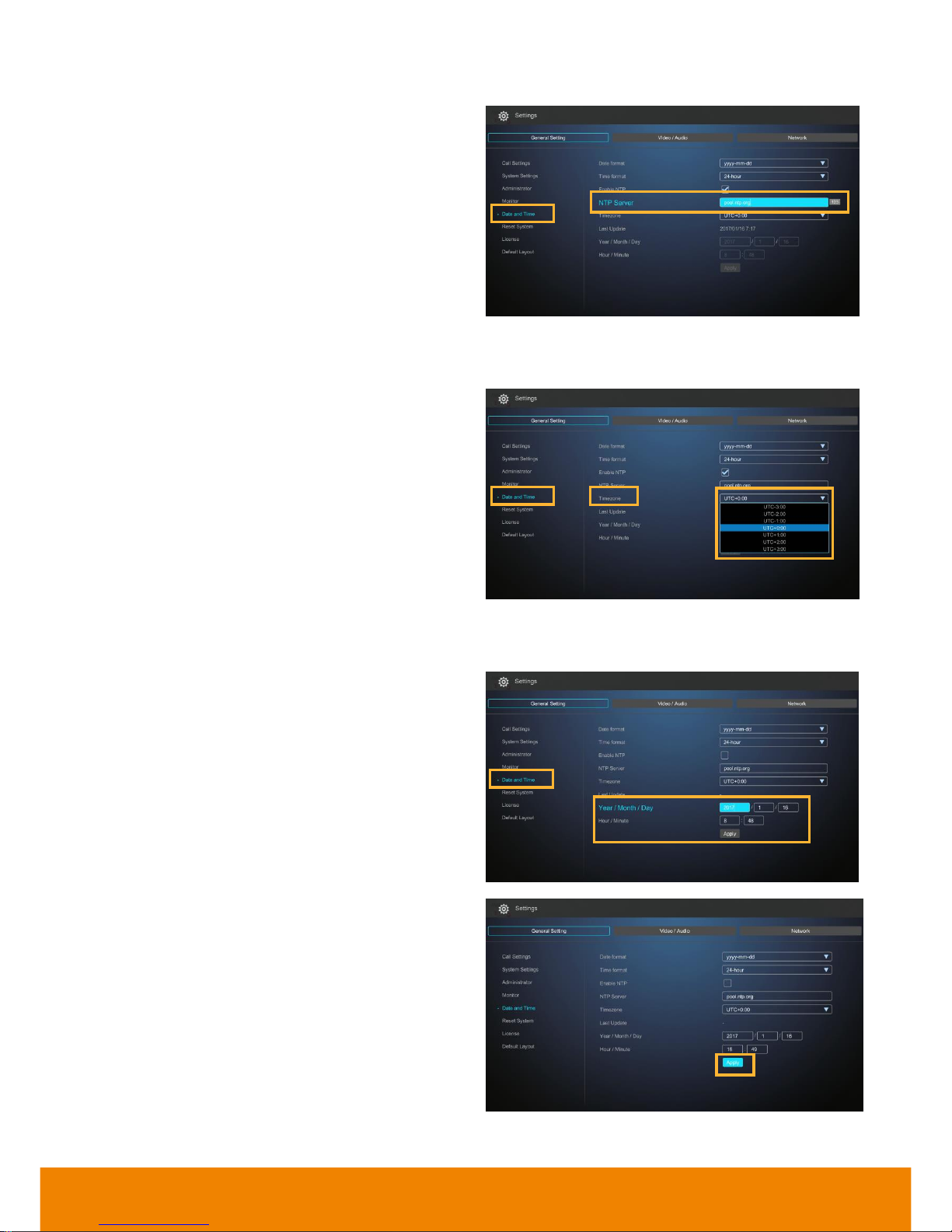

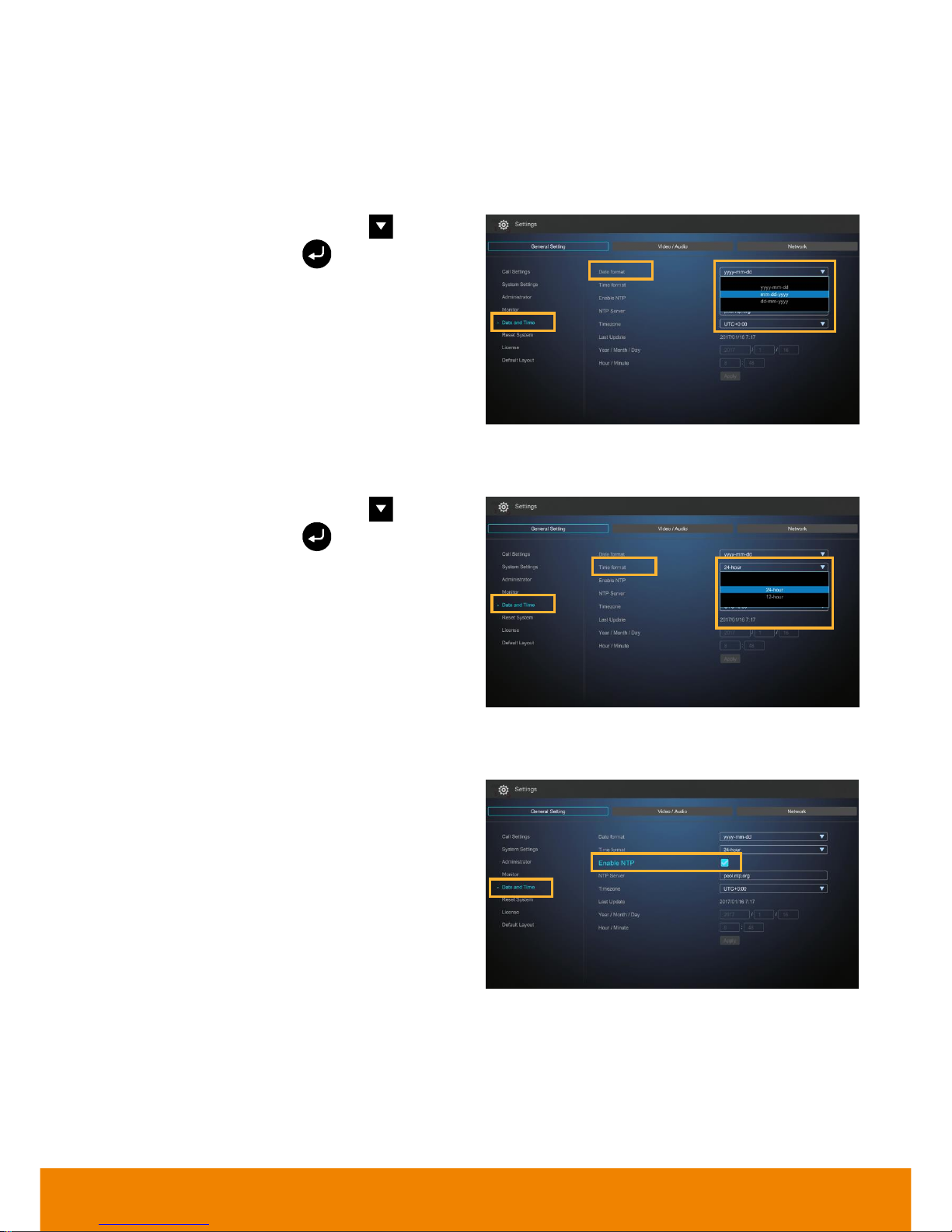

Date and Time .......................................................................................................................................... 56

Reset System ............................................................................................................................................ 58

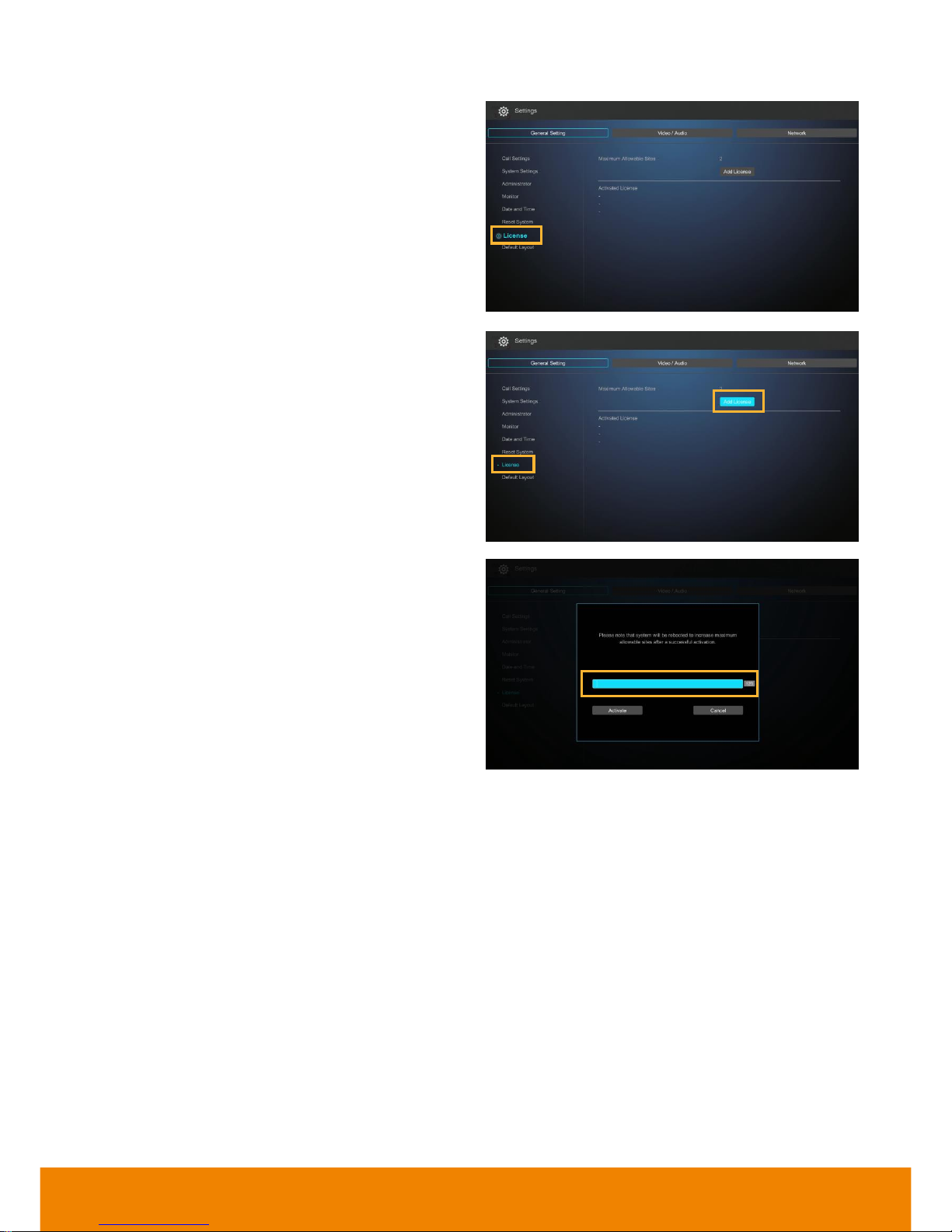

License ...................................................................................................................................................... 59

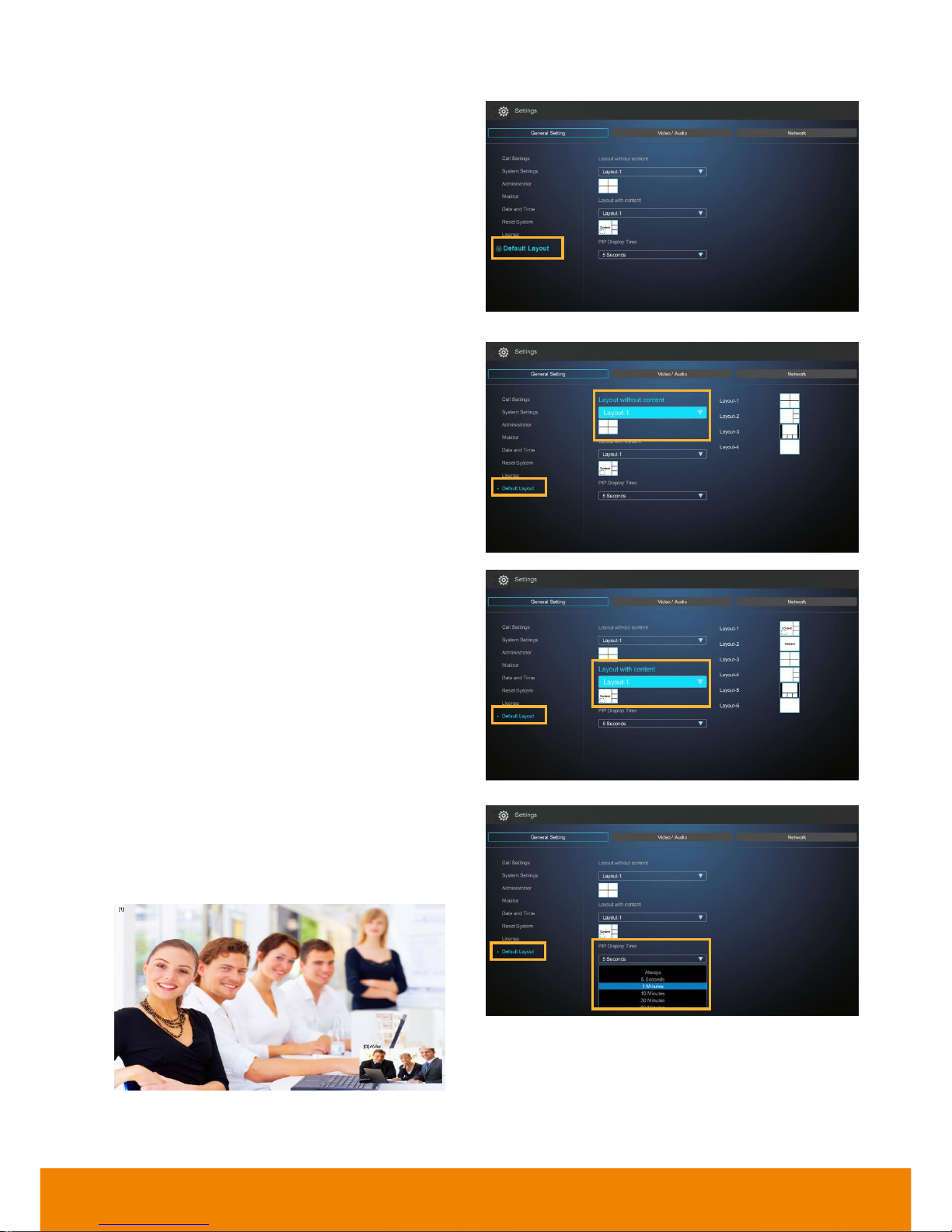

Default Layout ........................................................................................................................................... 60

Video/Audio ................................................................................................................................................... 61

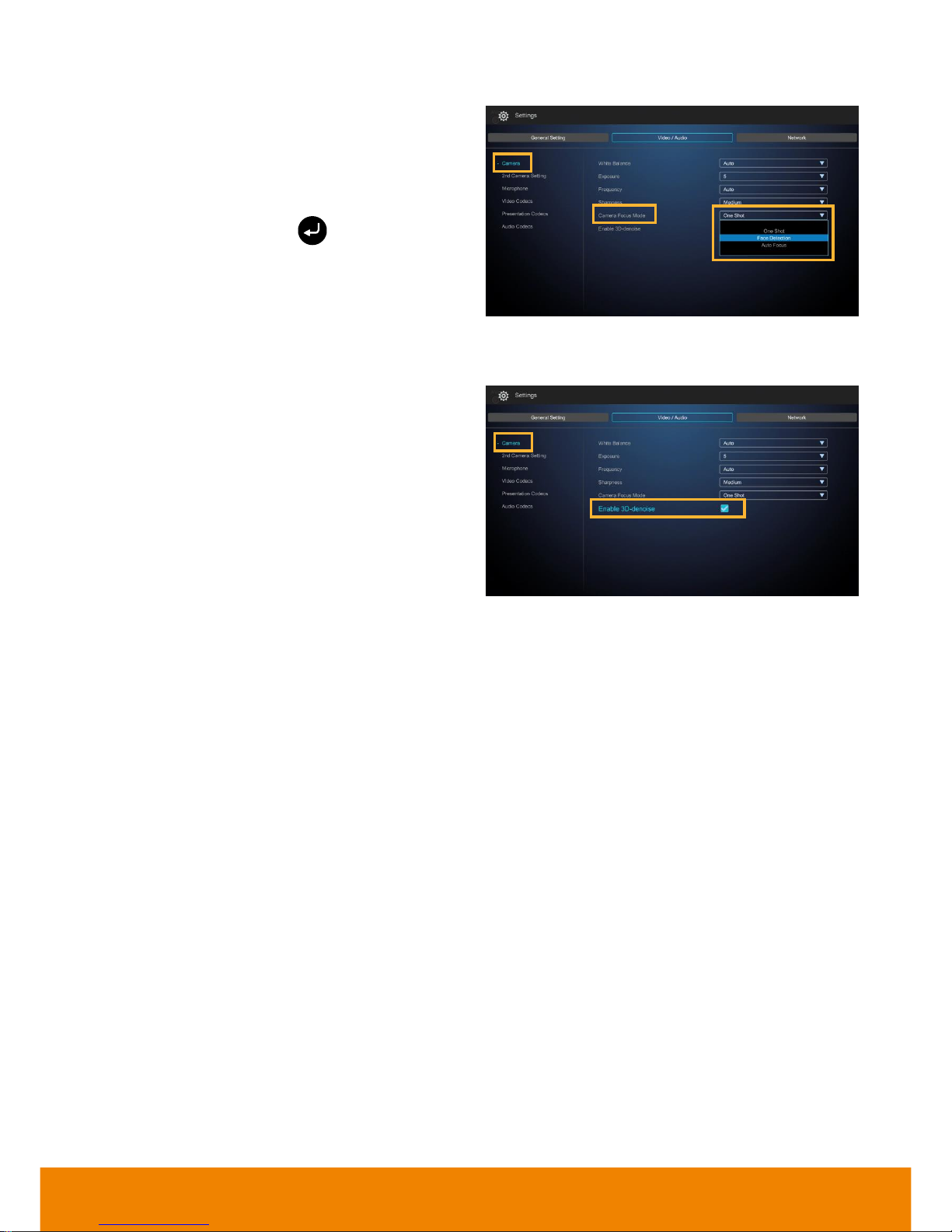

Camera ..................................................................................................................................................... 61

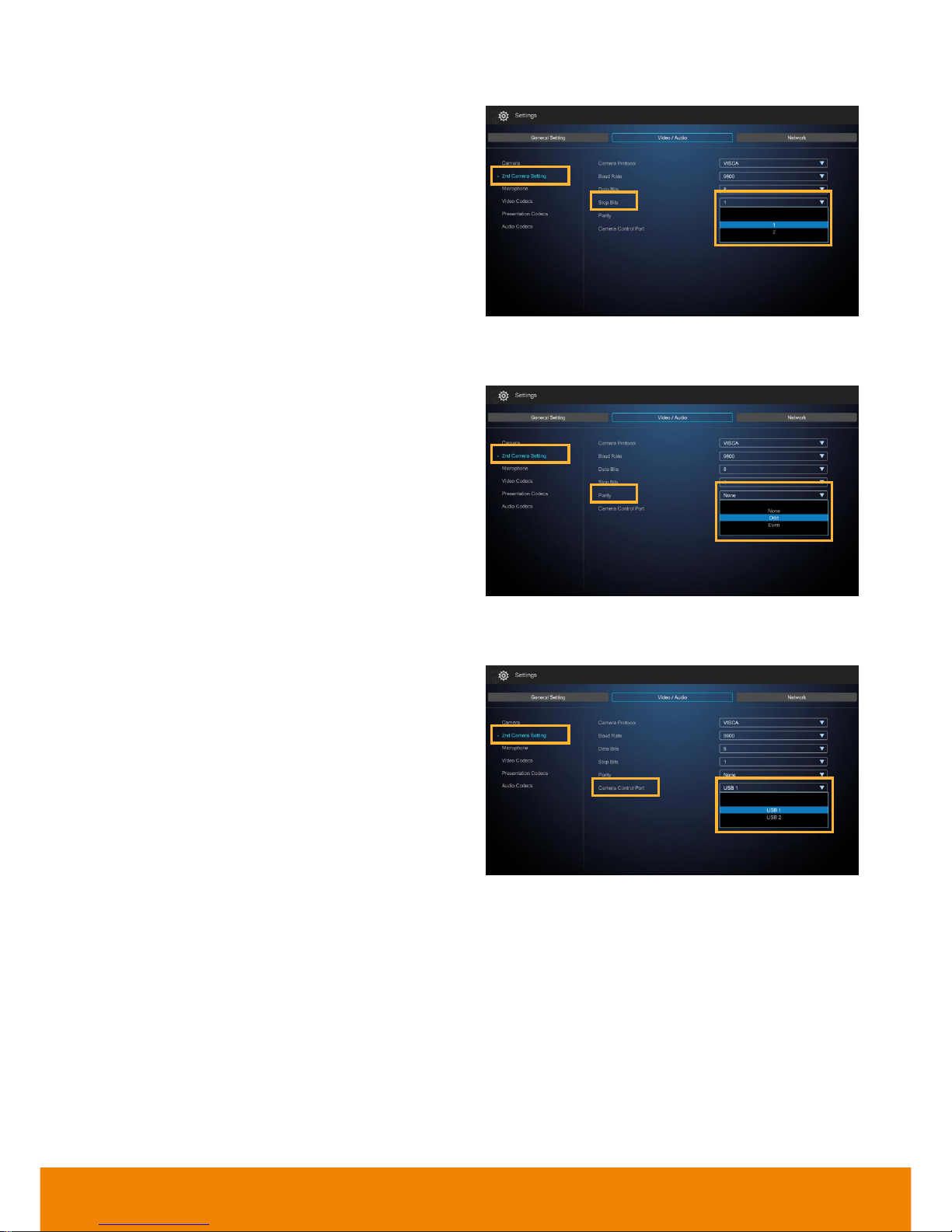

2nd Camera Setting .................................................................................................................................. 64

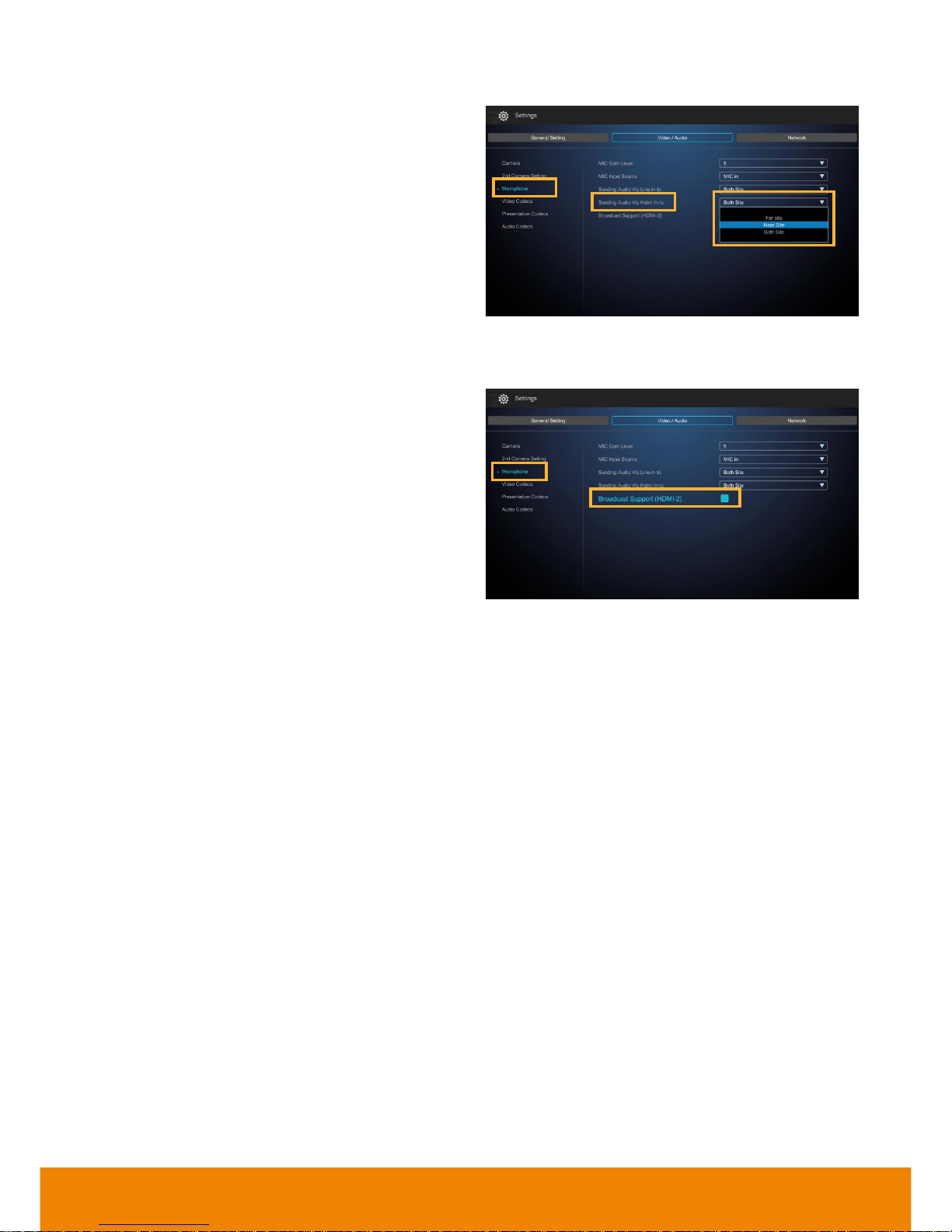

Microphone ............................................................................................................................................... 66

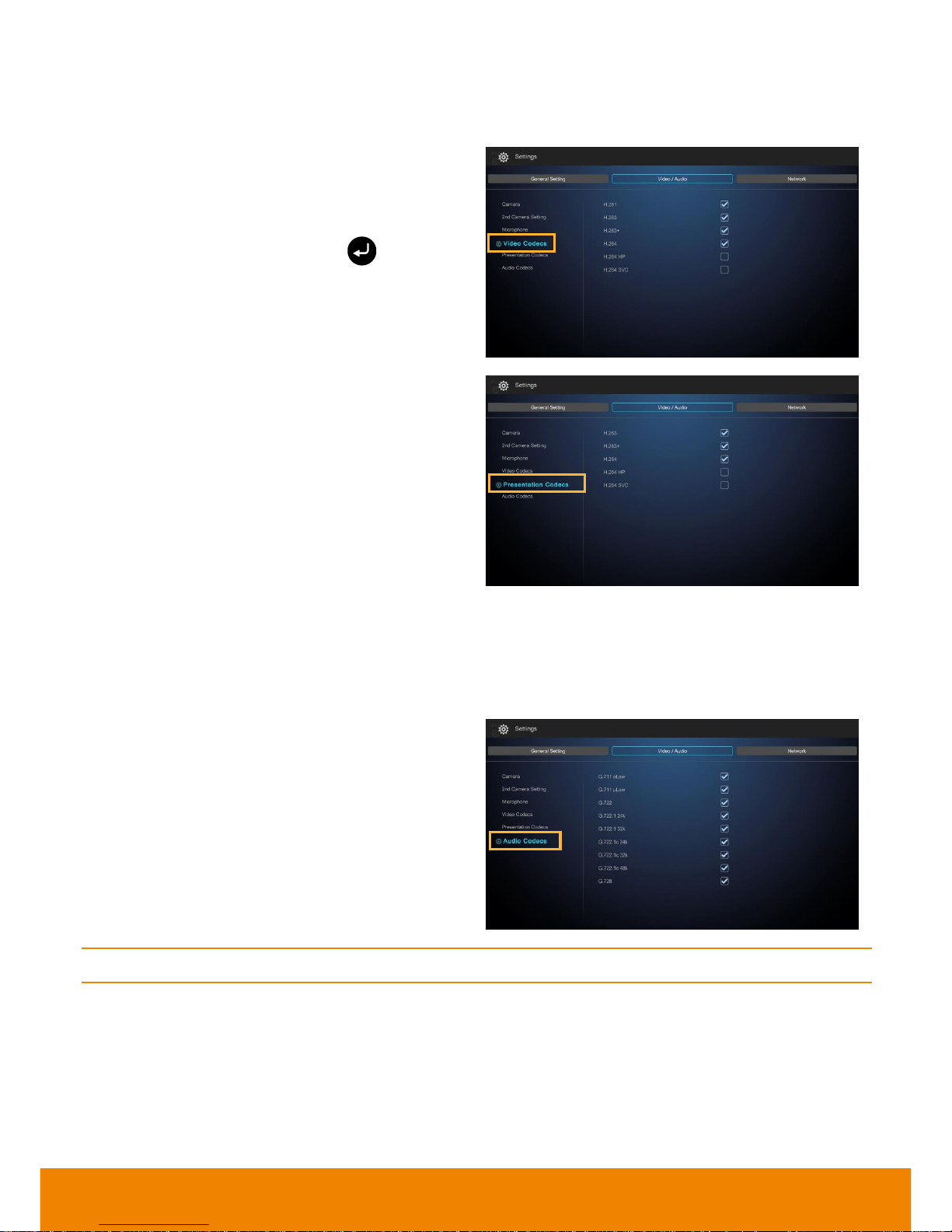

Video/Audio Codecs ................................................................................................................................. 68

Network ......................................................................................................................................................... 69

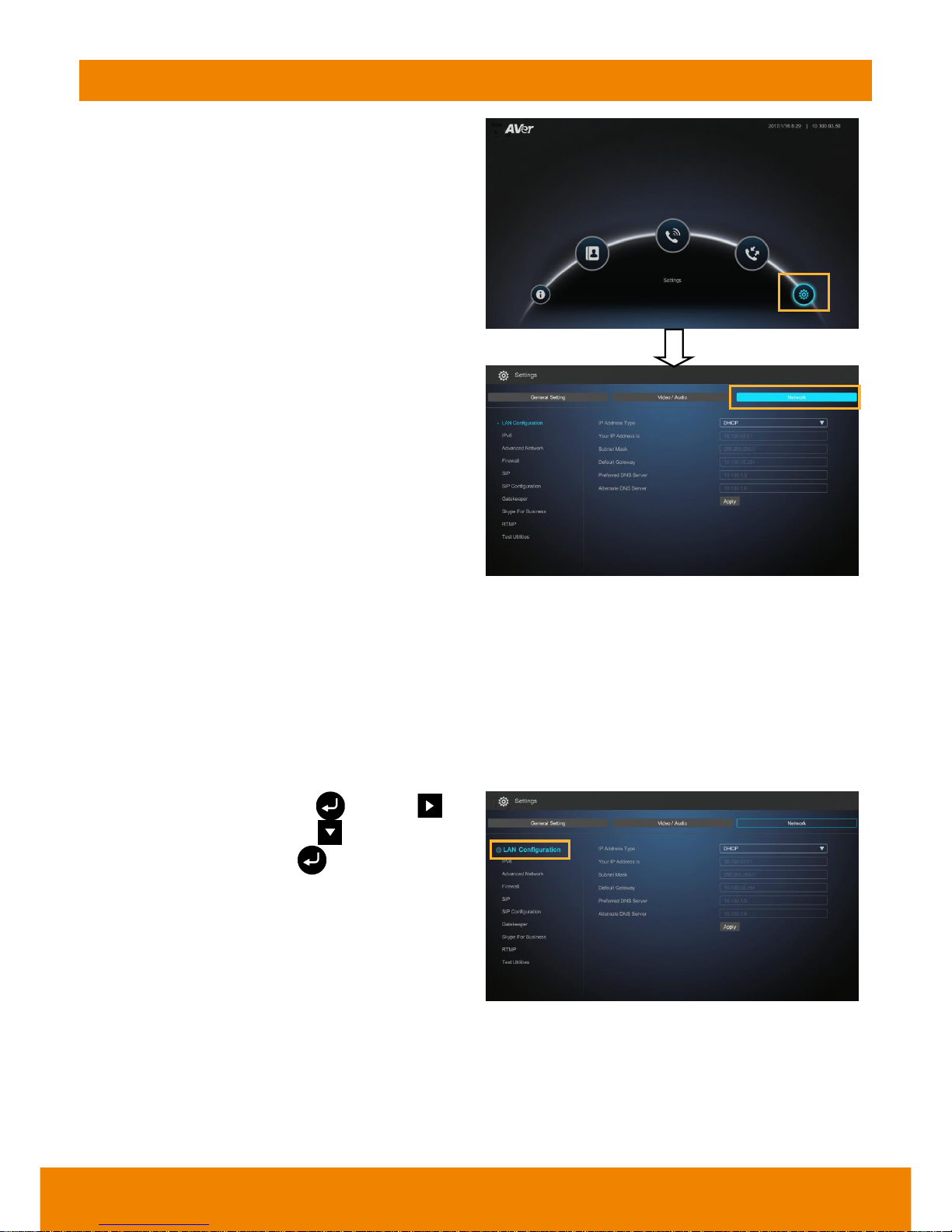

LAN Configuration ..................................................................................................................................... 69

IPv6 ........................................................................................................................................................... 72

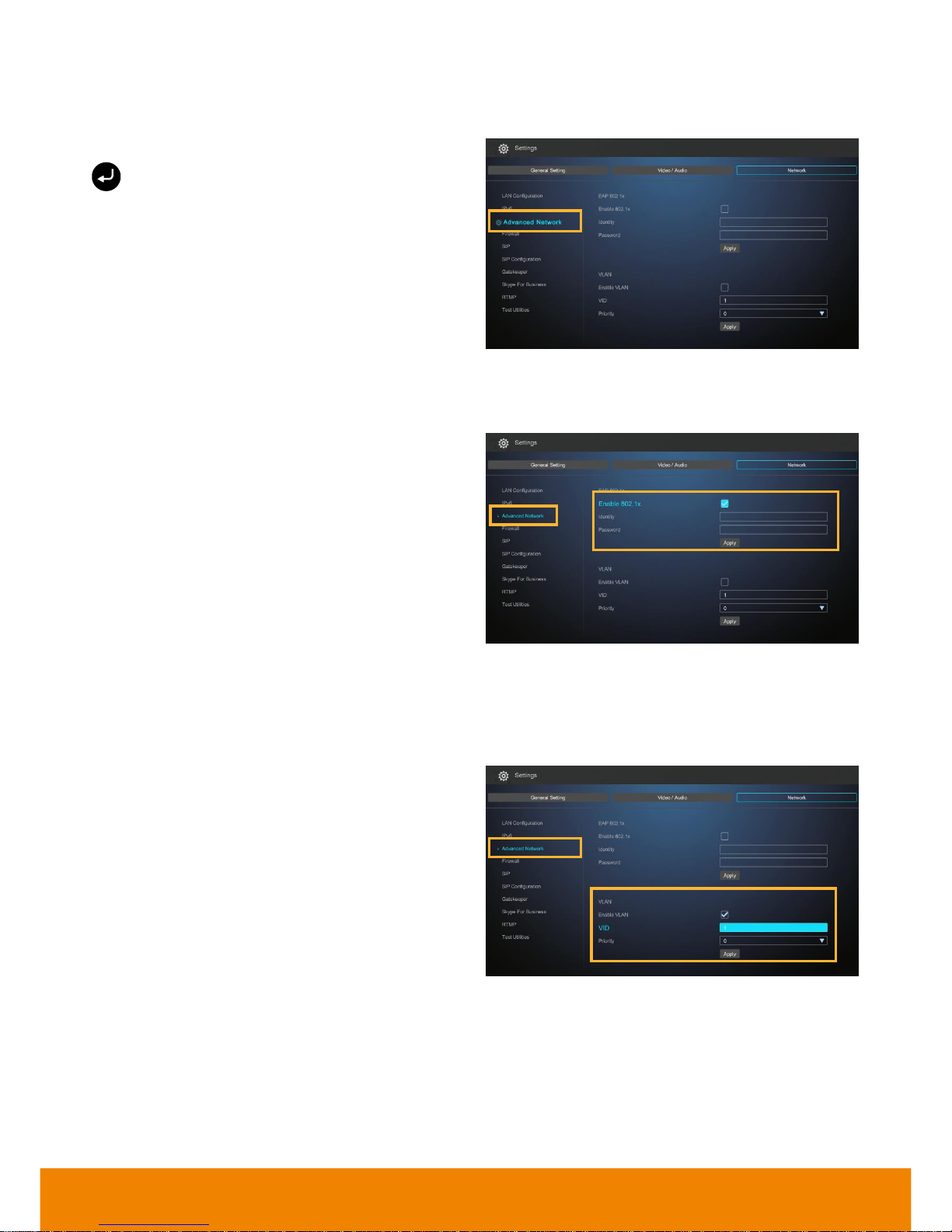

Advance Network ...................................................................................................................................... 74

Firewall ...................................................................................................................................................... 75

SIP ................................................................................................ ............................................................ 76

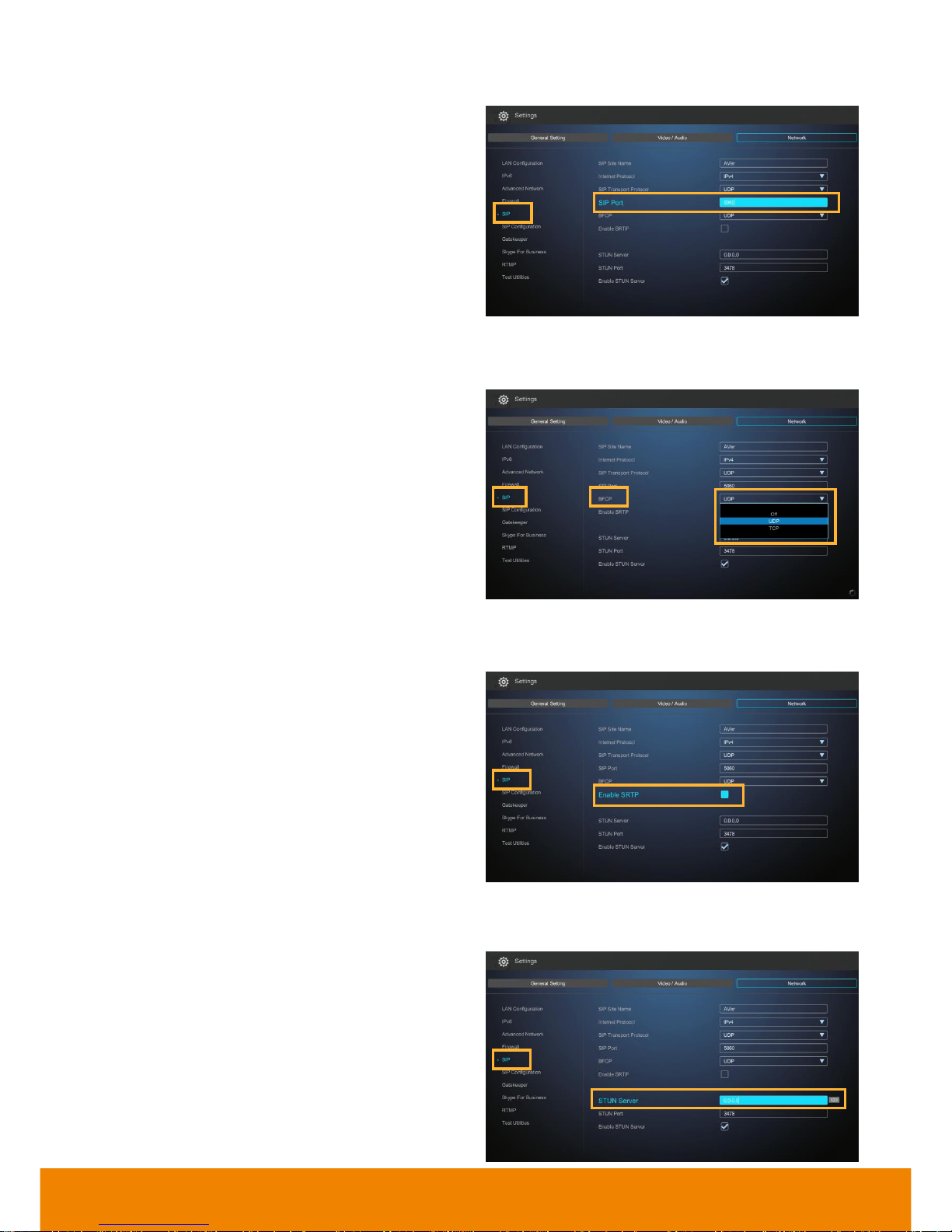

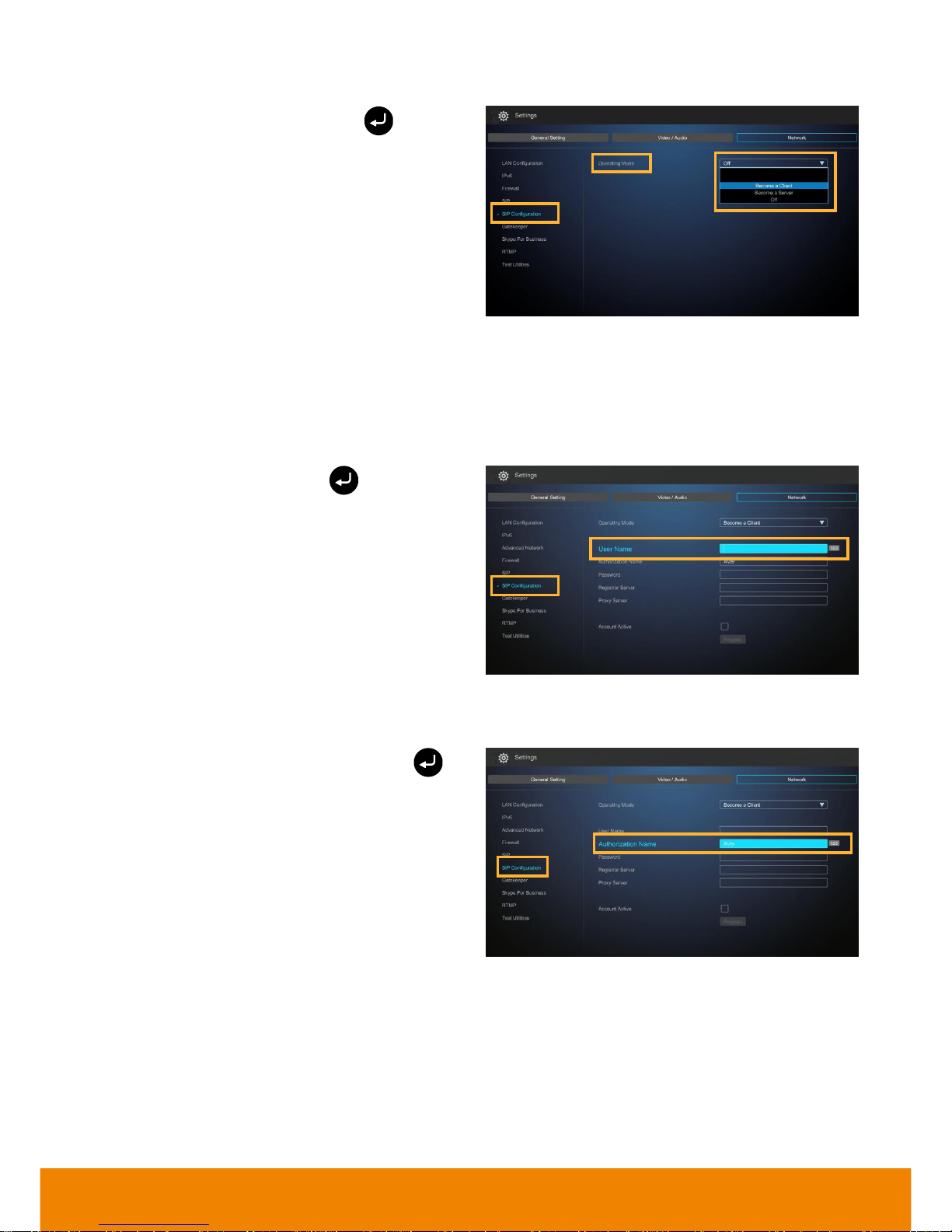

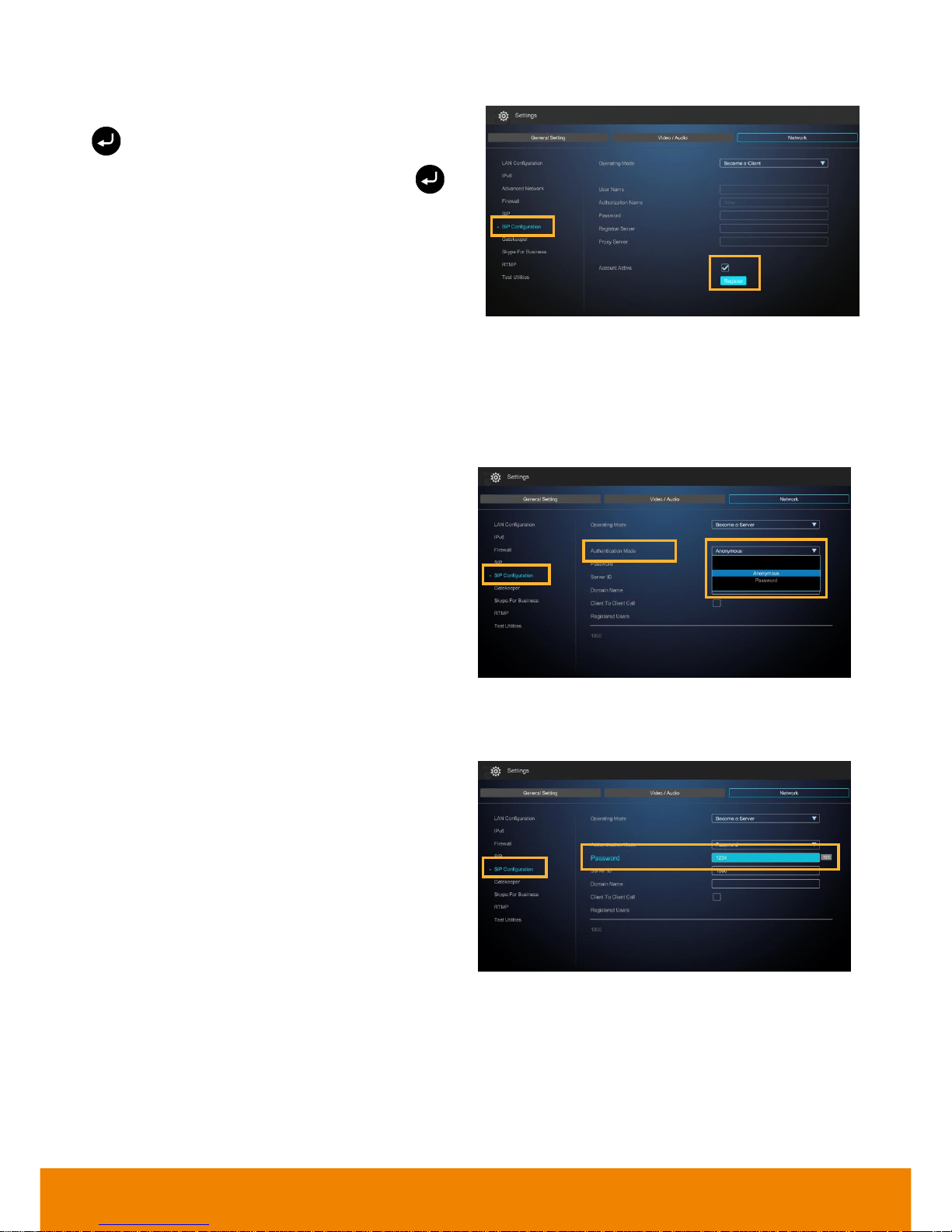

SIP Configuration ...................................................................................................................................... 79

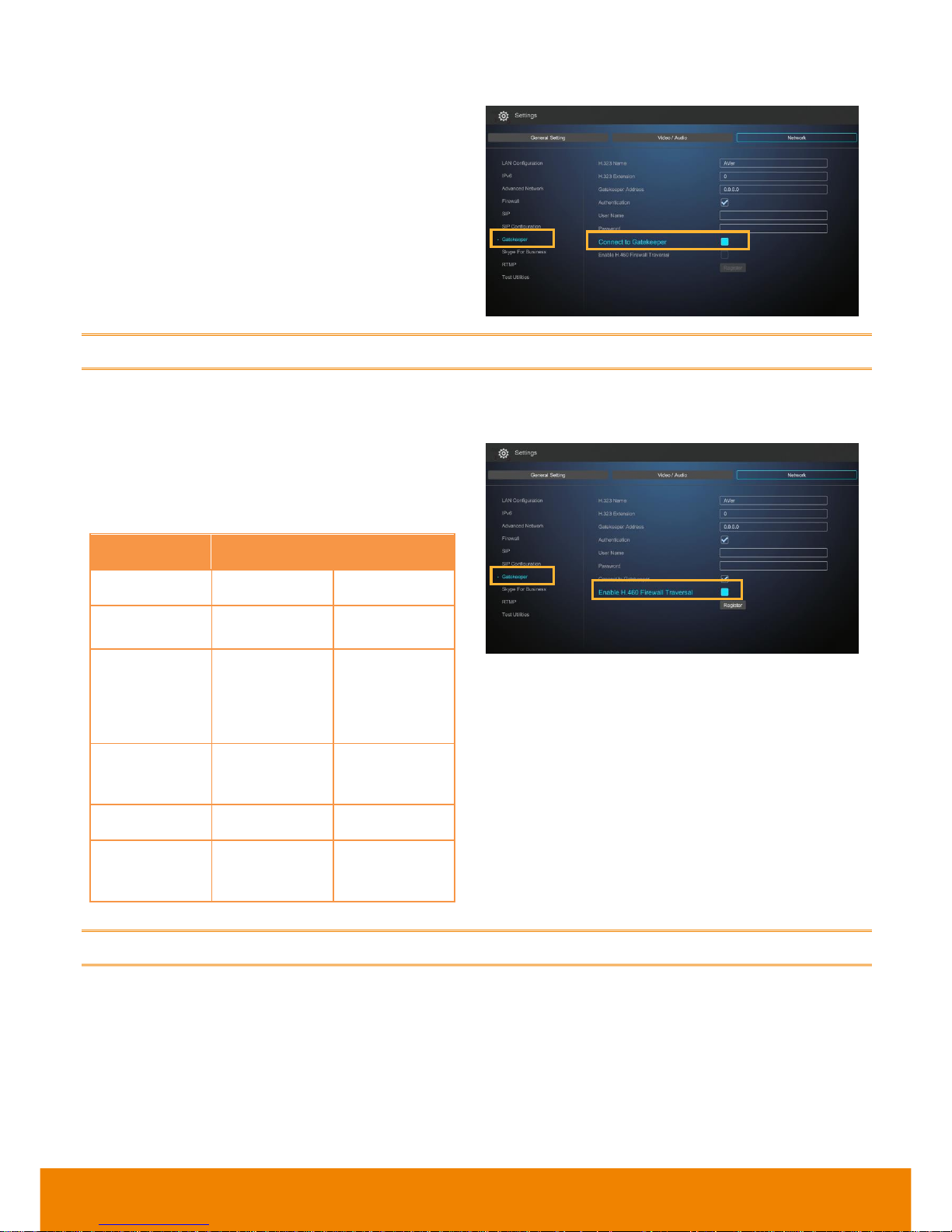

Gatekeeper ............................................................................................................................................... 84

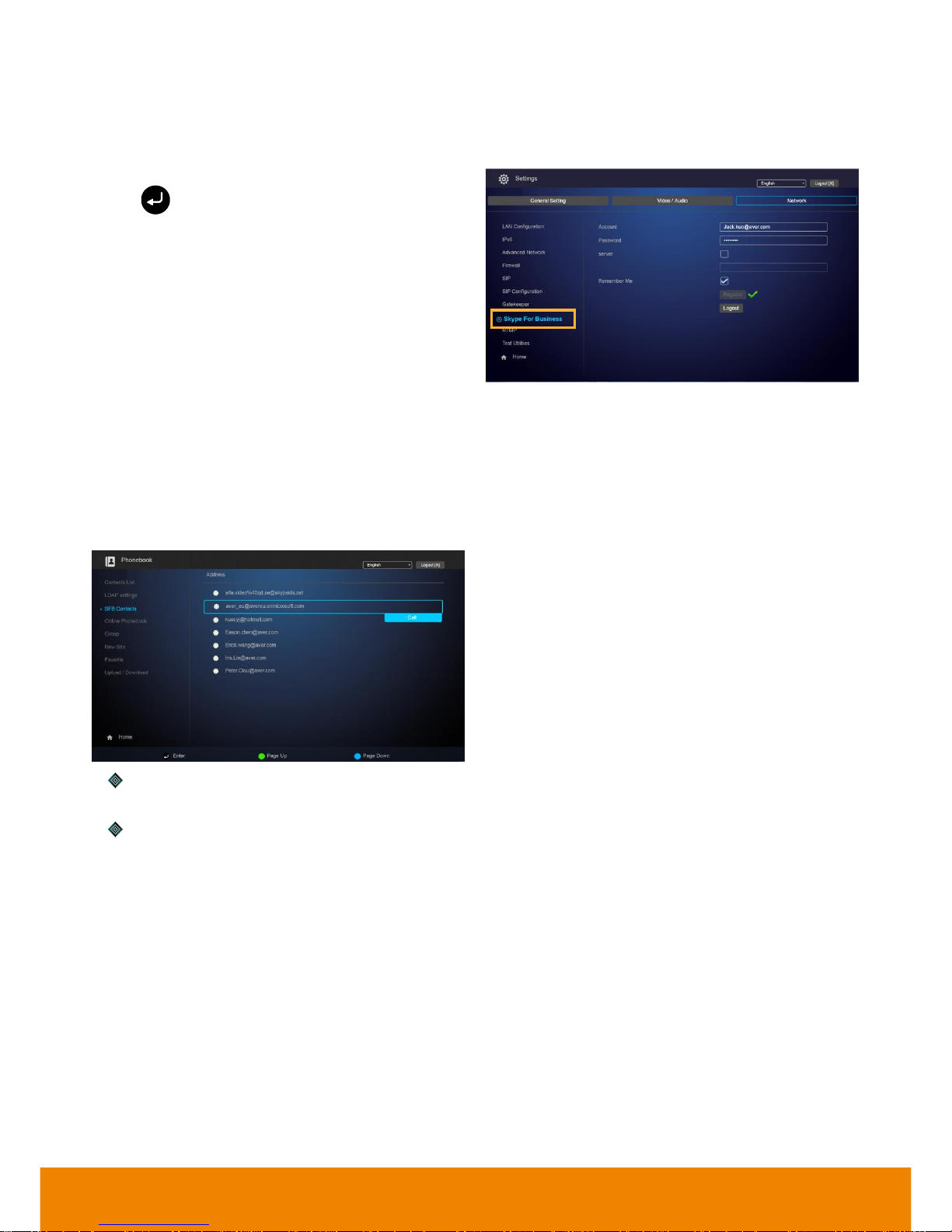

Skype For Business .................................................................................................................................. 87

RTMP ........................................................................................................................................................ 88

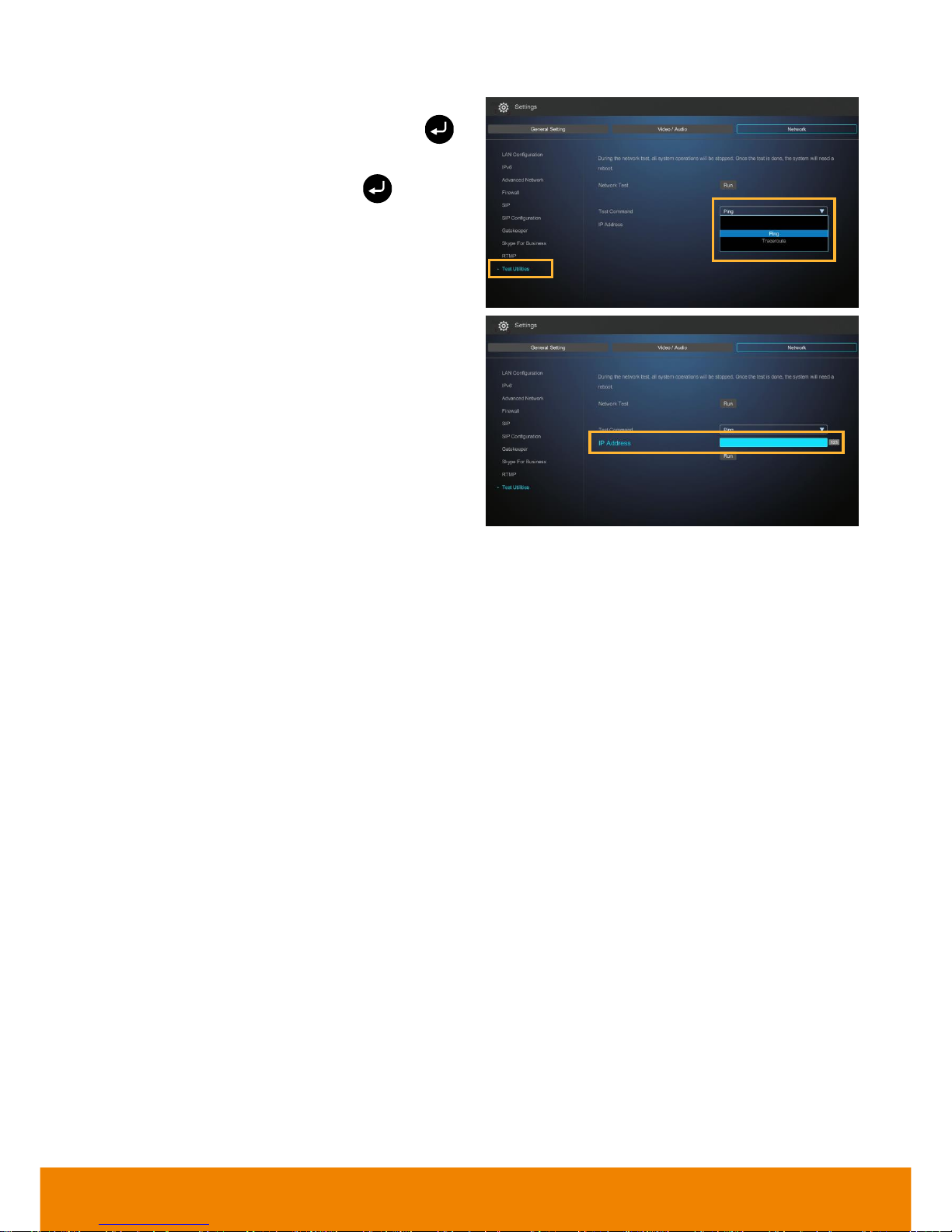

Test Utilities .............................................................................................................................................. 88

WEB CONFIGURATIONS ....................................................................................................... 90

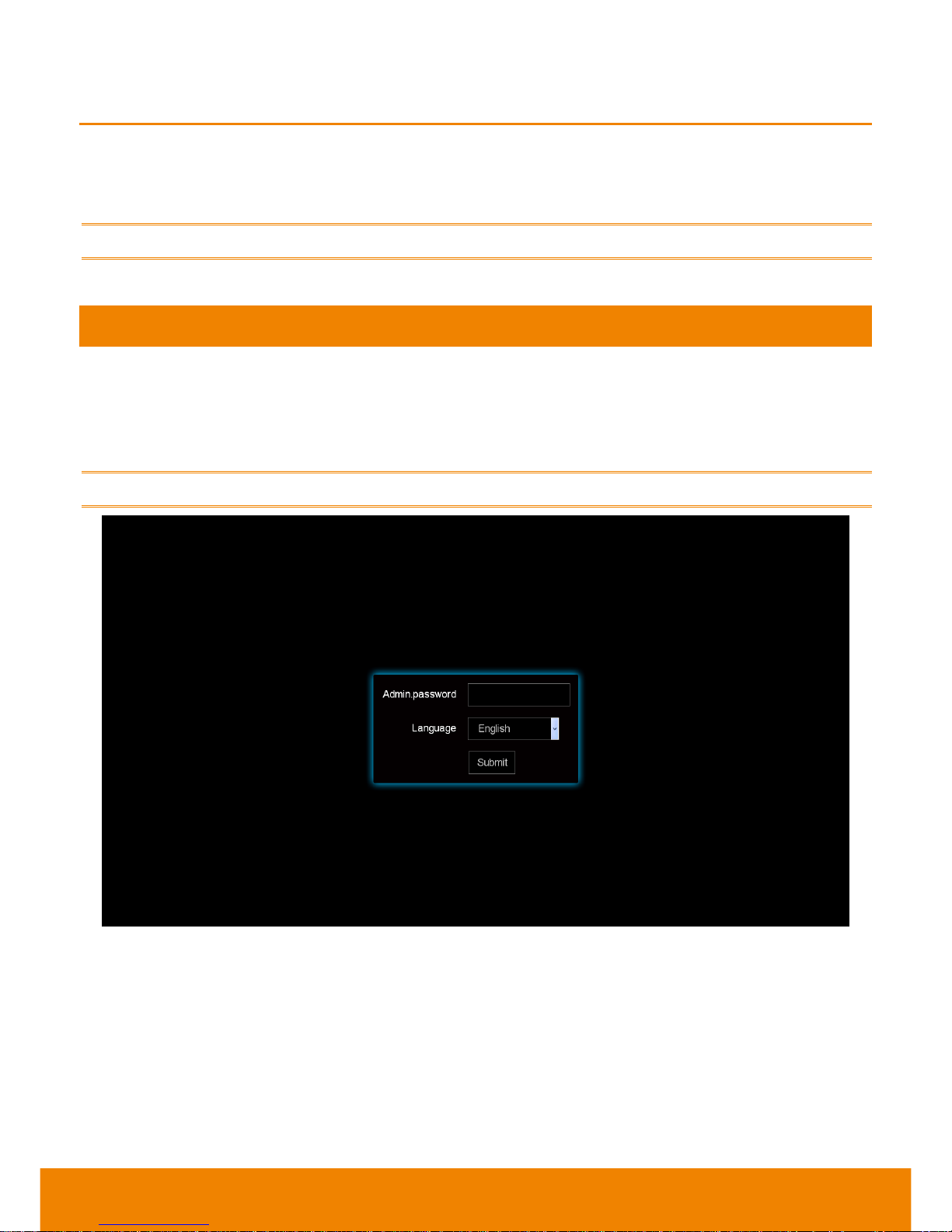

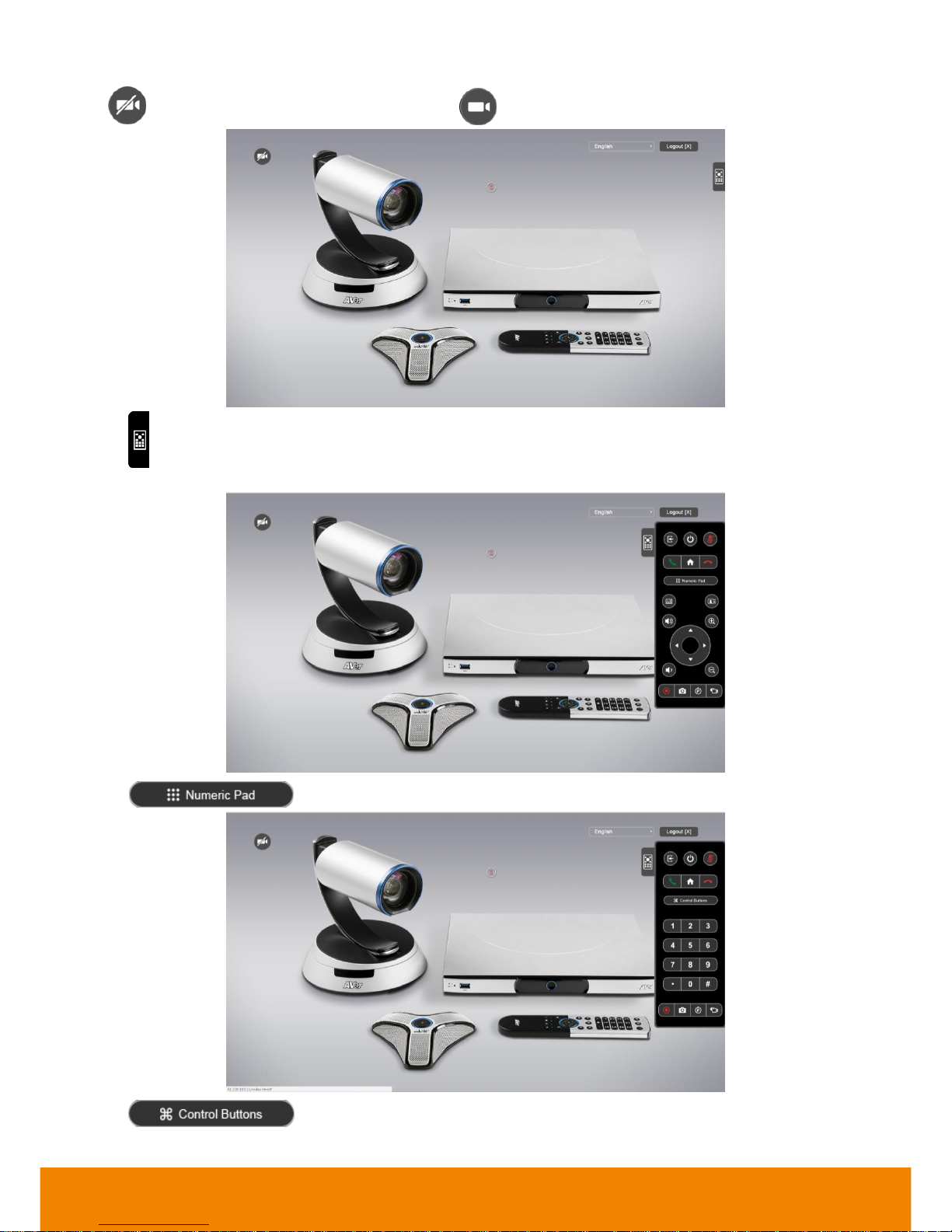

Using the WebTool ........................................................................................................................................ 90

Phonebook .................................................................................................................................................... 93

Edit and Save ............................................................................................................................................ 93

Download Phonebook Entries ................................................................................................................... 94

Upload Phonebook Entries ....................................................................................................................... 94

Download Call History Entries .................................................................................................................. 94

LDAP Setting ............................................................................................................................................ 95

Online Phonebook .................................................................................................................................... 95

Upload Files Setting (Group Call Only) ..................................................................................................... 96

General Setting .............................................................................................................................................. 97

Enable Record .......................................................................................................................................... 97

Dual Stream Bandwidth Adjustment ......................................................................................................... 97

Update System ......................................................................................................................................... 98

EZ Join ...................................................................................................................................................... 99

Page 6

Customized Logo and Boot Animation ........................................................................................................ 100

TROUBLESHOOTING .......................................................................................................... 101

Audio ........................................................................................................................................................... 101

Video/Display ............................................................................................................................................... 101

Network ....................................................................................................................................................... 102

Others .......................................................................................................................................................... 104

SCENARIOS FOR LAN CONNECTION ................................................................................. 105

Public IP Configuration (Outside of Firewall) ............................................................................................... 105

Private IP Configuration (Behind Firewall with Port Forwarding) ................................................................. 106

H.460 Gatekeeper with Firewall Traversal .................................................................................................. 107

REMOTE CONTROL BATTERY SAFETY INFORMATION .................................................... 109

LIMITED WARRANTY .......................................................................................................... 110

Limitations of Warranty ................................................................................................................................ 110

Disclaimer of Warranty ................................................................................................................................ 110

Limitation of Liability .................................................................................................................................... 111

Governing Law and Your Rights .................................................................................................................. 111

Page 7

Introduction

Thank you for choosing SVC which offers professional videoconferencing experience. SVC give you the latest technologies; slim form factor, flexible integration options and backward

compatibility to most videoconferencing install bases. It makes any business meetings and special events much more reliable, effective, and secure.

Features



SVC100 is an endpoint, SVC500 is a 6 ways MCU, both support multipoint license for up to 4 / 6 / 8 / 10 / 16 sites



Support H.323, SIP standards, SIP TLS, Microsoft Lync 2013, Skype for Business 2015 communication protocols



Mixed protocols between H.323, SIP, Microsoft Lync 2013, Skype for Business 2015



Real Time Messaging Protocol (RTMP) for Live streaming (Video and data over the Internet to RTMP server)



Support Dual camera & presentation (Site by Site view)



Support full content sharing experience (send and receive) at 60fps, send content from DVI-I or VGA



Dual monitor support via HDMI1 and HDMI2



Support CIF (352x240) up to Full HD (1920x1080 60fps) video call



SVC100/SVC500 with PTZ camera is 18x zoom PTZ camera with 2Mega COMS sensor



Include one microphone array, much better audio pick up than competitor offering



10/100 and Gigabit Ethernet; video bandwidth from 64Kbps to 4Mbps



Support IPv4/IPv6 and Wake-on-LAN (WOL)



User-friendly on screen operation, support up to 22 languages



Support Phonebook download, upload and edit



Call history lookups of received, placed and missed calls, allow directly saving it to favorite

contact list



Support H.460 Gatekeeper for NAT and firewall traversal



G.722.1C* wideband support



Infrared (IR) remote control has power button; system supports remote API for AV integration



Secure communication using AES 128bit encryption



32G internal storage capacity for recording function (actual formatted capacity may be less)

*:G.722.1/G.722.1C, licensed from Polycom®

Page 8

Package Contents

The following items are included in the package. Please check if each item is available before using.

1 2 3 4

5 6 7 8

9 10 11 12

13 14 15 16

1. Main System

2. Camera

3. Microphone

4. Remote Controller

5. Power Adapter

6. Power Cord

7. VGA Cable

8. DVI to VGA Converter

9. Mini Din 8 pin MIC Cable

10. HDMI Cable x 2

11. Camera Cable

12. RJ-45 Cable

13. Warranty Card

14. Quick Installation Guide

15. Back Panel Label

16. Button Cell Batteries

17. Cable retainer



The power cord will vary depending on the standard power outlet of the country where it is sold.

Page 9

Installation

Getting Familiar with the SVC -Series

SVC includes Main System, MIC, Camera and Remote Controller.

Main System

Front Panel:

(2) (3)

(1)

Name

Function

(1) LED Indicator

Show the status of LAN connection.

Solid Green:

LAN connection is successfully

Flash Green:

Data transmission is processing through the LAN

connection.

(3) USB Port

To connect the USB storage for system log saving and FW upgrade.

(2) POWER Button

Press this button to turn on/off main system.

Red:

power off

Blue:

power on

Page 10

Back Panel:

OUTPUT

INPUT

(1) (2) (3) (4) (5) (6)

(7)

(8)

(9)

Name

Function

(1) LAN Port

Use the RJ-45 Ethernet cable to connect an IP-based network to the LAN port.

(2) USB Port

To connect the USB storage for system log saving and FW upgrade.

(3) HDMI-2 Port

Connect the HDMI cable to the HDMI-2 output port located on the back panel, and connect the other end of HDMI cable to a display device to output both video and audio signal. In dual screen configuration, the output screen connected to this port will be set up to secondary screen automatically.

(4) HDMI-1 Port

Connect an HDMI cable from the HDMI monitor to HDMI-1 output port located on the back panel. The HDMI interface allows you to transmit both audio and video signals over a single cable (HDMI cable). In dual screen configuration, the output screen connected to this port will be set up to primary screen automatically.

(5) AUDIO OUT Port

Use to connect the main system to external speakers or amplifiers for audio signal output.

(6) MIC IN Port

Receive audio signal from MIC device via a mini din 8 pin MIC cable.

(7) AUDIO IN Port

Receive audio signal from an external audio source through the audio cable.

(8) HDMI IN(for 2nd

Camera)

To connect 2nd camera via a HDMI cable.

(9) CAMERA IN Port

Connect the camera to the main system via a camera cable.

(10) HDMI Input

Connect an external HDMI source as an input via this port.

(11) DVI IN Port

Using the DVI to VGA connector to transfer the DVI to VGA interface and through the VGA cable connects to the PC or NB.

(12) POWER Port

Connect the power supply cord and adapter to the power port located on the back panel. And connect the other end of the power cord to a suitable power outlet.

Page 11

MIC

Name

Function

(1) Mute

Mute/Unmute the Mic. Blue: Unmute; Red: Mute

(2) MIC OUT Port

Outputs audio signal from the MIC to main system.

(3) MIC IN Port

Receive audio signal from the second MIC and pass it through the MIC OUT to the main system.

Camera

(1) (2)

Name

Function

(1) CAMERA OUT Port

Connect the camera cable to the CAMERA OUT port located on the back of camera and CAMERA IN port located on the back panel of main system for a video transmission.

(2) IR Sensor

Receive IR signal from the remote control for system operation. Amber light blinks when it detects key pressing event from remote.

Page 12

Remote Controller

The remote controller requires two

“

cell battery CR2025

”

batteries (included). Make sure the batteries are installed properly before using the remote controller. Aim the remote controller at the infrared sensor of your AVer SVC camera to remote control the unit.

(2)

(3)

(6) (7)

(9) (10) (12)

(16)

(14)

(19) (20)

(4)

(5) (8)

(11)

(15)

(17) (18)

(13)

(1)

Name

Function

(1) Camera input

source

- Press to select camera source output -Main, 2nd camera, Main camera + 2nd camera, or camera off.

- Press and hold can switch camera control between main and 2nd camera (The 2nd

camera screen will display “ ” icon).

(2) Power

Press to power on/off the main system.

(3) Mute

- Press to Mute/Unmute the MIC. The mute icon will appear when the MIC is muted. The mute icon will become translucent after 5 seconds.

- Press and hold can on/off switch to “DND” mode (Do Not Disturb). The “ ” icon will display on screen.

(4) Numeric Pad

- Use to enter alphanumeric. Press button and hold can switch between

numeric mode and alphanumeric mode.

- Press number button 0~ 9 to switch the

number frame in main(enlarge) view while conferencing call ( When Voice Activated Layout Switch is disabled).

(5) Call

Start a call.

(6) Hang up

End the call.

(7) Home

Bring up the main screen.

(8) Delete/Back

- Press this button to backward delete one

character at a time.

- Return to previous OSD menu.

Page 13

(2)

(3)

(6) (7)

(9) (10) (12)

(16)

(14)

(19) (20)

(4)

(5) (8)

(11)

(15)

(17) (18)

(13)

(1)

Name

Function

(9) Layout

- Press to change the screen layout.

- Press and hold can switch to dual screen

mode. This splits the video conferencing screen and present screen onto two separate monitors (two monitors must be connected to use the feature, one through HDMI-1 and one through HDMI-2).

(10) Presentation

Share the content that comes from either the HDMI input source or the DVI/VGA input source. The present icon will appear on the screen when the presentation function is enabled. The icon will disappear after 5 sec.

While video call, press presentation button can select presentation source.

(11) Vol +

Increase the speaker volume.

(12) Zoom +

Increase the camera zoom or the captured image magnifications.

(13) Enter

- Make a selection in OSD menus.

- Accept incoming calls.

- Display the site name and icon during the

meeting.

- Auto Focus function(PTZ camera only)

(14) Navigation

Buttons

( , , , )

- Use these buttons to navigate through the

selections in OSD menus or on-screen keyboard.

- Pan and tilt the camera to adjust the

viewing.

- Pan, tilt the zoomed in camera image or

captured image.

(15) Vol -

Decrease the speaker volume.

(16) Zoom -

Decrease the camera zoom or the captured image magnifications.

(17) Record/RTMP

- Press to select video recording / RTMP

function.

- While using EZDraw, press and hold can

share EZDraw screen view on SVC screen view.

Page 14

(2)

(3)

(6) (7)

(9) (10) (12)

(16)

(14)

(19) (20)

(4)

(5) (8)

(11)

(15)

(17) (18)

(13)

(1)

Name

Function

(18) Snapshot

Capture the image from the camera (OSD menu is not included) and save to external USB pen drive.

(19) Far/Near

- Press to select to control either near site or

far site camera. The cam ctrl icon will appear on the screen to indicate which

site’s camera you are controlling. The cam

ctrl icon will disappear after press the Far/Near key 5 sec.

- Press and hold can switch to OSD menu

between primary and secondary screen.

(20) Preset

Press to set the position. Press and hold can switch to broadcasting message.

Page 15

Connections

Before making the connections, make sure all devices are powered off. Refer to the illustrated connections below and also to the user manual of the device you are connecting to the SVC100/500 system.



Make sure all connections have been connected successfully before powering on the system.

Page 16

Connecting Monitors (HDMI Out)

Locate the HDMI input port of the graphics display device and connect it to HDMI OUT ports of the AVer SVC with the supplied HDMI cables. You can connect the HDMI-1 OUT ports and HDMI-2 OUT ports at the same time upon a dual screen configuration.

Connecting the Camera (Camera In)

Locate the port on the back of the camera and connect it to the CAMERA IN port of the SVC with the supplied camera cable.

Page 17

Connecting the 2nd Camera (HDMI In)

Locate the port on the back of the camera and connect it to the HDMI IN port of the SVC with the HDMI cable. If user wants to control 2nd camera, connect the 2nd camera to USB port of the SVC with the RS232 to USB cable and VISCA cable to the 2nd camera.

Connecting the MIC (MIC In)

Use the supplied MIC cable and connect the red tag connector to the MIC IN port of the SVC. Then connect the other end of the MIC cable with the blue tag to MIC OUT port.



Press the button on the top of AVer SVC-MIC to mute/un-mute the MIC.



Please connect the cable to the port follow by the color on the cable and port, ex. red to red.

Page 18

Connecting the LAN (RJ-45)

Connect the LAN port of AVer SVC to a RJ-45 wall jack or Ethernet hub with the supplied RJ-45 cable.



It is requires an IP-based network before beginning LAN connection.

Connecting the Power (DC 12V)

Connect the power adapter to a standard 100V~240V AC power outlet with the supplied power adapter and power cord.



To prevent shock, make sure all the connections on the main system are connected successfully

before connecting the power cable and turning on the power.



Make sure to use the supplied available power adapter.

Page 19

Connecting PC (HDMI In/DVI In)

Locate the HDMI output port of the Laptop and connect it to HDMI IN port of SVC with the supplied HDMI cable for an image display.

Use the supplied DVI to VGA connector and connect to the DVI port of Laptop with VGA cable.



To share the video signal from the computer, press PRESENTATION and select

“HDMI”

”DVI”

source.

Connecting the Audio (Audio In/Out)

AUDIO IN: Locate the AUDIO output port of the Laptop or Desktop and connect it to AUDIO IN port of AVer SVC

with the supplied 3.5mm Audio cable.

Page 20

AUDIO OUT: Locate the AUDIO in port of the LCD TV speaker or normal speaker and connect them to AUDIO OUT

port of SVC with a RCA cable.

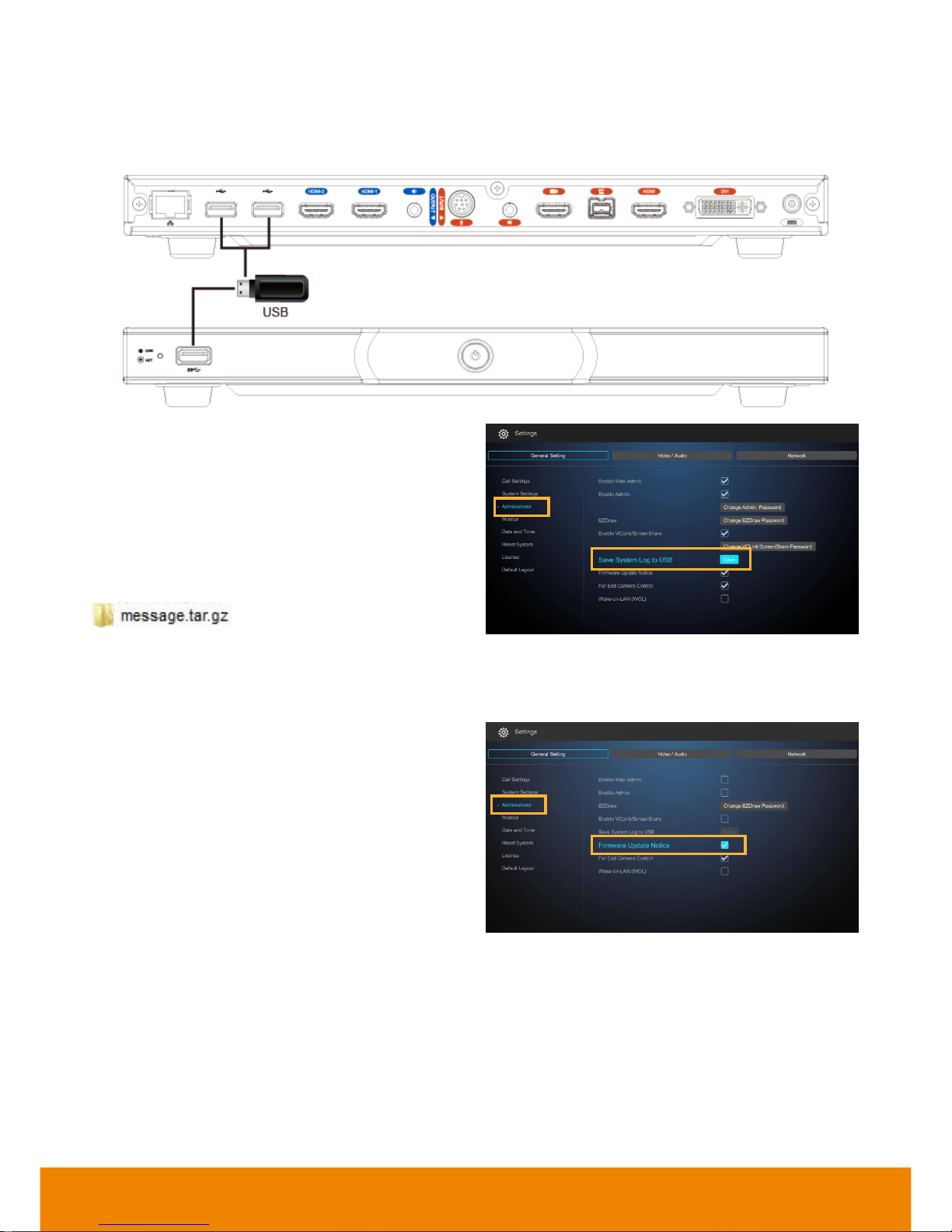

USB Storage (USB Ports)

SVC main system supports three USB2.0 interface(two at back side, one at front side) for saving data.

[Note]

The USB ports only support USB pen drive for F/W upgrading and saving log file; they

NOT

supply 5V power for any external devices.

Page 21

Install Cable Retainer

Use cable retainer to prevent cable to off from MIC.

1. Connect the cables.

2. Slide the cable retainer into calbes.

Cable retainer

3. Screw tight to fix the cable retainer on MIC.

Screw tight the cable retainer

Page 22

Camera and Microphone Introduction

This chapter explains the best way to position SVC in a conference room.

Using the Camera

SVC100/500 includes a detached camera that can pan (



100 deg. range), tilt (



25 deg. range)

and zoom (total 18x) by using the , , , and zoom +/- buttons on remote controller.



Avoid physically turn camera while system is powered on to prevent permanent damaging the

motors and gears and void the warranty. Always use the remote control to pan and tilt the camera head.

Infrared Sensor (IR)

Aim the remote controller at the camera infrared sensor to operate the unit.

Page 23

Positioning the MIC

The best distance for SVC-MIC to receive audio signal is within 3m. The SVC-MIC can connect up to 4 in one chain.

Single Microphone

Two Microphones

Page 24

AVer SVC Wizard Setup

For the first time using AVer SVC system, the Installation Wizard will guide the user to setup SVC system step by step. After completing the wizard setup, user may start to use the SVC system.

In Installation Wizard, user can use the following buttons on remote controller to move between the selections and make/confirm selection.

: To expand the drop-down list, make/confirm the selection.

/ : Move the cursor up or down. : Move the cursor to right or on

button.

: Move the cursor to left or on

Back

button.

Start

Please follow the below description to complete the wizard setup.

Connect your SVC system well and turn on the power. After your SVC system starting, user will see the Installation Wizard screen shown up.

If you want to pass the Wizard setup, press button move to

Skip

button and press to go

to Home page.

Page 25

Language

Select the language of the SVC system.

Press to expand the drop-down list. Then, use or button to move the selection and press to make the selection. After selecting,

press to move to Next option and press to go next step.

Site Name

Assign a name for SVC system. Use the numeric pad on remote controller to enter the site name.

After entering the site name, press to move to Next button and press to go next step.

To go back to last step, press to move to Back option and press to confirm.

[Note]

1. Repeat press the number button to select the character that user wants to enter.

2. The site name is character only

Network Setting

Select the network environment that user has used.

Use or button to move to the selection and press to confirm the selection.

[Note]

User can refer to chapter of Scenarios For LAN Connection for the description of network environment.

After selecting the network setting option, user need to configure the network parameters. Follow the below description to setup the network settings.

Page 26

Public IP Configuration (Outside of Firewall):

Your SVC system is connecting directly to the internet. Select the IP mode.

Obtain IP address by DHCP:

Configure the system to automatically obtain an IP address from the DHCP server. The SVC system will automatically get an IP address which assigned by your DHCP server on LAN. The IP address and related information will display. Click OK to accept the setting.

Static IP:

Configure the system to use the assigned IP address. Select this when the public IP

address is available

Enter the following information and click

Apply

to save the settings. To go to next step, click

and click

Back

to go back to

Network Setting

page.

Your IP Address is:

Enter your IP address

manually.

Subnet Mask:

Enter the subnet mask address when the system does not automatically obtain the subnet mask

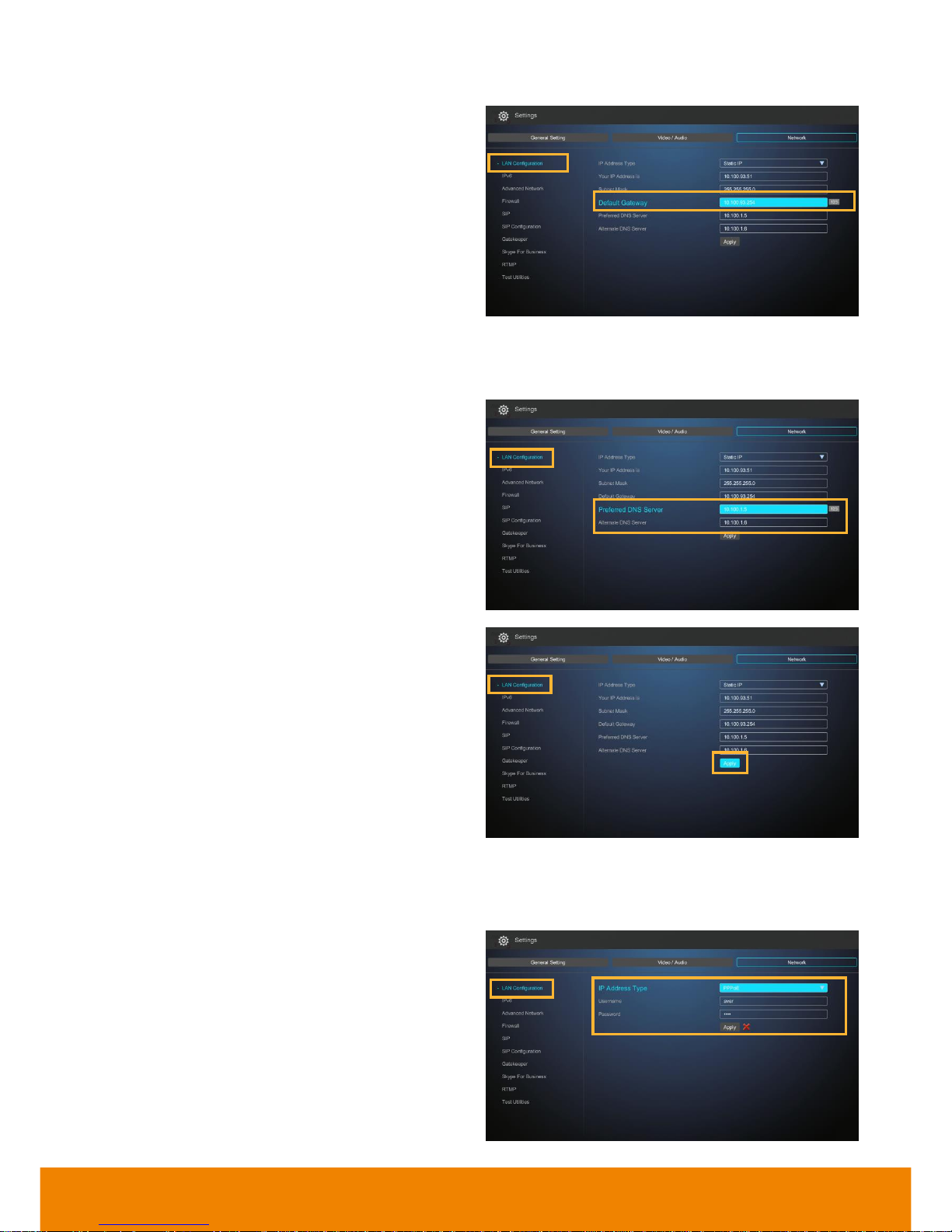

Default Gateway:

A gateway is a network point that acts as an entrance to another network. Enter the gateway address when the system does not automatically obtain the gateway.

Preferred DNS Server:

Domain Name System (DNS) servers convert human friendly names (for example: www.example.com) to IP addresses (218.77.272.166) that let machines be found on the network. The preferred DNS server is the one your computer asks first. The alternate is a backup. Enter the Preferred and Alternated DNS Server address.

Alternate DNS Server:

Enter another

Domain Name server for second choice

Page 27

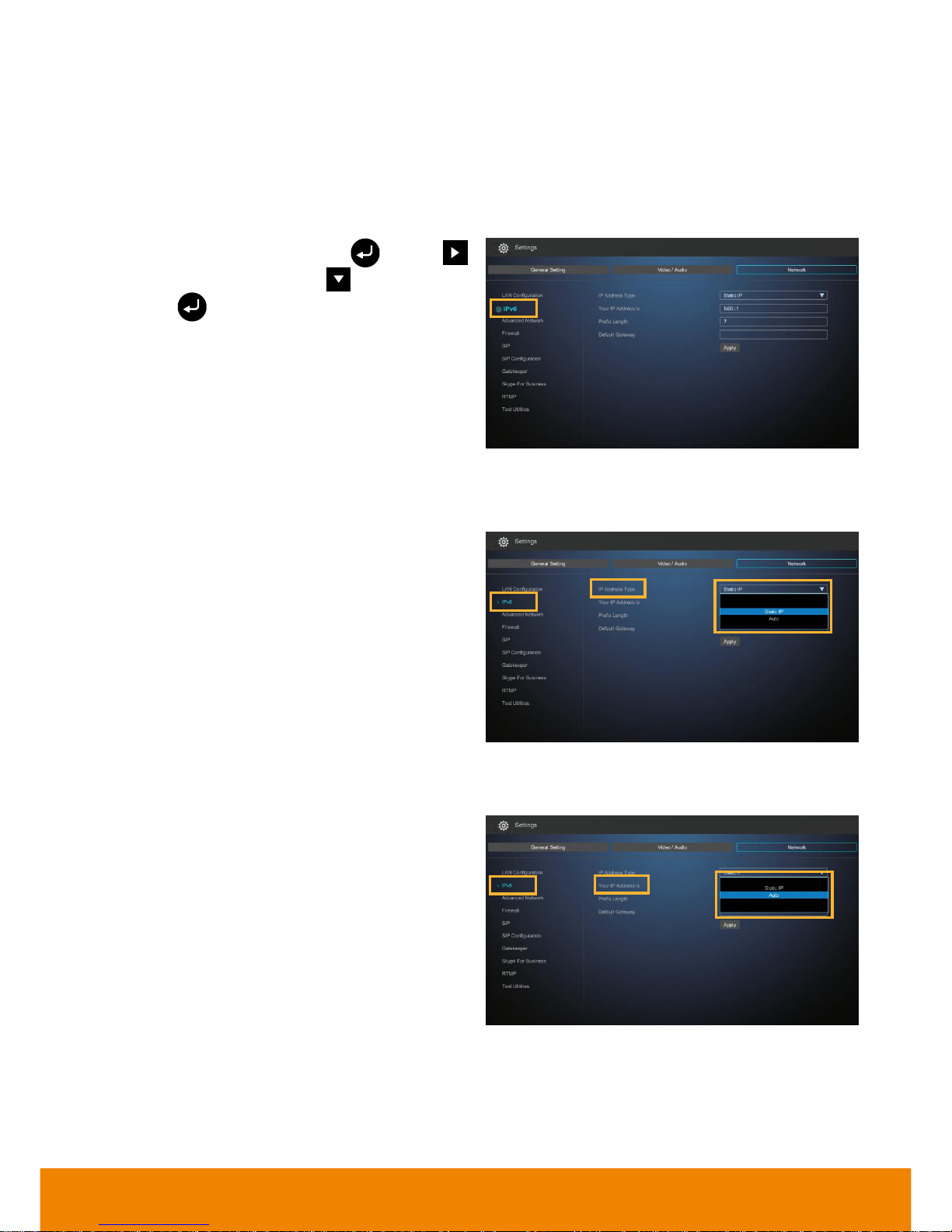

IPv6:

IPv6 is an evolutionary upgrade to the Internet Protocol. IPv6 will coexist with the older IPv4 for some time. IPv6 addresses are 128-bit IP address written in hexadecimal and separated by colons.

Select and enter the following information and click

Apply

to save the settings. To go to next step,

click

option and click

Back

to go back to

Network Setting

step.

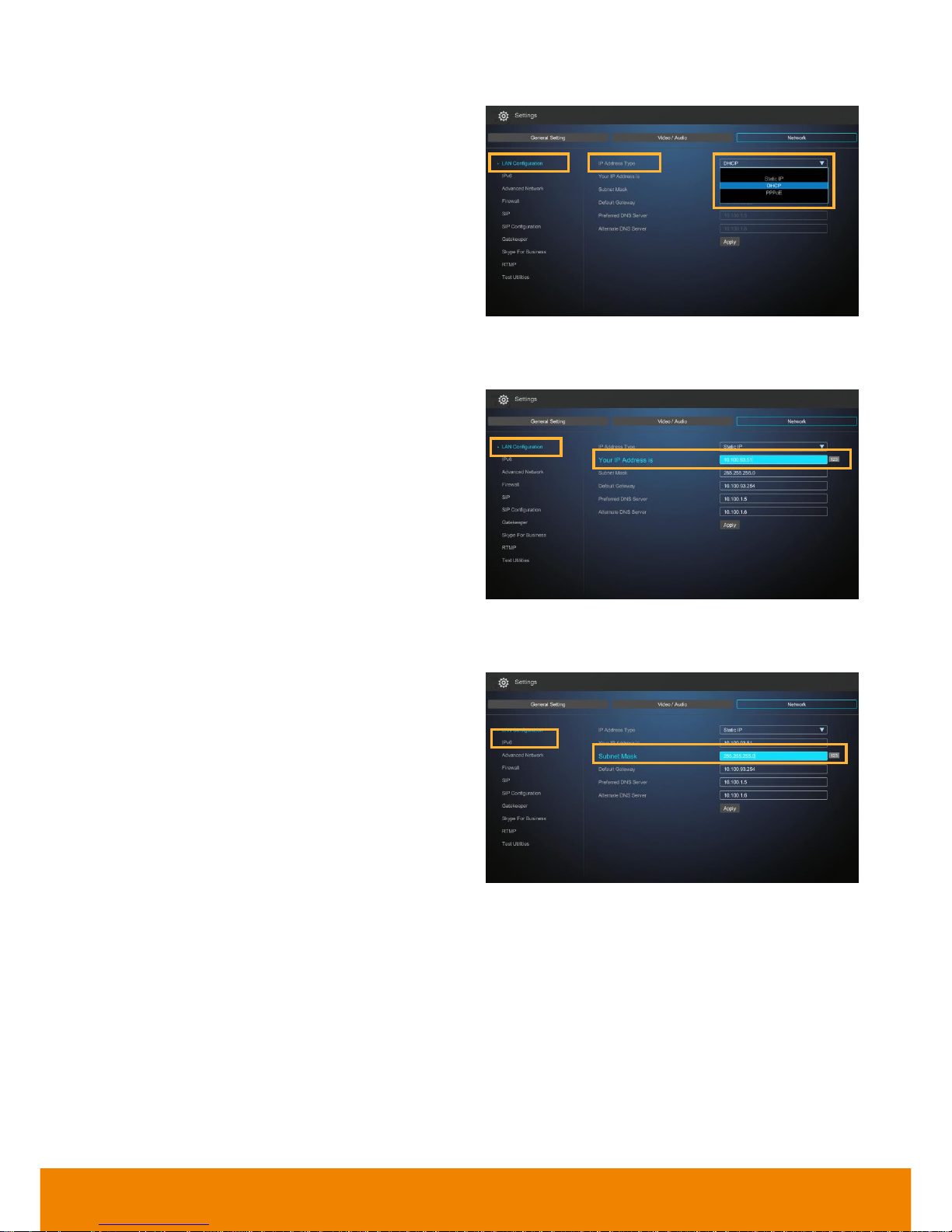

IP Address Type:

(1) Static IP:

Configure the system to use the assigned IP address. Select this when the public IP address is available.

(2) Auto:

Obtain the dynamic IP address automatically. User needs to enter the IP address and prefix length in following.

Your IP Address is:

Enter your IP address

manually.

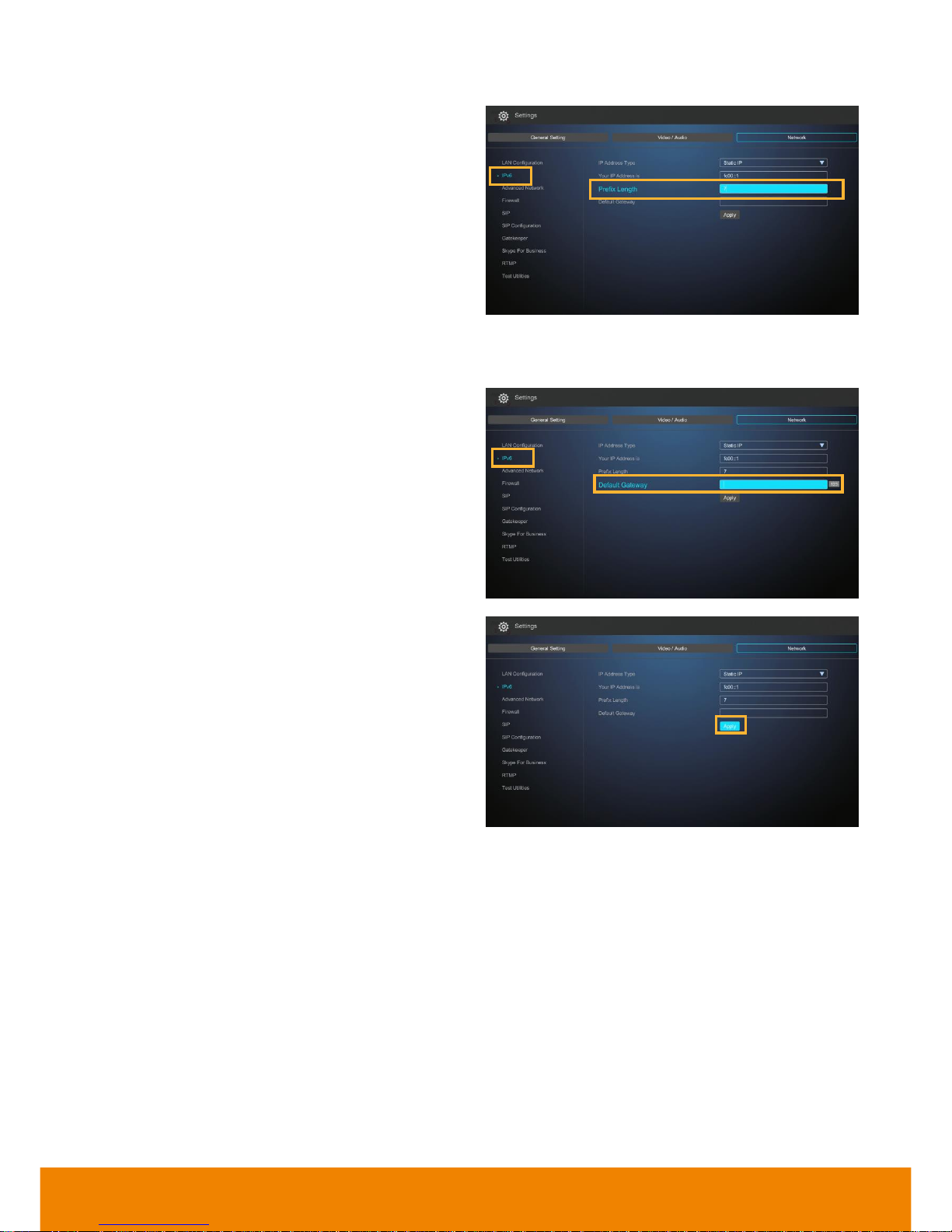

Prefix Length:

Prefix Length allows you to place as many IPv6 devices as the underlying network medium allows.

Private IP Configuration (behind firewall port forwarding):

Your SVC system is connecting to the internet through a firewall.



Please make sure you have set the following ports in port forwarding in your firewall. Then, click

Next to select the IP mode of your network

Obtain IP address by DHCP:

Page 28

Static IP:

Configure the system to use the assigned IP address. Select this when the public IP

address is available.

Enter the following information and click

Apply

to save the settings. To go to next step, click

and click

Back

to go back to

Network Setting page.

Your IP Address is:

Enter your IP address

manually.

Subnet Mask:

Enter the subnet mask address when the system does not automatically obtain the subnet mask

Default Gateway:

A gateway is a network point that acts as an entrance to another network. Enter the gateway address when the system does not automatically obtain the gateway.

Preferred DNS Server:

Alternate DNS Server:

Enter another

Domain Name server for second choice.

IPv6:

IPv6 is an evolutionary upgrade to the Internet Protocol. IPv6 will coexist with the older IPv4 for some time. IPv6 addresses are 128-bit IP address written in hexadecimal and separated by colons.

Select and enter the following information and click

Apply

to save the settings. To go to next step,

click

option and click

Back

to go back to

Network Setting

step.

IP Address Type:

(1) Static IP:

Configure the system to use the assigned IP address. Select this when the public IP address is available.

(2) Auto:

Obtain the dynamic IP address automatically. User needs to enter the IP address and prefix length in following.

Your IP Address is:

Enter your IP address

manually.

Prefix Length:

Prefix Length allows you to place as many IPv6 devices as the underlying network medium allows.

Page 29

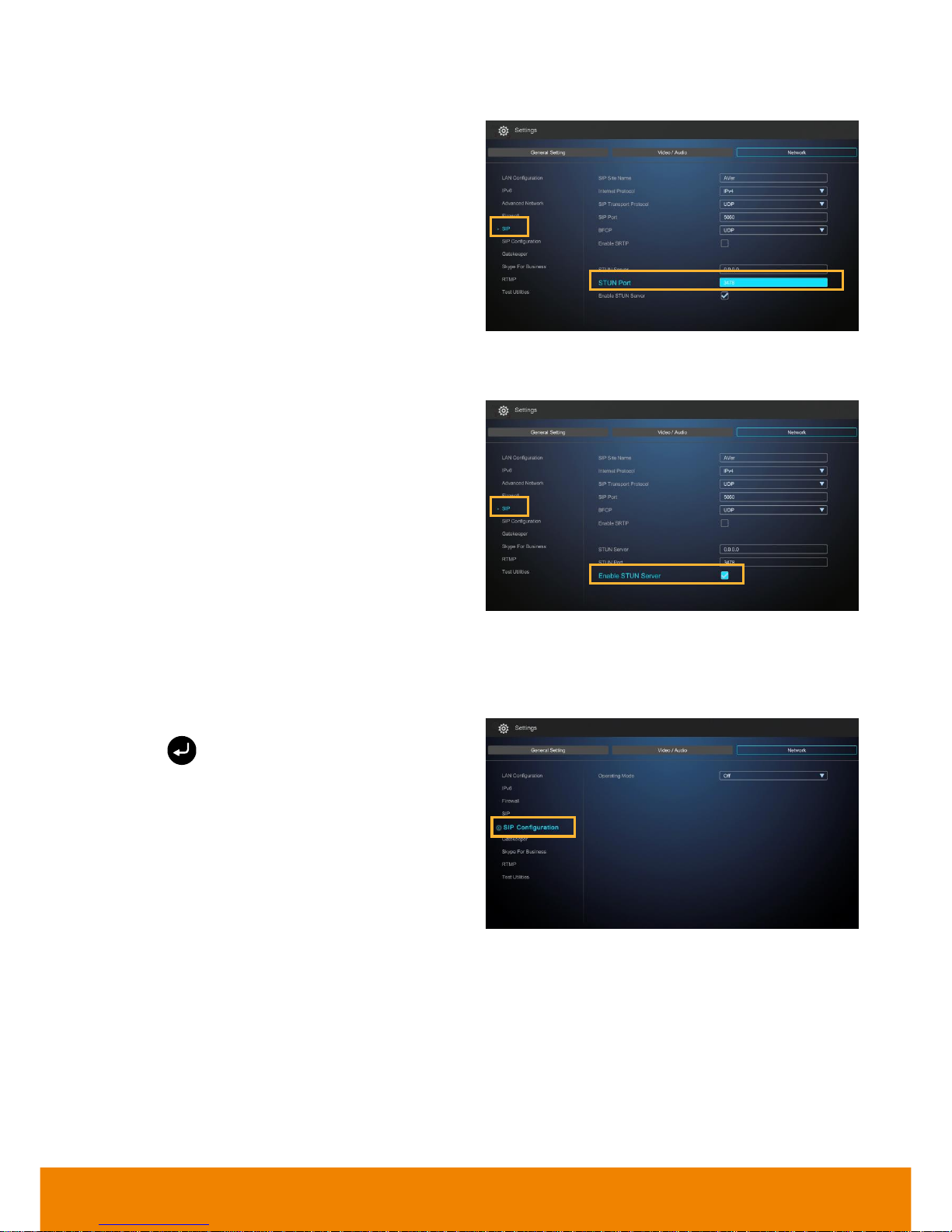

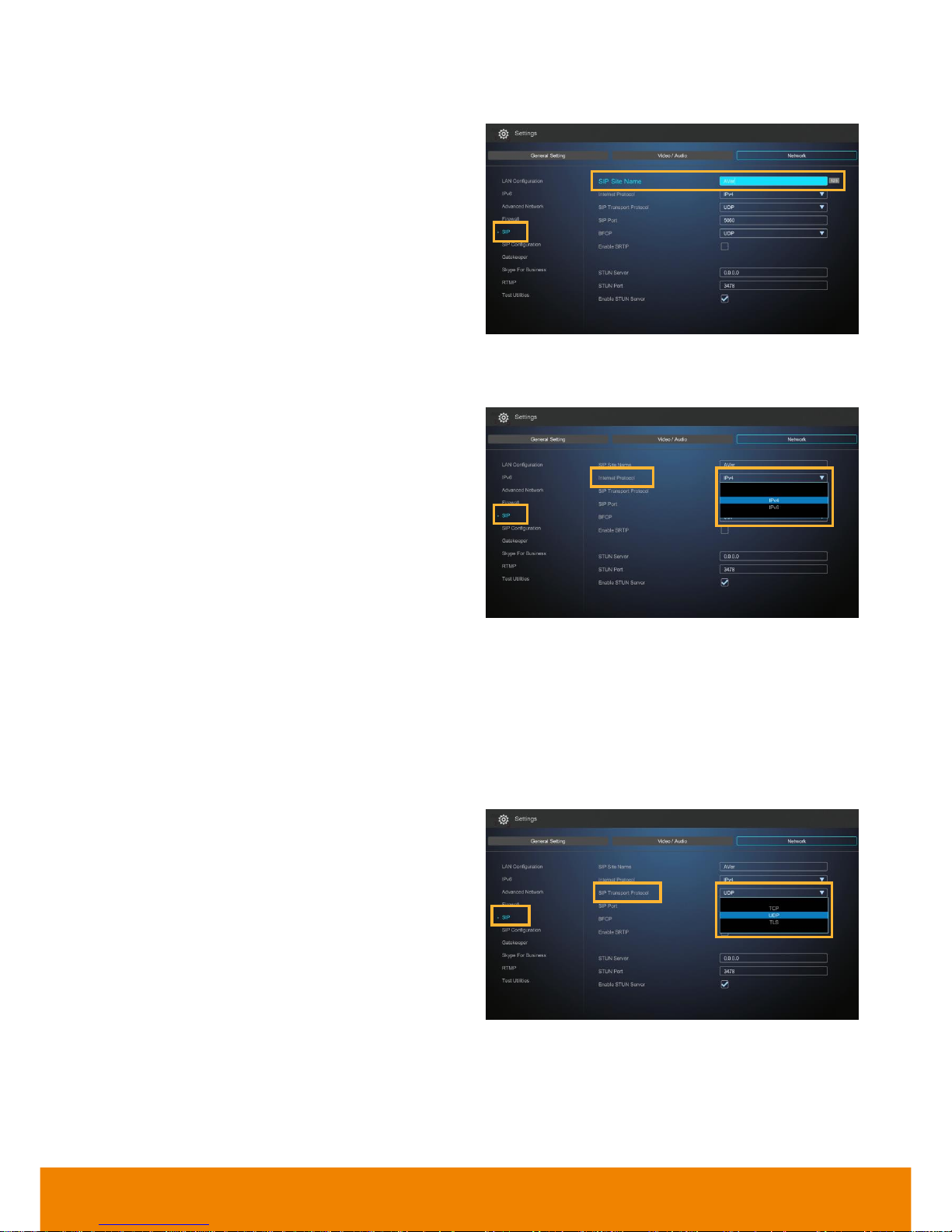

SIP Settings

Session Initiation Protocol (SIP) allows you around the world to communicate using your supported devices over the Internet. After setting network, user can choose to setup

SIP

Skip SIP

setting.

To setup SIP, enter or select the following information

SIP Site Name:

Enter the SIP site name for others to identify. The SIP site name may be the same or different then the domain for Web activity. Use numeric pad to enter the SIP site name in column.

Internet Protocol:

Select to use

IPv4

IPv6

as IP protocol. Press to expand drop-down list and use , to move the selection. Press to confirm the selection.

SIP Transport Protocol:

Select the SIP Transport Protocol type from the drop-down list for using. There are two types of Internet Protocol (IP) traffic. They are Transmission Control Protocol (TCP) and User Datagram Protocol (UDP). To ensure proper connection, verify if both calling parties are using the same transport protocol. By default, it is set to UDP.

(1) TCP:

TCP is connection oriented. Once a connection is established, data can be sent bidirectional.

(2) UDP:

UDP is a simpler, connectionless Internet protocol. Multiple messages are sent as packets in chunks using UDP.

SIP Port:

Change this value only if you use specific settings in your network system. By default, the SIP port is set to 5060.

STUN Server:

STUN (Session Traversal Utilities for NAT) is a standardized set of methods and a network protocol to allow an end host to discover its public IP address if it is located behind NAT.

STUN Port:

Enter the port number of STUN

server.

Page 30

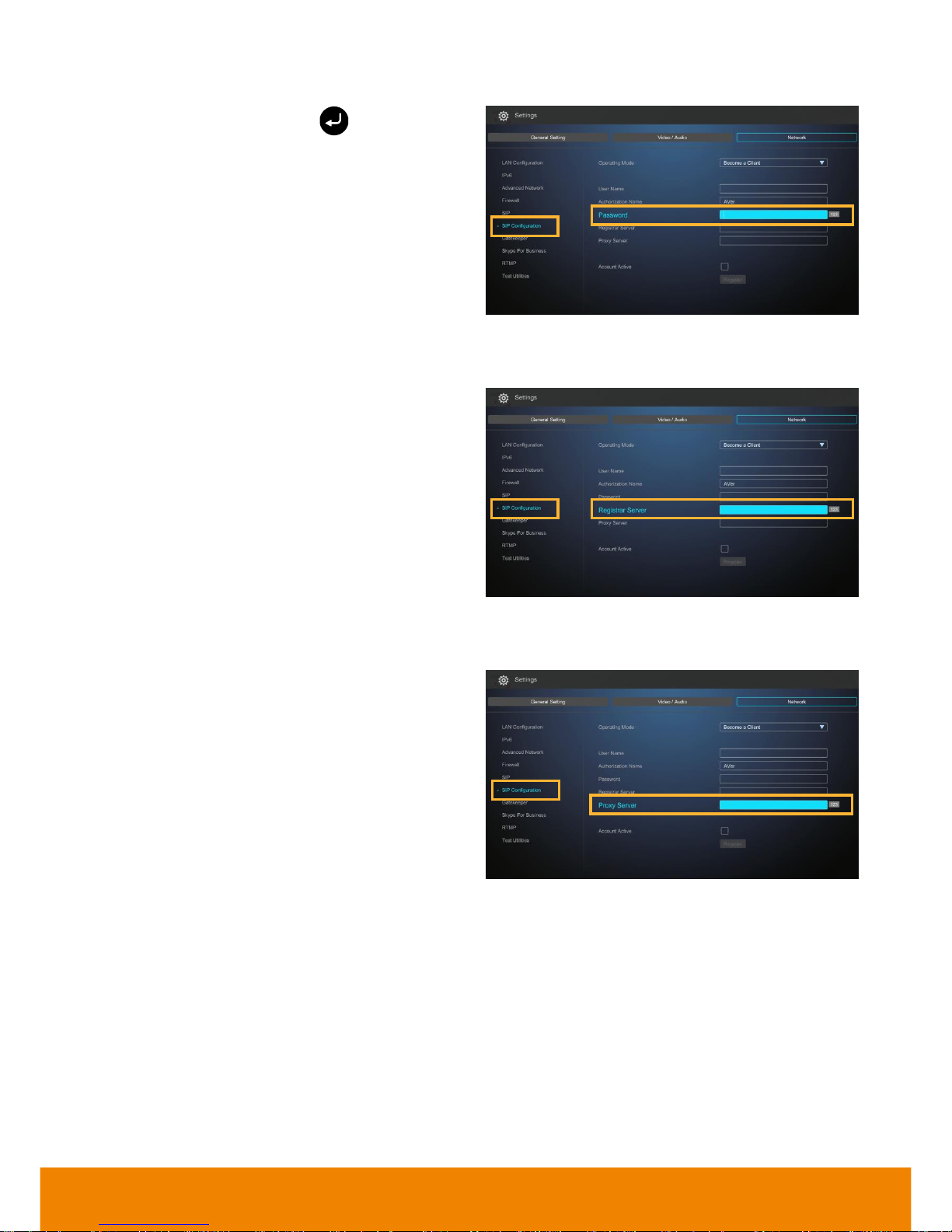

SIP Server Registration

A typical SIP session involves a client requesting a session with a SIP server. After the request is received, the SIP server returns a response to the user indicating the availability of the session. After setting SIP, user can choose to setup

SIP Server Registration

Skip

To setup SIP Server Registration, enter the following information and click Register to save the settings. After completing, click Next to go next step.

User Name:

Enter the terminal server name.

Authorization Name & Password:

Enter the authorization name and password of terminal server.

Registrar Server:

Registrar Server accepts registrations from users and places these registrations, (which is essentially location information), in a database known as a location service. Enter the Registrar Server name that you want to use.

Proxy Server:

Proxy Server is computing device (typically a server) that interfaces between data processing devices and others within a communications network. These devices may be located on the same local area network or an external network. Enter the used Proxy Server name.

Account Active:

Mark and select “

”

to activate the account.

Page 31

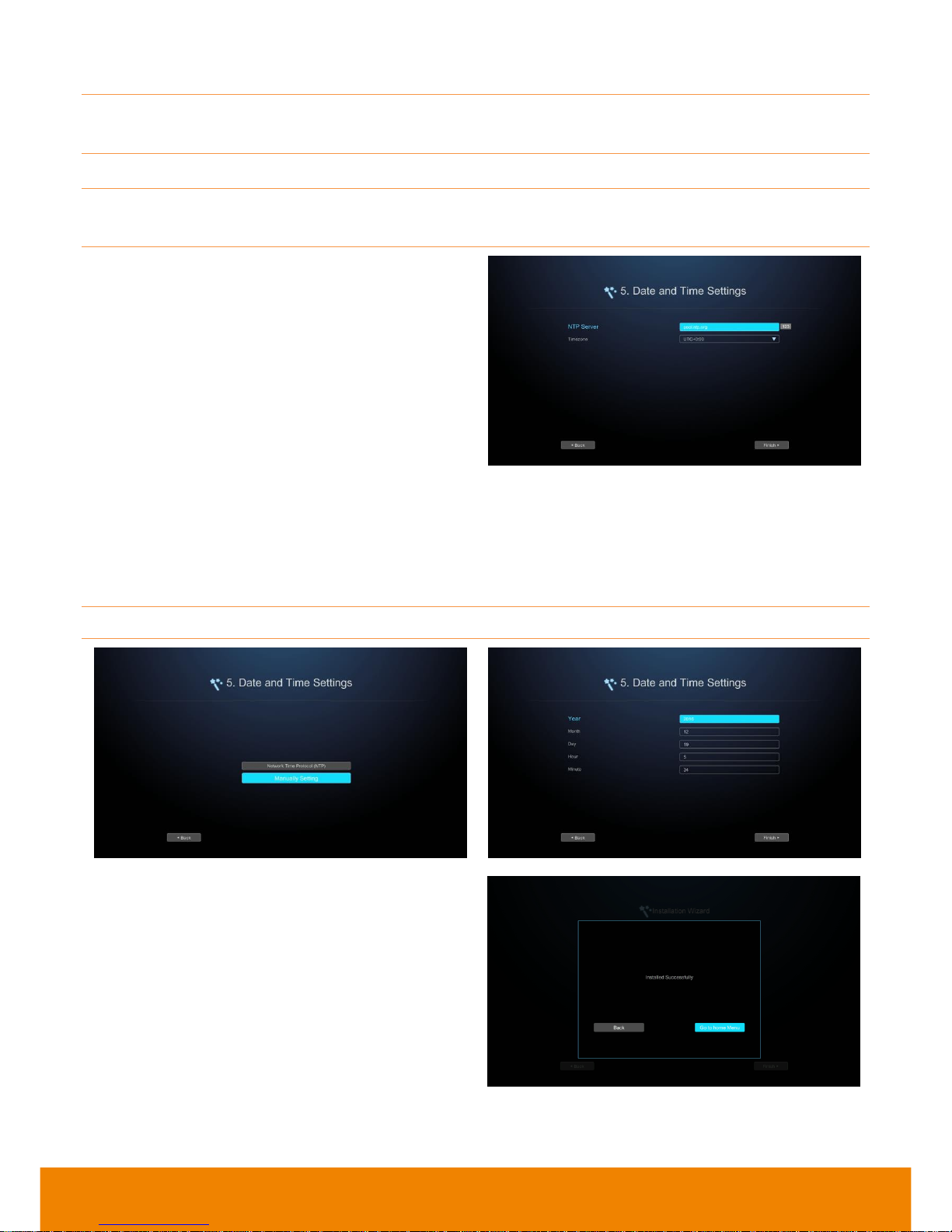

Date and Time Setting

Setup the SVC system date and time. User can choose to use NTP server to adjust the date/time or manually enter the current date/time.

Network Time Protocol (NTP)

Network Time Protocol (NTP) is a protocol that is used to synchronize system clock times in a network of device.

NTP Server:

The Network Time Protocol (NTP) allows administrators to synchronize all network computers to a main server. This keeps all network machine clocks on the same time. Enter the NTP Server name that you want to follow.

Time Zone:

Timezone allows you to adjust the time when you are in a different country or area so that you can keep the same time with your original area. Most of the time zones on land are offset from Coordinated Universal Time (UTC) by a whole number of hours (UTC-12 to UTC+14)

Manually Setting

Enter the present year, month, date, hour, minute, and second by yourself

After completing date/time setup, click

Finish

to complete the Installation Wizard setup. Before that, user can back to previous page or go to home menu. How to dial a call; refer to chapter of

Making a Call

Page 32

AVer SVC OPERATION

Connecting the camera, microphone, main system, display and power, press the power button to turn on SVC. Power button starts blinking blue light, AVer logo shows up followed by an animation and music. In 30 seconds camera image and home screen appear on screen. Aim the remote controller to camera and start configuring AVer SVC.

Before You Begin

Basic Operation

Navigation buttons:

Use the , , and buttons to move the selection on the remote

controller.

Enter button:

Use the to confirm the selection on the remote controller.

Apply:

Make the changed value to take effect. (For SVC Application)

Save:

Accept the created value and save it to the system.

Cancel:

Cancel the changed value and exit the present screen.

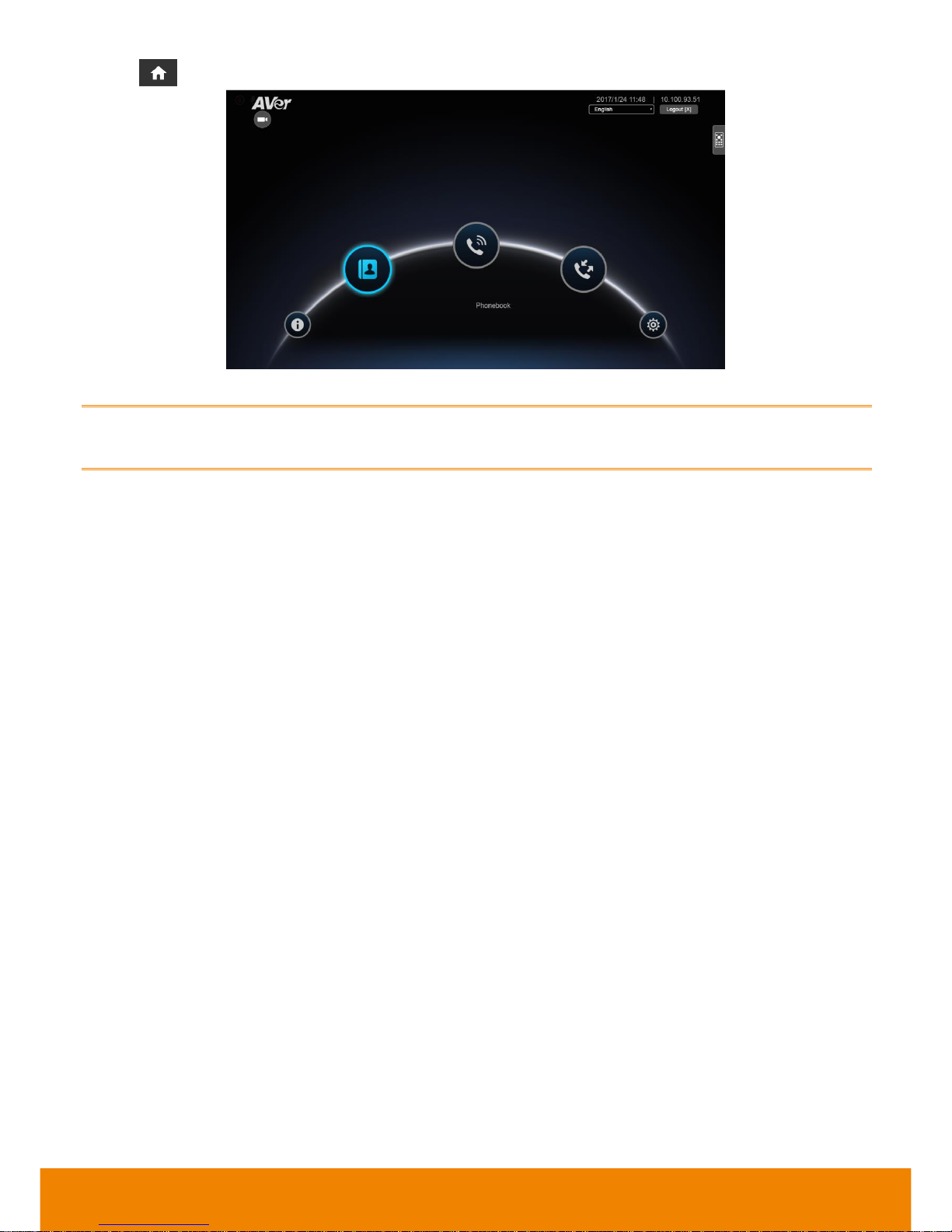

Home Screen

Simply use the navigation buttons to move between selections and press to confirm the selection. You can easily place a call and select the site contact either in

Dial, Phonebook

Call

History

. You can easily setup up the system in

Settings

General Setting, Video/Audio

, and

Network

. The administrator can set a security password to prevent changes made to the system

setting and WebTool access.

Configuration Icons

From left to right:

Information, Phonebook, Dial, Call history

, and

Settings

Page 33

Camera and MIC Icons

On the upper left-hand corner of your home screen, you may see camera and MIC indications.

When camera is removed,

“Camera

Disconnected”

warning message is displayed

and screen is blue. When is displayed on that screen, it means

far site remote can be operated by remote controller.

is displayed indicating microphone is mute.

Try pressing the mute button on microphone or remote controller to unmute it (LED indicator on microphone turns blue).

WAN Address

In setup menu, you can find current WAN IP address on the upper right corner.

Real-Time Clock

In setup menu, you can find the current Date and Time next to WAN address.

Page 34

System Info

Select (Info) button on setup menu to enter to system information page.

Local Site Info:

It shows the relative information about your SVC main system including Site Name, Model name, Maximum Allowable Sites, IP Address, MAC Address and System Version.

Connection Status Info:

it shows the call

status while call is connected.

Presentation:

it shows the status while in

presentation mode.

Internal Storage:

Display the capacity of internal storage and recording files. The save order is external USB > NAS storage server >

Internal storage. To delete file, press button on remote controller.

To export the files to external USB, plug the USB pen drive to SVC system and press

to select the file. Press to select all files. Then, press button to copy and keep original file or press button to copy and

delete original file on SVC.

Page 35

USB Flash Drive:

Only USB pen drive is plugged to SVC system will display it. Display capacity of USB pen drive. User can play recording file of SVC on SVC.

Dial

Dial selection allows you to enter dial screen and make a call. Press button on the remote controller has the same effect.

Call to

Use the number keys on the remote controller to enter the IP address or number or SIP URL (ex: sip:username.password@host) you want to call. AVer remote controller supports alpha-numeric operation, press numeric key multiple times to select the alphabet or symbol.

[Note]

Press button and hold can switch

between numeric mode(123) and alphanumeric mode(ABC/123).

Call Type

AVer SVC supports H.32, SIP, SIP Only Voice calls.

H.323

is commonly used to communication

to other videoconferencing room systems.

SIP

is commonly used to communicate with other VoIP devices.

SIP Only Voic

e is used when other

conference site could not recognize SVC video code, only transfer voice. Use the button to select which type of call type you want to make

then press to confirm.

[Note]

H.322 and SIP call type can be existed in

a same conference call meeting.

Page 36

Call Quality

For the

Call Quality

selection, enter the desired call quality (or network bandwidth) from the drop-down list (default or 64K up to 4M bit per second).

Select the

“Call”

on the Dial configuration

screen then press to make a call. Make sure the network jack is plugged in and

network is working properly before making a call; otherwise, the

“Network Jack Unplugged”

information will appear. Click

“OK”

to reconfirm

the network connection.

Hang up the call

1. When in multi-point call conference, press

button(Hang up) on remote control

and a call-point list screen is pop-up.

2. Use the ▲ and ▼ buttons to select which

you want to disconnect and press . To end the meeting, select Disconnect All.

3. You will notice the site names in the

meeting are color coded. If you are not sure of which name you want to disconnect, refer to the color of the frame.

4. In multiple call conference, you can choose

to hang out which call.

Page 37

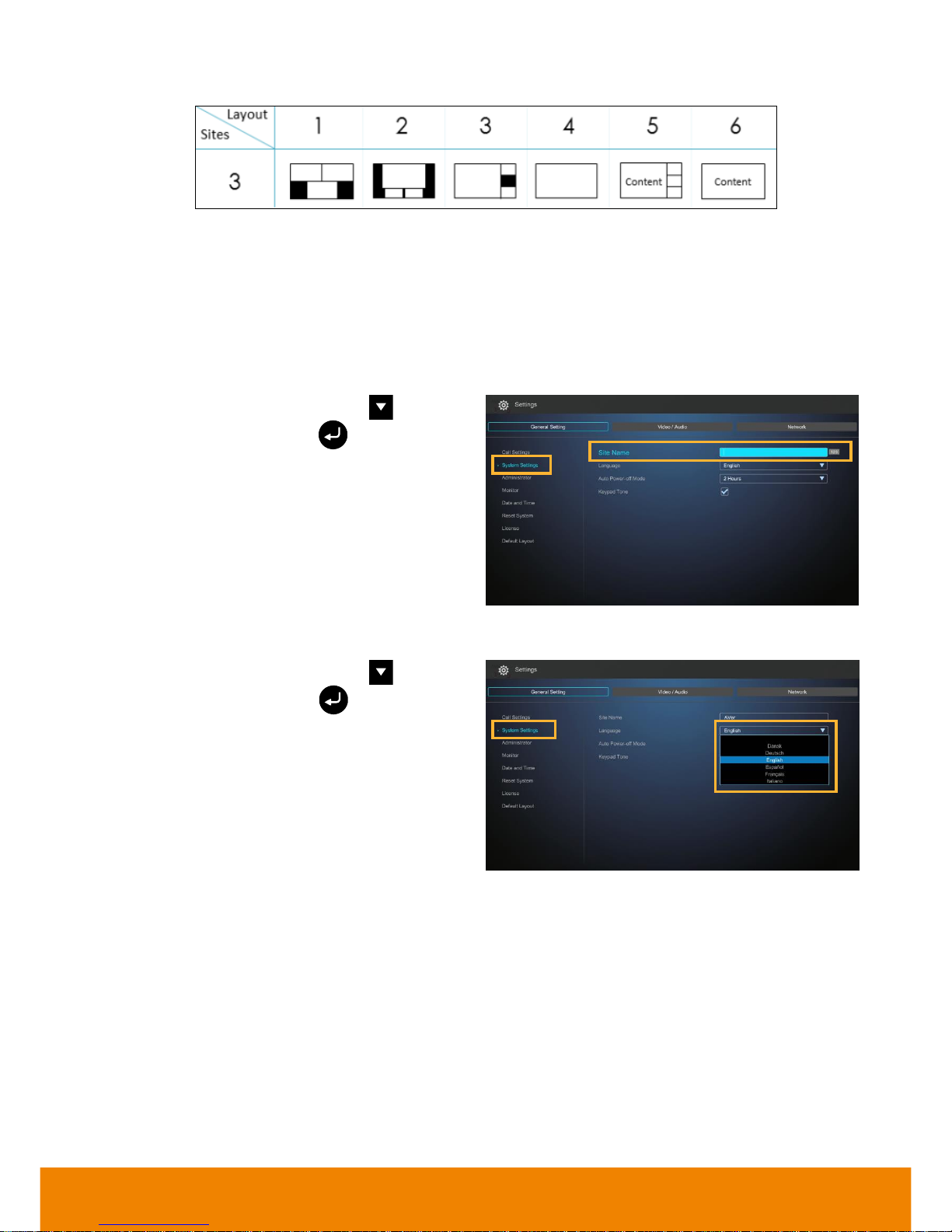

Video Layout

 Video layout on multisite connections is shown as following figure.  When only 2 points connection with content sharing, user can have 7th layout to choose which screen layout

shows content sharing and far sit view only.

 To view all 16 points connection, please select the equal spilt layout, see figure below.

Page 38

Phonebook

Phonebook allows you to create and edit contact information, group contacts by category, search contacts then make a call. The group and contact (site) name in the directory will be sorted in alphabetical order. You may use the WebTool to edit or import the phonebook entries too.

Group

Select

Phonebook

and press .

Press to select

Group

and press .

If you have lots of contacts, it is better to categorize them to groups such as client, vendor, company, branch, etc. to make the lookup easier.

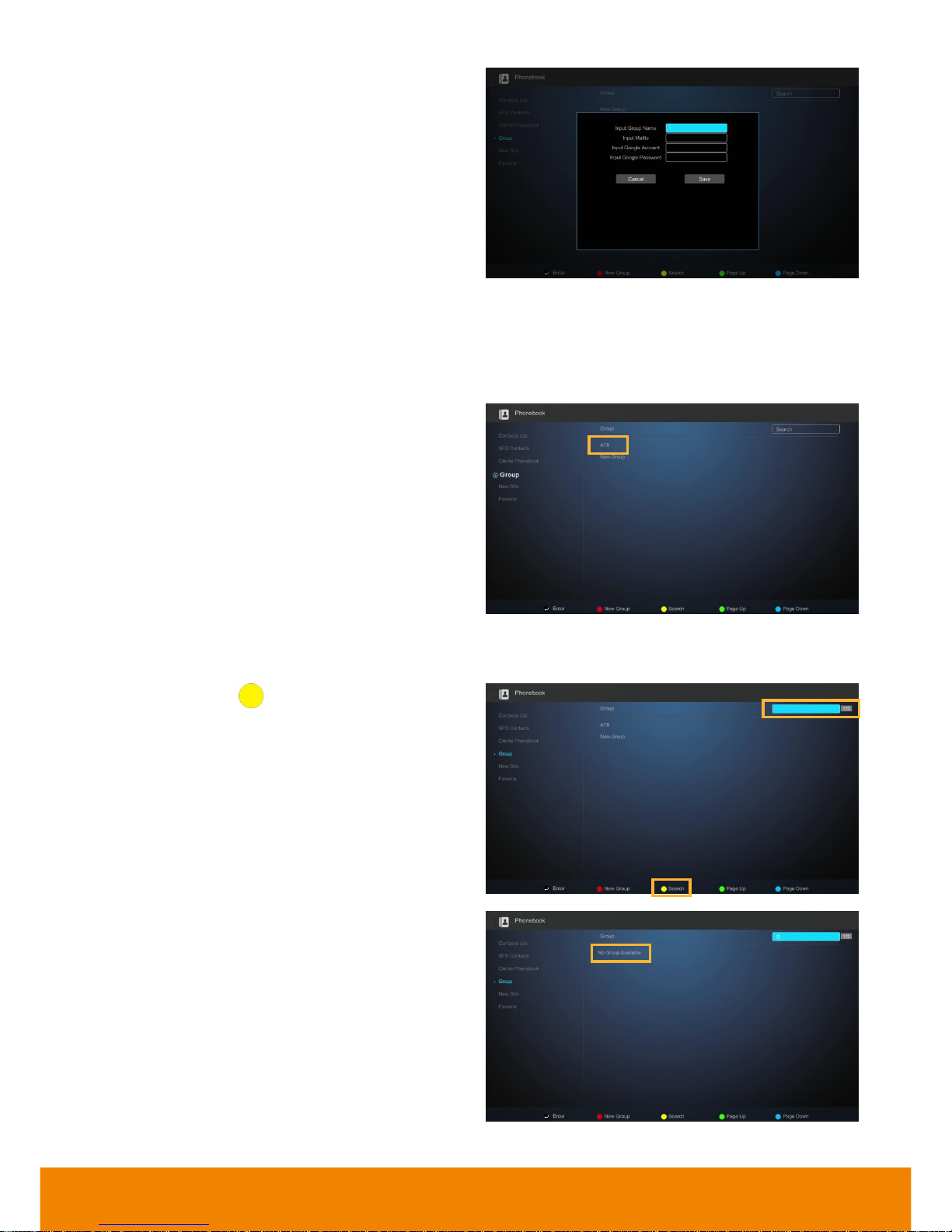

Create a New Group

In the

Group

configuration screen, Press “

Red”

button on the remote controller to pop up the

group dialogue box.

Page 39



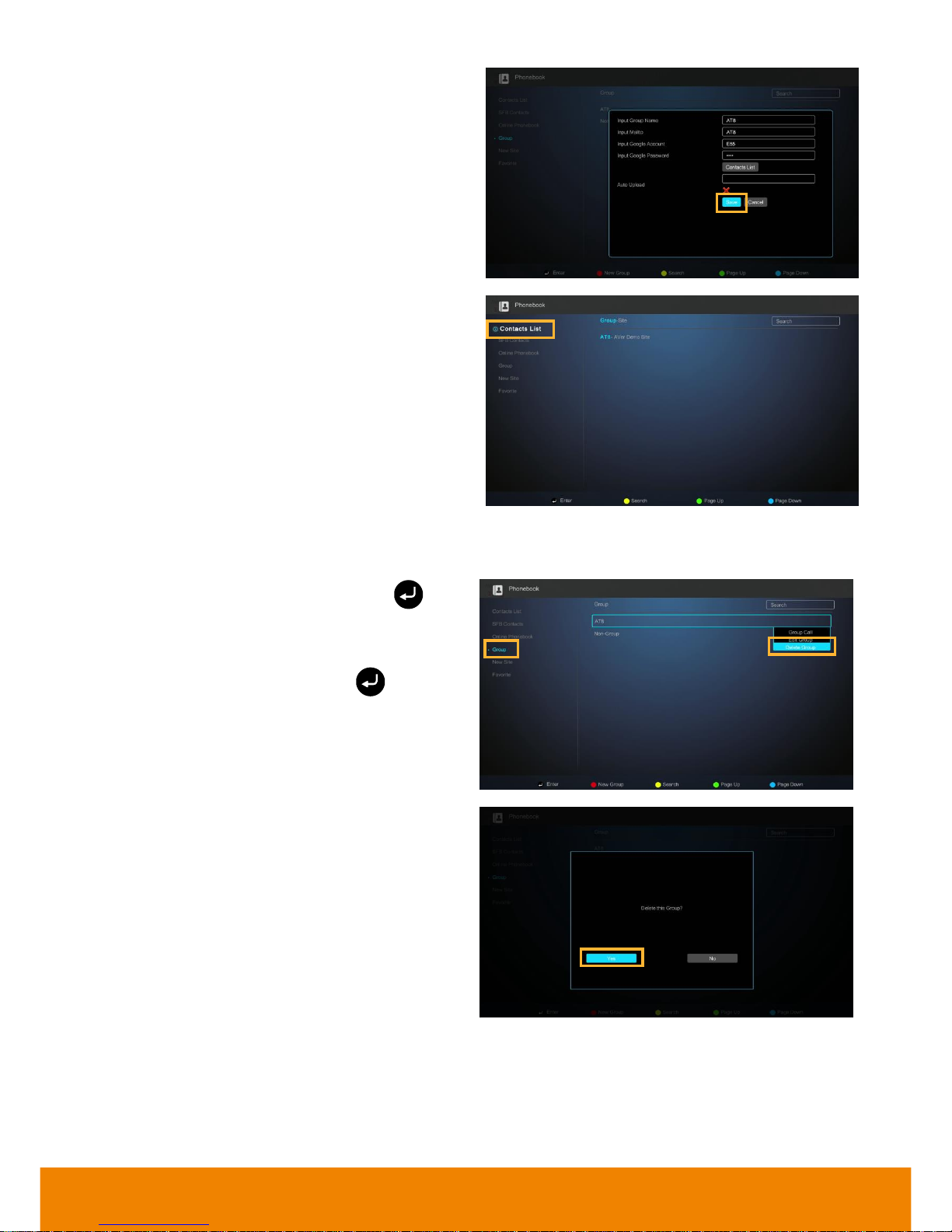

Input Group Name:

Enter a name for the

group.



Input Mailto:

Enter an email address for

receiving files upload notice.



Input Google Account:

Enter a google account to receive file upload notice from the mail account that you have setup in “Input Mailto”.



Input Google Password:

Enter the google account’s password the you have setup in “Input Google Account”.

After enter all information, select

“Save”

to save

the new group. Or select

“Cancel”

to exit the

dialogue box.

The new group name will be saved and displayed in the group list.

Search a Created Group

Press

“Yellow”

button on the remote

controller and enter the group name that you want to search.

If the name you enter has not been created, the system will show you

“No Group Available”

please search again.

Page 40

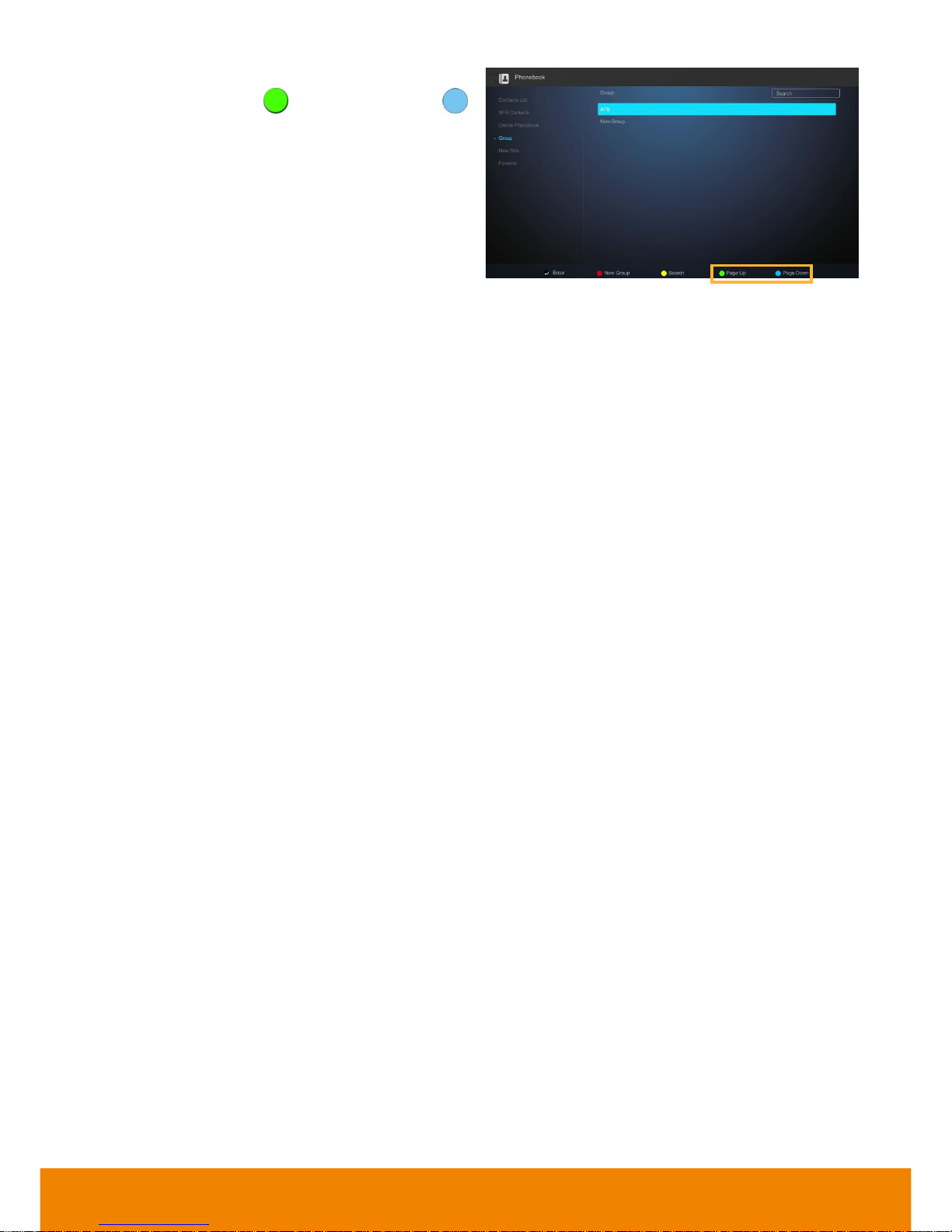

If the Group data are over one page, you can also press

“Green”

button or “

Blue”

button to Page Up or Page Down.

Page 41

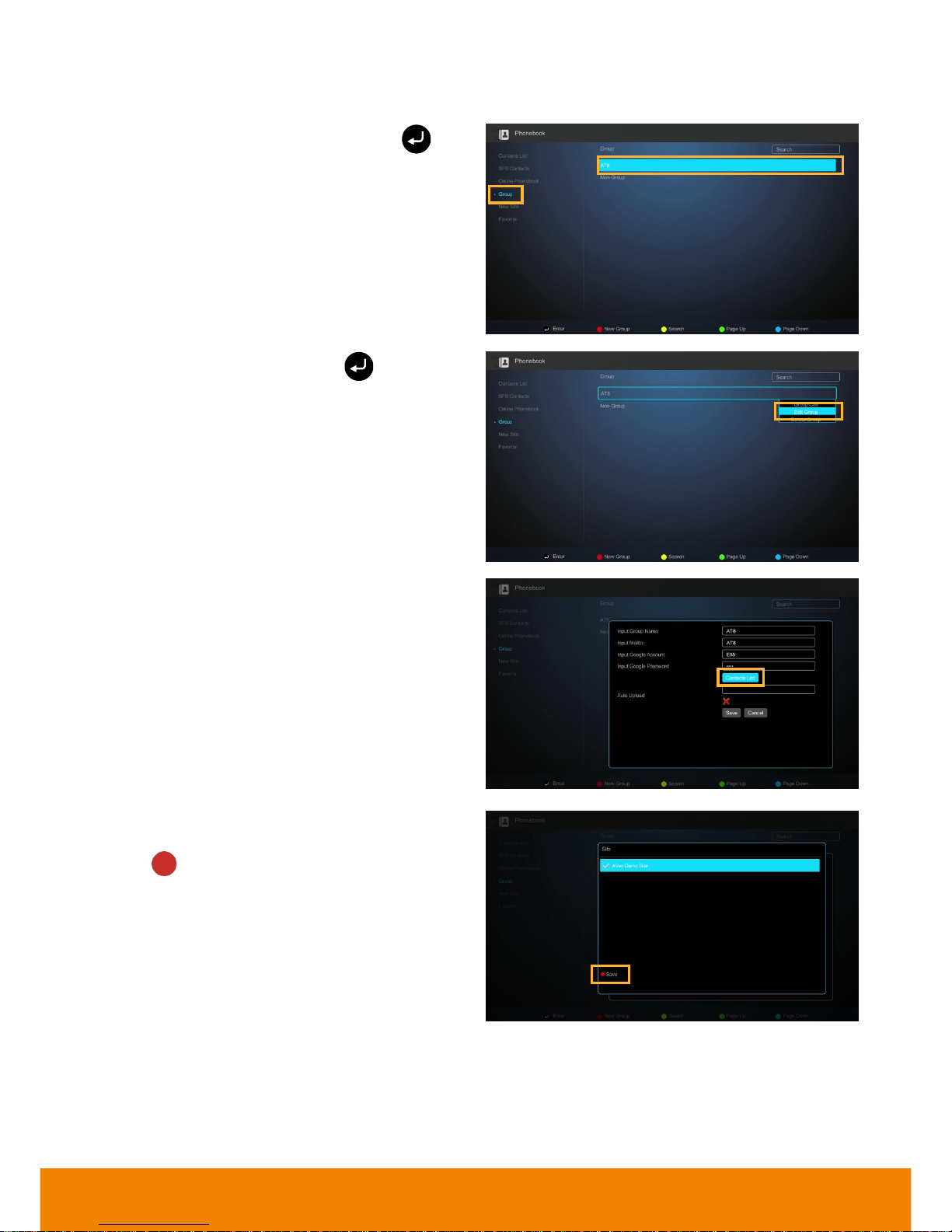

Edit Group

Select

Phonebook│Group

and press .

Select the name you want to modify in the group list.

Select

“Edit Group”

and press .

Modify the information and select

“Save”

save the revised information.

Auto Upload:

Enable/disable uploading the record and snapshot files to google drive automatically. When a red “X” is displayed, it means upload function is not setup yet. Please go to SVC system’s web page to setup upload function(also see Web Configuration).

[Note]

1. Recording and snapshot files upload only available for group call.

2. Uploading will be active at 1 hour later after conferencing call finished and there in no other conferencing call or operation on SVC system in a 1 hour.

If you have revised group name, then, the new group name will be displayed in the group list.



If the revised name is the same as the saved name, the revised name will be ignored.

Page 42

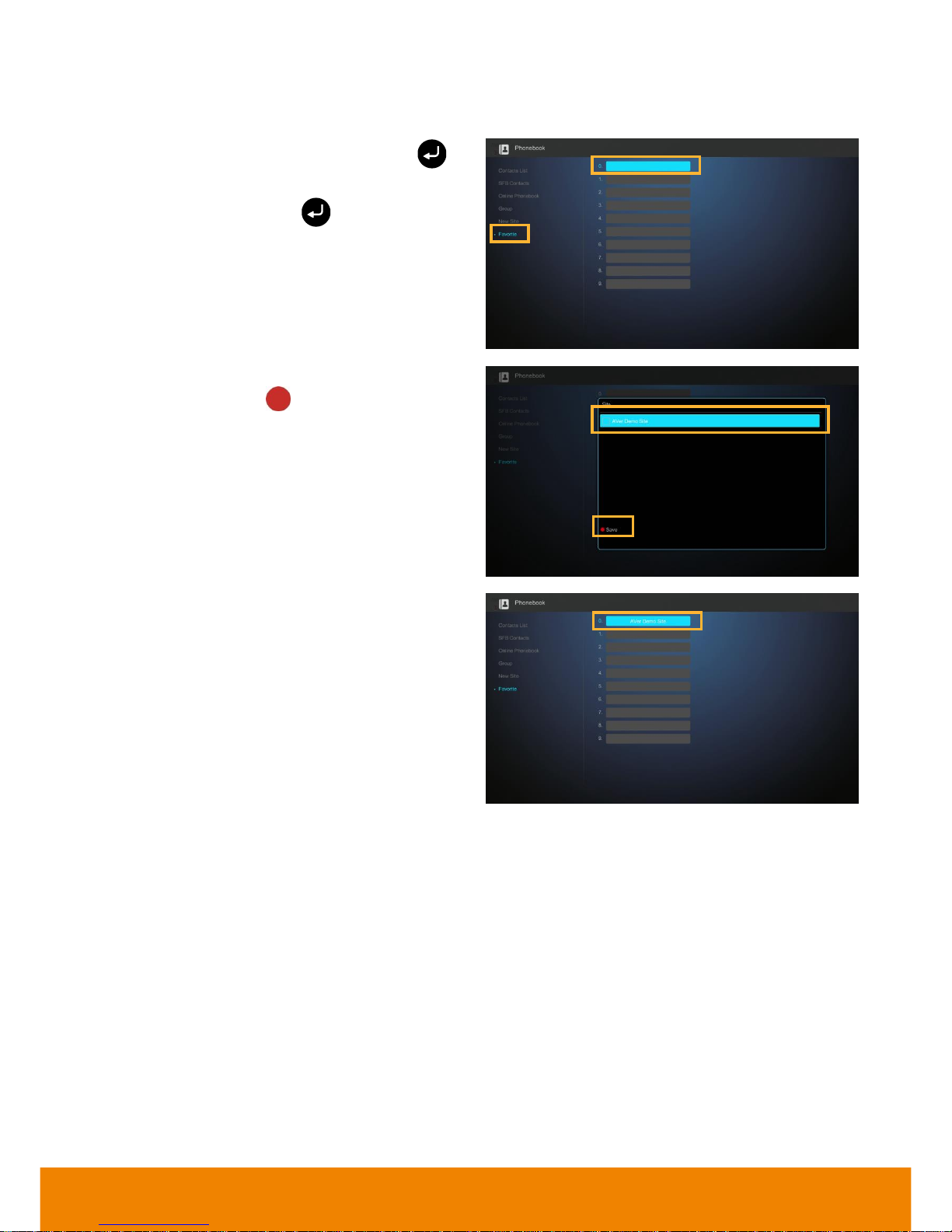

Add Contact from Group List

Select

Phonebook│Group

and press .

Select the Group name you want to add to Contacts List.

Select

“Edit Group”

and press .

Confirm the Group Name what you want to add to the contacts list and then select

“Contacts

List”

In the Group Site list, select the item that you want to add to the contracts list and then press

“Red”

button on the remote controller to

save the selection.

Page 43

Select

“Save"

to save the Group name and

added site to the contacts list.

The selected Group name and added site will be added into the contacts list.

Delete Group

Select

Phonebook│Group

and press .

Select the name you want to remove in the group list.

Select

“Delete Group”

and press .

Select

“Yes”

to remove the selected group

name and

“Cancel”

to cancel group name

deletion. The selected group name will disappear in the

group list when deleted.

Page 44

Group Call

Select

Phonebook│Group

and press .

Select the name you want to select in the group list.

Select

“Group Call”

and press .

SVC system will star to call the site point in selected group. To stop calling, select

Cancel

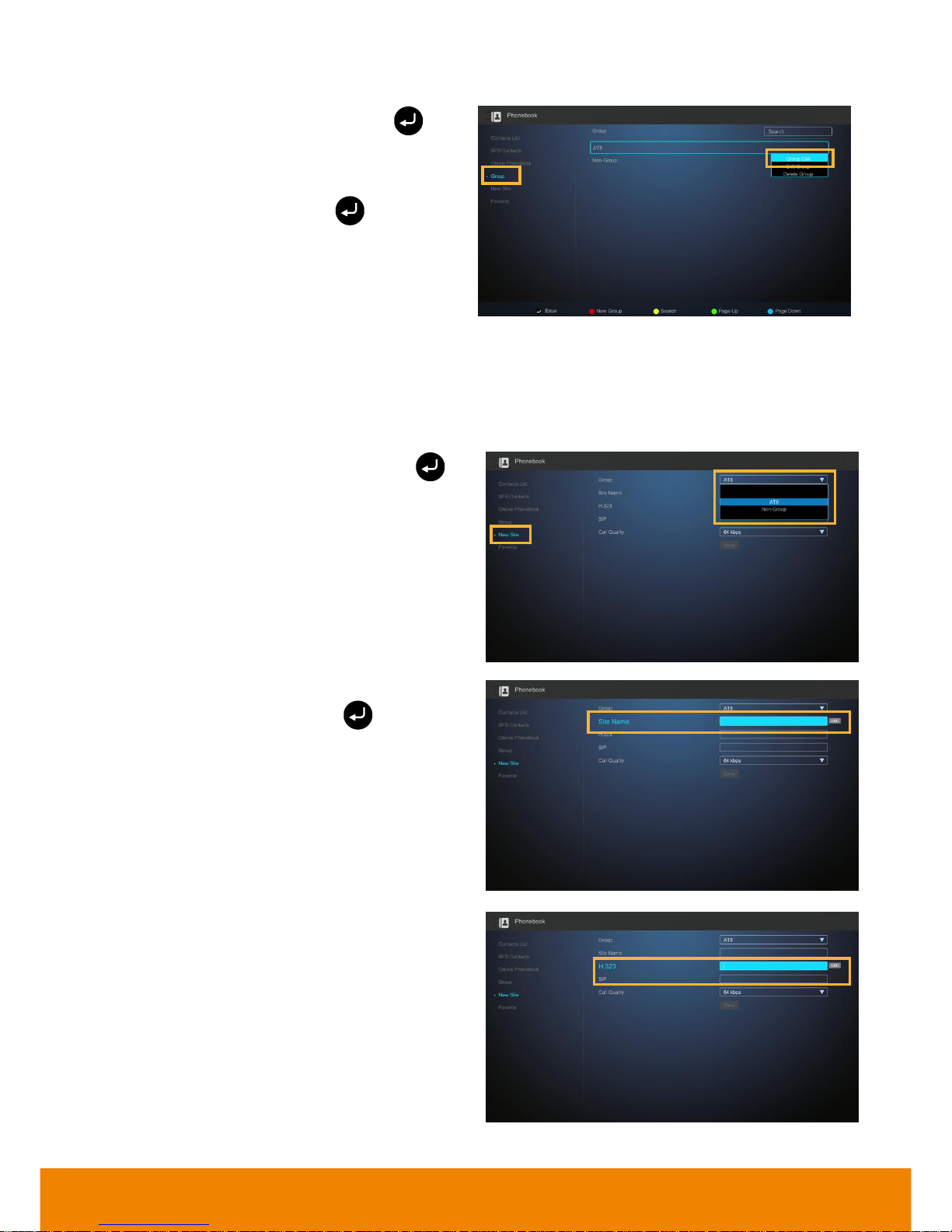

New Site (Contact in Phonebook)

New Site allows you to create and edit the information to each site. Add New Site

Select

Phonebook│New Site

and press .

Select the

Group

name, if you don’t want to add

the entry into a group, please select

“Non-Group”

item.

Select

Site Name

box. Enter the site name with

the remote controller and press .

Enter the used call type information either H.323 or SIP.

Page 45

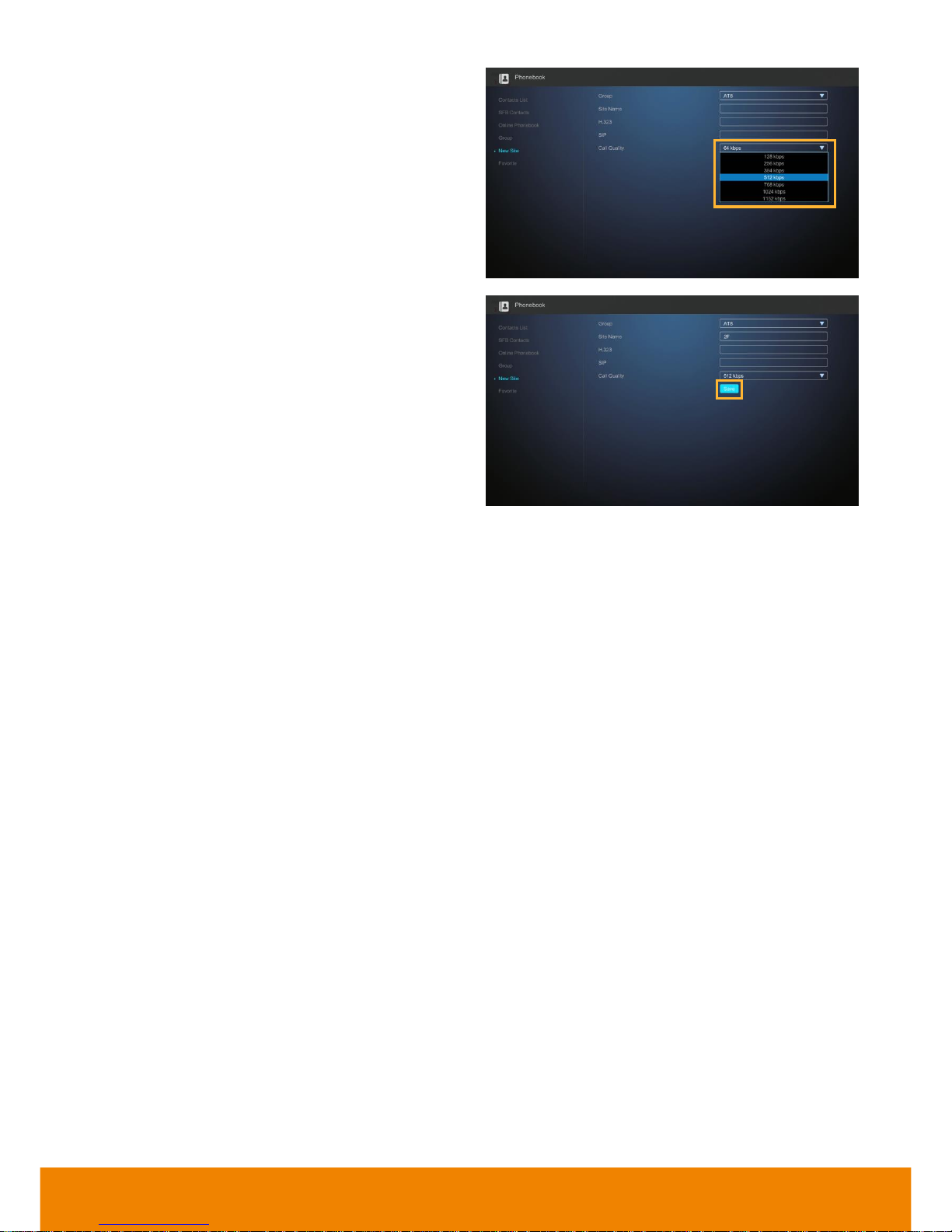

Select the desired call quality value in the drop-down list.

Select

“Save”

to store the newly added site

contact.

Page 46

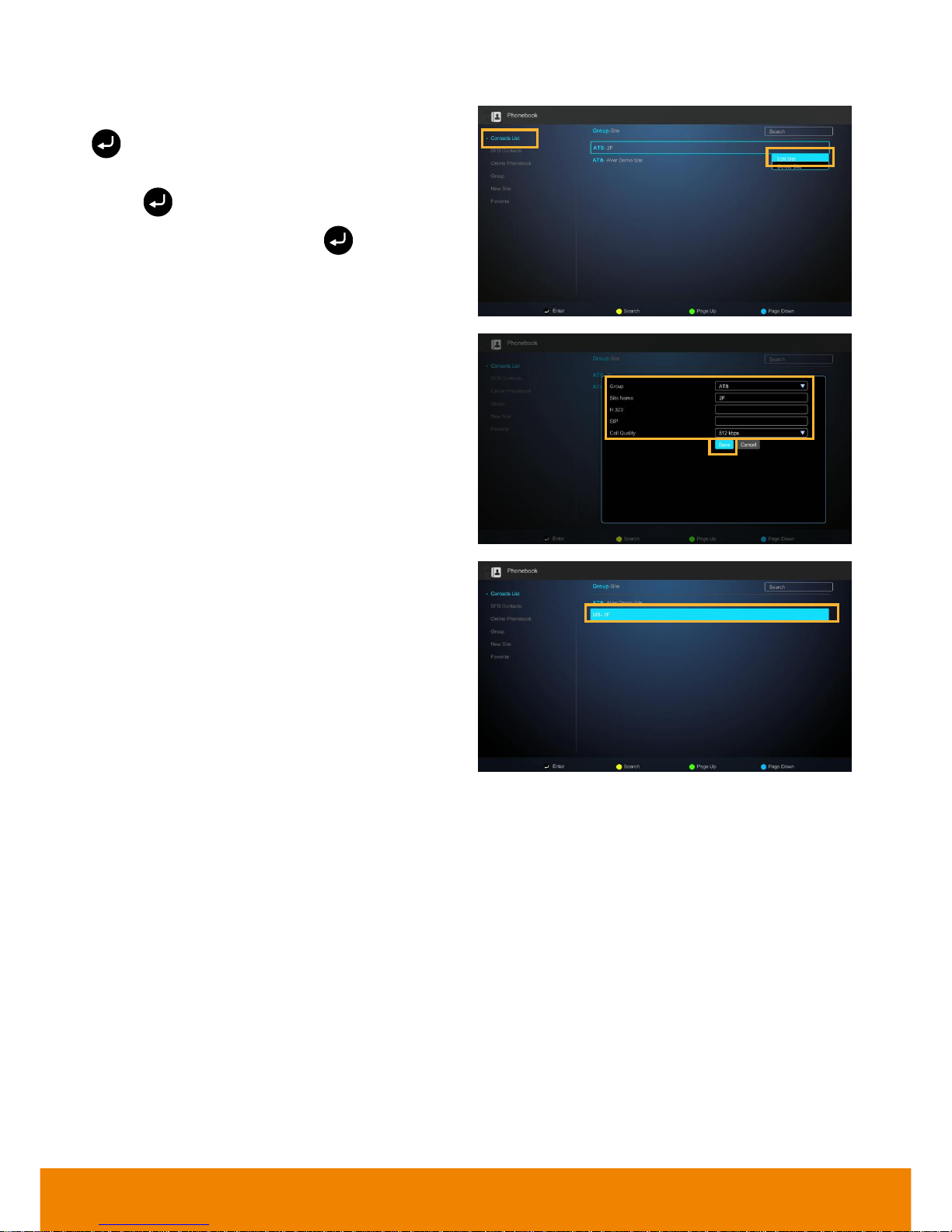

Edit New Site

Select Phonebook│Contacts List and press

Select the contact you want to modify and press .

Select

“Edit Site”

and press .

In the Edit Site screen, you many change the Group name, Site Name, H.323. SIP and Call Quality.

After making the changes, select

“Save”

apply the new changes or

“Cancel”

to reserve

the original settings.

The saved changes will be shown in the Group Site list.

Page 47

Delete New Site

Select Phonebook│Contacts List and press

Select the contact you want to delete and press

Select

“Delete Site”

and press .

Select

“Yes”

to remove the selected contact

and

“No”

to cancel contact deletion.

The selected contact will disappear in the Group-Site list when deleted.

Page 48

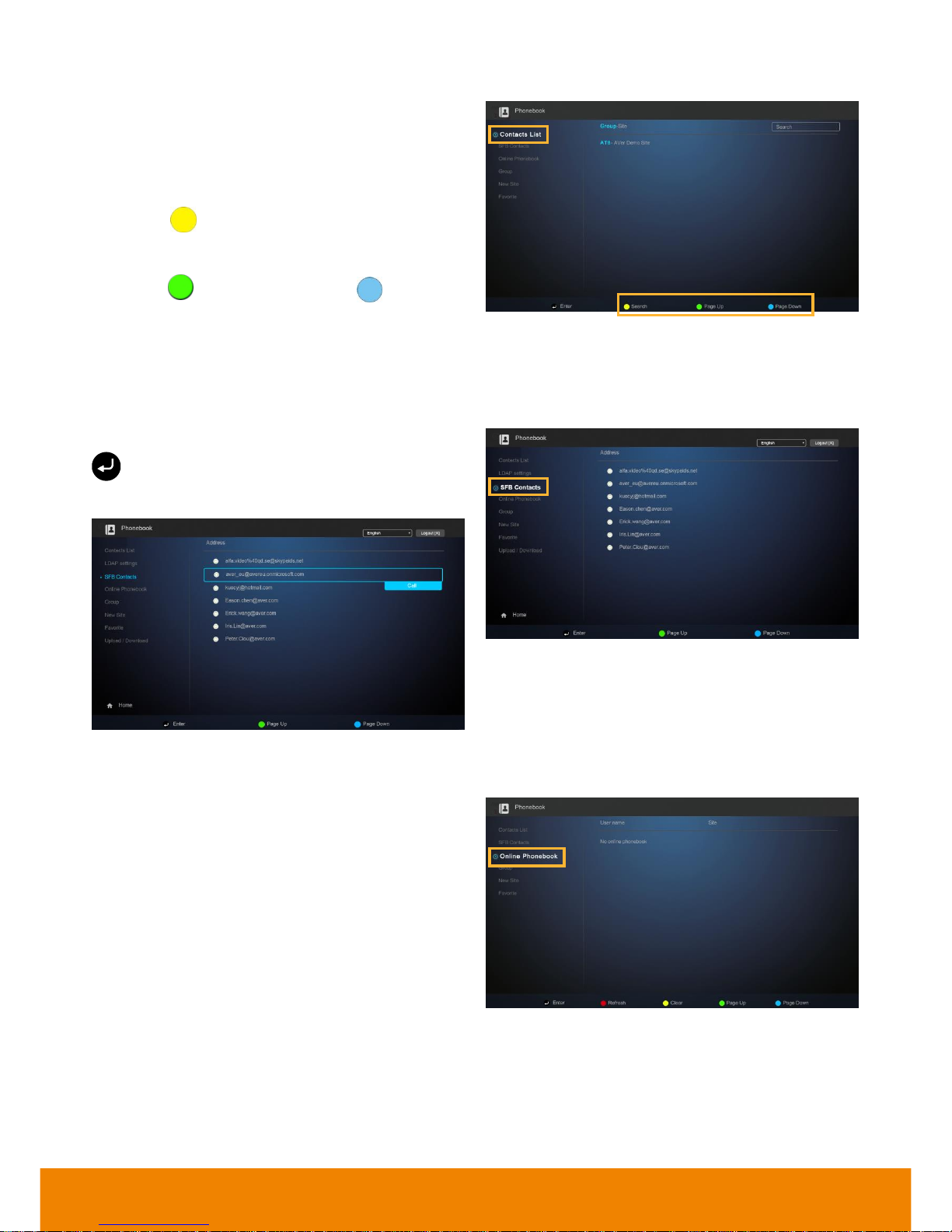

Contacts List

Contacts List shows you all of the contacts that you have created and saved. You can select the contact from the

Contacts List

directly for modifying or deleting. In the Contacts List configuration screen, you can also use the

“

Yellow”

button on the remote controller to

search the contact that you want. If the Group-Site over one page, you can also press

“

Green”

button or

“Blue”

button to

Page Up or Page Down.

SFB Contacts

Display the contact list of Skype for Business, once you register account successful.

Select

Phonebook│SFB Contacts

and press

User can select the contactor to make a call.

Online Phonebook

View the phonebooks are downloaded from LDAP server.

Page 49

Favorite

AVer SVC allows you save up to 10 most used contacts in the favorite list.

Select

Phonebook│Favorite

and press .

Select which line (0~9) do you want to save the favorite contact and press .

Select the contact from the pop-up

Group Site

list and press

“Red”

button on the remote

controller to save the selection.

The item selected will be added into favorite list. You can make the calls from the favorite list

#(0~9) which you have set the favorite list, to press and hold the button #(0~9) via remote controller in Home menu screen.

Page 50

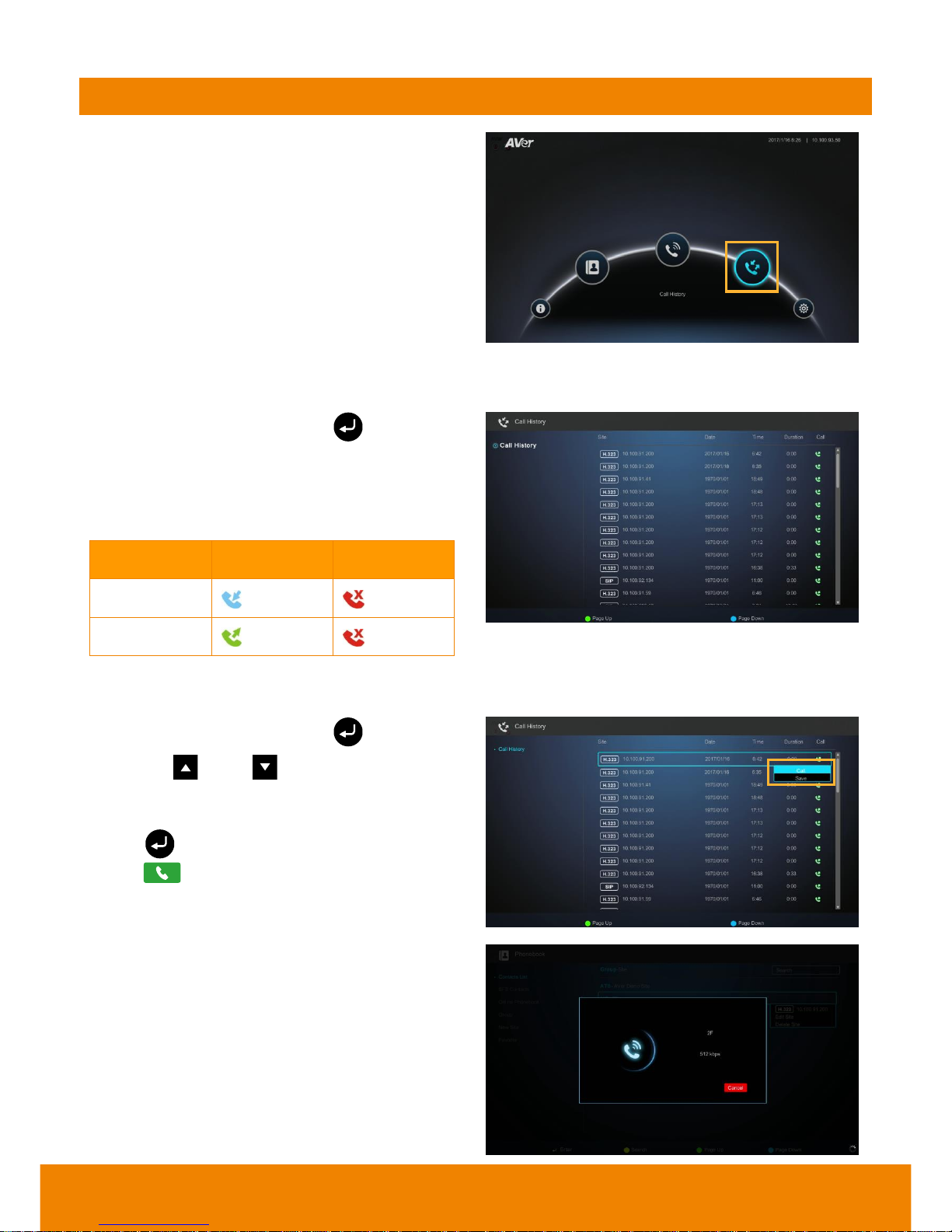

Call History

The Call History allows you to check the incoming/outgoing calls made and their status. You can also make a call by selecting it in the Call History list.

Call Status

Select

Call History

and press .

The Call History will show you the IP address or the Site name with call type, Call Date/Time, Duration, and Call status. Refer to the table below to check the call status.

Call Status

Answered

Failed

OUT

Make a Call From the Call History

Select

Call History

and press .

Use the and buttons to move the selection and scroll up and down in the call

history list. Press and select

“Call”

to make a call. Or

press button on the remote controller to make a call.

The call will be connected.

Page 51

Make a Contact from the Call History

You can also save the call in/out information into your contacts list.

Select

Call History

and press .

Use the and buttons to move the selection and scroll up and down in the call

history list. Press and select

“Save”

to pop-up contact

editing form. All relative information has filled in the contact form already based on the selected call entry from the Call History.

Confirm the

Group

selection then select

“Save”

to save the call entry into your contact.

Page 52

Settings

The Settings allows you to modify system setting, authority of administrator, monitor setting, and adjust date and time.

Call Settings

Call Setting set the system to enable/disable auto answer, set the default call quality, and enable/disable Advanced Encryption Standard which ciphers the data to protect against unauthorized data access.

Auto Answer

Select

General Setting

and press to select

Call Settings

and press .

Select

Auto Answer

and press . In the Auto

Answer drop-down list, select

“OFF”

to turn off

Auto Answer.

“ON”

to answer the call

automatically and

“First Call Only”

to automatically answer the first call and answer or reject other incoming calls manually. “

First ON

with MIC Mute

” will automatically answer the first coming call but local site is in mute status; the caller site couldn’t hear any sound from local site. “

Do Not Disturb

” will not answer any coming call. If you are already in a conference, even if the Auto Answer is turned on, you also need to accept the next call manually.

Page 53

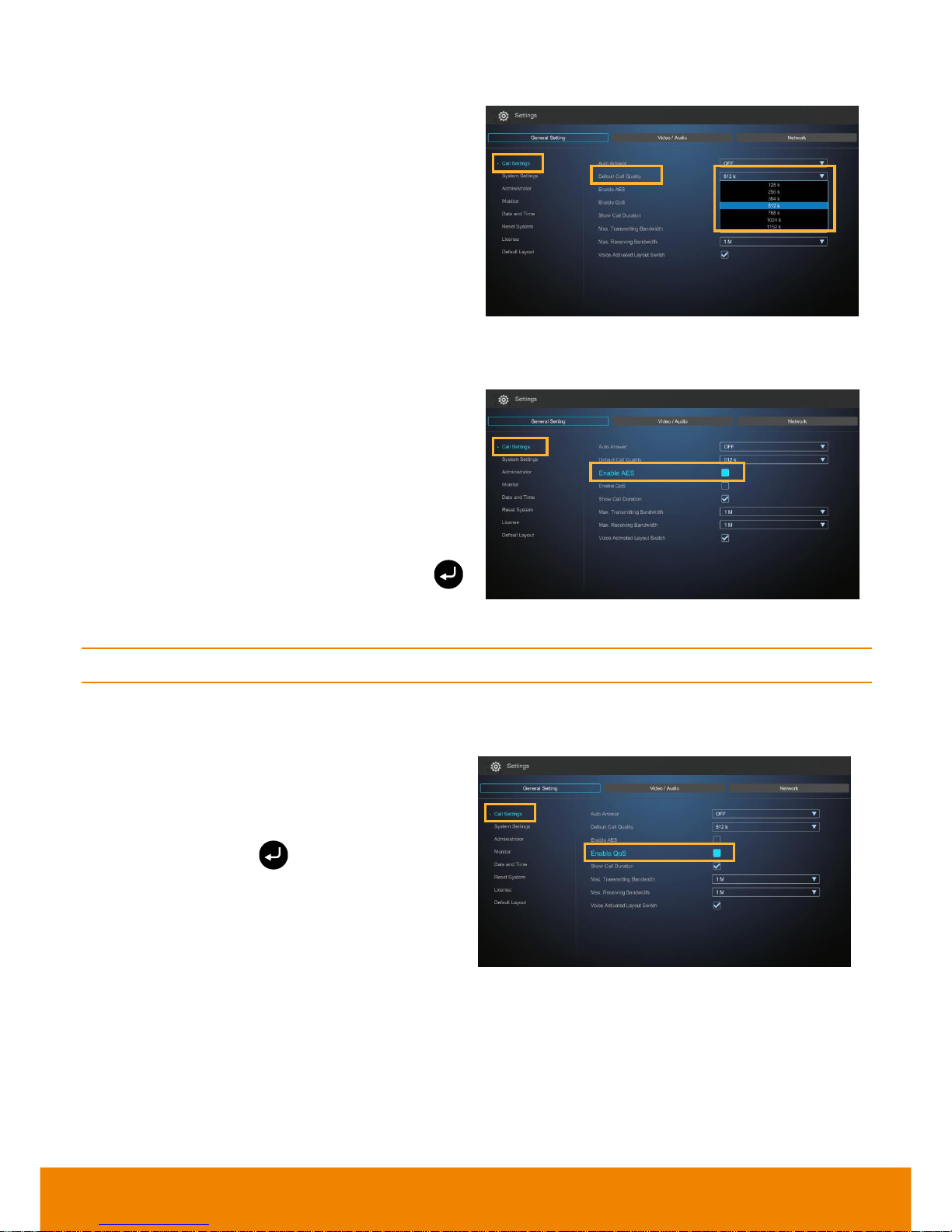

Default Call Quality

SVC main system supports 64K,128k, 256k, 384k, 512k, 768k, 1024k, 1152k, 1472k, 1536k, 1920k, 2048k , 3072k, 4096k selection for default call quality. By default, it is set to 512k.

Enable/Disable AES

Advanced Encryption Standard (AES) encrypts the data that is being transmitted during a video conferencing to provide protection against unauthorized data access. Encrypted data can only be read with the device that also supports the AES standard. All parties on the call must support AES to use this feature, or else the data will not be encrypted.

Select

Settings│Call Settings

and press .

Select the

Enable AES

check box to active this

function.



This function may be restricted and unavailable in some countries.

Enable/Disable QoS

Quality of Service (QoS) provides different priority data flows to guarantee a certain level of performance in video conferencing data flow. To activate QoS, select

General Setting│Call

Settings

and press . Select the

Enable

QoS

check box to active this function. By

default, this function is disabled.

Page 54

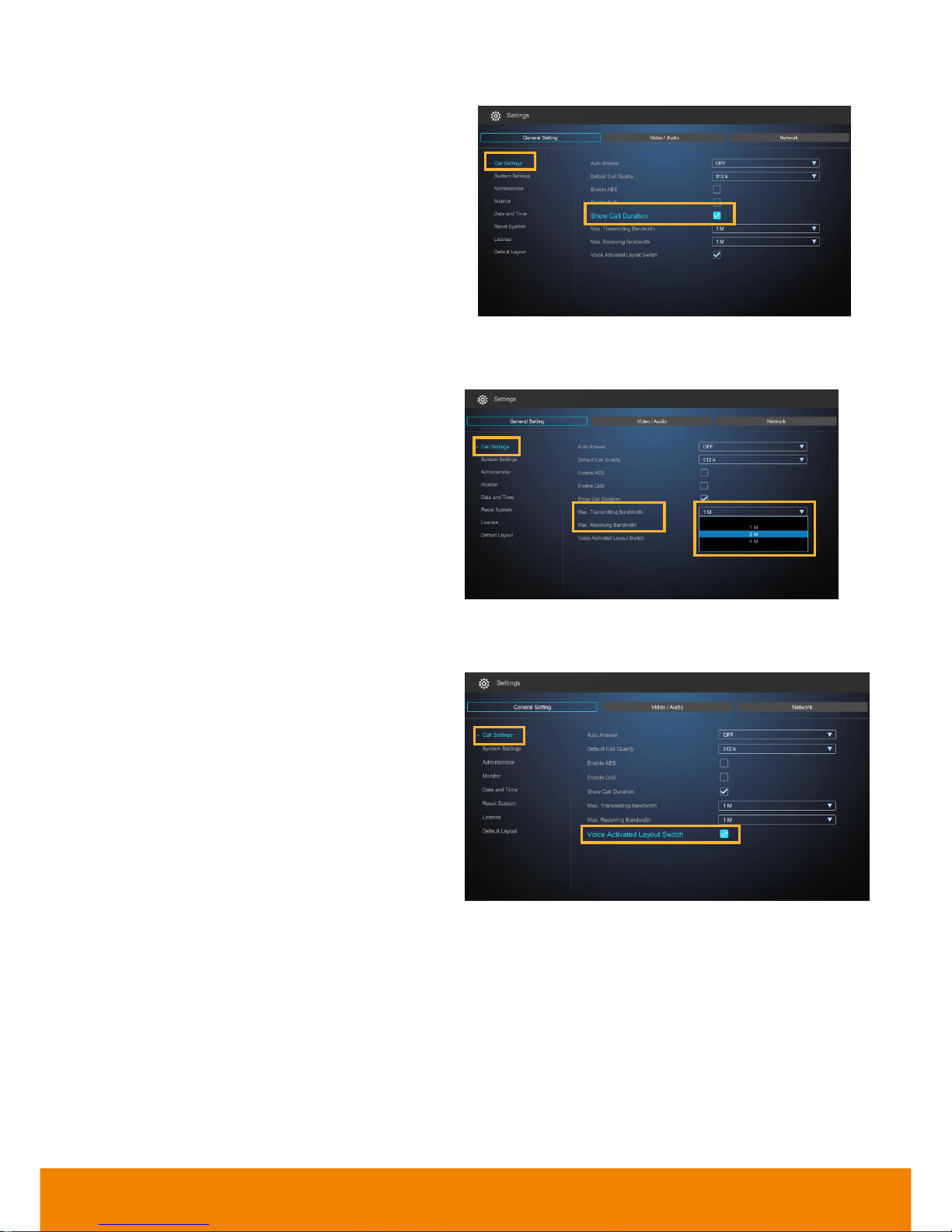

Show Call Duration

Enable/disable the call duration showing, by default, this function is enabled.

Max. Transmitting/Receiving Bandwidth

This function allows you to specify the maximum bandwidth of the outbound and inbound calls. AVer SVC system supports up to 36M.

Voice Activated Layout Switch

During the video conferencing, the SVC system will detect which connected point is talking and show the video of talking point into enlarge screen view.

[Note]

1. When function of Voice Activated Layout Switch is enabled, the multiple connections must over 3 points.

2. When voice activate function is disabled, the screen is displayed the video of first connected call.

3. In Figure 1, the layout 2, 3 and 4 are displayed the talking point at largest video screen area and rest of points are displayed in small video screen area. If connecting point doesn’t enable “Voice Activated Layout Switch” function, it will display in small screen.

4. In Figure 1, the layout 4 is displayed talking point on largest video screen area. If Voice Activated Layout Switch doesn’t enable, the largest video screen area is displayed video of local site.

Page 55

For example:

Figure 1

System Settings

System Settings allows you to enter or change your system’s site name which will appear on the screen during the call session for the other party to identify you, set Language, the time for Auto Power off and enable/disable Keypad Tone function for your main system.

Site Name

Select

General Setting

and press to select

System Settings

and press . The site name

is represented as name of this SVC system. Enter the site name as you wanted.

Language

Select

General Setting

and press to select

System Settings

and press .

SVC main system supports up to 22 languages for your selection. Select the language from the drop-down list directly and the language for the system will turn into the selected language automatically.

Page 56

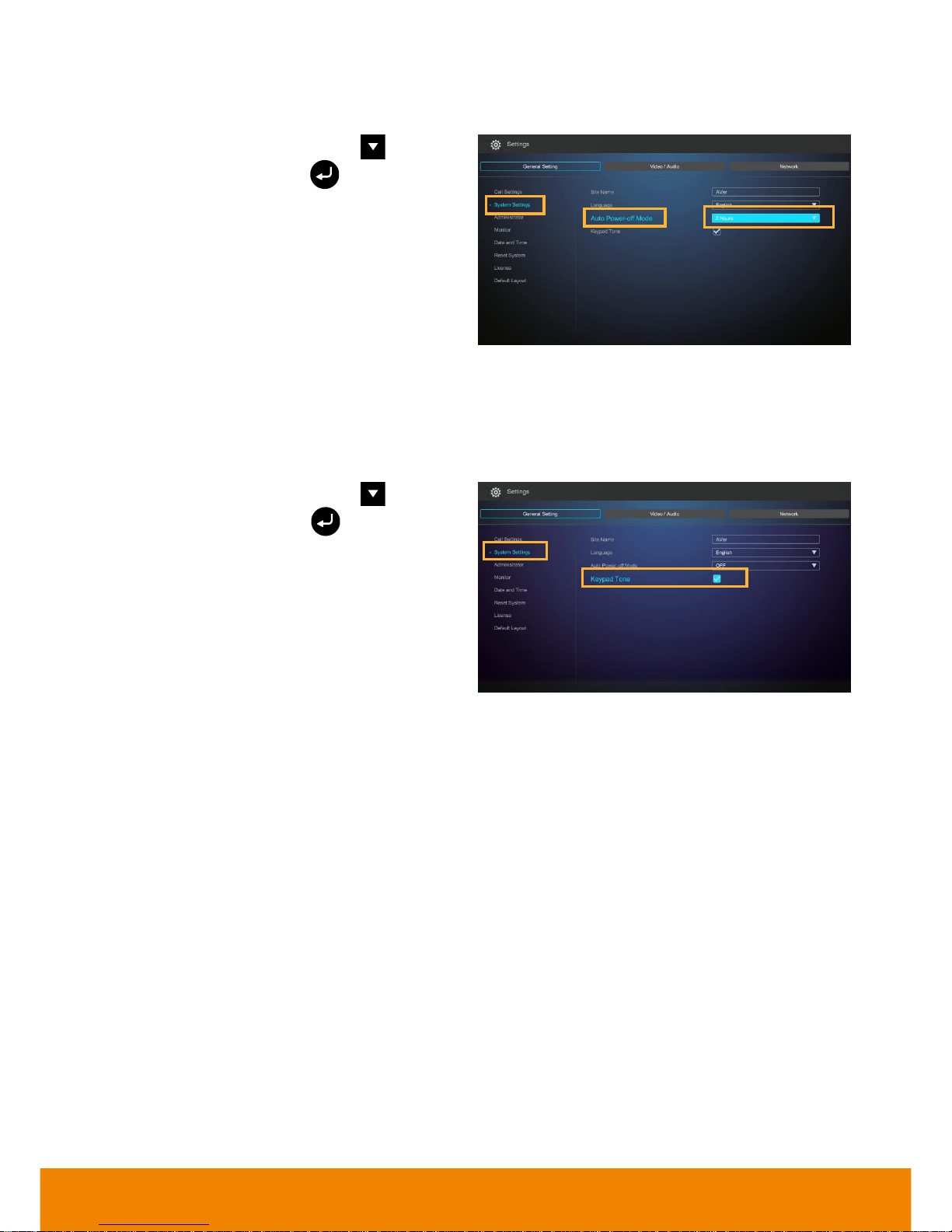

Auto Power Off Mode Auto Power Off Mode allows you to set the time to power off your system automatically after idling.

Select

General Setting

and press to select

System Setting

s and press .

Select the time from the

Auto Power Off Mode

drop-down list (OFF/30Minutes/ 1Hour/2Hours/3Hours/4Hours). Disable this

function, please select “

OFF

”. The function will

completely turn off the system once you have set the auto power off time. To turn on the system you need to press the Power button on the SVC main unit again.

Keypad Tone Keypad Tone allows you to enable/disable tone sounds when you are dialing a number using the

remote controller.

Select

General Setting

and press to select

System Settings

and press .

Select the Keypad Tone check box to enable the tone sounds. By default, this function is enabled.

Page 57

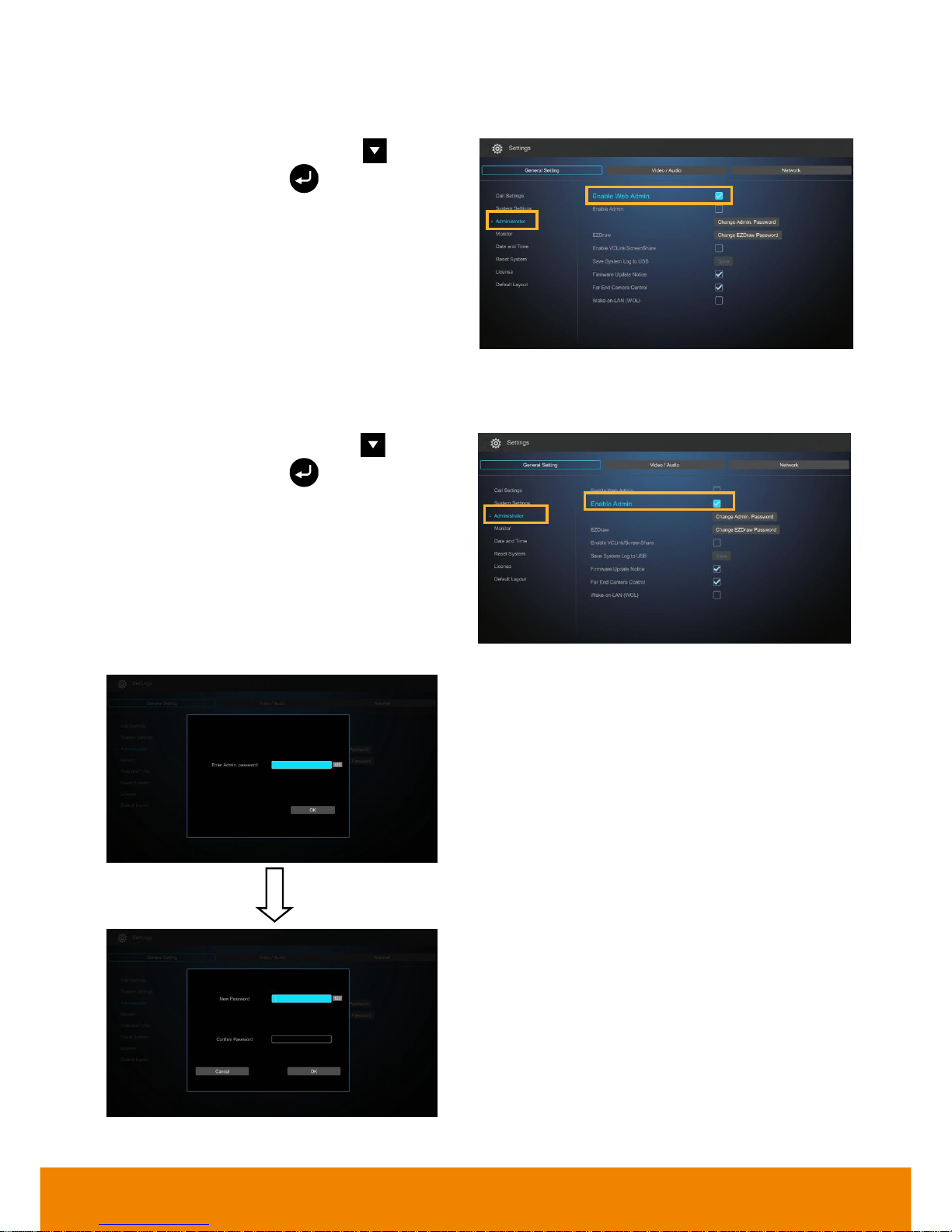

Administrator

Enable Web Admin

Select

General Setting

and press to select

Administrator

and press .

Here allows you to enable administrator authority of Web Tool. When you access to Web Tool, a password is required. The default password is “1234”.

Enable Admin

Select

General Setting

and press to select

Administrator

and press .

Here allows you to enable authority of system administrator. When you want to setup system, a password is required. The default password is “1234”.

To change password, select

Change Admin

Password

. Enter the admin password, then, enter new password and confirm password, select OK to change the password.

Page 58

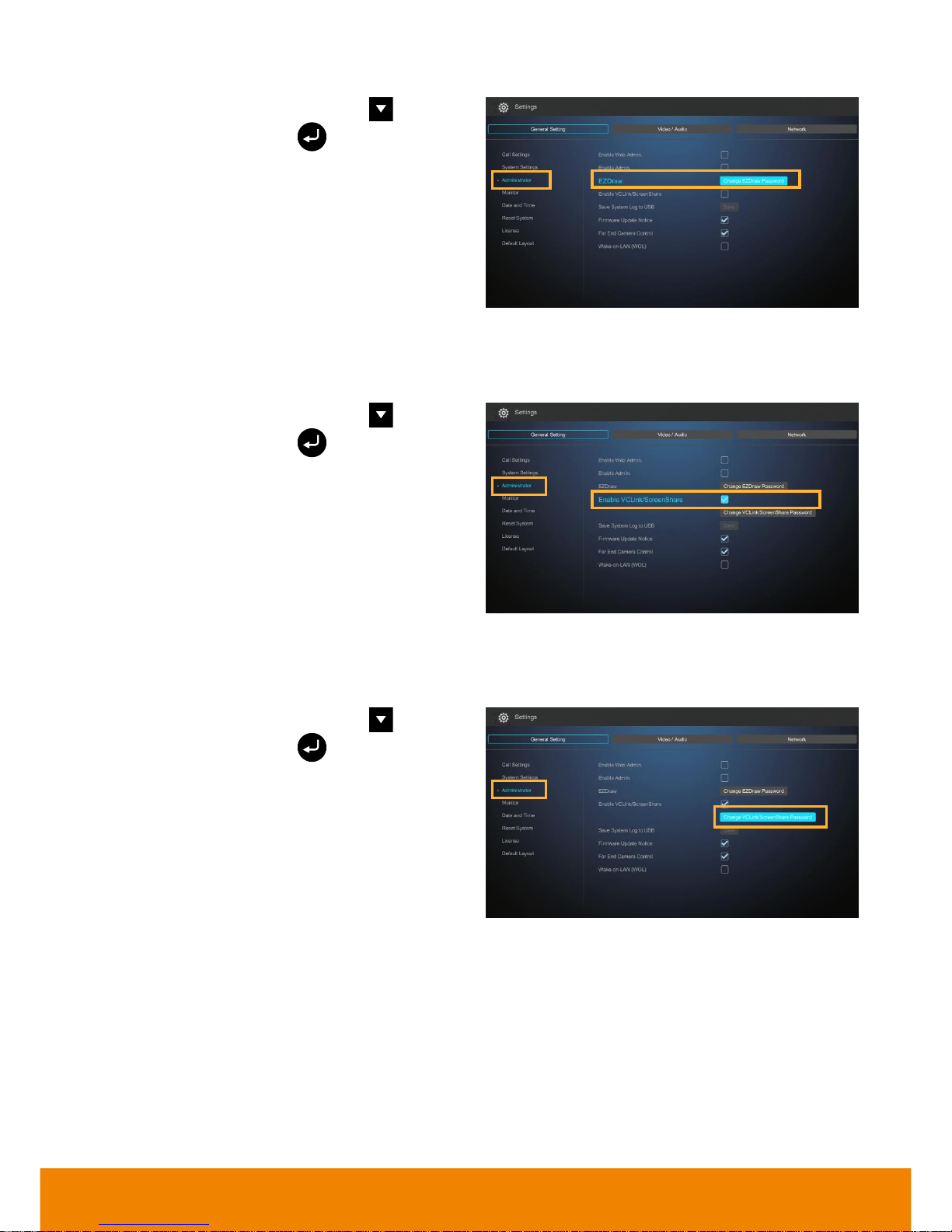

Change EZDraw Password

Select

General Setting

and press to select

Administrator

and press .

Here allows you to change password of EZDraw.

EZDraw password is used when user use EZDraw on tablet to connect to SVC system. SVC system support up to 10 users to connect to SVC system by EZDraw.

The default password is “1234”

Enable VCLine/ScreenShare

Select

General Setting

and press to select

Administrator

and press .

Here allows you to enable function of VCLink and ScreenShare

Change VCLine/ScreenShare Password

Select

General Setting

and press to select

Administrator

and press .

Here allows you to change password of VCLink and ScreenShare. The default password is “1234”

Page 59

Save System Log If you encounter unknown issues and are unsure of how to troubleshoot the unit, sending us the

saved system log data to help us solve your problem faster. Insert a USB Flash drive into the USB Port(on front panel and back panel) of the SVC main system.

Select

“Save”

located next to

“Save System

Log”

to save the system log into your USB

Flash drive. After the file is saved, select

“OK”

. Remove the

USB Flash drive and insert it into your

computer’s USB port. Located the file

message.tar.gz and send it to the technical support team.

Firmware Update Notice

Select this function check box to enable firmware updated notice function. By default, this function is enabled.

Page 60

Far End Camera Control

Select the “

Far End Camera Control

” check box to enable the far site to control your camera. By default, this function is enabled.

Page 61

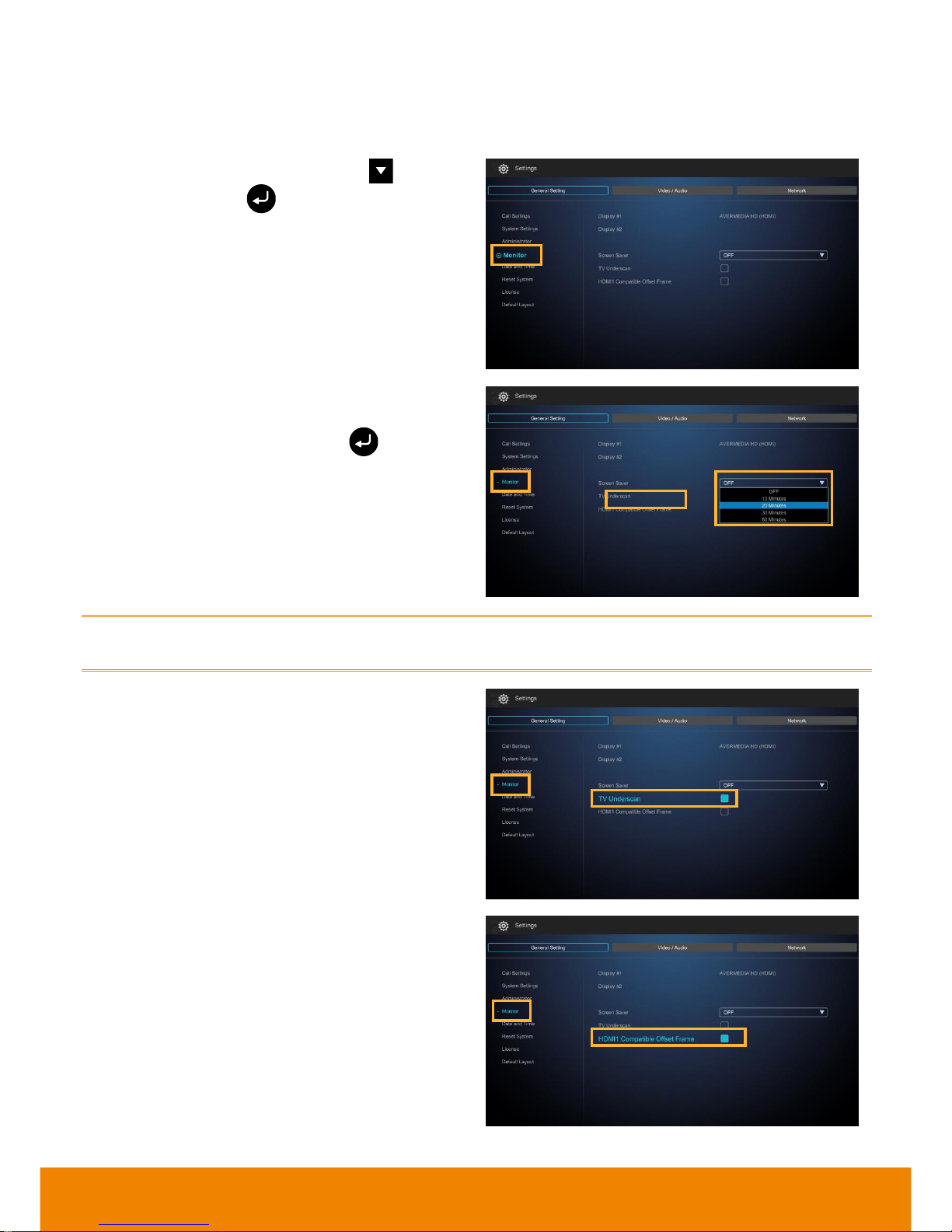

Monitor

SVC main system allows you to connect dual monitor. In the

Monitor

configuration screen, you can

configure the

Aspect Ratio

and

Screen Saver

to each monitor.

Select

General Setting

and press to select

Monitor

and press .

Select the Screen Saver time (OFF/10 Minutes/20Minutes/30Minutes/60Minutes) from

the drop-down list and press . You can select

“OFF”

to disable this function or define a

standby mode time.



The screen will turn black when the system is in standby mode. Press any button on the remote

controller to wake up the system.

TV Underscan For older type TVs/CRT monitors, this function

can help to auto adjust screen view when the GUI is exceeded the monitor view range.

HDMI1 Compatible Offset Frame

To adjust screen position if the screen display is not in center.

Page 62

Date and Time

Date and Time allows you to set the Date and Time formats, adjust the time setting and change the time zones around the world and countries.

Date Format

Select

General Setting

and press to select

Date and Time

and press .

Select the Date Format (yyyy-mm-dd/ mm-dd-yyyy/dd-mm-yyyy) you prefer from the drop-down list.

Time Format

Select

General Setting

and press to select

Date and Time

and press .

Select the Time Format (24-hour/12-hour) you prefer from the drop-down list.

Enable NTP

Network Time Protocol (NTP) is a protocol that is used to synchronize computer clock times in a network of computers. Select the

Enable NTP

check box to make your main system time the same as the network time.

Page 63

NTP Server

Timezone

Year and Hour

Enter the date and time including year, month, day, hour and minute that you want to show on the present system.

Select “

Apply

” to active your settings.

Page 64

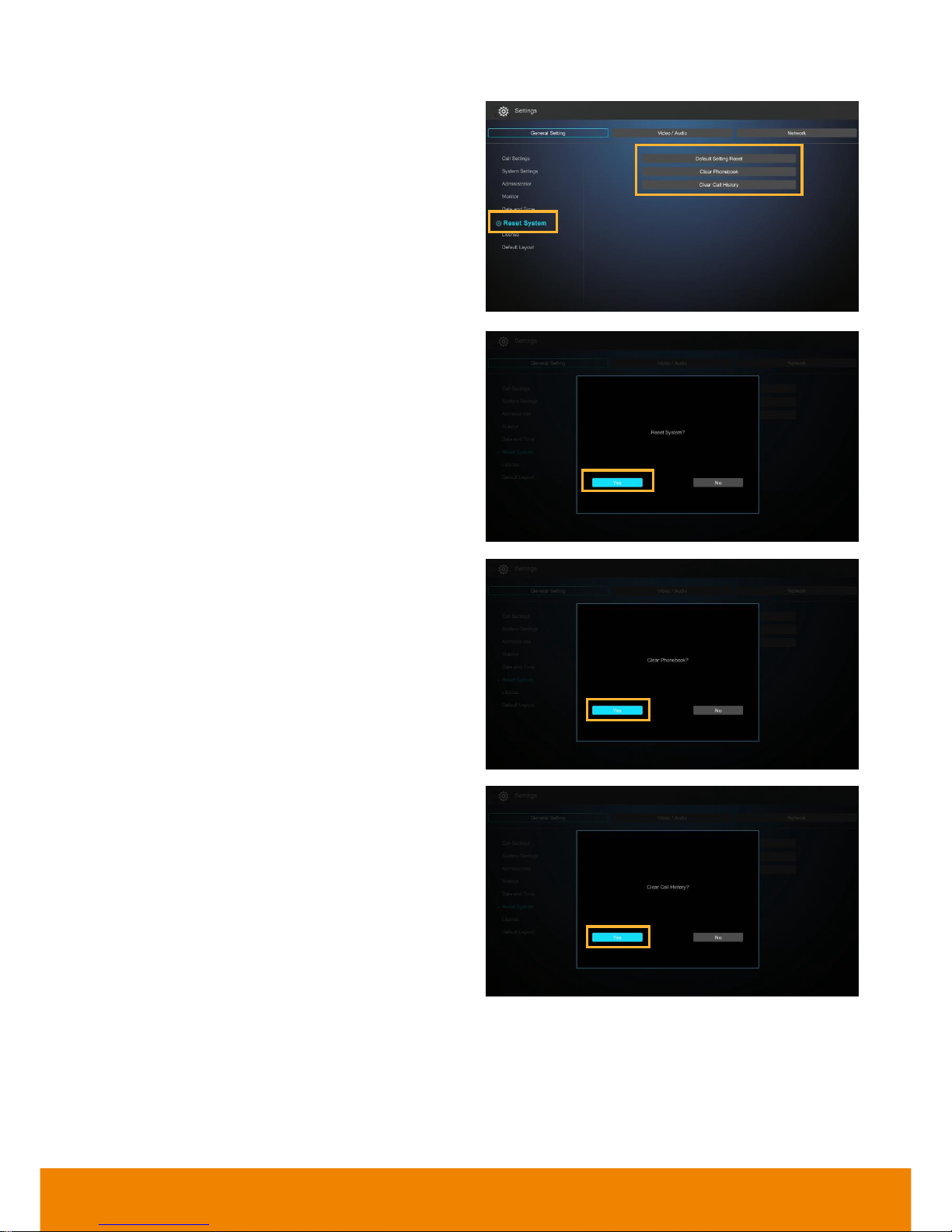

Reset System

The Reset System allows you to reset your main system to factory settings, which will clear phonebook entries and call history. Make sure to back up the information before resetting the system.

Default Setting Reset:

LAN configuration,

video/audio codec selection, call settings and so

on will be reset. Click “

Yes

” to reset your system

to factory default values.

Clear Phonebook:

All the phonebook entries

saved in the system will be deleted.

Click “

Yes

” to delete all content of your

phonebook.

Clear Call History:

All the incoming and

outgoing call records will be deleted. Click “

Yes

”

to delete all calling information of the call history.

Page 65

License

SVC can purchase license to increase call-point up to 16 call-points. To purchase license, please contact your sales dealer.

Select

Add License

to enter license serial

number.

Press

keypad button

on remote and enter the license serial number. After entering, select OK to back to License enter page. Then, select

Activate

to register the license.

[Note]

1. License serial number is capital sensitive.

2. One license only for one SVC device. You will see the license serial number list in

Activate License section. To enter another license serial number, follow

above steps.

Page 66

Default Layout

You can select the layout for call conference. There two type of layout – Layout without content and Layout with content.

Layout without content:

Only display call

video, no content share screen. There 4 layouts can be chosen. During the call

conferencing, the display layout will be the layout that you has chosen.

Layout with content:

display call video and

content share screen. There 6 layouts can be chosen; but only 2

layouts include content share screen. During the call conferencing, the display layout will be the layout that you has chosen.

PIP Display Time:

When conference call is connected, screen is displayed in PIP mode. You can manually setup PIP mode display time. The default is 5 seconds.

Page 67

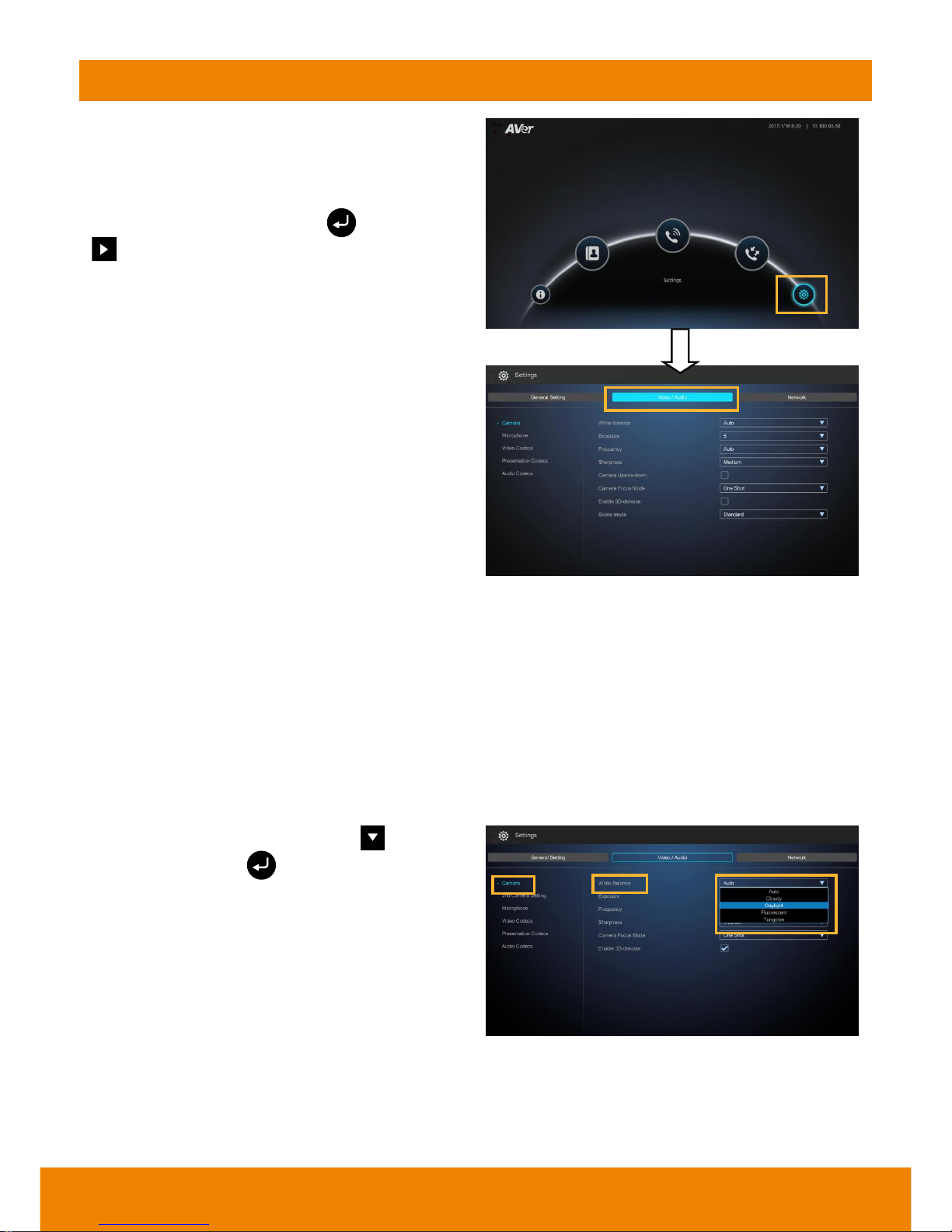

Video/Audio

configuration screen, you can set the MIC gain level, select the preferred video and audio codecs and adjust the camera functions.

Select

Settings

and press , then, press

to select

Video/Audio.

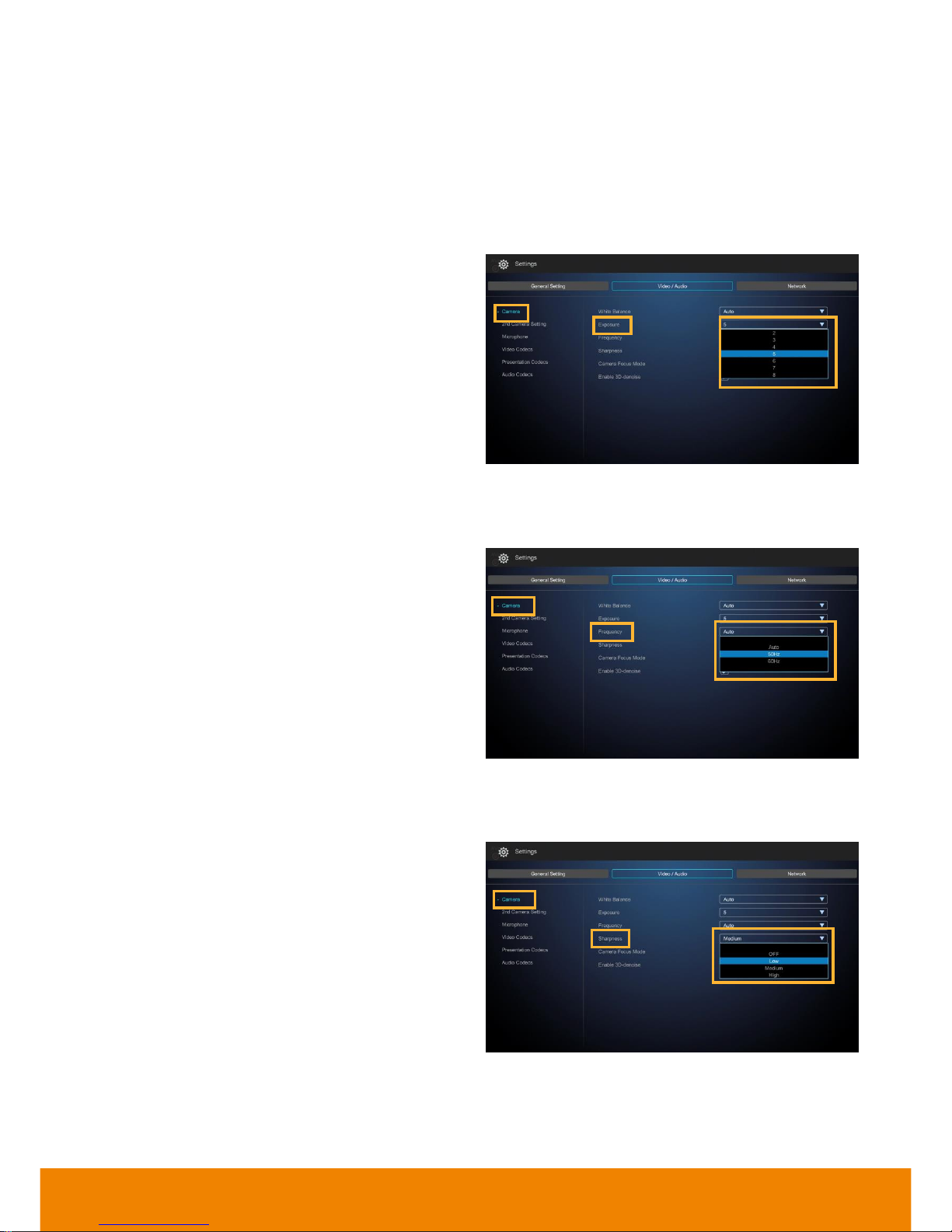

Camera

Camera allows you to set the

White Balance, Exposure, Sharpness,

and

Frequency

for your

camera.

White Balance Whit balance is a camera setting that adjusts for lighting in order to make white objects appear white

in photos.

Select

Video/Audio

and press to select

Camera

and press .

Select the

White Balance

type from the drop down list. SVC main system supports up to 5 types of white balance for your selection.

Auto:

Most cameras default to automatic white balance. It makes white objects bright white and alter

all the other colors to match.

Cloudy:

You can use the

Cloudy

white balance setting instead of auto on a cloudy day. This allows the camera to compensate for blueness in the shadows, warming up the scene to better match what your eye would see.

Page 68

Daylight:

You can use

Daylight

settings only when shooting in very bright sunlight, as it can produce

bluish results on overcast days.

Fluorescent:

You can use

Fluorescent

setting to cancel out the green or blue cast, which can

produce sickly-looking results on human skin.

Tungsten:

This setting assumes a color temperature of around 3,200k and is suitable for most

tungsten lamps that normally emit a yellow light. This is usually used to correct for the same color cast.

Exposure

A photograph’s exposure determines how light or dark an image will appear when it is been captured by your camera. Select the exposure level you prefer from 1 to 9 or auto.

Frequency

Select the correct frequency setting (Auto/50Hz/60Hz/OFF) form the Frequency drop-down list.

Sharpness

Adjust camera sharpness. The more sharpness the screen image more easy has noise.

Page 69

Camera Focus Mode

One Shot:

The camera only will do the focus

adjust at beginning.

Face Detection:

The camera will adjust focus base on the face that is nearest to camera. The camera only will do the focus adjust at

beginning. You can press button on remote to re-force the camera to do the focus again.

Auto Focus:

The camera will adjust focus

automatically.

Enable 3D-denoise

Here allow you to enable 3D denoise function. This function can improve image view in low light environment. By default, the 3D denoise is disabled.

Page 70

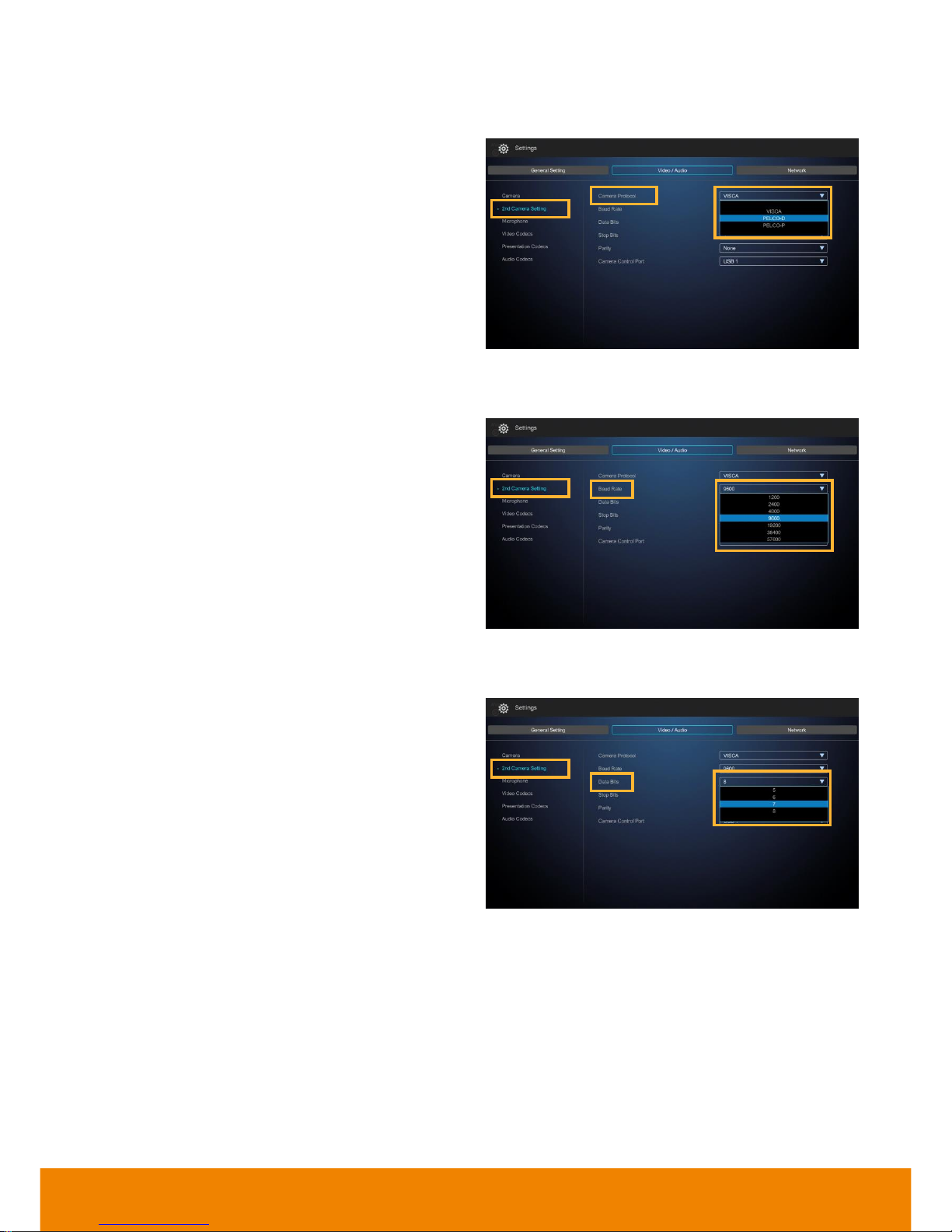

2nd Camera Setting

Camera Protocol

Select the protocol of the camera – VISCA, Pelco-D, Pelco-P.

Camera Protocol

Select the baud rate of the camera.

Data Bits

Set the data bits value.

Page 71

Stop Bits

Set the stop bits value.

Parity

Set the parity value.

Camera Control Port

Select the port of camera control.

Page 72

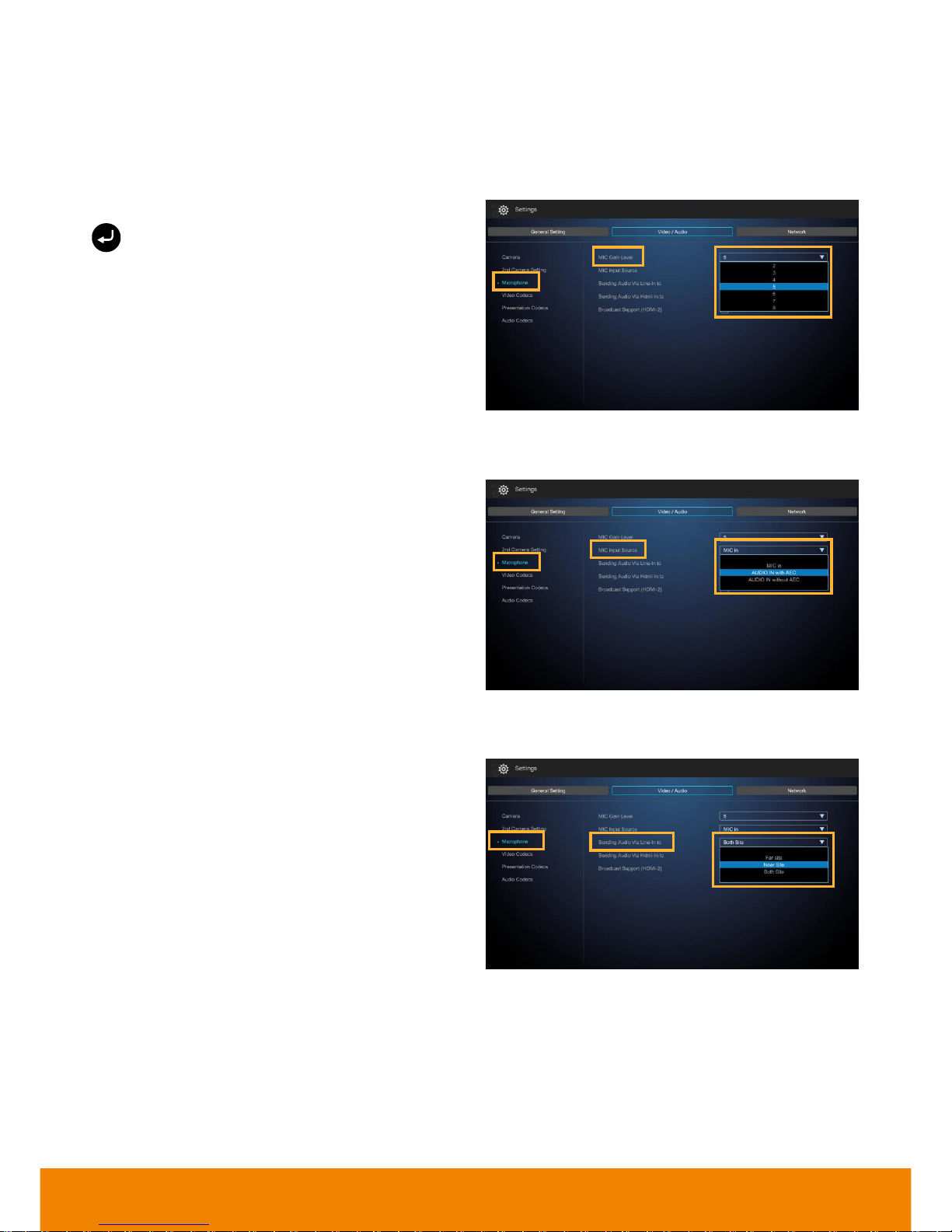

Microphone

SVC main system allows you to adjust the

MIC Gain Level

up to 9 for proper MIC volume to improve

audio reception on the microphone(s).

MIC Gain Level

Select Video/Audio│Microphone and press

Adjust the

MIC Gain Level

form the drop-down

list.

MIC Input Source

Select the source of the microphone from the MIC in, Audio IN with AEC, or Audio IN without AEC. If you connect a microphone in AUDIO IN port, we recommend selecting Audio in selection to avoid the echo issue.

Sending Audio Via Line-in to

Send the audio through the audio device that is connected at audio input port of SVC to selected site(far, near, or both).

If MIC Input Source is

MIC in

, you can choose far, near or both site can hear the audio sound. If MIC Input Source is

Audio in

, only “

far site

” can

be heard the audio sound.

[Note]

When audio input port is connected with audio device and enable “Sending Audio Via Line-in to” function, the AVer MIC is disabled.

Page 73

Sending Audio Via HDMI-in to

Send the audio through the device that is connected at HDMI input port. You can choose which site or both site can hear the audio sound.

Broadcast Support(HDMI-2)

This function allows you to hear own talking voice during video conferencing through the stream media device that is connected on HDMI-2 port of SVC main unit.

In MIC Input Source, please select “MIC In”. If the stream media device didn’t connect to

HDMI-2 port of SVC main unit, it will cause howling when voice come out from TV or speaker.

Page 74

Video/Audio Codecs

You can specify the

Video/Presentation/Audio Codecs

Video Codecs, Presentation Codecs

and

Audio Codecs

configuration screens.

Select

Video/Audio│Video Codecs

for Video

Codecs configuration,

Video/Audio

│

Presentation Codecs

for Presentation Codecs,

Video/Audio│Audio Codecs

for Audio

Codecs configuration and press .

Select the

Video/Presentation/Audio Codecs

to specify the codecs you want to support. While the SVC supports the H.323 standard coding algorithm, each codec has unique properties and performs best given a certain set of circumstances.

For Video

: H.261,H.264, H.263+, H.263,

H.264HP, H264SVC

[Note]

1. H.261 is always mark by default.

2. H.264SVC only work with AVer SVC system and default is disabled.

For Presentation:

H.263, H.263+, H.264,

H.264HP, H264SVC

For Audio:

G.728, G.722.1C, G.722.1*, G.722,

G.711, AAL-LD



Please contact system administrator if you have any question on these codecs.

*:G.722.1/G.722.1C, licensed from Polycom®

Page 75

Network

allows you to set the

SIP Server,

Gatekeeper, Firewall

and

LAN

Configurations

. Before configuring Network and Firewall, please refer to page 69 – Scenarios for LAN connection and follow the instructions of your actual network connection scenario.

LAN Configuration

AVer SVC supports

IPv4

and

IPv6

internet protocol for your configuration. IPv4 is the most widely deployed internet protocol used to connect devices to the internet. IPv4 uses a 32-bit address scheme, written in decimal as four numbers separated by periods. Each number can be zero to 255. For example, 192.168.0.1 could be an IP address.

Select

Settings

and press . Press to

select

Network

and press to select

LAN

Configuration

and press .

Configure the following relative items to setup the LAN Configuration.

Page 76

IP Address Type

DHCP:

Configure the system to automatically

obtain an IP address from the DHCP server.

Static IP:

Configure the system to use the assigned IP address. Select this when the public IP address is available.

PPPoE: Use when your network is a ADSL/DSL

type connection.

Your IP address is

Show the current IP address; enter into when you need to configure your IP address manually.

Subnet Mask

Show the designated IP address routing prefix; enter the subnet mask address when the system does not automatically obtain the subnet mask

Page 77

Default Gateway

A gateway is a network point that acts as an entrance to another network. Enter the gateway address when the system does not automatically obtain the gateway.

Preferred/Alternate DNS Server

Domain Name System (DNS) servers convert human friendly names (ex: www.example.com) to IP addresses (218.77.272.166) that let machines be found on the network. The preferred DNS server is the one your computer asks first. The alternate is a backup. Enter the Preferred and Alternated DNS Server address.

After finishing all settings, select

“Apply”

active the changed settings.

PPPOE

IP Address Type:

Select “PPPoE”.

Username/Password:

Enter the username and

password of PPPoE account. Click “Apply” to make a connection.

Page 78

IPv6

IPv6 is an evolutionary upgrade to the Internet Protocol. IPv6 will coexist with the older IPv4 for some time. IPv6 addresses are 128-bit IP address written in hexadecimal and separated by colons. An example IPv6 address could be written like this: 300E:1389:3030:72EB:1D71:414B:1079:6AF3. Some types of addresses contain long sequences of zeros that can be compressed (the address of fc00:0000:0000:0000:0000: 0000:0000:0001 can be compressed to fc00::1.

Select Select

Settings

and press . Press

to select

Network

and press to select

IPv6

and press .

Configure the following relative items to setup the IPv6.

IP Address Type

Static IP:

Configure the system to use the assigned IP address. Select this when the public IP address is available.

Auto:

Obtain the dynamic IP address

automatically.

Your IP Address is

Show the current IP address; enter into when you need to configure your IP address manually.

Page 79

Prefix Length

Prefix Length allows you to place as many IPv6 devices as the underlying network medium allows.

Default Gateway

Enter the IP address of default gateway when IP address type is in “Auto” mode.

After finishing all settings, select

“Apply”

active the changed settings.

Page 80

Advance Network

Configure 802.1x and VLAN settings.

Select

Network│Advance Network

and press

EAP 802.1x



Enable 802.1x:

Enable/disable 802.1x protocol. IEEE 802.1X is an IEEE Standard for port-based Network Access Control (PNAC). It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN



Identity

: Enter the ID for 802.1x

authentication.



Password

: Enter 802.1x’s authentication

password.

Click

Apply

to save and active the settings.

VLAN



Enable VLAN:

Enable/disable VLAN function. A virtual LAN (VLAN) is any broadcast domain that is partitioned and isolated in a network at the data link layer.



VID

: Enter port for VLAN.



Priority

: Assign VLAN packet’s priority.

Click

Apply

to save and active the settings.

Page 81

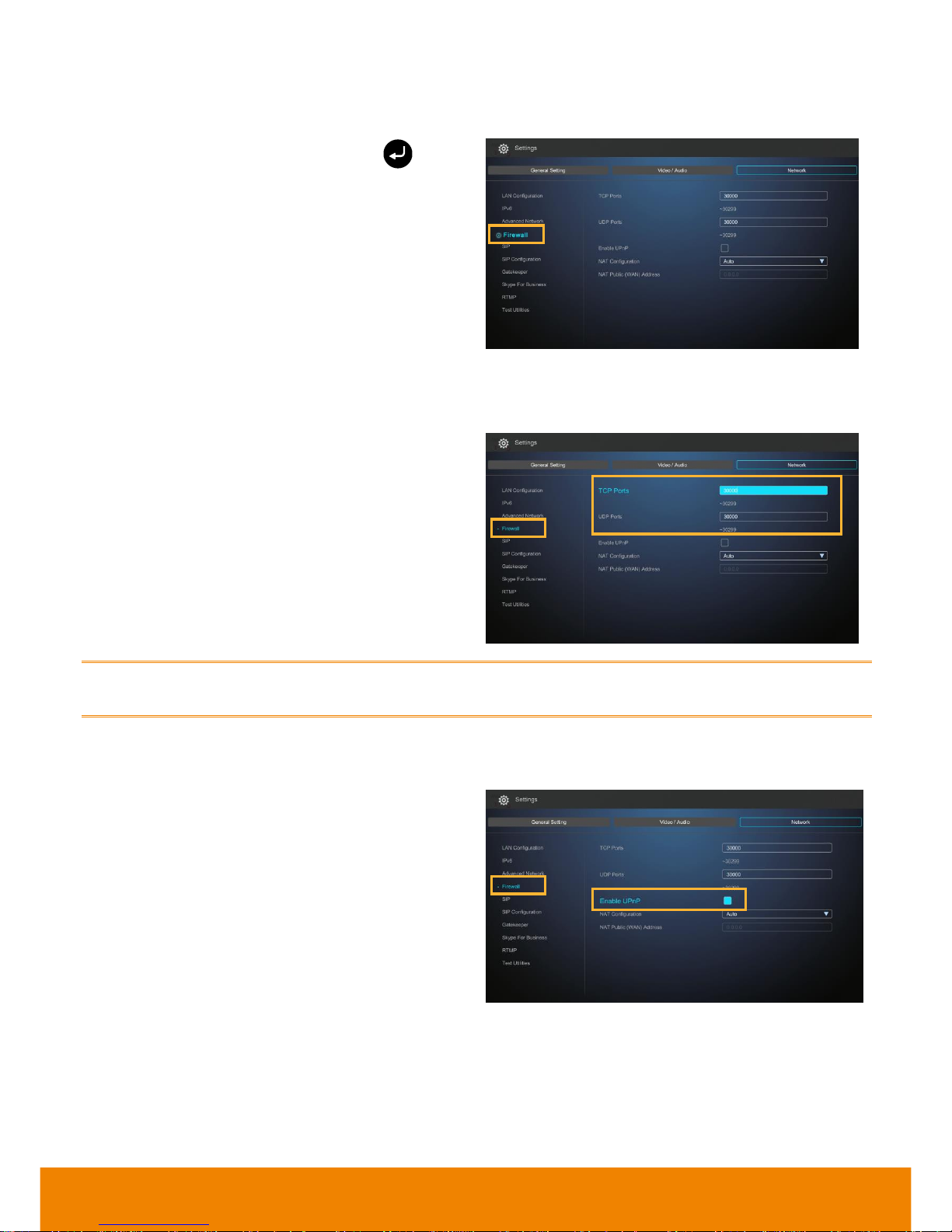

Firewall

Configure the following items to setup the Firewall.

Select

Network

│

Firewall and press .

Configure the following relative items to setup the Firewall.

TCP/UDP Ports

By default, the system communicates through TCP/UDP ports in the range from 30000 to

30299. You can specify the range for your specific network environment.



You must configure your firewall to allow inbound/outbound traffic through “UDP (port 1719)”/ “TCP

(port 1720)” for H.323 call setup.

Enable UPnP

Mark to enable UPnP function.

Page 82

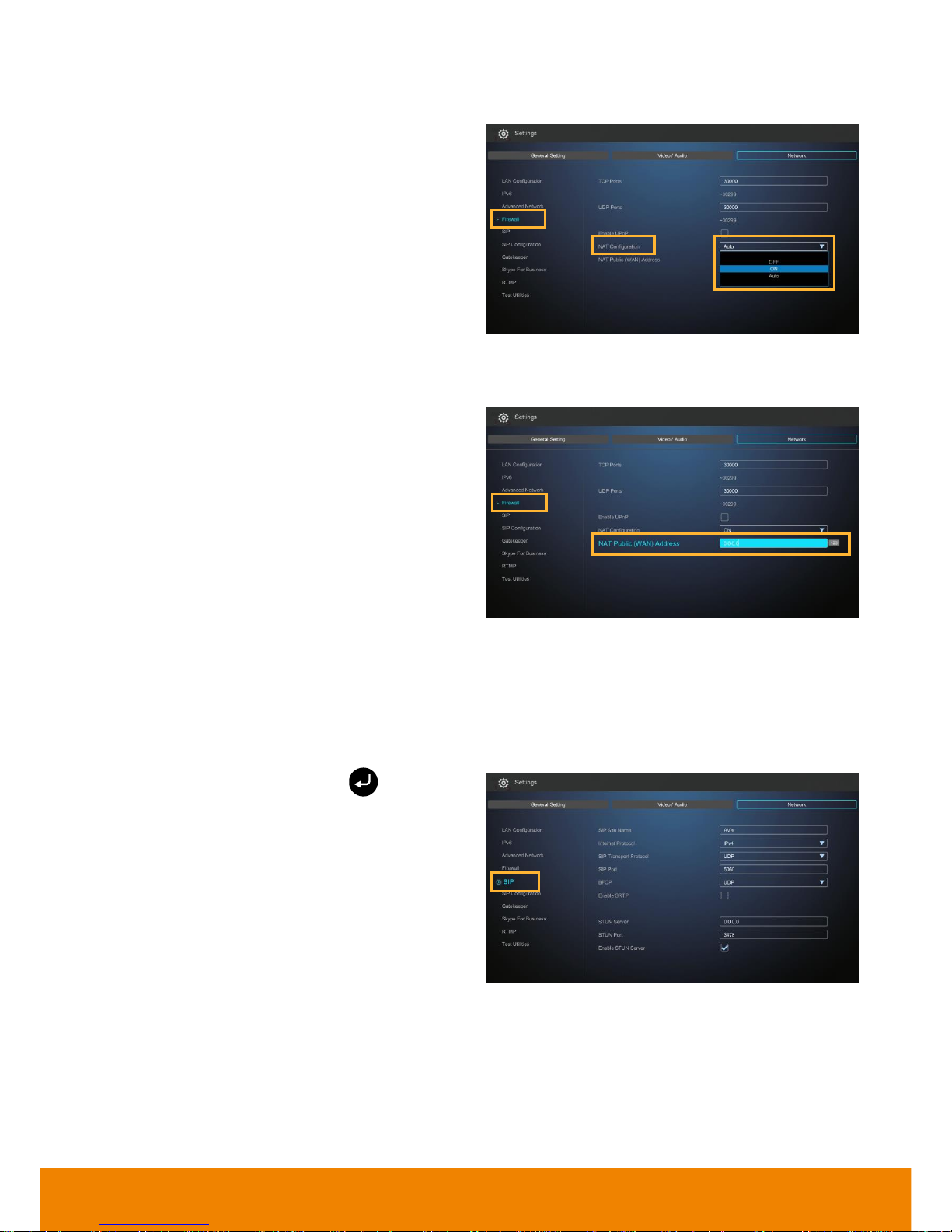

NAT Configuration

AVer SVC supports NAT systems that use the internal IP addresses to communicate with other devices outside the LAN.

NAT Public (WAN) Address

The NAT public address must be entered when you enable the feature on NAT configuration.

SIP

Session Initiation Protocol (SIP) allows you around the world to communicate using your supported devices over the Internet.

Select

Network│SIP

and press .

Configure the following relative items to setup the SIP.

Page 83

SIP Site Name

Enter the SIP site name for others to identify. The SIP site name may be the same or different then the domain for Web activity.

Inter Protocol

Select internet protocol check box to enable IPv4 or IPv6 protocol using.

SIP Transport Protocol Select the SIP Transport Protocol type from the drop-down list for using. There are two types of

Internet Protocol (IP) traffic. They are Transmission Control Protocol (TCP) and User Datagram Protocol (UDP). To ensure proper connection, verify if both calling parties are using the same transport protocol. By default, it is set to UDP.

TCP:

TCP is connection oriented. Once a connection is established, data can be sent bidirectional.

UDP:

UDP is a simpler, connectionless Internet protocol. Multiple messages are sent as packets in chunks using UDP.

TLS:

TLS is a cryptographic protocols designed to provide communications security over a computer network. SIP payloads will be encrypted to prevent malicious or unwanted modifications. NAT-traversal can be achieved by TLS connections since SIP payloads will not be altered by NAT-enabled routers.

Page 84

SIP Port

Change this value only if you use specific settings in your network system. By default, the SIP port is set to 5060.

BFCP

Enable presentation sharing function in SIP. It allows you to share the presentation file screen to other caller in video conference meeting.

If connection is not so stabled, use TCP mode can offer a reliable connection to prevent unexpected disconnection and behaviors due to packet losses.

Enable SRTP

Through SRTP, RTP payloads will be encrypted to prevent sniffer, and hence secure communication between users.

STUN Server

STUN (Session Traversal Utilities for NAT) is a standardized set of methods and a network protocol to allow an end host to discover its public IP address if it is located behind a NAT.

Enter IP address of SIP NAT traversal server.

Page 85

STUN Port

Enter port number of STUN server.

Enable STUN Server

Mark to enable STUN server function.

SIP Configuration

1. Select

Network│SIP Configuration

and

press .

2. Configure the following relative items to setup

the Server.

Page 86

Operating Mode

Select Operating Mode and press to select the mode from drop-down list.

Become a Client:

SIP external server.

Become a Server:

Set SVC main system as a

SIP server.

[Note]

Only allow the users are registered on

SVC100/500 SIP server can make a connection.

OFF:

To deactivated using SIP.

Become a Client:

Select Operating Mode is “Become a Client” in SIP Configuration. Then, enter the

following information to register to SIP server. User Name

Select User Name and press to enter user name.

Authorization Name

Select Authorization Name and press to enter authorization name.

Page 87

Password

Select Password and press to enter using password.

Registrar Server

Proxy Server

Page 88

Account Active

Select “

Account Active

” check box and press

to activate/deactivated.

Next, go to

button and press to

Become a Server:

Select Operating Mode is “Become a Server” in SIP Configuration. Then, enter the

following information to be a SIP server.

Authentication Mode

Select authenticate way to authorize SIP client.

Anonymous:

No password required for any SIP

client.

Password:

Password is required for SIP client to connect SIP server. Set the password in Password column.

Password

When authentication mode is Password mode, a password is required to be set. The default password is “

1234

”.

Page 89

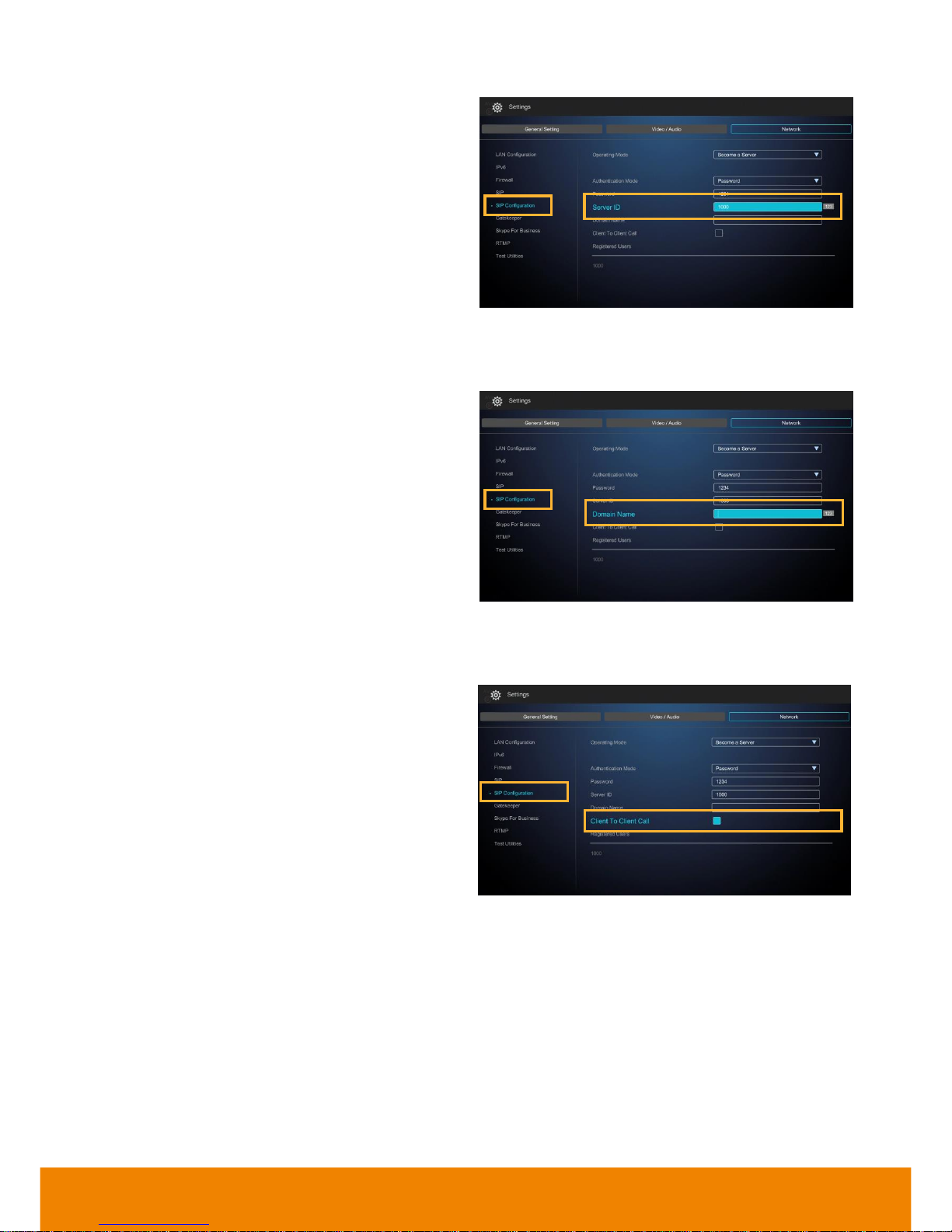

Server ID

The SIP server’s ID that wants to connect. The default server ID is “

1000

”.

Domain Name

Enter the domain name.

Client to Client

To make a 1 to 1 call meetings through the registered SIP server to other SVC system, EZMeetup, or 3rd party conference device. SVC supports five group ( 1 to 1) call meetings.

[Note]

1. Callers and receivers need to be registered

on same SIP server and are list in Registered Users’ list.

2. SVC(SIP server) must power on and setup in

SIP server mode.

3. SVC(SIP server) is a call meeting bridge and

host session in background.

4. Make sure the TCP/UDP ports(30299 ~

30699) of router and SVC are opened.

5. Make sure the internet bandwidth is enough and will not affect performance of standard conference call.

6. The BFCP content sharing only support UDP protocol in Client to Client call.

Page 90

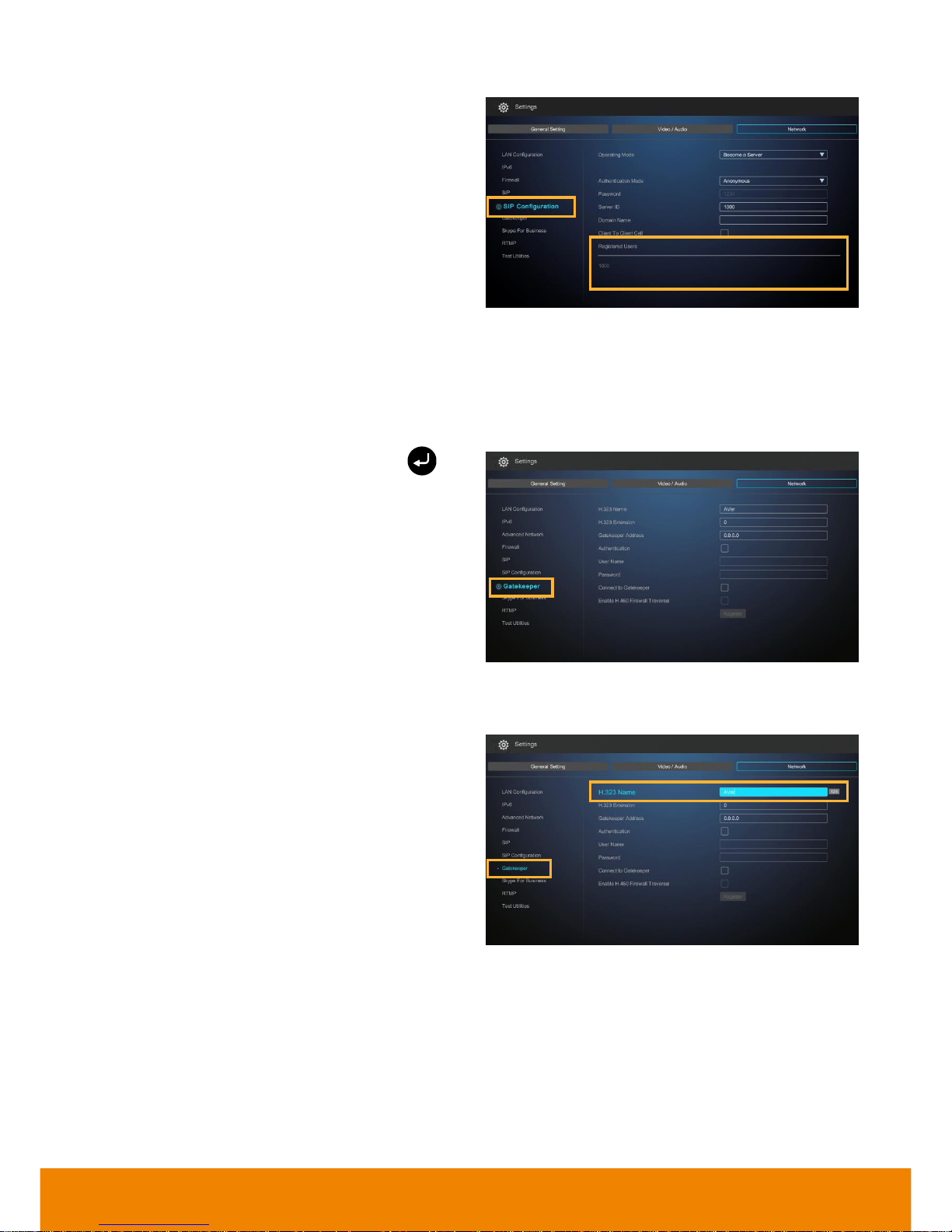

Registered Users

List all registered SIP client.

Gatekeeper

The

Gatekeeper

in AVer SVC serves the purpose of translating services from E.164 IDs to IP

addresses in an H.323 network.

Select Network│Gatekeeper and press .

Configure the following relative items to setup the Gatekeeper.

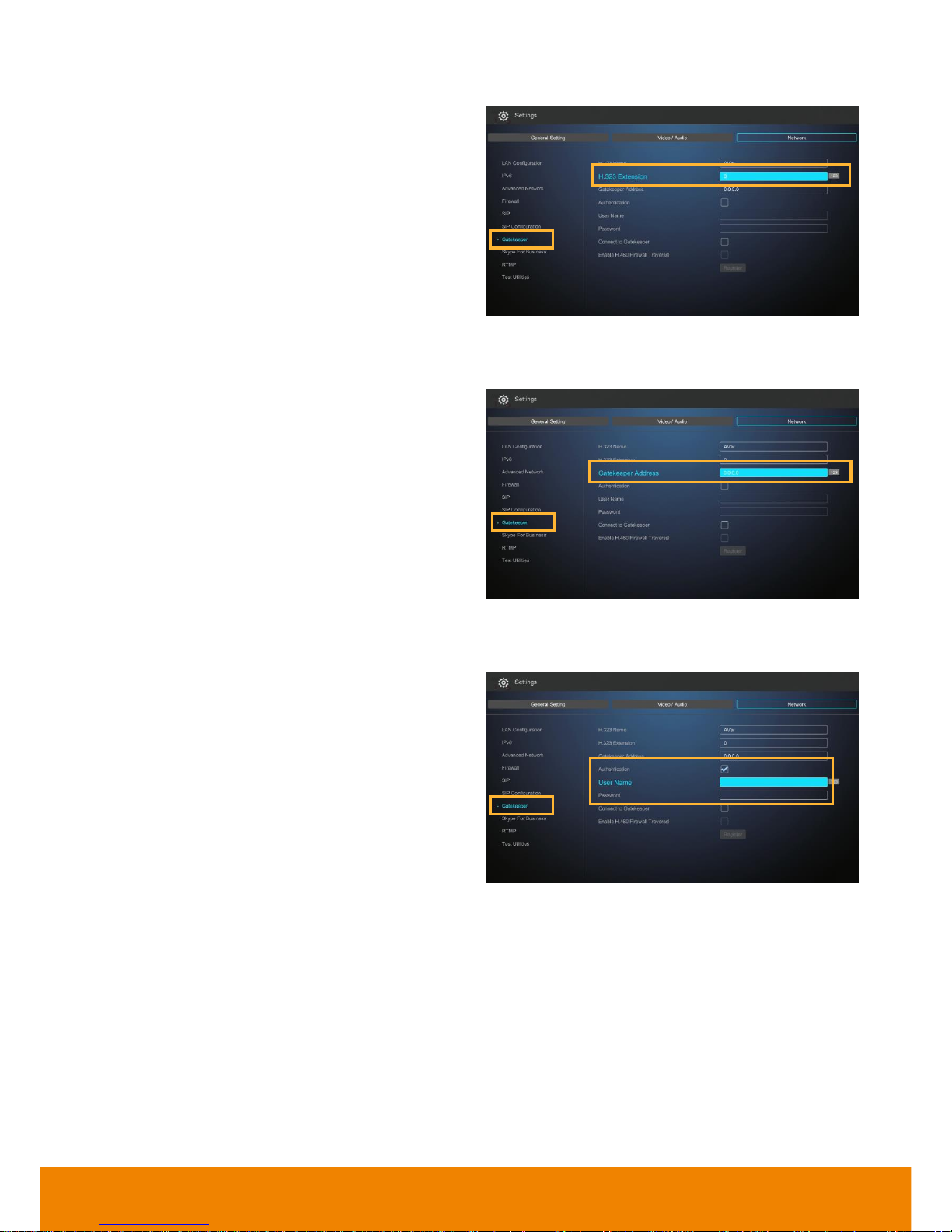

H.323 Name

Specify the name that gatekeepers and gateways can use to identify this system. Enter the name; the gatekeeper will use this name for identification.

Page 91

H.323 Extension

Enter a numeric value for the gatekeeper to identify your system further.

Gatekeeper Address

Enter the IP address for the gatekeeper server.

Authentication

Select the “

Authentication

” check box to activate gatekeeper authentication if gatekeeper requires authentication.

User Name and Password:

Enter the user name and password for gatekeeper authorization.

Page 92

Connect to Gatekeeper

Select this check box to Activate/deactivate gatekeeper.



Make sure to setup the Gatekeeper before setting up the Firewall.

Enable H.460 Firewall Traversal

If you want to enable the H.460 Firewall Traversal, please set the following ports in port forwarding in your firewall before start installing your SVC.

Port

Function

Type

1719

Gatekeeper

UDP

1720

H.323 Call

setup

TCP

30000~30999

Signaling and

Control for

audio, video,

content, and

data/FECC

TCP and UDP

80,443

HTTP / HTTPS

Interface

(WebTool)

TCP

Telnet

TCP

5060 5061

SIP

TCP and UDP

TCP



Make sure your gatekeeper supports H.460 Firewall Traversal before enabling it.

Page 93

Skype For Business

Setup the Skype for Business account for SFB call.

[Note]

SVC supports Lynk2013 and Skype for Business2015.

Select

Network│Skype For Business

and

press .

Account/Password

: Enter your Skype for

Business account and password.

Server:

Mark and enter the IP address of Skype for Business server if you have own a Skype for Business server.

Remember me:

To memorize the Skype for

Business account. Click “

” to register the Skype account. After registering, far site can enter the registered Skype for Business account to call to SVC system.

Also, user can make a call from SFB contactor list.

During SFB call, the SFB site only can see one streaming of presentation or live view. Only

SVC site can both see live view and presentation contents.

SVC site don’t join to SFB group call (more than 2 points), and SFB group call(more than 2

points) don’t invite SVC sites.

Page 94

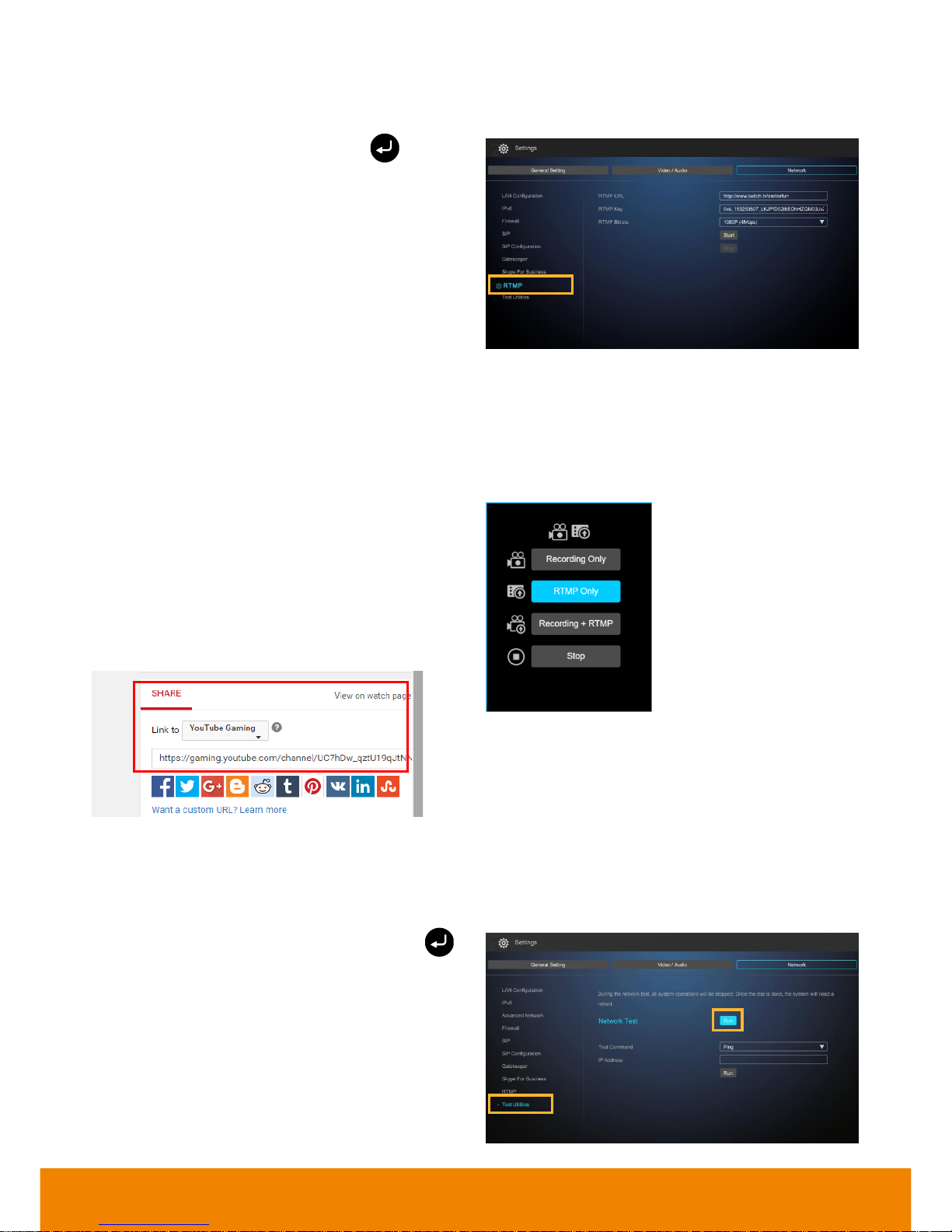

RTMP

Setup a live broadcast during the video conferencing to share the ongoing video conferencing.

Select

Network│RTMP

and press .

RTMP URL:

You can live broadcasting the live video conferencing to live broadcast web site such as Youtube. User needs to go to Youtube to open a live broadcast and get the live broadcast URL for upload video to.

RTMP Key:

Enter the stream key that you get

from Youtube.

RTMP Bitrate:

Select the upload stream

bandwidth.

Start:

starting to live broadcast.

Stop:

Select to stop live broadcasting.

After completing RTMP setting, go to home page of SVC system and press “

Record

” button

on remote controller. Then, select “

RTMP Only

” to start live broadcast. A RTMP icon will display on screen to indicate RTMP function is enabled.

The far site can enter the live broadcast URL on browser to view the live video of conference meeting. The live broadcast URL can find on the YouTube live broadcast setup page.

Test Utilities

Network Test This feature tests the network ability between local and far site.

Select

Network│Test Utilities

and press .

Select

Run

to start testing.

Wait until it finishes the network test. The check mark will appear if the network test is successful. If it fails, save the report in a USB flash drive and contact our technical support.

Page 95

Test Command

To ping or traceroute the far site device. Select

Network│Test Utilities

and press .

Select

Test Command

and press

Ping:

Ping is used to test the reachability of a host on an Internet Protocol (IP) network, and to measure the round-trip time for messages sent from the originating host to a destination and echoed back to the source.

Traceroute:

traceroute is displayed the route (path) and measuring transit delays of packets across an Internet Protocol (IP) network.

IP Address:

Enter the IP address of device that

user wants to ping or traceroute. Finally, select

Run

to start ping or traceroute.

Page 96

Web Configurations

You can use the internet browser to access your AVer SVC system through a LAN RJ-45 cable to setup a AVer SVC system remotely. You can also access the Phonebook to add, edit and delete entries, view and download the call history, update the system, and restore your previous settings. For web configurations, your AVer SVC system default IP address is: 192.168.0.1.



Please change your SVC’s IP address at the start.

Using the WebTool

Enter your SVC’s IP address in the URL field. You will need to enter admin password to log in. In WebTool login screen, user can select the Language of Web Tool and enter the password, click

Submit button to login. In the WebTool, there are some functions are different from your AVer SVC. And, those functions will

be described in following.



Default password is 1234

Page 97

After login, user should see the video screen of local site.

is indicated in background view mode. is indicated in live view mode.

Click icon can call out on-screen remote controller. You can use mouse to click the on-screen remote controller to operate functions on WebTool.

Click button can switch to numeric pad and phonebook button.

Click button can switch back to navigation buttons.

Page 98

Click “ ” can call out setup menu.



You can use the mouse to click the specified icon for a selection.



In WebTool, all functions are same as on SVC system.

Page 99

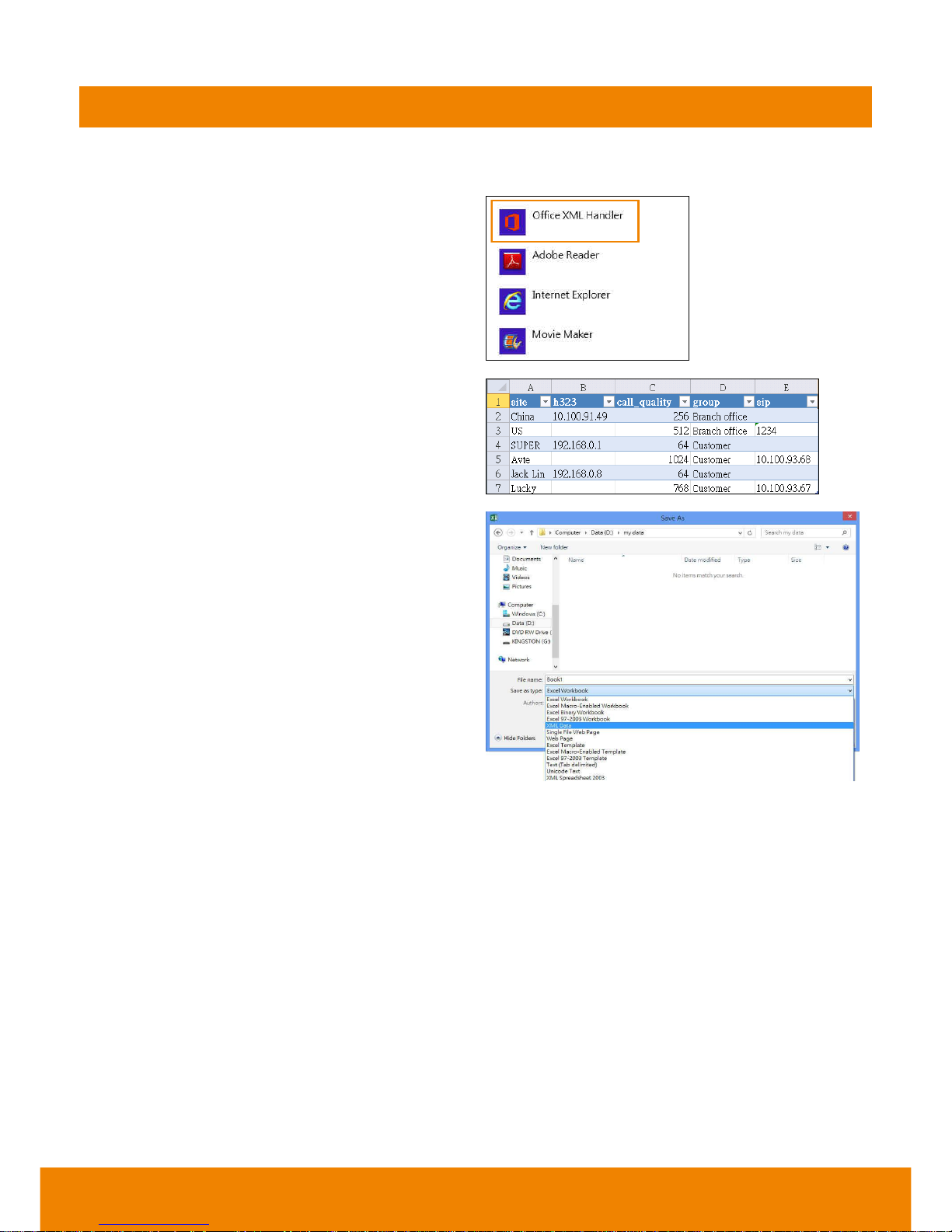

Phonebook

Edit and Save

1. Locate and open the file using MS Excel and select Office XML Handler to create a schema based on the XML source data.

2. Edit the file.

3. Make sure to save the file as XML Data so it can be uploaded back to the system.

Page 100

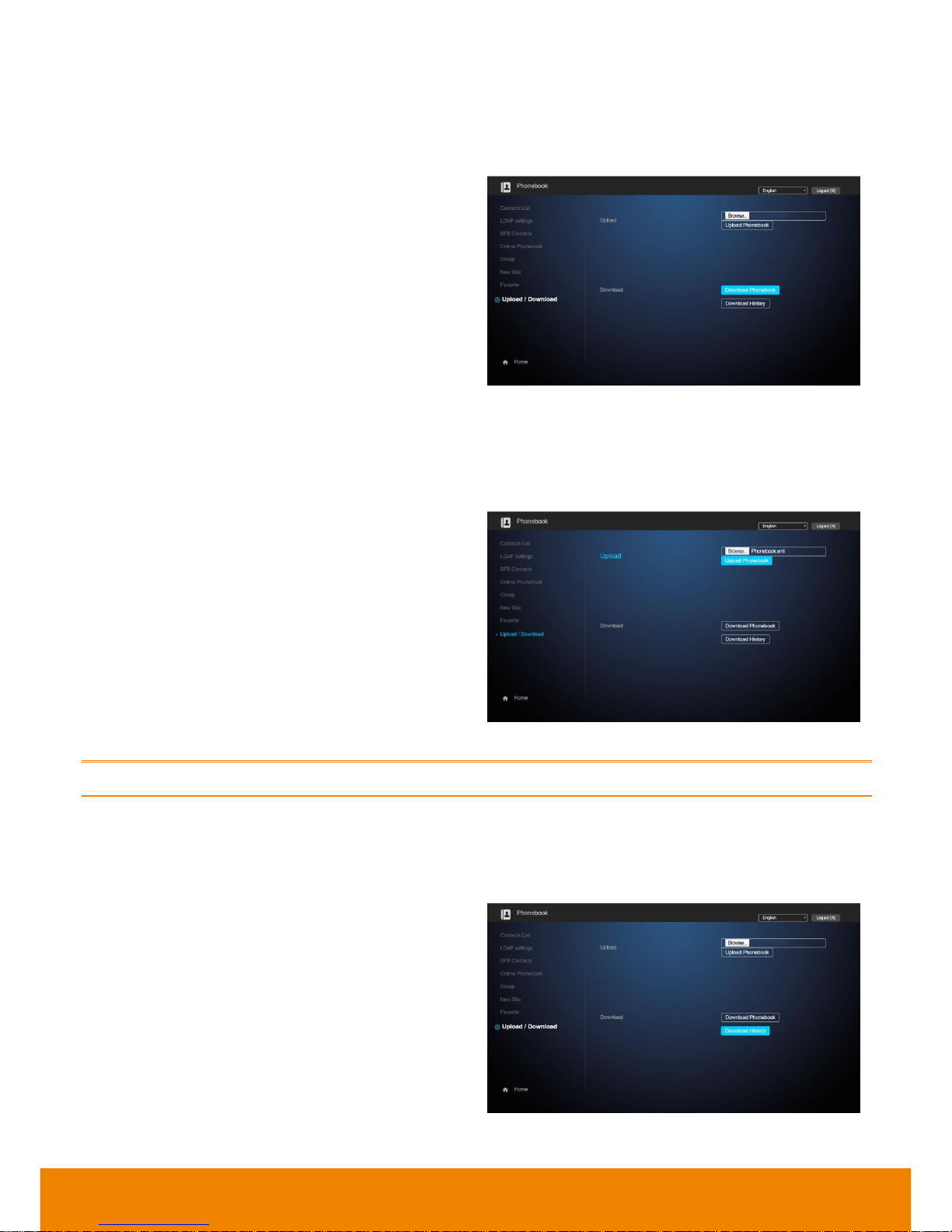

Download Phonebook Entries

Download phonebook allows you to download contact data from your AVer SVC system.

1. Click

Phonebook│Upload/Download

2. The saving Phonebook data from AVer SVC system dialogue box will appear.

3. Click “Save” to save the file.

4. After saving, you have to re-arrange your browser to update your WebTool Phonebook so that it can be the same as your SVC system.

Upload Phonebook Entries

Upload allows you to upload the data that you have edited or added from your WebTool to your AVer SVC system.

1. Click

Phonebook│Upload/Download

2. Click “Upload Phonebook” to upload edited or added contents to your AVer SVC system directly.

3. You can also click “Browser” to open the Phonebook file .xml saved in your PC to upload it to your AVer SVC system.

4. After completing upload, the contents of Phonebook on your AVer SVC system will be modified in time.



You can also download the phonebook entries and upload them to another AVer SVC unit.

Download Call History Entries

Download History allows you to download call history list from your AVer SVC system.

1. Click

Phonebook│Upload/Download

2. Click “Download History” to download call history from to your AVer SVC system directly.
