AVer SF2111H-DR User Manual
AVer SF2111H-DR
User Manual
Table of Contents
PREFACE ............................................................................................................................ 1
PRODUCT SPECIFICATIONS ............................................................................................. 1
PACKAGE CONTENTS ....................................................................................................... 4
PRODUCT INSTALLATION ................................................................................................. 5
MONITOR SETTING ............................................................................................................. 5
HARDWARE INSTALLATION AND I/O PIN ASSIGNMENT .............................................................. 6
POWER OVER ETHERNET (POE) .......................................................................................... 8
IP ASSIGNMENT .................................................................................................................. 9
FINDING IP CAMERA BY USING “NXU LITE RECORDING SOFTWARE”.......................................... 9
FINDING IP CAMERA BY USING “IP INSTALLER” ..................................................................... 12
USING DHCP SERVER/ROUTER NETWORK ......................................................................... 14
USING NON-DHCP SERVER/ROUTER NETWORK ................................................................ 15
INSTALL ACTIVEX CONTROL ............................................................................................... 18
USING THE IP CAMERA BROWSER INTERFACE .......................................................... 20
PREVIEW ......................................................................................................................... 20
SYSTEM > GENERAL ......................................................................................................... 22
SYSTEM > GENERAL > MAINTENANCE ................................................................................. 22
To Upgrade the IP Camera Firmware ....................................................................... 23

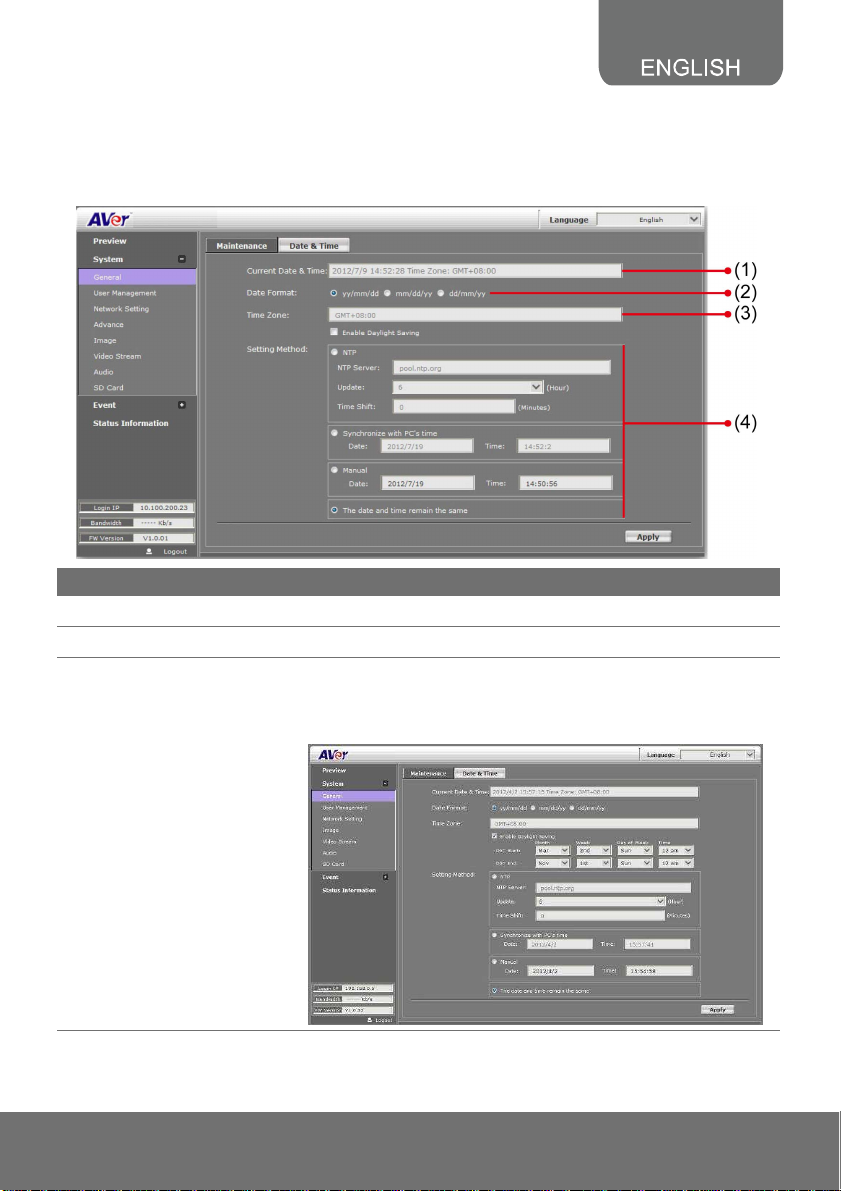

SYSTEM > GENERAL > DATE & TIME ................................................................................... 24
SYSTEM > USER MANAGEMENT ......................................................................................... 25
SYSTEM > USER MANAGEMENT > ACCOUNT ........................................................................ 25
SYSTEM > NETWORK SETTING > SETTING ........................................................................... 27
SYSTEM > NETWORK SETTING > SEVER ............................................................................. 28
S

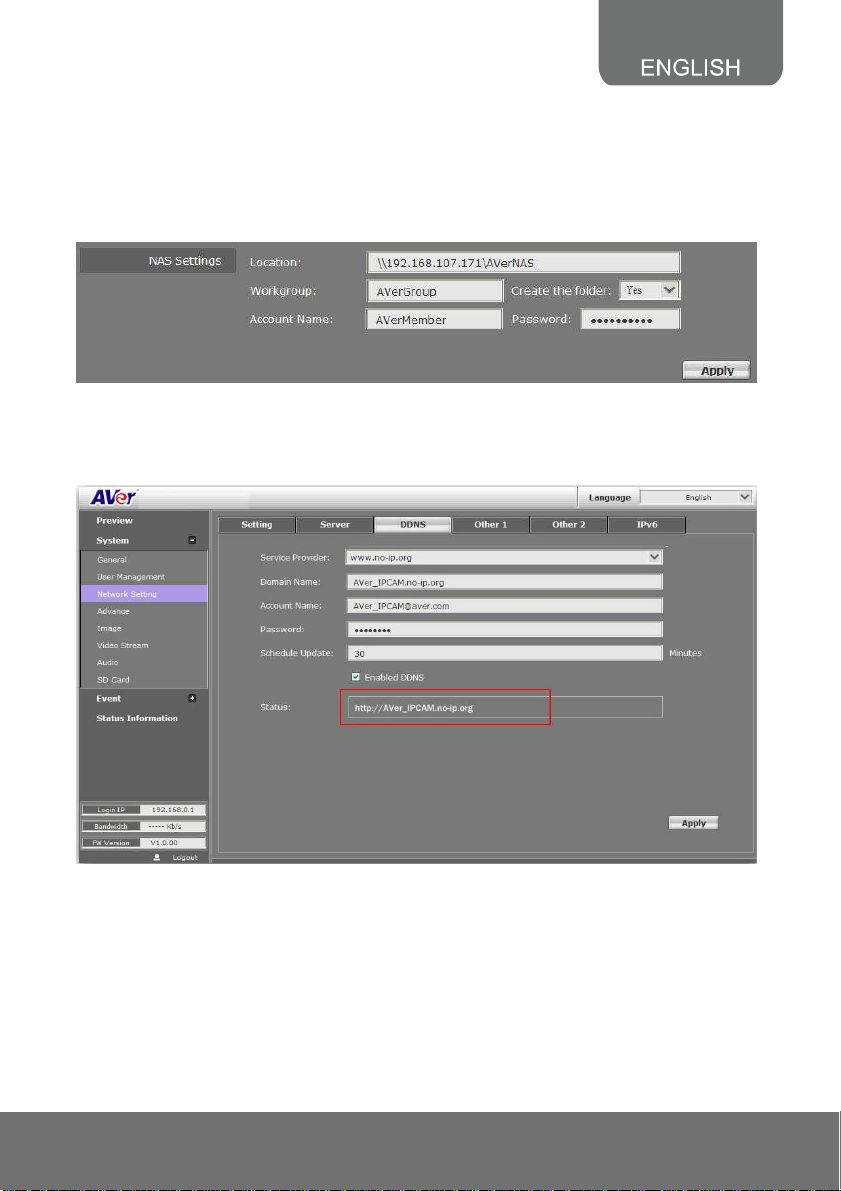

YSTEM > NETWORK SETTING > DDNS ............................................................................. 29

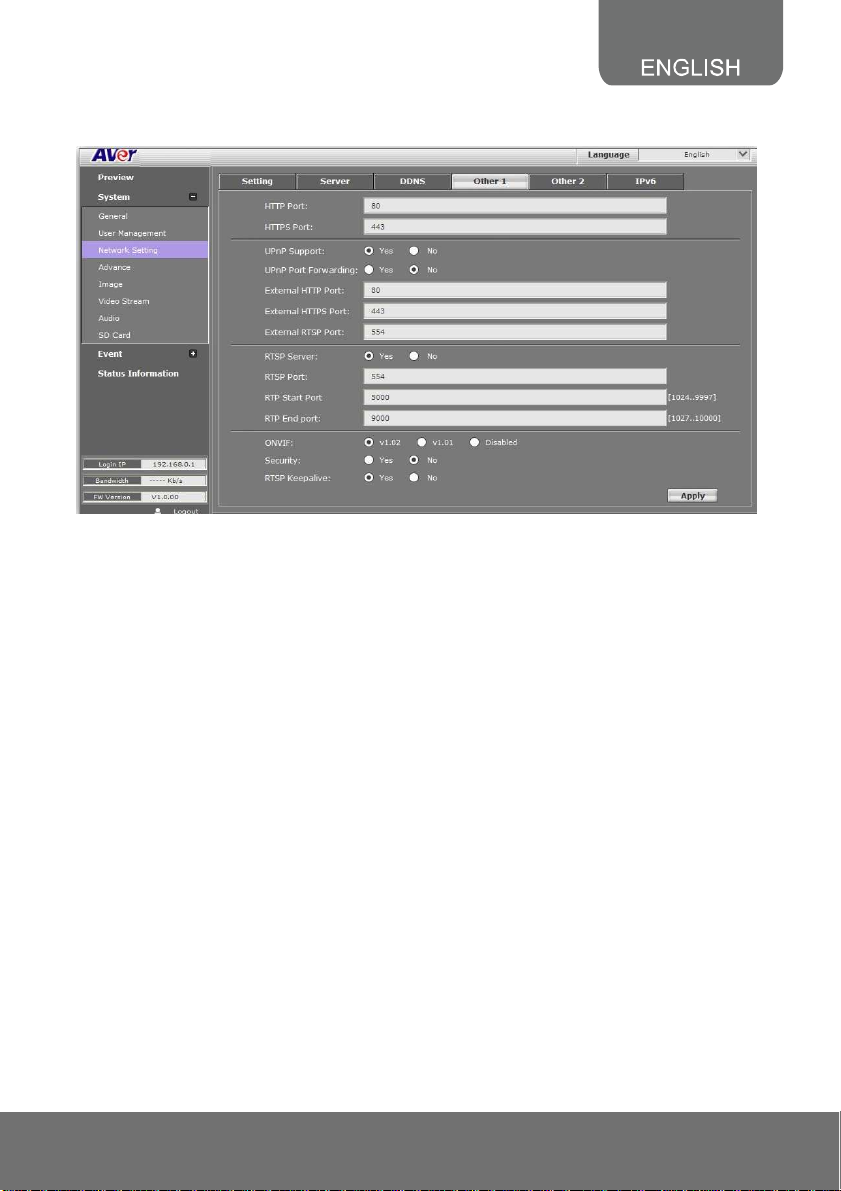

SYSTEM > NETWORK SETTING > OTHER 1 .......................................................................... 31

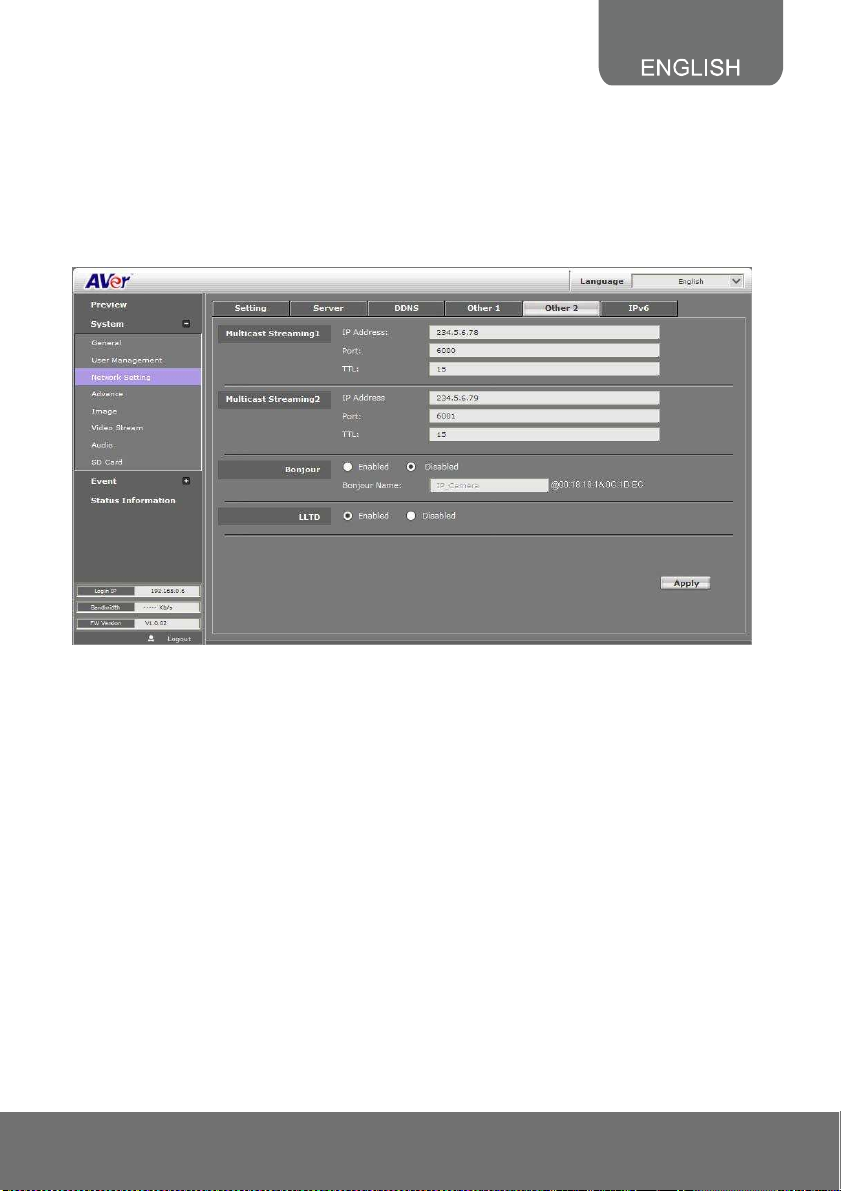

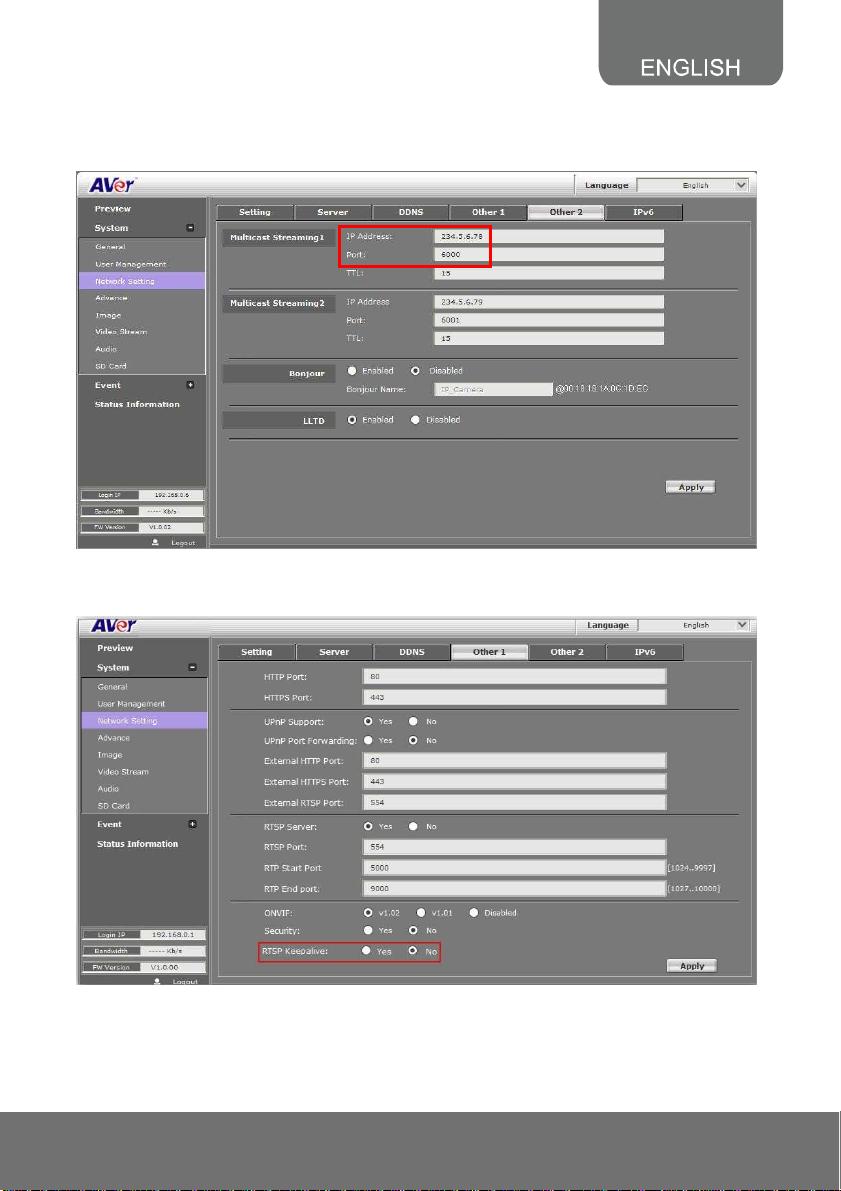

SYSTEM > NETWORK SETTING > OTHER 2 .......................................................................... 33
SYSTEM > ADVANCE > HTTPS .......................................................................................... 38
SYSTEM > ADVANCE > SNMP ........................................................................................... 40
SYSTEM > ADVANCE > ACCESS LIST ................................................................................... 42
SYSTEM > ADVANCE > QOS/DSCP ................................................................................... 43
SYSTEM > IMAGE .............................................................................................................. 44
SYSTEM > IMAGE > OSD .................................................................................................. 44

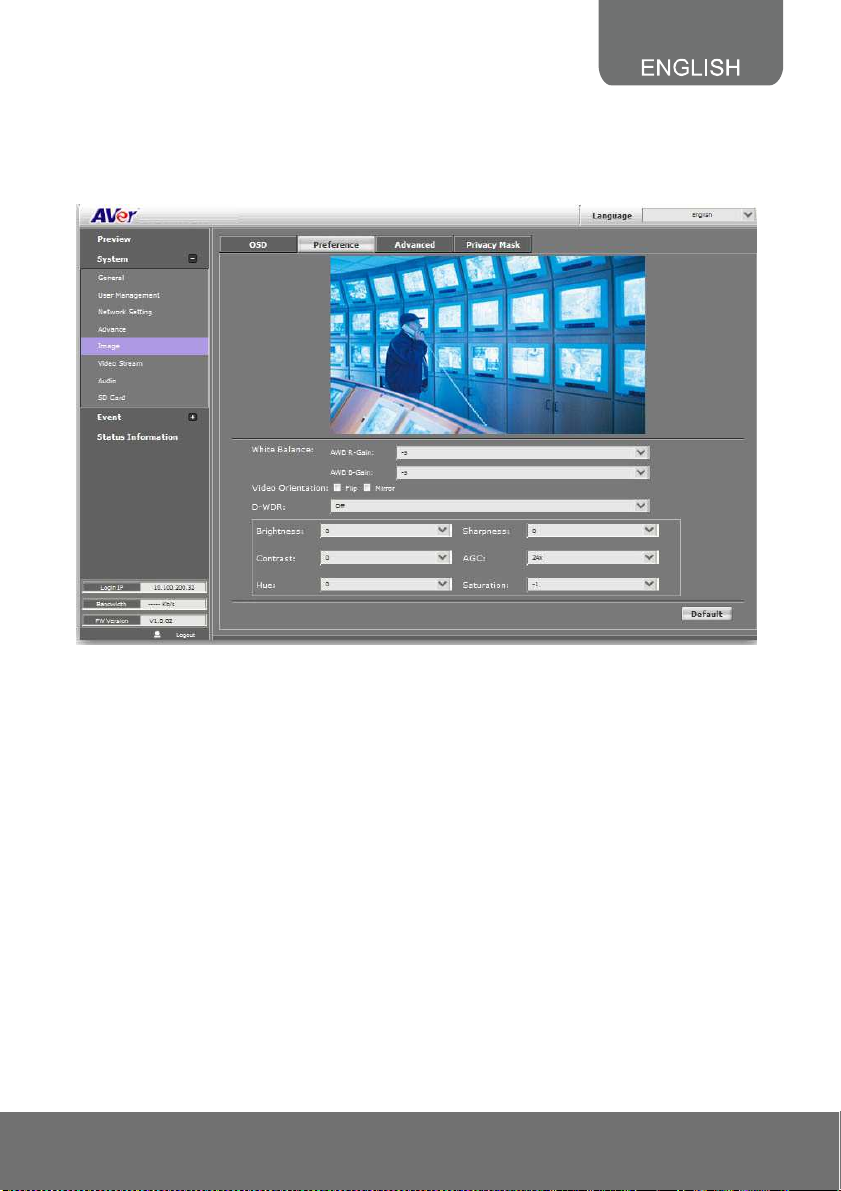

SYSTEM > IMAGE > PREFERENCE ....................................................................................... 45
SYSTEM > IMAGE > ADVANCED........................................................................................... 46

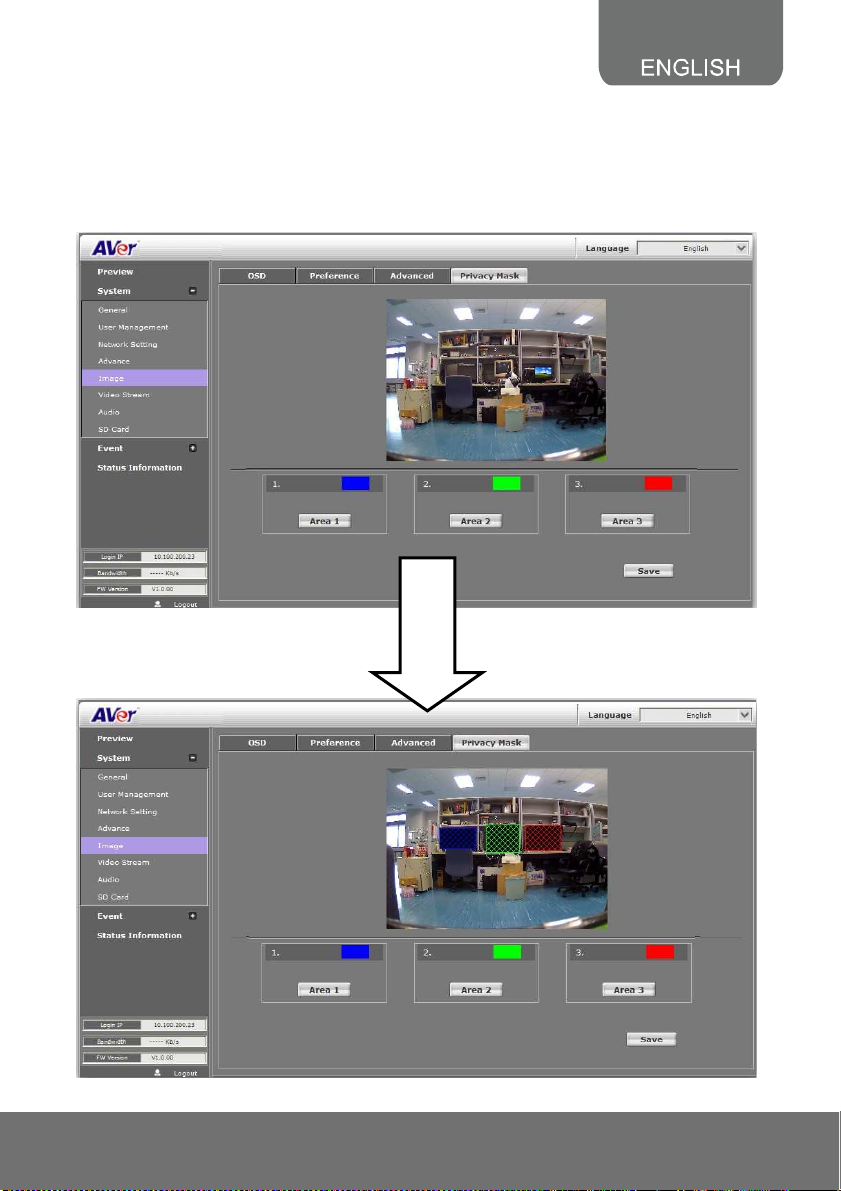

SYSTEM > IMAGE > PRIVACY MASK .................................................................................... 47
SYSTEM > VIDEO STREAM> GENERAL ................................................................................ 48

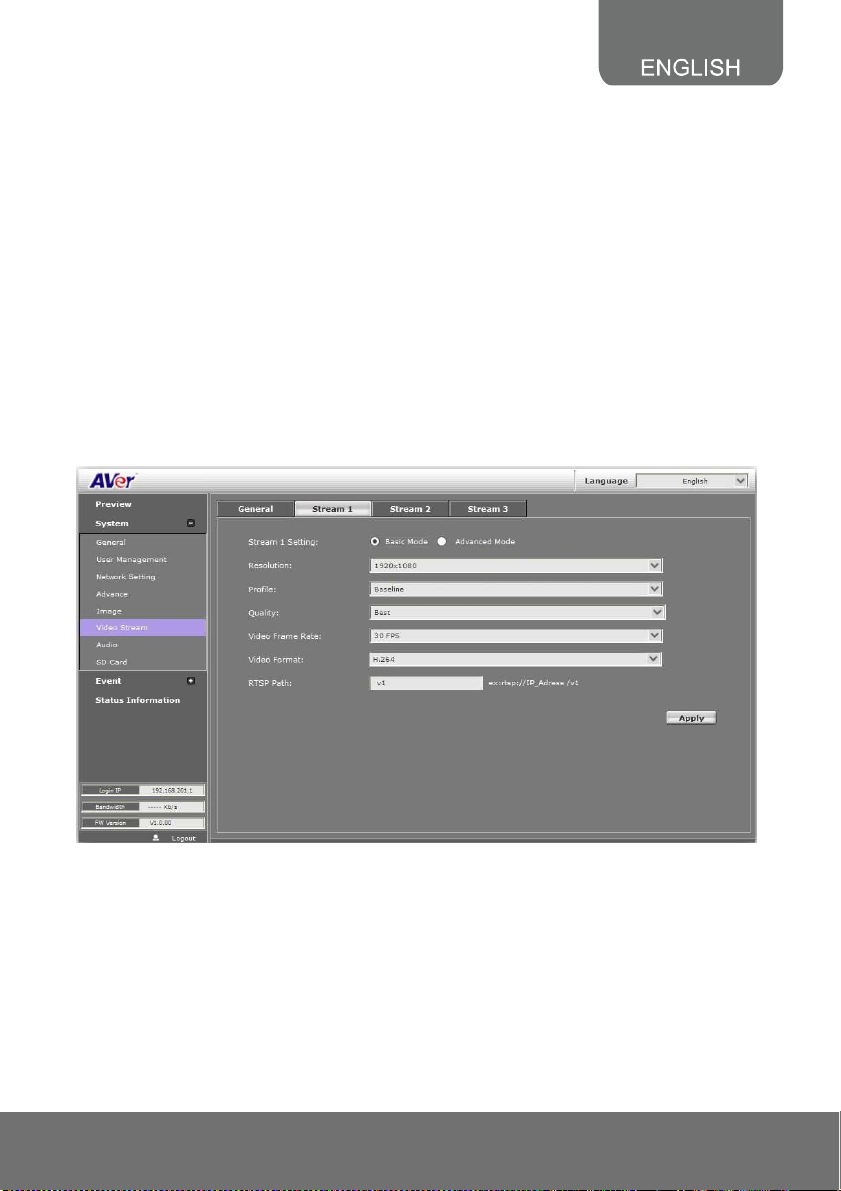

SYSTEM > VIDEO STREAM > STREAM1 ............................................................................... 49

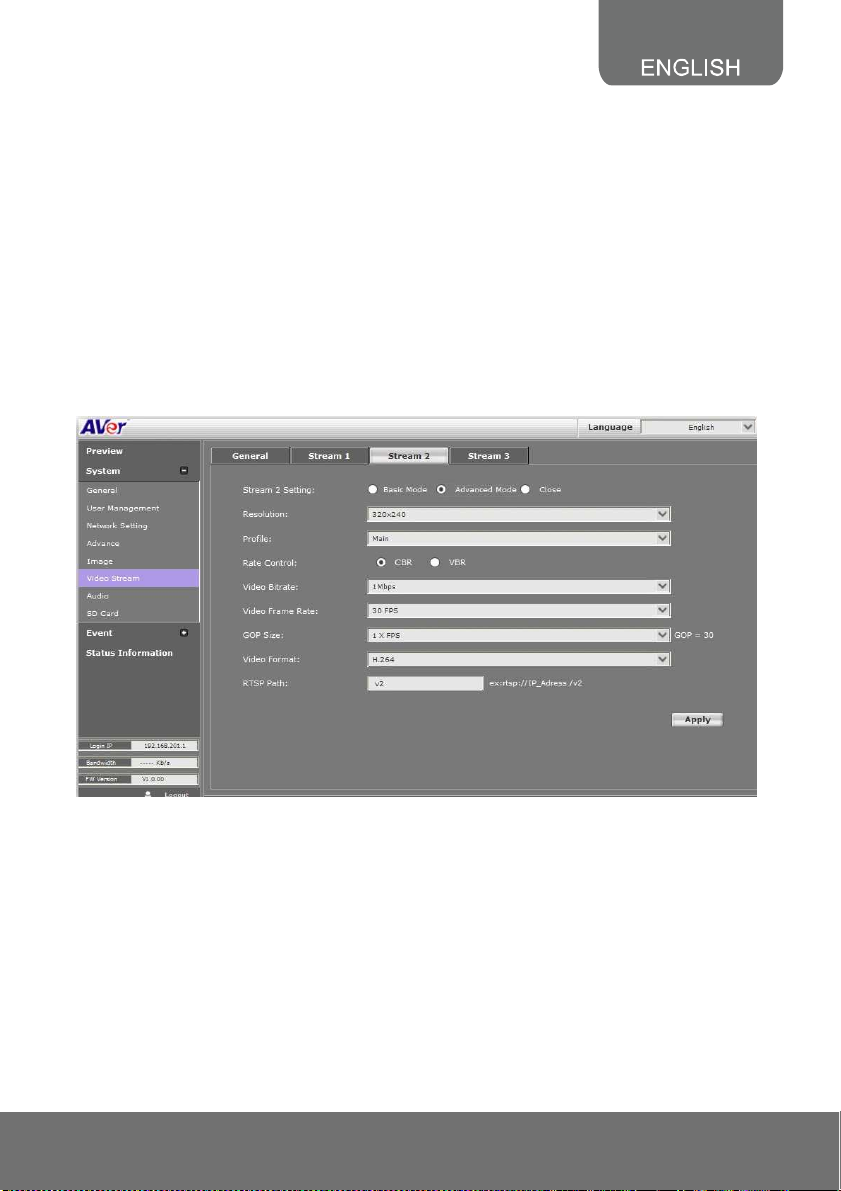

SYSTEM > VIDEO STREAM > STREAM2 ............................................................................... 51
SYSTEM > VIDEO STREAM > STREAM3 ............................................................................... 53
SYSTEM > AUDIO .............................................................................................................. 54

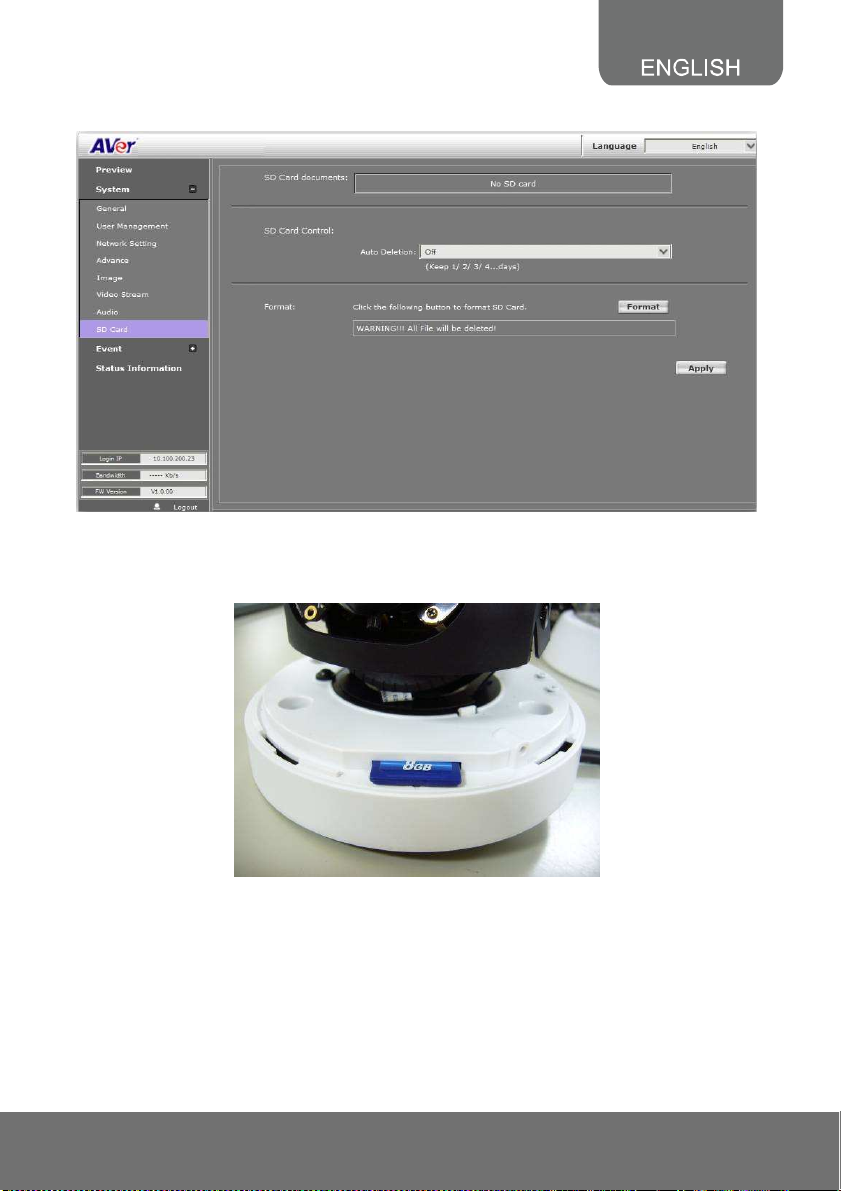

SYSTEM > SD CARD ......................................................................................................... 55

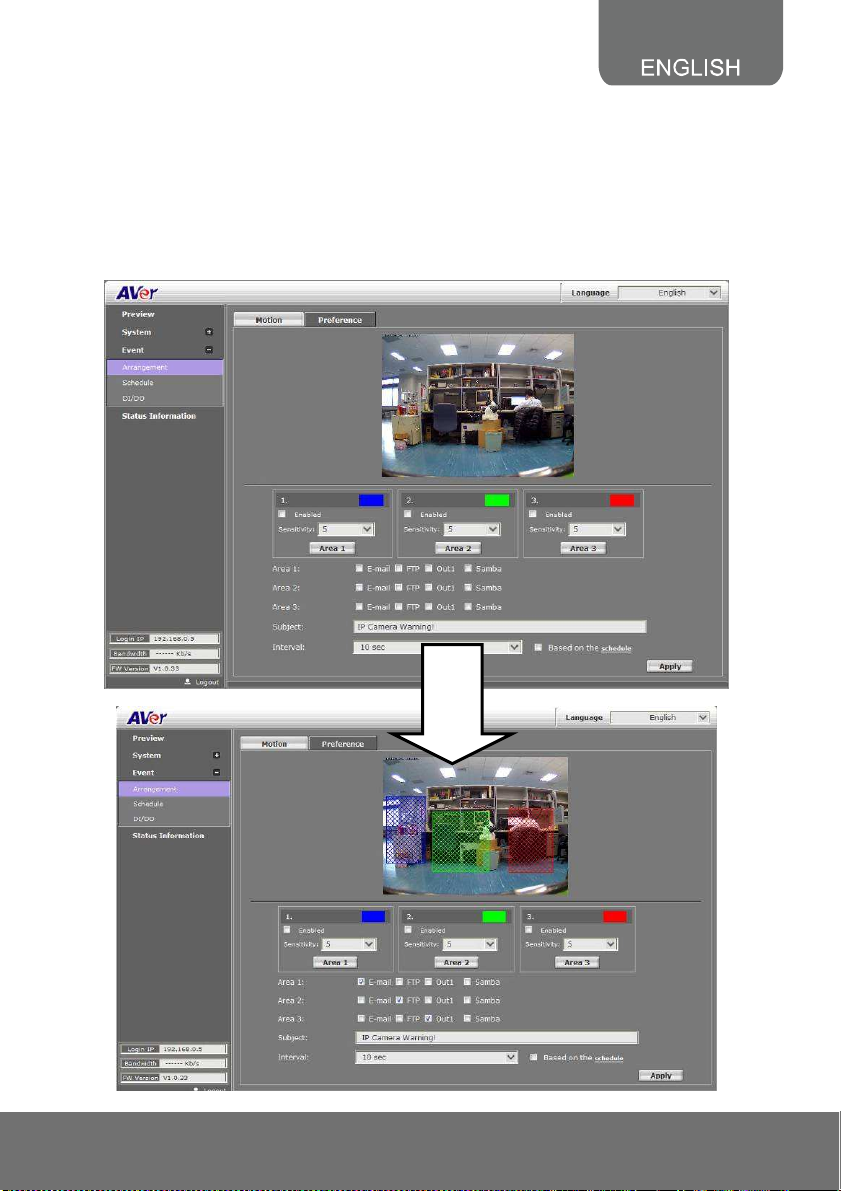

EVENT > ARRANGEMENT > MOTION .................................................................................... 56
EVENT > ARRANGEMENT > PREFERENCE ............................................................................ 57
EVENT > SCHEDULE ......................................................................................................... 58
EVENT > DI/DO ............................................................................................................... 59

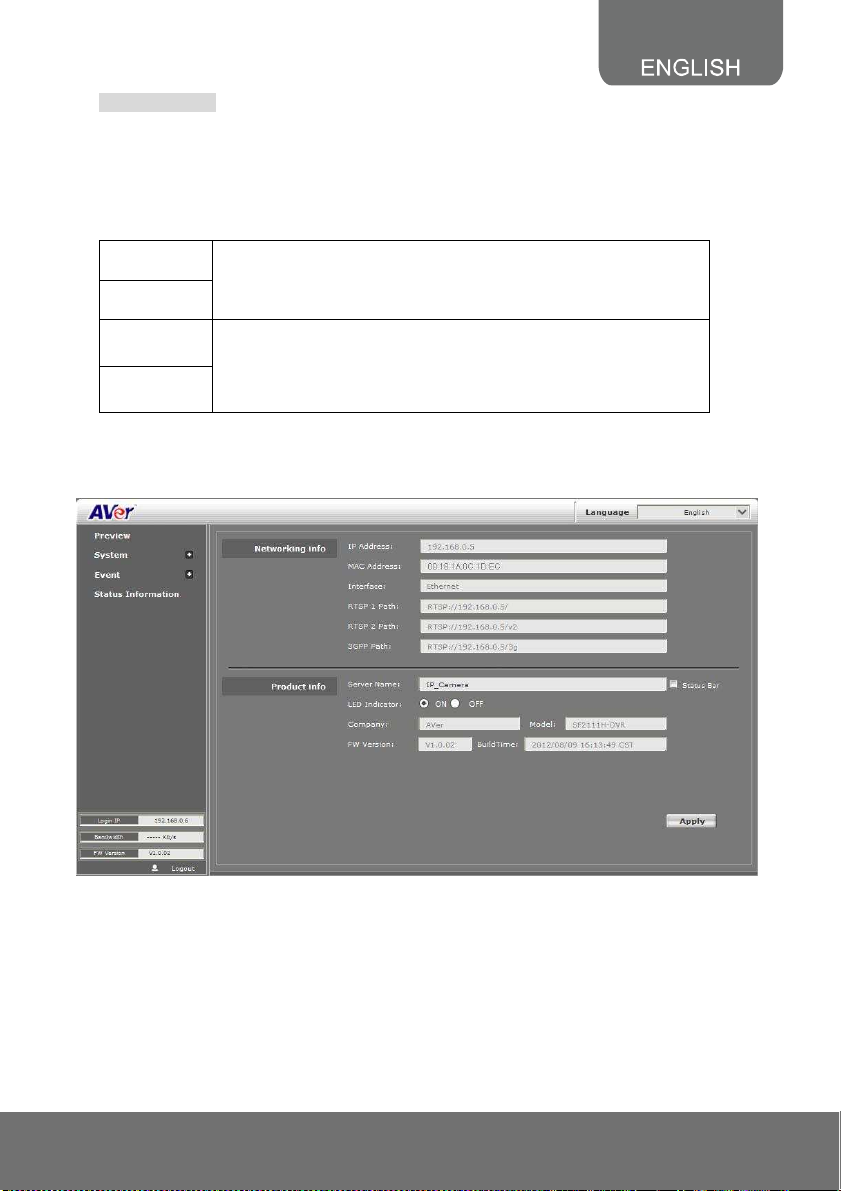

STATUS INFORMATION ....................................................................................................... 60

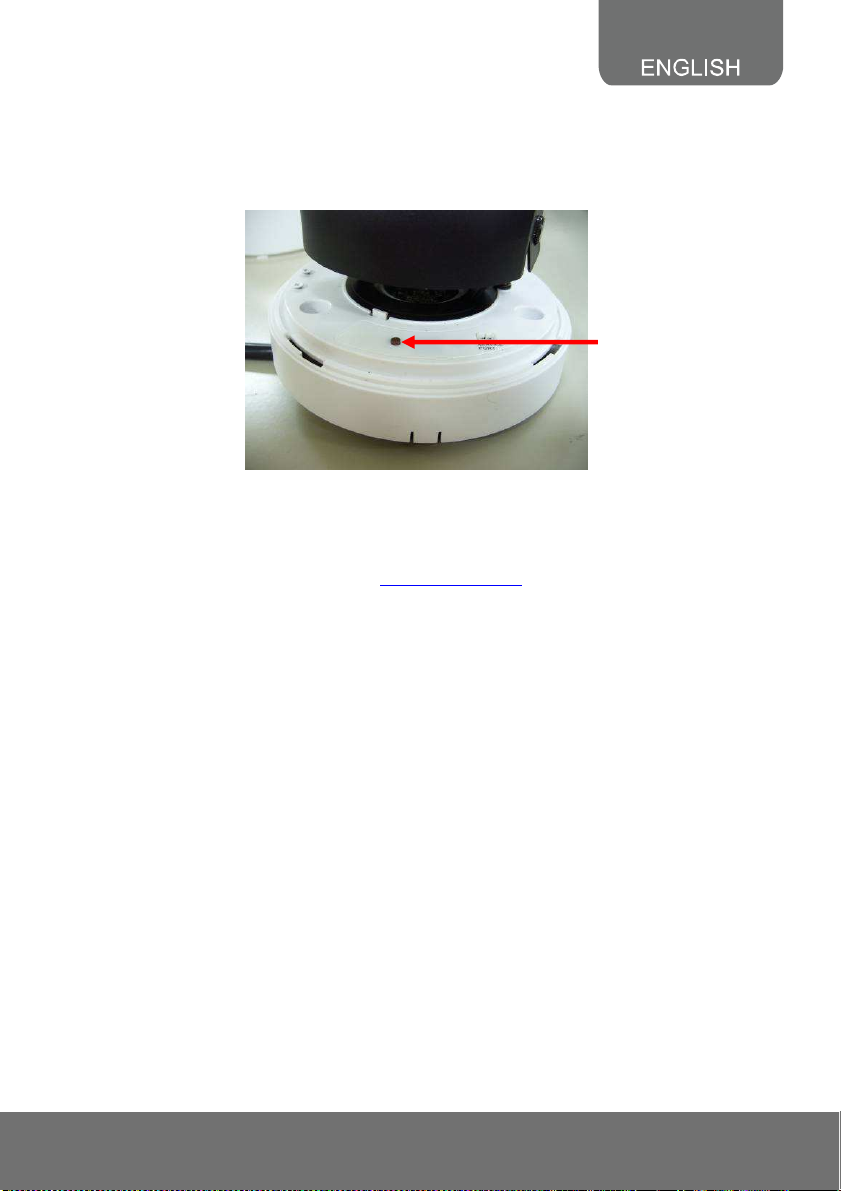

FACTORY DEFAULT ......................................................................................................... 63
TROUBLESHOOTING ....................................................................................................... 64
APPENDIX ......................................................................................................................... 65
COPYRIGHT ...................................................................................................................... 66
NOTICE .............................................................................................................................. 66
WARNING .......................................................................................................................... 66
LIMITED WARRANTY ....................................................................................................... 67
GOVERNING LAW AND YOUR RIGHTS .......................................................................... 68
Preface
The SF2111H-DR is a H.264 2-megapixel, full HD dome camera with 3-axis adjustment and a
vari-focal lens that allows you to line up the camera precisely where you need it and capture a wide
sweep or close into a narrower specific point. It has both the adjustability to capture the exact target
area you require and the technology to keep that area under clear day-and-night surveillance. The
SF2111H-DR provides smooth 30fps, full HD 1080p video, and a mechanical IR-cut filter plus built-in
IR illuminators to give superb performance during the day and at night.
Product Specifications
Video out support
2M-pixel, full HD Definition (1080p) 30fps support CMOS sensor
Digital Wide Dynamic Range
Power over Ethernet (PoE)
H.264/MJPEG/MPEG-4 compression formats
SD/SDHC card backup (SD card is an optional part)
2-way audio
3GPP mobile phone/PDA support
SDK for software integration
Free bundled AVer NXU Lite recording software
3-Axis Gimbals adjustments
IR LED Built-in 15M
Mechanism IR Cut Filter available
Specifications
Hardware
CPU ARM 9 ,32-bit RISC
RAM 256MB
Flash 16MB
Image sensor 1/2.7” CMOS (2 Megapixel)
Support DC IRIS Yes
Lens Type Vari-focal 3~9 mm Megapixel Lens
ICR Mechanism IR cut Filter
1
Hardware
LED Built-in 18 IR LED
IR Distance-15M
I/O 1 Sensor in / 1 Relay Out
Video Out 1
Audio In 1
G.711 (64K) and G.726 (32K,24K) audio compression
Input : External Mic In
Audio Out 1 / Output: External Audio Out
Power over Ethernet Yes
Power Consumption
3-Axis Gimbal
Adjustments Angle
Dimensions 132L x 108.4H (mm)
Weight 680g
Operating Temperature 0°C ~ 45°C
Network
Ethernet 10/100 Base-T
Network Protocol
System
Video Resolution
Video Adjust
Triple Streaming Yes
DC12V: 5.0W (IR LED on)/3.3W (IR LED off)
PoE Class 0 (IEEE802.3af): 6.3W (IR LED on), 4.4W (IR LED
off)
Pan: 175∘
Tilt: 30∘~ 90∘
Rotation: 172∘
HTTP, HTTPS, NTP, UPnP, 3GPP (video only), SAMBA,
Bonjour ,SNMP, QoS/DSCP, Access list, RTSP, TCP/ IP, UDP,
SMTP, FTP, PPPoE, DHCP,DDNS
1920x1080, 1280x720, 640x480, 320x240, 176x144
Brightness, Contrast, Sharpness, Night Mode, D-WDR, Noise
reduction
2
System
Image Snapshot Yes
Full Screen Monitoring Yes
Privacy Mask Yes, 3 different areas
Compression Format H.264/ JPEG/ MPEG-4
Video Bitrates Adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered Action Mail, FTP, Save to SD/SDHC card, Relay, NAS
Pre/ Post Alarm Yes (Pre :5 secs / Post: 10 secs)
Security
Firmware Upgrade HTTP mode, can be upgraded remotely
Simultaneous Connection Up to 10
Audio Yes, 2-way (mono)
SD/SDHC card management
Recording Trigger
Video Format AVI, JPEG
Video Playback Yes
Delete Files Yes
Web browsing requirement
OS Windows® XP (32-bit), 7 (32/64-bit)
Hardware Suggested
Mobil support iOS 4.3 or above, Android 1.6 or above.
*
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Password Protection, QoS/DSCP, IP address filtering,
HTTPS encryption, data transmission
Motion Detection, IP Check, Network Breakdown (wire only),
Schedule, Alarm
Microsoft® IE 6.0 or above (32-bit only)
Intel® Dual Core 2.53GHz, RAM: 1024MB, Graphics Card:
128MB
3
Package contents
Item Descriptions
1. SF2111H-DR
2. Accessory pack
3. RJ45 socket
4. Power Adaptor (DC 12V /1A) (Optional)
Optional accessory
5. CD (User’s Manual and Quick Guide
included)
Item Descriptions
Junction box
Weight: 500g (N.W.)
Material: Aluminum
Color: Silver-beige
Package: 20pcs in one carton
4
Product Installation
Monitor Setting
1. Right-click on the desktop. Select “ Properties”
2. Change “Color quality” to “Highest (32-bit)”.
5
Hardware Installation and I/O Pin Assignment
1. Connect a power adapter and IP camera to PC or local network.
2. 3-Axis Gimbals Adjustments
Pan: 172°
Rotation: 180
Tilt: 30°~90°
°
Once the users open the case, the gimbals adjustment offers the convenience method to install on
the wall. The pan, tilt, and rotation are provided in this model. The users can adjust the
gimbals with Pan 172 degrees, tilt 30~90 degrees, and rotation 180 degrees respectively.
6
3. Installation steps
(1) Use screws to lock the
bottom of camera to the
ceiling or the wall.
(2) Use 3-Axis to adjust the lens
angle.
(4) Tighten the screw on the
cover to fix it.
(3) Close the dome cover.
7
Power Over Ethernet (PoE)
Set up the IP camera through Power over Ethernet (PoE). PoE is a technology that integrates power
into a standard LAN infrastructure. It enables power to be provided to the network device, such as an
IP camera, using the same cable as that used for network connection. It eliminates the need for power
outlets at the camera locations and enables easier application of uninterruptible power supplies (UPS)
to ensure 24 hours a day, 7 days a week operation.
[Note] 802.3at, 15.4W PoE Switch is recommended. We recommend users to purchase PoE switch
from us to ensure the stability when using the IP Cameras. Please contact sales for more details.
Ethernet
PoE Switch
PoE IP Camera
Ethernet Cable
Ethernet Cable
PoE IP Camera
8
IP Assignment
There are two ways to find IP Camera:
− Finding IP Camera by using “NXU Lite recording software”
− Finding IP Camera by using “IP installer”
Finding IP Camera by using “NXU Lite recording software”
1. The NXU Lite software is in the attached software CD. Before launching it, please install the
software first. During the installing process, users will be required to input a User name and
Password for login NXU Lite system. Users can define the User name and Password as wishes.
Please refer to NXU Lite user manual for detailed installation instruction.
2. To run the application, double-click on your PC desktop or click Start > Programs > DVR >
NXU Lite. For security purpose, some of the features would require you to enter User name and
Password before it can be accessed. When the Authorization dialog box appears, key in your User
ID and Password. (If this is the first time, enter the one you have registered when installing the
software.
Click it to call out virtual
keyboard.
9
3. Click “Setup” button.
4. Click “Add IPCam” button.
5. Select “IP Camera” item.
10
6. Key in IP Camera’s ID and Password (default is admin/admin) and click “Auto Search” to find
camera.
7. In Search Result window, click it the IP camera model that user has purchased (Please ignore
ONVIF connection item); the camera is in red text that is configurable. User can double-click on
the camera is in red text and configure the IP camera’s setting; even the IP camera is not in the
same IP segment. Press “OK” to back to previous screen and press”Connect” to start live view.
Double-click the IP camera model
that user has purchased (ex:
SF2111H-BR, SF2111H-DVR).
Please ignore ONVIF
protocol selection; NXU Lite
doesn’t support ONVIF
connection.
11
Finding IP Camera by using “IP installer”
1. Use the software, “IP Installer” to assign the IP address of the IP camera. The software is in the
attached software CD.
2. IP installer supports two languages
IPInstallerCht.exe: Traditional Chinese version
IPInstallerEng.exe: English version
3. There are 3 kinds of IP configuration.
Fixed IP (Public IP or Virtual IP)
DHCP (Dynamic IP)
DHCP server/router network automatically assigns IP addresses to devices. You can use the
IP Installer software in the CD to search for the IP camera(s) in the network.

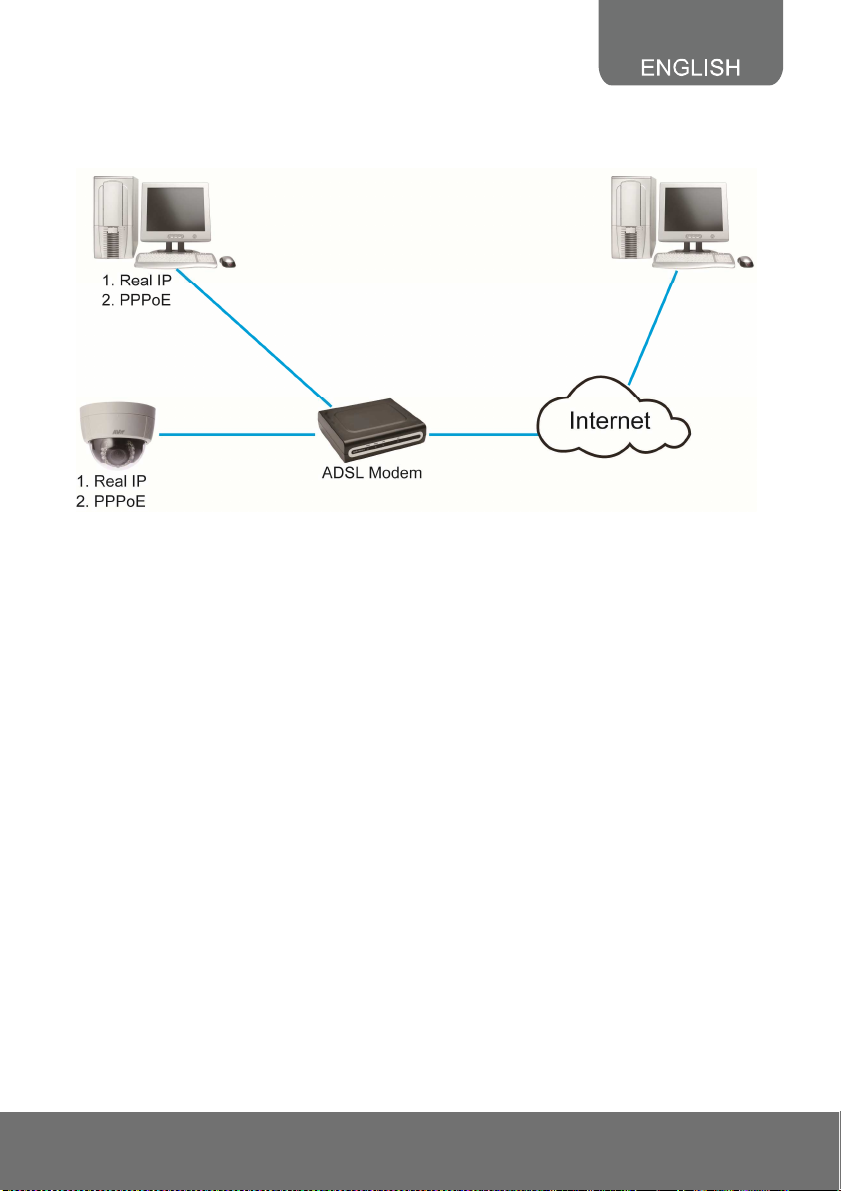

Dial-up (PPPoE)
4. Execute IP Installer
5. For Windows XP (SP2) users, the following message box may appear. Please click “Unblock”.
12
IP Installer configuration:
6. IP Installer will search all IP cameras connected on the LAN. The user can click “Search Device”
to search again.
7. Click one of the IP cameras listed on the left side. The network configuration for this IP camera will
show on the right side. You may change the name of the IP camera to your preference (eg: Office,
warehouse) in “Name” on the right side.
[Note] The server name length has to be less than 15 digits.
13
Using DHCP Server/Router Network
To use DHCP, please check DHCP and click “Submit” then click “OK”. It will apply the change and
reboot the Device.
Please left-click the mouse twice on a selected IP camera in “Device lists” in IP Installer. Upon doing so,
the Internet Explorer browser should open.
14
Using NON-DHCP Server/Router Network
In Non-DHCP server/router network, the static IP address must be assigned to the device each time
when adding another IP camera to the network; the default IP address of the current one must be
changed to avoid conflict.
Please make sure the Subnet of the PC’s IP address and the IP camera’s IP address are the same.
[Example]
The same Subnet:
IP camera IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP camera IP address: 192.168.2.200
PC IP address: 192.168.1.100
To Change PC IP Address:
Control PanelNetwork ConnectionsLocal Area Connection PropertiesInternet Protocol
(TCP/IP) Properties
Please make sure your IP camera and PC have the same Subnet. If not, please change IP
camera subnet or PC IP subnet accordingly.
PC’s IP address:
15
IP camera IP addresses:
8. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP camera in
“Device lists” in IP Installer. Upon doing so, the Internet Explorer browser should open.
16
9. Then, please key in the default “User name” and “Password”, both of which are “admin”.
17
Install ActiveX Control
The first time you attempt to view the camera video via Internet Explorer, it will ask you to install the
ActiveX component.
If the installation fails, please check the security settings for the Internet Explorer browser.
1. IE Tools Internet Options… Security Tab Custom Level… Security Settings
Download unsigned ActiveX controls Select “Enable” or Prompt.
2. IE Tools Internet Options… Security Tab Custom Level… Initialize and script ActiveX
controls not marked as safe Select “Enable” or Prompt.
1 2
3 4
18
5
When the following dialogue box appears, click “Yes”.
19
Loading...
