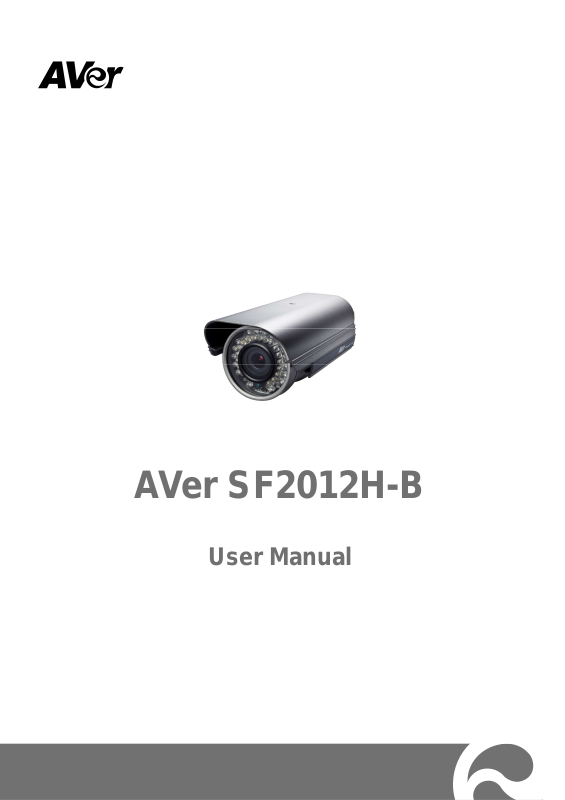

AVer SF2012H-B User Manual

AVer SF2012H-B
User Manual
PREFACE ............................................................................................................................ 1
PRODUCT SPECIFICATIONS ............................................................................................. 1
PACKAGE CONTENTS ....................................................................................................... 4
PRODUCT INSTALLATION ................................................................................................. 6
MONITOR SETTING ............................................................................................................. 6
HARDWARE INSTALLATION AND I/O PIN ASSIGNMENT .............................................................. 7
POWER OVER ETHERNET (POE) ......................................................................................... 9
IP ASSIGNMENT ................................................................................................................ 10
FINDING IP CAMERA BY USING “NXU LITE RECORDING SOFTWARE” .................................... 10
FINDING IP CAMERA BY USING “IP INSTALLER” .................................................................. 13
USING DHCP SERVER/ROUTER NETWORK ......................................................................... 14
USING NON-DHCP SERVER/ROUTER NETWORK ................................................................ 15

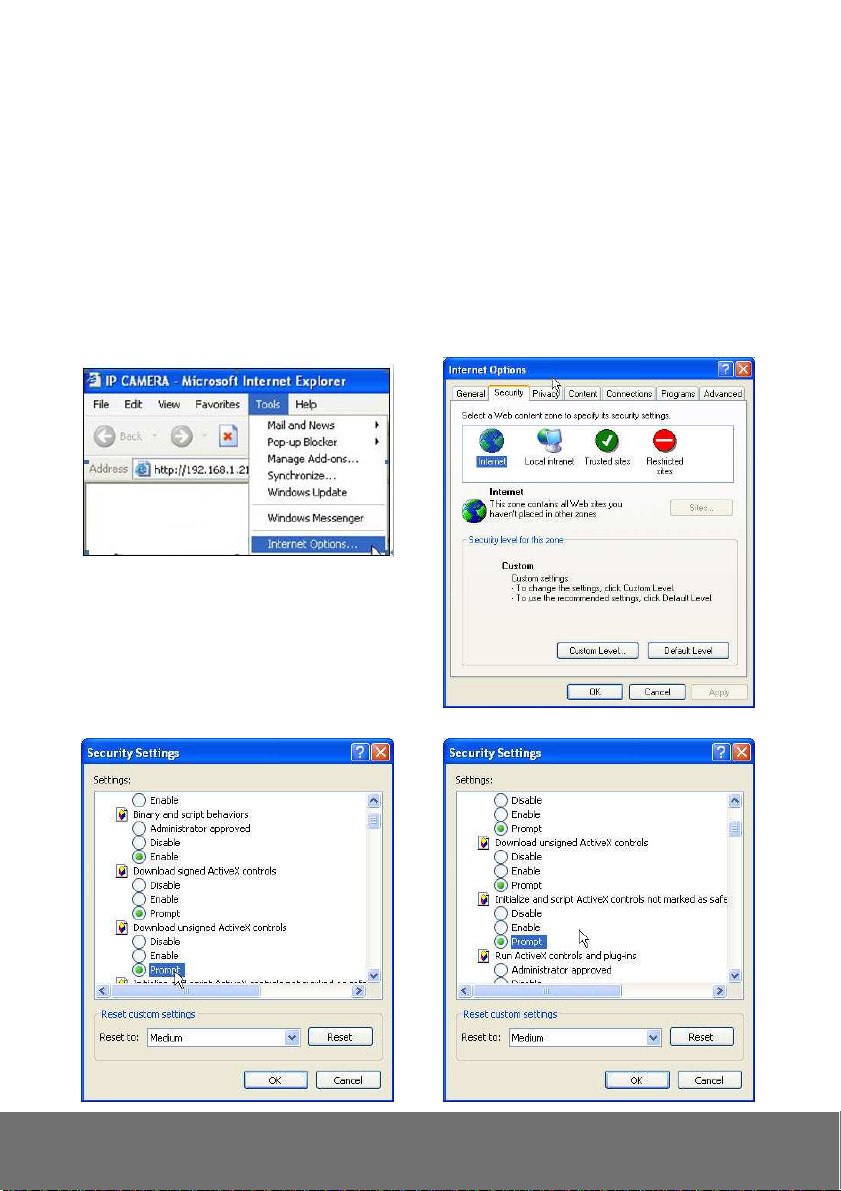

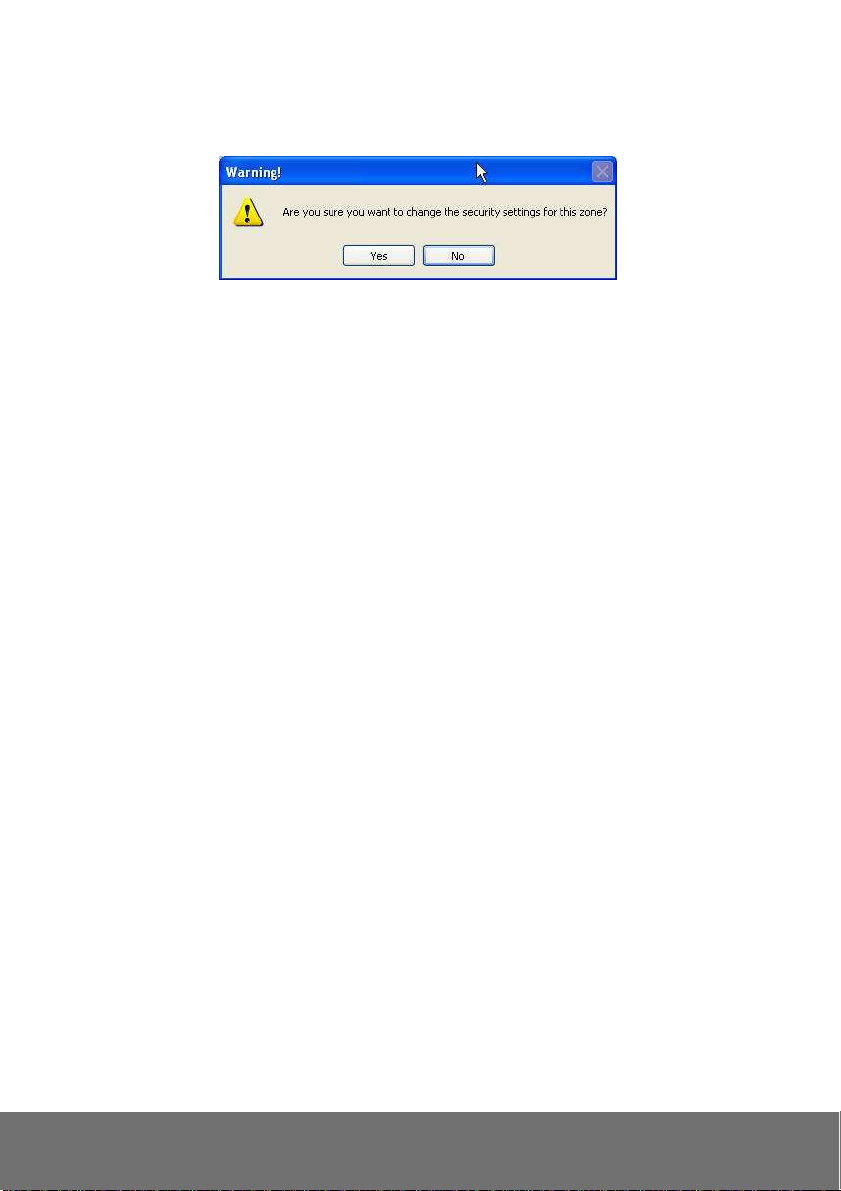

INSTALL ACTIVEX CONTROL ............................................................................................... 18
USING THE IP CAMERA BROWSER INTERFACE .......................................................... 20

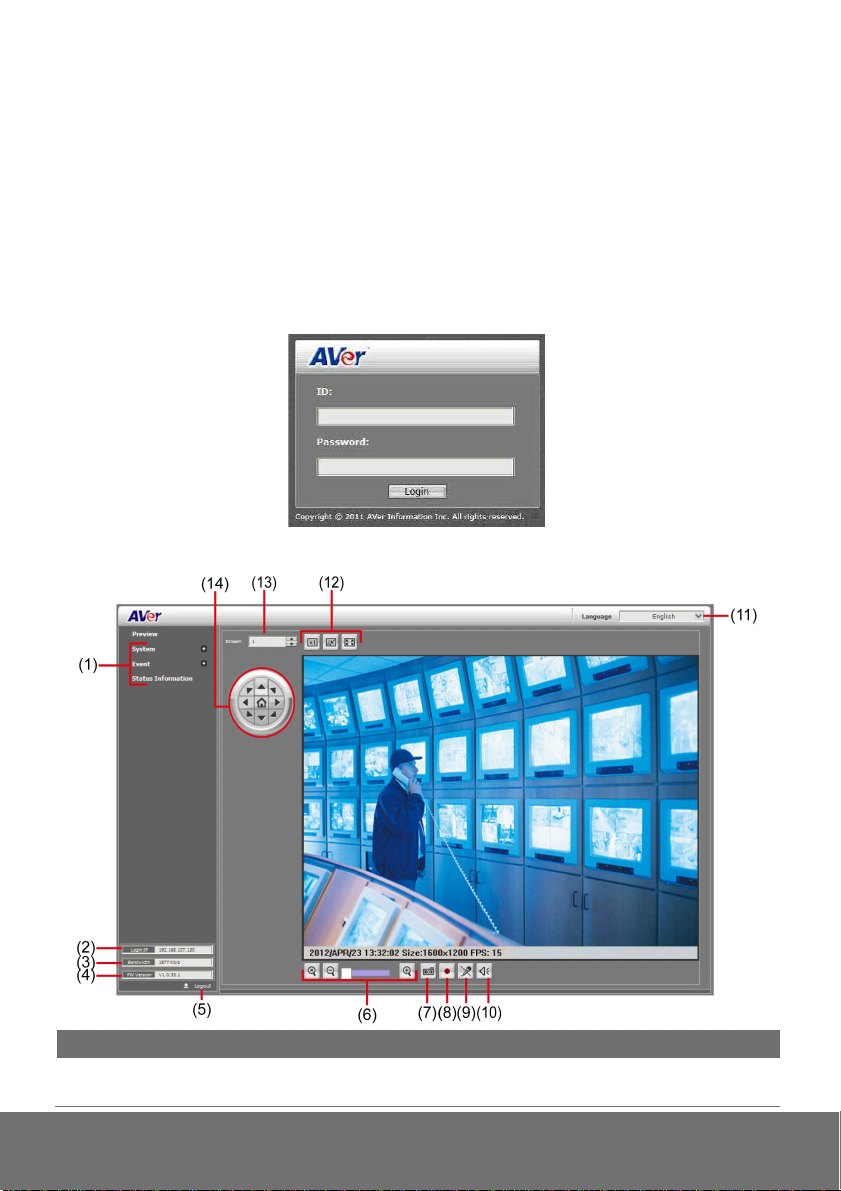

PREVIEW ......................................................................................................................... 20
SYSTEM > GENERAL ......................................................................................................... 22

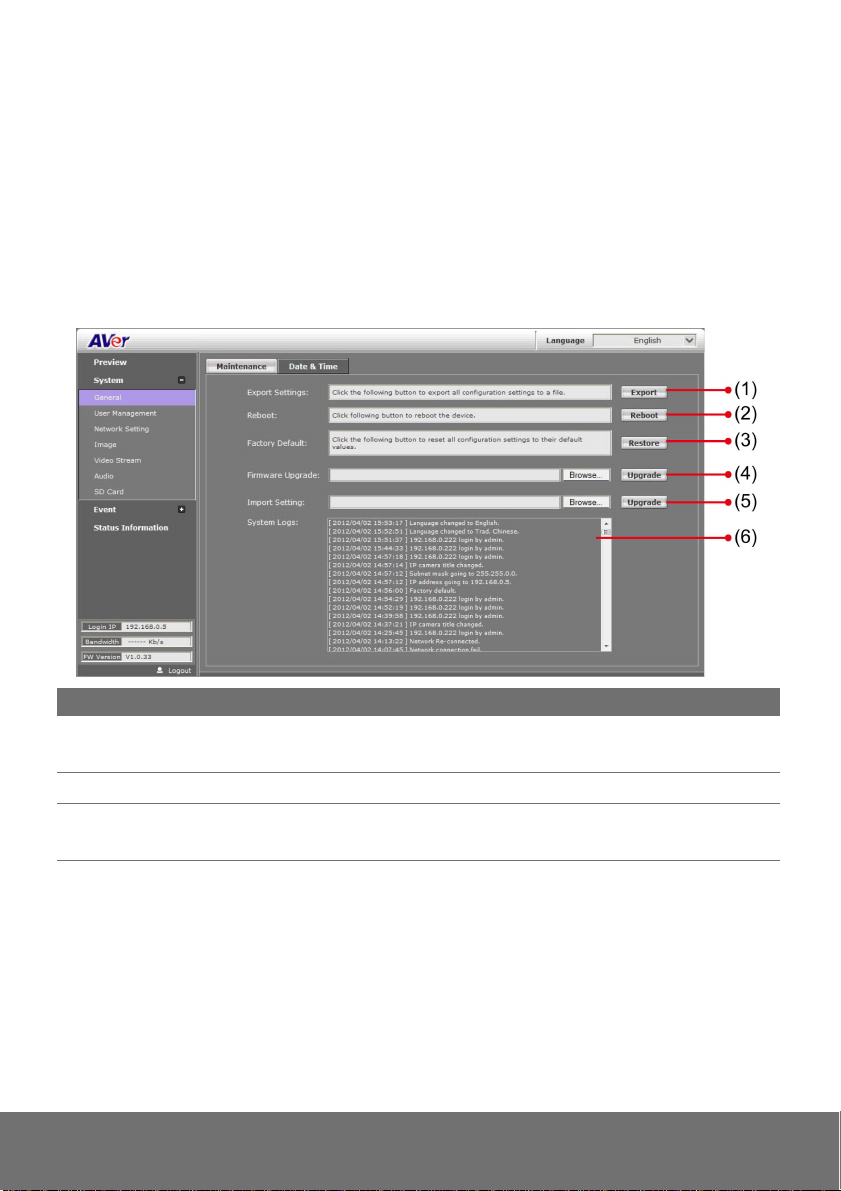

SYSTEM > GENERAL > MAINTENANCE ................................................................................. 22

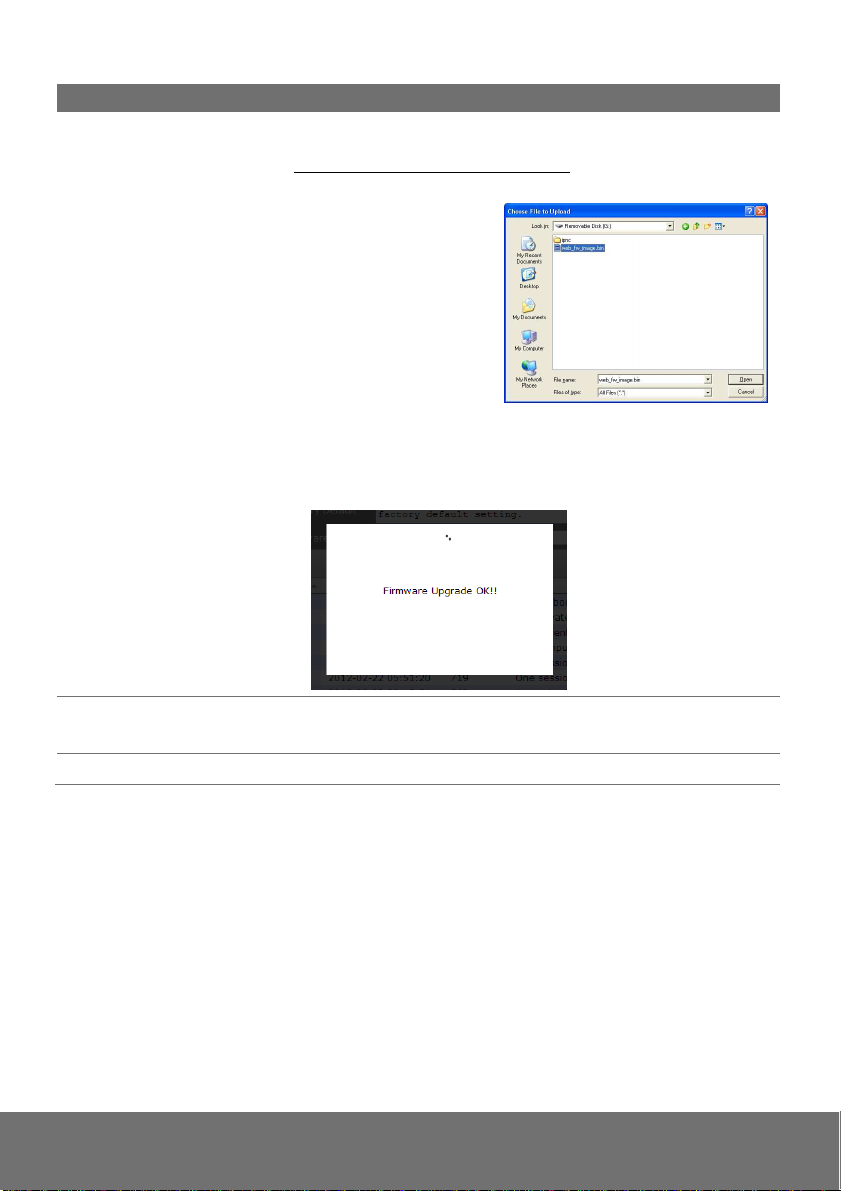

To Upgrade the IP Camera Firmware ....................................................................... 23
SYSTEM > GENERAL > DATE & TIME ................................................................................... 24
SYSTEM > USER MANAGEMENT ......................................................................................... 25
SYSTEM > USER MANAGEMENT > ACCOUNT ........................................................................ 25
SYSTEM > NETWORK SETTING>SETTING ............................................................................ 26

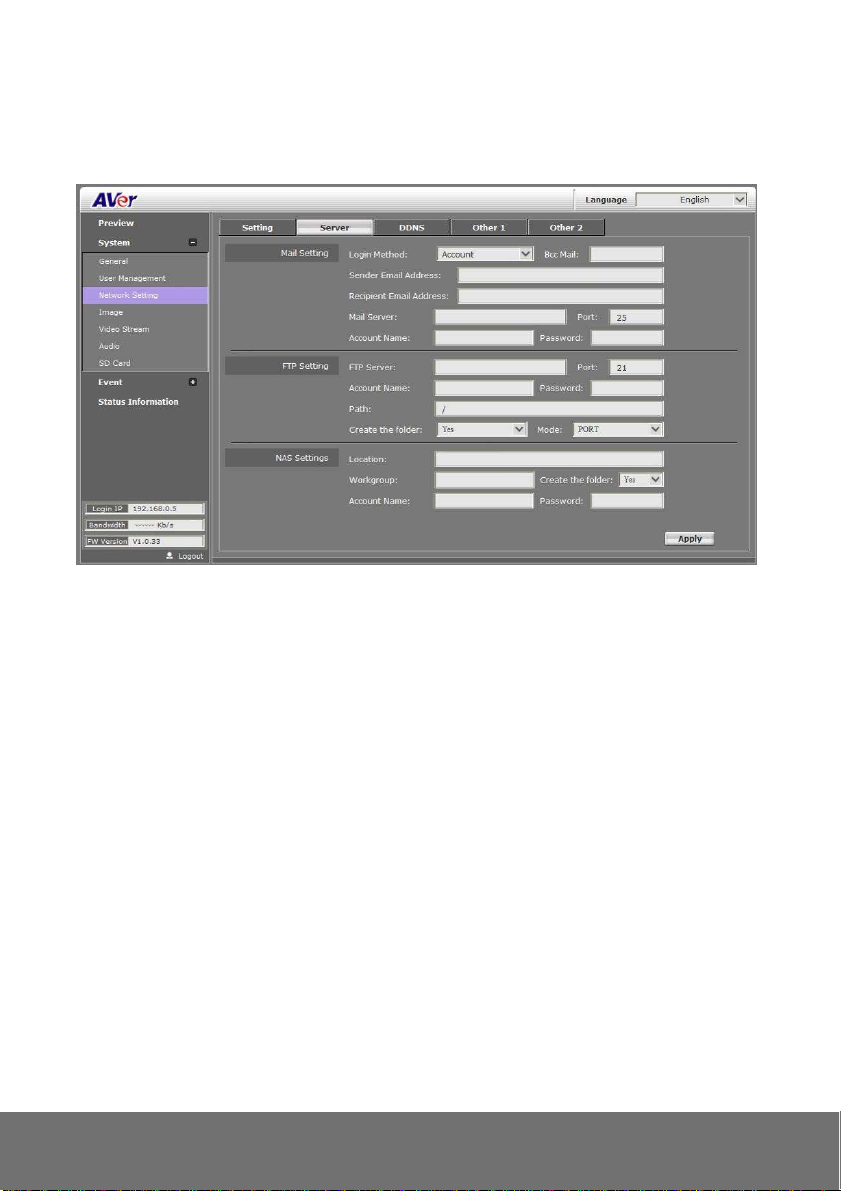

SYSTEM > NETWORK SETTING>SEVER ............................................................................... 27

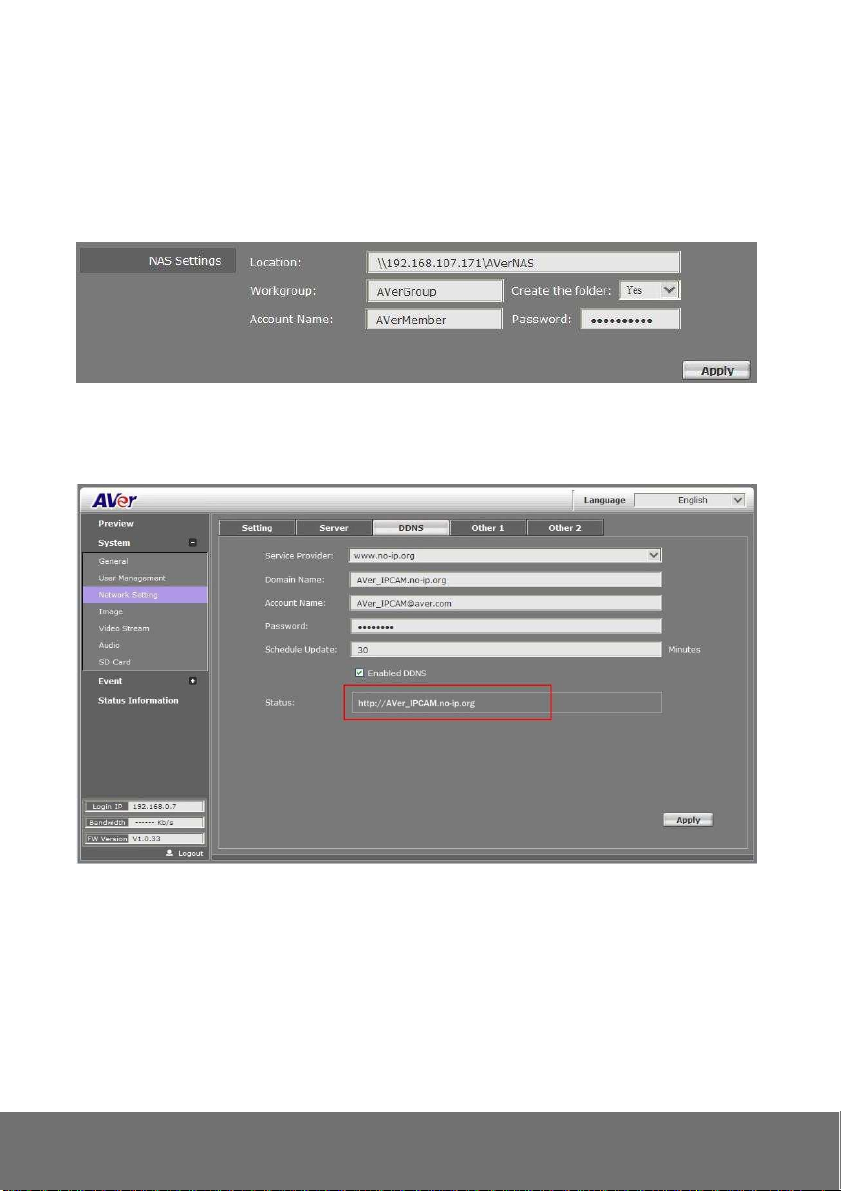

S
YSTEM > NETWORK SETTING>DDNS ............................................................................... 28

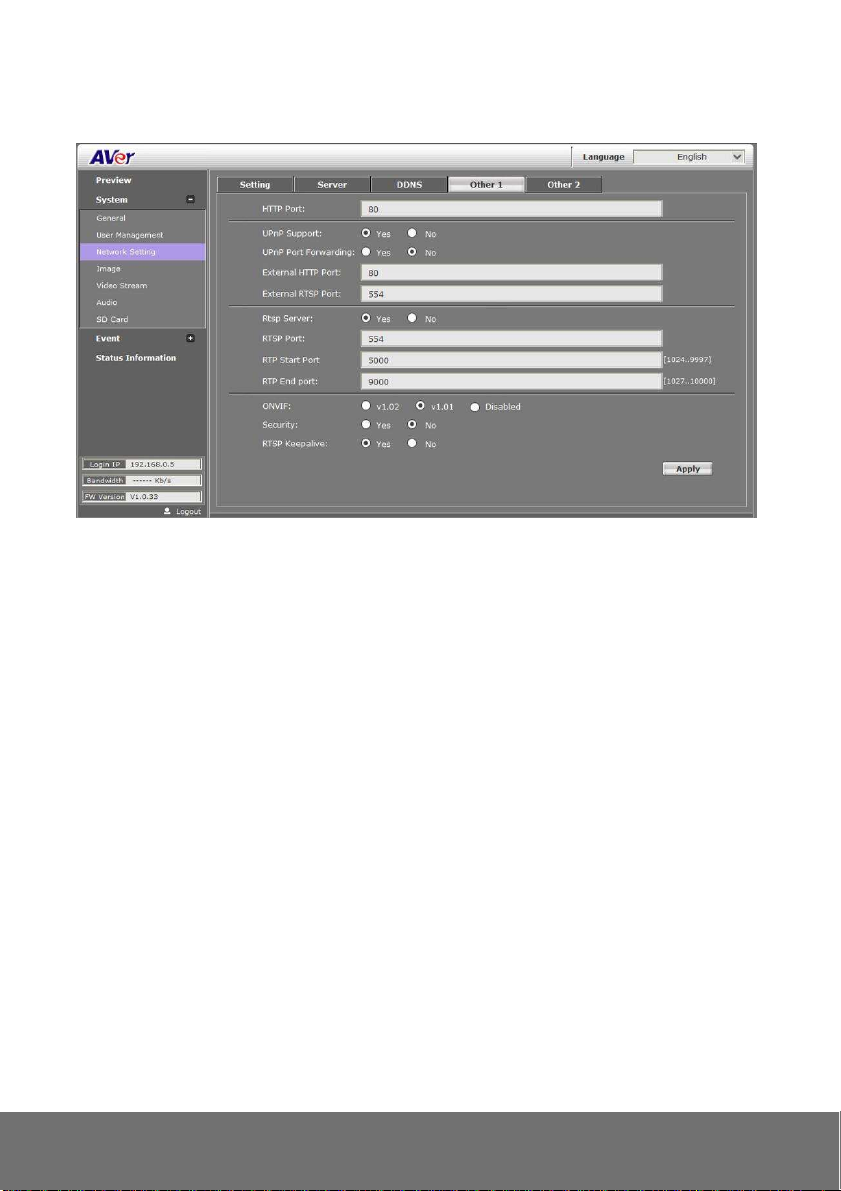

SYSTEM > NETWORK SETTING >OTHER 1 ........................................................................... 30

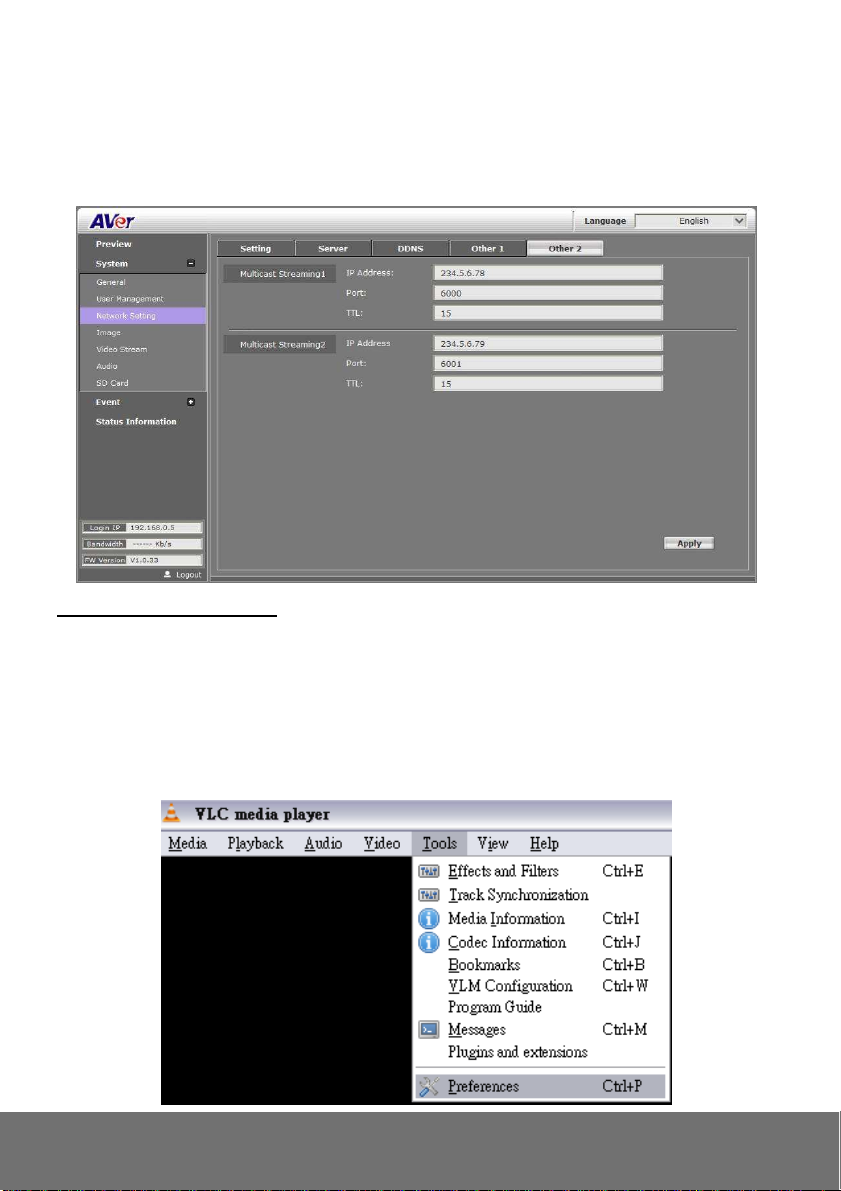

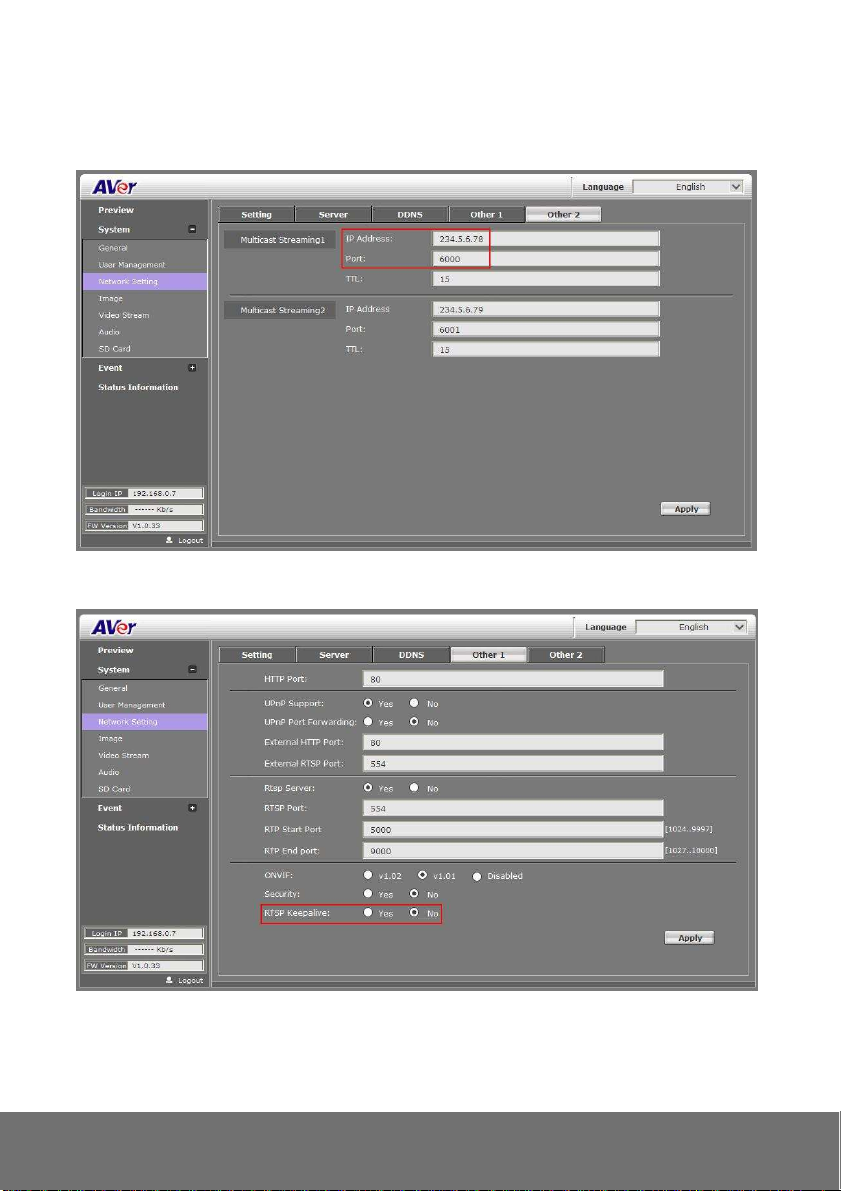

SYSTEM > NETWORK SETTING >OTHER 2 ........................................................................... 32
SYSTEM > IMAGE .............................................................................................................. 36
SYSTEM > IMAGE>OSD .................................................................................................... 36
SYSTEM > IMAGE>PREFERENCE ........................................................................................ 37
SYSTEM > IMAGE>ADVANCED ............................................................................................ 38

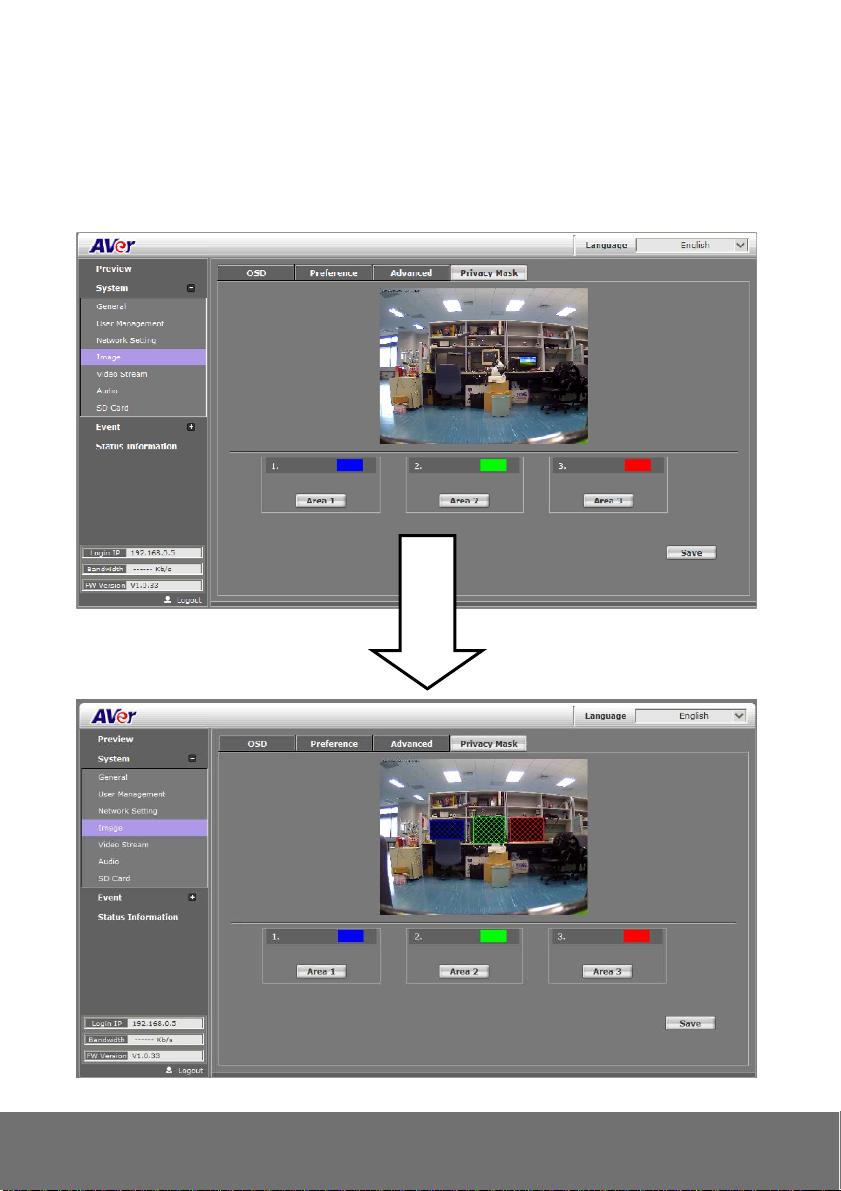

SYSTEM > IMAGE>PRIVACY MASK ...................................................................................... 39
SYSTEM > VIDEO STREAM>GENERAL ................................................................................. 40

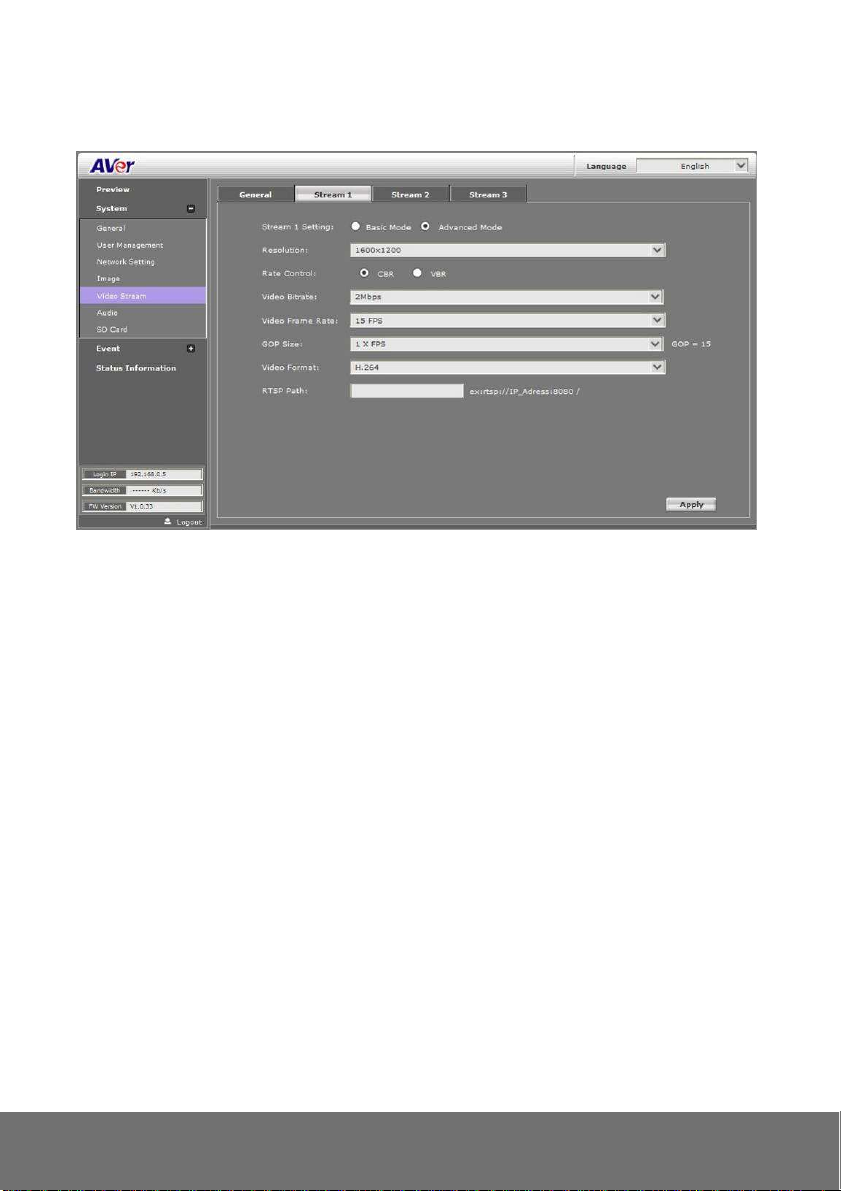

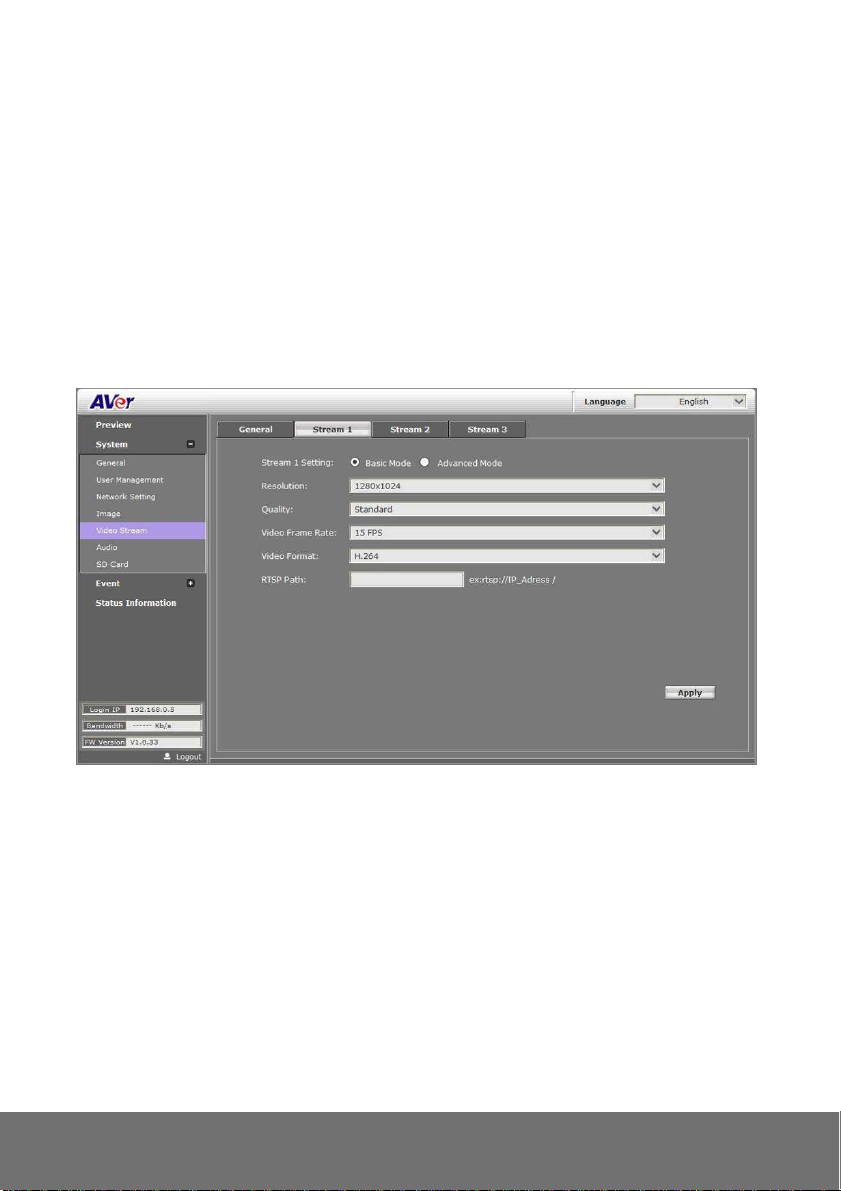

SYSTEM > VIDEO STREAM>STREAM1 ................................................................................. 41

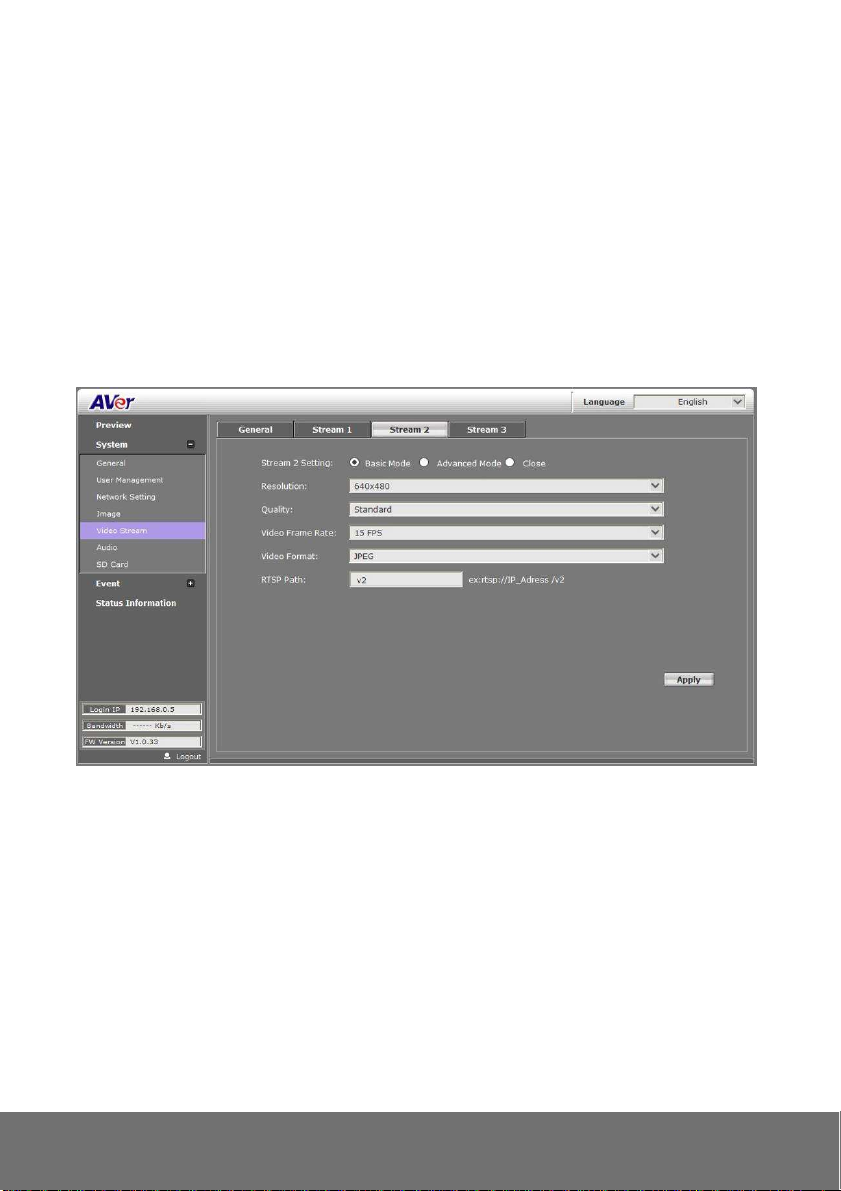

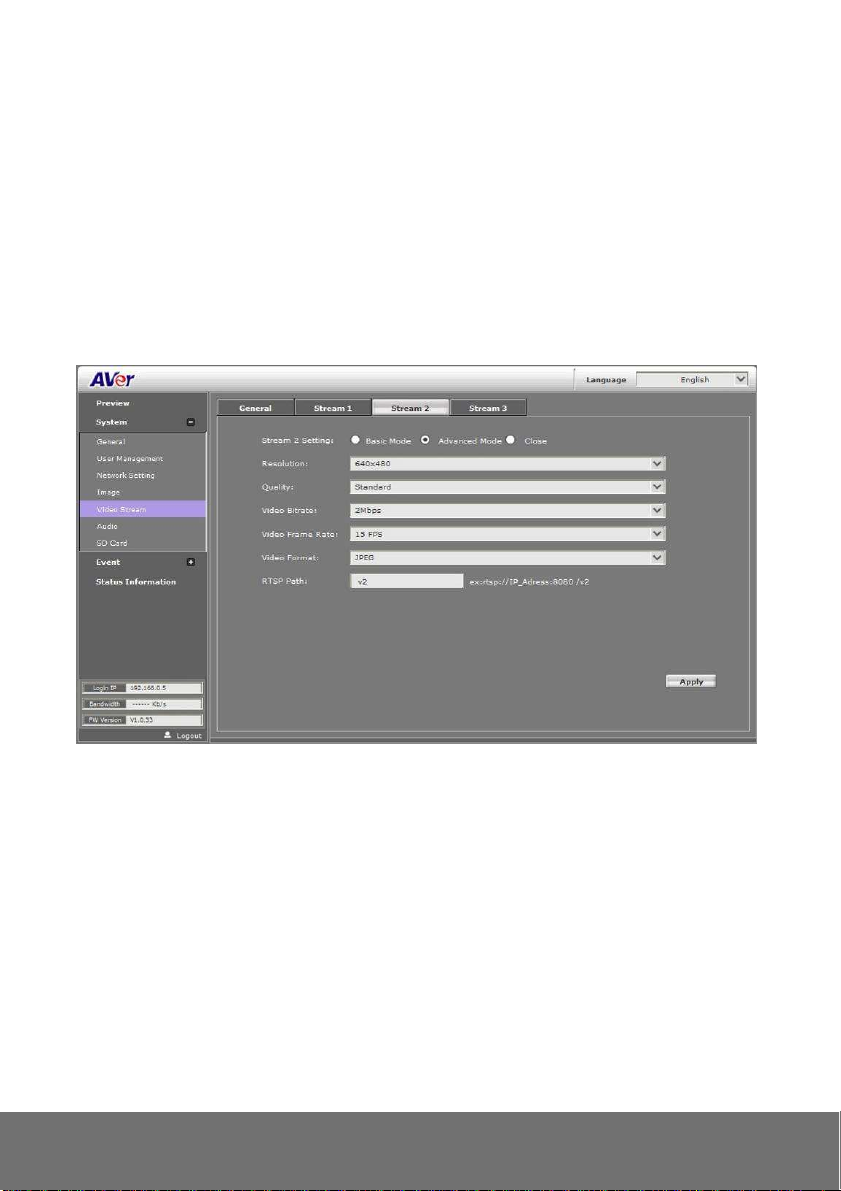

SYSTEM > VIDEO STREAM>STREAM2 ................................................................................. 43
SYSTEM > VIDEO STREAM>STREAM3 ................................................................................. 45

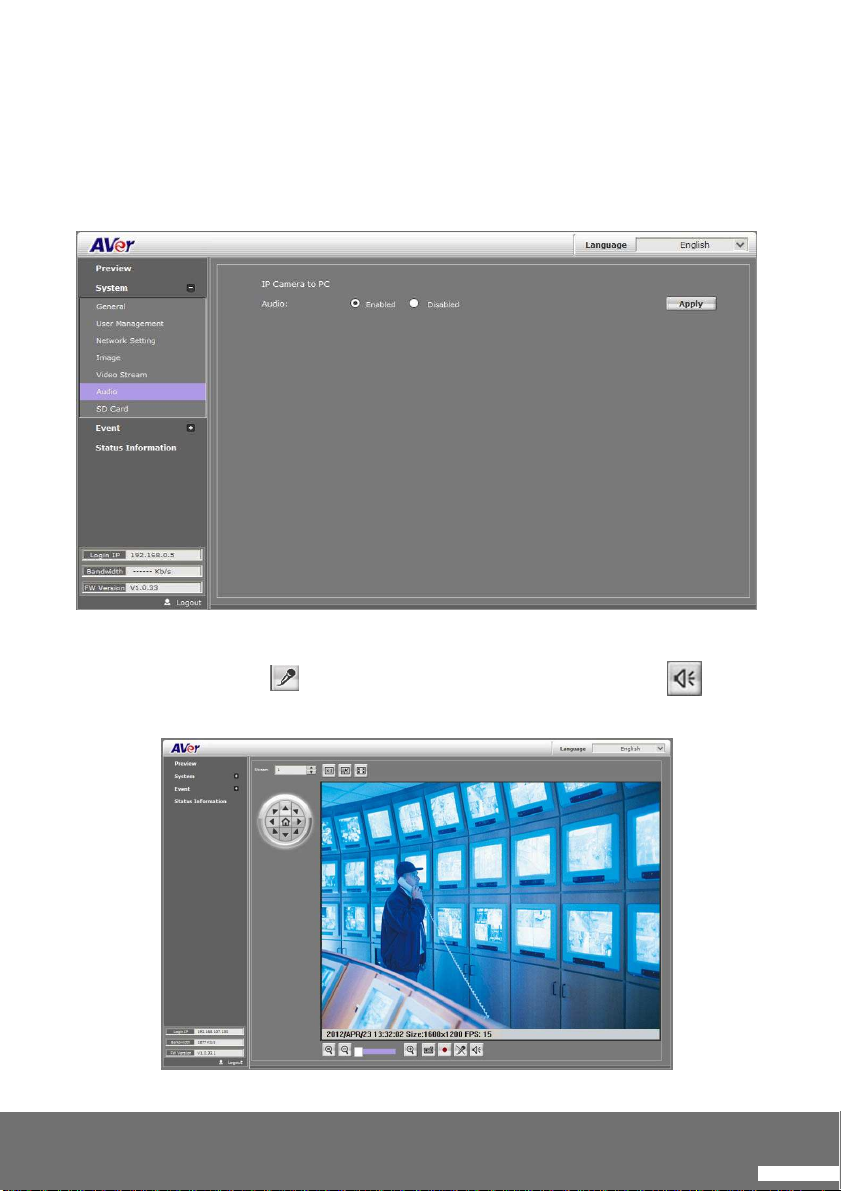

SYSTEM > AUDIO .............................................................................................................. 46

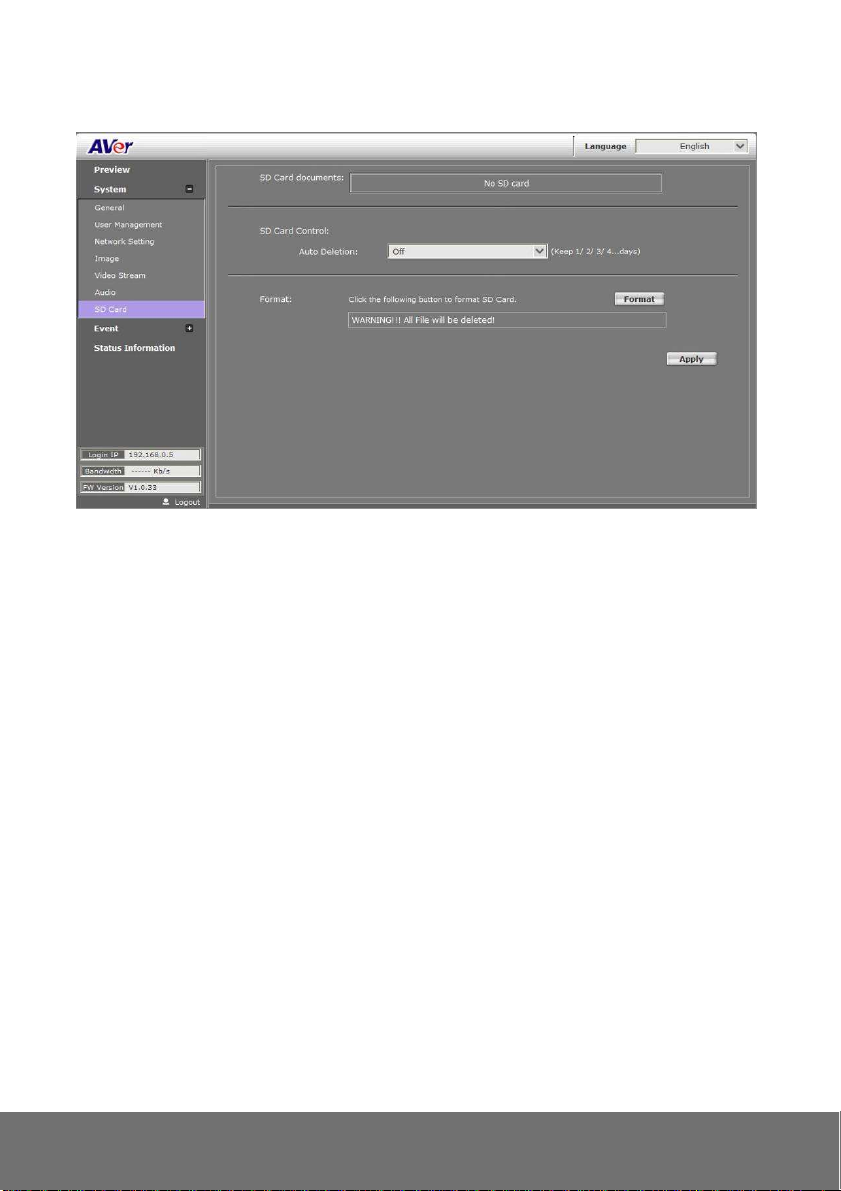

SYSTEM > SD CARD ......................................................................................................... 47
EVENT > ARRANGEMENT>MOTION ..................................................................................... 48

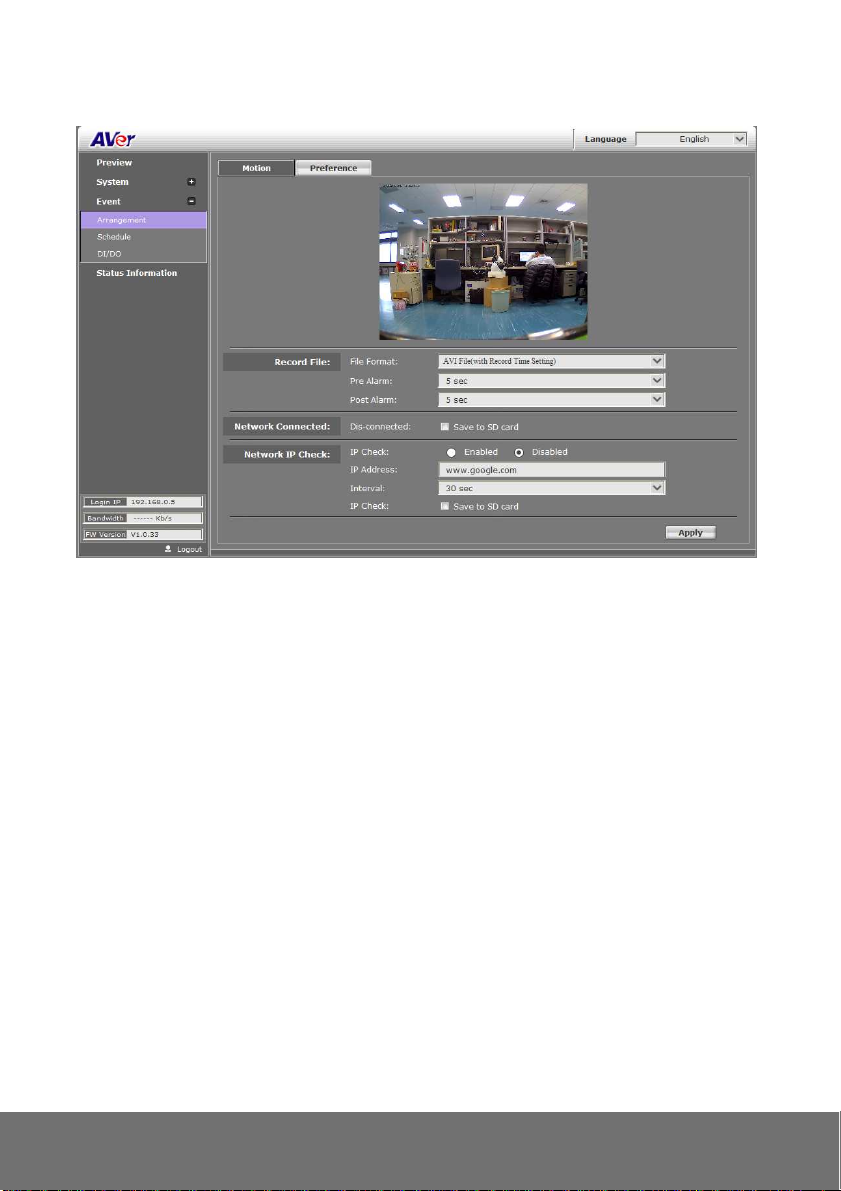

EVENT > ARRANGEMENT > PREFERENCE ............................................................................ 49

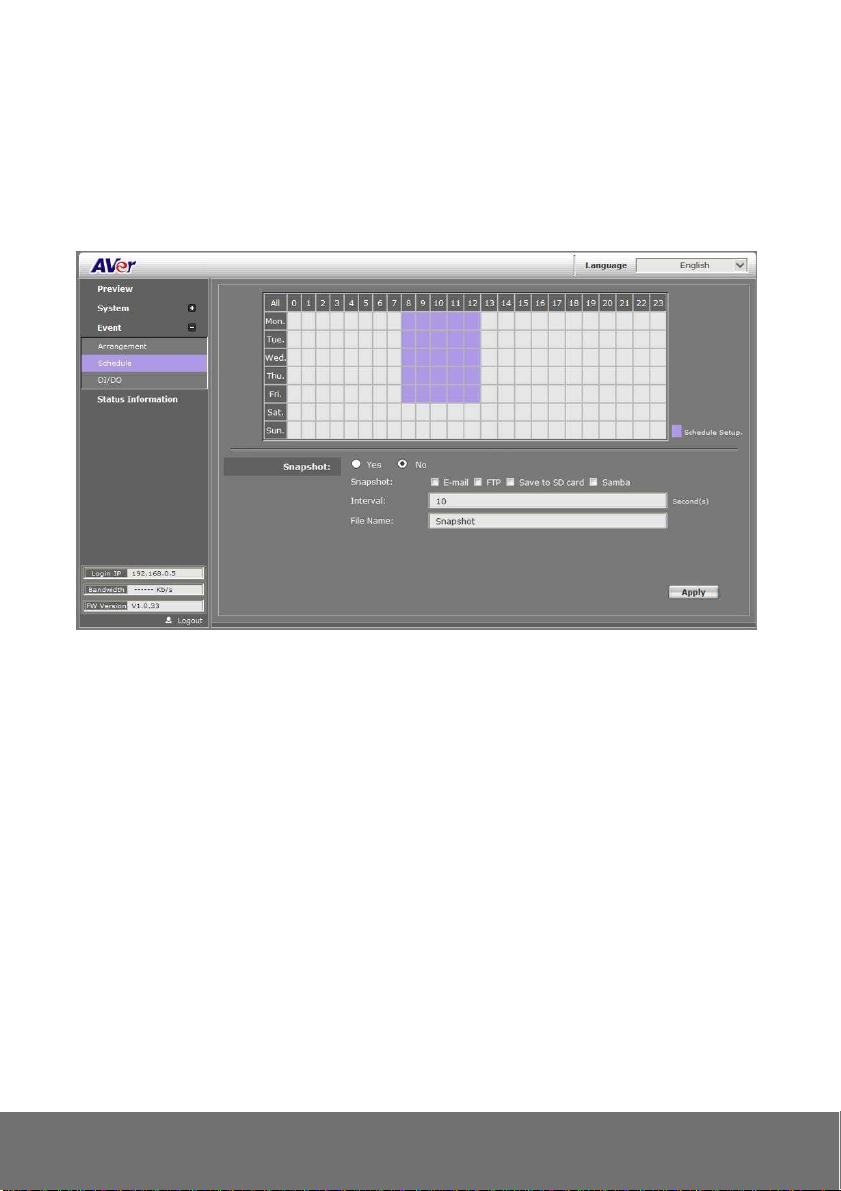

EVENT > SCHEDULE ......................................................................................................... 50
EVENT > DI/DO ............................................................................................................... 51

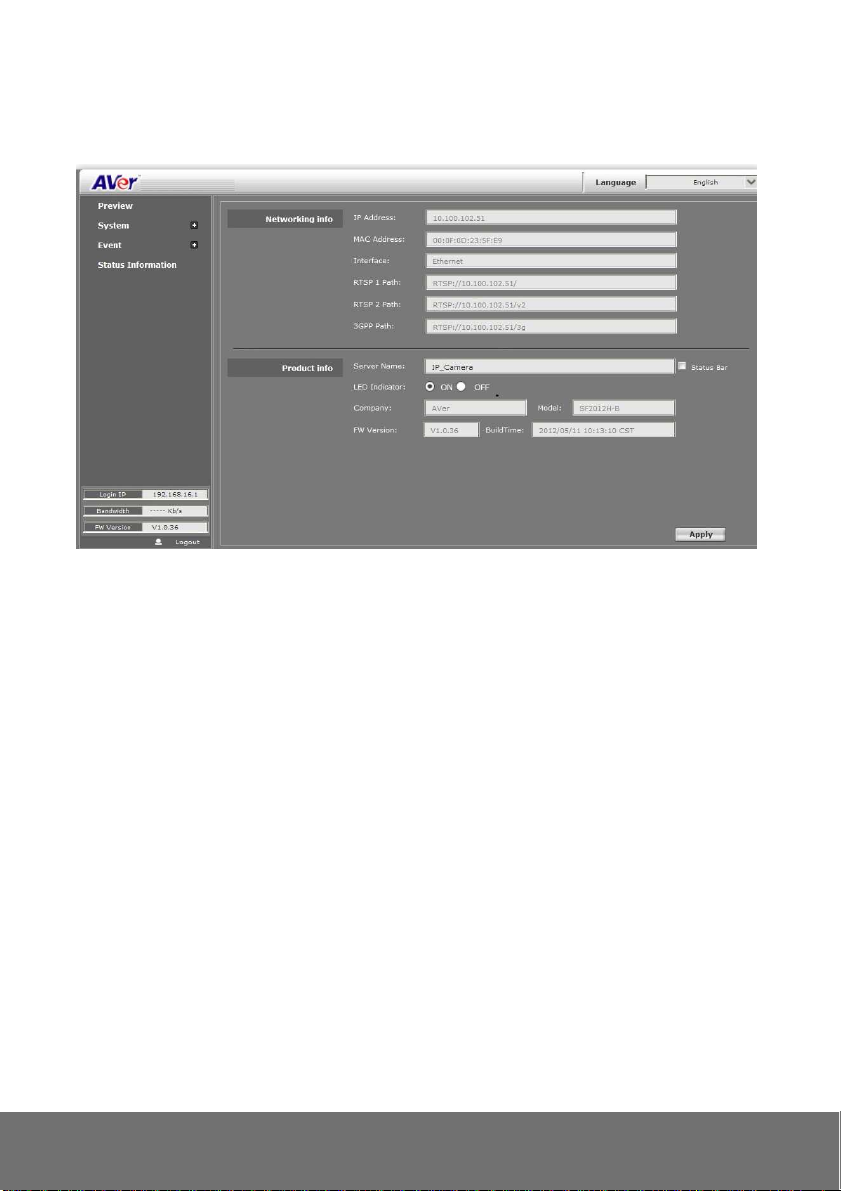

STATUS INFORMATION ....................................................................................................... 53

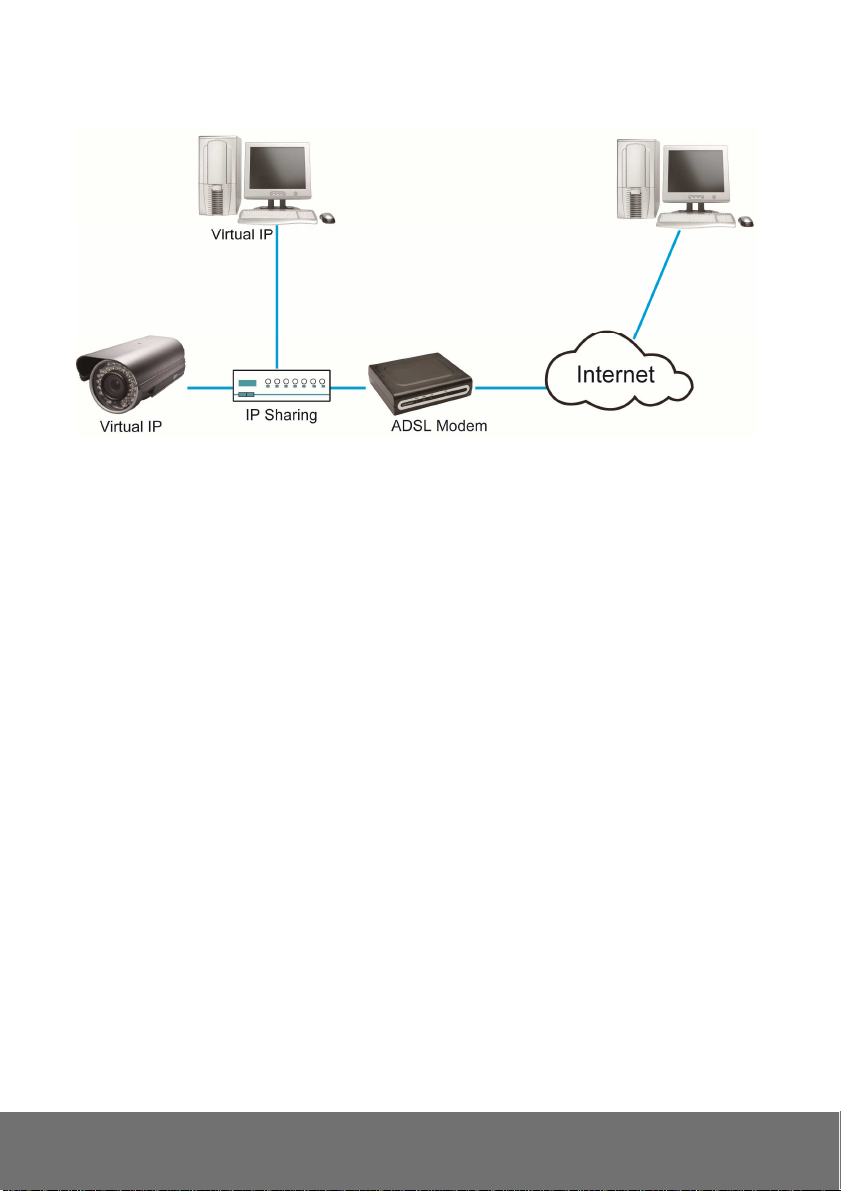

NETWORK CONFIGURATION .......................................................................................... 54
FACTORY DEFAULT ......................................................................................................... 56
TROUBLESHOOTING ....................................................................................................... 57
APPENDIX ......................................................................................................................... 58
FCC NOTICE (CLASS B) .................................................................................................. 59
COPYRIGHT ...................................................................................................................... 59
NOTICE .............................................................................................................................. 59
WARNING .......................................................................................................................... 59
LIMITED WARRANTY ....................................................................................................... 60
GOVERNING LAW AND YOUR RIGHTS .......................................................................... 61
Preface
The SF2012H-B is an H.264 2-megapixel bullet camera designed for indoor and outdoor use with a mechanical IR-cut filter and built-in LED IR illuminators. Unique external controls simplify installation allowing easy corrections to focus and zoom after placement. Rated to IP66, SF2012H-B gives you the flexibility of a camera that can withstand both dust and driving rain, and can continue to provide superior quality video during the day without compromising on nighttime performance.
Product Specifications
Video out support
High Definition (720p) 30fps support
2M-pixel CMOS sensor
Power over Ethernet (PoE)
H.264/MJPEG/MPEG-4 (3GPP Only) compression formats
SD/SDHC card backup (The mircoSD card has to be installed at factory)
2-way audio
3GPP mobile phone/PDA support
SDK for software integration
Free bundled recording software
IP66
IR LED Built in 20M available
Mechanism IR Cut Filter Available
Specifications
Hardware
CPU ARM 9, 32-bit RISC RAM 256MB Flash 16MB Image Sensor 1/3.2” CMOS (2 megapixels) Support DC IRIS Yes Lens Type Vari-focal 3.6~16mm Lens ICR Mechanism IR cut Filter LED
I/O 1 in/ 1 Relay Out Video Out 1 Audio In 1
Built-in 35 IR LED IR Distance-20M
1
Network
Audio Out 1 Power over Ethernet Yes Power Consumption DC 12V Dimensions 83mm x H180mm Ethernet 10/100 Base-T
Network Protocol HTTP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS,
NTP, UPnP, 3GPP, RTSP, RTP, RTCP, Multi-casting
System
Video Resolution
Video Adjust Brightness, Contrast, Sharpness, BLC, Night Mode Triple Streaming Yes Image Snapshot Yes Full Screen Monitoring Yes Privacy Mask Yes, 3 different areas Compression Format H.264/ JPEG/ MPEG-4 (3GPP only) Video Bitrates Adjust Yes (CBR/VBR) Motion Detection Yes, 3 different areas Triggered Action Mail, FTP, Save to SD/SDHC card, Relay, NAS Pre/ Post Alarm Yes, configurable Security Password Protection Firmware Upgrade HTTP mode (Can Be Upgraded Remotely) Simultaneous Connection Up to 10 Audio Yes, 2-way (mono)
Micro SD/SDHC card management
Recording Trigger
Video Format AVI, JPEG
1600x1200, 1280x1024, 1280x960,1280x720, 800x600,640x480, 320x240, 176x144
Motion Detection, IP Check, Network Breakdown (wire only), Schedule, Alarm
Video Playback Yes Delete Files Yes
2
Web browsing requirement
OS Windows® XP (32-bit), 7 (32/64-bit)
Microsoft® IE 6.0 or above (32-bit only) Hardware Suggested
Minimum Intel-C 2.8G, RAM: 512MB, Graphics Card: 64MB
Intel® Dual Core 1.66GHz, RAM: 1024MB, Graphics
Card: 128MB
3
Package contents
Item Descriptions
1. SF2012H-B
2. Stand
3. Accessory pack
4. Ethernet cable
4.. RJ45 socket
5. Power Adapter(DC 12V /1A) (Optional)
4
Item Descriptions
6. CD (User’s Manual and Quick Guide included)
5
Product Installation
Monitor Setting
1. Right-click on the desktop. Select “ Properties
2. Change “Color quality” to “Highest (32-bit)”.
6
Hardware Installation and I/O Pin Assignment
1. Connect a power adapter and IP camera to PC or local network.

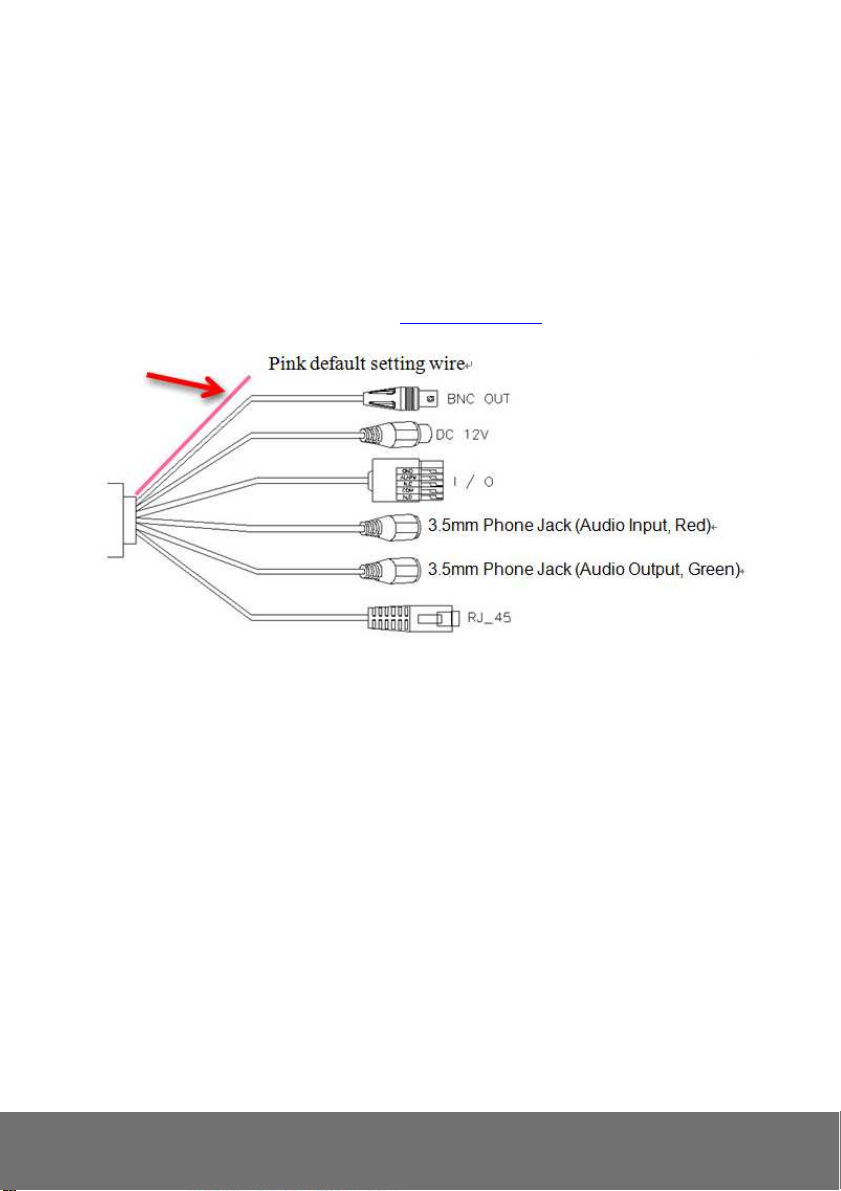

Pink default setting wire
3.5mm Phone Jack (Audio Input, Red)
3.5mm Phone Jack (Audio Output, Green)
2. I/O Control Instruction I/O terminal connector – used in application, for e.g., motion detection, event triggering, alarm notifications. It provides the interface to: Digital Input (GND+Alarm) : An alarm input for connecting devices that can toggle between
an open and closed circuit, for
1. GND (Ground) : Initial state is LOW
2. Alarm : Max. 50mA, DC 3.3V Example: PIRs, door/window contacts, glass break detectors, etc. When a signal is received the state changes and the input becomes active.
Relay output (COM +N.O.) / (COM+N.C.) : An output to Relay switch, for example: LEDs,
Sirens, etc
1. N.C. (Normally Close): Max. 1A, 24VDC or 0.5A, 125VAC
2. COM: (Common)
3. N.O. (Normally Open): Max. 1A, 24VDC or 0.5A, 125VAC
ALARM IN
RELAY OUT
7

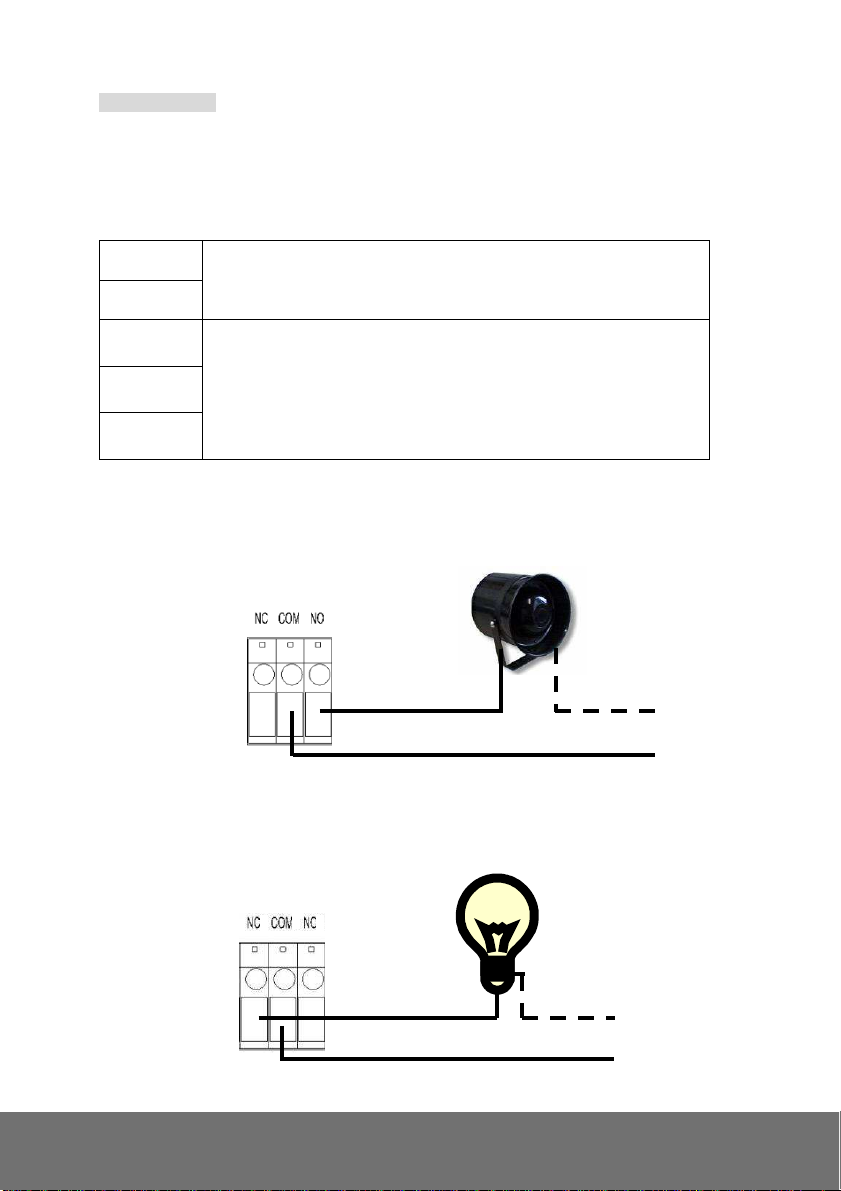

[Example] RELAY INSTALLATION EXAMPLE 1
Trigger a “Normal OFF” (Normal Open) alarm siren on when event/motion occur:
RELAY INSTALLATION EXAMPLE 2
Trigger the “Normal ON” (Normal Close) indoor illumination off when event / motion occur:
8
Power Over Ethernet (PoE)
Set up the IP camera through Power over Ethernet (PoE). PoE is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided to the network device, such as an IP camera, using the same cable as that used for network connection. It eliminates the need for power outlets at the camera locations and enables easier application of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days a week operation.
[Note] 802.3af, 15.4W PoE Switch is recommended.
Ethernet
PoE Switch
PoE IP Camera
Ethernet Cable
Ethernet Cable
PoE IP Camera
9
IP Assignment
There are two ways to find IP Camera:
Finding IP Camera by using “NXU Lite recording software”
Finding IP Camera by using “IP installer”
Finding IP Camera by using “NXU Lite recording software”
1. The NXU Lite software is in the attached software CD. Before launching it, please install the software first. During the installing process, users will be required to input a User name and Password for login NXU Lite system. Users can define the User name and Password as wishes. Please refer to NXU Lite user manual for detailed installation instruction.
2. To run the application, double-click on your PC desktop or click Start > Programs > DVR > NXU Lite. For security purpose, some of the features would require you to enter User name and Password before it can be accessed. When the Authorization dialog box appears, key in your User ID and Password. (If this is the first time, enter the one you have registered when installing the software.
Click it to call out virtual keyboard.
10
3. Click “Setup” button.
4. Click “Add IPCam” button.
5. Select “IP Camera” item.
11
6. Key in IP Camera’s ID and Password (default is admin/admin) and click “Auto Search” to find camera.
7. In Search Result window, click it the IP camera model that user has purchased (Please ignore ONVIF connection item); the camera is in red text that is configurable. User can double-click on the camera is in red text and configure the IP camera’s setting; even the IP camera is not in the same IP segment. Press “OK” to back to previous screen and press”Connect” to start live view.
Double-click the IP camera mode that user has purchased (ex: SF2012H-B, SF2012H-DV).
Please ignore ONVIF protocol selection; NXU Lite doesn’t support ONVIF connection.
12
Finding IP Camera by using “IP installer”
Use the software, “IP Installer” to assign the IP address of the IP camera. The software is in the attached software CD. IP installer supports two languages
IPInstallerCht.exe: Traditional Chinese version IPInstallerEng.exe: English version
There are 3 kinds of IP configuration.

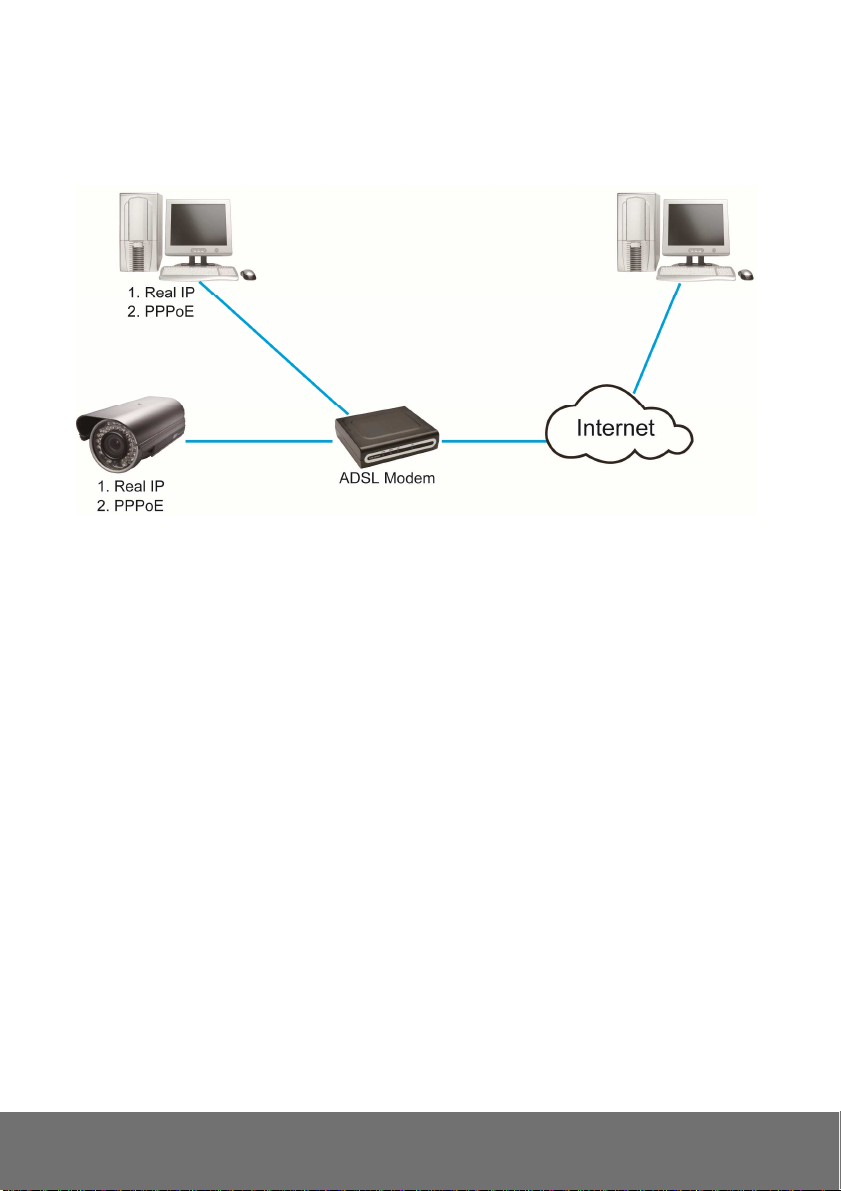

Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) DHCP server/router network automatically assigns IP addresses to devices. You can use the
IP Installer software in the CD to search for the IP camera(s) in the network.
Dial-up (PPPoE) Execute IP Installer For Windows® XP (SP2) users, the following message box may appear. Please click “Unblock”.
13
IP Installer configuration:
IP Installer will search all IP cameras connected on the LAN. The user can click “Search Device” to search again. Click one of the IP cameras listed on the left side. The network configuration for this IP camera will show on the right side. You may change the name of the IP camera to your preference (eg: Office, warehouse) in “Name” on the right side.
Using DHCP Server/Router Network
To use DHCP, please check DHCP and click “Submit” then click “OK”. It will apply the change and reboot the Device.
14
Using NON-DHCP Server/Router Network
In Non-DHCP server/router network, the static IP address must be assigned to the device each time when adding another IP camera to the network; the default IP address of the current one must be changed to avoid conflict.
Please make sure the Subnet of the PC’s IP address and the IP camera’s IP address are the same.
[Example]
The same Subnet:
IP camera IP address: 192.168.1.200 PC IP address: 192.168.1.100
Different Subnets:
IP camera IP address: 192.168.2.200 PC IP address: 192.168.1.100
To Change PC IP Address:
Control PanelNetwork ConnectionsLocal Area Connection PropertiesInternet Protocol (TCP/IP) Properties Please make sure your IP camera and PC have the same Subnet. If not, please change IP camera subnet or PC IP subnet accordingly.
PC’s IP address:
15
IP camera IP addresses:
i. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP camera in
“Device lists” in IP Installer. Upon doing so, the Internet Explorer browser should open.
16
ii. Then, please key in the default “User name” and “Password”, both of which are “admin”.
17
