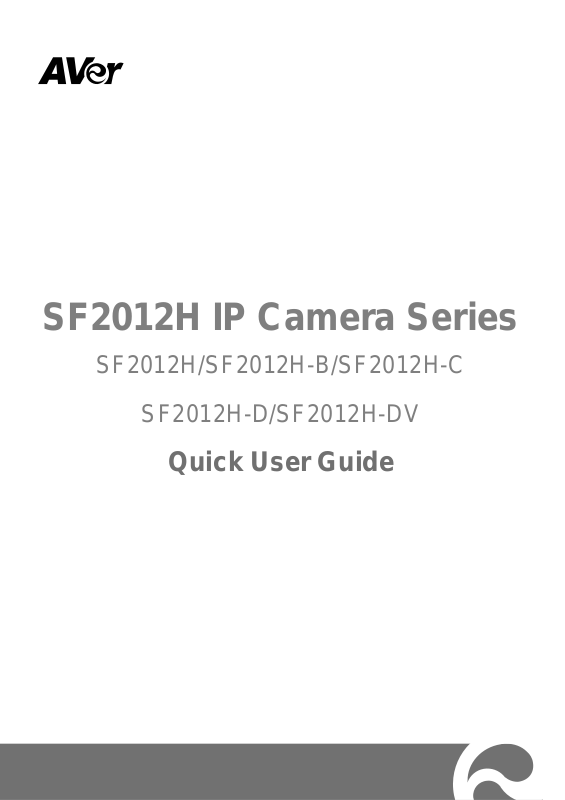

AVer SF2012H quick guide
SF2012H IP Camera Series
SF2012H/SF2012H-B/SF2012H-C
SF2012H-D/SF2012H-DV
Quick User Guide
Table of Contents
I. Camera Introduction ................................................................................................... 1
1. Box Type IP Camera(SF2012H) .................................................................... 1
1.1 Package Contents ....................................................................................... 1
1.2 Hardware Installation .................................................................................. 2
1.3 Factory Default ............................................................................................ 2
2. Bullet Type IP Camera (SF2012H-B) ............................................................. 3
2.1 Package Contents ....................................................................................... 3
2.2 Hardware Installation .................................................................................. 5
2.3 Factory Default ............................................................................................ 7
3. Cube IP Cameras (SF2012H-C) .................................................................... 8
3.1 Package Contents ....................................................................................... 8
3.2 Hardware Installation .................................................................................. 9
3.3 Factory Default ............................................................................................ 9
4. Dome Type IP Camera ................................................................................. 10
4.1 Package Contents ..................................................................................... 10
4.1.1 SF2012H-D ............................................................................................ 10
4.1.2 SF2012H-DV .......................................................................................... 11
4.2 Hardware Installation ................................................................................ 12
4.2.1 SF2012H-D ............................................................................................ 12
4.2.2 SF2012H-DV .......................................................................................... 14
4.3 Factory Default .......................................................................................... 17
4.3.1 SF2012H-D ............................................................................................ 17
4.3.2 SF2012H-DV .......................................................................................... 18
4.4 SD card Compatibility List ......................................................................... 19
II. Monitor Setting .......................................................................................................... 20
III. IP Assignment ........................................................................................................... 21
Using DHCP Server/Router Network ........................................................................ 22
Using NON-DHCP Server/Router Network ............................................................... 23
IV. Connecting the IP Camera ........................................................................................ 26
FCC NOTICE (Class B) ..................................................................................................... 27
COPYRIGHT ...................................................................................................................... 27
NOTICE .............................................................................................................................. 27
WARNING .......................................................................................................................... 27
Limited Warranty .............................................................................................................. 28
Governing Law and Your Rights ..................................................................................... 29
Before Installation
Before installation, please be sure to read this quick installation guide and user’s manual carefully to
complete the installation.
I. Camera Introduction
The following section introduces package contents, hardware installation, factory default reset, and SD
card Compatibility List of each type camera.
1. Box Type IP Camera (SF2012H)
1.1 Package Contents
Item Descriptions
1. SF2012H
2. Accessory pack
3. Ethernet cable
4. Power Adaptor(DC 12V/1A)
5. CD (User’s Manual and Quick Guide
included)
**If any of the above items are missing, please contact your dealer immediately.
1
1.2 Hardware Installation
Connect the power adapter and connect the IP camera to local network with the Ethernet cable.
1.3 Factory Default
1. Please follow the below instructions if the user name, password, and IP address are lost.
2. First, unplug the power adapter. Then, press the button in the back of IP camera as shown in
figure.
Reset button
3. Plug in the power adapter and do not release the button during the IP camera booting.
4. It will take around 30 seconds to boot the IP camera.
5. Release the button after the IP camera finishes booting.
6. Reconnect the IP camera with the default IP address (192.168.1.200), user name (admin), and
password (admin).
2
2. Bullet Type IP Camera (SF2012H-B)
2.1 Package Contents
Item Descriptions
1. SF2012H-B
2. Stand
3. Accessory pack
4.. RJ45 socket
5. Ethernet cable
6. Power Adaptor(DC 12V/1A)
3
Item Descriptions
7. CD (User’s Manual and Quick Guide
included)
**If any of the above items are missing, please contact your dealer immediately.
4
2.2 Hardware Installation
1. Connect a power adapter and IP camera to PC or local network.
Pink default setting wire
3.5mm Phone Jack (Audio Input, Red)
3.5mm Phone Jack (Audio Output, Green)
2. I/O Control Instruction
I/O terminal connector – used in application, for e.g., motion detection, event triggering, alarm
notifications. It provides the interface to:
Digital Input (GND+Alarm) : An alarm input for connecting devices that can toggle between
an open and closed circuit, for
1. GND (Ground) : Initial state is LOW
2. Alarm : Max. 50mA, DC 3.3V
Example: PIRs, door/window contacts, glass break detectors, etc. When a signal is
received the state changes and the input becomes active.
Relay output (COM +N.O.) / (COM+N.C.) : An output to Relay switch, for example: LEDs,
Sirens, etc
1. N.C. (Normally Close): Max. 1A, DC24V or 0.5A, 1AC25V
2. COM: (Common)
3. N.O. (Normally Open): Max. 1A, DC24V or 0.5A, AC 125V
ALARM IN
RELAY OUT
5
[Example]
RELAY INSTALLATION EXAMPLE 1
Trigger a “Normal OFF” (Normal Open) alarm siren on when event/motion occur:
RELAY INSTALLATION EXAMPLE 2
Trigger the “Normal ON” (Normal Close) indoor illumination off when event / motion occur:
6
