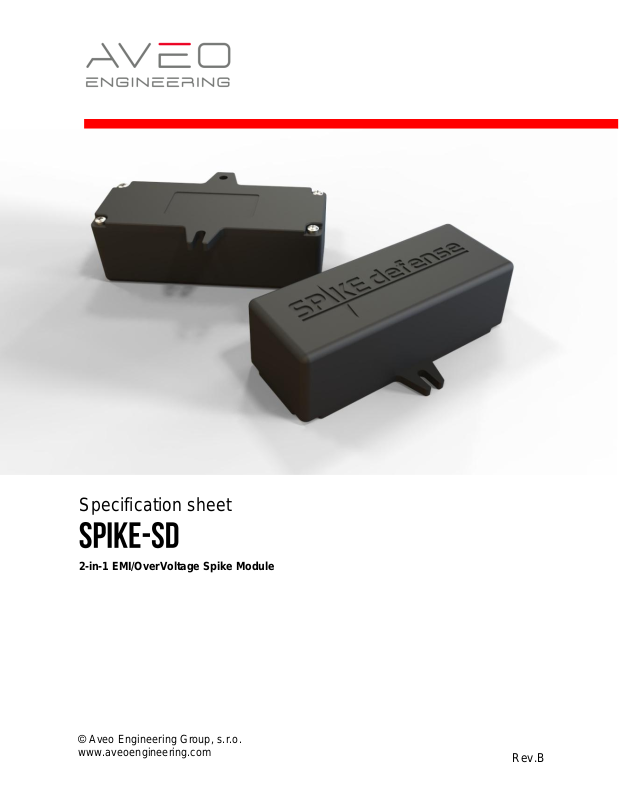

Page 1
Rev.B
Specification sheet
2-in-1 EMI/OverVoltage Spike Module
© Aveo Engineering Group, s.r.o.
www.aveoengineering.com
Page 2
Specification sheet
Rev.: B
Valid from: 01/04/2015
PRODUCT SPECIFICATION
Unit characteristics: 2 channels Overvoltage Protection
Dimensions: 80,4 mm x 31,4 mm x 23 mm / 3.16" x 1.24" x 0.9"
Voltage range: 9..36VDC
Voltage protection:
- Transcend voltage: 150V at 2second max, both polarities;
- Under-voltage protection lockout: 7.4V;
- Under-voltage protection relies: 8.2V;
- Over-voltage protection lockout: 44.3V;
- Over-voltage protection relies: 41.6V;
- Reverse connection protection: 80V, not less;
Over current protection: 9A, not less
Performance:
- Filtration DO-160G, chapter 21, Emission of Radio Frequency Energy:
More than 10dB;
- Output current, not less than:
Steady: 8A per channel;
Pulse 1/3: 9A per channel;
- Output power, not less than:
Steady: 8A at 9..36VDC per channel;
Pulse 1/3: 9A at 9..36VDC per channel;
- Input power, not more than:
Steady: 8A at 9..36VDC per channel;
Pulse 1/3: 9A at 9..36VDC per channel;
Warm up time: 0.5sec
Ambient temperature: -40°C..+85°C
Overheat protection: +85°C
Wiring:
a. wire type: FEP High Temperature teflon wire, 16 AWG
b. wire length: min. 10 inch (280mm)

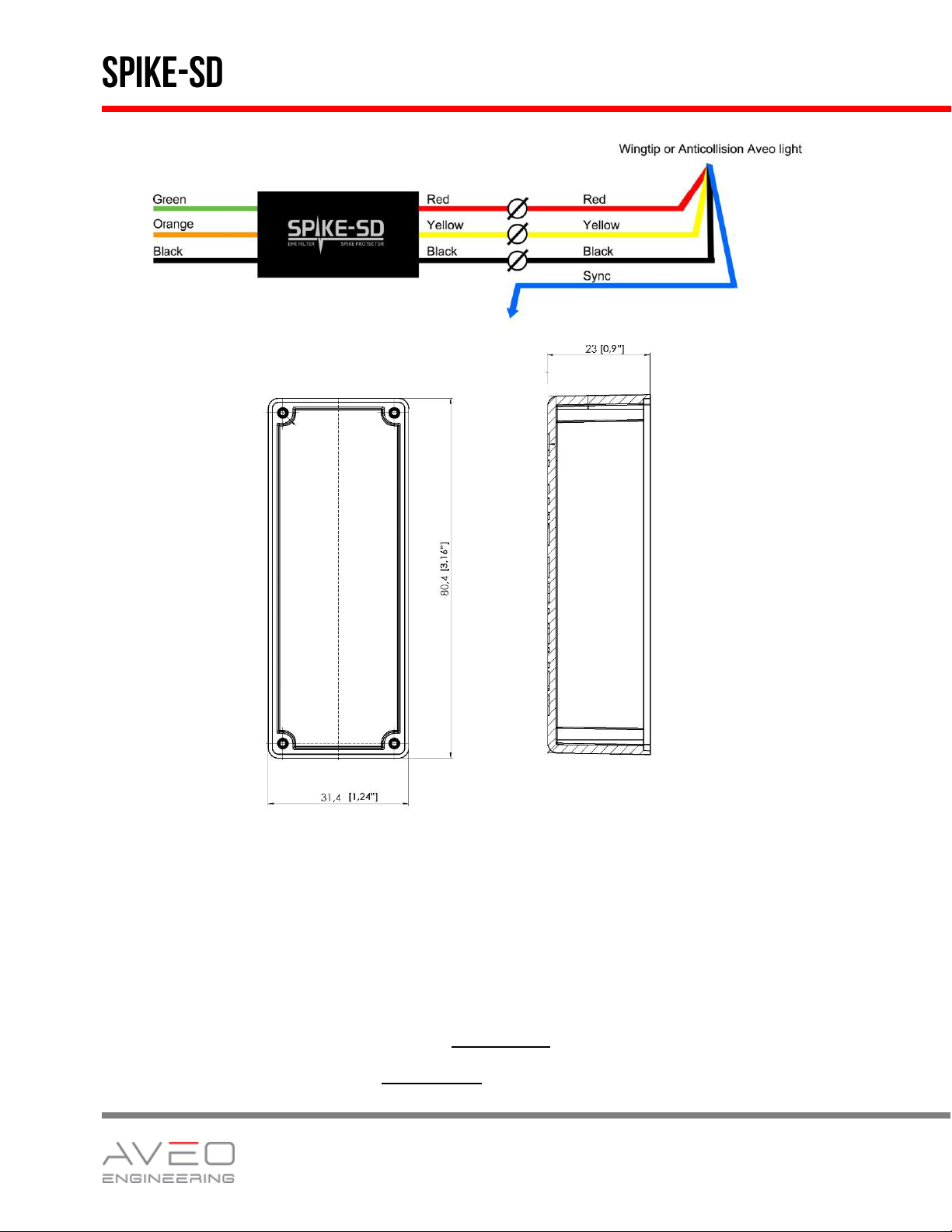

Wire color code:
1. Input, power supply side:
a. 16AWG Green +9…36V, first channel input
b. 16AWG Orange +9...36V, second channel input
c. 16AWG Black Common return VRTN to power supply for first and second channel
2. Output, light side:
a. 16AWG Red +9…36V, first channel output
b. 16AWG Yellow +9…36V, second channel output
c. 16AWG Black GND light
Please, do not connect black wires from input and output together.
2
Page 3
Specification sheet
Rev.: B
Valid from: 01/04/2015
Spike-SD can be use with these AVEO lights:
- HISL
- Hercules, Landing Taxi independent modes:
Landing current consumption: 8A at 9VDC
Taxi current consumption: 4.6A at 9VDC,
- Samson, Landing Taxi independent modes:
Landing current consumption: 6.2A at 18VDC,
Taxi current consumption: 4.9A at 18VDC,
- Samson Dual mode.
- Hercules Drop-In, only 18-36VDC input power. Hercules Drop-In has one input with 7A at 18VDC
Hercules Drop-In, 9-18VDC has one input and can not be use with Spike-SD, current consumption is
12.6A at 9VDC, what more than 8A per channel.
Samson Drop-In has one input and can not be use with Spike -SD, current consumption is 11.1A at
18VDC, what more than 8A per channel.
3
Page 4
Specification sheet
Rev.: B
Valid from: 01/04/2015
Device RTCA/DO160F qualified:
a. chapter 4, Temperature - Altitude, Category F2
b. chapter 5, Temperature Variation, Category A
c. chapter 6, Humidity, Category C
d. chapter 7, Operational Shocks and Crash Safety, Category C
e. chapter 8, Vibration, Category R
f. chapter 9, Explosion proofness, Category H
g. chapter 10, Waterproofness , Category S
h. chapter 11, Fluids Susceptibility, Category F
i. chapter 12, Sand and Dust, Category D
j. chapter 13, Fungus resistance, Category F
k. chapter 14, Salt spray, Category T
l. chapter 15, Magnetic effects, Category Z
m. chapter 16, Power Input, Category B
n. chapter 17, Voltage Spike, Category B
o. chapter 18, Audio Frequency Conducted Susceptibility, Category B
p. chapter 19, Induced Signal Susceptibility, Category AC
q. chapter 20, Radio Frequency Susceptibility, Category T
r. chapter 21, Emission of Radio Frequency Energy, Category H
s. chapter 22, Lightning induced transient susceptibility test, Category B4
t. chapter 23, Lightning Direct Effects, Category 2A2A
u. chapter 24, Icing, Category A
v. chapter 25, Electrostatic Discharge (ESD), Category A
w. chapter 26, Fire, Flammability, Category C
4
Page 5
Specification sheet
Rev.: B
Valid from: 01/04/2015

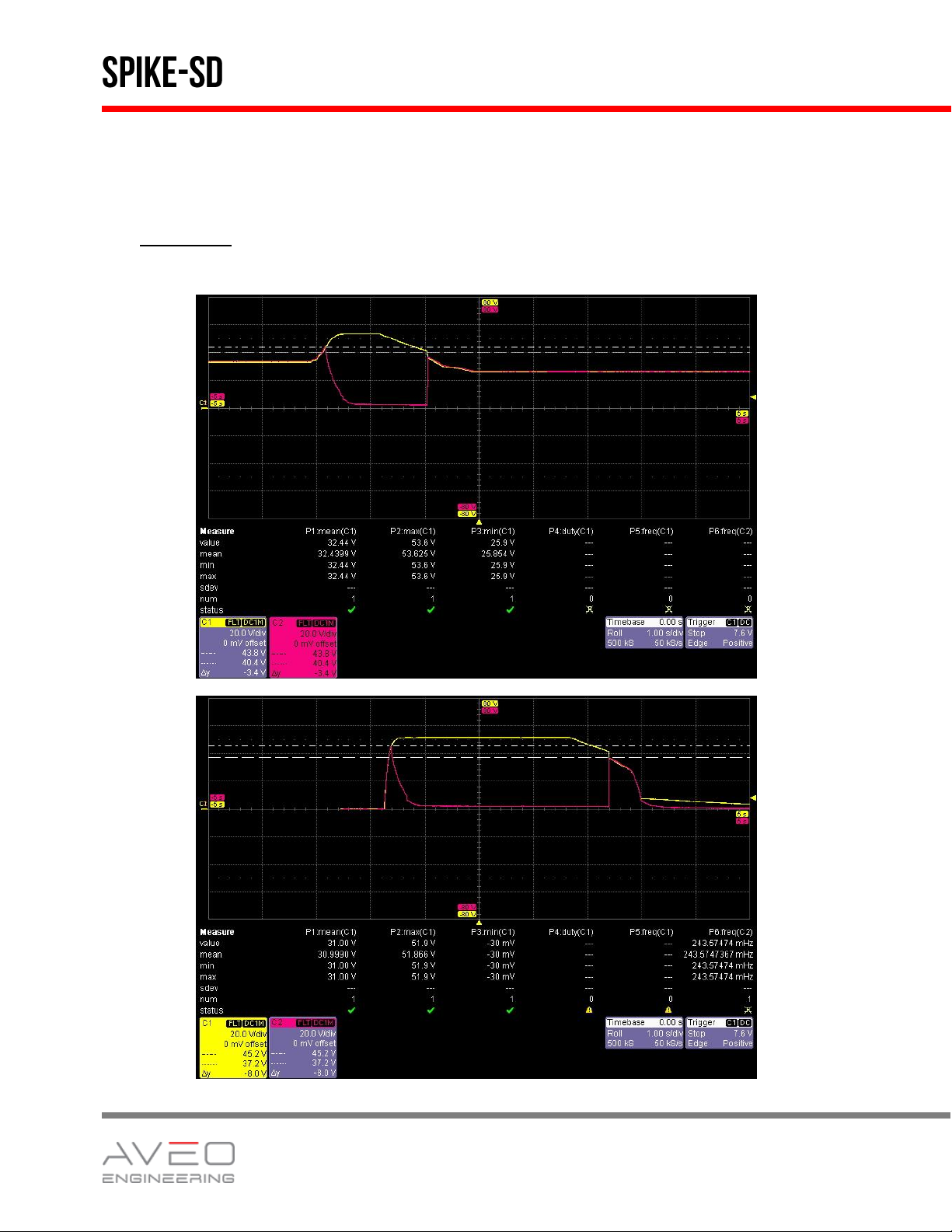

EXAMPLE OF USE
With input voltage below 7.2 and above 44.5 Spike-SD output is disconnected from input.
With negative polarity Spike-SD output is disconnected from input.
Oscilloscope:
Yellow - input
Red – output
5
Page 6
Specification sheet
Rev.: B
Valid from: 01/04/2015
-----------------------------------------------------------

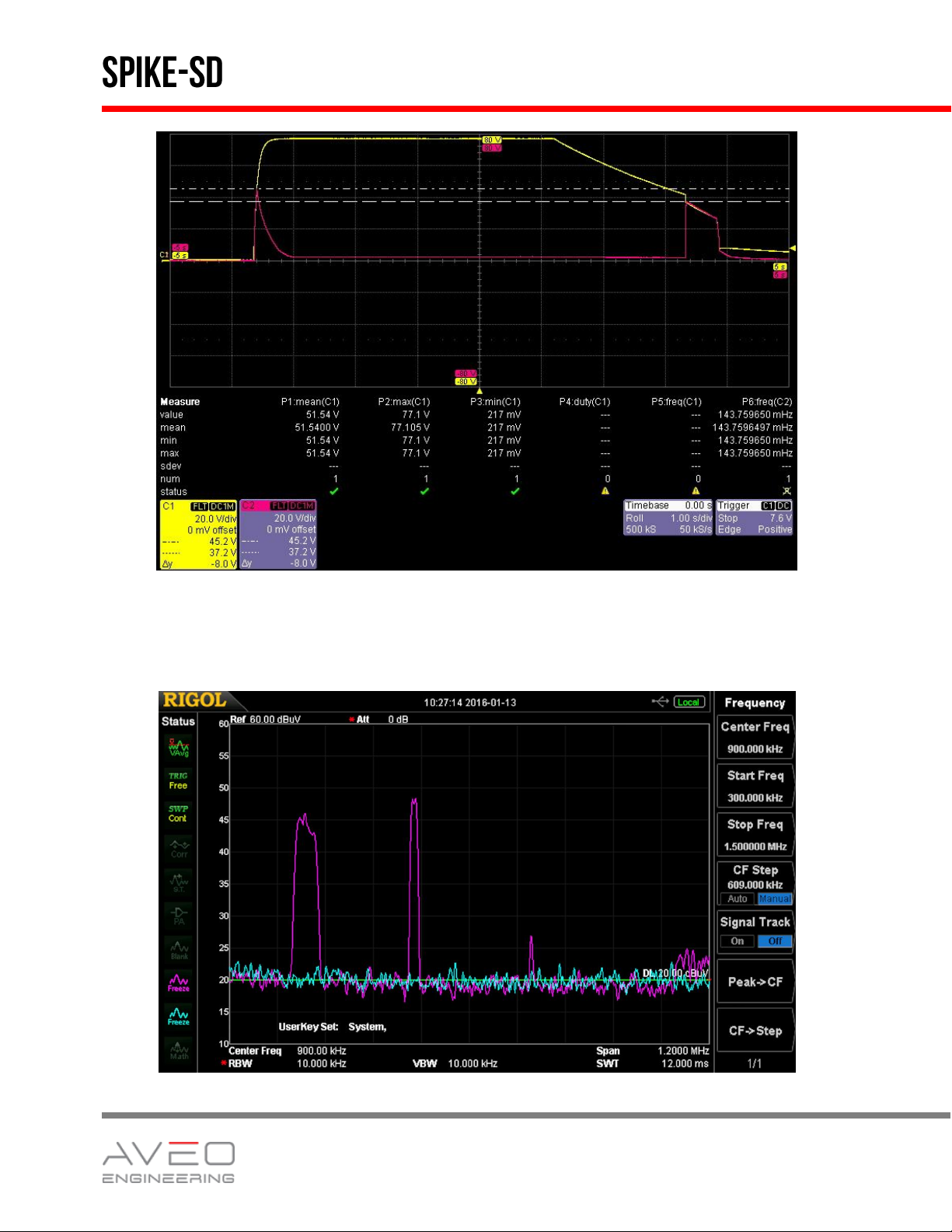

Device has a filter inside. typical attenuation chart.
RED - without Spike-SD
BLUE - with Spike-SD
6
