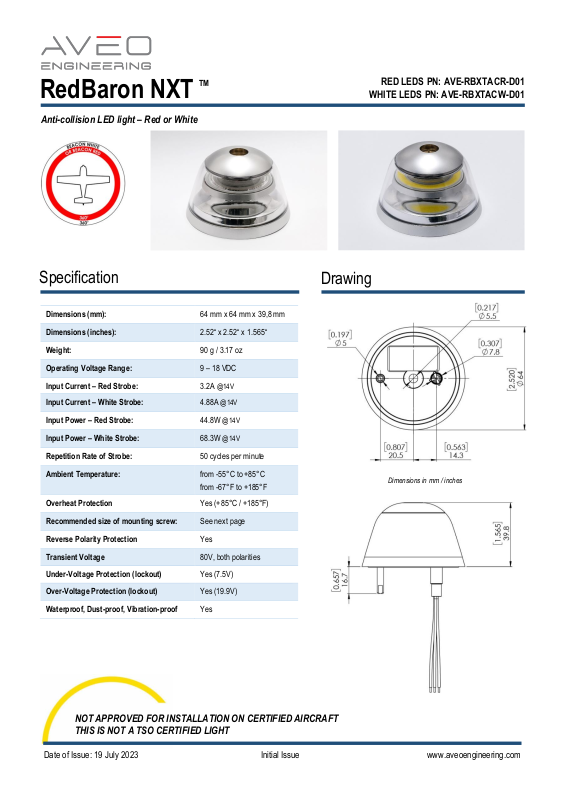

RedBaron NXT
RED LEDS PN: AVE-RBXTACR-D01
WHITE LEDS PN: AVE-RBXTACW-D01
TM
Date of Issue: 19 July 2023 Initial Issue www.aveoengineering.com
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Dimensions (mm):
64 mm x 64 mm x 39,8 mm
Dimensions (inches):
2.52“ x 2.52“ x 1.565“
Weight:
90 g / 3.17 oz
Operating Voltage Range:
9 – 18 VDC
Input Current – Red Strobe:
3.2A @14V
Input Current – White Strobe:
4.88A @14V
Input Power – Red Strobe:
44.8W @14V
Input Power – White Strobe:
68.3W @14V
Repetition Rate of Strobe:
50 cycles per minute
Ambient Temperature:
from -55°C to +85°C
from -67°F to +185°F
Overheat Protection
Yes (+85°C / +185°F)
Recommended size of mounting screw:
See next page
Reverse Polarity Protection
Yes
Transient Voltage
80V, both polarities
Under-Voltage Protection (lockout)
Yes (7.5V)
Over-Voltage Protection (lockout)
Yes (19.9V)
Waterproof, Dust-proof, Vibration-proof
Yes

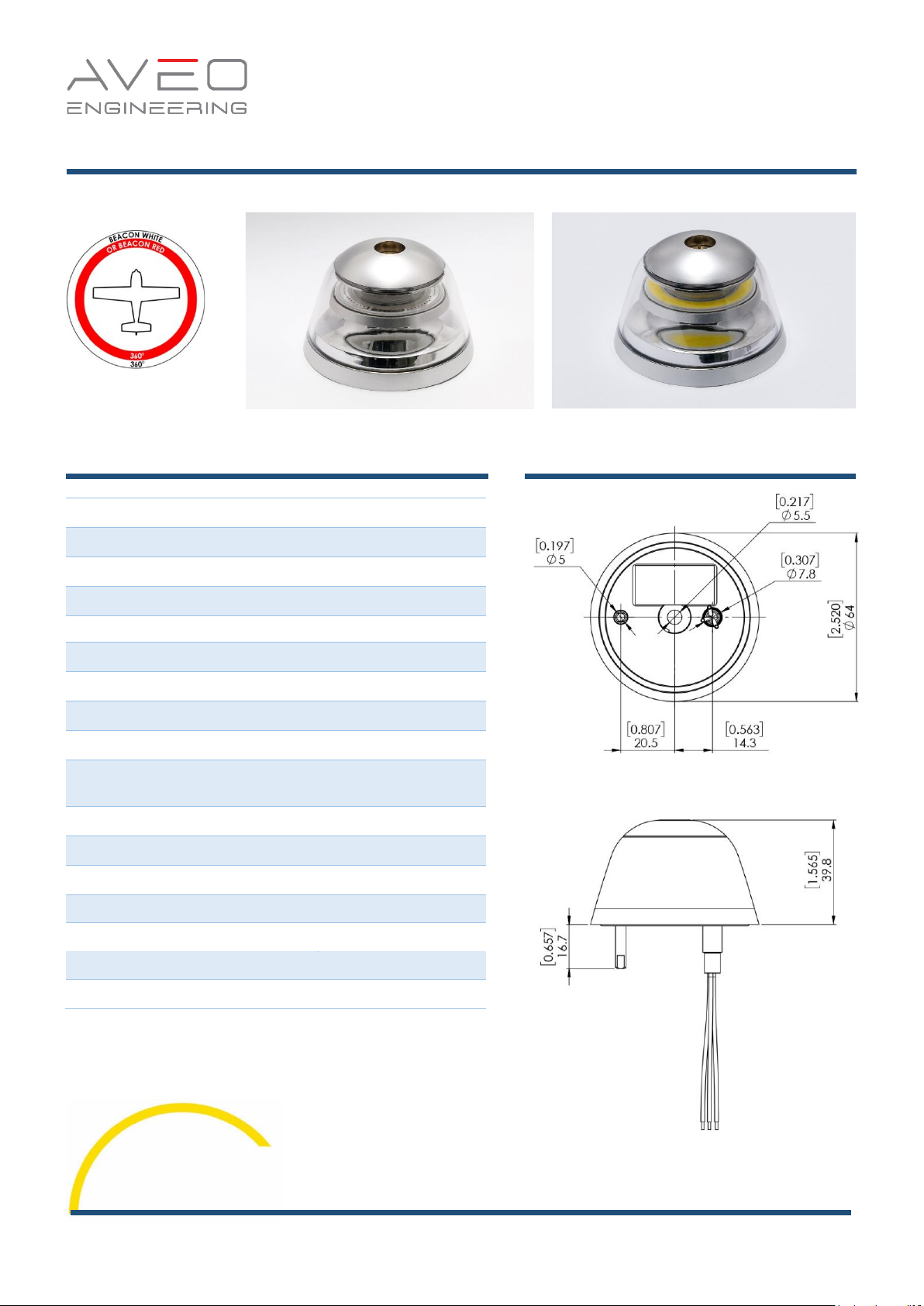

Anti-collision LED light – Red or White
Specification
Drawing
Dimensions in mm / inches
Page 2
RedBaron NXT
RED LEDS PN: AVE-RBXTACR-D01
WHITE LEDS PN: AVE-RBXTACW-D01
TM
Date of Issue: 19 July 2023 Initial Issue www.aveoengineering.com
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
UNF
Metric

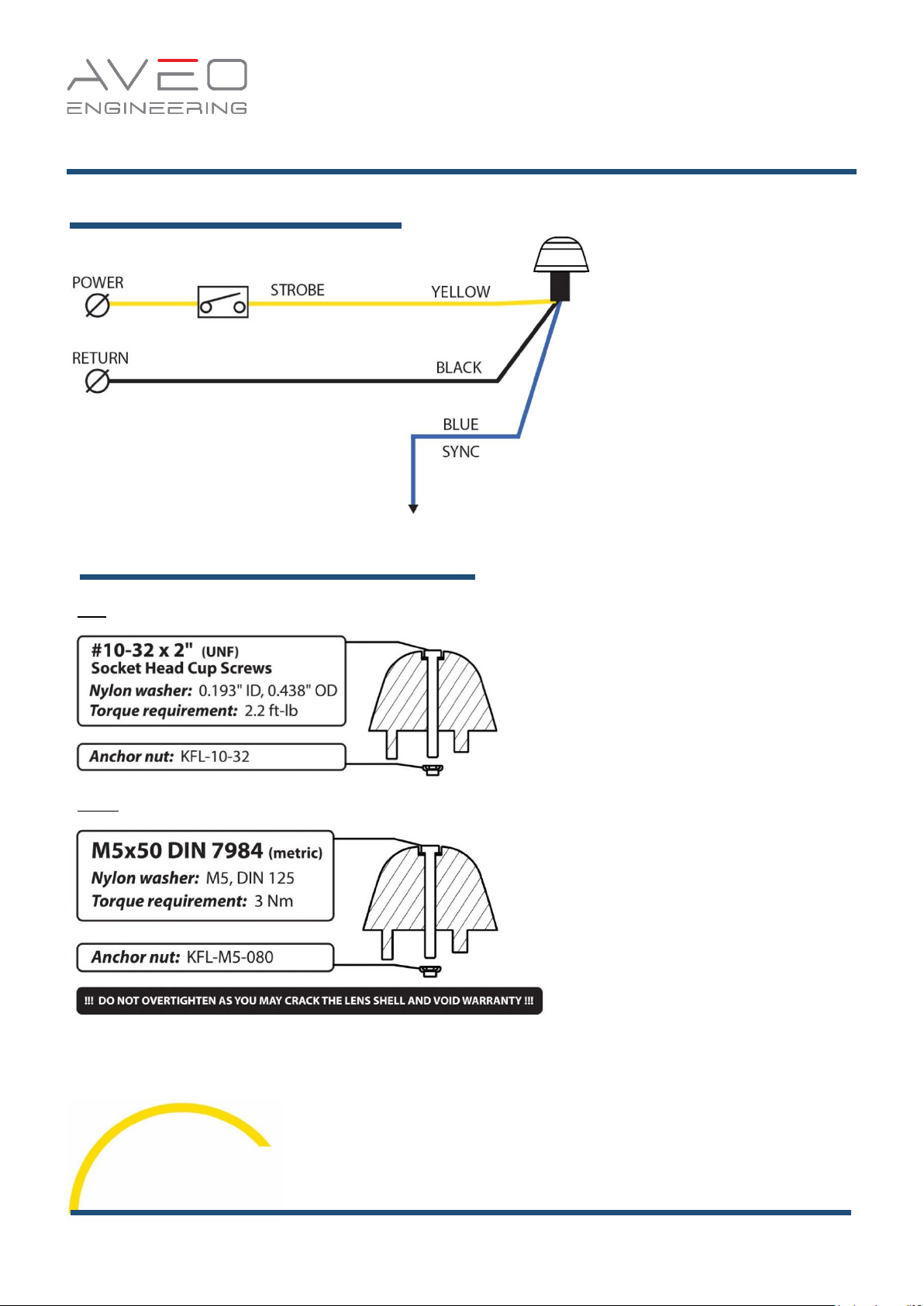

Wiring Diagram
Recommended size of mounting screw
