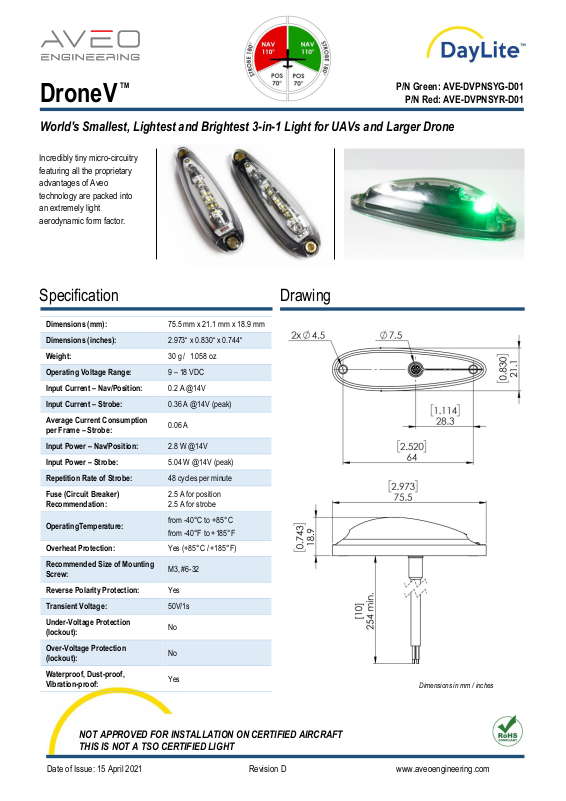

Page 1
DroneV
P/N Green: AVE-DVPNSYG-D01
P/N Red: AVE-DVPNSYR-D01
TM
Date of Issue: 15 April 2021 Revision D www.aveoengineering.com
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Dimensions (mm):
75.5 mm x 21.1 mm x 18.9 mm
Dimensions (inches):
2.973“ x 0.830“ x 0.744“
Weight:
30 g / 1.058 oz
Operating Voltage Range:
9 – 18 VDC
Input Current – Nav/Position:
0.2 A @14V
Input Current – Strobe:
0.36 A @14V (peak)
Average Current Consumption
per Frame – Strobe:
0.06 A
Input Power – Nav/Position:
2.8 W @14V
Input Power – Strobe:
5.04 W @14V (peak)
Repetition Rate of Strobe:
48 cycles per minute
Fuse (Circuit Breaker)
Recommendation:
2.5 A for position
2.5 A for strobe
OperatingTemperature:
from -40°C to +85°C
from -40°F to +185°F
Overheat Protection:
Yes (+85°C / +185°F)
Recommended Size of Mounting
Screw:
M3, #6-32
Reverse Polarity Protection:
Yes
Transient Voltage:
50V/1s
Under-Voltage Protection
(lockout):
No
Over-Voltage Protection
(lockout):
No
Waterproof, Dust-proof,
Vibration-proof:
Yes
World's Smallest, Lightest and Brightest 3-in-1 Light for UAVs and Larger Drone
Specification

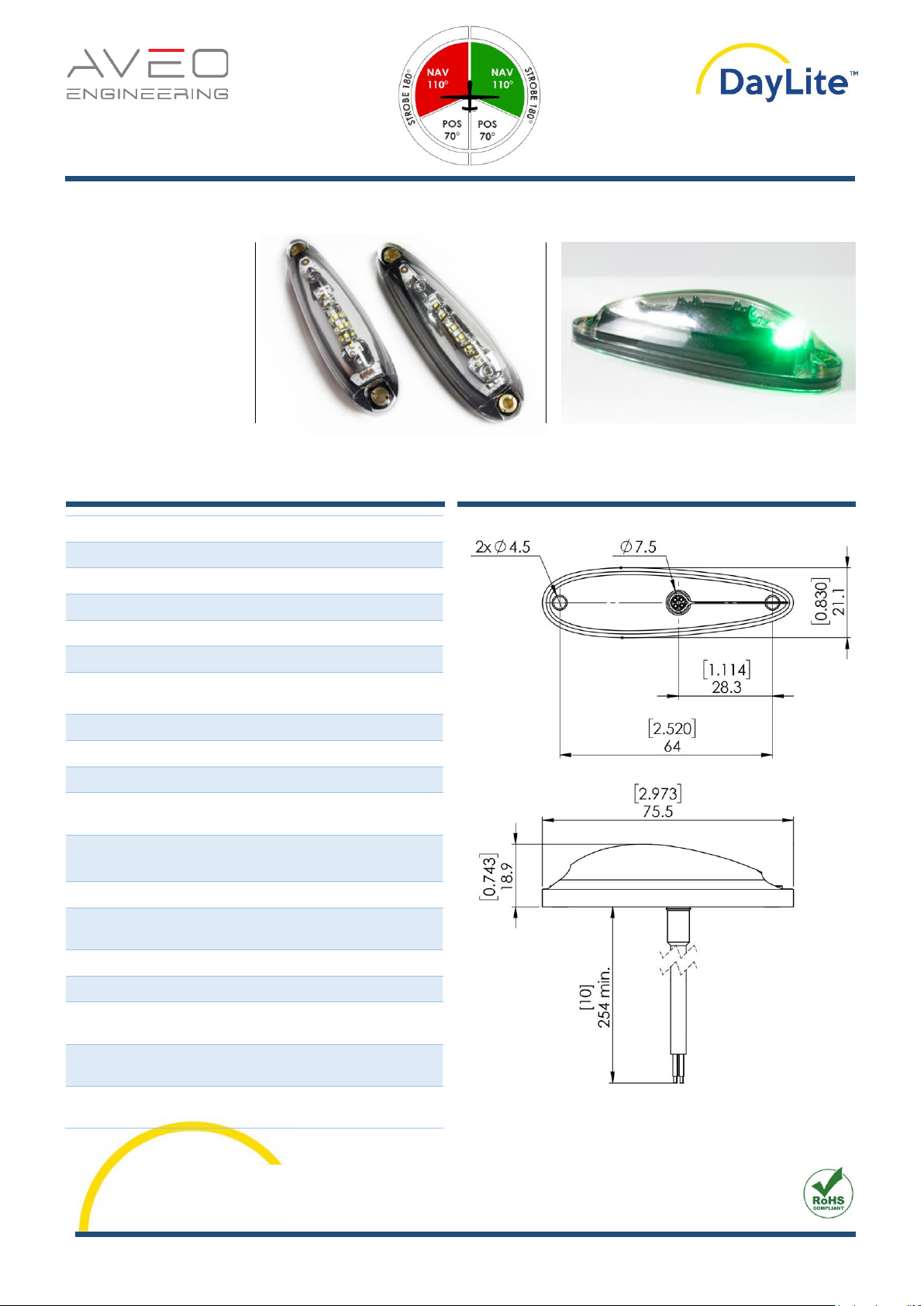

Drawing
Dimensions in mm / inches
Incredibly tiny micro-circuitry
featuring all the proprietary
advantages of Aveo
technology are packed into
an extremely light
aerodynamic form factor.
Page 2
DroneV
P/N Green: AVE-DVPNSYG-D01
P/N Red: AVE-DVPNSYR-D01
TM
Date of Issue: 15 April 2021 Revision D www.aveoengineering.com
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Wire length from base of unit 10.00 inch min.
RED - VCCP - AWG 20, Positive power supply line for position
YELLOW - VCCS - AWG 20, Positive power supply line for strobe
BLACK - GND - AWG 20, Common negative power supply line
BLUE - SYNC - AWG 20, Synchronization line
Note:
• No external power supply or strobe unit
• Light synchronisation feature - Connecting the blue wires from each Aveo light together (and not to the ground or positive terminals
on the battery) should make that the lights are flashing together
• All lights with common SYNC must be powered.
Rate of Strobe:

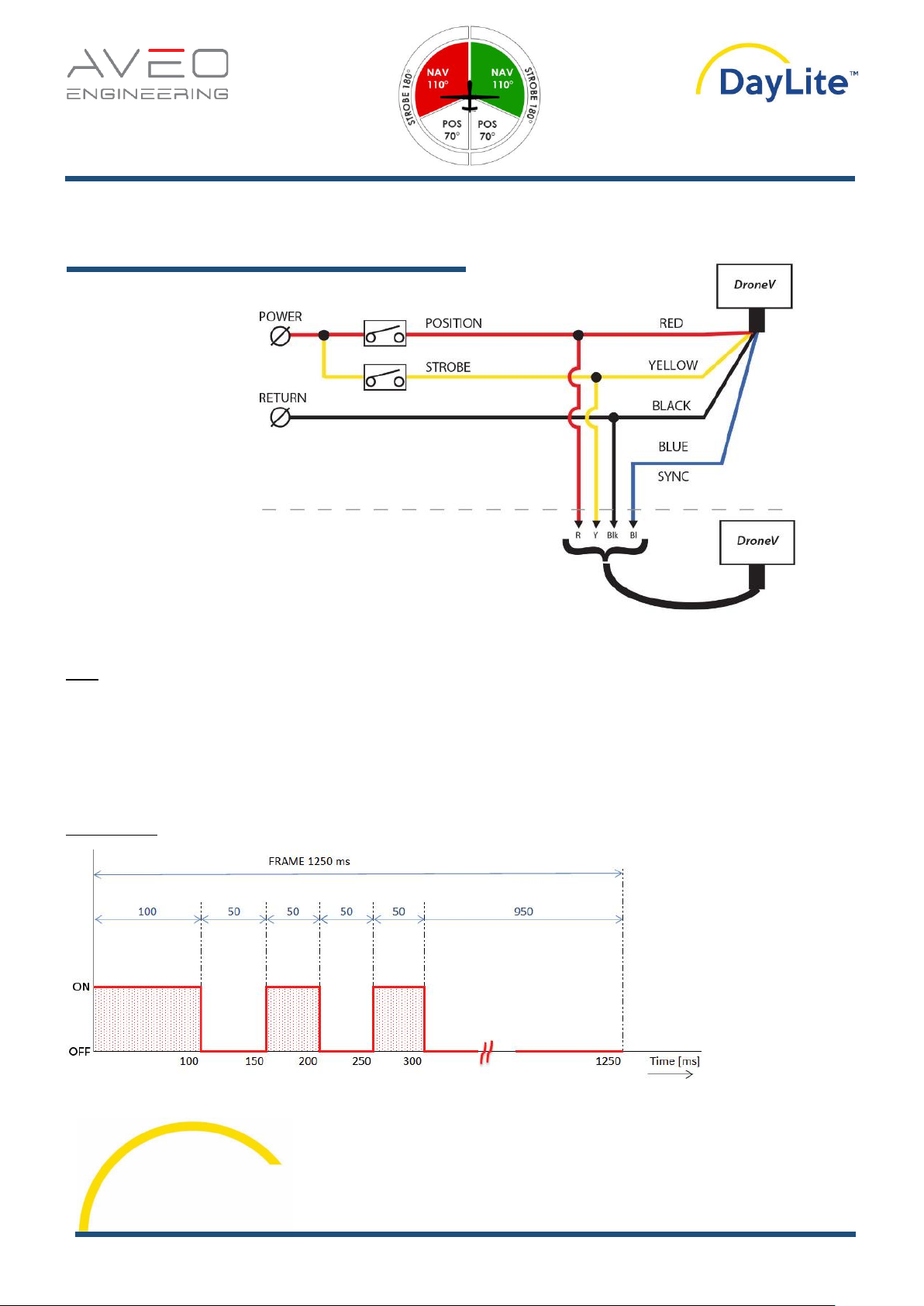

Wiring Diagram
Page 3
DroneV
P/N Green: AVE-DVPNSYG-D01
P/N Red: AVE-DVPNSYR-D01
TM
Date of Issue: 15 April 2021 Revision D www.aveoengineering.com
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

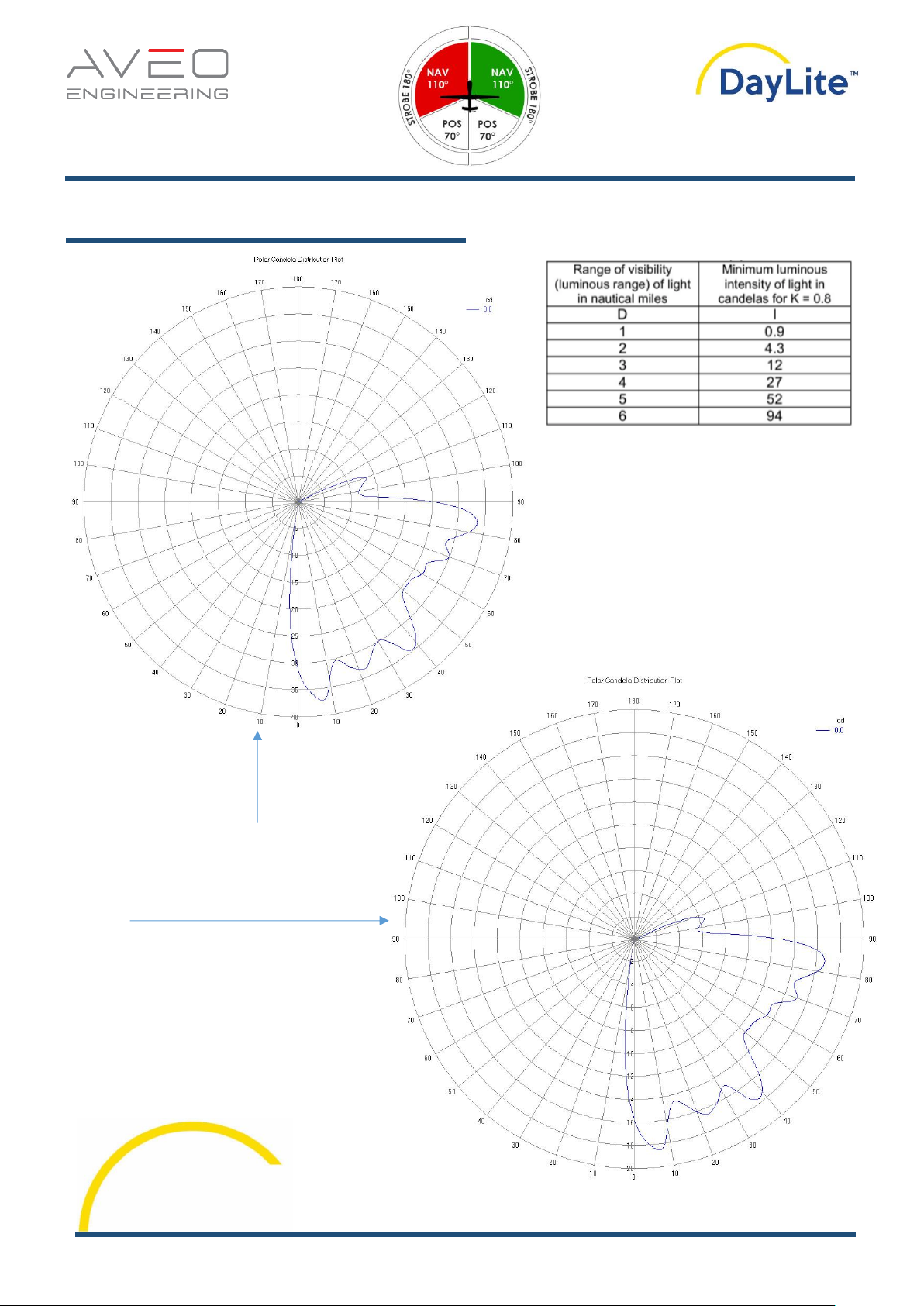

Optic Simulation
Navigation RED
Navigation GREEN
Page 4
DroneV
P/N Green: AVE-DVPNSYG-D01
P/N Red: AVE-DVPNSYR-D01
TM
Date of Issue: 15 April 2021 Revision D www.aveoengineering.com
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

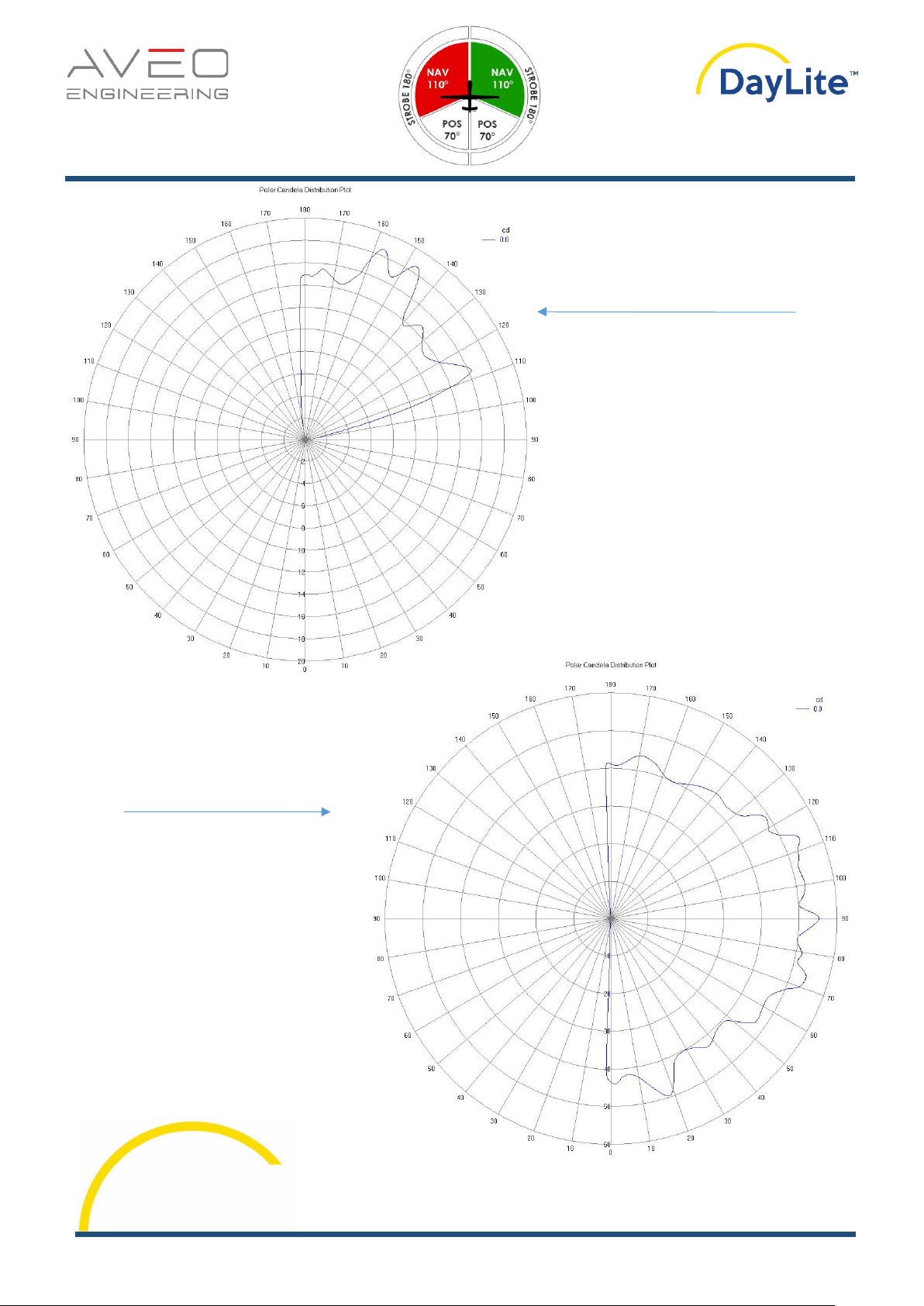

Rear POSITION WHITE
STROBE WHITE
