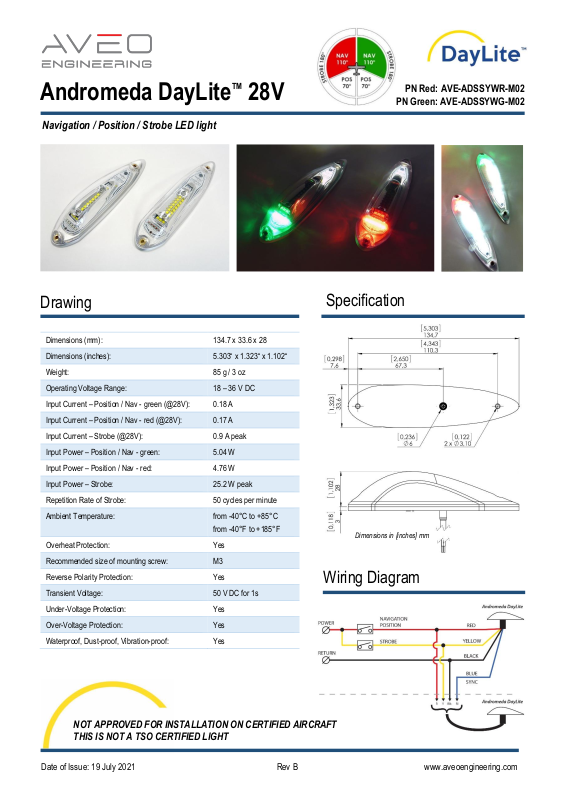

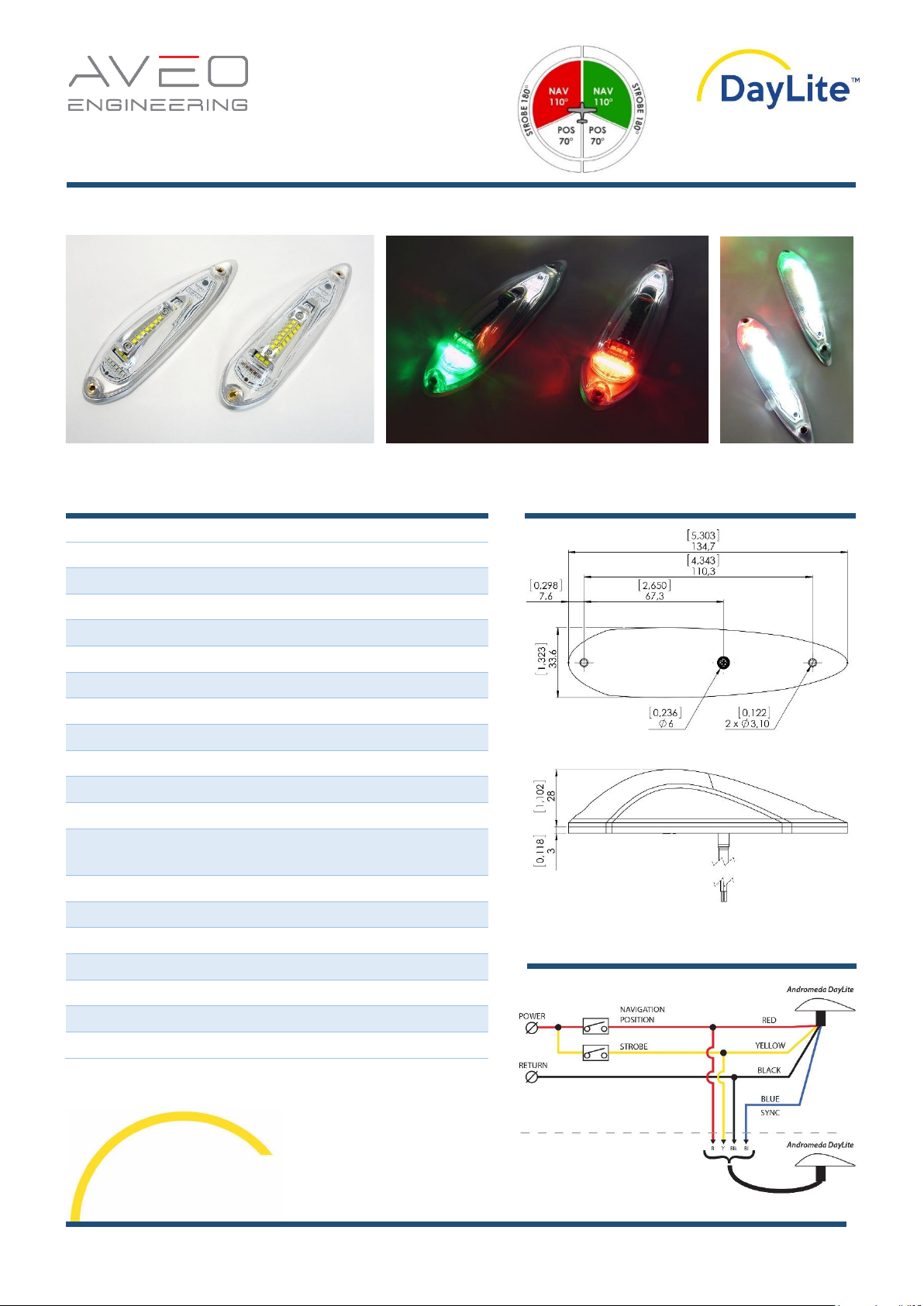

Page 1
Navigation / Position / Strobe LED light
Dimensions (mm):
134.7 x 33.6 x 28
Dimensions (inches):
5.303“ x 1.323“ x 1.102“
Weight:
85 g / 3 oz
Operating Voltage Range:
18 – 36 V DC
Input Current – Position / Nav - green (@28V):
0.18 A
Input Current – Position / Nav - red (@28V):
0.17 A
Input Current – Strobe (@28V):
0.9 A peak
Input Power – Position / Nav - green:
5.04 W
Input Power – Position / Nav - red:
4.76 W
Input Power – Strobe:
25.2 W peak
Repetition Rate of Strobe:
50 cycles per minute
Ambient Temperature:
from -40°C to +85°C
from -40°F to +185°F
Overheat Protection:
Yes
Recommended size of mounting screw:
M3
Reverse Polarity Protection:
Yes
Transient Voltage:
50 V DC for 1s
Under-Voltage Protection:
Yes
Over-Voltage Protection:
Yes
Waterproof, Dust-proof, Vibration-proof:
Yes
Andromeda DayLite 28V
Specification
Drawing
Date of Issue: 19 July 2021 Rev B www.aveoengineering.com
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Wiring Diagram
PN Red: AVE-ADSSYWR-M02
PN Green: AVE-ADSSYWG-M02
Dimensions in [inches] mm
