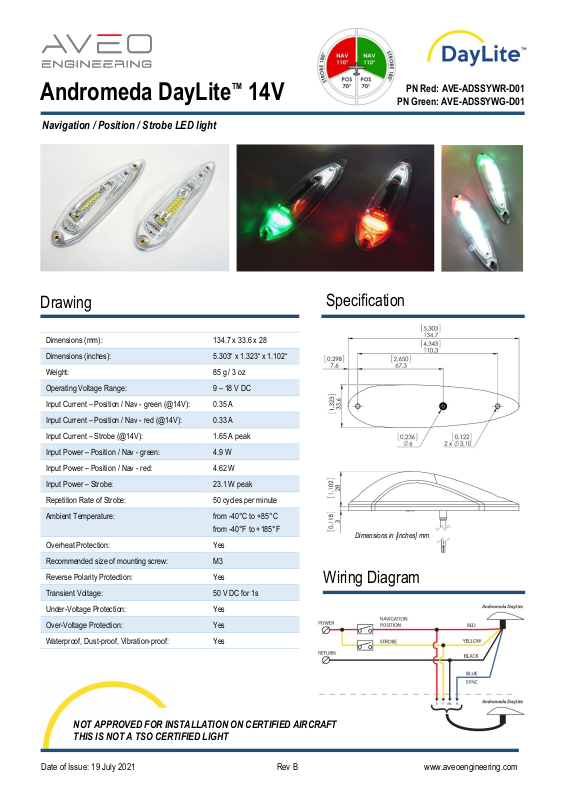

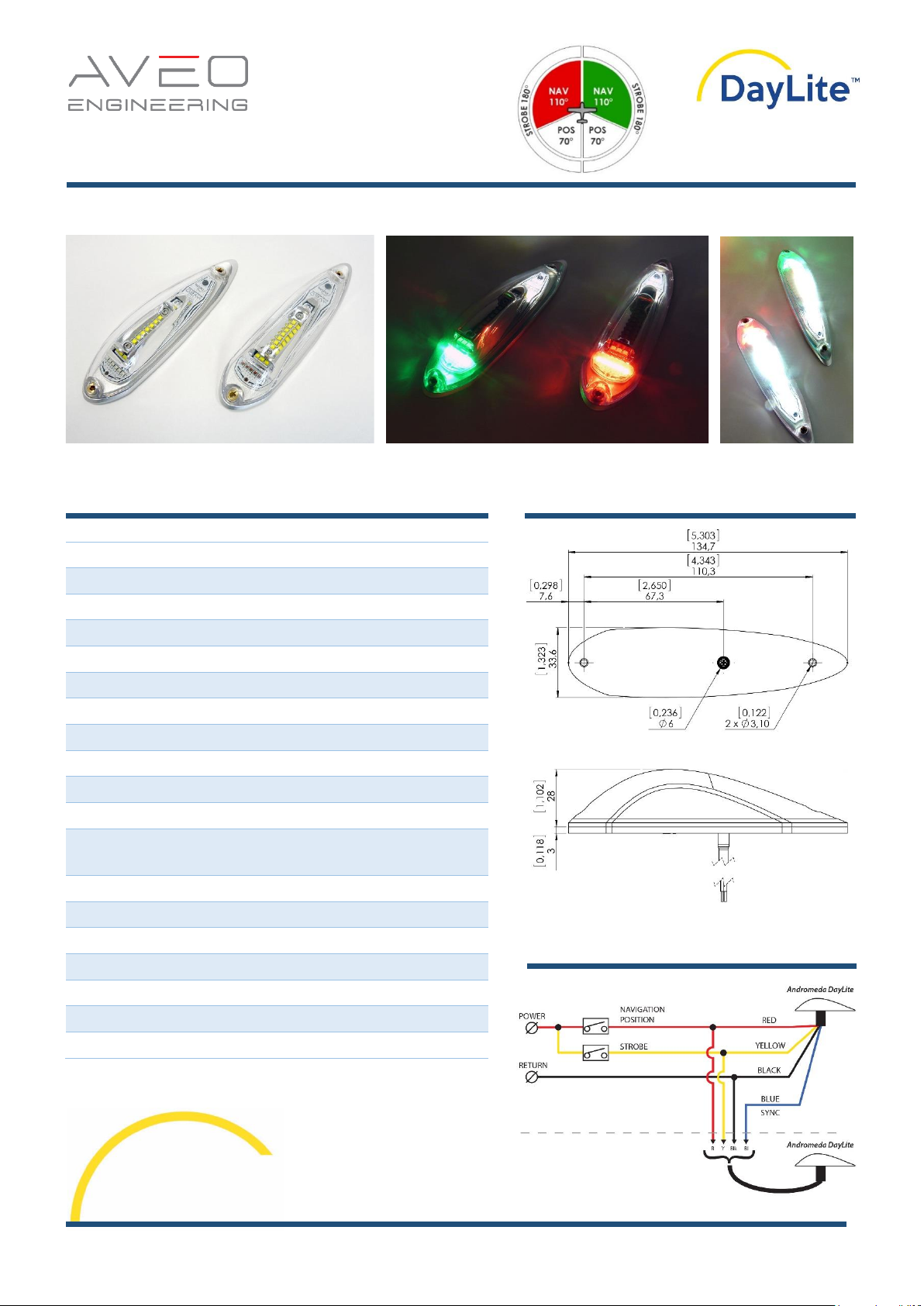

Page 1
Navigation / Position / Strobe LED light
Dimensions (mm):
134.7 x 33.6 x 28
Dimensions (inches):
5.303“ x 1.323“ x 1.102“
Weight:
85 g / 3 oz
Operating Voltage Range:
9 – 18 V DC
Input Current – Position / Nav - green (@14V):
0.35 A
Input Current – Position / Nav - red (@14V):
0.33 A
Input Current – Strobe (@14V):
1.65 A peak
Input Power – Position / Nav - green:
4.9 W
Input Power – Position / Nav - red:
4.62 W
Input Power – Strobe:
23.1 W peak
Repetition Rate of Strobe:
50 cycles per minute
Ambient Temperature:
from -40°C to +85°C
from -40°F to +185°F
Overheat Protection:
Yes
Recommended size of mounting screw:
M3
Reverse Polarity Protection:
Yes
Transient Voltage:
50 V DC for 1s
Under-Voltage Protection:
Yes
Over-Voltage Protection:
Yes
Waterproof, Dust-proof, Vibration-proof:
Yes
Andromeda DayLite 14V
Specification
Drawing
Date of Issue: 19 July 2021 Rev B www.aveoengineering.com
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Wiring Diagram
PN Red: AVE-ADSSYWR-D01
PN Green: AVE-ADSSYWG-D01
Dimensions in [inches] mm
