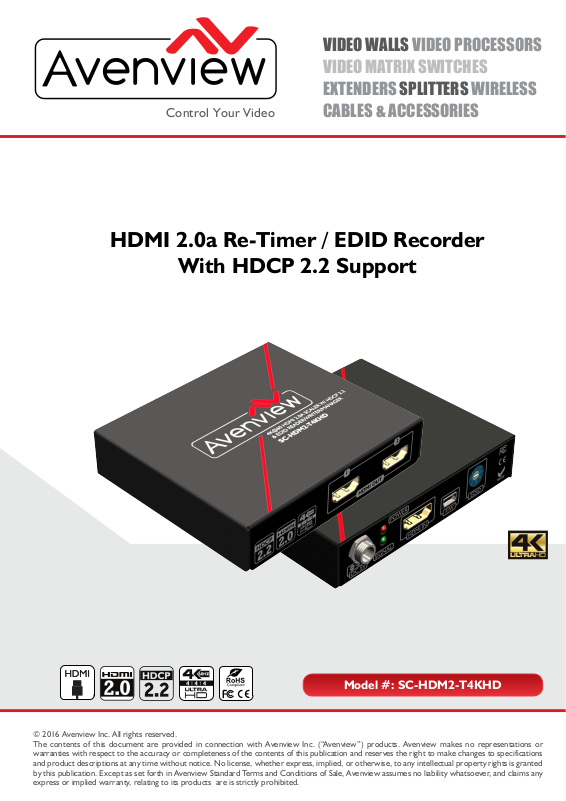

Page 1
VIDEO WALLS VIDEO PROCESSORS
VIDEO MATRIX SWITCHES
EXTENDERS SPLITTERS WIRELESS
Control Your Video
CABLES & ACCESSORIES
HDMI 2.0a Re-Timer / EDID Recorder
With HDCP 2.2 Support
Model #: SC-HDM2-T4KHD
© 2016 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and claims any
express or implied warranty, relating to its products are is strictly prohibited.
Page 2
Product Application & Market Sectors
Corporate House Of Worship
Military Residential
Education Industrial
Medical Aviation
www.avenview.com
Page 3
TABLE OF CONTENTS
1
IMPORTANT SAFEGUARDS................................................................................................ 1
SAFETY INSTRUCTIONS..................................................................................................... 1
1.2
1.3
REGULATORY NOTICES FEDERATION COMMUNICATIONS COMISSION (FCC)....... 2
2.
INTRODUCTION................................................................................................................. 3
3.
FEATURES ............................................................................................................................. 3
PACKAGE CONTENTS ........................................................................................................ 4
4.
PANEL DESCRIPTIONS ........................................................................................................ 5
6.
APPLICATION DIAGRAM .................................................................................................... 6
7.
8.
INSTALLATION .................................................................................................................... 6
SOFTWARE ........................................................................................................................... 7
9.
SPECIFICATIONS ................................................................................................................ 10
10.
www.avenview.com
Page 4
1
IMPORTANT SAFEGUARDS
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
• Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
• Removal or installation of the product.
• External causes to the product, such as electric power fluctuation or failure.
• u se of supplies or parts not meeting our specifications.
• Normal wear and tear.
• Any other causes which does not relate to a product defect.
• Removal, installation, and set-up service charges.
1.2
SAFETY INSTRUCTIONS
The Avenview SC-HDM2-T4KHD, 4K60 Scaler with HDCP 2.2 function has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all electronic equipments, the SC-
HDM2-T4KHD should be used with care. Read the following safety instructions to protect yourself from possible injury and to
minimize the risk of damage to the unit.
Do not dismantle the housing or modify the module.
!
Dismantling the housing or modifying the module may result in electrical shock or burn.
!
Refer all servicing to qualified service personnel.
!
Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage
!
or other hazards
keep the module away from liquids.
!
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on
!
to the housing, unplug the module immediately.
Have the module checked by a qualified service engineer before using it again.
!
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
!
www.avenview.com
Page
1
Page 5
1.3 REGULATORY NOTICES FEDERATION COMMUNICATIONS COMMISSION (FCC)
This equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
Warning symbols Description
ONLY USE THE PROVIDED POWER CABLE OR POWER
ADAPTER SUPPLIED. DO NOT TAMPER WITH THE
El ECTRICAl PARTS. THIS MAY RESULTS IN
ELECTRICAL SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO WIll
VOID THE WARRANTY AND CONTINUED USE OF
THE PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.
PLEASE ENSURE If RACK MOUNTED OR INSTALLED ON
A SURFACE, IT SHOULD BE IN A GROUNDED
ENVIROMENT.
www.avenview.com
Page
2
Page 6
INTRODUCTION
2.
The
SC-HDM2-T4KHD scaler with HDMI 2.0a and HDCP 2.2 Support
(Extended Display Identification Data) information problems within any system design when different devices with varying
resolutions are connected. With its own control software supplied the user can simply store and recall a default EDID
information, also supporting EDID Re-timer / EDID Recorder setting in non-volatile memory and supports HDCP handshaking.
SC-HDM2-T4KHD allows your HDMI source to boot directly from EDID Reader/Writer/Re-timer mode. This feature allows
the user to easily remove the monitor at any time while installing SC-HDM2-T4KHD between HDMI source and monitor.
Also using the control software user can read, store and modify the EDID of any HDMI/DVI display upload the modified EDID
to displays.
Bonus Feature -Has the abilty to handle many differnt chroma sampling such as 4:2:0, 4:2:2 and 4:4:4
is a device that can solve EDID
NOTE
PC SOFTWARE MUST BE USED FOR THE FIRST TIME TO ASSIGN HDMI PORTS
TO SCALE OR BYPASS
Extended Display Identification Data (EDID) is a standard data format that contains basic information about a monitor
and its capabilities, including vendor information, maximum image size, color characteristics, factory pre-set timings,
frequency range limits, and character strings for the monitor name and serial number.
The information is stored in the display and is used to communicate with the system through a Display Data Channel
(DDC), which sites between the monitor and the PC graphics adapter. The system uses this information for
configuration purposes, so the monitor and system can work together.
3. FEATURES
HDMI 2.0a compliant
Supports 4K2K or 1080p or 720p bypass
Supports 4K downscale to 1080p or upscale 1080p to 4K
Supports 4K2K@60 4:4:4 8bits
Supports HDR*, which is 4K2K@60 4:2:0 10bits**
HDCP 2.2 compliant
Supports resolution upscaling from 1080p to 4K2K or downscaling from 4K2K to 1080p
Supports HDMI signal bypass
Simultaneous HDMI output
Able to read and store the EDID of displays (monitors or projectors)
Able to overwrite the EDID into the EDID Reader/Re-timer or the HDMI displays
Built-in default EDID
Able to maintain HDMI/DVI video resolution
Re-synthesizes input HDMI stream and maintains or improves signal integrity.
(No frame rate conversion)
HDR = High Dynamic Range.
*
** The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4
8bits is 594MHz.
www.avenview.com
Page
3
Page 7

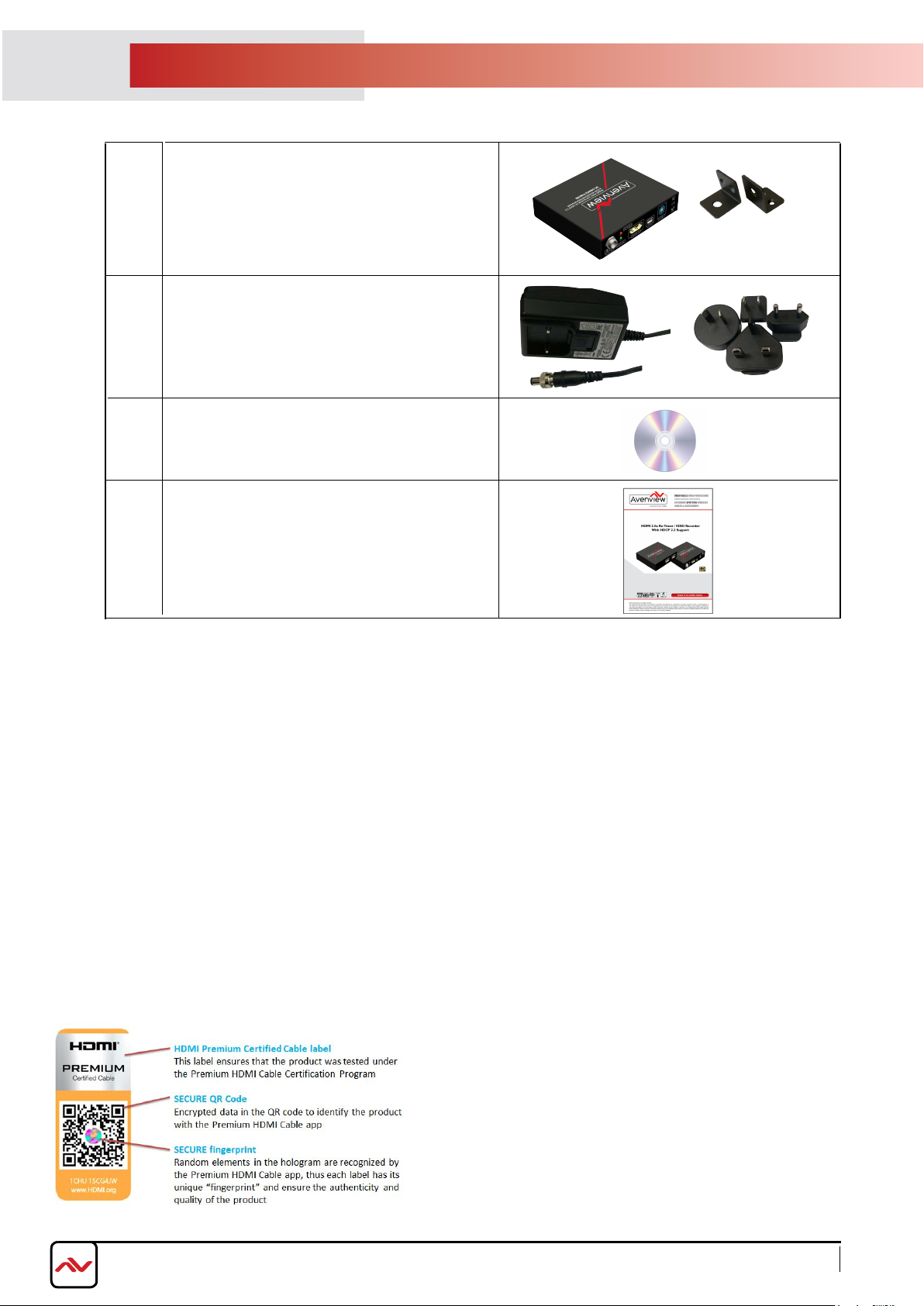

4. PACKAGE CONTENTS
Before you start the installation of the scaler, please check the package contents.
1
2
3
4
SC-HDM2-T4KHD
MOUNTING BRACKET
INTERNATIONAL POWER ADAPTER 5V 1.2A
PC CONTROL SOFTWARE CD X 1
USER’S MANUAL X 1
X 1
X 2
X1
We highly recommend achieving best results with our SC-HDM2-T4KHD you acquire a high quality 24 or 26 AWG HDMI
cable with the below specifications to maintain signal integrity and distances.
Features
•
•
Full UHD 4K/ 60 to 18Gbps High Speed at up to 48 Bit
Deep Color
•
UHD 4K/60 to 10.2 Gbps High Speed Deep Color up to 50ft
(Active Series), 25ft Passive
•
Full HD Up to 1080p/60 up to 75ft
•
True Professional grade heavy-duty 24 or 26 gauge oxygenfree construction
•
ProGrip connector utilizes up to 16 lbs of retention force to
help keep connector in place
•
SureLength length indicators on the connector heads make
•
it easy to organize for installations
•
Available in 7 colors for easy cable identification
•
Up to 32 audio channels and 21:9 aspect ratio
Simultaneous delivery of dual video and audio streams
to multiple users
•
Pro Grade Triple Shielding with 2x 100% coverage and 85%
Premium Tinned Copper
•
Ethernet Capable
•
3D Ready
•
Supports Deep Color and x.v. Color (Up to 48 Bit)
•
5.1/7.1 Lossless Dolby TrueHD and DTS-HD Surround Sound
•
Audio Return Channel & Lip-sync
•
ATC Certified
•
99.9% High Purity Copper Center Conductor
•
Molded 24k Gold Plated HDMI male connectors on each end
•
X-tra Flex CL3 rated jacket for easy installation
•
RoHS Certified
•
Lifetime Warranty
Braid construction
www.avenview.com
Page
4
Page 8

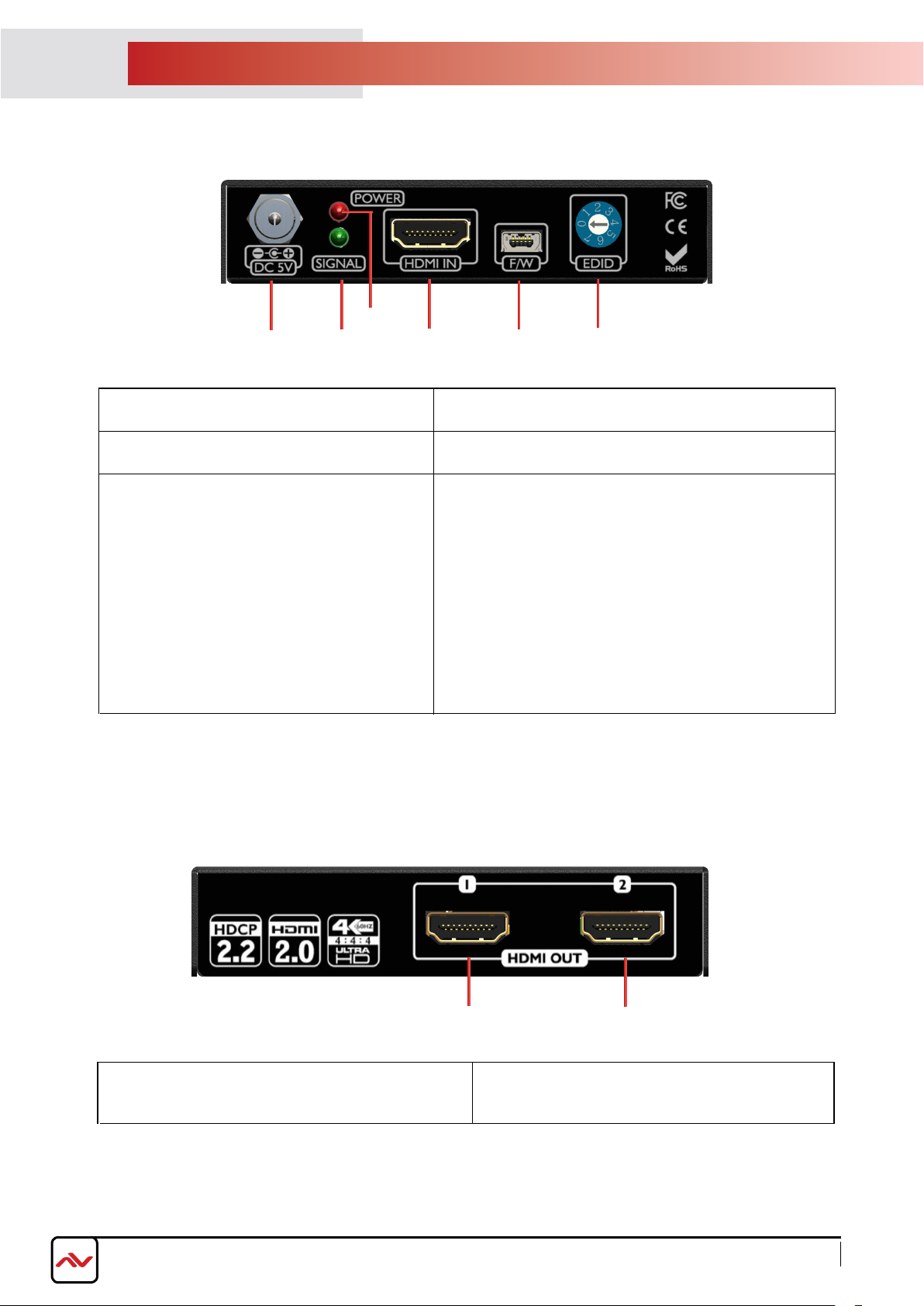

6. PANEL DESCRIPTION
Front Panel
3
1
2
4
5
6
1.
+5V DC: Connect to a 5V power supply unit
3.
Red LED: Power on/off indicator
5.
Mini-USB: Connect to a host device for software
operation
Rear Panel
2.
Green LED: Green light means the signal detect.
SOURCE: Link to a HDMI source in order to be the
4.
bridge between HDMI source and display
MODE: Decide which mode SC-HDM2-T4KHD is
6.
currently working at. MODE:
0 = User define mode
1 - EDID Ultra-HD(4K2K@60) - 24bit 2D video & 7.1ch audio
2 - EDID Ultra-HD(4K2K@60) - 24bit 2D video & 2ch audio
3 - EDID Ultra-HD(4K2K@30) - 24bit 2D video & 7.1ch audio
4 - EDID Full-HD(1080p@60) - 24bit 2D video & 7.1ch audio
5 - EDID Full-HD(1080p@60) - 24bit 2D video & 2ch audio
6 - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D
video & 2ch audio (bypass only)
7 = [Manual Mode] – Learning EDID from HDMI DISPLAY 2
to HDMI input manually
7.
HDMI 1
: Connect to a HDMI display 1
www.avenview.com
7
8.
HDMI 2
8
Connect to a HDMI display 2
:
Page
5
Page 9

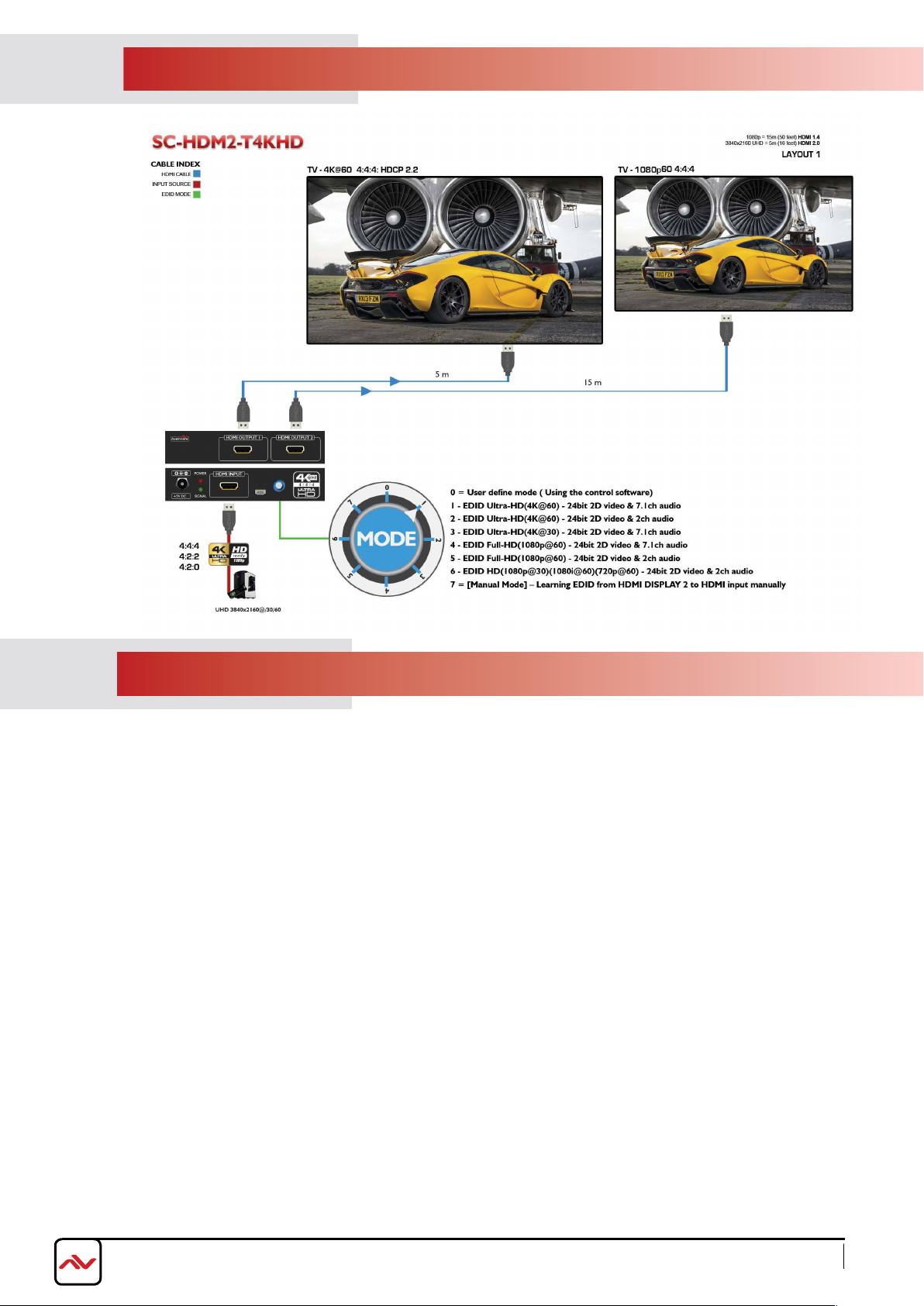

7. APPLICATION DIAGRAM
8. INSTALLATION
1. Learn the EDID from a HDMI display to the HDMI input manually
1. Connect the display device to the EDID Recorder via HDMI DISPLAY 2.
2. Plug in the 5V DC power supply unit.
3. Set SC-HDM2-T4KHD to the mode 7.
4. The unit can remain at mode 7 until the next EDID learn from another monitor.
2. Recall the EDID from a HDMI display or user defined EDID data via software
1. Set SC-HDM2-T4KHD to mode 0.
2. Connect the display device to the EDID Recorder via HDMI on the Display.
3. Plug in the 5V DC power supply unit.
4. Connect the SC-HDM2-T4KHD to PC via USB cable
Click on “Read EDID from Monitor 1” or “Read EDID from Monitor 2” button or load the user defined EDID data.
5.
Click on “Write EDID into Device”, the EDID from display will be written to SC-HDM2-T4KHDdevice on mode 0.
6.
7. Hold the mode at 0 until next update the EDID process.
www.avenview.com
Page
6
Page 10

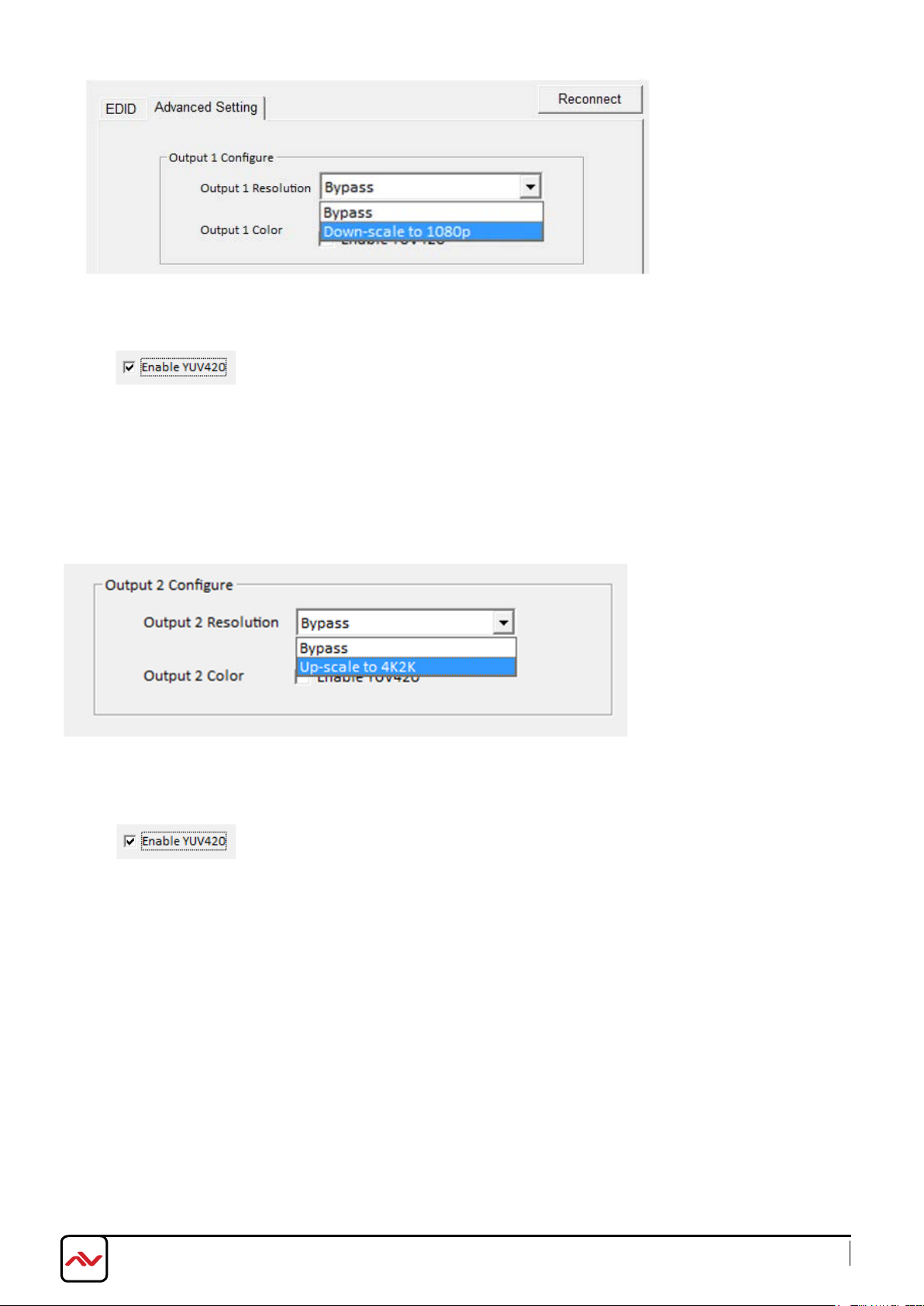

9. SOFTWARE
Getting Started:
Computer’s System Requirements:
The software supports Windows XP consistently. Both Windows7 and Windows 8 are supported after manually
configuring the compatibility properties.
Windows7 and Windows 8: Please configure the compatibility properties manually.
Step1. Right-click the link for the software that you want to configure, and then click Contents. Step2.
On the Compatibility tab, click Run this program in compatibility mode.

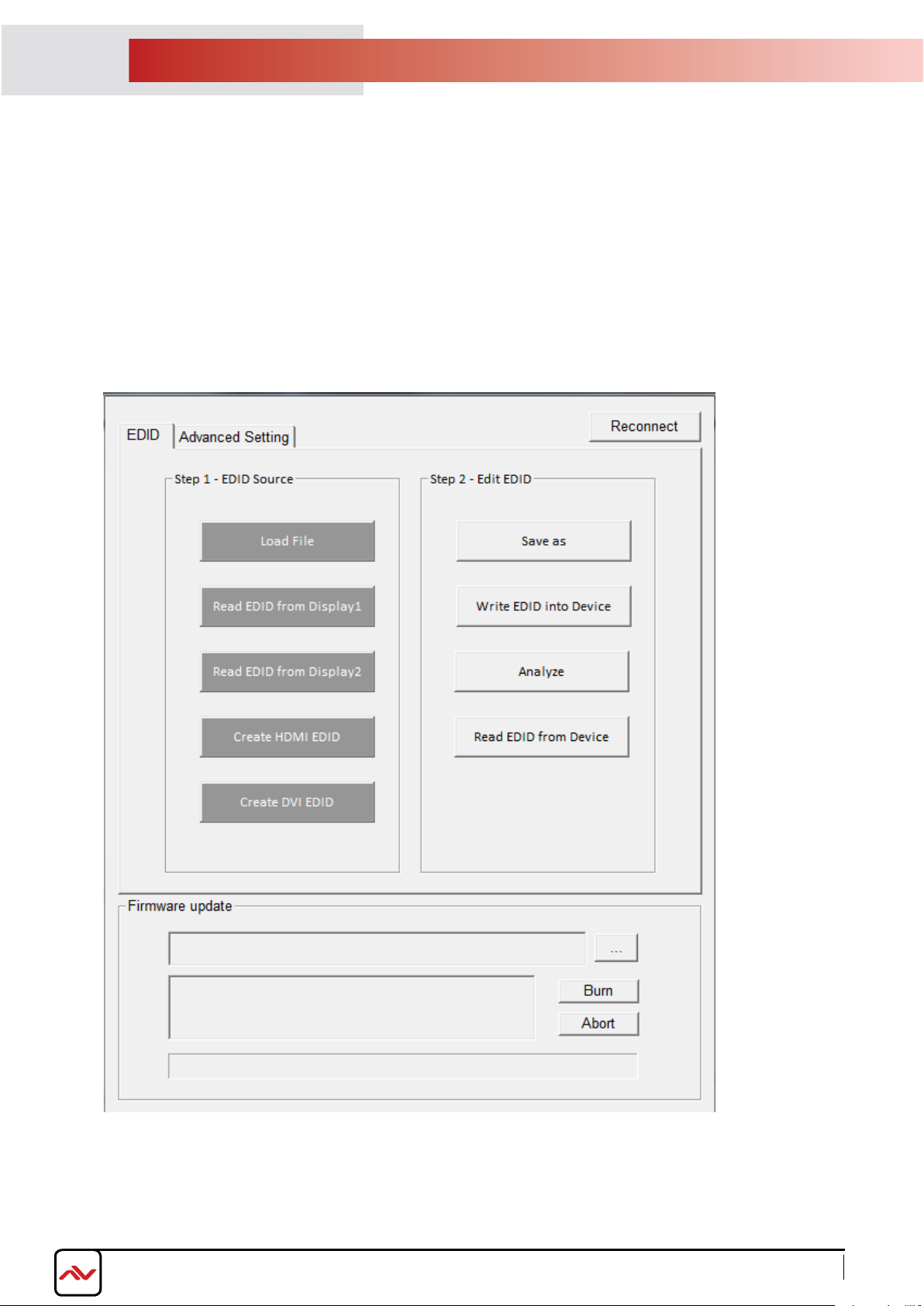

Start Software:
EDID
a) Step 1: Select EDID Source
www.avenview.com
Page
7
Page 11

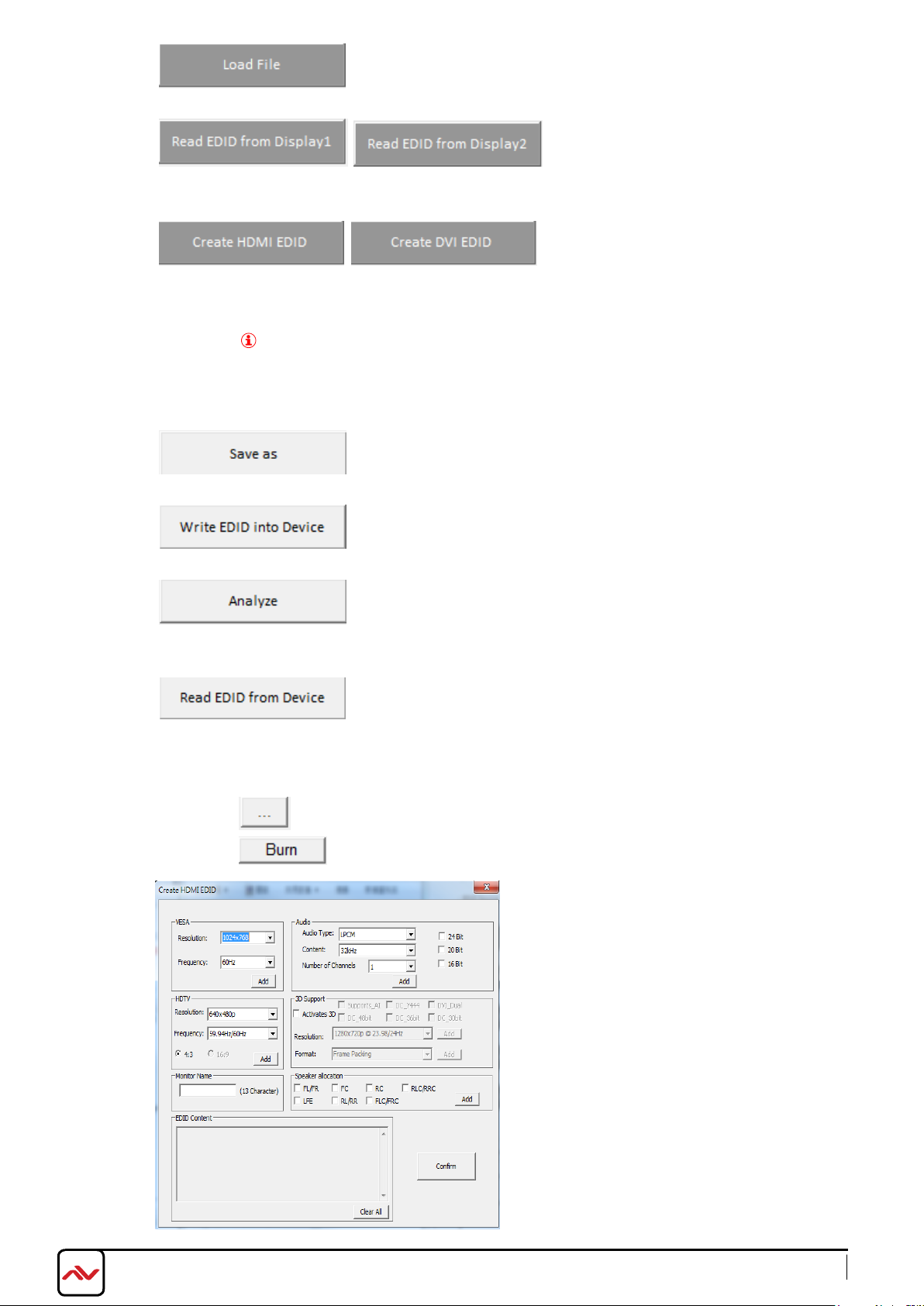

The selected EDID source will be highlighted in red
b) Step 2: Edit EDID
: To select EDID source by loading the file you saved.
/ : To read EDID info from the connected
display.
/ : To create EDID source which users are
capable of monitoring or modifying.
: To save the EDID information to computer for future use.
: To write EDID information into the SC-HDM2-T4KHD device
: To make a quick analysis of EDID information you process, which users
are capable of monitoring or modifying.
: To read the EDID that is currently used in SC-HDM2-T4KHD
c) Firmware update
Update FW to the device
a. Click to load the FW and update it to SC-HDM2-T4KHDdevice
b. Click , then re-cycle power to start the FW update process
Create HDMI EDID
www.avenview.com
Page
8
Page 12

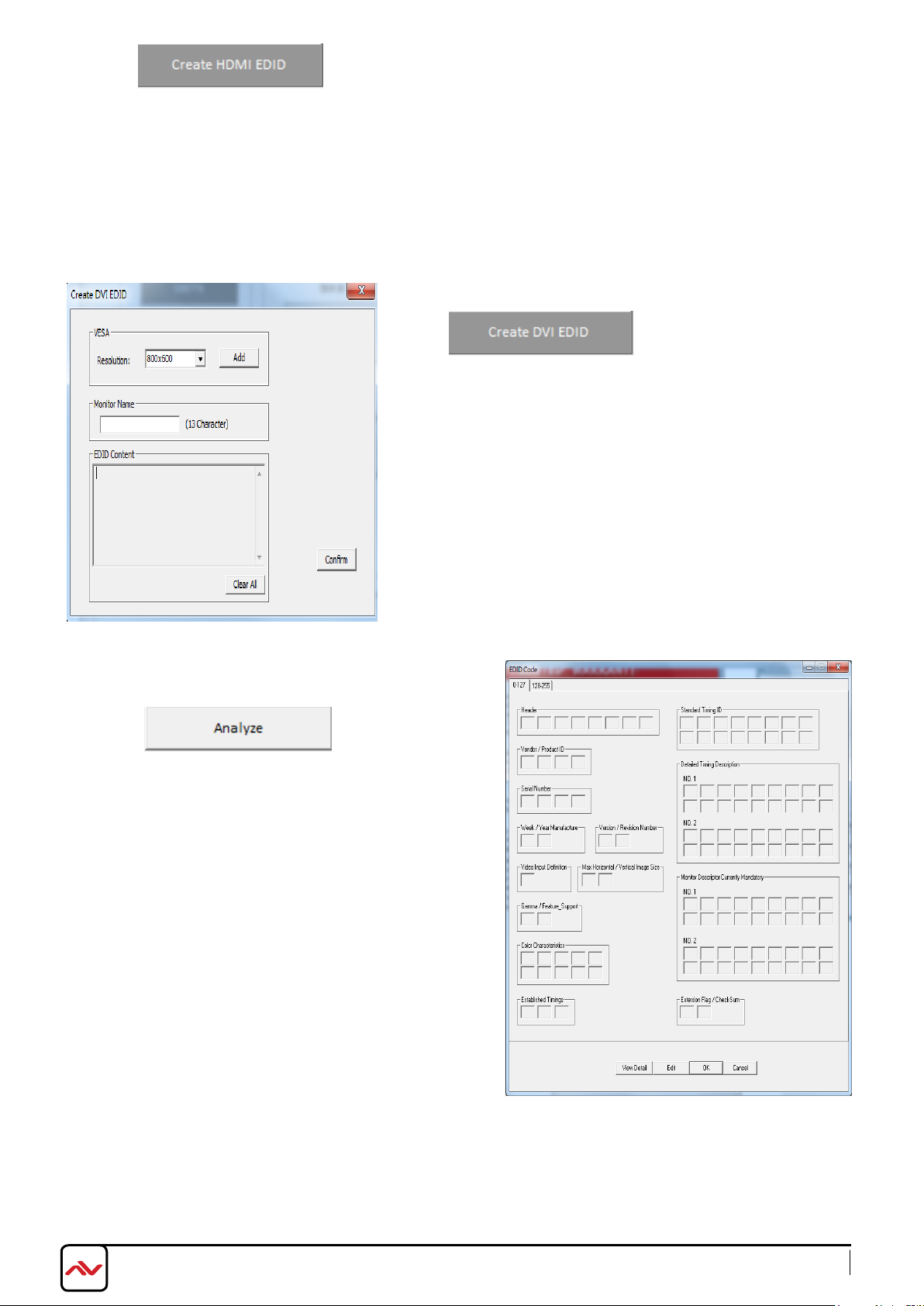

1. Click to pop-up the HDMI EDID edition page, which users are capable of
monitoring or modifying HDMI EDID here.
2. Please click “Add” button for your chosen.
3. Finally please click “Confirm” button to generate EDID and then you will see the success message.
Create DVI EDID
1.Click to pop-up the DVI EDID
edition page, which users are capable of monitoring or modifying
DVI EDID here.
2.Please click “Add” button for your chosen.
3.Finally please click “Confirm” button to generate EDID and then
you will see the success message.
Analyze
1. Click to make a quick
analysis on the EDID information you process.
View Detail: To make a quick analysis on the EDID
information.
Edit: users are capable of monitoring or modifying
EDID information.
www.avenview.com
Page
9
Page 13
Advanced Settings
1. Downscale Resolution
a.- Select Output 2 to choose bypass or downscale to 1080p
b.- This will enable YUV from 4:4:4: to 4:2:0, this can only enabled when your resolution is
4K@60Hz/UHD.
c. When option b is not checked YUV4:2:2 will be changed to 4:4:4
This will be the best option for 1080p
2. Upscale Resolution
a.- Select Output 1 to choose bypass or upscale to 4K/UHD
b.- This will enable YUV from 4:4:4: to 4:2:0, this can only enabled when your resolution is
4K@60Hz/UHD.
c. When option b is not checked YUV4:2:2 will be changed to 4:4:4
www.avenview.com
Page
9
Page 14
10. SPECIFICATIONS
Model Name SC -HDM2-T4KHD
Technical
HDMI compliance HDMI 2.0a
HDCP compliance HDCP 2.2
Video bandwidth Single-link 600MHz [18Gbps]
Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) / 1080p@60
Input
Output 2x HDMI
HDMI connector Type A [19-pin female]
USB connector Type mini-USB
Flash EEPROM 256 byte [non-volatile]
Mechanical
Housing
Dimensions
[L x W x H]
Weight
Fixedness
Power supply
Model
Package
Carton
Model
Package
95 x 82 x 25mm [3.7” x 3.2” x 1”]
198 x 137 x 74mm [7.8” x 5.4” x 2.9”]
420 x 400 x 300mm [1'4” x 1'3” x 11.8”]
Wall-mounting case with screws
1x HDMI
1x mini-USB
Metal enclosure
269g [9.4oz]
780g [0.9 lbs]
5V 2A DC
Power consumption
Operation temperature
Storage temperature
Relative humidity
4 Watt [max]
www.avenview.com
0~40°C [32~104°F]
-20~60°C [-4~140°F]
20~90% RH [no condensation]
Page
10
Page 15
Avenview Warranty Certificate
AVENVIEW CO
normally in accordance with Avenview's enclosed manual guidelines for a period of THREE (3) YEARS from the date of original retail purchase - Warranty Period. Avenview’s
published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.
LABOR: During the Warranty Period of THREE (3) YEARS, Avenview will repair or replace the product(s) at no cost using new or used parts equivalent to novel performance
and reliability if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Labor applicable to product(s) after Warranty Period. For labor costs,
please contact [email protected].
PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if
the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact
To obtain Warranty: (a) proof of purchase in the form of a bill of sale or receipted invoice reflecting that the registered product(s) is within warranty period must be presented
to obtain warranty service; (b) product(s) must be registered at time of purchase. Failure to do so will result in applicable parts and labor charges. Returning product(s) must
be shipped in Avenview’s original packaging or in packaging pertaining equal degree of protection to Avenview’s. Both Avenview and purchaser are responsible for freight
charges and brokerages when shipping the product(s) to the receiver.
This warranty does not apply to any non-Avenview branded product(s); non-registered Avenview product(s). This warranty does not apply: (a) to cosmetic damage, including
but not limited to scratches, dents and broken cords; (b) to damage caused by use with another product; (c) to damage caused by accident, abuse, misuse, liquid contact, fire,
earthquake or other external cause; (d) to damage caused by operating the Avenview product(s) outside Avenview’s manuals or guidelines; (e) to damage caused by service
performed by anyone who is not a representative of A venview or an Avenview authorized personnel; (f) to defects caused by normal wear and tear or otherwise due to the
normal aging of the Avenview product(s), or (g) if any serial number has been removed or defaced from the Avenview product(s).
AVENVIEW IS NOT LIABLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR
ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS;
LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATI ON; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIRECT
OR CONSEQUENTIAL LOSS OR DAMAGE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER.
Some states do not allow the inclusion or limitation of incidental or consequential damages, or allow limitations on duration implements of the Warranty Period; therefore the above limitations or
exclusions may not be applicable to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
RP. (“Avenview”) warrants Avenview-branded product(s) contained in the original packaging against defects in materials and workmanship when used
NOT COVERED BY THIS WARRANTY
ard Avenue, Kenmore, NY 14217
275 Woodw
1.866.508.0269
www.avenview.com
Page 16
Control Your Video
TECHNICAL SUPPORT
USA Head Office
Office Avenview
Corp. 275 Woodward Avenue
kenmore, Ny 14217
phone: +1.716.218.4100 ext223
f ax: +1.866.387-8764
Email: [email protected]
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of
Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this
documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages
in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design.
With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but
not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
Canada Sales
Avenview
151 Esna park Drive, u nit 11 & 12
Markham, Ontario, l 3R 3B1
phone: 1.905.907.0525
f ax: 1.866.387.8764
Email: [email protected]
Avenview Europe
Avenview Europe
Demkaweg 11
3555 HW u trecht
Netherlands
phone: +31 (0)85 2100- 613
Email: [email protected]
Avenview Hong Kong
u nit 8, 6/f., k wai Cheong Centre,
50 k wai Cheong Road,
k wai Chung, N.T.
Hong kong
phone: 852-3575 9585
Email: [email protected]
Loading...
