SC-HDM2-HD42K-A
User Manual
22 pgs3.91 Mb0

Avenview SC-HDM2-HD42K-A User Manual

Download
Page 1
VIDEO WALLS VIDEO PROCESSORS
VIDEO MATRIX SWITCHES
EXTENDERS SPLITTERS WIRELESS CABLES & ACCESSORIES
Control Your Video
1X2 Port HDMI Up/Down Scaler
with Test Pattern & Audio Support
Model #: SC-HDM2-HD42K-A
Page 2
Military Residential
Medical Aviation
Education Industrial
Corporate House Of Worship
www.avenview.com
Product Application & Market Sectors
Page 3
INTRODUCTION.................................................................................................................................. 3
FEATURES .............................................................................................................................................. 3
PACKAGE CONTENTS ......................................................................................................................... 4
SUPPORTED SCALED RESOLUTIONS ................................................................................................. 15
PANEL DESCRIPTIONS ......................................................................................................................... 5
APPLICATION DIAGRAM ..................................................................................................................... 6
INSTALLATION ..................................................................................................................................... 7
OSD MENU ............................................................................................................................................ 8
TABLE OF CONTENTS
www.avenview.com
REGULATORY NOTICES FEDERATION COMMUNICATIONS COMISSION (FCC)........................ 2
SAFETY INSTRUCTIONS....................................................................................................................... 1
1.
IMPORTANT SAFEGUARDS.................................................................................................................. 1
1.2
1.3
2.
3.
4.
9.
5.
6.
7.
8.
VIDEO RESOLUTIONS ......................................................................................................................... 16
10.
AUDIO SPECIFICATIONS .................................................................................................................... 16
11.
SPECIFICATIONS ................................................................................................................................. 17
12.
Page 4
www.avenview.com
Page
1
1.
IMPORTANT SAFEGUARDS
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
• Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
• Removal or installation of the product.
• External causes to the product, such as electric power fluctuation or failure.
• u se of supplies or parts not meeting our specifications.
• Normal wear and tear.
• Any other causes which does not relate to a product defect.
• Removal, installation, and set-up service charges.
1.2
SAFETY INSTRUCTIONS
The Avenview SC-HDM2-HD42K-A Scaler with HDCP 2.2 function has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the SC-HDM2- HD42K-A should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
!
Do not dismantle the housing or modify the module.
!
Dismantling the housing or modifying the module may result in electrical shock or burn.
!
Refer all servicing to qualified service personnel.
!
Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage
or other hazards
!
k eep the module away from liquids.
!
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on
to the housing, unplug the module immediately.
!
Have the module checked by a qualified service engineer before using it again.
!
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
Page 5
www.avenview.com
Page
2
1.3 REGULATORY NOTICES FEDERATION COMMUNICATIONS COMMISSION (FCC)
This equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
Warning symbols Description
ONLY USE THE PROVIDED POWER CABLE OR POWER
ADAPTER SUPPLIED. DO NOT TAMPER WITH THE
El ECTRICAl PARTS. THIS MAY RESULTS IN
ELECTRICAL SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO WIll
VOID THE WARRANTY AND CONTINUED USE OF
THE PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.
PLEASE ENSURE If RACK MOUNTED OR INSTALLED ON
A SURFACE, IT SHOULD BE IN A GROUNDED
ENVIROMENT.
Page 6
The
SC-HDM2-HD42K-A scaler with HDMI 2.0a and HDCP 2.2 Support
is a 1 by 2 UHD Scaler with Audio
De-Embedded designed to upscale 1080p signal to 4K2K 6G or downscale 4K2K 6G signal to 1080p with synchronized digital and analog audio output. Friendly and simple design that allow user with direct viewing on input HDMI content and OSD that ease user with output settings/selection. Scaling signal up to 2 simultaneous HDMI output with two different resolutions or generate patterns to output display with assigned resolution allowing on-site display testing. This UHD Scaler is the best define tool between your HD and UHD signal.
2.
INTRODUCTION
3. FEATURES
www.avenview.com
Page
3
*
HDR = High Dynamic Range. The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4
8bits is 594MHz.
HDMI 2.0 with 6G 4K2K support and HDCP 2.2 compliance. Supports HDMI signal bypass on both outputs or upscale 1080p signal to 4K2K on output B and downscale 4K2K signal to 1080p on output A.
Supports 4K2K@50/60 (4:4:4) to 4K2K@50/60(4:2:0) conversion Supports auto pattern generation with assigned resolution for on-site display testing. Supports HDMI input of one 6G and HDMI outputs of two 6G Supports HDMI signal bypass, upscale and downscale. Supports EDID selections. Supports High-Dynamic-Range (HDR). Supports HDR conversion from 4K2K@24/25/30(444/422)10 or 12bit to 4096x2160@24/25/30Hz 8bit fix. Supports UHD resolutions up to 4K2K: 3840x2160@24/25/30Hz 3840x2160@50/60 Hz (4:4:4) & 4096x2160 @24/25/30 Hz, 4096x2160@50/60Hz (4:4:4). Supports data rate up to 6Gbps (600MHz) and Deep Color up to 1080p 48-bit. Supports pass-through of HD audio formats of LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio. HDMI compatible with DVI. Supports OSD with instant I/O resolution display. Supports Digital to Analog (DAC) audio conversion. Supports Apple mode signal display. Supports HDCP 2.2 to HDCP1.4 conversion.
Note:
When displaying HDMI 4K2K/HDR signal, equivalent source signal, output display and HDMI cables are required in order to
secure the best image display. It is suggested to use Premium High Speed HDMI cable for 6G HDMI signal.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Page 7
SC-HDM2-HD42K-A
4. PACKAGE CONTENTS
www.avenview.com
Page
4
To achieve best results with our SC-HDM2-HD42K-A we highly recommend using a high quality 24 or 26 AWG HDMI cable
with the below specifications to maintain signal integrity and distances.
Features
•
Full UHD 4K/ 60 to 18Gbps High Speed at up to 48 Bit Deep Color
•
UHD 4K/60 to 10.2 Gbps High Speed Deep Color up to 50ft (Active Series), 25ft Passive
•
Full HD Up to 1080p/60 up to 75ft
•
True Professional grade heavy-duty 24 or 26 gauge oxygen­free construction
•
ProGrip connector utilizes up to 16 lbs of retention force to help keep connector in place
•
SureLength length indicators on the connector heads make
•
it easy to organize for installations
•
Available in 7 colors for easy cable identification
•
Up to 32 audio channels and 21:9 aspect ratio
•
Simultaneous delivery of dual video and audio streams to multiple users
•
Pro Grade Triple Shielding with 2x 100% coverage and 85% Premium Tinned Copper Braid construction
•
Ethernet Capable
•
3D Ready
•
Supports Deep Color and x.v. Color (Up to 48 Bit)
•
5.1/7.1 Lossless Dolby TrueHD and DTS-HD Surround Sound
•
Audio Return Channel & Lip-sync
•
ATC Certified
•
99.9% High Purity Copper Center Conductor
•
Molded 24k Gold Plated HDMI male connectors on each end
•
X-tra Flex CL3 rated jacket for easy installation
•
RoHS Certified
•
Lifetime Warranty
Before you start the installation of the scaler, please check the package contents.
1
X 1
2
X1
USER’S MANUAL X 1
INTERNATIONAL POWER ADAPTER 5V 1.2A
4
Page 8
Front Panel
Rear Panel
HDMI IN: Connect to a source such as gaming
console or Blu-ray player.
HDMI OUT A : Connect to a display 1. Each output can display different timing or different test pattern at the same time.
5. PANEL DESCRIPTION
www.avenview.com
Page
5
1.
SYNC LED: LED will illuminate when the input source is sending signal.
2.
3.
MENU: Displays OSD menu. When in OSD menu press the button again to exit. Press and hold this button along with TEST PATTERN “-“ button for 3 seconds to set the device back to factory default.
4.
TEST PATTERN -/+: Allows selection of built-in test patterns to display on outputs instantly. Press these buttons together to switch output timing to 1280x720@60. When under OSD selection, press these buttons to scroll up and down.
5.
4K2K LED: LED will illuminate when the input source is 4K2K.
6.
POWER LED: LED will illuminate when the device is connected with power supply.
ENTER: Press this button to enter and confirm OSD selection.
FIRMWARE UPDATE: Press and hold "Enter" button along with the MENU button for 3 seconds to enter into firmware update mode. The LEDs will illuminate in sequence from left to right. Plug in the USB flash drive (provided by Avenview) with the new firmware inside and the LEDs will stop illuminating. Once the update procedure is completed all LEDs will illuminate at the same time. If update fails no LED will illuminate. The device will automatically reboot after 10 seconds or user may re-power on the device manually.
1.
2.
1
3
4
2
5
6
1
2
3
4
5
HDMI OUT B: Connect to a display 2. Each
output can display different resolution or different test pattern at the same time.
4.
AUDIO OUT L/R: Connect to an equipment
such as amplifier or speakers for audio signal output PCM 2CH that is synchronized with HDMI input audio signal.
3.
5.
SERVICE: Reserved for factory firmware updates.
6.
POWER JACK : Plug the 5V DC power supply
and connect the adaptor to an AC outlet.
Page 9

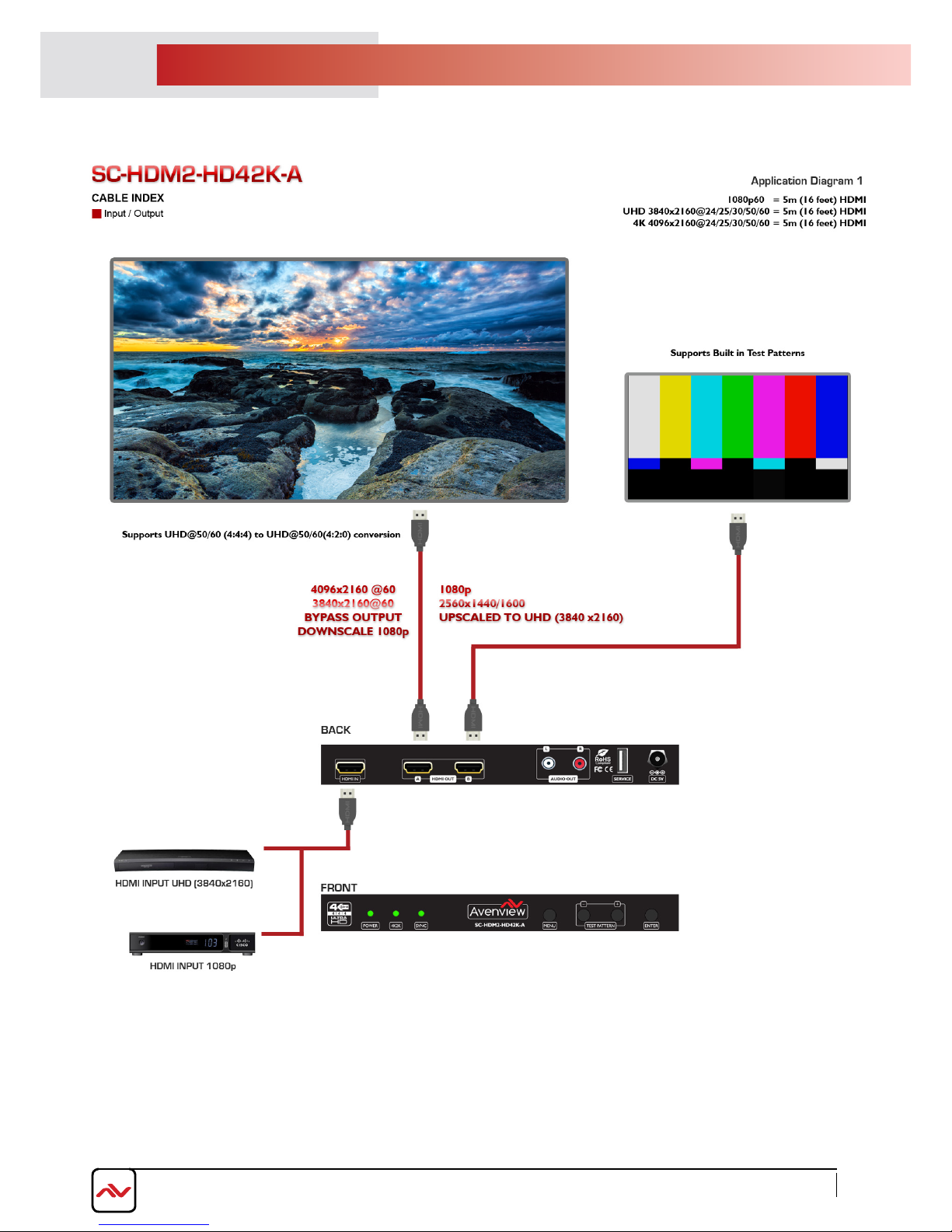

6. APPLICATION DIAGRAM
www.avenview.com
Page
6
Page 10
www.avenview.com
Page
7
Steps to Connect and Setup SC-HDM2-HD42K-A to Displays:
1.
2.
3.
4.
Optional audio amplifier/speakers can be connected to AUDIO OUT.
Power up all devices.
7. INSTALLATION
6.
5.
Power OFF all devices before connecting any HDMI cords.
Connect an HDMI source to HDMI IN port on the SC-HDM2-HD42K-A.
Connect Display 1 to HDMI OUT A and Display 2 to HDMI OUT B.
Plug in the 5V DC power supply to the unit.
Page 11
www.avenview.com
Page
8
8. OSD MENU
2ND LEVEL 3RD LEVEL 4TH LEVEL
PASS THROUGH
DOWN 1080P
*1
OUTPUT A INPUT 4K2K
FIX 4K2K(420)
*2
FIX 8 BITS
*5
PASS THROUGH
OUTPUT
INPUT 1080P
UP 4K2K
*3
UP 4K2K(420)
*4
OUTPUT B
PASS THROUGH
INPUT 4K2K
FIX 4K2K(420)
FIX 8 BITS
*5
INT
4K(6G-2CH)
YES/NO
INT
4K(3G-2CH)
YES/NO
INT
4K(420-2CH)
YES/NO
INT
1080P(2CH)
YES/NO
EDID
YES/NO
YES/NO
EXT
OUT A (2CH)
YES/NO
EXT
OUT B (2CH)
YES/NO
EXT
OUT A
EXT
OUT B
LEVEL
Page 12
www.avenview.com
Page
9
1ST LEVEL 2ND LEVEL 3RD LEVEL 4TH LEVEL
HDCP SUPPORT
OFF
HDCP
REFER TO SOURCE
REFER TO DISPLAY
ON
DISPLAY INFO.
OFF
5 SEC.
10 SEC.
OSD 15 SEC.
OSD TIME OUT 20 SEC.
25 SEC.
30 SEC.
35 SEC.
40 SEC.
OFF
MODE ON
AUTO PATTERN
AUTO TIMING
WHITE COLOR
RED COLOR
GREEN COLOR
TEST PATTERN A BLUE COLOR
MEGENTA COLOR
PATTERN
YELLOW COLOR
Page 13
www.avenview.com
Page
10
1ST LEVEL 2ND LEVEL 3RD LEVEL 4TH LEVEL
CYAN COLOR
COLOR BAR
RAMP
TOGGLE
720X480P@60
720X576P@50
1280X720P@50
1280X720P@60
1920X1080P@50
RESOLUTION 1920X1080P@60
3840X2160P@24
3840X2160P@25
3840X2160P@30
4096X2160P@24
4096X2160P@25
4096X2160P@30
DISABLE
HDCP
ENABLE
10 SEC.
20 SEC.
30 SEC.
40 SEC.
SWITCH TIME 50 SEC.
1 MIN.
2 MIN.
Page 14
www.avenview.com
Page
11
1ST LEVEL 2ND LEVEL 4TH LEVEL
TEST PATTERN
A
3 MIN.
5 MIN.
720X480P@60
YES
/NO
720X576P@50 YES/
NO
1280X720P@50 YES/
NO
1280X720P@60
YES
/NO
1920X1080P@50 YES/
NO
1920X1080P@60
YES
/NO
NEXT PAGE
3840X2160P@24 YES/
NO
3840X2160P@25 YES/
NO
3840X2160P@30 YES/
NO
4096X2160P@24 YES/
NO
4096X2160P@25 YES/
NO
4096X2160P@30 YES/
NO
PREVIOUS PAGE
OFF
MODE ON
AUTO PATTERN
AUTO TIMING
WHITE COLOR
RED COLOR
GREEN COLOR
BLUE COLOR
AUTO TIMING SELECT
3RD LEVEL
Page 15
www.avenview.com
Page
12
1ST LEVEL 2ND LEVEL 3RD LEVEL 4TH LEVEL
MEGENTA
COLOR
PATTERN
YELLOW COLOR
CYAN COLOR
TEST PATTERN B COLOR BAR
RAMP
TOGGLE
720X480P@60
720X576P@50
1280X720P@50
1280X720P@60
1920X1080P@50
1920X1080P@60
3840X2160P@24
3840X2160P@25
RESOLUTION 3840X2160P@30
4096X2160P@24
4096X2160P@25
4096X2160P@30
3840X2160P@50
3840X2160P@60
4096X2160P@50
4096X2160P@60
10 SEC.
20 SEC.
30 SEC.
Page 16
www.avenview.com
Page
13
1ST LEVEL 2ND LEVEL 3RD LEVEL 4TH LEVEL
40 SEC.
SWITCH TIME 50 SEC.
1 MIN.
2 MIN.
TEST PATTERN B 3 MIN.
5 MIN.
DISABLE
HDCP
ENABLE
720X480P@60
YES
/NO
720X576P@50 YES/
NO
1280X720P@50 YES/
NO
1280X720P@60
YES
/NO
1920X1080P@50 YES/
NO
1920X1080P@60
YES
/NO
NEXT PAGE
3840X2160P@24 YES/
NO
3840X2160P@25 YES/
NO
3840X2160P@30 YES/
NO
4096X2160P@24 YES/
NO
4096X2160P@25 YES/
NO
4096X2160P@30 YES/
NO
3840X2160P@50 YES/
NO
3840X2160P@60 YES/
NO
4096X2160P@50 YES/
NO
4096X2160P@60 YES/
NO
AUTO
TIMING
SELECT
Page 17
Default settings are in Italian bold font
Note: When input timing is non-VESA standard, OSD may be disable.
To enter into OSD selection, press hot keys to enter into test pattern mode and do the OSD selection.
1ST LEVEL 2ND LEVEL 3RD LEVEL 4TH LEVEL
PREVIOUS PAGE
INPUT XXX
INFORMATION RESOLUTION OUTPUT A XXX
OUTPUT B XXX
OUTPUT A DISABLE/ENABLE
HDCP
OUTPUT B DISABLE/ENABLE
FIRMWARE
VERSION VX.XX
NO
YES
FACTORY
SETTING
NO
YES
FIRMWAR
UPDATE
www.avenview.com
Page
14
Page 18
3840x2160@24 → 1920x1080p@24 3840x2160@25 → 1920x1080p@25 3840x2160@30 → 1920x1080p@30 3840x2160@50 → 1920x1080p@50 3840x2160@60 → 1920x1080p@60 4096x2160@24 → 1920x1080p@24 4096x2160@25 → 1920x1080p@25 4096x2160@30 → 1920x1080p@30 4096x2160@50 → 1920x1080p@50 4096x2160@60 → 1920x1080p@60
3840x2160@50(RGB,YCbCr444,Ycbcr422) →
3840x2160@50(YCbCr420)
3840x2160@60(RGB,YCbCr444,Ycbcr422) → 3840x2160@60(YCbCr420) 4096x2160@50(RGB,YCbCr444,Ycbcr422) → 4096x2160@50(YCbCr420) 4096x2160@60(RGB,YCbCr444,Ycbcr422) → 4096x2160@60(YCbCr420)
1920x1080p@24 → 3840x2160@24 1920x1080p@25 → 3840x2160@25 1920x1080p@30 → 3840x2160@30 1920x1080p@50 → 3840x2160@50 1920x1080p@60 → 3840x2160@60
1920x1080p@50(RGB,YCbCr444,Ycbcr422) → 3840x2160@50(YCbCr420)
1920x1080p@60(RGB,YCbCr444,Ycbcr422) → 3840x2160@60(YCbCr420)
4K2K@24/25/30(RGB, YCbCr444, YCbCr422) 10/12/16bit → 4K2K@24/25/30(RGB,
Ycbcr444, Ycbcr422) 8bit
4K2K@50/60(YCbCr420) 10/12/16bit -> 4K2K@50/60(YCbCr420) 8bit
*
1 Input → Output
*
2 Input → Output
*
3 Input →
Output
*
4 Input → Output
*
5 Input → Output
9. SUPPORTED SCALED RESOLUTIONS
www.avenview.com
Page
15
Page 19
10. Video Resolutions
11. Audio Specifications
DVI and HDMI Supported Input Output
640x480i@60
640x480p@60
720x480p@60
720x576i@50
720x576p@50
800x600@56/60/72/75/85
1024x768@60/70/75/85
1280x720p@50/60
1280x768@60/75
1280x800@60/75
1280x1024@60/75
1366x768@60
1400x1050@60/75
1440x900@60/75
1600x900@60
1600x1200@60
1680x1050@60
1920x1080i@50/60
1920x1080p@24/25/30/50/60
1920x1200@60
3840x2160@24/25/30/50/60
4096x2160@24/25/30/50/60
Input
Level/Freq
Output
Terminal
Frequence
THD+N
SNR Crosstalk
Response
Output
Level
HDMI 0dB~-1dB <0.01% ±1dB >80dB <-80dB
L/R Vrms±10% <0.1% ±3dB >70dB <-60dB
HDMI
0dBFS 20
、
1K、20KHz
www.avenview.com
Page
16
Page 20
Model Name SC-HDM2-HD42K-A
Technical
HDMI compliance HDMI 2.0a
HDCP compliance HDCP 2.2
Video Bandwidth 600MHz [18Gbps]
Video support
From 640x480i@60 up to 4096x2160@24/25/30/50/60
Input
1x HDMI
Output 2x HDMI
HDMI connector Type A [19-pin female]
USB connector
USB Type A
HDMI Cable Length
15 m@1080p/8-bit, 10 m@1080p/12-bit, 5 m@4K
Mechanical
Color Black
Dimensions [L x W x H]
Model
231 x 108 x 25mm [9” x 4.25” x 1”]
Jacks included
231.5 x 117 x 74mm [9.11” x 4.6” x 1”]
Weight
616g [1.3 lbs]
Chassis Material
Metal
Power supply
5V DC/2.6A (US/EU standards, CE/FCC/UL certified)
Power consumption
5.8 Watt [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
12. SPECIFICATIONS
www.avenview.com
Page
17
Page 21
www.avenview.com
Avenview Warranty Certificate
AVENVIEW CO
RP. (“Avenview”) warrants Avenview-branded product(s) contained in the original packaging against defects in materials and workmanship when used
normally in accordance with Avenview's enclosed manual guidelines for a period of THREE (3) YEARS from the date of original retail purchase - Warranty Period. Avenview’s published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.
LABOR: During the Warranty Period of THREE (3) YEARS, Avenview will repair or replace the product(s) at no cost using new or used parts equivalent to novel performance and reliability if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Labor applicable to product(s) after Warranty Period. For labor costs, please contact [email protected].
PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact
[email protected].
To obtain Warranty: (a) proof of purchase in the form of a bill of sale or receipted invoice reflecting that the registered product(s) is within warranty period must be presented
to obtain warranty service; (b) product(s) must be registered at time of purchase. Failure to do so will result in applicable parts and labor charges. Returning product(s) must be shipped in Avenview’s original packaging or in packaging pertaining equal degree of protection to Avenview’s. Both Avenview and purchaser are responsible for freight charges and brokerages when shipping the product(s) to the receiver.
NOT COVERED BY THIS WARRANTY
This warranty does not apply to any non-Avenview branded product(s); non-registered Avenview product(s). This warranty does not apply: (a) to cosmetic damage, including but not limited to scratches, dents and broken cords; (b) to damage caused by use with another product; (c) to damage caused by accident, abuse, misuse, liquid contact, fire, earthquake or other external cause; (d) to damage caused by operating the Avenview product(s) outside Avenview’s manuals or guidelines; (e) to damage caused by service performed by anyone who is not a representative of A venview or an Avenview authorized personnel; (f) to defects caused by normal wear and tear or otherwise due to the normal aging of the Avenview product(s), or (g) if any serial number has been removed or defaced from the Avenview product(s).
AVENVIEW IS NOT LIABLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATI ON; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER.
Some states do not allow the inclusion or limitation of incidental or consequential damages, or allow limitations on duration implements of the Warranty Period; therefore the above limitations or exclusions may not be applicable to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
275 Woodw
ard Avenue, Kenmore, NY 14217
1.866.508.0269
Page 22
TECHNICAL SUPPORT
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
Control Your Video
USA Head Office
Office Avenview Corp. 275 Woodward Avenue kenmore, Ny 14217 phone: +1.716.218.4100 ext223 f ax: +1.866.387-8764 Email: [email protected]
Canada Sales
Avenview 151 Esna park Drive, u nit 11 & 12 Markham, Ontario, l 3R 3B1 phone: 1.905.907.0525 f ax: 1.866.387.8764 Email: [email protected]
Avenview Europe
Avenview Europe Demkaweg 11 3555 HW u trecht Netherlands phone: +31 (0)85 2100- 613 Email: [email protected]
Avenview Hong Kong
u nit 8, 6/f., k wai Cheong Centre, 50 k wai Cheong Road, k wai Chung, N.T. Hong kong phone: 852-3575 9585 Email: [email protected]
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
