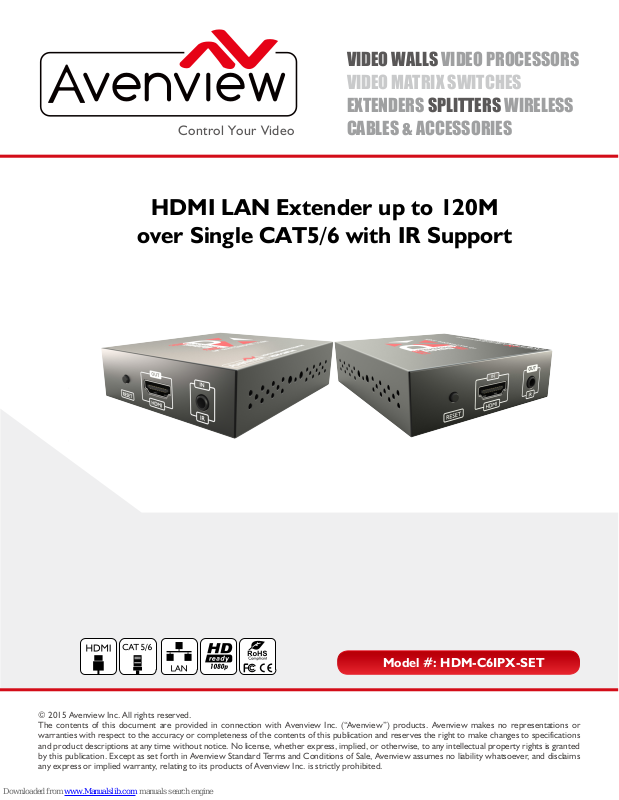

HDMI LAN Extender up to 120M
over Single CAT5/6 with IR Support
© 2015 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims
any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.
Model #: HDM-C6IPX-SET
Page 2
Product Application & Market Sectors
Corporate House Of Worship
Military Residential
Education Industrial
Medical Aviation
www.avenview.com
Page 3
TABLE OF CONTENTS
1. GETTING STARTED ..........................................................................................................................1
1.1 IMPORTANT SAFEGUARDS .............................................................................................................. 1
1.2 SAFETY INSTRUCTIONS ..................................................................................................................1
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) ........................... 2
2. INTRODUCTION .............................................................................................................................. 3
2.1 PACKAGE CONTENTS .....................................................................................................................4
2.2 BEFORE INSTALLATION ...................................................................................................................4
2.2.1 APPLICATION DIAGRAM .............................................. ..........................................................5
2.2.2 APPLICATION DIAGRAM.........................................................................................................6
2.3 DEVICE DESCRIPTION & LAYOUT .................................................................................................. 7
2.3.1 Front Panel & Rear Panel (Transmitter, HDM-C6IPX-S) ..........................................................7
2.3.2 Front Panel & Rear Panel (Receiver, HDM-C6IPX-R) ...............................................................7
2.4 IR CONTROL DECRIPTION, HDM-C6IPX-SET) .......................................................................8
3.
INSTALLATION ..................................................................................................................................9
4.
GENERAL TROUBLESHOOTING .....................................................................................................9
5.
SPECIFICATIONS ...............................................................................................................................10

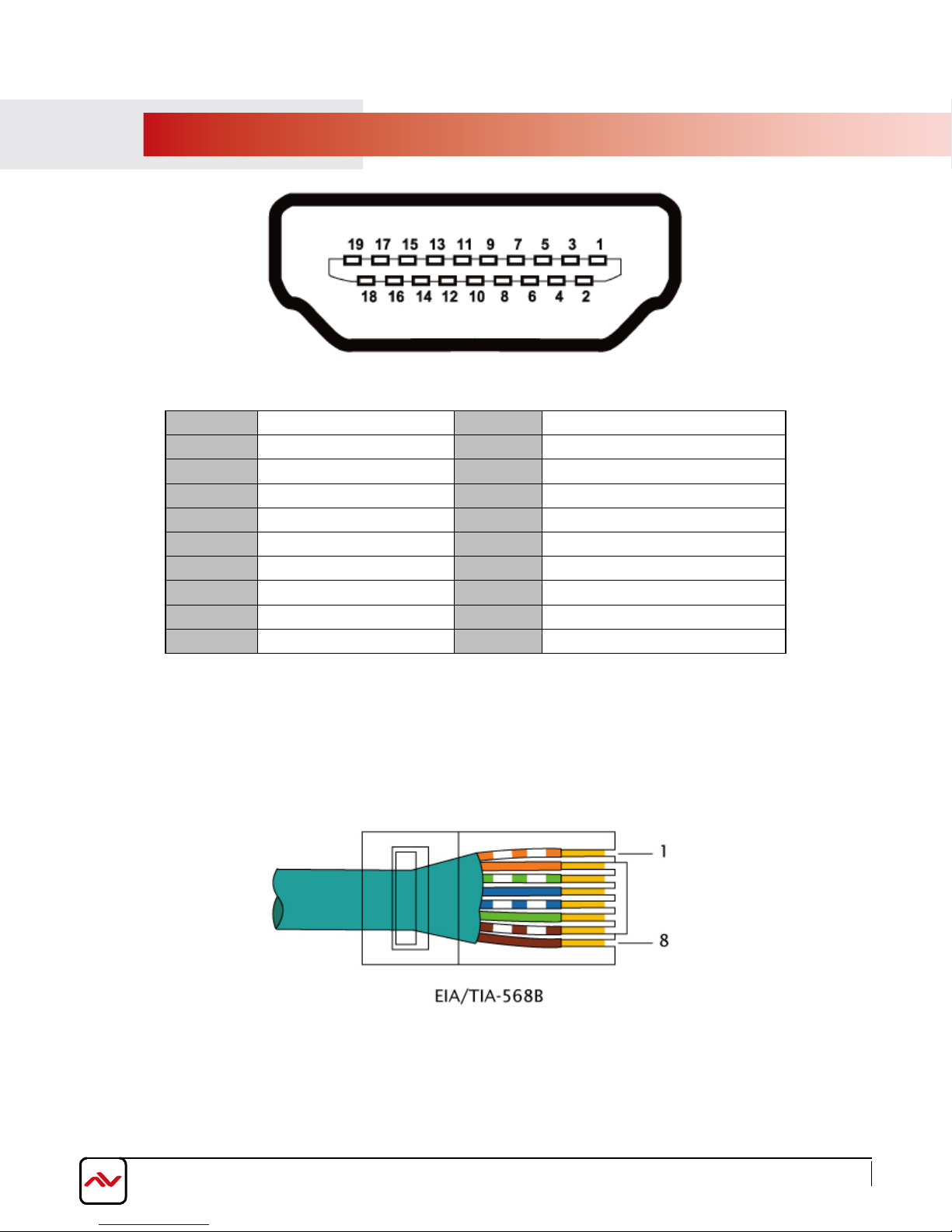

6. PIN & WIRING STANDARD
DEFINITION .........................................................................................11
www.avenview.com
Page 3
Page 4
1. GETTING STARTED
SECTION 1: GETTING STARTED
1.1 IMPORTANT SAFEGUARDS
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
• Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
• Removal or installation of the product.
• Causes external to the product, such as electric power fluctuation or failure.
• Use of supplies or parts not meeting our specifications.
• Normal wear and tear.
• Any other causes which does not relate to a product defect.
• Removal, installation, and set-up service charges.
1.2 SAFETY INSTRUCTIONS
The Avenview HDM-C6IPX-SET, HDMI Extender has been tested for conformity to safety regulations and requirements, and has
been certified for international use. However, like all electronic equipment’s, the HDM-C6IPX-SET should be used with care.
Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
Do not dismantle the housing or modify the module.
!
Dismantling the housing or modifying the module may result in electrical shock or burn.
!
Refer all servicing to qualified service personnel.
!
Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage
!
or other hazards
Keep the module away from liquids.
!
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on
!
to the housing, unplug the module immediately.
Have the module checked by a qualified service engineer before using it again.
!
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
!
www.avenview.com
Page 1
Page 5
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

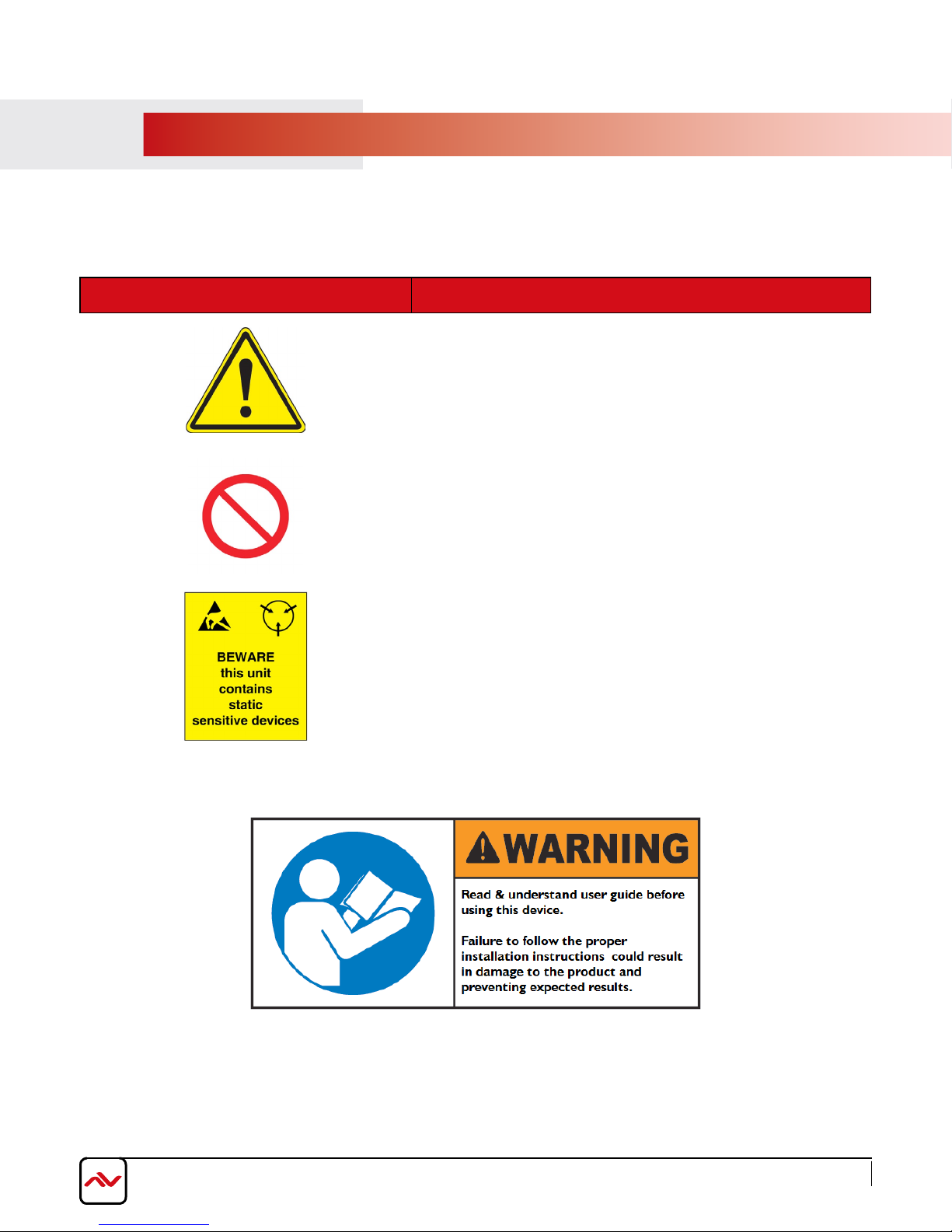

Warning symbols Description
ONLY USE THE PROVIDED POWER CABLE OR POWER
ADAPTER SUPPLIED. DO NOT TAMPER WITH THE
ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL
SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO WILL
VOID THE WARRANTY AND CONTINUED USE OF THE
PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.
PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A
SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.
www.avenview.com
Page 2
Page 6
2. INTRODUCTION
HDM-C6IPX-SET, HDMI extender set is an upgraded version of Avenview's popular HDM-C6IP-SET designed to provide an extra
distance, extra IR support and the main difference it is network friendly - can be added to your exsiting network. Having a few years
experience with HDMI over IP we have engineered a newer chipset providing extra PPI in resolution and lower bandwidth. So the
user can extend any HD display with the resolutions of 1080p/60Hz up to 394 feet (120 meters) away from your HDMI or DVI-D
source. Thanks to the use of the TCP/IP protocol, you can transfer your high-definition video over any existing TCP/IP network. See
below three examples:
A: The Tx and Rx units can extend 120 meters over a single CAT5/6 cable connection point to point.
B: The Tx can be connected to a Gigabit switch to establish a IP address therefore sending 1080p video signals to multiple
Rx connected to the Gigabit switch and the HDMI displays.
C: Multiple Tx’s can be connected to a Managed Gigabit switch with VLAN/IGMP support therefore sending 1080p video
signals to Rx connected to the Gigabit switch to show different sources on the HDMI displays.
•
Extends HDMI up to 120m over single CAT5E/6
• Supports HDMI, EDID, Support HDCP
• Supports resolution HDTV / 1080Pp/60Hz, Vesa (1920 x 1080)
• Supporting the point to point transmission function currently which can be expanded to the multi-point to point
transmission function.
• Requires a managed Gigabit switch with VLAN/IGMP support to have a soultion with multiple sources (Transmitters).
Standard Gigabit switch can only support one transmitter.
• The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and to allow duplicate IP addresses across
the VLAN domains.
• Each VLAN acts as independent HDMI over IP Channel on the network.
• Number of Tx and Rx that can be used is dependent on bandwidth of the switch (Recommended Gigabit switch
10/1000).
•
Unmanaged switches can be cascaded up to 3 layer network, allowing the farthest display to be located up to 394
meters away from the source device. Each receiver can be located up to 120 meters away from each switch.
•
Uses H.264 technology to process image compression on a fixed bandwidth.
www.avenview.com
Page 3
Page 7

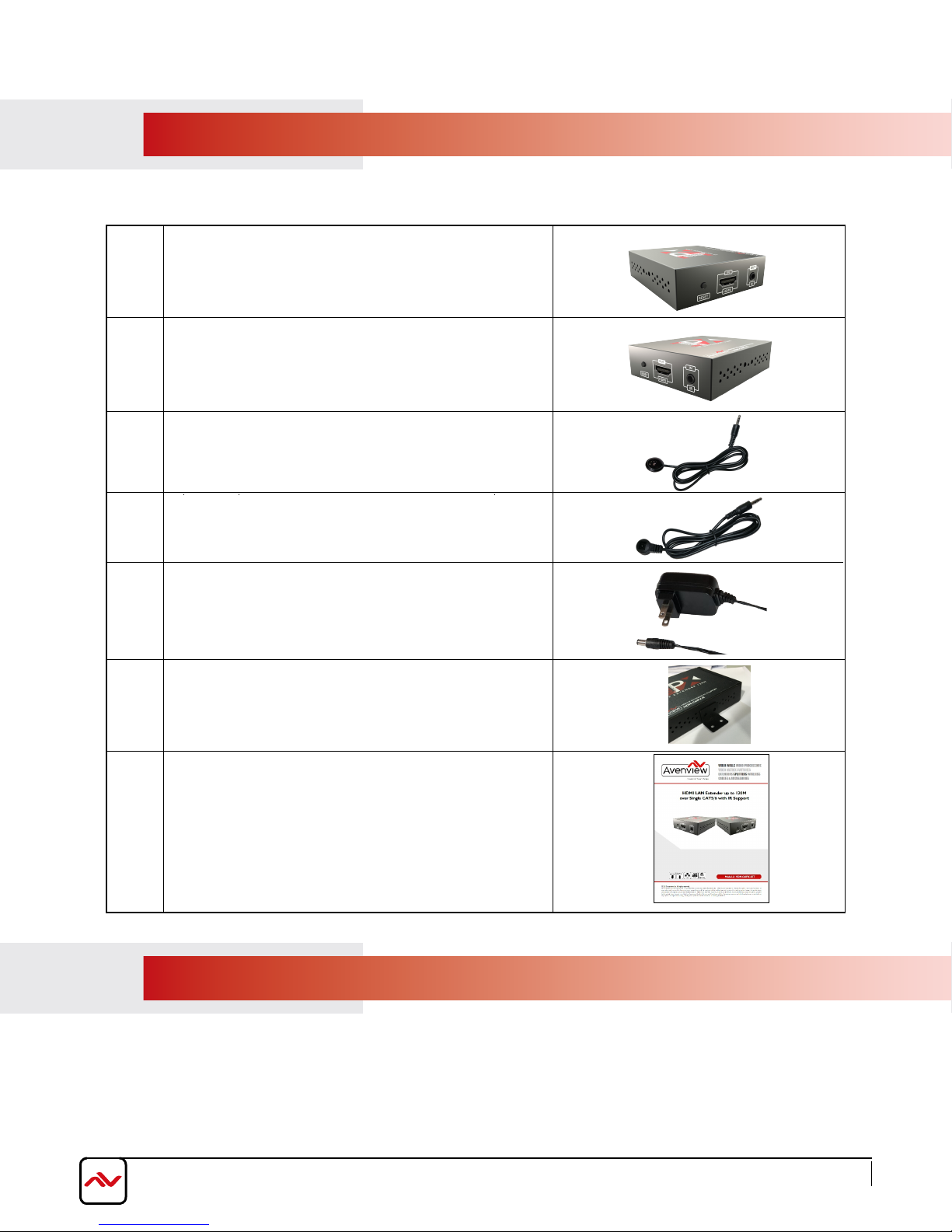

2.1 PACKAGE CONTENTS
Before you start the installation of HDM-C6IPX-SET, please check the A. STANDARD package contents.
HDMI IPX TRANSMITTER X 1
1
HDMI IPX RECEIVER X 1
2
3
IR EXTENDER
4
IR BLASTER
POWER ADAPTER (5VDC)
5
Mounting Bracket
6
USER’S MANUAL X1
7
X 1
X 1
X 2
2.2 BEFORE INSTALLATION
• Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.
• Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.
• Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.
www.avenview.com
Page 4
Page 8

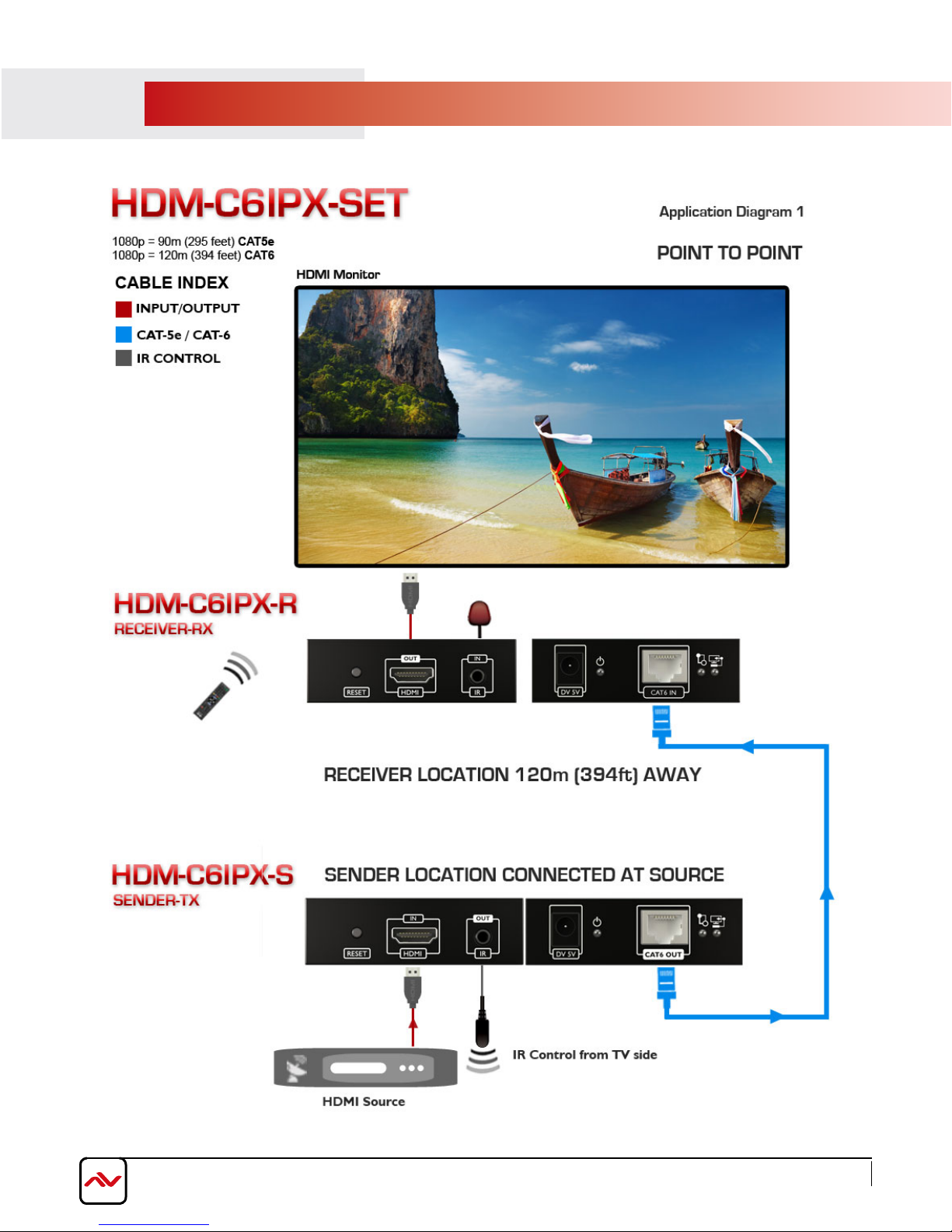

2.2.1 APPLICATION DIAGRAM
www.avenview.com
Page 5
Page 9

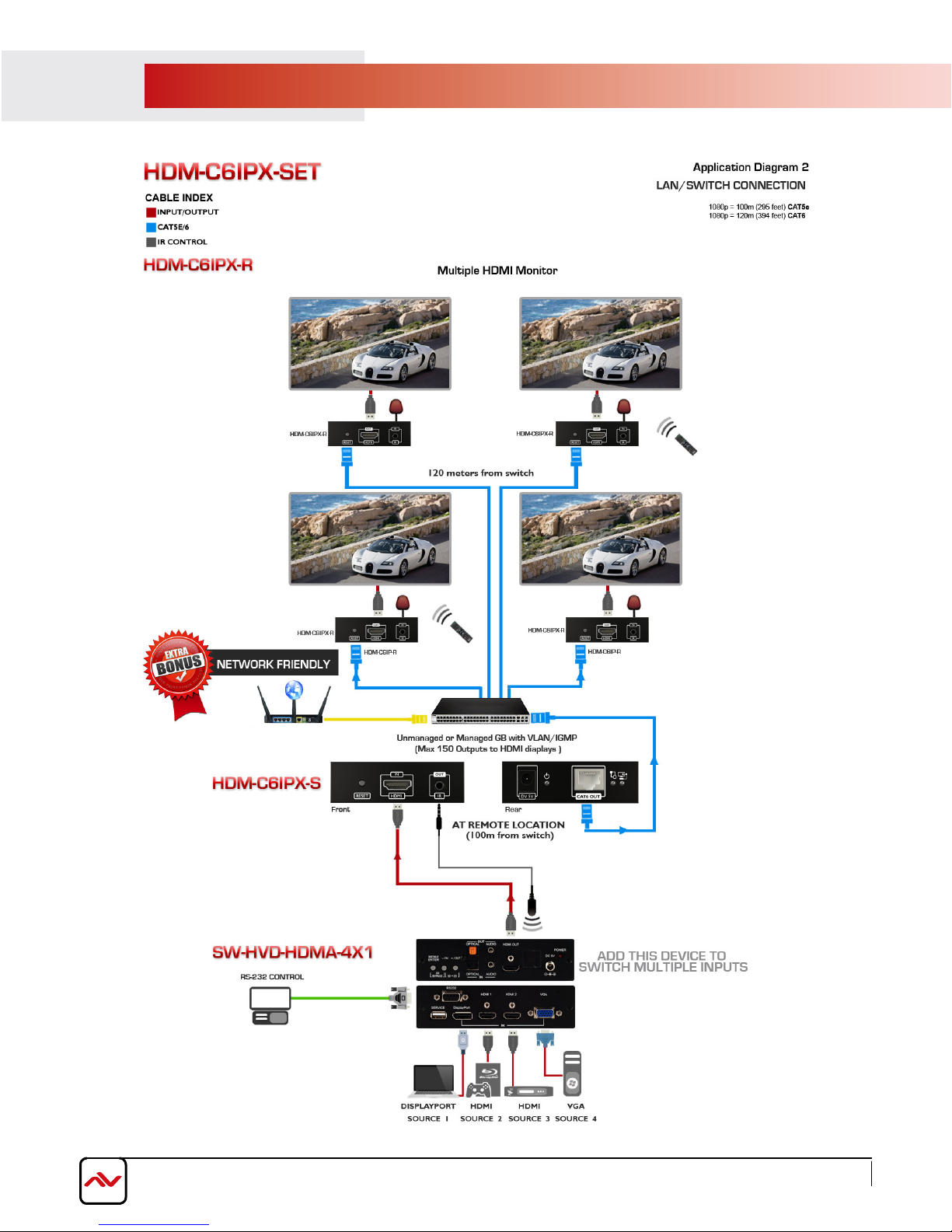

2.2.2 BEFORE INSTALLATION
www.avenview.com
Page 6
Page 10

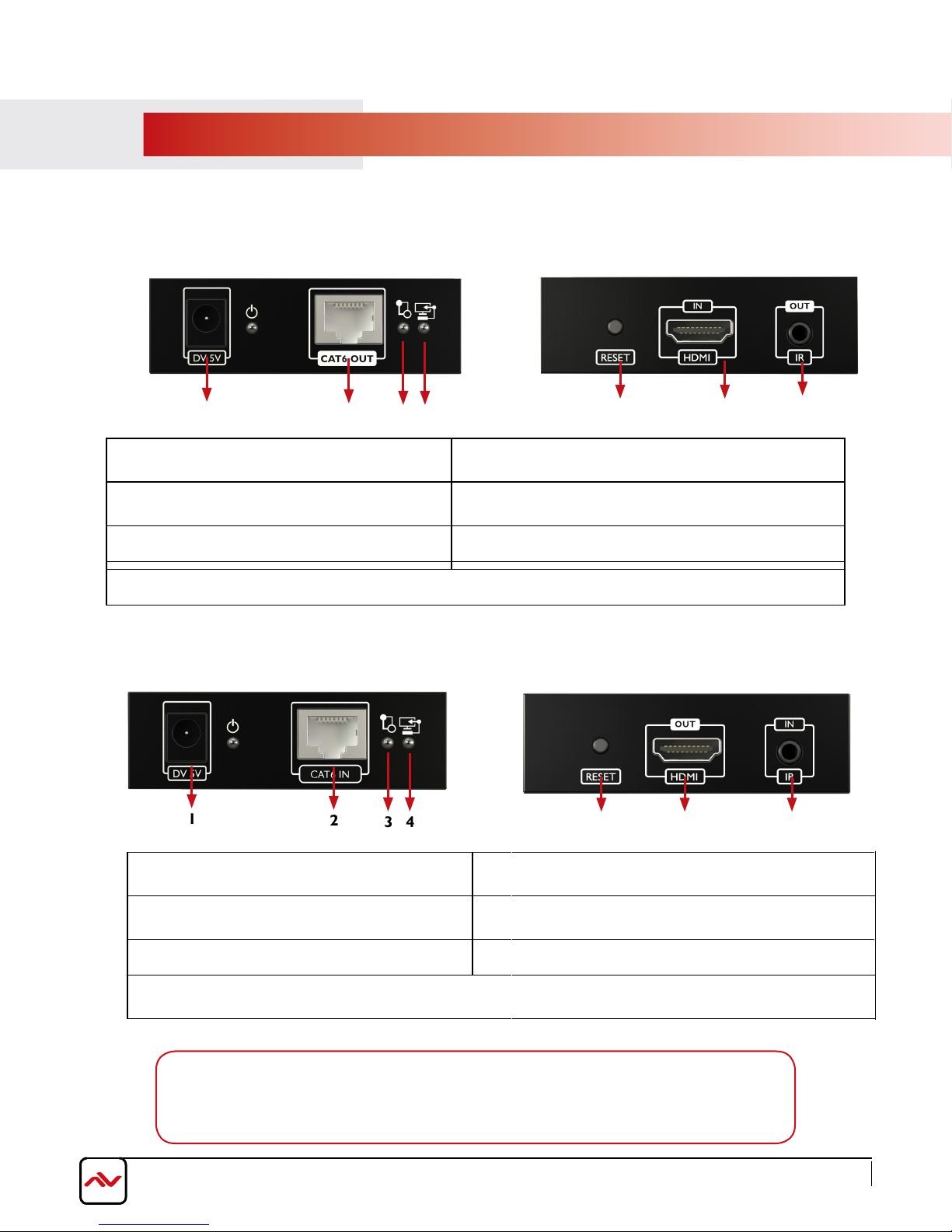

2.3 DEVICE DESCRIPTION & LAYOUT
This product is SDFNDJHGDVDVHWZKLFKLQFOXGHV a Transmitter and a Receiver.
2.3.1 Front Panel & Rear Panel (Transmitter, HDM-C6IP;-S)
1
1 +5V DC: Connect to the 5v DC power supply
Power LED will light BLUE.
3 DATA LED: When data is transmitting from the
source the led will continuously flash YELLOW.
5 RESET: To rest the unit when no link is established
7 IR: Plug the IR Blaster cable for IR signal being recieved. Place IR Blaster within direct site of the device being controlled
2
3 4
2 CAT5E/6 OUT: Plug in a Cat-5E/6 cable to link and send
data (video and audio) to the Reciever unit or network switch.
4 LINK LED: When connected to RX or network switch the
LED will light GREEN.
6 HDMI IN: Connect to HDMI source Max 35ft via HDMI Cable
5 6
2.3.2 Front Panel & Rear Panel (Receiver, HDM-C6IP;-R)
1
2
3 4
5 6
7
7
1 +5V DC: Connect to the 5V DC power supply
Power LED will light BLUE.
3 DATA LED: When data is transmitting from the
source the led will continuously flash YELLOW.
5 RESET: To rest the unit when no link is established
7 IR IN: Plug the IR Extender cable for IR signal being received. Place IR Extender within direct line of site with the IR Remote.
Important Please do not connect the HDM-C6IPX-SET to a POE network switch this will damage and
units will be come non functional.
2 CAT5E/6 OUT: Plug in a Cat-5E/6 cable to link and receive
data (video and audio) IURPWKHVHQGHUXQLW or network switch.
4 LINK LED: When connected to RX or network switch the LED
will light GREEN.
6 HDMI OUT:Connect to HDMI display Max 35ft via HDMI Cable
www.avenview.com
the
Page 7
Page 11

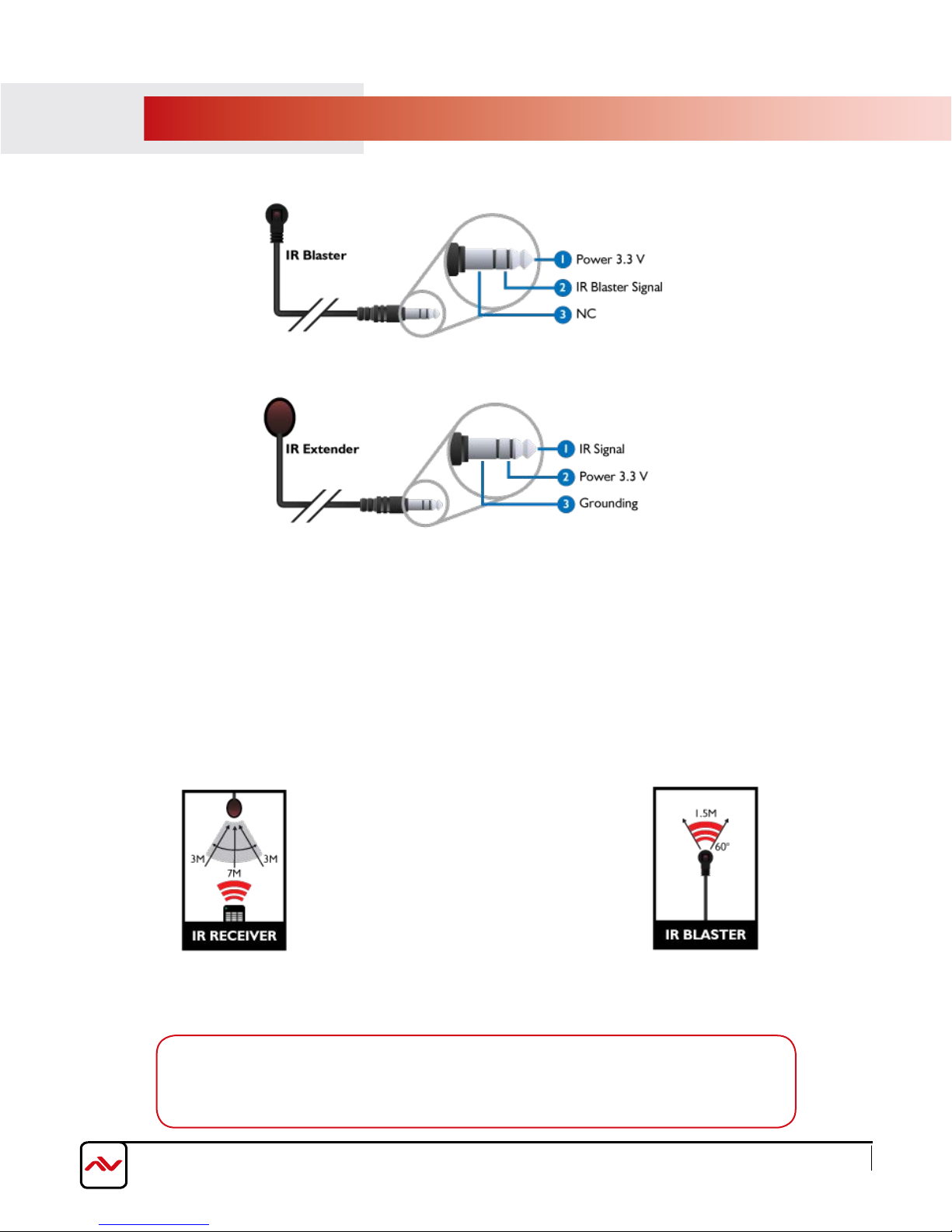

2.4 IR CABLE DESCRIPTION
IR Sockets
-- IR OUT -IR BLASTER: plug in the IR blaster to the HDMC6IPX-S to emit all IR command
signals received from the IR Extender plugged into the Rx (Monitor Side) to control the devices
corresponding to the IR signals. Example: Set Top Box or DVD player (The Source).
-- IR IN - IR EXTENDER: plug in the IR Extender into the (RX) Receiver (Monitor Side) to
receive all IR command signals from the IR remote controls of the corresponding source.
Example: Set Top Box or DVD player (IR Remote Control).
Important IR signals can be affected by very bright fluorescent light and also EMI Interference on the cables
so be aware of wher you place and postion your IR cables. Please follow these instructions for best results.
www.avenview.com
Page
8
Page 12
3. INSTALLATION
Please ensure all the package contents are all received before proceeding.
To setup Avenview HDM-C6IPX-SET follow these steps for connecting to a device:
1.
Connect your HDMI source (such as a Blu-ray Disc player) to Transmitter (HDM-C6IPX-S).
2.
Connect your HDMI display (such as a LCD TV) to the receiving unit HDM-C6IPX-R.
3. Connect your CAT-5E/6 follow the standards of TIA-568BLAN cable between the transmitting and receiving units.
4. Make sure CAT-5E/6 LAN cable is tightly connected and not loose.
5.
Plug in 5V DC power cord to the power jack of the transmitting unit HDM-C6IPX-S
6.
Plug in 5V DC power cord to the power jack of the receiving unit HDM-C6IPX-R.
4. GENERAL TROUBLESHOOTING
PROBLEM
NO IMAGE
SCREEN DEFECTS
APPEAR
DATA TRANSMISSION LIGHT
FLASHING SLOW
DATA TRANSMISSION LIGHT
FLASHING FAST/NO IMAGE
NO LIGHT ON DATA
TRANSMISSION
POSSIBLE SOLUTION
• Check if connection to the source and the display are correct.
• Ensure that display device supports 480p, 720p and 1080p resolution
• Check the DVI and HDMI connection
• Check both units and make sure the TX and RX are not Reversed
• Check the source device is powered ON
Check Graphics card on PC/HD Player. This product supports
•
up to 1080p (1920x1080) resolution.
• Check Network cable only use TIA-568B Standard
• Network cable run is out of range
www.avenview.com
Page
9
Page 13
5. SPECIFICATIONS
ITEM DESCRIPTION
UNITS
UNIT DESCRIPTION HDMI Transmitter HDMI Receiver
HDMI COMPLIANCE Full HD
HDCP COMPLIANCE Yes
VIDEO BANDWIDTH
SUPPORTED RESOLUTIONS
HDM-C6IPX-S HDM-C6IPX-R
H.264 technology to process image compressing GIGABIT (10/1000)
OVER LAN
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,
1080i@50/60Hz, 1080p@50/60Hz
RESOLUTION AND DISTANCE (24-BIT)
AUDIO SUPPORT Surround Sound (up to 7.1 Ch) or Stereo Digital Audio
IR PASS-THRU
RS-232 SUPPORT NO
INPUT
OUTPUT
HDMI CONNECTOR
RJ45 CONNECTOR
POWER ADAPTER
POWER CONSUMPTION
DIMENSION L X W X H
WEIGHT
Environmental
OPERATING TEMPERATURE
STORAGE TEMPERATURE
RELATIVE HUMIDITY
Full HD: (1080p)-120meter (394feet) (CAT6)
Supportrs 20~60KHz IR devices
1x HDMI
1x RJ45, 1x HDMI
1x IR Out
Type A (19 pin female)
WE/SS 8P8C with 2 LED indicators
2 X DC 5V/1A
3W Max (each)
3.8” x 3.7” x0.9”
0.3 lbs
32˚ ~ 140˚F (0˚ to 60˚C)
-4˚ ~ 140˚F (-20˚ ~ 60˚C)
20~90% RH (no condensation)
1x RJ45,
1x IR IN
PERFORMANCE GUIDE FOR HDMI OVER CATEGORY CABLE TRANSMISSION
PERFORMANCE RATING TYPE OF CATEGORY CABLE
WIRING
SOLID
STRANDED
TERMINATION PLEASE USE EIA/TIA-568-B TERMINATION (T568B) AT ANY TIME
SHIELDING CAT5 CAT5E CAT6
UNSHIELDED (UTP)
SHIELDED (STP)
UNSHIELDED (UTP)
SHIELDED (STP)
www.avenview.com
Page
10
Page 14
6. PIN & WIRING STANDARD DEFINITION
TYPE A (RECEPTACLE) HDMI
Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield
Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock–
Pin 3 TMDS Data2– Pin 13 CEC
Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device)
Pin 5 TMDS Data1 Shield Pin 15 SCL
Pin 6 TMDS Data1– Pin 16 SDA
Pin 7 TMDS Data0+ Pin 17 DDC/CEC Ground
Pin 8 TMDS Data0 Shield Pin 18 +5V Power
Pin 9 TMDS Data0– Pin 19 Hot Plug Detect
Pin 10 TMDS Clock+
CAT5E/6 WIRING STANDARD
www.avenview.com
Page
11
Page 15
Notes
www.avenview.com
Page
12
Page 16
Notes
www.avenview.com
Page
13
Page 17
Avenview Warranty Certificate
AVENVIE
W CORP. (“Avenview”) warrants Avenview-branded product(s) contained in the original packaging against defects in materials and workmanship when used
normally in accordance with Avenview's enclosed manual guidelines for a period of THREE (3) YEARS from the date of original retail purchase - Warranty Period. Avenview’s
published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.
LABOR: During the Warranty Period of THREE (3) YEARS, Avenview will repair or replace the product(s) at no cost using new or used parts equivalent to novel performance
and reliability if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Labor applicable to product(s) after Warranty Period. For labor costs,
please contact [email protected].
PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if
the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact
To obtain Warranty: (a) proof of purchase in the form of a bill of sale or receipted invoice reflecting that the registered product(s) is within warranty period must be presented
to obtain warranty service; (b) product(s) must be registered at time of purchase. Failure to do so will result in applicable parts and labor charges. Returning product(s) must
be shipped in Avenview’s original packaging or in packaging pertaining equal degree of protection to Avenview’s. Both Avenview and purchaser are responsible for freight
charges and brokerages when shipping the product(s) to the receiver.
NOT COVERED BY THIS WARRANTY
This warranty does not apply to any non-Avenview branded product(s); non-registered Avenview product(s). This warranty does not apply: (a) to cosmetic damage, including
but not limited to scratches, dents and broken cords; (b) to damage caused by use with another product; (c) to damage caused by accident, abuse, misuse, liquid contact, fire,
earthquake or other external cause; (d) to damage caused by operating the Avenview product(s) outside Avenview’s manuals or guidelines; (e) to damage caused by service
performed by anyone who is not a representative of A venview or an Avenview authorized personnel; (f) to defects caused by normal wear and tear or otherwise due to the
normal aging of the Avenview product(s), or (g) if any serial number has been removed or defaced from the Avenview product(s).
AVENVIEW IS NOT LIABLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR
ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS;
LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATI ON; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIR ECT
OR CONSEQUENTIAL LOSS OR DAMAGE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER.
Some states do not allow the inclusion or limitation of incidental or consequential damages, or allow limitations on duration implements of the Warranty Period; therefore the above limitations or
exclusions may not be applicable to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
oodward Avenue, Kenmore, NY 14217
275 W
www.avenview.com
www.avenview.com
1.866.508.0269
Page
14
Page 18
AV Connectivity, Distribution And Beyond...
TECHNICAL SUPPORT
USA Head Office
Office Avenview
Corp. 275 Woodward Avenue
Kenmore, NY 14217
Phone: +1.716.218.4100 ext223
Fax: +1.866.387-8764
Email: [email protected]
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of
Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this
documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages
in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design.
With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but
not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
Canada Sales
Avenview
151 Esna Park Drive, Unit 11 & 12
Markham, Ontario, L3R 3B1
Phone: 1.905.907.0525
Fax: 1.866.387.8764
Email: [email protected]
Avenview Europe
Avenview Europe
Demkaweg 11
3555 HW Utrecht
Netherlands
Phone: +31 (0)85 2100- 613
Email: [email protected]
Avenview Hong Kong
Unit 8, 6/F., Kwai Cheong Centre,
50 Kwai Cheong Road,
Kwai Chung, N.T.
Hong Kong
Phone: 852-3575 9585
Email: [email protected]
Loading...
