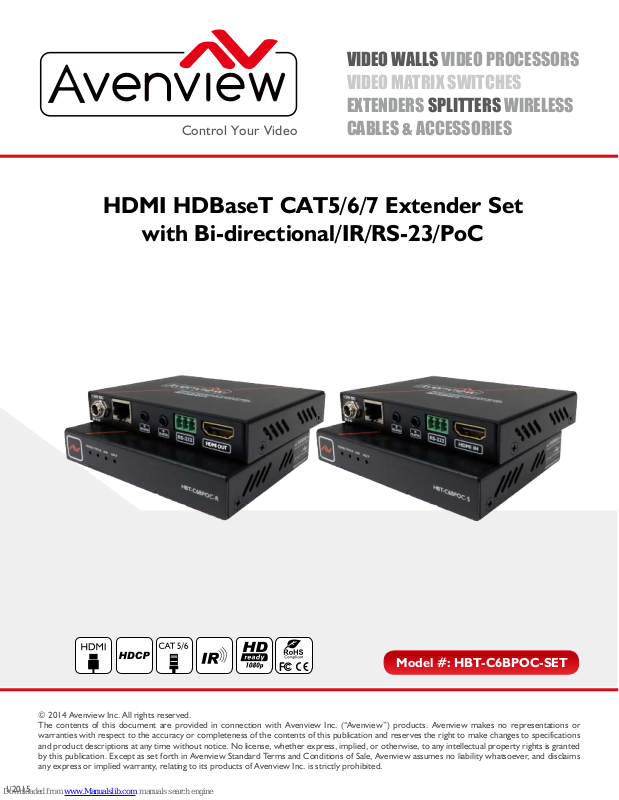

Page 1
VIDEO WALLS VIDEO PROCESSORS
VIDEO MATRIX SWITCHES
EXTENDERS SPLITTERS WIRELESS
Control Your Video
CABLES & ACCESSORIES
HDMI HDBaseT CAT5/6/7 Extender Set
with Bi-directional/IR/RS-23/PoC
© 2014 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims
any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.
1/2015
Model #: HBT-C6BPOC-SET
Page 2
Product Application & Market Sectors
Corporate House Of Worship
Military Residential
Education Industrial
Medical Aviation
www.avenview.com
Page 3
www.avenview.com
Page
TABLE OF CONTENTS
1. GETTING STARTED ..........................................................................................................................1
1.1 IMPORTANT SAFEGUARDS .............................................................................................................. 1
1.2 SAFETY INSTRUCTIONS ..................................................................................................................1
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) ........................... 2
2. INTRODUCTION .............................................................................................................................. 3
2.1 PACKAGE CONTENTS .....................................................................................................................4
2.2 BEFORE INSTALLATION ...................................................................................................................4
2.3 APPLICATION DIAGRAM .................................................................................................................. 5
2.4 PANEL DESCRIPTION .......................................................................................................................6
2.4.1 INPUT PANEL (Receiver,HBT-C6BPOC-SET) Front ...............................................................6
2.4.2 INPUT PANEL (Receiver, HBT-C6BPOC-SET) Rear ................................................................6
2.4.3 INPUT PANEL (Receiver, HBT-C6BPOC-SET) Front ..............................................................7
2.4.4 INPUT PANEL (Receiver, HBT-C6BPOC-SET) Rear ................................................................7
3. IR EXTENDERS ..................................................................................................................................8
4.
INSTALLATION (HBT-C6BPOC-SET) ..............................................................................................9
5. GENERAL TROUBLESHOOTING ..................................................................................................... 9
6. CABLE SPECIFICATION .................................................................................................................. 10
7. SPECIFICATIONS ............................................................................................................................. 11
3
Page 4
www.avenview.com
Page
1. GETTING STARTED
SECTION 1: GETTING STARTED
1.1 IMPORTANT SAFEGUARDS
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
• Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
• Removal or installation of the product.
• Causes external to the product, such as electric power fluctuation or failure.
• Use of supplies or parts not meeting our specifications.
• Normal wear and tear.
• Any other causes which does not relate to a product defect.
• Removal, installation, and set-up service charges.
1.2 SAFETY INSTRUCTIONS
The HBT-C6BPOC-SET, HDMI HDBaseT Extender SET has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipments, the HBT-C6BPOC-SET
should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the
risk of damage to the unit.
Do not dismantle the housing or modify the module.
!
Dismantling the housing or modifying the module may result in electrical shock or burn.
!
Refer all servicing to qualified service personnel.
!
Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage
!
or other hazards
Keep the module away from liquids.
!
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on
!
to the housing, unplug the module immediately.
Have the module checked by a qualified service engineer before using it again.
!
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
!
1
Page 5
www.avenview.com
Page
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

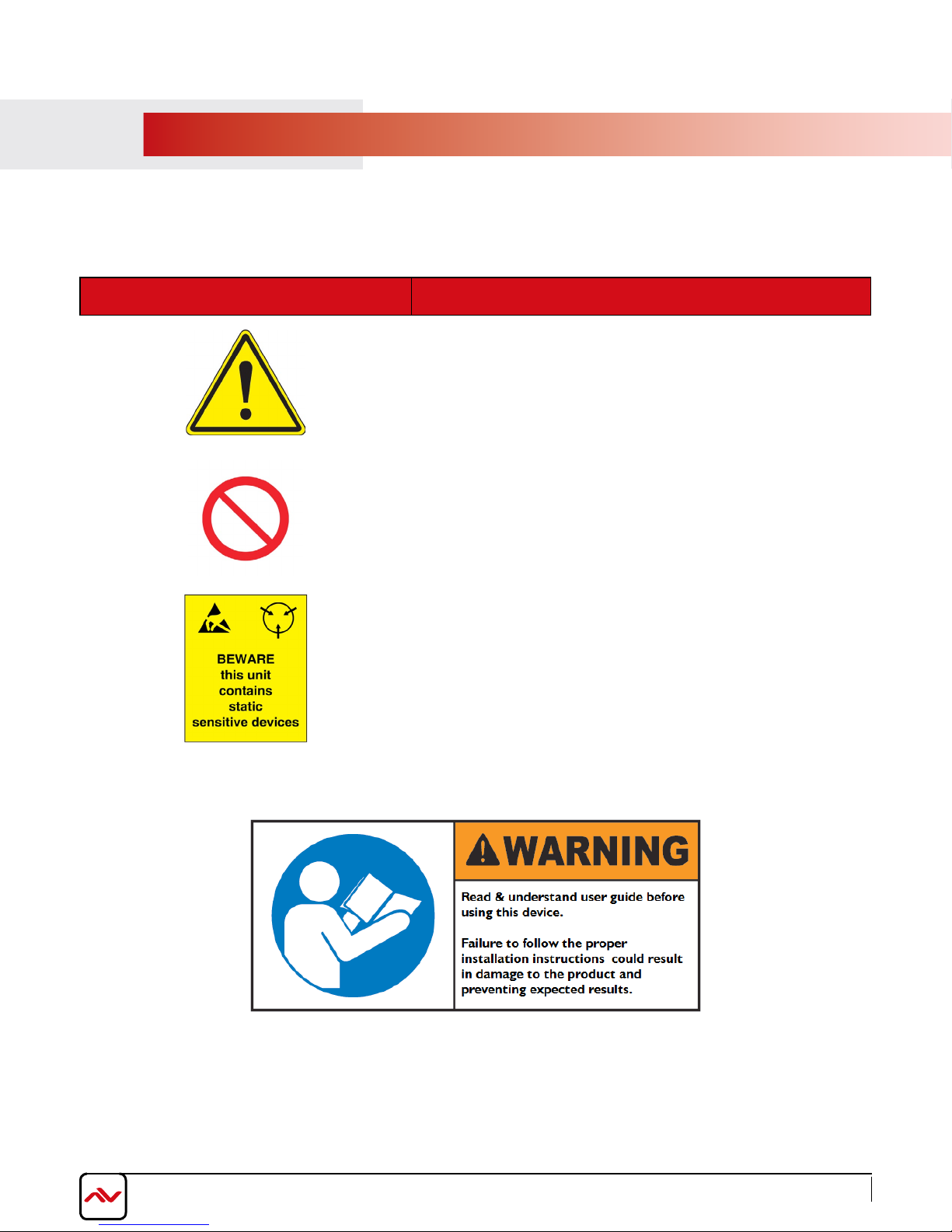

Warning symbols Description
ONLY USE THE PROVIDED POWER CABLE OR POWER
ADAPTER SUPPLIED. DO NOT TAMPER WITH THE
ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL
SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO WILL
VOID THE WARRANTY AND CONTINUED USE OF THE
PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.
PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A
SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.
2
Page 6
www.avenview.com
Page
2. INTRODUCTION
The Avenview HBT-C6BPOC-SET HDMI HDBaseT CAT5/6/7 Extender SET extends high definition video, multi-channel
digital audio, data formats IR/RS232 and POC up to 100m (330ft) to any HD Monitor.
Video Signals: 4K2K@30 (Ultra HD), 3D, 8/10/12 Deep Color, and Full HD 1080p@60 Hz/48-bit color depth.
Audio signals: Uncompressed 7.1ch digital
Data Signals: Bi-Directional IR signals 30 KHz to 50 KHz and RS-232 over CAT5/6.
The HBT-C6POE-SET includes two (2) units: Sending unit (TX) HBT-C6BPOC-S and Receiving unit (RX) HBT-C6BPOC-R
with one (1) UTP output port which allows the user to extend video, audio and data signals up to 100m (330ft). The HBTC6POE-SET also allows bi- directional IR control and RS-232 connected to the TX unit, allowing the users to use any IR
remote and third party RS-232 control at the monitor side . The HBT-C6POE-SET offers the most convenient solution for
extending an application over long distances with A/V transmission @10G.
Features
- Input: HDMI with 3D & 4Kx2K, 1080p,HDCP and DVI compliant
- Extend the transmission: Full HD 1080p up to 100m (330ft) from the HDMI source 48-bit and
-Extend the transmission: 4K2K@30 up to 80m (264ft)
- Support PoC (Power over Cable) power either units from the TX or RX side with one power supply
- Supports HDCP & EDID Bypass
- Supports CEC bypass
- Audi Supported: 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio - DTS-
- Support full frequency IR signal from 20KHz to 60KHz
- Bi-directional IR pass-through
- 3D support: Follow by Display / TV’s EDID
- Full Duplex RS-232 control up to 115,200 bps
- Wall mounting bracket included
The QUALITY and TRANSMISSION of the video signals depends on the characteristics and
quality of the UTP cables. Higher resolutions and longer transmission distances require
low skew cables (<25ns/100m) for best performance. Unshielded CAT6 with
NOTE
metal RJ-45 connectors is recommended.
3
Page 7
www.avenview.com
Page
2.1 PACKAGE CONTENTS
Before you start the installation of the Extender/Splitter, please check the package contents.
HBT-C6BPOC-SET ICLUDES:
1
HBT-C6BPOC-S (TX)
HBT-C6BPOC-R (RX)
X 1
X 1
2
POWER BRICK (24V 1.5A DC)
3
5
6
POWER CORD C7
IR EXTENDER
4
IR RECEIVER
USER’S MANUAL X 1
X 1
X 1
X 1
X 1
2.2 BEFORE INSTALLATION
• Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.
• Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.
• Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.
• Do not twist or pull by force ends of the UTP cable. It can cause malfunction.
To achieve best results with our HBT-C6BPOC-SET we highly recommend a premium quality 26 or 24
AWG HDMI cable with the below specifications to maintain signal integrity and distances.
Length: 5m (16ft) to 15m (50ft)
Bandwidth: 10.2 Gbps data transfer rate
Supports Resolution: Up to 3840x2160 @ 24Hz and 4096x2160 @ 24Hz, 1080p @ 24Hz / 50/60Hz/3D
Conductor gauge: 26 / 24 AWG
Deep Color
3D Capable
CEC
Ethernet Ch
Audio Return Channel
Connector 1: HDMI (Type A) Male
Connector 2: HDMI (Type A) Male
annel
4
Page 8
www.avenview.com
Page

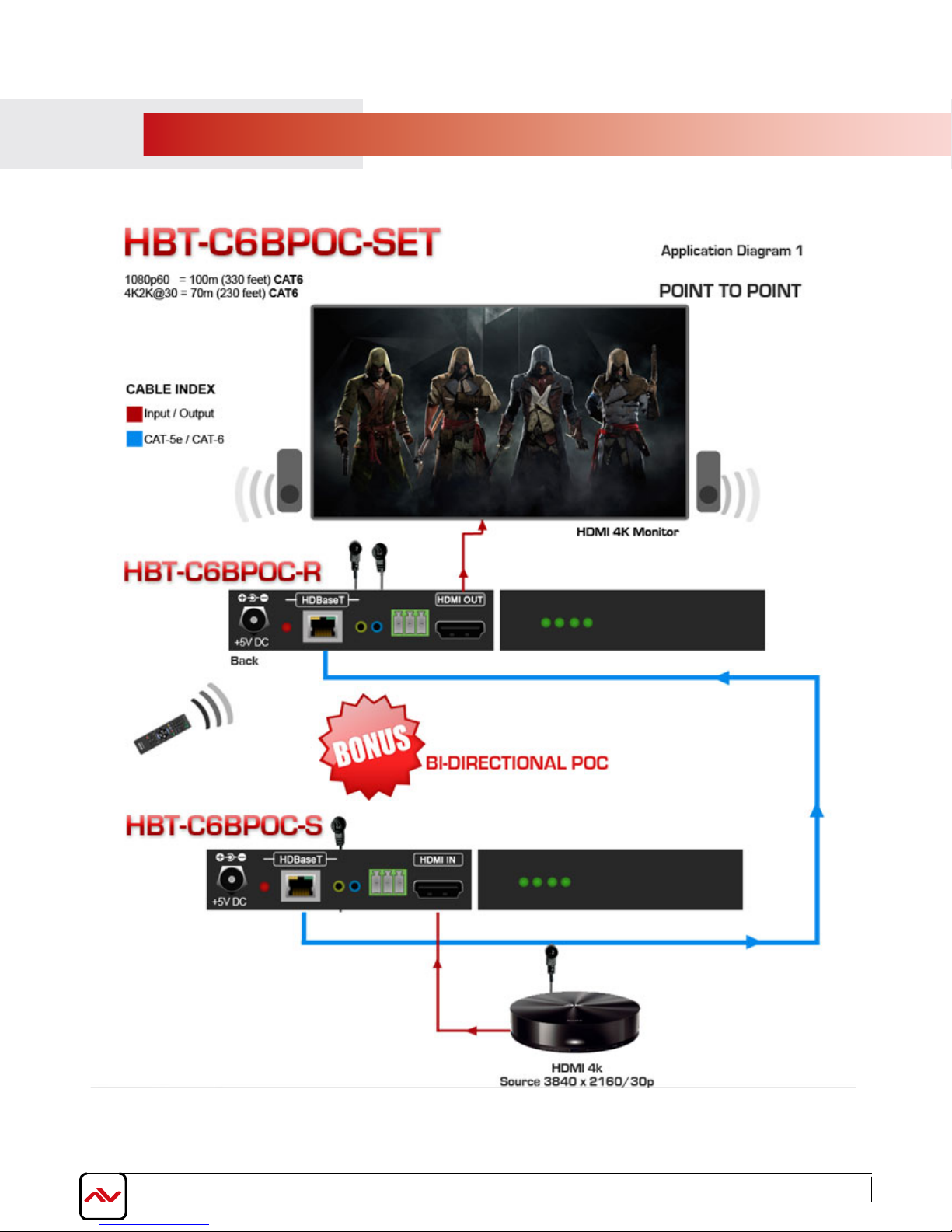

2.3 APPLICATION DIAGRAM
5
Page 9
www.avenview.com
Page

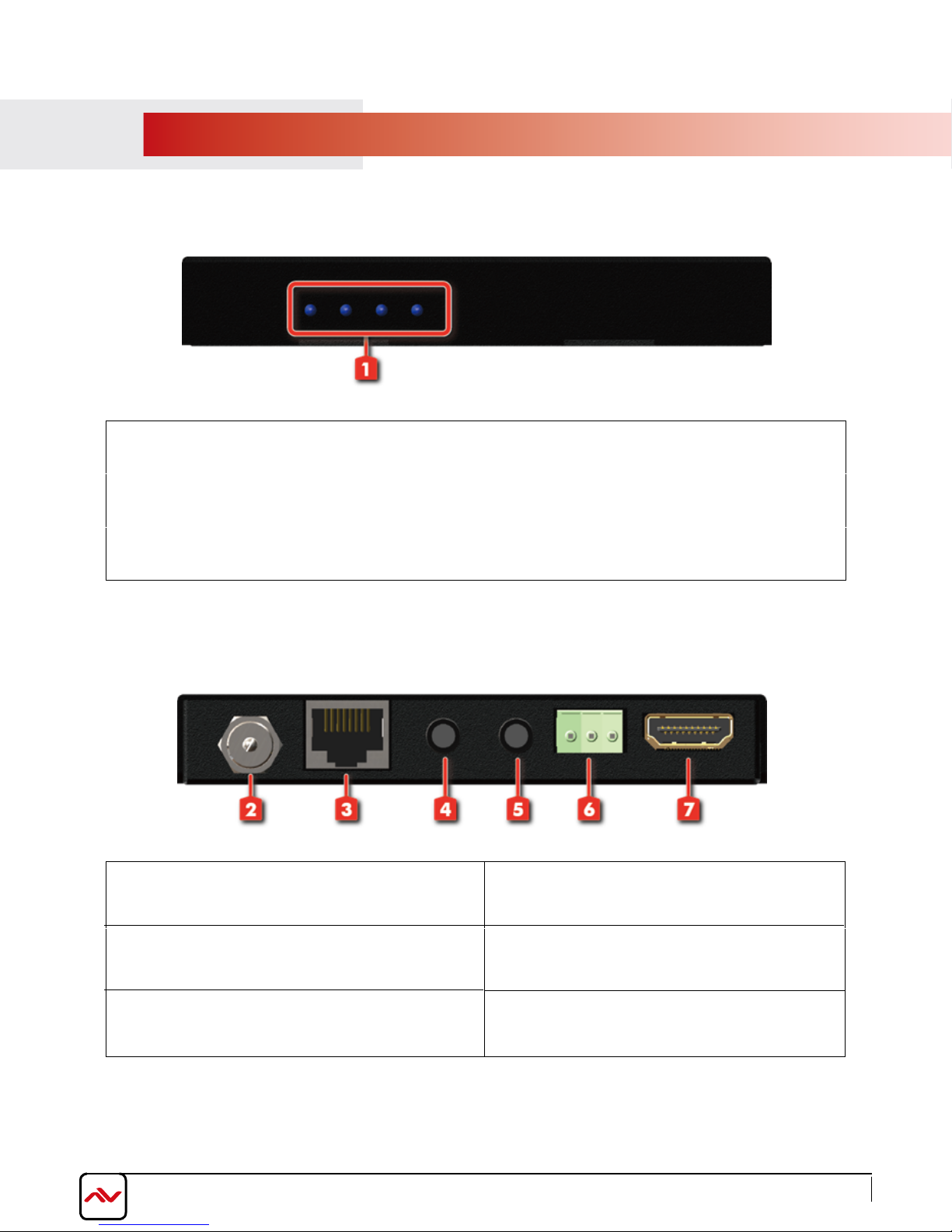

2.4 PANEL DESCRIPTION
2.4.1 INPUT PANEL (Transmitter, HBT-C6BPOC-S) Front
LED LIGHTS:
1.
- POWER LED: Steady LED light ON
- STATUS LED: Blinking LED Light indicates
- LINK LED: Always ON LED light indicates link is established
- HDCP LED: HDCP ON - Always ON LED Light
HDCP OFF - LED light blinking
2.4.2 INPUT PANEL (Transmitter, HBT-C6BPOC-S) Rear
2. POWER JACK: Power supply connection
IR EXTENDER: Plug the IR Extender cable for
4.
IR signal being received. Place IR Extender within
direct line of site with the IR Remote.
6.
RS-232: Connect to a device that has the ability
to send control commands (PC or laptop via DSub 9-pin male cable)
CAT5/6: Connect UTP cable for
3.
transmitting video, audio , data and POC
upto 100m to the Receiver unit.
IR BLASTER: Plug the IR Blaster cable for IR
5.
signal being transmitted. Place IR Blaster within
direct site of the device being controlled.
HDMI IN: Connect HDMI source Max 35ft
7.
via HDMI Cable Blu-ray player or Digital
player
6
Page 10
www.avenview.com
Page

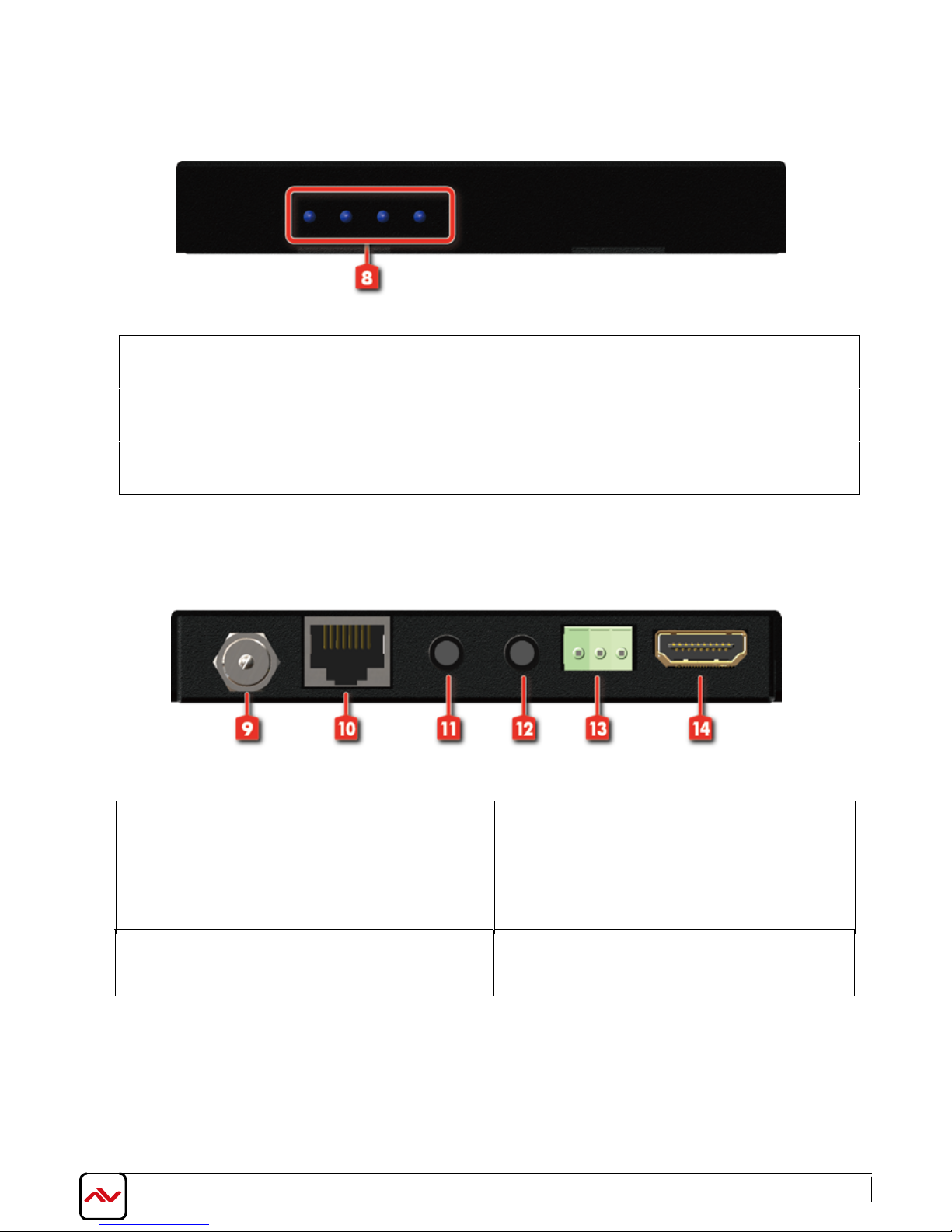

2.4.3 INPUT PANEL (Receiver, HBT-C6BPOC-R) Front
LED LIGHTS:
8.
- POWER LED: Steady LED light ON
- STATUS LED: Blinking LED Light indicates
- LINK LED: Always ON LED light indicates link is established
- HDCP LED: HDCP ON - Always ON LED Light
HDCP OFF - LED light blinking
2.4.4 INPUT PANEL (Receiver, HBT-C6BPOC-R) Rear
9. POWER JACK: Power supply connection
IR EXTENDER: Plug the IR Extender cable for
11.
IR signal being received. Place IR Extender within
direct line of site with the IR Remote.
13.
RS-232: Connect to a device that has the ability
to send control commands (PC or laptop via DSub 9-pin male cable)
CAT5/6: Connect UTP cable for receiving
10.
video, audio , data and POC upto 100m
from the Transmitter unit.
IR BLASTER: Plug the IR Blaster cable for IR
12.
signal being transmitted. Place IR Blaster within
direct site of the device being controlled.
HDMI OUT: Connect to HDMI Display/
14.
Monitor
7
Page 11
www.avenview.com
Page

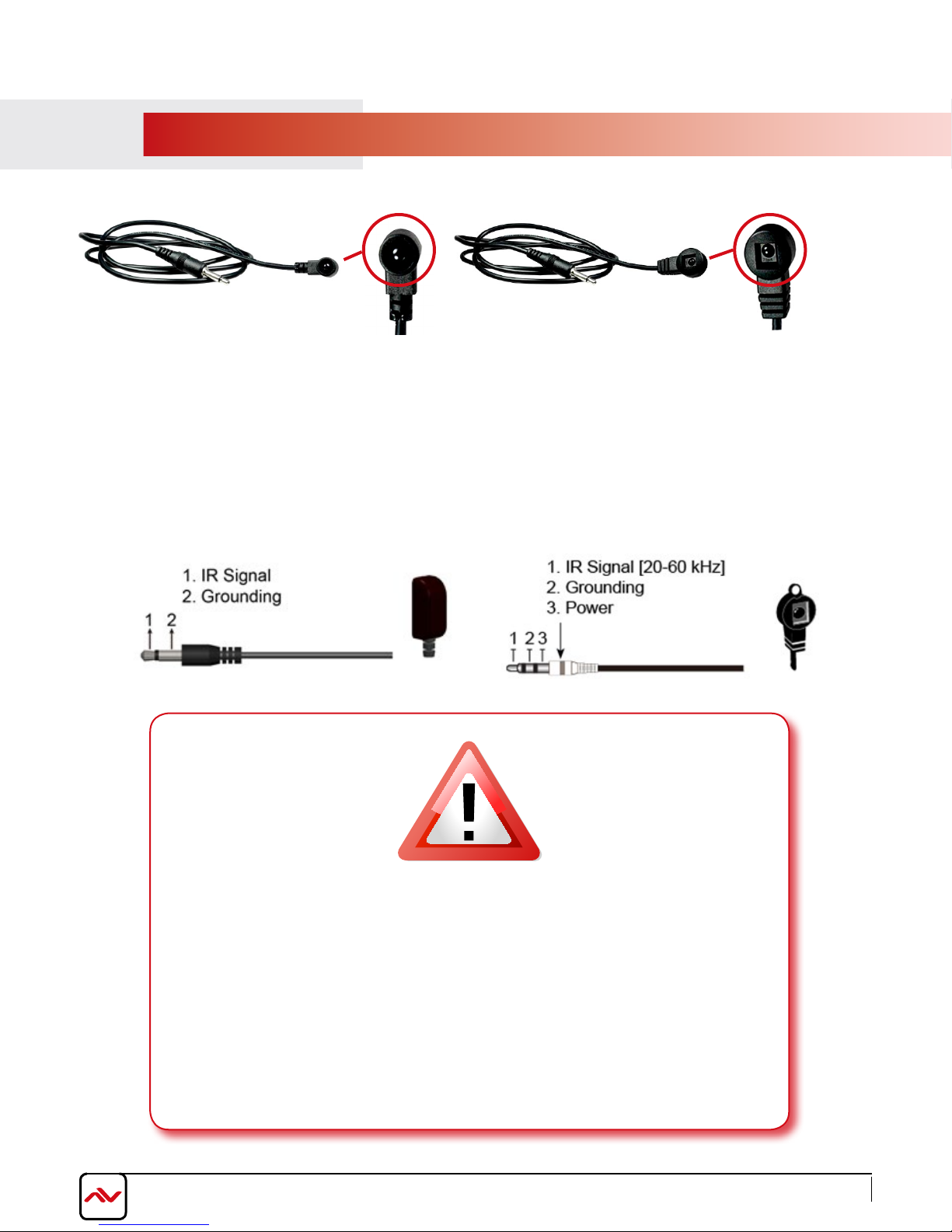

3. IR EXTENDERS
IR Blaster IR Receiver
IR Sockets
IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other end to control
the devices corresponding to the IR signals.
IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding
devices.
Definition of IR 3.5mm Jack
IR Blaster IR Receiver
NOTE: Incorrect placement of IR Blaster and IR Receiver into the
extender may result in the failure of the IR extenders.
Please check carefully before plugging in the IR extender to the
BLUE: IR BLASTER GREEN: IR RECEIVER
WARRANTY WILL NOT COVER THE DAMAGE.
WARNING
respective IR sockets.
It is clearly marked and color coded
8
Page 12
www.avenview.com
Page
4.
To setup Avenview HBT-C6BPOC-SET please follow these steps for connecting to a device:
1. Turn off all devices including monitors / TV
2.
3.
4.
5. Power on the HDMI display
6. Power on HDMI Sources.
INSTALLATION (HBT-C6BPOC-SET)
Connect to a HDMI source (such as a Blu-Ray Disc player) to the Transmitter HBT-C6BPOC-S
Connect HBT-C6BPOC-R with a CAT5E/CAT6 cable with shielded ends, then connect to display with HDMI cable.
Plug in 24V 1.5A DC Power (supplied).
5. GENERAL TROUBLESHOOTING
PROBLEM POSSIBLE SOLUTION
• Check if connection to the source and the display are correct.
• Ensure that display device supports 480p, 720p and 1080p 4K@30 resolution
NO IMAGE
SCREEN DEFECTS
APPEAR
SET-TOP BOx
NO PICTURE
NO INFRARED
COMMUNICATION

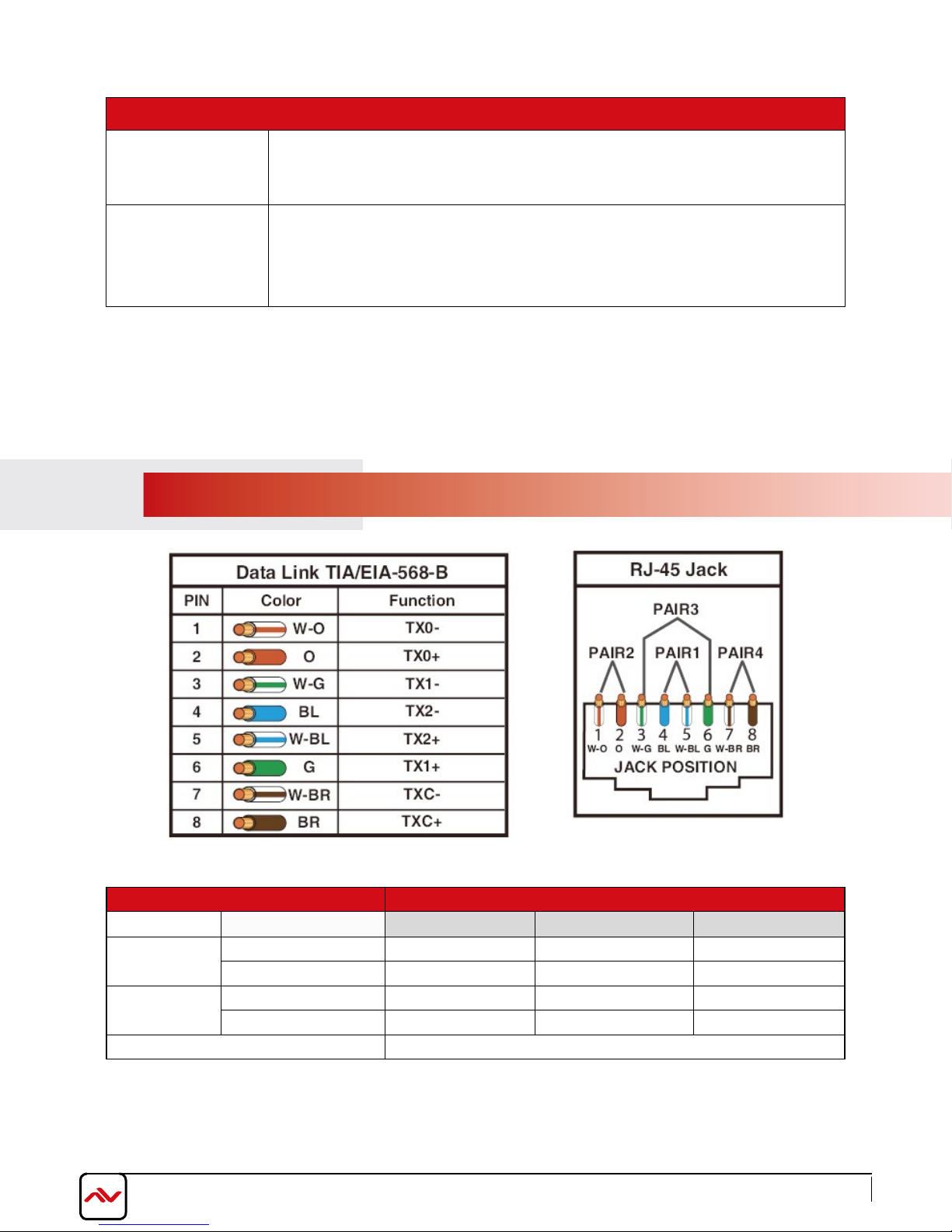

• Terminated to 568B standard with Shielded Ends Recommended
• High Quality CAT5/6 Cable helps signal transmission
• Please use the supplied power supply
• Check LED Link light see (Section 3 Panel Description)
• This product supports up to 1080p and 4K@30 resolution.
• Check the HDMI connection
• If outputting from a PC. Check the maximum resolution range of the graphics card.
• Check all connections are seated properly
• HDBaseT and HDMI 1.3 standards support CLOCK STRETCHING for i2c buss
protocol
• Example set top boxes like Scientific Atlantic results no picture. This can be resolved
by swapping out the box for a newer version that supports HDMI 1.3 not HDMI 1.2
• Ensure the UTP cable is run within the wall away from EMI and High Voltage power
Lines.
• Please check manual of device to ensure proper placement of IR Blaster on IR EYE.
• Some LED /Plasma TV have EMI interference with the IR receiver, please place the IR
Rx 3-6” away from Screen
9
Page 13
www.avenview.com
Page
RECOMMENDED TEST
END-TO-END
TESTING
PASSIVE
MONITORING:
HDBaseT system, a final end-to-end test of all the A/V components should take place.
These tests include checking the HDMI stream at the far end (sink end), the clock rate,
frame compare, video pattern, audio, EDID and HDCP with Quantum 780 (recommended)
Passive monitoring enables an integrator to view the HDCP transactions, EDID exchange,
as well as the connection events between the actual devices in the network.
Note
Addional info on Guidelines to Test & Troubleshoot HDBaseT Systems
Can be retreived from our website under the category Downloads for this product HBT-C6BPOC-SET
6. CABLE SPECIFICATION
PERFORMANCE GUIDE FOR HDMI OVER CATEGORY CABLE TRANSMISSION
PERFORMANCE RATING TYPE OF CATEGORY CABLE
WIRING
SOLID
STRANDED
TERMINATION PLEASE USE EIA/TIA-568-B TERMINATION (T568B) AT ANY TIME
SHIELDING
UNSHIELDED (UTP)
SHIELDED (STP)
UNSHIELDED (UTP)
SHIELDED (STP)
CAT5 CAT5E CAT6
««« «««« ««««
««« «««« «««««
« «« ««
« « ««
10
Page 14
www.avenview.com
Page
7. SPECIFICATIONS
ITEM DESCRIPTION
UNITS HBT-C6BPOC-S HBT-C6BPOC-R
UNIT DESCRIPTION
HDMI COMPLIANCE HDMI, full 3D & 4K2K@30
HDCP Yes
VIDEO BANDWIDTH Single-link 340MHz [10.2Gbps]
SUPPORTED RESOLUTIONS 480i / 480p / 720p / 1080i / 1080p60 /4K@30
HDMI Transmitter
HDMI Receiver
RESOLUTION AND
DISTANCE @ 8-BIT
AUDIO SUPPORT
INPUT TMDS SIGNAL 1.2 Volts (peak-to-peak)
INPUT DDC SIGNAL 5 Volts (peak-to-peak, TTL)
ESD PROTECTION
INPUT
OUTPUT
HDMI CONNECTOR
RJ45 CONNECTOR
RS-232 SUPPORT
3.5MM CONNECTOR IR receiver / IR blaster IR receiver / IR blaster
DIMENSIONS (L x W x H) 3.9” x 2.9” x 0.6” 3.9” x 2.9” x 0.6”
WEIGHT 0.35lbs 0.35lbs
POWER SUPPLY 24V 1.5A DC
POWER CONSUMPTION 3 Watt (max) 7 Watt (max)
(DTS-HD Master Audio, Dolby TrueHD, Dolby True HD
- Human body model — ±19kV (air-gap discharge) & ±12kV
1x RJ-45 HDBaseT
Full HD: (1080p) ~ 100meter (328feet) (CAT5e/6)
4K@30: (3840 pixels × 2160) ~ 80meter (264 feet) (CAT5e/6)
Lossless Multi-channel audio formats
(contact discharge)
- Core chipset — ±8kV
1x HDMI
1x 3.5mm
1x 3.5mm
Type A (19 pin female)
WE/SS 8P8C with 2 LED indicators 3 pin
Phoenix connector 115,200 bps
1x RJ-45 HDBaseT
1x 3.5mm
1x HDMI
1x 3.5mm
ENVIRONMENTAL
OPERATING TEMPERATURE 32˚ ~ 104˚F (0˚ to 40˚C)
STORAGE TEMPERATURE -4˚ ~ 140˚F (-20˚ ~ 60˚C)
RELATIVE HUMIDITY 20~90% RH (no condensation)
11
Page 15
NOTICE
1. All HDMI over CAT5 transmission distances are measured using Belden CAT6A (625MHz), 4-Pair,
U/UTP-Unshielded, Riser-CMR, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors,
Polyolefin Insulation, Patented Double-H spline, Ripcord, PVC Jacket using Quantum 980 signal
HDMI Video Generator Module Video Pattern Testing.
The transmission length is largely affected by the type of category cables, also the type of HDMI
2.
sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the
form of 300m or 1000ft bulk cable) can transmit a lot longer signals than stranded UTP cables
(usually in
connectors. A solid UTP CAT5e
STP CAT6 cable. For long extension users, solid cables are your only choice.
3. EIA/TIA-568-B termination (T568B) for category cables is recommended for better performance.
4. To reduce the interference among the unshielded twisted pairs of wires in category cable, you can
use shielded STP cables with shielded connector to improve EMI problems, which occurs in long
transmission.
5. Because the quality of the category cables has the major effects in how long transmission distance
will be made and how good is the received display, the actual transmission length is subject to your
category cables. For resolution greater than 1080i or 1280x1024, a solid CAT6 cable is the only
viable choice.
the form of patch cords). Shielded STP connectors are better suit than unshielded UTP
/6e/6A
cable shows longer transmission length than stranded
www.avenview.com
Page 16
TECHNICAL SUPPORT
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of
Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this
documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages
in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design.
With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but
not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
AV Connectivity, Distribution And Beyond...
USA Head Office
Office Avenview Corp.
275 Woodward Avenue
Kenmore, NY14217
Phone: +1.716.218.4100
Fax: +1.866.387-8764
Email: [email protected]
Canada Sales Office
Avenview
151 Esna Park Drive, Units 11 & 12
Markham, Ontario, L3R3B1
Phone: 1.905.907.0525
Fax: 1.866.387.8764
Email: [email protected]
Avenview Europe
Avenview Europe
Demkaweg 11
3555 HW Utrecht
Netherlands
Phone: +31(0)85 2100 613
Email: [email protected]
Avenview Hong Kong
Unit 8, 6/f., Kwai Cheong Centre,
50 Kwai Cheong Road,
Kwai Chung, N.T.
Hong kong
Phone: 852.3575.9585
Email: [email protected]
Loading...
