Page 1
VIDEO WALLS VIDEO PROCESSORS
VIDEO MATRIX SWITCHES
EXTENDERS SPLITTERS WIRELESS
Control Your Video...
CABLES & ACCESSORIES

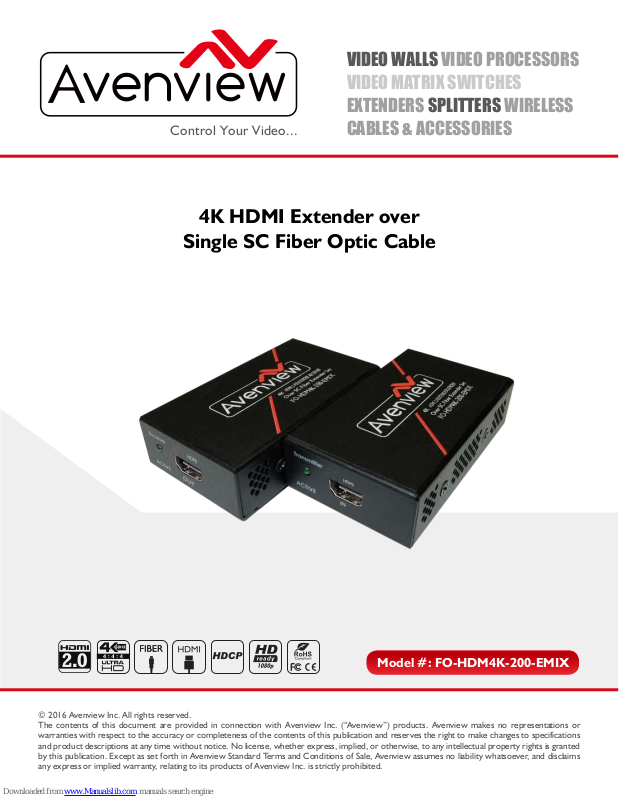

4K HDMI Extender over
Single SC Fiber Optic Cable
© 2016 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims
any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.
Model #: FO-HDM4K-200-EMIX
Page 2
Product Application & Market Sectors
Corporate House Of Worship
Military Residential
Education Industrial
Medical Aviation
www.avenview.com
Page 3
www.avenview.com
Page
TABLE OF CONTENTS
1. GETTING STARTED ..........................................................................................................................1
1.1 IMPORTANT SAFEGUARDS
1.2 SAFETY INSTRUCTIONS
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)
2.
INTRODUCTION ..............................................................................................................................3
2.1
PACKAGE CONTENTS .....................................................................................................................4
3. APPLICATION DIAGRAM ..................................................................................................................5
4. PANEL DESCRITION.... ........................................................................................................................6
4.1 FRONT PANEL (Sender, FO-HDM4K-200-EMIX-S) ...................................................................6
4.2 REAR PANEL (Sender, FO-HDM4K-200-EMIX-S) .......................................................................6
4.3 FRONT PANEL (Receiver, FO-HDM4K-200-EMIX-S) ................................................................7
4.4 REAR PANEL (Receiver, FO-HDM4K-200-EMIX-S) ....................................................................7
5. INSTALLATION ...................................................................................................................................8
5.1 Before Installation ..........................................................................................................................8
5.2 Cable Specification .........................................................................................................................9
5.3 Installation Steps .. ........................................................................................................................10
6. OPTICAL FIBER HAZARD ..............................................................................................................10
..............................................................................................................1
....................................................................................................................1
........................... 2
7. GENERAL TROUBLESHOOTING ...................................................................................................11
7.1 Trouble Shooting depending on LED indicator status .................................................................11
8. CAUTION ..........................................................................................................................................12
9. SPECIFICATIONS ..............................................................................................................................13
3
Page 4
www.avenview.com
Page
1. GETTING STARTED
SECTION 1: GETTING STARTED
1.1 IMPORT
Please read all of these instructions carefully before you use the Fiber Optic cable. Save this manual for future
reference.
What the warranty does not cover
• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
• Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
• Removal or installation of the product.
• Causes external to the product, such as electric power fluctuation or failure.
Use of supplies or parts not meeting our specifications.
•
• Normal wear and tear.
• Any other causes which does not relate to a product defect.
• Removal, installation, and set-up service charges.
ANT
SAFEGUARDS
1.2 SAFETY INSTRUCTIONS
The Avenview FO-HDM4K-200-EMIX, HDMI Extender over fiber Optic has been tested for conformity to safety regulations
and requirements, and has been certified for international use. However, like all fibre optic products, the FO-HDM4K-200EMIX should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize
the risk of damage to the unit.
On no account should you:
! Look into a fiber while the system lasers are on;
! Use unfiltered handheld magnifiers or focusing optics to inspect fiber connectors;
! Connect a fiber to a fiberscope while the system lasers are on;
! Touch the end of the fiber connectors;
! Pull forcefully on the fiber cable;
! Reuse any specified fiber cleaning material more than once;
! Touch the clean area of a any specified fiber cleaning material;
! Use alcohol around an open flame or spark - Alcohol is Very Flammable;
! Use alcohol or wet cleaning without a way to ensure that it does not leave residue on the polished connector;
! Dismantle the housing or modify the connector.
1
Page 5
www.avenview.com
Page
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

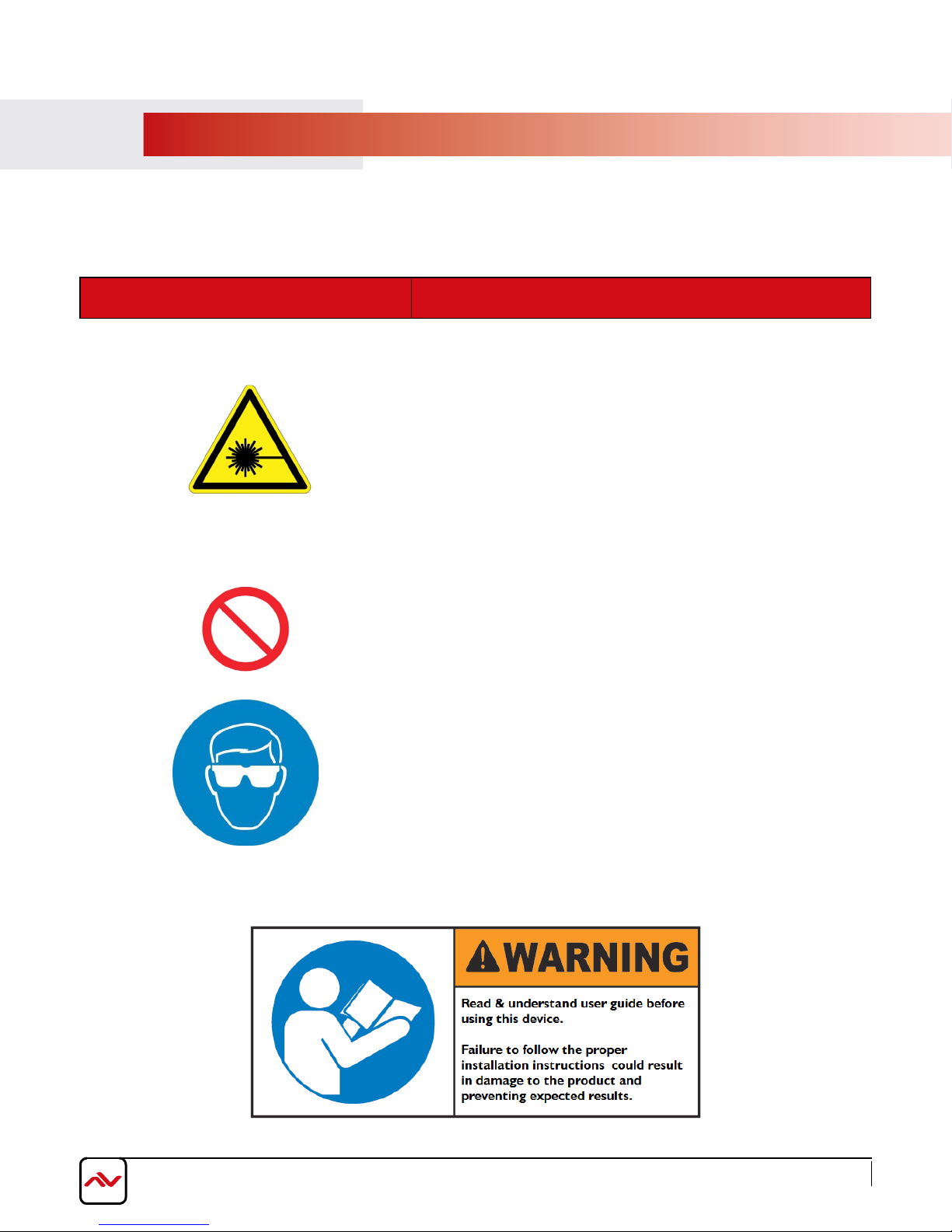

Warning symbols Description
LASER RADIATION
DO NOT STARE INTO BEAM
< 1 MILLIWATT LASER DIODE
CLASS 2 LASER PRODUCT
Risk levels increase. These lasers emit a visible beam, from
400 to 780 Nanometres (nm), with an upper power limit of 1
milliwatt. An example is a (mw) bar code scanner. Momentary
viewing is not hazardous, but extended viewing is. Laser
protective eyewear is recommended for even momentary
viewing and necessary for extended viewing
DO NOT TAMPER WITH THE FIBER CABLE; DOING SO
WILL VOID THE WARRANTY AND CONTINUED USE OF
THE PRODUCT.
LASER BEAM USED IN OPTICAL COMMUNICATIONS ARE
INVISIBLE AND CAN SERIOUSLY DAMAGE THE EYES.
VIEWING IT DIRECTLY DOES NOT CAUSE ANY PAIN TO
THE EYE BUT SERIOUS DAMAGE CAN BE DONE TO THE
RETINA OF THE EYE
2
Page 6
www.avenview.com
Page
2.
The Avenview FO-HDM4K-200-EMIX-SET ULTRA HD Extender set over single SC optical fiber cable has been designed to
extend UHD (3840x2160 @60Hz) and 4K (4096x2160@60Hz) video and multi-channel audio formats to any 4K compatible
monitor up to 200m.
Video Signals: 4K2K@60 (Ultra HD), 3D and Full HD 1080p@60 Hz.
Audio signals: Multi-channel audio formats (DTS-HD Master Audio, Dolby TrueHD).
The FO-HDM4K-200-EMIX-SET includes two (2) units: Sending unit (TX) FO-HDM4K-200-EMIX-S and Receiving unit (RX)
FO-HDM4K-200-EMIX-R with one (1) FTP output port which allows the user to extend video and audio up to 200m (656ft).
The FO-HDM4K-200-EMIX-SET input and output supports HBR2 cable assembly to handle upto 5.4Gbps/lane data rate.
The bonus features is the NEW box type design which can be easily installed into any enviroment, behind the monitor and
rack mounted on a rack shelf. This features has been added to the unit to give the installer and user a complete solution with
the new trends in rack mounted 4K sources streaming, network connected devices and new demand in Smart TV, Ultra HD
monitors and content.
- Input: HDMI 2.0 with 3D & ULTRAHD, 1080p, DPCP compliant;
- Bandwidth: from 18 Gbps;
- Video Data Rate: 5.4 Gbps;
- HD resolutions: Up to 4K (4096x2160@60Hz) UHD (3840x2160@60Hz) WQXGA 2560x1600@60Hz and 1080p
(1920x1080@60Hz);
- Audio supported: LPCM 7.1CH, Dolby TrueHD, Dolby Digital plus and DTS-HD Master Audio;
- Audio transmission: (32-192kHz sample rate);
- Distance: up to 200 meters over OM3 SC Fiber Optic cable.
INTRODUCTION
NOTE:
- Displaying 4K Ultra HD resolution would require the standard HDMI Cable and Display for accurate results.
3
Page 7
www.avenview.com
Page
2.1 PACKAGE CONTENTS
Before you start the installation of the converter, please check the package contents.
(FO-HDM4K-200-EMIX-SET)
1
2
FO-HDM4K-200-EMIX-S (TX)
FO-HDM4K-200-EMIX-R (RX)
POWER ADAPTER (5V/2A DC) X2
X1
X1
HDIMI (COPPER CABLE - 3FT) X 2
3
USER’S MANUAL X 1
4
4
Page 8
www.avenview.com
Page

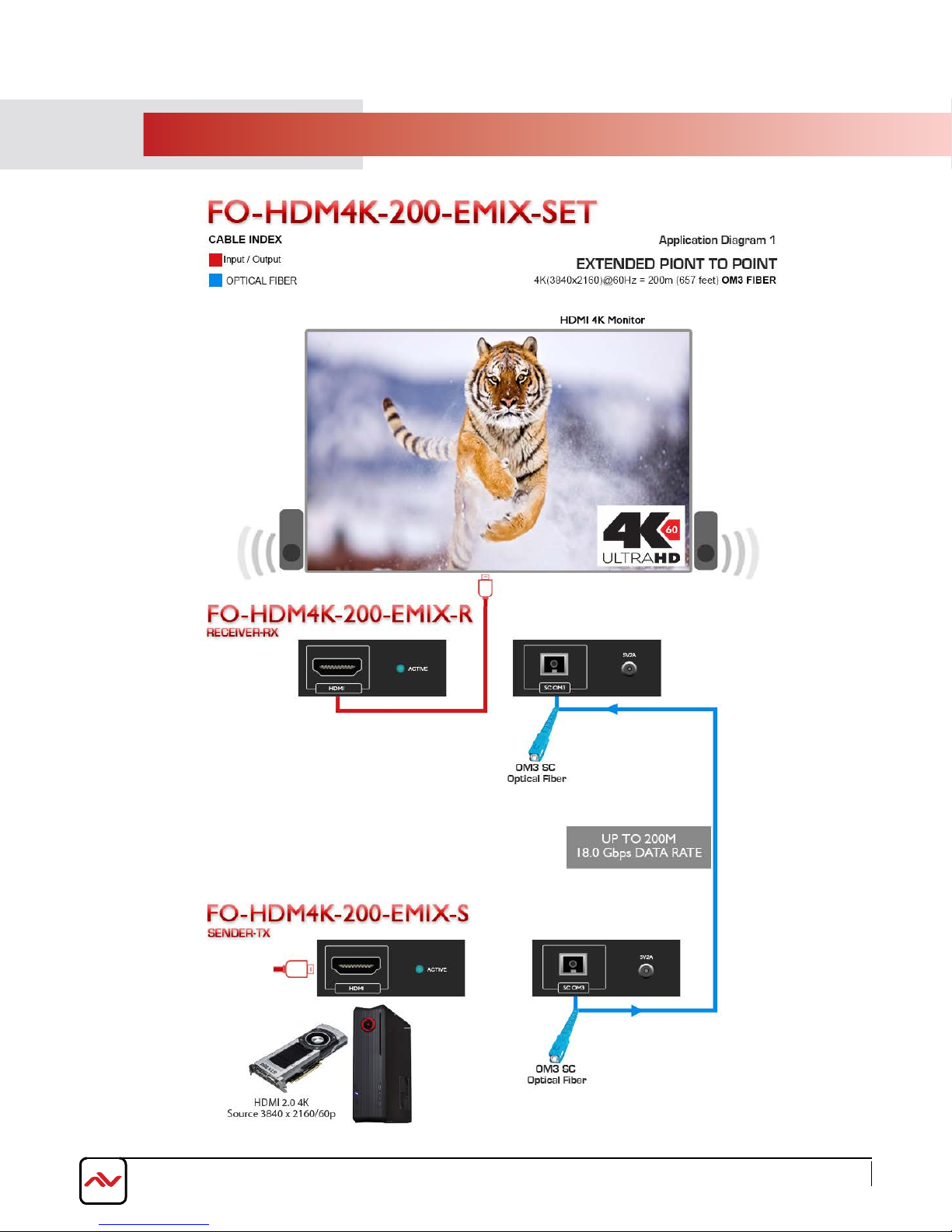

3. ApplICATION DIGRAM
5
Page 9
www.avenview.com
Page
4. pANEl DESCRIpTION

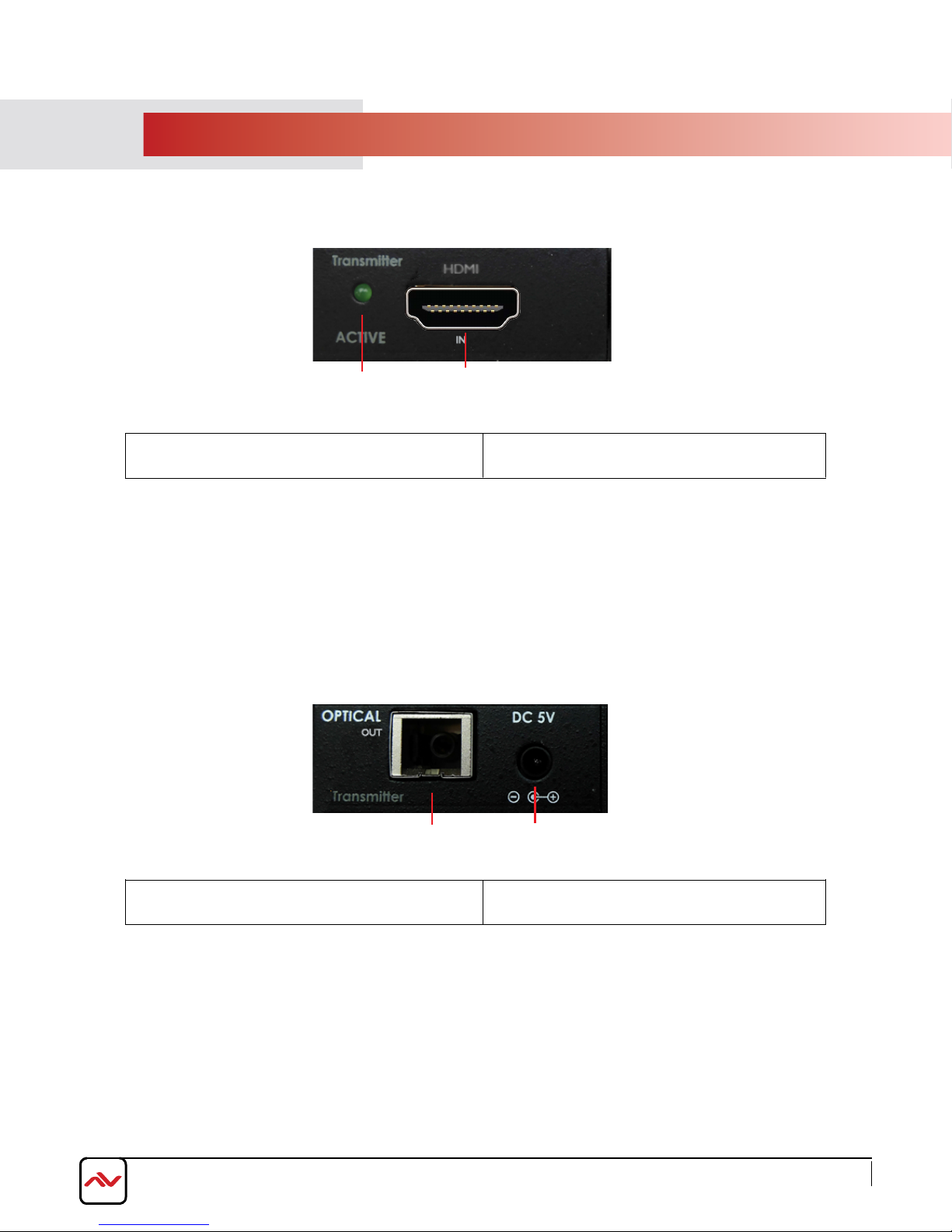

4.1 FRONT PANEL (Sender, HDM4K-200-EMIX-S)
2
2.
HDMI IN
1.
LED Light: Green light indicates an active
connection.
1
4.2 REAR PANEL (Sender, FO-HDM4K-200-EMIX-S)
LAN: Connect Cat 5/6 For media
1.
streaming linking to Receiver
1
2
2.
5V 2A Power Supply Jack
6
Page 10
www.avenview.com
Page

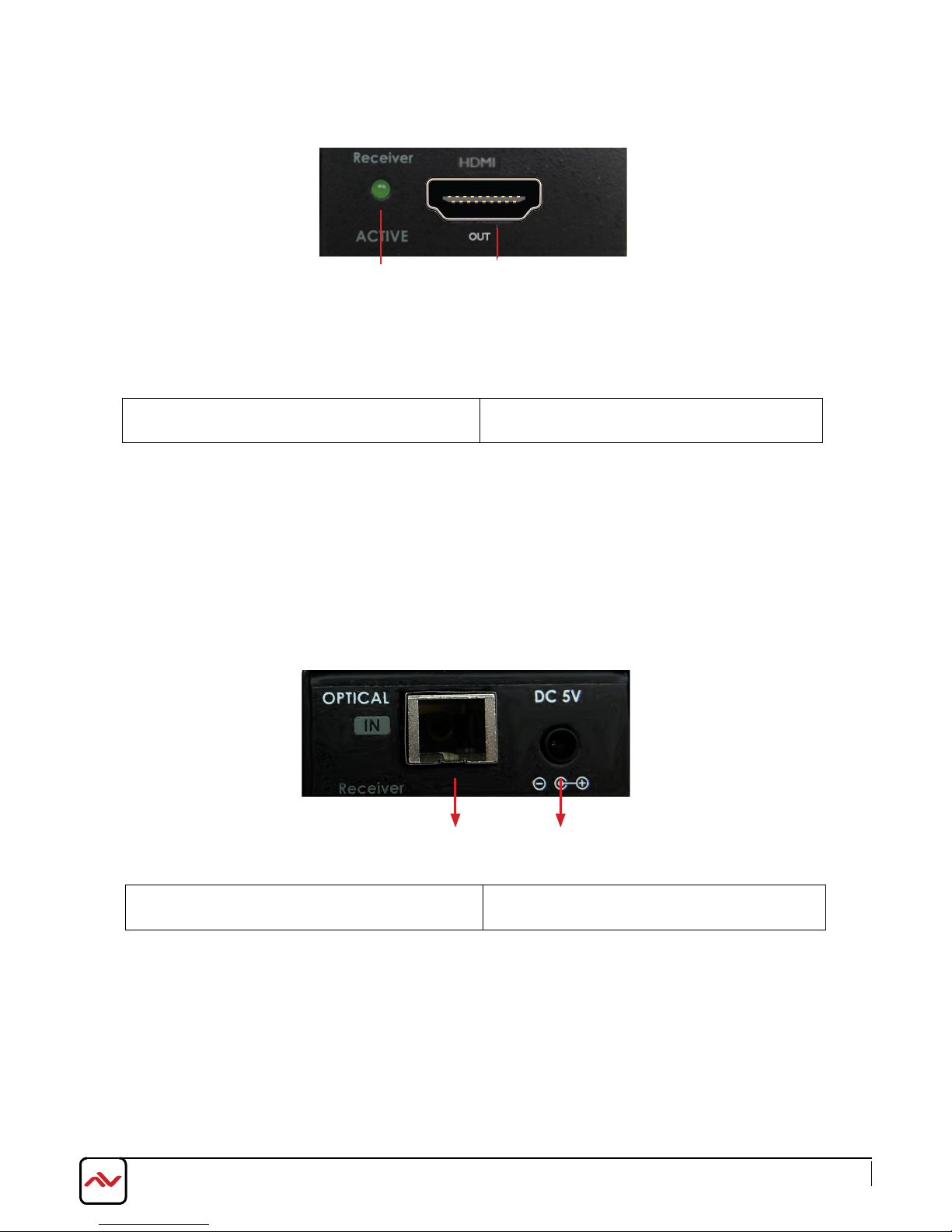

4.3 FRONT PANEL (Receiver, FO-HDM4K-200-EMIX-R)
1.
LED Light: Green light indicates an active
connection.
1
2
2.
HDMI OUT
4.4 REAR PANEL (Receiver, FO-HDM4K-200-EMIX-R)
1.
LAN: Connect Cat 5/6 For media streaming
linking to Receiver
1
2.
2
5V 2A Power Supply Jack
7
Page 11
www.avenview.com
Page
5.
This product is composed of a Transmitter and a Receiver.
The Transmitter should be connected to the source (Computer’s HDMI Port ) and the Receiver should be connected to the
HDMI of the digital display device (Monitor). Avenview FO-HDM4K-200-EMIX-SET Transmitter / Receiver is designed to
be used with SC type standard optical cable (Multi-Mode optical fiber: 50/125, 62.5/125um)
INSTALLATION
5.1 BEFORE INSTALLATION
t the product in an even and stable location. If the product falls down or drops, it may cause an
Pu
injury or malfunction.
Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or
high humidity.
Use the DC power adapter with correct specifications and supplied with the unit. If improper
power supply is used the unit may malfunction and cause a fire.
Do not twist or pull by force ends of the video cable. It can cause malfunction.
Note: The Transmitter and the Receiver modules must be connected to the included power supplies for proper operation.
Transmitter module must be powered on first.
8
Page 12

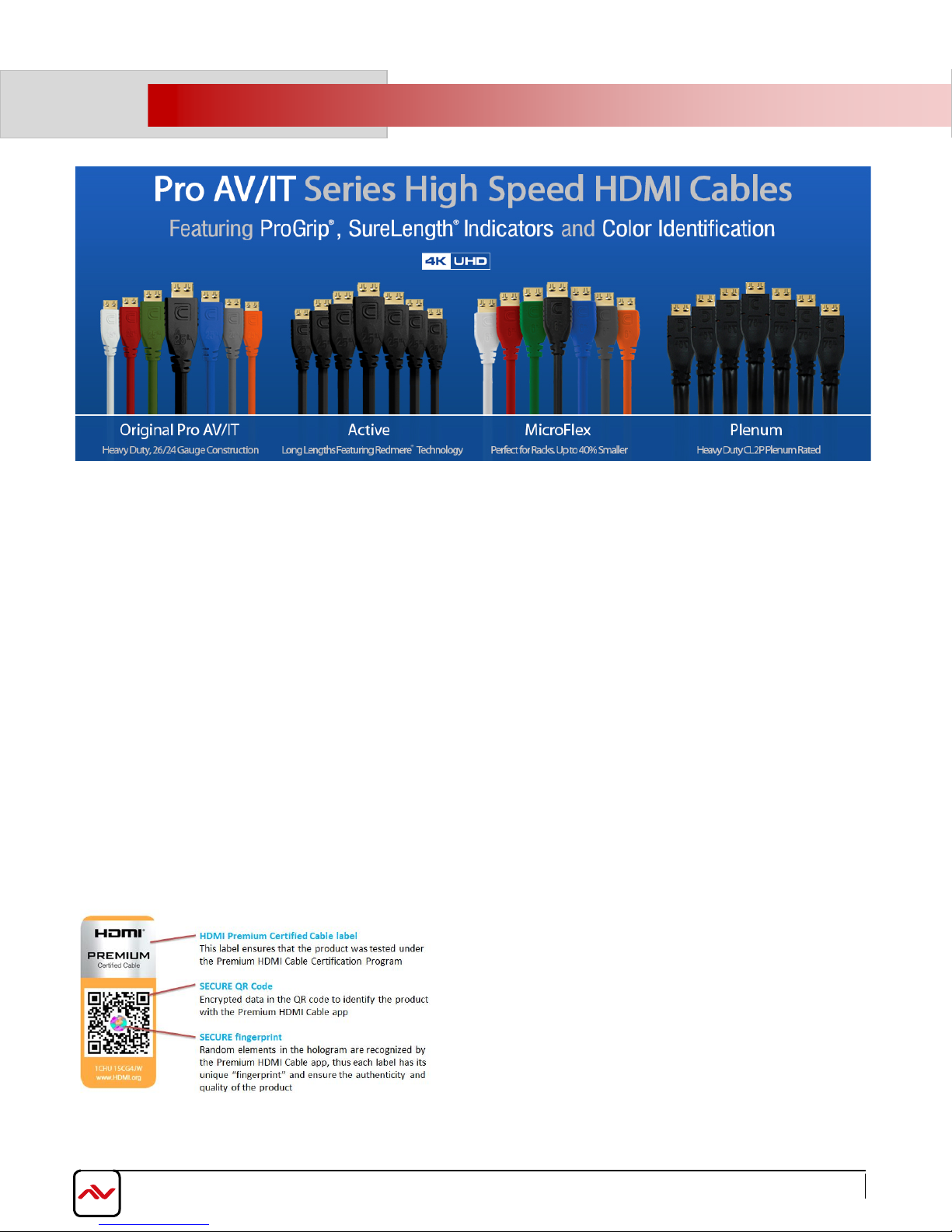

5.2 CABLE SPECIFICATIONS
We highly recommend achieving best results with our FO-HDM4K-200-EMIX you acquire a high quality 26 or 24 AWG
HDMI cable with the below specifications to maintain signal integrity and distances.
Features
•
Full UHD 4K/ 60 to 18Gbps High Speed at up to 48 Bit
Deep Color
•
UHD 4K/60 to 10.2 Gbps High Speed Deep Color up to 50ft
(Active Series), 25ft Passive
•
Full HD Up to 1080p/60 up to 75ft
•
True Professional grade heavy-duty 24 or 26 gauge oxygenfree construction
•
ProGrip connector utilizes up to 16 lbs of retention force to
help keep connector in place
•
SureLength length indicators on the connector heads make
•
it easy to organize for installations
•
Available in 7 colors for easy cable identification
•
Up to 32 audio channels and 21:9 aspect ratio
•
Simultaneous delivery of dual video and audio streams
to multiple users
•
Pro Grade Triple Shielding with 2x 100% coverage and 85%
Premium Tinned Copper Braid construction
•
Ethernet Capable
•
3D Ready
•
Supports Deep Color and x.v. Color (Up to 48 Bit)
•
5.1/7.1 Lossless Dolby TrueHD and DTS-HD Surround Sound
•
Audio Return Channel & Lip-sync
•
ATC Certified
•
99.9% High Purity Copper Center Conductor
•
Molded 24k Gold Plated HDMI male connectors on each end
•
X-tra Flex CL3 rated jacket for easy installation
•
RoHS Certified
•
Lifetime Warranty
www.avenview.com
Page
9
Page 13
www.avenview.com
Page
5.3 Installation Steps
Connect the Transmitter module to the HDMI source device.
1.
2. Connect the Receiver module to the display.
3. Connect a single strand multi-mode SC terminated optic fiber (50/125um) from the Transmitter to the Receiver module.
4.
Connect the included +5V DC power supply into the Receiver.
5. Green LED indicator on the modules will light up after all connections are completed.
6. OPTICAL FIBER HAZARD
P
•
ersons installing fiber
goggles and observing warning signs.
• To ensure that the required personnel and equipment is properly installed, secure from unnecessary failure of the
components or failure of the whole system, injury to one’s self and in addition to legal responsibility; everyone is
responsible for his own health
Keep exposed optical fiber ends away from skin and eyes.
•
• The waste fragments should be treated with care and not picked up with bare hands, but rather with special gloves.
• Dispose of waste in a suitable container via an approved agency. Make sure that the quantity of optical fiber waste is
minimized.
• Closures containing termination points for optical fiber cabling must be labeled with appropriate warning signs or clearly
visible text.
• Make sure that the quantity of optical fiber waste is minimized. Closures containing termination points for optical fiber
cabling must be labeled with appropriate warning signs or a clearly viewable text.
• There are four l aser Classifications based on risk levels. l aser manufacturers are required to label their lasers accordingly.
optic products must
take all necessary safety precautions, such as wearing protective clothing and
10
Page 14
www.avenview.com
Page
7.
GENERAL TROUBLESHOOTING
Problem Possible Solutions
Check if the PC power is on
•
• Check if connection to the computer and the monitor are correct.
NO IMAGE
LCD SCREEN DEFECTS APPEAR
Turn the PC power off and on again.
•
Please use DC adapter (5V, 2A) included in the
•
and receiver.
Check the resolution range of the LCD Screen.
•
• Check the maximum resolution range of the graphics card.
7.1 Trouble Shooting depending on LED indicator status
No display TX Solid / RX Blink
- Check if monitor is powered on
- Check if HDMI source is selected on monitor input setting
No display TX Blink / RX Solid
- Check if the PC and display are powered on and properly booted.
Check if optic fiber is connected properly.
-
No display TX Blink / RX Blink
- please make sure that power supply is connected into TX and RX.
- Reset the system by de-plugging and re-plugging all conections
package for transmitter
11
Page 15
www.avenview.com
Page
8. CAUTION
Do not put heavy object on top of the FO-HDM4K-200-EMIX. It may cause product malfunction.
1.
Put the product on even and stable location. If the product falls down or dropped, it may get damaged.
2.
Keep away from high temperature (over 50°C), low temperature (under 0°C) or high humidity. It may cause a fire and
3.
injury by electrical shock.
Use DC power adapter with correct specification. Otherwise it may cause fire.
4.
Use the multimode (50/125um) optical fiber.
5.
6. Do not view directly laser module of transmitter or the end of the other side of optical cable connected to transmitter
with optical instrument.
7. Do not twist or pull by force either ends of the optical cable. It can cause malfunction. Minimum bending diameter is
45mm
NOTE: Optical fiber cords of different types and specifications should not be mixed.
Please note the color-coding of connectors for different fiber specs to make it easy to avoid confusion
12
Page 16
www.avenview.com
Page
9. SPECIFICATIONS
ITEM DESCRIPTION
MODEL FO-HDM4K-200-EMIX-S FO-HDM4K-200-EMIX-R
UNIT DESCRIPTION
INPUT VIDEO PORT
INPUT RESOLUTION
OUTPUT VIDEO PORT
HDMI Extender Transmitter HDMI Extender Receiver
HDMI
Up to 4K (4096X2160) @ 60Hz
Optical
Up to 4K (4096X2160) @ 60Hz
Optical
HDMI
OUTPUT RESOLUTION
DIMESNIONS (L X W X H)
POWER SUPPLY
OPTICAL
OPTICAL SOURCE
O/E CONVERTER
FIBER
FIBER TYPE
ENVIRONMENTAL
OPERATING TEMPERATURE 32˚ ~ 104˚F (0˚ to 40˚C)
STORAGE TEMPERATURE -4˚ ~ 140˚F (-20˚ ~ 60˚C)
RELATIVE hUMIDITY 20~90% RH (no condensation)
Up to 4K (4096X2160) @ 60Hz
4.4" X 0.9" X 0.7"
5V 2A
850nm VCSEl
PIN Photo Diode
Multi-Mode optical fiber(SC Type Connector)
50/125 µm Multi-mode glass fiber OM2 or OM3 rated fiber
Up to 4K (4096X2160) @ 60Hz
4.4" X 0.9" X 0.7"
5V 2A
13
Page 17
www.avenview.com
Page
Notes
14
Page 18
www.avenview.com
Page
Notes
15
Page 19
Avenview Warranty Certificate
AVEN
VIEW CORP. (“Avenview”) warrants Avenview-branded product(s) contained in the original packaging against defects in materials and workmanship when used
normally in accordance with Avenview's enclosed manual guidelines for a period of THREE (3) YEARS from the date of original retail purchase - Warranty Period. Avenview’s
published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.
LABOR: During the Warranty Period of THREE (3) YEARS, Avenview will repair or replace the product(s) at no cost using new or used parts equivalent to novel performance
and reliability if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Labor applicable to product(s) after Warranty Period. For labor costs,
please contact [email protected].
PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if
the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact
To obtain Warranty: (a) proof of purchase in the form of a bill of sale or receipted invoice reflecting that the registered product(s) is within warranty period must be presented
to obtain warranty service; (b) product(s) must be registered at time of purchase. Failure to do so will result in applicable parts and labor charges. Returning product(s) must
be shipped in Avenview’s original packaging or in packaging pertaining equal degree of protection to Avenview’s. Both Avenview and purchaser are responsible for freight
charges and brokerages when shipping the product(s) to the receiver.
NOT COVERED BY THIS WARRANTY
This warranty does not apply to any non-Avenview branded product(s); non-registered Avenview product(s). This warranty does not apply: (a) to cosmetic damage, including
but not limited to scratches, dents and broken cords; (b) to damage caused by use with another product; (c) to damage caused by accident, abuse, misuse, liquid contact, fire,
earthquake or other external cause; (d) to damage caused by operating the Avenview product(s) outside Avenview’s manuals or guidelines; (e) to damage caused by service
performed by anyone who is not a representative of A venview or an Avenview authorized personnel; (f) to defects caused by normal wear and tear or otherwise due to the
normal aging of the Avenview product(s), or (g) if any serial number has been removed or defaced from the Avenview product(s).
AVENVIEW IS NOT LIABLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR
ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS;
LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATI ON; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIR ECT
OR CONSEQUENTIAL LOSS OR DAMAGE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER.
Some states do not allow the inclusion or limitation of incidental or consequential damages, or allow limitations on duration implements of the Warranty Period; therefore the above limitations or
exclusions may not be applicable to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
Woodward Avenue, Kenmore, NY 14217
275
1.866.508.0269
www.avenview.com
Page 20
Control Your Video...
TECHNICAL SUPPORT
USA Head Office
Office Avenview Corp.
275 Woodward Avenue
Kenmore, NY14217
Phone: +1.716.218.4100
Fax: +1.866.387-8764
Email: [email protected]
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of
Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this
documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages
in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design.
With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but
not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
Canada Sales
Avenview
151 Esna Park Drive, Units 11 & 12
Markham, Ontario, L3R3B1
Phone: 1.905.907.0525
Fax: 1.866.387.8764
Email: [email protected]
Avenview Europe
Avenview Europe
Demkaweg 11
3555 HW Utrecht
Netherlands
Phone: +31(0)85 2100 613
Email: [email protected]
Avenview Hong Kong
Unit 8, 6/f., Kwai Cheong Centre,
50 Kwai Cheong Road,
Kwai Chung, N.T.
Hong kong
Phone: 852.3575.9585
Email: [email protected]
Loading...
