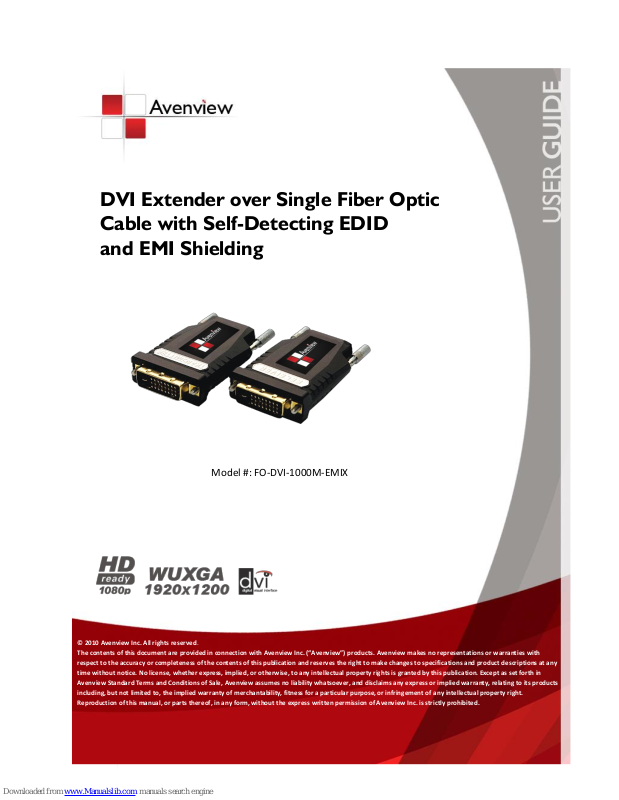

DVI Extender over Single Fiber Optic
Cable with Self-Detecting EDID
and EMI Shielding
Model #: FO-DVI-1000M-EMIX
© 2010 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any
time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in
Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products
including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.
Page 2
www.avenview.com
2
Table of Contents
Section 1: Getting Started ...................................................................................................................... 3
1.1 Important Safeguards ............................................................................................................ 3
1.2 Safety Instructions ................................................................................................................. 3
1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4
1.4 Introduction ........................................................................................................................... 4
1.5 Package Contents ................................................................................................................... 4
1.6 Before Installation.................................................................................................................. 4
1.7 Installation ............................................................................................................................. 5
1.8 Troubleshooting ..................................................................................................................... 5
1.9 Caution ................................................................................................................................... 6
Section 2: Specifications ......................................................................................................................... 7
2.1 Case Dimensions .......................................................................................................................... 8
2.2 Absolute Maximum Ratings ......................................................................................................... 9
2.3 Electrical Specifications ................................................................................................................ 9
2.3.1 Transmitter Module .............................................................................................................. 9
2.3.1 Receiver Module ................................................................................................................. 10
2.4 Signal Pin Assignment ................................................................................................................ 10
2.5Optical Fiber Cable ...................................................................................................................... 11
Page 3
www.avenview.com
3
Section 1: Getting Started
1.1 Important Safeguards
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover
Any product, on which the serial number has been defaced, modified or removed.
Damage, deterioration or malfunction resulting from:
Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
modification, or failure to follow instructions supplied with the product.
Repair or attempted repair by anyone not authorized by us.
Any damage of the product due to shipment.
Removal or installation of the product.
Causes external to the product, such as electric power fluctuation or failure.
Use of supplies or parts not meeting our specifications.
Normal wear and tear.
Any other causes which does not relate to a product defect.
Removal, installation, and set-up service charges.
1.2 Safety Instructions
The Avenview FO-DVI-1000M-EMIX, DVI Extender over Fiber Optic has been tested for conformity to safety
regulations and requirements, and has been certified for international use. However, like all electronic
equipment’s, the FO-DVI-1000M-EMIX should be used with care. Read the following safety instructions to
protect yourself from possible injury and to minimize the risk of damage to the unit.
Do not dismantle the housing or modify the module.
Dismantling the housing or modifying the module may result in electrical shock or burn.
Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or removing housing may expose you to
dangerous voltage or other hazards
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid
falls or spills on to the housing, unplug the module immediately.
Have the module checked by a qualified service engineer before using it again.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
Page 4
www.avenview.com
4
1.3 Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this
equipment.
1.4 Introduction
Avenview FO-DVI-1000M-EMIX DVI Extender over Fiber lets you extend digital flat panel signal up to 500
meters (1650 feet) at 1920 x 1200 and 1000 meters (3300 feet) at 1280 x 1024 away from host by TMDS digital
signal and EDID transmission with only 1 fiber.
- High Speed and long distance transmission by SC type Multi-Mode 1 fiber
- R, G, B, Clock signal is transmitted by 1 Multi-Mode optical Fiber
- EDID data is transmitted by 1 Multi-Mode optical Fiber
- Supports 12bit deep color
- Standard DVI plug and SC Fiber connector
- Supports up to WUXGA (1920 x 1200) resolution
- HDCP compliant
- Optional external power supply (Automatic Power switch is included)
1.5 Package Contents
Before you start the installation of FO-DVI-1000M-EMIX, please check the package contents.
- Transmitter x 1
- Receiver x 1
- Power Adapter (5VDC, 2A) x 1
User’s Manual x 1
1.6 Before Installation
Put the product in an even and stable location. If the product falls down or drops, it may cause an
injury or malfunction.
Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high
humidity.
Use the DC power adapter with correct specifications. If inappropriate power supply is used then it
may cause a fire.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Page 5
www.avenview.com
5
Problem
Possible Solution
No Image
Check if the PC Power is on
Check if connection to the computer and the monitor are
correct.
Turn the PC Power off and on again.
Screen Defects Appear
This product supports up to WUXGA resolution.
Check the maximum resolution range of the graphics card.
1.7 Installation
This product is composed of a Transmitter and a Receiver. The Transmitter should be connected to the
computer’s DVI Port and the Receiver should be connected the DVI Port of the digital display device.
Avenview FO-DVI-1000M-EMIX Transmitter / Receiver is designed to be used with SC type standard optical
cable (Multi-Mode optical fiber: 50/125, 62.5/125um).
Avenview FO-DVI-1000M-EMIX is designed to self-detect the resolution of the monitor and change the
resolution accordingly. Follow these steps for connecting to a device:
1. Power on your Display
2. Connect Transmitter to the DVI Source and Receiver to the Display.
3. Connect the optical fiber between Transmitter and Receiver.
4. Connect DC power to the Receiver
5. Restart the computer.
1.8 Troubleshooting
Page 6
www.avenview.com
6
1.9 Caution
1. Do not put heavy object on top of the FO-DVI-1000M-EMIX. It may cause product malfunction.
2. Put the product on even and stable location. If the product falls down or dropped, it may get
damaged.
3. Keep away from high temperature (over 50°C), low temperature (under 0°C) or high humidity. It may
cause a fire and injury by electrical shock.
4. Use DC power adapter with correct specification. Otherwise it may cause fire.
5. Do not twist or pull by force either ends of the optical cable. It can cause malfunction. Minimum
bending diameter is 75mm.
6. Use the multimode (50/125um, 62.5/125um) optical fiber.
Page 7
www.avenview.com
7
Section 2: Specifications
Item
Description
Units
FO-DVI-1000M-EMIX (Transmitter)
FO-DVI-1000M-EMIX (Receiver)
Unit Description
DVI Transmitter over Fiber Optic
DVI Receiver over Fiber
DVI Compliance
DVI 1.0
HDCP Compliance
HDCP 1.1
Video Bandwidth
2.25 Gbps Single Link
Supported Resolution &
Distance
WUXGA 1920 x 1200 @ 500 meters ( 1650 feet)
UXGA 1600 x 1200 @ 700 meters (2300 feet)
SXGA 1280 x 1024 @ 1000 meters (3300 feet)
Optical Converter
4 Ch 850 nm Transmit OSA
911nm, 1 Ch VCSEL
980nm, 1 Ch PIN P/D Diode
4 Ch 850 nm Transmit OSA
911nm, 1 Ch VCSEL
980nm, 1 Ch PIN P/D Diode
DVI Connector
24 pin DVI-D Plug
Optical Connector
1 SC Connector
Fiber Type
50/125 µm Multi-mode glass fiber
Power Consumption
1.0W (max)
0.75W (max)
Power Supply
100 ~ 240V 5V 2A DC
Dimensions (L x W x H)
2.4” x 1.5” x 0.6”
Environmental
Operating Temperature
32˚ ~ 104˚F (0˚ to 40˚C)
Storage Temperature
-4˚ ~ 140˚F (-20˚ ~ 60˚C)
Relative Humidity
20~90% RH (no condensation)
Page 8
www.avenview.com
8

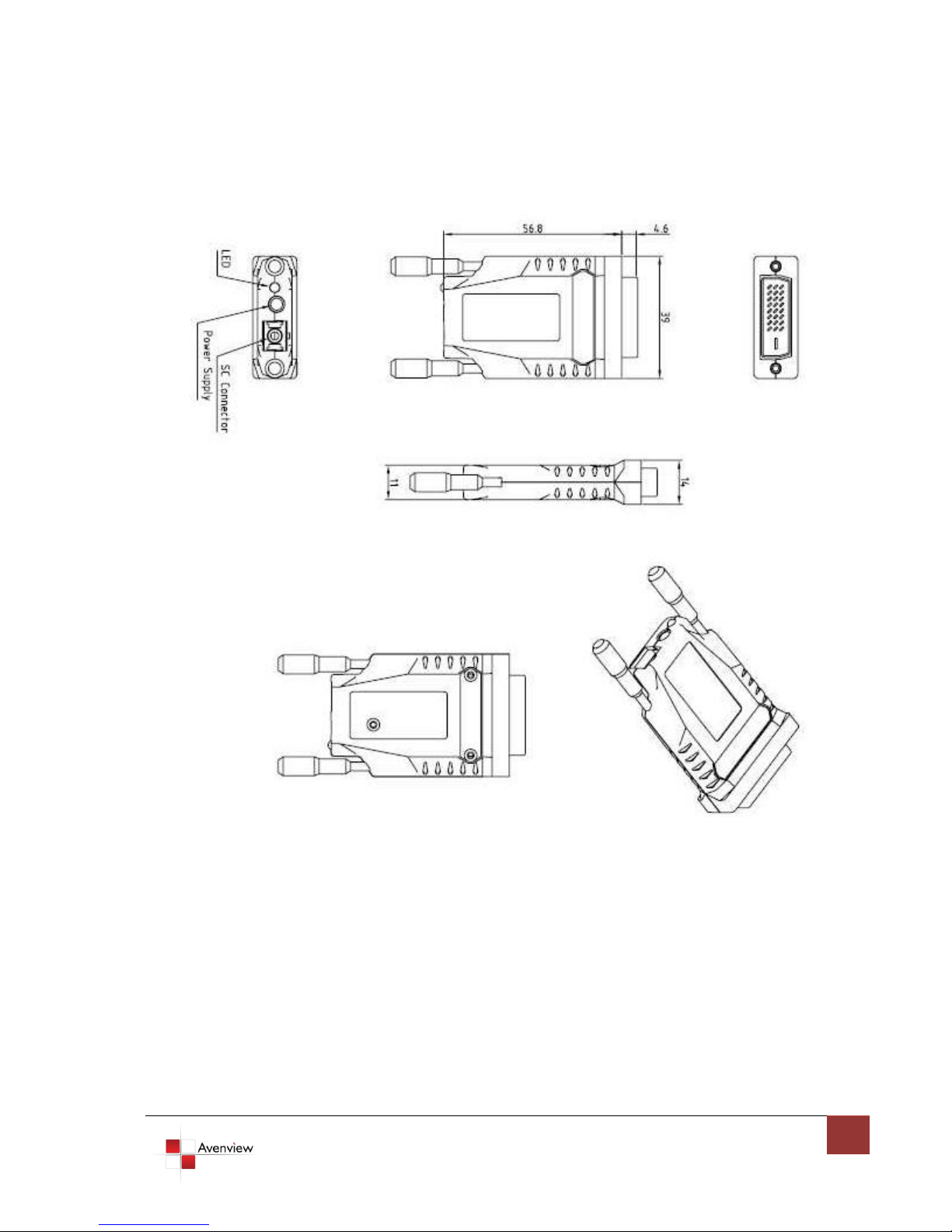

2.1 Case Dimensions
Page 9
www.avenview.com
9
2.2 Absolute Maximum Ratings
Parameter
Symbol
Minimum
Maximum
Units
Power Supply
VCC
-0.3
+5.5
V
Operating Temperature
VOT 0 +50
°C
Storage Temperature
VST
-20
+70
°C
Relative Humidity
HRH
10
80
RH
Parameter
Symbol
Min
Type
Max
Units
Power
Supply Voltage (Optional External
Power)
Vcc
4.5 5 5.5
V
Supply Current
Icc - 220
225
mA
Power Dissipation
Po - 1.1
1.24
W
TMDS
Reference Voltage for Graphic Signal
VREF
3.1
3.3
3.5
V
Signal ended High Level Input Voltage
VH
VREF -0.01
VREF +0.01
V
Signal ended Low Level Input Voltage
VL
VREF -0.6
VREF -0.4
V
Signal ended Input Swing Voltage
VISWING
0.4
0.6
V
Signal ended Standby Input Voltage
VREF -0.01
VREF +0.01
V
Data Output Load
RLD
50
Ω
Stresses greater than those listed under “Absolute Maximum Ratings” may cause
permanent damage to the device. This is a stress rating only and functional operation of
the device at these or any other conditions above those indicated in the operations section
for extended periods of time may affect reliability.
Transmitter module of Model DSP includes 4 channel VCSEL(Vertical Surface Emitting Laser
Diode) with 850nm, 911 nm invisible laser radiation.
2.3 Electrical Specifications
2.3.1 Transmitter Module
Page 10
www.avenview.com
10
2.3.1 Receiver Module
Parameter
Symbol
Min
Type
Max
Units
Power
Supply Voltage (External Power)
Vcc
4.5 5 5.5
V
Supply Current
Icc - 150
155
mA
Power Dissipation
Po
-
0.75
0.853
W
TMDS
Reference Voltage for Graphic Signal
VREF
3.1
3.3
3.5
V
Signal ended Input Swing Voltage
VOSWING
0.4
0.6
V
Data Input Load
RLD
50
Ω
Pin
Signal Assignment
Pin
Signal Assignment
Pin
Signal Assignment
1
T.M.D.S. Data2-
9
T.M.D.S. Data1-
17
T.M.D.S. Data0-
2
T.M.D.S. Data2+
10
T.M.D.S. Data1+
18
T.M.D.S. Data0+
3
T.M.D.S. Data2 Shield
11
T.M.D.S. Data1 Shield
19
T.M.D.S. Data0 Shield
4
No Connect
12
No Connect
20
No Connect
5
No Connect
13
No Connect
21
No Connect
6
DDC Clock (SCL)
14
+5V Power
22
T.M.D.S. Clock Shield
7
DDC Data (SDA)
15
Ground (for +5V)
23
T.M.D.S. Clock+
8
No Connect
16
Hot Plug Detect
24
T.M.D.S. Clock-
2.4 Signal Pin Assignment
Transmitter / Receiver
Page 11
www.avenview.com
11

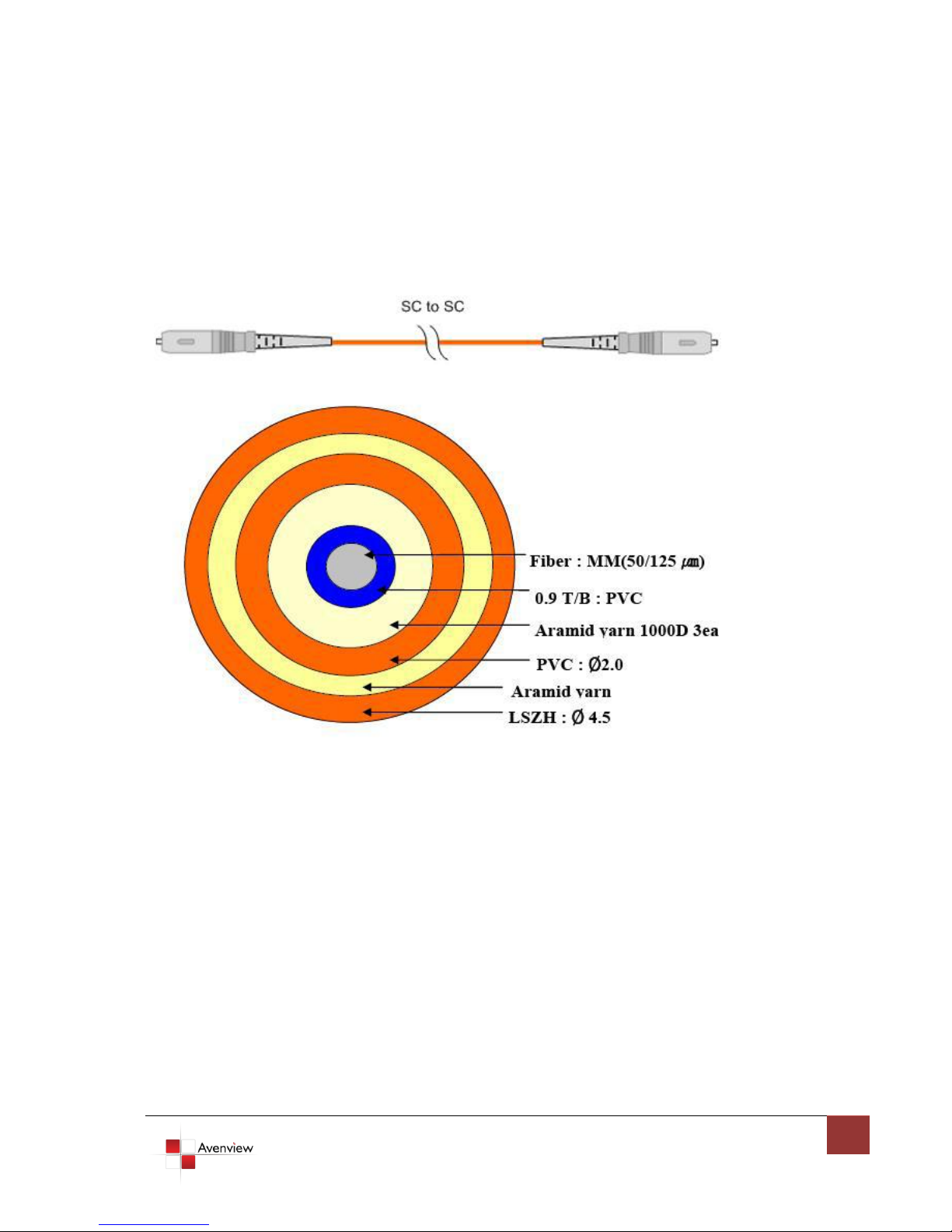

2.5Optical Fiber Cable
The construction of 4 Optical Fibers and 4 Copper wires cable shall be in accordance with Figure and
Table below:
Page 12
www.avenview.com
12
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the
operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of
Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of
anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the
Avenview hardware, software, or other products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,
function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties
regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and
non-infringement.
Loading...
