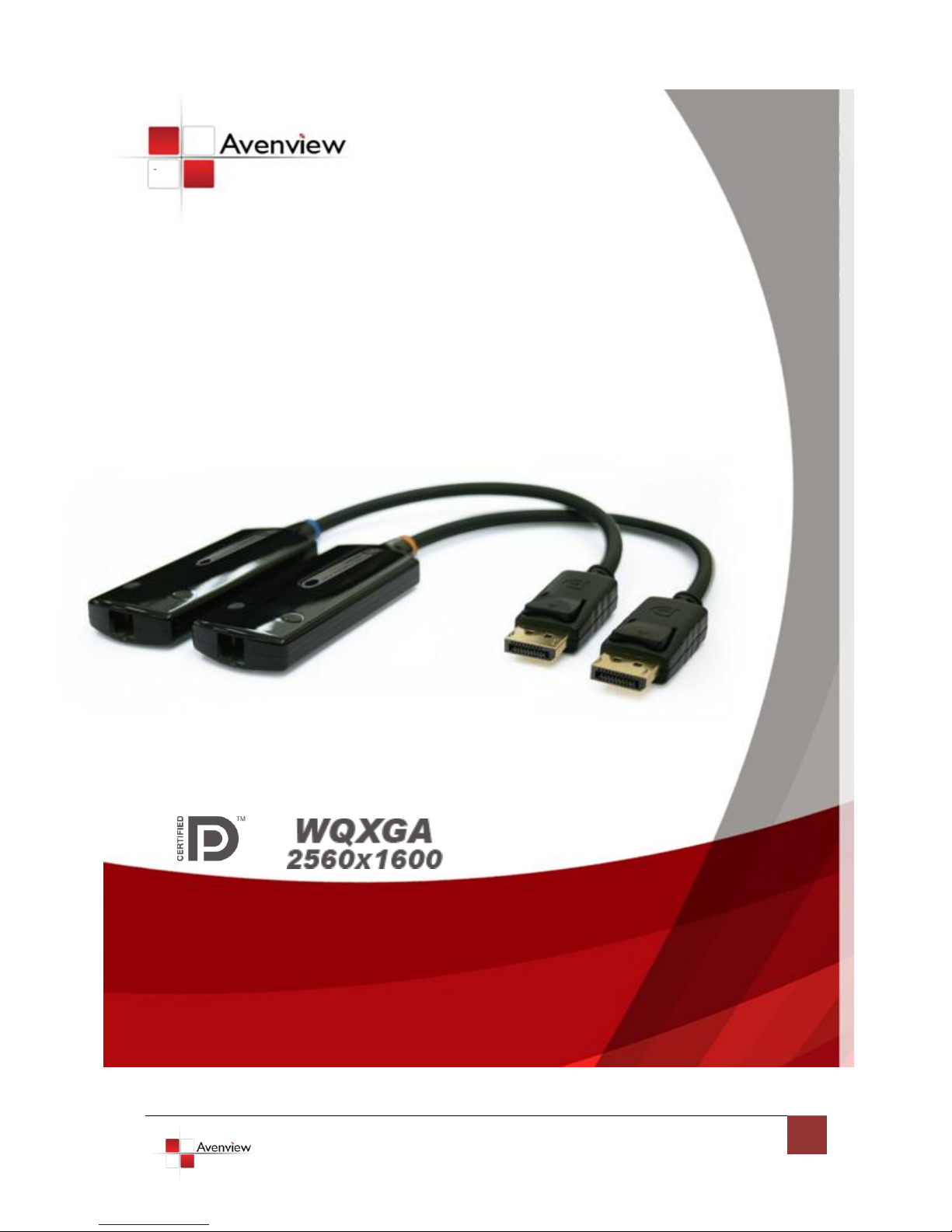

DisplayPort Extender over Single
SC Fiber Optic Cable
Model #: FO-DP-300-EMI
© 2011 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties
with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product
descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property right s is granted by this
publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express
or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or
infringement of any intellectual property right. Reproducti on of this manual, or parts thereof, in any form, without the express written permission of
Avenview Inc. is strictly prohibited.
Page 2
www.avenview.com
2
Table of Contents
Section 1: Getting Started ...................................................................................................................... 3
1.1 Important Safeguards ............................................................................................................ 3
1.2 Safety Instructions ................................................................................................................. 3
1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4
1.4 Introduction ........................................................................................................................... 4
1.5 Package Contents ................................................................................................................... 4
1.6 Before Installation.................................................................................................................. 4
1.7 Installation ............................................................................................................................. 5
1.8 Troubleshooting ..................................................................................................................... 6
1.9 Caution ................................................................................................................................... 6
Section 2: Specification .......................................................................................................................... 7
2.1: Display Port Pin Assignment ........................................................................................................... 8
Page 3
www.avenview.com
3
Section 1: Getting Started
1.1 Important Safeguards
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover
Any product, on which the serial number has been defaced, modified or removed.
Damage, deterioration or malfunction resulting from:
Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
modification, or failure to follow instructions supplied with the product.
Repair or attempted repair by anyone not authorized by us.
Any damage of the product due to shipment.
Removal or installation of the product.
Causes external to the product, such as electric power fluctuation or failure.
Use of supplies or parts not meeting our specifications.
Normal wear and tear.
Any other causes which does not relate to a product defect.
Removal, installation, and set-up service charges.
1.2 Safety Instructions
The Avenview FO-DP-300M-EMI, Display Port Extender over Fiber Optic has been tested for conformity
to safety regulations and requirements, and has been certified for international use. However, like all
electronic equipment’s, the FO-DP-300M-EMI should be used with care. Read the following safety
instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
Do not dismantle the housing or modify the module.
Dismantling the housing or modifying the module may result in electrical shock or burn.
Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or removing housing may expose you to
dangerous voltage or other hazards
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or
liquid falls or spills on to the housing, unplug the module immediately.
Have the module checked by a qualified service engineer before using it again.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
Do not view directly into the laser module of transmitter or the end of the other side of optical
cable connected to transmitter with an optical instrument.
Page 4
www.avenview.com
4
1.3 Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this
equipment.
1.4 Introduction
FO-DP-300M-EMI, Optical DISPLAY PORT extension module,
This unique fiber optical transceiver let your display device extend up to 300 meters (1000ft) away from
host based on Display Port standard without signal degradation at WQXGA (2560X1600) resolution.
High Speed and long distance transmission by optical system
Compatible with Display Port standard V1.1a
Main-link video signal / AUX data and Hot Plug Detection signal is transmitted by 1ch
multi-mode fiber
DPCD compliant (No support HDCP mode)
External Power supply
1.5 Package Contents
Before you start the installation of FO-DP-300M-EMI, please check the package contents.
- Transmitter x 1
- Receiver x 1
- Power Adapter (5VDC, 2A) x 1
User’s Manual x 1
1.6 Before Installation
Put the product in an even and stable location. If the product falls down or drops, it may cause
an injury or malfunction.
Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C)
or high humidity.
Use the DC power adapter with correct specifications. If inappropriate power supply is used
then it may cause a fire.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Page 5
www.avenview.com
5

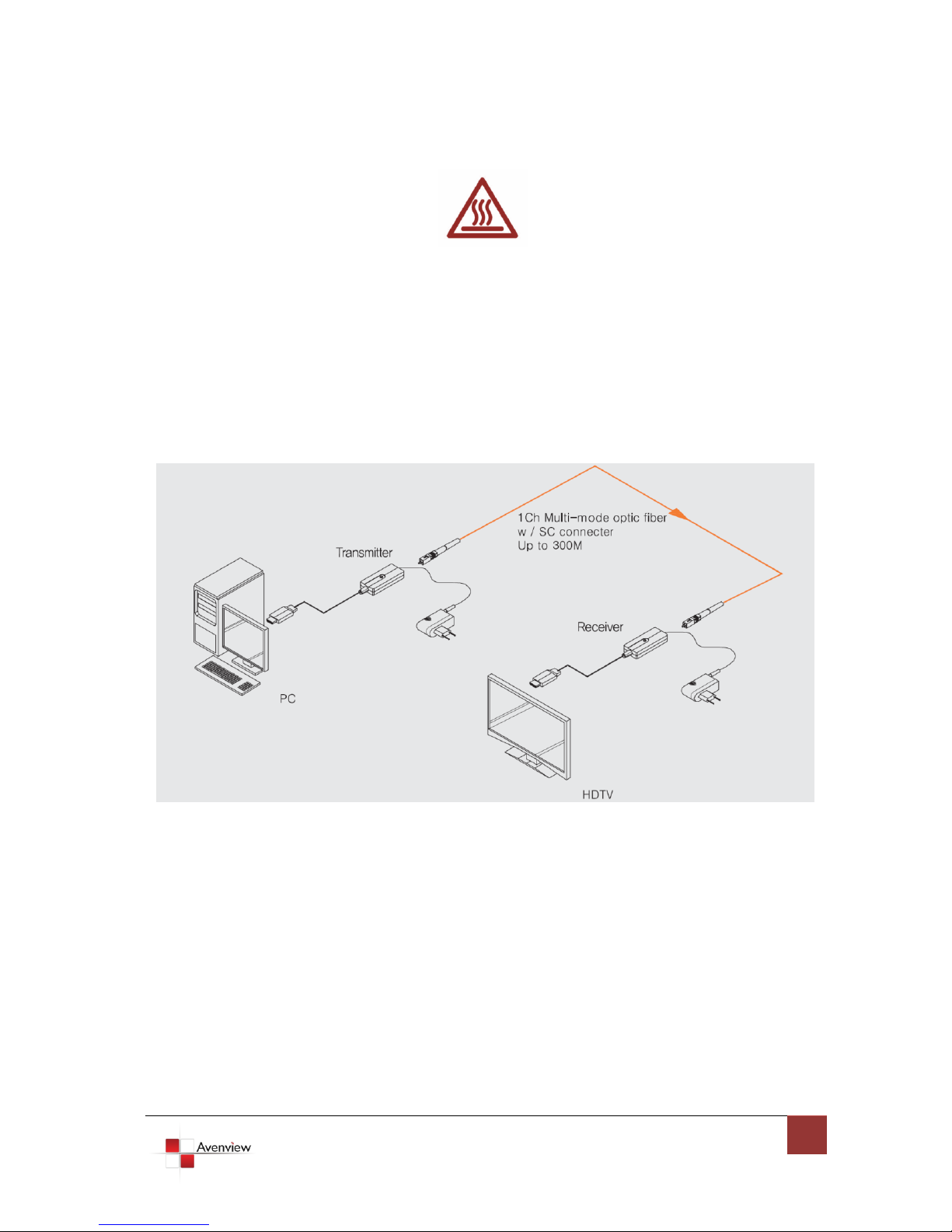

1.7 Installation
This product is composed of a Transmitter and a Receiver.
The Transmitter should be connected to the source (Computer’s DISPLAY PORT ) and the Receiver
should be connected the DISPLAY PORT of the digital display device (Monitor). Avenview
FO-DP-300M-EMI Transmitter / Receiver is designed to be used with SC type standard optical cable
(Multi-Mode optical fiber: 50/125, 62.5/125um). Connect Multi-mode SC connector type 1 channel
standard fiber optic cable between transmitter and receiver. Connect power adapters (or USB power
cable) to both of transmitter and receiver module.
Page 6
www.avenview.com
6
1.8 Troubleshooting
General Troubleshooting
Problem
Possible Solution
No Image
Check if the PC Power is on
Check if connection to the computer and the monitor
are correct.
Turn the PC Power off and on again.
Please use DC adapter (5V, 2A) included in the package
for transmitter and receiver.
LCD Screen Defects Appear
This product supports up to WUXGA resolution.
Check the maximum resolution range of the graphics
card.
1.9 Caution
1. Do not put heavy object on top of the FO-DP-300M-EMI. It may cause product malfunction.
2. Put the product on even and stable location. If the product falls down or dropped, it may get
damaged.
3. Keep away from high temperature (over 50°C), low temperature (under 0°C) or high humidity.
It may cause a fire and injury by electrical shock.
4. Use DC power adapter with correct specification. Otherwise it may cause fire.
5. Use the multimode (50/125um) optical fiber.
6. Do not view directly laser module of transmitter or the end of the other side of optical cable
connected to transmitter with optical instrument.
7. Do not twist or pull by force either ends of the optical cable. It can cause malfunction.
Minimum bending diameter is 45mm
Page 7
www.avenview.com
7
Section 2: Specification
Item
Description
Units
FO-DP-300-EMI (Transmitter)
FO-DP-300-EMI (Receiver)
Unit Description
DisplayPort Extender Transmitter
DisplayPort Extender Receiver
Input Signal
DisplayPort Signal v1.1a
Output Signal
DisplayPort Signal v1.1a
Video Bandwidth
3.5Gbps / Channel
Supported Resolution &
Distance *
WQXGA 2560 x 1600 @ 300 meters (1000 feet)
Electrical Connector
20 Pin DisplayPort Plug
Dimensions (L x W x H)*
2.91” x 1.30” x 0.45”
Power Supply
5V 2A DC
Power Consumption
1.5W (max)
Optical
Optical Source
850nm VCSEL
O/E Converter
PIN Photo Diode
Fiber
Multi-Mode optical Fiber(SC Type Connector)
Fiber Type
50/125 µm Multi-mode glass fiber OM2 or OM3 rated fiber
Environmental
Operating Temperature
32˚ ~ 104˚F (0˚ to 40˚C)
Storage Temperature
-4˚ ~ 140˚F (-20˚ ~ 60˚C)
Relative Humidity
20~90% RH (no condensation)
Page 8
www.avenview.com
8

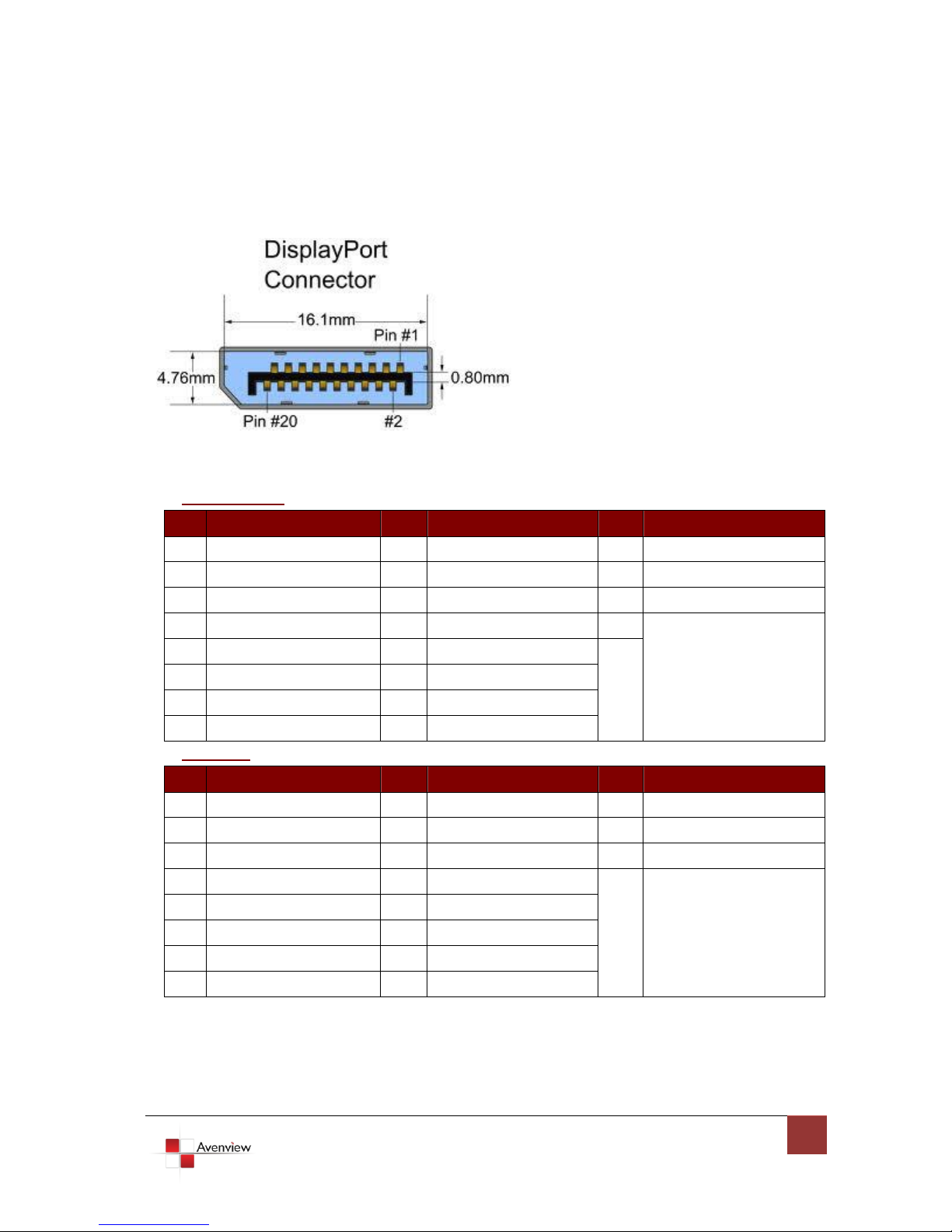

2.1: Display Port Pin Assignment
Pin
Signal Assignment
Pin
Signal Assignment
Pin
Signal Assignment
1
Main Link Lane 0+
9
Main Link Lane2-
17
Auxiliary Channel -
2
Ground
10
Main Link Lane 3+
18
Hot Plug Detect
3
Main Link Lane 0-
11
Ground
19
Return
4
Main Link Lane 1+
12
Main Link Lane 3-
20
Connector Power
(3.3V,500mA)
5
Ground
13
Configuration 1
6
Main Link Lane 1-
14
Configuration 2
7
Main Link Lane 2+
15
Auxiliary Channel +
8
Ground
16
Ground
Pin
Signal Assignment
Pin
Signal Assignment
Pin
Signal Assignment
1
Main Link Lane 0+
9
Main Link Lane2-
17
Auxiliary Channel -
2
Ground
10
Main Link Lane 3+
18
Hot Plug Detect
3
Main Link Lane 0-
11
Ground
19
Return
4
Main Link Lane 1+
12
Main Link Lane 3-
20
Connector Power
(3.3V,500mA)
5
Ground
13
Configuration 1
6
Main Link Lane 1-
14
Configuration 2
7
Main Link Lane 2+
15
Auxiliary Channel +
8
Ground
16
Ground
TRANSMITTER
RECEIVER
