Avent EXPRESS MICRO STERILISER MKI User Manual

1)

b

a

a

c

b

d

2)

3)

A

AVENT®, Suffolk, CO10 7QS, England

Tel. [phone] Fax. [phone]

83 0081 0421 #1

C

200 ml

B

D

E

F

E

F

UK: See Table A
F: Voir tableaux A
D: Siehe Tabellen A
NL: Zie tabel A
S: Se diagram A
N: Se fig. A

Please read instructions before use and
retain for future reference.

The AVENT Express Microwave Steam
Steriliser uses the speed and convenience
of your microwave to sterilise baby feeding
equipment in minutes. As well as AVENT
breast and bottle feeding accessories, you
can sterilise any other items that are suitable
for microwave use and can be boiled. If in
doubt please contact the manufacturer.

• WARNING – FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY CAUSE DAMAGE
TO THIS PRODUCT AND/ OR YOUR
MICROWAVE.

• Always add 200ml of water before

each use.

• Do not use bleach or chemical sterilising
solutions/tablets in this steriliser or on
products to be sterilised.

• In combination ovens, ensure grill is
switched off and has cooled before use.

• Always follow loading instructions and
do not overload.

• Always allow at least 2 minutes cooling
time before removing from the microwave.

• When taking the Steriliser out of the
microwave, TAKE CARE – it will still be hot.

• Take care when removing lid as steam
will escape.

• Do not carry steriliser using lid handle.

• Always keep out of reach of small children.

Contents (see diagram A)

1) Lid

a – Lid handle
b – Side catches for transport

2) Bottle/Accessories Rack

a – Central Stem
b – ISIS Breast Pump slots
c – Dome cap holders
d – Crescent shaped holes

3) Base

Before each use (See diagram B)

• Wash all items in mild soapy water and

rinse thoroughly in unsoftened water.

• Remove rack and pour 200ml of water
into the reservoir.

• Put the rack back into the base.

When loading the Steriliser, always ensure
the items are positioned to allow effective
circulation of steam.

To load up to four 125ml or 260ml AVENT
Bottles (See diagram C)

• Place the inverted bottles around the rack’s

central stem.

• Place teats around the edge and slot dome

caps above the teats.

• Place screw rings on their side in between

the dome caps.

To load 2 x 330ml AVENT bottles
(See diagram D)

• Push the inverted bottles into the rack’s

crescent shaped holes so that they are
supported at an angle.

• Arrange the screw rings, teats and dome

caps around the edge.

To load one VIA Feeding System and three
VIA cups & lids (See diagram E)

• Place screw ring over the rack’s central

stem.

• Place the inverted VIA cups around

the rack’s central stem.

• Place teat on the rack edge and

slot the dome caps above the teat.

• Place VIA adaptor and lids on their sides

around the rack edge.

To load the AVENT ISIS Breast Pump
(See diagram F)

• Click the ISIS breast pump body into one

of the ISIS slots provided.

• Arrange the other breast pump and bottle

or VIA components in the rack as shown.

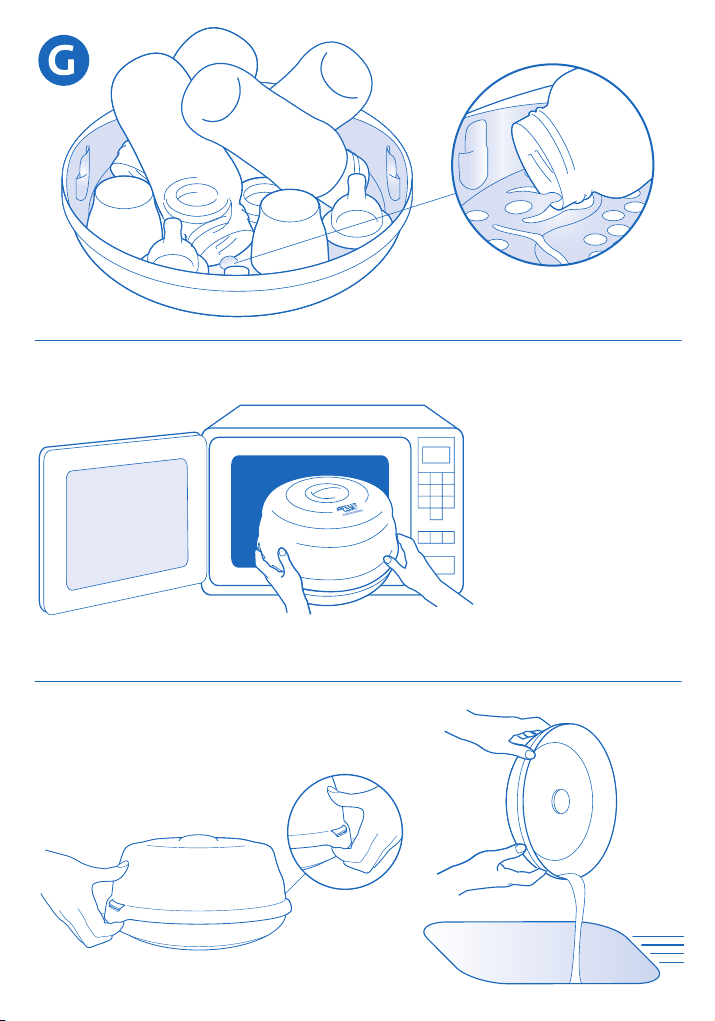

To load up to four narrow neck bottles
(See diagram G)

• Arrange the screw rings around the

rack’s central stem.

• Push the inverted bottles into the rack’s

crescent shaped holes so that they are
supported at an angle.

• Arrange teats, dome caps and sealing

discs around the edge.

AVENT Express Microwave Steam Steriliser

UK

To load other feeding items

• When sterilising other feeding items simply

arrange the components within the rack
ensuring that steam can effectively
circulate in and around all surfaces.

To sterilise

• CHECK THAT YOU HAVE ADDED 200ML OF
WATER. Failure to add enough water may

cause damage to this product and/or your
microwave. Adding too much water may
mean your items are not properly sterilised.

• Clip the lid on using the side catches and
place into microwave.

• See TABLE A for microwave wattage
and timings.

• Do not exceed these times.

• IMPORTANT: WAIT AT LEAST TWO MINUTES
BEFORE REMOVING STERILISER FROM
MICROWAVE. This will complete the
sterilisation cycle and allow the unit to
cool slightly.

• After the unit has cooled, the lid can

be easily removed by unclipping the
side catches one at a time.

• After each cycle, drain the excess water

from the unit and rinse to prevent the
build up of limescale.

• Items will remain sterile in the Steriliser

for up to three hours providing the lid is
not removed.

• The AVENT Express Microwave Steriliser

is dishwasher safe.

Some products featured may not be available in all
countries. Please contact AVENT to check availability.

AVENT® is here to help
Freephone: 0800 289064 (UK ONLY)

1800 509 021 (IRL ONLY)
1 300 364 474 (AUSTRALIA NATIONAL)
[phone] (AUSTRALIA NSW ONLY)

E-mail: [e-mail]
write: AVENT, Suffolk, CO10 7QS, England
www.avent.com

For microwaves between 500 – 1850W

UK

ALWAYS ADD 200ML OF WATER

WATTAGE FULL POWER COOLING TIME

1100 – 1850W

850 – 1000W

500 – 800W

4 mins
5 mins
8 mins

2 mins
2 mins
2 mins

TABLE A
