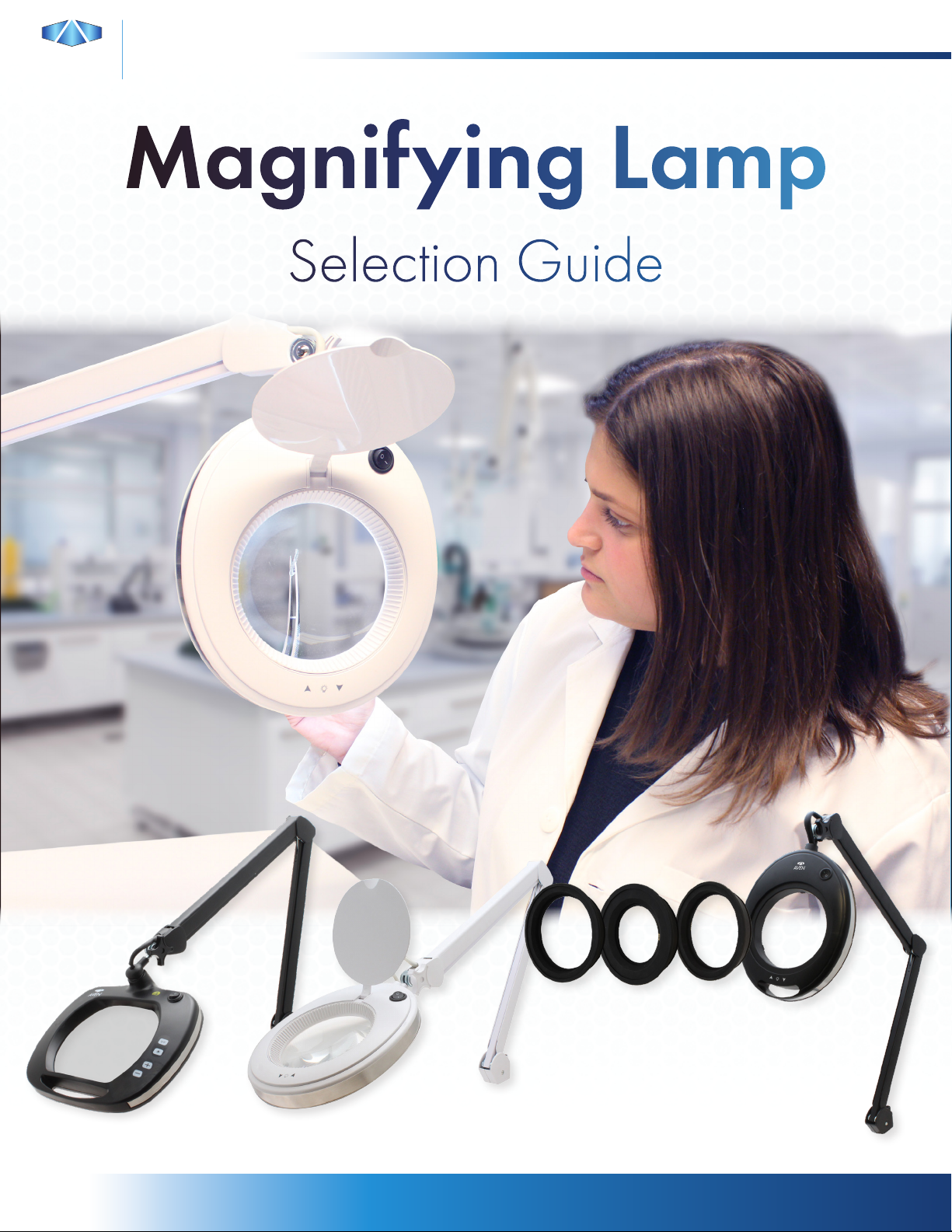

Magnifying Lamp

Selection Guide

aventools.com | [e-mail] | 734.973.0099

Tools for

Advancing

AVEN

Innovation

A Closer Vue

Selecting the Right Mag Lamp

Diopter/Magnification

Diopter refers to the curvature of the magnifying lens. The larger the
diopter, the thicker the lens and the higher the magnification. However,
with greater magnification comes decreased working distance and a
smaller field of view.

To find the magnification of a given lens, divide its diopter by 4 and add 1:
for example, Aven’s Pro Vue SuperSlim Magnifying 8 Diopter lamp offers
3x magnification because 8 diopter/4 + 1 = 3x magnification.

Working Distance/Focal Length

Working distance or focal length is the distance from the lens that’s needed
to keep the object in focus. The larger the magnification power of a lens,
the closer the lens must be to an object to keep it in focus. Consequently,
higher magnification will result in a smaller area for operators to work with
under the lens.

5 Diopter Lens 8 Diopter Lens

Field of View

This is the size of the magnified area in focus under the lens – the higher
the magnification, the smaller the field of view. Field of view is like zooming
in/out on an online map where you can choose to either see all of the
side streets in a few city blocks (low field of view) or look at an entire city
without all of the smaller details (higher field of view).

ESD Safe

An ESD safe tool is one that has been treated to prevent the buildup and
discharge of static electricity. Mag lamps are made ESD safe in various
ways, including applying special polymers to their lenses and constructing
them of non-reactive materials like aluminum. ESD safety is an important
consideration for users who are working with any electrical component,
from circuitry to computer chips.

Tools for

Advancing

AVEN

Innovation

The Aven Advantage

Superior Components for a Superior Vue

Enclosed Arms

An enclosed arm means no partially or fully exposed
springs which eliminates pinching hazards and protects
the arm’s mechanisms from damage. Aven magnifying
lamps are designed to allow users to lock the lamp
in any position, adding flexibility to any task or work
bench.

Crystal-Clear Glass Lenses

SMD LED Illumination

All Aven LED magnifying lamps come equipped with
surface-mounted LED circuit boards. Ultra-bright,
shadow-free illumination, rated to provide high-output
performance over a minimum of 20,000+ hours of use.

Beautifully Crafted Designs

Aven’s magnifying lamps now feature a 3-year warranty. This extended warranty reaffirms Aven’s commitment to providing the industry with
the highest quality magnifying lamp products at competitive prices. To Learn more about Aven’s warranty visit aventools.com/warranty

While some economy model magnifying lamps feature
a cost-savings plastic lens, all Aven lamps feature high
quality glass lenses for distortion-free viewing. Our
product line features 8-diopter, 5-diopter and 3-diopter
options to suit the needs of various magnification and
working distance needs.

3-Year Warranty

aventools.com | [e-mail] | 734.973.0099

In addition to high quality optics, illumination, and build
quality, Aven’s magnifying lamps were also designed
to look distinctive. These sleek designs are exclusive to
Aven and set us apart from the competition!

Aven Magnifying Lamps

Tools for

AVEN

Mighty Vue Pro

Control your Vue with the Mighty Vue Pro line of
magnifying lamps. Two lamps feature exclusive brightness
+ color temperature capabilities and our newest Mighty
Vue Pro UV features 48 white adjustable LEDs and a UV
LED option. Aven’s Mighty Vue Pro series of magnifying
lamps are some of the most advanced magnifying lamps
available!

Models

26505-ESL-XL5 - 5-Diopter Magnifying Lamp w/ Color
Temperature Controls | ESD Safe (Black)
26505-ESL-XL5-UV - 5-Diopter Magnifying Lamp w/ UV &
White LEDs | ESD Safe (Black)
26505-LED-XL3 - 3-Diopter Magnifying Lamp (White)

Advancing
Innovation

In-X

Aven’s In-X redefines what is possible with a magnifying
lamp. This cutting edge lamp is designed to greatly
expand the magnification range beyond what a standard
magnifying lamp can offer by accommodating multiple
lenses. The exclusive lenses are housed in a rubberized
ring, designed for easy lens exchange. Includes a crystal­clear 5 diopter glass lens (2.25x magnification).

Models

26501-LED-INX - In-X Interchangeable Magnifying Lamp w/ 5
Diopter Lens
26501-LED-INX-8D - In-X Interchangeable Magnifying Lamp 8
Diopter Bundled w/ a 5 Diopter Lens
26501-LED-INX-12D - In-X Interchangeable Magnifying Lamp
12 Diopter Bundled w/ a 5 Diopter Lens
26501-LED-INX-15D - In-X Interchangeable Magnifying Lamp
15 Diopter Bundled w/ a 5 Diopter Lens

ProVue Solas

Aven’s ProVue Solas magnifying lamps offer the flexibility
of using an interchangeable lens. This lamp features 60
ultra bright SMD LEDs with brightness controls, a fully
enclosed spring-balanced arm, protective lens cover, and
a heavy-duty table clamp.

White

LEDs

Warm

LEDs

UV

LEDs

White

LEDs

26501-XL35 - ProVue Solas Magnifying Lamp XL35 w/
Interchangeable 5 Diopter Lens
26501-XL58 - ProVue Solas Magnifying Lamp XL58 w/
Interchangeable 8 Diopter Lens

Models

Magnifying Lamps Continued...

Tools for

AVEN

Deluxe Series

Aven’s Deluxe Series magnifying lamps are beautifully
crafted and built to last a lifetime. Durable aluminum
construction, multiple locking joints, and spring-free
friction arms. Aven’s Deluxe Series lamps also feature dual
temperature brightness intensity controls with 36 ultra­bright energy-efficient white LEDs and 36 Amber LEDs for
shadow-free illumination.

Model

26501-LFL-LED - ProVue Deluxe Magnifying Lamp 5 Diopter
w/ White & Amber LEDs

Advancing
Innovation

ProVue SuperSlim

The innovative ProVue SuperSlim is a durable and
powerful magnifying lamp. Featuring 60 energy-efficient
LED Lights for bright, shadow-free illumination for your
work bench.

Models

26501-LED - ProVue SuperSlim LED Magnifying Lamp
5 Diopter Lens
26501-LED-8D - ProVue SuperSlim LED Magnifying Lamp
8 Diopter Lens

Mighty Vue Slim

Aven’s Mighty Vue Slim magnifying lamps feature 60
energy-saving SMD LEDs and an adjustable tension
knob that keeps the lamp set in any position. This lamp
also features a 4x6 inch 5-diopter rectangular glass lens,
rotatable lamp head, protective lens cover, and brightness
intensity controls.

26505-MX5 - Mighty Vue Slim 5 Diopter LED Magnifying Lamp

Model

aventools.com | [e-mail] | 734.973.0099

Tools for

Advancing

AVEN

Innovation

Mighty Vue Inspector

Mighty Vue Inspector

The Mighty Vue Inspector is a magnifying lamp and camera inspection system in one self-contained unit, allowing you to view the image
directly on an HDMI monitor, capture images on the included microSD Card, and even connect to your PC for viewing or relocating saved
images, and additional software features.

Models

26510-CAM - Mighty Vue Inspector 3 Diopter Magnifying Lamp w/ Built-in Camera (White)
26512-CAM - Mighty Vue Inspector 5 Diopter Magnifying Lamp w/ Built-in Camera | ESD Safe (Black)

item # 26510-CAM item # 26512-CAM

Tools for

Advancing

AVEN

Innovation

Magnifying Lamp Table

Product # Diopter Lens Size Magnification

26501-LED-INX

IN-X

26501-LED-INX-8D

IN-X Bundle

26501-LED-INX-12D

IN-X Bundle

26501-LED-INX-15D

IN-X Bundle

26501-XL35

ProVue Solas

26501-XL58

ProVue Solas

26501-LED

ProVue SuperSlim

26501-LED-8D

ProVue SuperSlim 8 Diopter

26501-LFL-LED

ProVue Deluxe

26505-ESL-XL5

Mighty Vue Pro 5 Diopter

5 5” Round 2.25x 8” 6500K 64 LEDs

8 & 5 5” Round 3x 5” 6500K 64 LEDs

12 & 5 3.75” Round 4x 3.5” 6500K 64 LEDs

15 & 5 3.75” Round 4.75x 1” 6500K 64 LEDs

5 5” Round 2.25x 8” 6500K 60 SMD LEDs

8 5” Round 3x 5” 6500K 60 SMD LEDs

5 5” Round 2.25x 8” 6500K 60 SMD LEDs

8 5” Round 3x 5” 6500K 60 SMD LEDs

5 5” Round 2.25x 8”

5 7.5” x 6.2” 2.25x 8”

26505-ESL-XL5-UV

Mighty Vue Pro 5 Diopter w/ UV &

White LEDs

26505-ESL-XL3

Mighty Vue Pro 3 Diopter

26505-MX5

Mighty Vue Slim

26507-XL5

OptiVue Desk Lamp

5 7.5” x 6.2” 2.25x 8”

3 7.5” x 6.2” 1.75x 13 ”

5 4” x 6” 2.25x 8” 6500K 60 SMD LEDs

5 4” Round 2.25x 8” 6500K 60 SMD LEDs

26510-CAM

Mighty Vue Inspector 3 Diopter w/

Built in Camera

3 7.5” x 6.2” 1.75x 13 ”

26512-CAM

Mighty Vue Inspector 5 Diopter w/

Built in Camera

5 7.5” x 6.2” 2.25x 8”

Working
Distance

Color
Temp

3500K -

6500K

3500K/

6500K

6500K/

400nm

3500K/

6500K

3500K/

6500K

3500K/

6500K

ESD

Safe









Lighting

36 White LEDs
36 Warm LEDs

30 White LEDs
30 Warm LEDs

48 Adjustable White LEDs

30 UV LEDs

30 White LEDs
30 Warm LEDs

30 White LEDs
30 Warm LEDs

30 White LEDs
30 Warm LEDs

aventools.com | [e-mail] | 734.973.0099
